Diver-based Control of a Tethered Unmanned Underwater Vehicle

Andrew Speers and Michael Jenkin

Computer Science and Engineering, York University, Toronto, Canada

Keywords:

Underwater Robotics, Human-robot Communication.

Abstract:

Human-robot communication with an underwater vehicle is a complex problem. Standard wireless commu-

nication protocols are unavailable, and the lack of direct supervision from surface-based operators reduces

situational awareness and operational efﬁciencies. Here we describe recent research results with tethered op-

eration of autonomous vehicles at depth by diving operators. We review different operational designs and

describe a novel system based on exploiting advances in lightweight computational platforms (tablet devices)

as the basis of the operator control console. Recent ﬁeld experiments are also described.

1 INTRODUCTION

Effectivehuman-robotcommunication is essential ev-

erywhere, and nowhere is that more the case than

when communicating with robots that operate un-

derwater. The underwater environment places lim-

its on communication infrastructure and at the same

time the dangerous nature of the environment means

that even simple errors in autonomous operation can

lead to the complete loss of the vehicle. Given this,

the development of effective communication strate-

gies for unmanned underwater vehicles (UUVs) is

critical. Unfortunately not only does the underwa-

ter environment require effective communication be-

tween a robot and its operator(s), it also places sub-

stantive constraints on the ways in which this com-

munication can take place. The water column restricts

many common communication approaches and even

systems that might be appropriate for underwater use

such as ultrasound tend to have low bandwidth and

high power consumption. As a consequence the phys-

ical tether has emerged as a common communication

conduit for human-robot communication underwater.

The most common way of structuring human-

robot communication for autonomous underwater ve-

hicles is from a surface controller via a physical tether

to an underwater vessel that is not directly visible to

the operator (see (Nokin, 1994), (Lee et al., 2000),

(Aoki et al., 1997) and Figure 1). While such an ap-

proach can provide for excellent communication be-

tween the operator and the device as well as providing

a conduit for power and vehicle recovery if necessary,

a tether, and in particular a surface-based tether also

presents several problems. The operator is typically

located in some safe, dry location (as shown in Fig-

ure 1(a)). The operator has no direct view of the au-

tonomous vehicle. Furthermore it is typically the case

that the operator’s only “view” of the operational en-

vironment is via sensors mounted on-board the plat-

form. As a consequence the operator tends to have

very poor situational awareness.

The actual UUV operator is, of course, not the

only human involved in controlling an underwater ve-

hicle. Although a tether provides a number of advan-

tages, at the end of the day it is a tether that must

be properly managed. Different deployments neces-

sitate different tether strategies but personnel must be

deployed in order to deal with the tether. Figure 1(b)

illustrates the complexity of this problem for the shore

deploymentof an underwatersensor package. A num-

ber of personnel are engaged in the task and the abil-

ity of the various personnel to communicate among

each other effectively is key to successful UUV de-

ployment.

The vast majority of UUVs operate on their own.

In contrast, the AQUA platform (Dudek et al., 2005)

(see Figure 2) is a UUV that is designed to operate

with humans in close proximity. This property gener-

ates a number of interesting constraints and opportu-

nities with respect to operating the robot with a tether.

In order to ensure that the robot operates safely in the

presence of other humans (divers) in the environment

it is desirable to place the human operator underwa-

ter, rather than on the surface as depicted in Figure 1.

When operated in this conﬁguration the operator has

an enhanced view of the work-site as well as any other

200

Speers A. and Jenkin M..

Diver-based Control of a Tethered Unmanned Underwater Vehicle.

DOI: 10.5220/0004457102000206

In Proceedings of the 10th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2013), pages 200-206

ISBN: 978-989-8565-71-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

(a) (b)

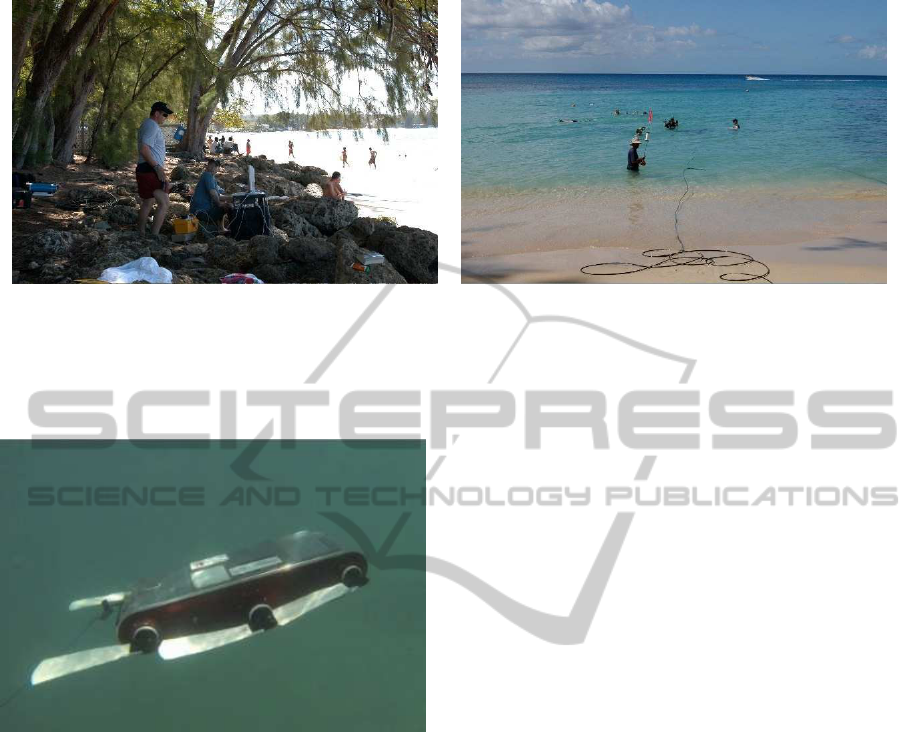

Figure 1: The realities of surface-based tethering. Here surface-based operators (a) communicate with a submerged device

(b) through a tether. Note that the operators do not have direct view of the device, nor can they see any divers who might be

accompanying the device at depth. For this deployment also observe the large number of cable handlers required to service

the cable as it travels through the surf zone.

Figure 2: KROY, one of the members of the AQUA family

of robots operating at depth. KROY is a swimming hexa-

pod. Each of the six ﬁns can be controlled independently.

divers in the vicinity. Furthermore, it is possible to

position tether wranglers at depth and for the opera-

tor to have a line of sight with the various personnel

involved in the deployment.

Although this operational mode can provide a sub-

stantive enhancement to the operator’s ability to con-

trol the vehicle and generally enhance the situational

awareness of the operator, it is now necessary to con-

struct an operator interface that can function at depth.

The classic keyboard, computer and mouse found in

Figure 1(a) is neither waterproof nor capable of with-

standing the pressures encountered within the diver-

operator’s operational range.

The problem of migrating a UUV operator’s in-

terface to an underwater platform was considered in

(Verzijlenberg and Jenkin, 2010). In this work stan-

dard tablet PC’s were mounted within water tight

and pressure resistant housings (see Figure 3). The

surface-based user interface was adapted to take input

commands from a collection of buttons mounted on

the sides of the housing (see Figure 3) but besides this

the basic GUI was left unchanged. Power for the other

components contained in the housing were either pro-

vided by drawing power through the USB-ports of

the laptop or through small USB-batteries that pro-

vide 5V. The devices were designed to have approx-

imately 60 minutes of operation once sealed, a time

that was consistent with the operational regime of the

robot once deployed. The housings were augmented

through the addition of an IMU that allowed the en-

tire tablet to be treated as an underwater joystick and

the operator could command the pitch/yaw/roll of the

vehicle through the orientation of the tablet relative to

gravity.

In total three different generations of these tablets

were constructed (the second and third generation

versions are shown in Figure 3). Tests with the

AQUATablet were very successful (see (Verzijlenberg

and Jenkin, 2010) and (Speers et al., 2011) for details)

but a number of issues were identiﬁed when operating

the robot at depth.

• The form factor of the PC requires that the hous-

ing be relatively large. Although the waterproof

container can be machined to be relatively light

when empty, it is critical that this container be

(approximately) neutrally buoyant when deployed

underwater. (If it is not neutrally buoyant then

the diver-operator will have to compensate for this

when operating the device). In order for the entire

tablet to be neutrally buoyant it must weigh the

same as the weight of the water it displaces. Thus

the relatively large volume of the tablet housings

requires that the tablets be weighted through the

Diver-basedControlofaTetheredUnmannedUnderwaterVehicle

201

(a) 2nd generation. (b) 3rd generation.

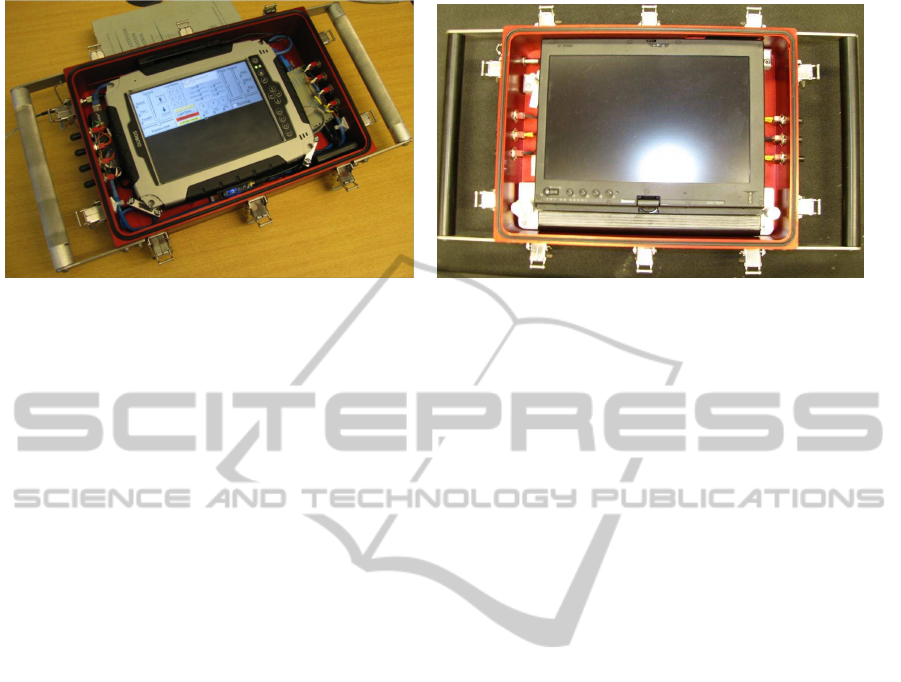

Figure 3: PC tablet-based AQUATablets. These two versions of the AQUATablet are based around tablet PC’s. The PC

provides computing and network support. A collection of water-proof switches on the sides of the housing provide basic

input. A GUI provides visual output to the user. Housed within the tablets are an Arduino that interfaces with the switches

and an IMU that allows the entire tablet to be treated like a joystick. When operating at depth a clear plastic cover is secured

over the front of the display. The robot is tethered via a ﬁber optic tether. A transducer between the PC’s Ethernet port and

the optical ﬁber connection is also housed within the case.

addition of external mass. This makes traveling

with the tablets before deployment more difﬁcult,

but it also means that the tablets have a large mo-

ment of inertia. They may be “weight-less” un-

derwater, but they are still difﬁcult to move. This

makes using the entire tablet as a joystick more

difﬁcult.

• The tablet housings have a reasonably large sur-

face area. This means that when operated in a

strong current or swell the tablet case acts as a

drag or sail on the operator.

• The use of a tablet PC increases the cost of the

components inside the waterproof housing. The

unfortunate reality of underwater robotics projects

is that there is always the potential for water to

penetrate the housing with disastrous results for

the electronics (especially in salt water). One rea-

son for the increased cost associated with PC-

based electronics is that the process of monitor-

ing the physical switches and the IMU requires

special purpose electronics that are not normally

found on tablet PC’s.

When work began on the original AQUATablet

there were very few options in terms of obtaining the

necessary computational power in a tablet-like form

factor. Recent advances in tablet technology now

make the necessary display, connectivity, and com-

putational power readily available in a lightweight,

small form factor package. Here we describe an up-

dated version of the AQUATablet based around an

Android-based ASUS Nexus 7 tablet. In addition

to providing the necessary control inputs to commu-

nicate with the UUV, the Nexus 7 includes WiFi,

GPS and accelerometer sensors which reduces sub-

stantively the cost of the components and the size of

the revised “lightweight” AQUATablet.

2 A LIGHTWEIGHT

AQUATABLET

The lightweight AQUATablet is shown in Figure 5.

As with the earlier designs of the AQUATablet the

housing is essentially a waterproof box designed to

withstand the pressures associated with an operator-

diver operating the vehicle at 100’. (Note that the

robot can descend below the diver, but that given the

limits associated with diving on air, 100’ is a reason-

able constraint on the anticipated maximum depth for

the operator tablet.) Whereas the housings for the

AquaTablet 2 and 3 shown in Figure 3 were milled

from aluminum, it was possible to mill the lightweight

AQUATablet from Plexiglas given its smaller dimen-

sions.

As with the earlier models the AQUATablet is

equipped with a small number of switches (now two)

with which the user can interact with the housing. (As

the tablet is operated inside a sealed housing it is not

possible to interact with the tablet through its surface,

as would normally be the case.) The housing itself

contains the following:

• An ASUS Nexus 7 which is self contained for

power, and which provides display, computation

and a number of sensors and communications op-

tions (including WiFi). The Nexus 7’s only phys-

ical connection is a USB port.

ICINCO2013-10thInternationalConferenceonInformaticsinControl,AutomationandRobotics

202

• The USB on the Nexus 7 is connected (via a

small powered USB hub) to a Phidgets interface

board which provides connectivity to the external

switches, and an Ethernet adaptor that connects to

the external ﬁber connection to the robot.

• A small battery pack provides power to the USB

hub and network hardware.

2.1 Software Infrastructure

Earlier versions of the AQUATablet utilized a modi-

ﬁed version of the GUI software used by a standard

PC when controlling the UUV. The decision to move

to an Android-based tablet necessitated a change in

the underlying software infrastructure.

The AQUA robot platforms wrap the underlying

Robodevel infrastructure within a network of Robot

Operating System (ROS) (Quigley et al., 2009) nodes.

Within ROS overall robot control is modeled as a col-

lection of asynchronous processes that communicate

by message passing. Although a very limited level of

support does exist for ROS on the Android platform,

it is not a fully supported environment for ROS. In

order to avoid any potential inconsistencies between

the Android-ROSimplementation and supported ROS

environments, it was decided to not build the software

structures on the Android platform in ROS directly,

but rather to exploit the

rosbridge

(Brown Univer-

sity, 2013) mechanism instead.

rosbridge

provides a

mechanism within which ROS messages are exposed

to an external agent and within which an external

agent can inject ROS messages into the ROS envi-

ronment. This injection process uses the

WebSocket

(Hickson, 2010) protocol which means that provided

the external agent has network access to the ROS en-

vironment it can be physically located anywhere.

Within ROS messages are passed using an inter-

nal protocol. The

rosbridge

framework communi-

cates these messages to and from the external world

in the form of

yaml

(Yet Another Markup Language)

strings. Such yaml strings can be used directly by an

external agent but perhaps the most convenient way is

to use

json

(Corckford, 2006) to map yaml strings to

instances of objects in the environment of the exter-

nal agent. This approach has a number of advantages

in terms of interfacing a lightweight device such as an

Android tablet to a robot running ROS. First, standard

libraries exist that support the

WebSocket

protocol on

the Android device (e.g., (Tavendo, 2013)) and native

support for

json

exists for many platforms including

the Android.

Figure 4: The lightweight AquaTablet user display. The

user interacts with the device through tilting the device and

also through two two-way switches mounted on the side of

the housing. Pitch and roll of the device are used to control

the pitch and heading of the robot. See text for details.

2.2 User Interface

One issue with the development of user interfaces

to be operated underwater is the limited options for

human-machine interaction. Standard devices such

as keyboards, mice and touch screen surfaces are not

practical underwater. For example, even though the

touch sensitive surface of devices such as the Nexus

7 and the iPad can be waterproofed the pressure of

the water column causes the entire surface to register

a touch event at relatively shallow depths. As a con-

sequence most interactions are limited to waterproof

switches and sliders that expose some physical com-

ponent to the external environment and then transfer

the event in to the pressurized housing. A wide range

of physical interaction devices exist – often developed

for the underwater camera housing market – as well

as standard electrical switches which was the design

decision made here.

The decision to limit the number of input switches

was made both from practical constraints as well as

experience with the previous AquaTablets. The re-

duced physical size of the lightweight AquaTablet re-

duces the potential locations for switch placement.

Furthermore, each switch increases the potential for

water penetration of the housing. Beyond these phys-

ical constraints, experiments conducted with previ-

ous AquaTablets (which had as many as eight two-

position switches) demonstrated that the cognitive

loading associated with operating a vehicle was not

well served by providing the operator with a multitude

of input switches. It was just too easy for an operator-

diver to forget the intent of the various switches, and

that diving glovesmade it easy for divers to press mul-

tiple switches.

Located on the side of the tablet housing are two

Diver-basedControlofaTetheredUnmannedUnderwaterVehicle

203

(a) (b)

Figure 5: The lightweight computer-based underwater tablet. By utilizing a smaller footprint device it is possible to reduce

substantively the mass/volume of the operator console. (a), (b) and (d) show an underwater operator teleoperating the vehicle.

As can be seen the device is now sufﬁciently small and lightweight that it can be easily carried by the diver. The device itself

(shown in (c)) is essentially an Android tablet (the ASUS Nexus 7) with external devices to connect to switches on the outside

of the housing and to the optical ﬁber tether that connects to the robot.

two-way switches. This provides the potential for

four “button press” like events. Lightweight devices

such as the Android have user interfaces that are in-

tended for much more sophisticated inputs (e.g., mul-

tiple touches over their display surface) and thus it

was necessary to construct an input strategy that was

appropriate for the limited set of input events avail-

able.

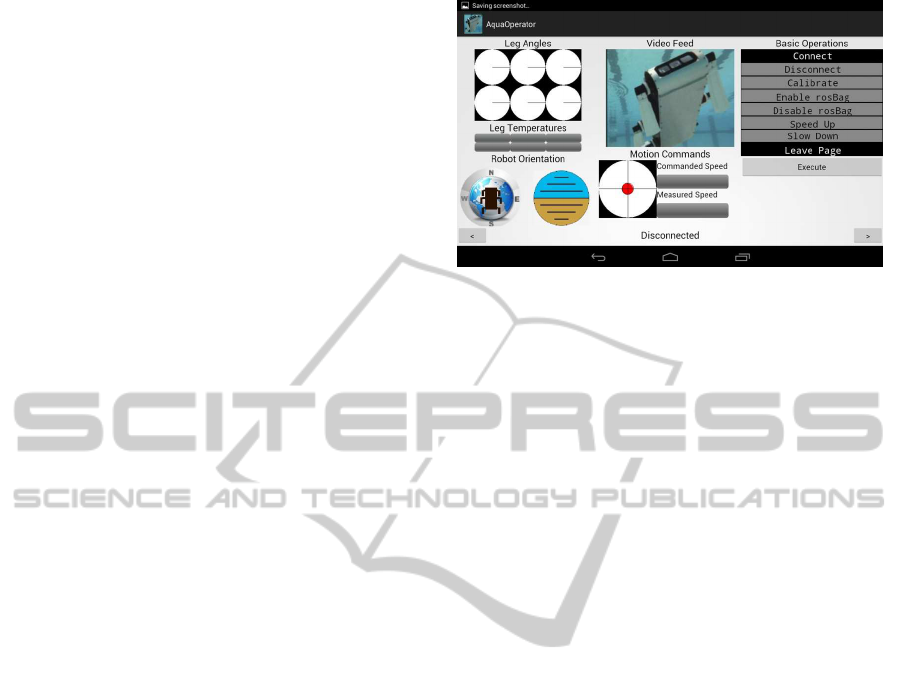

The primary user display is shown in Figure 4.

The display is broken down into three columns. The

left most column shows instantaneous leg angles and

leg temperatures providing a snapshot of the current

state of the low level systems on the vehicle. Below

this the current heading and pose of the vehicle are

displayed via a compass and an artiﬁcial horizon.

The center panel shows a live video feed from the

robot (in Figure 4 the live video feed is simulated by

a static image), followed by the current commanded

speed of the vehicle and the orientation of tablet hous-

ing relative to gravity (indicated by the red circle in

the center of the display). Experiments with the pre-

vious AquaTablets demonstrated that it is very easy

for a diver to make incorrect judgments of the true

vertical given the lack of obvious landmarks to verti-

cal underwater. (See (Jenkin et al., 2009) for details

on quantifying a diver’s ability to perceive the verti-

cal when suspended in water.) Housing tilt is yoked to

changes in intended vehicle depth while housing roll

is yoked to changes in intended vehicle yaw.

The right panel shows a set of potential inputs.

Given the switch-based input paradigm it is not possi-

ble for the operator to just “choose” an input by press-

ing on it. Rather the operator cycles through the var-

ious active buttons using one of the switches while

one of the positions of the second switch causes the

current button to be executed.

ICINCO2013-10thInternationalConferenceonInformaticsinControl,AutomationandRobotics

204

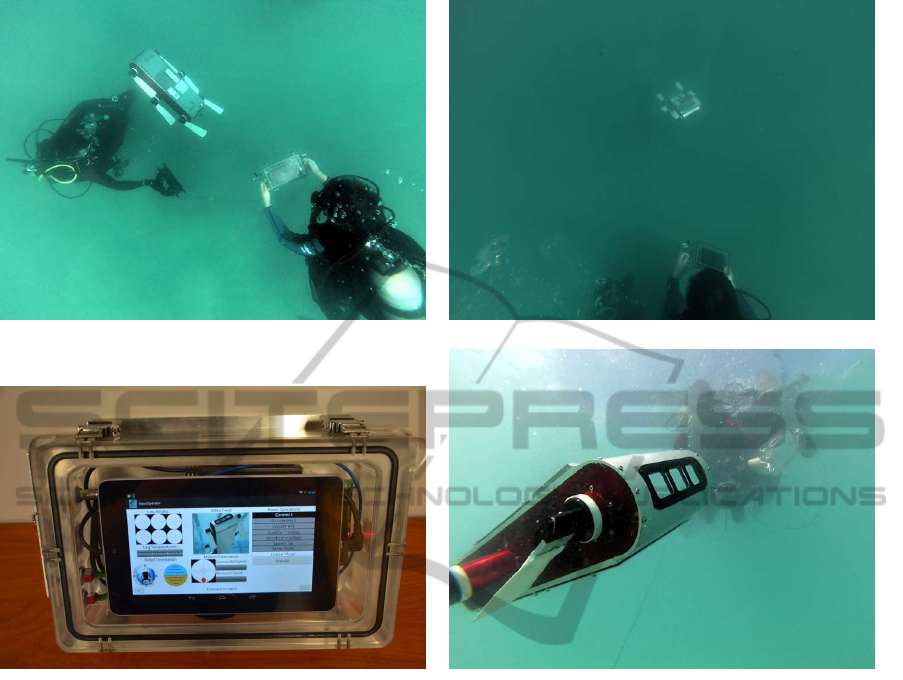

The lightweight AquaTablet is shown in operation in

Figure 5. Figures 5(a) and (b) provide a sense of scale

of the tablet in operation and the reduced size/weight

of the tablet relative to the earlier tablet designs is

clear. The reduced mass/volume of the tablet in par-

ticular makes the device much easier to deploy and

use than the previous versions of the device.

Figure 5(c) shows the Nexus 7 mounted inside the

housing with all of the associated cables, connectors

and power supply. The entire device is not that much

wider and taller than the Nexus itself as can be seen,

although it is about 2” deep. In order to make the en-

tire device more easily operated by a diver the hous-

ing is attached to a base that is slightly larger than the

housing. This provides a shield for the switches to

reduce the possibility that they might be ﬂicked acci-

dentally and a mounting point for a safety line so that

the housing is not lost if it is dropped by a diver.

3 EXPERIMENTAL VALIDATION

The lightweight AquaTablet has undergone extensive

sea trials off the coast of Holetown, Barbados. When

controlled by the tablet the robot is normally operated

by a three person team. A cable wrangler deals with

spooling and unspooling cable to the robot, an oper-

ator controls the tablet and a third team member acts

as a safety diver/videographer.

The reduced volume/mass/surface area of the

tablet relative to the earlier versions of the device was

found to be of particular beneﬁt. As can be seen from

Figure 5 the form factor of the lightweight AquaT-

ablet makes operation very straightforward. The de-

vice can be held quite easily by a diver operator with-

out interfering with the diver’s ability to maintain

their position/orientation within the water column and

indeed to swim near the robot when it is operating.

Having a direct line of sight to the vehicle makes

it substantively easier to operate than when operated

from above the surface. The choice of a limited num-

ber of input switches was also found to be effective

as this reduced the potential for the diver operator to

have to “hunt” for the right input. The reduced visi-

bility available underwater – including fogging of the

operator’s goggles – means that it is difﬁcult to la-

bel the various switches in a meaningful way and the

reduced number of switches actually reduces the po-

tential for confusion.

Although the vehicle state display was useful

when initially launching the vehicle it was found that

during nominal operation such displays were essen-

tially ignored and that for nominal operation a larger

video display feed might be more appropriate.

4 DISCUSSION AND FUTURE

WORK

Although the choice of the Nexus 7 as the display-

compute unit enabled the construction of a smaller

underwater tablet, the decision did have signiﬁcant

implications in terms of hardware and software. It

was decided in the project to utilize an “un-rooted”

(aka stock) Android tablet. This reduced the options

for various pieces of external hardware as they must

function “out of the box” with the Android. Of par-

ticular importance here is the limited availability of

USB-Gigabit Ethernet adapters that are supported on

the Android.

From a software point of view the Android plat-

form provides substantively less computing power

and memory than the PC-based tablets used previ-

ously. As such certain decisions in terms of the

software infrastructure had substantive implications

in terms of overall system functionality. By default,

rosbridge

will send every message it receives to an

external agent. The limited processing power of the

Android can make servicing all of these messages

problematic. Throttling messages prior to exporting

them via

rosbridge

may be appropriate or necessary.

A more subtle issue related to the use of the

rosbridge

-WebSockets-yaml-JSON pipeline is the

large number of String objects that are created in the

process. Although this is not normally an issue in PC-

based implementations, Android processes must op-

erate within a very limited memory footprint. Mini-

mizing the size of the String’s being processed and the

number of String objects that are created is important

in order to ensure liveliness in terms of the user inter-

face. This problem becomes most acute when images

are transferred through yaml. yaml is a printable en-

coding which means binary data such as images must

be encoded as printable characters. This means that

the “raw” yaml message is extremely large. This mes-

sage must then be decoded into an image (another

large structure on an Android platform) which must

be further drawn onto internal structures within the

Android in order to display them. Although it is cer-

tainly possible to send an image stream encoded as

yaml messages to an Android platform, it is not nec-

essarily the best way given the memory and network

bandwidth constraints involved.

The lightweight AquaTablet was designed to be

sufﬁciently small that it can be mounted on top of the

robot directly. In this conﬁguration the device can act

as an external display for operators swimming near

the robot, as well as providing GPS information and

WiFi communication when the robot is at the sur-

face. The choice of

rosbridge

as the communica-

Diver-basedControlofaTetheredUnmannedUnderwaterVehicle

205

tion mechanism here allows information to be easily

passed from the robot to off-board agents also operat-

ing within their own ROS environments.

ACKNOWLEDGEMENTS

The technical and diving assistance of Jim Zacher

and Heather Jenkin is gratefully acknowledged. This

project would not have been possible without the gen-

erous ﬁnancial support of NSERC Canada and the

NSERC Canadian Field Robotics Network (NCFRN).

REFERENCES

Aoki, T., Maruashima, T., Asao, Y., Nakae, T., and Yam-

aguchi, M. (1997). Development of high-speed data

transmission equipment for the full-depth remotely

operated vehicle – KAIKO. In OCEANS ’97, vol-

ume 1, pages 87–92.

Brown University (2013). rosbridge. http://www.rosbridge

.org. Accessed February 10, 2013.

Corckford, D. (2006). The application/json media type for

JavaScript object notation JSON. Netowrk Working

Group RFC 4627.

Dudek, G., Jenkin, M., Prahacs, C., Hogue, A., Sattar, J.,

German, A., Liu, H., Saunderson, S., Ripsman, A.,

Sinhon, S., Torres, L., Milios, E., Zhang, P., and Rek-

leitis, I. (2005). A visually gudied swimming robot. In

IEEE/RSJ Int. Conf. on Intelligent Robots and Systems

(IROS), pages 1749–1754.

Hickson, I. (2010). The WebSocket API. W3C Working

Draft 16 August 2010.

Jenkin, H. L., Zacher, J. E., Dyde, R. T., Harris, L. R.,

and Jenkin, M. (2009). How do SCUBA divers know

which way is up? the inﬂuence of buoyancy on orien-

tation judgements. J. of Vision, 9(716):716a.

Lee, P., Jeon, B., Hong, S., Lim, Y., Lee, C., Park, J., and

Lee, C. (2000). System design of an ROV with ma-

nipulators and adaptive control if it. In 2000 Interna-

tional Symposium on Underwater Technology, pages

431–436.

Nokin, M. (1994). ROV 6000 – objectives and description.

In OCEANS ’94, volume 2, pages 505–509.

Quigley, M., Gerkey, B., Conley, K., Faust, J., Foote, T.,

Leibs, J., Berger, E., Wheeler, R., and Ng, A. Y.

(2009). ROS: an open-source robot operating system.

In Proc. Open-Source Software workshop at the In-

ternational Conference on Robotics and Automation

(ICRA).

Speers, A., Topol, A., Zacher, J., Codd-Downey, R., Verzi-

jlenberg, B., and Jenkin, M. R. M. (2011). Monitoring

Underwater Sensors with an Amphibious Robot. In

Proceedings of 2011 Canadian Conference on Com-

puter and Robot Vision (CRV)., pages 153–159, St.

John’s, Nefwoundland.

Tavendo (2013). Autobahn websocket. http://autobahn.ws.

Accessed February 10, 2013.

Verzijlenberg, B. and Jenkin, M. (2010). Swimming with

robots: human robot commuication at depth. In

IEEE/RSJ Int. Conf. on Intelligent Robots and Systems

(IROS), Taiwan.

ICINCO2013-10thInternationalConferenceonInformaticsinControl,AutomationandRobotics

206
