Three Dimensional Localisation in Underwater Swarms

through a Kalman Approach

Fabio Fratichini

1,2

, Stefano Chiesa

and Sergio Taraglio

Robotics Lab, ENEA, Via Anguillarese 301, Rome, Italy

Dipartimento di Informatica ed Automazione, University of Roma Tre, Via Ostiense 159, Rome, Italy

Keywords: Distributed Control Systems, Mobile Robots and Intelligent Autonomous Systems, Space and Underwater

Robots, Sensor Fusion.

Abstract: A three dimensional localisation algorithm for a swarm of underwater vehicles is presented. The proposed

approach is grounded on an extended Kalman filter (EKF) scheme used to fuse some proprioceptive data

such as the vessel’s speed and some esteroceptive measurement such as the time of flight (TOF) sonar

distance of the companion vessels. The results of several simulations are presented. Some considerations

about the available underwater bandwidth and the communication needed by the approach are discussed.

1 INTRODUCTION

The exploration of the oceans both for scientific and

economic purposes is becoming more and more

important. Out of the limitations of our biological

characteristics, underwater robotics has gained an

essential role in the study and exploitation of the

seas. Its more promising branch is that of the

autonomous underwater vehicles (AUV), i.e. those

vehicles that are capable of performing the required

tasks without human supervision, coping with the

mission unknowns.

In the latest years the research on AUVs has

broadened towards the simultaneous use of more

vessels, i.e. the implementation of multi robot

configurations all the way to full swarms of

underwater vehicles.

Whether a single or more AUVs are considered,

one of the focal points of autonomy is the reliable

knowledge of the vessel position and orientation.

Unfortunately an underwater system suffers because

of the limiting characteristics of its environment.

Water, especially salted one, blocks electromagnetic

waves, inhibiting the use of positioning systems

such as the GPS. At the same time this implies a

difficult communication between an AUV and

another or a remote operator. The available means to

localise a single AUV are thus the exploitement of

inertial sensors, velocity ones and/or gyroscopes

combined in dead reckoning.

However, in the framework of an underwater swarm,

the localisation of a single vehicle can profit from

the gathering of information pertaining to the other

fellow vessels. The key issue of all the swarm

localisation methods is the best possible

combination of proprioceptive measures (dead

reckoning) and exteroceptive sensor readings, the

main difference being the employed estimator. The

localisation of swarms of robots has been

extensively studied for packs of terrestial surface

robots. In this case it is possible to use GPS, if

outdoors, or different methods for indoor teams. In

addition the communication of information among

the robots is unproblematic over the radio link.

An approach is based on the subdivision of the

swarm in subgroups one of which, in turn, is kept at

a fixed position and acts as a set of landmarks for the

moving others (Kurazume et al., 1994, 1996) and

(Rekleitis et al., 2002). (Fox et al., 1999; Fox et al.,

2000) and (Thrun et al., 2000) have successfully

employed belief functions combined with a

Montecarlo approach and particle filtetring

optimization. The work of (Roumeliotis, 2000) and

(Roumeliotis and Bekey, 2002) employs a Kalman

filter where the proprioceptive measures are used to

estimate the future state of the system and the

exteroceptive ones are used to correct and update the

estimate. In (Martinelli et al., 2005) this approach is

extended by considering the most generic relative

observations between two robots. More recently the

work of Olfati-Saber, see e.g. (Olfati-Saber, 2007),

215

Fratichini F., Chiesa S. and Taraglio S..

Three Dimensional Localisation in Underwater Swarms through a Kalman Approach.

DOI: 10.5220/0004457502150221

In Proceedings of the 10th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2013), pages 215-221

ISBN: 978-989-8565-71-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

has addressed the problem of decentralized Kalman

filtering in sensor networks through consensus

algorithms for the swarm controlling strategies.

(Huang et al., 2011) have investigated the

consistency of EKF based cooperative localisation

considering observability. The typical operative

environment considered in these works is a two

dimensional terrestrial one.

In the following a three dimensional algorithm

for the global positioning of a swarm of underwater

robots is presented, the problem addressed is not that

of swarm control, but the mutual and absolute

positioning of elements composing an underwater

group of robots. A simple kinematic model of the

AUV is considered, capable of measuring its own

velocity and to communicate over an ultrasonic

acoustic link with the other vessels. Through the

measurement of the time of flight (TOF) of the

ultrasound transmission the AUVs can measure one

another their relative distance. All the available

information is then combined with an extended

Kalman filter distributed among the vessels.

In the second section of the paper the problem is

stated in a three dimensional environment. In the

third section the multi robot Kalman based algorithm

is described. In the fourth section some experimental

results are presented relative to different swarm

trajectories. In the fifth section some consideration

on the presented algorithm are discussed especially

concerning the communication issues and the swarm

size.

2 PROBLEM STATEMENT

The key point for a cooperative localisation in a

swarm of robots is viewing the group as a single

entity that can access the information of a large

number of proprioceptive and exteroceptive sensors.

In the following all the vessels are described by

the same motion equations and each robot possesses

proprioreceptive sensors for the motion estimate.

Each AUV possesses also an ultrasound

communication link, which can collect the

information from the other vessels in the swarm

(among these the transmitter ID and the

communication starting time) and through the TOF

measure the estimated inter vessel distance. The

measurement noise is considered as Gaussian.

At first the localisation has been tackled

considering as available the relative position and

orientation measurements, this is helpful to check

the overall reliability of the framework development.

In a second phase only the relative distances and the

absolute values of depth and heading has been

considered, this second case being similar to the

actual underwater conditions. As above described

the relative distance can be easily measured with the

sonar communication while heading can be read

from the compass and depth from a pressure gauge

on board the vessels.

Let us consider the global dynamical state X of

the whole swarm, it will be a vector composed of

MxN items where M is the number of robots and N is

the number of variables describing the single

vehicle, i.e. a vector composed of the poses



of all

the robots.

],...,

[

xxxX





(1)

The mathematical model describing the time

evolution of the single vessel of the swarm is:

















,...,M ik

w,k

u,k

xfk

x 1111 







(2)

where f is generally a non linear function of the state

at the preceding time step



1k



, of the input







and of the noise







. The vessels can also measure

all the other ones and this can be described by the:

   





,, 1, zk hxk x k nk i ,...,Mj i

iiji







(3)

here h is the measurement function linking the state

of the i-th robot with the state of the measured one

(the j-th) and the measure noise



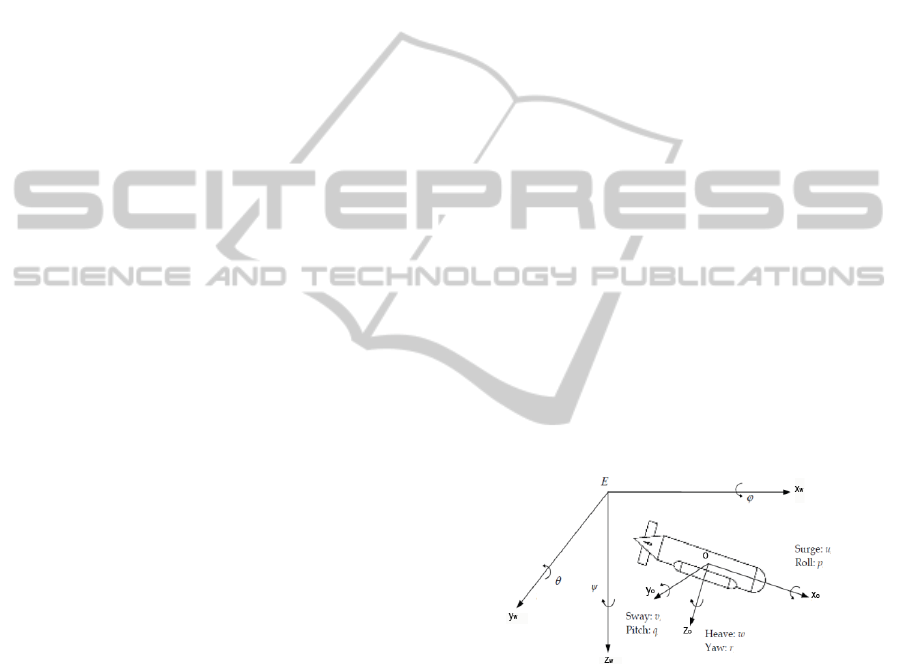

Figure 1: The coordinate system.

An extended Kalman filter estimates the state of

this dynamical system fusing data coming from

proprioceptive sensors and exteroceptive ones. The

proprioceptive sensors are used to compute the

kinematic time evolution of the system and the

esteroceptive to reset periodically the time evolution

estimate with an external ground truth.

The vessel coordinate system is centred in the

centre of the vehicle and its x axis is longitudinally

directed from stern to bow, the y axis is towards

starboard and the z one downward, see Figure 1.

The kinematic model of the single robot uses a

linear velocity parallel to the x axis (thrust) and the

ICINCO2013-10thInternationalConferenceonInformaticsinControl,AutomationandRobotics

216

possibility to change all the three Euler angles

through appropriate angular velocities.

3 MULTI-ROBOT KALMAN

LOCALIZATION

The Kalman filtering is a well known strategy that

yields an estimate of a dynamical process using a

feedback control. It foresee the process state at a

given time and it employs a measurement feedback

to update the state through a better estimate. It is an

iterative process that loops through two different

phases: on one side it predicts the state of the system

and the error covariance, on the other it computes

the so called Kalman gain to correct both the state

estimate and the error covariance on the grounds of

some kind of measure. Since the time evolution

function (equation 2) may be not linear, an extended

version of the filter has been here employed. The

EKF basically behaves as the standard procedure but

uses a local linearization of the functions. A very

interesting characteristic of this filter is its iterative

aspect. The results of a iteration of the filter is used

as input for the successive step; in this way the filter

retains memory of the history of the system.

Let us consider the whole swarm, the EKF cycles

between the two phases of prediction and update.

3.1 Prediction

Each robot, at a given time step, estimates its state at

the successive time step on the grounds of the

kinematic model and the available proprioceptive

measures (linear and angular velocities) and their

null average Gaussian noise.

))(),(),(

()1(

kwkukxfkx

iiii





(4)

ˆˆ

(1) ()()() ()()()

ii i ii i i i i

kkPkkGkWkGk



  

(5)

)()(

)()1(

kkPkkP

jijiij





(6)

here equation (4) is the state time evolution and

equations (5) and (6) describe the time evolution of

the cross correlation matrix P in the diagonal and off

diagonal terms;



is the system propagation matrix,

G is the system noise input matrix and W is the noise

input covariance. The minus sign stands for a priori

and the plus one for a posteriori.

In order to perform a distributed EKF it is

convenient to process the a posteriori estimated

cross correlation matrix (equation 6) through a

singular value decomposition (SVD). In this way

each robot can compute its own term multiplying the

SVD term by its dynamical matrix, see (Roumeliotis

and Bekey, 2002).

3.2 Update

Every time a robot measures something, an update

can be performed. The here considered measures are

the heading (compass) and the depth (pressure

gauge) of the measuring vessel and the TOF distance

of another vessel. The non linear measuring function

h is shown in equation (3) and the noise is a null

average Gaussian one. It is now possible to compute

the a posteriori state estimate

)()(

)(

))

()()(()(

)(









SkHkPkHkPkK

xxhkzkKkxkx

jrj

irir

jiirrr

(7)

where the index r describes the vessel

Mr ,...,1

)(kK

is the so called Kalman gain with S the

residual covariance, and the last term is the residual.

The H terms are the Jacobians of the measuring

function h w.r.t. the two state vectors

and



























100000

000100

000

222

(8)

















000000

000

222

(9)

and

2222

zyxr 

Finally the a posteriori covariance matrix

estimate is:

ˆˆ ˆ ˆ ˆ ˆ

()()

rs rs ri i rj j i is j js

PPHPHSHPHP



    

  

(10)

with the indexes

Mr ,...,1



and

Ms ,...,1

The problem of the localization of multiple

robots can be approached in two different ways: in a

centralised or in a distributed way. In the first there

is a central supervisor collecting all the data from all

the vehicles and performing the multi robot system

state estimation. The second paradigm can be split

into two further classes: uncooperative or

cooperative algorithms. The first class simply tries

to localise each robot as if it was alone in the world,

i.e. counting on its own estimate and measures

alone, without gathering further information from

the others in the swarm. The second class can

ThreeDimensionalLocalisationinUnderwaterSwarmsthroughaKalmanApproach

217

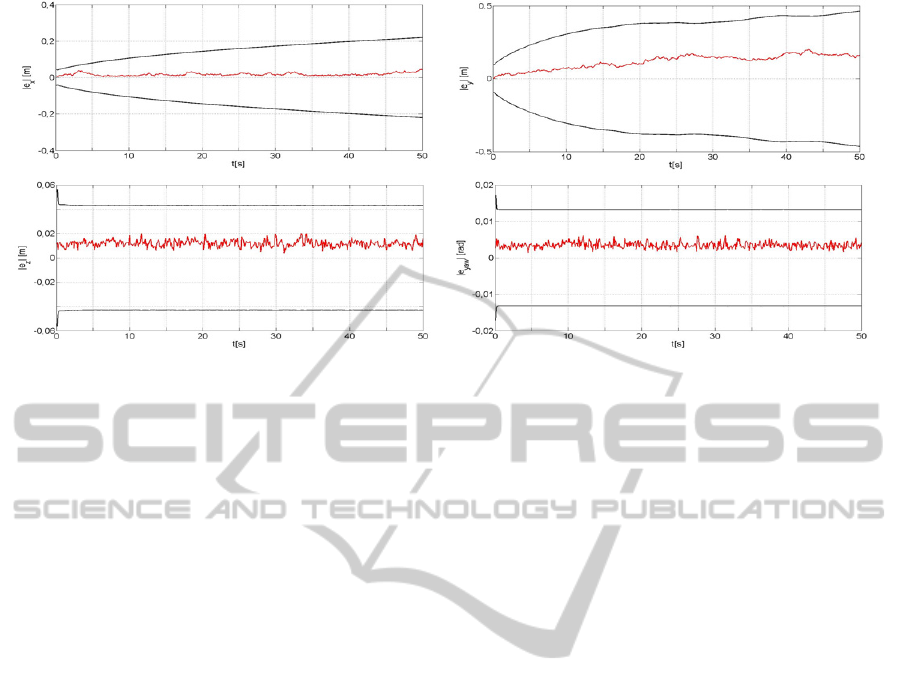

Figure 2: Average and 3σ error for x, y, z and yaw as a function of time, linear trajectories.

exploit the information coming from the companions

and performing a local algorithm for the pose

estimation.

Regardless of the employed approach the basic

issue is the extremely limited bandwidth that is

available underwater. Two or more AUV can

communicate one another through different means,

but the only one that allows long distance data

exchange is the ultrasound transducer. Naturally

there is a trade off between bandwidth and distance

travelled by the ultrasound wave. All this points to a

severe limitation on data circulation among the

swarm vessels. In other words transmissions should

be kept to a minimum with respect to the algorithm

performance.

Unfortunately the Kalman approach needs to

distribute a large quantity of data. In order to limit

the communication problem in the swarm a

distributed-centralized approach has been tested.

The idea is as follows. Whenever a measurement is

done, the measuring robot performs the EKF for the

whole swarm, gathering the states from all the

vessels and broadcasting the new matrices to the

companions. It is obviously a centralised algorithm

but it is distributed in time, at each time step only

the measuring robot is computing, and at the next

time step it will probably be a different one.

This scheme may limit the communication

among the swarm members. The amount of

exchanged data will be the same of a fully

centralized approach, but since only one robot is

actually broadcasting its results, there will be much

less problems arising from the communication

overheads and possible multipaths deriving from

multiple robots trying to communicate all at the

same time.

4 EXPERIMENTAL RESULTS

In the experiments, the vehicles are considered as

kinematic objects, i.e. without the computation of

their dynamics, and are able to exchange

information instantaneously. All the simulations

have been performed under Matlab. A first series of

2D simulations have been carried out to assess the

overall correctness of the algorithm implementation.

In the 3D algorithm version the due kinematic

model has been considered and a more realistic suite

of sensors for the single vessel has been considered

as well. As said, each AUV is equipped, besides the

sonar for communication and distance estimation,

with a compass for the absolute orientation and a

pressure gauge for the depth measure (z coordinate).

The introduction of these sensors and data are of

basic importance since they improve the

observability of the system. In a three dimensional

environment each vessel possesses six degrees of

freedom, thus the overall system can be considered

as unbalanced towards non observability.

Let us consider a set of M=10 vessels moving in

parallel along a straight trajectory. The standard

deviation on linear and angular speed is 0.1 m/s and

0.05 rad/s respectively. The standard deviation on

the TOF distance measure is 0.05 m, on the heading

is 1° and 0.07 m on the depth. All these values are

consistent with low cost sensors commonly available

on the market.

In Figure 2 are shown the average error (on the

whole swarm of ten) and the 3σ error relative to the

x, y, z coordinates and the yaw angle. For clarity the

roll and pitch ones are not showed. The average

position error after 50 meters is of about 0.35%,

ICINCO2013-10thInternationalConferenceonInformaticsinControl,AutomationandRobotics

218

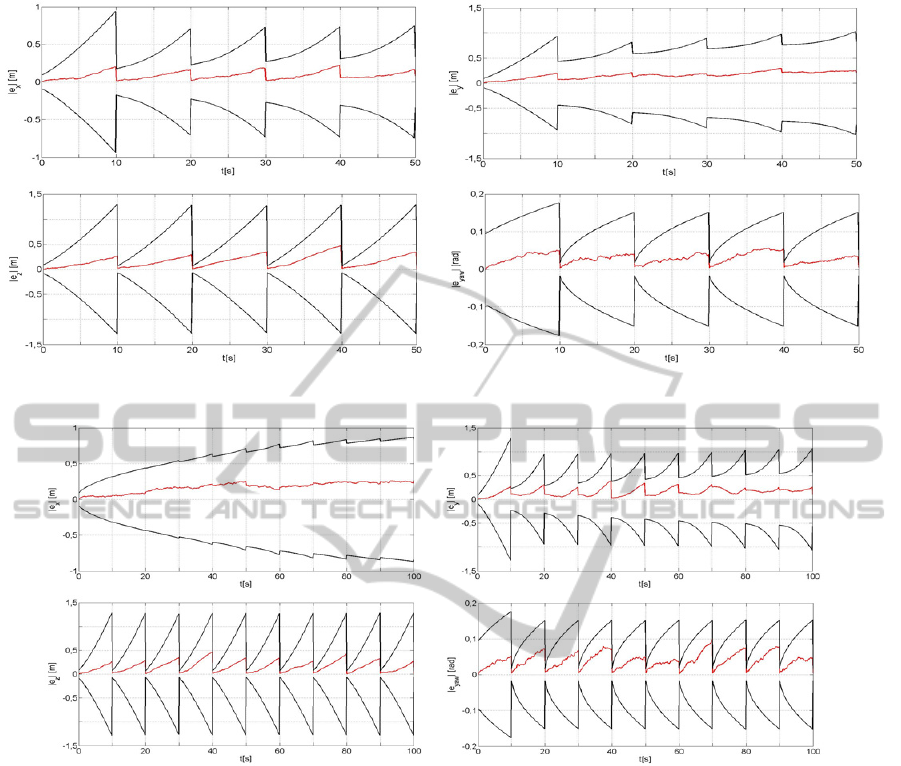

Figure 3: Average and 3σ error for x, y, z and yaw for the periodical exteroceptive measures.

Figure 4: Average and 3σ error for x, y, z and yaw for the sinusoidal trajectory test case.

while the 3σ error is of about 1%. The same

quantities considering dead reckoning alone are 8%

and 30%.

As above mentioned the underwater realm is

quite a difficult one and the communications should

be kept at a minimum, hence it has been

experimented a situation in which the vessels do not

measure continuously the distance of fellow robots

but perform an exteroreceptive measure once every

100 time steps. The results are presented in Figure 3.

It is evident the saw tooth shape due to the

periodical correction of data. In this case after 50 m

the average and 3σ errors are respectively 0.46% and

1.8%, slightly larger than the continuous case, as it

could have been expected.

In Figure 4 is shown the algorithm performance

in the case of sinusoidal trajectories, i.e. with a

constant linear velocity but an angular one slowly

varying in time as a sinusoid. Also in this case the

measures are periodic as in the previous experiment

and the number of time steps is doubled and the

average and 3σ errors are 0.28% and 1%.

Figure 5 and 6 present the trial in which the

vessels are made follow a circular trajectory for

1300 m, still with periodic exteroceptive measures.

In this case the two errors are respectively 0.05%

and 0.2%. In Figure 5 only x and y are shown for

better intelligibility.

In Figure 7 it is shown the dependence of the

average position error as a function of the number of

vehicles in the swarm. It is clear that “union is

strength”: the more the vessels the better the

estimate, until an asymptote is reached.

ThreeDimensionalLocalisationinUnderwaterSwarmsthroughaKalmanApproach

219

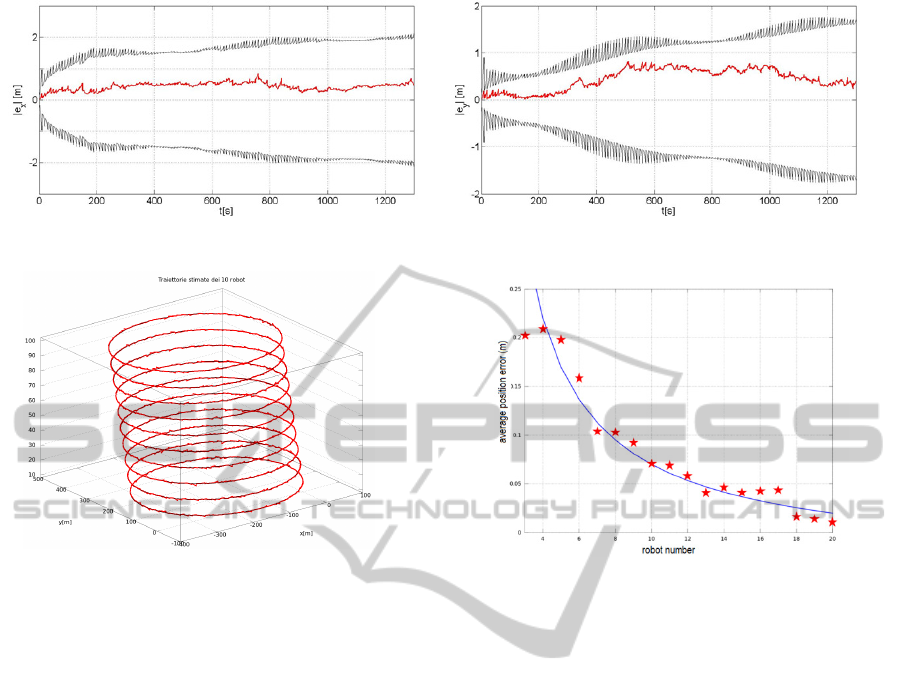

Figure 5: Average and 3σ error for x and y in the circular test case.

Figure 6: Vessels trajectories in the circular case.

5 DISCUSSION

AND CONCLUSIONS

This work has presented the results of a three

dimensional Kalman based localisation algorithm for

a swarm of underwater vehicles.

In a three dimensional environment each vessel

possesses six degrees of freedom, thus the overall

system is heavily undetermined, i.e. the covariance

on the system state quickly diverges. The

introduction of real world measures such as the yaw

angle (compass) and the z coordinate (pressure

gauge) greatly improves the Kalman filter

performance, enhancing the system observability.

It is here important to recall that the presented

scheme greatly relies on communication among the

members of the swarm. During the Kalman

computation the various vehicles must distribute to

the others their own estimates and covariance and all

the cross correlations. This heavy communication

scheme suggested the periodical exteroceptive

measures in order to reduce the number of Kalman

updates. Notwithstanding a reduced set of measures,

the system is able to assure a good localisation.

In the actual physical swarm, presently under

development, there will be two possible sonar

Figure 7: Average position error versus the swarm

numerosity.

communication channels, one around 300 Kbit/s and

a second at a higher frequency but at a smaller

range, around 1 Mbit/s. Let us now assume for the

sake of simplicity that all the transmission band can

be allocated to the Kalman 3D localisation. It is

possible to compute the total number of bytes to be

transmitted if only one robot makes a periodical

observation (one every 100 time steps as above) and

consider this as a lower bound. If all the vehicles

measure, this quantity should be multiplied by the

number of robots. These two functions are plotted in

Figure 8 where the two bounds are shown together

with the two possible transmission rates.

The diagram should be read as follows. If the

available transmission link is the lower, this

localisation system may work for a swarm smaller

than 25 members, if only one observer is allowed at

a time or with less than 13 if everybody can

measure. With the higher throughput these figures

rise to 47 and 19.

The devised algorithm strategy is based on a

mixed distributed-centralised approach. Each robot

computes the Kalman filter for all of the system

elements and it distributes its results to all the

community, since a different robot will be the next

to observe and compute the system state.

ICINCO2013-10thInternationalConferenceonInformaticsinControl,AutomationandRobotics

220

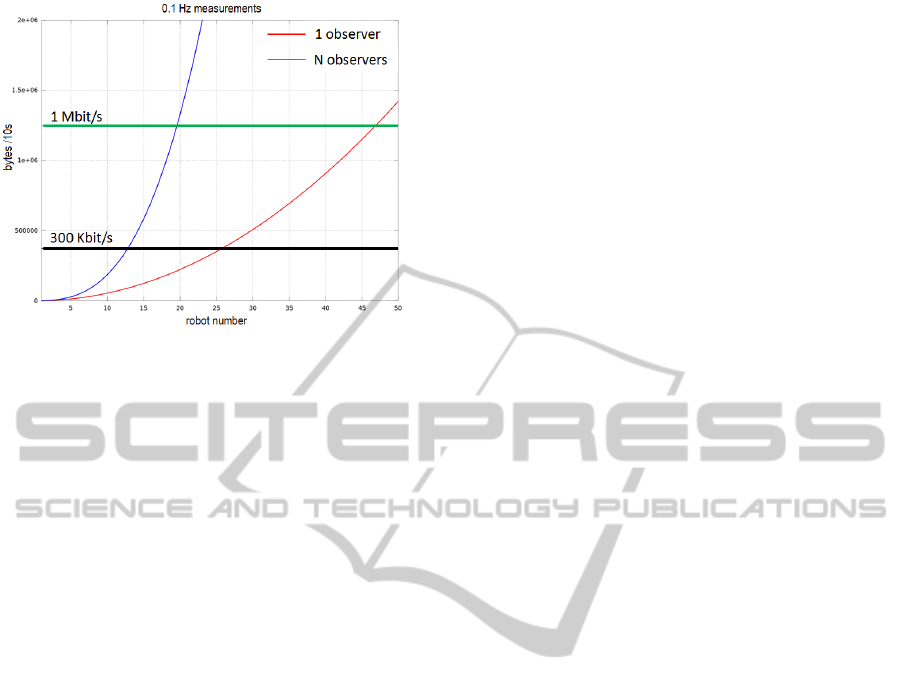

Figure 8: Needed throughput as a function of the swarm

robot number.

In conclusion it is possible to affirm that the

presented 3D Kalman based localisation system can

be employed for a swarm of underwater robots,

yielding accuracy in the computed positions, but

with a limited swarm numerosity. Nevertheless

further work is needed in order to reduce the so

precious communication bandwidth in underwater

environments and or allow more numerous swarms.

ACKNOWLEDGEMENTS

This work has been partially supported by the

HARNESS project, funded by the Italian Institute of

Technology (IIT) through the SEED initiative.

REFERENCES

Fox D., Burgard W., Kruppa H., and Thrun S., 1999.

Collaborative multirobot localization, in Proc. 23rd

Annual German Conf. Artificial Intelligence (KI),

Bonn, Germany, pp. 255–266.

Fox D., Burgard W., Kruppa H., and Thrun S., 2000. A

probabilistic approach to collaborative multi-robot

localization, Autonomous Robots, 8(3), pp. 325–344.

Huang G. P., Trawny N., Mourikis A. I., Roumeliotis S. I.,

2011. Observability-based consistent EKF estimators

for multi-robot cooperative localization, Autonomous

Robots, 30, (1), pp 99-122.

Kurazume R., Nagata S., Hirose S., 1994. Cooperative

positioning with multiple robots, in Proc. 1994 IEEE

Int. Conf. Robotics and Automation, Los Alamitos,

CA, vol. 2, pp. 1250–1257.

Kurazume R., Nagata S., Hirose S., 1996. Study on

cooperative positioning system (basic principle and

measurement experiment), in Proc. 1996 IEEE Int.

Conf. Robotics and Automation, Minneapolis, MN,

vol. 2, pp. 1421–1426.

Martinelli A., Pont F., Siegwart R., 2005. Multi-Robot

Localization Using Relative Observations, in Proc.

2005 IEEE Int. Conf. Robotics and Automation,

Barcelona, Spain, pp. 2798–2802.

Olfati-Saber R., 2007. Distributed Kalman filtering for

sensor networks, in Proc. Of the 46

IEEE Conf. on

Decision and Control, pp 5492-5498.

Rekleitis I. M., Dudek G., Milios E. E., 2002. Multi-robot

cooperative localization: a study of trade-offs between

efficiency and accuracy, in Proc. of International

Conference on Intelligent Robot and Systems

(IROS02), Lausanne, Switzerland, vol. 3, pp. 2690-

2695.

Roumeliotis S. I., 2000. Robust mobile robot localization:

from single-robot uncertainties to multi robot

interdependencies, Ph.D. dissertation, Elec. Eng.

Dept., Univ. Southern California, Los Angeles, CA.

Roumeliotis S. I. and Bekey G. A., 2002. Distributed

Multirobot Localization, IEEE Transaction On

Robotics And Automation, 18,(5), pp. 781-795.

Thrun S., Fox D. and Burgard W., 2000. Monte Carlo

localization with mixture proposal distribution, in

Proc. AAAI Nat. Conf. Artificial Intelligence, Austin,

TX, USA, pp. 859–865.

ThreeDimensionalLocalisationinUnderwaterSwarmsthroughaKalmanApproach

221
