Evaluation of the Fusion of Visible and Thermal Image Data for People

Detection with a Trained People Detector

Achim K

onigs and Dirk Schulz

Unmanned Systems Group, Fraunhofer FKIE, Fraunhoferstr. 20, 53343 Wachtberg, Germany

Keywords:

People Detection, Thermal Imaging, Image Processing, Data Fusion.

Abstract:

People detection surely is one of the hottest topics in Computer Vision. In this work we propose and evaluate

the fusion of thermal images and images from the visible spectrum for the task of people detection. Our main

goal is to reduce the false positive rate of the Implicit Shape Model (ISM) object detector, which is commonly

used for people detection. We describe ﬁve possible methods to integrate the thermal data into the detection

process at different processing steps. Those ﬁve methods are evaluated on several test sets we recorded. Their

performance is compared to three baseline detection approaches. The test sets contain data from an indoor

environment and from outdoor environments at days with different ambient temperatures. The data fusion

methods decrease the false positive rate especially on the outdoor test sets.

1 INTRODUCTION

There are several reasons to detect people in the sen-

sor data of mobile unmanned systems. One is to

navigate more cooperative in the proximity of mov-

ing people. This requires a high detection rate but

does not suffer much from false positives. Other ap-

plications like service robots where one might want

to control a nearby robot using gestures or want an

unmanned system to follow a certain person through

a crowded area need to reduce false positives to be

useful. In other scenarios where unmanned systems

might be deployed in the future, like disaster re-

sponse or surveillance tasks, false positives should be

avoided as much as possible without lowering the de-

tection rate.

There exist a lot of approaches to people detection

in the computer vision community that work on im-

ages from the visible spectrum. Not all of them can be

deployed on unmanned systems. Some cannot handle

moving cameras whereas others are to slow to pro-

duce results in a close to real-time fashion which is re-

quired in the scenarios described above. The remain-

ing approaches to people detection, however, cannot

deliver the required high detection rates and low false

positive rates at the same time. For all detection sys-

tems a low false positive rate means also a lower de-

tection rate. In order to overcome this we propose to

fuse visible spectrum images with thermal images. In

thermal images background structures which would

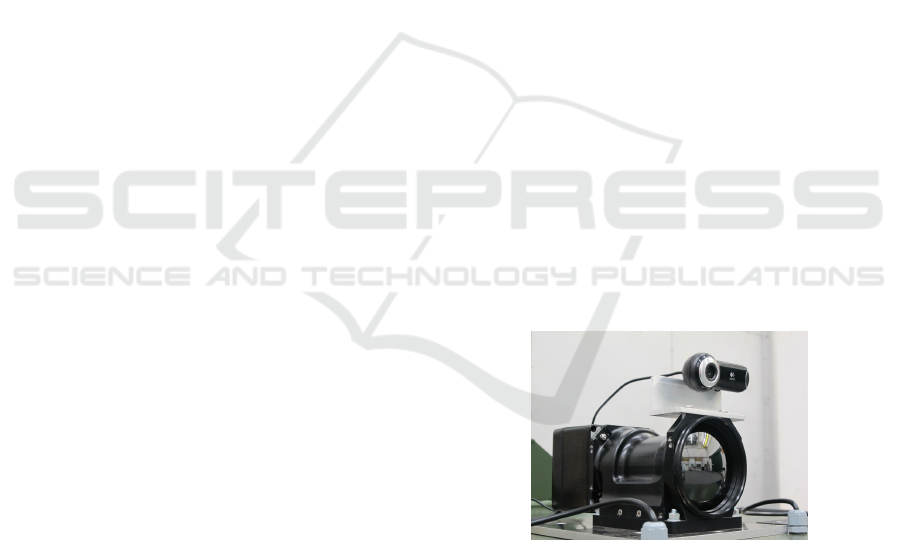

Figure 1: Camera setup. The USB camera is mounted on

top of the thermal camera so they both capture images of

the same scene.

cause false positive detections in the visible spectrum

are usually only barely visible because their tempera-

ture signature is not very different from the remaining

background. All in all, in thermal images the person

tends to be clearly visible even if for outdoor scenar-

ios the assumption that persons are a hot spot not al-

ways holds (see Figure 2).

In this work we use the Implicit Shape Model

(ISM) (Leibe et al., 2008) object detector trained on

people and propose ﬁve methods to fuse visible spec-

trum and thermal data during the detection process.

These different methods inﬂuence the detection pro-

cess in the feature and decision levels. At the same

time we use unmodiﬁed ISM as baseline algorithm

on both visible spectrum and thermal images. Addi-

tionally we implement a thermal threshold based blob

detector (short blob detector) as second baseline. For

345

Königs A. and Schulz D..

Evaluation of the Fusion of Visible and Thermal Image Data for People Detection with a Trained People Detector.

DOI: 10.5220/0004484203450352

In Proceedings of the 10th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2013), pages 345-352

ISBN: 978-989-8565-71-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

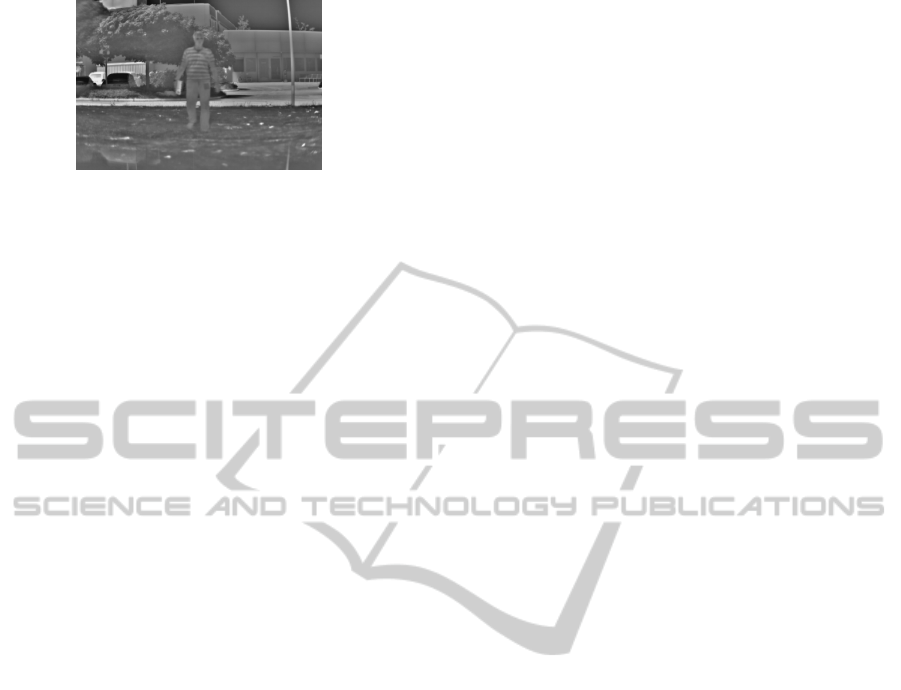

Figure 2: On this thermal image, the person has a very low

contrast to the background, because of high temperatures in

the surroundings. This makes it impossible to ﬁnd a ﬁxed

temperature threshold to separate person and background

reliably.

the evaluation we recorded three datasets, one from

indoors and two from outdoors on two different days

with different ambient temperatures.

The remainder of this paper is organized as fol-

lows. First we give an overview of other approaches

to people detection on thermal or fused data in sec-

tion 2. Then we describe the two baseline algorithms

in section 3. The fusion methods are explained in

section 4. Our datasets and the experiments we per-

formed are presented in section 5 followed by a short

conclusion in section 6.

2 RELATED WORK

People detection is an important and very active re-

search topic. People detection is done with a lot of

different sensors and different techniques. In order to

stay in scope, we will only discuss a subset of litera-

ture available on this broad topic. For a broader sur-

vey about people detection methods in the visible and

thermal spectrum see (Enzweiler and Gavrila, 2009)

or (Gero andnimo et al., 2010).

First we will talk brieﬂy about people detection

in visible spectrum images and explain why we did

choose ISM as our baseline algorithm and as basis for

modiﬁcations. Then we will give a short overview of

people detection in thermal images. In the end we

talk about approaches that use the thermal and visible

spectrum for people detection at the same time.

2.1 Visible Spectrum Images

People detection in the visible image space is still a

very active research topic. Recent advances in people

detection (Dalal and Triggs, 2005; Leibe et al., 2008;

Leibe et al., 2005; Schiele et al., 2009) show good de-

tection rates and are quite time efﬁcient. In this work

the FastPRISM detector from Lehmann (Lehmann

et al., 2010) is used. It is an advanced variant of

Leibe’s implicit shape model (ISM) detector (Leibe

et al., 2008). On the one hand, it improves stochastic

reasoning and allows discriminative learning, and on

the other hand, it proposes a necessary acceleration of

the ISM method. The acceleration is achieved by ap-

plying the Efﬁcient Subwindow Search (ESS) method

proposed by Lampert (Lampert et al., 2008) to the

feature centric view of ISM by Lehmann (Lehmann

et al., 2009).

The feature centric view makes ISM (and Fast-

PRISM) very robust against missing data. Missing

data can occur for partly occluded people. But the

robustness against missing data also helps during the

fusion, if one of the fused spectra delivers only few

features.

2.2 Thermal Images

One very popular approach to people detection on

thermal images is the detection of hot spots, in most

cases by applying a ﬁxed temperature threshold. Of-

ten after that step only heuristics over the human size

are applied to distinguish people from non-human

heat sources (Cielniak and Duckett, 2004; Serrano-

Cuerda et al., 2011; Li et al., 2010). All those ap-

proaches are based on the assumption that people

are generally warmer than the background. For in-

door scenarios this assumption holds, but for out-

door scenarios this often is wrong as Goubet shows

in (Goubet, 2006). We can conﬁrm this observation

from our own experience; Figure 2 shows an exam-

ple where the person is actually colder than parts of

its environment, making constant temperature thresh-

olds unfeasible. There are more sophisticated meth-

ods like (Davis and Sharma, 2004). However, they

often heavily rely on statistical background subtrac-

tion. For statically mounted surveillance cameras this

makes perfect sense, but on mobile robots this ap-

proaches does not work. As soon as the robot starts

moving the previously calculated statistical model of

the background is worthless, because the whole back-

ground has changed and the subtraction does not work

anymore.

The use of a Histogram of Gradients (HOG, by

Dalal and Triggs in (Dalal and Triggs, 2005)) like de-

tector on thermal images is proposed by Miezianko

and Pokrajac in (Miezianko and Pokrajac, 2008).

Which is similar to the work of Zhang et al. (Zhang

et al., 2007). They compare the performance of HOG

like detectors on thermal data to the performance on

visible spectrum images. The evaluation is carried

out on thermal images and images from the visible

spectrum. However, the images do not show the same

scenes, which hinders the comparison of the results

on thermal data against the results on images from the

ICINCO2013-10thInternationalConferenceonInformaticsinControl,AutomationandRobotics

346

visible spectrum. A fusion of the thermal and visible

spectrum is not possible with their data and does not

seem to be in their interest.

2.3 Image Fusion

Goubet et al. are one of the ﬁrst to propose the fu-

sion of thermal and visible spectrum images (Goubet,

2006) for people detection. They fuse the two im-

ages on the pixel level using a weighted sum creating

a new gray scale image in which changes are detected

and heuristics about the size of people are used ﬁl-

ter out people. A much more sophisticated method

is proposed by Han et al. in (Han and Bhanu, 2007),

which works on silhouettes from both spectrum im-

ages. Both approaches rely heavily on background

subtraction, though, which forbids the usage on mo-

bile robots. Another low level fusion approach is pre-

sented in (San-Biagio et al., 2012). They fuse the

images at pixel level and calculate covariance matrix

descriptors that they use as features for later stages.

So the features contain information from both spec-

tra. For that they need a very good registration of

thermal and visible spectrum camera. They circum-

vent the lack of a suitable interest operator for such

features by using a dense feature map which is very

expensive to calculate and therefore not feasible for

applications on mobile robots.

In contrast to the very low level fusion that Goubet

et al. propose, Serrano-Cuerda et al. propose a deci-

sion level fusion in (Serrano-Cuerda et al., 2011). An

detector is applied to the visible spectrum image and

the thermal image separately and the results are joined

in the end. The detection in the color image is done

by background subtraction and color segmentation.

On thermal data a simple blob detector is used. A

simple blob detector for the thermal data is also used

in (Cielniak and Duckett, 2004). The detected blobs

are transferred to the visible spectrum image and a

feature vector is calculated from both images and fed

into different classiﬁcation systems. Other works con-

centrate on the fusion of other modalities, like visi-

ble spectrum images and depth data in (Spinello and

Arras, 2012; Ikemura and Fujiyoshi, 2011) or visible

spectrum and near infrared images (Lietz et al., 2009).

2.4 Contribution

Previous work in (K

onigs and Schulz, 2012) evalu-

ates a blob detector on thermal data against the more

advanced ISM detector applied on thermal data. This

evaluation is extended here to include different data

fusion approaches. Novel, to our knowledge, is the

direct comparison of fusion approaches on the fea-

ture level and on the decision level. Furthermore we

compare the performance of the proposed methods on

indoor and outdoor datasets which include both ther-

mal and visible spectrum images from the same scene

which allow a direct comparison of the algorithms.

So the main contribution of this work is an in-depth

evaluation of different fusion methods against detec-

tors working on unfused thermal and visible spectrum

data.

3 BASELINE ALGORITHMS

In this section we brieﬂy introduce the algorithms

used as baseline to compare the fusion methods

against. First we describe the implementation of a

simple Blob Detector that is commonly used for peo-

ple detection in thermal images. Second we describe

the ISM detector and especially its voting mechanism,

which we modiﬁed in different ways to incorporate

thermal data into the detection process.

3.1 Blob Detector

We implemented a blob detector to work on the ther-

mal images in order to have a widely used baseline al-

gorithm for people detection on thermal images. The

Blob Detector ﬁrst applies a thresholding to the ther-

mal image I with a ﬁxed thermal threshold. The result

is a binary image. After that a morphological closing

is applied. The result is a smoothed binary image I

Now we search for contours in the image I

(see

(Suzuki and Abe, 1985)). The result is a set of blobs

B that depict connected components in the binary im-

age. For each of this blobs b = (x, y, w, h) ∈ B the dis-

tance to the average width w

and height h

of persons

in our test datasets is calculated and incorporated into

a conﬁdence value b

= min(1 −

|w − w

, 1 −

|h − h

)

This conﬁdence value b

is then tested against the de-

tection threshold.

3.2 Implicit Shape Models

The second baseline algorithm we use is FastPRISM

by Lehmann et al. (Lehmann et al., 2010). It is

a speed up variant of Implicit Shape Models (ISM)

originally developed by Leibe et al. (Leibe et al.,

2008). The detector operates on image features;

SURF (Bay et al., 2008) in the case of this work. It

is based on a codebook that is created during training

by clustering the observed features. For each of these

EvaluationoftheFusionofVisibleandThermalImageDataforPeopleDetectionwithaTrainedPeopleDetector

347

codebook entries the detector stores votes for the per-

son centers in vote images. During detection new fea-

tures are associated to the codebook entries by nearest

neighbor search in the feature space. Then they vote

for the possible person centers from the vote image

of the associated codebook entry. The votes are cast

into a voting space in which space local maxima of

accumulated votes are located and depicted as person

centers.

The improved algorithm of Lehmann et al. applies

a branch and bound search strategy for local max-

ima in the voting space without considering all pos-

sible person hypotheses. The algorithm starts with

the complete set of all possible hypotheses, splits it

along the dimension (row, column or size) with the

biggest extend and calculates scores for the two new

sets. These sets are inserted into a priority queue. In

the next step the set with the highest score is taken

from the queue and split again along the dimension

with the biggest extend. This is continued until a set

is found that contains only one hypothesis. With the

right score function S(Ω), only few sets of hypothesis

need to be checked which makes the detection very

fast. The score function that Lehmann develops for

FastPRISM is explained in great detail in (Lehmann

et al., 2009).

4 FUSION OF VISIBLE AND

THERMAL DATA

There are different possibilities to fuse visible and

thermal images for people detection. The lowest level

we look at in our evaluation is the feature level. We

propose to calculate SURF features from both the vis-

ible spectrum image and thermal image and present

them to our people detector as a combined set of im-

age features. This method will be called Merge Fea-

tures in the remainder of this work.

On a higher level, i.e. mid level, the detector it-

self incorporates both, visible and thermal data. We

propose two modiﬁcations to the voting step of Fast-

PRISM which draw hints from information in the

thermal image and otherwise still rely on visible data

for the detection. This fusion should be categorized

somewhere between feature level and decision level.

The highest level of fusion, i.e. decision level, is

to apply a people detector to the visible image and

another detector to the thermal image and then fuse

the results. This has the advantage that each detector

can be developed and trained independently, and can

be used on systems with only one of the data sources.

The issue here is that the detectors need to transport

their certainty about their detections to a fusion mod-

ule. This module then somehow needs to ﬁgure out

which detector to trust more, if they are disagreeing

about a certain detection. It also has the responsibility

to fuse detections, if they describe the same person.

4.1 Merge Features - Feature Level

Fusion

The lowest level we look at is the feature level. This

is, because the people detector we want to employ

acts on image features only. For this fusion step we

draw SURF features from both the visible spectrum

and thermal image independently and add them into

the same data structure. The SURF feature extractor

works on greyscale images and can be applied to ther-

mal images. The combined set of features from both

spectra is presented to the people detector which is

ignorant of where the single features came from.

4.2 Inﬂuencing the Voting Process - Mid

Level Fusion

For the mid level fusion we assume that people are

above a certain temperature. Because our thermal

camera does only deliver intensities and not tempera-

ture readings, this translates to people being above a

certain intensity value. This is close to the assumption

that people are warmer than their surroundings, but

not the same. The biggest difference is we use the in-

tensity values to only guide the detector that otherwise

is working on visible spectrum data. The goal here is

to guide the branch and bound process away from im-

age areas that are to cold to be a person and might be

hard to distinguish from a person in the visible spec-

trum image. We propose two different ways to inﬂu-

ence the voting of the ISM detector which modify the

score function for a set of person hypotheses to guide

the detector.

4.2.1 Maximum Search

First the original score S(Ω) for the hypothesis set Ω

is calculated as in the original method from the fea-

tures of the visible spectrum image. Then the rectan-

gular region R

Ω

h∈Ω

of the thermal image T

is searched for the maximum value. R

Ω

corresponds

to the region that contains all rectangles R

for per-

son hypothesis h ∈ Ω. If that maximum is below the

thermal threshold t we assume that there cannot be a

person in this region of the image and we lower the

score for the hypothesis set. The equation is as fol-

lows:

max

(Ω) :=



S(Ω) max

p∈R

T (p) ≥ t

S(Ω) ∗ 0.9 max

p∈R

T (p) < t

ICINCO2013-10thInternationalConferenceonInformaticsinControl,AutomationandRobotics

348

4.2.2 Combination with Blob Detector

The Blob vote modiﬁcation is the second mid level fu-

sion technique we propose. It combines the Blob De-

tector and the FastPRISM detector at vote level. At

ﬁrst, again the score S(Ω) is calculated for the visi-

ble spectrum image as before. Then, additionally, the

set of person rectangles Ω

blob

:= {R

blob

∈ T } is cal-

culated with the Blob Detector from the thermal im-

ages. We again want to avoid image regions where

persons are unlikely, because the Blob Detector did

not ﬁnd persons there. But we still want the trained

person detector to ﬁlter out false detections from the

Blob Detector. Therefor the image area of the hypoth-

esis set is calculated as R

Ω

h∈Ω

and compared

to the rectangles in Ω

blob

(Ω) :=

(

S(Ω) ∗ 1.1 ∃R ∈ Ω

blob

: R ∩ R

Ω

S(Ω) ∗ 0.9 ∀R ∈ Ω

blob

: R ∩ R

Ω

4.3 Join Detections - Decision Level

Fusion

As indicated before the highest level of fusion is to

have two detectors working independently on the vis-

ible spectrum and thermal image and then join the re-

sults. For the visible spectrum image we apply the

FastPRISM detector, as usual. For the thermal im-

age we have two choices. The ﬁrst choice is to use

the FastPRISM detector also for thermal images. The

second choice is to use the Blob Detector we de-

scribed in section 3.1. We will evaluate both, later on.

The methods will be called Join Detections and Join

with Blobs, respectively, and summarized as decision

level fusion approaches.

For both methods the fusion of the results is done

straight forward. The result rectangles are compared

pairwise. If a pair is overlapping by more than 50%

only the result with the better score is used and the

score is set to the sum of the individual scores. Results

without a correspondence are just copied with their

original score.

5 EXPERIMENTS

The thermal images are taken from a thermal cam-

era of type EYE R640 from OPGAL with a resolu-

tion of 640x480 pixels. It delivers intensity values

that are automatically scaled to the currently observed

temperature range, i.e. it is impossible to interpret

the intensities as temperatures. For the images from

the visible spectrum we mounted a common Logitech

Quick Cam 9000 USB camera on top of the thermal

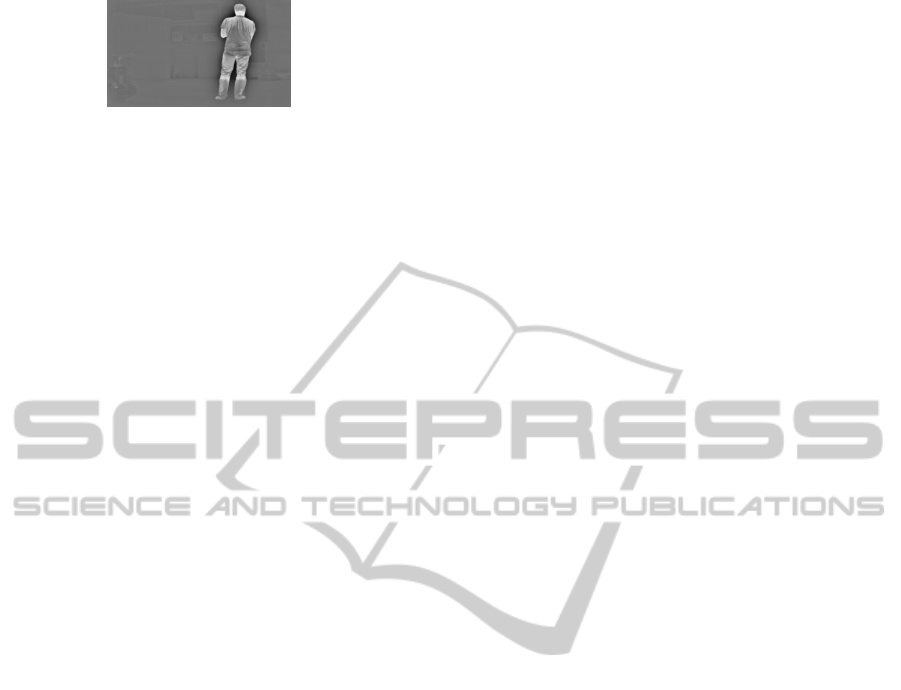

camera, see Figure 1. The registration of the cameras

was done manually by selecting corresponding points

and calculating a transformation between the images.

This is only an approximate solution, but sufﬁcient for

our needs.

We recorded a large indoor dataset in our lab with

multiple persons moving in front of the camera. The

robot with the mounted camera was placed in differ-

ent locations so that different backgrounds are visi-

ble in the dataset. The dataset amounts to roughly

2500 images from each spectrum. Additionally, we

recorded data outdoors on two different days with

temperatures of 15

◦

C and 25

◦

C and sunny weather

conditions. During recording the robot was moving.

The outdoor datasets amount to 3500 images from

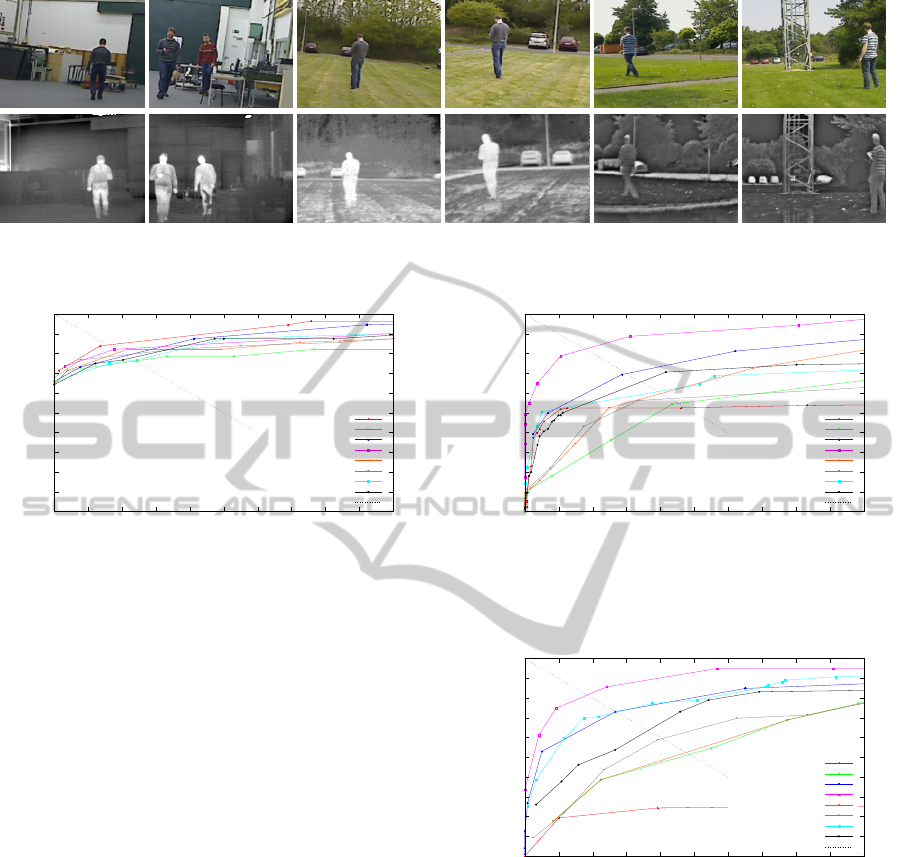

each spectrum. Figure 3 shows some examples of our

datasets.

5.1 Experiment Setup

For automatic evaluation of the detector results peo-

ple were manually annotated as bounding boxes in the

datasets. A result is counted as correct if the cut and

join of the detection rectangle and annotated rectangle

overlap by at least 50%.

We evaluate the Merge Features fusion, both pro-

posed mid level fusion variants and both decision level

fusion variants. As baseline algorithms we use the

Blob Detector and our ISM variant on thermal and

visible spectrum images, called ISM Visible and ISM

Thermal respectively. These baseline algorithms per-

form very different on the three datasets and their per-

formance issues help to understand the results of the

proposed fusion variants.

5.2 Evaluation

We present the results of the evaluation in three

graphs for the three different datasets. The graphs plot

recall rate (i.e. correct detections of people) against

the false positives per image (FPPI) rate while the de-

tection threshold is altered. We cut off the graphs at

one false positive per image. Our main goal with the

fusion of thermal and visible spectrum data was not to

raise the recall rate but to get less false positives, i.e.

make the individual curves stay at a higher recall rate

for lower FPPI rates.

From the indoor experiments, see Figure 4, we

learned that the Blob Detector yields very good re-

sults. But the other proposed methods are quite good

as well. All in all, the results on the indoor set are

quite similar for all the approaches and the set seems

EvaluationoftheFusionofVisibleandThermalImageDataforPeopleDetectionwithaTrainedPeopleDetector

349

Figure 3: Sample images from the recorded datasets. The left two columns are from the indoor dataset, the middle columns

from the outdoor dataset on the 15

◦

C day and the right two columns from the outdoor dataset on the 25

◦

C day.

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

Recall

False Positives per Image

Blob detector

ISM visible

ISM thermal

Merge features

Maximum search

Vote for blobs

Join detections

Join with blobs

Equal error rate

Figure 4: Results on the indoor test set. Blob Detector

scores best, but all results are very similar.

to be easy enough. Nonetheless, we can see some

effects. ISM Visible performs worst in terms of the

recall rate, because it is affected by some background

structures like shelves and racks which it tends to con-

fuse with people. Those structures are less visible in

the thermal images, because they are of a homoge-

neous temperature which is why ISM Thermal per-

forms better. A look at the mid level fusion shows

that they raise the recall rate a bit above the level of

ISM Visible, because they prevent some of the false

positive detections that still occur with a low thresh-

old. This is what we wanted them to achieve. The

decision level fusion cannot avoid false positives very

good, which can be observed by the lower recall rates

in the range between 0 and 0.4 FPPI. Above 6 FPPI

the recall values of Join Detections are even higher

than the one of the Blob Detector, which stays stable

at 0.96 above 0.8 FPPI. But this are too many false

positives to make a useful detector. Maybe a more

advanced strategy to select the right detections from

the single detectors would help here, but this is left as

future work.

The outdoor experiments show a different picture

as seen in Figure 5 and 6. The performance of the

Blob Detector is not so good on the 15

◦

C day and

really bad on the 25

◦

C day, because there are many

things in the background that are heated up by the

sunlight. ISM Visible has severe issues with false pos-

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

Recall

False Positives per Image

Blob detector

ISM visible

ISM thermal

Merge features

Maximum search

Vote for blobs

Join detections

Join with blobs

Equal error rate

Figure 5: Results on the outdoor dataset from the 15

◦

C day.

Merge Features performs best. Blob Detector performance

shows that the person now is not always warmer than the

background.

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

Recall

False Positives per Image

Blob detector

ISM visible

ISM thermal

Merge features

Maximum search

Vote for blobs

Join detections

Join with blobs

Equal error rate

Figure 6: Results on the outdoor dataset from the 25

◦

C day.

Merge Features performs best. Blob Detector performance

now is real bad.

itives. There are many structures like trees and lamp-

posts in the background that get confused with people.

The mid level fusion variants show that they achieve

our goal of reducing false positives. Their recall value

goes down at a lower FPPI rate, i.e. the range between

0 and 0.4 FPPI. Especially for Maximum Search on

the 15

◦

C day the recall rate raises quite fast compared

to ISM Visible, if one looks at 1.0 FPPI.

On the 25

◦

C day the performance difference be-

tween Maximum Search and ISM Visible is close to

non existent, though. On that dataset only Blob Vote

shows a little higher resistance against false positives,

ICINCO2013-10thInternationalConferenceonInformaticsinControl,AutomationandRobotics

350

Figure 7: The image shows a clearly visible thermal struc-

ture of a person which helps people detection, because more

features can be extracted on the person.

which is somewhat unexpected, because the Blob De-

tector itself performs extraordinarily bad. Most prob-

ably it detects some persons that ISM cannot see at

all. The performance of ISM Thermal is quite good

on these datasets. That is, because trees appear as

homogeneous blobs in thermal data and do not gener-

ate many features. This helps to avoid them as false

positives. Not surprisingly Join Detections seems to

mostly take the detections from the thermal data into

account and performs very similar. Join with Blobs

works quite well here, too. The results of the combi-

nation are far better than the individual results which

shows that Blob Detector and ISM Visible have very

few right positives in common.

On both outdoor datasets the low level merge of

features works best. This shows that the fusion of

thermal and visible data makes sense for outdoor sce-

narios, especially on days where the assumption that

people are the hottest spots in the images does not

hold. This is, because the feature set incorporates fea-

tures from both spectra. At the same time the ISM

detector is very good at handling incomplete infor-

mation, i.e. if one spectrum fails considerably, like

the visible spectrum does in our setup, the other spec-

trum still can be sufﬁcient to produce good detections.

But the additional information from the visible spec-

trum seems to help the detector to even outperform

ISM Thermal on this datasets.

We identiﬁed two reasons for the improved per-

formance with thermal data. On the one hand, back-

ground clutter is often not as visible in thermal im-

ages as in images from the visible spectrum. That

is because background clutter often has a common

temperature which yields in big homogeneously col-

ored blobs which are easy to ﬁlter out. On the other

hand, the thermal signature of persons usually con-

tains much more structure than the clothing, see Fig-

ure 7 for an example. This helps the SURF feature

detector to extract more features for the observed per-

sons and, therefore, improves the results. The low

level fusion of data, i.e. merging of feature sets, works

very good with the ISM detector. We think that this is

because of the voting mechanism employed by ISM.

Features from both spectra are voting for the right

positives whereas for the false positives often only

features from one spectrum vote.

6 CONCLUSIONS AND FUTURE

WORK

We evaluated how to apply the ISM people detec-

tor to data from the thermal and visible spectrum at

the same time. We identiﬁed three levels of fusion

that are applicable for this detector. The lowest level

just combines features from thermal and visible spec-

trum images into a combined feature set and applies

the detector to this set. On a higher level we apply

ISM to the visible data and use the knowledge from

the thermal image to guide the voting process away

from false positives and towards possible persons but

still let the trained detector make the ﬁnal decision.

On the highest level we apply the ISM detector to im-

ages from the thermal and visible spectrum separately

and try to join the results into a combined set of detec-

tions. These fusion techniques are evaluated on three

datasets, one recorded indoors in a lab environment

and two outdoor datasets on sunny days with ambient

temperatures of 15

◦

C and 25

◦

The conclusion of our evaluation is that the low-

est level of fusion shows the best performance. It of-

fers a low false positive rate with a high recall rate at

the same time. The performance is much better than

the one of the ISM detector applied to visible images

only. It also is better than ISM applied to thermal

images only, which already yields a good improve-

ment. The other fusion approaches, namely Merge

Features, Maximum Search, Blob Vote, Join Detec-

tions, and Join with Blobs perform similar to ISM on

thermal data which suggests that the information in

the thermal data is very dominant during the detec-

tion process. One reason is that people are easily dis-

tinguishable from the background in thermal images

most of the time, because the background clutter in

the visible domain generally has homogeneous ther-

mal signature.

One aspect that was not investigated in this work

is the fusion of thermal and visible spectrum images

on the pixel level. It should be possible to design

a combined feature vector for that and implement a

smart feature detection method which avoids unlikely

features already in the feature detection step. In fu-

ture work we want to evaluate how the use of thermal

imaging impacts the performance of people tracking

and if persons can be distinguished using their ther-

mal signature.

EvaluationoftheFusionofVisibleandThermalImageDataforPeopleDetectionwithaTrainedPeopleDetector

351

REFERENCES

Bay, H., Ess, A., Tuytelaars, T., and Van Gool, L. (2008).

Surf: Speeded up robust features. Computer Vision

and Image Understanding (CVIU), Vol. 110:pp. 346–

359.

Cielniak, G. and Duckett, T. (2004). People recognition

by mobile robots. Journal of Intelligent and Fuzzy

Systems, 15:21–27.

Dalal, N. and Triggs, B. (2005). Histograms of oriented

gradients for human detection. In IEEE Conf. on Com-

puter Vision and Pattern Recognition (CVPR).

Davis, J. W. and Sharma, V. (2004). Robust background-

subtraction for person detection in thermal imagery.

In In IEEE Int. Wkshp. on Object Tracking and Clas-

siﬁcation Beyond the Visible Spectrum.

Enzweiler, M. and Gavrila, D. (2009). Monocular pedes-

trian detection: Survey and experiments. Pattern

Analysis and Machine Intelligence, IEEE Transac-

tions on, 31:2179–2195.

Gero andnimo, D., Lo andpez, A., Sappa, A., and Graf, T.

(2010). Survey of pedestrian detection for advanced

driver assistance systems. Pattern Analysis and Ma-

chine Intelligence, IEEE Transactions on, 32(7):1239

–1258.

Goubet, E. (2006). Pedestrian tracking using thermal in-

frared imaging. Proceedings of SPIE.

Han, J. and Bhanu, B. (2007). Fusion of color and infrared

video for moving human detection. Pattern Recogni-

tion, 40(6):1771 – 1784.

Ikemura, S. and Fujiyoshi, H. (2011). Real-time human

detection using relational depth similarity features.

In Kimmel, R., Klette, R., and Sugimoto, A., ed-

itors, Computer Vision ACCV 2010, volume 6495

of Lecture Notes in Computer Science, pages 25–38.

Springer Berlin Heidelberg.

onigs, A. and Schulz, D. (2012). Evaluation of thermal

imaging for people detection in outdoor scenarios. In

IEEE International Workshop on Safety, Security &

Rescue Robotics (SSRR).

Lampert, C. H., Blaschko, M. B., and Hofmann, T. (2008).

Beyond sliding windows: Object localization by efﬁ-

cient subwindow search. In IEEE Conf. on Computer

Vision and Pattern Recognition (CVPR).

Lehmann, A., Leibe, B., and van Gool, L. (2009). Feature-

centric efﬁcient subwindow search. In IEEE Conf. on

Computer Vision (ICCV).

Lehmann, A., Leibe, B., and Van Gool, L. (2010). Fast

PRISM: Branch and bound hough transform for ob-

ject class detection. Int. Journal of Computer Vision

(IJCV), pages 1–23.

Leibe, B., Leonardis, A., and Schiele, B. (2008). Robust ob-

ject detection with interleaved categorization and seg-

mentation. Int. Journal of Computer Vision (IJCV),

Vol. 77:pp. 259–289.

Leibe, B., Seemann, E., and Schiele, B. (2005). Pedestrian

detection in crowded scenes. In IEEE Conf. on Com-

puter Vision and Pattern Recognition (CVPR).

Li, J., Gong, W., Li, W., and Liu, X. (2010). Robust pedes-

trian detection in thermal infrared imagery using the

wavelet transform. Infrared Physics and Technology,

53.

Lietz, H., Thomanek, J., Fardi, B., and Wanielik, G. (2009).

Improvement of the classiﬁer performance of a pedes-

trian detection system by pixel-based data fusion. In

Serra, R. and Cucchiara, R., editors, AI*IA 2009:

Emergent Perspectives in Artiﬁcial Intelligence, vol-

ume 5883 of Lecture Notes in Computer Science,

pages 122–130. Springer Berlin Heidelberg.

Miezianko, R. and Pokrajac, D. (2008). People detection in

low resolution infrared videos. In Computer Vision

and Pattern Recognition Workshops, 2008. CVPRW

’08. IEEE Computer Society Conference on.

San-Biagio, M., Crocco, M., Cristani, M., Martelli, S., and

Murino, V. (2012). Low-level multimodal integration

on riemannian manifolds for automatic pedestrian de-

tection. In Information Fusion (FUSION), 2012 15th

International Conference on, pages 2223 –2229.

Schiele, B., Andriluka, M., Majer, N., Roth, S., and Wojek,

C. (2009). Visual people detection: Different models,

comparison and discussion. In ICRA Workshop People

Detection and Tracking.

Serrano-Cuerda, J., Lopez, M., and Fernandez-Caballero,

A. (2011). Robust human detection and tracking in in-

telligent environments by information fusion of color

and infrared video. In Int. Conf. on Intelligent Envi-

ronments.

Spinello, L. and Arras, K. (2012). Leveraging rgb-d data:

Adaptive fusion and domain adaptation for object de-

tection. In Robotics and Automation (ICRA), 2012

IEEE International Conference on, pages 4469 –4474.

Suzuki, S. and Abe, K. (1985). Topological structural anal-

ysis of digitized binary images by border following.

CVGIP.

Zhang, L., Wu, B., and Nevatia, R. (2007). Pedestrian de-

tection in infrared images based on local shape fea-

tures. In Computer Vision and Pattern Recognition,

2007. CVPR ’07. IEEE Conference on.

ICINCO2013-10thInternationalConferenceonInformaticsinControl,AutomationandRobotics

352
