The Underwater Simulator UWSim

Benchmarking Capabilities on Autonomous Grasping

Javier P

erez, Jorge Sales, Mario Prats, Jos

e V. Mart

ı, David Fornas, Ra

ul Mar

ın and Pedro J. Sanz

IRS Lab, Jaume I University, Castellon, Spain

Keywords:

Benchmarking, Underwater Interventions, Datasets, Open Source Simulator.

Abstract:

Benchmarking is nowadays an issue on robotic research platforms, due to the fact that it is not easy to repro-

duce previous experiments and to know in detail in which real conditions other algorithms have been applied.

In the context of Underwater interventions with semi-autonomous robots the situation gets even more inter-

esting. Experiments performed by other researchers normally do not include the whole set of real conditions

such as visibility or even water currents data that would allow the best scientiﬁc procedure. Underwater

interventions and specially those performed on real sea scenarios are expensive, difﬁcult to perform and repro-

duce. For this particular scenario, the use of an open platform simulation tool, with benchmarking capabilities

can provide an enormous help, as will be shown in the present paper. The Underwater Simulator UWSIM

(http://www.irs.uji.es/uwsim) has been shown to be a very useful tool for simulation, integration and bench-

marking, during the experiments performed in the context of the FP7 TRIDENT Project. In particular, in this

paper the use of the benchmarking capabilities of the UWSim platform for grasping autonomously an object

(airplane black box) from the sea ﬂoor in different water visibility and current conditions will be shown.

1 INTRODUCTION AND STATE

OF THE ART

Underwater manipulation using I-AUV (Autonomous

Underwater Vehivles for Intervention) makes it possi-

ble to design new applications such as the one studied

at the FP7 TRIDENT project, where a black box from

the sea bed was autonomously recovered. To accom-

plish this, the use of the UWSim (Underwater Sim-

ulator (Prats et al., 2012)) has been crucial, for both

testing and integration and also benchmarking.

There are previous simulators for underwater ap-

plications, which have mainly remained obsolete or

are being used for very speciﬁc purposes (Craighead

et al., 2007) (Matsebe et al., 2008). Moreover, the

majority of the examined simulators have not been

designed as open source, which makes difﬁcult to im-

prove and enhance the capabilities of the simulator.

Moreover, there are other commercial simulators such

as ROVSim (Marine Simulation, ), DeepWorks (Fu-

gro General Robotics Ltd., ) or ROVolution (GRL.,

). However, they have been designed to train ROV

pilots, which is not the objective of the autonomous

grasping. In the following tables 1 and 2 a compar-

ative analysis between several underwater simulators

can be seen.

Table 1: Comparative Analysis on Underwater Simulators

(Part I)(Matsebe et al., 2008).

SUBSIM CADCON NEPTUNE MVS

Graphics 3D(openGl) 3D 3D(openGl) 3D

Type of Simulation Ofﬂine Online,HIL Online,HIL,HS Online,HIL,HS

Real Time NO YES YES YES

orld Modeling

YES

(Newton)

bath

ymetry

VRML YES

vironment Modeling

YES YES NO YES

Sensors YES YES YES YES

Multiple Vehicles NO YES YES YES

Distrib

uted System

NO YES YES YES

Supporting

Operating System

indows XP,98 /C,C++

IBM An

Type Open source Open source Open source Open source

Table 2: Comparative Analysis on Underwater Simulators

(Part II)(Matsebe et al., 2008).

DVECS IGW DeepWoks UWSim

Graphics 3D(openGl 3D 3D 3D(osg)

Type of Simulation Online,HIL,HS Online,HIL,HS Online,HIL Online,HIL,HS

Real Time YES YES YES YES

World Modeling YES YES YES YES(osgbullet)

Environment Modeling YES YES YES YES

Sensors YES YES YES YES

Multiple Vehicles YES NO NO YES

Distributed System YES YES NO YES

Supporting Operating System UNIX/C Windows Sistemas con ROS

Type Open source Open source Comercial Open source

On the other hand, the use of simulators to de-

ﬁne speciﬁc benchmarks for underwater interventions

makes it possible to have a platform to better com-

pare, under the same conditions, the efﬁciency of two

different algorithms. Several deﬁnitions of bench-

marks have been proposed, but this work takes the one

explained at (Dillman, 2004) “adds numerical evalu-

ation of results (performance metrics) as a key ele-

ment. The main aspects are repeatability, indepen-

369

Pérez J., Sales J., Prats M., Martí J., Fornas D., Marín R. and Sanz P..

The Underwater Simulator UWSim - Benchmarking Capabilities on Autonomous Grasping.

DOI: 10.5220/0004484903690376

In Proceedings of the 10th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2013), pages 369-376

ISBN: 978-989-8565-71-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

dency, and unambiguity”. Some previous works on

benchmarking have been performed in other simula-

tors such as (Calisi et al., 2008) in stage, (Taylor et al.,

2008) in USARSim and (Michel and Rohrer, 2008) in

Webots. However, these works describe the develope-

ment of speciﬁc benchmarks instead of the design of a

platform for comparing algorithms. Moreover, in the

context of underwater robotics has been produces no

work of this kind before, to the best of our knowledge.

In this work a platform for the design of con-

ﬁgurable benchmarks is presented, created on the

UWSim simulator. In particular, two speciﬁc bench-

mark conﬁgurations are described. Firstly, the track-

ing algorithm is tested under different levels of vis-

ibity. After this, a speciﬁc benchmark to track and

control position over a black box in the sea ﬂoor is

presented, having different water currents as input.

The paper is organized as following. First of all

section 2 gives a summary of the main characteris-

tics of the benchmarking module. Sections 3 and 4

present the speciﬁc benchmarking examples, using

two experiments, the visibility test and the water cur-

rents respectively. Finally, section 6 concludes the ar-

ticle and provides a preview of further work.

2 DESIGN OF THE

BENCHMARKING MODULE

The benchmarking module has been implemented

in C++ and makes use of the UWSim simulator as

a library to carry out its mission. Like UWSim,

this application uses Robot Operating System (ROS)

(Quigley et al., 2009) for interfacing with external

software with which it can interact. ROS is a set of li-

braries that help software developers to create robotic

applications. It is a distributed system where differ-

ent nodes, which may be running on different com-

puters, are able to communicate by mainly publishing

and subscribing to “topics”. The ROS interface allows

the external program to be evaluated and can commu-

nicate both with the simulator (it can send commands

to carry out a task) and the benchmarking module (it

can send the results or data necessary to be evaluated).

For the development of the module, two important

objectives were taken into account. The ﬁrst one is to

be transparent to the user, in other words, that it does

not require major modiﬁcations to the algorithm to be

evaluated. The other objective of the module is that

it must be adaptable to all kind of tasks, for exam-

ple, that it is possible to evaluate a vision system with

some disturbance tolerance for a particular scene.

To achieve these objectives, a Document Type Def-

BENCHMARK

MEASURES

TRIGGERSCENEUPDATER

CURRENT FOG NONE

TIME

OBJECT CAM

CENTERED

POSITION

ERROR

COLLISIONS DISTANCE

EUCLIDEAN

NORM

CONSTANT CORNERS CENTROID

POSITION

NOMOVE

MOVE

SERVICE

OFF

TOPIC

ON, OFF

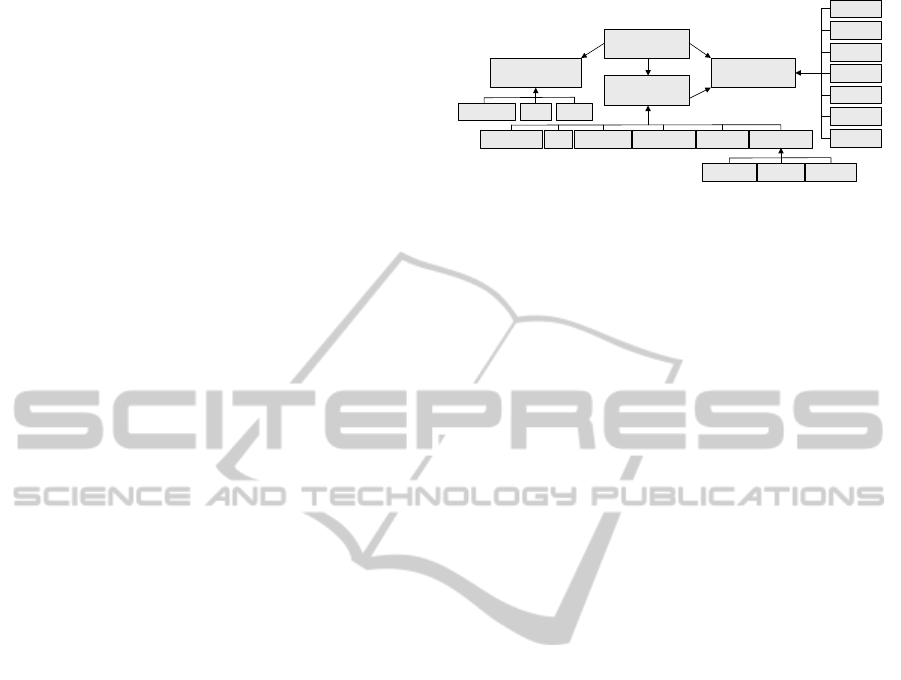

Figure 1: Benchmark module structure.

inition (DTD) template has been deﬁned, so that each

benchmark can be deﬁned in a eXtensible Markup

Language (XML) ﬁle(Bray et al., 1997). A DTD is a

document that allows to establish the validity of XML

documents by deﬁning its structure. In conclusion,

every time a user wants to create his own benchmark,

he must create an XML document that will deﬁne

which measures will be used and how them will be

evaluated. This will allow to create standard bench-

marks deﬁned in a document to evaluate different as-

pects of underwater robotic algorithms, being able

to compare algorithms from different origins. Each

of these benchmarks will be associated with one or

more UWSim scene conﬁguration ﬁles, being depen-

dent the results of the benchmark to the predeﬁned

scene.

2.1 Module Structure

The implemented module has the structure shown in

Figure 1. It is a small structure with 4 main classes,

three of which have child classes thus being able to

add more functionality to the implemented module by

adding new derived classes as needed. This makes

the module easily extensible as it is only necessary

to implement a few prototype functions to extend the

usability of the module.

The “benchmark” class has different measures

that will be created as deﬁned in the benchmark con-

ﬁguration ﬁle. Each of these measures has a “trig-

ger” that sets the measure and another that stops it,

depending on the events speciﬁed in the conﬁgura-

tion. Besides this, the “benchmark” class has “scene-

Updaters” that modify the scene with each evalua-

tion of the algorithm. The operation of the module is

simple: for each conﬁguration of the scene indicated

by the chosen “SceneUpdater”, the measures are cre-

ated and they are activated or deactivated according

to the “triggers”. These measures evaluate the algo-

rithm with a score that is stored for each iteration of

the “SceneUpdater”. Finally, when all the scene con-

ﬁgurations have been evaluated, the benchmark ends

and returns an output ﬁle with the results. These re-

sults are disaggregated for each conﬁguration of the

ICINCO2013-10thInternationalConferenceonInformaticsinControl,AutomationandRobotics

370

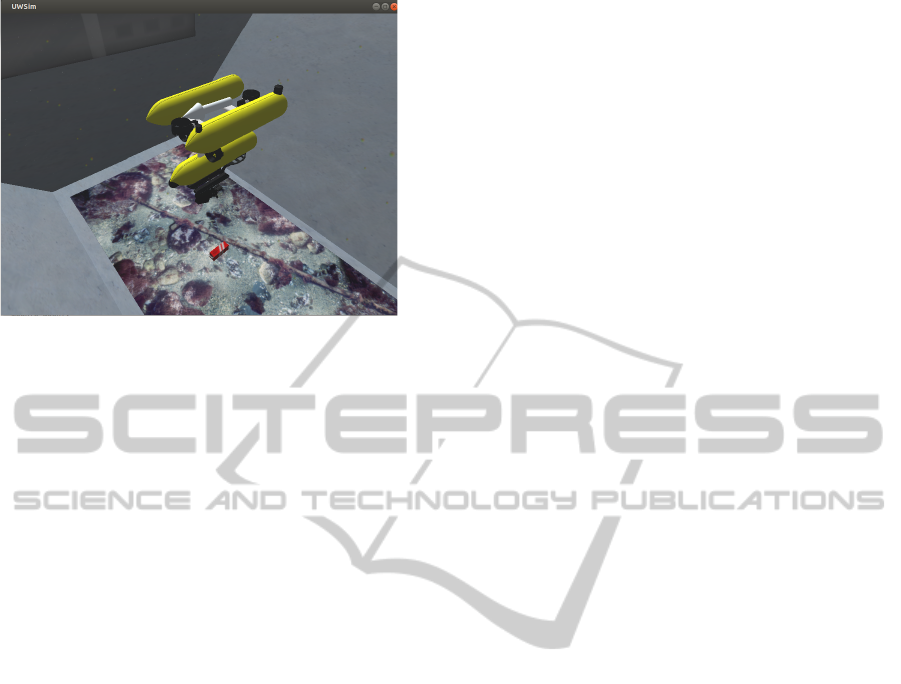

Figure 2: Underwater current benchmark scene.

scene, containing both individual measures and the

overall score of them, which is a function deﬁned in

the XML ﬁle.

Furthermore measures can be logged as time

passes in order to see it’s evolution through the ex-

periment. These feature allows to analyze the per-

formance of the algorithm to be evaluated with the

benchmarking platform and not only the ﬁnal results.

2.2 Module Features

The features of the benchmarking module are deﬁned

by the “triggers”, “sceneUpdaters” and measures im-

plemented, and can be freely conﬁgured to suit any

situation. Therefore, below is the description of the

options that are already implemented. These are the

current measures already implemented.

• Time: This measure returns the elapsed seconds

between the “start” and “stop” triggers created for

this measure.

• Collisions: This class uses osgBullet(Coumans, )

to measure the collision of a speciﬁed object or

vehicle. For this purpose, it extracts the maxi-

mum and average collision speeds and percentage

of time in contact with other objects. Note that the

collision velocities are measured from the veloc-

ity of the two objects that collide in the direction

of the vector that connects them.

• PositionError: This measure returns the position

error of an object or vehicle with respect to a po-

sition deﬁned by the benchmark. It can be used to

measure whether a vehicle has released an object

in a correct position. For example, in the case of

a robot that performs pick and place of submarine

pipelines, it can measure its performance accord-

ing to the position of the pipes at the end of the

intervention.

• Distance: In this case, the distance (in meters) that

a vehicle has traveled is measured. As an exam-

ple, is the one that will be preferred, the algorithm

that makes the vehicle to move fewer meters dur-

ing an intervention.

• EuclideanNorm: This measure calculates the Eu-

clidean norm between two vectors. The ﬁrst of

these two vectors can be speciﬁed in advance

(ground truth) or calculated automatically to ﬁnd

the centroid or the corners of an object in a virtual

camera. The second one is received from a ROS

“topic”. This measure is used when the result of

the algorithm to be evaluated cannot be directly

obtained into the simulator, such as the result of a

tracker.

• ObjectCamCentered: With this label, the position

error of an object with respect to the center of the

camera is calculated.

These are the measures that have been imple-

mented until now, but there are more being designed,

to be able to model a large diversity of benchmarks.

Some of the measures that can be implemented are

related to battery consumption or control of the ve-

hicle. All these measures provide many different op-

tions when evaluating an algorithm, however it is nec-

essary to control them when they are turned on and

off. This functionality is covered by the “triggers”.

Below is the description of the ones already imple-

mented in the UWSim module.

• TopicTrigger: Allows starting or stopping a mea-

surement when any information is received on a

ROS “topic”.

• AlwaysOnTrigger: Indicates that the measure

must be active all the time.

• AlwaysOffTrigger: Let measures not be disabled

in the case of any event.

• ServiceTrigger: Version that uses a service rather

than a “TopicTrigger” topic.

• MoveTrigger: This trigger is activated when the

object indicated in its creation has moved more

than a threshold deﬁned in a global variable.

• NoMoveTrigger: As its name indicates, in this

case the trigger is activated when a vehicle or ob-

ject stops moving.

• PositionTrigger: This trigger is activated when a

vehicle or object reaches a speciﬁed position.

Finally, the “sceneUpdaters” deﬁne how the

scenes changes as time passes to evaluate the algo-

rithm in different situations. At the moment there are

only three, although it is planned to add more when

water physics is ready on UWSim or otherwise as

TheUnderwaterSimulatorUWSim-BenchmarkingCapabilitiesonAutonomousGrasping

371

needed. The “sceneUpdaters” implemented so far are

the following:

• NullSceneUpdater: This updater does not update

the scene. That is, the benchmark will run only

once with the existing scene conditions.

• SceneFogUpdater: It updates the scene from a

minimum underwater fog level to a maximum, by

adding the speciﬁed amount. For each fog level,

the measures are calculated and the benchmark

score is stored.

• CurrentForceUpdater: In this case, the force of the

current is progressively increased. However the

rest of the current options (direction, variability,

randomness) are unchanged. These updater can

be easily modiﬁed to accept custom currents.

3 USE CASE: VISIBILITY

This tool allows benchmarking with many conﬁg-

urable options. Algorithms can be tested to their lim-

its, to know under which conditions can they work,

and which results can be obtained with them. This

way resources can be optimized to provide the best

results in each situation.

Below is an example of benchmarking done with

UWSim. In this case, the goal is to evaluate how the

underwater fog affects a visual ESM tracking algo-

rithm (Malis, 2004). Firstly a scenario with suitable

conditions to do tracking is created. This scenario in-

cludes the representation of the pool at the Underwa-

ter Robotics Research Center (CIRS), Girona, Spain,

with the Girona500 vehicle and the ARM5E arm. The

scenario has a virtual camera located above a black

box. It is only possible to access the “topics” of the

virtual camera, so the vehicle cannot move thus avoid-

ing errors when evaluating the vision system. The

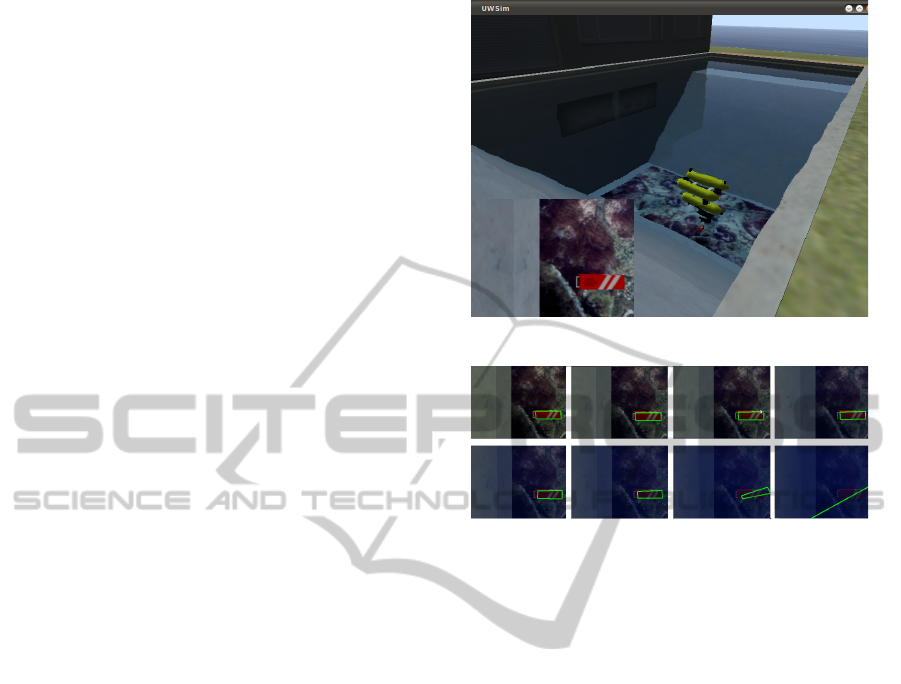

scene can be seen in Figure 3. In the scene, the ve-

hicle appears in the pool and on the lower left corner

of the scene, a virtual camera can be seen pointing at

the black box.

In addition to the scene, a benchmark conﬁgu-

ration ﬁle has been designed. It includes measure

deﬁnitions used to evaluate the performance of the

tracking and all that is needed to evaluate the track-

ing software. Since the tracking algorithm returns

the position of a four-corner object, an “euclidean-

Norm” measure is used, which measures the distance

between the position returned by the tracking soft-

ware and the real position on the simulator.

This distance is divided in two parts to get more

information. On one hand, the distance between the

Figure 3: Vision benchmark scene.

Figure 4: Tracking algorithm screenshots for decreasing

visibility in the benchmark.

actual corners with the ones that the tracking algo-

rithm returns. On the other hand, the real distance

from the centroid of the simulated object to the one

calculated through vision. For the ﬁnal result, these

two measurements are added so that the lower the re-

sult, the smaller the object recognition error is. In

addition to these measurements, the scene updater

“sceneFogUpdater” is conﬁgured varying the under-

water scene visibility through time.

Finally, some triggers have been set up to make the

evaluation task easier. For the beginning of the bench-

mark, benchmark module will wait for a service call

made by the tracking algorithm, and it will end when

there are no more “sceneFogUpdater” iterations. The

measurements will always be active, as it is taken as

valid the last one received by the ROS “topic” that the

vision system sends.

Once the simulator and the benchmark are con-

ﬁgured, a service call must be added in the tracking

algorithm when it starts, and the estimated position of

the box must be sent. As shown on ﬁgure 4 the track-

ing algorithm is able to ﬁnd the black box while the

fog is increasing in the benchmark, until ﬁnally it is

completely lost when the visibility is very low.

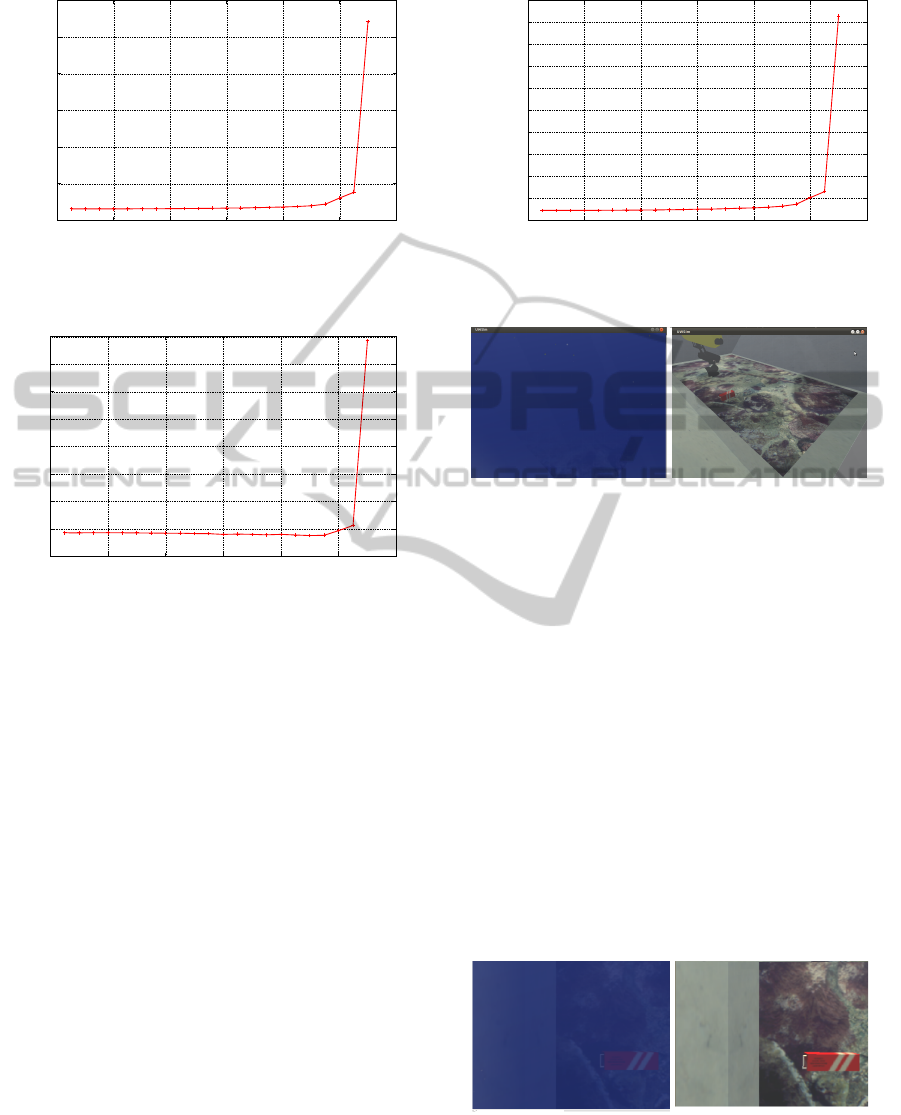

Once the benchmark is complete, the module

stores the results in a ﬁle. These results are stored

in a text ﬁle in table format. This ﬁle can be pro-

cessed later with any statistical or graphical tool. For

this case study the results can be seen on Figure 5.

ICINCO2013-10thInternationalConferenceonInformaticsinControl,AutomationandRobotics

372

100

120

0 0.2 0.4 0.6 0.8 1 1.2

Benchmark score (pixels error)

Fog value

Benchmark for tracking with different fog values

Figure 5: Visibility benchmark results.

0 0.2 0.4 0.6 0.8 1 1.2

Benchmark score (pixels error)

Fog value

Benchmark for tracking with different fog values (only centroid)

Figure 6: Visibility benchmark results for the centroid lo-

calization.

It can be observed how the tracking software error is

very small throughout the experiment, less than 5 er-

ror pixels between corners and the centroid. For a fog

level of 1.1, the error increases and the tracking algo-

rithm aborts when it completely loses the target.

Besides this, graphs can be drawn for each mea-

surement separately. Figures 6 and 7 show respec-

tively the error in the location of the centroid and the

corners of the box. As can be seen, the error in the

centroid is stable with some minor noise for values

smaller than a pixel, while the error in the corners in-

creases with increasing level of fog.

According to the results provided, the vision sys-

tem is reliable for fog levels below 1.1. Figures 8

and 9 show a comparison between this levels of fog

on UWSim simulator screenshots. The fog level is a

value ranging from 0 to inﬁnity and deﬁnes the vis-

ibility in the water depending on the distance. Visi-

bility is a value between 0 and 1 where 0 represents a

perfect visibility of the object and 1 represents no vis-

ibility at all. The visibility depends therefore on the

water fog level and on the distance to the object, as it

is represented by the following formula:

visibility = 1 − e

−( f og f actor∗distance)

(1)

100

0 0.2 0.4 0.6 0.8 1 1.2

Benchmark score (pixels error)

Fog value

Benchmark for tracking with different fog values (only corners)

Figure 7: Visibility benchmark results for corners localiza-

tion.

Figure 8: Comparison between fog levels 0 and 1.1 in the

simulator.

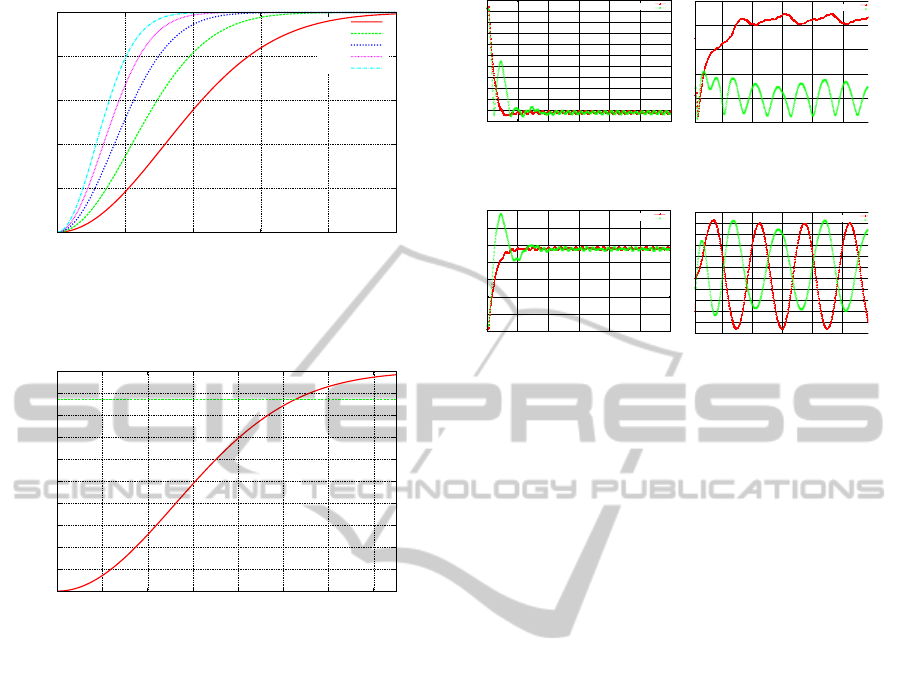

In Figure 10 different values have been used to

plot the relationship between visibility and the dis-

tance to the object. As can be seen, visibility drasti-

cally worsens with relatively small values of fog when

the distance to the object increases. Under a 1.05

value of fog (represented with purple line, which was

the operating limit of the tracking software), there is

virtually no visibility for a distance greater than 2 me-

ters.

In Figure 11 the distance to the object has been set

to 1.36 meters, which is actually the distance between

the camera and the black box in the benchmark, and

it represents the visibility with respect to the fog fac-

tor. The value of visibility for a fog factor of 1.1 is

depicted with a horizontal line. Thus the tracking al-

gorithm is able to ﬁnd an object when the degree of

visibility is below 0.86.

Figure 9: Comparison between fog levels 0 and 1.1 in the

simulator’s camera.

TheUnderwaterSimulatorUWSim-BenchmarkingCapabilitiesonAutonomousGrasping

373

0.2

0.4

0.6

0.8

0 1 2 3 4 5

Distance to obstacle (meters)

fog factor

Visibility distance depending on fog factor

0.45

0.65

0.85

1.05

1.25

Figure 10: Visibility and distance relation for different fog

levels.

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

0 0.2 0.4 0.6 0.8 1 1.2 1.4

visibility

fog factor

Visibility fog factor at fixed distance 1.36

Figure 11: Visibility and fog factor relation for a ﬁxed dis-

tance of 1.36 metres.

4 USE CASE: UNDERWATER

CURRENTS

Besides the previous example, this platform has been

used to measure the results of two positioning con-

trol algorithms for an underwater vehicle over a tar-

get. The goal is to maintain the vehicle over the tar-

geted black box despite the inﬂuence of currents, with

just a camera as sensor. The benchmarking module is

able to contrast and compare the results of two simple

controllers designed for this purpose.

The scenario is almost the same as the one used

in the visibility example. But now an increasing sinu-

soidal current is pushing the vehicle as shown on ﬁg-

ure 2 represented by an arrow. Users can deﬁne more

realistic currents creating a function that returns force

and direction in every time step for a speciﬁc vehicle.

Besides this, velocity topics have been conﬁgured to

control the vehicle’s positioning.

For the benchmark conﬁguration an “Object Cen-

tered On Cam” measure has been included on the

benchmark conﬁguration in order to evaluate the con-

0 20 40 60 80 100 120

Distance to objective (pixels)

Time (seconds)

Distance to objective vs time

P controller

PI controller

100

150

200

250

2300 2320 2340 2360 2380 2400

Distance to objective (pixels)

Time (seconds)

Distance to objective vs time

P controller

PI controller

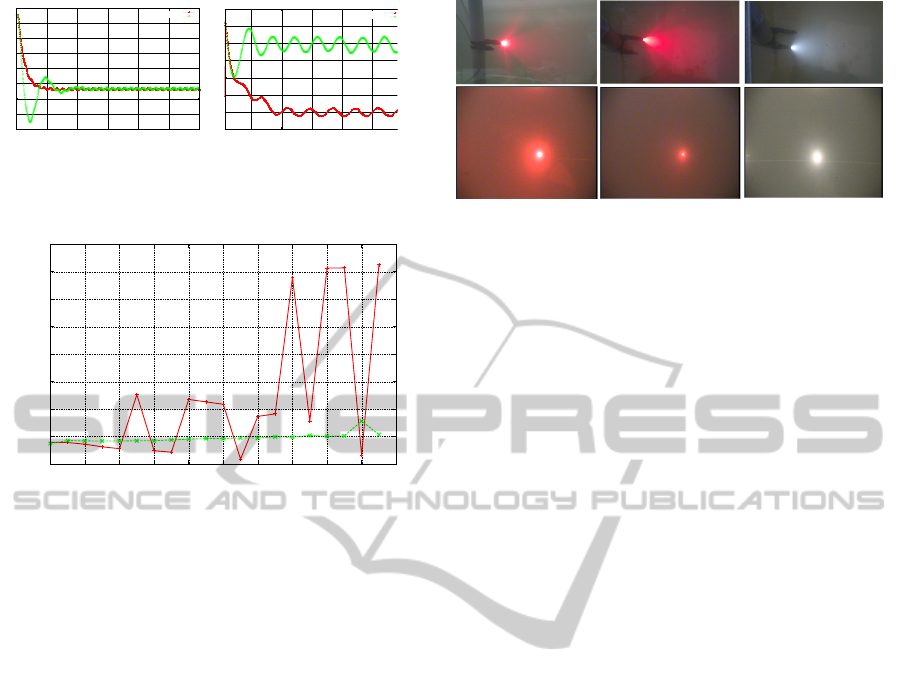

Figure 12: Distance to objective(left no current, right 0.2

m/s current).

-25

-20

-15

-10

-5

0 20 40 60 80 100 120

Error (pixels)

Time (seconds)

Positioning error vs time

P controller

PI controller

-120

-100

-80

-60

-40

-20

100

2300 2320 2340 2360 2380 2400

Error (pixels)

Time (seconds)

Positioning error vs time

P controller

PI controller

Figure 13: Current control positioning error on X axis(left

no current, right 0.2 m/s current).

troller. This measure will be logged in a different

result ﬁle with two components according to camera

axis errors. Tracking error is still measured in order

to see if the positioning controller affects it.

The designed controllers are: a P controller that

produces an output proportional to the positioning

error measured by the tracker. And a PI controller

which adds an integral term to the proportional out-

put. Much better controllers can be designed for this

experiment, but the aim of it is to demonstrate the ca-

pabilities of the developed benchmark platform eval-

uating controllers, instead of designing a good con-

troller.

In contrast to the previous use case, in this exper-

iment ﬁnal results are not so important. The position-

ing error evolution through time is much more use-

ful. As shown on ﬁgure 12 P (red) and PI (green)

controllers try to reduce the distance error in two dif-

ferent environments. In the left-hand graph there is

no current pushing the vehicle and in the right-hand

graph a great current pushes it. This is only a small

piece of the whole experiment where different current

forces are used to measure the perfomance of both

controllers.

As expected the PI controller works better, but it

can’t control the sinusoidal perturbations completely

(maybe a better design of the PI controller will make

it, but this is not the aim of the work). These kinds of

results can help to improve the design of controllers,

but the benchmarking platform can give information

split in camera-axis to make an easier analysis of the

process. The ﬁgures 13 14, show this feature repre-

senting the X and Y error respectively. In those pic-

tures the sinusoidal perturbations applied in the X-

axis of the current are being transferred to the out-

put and therefore a different controller should be de-

ICINCO2013-10thInternationalConferenceonInformaticsinControl,AutomationandRobotics

374

-30

-20

-10

0 20 40 60 80 100 120

Error (pixels)

Time (seconds)

Positioning error vs time

P controller

PI controller

-250

-200

-150

-100

-50

100

2300 2320 2340 2360 2380 2400

Error (pixels)

Time (seconds)

Positioning error vs time

P controller

PI controller

Figure 14: Current control positioning error on Y axis(left

no current, right 0.2 m/s current).

0 0.02 0.04 0.06 0.08 0.1 0.12 0.14 0.16 0.18 0.2

Centroid error (pixels)

Current force (meters/seconds)

Current vs tracking centroid

Figure 15: Tracker error on underwater current benchmark

for each controller.

signed. On the Y-axis PI controller is much better

than P, driving the error to zero in different conditions

while P error depends on the force of the current.

Finally on ﬁgure 15 the tracker error for each con-

troller (P red, PI green) is shown. It’s quite interest-

ing to see that the PI controller helps in some way the

tracker making smoother movements so the objective

is not lost. Although the tracker on the P controller

works ﬁne, it has a slightly bigger error than PI caused

by drastic moves.

5 VALIDATION IN A REAL

LABORATORY SCENARIO

In the subsea context, the quality of the images cap-

tured by the camera mounted on the autonomous

robots, can be strongly affected by the degree of the

water turbidity. In unfavorable circumstances, the dis-

tance at which this device is usable (ie, the range of

visibility) is the required parameter in order to know

to make a proper use of it. On the other hand, when

the image captured by the camera does not contain

objects near the robot, it is not possible to determine

whether the absence is due to the fact that there are re-

ally no objects near the vehicle or that water turbidity

prevents their vision.

To have a metric to determine the maximum dis-

tance at which the camera is effective at each instant,

Figure 16: Underwater visibility experimental results on in-

creasing water turbidity.

a calibration experiment has been developed. Two

high intensity LEDs (one red and one white), placed

at a ﬁxed distance from the camera, have been used

as shown on ﬁgure 16. To reach this ﬁxed distance

the diodes can be placed in the submarine’s robotic

arm and then it can be moved properly until the LEDs

reach the calibration location. On the other hand, a

calibration image that is positioned at a distance of 1

meter from the camera and is lightened by the built-it

autonomous robot focus has been made.

To muddy the water, a special dye for decorative

paintings has been used: a powder containing parti-

cles of different sizes. Thus, the water in the container

in which the experiment has been developed, progres-

sively blurred without having absolute measurements

of turbidity. For each concentration of dye, in the ab-

sence of ambient light,the vehicle’s built-in light has

been activated to illuminate the test image, and then a

screenshot of the captured image has been taken. Af-

ter that, with the lights turned off, the red and white

LEDs have been alternatively activated taking screen-

shot of each of them.

The three images form the calibration of the de-

gree of visibility of the focus-camera set for this par-

ticular conditions of turbidity. Thus, the aspect of

each of the LEDs makes it possible to determine the

degree of visibility at 1 meter of distance and this can

be used as a starting point for an estimation of the

maximum distance that will have some degree of vis-

ibility.

6 CONCLUSIONS AND FURTHER

WORK

In this paper the benchmarking characteristics of the

UWSim (Underwater Simulator) software have been

presented, which permits the design of speciﬁc ex-

periments on autonomous underwater interventions.

More speciﬁcally, the simulator allows the integra-

tion, in a unique platform, of the data acquired from

the sensors in a real submarine intervention and de-

TheUnderwaterSimulatorUWSim-BenchmarkingCapabilitiesonAutonomousGrasping

375

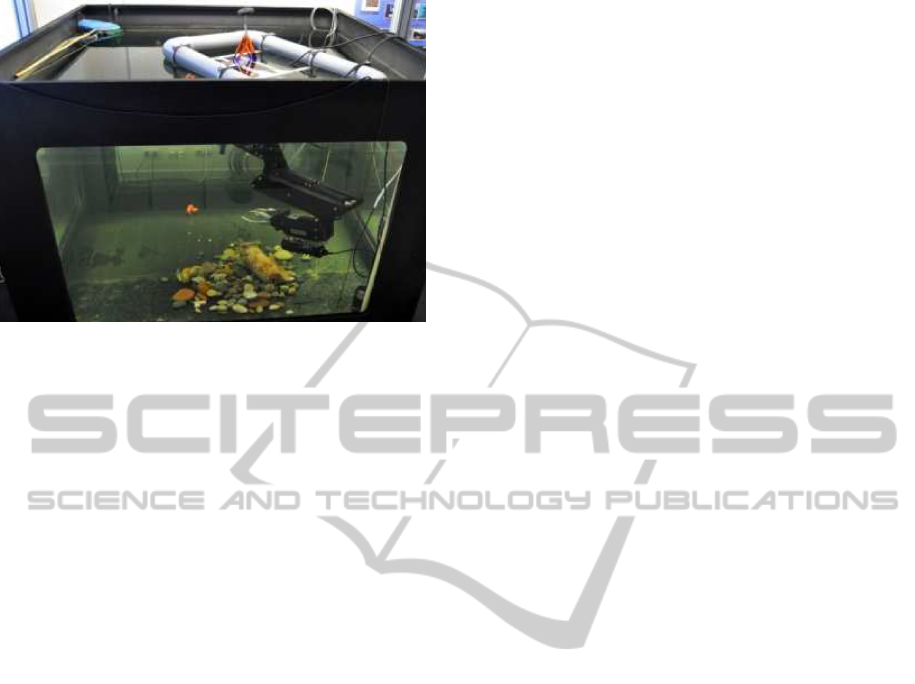

Figure 17: Underwater platform with ARM5E robotic arm

used perform water current tests.

ﬁne a dataset, in order to allow further experiments to

work on the same scenario, permitting a better under-

standing of the results provided by previous experi-

ments. Moreover, the paper focused on the effect of

both, limited visibility conditions and water currents,

on the tracking algorithm. Detailed benchmarks have

been designed to take into account these speciﬁc con-

ditions, and extract which are the scenarios where the

autonomous intervention algorithms are able to work

properly.

To better validate the results, similar real exper-

iments in lab conditions have been presented. For

example, to validate the simulated results on the

real platform a water tank is being used to repro-

duce the simulated conditions as shown on ﬁgure

17, and high luminosity LEDs are used for calibra-

tion purposes. Similarly, the current effects are val-

idated using a robot mobile platform that is able

to introduce disturbances on the robot movements,

simulating a more realistic scenario. The UWSim

software is provided to the public as open source

http://www.irs.uji.es/uwsim, and it is included as a

module within the ROS (Robotic Operating System)

platform http://ros.org/wiki/UWSim.

Further work will focus on the design of hardware

in the loop benchmarking, providing a better corre-

spondence between the simulated and the real results.

ACKNOWLEDGEMENTS

This research was partly supported by Spanish Min-

istry of Research and Innovation DPI2011-27977-

C03 (TRITON Project), by the European Commis-

sion Seventh Framework Programme FP7/2007-2013

under Grant agreement 248497 (TRIDENT Project),

by Foundation Caixa Castell-Bancaixa PI.1B2011-

17, and by Generalitat Valenciana ACOMP/2012/252.

REFERENCES

Bray, T., Paoli, J., Sperberg-McQueen, C. M., Maler, E.,

and Yergeau, F. (1997). Extensible markup language

(xml). World Wide Web Journal, 2(4):27–66.

Calisi, D., Iocchi, L., and Nardi, D. (2008). A uniﬁed

benchmark framework for autonomous mobile robots

and vehicles motion algorithms (movema bench-

marks). In Workshop on experimental methodology

and benchmarking in robotics research (RSS 2008).

Coumans, E. Bullet physics library (2009). Available on-

line: http://bulletphysics.org/.

Craighead, J., Murphy, R., Burke, J., and Goldiez, B.

(2007). A survey of commercial open source un-

manned vehicle simulators. In Robotics and Automa-

tion, 2007 IEEE International Conference on, pages

852 –857.

Dillman, R. (2004). Ka 1.10 benchmarks for robotics re-

search. Technical report, Citeseer.

Fugro General Robotics Ltd. Deepworks. Available online:

http://www.fugrogrl.com/software/.

GRL. Rovolution.

Malis, E. (2004). Improving vision-based control using

efﬁcient second-order minimization techniques. In

Robotics and Automation, 2004. Proceedings. ICRA

’04. 2004 IEEE International Conference on, vol-

ume 2, pages 1843 – 1848 Vol.2.

Marine Simulation. ROVsim. Available online: http://

marinesimulation.com.

Matsebe, O., Kumile, C., and Tlale, N. (2008). A review

of virtual simulators for autonomous underwater ve-

hicles (auvs). NGCUV, Killaloe, Ireland.

Michel, O. and Rohrer, F. (2008). The rat’s life benchmark:

competing cognitive robots. In Proceedings of the 8th

Workshop on Performance Metrics for Intelligent Sys-

tems, PerMIS’08, pages 43–49, New York, NY, USA.

ACM.

Prats, M., P

erez, J., Fern

andez, J., and Sanz, P. (2012).

An open source tool for simulation and supervision

of underwater intervention missions. In Intelligent

Robots and Systems (IROS), 2012 IEEE/RSJ Interna-

tional Conference on, pages 2577 –2582. IEEE.

Quigley, M., Gerkey, B., Conley, K., Faust, J., Foote, T.,

Leibs, J., Berger, E., Wheeler, R., and Ng, A. (2009).

Ros: an open-source robot operating system. In ICRA

workshop on open source software, volume 3.

Taylor, B., Balakirsky, S., Messina, E., and Quinn, R.

(2008). Analysis and benchmarking of a whegs robot

in usarsim. In Intelligent Robots and Systems, 2008.

IROS 2008. IEEE/RSJ International Conference on,

pages 3896 –3901.

ICINCO2013-10thInternationalConferenceonInformaticsinControl,AutomationandRobotics

376
