Using Intentional and System Dynamics Modeling to Address WHYs in

Enterprise Architecture

Sagar Sunkle, Suman Roychoudhury and Vinay Kulkarni

Tata Research Development and Design Center, Tata Consultancy Services, 54B, Industrial Estate,

Hadapsar, Pune, 411013, India

Keywords:

Enterprise Architecture, Intentional Modeling, System Dynamics, Decision Making.

Abstract:

Taking and executing cost effective decisions in enterprises is becoming increasingly difﬁcult due to multi-

ple change drivers that affect varied aspects of enterprise. Enterprise architecture (EA) frameworks provide

holistic treatment of whats and hows of enterprise but leave the important questions of whys unaddressed.

Intentional modeling and system dynamics modeling provide treatment of whys at a point in time and over

time respectively. We propose an approach where both intentional and system dynamics models are used in

conjunction with EA models for a more effective treatment of whys than provided by either. Initial results

with a case study suggest that best of both worlds may be obtained with such combined treatment of whys in

enterprise.

1 INTRODUCTION

It is becoming increasingly difﬁcult to take and ex-

ecute cost effective decisions with regards to orga-

nizational changes in today’s enterprises. Change,

however small, to any entity in enterprise reverber-

ates across varied dimensions like business, IT sys-

tems, and infrastructure (Kulkarni et al., 2013). Like

other adopters we are exploring enterprise architec-

ture (EA) to get a holistic view of enterprise (Sunkle

et al., 2013a). We are also discovering that while EA

enables creating reference models of the workings of

enterprise, something more is needed to analyze these

models to help cost effective decision making in en-

terprises. Apart from whats and hows of enterprise,

mechanisms to explicate and analyze whys and ide-

ally, the ability to play out alternative scenarios based

on explicit whys are needed.

Two such mechanisms have been proposed earlier,

tackling whys for EA with intentional modeling (us-

ing i* intentional modeling language) (Yu et al., 2006)

and playing out EA scenarios using systems dynam-

ics (Golnam et al., 2010). While abstractions in i* are

close to abstractions in EA models, system dynamics

is more generic in how it addresses dynamic evolu-

tion of behavior of system structures using just a few

key abstractions namely, stocks, ﬂows, and inﬂuenc-

ing variables (Sterman, 2000). Clearly, by combining

strengths of i* and system dynamics, it seems possi-

ble to get more in terms of resolving whys than either

can offer all by itself.

Instead of transforming EA models to system dy-

namics models as in (Golnam et al., 2010), we can

begin with EA models, get i* models via metamodel

mapping (Sunkle et al., 2013b), and then construct

system dynamics models over i* models with the help

of provided guidelines. This makes it possible to cap-

ture intentionality in addition to causality. This com-

plete process begins with an EA model of enterprise

and ends with an EA model which incorporates in-

sights obtained by analysis over intentional and sys-

tem dynamics models.

We illustrate this modeling and analysis process

using evolution of our model-driven software devel-

opment unit as a small case study. Instead of apply-

ing the process to evaluation of alternatives at a point

in time using intentional modeling as in (Yu et al.,

2006) or over time using system dynamics (Golnam

et al., 2010), we demonstrate the utility of this pro-

cess with the analysis of strategic vulnerability (Yu

and Mylopoulos, 1994) over time. Early results show

that this modeling process enables evolution of strate-

gic intentions in enterprise over time.

The rest of the paper is organized as follows. Sec-

tion 2 elaborates our motivation and presents key

ideas of our approach. Section 3 describes the map-

ping between generic EA and intentional metamodels

as well as interactive procedure used to create system

Sunkle S., Roychoudhury S. and Kulkarni V..

Using Intentional and System Dynamics Modeling to Address WHYs in Enterprise Architecture.

DOI: 10.5220/0004489200240031

In Proceedings of the 8th International Joint Conference on Software Technologies (ICSOFT-EA-2013), pages 24-31

ISBN: 978-989-8565-68-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

Table 1: Comparison of Various Models.

Comprehensibility –

SD models should be looked at

from simulation

perspective

EA focuses on holistic treatment of

enterprise, aims at shared

understanding

and communication.

A set of papers for simulation over i*

are available which need to be

referred to. It seems that not in the

table, rather in the paper itself in the

motivation.

Enterprise

Architecture

Models

System

Dynamics

Models

Intentional

Models

Captures whats

and hows of

enterprise at a

point in time

Captures whys

in addition to

whats and

hows

enterprise over

time

Capture whys in

addition to

whats and hows

of enterprise at a

point in time

Descriptive

Prescriptive

Quantitative

Assessment

Mainly

Qualitative

Assessment

Informative

Causal

Intentional

Highly

Comprehensible

Low

Comprehensibi

lity

Highly

Comprehensible

Low Simulation

Capability

Very High

Simulation

Capability

Average

Simulation

Capability

dynamics models from i* models. In section 4 we re-

imagine our model-driven software development unit

as an enterprise and apply combined i* and system

dynamics modeling to ArchiMate-based model of this

enterprise. Section 5 reviews related and further work

and Section 6 concludes the paper.

2 MOTIVATION AND OUTLINE

EA is supposed to be the process of translating

business vision and strategy into effective enterprise

change. While EA models capture the working of

the enterprise or the whats and the hows, the treat-

ment of whys, even with the extended constructs for

motivation in them, has been found to be more of

blueprint nature (Wagter et al., 2012) and descriptive

rather than prescriptive (van Bommel et al., 2007).

The prescription of course of action in the face of

change is obtained using causal relationships in sys-

tem dynamics models, whereas in intentional models

it is obtained using intentional relationships as shown

in Table 1. Causality denotes that there is a evolution

relationship between two elements, i.e., if one entity

changes over time then there will be change in the en-

tity it is connected to. Intentionality on the other hand

implies actor autonomy, i.e., it is up to an actor to de-

liver the responsibility that it is assigned to. Also, the

nature of satisfaction of goals and soft goals in inten-

tional models is qualitative; in the intentional model-

ing literature this is denoted by word satisﬁced rather

than satisﬁed (Yu and Mylopoulos, 1994). Core ele-

ments in system dynamics such as stocks and ﬂows

are meant to deal with quantities (Sterman, 2000).

Correspondingly, the course of action prescribed by

intentional modeling and system dynamics is respec-

tively qualitative and quantitative in nature.

Furthermore, EA models are speciﬁcally cre-

ated for communication and shared understanding of

whats and hows. They need to be highly compre-

hensible to be of any use at all. Intentional models

also capture whats and hows that are relevant to the

problem at hand in terms of strategic dependency di-

agrams and whys in terms of strategic rationale di-

agrams. System dynamics models on the other hand

are created with simulation purpose in mind. As such,

representation of problem, here in the context of EA,

in terms of stocks and ﬂows is often not meant for

comprehension as much as for ease of simulation and

scenario playing.

From the comparison in Table 1, it is clear that in

order to apply intentional and system dynamics mod-

eling for decision making in EA, it is better to treat

EA models as the version of truth and use intentional

and system dynamics models only as techniques to

solve speciﬁc problems.

The process of modeling an EA problem and its

solution using intentional and system dynamics mod-

els consists of 4 steps as enlisted below:

1. In the ﬁrst step an intentional model is derived

from the EA model using EA and i* metamodel

mapping (Sunkle et al., 2013b).

2. In the second step, key questions pertaining to

what stocks, ﬂows, and variables in system dy-

namics models mean are used as described in Sec-

tion 3.2 and a system dynamics model is manually

arrived at from the intentional model.

3. In the third step, problem scenarios are played out

and the results of dynamics analyses are trans-

ferred back to intentional models, by modifying

original intentional models.

4. The changes in the intentional models are trans-

ferred back to original EA model. This revised

EA model is actionable in the sense that it models

the solution to the problem.

The next section begins with the description of EA

and intentional metamodel mapping. Then the pro-

cess of deriving system dynamics model from inten-

tional model is described.

3 COMBINED TREATMENT

3.1 From EA to i* Models

We presented metamodel mapping of ArchiMate’s ge-

UsingIntentionalandSystemDynamicsModelingtoAddressWHYsinEnterpriseArchitecture

neric metamodel (Group, 2012) with a metamodel of

i* (L

opez et al., 2011) in (Sunkle et al., 2013b). We

map the active structure elements (ASEs) in Archi-

Mate metamodel such as business actors, application

components, hardware and system software, as well

as interfaces to actors in i*. The behavior elements

(BEs) such as business processes, and business, ap-

plication, and infrastructure services are mapped to

tasks in i*. The passive structure elements (PSEs) are

mapped to resources in i*, which are essentially infor-

mational or physical entities used or created by actors.

This mapping enables the modeler to say that ASEs

use or create PSEs while performing BEs as means to

an end that is goal(s) and/or soft goal(s). For a de-

tailed account of this mapping, reader is referred to

(Sunkle et al., 2013b). Sufﬁce it to say that with this

bidirectional mapping it is possible to perform inten-

tional what-if analyses on as-is EA model and use the

best alternatives to construct the to-be EA model.

3.2 From i* to System Dynamics

Whys are represented in i* using goals and soft

goals. Goals are considered to be ends which can be

achieved using tasks which may constitute alternative

means. All elements of an i* model contribute to soft

goals on varying level of positive or negative scale,

satisﬁcing them to varying extent. Essentially, both

soft goals and goals may be considered stocks with

rising or falling levels or values of satisfaction level.

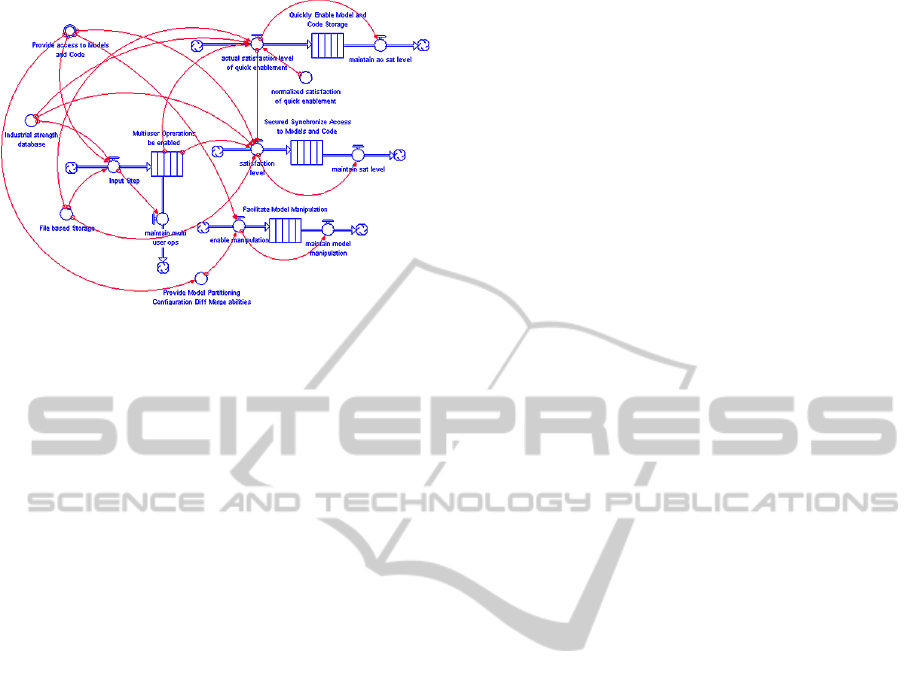

If we treat goals and soft goals as stocks then rest

of the elements in i* can be treated as variables that

affect the ﬂow of achievement and satisfaction lev-

els of goals and soft goals. This process of map-

ping requires interaction of the modeler in the sense

that questions pertaining to general nature of stocks,

ﬂows, and variables need to be asked of i* elements.

We enlist the pointers which may be used in doing so

below:

• In the SR model of an actor, the goals and soft

goals are treated as stocks.

• For stocks that were goals in i*, a generic ﬂow

is to be considered and modeler should question

what affects this ﬂow. For instance, means-ends

links in SR models indicate that tasks that are used

as means to achieve a goal and clearly affect the

ﬂow of achievement as it were. In this case, the

alternatives become variables.

• For stocks that were soft goals in i*, inﬂow and

outﬂow captures satisfaction input and output.

Modeler should question as to how these are af-

fected from other elements that are stocks and

ﬂows in the system dynamics model being built

up.

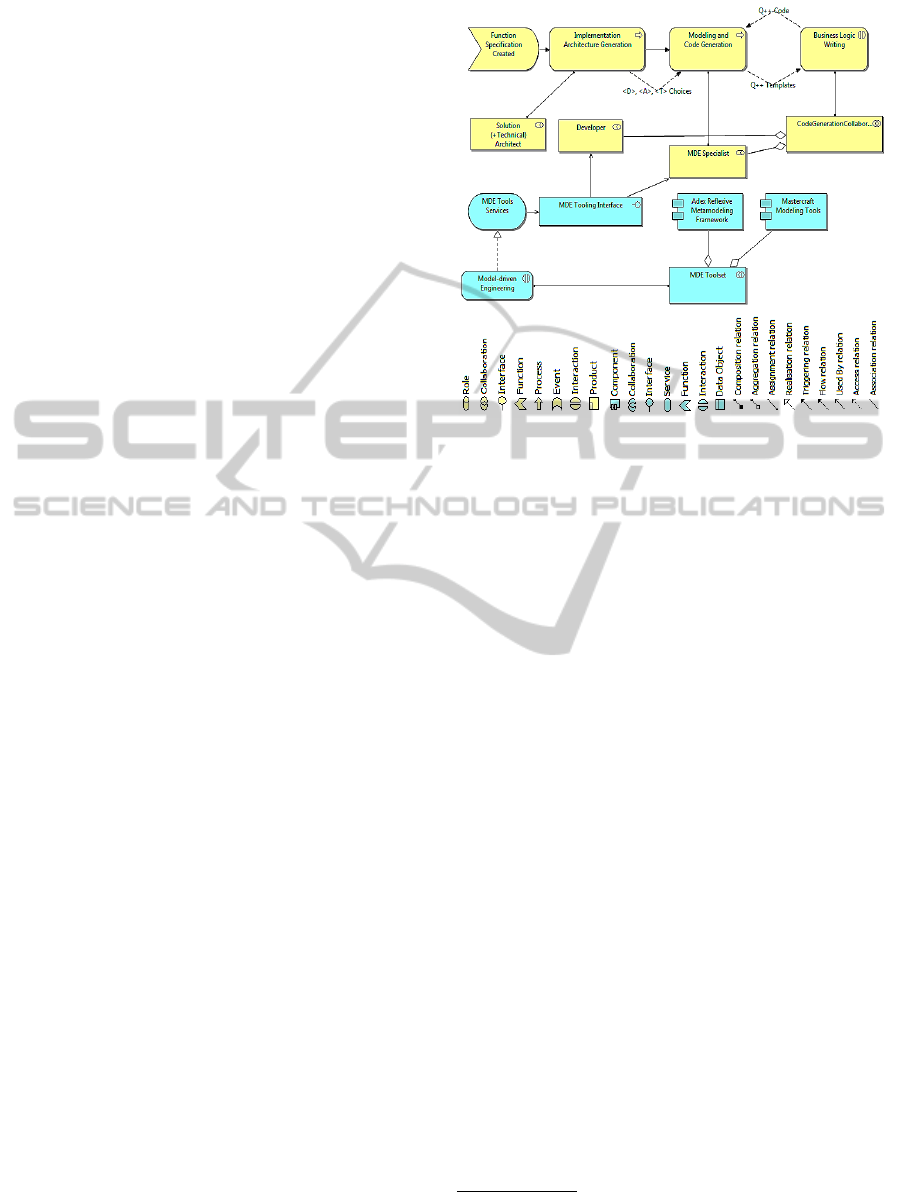

Figure 1: As-Is Enterprise Architecture Model of a Model-

driven Software Development Unit.

• An actor’s system dynamics model is to be en-

capsulated in some form of container available

in the system dynamics modeling software being

used. We are using iThink’s evaluation version

to demonstrate current work. We use module con-

struct in iThink which are self contained mod-

els that can be connected to other models. Each

module in a given larger model deﬁnes a cohesive

model of its own which ﬁts our purpose.

• Strategic dependencies may be captured by mod-

ule connectors. We use assigned module inputs in

iThink which enable driving self contained mod-

ules to take input from and provide output to other

modules.

It is presumed that actors involved in the problem

with the as-is state of EA are already singled out in

the i* models. Given that i* models look at whys

qualitatively, we have chosen to represent satisfaction

level as the entity to be quantiﬁed. If actual quanti-

ties of i* elements are already available they may be

used as raising and lowering the satisfaction level in

speciﬁc ways and these may be accommodated in the

inﬂow and outﬂow equations. The above steps are re-

peated until all entities in SR and all dependencies in

SD models are covered. At the end, a system dynam-

ics model is obtained in which the whys that were at

a point in time can now be played out over time.

The next section presents the case study and ap-

plies the complete process speciﬁed in Section 2 to

the problem of addressing vulnerability of actors.

We use evaluation version of system dynamics

modeling software iThink http://www.iseesystems.com/

softwares/Business/ithinkSoftware.aspx.

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

4 CASE STUDY

As the case study, we re-imagine our MDE-based

software development unit as an enterprise. For

the purposes of evaluation, we split the evolution of

MDE-based software development into two stages

and take them as as-is (before) and to-be (after) states.

The ﬁrst state in our MDE-based software devel-

opment unit was characterized by the use of a uniﬁed

metamodel for specifying application, database, and

GUI layers of an application, model-aware language

for the developers to write business logic (Kulkarni

et al., 2002), and separation of concerns in model-

driven development for design strategies, architec-

tural speciﬁcs, and technology platforms using as-

pects (Kulkarni and Reddy, 2003). The second state

was characterized by the use of multi-user multi-site

repositories for models and code with versioning and

conﬁguration management support (Kulkarni et al.,

2010). The organizational change that prompted tran-

sition from the ﬁrst state to second state was the de-

mand for onsite development of very large business

applications.

We capture the network of three roles namely, a

solution architect (SA), an MDE specialist (MDESp),

and a developer (D) in a given team. The current state

of the enterprise is captured in the EA model of Figure

1. Using the mapping summarized in Section 3.1 and

explained in detail in (Sunkle et al., 2013b), we obtain

an i* model of the current state of enterprise explained

above (Sunkle et al., 2013b, Figure 4).

As more and larger application requirements came

to us, we had to change the nature of teams work-

ing initially on small applications to number of sub-

teams performing several specialized tasks. These

sub-teams needed to share a single main version of

models and code in order to ensure that different mod-

els are consistent with each other and business logic

is consistent with the models. The problem that we

faced was how to enable secure and synchronized ac-

cess to models and code for large teams?.

MDESp, D, as well as SA teams need to make use

of models and code; MDESp needs access to mod-

els and metamodels, D needs to access code, and SA

can search models and metamodels to make informed

decision about choices of hDi, hAi, and hTi for cur-

rent application. We use this setting to review concept

of vulnerability which we analyze later using both in-

tentional and system dynamics models of the problem

stated above.

4.1 Analysis of Strategic Vulnerability

The concept of vulnerability was introduced in the

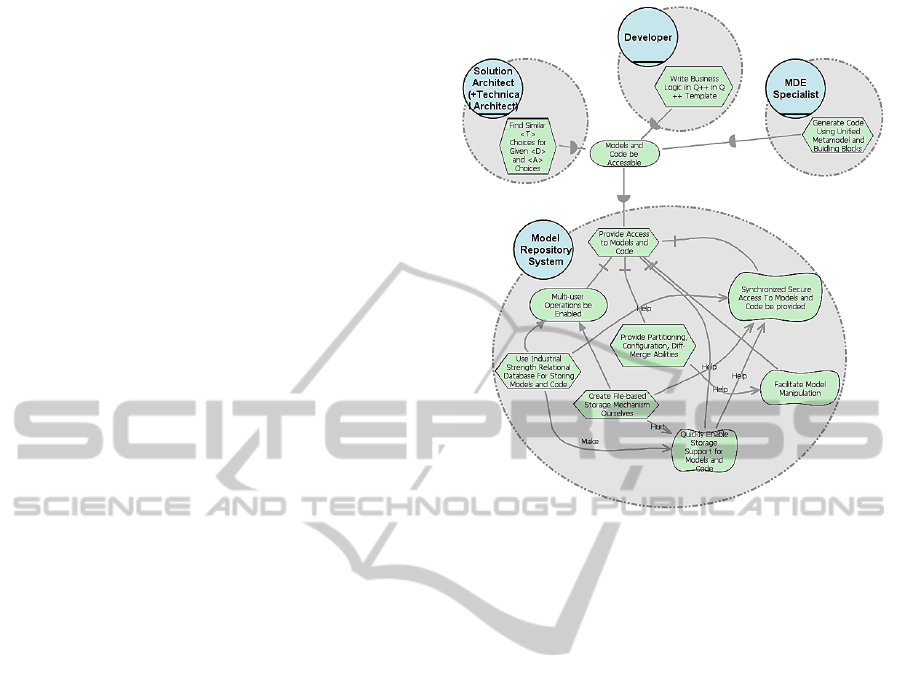

Figure 2: Enabling Secure and Synchronized Access to

Models-Code for Large Teams.

context of intentional modeling in (Yu and Mylopou-

los, 1994). The basic idea is that a depender may be-

come vulnerable due to the failure of dependency. Of

particular importance is mechanism of assurance of

a commitment. Assurance means that there is some

evidence that a dependee will deliver apart from de-

pendee’s claim. An assurance mechanism does not

allow the depender to take action that can cause the

dependee to correct its behavior. Insurance mecha-

nisms on the other hand, reduce the vulnerability of

depender by having more than one dependee for the

same dependum. Apart from assurance and insurance

of a commitment, it is possible to make it enforce-

able, only if depender and dependee are reciprocally

dependent.

Intentional analysis of vulnerability (Yu, 2009)

may be performed by classifying dependencies as

open (failure does not affect depender), committed

(depender is signiﬁcantly affected), and critical (de-

pender’s goals may fail) when dependee does not de-

liver. Critical dependencies may result in severe vul-

nerability on depender’s part.

We begin to investigate vulnerabilities of these ac-

tors with intentional model of the problem in the next

section.

4.2 Intentional Model

Evidently we needed to introduce a system whose

UsingIntentionalandSystemDynamicsModelingtoAddressWHYsinEnterpriseArchitecture

Figure 3: System Dynamics Model for Model Repository

System’s SR Model.

main task is to provide access to models and code for

all these roles. Further requirement of this access are

that concurrent multi-user operations should be en-

abled.

Choosing either alternative in Figure 2 leads to

adding an actor in the form of a system, which is a

(multi-user) model repository system (Kulkarni et al.,

2010). It can also be seen that the responsibility of

performing tasks that assure secure and synchronized

access to models and code is assigned to the actor

model repository system. The question with regards

to vulnerabilities of SA, D, and MDESp is, how would

it make them vulnerable from the as-is state in which

they were responsible for managing correct version

of models and code themselves to the to-be state in

which model repository system is responsible for the

same?.

From intentional model of Figure 2, it is clear

that with complete dependence on model repository

system for their respective core tasks, SA, D, and

MDESp are critically dependent on model repository

system. In other words, they are vulnerable in their

dependence on the model repository system. The

commitment is not enforceable since SA, D, MDESp

and model repository system do not depend on each

other for access to models and code. Yet, judgment

about dependence in this case is qualitative and there

is no way, due to the static nature of intentional mod-

els, to ﬁnd out in what ways this vulnerability can be

removed and whether to apply some sort of assurance

mechanism or insurance mechanism. We could get

better idea about the scenario in Figure 2 if it was

played out. Next section describes how system dy-

namics modeling can be used for the same.

4.3 System Dynamics Model

We use the process described in Section 3.2 to manu-

ally arrive at system dynamics models from the inten-

tional models. Since the vulnerability analysis con-

cerns dependence of SA, D, and MDESp on model

repository system, we begin with the SR model of

model repository system shown in Figure 2 and we

obtain system dynamics model shown in Figure 3.

The goals and soft goals of Figure 2 are represented

using stocks and tasks are represented using vari-

ables that control inﬂow and outﬂows. For instance,

the goal Multiuser Operations be enabled and the

soft goal Secured Synchronized Access to Models and

Code are represented using stocks whereas the tasks

are shown using variables. The inﬂows or outﬂows

are programmed using a domain speciﬁc language

(DSL) in iThink that supports event based (discrete

or continuous) simulation.

Intentional model shown in Figure 2 also captures

individual actors along with their dependencies. The

system dynamics model shown in Figure 4 (Top) cap-

tures the notion of an actor in the form of a module,

e.g., SA, D, MDESp, and model repository system

are represented as modules. The directed arrows in

Top of Figure 4 show how each actor is dependent

on other actors. Note here that due to the modeling

software’s restrictions that modules can only commu-

nicate with modules, the mutual goal of Models and

Code Be Accessible is also represented as a module.

The directed arrow between ModelRepositorySystem

and Models and Code Be Accessible depicts how the

model repository system must provide access to mod-

els and code so that SA, D, and MDESp can do their

tasks.

The system dynamics models of Figures 3 and

Figure 4 (Top) help to analyze the vulnerability of

system over time instead of at a point in time. A sim-

ple step function is applied to the variable Provide ac-

cess to Models and Code in model repository system

module that simulates the scenario where the model

repository system cannot perform its core task during

certain part of the day.

By playing out this scenario, we see that the un-

derlying goals or soft goals of the model repository

system such as Facilitate Model manipulation and

Multiuser Operation be enabled fail resulting in non-

delivery of required dependum to other actors. For

instance, MDESp fails to perform its core tasks under

such conditions since it is dependent on accessibility

of models and code from the Model Repository Sys-

tem.

To actually see the evidence that using a backup

support system can remove the vulnerabilities of SA,

D, and MDESp, we create another module that repre-

sents such a system. Top of Figure 4 shows how this

new system tries to arrest any failure arising due to in-

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

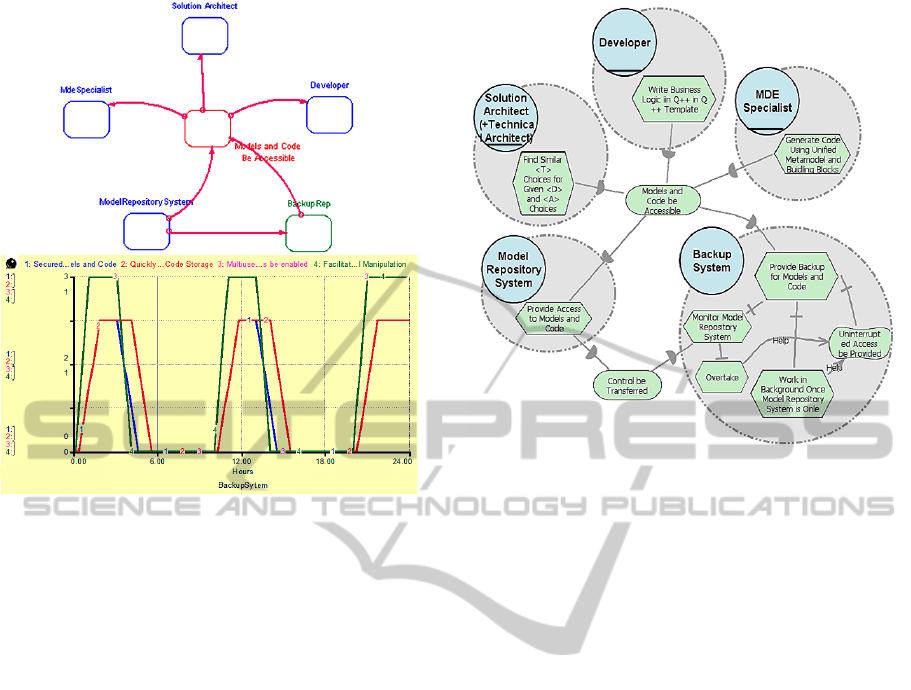

Figure 4: Top-Backup System as Insurance Mechanism

against Vulnerability of Model Repository System, Bottom-

Simulation of Backup System.

accessibility of models and code in the model reposi-

tory system. The backup system only takes over dur-

ing those intervals when the main model repository

system fails to operate.

The simulation of the backup system is shown

at bottom of Figure 4 that clearly displays the inter-

vals and duration when the backup system operates.

With this new arrangement, the backup system and

the model repository system become complimentary

to each other. Consequently, actors whose reliance

on the model repository system was critical can now

perform their tasks without failure due to stoppage of

work.

4.4 Getting Back To EA Model

The scenario played out using backup system indi-

cates that it is beneﬁcial to implement a backup sys-

tem that takes over when model repository system is

down. This is an insurance mechanism as we have

introduced another dependee, backup system, for the

delivery of the same dependum, (access to) models

and code. With the evidence that substantiates choice

of an insurance mechanism, it is time to reﬂect the

same in the original intentional model of Figure 2.

The process described in Section 3.2 is used to ob-

tain the corresponding intentional model. Figure 5

shows addition of backup system in the original set-

ting. SA, D, and MDESp are dependent on model

Figure 5: Intentional Model with Addition of Backup Sys-

tem.

repository system which is monitored by the backup

system. Model repository system is dependent on

backup system during downtime for the control to be

transferred. At such time only SA, D, and MDESp

become dependent on the backup system which pro-

vides access to models and code.

We can now use metamodel mapping in (Sunkle

et al., 2013b) to get to EA model which captures the

state that employs the solutions to the main problem

of being able to support large development teams.

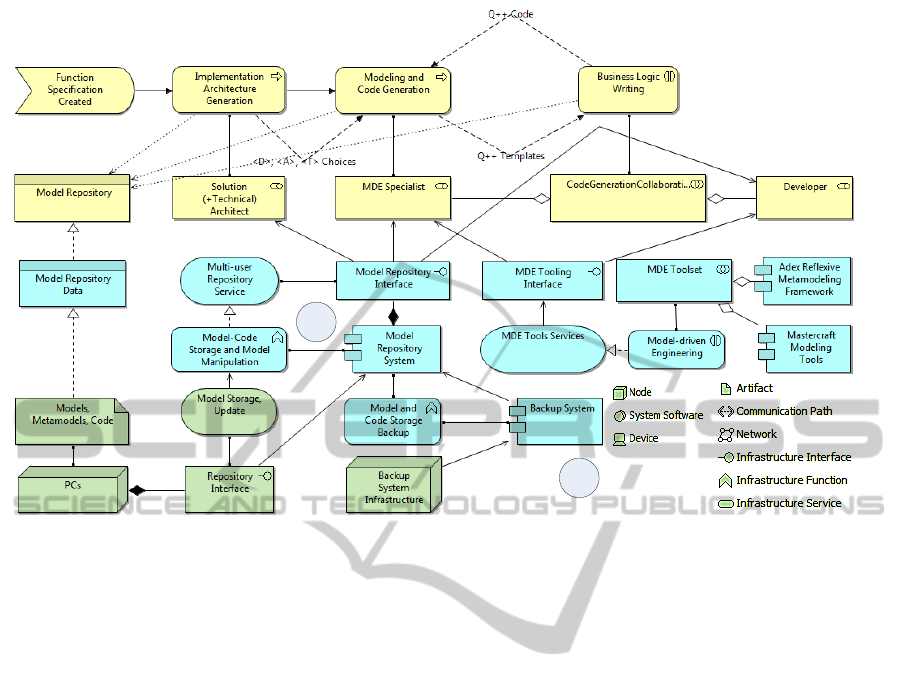

The EA model shown in Figure 6 builds on the

model illustrated in Figure 1. Solution to the ba-

sic problem adds an actor, multi-user repository sys-

tem. This is represented as an application component

in Figure 6 via actor-ASE mapping. This applica-

tion component is assigned to the application function

that carries out model-code storage and model ma-

nipulation and realizes the application service which

is used by SA, D, and MDESp via repository inter-

face (shown as (1)). In the event of model reposi-

tory system not working, the control is transferred to

backup system which becomes responsible for pro-

viding SA, D, and MDESp with access to models and

code (shown as (2)).

The newly constructed EA model is actionable in

the sense that it can be used for clarifying the fo-

cus with regards to ASEs that are responsible to im-

plement the solutions to problem(s) caused by the

change, in what ways the solution impacts the way

ASEs interact and how BEs to which they are as-

signed get affected in turn. Both target architectures

of business and application layers are captured along

UsingIntentionalandSystemDynamicsModelingtoAddressWHYsinEnterpriseArchitecture

Figure 6: To-be EA Model of a Model-driven Software Development Unit. (For legends other than technology layer, please

refer to Figure 1.)

with technology (hardware infrastructure) necessary

to support these architectures as shown in Figure 6.

The way we have approached the combined usage

of the EA, intentional, and system dynamics model-

ing languages is to restrict the scope of the problem

to be solved from EA to i* and then from i* to sys-

tem dynamics. With this arrangement, even though

EA model is substantially large, latter models are cre-

ated for speciﬁc problems to begin with. We suggest

that modeler should scope the problem to be solved in

terms of which actors’ tasks and outputs are affected

by given change and therefore should be involved in

further modeling.

The total effect of using intentional and system

dynamics models in concert is that cause-effect re-

lationship between source and destination elements

(from system dynamics models) may or may not take

place depending on the intention of the owning actor

(from the intentional models). Our approach brings

together intentional and system dynamics models and

initial results suggest that shortcomings of either ap-

proach mentioned above are addressed to some extent

by their combined use.

5 RELATED AND FURTHER

WORK

Intentional models lack sequential time based evolu-

tion of strategic rationale. They are also not good at

reasoning about consequences of non-delivery of de-

pendum. When a dependum is not delivered, the re-

sponsibility of serving the dependum to the depender

may be delegated to another dependee. This delega-

tion aspect is also less explored in intentional mod-

eling, referred to as second and third level of actor

autonomy (Du, 2007). System dynamics models on

the other hand lack basic or ﬁrst level of actor auton-

omy in the sense that freedom of actors in choosing

alternative course of action cannot be represented out

of the box.

The treatment of vulnerability aspect generally

considers SD models as primary artifacts of analy-

sis (Yu and Mylopoulos, 1994; Yu, 2009). We found

in our experiments that the operationalization of the

process of achieving the dependum captured in the

SR model should also be included in the analysis

since vulnerability arises from the possibility of non-

delivery of dependum.

The combined usage of intentional and system dy-

namics models for treatment of whys suggested here

is unique and to the best of our knowledge has not

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

been studied earlier in the context of enterprise mod-

eling.

The core of our work is applying purpose-

speciﬁc techniques (Sunkle et al., 2013b) to machine-

manipulable and analyzable enterprise models (Sun-

kle et al., 2013a). Further work is therefore imagined

in being able to express intentions and system dynam-

ics not only in models of enterprise but also in models

of actual systems and processes of enterprise and au-

tomating the bidirectional traceability between these.

6 CONCLUSIONS

Current enterprises face the daunting task of manag-

ing several aspects like business, IT systems, and in-

frastructure when responding to a change. While EA

frameworks provide descriptive treatment of all these

aspects, intentional and system dynamics models pro-

vide prescriptive treatment, suggesting courses of ac-

tion so that desirable qualities are maintained as enter-

prise implements change. By combining intentional

and system dynamics modeling and using them in the

context of EA, we have shown that their respective

shortcoming are addressed to some extent and a more

rounded treatment of whys of enterprise is obtained.

Starting with an EA model of the as-is state of enter-

prise, an actionable to-be state model is obtained via

intermediate intentional and system dynamics mod-

els. While scalability can be major concern, our ex-

periments suggest that by scoping the modeling activ-

ity at each subsequent transition, it is possible to make

use of decision making capabilities of both intentional

and system dynamics models.

REFERENCES

Du, Y. (2007). Incorporating system dynamics model-

ing into goal-oriented adaptive requirements engineer-

ing. In Proceedings of the 2007 International Confer-

ence of the System Dynamics Society, Boston, Mas-

sachusetts, USA.

Golnam, A., Van Ackere, A., and Wegmann, A. (2010). In-

tegrating system dynamics and enterprise modeling to

address dynamic and structural complexities of choice

situations. In Proceedings of The 28th International

Conference of The System Dynamics Society.

Group, O. (2012). ArchiMate 2. 0 Speciﬁcation. Van Haren

Publishing Series. Bernan Assoc.

Kulkarni, V. and Reddy, S. (2003). Separation of con-

cerns in model-driven development. IEEE Software,

20(5):64–69.

Kulkarni, V., Reddy, S., and Rajbhoj, A. (2010). Scaling

up model driven engineering - experience and lessons

learnt. In Petriu, D. C., Rouquette, N., and Haugen,

Ø., editors, MoDELS (2), volume 6395 of Lecture

Notes in Computer Science, pages 331–345. Springer.

Kulkarni, V., Roychoudhury, S., Sunkle, S., Clark, T., and

Barn, B. (2013). Modeling and enterprises - the past,

the present, and the future. In MODELSWARD’13.

Accepted.

Kulkarni, V., Venkatesh, R., and Reddy, S. (2002). Gener-

ating enterprise applications from models. In Bruel,

J.-M. and Bellahsene, Z., editors, Advances in Object-

Oriented Information Systems, volume 2426 of Lec-

ture Notes in Computer Science, pages 309–315.

Springer Berlin / Heidelberg.

opez, L., Franch, X., and Marco, J. (2011). Making ex-

plicit some implicit i* language decisions. In Jeusfeld,

M. A., Delcambre, L. M. L., and Ling, T. W., editors,

ER, volume 6998 of Lecture Notes in Computer Sci-

ence, pages 62–77. Springer.

Sterman, J. D. (2000). Business Dynamics: Sys-

tems Thinking and Modeling for a Complex World.

Irwin/McGraw-Hill.

Sunkle, S., Kulkarni, V., and Roychoudhury, S. (2013a).

Analyzable enterprise models using ontology. In Pro-

ceedings of CAiSE Forum. Accepted.

Sunkle, S., Kulkarni, V., and Roychoudhury, S. (2013b). In-

tentional modeling for problem solving in enterprise

architecture. In Proceedings of International Confer-

ence on Enterprise Information Systems (ICEIS). Ac-

cepted.

van Bommel, P., Buitenhuis, P., Hoppenbrouwers, S., and

Proper, E. (2007). Architecture principles - a regu-

lative perspective on enterprise architecture. In Re-

ichert, M., Strecker, S., and Turowski, K., editors,

EMISA, volume P-119 of LNI, pages 47–60. GI.

Wagter, R., Proper, E., and Witte, D. (2012). A practice-

based framework for enterprise coherence. In Proper,

E., Gaaloul, K., Harmsen, F., and Wrycza, S., editors,

PRET, volume 120 of Lecture Notes in Business In-

formation Processing, pages 77–95. Springer.

Yu, E. S. K. (2009). Social modeling and i*. In Borgida, A.,

Chaudhri, V. K., Giorgini, P., and Yu, E. S. K., editors,

Conceptual Modeling: Foundations and Applications,

volume 5600 of Lecture Notes in Computer Science,

pages 99–121. Springer.

Yu, E. S. K. and Mylopoulos, J. (1994). Understanding

“why” in software process modelling, analysis, and

design. In Fadini, B., editor, Proceedings of the 16th

International Conference on Software Engineering,

pages 159–168, Sorrento, Italy. IEEE Computer So-

ciety Press.

Yu, E. S. K., Strohmaier, M., and Deng, X. (2006). Explor-

ing intentional modeling and analysis for enterprise

architecture. In Tenth IEEE International Enterprise

Distributed Object Computing Conference (EDOC)

Workshops, page 32.

UsingIntentionalandSystemDynamicsModelingtoAddressWHYsinEnterpriseArchitecture
