An Architectural Model for Customizing the Business Logic

of SaaS Applications

André Correia, Jorge Renato Penha and António Miguel Rosado da Cruz

Escola Superior de Tecnologia e Gestão, Instituto Politécnico de Viana do Castelo,

Av. Do Atlântico s/n, 4900-348, Viana do Castelo, Portugal

Keywords: Multi-tenancy, Software as a Service, Saas, Business Logic Configurability, Customizability, Extensibility.

Abstract: Traditional software applications are typically customized before being delivered to a client. This

customization was a paid service delivered by software development organisations. With the growing

demand of applications delivered with a SaaS model, software development organisations are increasingly

responding with the migration of traditional applications to a multi-tenant SaaS deployment model. This

makes them face themselves with the problem of customizing a shared application, with a shared database,

for each tenant that subscribes their deployed service. After overviewing existing solutions for application

customizability, this paper addresses the customization of the business logic layer of multi-tenant

applications by proposing a solution, which has been used in a multi-tenant WMS application deployed with

a SaaS service model.

1 INTRODUCTION

Traditional software development firms commonly

develop software applications that are customized,

either by themselves or by affiliated companies,

before being deployed in their clients’ locations.

Their business is about developing software as much

as customizing that software to each specific client.

This supports the fact that applications need to be

flexible to a certain point that allows them to

accommodate variability in the response to the

customer’s requirements (Gebauer and Schober,

2006).

These software development firms are

increasingly facing the challenge of having to adapt

their applications for deploying them in the cloud

with a software-as-a-service (SaaS) delivery model.

The SaaS model provides a multi-tenant, ready to

run, on-demand hosted application. Multi-tenancy is,

indeed, the primary characteristic of SaaS

applications, as it allows the service provider to run

a single instance application, which supports

multiple tenants on the same platform. This involves

sharing unique resources, as a database and an

application instance, giving the tenants’ users the

impression that they are the only ones using those

resources. This implies addressing many issues, in

order to assure the functional and non-functional

isolation of the tenants (Krebs et al., 2012).

Other desirable feature of SaaS applications is

that they retain the ability to be customizable. This

ability shall not, by any means, threaten the

imperative of tenants’ isolation.

There are several levels of application

customizability, from simple configuration at

allowed application points, to tenant specific code

extensions at any point of the application, passing by

simple extensions to the data model. Also, this

customization ability may be the application

provider’s responsibility or the tenant’s

responsibility. Either way, a tenant’s customization

may not interfere with other tenants’ application

usage experience, even when the customization is

the provider’s responsibility.

After a survey of existing solutions for

application customizability, this paper proposes an

approach for functionality customization per tenant,

by recurring to specific code extensions that may be

plugged into specific points in the application. The

approach is being used in a warehouse management

system (WMS) application that will be deployed

with an SaaS service model. The structure of the

presentation is as follows: the next section discusses

the customizability of software applications,

explains why traditional approaches are not suitable

for multi-tenant SaaS applications, and presents

162

Correia A., Renato Penha J. and Miguel Rosado da Cruz A..

An Architectural Model for Customizing the Business Logic of SaaS Applications.

DOI: 10.5220/0004490401620168

In Proceedings of the 8th International Joint Conference on Software Technologies (ICSOFT-EA-2013), pages 162-168

ISBN: 978-989-8565-68-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

related work framing it in three architectural levels,

namely the data, presentation and business logic

layers; section 3 presents the general view of our

approach for per-tenant customization at the

business logic level; section 4 details the approach;

section 5 discusses our approach and compares it

with existing approaches; and, section 6 concludes

the paper and proposes some future research

directions.

2 APPLICATION

CUSTOMIZATION

Traditional applications, meaning single tenant

applications that are deployed on premises,

regardless of being web oriented or not, are typically

customized by the application provider, or deploying

organization, having its data model extended or

adapted to the customer’s reality, and/or its code

modified or extended to meet the customer’s

business rules. These customization procedures can

be made by exploring configurability capabilities of

the application, which is the common approach in

Software Product Lines Engineering (SPLE), where

customized product variants may be derived from a

feature model that includes predictable features’

variability modelling (Clemens and Northrop, 2001).

Or it can be made by changing the application’s

source code, and culminate with the creation of a

new, different, application variant tailored for the

new customer/tenant, which has been a common

approach for software houses representing and

reselling software from major companies but making

customized deployments of those softwares.

Gebauer et al. (2006) identifies two types of

software application flexibility: flexibility-to-use,

regarding the features that are provided at the time

of deployment, and flexibility-to-change regarding

the features that constitute an option for later system

change.

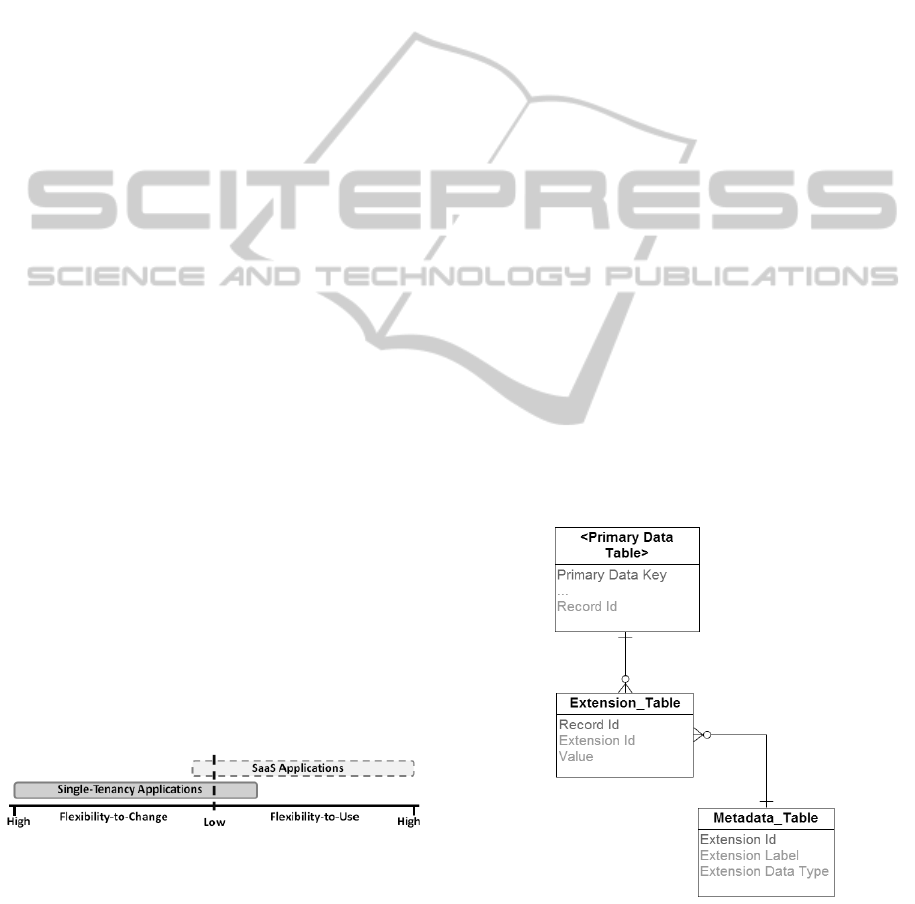

Figure 1: Addressing the two types of flexibility (taken

from Ruehl et al., 2011).

Adherence to each type of application flexibility

differs according to being a single tenant application

or a multi-tenant one (see Figure 1). Single tenant,

traditional, applications’ customization is typically

addressed before deploying the application in the

customer/tenant’s location, and so they require

flexibility-to-change, that is flexibility for changing

the features to adapt a software application to a

specific customer’s requirements, even if the

application must be shut down for a period of time.

This is also the kind of flexibility addressed by

SPLE. These application tailoring procedures are not

applicable to the customization of multi-tenant SaaS

applications, which, on the other hand, do not

require high flexibility-to-change, but do require

high flexibility-to-use, meaning that the deployed

features must be easily changeable, without affecting

the application usage (Ruehl and Andelfinger,

2011).

We consider application customizations at three

architectural levels:

 Data level customization;

 Presentation customization;

 Business logic customization.

2.1 Data Level Customization

At the data level, a customizable application

typically enables the creation of new entity attributes

for the existing entities or, less often, it may even

enable the creation of new entity types.

Common data extension customization

approaches are (Chong et al., 2006):

 Preallocated fields;

 Name-value pairs;

 Custom columns.

Figure 2: Name-value pairs with extension tables (adapted

from Chong et al., 2006).

Preallocated fields are extra fields (columns) that are

created in the extendable entities (database tables),

AnArchitecturalModelforCustomizingtheBusinessLogicofSaaSApplications

163

and that may have a different meaning depending on

each customer/tenant’s will. The number of

customizable extendable fields is predetermined in

each data table.

Name-value pairs allow the definition of an

arbitrary number of extended fields.

Typically, this is enabled by providing the

application with a metadata table, defining the

extended field (its name or label and its data type),

and an extension table, defining the field value and

associating it to a field in a primary data table (see

Figure 2).

Custom columns are a data extension approach

where columns are arbitrarily added to specific

tables by making the software dynamically use data

definition language (DDL) operations in the

database.

Whichever method is chosen to extend the data

model, it must be combined with the necessary code

adaptation, either by directly modifying the source

code, or by providing a mechanism for integrating

the additional fields into the application's

functionality.

In multi-tenant SaaS single instance applications,

the most suitable solution seems to be name-value

pairs, because it does not limit the number of extra

fields by table nor requires DDL operations in the

shared multi-tenant single instance database.

In a multi-tenant name-value pairs approach, the

metadata table must be bound to the tenant Id

(Chong et al., 2006). And the software code that

uses it, must take the tenant into account, without

interfering with the other tenants.

2.2 Presentation Customization

Another common kind of application customization

is at the presentation, or user interface, level. The

customer naturally wants the application to be

aligned with the company’s corporate image, and its

country culture/localisation (language, currency and

other cultural peculiarities).

In multi-tenant applications this must also be

customizable for each tenant, without interfering

with the other tenants’ application usage experience.

2.3 Business Logic Customization

After exploring the variability incorporated into the

application’s features, customization at the business

logic level requires that the business logic code,

which is typically located at an application layer or

in the database layer, is adapted to the customer.

In single tenant applications this is commonly

accomplished by modifying the application’s source

code in order to adapt it to the customer’s specific

requirements, which could not be foreseen when

designing the application flexibility that addresses

the variability points.

However, in multi-tenant applications this is not

a suitable solution. Modifying the source code is out

of question, because it would create a jumbled mix

of different tenants’ business rules into the source

code. Additionally, it would be needed to shut down

the (multi-tenant) system every time a tenant would

want a piece of customized code.

One of the first successful SaaS applications to

appear in the market was Salesforce’s CRM

solution. Salesforce offers two business logic

customization approaches: point-and-click

configuration, and code based customization. The

former enables fast and easy customizations, by

providing a series of simple point-and-click

wizards with limited customization capability. And,

the latter is useful for deeper customizations to meet

more demanding tenants’ needs, and is made

possible through a native programming language

called Apex for tenants to customize complex

business logic (Salesforce, 2013); (Weissman and

Bobrowski, 2009); (Chen et al., 2010).

Other authors have proposed customization

approaches for multi-tenant SaaS applications. For

instance, Yaish et al. (2012) propose a conceptual

architecture design using elastic extension tables and

a number of database, user interface and access

control services, for customizing the data layer, the

user interface layer and the access control, but it

doesn’t address business logic customization.

Figure 3: Architecture of the SaaS customizable multi-

tenant application.

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

164

Xiuwei et al. (2012) propose a business rule

engine-based framework for customizing the

business logic layer of multi-tenant SaaS

applications. Their approach separates the business

rules, defined in decision tables, from the software

source code, enabling its customization by the

tenants within the variability scope pre-determined

in the decision tables.

Chen et al. (2010) propose an approach to

business logic SaaS applications’ customization

based on domain engineering techniques and

business rules templates. Like Xiuwei’s approach, it

enables the customization of business rules within

the variability scope pre-determined in the rules

templates.

3 BUSINESS LOGIC

CUSTOMIZATION OF SAAS

APPLICATIONS – GENERAL

VIEW

Our approach to the customization at the business

logic level aims to enable the SaaS provider

organisation to be able to supply, as a paid service,

the customization of the SaaS application to specific

tenants. Note that all the predictable variability in

requirements shall be incorporated into the

application, leaving to this approach only the

unforeseen deeper customization needs.

Figure 3 depicts the architecture of the proposed

solution, consisting in a customizable multi-tenant

application provided with a SaaS deployment model.

The approach requires that customized web services

are developed for a given tenant, and that the system

is configured, for that tenant, by using a

configuration tool, as further explained below.

The user accesses the application’s presentation

layer, which calls the shared services. These are a set

of multi-tenant enabled services that, in turn, access

the single instance database.

For customizing the SaaS application business

logic, customized services must be put available in a

customized services server, or any other web server,

and the SaaS application must be configured to plug

those services in the desired extension points

available in the application.

Let’s analyse, through an example, the proposed

approach. Consider that a given tenant wants to

modify the default behaviour of an order registering

SaaS application so that, when a user inserts a new

order, the total accumulated debt of the client be

verified and, if that debt is above some threshold, the

system rejects the new order.

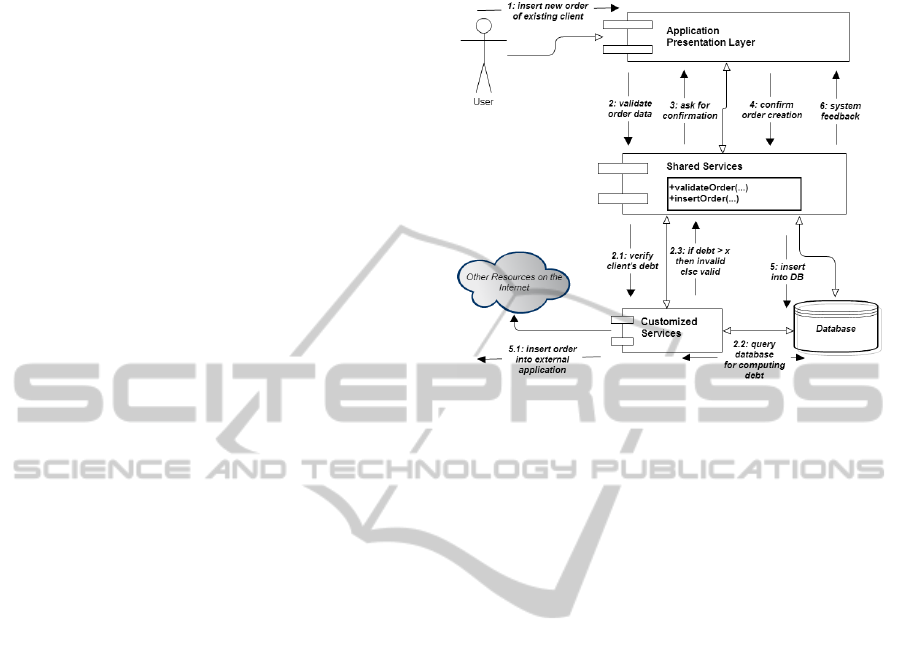

Figure 4: Illustration of an example of the SaaS

customizable multi-tenant application.

Suppose, also, that this could have not been foreseen

at design time, and incorporated in the application as

a feature variability point, as recommended by

SPLE. This way, the system needs to be configured

so that, when validating the order form, it invokes a

customized service that verifies the client’s total

debt. Figure 4 illustrates this example: first, the user

inserts the new order data in the appropriate form

(step 1, in the figure); then, the system validates the

form, with the shared business logic (step 2). For

any other tenant, step 3 would follow, with the

system asking for confirmation, but, for the tenant in

question, an additional validation is made, by

invoking a customized service for verifying the

client’s debt (step 2.1). This service accesses the

database (step 2.2), or any external data (e.g.: from

another application), and validates or invalidates the

order (step 2.3).

Let’s consider that, for instance, the same or

another tenant would want that, any new order

registered in the SaaS application would also be

inserted in another external application (e.g.: CRM).

Figure 4 illustrates this as step 5.1 that, attached to

the insertOrder service, would enable the integration

with an external application.

4 PROPOSED APPROACH

4.1 Detailed Approach

Each specific tenant customized service must be

AnArchitecturalModelforCustomizingtheBusinessLogicofSaaSApplications

165

plugged into an application extension point.

Although predefined, these extension points allow to

plug a customized service into almost every desired

point in the application. This is made possible by

providing extension points before, instead and after

every shared service associated to application forms,

including CRUD operations. For supporting this

approach, a set of metadata tables has been

established (see Figure 5).

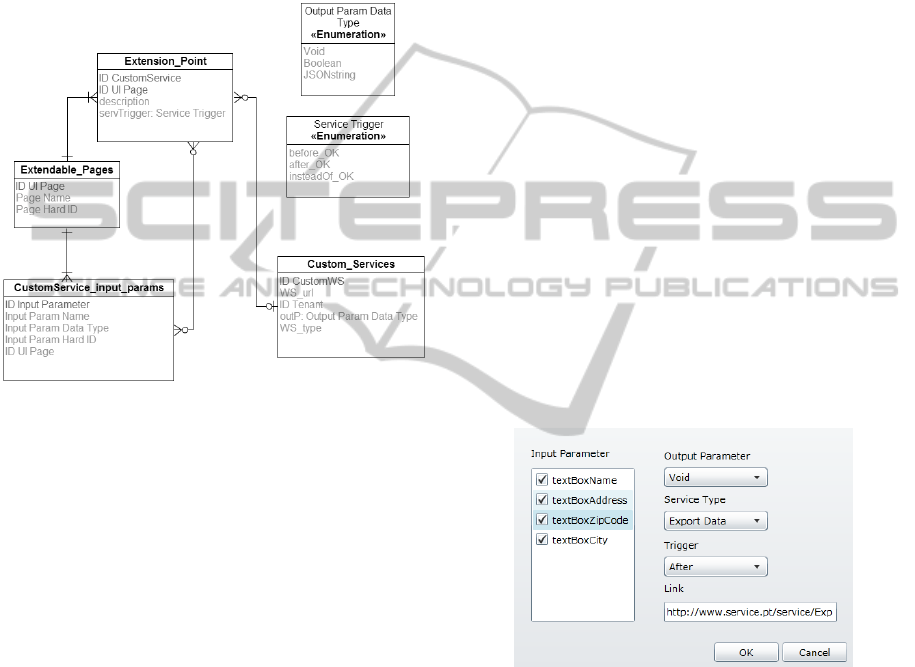

Figure 5: Metadata tables for supporting business logic

customization by tenant.

Every pluggable component, provided by an external

custom-service, must be registered in table

Custom_Service, and may have one of three

purposes, or types (property

type in table

Custom_Service):

 Validate a form field (type: Validation);

 Provide data to an external application (type:

Export);

 Get data from an external application (type:

Import).

Besides the service type, its URL is also required,

just as its result (output parameter) type, and what

tenant owns it. The currently allowed result types

are:

 FormValResult. Form Validation Result, which is

composed of a a Boolean, stating if the form is

valid, and a String, with a message, in case of

invalid form data.

 Boolean;

 Void, or no result expected. Void and Boolean may

be used, for instance, in providing data to an

external application.

 JSON String. A JSON formatted string that may be

used when getting data from an external

application (type: Import), to show information to

the user. Currently, this has the sole effect of

opening a dialog box showing the “imported” data.

Note that, regardless of its type, a custom-service

may access the application database, through the

CRUD shared services. By this way, it can, for

instance, import data to the SaaS application from an

external source.

Table

Extendable_Page registers the

extendable pages of the application, that is, pages

with extension points. Each extendable page of the

application’s presentation layer may have an

extension point, where a custom-service may be

plugged in.

A page’s extension points are defined in table

Extension_Point, which also links the extension

point to the, possibly Null, custom-service to be

called.

An extension point is located around the load and

submit operations of an extendable page, and defines

the moment when the custom-service, is triggered.

The page controller, that is its submit operation

handler, handles all the possible operations provided

by that page, which may involve the creation of new

information (create one or more records in the

database) or the modification of existing information

(update one or more records in the database).

Figure 6: Customization (metadata creation) tool example.

Extendable pages’ form fields are identified in table

CustomService_input_params and may be,

then, associated to extension points, gaining the role

of input parameters to the plugged custom-service.

Having developed the desired custom-services,

the SaaS providing organisation, or the tenant if this

feature is given for his/her direct use, may customize

the application by using a customization tool (see

Figure 6), which dynamically adapts to the

extendable page where a custom-service is to be

plugged in. This customization tool allows plugging

the desired service into an extension point, linking

the selected form fields to the web-service’s input

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

166

parameters, setting the trigger to the appropriate

value (before, after or instead_of), and choosing the

service type and the output parameter type.

Every extendable page controller has code for

looking for custom-services plugged into it,

associated to the tenant accessing the page. That is,

each extendable page searches for extension points

with non-null

ID_CustomService attached to it,

that belong to the tenant accessing the page, in each

of the possible triggering positions.

4.2 Validation

The proposed approach to the customization at the

business logic level has been tested, and is being

used in the development of a WMS application that

will be deployed with a SaaS deployment model.

In the WMS application, the user accesses the

application’s presentation layer through any browser

with a Silverlight plugin. The presentation layer

calls the WMS domain (shared) services, which are

a set of Windows Communication Foundation Rich

Internet Application services (WCF RIA services,

see for instance http://msdn.microsoft.com/en-

us/library/ee707344(v=vs.91).aspx) exposed as

SOAP/WSDL. These, in turn, access the WMS

database.

For customizing the WMS application business

logic, custom REST web-services must be put

available in another web server, and the WMS

application must be configured to plug those

services in the desired extension points, available in

the application.

After being deployed, we will further assess the

utility and usability of this approach with real

customers/tenants and real users in an industry

setting.

5 DISCUSSION

The proposed approach enables the tenant-based

customization of SaaS applications’ business logic.

It addresses customizations that could not have been

foreseen in a domain engineering analysis, and could

not be implemented as a feature variability point as

defended by SPLE (Clemens and Northrop, 2001).

The proposed approach makes use of common

knowledge technology, in what respects to

developers, since the custom-services may be

developed in any programming language and may be

deployed in any web-server. The only limitation, in

the experiences made, and in the WMS application

being developed, is that the custom services

communicate through REST and that the objects are

passed to and from the services with JSON format,

because this is what the SaaS application is

expecting.

Table 1: Surveyed approaches to SaaS applications’

business logic customization.

Pre-determined

variability scope

Full business

logic

customization

Comments

SPLE



Sales-force

 

Yaish et

al. (2012)

Addresses only

data and

presentation

layers’

customizability

Xiuwei et

al. (2012)



Chen et al.

(2010)



Our

Approach

Addressed through

customization of

variable features as

recommended by

SPLE.

(Not in the scope

of this paper)



Table 1 aims to compare our approach and the state

of the art approaches, referenced in section 2.3, by

classifying them according to two main aspects:

approaches that only address pre-determined

variability scope; and, approaches that enable a full

business logic customization. In the first category,

we can find the feature variability modelling and

product variants of SPLE (Clemens et al., 2001), the

point-and-click customization feature of Salesforce

(Salesforce, 2013), and the approaches by Xiuwei et

al. (2012) and Chen et al., 2010).

The approach by Yaish et al. (2012) only

addresses data layer and presentation layer

customizability. It doesn’t address business logic

customization at any degree.

As said before, our approach addresses

customizations that could not have been foreseen in

a domain engineering analysis, and so are outside

the limitations of a metadata framework. This way,

it assumes that pre-determined feature variability is

handled through SPLE or other appropriate

approach, but the focus of our approach is, however,

deep unforeseen customizations. This way it is only

comparable to the Salesforce code customization

feature, and the solution is the same, that is making

use of open-ended development environments for

the most common programming languages to create

the needed functionality. In addition, Salesforce also

allows creating new functionality using its own

proprietary language, Apex.

AnArchitecturalModelforCustomizingtheBusinessLogicofSaaSApplications

167

6 CONCLUSIONS AND FUTURE

WORK

Multi-tenant SaaS applications’ customization is

hard to address because of the requirement for high

flexibility-to-use, meaning that the application’s

deployed features must be easily changeable by one

tenant, without affecting the application usage of

other tenants.

This paper presented an approach for the tenant-

based customization of SaaS applications, at the

business logic architectural layer of the application.

The proposed approach reserves the business

logic customization to the SaaS provider

organisation. The business logic customization may,

then, be supplied as a paid service to the tenants that

need it. The proposed architecture allows, however,

that the business logic customization responsibility

is given to the tenant administrator, provided he/she

can develop the needed custom-services.

The approach has been tested and is being

applied in a multi-tenant SaaS application.

An issue that needs mitigation has to do with the

amount of overhead code needed, in each extendable

page, to verify if there is any custom-service to be

called.

Other future directions involve also the

customization responsibility passage to the tenant.

REFERENCES

Chen, W., Shen, B. and Qi, Z. (2010). Template-based

Business Logic Customization for SaaS Applications.

2010 IEEE International Conference on Progress in

Informatics and Computing (PIC), vol.1, Pages 584-

588, 10-12 Dec. 2010, doi: 10.1109/

PIC.2010.5687477.

Chong, F., Carraro, G. and Wolter, R. (2006). Multi-

Tenant Data Architecture. MSDN, Microsoft

Corporation. Available at http://msdn.microsoft.com/

en-us/library/aa479086.aspx#mlttntda_topic2 (visited

in 13

Nov. 2012).

Clemens, P. and Northrop, L. (2001). Software Product

Lines: Practices and Patterns. SEI Series in Software

Engineering series, Addison-Wesley Professional.

Gebauer, J. and Schober, F. (2006). Information System

Flexibility and the Cost Efficiency of Business

Processes. Journal of the Association for Information

Systems, volume 7, issue 3, pages 122–147, 2006.

Krebs, R., Momm, C., and Kounev, S. 2012. Architectural

concerns in multi-tenant SaaS applications. In

CLOSER 2012, 2nd International Conference on

Cloud Computing and Services Science. Pages 426-

431, Porto, Portugal, SciTePress 2012.

Ruehl, S. T. and Andelfinger, U., 2011. Applying

Software Product Lines to create Customizable

Software-as-a-Service Applications. In SPLC’11,

Software Product Line Conference, August 21-26,

Munich, Germany.

Salesforce (2013). http://www.salesforce.com/platform/

customization/ (visited in 15

Feb. 2013).

Weissman, C.D. and Bobrowski, S. (2009). The Design of

the Force.com Multitenant Internet Application

Development Platform, SIGMOD'09, June 29

-July

, 2009.

Xiuwei, Z., Keqing, H., Jian, W., Chong, W. and Zheng,

Li (2012). Business Rule Engine-based Framework for

SaaS Application Development. In CLOSER 2012,

2nd International Conference on Cloud Computing

and Services Science. Pages 345-354, Porto, Portugal,

SciTePress 2012.

Yaish, H., Goyal, M. and Feuerlicht, G. (2012). A Novel

Multi-tenant Architecture Design for Software as a

Service Applications. In CLOSER 2012, 2nd

International Conference on Cloud Computing and

Services Science. Pages 82-88, Porto, Portugal,

SciTePress 2012.

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

168
