From Problems to Laws in Requirements Engineering

Using Model-Transformation

Stephan Faßbender and Maritta Heisel

University of Duisburg-Essen, Paluno - The Ruhr Institute for Software Technology, Oststrasse 99, Duisburg, Germany

Keywords:

Compliance, Law, Voting System, Requirements Engineering, Model Transformation.

Abstract:

Nowadays, many legislators decided to enact different laws, which all enforce legal and natural persons to deal

more carefully with IT systems. Hence, there is a need for techniques to identify and analyze laws, which are

relevant for an IT system. But identifying relevant compliance regulations for an IT system and aligning it to

be compliant to these regulations is a challenging task. In earlier works of ours we proposed patterns and a

structured method to tackle these problems. One of the central crucial steps, while using the patterns and the

method, is the transformation of requirements into a structure, allowing the identiﬁcation of laws. The step is

not trivial, as requirements, in most cases, focus on the technical parts of the problem, putting the knowledge

about the environment of the system aside. In this work, we propose a method to structure the requirements,

elicit the needed domain knowledge and transform requirements into law identiﬁcation pattern instances. For

this purpose, we make use of problem diagrams, problem frames, domain knowledge, and questionnaire. We

present our method using a voting system as an example, which was obtained from the ModIWa DFG

project

and the common criteria proﬁle for voting systems.

1 INTRODUCTION

In general, every legislator demands from everyone,

who lives in or is active within the jurisdiction of the

legislators, to comply to the laws the legislator enacts.

Hence, software engineers have to assure that the sys-

tem to be developed is compliant to all relevant laws.

Therefore they need to know the legal requirements

for the system to be developed. Based on this knowl-

edge the engineers can decide whether and how to ad-

dress compliance.

The identiﬁcation and analysis of relevant laws

is considered to be difﬁcult, because it is a cross-

disciplinary task in laws, and software and systems

engineering (Biagioli et al., 1987). Otto and Ant

(Otto and Ant

on, 2007) conclude in their survey about

research on laws in requirements engineering that

there is a need for techniques to identify relevant laws

based on requirements, analyze them, and to derive

requirements from them.

Pattern-based approaches capture the knowledge

of domain experts. In this way, the knowledge is

made explicit and can be re-used for recurring prob-

Juristisch-informatische Modellierung von Internet-

wahlen (II). A Deutsche Forschungsgemeinschaft project:

http://cms.uni-kassel.de/unicms/index.php?id=38536

lems. Hence, we proposed a pattern-based approach

for identifying and analyzing laws in our earlier work

(Beckers et al., 2012a). These patterns already allow

the identiﬁcation of relevant laws.

However, the identiﬁcation of a relevant law alone

is not sufﬁcient for software engineers. They require

a structured method that uses this approach to de-

rive software requirements and further implementable

software speciﬁcations. In (Beckers et al., 2012b) we

present such a structured method. One crucial and un-

described step within this method is the transforma-

tion of functional requirements into law identiﬁcation

pattern instances, which allows the matching with law

pattern instances.

In the following, we present a guided transfor-

mation of requirements into law identiﬁcation pat-

tern instances using a voting system as an example.

We make use of the problem-based requirements en-

gineering approach proposed by Jackson (Jackson,

2001) to structure the requirements in terms of prob-

lem diagrams in the ﬁrst place. We decided to use

problem frames, because they have a kind of semi for-

mal structure and can be modeled. Furthermore, they

already embody descriptions of common problems.

Thus, they are suitable as input for a transformation

as they have a predictable structure and transforma-

447

Faßbender S. and Heisel M..

From Problems to Laws in Requirements Engineering - Using Model-Transformation.

DOI: 10.5220/0004490804470458

In Proceedings of the 8th International Joint Conference on Software Technologies (ICSOFT-PT-2013), pages 447-458

ISBN: 978-989-8565-68-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

tion rules can be setup on basis of the generic prob-

lems. Then we show how to turn these problem dia-

grams into law identiﬁcation patterns. We provide de-

tailed transformation rules for different requirement

patterns, as described by (C

e et al., 2008), to get

the corresponding law identiﬁcation pattern instances.

All these information needed for matching, relating,

and transformation is provided by means of transfor-

mation cards. The transformation cards support and

guide the requirements engineer, when preparing the

requirements for the matching with relevant laws. In

this way, the identiﬁcation of laws gains precision and

is less error prone, for example due to forgetting im-

portant domain knowledge. Besides improving the

precision and lowering the chance of an error, trans-

formation cards are a step towards a semi-automatic

tool-support for requirements engineers.

Note, that at the actual point model transforma-

tion, as we use the term, is different from the un-

derstanding of the model transformation community.

The transformation is not an automated transforma-

tion between an input and an output model. For using

transformations card an input model is required and

the transformation card speciﬁes an output model, but

does not deﬁne a overall automated transformation

process. Nevertheless, main parts are candidates to

be automated in the future.

In Sect. 2 we introduce the problem frame termi-

nology and notation, the pattern for law identiﬁcation,

and the case study. For our case study, we struc-

ture the problem, ending up with a set of problem

diagrams in Sect. 3. In Sect. 4 we present a struc-

tured method, which guides requirements engineers

through the process of transforming the problem into

relevant laws. Sect. 5 outlines the result of a valida-

tion. Sect. 6 discusses the related work, and Sect. 7

concludes the paper.

2 BACKGROUND

We use the problem frames (Jackson, 2001) approach

to structure functional requirements and correspond-

ing domain knowledge. And we make use of the prob-

lem frames to facilitate the transformation to the law

identiﬁcation pattern.

Problem Frames. Jackson (Jackson, 2001) intro-

duced the concept of problem frames, which is con-

cerned with describing, analyzing, and structuring of

software development problems. A problem frame

represents a class of software development problems.

It is described by a frame diagram, which consists

of domains, interfaces between them, and a require-

ment. Domains describe entities in the environment.

Jackson distinguishes the domain types biddable do-

mains that are usually people, causal domains that

comply with some physical laws, and lexical do-

mains that are data representations. To describe the

problem context, a connection domain between two

other domains may be necessary. Connection do-

mains establish a connection between other domains

by means of technical devices. Examples are video

cameras, sensors, or networks. Finally, we introduced

display domains (C

e et al., 2008), which serve to

display information to some biddable domain.

Interfaces connect domains, and they contain

shared phenomena. Shared phenomena may be

events, operation calls, messages, and the like. They

are observable by at least two domains, but controlled

by only one domain, as indicated by the name of that

domain and “!”. For example, shared phenomenon

dentiﬁcationClient and Voter, but controlled only by

the domain Voter. We describe problem frames us-

ing UML class diagrams, extended by stereotypes, as

proposed by Hatebur and Heisel (Hatebur and Heisel,

2010).

The objective is to construct a machine (i.e., soft-

ware) that controls the behavior of the environment

(in which it is integrated) in accordance with the re-

quirements. When we state a requirement, we want

to change something in the environment. Therefore,

each requirement constrains at least one domain. A

requirement may refer to several domains in the envi-

ronment of the machine.

The problem frames approach distinguishes there-

fore between the requirements (R), the domain knowl-

edge (D), and the speciﬁcation (S). The requirements

describe the desired system after the machine is built.

The domain knowledge represents the relevant parts

of the problem world. The speciﬁcations describe the

behavior of the software in order to meet the require-

ments.

Beside the requirements, the domain knowledge

about the environment of the machine to be built is

crucial for understanding the problem and specify-

ing the machine behavior later on. Unlike Jackson,

we distinguish between assumptions, facts, and deﬁ-

nitions and designations. Assumptions describe condi-

tions fulﬁlled by the environment that are needed, so

that the requirements can be fulﬁlled by the machine.

But these can be violated at a certain point. Facts de-

scribe ﬁxed properties of the environment irrespective

of how the machine is built. Deﬁnitions and designa-

tions specify a set of special terms used for formula-

tion requirements, assumptions and facts.

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

448

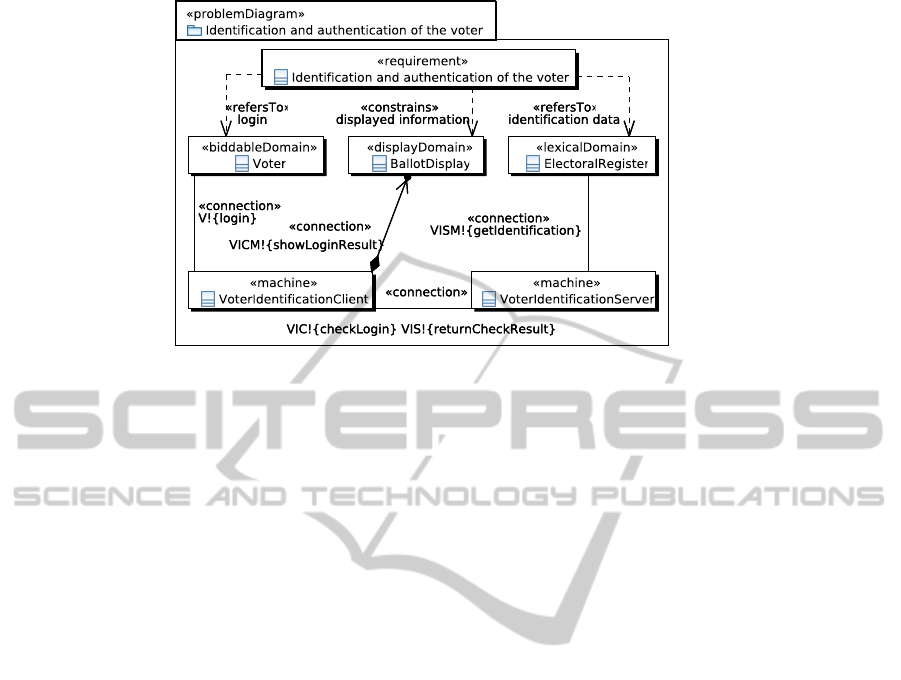

Figure 1: Problem Diagram for R 1.

Problem-oriented requirements analysis starts

with representing the environment using a context

diagram. Such a diagram describes where the

problem is located by stating the relevant domains

and their interfaces, including the machine to be

built. Problem-oriented requirements analysis pro-

ceeds with a decomposition of the overall problem

into sub-problems, which are represented by problem

diagrams. The problem diagrams should be instances

of problem frames, thereby representing simple de-

velopment problems. In contrast to context diagrams,

problem diagrams contain the requirements belonging

to the sub-problem.An exampleof a problem diagram

can be found in Fig. 1.

Figure 1 shows a problem diagram in UML

notation. The biddable domain (UML class with

stereotype biddableDomain) Voter controls

the login command (Name of the UML asso-

ciation with the stereotype connection be-

tween the classes Voter and VoterIdentiﬁcation-

Client), which is observed by the machine domain

VoterIdentiﬁcationClient(UML class with stereo-

type machine). The VoterIdentiﬁcationServer-

Machine observes the phenomenon check the lo-

gin, which is controlled by the VoterIdentiﬁcation-

Client. The VoterIdentiﬁcationServer controls the

phenomenon return check result, which is observed

by the VoterIdentiﬁcationClient, and the get identi-

ﬁcation data, which is obtained from the Electoral-

shows the login result using the BallotDisplay. The

requirement R 1 (for a textual description see Sect. 3)

constrains the BallotDisplay and refers to the Voters,

and the ElectoralRegister.

Patterns for Requirement-Based Law Identiﬁca-

tion. Commonly, laws are not adequately con-

sidered during requirements engineering (Otto and

Ant

on, 2007). Therefore, they are not covered in

the subsequent system development phases. One fun-

damental reason for this is that involved engineers

are typically not cross-disciplinary experts in law and

software and systems engineering. To bridge this gap

we developed law patterns and a general process for

law identiﬁcation which relies on these patterns.

We investigated how judges and lawyers are sup-

posed to analyze a law, based upon legal literature re-

search. These insights lead to a basic structure of laws

and the contained sections. One result of our investi-

gations is a common structure of laws. Based on this

structure of laws, we deﬁned a law pattern. The law

pattern itself is discussed in detail in (Beckers et al.,

2012a).

Identifying relevant laws based on functional re-

quirements is challenging. Functional requirements

are often too imprecise for a sufﬁcient law analy-

sis, they contain important information only implic-

itly, and use a different wording than in laws. There-

fore, we developed a law identiﬁcation pattern, which

structures requirements in a way that important terms

of a requirement can be mapped to the legal wording

and then matched with law pattern instances (Fig. 2

shows an instance).

First of all, a Requirement can be Related To other

Requirements and dictates a certain behavior of the ma-

chine. A behavior can be a certain Activity or an entired

Process. The machine resides in one or more jurisdic-

tions represented by their Legislators. And the problem

the machine has to solve is a problem of one or more

Domains. The fundamental parts of the requirements

are described in the Core Structure. An Activity involves

FromProblemstoLawsinRequirementsEngineering-UsingModel-Transformation

449

Defined in

BDSG Sec. 3

Process

Legislator

Individual

Mentioned In

BDSG Sec. 2

Accomplish

Avoid /

Classified As

Classified As Classified As

Related To

Personal Data

Defined in

BDSG Sec. 3

Core Structure

Passive Stakeholder

Asset

Activity

Subject Classifier

Person Classifier

Requirement

Process

Germany

Legislator

Activity Classifier

Classified As

Authetication

’Login’

Activity

Requirement

’R 2 (A B C),3,4,5,6’

ElectionAdministration

Public Body

Mentioned In

BDSG Sec. 1

Aktive Stakeholder

Classification

Context

Influence Entitled To

Domain

Voter

General Public

getIdentification

’Identification and authentification of the voter’

IdentificationData

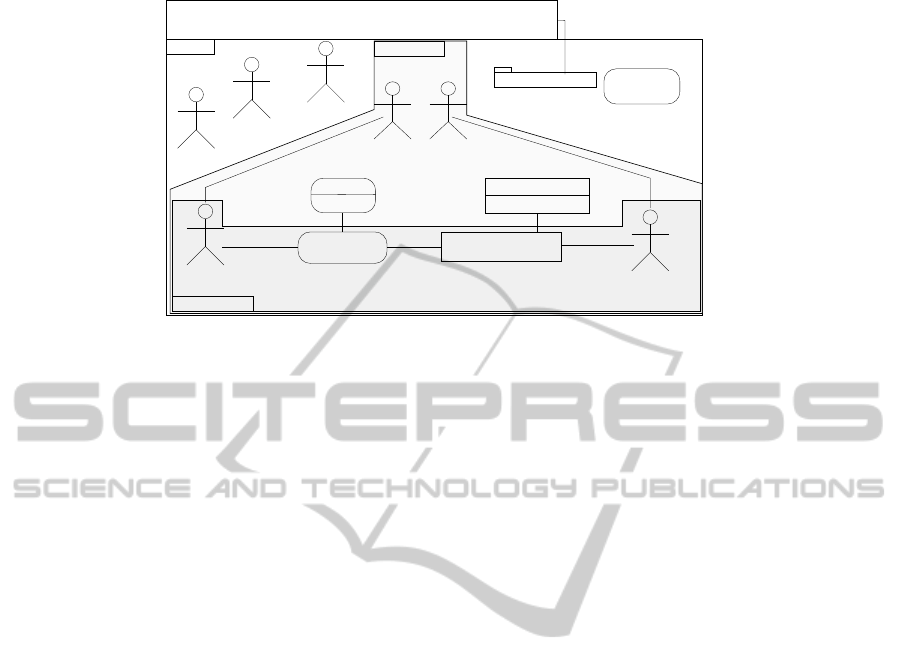

Figure 2: Law Identiﬁcation Pattern Instance R 1.

an Active stakeholder and in some cases an Asset. Ad-

ditionally, an Activity Inﬂuences a Passive Stakeholder in

a direct way or indirectly through an Asset, to which

the Passive Stakeholder is entitled to. The terms used for

Activities, Stakeholders, and Assets can be Classiﬁed in

the Classiﬁcation part, using terms of the legal domain.

These two kinds of patterns, the law pattern and

the law identiﬁcation pattern, can be used through

their graphic and explicit nature to foster the com-

munication between legal experts and software en-

gineers. Moreover, they allow the matching of re-

quirements and laws, because the Law Structure and

the Core Structure of requirements are organized in the

same way. The language gap between the legal and IT

domain is bridged using the Classiﬁcation part of both

patterns.

The procedure for identifying relevant laws con-

sists of ﬁve steps. The ﬁrst step is to set up a database

of all laws which might be of relevance for a scenario.

Therefore, laws have to be analyzed and stored in the

structure of the law pattern. Thus, they are stored

as pattern instances. The second step uses informa-

tion from functional requirements and their context

to instantiate the core structure and the context of

the law identiﬁcation pattern. Third, the relation be-

tween laws and software requirements has to be es-

tablished to prepare the identiﬁcation of relevant laws

for the given system. Hence, a mapping between the

terms and notions of the software requirements to le-

gal terms and notions is derived. Fourth, the law pat-

tern instances and law identiﬁcation pattern instances

have to be matched. This results in a set of laws

which might be of relevance for the software. Fifth,

the found laws are the basis for further investigations.

In order to accomplish the process described in

(Beckers et al., 2012b), law experts and software

engineers have to work together for the necessary

knowledge transfer. Step one can be done alone by

legal experts and for step two only software engineers

are needed. But in step three and four both groups are

needed to bridge the gap between legal and technical

world. The last step can be accomplished alone by

legal experts. In this paper, we focus on the transfor-

mation step and how to turn requirements, in our case

in terms of problem diagrams, into law identiﬁcation

pattern instances.

Relevant Laws for Voting Systems. In our case

study the German law is the binding law. For simplici-

ties sake, we focus on relevant compliance regulations

for privacy. We only explain the laws and regulations

in detail that we use in the example. In 1995, the Eu-

ropean Union (EU) adopted the Directive 95/46/EC

on the processing of personal data. Germany imple-

ments the European Privacy Directive in the Federal

Data Protection Act (BDSG). According to Section 1

BDSG all private and public bodies that automatically

process, store, and use personal data have to comply

with the BDSG.

Example: Voting System for Germany. By its

very nature, the ﬁeld of electronic voting is an in-

terdisciplinary ﬁeld, where legal and computer scien-

tists work together. During the development of the

ﬁrst voting system used in Germany, this fact was ne-

glected or inadequately considered. Hence, the fed-

eral constitutional court of Germany judged in 2009,

that using this system for votings in 2005 was uncon-

stitutional (Federal Constitutional Court of Germany,

2009).

A general problem description of the voting sys-

tem and which functionality it has to provide was

derived from (Brehm, 2012), and (Volkamer, 2009).

The ﬁrst work was conducted in the context of the

ModIWa II project, while the last work was elabo-

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

450

rated in the context of a Common Criteria (CC) Pro-

ﬁle (Volkamer and Vogt, 2008) for online voting.

3 STRUCTURING THE

PROBLEM

As proposed by Jackson (Jackson, 2001), we derive

requirements and domain knowledge from the prob-

lem description, structure the overall problem using a

context diagram, and decompose the overall problem

into sub-problems using problem diagrams. Note,

that for presenting our transformation method we only

use functional requirements. Non-functional require-

ments are left aside. Nevertheless, the found laws de-

mand further quality requirements, for example pri-

vacy requirements.

Requirements and Domain Knowledge. The CC

proﬁle for online voting systems (Volkamer and Vogt,

2008) only deals with the polling phase. The pre-

liminary election preparation and the tallying are not

considered in detail. Hence, the proﬁle only deﬁnes

functional requirements for the voter and the election

ofﬁcer, who represents the election authority. In total,

the machine to be built is described in terms of 21 re-

quirements by the CC proﬁle. Later on we split some

of the requirements for handling reasons. We only en-

list one requirement of the voter at this point. It is suf-

ﬁcient for the rest of the paper. The requirement texts

are directly taken from the CC proﬁle (Volkamer and

Vogt, 2008). (Note that the abbreviation TOE stands

for target of evaluation, which is, in terms of the CC,

the machine to be built)

(R 1) identiﬁcation and authentication of the

voter. Only registered voters are permitted to cast

a vote. The voter [. . . ] identiﬁes and authenti-

cates himself to the server-sided TOE. The server-

sided TOE checks the registered voter’s right to

vote. [. . . ] The registered voter receives applica-

ble acknowledgment of the acceptance or refusal

[. . . ].[. . . ]usually in the form of a corresponding

on-screen display. [. . . ] The voter has been iden-

tiﬁed and authenticated at the latest when the vote

is cast.

Besides the requirements themselves, the knowl-

edge about the environment of the machine to be built

is crucial for understanding the problem and specify-

ing the machine behavior later on. We only present

the assumptions and facts we derived from CC pro-

ﬁle (Volkamer and Vogt, 2008), which are of rele-

vance in the following. In total, the CC proﬁle states

21 assumptions, 14 facts and 35 deﬁnitions and des-

ignations.

(A 3) ballot display. Vote casting [. . . ] takes place

[. . . ] from a vote-casting device which is able to

display the full contents of the ballot and to im-

plement the responsible election authority’s spec-

iﬁcations for the type of display, in particular the

order of voting options.[. . . ] The voter acts re-

sponsibly in securing the vote-casting device. It

is assumed that each voter that installs or uses the

client-sided TOE does so in such a way that the

vote-casting device can neither observe nor inﬂu-

ence the vote casting process. This includes the

assumption that the voter does not manipulate his

vote-casting device on purpose. The vote-casting

device is able to properly display the ballot, to

properly transfer the voters input to the election

server and to delete the vote after the polling pro-

cess.

(F 3) user relation to identiﬁcation data. Sec-

ondly, the user-related data in the electoral reg-

ister with which a registered voter can uniquely

identify himself.

(DD 8) identiﬁcation data. Firstly, a measure to be

used by every registered voter to identify himself

on the TOE. This can be, for example, a member-

ship number, a name, a data of birth or an address.

For analyzing and structuring requirements we use

problem diagrams. Figure 1 shows the problem di-

agram for the requirement R 1. This requirement

demands that Voters can authenticate and identify

against the machine. The diagram was already de-

scribed in Sect. 2.

4 TRANSFORMING PROBLEM

DIAGRAMS TO LAW

IDENTIFICATION PATTERN

INSTANCES

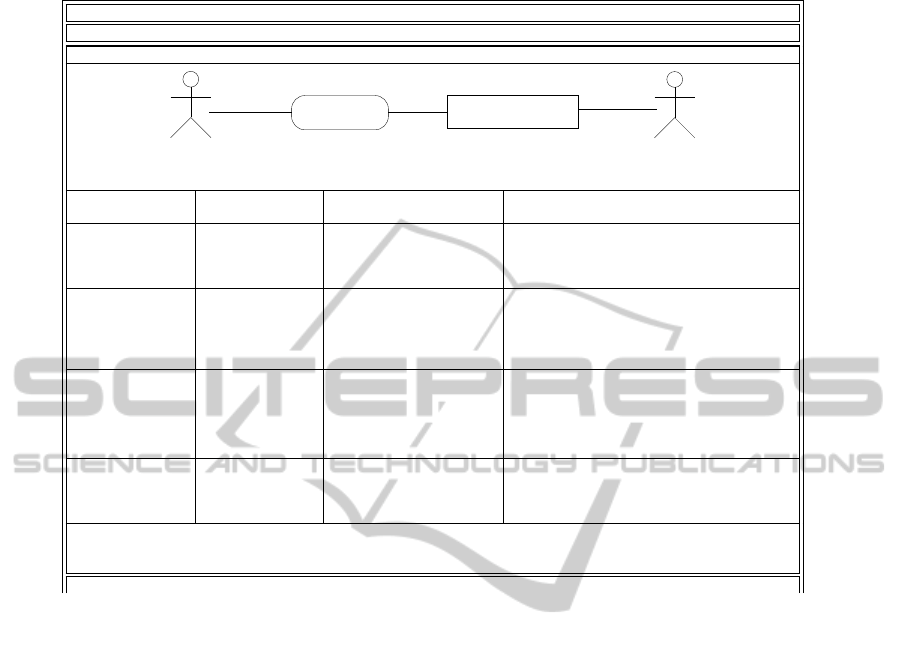

So called transformation cards are the central tool for

executing the transformation in the following. We

developed a transformation card for each problem

frame, which helps requirements engineers to ﬁt the

problem diagrams into the according law identiﬁca-

tion pattern instances. The transformation card con-

tains information for matching problem diagrams and

frames, and information how the problem frame, and

therefore the matching problem diagram, is related

to the Core Structure of the law identiﬁcation pattern.

It also contains information for collecting potentially

FromProblemstoLawsinRequirementsEngineering-UsingModel-Transformation

451

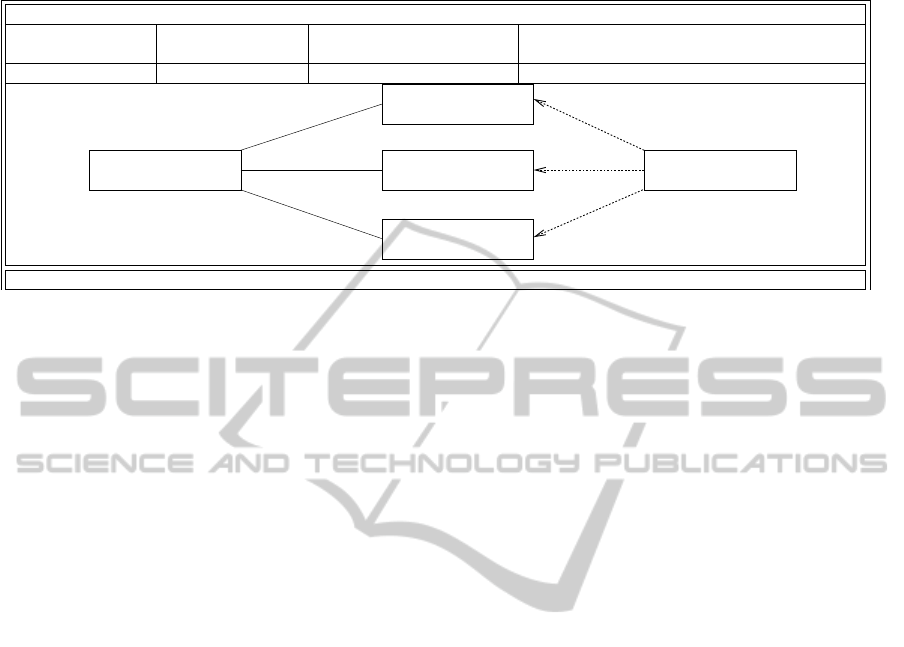

Table 1: Query Transformation Card: Identiﬁcation Part.

Problem Frame: Query

Referred domain

type(s)

Constrained domain

type(s)

Comment Sequence of Phenomena

B, X D

Query IO!E5;[QM!Y2;][DB!Y1;]CM!E5

FeedbackDisplay

displayDomain

DataBase

lexicalDomain

InquiryOperator

biddableDomain

QueryMachine

QueryRules

requirement

machine

constrains

QM!Y2

DB!Y1

connection

QM!E3

connection

IO!E5

connection

refersTo

. . .

missing domain knowledge, which is important trans-

forming for problem diagrams matching the problem

frame at hand, and the transformation rules them-

selves. As a result, the transformation card supports

and guides requirements engineers, when preparing

the requirements for the matching with relevant laws.

In this way, the identiﬁcation of laws gains precision

and is less error prone, for example due to forgetting

important domain knowledge. Beside improving the

precision and lowering the chance of an error, trans-

formation cards are a step towards a semi-automatic

tool-support for the requirements engineer.

Matching Problem Diagrams with Frames. Ta-

ble 1 shows the part of a transformation card, which

can help to identify the matching problem frame. In

the problem frame part the structure of the problem

frames by means of contained domains, phenomena,

their sequence, and refers, constrains relations to the

requirement are described. A matching problem dia-

gram must have the same characteristics as described

in this part of the transformation card.

The problem diagrams have sometimes to be mod-

iﬁed for matching. For example, big and complex

problem diagrams have to be partitioned or domains

have to be merged for ﬁtting the problem diagram

at hand to a problem frame. For reasons of space

we skip the full discussion. The interested reader is

referred to Hatebur and Heisel (Hatebur and Heisel,

2010), which also outlines the possibilities for auto-

mated identiﬁcation of problem frames.

For our example (Fig. 1), we now check if a trans-

formation card is applicable or not. The ﬁrst thing

to be checked is, if the domains which are referred

or constrained have the correct type as described in

the identiﬁcation part. The Voter is a biddable do-

main and the the ElectoralRegister is a lexical do-

main. Both are referred to. This matches the Referred

domain type(s) of the identiﬁcation part. This is also

true for the Constrained domain type(s), which has to

be a display domain. The constrained domain Ballot-

Display in our problem diagram is a display domain.

Thus, this transformation card remains an applicable

candidate.

Next, we have to check if the overall structure of

the problem diagram matches the problem frame. For

the structure, the problem frame, as described in the

graphical part of the identiﬁcation part, is quite simi-

lar. The only difference is that we have two machines

in Fig. 1. But this is the case because of the distributed

nature of our problem. For matching, we can merge

those two machine domains. Hence, the structure is

the same.

Last, we have to check whether the implicitly de-

scribed concern of the problem frame, by means of

the phenomena, matches the phenomena of the prob-

lem diagram or not. The sequence of V!{login};

VISM!{getIdentiﬁctaion}; VICM!{showLoginResult}

matches the regular expression as given by the Se-

quence of Phenomena in the transformation card. As

a result, the transformation card for the problem frame

query has to be applied.

Collecting Domain Knowledge. After the success-

ful matching, the transformation card contains further

guidance for preparing the transformation. It con-

tains several core structure variants, which describe

the possible Core Structure instantiations of the law

identiﬁcation pattern for the problem frame at hand.

The core structure variants not only relate problem

frame and Core Structure, but also consider typical do-

main knowledge for a problem frame. To ensure that

this domain knowledge is collected properly, there is

a questionnaire for each core structure variant. The

questionnaire is structured into the parts “Necessary

Information”, which describes for which information

we are looking for, “Details”, which states which do-

main is the target of the question, the “Question” it-

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

452

Table 2: Query Transformation Card: Transformation Part.

Problem Frame: Query

. . .

Core Structure Variant 2

Accomplish

Avoid /

Asset

Activity

Aktive Stakeholder

Passive Stakeholder

Influence Entitled To

Machine Stakeholder

QM!Y2

DataBase (part)

DataBase Stakeholder

DataBase Information Stakeholder

Necessary

Information

Details

Question Result

Structure Database DataBase

Which information is contained in

the database and which structure

does it have?

For each new found part of the database :

Add a lexical domain for the part to the model.

Add a aggregation relation between database and database part domain

to the model.roF

Database Stakeholder -

Who are the stakeholders owning

the database?

For each found stakeholder :

If stakeholder does not exists in model then Add new biddable

domain for the stakeholder to the model.fI

Add a entitledTo association between database (part) domain

and stakeholder domain.roF

Database Information

Stakeholder

Who are the stakeholders entitled

to information contained in the

database (part)?

For each found stakeholder :

If stakeholder does not exists in model then Add new biddable

domain for the stakeholder to the model.fI

Add a entitledTo association between database (part) domain

and stakeholder domain.roF

Machine Stakeholder -

Who is responsible and in control

of the machine?

For each found stakeholder :

If stakeholder does not exists in model then Add new biddable

domain for the stakeholder to the model.fI Add a controls asso-

ciation between stakeholder domain and machine.roF

Instantiation Rule: For each database and its parts:

For each machine stakeholder:

For each database (information) stakeholder: Instantiate core structure variant 2. roF roF roF

. . .

self, and “Result”, which describes how to model the

collected domain knowledge. While answering these

questions, necessary domain knowledge, which might

be missing, is collected.

Tab. 2 shows one core structure variant. There

are three more variants, which we have to skip due to

reasons of space. The ﬁrst information, which might

be missing, is about the structure of the DataBase.

Normally, in problem diagrams a lexical domain rep-

resents different information, which can be seen as

parts of the overall database. But for law identiﬁca-

tion we need to know the speciﬁc piece(s) of informa-

tion, which are relevant for the problem at hand. In

case the database can be partitioned further, we have

to add a separate lexical domain for each found piece

of information. For the ElectoralRegister we already

collected the information by means of the fact F 3 and

the deﬁnition DD 8. Hence, we know that identiﬁca-

tion data is part of the electoral register. Furthermore,

we know from the problem diagram that this infor-

mation is referred to. Thus, we add the identiﬁcation

data as part of the electoral register. This database

has one DataBase Stakeholder. It is the Electio-

nAuthority, who owns the database. It is the Voter

about whom information is stored, because he own.

The database has one DataBase Information Stake-

holder, to which the next question refers. It is the

Voter about whom information is stored, because he

own. As this stakeholder is already modeled as a bid-

dable domain, we do not have to change the model.

For the question about the database stakeholder and

the last question we have to add the biddable domain

ElectionAuthority, because it is in control of the ma-

chine, but not part of the model yet. Finally, we have

all information in place to start the transformation

from problem diagram to the core structure of the law

identiﬁcation pattern.

Executing the Transformation. With the newly

obtained domain knowledge at hand, we can trans-

form the problem diagram into a law identiﬁcation

pattern core structure instances. How often a core

structure has to be instantiated is described in the in-

stantiation rule (see Tab. 2) of each core structure vari-

ant part of the transformation card. Hence, it is possi-

ble that one problem diagram is transformed into sev-

eral law identiﬁcation pattern instances.

For R 1 (Fig. 1) and Core Structure Variant 2

(Tab. 2) we have to instantiate the core structure

for each combination of Database (part), Machine

Stakeholder, DataBase Stakeholder and DataBase

FromProblemstoLawsinRequirementsEngineering-UsingModel-Transformation

453

Information Stakeholder. The Activity is the same

for all core structures of variant 2. This results in a

core structure for ElectionAuthority, getIdentiﬁca-

tion, ElectoralRegister, and Voter, a core structure

for ElectionAuthority, getIdentiﬁcation, Electoral-

for ElectionAuthority, getIdentiﬁcation, Identiﬁca-

tionData, and ElectionAuthority and a core struc-

ture for ElectionAuthority, getIdentiﬁcation, Inden-

tiﬁcationData, and Voter.

After adding the context information to the pat-

tern and discussing with a legal expert the mappings

of terms, we get a law identiﬁcation pattern instance

as shown in Fig. 2. For the process of adding the

classiﬁcation and context and ﬁnally the matching to

laws, we refer the interested reader to (Beckers et al.,

2012a; Beckers et al., 2012b).

5 VALIDATION

For the validation of our proposed method we ana-

lyzed the voting system in a case of action research.

We modeled and used the transformation cards for all

requirements regarding the voter. We matched the re-

sulting law identiﬁcation pattern with selected laws of

Germany. These laws were modeled in terms of law

patterns for the case study or were already modeled

for previous case studies. There were two theses to

be tested, namely “The transformation cards are suf-

ﬁcient to integrate in the overall identiﬁcation process

as described by (Beckers et al., 2012b).” and “Using

the transformation cards leads to an identiﬁcation of

all relevant laws.”.

To answer the ﬁrst question, we tested the usage

of transformation cards by conducting it in the overall

process as described in (Beckers et al., 2012b). To be

able to discuss the sufﬁciency of the transformation

cards, we tracked the generation of core structures in

terms of number and effort. We also documented our

experiences while conducting the method. The result

is more of a qualitative nature than quantitative.

To answer the second question, we conducted a

literature research about the voting system and the rel-

evant German laws for this matter. The main source

was the judgment of 2009 by the Federal Consti-

tutional Court of Germany (Federal Constitutional

Court of Germany, 2009), followed by discussions

with several domain and / or legal experts. These in-

sights lead to expectations whether a requirement will

match with a particular law or not. These expectations

were documented in terms of a table listing the expec-

tations for each law and requirement. This table was

compared to the matching based on the generated law

Table 3: Validation results.

Core Structures BDSG BwahlG SigG PassG

Requirement Name Problem Frame Generated Redundant Matched Relevant Matched Relevant Matched Relevant Matched Relevant

R1 Identiﬁcation and authentication of the voter Query 16 8 8(4) 2(2) 0(0) 0(0) 16(8) 0(0) 0(0) 0(0)

R2A Show the ballot Query 20 16 12(2) 4(1) 0(0) 0(0) 0(0) 0(0) 0(0) 0(0)

R2B Completion of the ballot Simple Workpiece 12 7 8(3) 2(1) 4(2) 4(2) 0(0) 0(0) 0(0) 0(0)

R2C Correction of the ballot Simple Workpiece 12 7 8(3) 2(1) 4(2) 4(2) 0(0) 0(0) 0(0) 0(0)

R3 Initiation of vote casting Commanded Transformation 20 6 5(3) 5(3) 12(7) 8(4) 0(0) 0(0) 0(0) 0(0)

R4A Hasty voting protection Query 24 14 16(6) 4(2) 5(4) 4(3) 0(0) 0(0) 0(0) 0(0)

R4B Cast conﬁrmed vote Commanded Transformation 8 4 6(2) 1(1) 6(2) 6(2) 0(0) 0(0) 0(0) 0(0)

R4C Acknowledgment of vote Model Display 12 4 3(2) 1(1) 0(0) 0(0) 0(0) 0(0) 0(0) 0(0)

R4D Delete completed ballot Simple Transformation 11 6 7(3) 2(1) 0(0) 0(0) 0(0) 0(0) 0(0) 0(0)

R5 Abort of the polling process Commanded Display 6 4 0(0) 0(0) 0(0) 0(0) 0(0) 0(0) 0(0) 0(0)

Sum 141 76 73(28) 23(13) 31(17) 26(13) 16(8) 0(0) 0(0) 0(0)

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

454

identiﬁcation pattern. The result is of a quantitative

nature in terms of false positives and false negatives,

and evidence by the number of matches.

For the validation, we excluded some laws even

though they were identiﬁed as relevant based on the

literature research and discussions. We selected the

highly relevant laws as discussed by the Federal Con-

stitutional Court. These laws are necessary to ﬁnd

the weaknesses of our method in terms of false nega-

tives. A false negative would be missing match with a

law for a certain requirement. To identify false posi-

tives, we also added laws which are somehow related

to voting systems, but not relevant. Hence, here we

expected to ﬁnd matches, which are not of real rele-

vance. For the validation, we selected the four follow-

ing laws:

• The BDSG as highly relevant law concerning per-

sonal data.

• The BWahlG (Bundeswahlgesetz), which is the

law for federal state elections in Germany and also

highly relevant.

• The SigG (Signatur Gesetz), a law which regu-

lates the use of digital signatures. This particular

law was selected not due to its relevance, but due

to the matter that it is related to our case study,

e.g. in terms of technological background.

• The PassG (Pass Gesetz), which regulates the use

of passports in Germany. This law is clearly irrel-

evant, nevertheless the passport is a possible au-

thentication means during elections.

Table 3 shows the results of using the transforma-

tion cards. In the ﬁrst two columns, the requirement

and its name are listed. In the next column the iden-

tiﬁed problem frame, for the requirement at hand, is

listed. The next column states how many core struc-

tures were generated by executing the transformation

described by the transformation card for the problem

frame. While executing the transformation it turned

out that the transformation rules generate a notice-

able number of duplicated core structures. Hence,

we added this information in the next column. Next,

the four laws are listed. For each we tracked how of-

ten it was matched by a law identiﬁcation pattern and

whether this match was relevant or not. The num-

ber before the parentheses states the number consid-

ering all law identiﬁcation patterns, which include

the duplicates. The number within the parentheses

states number without the duplicates. This table al-

lows some reasoning about the transformation cards.

From our observations, the transformation cards

integrated well in the overall law identiﬁcation pro-

cess. After the core structures were generated, no fur-

ther modiﬁcations were required for instantiating the

full law identiﬁcation patterns. The preparations of

the core structures were slightly more structured and

therefore less error prone compared to the hands on

instantiation we used previously.

A major downside is the pure number of generated

core structures. Generating the core structure takes

a signiﬁcant amount of time and afterward not ev-

ery core structure is necessary for a successful match-

ing. The high share of duplicates worsens the situa-

tion even worse as they devalue more than half of the

work (76 duplicates out of 141 as shown in Tab. 3).

The generation of duplicates should be reduced in the

future by detecting them early on. For the non du-

plicated ones the effort to be spent can be reduced

in terms of tool support. From our experience, none

of the non duplicated ones can be removed as they

are all necessary for a detailed detection of relevant

laws. Sometimes only the minor differences between

core structures revealed the most important parts of a

requirement for the relevance of a law. These differ-

ences then help to understand how to address the law.

Furthermore, we could not identify common charac-

teristics for ﬁltering out the core structures, which

match all relevant laws. The laws are too different

to do so. Hence, the big number of core structures is

necessary and even helpful, but regarding the effort to

generate and analyze them, some further research is

needed to minimize the effort.

Speaking of the effort, there are several things to

consider. The matching of problem diagrams with

problem frames is straight forward and takes no time.

The modeling of the problem diagrams by an expe-

rienced user took about 5 person hours (0.5 hour for

one requirement). This seems reasonable if the law

identiﬁcation gives sufﬁcient results afterward. Addi-

tionally, one can beneﬁt of setting up the diagrams as

their use is not limit to law identiﬁcation alone. An-

swering the questionnaire and modeling the resulting

information takes some more time. But this process

of answering and modeling speeds up signiﬁcantly

with rising number of already analyzed requirements.

Mostly, the questions consider the domains directly.

And as the number of domains is limited, so is the

information needed about them. Thus, most informa-

tion is already known and modeled for later require-

ments. Including discussions it took about 10 person

hours for this step (1 hour for one requirement). This

seems to be a signiﬁcant amount of work, but this in-

formation collected is crucial for the success of the

application of the transformation card. Hence, we

spent some more time for this discussions and search-

ing for the necessary information (e.g. in the protec-

tion proﬁle (Volkamer and Vogt, 2008)). Setting up

the core structures is an easy task, but also time con-

FromProblemstoLawsinRequirementsEngineering-UsingModel-Transformation

455

Table 4: Validation Results: Expected and found matches.

Requirement

R1 R2 A R2 B R2 C R3 R4 A R4 B R4 C R4 D R5

identiﬁcation show complete correct init hasty vote cast ack clear abort

voter ballot ballot ballot vote protection vote vote buffer vote

Law BDSG X X X X X X X X X

BwahlG X X X X X X X

SigG X

PassG

suming. It took 8 person hours to generate all core

structures by hand. Which is about 4 minutes per core

structure. In total, executing the proposed method

took 23 person hours, which makes it about 4 person

days.

This effort seems to be signiﬁcantly high. But

there are two things to consider: First, the time for

generating the core structures can be reduced to al-

most zero by tool support. Second, the elicitation of

law relevant information has to be invested even if

someone uses another method to ﬁnd relevant laws.

Thus, the effort related to the use of transforma-

tion cards is limited to the modeling of problem di-

agrams and modeling of the collected information.

And this pays as it enables the automated generation

and guided analysis.

Some additional effort not unique to the transfor-

mation cards has to be considered regarding the over-

all process, starting with modeling the laws and end-

ing with a legal revision of the matches. The mod-

eling of the laws is quite time consuming as many

discussions are required and therefore should not be

taken out by one person alone. The time spent for a

particular law depends on the size and complexity of

the law. From our experience, it can take up to an hour

for one particular section of a law. But every law has

to be modeled only once and is reusable afterward.

Discussing the matches is not that time consuming as

the law modeling. The understanding of the system

analyzed is already established and all relevant infor-

mation is known. Thus, to take a decision takes less

time. And using the transformation cards support in

the decision taking, as a high share of found matches

is also relevant (e.g 13 relevant out of 17 matches for

the BWahlG as shown in Tab. 3). Hence, the over-

all effort to be spent seems to be reasonable, as long

as the results of the identiﬁcation process are precise

enough.

From our experience, the transformation card

method is sufﬁcient to integrate in the overall identiﬁ-

cation process as described by (Beckers et al., 2012b).

For judging the precision and recall of the law

identiﬁcation using transformation cards, we setup

Tab. 4. Symbols should be read the following way:

• A normal cross indicates an expected and ob-

served match.

• A bold cross indicates an unexpected but correct

match.

• A canceled cross indicates an expected but not ob-

served match and the missing cross turned out to

be correct.

• An underlined cross indicates an unexpected and

irrelevant match.

For the precision the identiﬁcation turned out to be

remarkable. The precision for the voting system and

the four selected laws is at 0.94 (true positive / (true

positive + false positive) = 16 / (16+1)). Thus, almost

every match points out a relevant law. This is not true

for a single core structure as one can see from Tab. 3.

But whenever there are matches for core structures

regarding one requirement, at least one proves to be

relevant.

For the recall the result is perfect. The recall is at

1 (true positive / (true positive+false negative) = 16 /

(16 + 0)). Thus, not a single relevant law is missed.

Having a high recall is more important than a high

precision in our case. The method should ﬁnd all

relevant laws. The impact of a missed law is much

more serious to the development and success of the

system-to-be, than the extra effort spent on the legal

revision for an irrelevant law. Hence, having recall

value near to 1.0 is the main objective of our method.

But a precision of 0.94 adds some surplus value. In

terms of precision and recall, it is reasonable to use

our method.

Compared to our expectations based on the re-

quirements and legal insights alone, using the iden-

tiﬁcation method is superior. For the BDSG we ne-

glected the fact, that the information about the can-

didates and their relation to parties is personal infor-

mation, which falls under the BDSG. In fact, issue is

not of high importance as this information is public

available. But nevertheless it makes the BDSG rele-

vant for these requirements. For the BWahlG it turned

out that this law and its sections only deal with the ex-

pression of opinion alone. Thus, those requirements

that are not directly related to the voting itself are not

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

456

in the focus of this particular law. The only point in

favor for our prediction is that we rejected the SigG,

while it was matched once by the law identiﬁcation

process. Overall, the precision and recall of the law

identiﬁcation process is signiﬁcantly higher than for

our educated prediction.

“To sum up, using the transformation cards leads

to an identiﬁcation of all relevant laws with a high

precision.”. And it signiﬁcantly improves the situa-

tion compared to an unguided method.

6 RELATED WORK

Breaux et al. (Breaux et al., 2006; Breaux and Ant

on,

2008) present a framework that covers analyzing the

structure of laws using a natural language pattern.

This pattern helps to translate laws into a more struc-

tured restricted natural language and then into a ﬁrst-

order logic. The idea of using ﬁrst order logic in the

context of regulations is not a new one. For example

Bench-Capon et al., (Bench-Capon et al., 1987) made

use of ﬁrst-order logic to model regulations and re-

lated matters. In contrast to our work, the authors of

those approaches assume that the relevant laws are al-

ready known and thus do not support identifying legal

texts based on functional requirements.

Siena et al. (Siena et al., 2008) describe the dif-

ferences between legal concepts and requirements.

They model the regulations using an ontology, which

is quite similar to the natural language patterns de-

scribed in the approaches mentioned previously. The

ontology is based in the Hohfeld taxonomy (Hohfeld,

1917), which describes the means and relations be-

tween the different means of legal texts in a very

generic way. Thus Hohfeld does not structure a cer-

tain law at all, but he aims at the different meanings of

laws. So the resulting process in (Siena et al., 2008)

to align legal concepts to requirements and the given

concepts are quite high-level and cannot be directly

applied to a scenario. In a second work Siena et al.

(Siena et al., 2009) try to bridge the gap between the

requirements engineering process and compliance us-

ing a goal-oriented approach. In this work they pro-

pose to derive goals from regulations and apply those

goals to the actors within a requirements engineering

scenario. In contrast to our approach they do not iden-

tify relevant laws and do not intertwine compliance

regulations with already elicited requirements.

Maxwell et al. (Maxwell and Ant

on, 2009) de-

veloped an approach to check existing software re-

quirements for regulatory compliance, i.e., to discover

violations and missing requirements. While our ap-

proach focuses on the identiﬁcation of relevant laws,

we could imagine using it to detect violations, too.

We consider dependencies between different laws or

regulations, which the approach from Maxwell et al.

neglects.

Alvarez et al. (

Alvarez et al., 2002) describe

reusable legal requirements in natural language, based

on the Spanish adaption of the EU directive 95/46/CE

concerning personal data protection. We believe that

the work by

Alvarez et al. complements our work,

i.e., applying our law identiﬁcation method can pre-

ceed using their security requirements templates.

7 CONCLUSION

In this work, we introduced a structured method for

transforming functional requirements into law identi-

ﬁcation pattern instances. This enables us to ﬁnd rele-

vant laws for a software system to be built. The trans-

formation makes use of problem diagrams for struc-

turing the functional requirements, problem frames

for transformation instructions, domain knowledge

for considering the context of the system, and ques-

tionnaires for reﬁning the domain knowledge. We il-

lustrated the method using a case study in the ﬁeld of

online voting. The contributions of this work are:

• Reuse of results of an existing requirements engi-

neering (here problem frames) approach for law

identiﬁcation.

• Transformation cards, which enable software en-

gineers to

– identify the problem class of the requirement at

hand.

– identify the needed domain knowledge for the

transformation.

– obtain instructions how to model the domain

knowledge.

– execute the transformation.

• A structured and guided method for software en-

gineers to transform functional requirements into

law identiﬁcation pattern instances.

• An improvement of law identiﬁcation in require-

ments engineering by augmenting a crucial step

of the law identiﬁcation process as described in

Beckers et al (Beckers et al., 2012b).

• The basis for semi-automatic tool support.

We will also publish a technical report contain-

ing all transformation cards, the full case study, the

resulting law identiﬁcation pattern instances, and the

law pattern instances used.

For the future we plan to investigate the matter of

quality requirements. Quality requirements itself are

FromProblemstoLawsinRequirementsEngineering-UsingModel-Transformation

457

too vague to be directly transformed into law identiﬁ-

cation pattern instances. But they contain additional,

relevant information about the functionality and con-

text of a system. It seems to be promising to inte-

grate this information to improve the precision of our

method.

In general, our law identiﬁcation process was used

in the ﬁeld of cloud computing, health-care and for

this paper in the domain of voting systems. The trans-

formation cards were only used for the latter. From

our experience, our method is usable regarding the

German law for different domains without adaption.

We also found evidence that this observation is also

true for laws from other countries as long as the law

system of the country is a statue law. For example,

Biagioli. et al (Biagioli et al., 1987) describe the very

same structure for Italian laws like we use for German

laws. For case law systems like the one of the US, our

method needs to be adapted. The use of our method

on more domains, for other countries with statue law,

and even for case law countries is under research.

We also plan to formulate rules for the reduction

of core structure candidates. At the moment, we get a

large set of core structures for some problem frames.

This makes the modeling of law identiﬁcation pattern

instances tedious. Hence, we will improve the sit-

uation by giving guidance to identify irrelevant core

structures or core structures which can be merged.

Finally, we plan to speed up the method execu-

tion by providing tool support for identifying prob-

lem frames for problem diagrams, wizards and rec-

ommenders, which are based on the questionnaires,

for collection the domain knowledge, and automatic

transformation based on this information.

REFERENCES

Alvarez, J. A. T., Olmos, A., and Piattini, M. (2002). Le-

gal requirements reuse: A critical success factor for

requirements quality and personal data protection. In

Proceedings of the International Conference on Re-

quirements Engineering (RE), pages 95–103. IEEE.

Beckers, K., Faßbender, S., K

uster, J.-C., and Schmidt, H.

(2012a). A pattern-based method for identifying and

analyzing laws. In REFSQ, pages 256–262.

Beckers, K., Faßbender, S., and Schmidt, H. (2012b). An

integrated method for pattern-based elicitation of legal

requirements applied to a cloud computing example.

In ARES, pages 463–472.

Bench-Capon, T. J. M., Robinson, G. O., Routen, T. W., and

Sergot, M. J. (1987). Logic programming for large

scale applications in law: A formalization of supple-

mentary beneﬁt legislation. In Proceedings of the In-

ternational Conference on Artiﬁcial Intelligence and

Law (ICAIL). ACM.

Biagioli, C., Mariani, P., and Tiscornia, D. (1987). Esplex:

A rule and conceptual model for representing statutes.

In ICAIL, pages 240–251. ACM.

Breaux, T. D. and Ant

on, A. I. (2008). Analyzing regula-

tory rules for privacy and security requirements. IEEE

Transactions on Software Engineering, 34(1):5–20.

Breaux, T. D., Vail, M. W., and Ant

on, A. I. (2006). To-

wards regulatory compliance: Extracting rights and

obligations to align requirements with regulations. In

Proceedings of the International Conference on Re-

quirements Engineering (RE), pages 46–55. IEEE.

Brehm, R. (2012). Kryptographische Verfahren in Internet-

wahlsystemen. Technical report, Technical University

of Darmstadt.

e, I., Hatebur, D., Heisel, M., Schmidt, H., and Went-

zlaff, I. (2008). A systematic account of problem

frames. In Proceedings of the European Confer-

ence on Pattern Languages of Programs (EuroPLoP),

pages 749–767. Universit

atsverlag Konstanz.

Federal Constitutional Court of Germany (2009). Verwen-

dung von Wahlcomputern bei der Bundestagswahl

2005 verfassungswidrig.

Hatebur, D. and Heisel, M. (2010). Making pattern- and

model-based software development more rigorous. In

Proceedings of 12th International Conference on For-

mal Engineering Methods, ICFEM 2010, Shanghai,

China, LNCS 6447, pages 253–269. Springer.

Hohfeld, W. N. (1917). Fundamental legal conceptions as

applied in judicial reasoning. The Yale Law Journal,

26(8):710–770.

Jackson, M. (2001). Problem Frames. Analyzing and

structuring software development problems. Addison-

Wesley.

Maxwell, J. C. and Ant

on, A. I. (2009). Developing pro-

duction rule models to aid in acquiring requirements

from legal texts. In Proceedings of the 2009 17th IEEE

International Requirements Engineering Conference,

RE, RE ’09, Washington, DC, USA. IEEE Computer

Society.

Otto, P. N. and Ant

on, A. I. (2007). Addressing legal re-

quirements in requirements engineering. In Proceed-

ings of the International Conference on Requirements

Engineering. IEEE.

Siena, A., Perini, A., and Susi, A. (2008). From laws

to requirements. In Proceedings of the Interna-

tional Workshop on Requirements Engineering and

Law (RELAW), pages 6–10. IEEE.

Siena, A., Perini, A., Susi, A., and Mylopoulos, J. (2009).

A meta-model for modelling law-compliant require-

ments. In Proceedings of the International Workshop

on Requirements Engineering and Law (RELAW),

pages 45–51. IEEE.

Volkamer, M. (2009). Evaluation of Electronic Voting: Re-

quirements and Evaluation Procedures to Support Re-

sponsible Election Authorities. Springer Publishing

Company, 1st edition.

Volkamer, M. and Vogt, R. (2008). Common Criteria Pro-

tection Proﬁle for Basic set of security requirements

for Online Voting Products. Bundesamt f”ur Sicher-

heit in der Informationstechnik.

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

458
