A Security-enhanced Design Methodology for Embedded Systems

Alberto Ferrante, Jelena Milosevic and Marija Janjuˇsevi´c

ALaRI, Faculty of Informatics, University of Lugano, via G. Bufﬁ 13, Lugano, Switzerland

Keywords:

Security, Design Methodology, Embedded Systems, Security Metric, Metric, AHP.

Abstract:

Designing an embedded system is a complex process that involves working both on hardware and on software.

Designers often optimize the systems that they design for speciﬁc applications; an optimal system is the one

that can execute the desired set of applications with the required performances at the lowest possible cost. Cost

may be expressed in different ways such as, for example, energy consumption and/or silicon area. Security is

being, in the common practice, disregarded during this phase and inserted in later stages of the design process,

thus obtaining non optimal and/or non safe systems.

In this paper we propose a design methodology for embedded systems that integrate the choice of suitable

design solutions into the early stages of the design process. The main purpose of this methodology is to

provide a way to evaluate security as an additional optimization parameter. Along with a description of the

methodology, in this paper we also show a case study that explains how the methodology can be applied and

that proves its effectiveness.

1 INTRODUCTION

The use of embedded systems has been continuously

increasing in the last years both with respect to the

number of application areas and to the complexity of

platforms designed: embedded systems have become

fundamental in ICT. Unfortunately, this increase in

their use, even in new, critical, and non-protected en-

vironments, has not been accompanied by a proper

development of methodologies for making them se-

cure (Viega and Thompson, 2012). Yet, security for

these systems proved to be a more difﬁcult and more

critical problem than security for general purpose sys-

tems: added difﬁculties are given by the often lim-

ited amount of resources available to implement se-

curity solutions. Criticality is given both by the kinds

of data stored in mobile devices (e.g., phone book-

marks and personal user data) and by the kind of dam-

ages that an attack to a mobile system may produce.

Though, security is not yet perceived as a signiﬁcant

problem by embedded systems users. Embedded sys-

tems (e.g., vehicle infotainment systems, smart house

control system, a health monitoring system) may be

directly or indirectly (i.e., through other devices) net-

work connected for different purposes and they can

be used as a mean for attacking these devices (Seo

and Cho, 2012). Attackers may exploit possible se-

curity holes to gain access to the control system con-

sidered and cause signiﬁcant damages. In fact, while

a proper backup mechanism can, for example, allow

the recovery of lost data, a hacked insulin pump may

create damages to the wearer that cannot be reverted

(Viega and Thompson, 2012). Attacks can be con-

ducted through hardware or software. Security needs

to be approached in a new way to cope with the new

threats posed by the new capabilities of mobile sys-

tems and with the multiple environments in which

they are used.

To solve the aforementioned problems not only

innovative security techniques for embedded systems

need to be developed, but also a comprehensive, yet

ﬂexible, approach is required. In this approach secu-

rity should be targeted at all levels of the embedded

system, ranging from hardware to application soft-

ware. At the software level the goal is not only to

rely on code to protect the system but to closely in-

teract with hardware resources to provide more efﬁ-

cient protection techniques matching with embedded

systems constraints (memory footprint, power limi-

tation). Considering such an approach will become

mandatory to increase the level of security and to bet-

ter take advantage of the power computation available

in the device. At the hardware level designing efﬁ-

cient solutions to protect and monitor the execution

of the application is essential to meet application con-

straints in terms of speed. Bridging the gap between

application and hardware resources in the domain of

security will provide the guarantee to develop a de-

Ferrante A., Milosevic J. and Janjuševi

c M..

A Security-enhanced Design Methodology for Embedded Systems.

DOI: 10.5220/0004501000390050

In Proceedings of the 10th International Conference on Security and Cryptography (SECRYPT-2013), pages 39-50

ISBN: 978-989-8565-73-0

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

fense in depth approach. The goal of this approach

is not only to provide protection against known at-

tacks, but also to be more resistant to not-known ones.

Such a holistic approach will also offer designers a

clearer vision about security and it will allow them

to evaluate and customize security solutions in their

design during the design space exploration (i.e., the

evaluation and comparison of different design points

to ﬁnd the optimal one with respect to different met-

rics) phase, based on threat models foreseen for the

device.

Although important, the development of compre-

hensive security solutions does not solve the problem

of designing secure embedded systems. In fact, em-

bedded system designers have often seen security as

a desired but not directly feasible and not critical fea-

ture. This is due to different reasons, the main one be-

ing that the organizations developing embedded soft-

ware often lack support of security specialists (Koop-

man, 2004); the introduction of security mechanisms

in embedded systems is further complicated by the

non existence of a design methodology aimed at in-

cluding security in system codesign from the early

phases of development. Designers miss both security

solutions speciﬁcally optimized for embedded sys-

tems and the information that would allow them to

easily integrate those solutions into their designs by

evaluating security-cost trade-offs. Presently, most

embedded systems are developed by using perfor-

mance and/or power driven approaches. By these

approaches, different design solutions (i.e., different

system hardware/software conﬁgurations) are evalu-

ated in a procedure called design space exploration

(Palermo et al., 2008; Alippi et al., 2004).

In this paper we discuss a design methodology

that allows designers to easily include security from

the early stages of the design process as opposes to

adding it at later stages as it is most often done cur-

rently. In this methodology, sets of security solu-

tions need to be identiﬁed and labeled with their cost

(power consumption, consumption of computing re-

sources, silicon area, memory, ...) and with a mea-

sure of their security. While it is known that an abso-

lute security metric is difﬁcult, or even impossible,

to obtain, it is possible to measure system security

relatively to known attacks for the system considered

(Atzeni and Lioy, 2005). In most cases (e.g., different

cryptographic algorithms) it is also possible to com-

pare security provided by different solutions.

The remaining part of this paper is organized as

follows: Section 2 discusses the related work; Section

3 introduces the design methodology that we have de-

veloped; Section 4 discusses the results obtained by

applying our methodology to a case study; Section

5 presents a discussion on some key elements of the

methodology.

2 RELATED WORK

Security is a new dimension that designers should

consider throughout the design process, along with

other metrics such as cost, performance, and power

(Ravi et al., 2004). For this purpose, a security met-

ric is required. Unfortunately, though, at the moment

there is none available (Atzeni and Lioy, 2005): while

there is the possibility to compare similar security so-

lutions (e.g., different cryptographic algorithms) from

the stand point of security and cost, at present there is

no methodology to measure the security of systems.

In this paper, among the other things, we propose a

security metric that aggregates an evaluation of the

security of all different security elements. The evalu-

ation is done by considering the resistance of the se-

curity solutions to known attacks as well as their cor-

respondence to security requirements.

In the last years some effort has been put in devel-

oping security standards for systems and applications.

The NIST FIPS 140-2 (NIST, 2002) standard catego-

rizes cryptographic systems in four levels depending

on the services they offer and on the algorithms they

support. The International Organization for Standard-

ization (ISO) has also deﬁned a set of standards for se-

curity in ISO/IEC 27000-series. In particular, a stan-

dard related to application security (ISO/IEC 27034)

is in early stages of its development (ISO/IEC, 2011).

In this work we rely on these standards to specify se-

curity requirements.

In (Ravi et al., 2004; Atzeni and Lioy, 2005) it

is stated importance of including security as objec-

tive in multi-objective design space exploration for

embedded systems design with the purpose of reduc-

ing power and processing overhead. In these pa-

pers, though, no methodology for including security

in design space exploration is proposed. In (Kocher

et al., 2004) it is stated that, as opposed to the other

design metrics (e.g., area, performance, power), se-

curity is currently speciﬁed by system architects in

a vague and imprecise manner. The main problem

is that security experts are the only people in a de-

sign team who have a complete understanding of the

security requirements, although different aspects of

the embedded system design process can affect se-

curity. Furthermore, (Kocher et al., 2004) suggests

that design methodologies for secure embedded sys-

tems should include techniques for specifying secu-

rity requirements in a way that can be easily com-

municated to the design team, and evaluated through-

SECRYPT2013-InternationalConferenceonSecurityandCryptography

out the design cycle, and that any attempt to spec-

ify security requirements needs to address the level of

security desired. During embedded system architec-

ture design, techniques to map security requirements

to different alternative solutions, and to explore the

associated trade-offs in terms of cost, performance,

and power consumption, would be invaluable in help-

ing embedded system architects understand and make

better design choices (Kocher et al., 2004). In (Juer-

jens, 2003) the signiﬁcance of including security in

design phase is emphasized as well. The authors un-

derline that the main reason for not doing that is the

lack of properly deﬁned security requirements and

they propose a language, named UMLsec, aimed at

this purpose. UMLsec is a speciﬁcation language that

extends UML. In our work we use UML to specify

security requirements, even though in a different way

than the one of UMLsec. In (Bayrak et al., 2011)

a methodology for automatic application of security

measures at design time is presented; the scope of

the paper, though, is limited to countermeasures for

power analysis attacks.

In different works related to security the Analytic

Hierarchy Process (AHP) is used to evaluate security

solutions and to build some sort of security metrics.

For example, in (Taddeo and Ferrante, 2009) AHP is

used to evaluate the relevance of different security al-

gorithms in the process of selecting the one that best

suits with the run-time conditions of the system. In

our work we use AHP as a way to sort security re-

quirements based on their priority.

3 DESIGN METHODOLOGY

Most real modern embedded system designs are in-

herently complex, given that their functional speci-

ﬁcations are rich and they must obey multiple other

requirements such as, for example, the ones on cost,

performance, time, and area. As a result, method-

ologies and frameworks are needed in order to help

designers in the different design phases. Figure 1

shows how we propose to integrate security in the

design of embedded systems. Security requirements

of the application need to be deﬁned by following

a suitable model. Available security solutions are

grouped in a library (i.e., an organized collection);

this is done to favor reuse of security components in

different projects. Application security requirements

are matched with security solutions available in the

library and, from this operation, multiple sets of pos-

sible security solutions - each one of them satisfying

the security requirements in different ways - are ob-

tained; these sets are then ordered and rated with re-

Security−enhanced

design space

exploration

Matching

Library of

integrated

security solutions

Secure

embedded system

Application and

architectural

specifications

Application

security

requirements

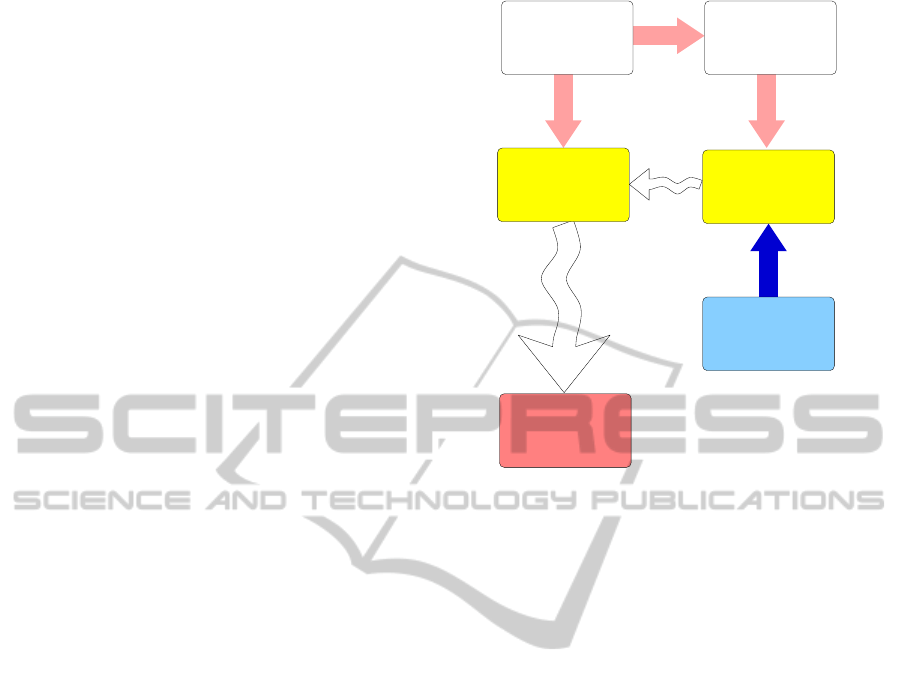

Figure 1: The security-enhanced design methodology.

spect to their relative security level and their confor-

mity to security requirements. Each set of solutions is

evaluated during design space exploration by consid-

ering its cost and its security evaluation. This security

evaluation is done by means of a security metric; in

this way, security becomes an additional dimension

of the design space.

To summarize, we propose a modiﬁed design

methodology that includes the following steps:

1. Deﬁne the application functional requirements.

2. Deﬁne the application security requirements.

3. Match the solutions contained in the library with

the security requirements.

4. Deﬁne the design space considering both func-

tional requirements and sets of security solutions.

5. Evaluate security solutions by using the security

metric.

6. Perform a design space exploration of the whole

system, including the security solutions.

7. Evaluate the results of the design space explo-

ration process by using a proper metric that in-

cludes security.

Steps 1, 4, 6, and 7 are part of the normal design pro-

cess of embedded systems (Alberto Ferrante et al.,

2005), but some of them need to be modiﬁed to in-

clude security. Steps 2, 3, and 5 are speciﬁc to our

security design methodology. In this paper, therefore,

we concentrate our effort on deﬁning how security re-

quirements should be speciﬁed (step 2), how the secu-

ASecurity-enhancedDesignMethodologyforEmbeddedSystems

rity solutions can be matched with requirements (step

3), and how security solutions are evaluated (step 5).

We also discuss the modiﬁcations that are necessary

to the other steps, namely steps 4 and 7.

3.1 Security Requirements

Specifying security requirements is the ﬁrst and fun-

damental step of our design methodology. Secu-

rity requirements are non-functional requirements de-

scribing the security features that should be provided

by the system. Requirements should be written by

considering the possible security attacks that the sys-

tem should be able to withstand. Ideally, a designer

should be able to specify only that he wants a sys-

tem to be secure with a given security level. Unfortu-

nately, though, this is a too generic requirement that,

at the moment, cannot be translated into more spe-

ciﬁc ones. Though, we can foresee the possibility

to specify more generic requirements by specifying

which are the attacks that the systems should be able

to withstand and by developing a method to map se-

curity solutions with attacks. A further evolution of

this mechanism would be to specify which are the

standard security test that the system is supposed to

pass: this will lead to a list of attacks and, by using the

aforementioned mapping among attacks and security

solutions, to a set of security requirements. How to

translate generic requirements in more speciﬁc ones

is outside the scope of this paper.

In this paper we consider security requirements

in which security features are speciﬁed. For exam-

ple, we may specify that communication encryption

is required. A mechanism used to assign priorities

to different mechanisms has also is also proposed.

This method is based on Analytical Hierarchy Process

(AHP).

3.1.1 Security Requirements Model

Security requirements have been modeled by means

of UML; the UML model can be used as a template to

deﬁne system-speciﬁc requirements by specifying the

desired security solutions and their characteristics. As

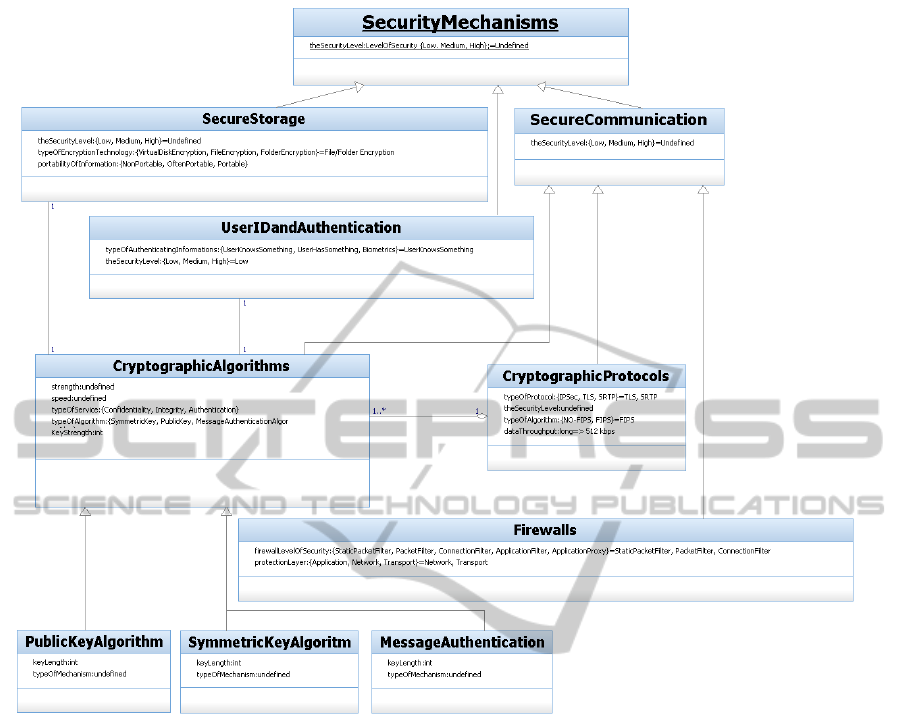

shown in Figure 2, different kinds of security require-

ments are represented by different classes in the dia-

gram; all of them are derived from the superclass Se-

curityMechanisms. Whenever multiple different op-

tions, with different characteristics, are available for

certain security mechanisms, a superclass is used to

represent the generic requirement and subclasses are

used to specify the details. In each class different at-

tributes are speciﬁed. These attributes can be used

to specify the details related to each requested secu-

rity mechanism. For example, the attributes of the

Table 1: Table: Rating scale.

Intensity

of Im-

portance

Deﬁnition Explanation

1 Equally impor-

tant

The two factors contribute equally to the ob-

jective

3 Somewhat more

important

Experience and judgment slightly favor one

over the other

5 More important Experience and judgment strongly favor one

over the other

7 Much more im-

portant

Experience and judgment very stronglyfavor

one over the other

9 Absolutely more

important

The evidence is favoring one over the other

2, 4, 6, 8 Intermediate val-

ues

Importance in-between other levels

class CryptographicAlgorithms can be used to deﬁne

the desired characteristics of the corresponding cryp-

tographic algorithm (e.g., the key length).

To specify the security requirements of a system,

the classes corresponding to the desired requirements

should be selected and their attributes should be spec-

iﬁed. A mandatory attribute of every class is the one

that speciﬁed the desired level of security; this param-

eter should conform to the format speciﬁed in Section

3.3. Designer has two ways to deﬁne requirements

inside the class: they can only specify the required

security level or they can specify the exact features

and options that are required.

3.1.2 Priorities

It can often happen that not all of the requirements

are equally important and, therefore, a mechanism

for assigning them priorities may be required. In our

methodology, these priorities are expressed through

weights. The method used to derive weights is called

AHP. AHP is a way to perform decision making that

involves structuring multiple choice criteria into a hi-

erarchy, assessing relative importance to these cri-

teria, comparing alternatives for each criterion and

determining an overall ranking of the alternatives

(Coyle, 2004).

First step in performing AHP is decomposing

the considered problem into sub-problems in order

to form a multi-level, multi-target, and multi-factors

structure called hierarchical structure. The next step

is assigning priorities. Let us assume that we need

to assign weights to a set of n attributes that, in our

case, are the number of requirements (R). An es-

sential part of this step is forming an R × R matrix,

called A, which is expressing the relations among the

attributes. Attributes are pair-wise compared with the

purpose of deciding their relative importance. Rel-

ative importance is deﬁned by using a set of prede-

ﬁned values as shown in Table 1. Each element a

the matrix A denotes the relative weight of the i-th at-

tribute with respect to the j-th one. Equation 1 shows

the constraints that must be respected in this matrix.

SECRYPT2013-InternationalConferenceonSecurityandCryptography

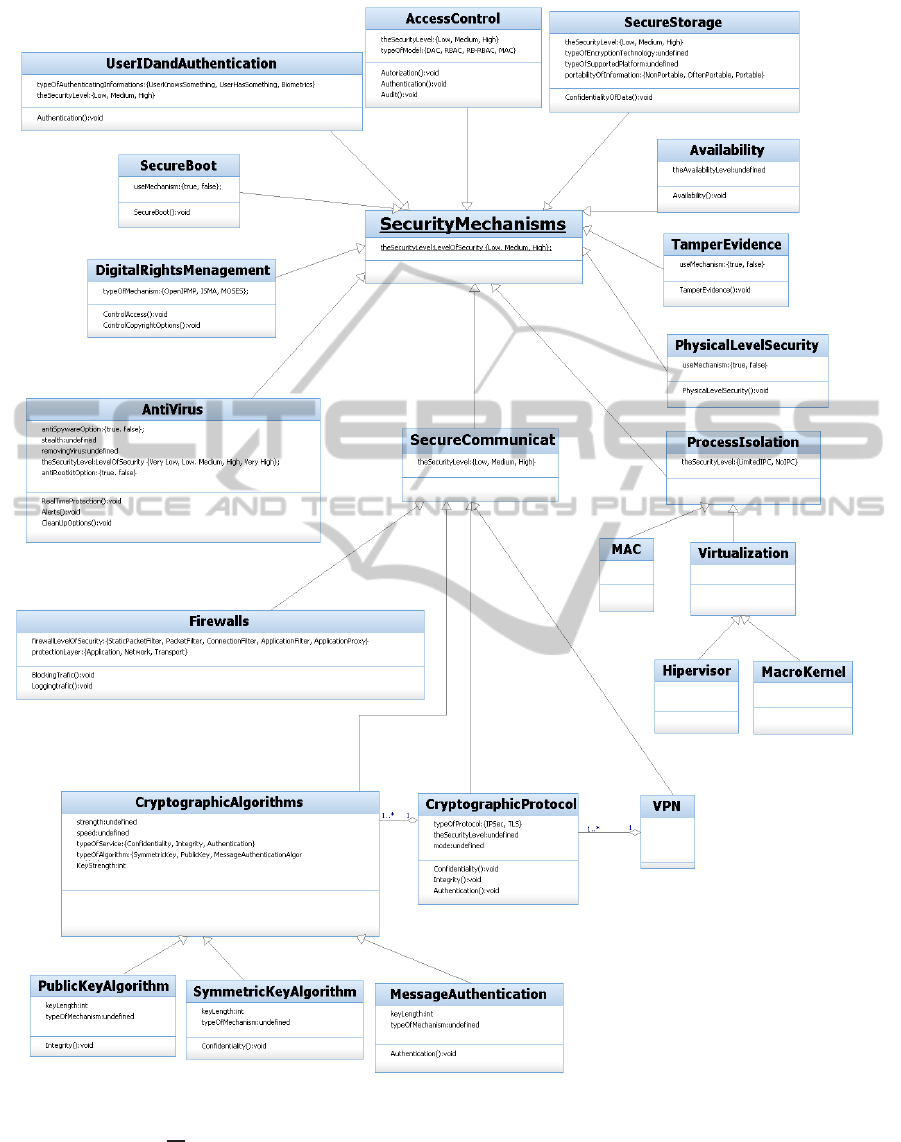

Figure 2: General security requirements in embedded systems.



, i 6= j

1, i = j

(1)

Furthermore, matrix A is subject to a consistency

analysis. When obtained from measured data,

weights are said to be consistent if they are transi-

tive, i.e., a

= a

· a

for all i, j, k. To verify this

condition we need to ﬁnd a vector z of order R such

that Az = λz; where z is an eigenvector of order R

and λ is eigenvalue of the matrix A. For a consistent

matrix the condition λ = R need to apply. Neverthe-

ASecurity-enhancedDesignMethodologyforEmbeddedSystems

less, in our case the elements of matrix A are based on

human judgment and some amount of inconsistency

may exist. Therefore, the previous condition is re-

laxed in such a way that the vector z satisﬁes the con-

ditions Az = λ

max

z and λ

max

> R, where λ

max

is maxi-

mal eigenvector. Any difference between λ

max

and R,

measured by the Consistency Index shown in Equa-

tion 2, is an indication of inconsistency of judgments

in matrix A.

CI =

max

− R

R− 1

(2)

The Consistency Index is then used to compute the

Consistency Ratio as shown in Equation 3.

CR =

(3)

where RI stands for Random Index for consistency

that is given in (Coyle, 2004) for matrices of different

orders. To guarantee consistency of the matrix A, the

Consistency Ratio should not be higher than 0.1.

Once the matrix A is well deﬁned, the Relative

Value Vector (RVV) that contains the weights as-

signed to the R requirements can be deﬁned as shown

in Equation 4.

RVV = (w

, w

, ..., w

). (4)

As shown in Equation 5, the weights w

are the eigen-

vectors of the matrix A.

∑

j=1

∑

k=1

∑

j=1

, i = {1, R} (5)

3.2 Matching Requirements with

Solutions

Requirements should be matched with the solutions

contained in the library. Elements of the library are

security solutions that have been characterized with

respect to performances and security features. An

example of a library element is shown in Figure 3.

Based on given requirements, the desired security

level of all classes and sub classes has to be calcu-

lated. Depending on the kind of requirement con-

sidered, different methods can be used for this pur-

pose: some security solutions allow for a quantitative

evaluation of the security level; some others just for

a qualitative one. The quantitative approach can be

used for all the solutions in which security can be de-

ﬁned quantitatively such as, for example, in the case

of cryptographic algorithms where the resistance to

brute force attacks of the considered algorithm can be

used as a quantitative measure of security. In Table

2 the measure of security of different algorithms pro-

vided as bits of security in (Barker et al., 2012) was

used to compute the security level of each algorithm.

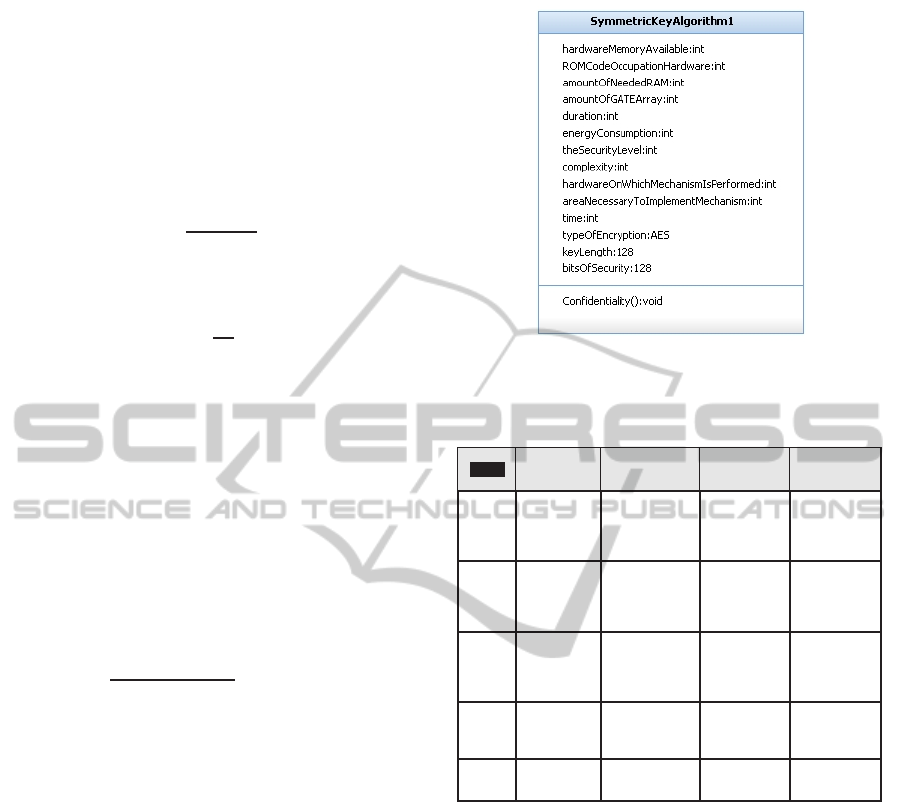

Figure 3: Representation of the library element.

Table 2: Quantitative approach for assignment of security

levels.

Bits Of

Security

Symmetric

Key

Algorithms

Hash Authentication

0.2 80 2TDEA

SHA-1

SHA-224

SHA-256

SHA-384

SHA-512

SHA-1

SHA-224

SHA-256

SHA-384

SHA-512

0.4 112 3TDEA

SHA-224

SHA-256

SHA-384

SHA-512

SHA-1

SHA-224

SHA-256

SHA-384

SHA-512

0.6 128 AES-128

SHA-256

SHA-384

SHA-512

SHA-1

SHA-224

SHA-256

SHA-384

SHA-512

0.8 192 AES-192

SHA-384

SHA-512

SHA-224

SHA-256

SHA-384

SHA-512

1 256 AES-256

SHA-256

SHA-384

SHA-512

SHA-256

SHA-384

SHA-512

The mapping has been done by mapping the bits of

security to a value ranging from 0 to 1, 1 being the

highest possible security level.

For other classes, where the quantitative method

cannot be applied, the qualitative one is used. As

shown Equation 6, for these solutions the security

level is calculated by considering the number of se-

curity features supported for the corresponding secu-

rity solution. Features are the ones speciﬁed in Figure

2 and they are weighted, based on their importance,

according to the weights provided by the designer.

∑

j=1

· v

, i = 1, 2, ..., S (6)

In this equation R is the number of requirements, S

is the number of solutions, g

refers to the weight of

the requirement r

and v

shows if requirement r

fulﬁlled in Solution s

( v

= 1 if requirement is ful-

ﬁlled, or v

= 0 in the opposite case). The overall

SECRYPT2013-InternationalConferenceonSecurityandCryptography

security level required, is calculated by using AHP to

combine the security levels of the considered security

solutions.

Solutions that are in the library are already de-

scribed with their own security level. Two addi-

tional parameters are calculated in order to perform

the matching. These two parameters are the level of

missing features (F

−

) and the level of additional fea-

tures (F

). These two values show how close the con-

sidered solution is to the requirements; F

−

shows the

number of features that are speciﬁed in the require-

ments but that are not supported by the considered so-

lution; F

represents the number of features that are

not speciﬁed in the requirements but that are present

in the considered solution.

The required security level and the security level

provided with the considered security mechanism is

compared. If the quantitative approach is used, when

the security level is higher than the one of the solu-

tion, F

−

is calculated as a difference between these

two numbers, and F

is 0. Otherwise, F

is com-

puted as difference and F

−

is 0. For the qualitative

approach a comparison between the required security

level and the one provided by the considered solution

is done and F

−

is calculated as a weighted sum of

missing features; F

is computed as a weighted sum

of added features. Thresholds can be deﬁned for these

values so that only suitable solutions are selected. By

assigning this tree numbers (L

, F

−

, F

) to all solu-

tions in the library, we are able to order security solu-

tions from the security stand point and to label them

with their costs by using AHP.

3.3 Security Metric

A widely accepted management principle is that an

activity cannot be managed if it cannot be measured.

Security falls under this rubric. Metrics can be effec-

tive tools for security managers to discern the effec-

tiveness of various components of their security pro-

grams, the security of a speciﬁc system, product or

process, and the ability of staff or departments within

an organization to address security issues for which

they are responsible. Unfortunately, though, no suit-

able security metric was available in the literature

(Ravi et al., 2004; Atzeni and Lioy, 2005). There-

fore, we developed our own metric based on what we

deﬁned as Security level of the different security solu-

tions as well as a rating on how well each solution ﬁt

with the corresponding security requirements.

For example, the security level of the Secure Com-

munication class can be calculated by using Equation

7, where L

ska

, L

pka

, L

are the security levels of its

subclasses. Weights w

ska

, w

pka

, w

are the weights

of the symmetric key algorithm, the public key al-

gorithm and the message authentication algorithm,

respectively; these weights are determined by using

AHP.

= w

ska

∗ L

ska

+ w

pka

∗ L

pka

+ w

∗ L

(7)

AHP is applied again for all classes to compute the

overall security level. This is done by using Equa-

tion 8, where w

, w

are weights, determined

by using AHP, of the anti-virus, ﬁrewall and secure

communication classes, respectively. L

, L

are

the security levels associated to the aforementioned

classes.

overall

= w

∗L

drm

∗L

drm

∗L

(8)

By applying AHP we can obtain the list of all possi-

ble sets of solutions with their security levels, levels

of missing features and levels of additional features.

With this list we are able to decide what are the most

appropriate ones from the security stand point. Three

thresholds based on the security level, the number of

missing features, and the number of added features

are used to provide the ability to ﬁlter the sets of so-

lutions that should be considered in the design explo-

ration phase. This provides designers the ﬂexibility

to deﬁne suitable constraints for the solutions to be

considered. For example, designers may use the ﬁlter

on the number of missing feature to restrict the de-

sign space only to the solutions that support all the

required features.

Although having three numbers to characterize

all solutions is much more descriptive and helpful in

choosing the appropriate ones, in order to evaluate the

solutions during the design exploration phase, these

three numbers should be summarized in a single one

that represents our security metric. If S

−

= 0, the se-

curity metric is simply represented by L

. If S

−

< 0

(i.e., some desired requirements are not fulﬁlled) L

scaled by the number of non-satisﬁed requirements.

Scaling is done in such a way that the higher the num-

ber of missing features, the lower number that repre-

sents whole solution are. Security metric is the num-

ber that represents the security level of one solution

comparing to previously deﬁned requirements of the

system. The security metric number is obtained by

aggregation of the three numbers that represent every

solution. In case that the security metric is equal or

greater then requested one, it means that all require-

ments are fulﬁlled with the same or even higher se-

curity level. In case that security metric number is

lower than requested, it means that some of require-

ments are not fulﬁlled.

The security metric discussed above can be used

ASecurity-enhancedDesignMethodologyforEmbeddedSystems

alone to sort the security solutions. Though, this met-

ric do not include any other system parameter and

do not allow to perform any trade-off among security

solutions and their costs. Metrics currently used in

design of embedded systems include performance as

well as energy consumption and/or area occupation.

Energy consumption and area are considered as costs

and the system is optimized to obtain the best possible

trade-off among performances and cost. For example,

the metric of Equation 9 is widely used to obtain the

optimize the energy-performance trade-off.

OverallMetric = Time · Power (9)

Other metrics that attribute different weights to the

different parameters (e.g., by considering the power

n of one or more parameters) may also be used. The

choice of a suitable metric depends on the kind sys-

tem considered and on the goals of designers. Addi-

tionally to computing the values of the metric by us-

ing Equation 9, the values of the different parameters

can be plotted in a diagram and the optimal point can

be chosen among the ones that reside on the Pareto

curve.

Security can be integrated in these kinds of met-

ric as a parameter that should be maximized as op-

posed to time and energy that need to be minimized.

Different sets of security solutions can, therefore, be

evaluated by using a metric such as the one shown in

Equation 10.

OverallMetric

Time· Power

SecurityMetric

(10)

This equation can be modiﬁed with different param-

eters as explained for Equation 9. The same metric

can be used for optimizing the entire system by also

including security solutions. In this case the overall

energy consumption and performances will be con-

sidered instead of the ones associated only to security

solutions.

4 EXPERIMENTAL RESULTS

In this section we discuss a case study that is used

both to show how our design methodology can be ap-

plied in practice and its effectiveness in designing an

optimal system. The case study has been chosen to be

simple and with a limited number of solutions to an-

alyze. Furthermore, without leading to the generality

of our approach and with the purpose of showing how

the optimization process is effective on security solu-

tions, we kept the base architecture of the system ﬁxed

(i.e., we have not changed the architectural parame-

ters such as, for example, the number of functional

units in the processor and the memory architecture).

If the architectural parameters were changed, the per-

formance ﬁgures of each security solution would have

required to be evaluated for each new architecture.

The case study of choice is a Voice over IP (VoIP)

phone. The phone is an embedded device based on

a microprocessor that runs the VoIP application. The

system may also include some hardware accelerators

for executing speciﬁc functions. The phone is based

on the Session Initiation Protocol (SIP) (Rosenberg

et al., 2002); SIP is a network communications proto-

col commonly employed for VoIP.

In this case study we used an optimization met-

ric that considers performances, power consumption,

area and security. The metric is shown in Equation

11.

OverallMetric

Time· Power· Area

SecurityMetric

(11)

This equation is an extension of Equation 10 as dis-

cussed in Section 3.3. We added Area as a param-

eter to also account for the additional area that is

used by possible hardware implementations of the

security solutions. Considering only performances

and power consumption is suitable for systems based

on software-only implementations of the applications

and of the security solutions; though, it may be conve-

nient when also hardware solutions are considered. In

fact, a metric based only on these two parameters does

not consider the cost of the additional silicon area re-

quired by hardware solutions. Therefore, by using

such a metric, these solutions would always been fa-

vored by their often better performances and power

consumption.

For evaluating performances, we considered a 10-

minute conversation in which we assumed that for

50% of the total time the user of the phone is speak-

ing and for the other 50% he is listening. Consider-

ing an 8-bit mono 44.1kHz PCM encoding of voice,

we used a data size of 105.84Mbit and 7.2Mbit both

for transmission and reception, respectively. We as-

sumed to have a phone book of 200kbit and user ID

and authentication performed by using one 64-bit data

block.

Parts of the system were simulated by using the

Wattch (Brooks et al., 2000) simulator to obtain the

data to be used in the optimization process. Wattch

is an architectural simulator that provides the ability

to estimate performances (execution time) and power

consumption. In particular, we simulated the encod-

ing and decoding parts of the SIP client. Encoding

and decoding are, in fact, the most demanding parts

of any SIP client; given the limitations of the Wattch

simulator, we could not run a full implementation of

a SIP client, but we used stand-alone encoders and

SECRYPT2013-InternationalConferenceonSecurityandCryptography

Table 3: Populated library of secure elements.

Name of the Mecha-

nism

Energy

(nJ)

The

Security

Level

Time

(ns)

Hardware

AES128 Encryption

3283.69 0.6 2961.19 MIPS

AES128 Decryption

4053.84 0.6 3786.37 MIPS

AES128 Encryption

HW 1

0.04609 0.6 8.17 HW Accelerator

AES128 Decryption

HW 1

0.04609 0.6 8.17 HW Accelerator

AES128 Encryption

HW 2

0.03750 0.6 8.17 HW Accelerator

AES128 Decryption

HW 2

0.03750 0.6 8.17 HW Accelerator

AES128 Encryption

HW 3

0.07734 0.6 8.17 HW Accelerator

AES128 Decryption

HW 3

0.07734 0.6 8.17 HW Accelerator

AES256 Encryption 4654.18 1 4263.22 MIPS

AES256 Decryption 5830.10 1 5387.84 MIPS

DES Encryption 304.11 0.2 263.81 MIPS

DES Decryption 304.07 0.2 263.83 MIPS

3DES Encryption 829.64 0.4 712.76 MIPS

3DES Decryption 827.13 0.4 712.76 MIPS

HMAC-SHA1 4373.84 0.6 6232.15 MIPS

HMAC-SHA2 8135.28 1 12480.13 MIPS

decoders for G723 (Sun Microsystems, 1992), one of

the encodings speciﬁed in the SIP protocol. For eval-

uating area we considered a reference area for the mi-

croprocessor (Wattch simulates a MIPS architecture)

of 360,000 gates (Margarita Esponda, 1991). When

hardware accelerators were adopted, their area was

added to the one of the microprocessor for comput-

ing the total silicon area.

The library elements considered during this case

study are the ones listed in Table 3. Three hardware

solutions (Hamalainen et al., 2006) have been used;

all of them are implementations of the AES crypto-

graphic algorithm with a 128-bit key size, optimized

for area, power, and speed, respectively.

The ﬁrst step of the methodology is devoted to

deﬁning security requirements. We deﬁned these re-

quirements by considering the possible attacks that

the system should withstand. The main ones are the

following:

• Eavesdropping of the conversations.

• Modiﬁcation of the conversations.

• Unauthorized use of the phone.

• Unauthorized access to the phone contacts.

Eavesdropping of conversations can be counter-

acted by encrypting conversations; modiﬁcations of

the conversations can be detected by using authen-

tication; unauthorized access to the phone can be

prevented by using user authentication (e.g., a PIN);

unauthorized access to the phone contacts can be pre-

vented by encrypting the phone contacts (i.e., the

contacts are stored in encrypted form and decrypted

by using the user PIN as a key). These generic re-

quirements have been transformed into the R = 3 re-

quirements that are shown in Figure 4. w

, w

, and

Table 4: AHP matrix comparison.

Secure

Storage

User

ID and

Authen-

tication

Secure

Commu-

nication

Secure Storage 1 2 4

User ID and Authentication 1/2 1 3

Secure Communication 1/4 1/3 1

are the weights associated with Secure Storage,

User ID and Authentication, and Secure Communica-

tion, respectively. According to our pairwise prefer-

ences among requirements speciﬁed in Table 4 and to

Equation 5, weights are computed to be w

= 0.121,

= 0.344 and w

= 0.535. In this case study we

assigned priorities to different security requirements

in such a way that the requirements are sorted, from

the most important to the least one, as follows: Secure

Communication, User ID and Authentication, Secure

Storage.

The next step is to match the security solutions

available in the library with security requirements. By

considering the aforementioned requirements and the

library of Table 3, 196 different sets of possible solu-

tions are determined. Some of these sets of solutions

are shown in Table 5.

For each set of solution the security level (L

) the

level of missing requirements (S

−

) and the level of

added requirements (S

) need to be computed as ex-

plained in Section 3.2. Based on Equation 7 and

Equation 8, the security levels of the Secure Com-

munication class solutions and of the overall systems

solutions are determined, together with the required

overallsecurity level. Once these parameters are com-

puted, the security metric of each set of solutions can

also be computed as described in Section 3.3. By us-

ing the security metric, the general metric can be com-

puted and the optimal solution chosen.

In Table 5 we show the solutions that scored a

lower overall metric. These solutions are to be con-

sidered, by following the evaluation criteria given by

the chosen metric, as the best ones. The solution with

the lowest value of the metric is the optimal one. This

solution proposes the usage of the software imple-

mentation of AES 256 for Secure Storage; a software

implementation of SHA-2 has been selected for for

User ID and Authentication; a hardware implementa-

tion optimized for area of AES 128 has been selected

as Symmetric Key Algorithm; a software implemen-

tation of the HMAC-SHA2 algorithm has been se-

lected for Message Authentication. The required se-

curity level is 0.64; the security level obtained with

the selected solution is is 0.755 and all requirements

are fulﬁlled. The metric used allowed to choose the

solution that gives the best balance among security,

performances, energy, and area. An hardware imple-

mentation of AES 128 optimized for area has been

ASecurity-enhancedDesignMethodologyforEmbeddedSystems

Figure 4: UML representation of security requirements used in the Case Study.

chosen for encryption/decryption of communication.

This allows the system to provide the required level of

performances, yet saving energy, and by using a small

additional silicon area. For secure storage (used for

the phone book) the more secure AES 256 encryption

algorithm is used. Given the limited amount of data

that needs to be processed, a software implementa-

tion is evaluated to provide the best overall results.

A software implementation of HMAC-SHA-2 have

been chosen for message authentication as no hard-

ware implementations was available in the library.

5 DISCUSSION

As shown in Section 4, the methodology presented in

this paper can be used effectively to design optimized

embedded systems in which security is included since

the early stages of the design process. In this section

we discuss some parts of the methodology that needs

to be further studied and reﬁned. These parts, in fact,

showed some practical limitations during the devel-

opment of the case study. These limitations, although

important for the usability of the methodology, imply

nothing on the effectiveness of the methodology it-

self. Furthermore, elements of the methodology (e.g.,

the metric) can be changed with a limited impact on

the design ﬂow presented in this paper.

As far as specifying security requirements is con-

cerned, the method that we propose can help design-

ers in deﬁning security requirements. Though, this

method is not ideal as it requires knowledge of se-

curity mechanisms. As previously mentioned, the

ideal way of expressing security requirements for the

designer would be specifying which are the security

standards that the system should follow and/or the se-

curity tests that the system should be able to with-

stand. In this way the designer would be able to spec-

ify the requirements without a speciﬁc knowledge of

the security mechanisms that are going to be used.

This would require, though, a way to automatically

map security solutions with requirements speciﬁed in

SECRYPT2013-InternationalConferenceonSecurityandCryptography

Table 5: Sets of security solutions with the lowest metric values.

Secure

Storage

User

Auth.

Connection

Encryption

Connection

Auth.

Security

Level

Security

Metric

Energy

(J)

Time

(s)

Area

(kgates)

Overall

Metric

AES-256 sha2 AES-256 HMAC-sha2 0.862 0.862 1873.185 2,272.048 0 4,935,026.588

AES-128 sha2 AES-256 HMAC-sha2 0.814 0.814 1872.556 2,271.468 0 5,225,368.086

AES-128 HS1 sha2 AES-256 HMAC-sha2 0.814 0.814 1871.088 2,270.121 6200 5,308,047.17

AES-128 HS2 sha2 AES-256 HMAC-sha2 0.814 0.814 1871.088 2,270.121 6400 5,310,946.15

AES-128 HS3 sha2 AES-256 HMAC-sha2 0.814 0.814 1871.088 2,270.121 7800 5,331,239.11

AES-256 sha2 AES-128 HMAC-sha2 0.755 0.755 1715.343 2,122.711 0 4,820,198.771

AES-256 sha2 AES-128 HS1 HMAC-sha2 0.755 0.755 1338.615 1,782.960 6200 3,213,929.63

AES-256 sha2 AES-128 HS2 HMAC-sha2 0.755 0.755 1338.614 1,782.960 6400 3,215,682.58

AES-256 sha2 AES-128 HS3 HMAC-sha2 0.755 0.755 1338.619 1,782.960 7800 3,227,980.44

AES-128 sha2 AES-128 HMAC-sha2 0.707 0.707 1714.714 2,122.130 0 5,146,883.294

this way; this mapping may be complex and security

solutions to be adopted may depend on the kind of

system considered.

Assigning priorities to different security require-

ments is now done by using AHP. This provides ﬂexi-

bility, but it also introduces a further levelof complex-

ity for the developers: computing the weights values

that can satisfy the consistency check may be difﬁcult

and should be simpliﬁed to make the methodology us-

able.

The library of security elements has been made for

favoring reuse of solutions previously developed. The

proﬁling of these solutions should be done for the ar-

chitectures considered and, if possible, being updated

when changes to this architecture (e.g., a change in

the number of functional units) are done. Further-

more, hardware elements may be implemented by us-

ing different technologies and this may impact perfor-

mances and energy consumption. The library descrip-

tion should be modiﬁed to account all of these pos-

sible variations. In particular, the description of the

library elements should allow for the addition of mul-

tiple performance and energy ﬁgures for different ar-

chitectures and technologies. A part from this, we be-

lieve that, in most of the design environments, where

design solutions are often kept within certain bounds

(e.g., the same reference architecture and/or technol-

ogy is always reused), the characterization of library

elements should not impose any dramatic overhead.

The fact that UML, that is the language that we

used to model both the security requirements and the

library of security solutions, is a general purpose no-

tation limits its suitability for modeling some partic-

ular domains. However, UML provides a set of ex-

tension mechanisms allowing the customization and

extension of its own syntax and semantics in order

to adapt to certain application domains; our plan is to

improve modeling of security requirements and the li-

brary of solutions by using these mechanisms. UML

proﬁles and ontologies will be considered for improv-

ing the models.

6 CONCLUSIONS AND FUTURE

WORK

In this paper we presented a security-enhanced design

methodology for embedded systems. This methodol-

ogy, built over the classic one, provides the ability to

specify security requirements of the applications and

to evaluate different security solutions with the pur-

pose of obtaining a secure and optimized the system.

The case study that we have discussed in the paper

shows how the methodology can be applied in prac-

tice and how effective it is both in including security

in the design process and in optimizing it.

Our plans for the future include improving the

methodology and its steps by solving the problems

discussed in Section 5. Furthermore, we are currently

working on integrating our methodology into a multi-

objective architectural optimization tool named Mul-

ticube Explorer (Zaccaria et al., 2010). In fact, we

believe that integrating our design methodology into

existing design tools is a fundamental step for foster-

ing its adoption.

ACKNOWLEDGEMENTS

This work was partially supported and funded by the

Hasler Foundationunder the Project SDES (Grant No.

12001). The paper reﬂects only the view of the au-

thors; the Hasler Foundation is not liable for any use

that may be made of the information contained herein.

REFERENCES

Alberto Ferrante, Giuseppe Piscopo, and Stefano Scalda-

ferri (2005). Application-driven Optimization of

VLIW Architectures: a Hardware-Software Ap-

proach. In Real-Time and Embedded Technology Ap-

plications, pages 128–137, San Francisco, CA, USA.

IEEE Computer Society.

Alippi, C., Piuri, V., and Scotti, F. (2004). High-level De-

sign of Composite Systems. Springer, Berlin.

ASecurity-enhancedDesignMethodologyforEmbeddedSystems

Atzeni, A. and Lioy, A. (2005). Security metrics. First

Workshop on Quality Protection, Mina.

Barker, E., Barker, W., Burr, W., Polk, W., Smid, M., Gal-

lagher, P. D., and For, U. S. (2012). NIST Special

Publication 800-57 Recommendation for Key Man-

agement Part 1: General, chapter 5, pages 62–66.

National Institute of Standards and Technologies.

Bayrak, A., Regazzoni, F., Brisk, P., Standaert, O.-X.,

and Ienne, P. (2011). A ﬁrst step towards auto-

matic application of power analysis countermeasures.

In Design Automation Conference (DAC), 2011 48th

ACM/EDAC/IEEE, pages 230–235.

Brooks, D., Tiwari, V., and Martonosi, M. (2000). Wattch: a

framework for architectural-level power analysis and

optimizations. In Proceedings of the 27th annual

international symposium on Computer architecture

(ISCA’00), pages 83–94.

Coyle, G. (2004). Analytic Hierarchy Process. www.

booksites.net/download/coyle/student

ﬁles/AHP Tech

nique.pdf.

Hamalainen, P., Alho, T., Hannikainen, M., and

Hamalainen, T. (2006). Design and implementation

of low-area and low-power aes encryption hardware

core. In Digital System Design: Architectures, Meth-

ods and Tools, 2006. DSD 2006. 9th EUROMICRO

Conference on, pages 577–583.

ISO/IEC (2011). ISO/IEC 27034 Guidelines for application

security.

Juerjens, J. (2003). Secure Systems Development with UML.

SpringerVerlag.

Kocher, P., Lee, R., McGraw, G., and Raghunathan, A.

(2004). Security as a new dimension in embedded

system design. In Proceedings of the 41st annual De-

sign Automation Conference, DAC ’04, pages 753–

760, New York, NY, USA. ACM. Moderator-Ravi,

Srivaths.

Koopman, P. (2004). Embedded system security. Computer,

37:95–97.

Margarita Esponda, R. R. (1991). The RISC Concept - A

Survey of Implementations.

NIST (2002). Security Requirements for Cryptographic

Modules, FIPS 140-2. National Institute of Standards

and Technology, Information Technology Laboratory.

Palermo, G., Silvano, C., and Zaccaria, V. (2008). An ef-

ﬁcient design space exploration methodology for on-

chip multiprocessors subject to application-speciﬁc

constraints. In Application Speciﬁc Processors, 2008.

SASP 2008. Symposium on, pages 75 –82.

Ravi, S., Raghunathan, A., Kocher, P., and Hattangady, S.

(2004). Security in embedded systems: Design chal-

lenges. ACM Trans. Embed. Comput. Syst., 3:461–

491.

Rosenberg, J., Schulzrinne, H., Camarillo, G., Johnston, A.,

Peterson, J., Sparks, R., Handley, M., and Schooler, E.

(2002). Request for Comments: 3261 - SIP: Session

Initiation Protocol. http://tools.ietf.org/html/rfc3261.

Seo, S.-H. and Cho, T. (2012). An access control mecha-

nism for remote control of home security system. In

Innovative Mobile and Internet Services in Ubiquitous

Computing (IMIS), 2012 Sixth International Confer-

ence on, pages 93 –98.

Sun Microsystems, I. (1992). G723 source code. http://

www.codeforge.com/article/874.

Taddeo, A. V. and Ferrante, A. (2009). Run-time selec-

tion of security algorithms for networked devices. In

Proceedings of the 5th ACM symposium on QoS and

security for wireless and mobile networks, Q2SWinet

’09, pages 92–96, New York, NY, USA. ACM.

Viega, J. and Thompson, H. (2012). The state of embedded-

device security (spoiler alert: It’s bad). Security Pri-

vacy, IEEE, 10(5):68 –70.

Zaccaria, V., Palermo, G., Castro, F., Silvano, C., and

Mariani, G. (2010). Multicube explorer: An open

source framework for design space exploration of chip

multi-processors. In Architecture of Computing Sys-

tems (ARCS), 2010 23rd International Conference on,

pages 1–7.

SECRYPT2013-InternationalConferenceonSecurityandCryptography
