Using Vital Sensors in Mobile Healthcare Business Applications

Challenges, Examples, Lessons Learned

Johannes Schobel, Marc Schickler, R

udiger Pryss, Hans Nienhaus and Manfred Reichert

Institute of Databases and Information Systems, University of Ulm, James-Franck-Ring, Ulm, Germany

Keywords:

Sensor Framework, Android, Smart Mobile Device, Healthcare, Vital Signs, Mobile Business Application.

Abstract:

Today, sensors are increasingly used for data collection. In the medical domain, for example, vital signs (e.g.,

pulse or oxygen saturation) of patients can be measured with sensors and used for further processing. In this

paper, different types of applications will be discussed whether sensors might be used in the context of these

applications and their suitability for applying external sensors to them. Furthermore, a system architecture

for adding sensor technology to respective applications is presented. For this purpose, a real-world business

application scenario in the ﬁeld of well-being and ﬁtness is presented. In particular, we integrated two different

sensors in our ﬁtness application. We report on the lessons learned from the implementation and use of this

application, e.g., in respect to connection and data structure. They mainly deal with problems relating to

the connection and communication between the smart mobile device and the external sensors, as well as the

selection of the appropriate type of application. Finally, a robust sensor framework, arising from this ﬁtness

application is presented. This framework provides basic features for connecting sensors. Particularly, in the

medical domain, it is crucial to provide an easy to use toolset to relieve medical staff.

1 INTRODUCTION

Today, mobile business applications, running on both

smartphones and tablet computers, become increas-

ingly important for the medical domain. This ranges

from schedule management applications to complex

process-oriented, mobile patient management sys-

tems (Pryss et al., 2010; Pryss et al., 2012). Since

these applications have evolved from administrative

(e.g., bed planning) to operational (e.g., measuring

blood pressure) tasks, it is necessary to support med-

ical staff in their daily routine. This can be supported

through the integration of external sensors, which are

not built in the smart mobile device, for monitoring

vital signs.

Due to heterogeneity of available external sensors,

it becomes necessary to classify these devices. This

can be done, for example, based on the type of vi-

tal signs a sensor can monitor (e.g., pulse or oxygen

saturation), or the type of connection (e.g., Bluetooth

or USB) the sensor supports. In addition to the di-

versity of mobile operating systems (e.g., Android or

iOS), various development aspects emerge that must

be addressed. This ranges from different types of

provided sensor data to the quality of gathered data

(e.g., real-time or bulk-load data). Furthermore, cop-

ing with connection problems (e.g., disconnections

between the participating devices) during mobile data

collection is challenging.

To evaluate these speciﬁc aspects, we present

our implemented mobile ﬁtness application “XFitX-

treme” that communicates with external sensors.

Based on insights of this application, we want to cre-

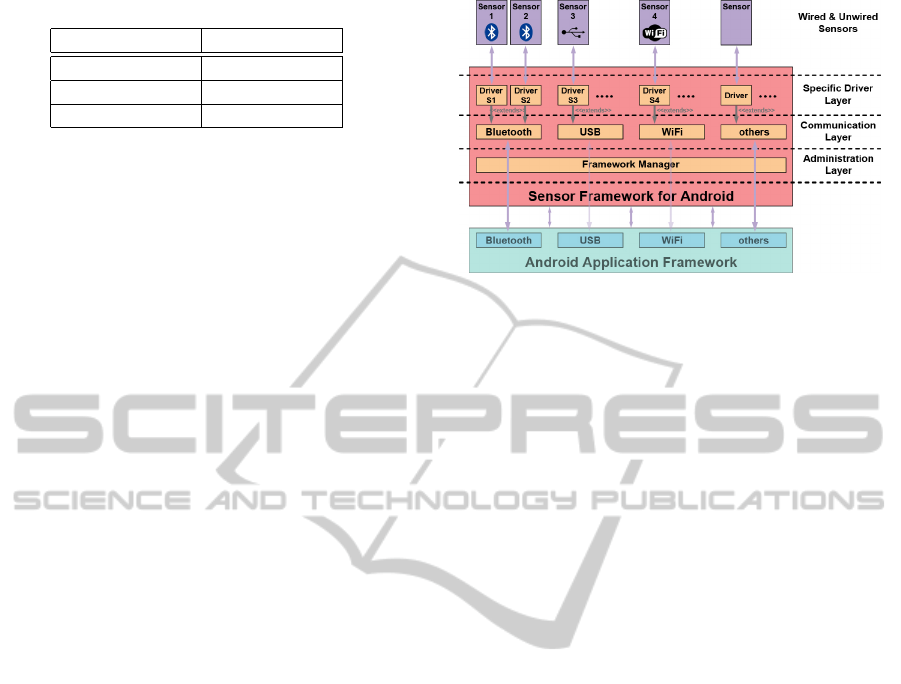

ate a sensor framework, which allows for the provi-

sion of a variety of different vital signs to athletes or

patients using mobile applications with sensors.

The remainder of this paper is structured as fol-

lows: Section 2 discusses our application scenario. In

Section 3, basic concepts for developing a mobile ﬁt-

ness application are introduced, and the designed sys-

tem architecture is presented. Section 4 discusses the

current status of our ﬁtness application “XFitXtreme”

and presents particular issues emerging during the im-

plementation. Section 5 discusses related work, while

Section 6 gives a summary and a brief outlook for fur-

ther research questions.

2 APPLICATION SCENARIOS

To evaluate our approach of integrating sensors in mo-

bile business applications, we present a proper real-

509

Schobel J., Schickler M., Pryss R., Nienhaus H. and Reichert M..

Using Vital Sensors in Mobile Healthcare Business Applications - Challenges, Examples, Lessons Learned.

DOI: 10.5220/0004501205090518

In Proceedings of the 9th International Conference on Web Information Systems and Technologies (BA-2013), pages 509-518

ISBN: 978-989-8565-54-9

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

world scenario (cf. Section 2.1). For this purpose

we consider the ﬁtness domain, in which we want to

use external sensors to support athletes in daily work-

out sessions. In particular, we want to show different

ways of developing such mobile business applications

integrating external sensors. These considerations are

the basis for the system architecture and sensor frame-

work in the further course of this paper.

2.1 Running Example

To evaluate respective issues presented in Section 1,

we implemented a realistic mobile business applica-

tion. It provides the basis how to use sensors for mon-

itoring vital signs within a mobile application.

We decided to develop a ﬁtness application. Be-

sides standard requirements, such as robustness and

applicability, we focus on ﬂexible real-time data col-

lection from external sensors. To give athletes more

options for collecting information about their vital

signs, we wanted to support a variety of vital sensors.

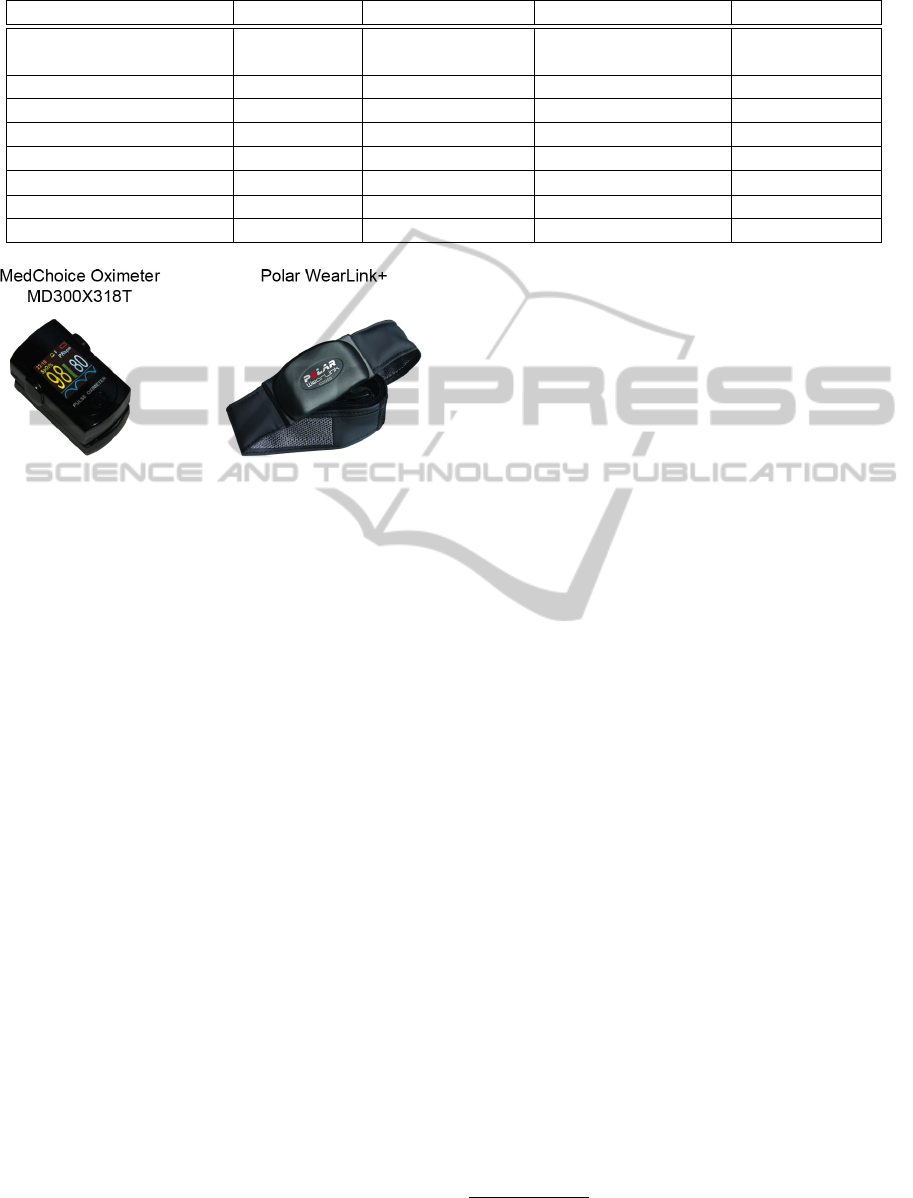

Speciﬁcally, in this application, we used two different

sensors measuring two vital signs (heart rate, and oxy-

gen saturation). Furthermore, both the processing and

the visualization of gathered data shall be adequately

supported by the application.

The “XFitXtreme” application is used to support

athletes on doing CrossFit. The goal of this type

of ﬁtness workout is to practice on many different

methods, such as strength, speed, agility, or stamina.

Thus, a maximum ﬁtness of the entire body shall be

achieved. A standard training session of CrossFit usu-

ally lasts 60 minutes. Consequently, recording data

of such a training results in a considerable amount of

data. In addition, athletes should be in constant con-

trol of their vital signs, to prevent any risk of injury.

These requirements of the ﬁtness domain serve as a

proper application scenario for the ﬁrst usage of ex-

ternal sensors within a mobile application.

2.2 Other Application Scenarios

Regarding sensor integration, we basically focus on

mobile healthcare applications. We present three sce-

narios from the medical domain, in which we revealed

by interviewing physicians that they could be dramat-

ically relieved in their daily routines. The healthcare

domain therefore has revealed different scenarios, in

which patients could beneﬁt from the use of these de-

vices.

• Medical Ward Rounds in Hospitals. In their

daily medical round, physicians have to deal with

unscheduled patient examinations (Pryss et al.,

2012), e.g., measure the blood pressure, or blood

sugar level. To collect this data more accurately,

mobile healthcare applications integrating exter-

nal sensors could be used. With the help of

such mobile applications, vital signs can be col-

lected and automatically stored in the electronic

patient record. In addition, certain procedures

could be automatically started, depending on the

current patient’s vital signs. Consider for ex-

ample, a doctor determines an increased blood

sugar level using his smart mobile device provid-

ing a blood sugar sensor. The information will

then be documented and archived in the patient’s

electronic record. The clinical decision support

system (Trowbridge and Weingarten, 2001) then

could suggest the procedure “schedule medication

for lowering blood sugar level”.

• Rescue Service. Particularly in rescue services

it is important to ensure fast, reliable, and real-

time measurement of a patient’s vital signs. In

this case, patients could beneﬁt by using sensors

that provide information about their health condi-

tion. For example, rescue staff checks the oxygen

level of a patient at accident site. With the help of

a smart mobile device and external sensors, it can

be easily checked, whether the patient is hyper-

ventilating. If oxygen level is above 98%, coun-

termeasures must be performed quickly to stabi-

lize the patient.

Aside from the mentioned scenarios, the domain of

clinical psychology provides other interesting possi-

bilities using sensor data in mobile applications.

• Psychological Questionnaires. In other research

projects, we have already gathered experience re-

garding the development of mobile business ap-

plications for clinical psychology. This includes

for example the development of digital question-

naires for collecting patient data. In this con-

text demands emerged to integrate external sen-

sors. For example, the patient’s vital signs could

be monitored during data collection. Thus, an ex-

ceptional patient behaviour will be indicated by

his vital signs. Consider the following example:

A question “Do you take drugs?” is provided to a

patient. If the patient answers with “No”, and the

interviewer observes that the patient’s pulse rises

while giving the answer to this question, then she

has more indications to evaluate the quality of the

respective answer. Therefore, pulse data associ-

ated with this question is stored electronically and

can be used when evaluating the questionnaire.

The usage of external sensors, coupled with a mo-

bile business application could improve the quality of

medical healthcare procedures as presented above.

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

510

3 BASIC CONCEPTS &

ARCHITECTURE

This Section will cover basic concepts, which have

to be carefully considered in the course of the de-

velopment of mobile business applications aiming at

the integration of external sensors. In Section 3.1,

we basically focus on the appropriate development

type of mobile applications (Web Application, Hybrid

Web, or Mixed Application, or Native Application).

We consider this discussion as a fundamental aspect

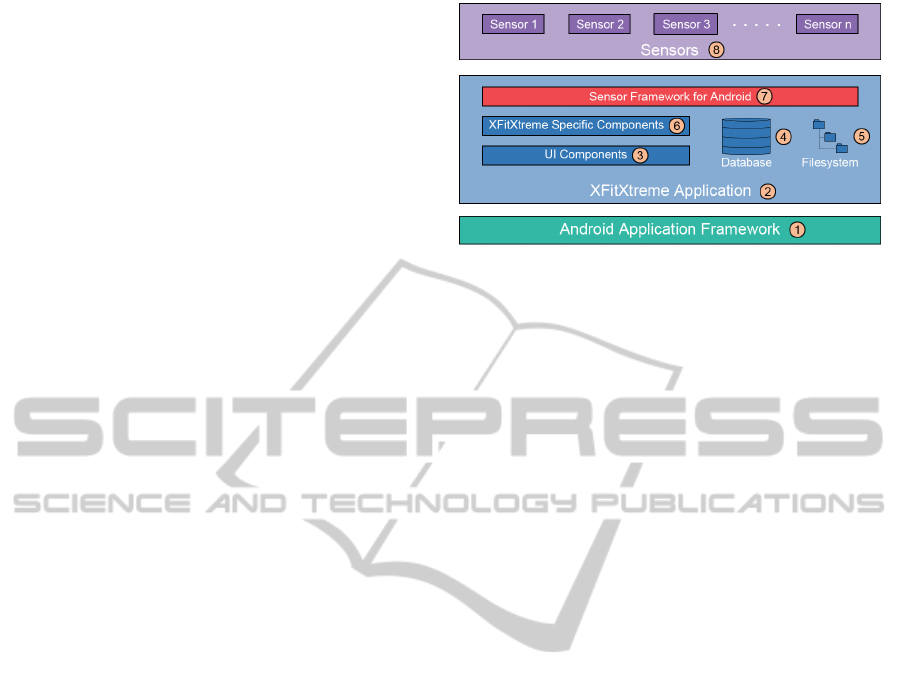

for mobile application development. Section 3.2 de-

scribes our implemented system architecture, whereas

Section 4 discusses important implementation details.

3.1 Different Ways of Developing

Mobile Business Applications

Before beginning the development of a mobile busi-

ness application, one has to consider the basic devel-

opment type for the application. It determines the

scope of provided features available in the applica-

tion. In addition to this, based on the chosen type

of application development, aspects like program-

ming language (e.g., Java or HTML5 and JavaScript)

or architectural design patterns (e.g., Model-View-

Controller) will be basically determined (Heitk

otter

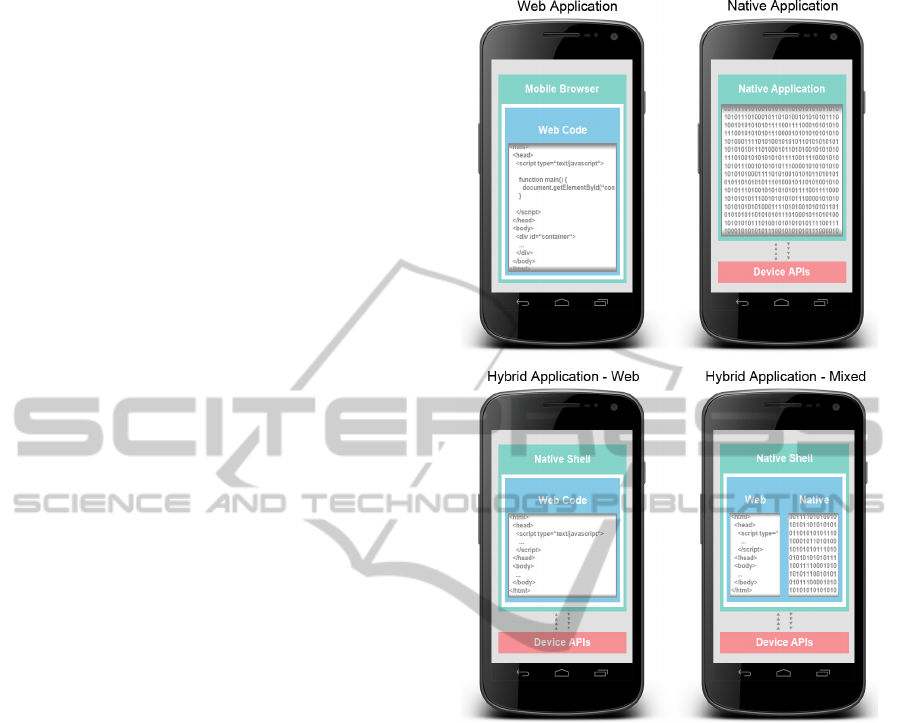

et al., 2013). In the following, we deﬁne four differ-

ent development types for mobile applications which

have to be distinguished.

• Web Applications. This type of mobile business

application, e.g., jQuery Mobile Applications, is

implemented using HTML5, CSS, and JavaScript.

Usually, the application code is rendered within a

mobile web browser. According to this, these ap-

plications are independent of a platform and de-

vice. Compared to native applications, this is a

lightweight approach. In contrast to their minimal

implementation effort, such applications provide

the smallest set of functionality, because they rely

on the feature set of a web browser.

• Hybrid Applications - Web. The application

code of this type of mobile business applications,

e.g., Adobe PhoneGap Applications (Adobe Sys-

tems Inc., 2013), consists of the same web tech-

nologies as for real Web Applications. However,

they run in a native application container (e.g.,

iOS WebView), which, in turn, can provide ad-

ditional functions.

• Hybrid Applications - Mixed. These type of

Hybrid Applications, e.g., Appcelerator Titanium

Applications (Appcelerator Inc., 2013), provide a

core of mobile development APIs which will be

Figure 1: Different types of mobile business applications

according to (IBM Corporation, 2013).

normalized across platforms. These APIs can be

used like known web technologies (cf. Hybrid

Applications - Web). However, during the de-

ployment of the application a mapping between

elements of HTML5 and elements of the corre-

sponding native platform must be automatically

performed.

• Native Applications. Native Applications, e.g.,

Android Applications, represent the way of im-

plementing mobile business applications using the

standard API. They are implemented using the

native programming language (e.g., Java for An-

droid), and therefore require more special knowl-

edge of device-speciﬁc development issues. They,

in turn, offer the most possible functionality

through direct use of respective platform provided

programming libraries and interfaces. In addition,

native applications show the best performance and

applicability for users.

UsingVitalSensorsinMobileHealthcareBusinessApplications-Challenges,Examples,LessonsLearned

511

Figure 1 illustrates the previously mentioned de-

velopment types of mobile applications pointing out

the differences related to application code.

Table 1 presents to advantages and disadvantages

of the different development types of applications.

Considering the fact that we need access to device

features like the Bluetooth communication stack, we

only can address the type of application that supports

this speciﬁc feature. In addition, we want to achieve a

high motivation using our ﬁtness application. There-

fore, a robust retrieval of sensor data and ﬁnally visu-

alize the vital signs adequately will be crucial for the

overall user acceptance. Moreover, it should be possi-

ble to integrate vendor-speciﬁc software, like custom

drivers for sensors. All requirements have indicated

to us implementing the ﬁtness application “XFitX-

treme” as native application. We decided to develop

on the Android platform, because of its full access to

the Bluetooth communication stack.

3.2 Architecture

We have discussed different development types of ap-

plications, and considered their advantages and disad-

vantages. Based on this, we present our architecture

applied to “XFitXtreme”. Figure 2 therefore shows

our architecture. In the further course of this Section,

we will discuss the different conceptualized layers of

the architecture in detail.

3.2.1 Android Application Framework

The Android Application Framework

 encom-

passes a set of APIs enabling the development of na-

tive Android applications. Therefore it provides na-

tive libraries that are accessible through those APIs.

With these libraries, it is possible to access a database,

call webservices, or communicate via Bluetooth. An-

droid Applications (e.g., our “XFitXtreme” applica-

tion) directly interact with this application frame-

work, which manages basic functions of the smart

mobile device, such as automatical resource manage-

ment. Being a mobile business application developer,

this basic toolset enables for building your own appli-

cation.

3.2.2 XFitXtreme Application

The architecture of “XFitXtreme”

 includes the fol-

lowing major components of a mobile application:

• To ensure maximum ﬂexibility and portability of

various components, the latter are strictly sepa-

rated. This means that user-interface components

Figure 2: General architecture of XFitXtreme.

, such as widgets or activities, can be easily re-

placed or adjusted without altering the speciﬁc ap-

plication logic.

• The SQLite database

 is a default feature of

Android and is used to store user data (e.g.,

such as training information), application settings

(e.g., such as language settings), and, for exam-

ple, recorded vital signs from external sensors.

Thus, it is basically possible to evaluate and visu-

alize them afterwards. Accessing a database has

been provided through an encapsulated manage-

ment component. The same applies to the local

ﬁle system

, which contains images or videos.

• The “XFitXtreme Speciﬁc Components”

 in-

clude classes and interfaces for the various fea-

tures necessary in the ﬁtness domain (e.g., admin-

istration of workout). Furthermore, visualizing

sensor data is implemented by the usage of the

Google Charts API (Google Inc, 2013). This al-

lows for a comfortable creation of charts based on

gathered data from external sensors.

• The most important component of our “XFitX-

treme” Application is the sensor framework



(cf. Section 4.2.5). This framework enables us

to integrate new sensors easily, without reimple-

menting basic functions like the establishment of

a Bluetooth connection. Our mobile business ap-

plication “XFitXtreme” currently uses the Blue-

tooth component feature of the framework, since

external sensors in the ﬁtness domain are usually

connected wireless.

3.2.3 Sensors

This Section introduces sensors

 used in this project

for collecting vital signs of the CrossFit athlete. In ad-

dition to general information, we will present techni-

cal challenges of the device sensors. Currently, we

integrated two different sensors, namely the “Polar

Wearlink+ Heart Rate Monitor” (Polar Electro GmbH

Deutschland, 2013), and the “MedChoice Oxime-

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

512

Table 1: Advantages and disadvantages for the different development types of applications.

Feature Web App Hybrid App - Web Hybrid App - Mixed Native App

Execution within Web browser WebView within Native Environment Native Runtime

Native Shell within Native Shell Environment

Programming Language Web only Web only Native and Web Native only

Code Portability High High Medium None

Access Device Features None Low Medium High

Graphics and Animations Medium Medium High High

Party Libraries JavaScript JavaScript JavaScript and Native Native

User Experience Low Low Medium High

Performance Low Low Medium High

Figure 3: Sensors used in our mobile business application.

ter MD300C318T” (MedChoice, 2013), which are

shown in Figure 3.

The “Polar WearLink+ Heart Rate Monitor” is

one of only two Bluetooth athletic heart rate monitors

available for Android smart mobile devices. The sen-

sor itself is clipped to a soft textile belt and is worn

around the chest (i.e., directly below the chest mus-

cles). As soon as the belt is put on correctly and

paired with a device, it starts sending data packages

via Bluetooth (2,4GHz frequency band). For pairing,

no handshake is required, making it easy and straight-

forward to use this external sensor.

The “MedChoice Oximeter MD300C318T” not

only provides the heart rate, but also measures the

oxygen saturation of the blood. It was designed

for medical use and therefore offers more informa-

tion than the Polar belt. The sensor itself has an

OLED display which visualizes the retrieved vital

signs showing both plain values and corresponding

diagrams (e.g., a bar chart as amplitude of the pulse).

Compared to the Polar belt, this sensor needs a com-

plex pairing and synchronization protocol to send vi-

tal signs, but offers two different modes (e.g., real-

time mode and non-real-time mode). Due to the fact

that we want to support the athlete during his training

session, we have focused on the real-time mode.

4 PROOF-OF-CONCEPT

In this Section, the developed mobile business ap-

plication “XFitXtreme”

is presented as a proof-of-

concept implementation. Section 4.1 describes the

implementation of the business application, while

Section 4.2 presents the lessons learned of this

project.

4.1 The XFitXtreme Application

“XFitXtreme” is an application designed to display

the functionality offered by the developed sensor

framework. The framework establishes and manages

a Bluetooth connection to a sensor the training athlete

is wearing. The sensor used here is a chest belt with

an integrated heart rate monitor from the “Polar Wear-

Link+”. Other sensors have also been paired (e.g.,

“MedChoice MD300C318T”, see Figure 4). “XFitX-

treme” has the task of recording and graphically eval-

uating the vital parameter supplied by the framework.

Simultaneously, it is a tool satisfying all needs of the

athlete training CrossFit. The UI is held clean and

simple to ensure an adequate display of the necessary

data and guarantee a good usability. “XFitXtreme”

offers useful features described in the following.

The most important feature is supplying the indi-

vidual training plan of the day. This is done in two dif-

ferent ways. If internet access is available, the work-

out is parsed from CrossFit website (CrossFit, Inc.,

2013) using the “Workout of the Day” (WOD) fea-

ture. This website posts and updates the “WOD” on a

daily basis, which is a large advantage making train-

ing plan logic unnecessary. If no connection is avail-

able, the “Classix” feature offers a database, listing

many workouts held locally. These workouts are dis-

played in a list, offering the possibility to view the ex-

ercises included in the workout before selection. Af-

ter choosing or parsing a workout, the exercises build-

ing up the workout are displayed in a list. This list

can optionally be posted on Facebook. The exercises,

if not familiar, can be searched on YouTube by sim-

ply tapping on the element in the list. If all exercises

video available under http://vimeo.com/60436751

UsingVitalSensorsinMobileHealthcareBusinessApplications-Challenges,Examples,LessonsLearned

513

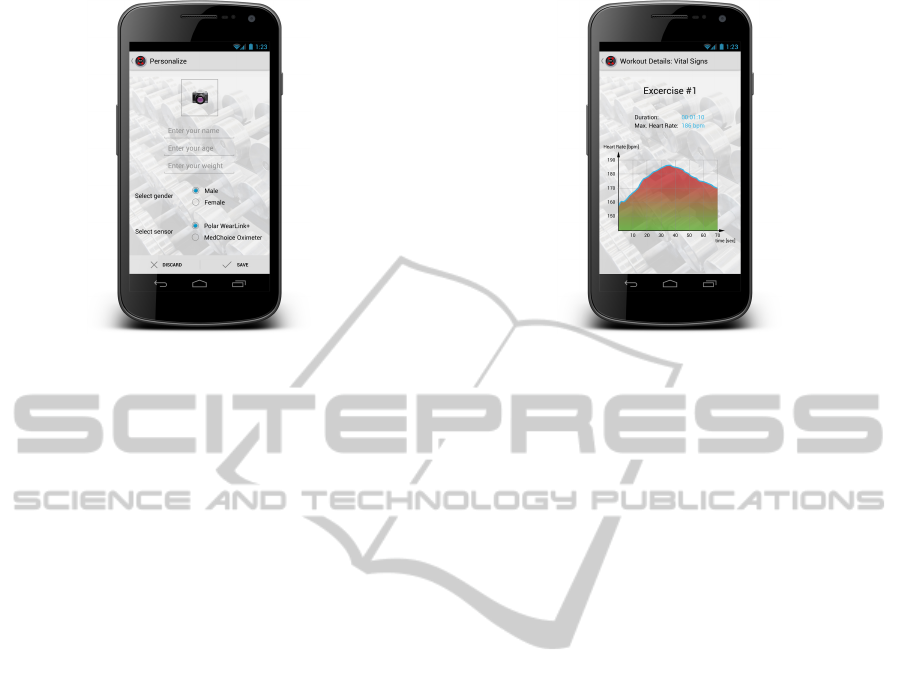

Figure 4: Dialog to connect to various external sensors.

are familiar, the play button leads to the ﬁnal activity.

This activity displays the entire workout and shows all

relevant data, including the heart rate data offered by

the framework. The best time for the daily workout

is automatically loaded by a web service accessing an

online database. The sensor is connected automati-

cally via Bluetooth and, after that, starts transmitting

data. The beginning of the workout is signalized by

pressing the go button. The application takes the time

the athlete needs to complete the workout and starts

recording the heart rate data. Finishing the work-

out uploads the taken time, and the daily ranking is

displayed so the athlete can classify his performance.

The monitored data is visualized in a graph to give the

athlete a quick overview of his vital activities during

the workout (cf. Figure 5).

In addition to these main features, “XFitXtreme”

offers further features to support the athlete in his

training. The ﬁrst is a timer, which combines a sim-

ple stopclock with a lap option and an interval timer.

The stopclock can take time and a random number of

laps, which are displayed in a list. The interval timer

offers the possibility to set up individual timers and

save these persistently. These timers are displayed by

name in a list after selecting this feature. Each timer

can be named, an arbitrary number of rounds can be

set and ﬁnally a random number of intervals can be

added. Each interval is characterized by a name, a

time, and a color. These attributes are displayed later

on while playing the timer, so the athlete knows which

interval is currently running. Selecting a timer from

the list plays the timer. Each interval added to the

timer is displayed in the order set before, counting

down the set time, displaying the name and the color

set as background color. That way, the change of

interval is not only signalized acoustically, but also

visually by a change in the background color. The

end of the workout is signalized by an applause. The

Figure 5: Visualization of vital signs during the workout.

timers can be deleted if no longer used.

CrossFit is unfortunately not too popular. De-

pending on the area, in which the athlete is training,

it can be difﬁcult to ﬁnd other people sharing their

passion for this sport. Therefore, “XFitXtreme” of-

fers an IRC chat. The latter is an open chat, in which

all users share a forum. This increases the chance of

athletes being online simultaneously, establishing an

online community. It is possible to send messages pri-

vately to other users as well. These messages are not

visible for the other users in the forum, and are dis-

played in a different color. That way both users know

these messages are private.

4.2 Lessons Learned

In this Section, we present aspects elicitated during

the development of this mobile business application

using the two mentioned external sensors.

4.2.1 Basic Development Types for Mobile

Applications

The market research company Gartner predicted in

early February 2013, that by 2016, 50% of all mo-

bile business applications are developed using hy-

brid technologies (Gartner, Inc., 2013). We re-

alized while designing and implementing “XFitX-

treme”, that none of the current available hybrid ap-

proaches (e.g., PhoneGap, Appcelerator) met the es-

sential requirements for our application. The same

applied to the implementation of pure web applica-

tions. We revealed unrestricted access to the Blue-

tooth API and full support of the speciﬁed Bluetooth

proﬁles (e.g., SPP proﬁle) as the most important argu-

ments for developing our native mobile business ap-

plication “XFitXtreme”. These features are not avail-

able within a hybrid development framework, such as

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

514

Table 2: Bluetooth support for different development types

of business applications.

Bluetooth Support

Web App No Support

Hybrid App - Web Limited Support

Hybrid App - Mixed Limited Support

Native App Full Access

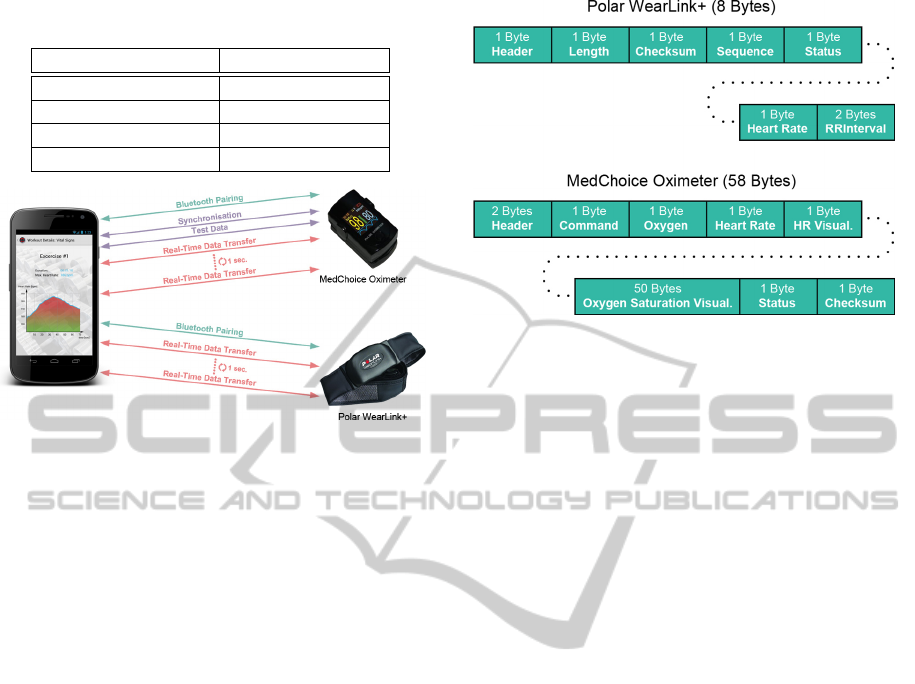

Figure 6: Different communication mechanisms for the ex-

ternal sensors.

PhoneGap or Appcelerator. Without this capability,

the integration of external and wireless sensors is not

possible.

Table 2 shows the Bluetooth support for the dif-

ferent development types of applications deﬁned in

Section 3.1.

Furthermore, these hybrid development frame-

works did not fulﬁll our requirements regarding per-

formance of data processing, and a suitable as well

as interactive visualization (e.g., using animated dia-

grams).

4.2.2 Establishing a Connection

One challenging issue we encountered while using

external sensors was the handling of different types

of connections, such as Bluetooth, USB, Infrared,

or Wi-Fi. Depending on their characteristics, some

vendor-speciﬁc communication mechanisms have to

be used. For example, the “Polar WearLink+ Heart

Rate Monitor” belt (Bluetooth connection) requires,

after the successful pairing with the smartphone, no

further synchronization or handshake techniques to

obtain data. In contrast, the “MedChoice Oximeter

MD300C318T” (Bluetooth connection) sensor needs

extended synchronization and a test sequence before

data is available. Both sensors have in common that

data is actively and periodically transmitted to the

smart mobile device (cf. Figure 6).

4.2.3 Structure of the Sensor Data Packages

In this Section, insights regarding to the structure of

the data packages received by an external sensor are

Figure 7: Different structure of data of the implemented

sensors.

shown. The most challenging aspect has been the

vendor-speciﬁc and proprietary exchange format. No

ofﬁcial documentation on the structure of data pack-

ages was found for the “Polar WearLink+ Heart Rate

Monitor”. This information must be gathered through

internet research, or even worse, through reverse en-

gineering of the data packages. In the case of “Med-

Choice Oximeter MD300C318T” we received an ex-

tensive documentation about the data packages after

sending a request to the producing company.

Figure 7 shows differences in the structure of the

data packages of our used sensors. They greatly dif-

fer not only in length of transmitted data packages,

but also in contained data. The “MedChoice Oxime-

ter MD300C318T” provides more information about

the vital signs than the “Polar WearLink+ Heart Rate

Monitor”, which results in a more complex data pack-

age structure (cf. Figure 7).

4.2.4 Connection Problems

We encountered a problem concerning connection is-

sues. Both Bluetooth and Wi-Fi (B and G standard)

transmit in the unlicensed ISM (Industrial, Scientiﬁc

and Medical) frequency band of 2.4 GHz (Lansford

et al., 2001). This means, it may cause interference

with a Wi-Fi network. This noise from other networks

possibly causes a connection loss between the smart

mobile device and the external sensor, or a complete

disconnection. In addition to this, Bluetooth has lim-

ited range, depending on the Bluetooth class. Table 3

shows the approximate range of different Bluetooth

classes (Bluetooth Developer Portal, 2013). Short

ranges as a characteristic property of Bluetooth can

be critical. Especially in the medical domain when

the physician moves too far from the patient and the

connection gets interrupted.

If the connection between the smart mobile de-

UsingVitalSensorsinMobileHealthcareBusinessApplications-Challenges,Examples,LessonsLearned

515

Table 3: Bluetooth classes and approximate range.

Bluetooth Class approx. Range

Class 1 approx. 100m

Class 2 approx. 20m

Class 3 approx. 10m

vice and the external sensor gets disconnected, the

question arises, how to suitably respond. One op-

tion would be that the smart mobile device should

try to initiate a reconnect periodically. Depending

on the scenario, it is important to interact with the

user and inform him about the disconnection. For

our presented ﬁtness application “XFitXtreme”, it is

not important, because no critical information must

be exchanged. Nevertheless, in the medical domain,

it could be very important to tell a physician that cur-

rently there is no coupling between the devices (e.g.,

smartphone and heart rate monitor), and hence no

real-time information about the vital signs is avail-

able.

On the one hand, some external sensors have a

small internal memory, where data can be cached in

case of a disconnection. Thus, it is possible to cope

with a short time of disconnection and provide cached

data in addition to the real-time values which have

been gathered in the meantime. On the other hand,

the smart mobile device has to deal with missing data.

In some cases, already recorded data needs to be dis-

carded, since the measurement is no longer valid.

In the context of a wireless connection between

the smart mobile device and external sensors, all these

questions need to be considered.

4.2.5 Sensor Framework

Reﬂecting on the previously described lessons, we

developed a basic mobile sensor framework which

can be easily integrated into existing Android appli-

cations. It shall encapsulate already mentioned het-

erogeneity of data structure of different sensors (cf.

Section 4.2.3) as well as the communication between

the external sensor and the smart mobile device (cf.

Section 4.2.2). In addition, connection problems (cf.

Section 4.2.4) should be handled. Furthermore, the

sensor framework should provide basic functionality,

such as establishing a connection to a sensor, or re-

ceiving data from a sensor. Finally, requirements,

such as the extensibility, maintainability, or scalabil-

ity have to be considered. Figure 8 shows the architec-

ture of our sensor framework. The individual applica-

tion layers are described in the following sections.

The “Android Application Framework” serves as

the basis for our mobile business application. This

framework provides the fundamental functions and

Figure 8: Sensor framework architecture.

interfaces (e.g., for the Bluetooth or USB connection).

Our described sensor framework consists mainly

of three layer, namely the Administration Layer,

Communication Layer, and Speciﬁc Driver Layer.

The “Administration Layer” contains the “Frame-

work Manager”, which is responsible for the basic

communication with the framework. It provides ba-

sic methods which an application developer needs to

use external sensors in his mobile business applica-

tions. This includes methods concerning the connec-

tion (e.g., open or close a connection), receiving data

from a sensor, or conﬁguring a sensor using special

messages. An application that implements the sensor

framework communicates only with this framework

manager.

The second layer, namely the “Communication

Layer”, provides all classes to manage the different

types of connections, like Bluetooth, WiFi, or USB.

These classes rely on the Android Application Frame-

work through the provided interfaces.

The third layer named as the “Speciﬁc Driver

Layer”, includes classes for the individual sensors.

These classes are derived directly from the associ-

ated communication layer class, and contain informa-

tion for setting up the connection. Consequently, only

methods for conﬁguring the sensor, or receiving the

data, will have to be implemented.

The “Wired & Unwired Sensors” layer repre-

sents the external sensors connected to the mobile de-

vice. In our application scenario, these are the afore-

mentioned discussed sensors “Polar WearLink+ Heart

Rate Monitor” and “MedChoice Oximeter”, which

provide us with the gathering of vital signs.

5 RELATED WORK

In the following we will discuss related projects.

For this purpose, we distinguish these projects in

two categories, namely “Consumer” and “Research”

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

516

projects.

The most known example from the consumer do-

main is the mobile application “runtastic” (runtastic

GmbH, 2013), which is available on all major mobile

device platforms. This application offers the ability

to integrate different pulse sensors to the mobile de-

vice. The vital signs as well as the GPS position are

recorded in real-time. Finally, the gathered data can

be analyzed within the runtastic platform and shared

among friends. Runtastic offers an easy to use ap-

plication, with almost no installation or conﬁguration

effort. Additionally, runtastic now offers its own hard-

ware shop, in which 100% compatible GPS and pulse

sensors can be bought.

Another well-known example of such an applica-

tion is “Nike+” (Nike Inc., 2013). However, there

is a small sensor inserted into the shoe, which will

then track all movements (GPS position, distance, or

stamina). This sensor is then connected to the smart

mobile device to visualize the collected information.

In addition, all “Polar WearLink+” sensors can be

used and coupled with the smart mobile device in or-

der to gather vital signs of the athlete.

Both consumer applications assume that the con-

nection between the external sensors and mobile de-

vice in the context of the ﬁtness application is reliable.

Unfortunately, we were not able to adopt their com-

munication structure because of the proprietary phi-

losophy. In addition, they offer hitherto only the use

of pulse sensors.

Research projects like “Open Data Kit” (Open

Data Kit, 2013) address a suitable mobile data col-

lection. Open Data Kit aims at providing a self-

containing framework for data collection. The in-

tegration of external sensors in Android smart mo-

bile devices are discussed in (Brunette et al., 2012)

or (Chaudhri et al., 2012). Even though, we can not

adopt results directly for our goal. The reason is that

we can use “Open Data Kit Sensors” framework only

inside the “Open Data Kit” project, which would be to

complex. In addition to this, the applicability for our

future usage in the medical domain would be not suit-

able. Instead, we are trying to create a sensor frame-

work, which can be used as a standalone application.

Thus, we want to enable application developer to use

this framework in their own projects and applications.

6 SUMMARY & OUTLOOK

In this paper we presented a real-world mobile busi-

ness application from the ﬁtness domain. This ap-

plication was implemented to be used with external

sensors for gathering vital signs of athletes in order

to support them in their frequent training sessions.

To implement such a mobile application, we ﬁrst had

to determine the appropriate development type of ap-

plication (e.g., Web Application or Native Applica-

tion). In case of the “XFitXtreme” application we

implemented a native application because of the lack

of Bluetooth functionality for the other basic devel-

opment types of mobile applications. Moreover, we

aim at real-time processing and visualization of gath-

ered vital signs and hence a challenging and realistic

application was a must. Additionally, we presented

a system architecture for business applications that

shall be used with external sensors and explained our

layered design. To strengthen our described archi-

tecture, the ﬁtness application “XFitXtreme” using it

was shown. However, we set the main focus on the

lessons we have learned from this project. We there-

fore discussed different aspects related to the connec-

tion between the mobile device and the external sen-

sor as well as different structures of data packages

retrieved by the external sensors. Our experiences

resulted in developing a sensor framework, which is

currently used in a real-world ﬁtness application. The

framework was discussed, and needed functions for

the CrossFit training were presented.

In the future, we plan to extend the sensor frame-

work described in this paper. We plan a feature to

add more sensors, and support different types of con-

nection standards as well, such as ANT, ANT+ (Dy-

nastream Innovations Inc, 2013), or ZigBee (ZigBee

Alliance, 2013). Furthermore, we want to implement

a mobile process engine to interact with the coupled

external sensors using our described sensor frame-

work. This would empower us to carry out the data

collection with sensors as a process. However, prob-

lems, like ﬂexibility, should be carefully considered

(Reichert and Weber, 2012). Besides technical im-

provements, we want to add more features to visualize

gathered data from sensors. We therefore want to im-

plement the Google Charts Tools (Google Inc, 2013)

in our sensor framework to allow athletes to interac-

tively browse through their different vital signs. An-

other goal we pursue is to provide this sensor frame-

work on other mobile operating system, like Apples

iOS. This enables us for example to reveal insights

to the interplay between the iOS platform and exter-

nal sensors. Finally, we focus more on scenarios of

the medical domain using our framework to ease daily

work of medical staff.

REFERENCES

Adobe Systems Inc. (2013). PhoneGap. http://

UsingVitalSensorsinMobileHealthcareBusinessApplications-Challenges,Examples,LessonsLearned

517

www.phonegap.com/. last visited: 22. February 2013.

Appcelerator Inc. (2013). Titanium Mobile App De-

velopment Platform. http://www.appcelerator.com/

platform/titanium-platform/. last visited: 22. Febru-

ary 2013.

Bluetooth Developer Portal (2013). Compare with

other Technologies. http:// developer.bluetooth.org/

TechnologyOverview/Pages/Compare.aspx. last vis-

ited: 22. February 2013.

Brunette, W., Sodt, R., Chaudhri, R., Goel, M., Falcone, M.,

Van Orden, J., and Borriello, G. (2012). Open data kit

sensors: a sensor integration framework for android at

the application-level. In Proceedings of the 10th inter-

national conference on Mobile systems, applications,

and services, pages 351–364. ACM.

Chaudhri, R., Brunette, W., Goel, M., Sodt, R., VanOr-

den, J., Falcone, M., and Borriello, G. (2012). Open

data kit sensors: mobile data collection with wired and

wireless sensors. In Proceedings of the 2nd ACM Sym-

posium on Computing for Development, page 9. ACM.

CrossFit, Inc. (2013). CrossFit - Forging Elite Fitness.

http:// www.crossﬁt.com/. last visited: 22. February

2013.

Dynastream Innovations Inc (2013). THIS IS ANT

- the Wireless Sensor Network Solution. http://

www.thisisant.com/. last visited: 22. February 2013.

Gartner, Inc. (2013). Gartner Says by 2016, More Than

50 Percent of Mobile Apps Deployed Will be Hy-

brid. http://www.gartner.com/newsroom/id/2324917.

last visited: 22. February 2013.

Google Inc (2013). Google Chart Tools. https://developers.

google.com/chart/. last visited: 22. February 2013.

Heitk

otter, H., Hanschke, S., and Majchrzak, T. A. (2013).

Evaluating cross-platform development approaches

for mobile applications. In Web Information Systems

and Technologies, pages 120–138. Springer.

IBM Corporation (2013). IBM Worklight - Mobile ap-

plication platform. http://www-01.ibm.com/software/

mobile-solutions/worklight/. last visited: 22. Febru-

ary 2013.

Lansford, J., Stephens, A., and Nevo, R. (2001). Wi-ﬁ

(802.11 b) and bluetooth: enabling coexistence. Net-

work, IEEE, 15(5):20–27.

MedChoice (2013). The MedChoice MD300C318T. http://

www.pulsoximeter-gerate.com/products.asp. last vis-

ited: 22. February 2013.

Nike Inc. (2013). Nike+. http://nikeplus.nike.com/plus/.

last visited: 22. February 2013.

Open Data Kit (2013). Open Data Kit - magnifying human

resources through technology. http://opendatakit.org/.

last visited: 22. February 2013.

Polar Electro GmbH Deutschland (2013). Polar WearLink+

Sensor Bluetooth. http://www.polar-deutschland.de/

de/produkte/. last visited: 22. February 2013.

Pryss, R., Langer, D., Reichert, M., and Hallerbach, A.

(2012). Mobile task management for medical ward

rounds - the medo approach. In 1st Int’l Workshop

on Adaptive Case Management (ACM’12), BPM’12

Workshops, LNBIP. Springer.

Pryss, R., Tiedeken, J., Kreher, U., and Reichert, M. (2010).

Towards ﬂexible process support on mobile devices.

In Proc. CAiSE’10 Forum - Information Systems Evo-

lution, number 72 in LNBIP, pages 150–165. Springer.

Reichert, M. and Weber, B. (2012). Enabling Flexibility

in Process-Aware Information Systems: Challenges,

Methods, Technologies. Springer, Berlin-Heidelberg.

runtastic GmbH (2013). runtastic - makes sports funtastic.

http://www.runtastic.com. last visited: 22. February

2013.

Trowbridge, R. and Weingarten, S. (2001). Clinical deci-

sion support systems. Making health care safer: a

critical analysis of patient safety practices. Evidence

Report/Technology Assessment, (43).

ZigBee Alliance (2013). ZigBee Alliance - Control your

world. http://www.zigbee.org/. last visited: 22. Febru-

ary 2013.

WEBIST2013-9thInternationalConferenceonWebInformationSystemsandTechnologies

518
