Development of Device Identity using WiFi Layer 2 Management

Frames for Combating Rogue APs

Jonny Milliken

, Valerio Selis

, Kian Meng Yap

and Alan Marshall

1,2,3

Institute of Electronics, Communications and Information Technology (ECIT), Queens University Belfast, Belfast, U.K.

Traffic Observation via Management (TOM LTD), Northern Ireland Science Park, Belfast, U.K.

Department of Computer Science and Networked Systems, Sunway University, Kuala Lumpur, Malaysia

Keywords: WiFi, WLAN, Rogue AP, MAC, Probe, Frames, Identity.

Abstract: The susceptibility of WiFi networks to Rogue Access Point attacks derives from the lack of identity for

802.11 devices. The most common means of detecting these attacks in current research is through tracking

the credentials or the location of unauthorised and possibly malicious APs. In this paper, the authors outline

a method of distinguishing WiFi Access Points using 802.11 MAC layer management frame traffic profiles.

This system does not require location estimation or credential tracking techniques as used in current

research techniques, which are known to be inaccurate. These characteristic management traffic profiles are

shown to be unique for each device, tantamount to a MAC identity. The application of this technique to

solving Rogue AP attacks under the constraints of an open access, public WiFi environment is discussed

with the conclusion that the identity is practically very difficult to forge.

1 INTRODUCTION

One of the most insidious attacks perpetrated against

WLAN networks is the Rogue Access Point (Rogue

AP), whereby an attacker masquerades as a

legitimate AP in order to compromise the security of

unsuspecting clients. These types of attack are

considered to be some of the most dangerous threats

to WiFi (Shetty et al., 2007). (Ma et al., 2007)

categorises Rogues AP into one of four classes;

 Improperly configured AP,

 Unauthorised AP,

 Phishing AP,

 Compromised AP.

Detection of unauthorised APs is the most common

class addressed by research into Rogue APs (Beyah

et al., 2004). The existence of poorly configured APs

in practice is outlined in (Percoco, 2010), where

“poor security settings” is one of the top two threat

vectors in practical cyber security instances.

Investigations into detecting phishing and

compromised APs are lacking in current research,

although they are considered a technically difficult

but growing threat (Percoco, 2010).

One of the most common measures of identity in

WLAN systems in current research is the RSSI

(Received Signal Strength Indicator) of packets. The

authors in (Tao et al., 2008) and (Faria and Cheriton,

2006) suggest that, using a distributed set of sensors,

sufficient RSSI data can be gathered to provide

identification. This relies on different physical

locations creating slight variations in traffic patterns;

however this is only applied to clients and not APs.

There is disagreement on the usefulness of RSSI

in practical experiments. The authors in (Faria and

Cheriton, 2006) and (Ma et al., 2008) conclude that

use of RSSI as a WLAN location indicator is flawed

as multipath effects and AP specific processing of

RSSI frame values severely impact results and make

them unreliable. Furthermore, in (Nagarajan et al.,

2010), it is suggested that attackers, knowing RSSI

is used as a detection metric, can alter their

transmission power in frequent intervals in order to

defeat the detection algorithm. Thus the usefulness

of RSSI as a metric for absolute identification in

Rogue APs is uncertain and a more robust

identification method is required.

In (Shrivaraj et al., 2008) packet inter-arrival

time is used to detect Rogue APs using a Hidden

Markov Model, however the results are based on

Layer 3 information, not Layer 2. A similar system

is proposed in (Franklin et al., 2006) where inter-

frame spacing between probe requests in a WLAN is

488

Milliken J., Selis V., Meng Yap K. and Marshall A..

Development of Device Identity using WiFi Layer 2 Management Frames for Combating Rogue APs.

DOI: 10.5220/0004506404880493

In Proceedings of the 10th International Conference on Security and Cryptography (SECRYPT-2013), pages 488-493

ISBN: 978-989-8565-73-0

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

suggested as an indicator of the device driver in use,

although it has only been applied to clients rather

than APs. The distinction between clients and APs

here is important, as the traffic handled by a client is

addressed to them alone, while inter-arrival times for

APs may be affected by having to process frames for

other network users. The use of layer 2 frame inter-

arrival times to identify DoS attacks in WiFi

networks has already been shown by the authors

(Milliken and Marshall, 2012). A more reliable

technique for detecting Rogue APs is alluded to in

(Beyah and Venkataraman, 2011) as “Irrefutable

device identification through traffic characteristics”.

2 AP IDENTITY AT LAYER 2

Identity in the context of this work is defined as the

ability to distinguish between two devices based on

intrinsic attributes which are not reliant on their

reported identity, i.e. the MAC address. Thus whilst

it is possible for a malicious attacker to copy the

MAC address, it should be impossible for them to

copy these intrinsic device attributes.

The use of Layer 2 management frame traffic

from WiFi networks has many positive attributes for

research applications. Firstly, this traffic is broadcast

in plaintext in all networks. As this Layer 2 traffic is

devoid of any encryption, this means it can be

collected without any privacy or confidentiality

concerns, which is often a major barrier to

performing live WiFi network investigations.

Previous work by (Milliken et al., 2012) outlined

a Layer 2 data collection system which has been

deployed in live environments for traffic analysis

and security research. Using this traffic it is possible

to investigate identity at WiFi Layer 2. This dataset

was collected from a public, open-access WiFi

rollout in the Sunway Pyramid shopping mall in

Kuala Lumpur (Figure 1).

Table 1 presents a breakdown of management

frame metrics for 3 APs within range of MS#1 in

Figure 1. The two most common management frame

types are considered to be; Beacons and Probe

Request / Response exchanges. An exchange is is

complete if the request and reply conversation is

complete, i.e. both the request and response have

been received correctly (Milliken et al., 2012).

Exchange intervals (for probes) and packet inter-

arrival times (for beacons) can be calculated by a

client based on the traffic from an AP and is

dependent on two unique factors; AP processing

time and client-AP channel.

AP processing time concerns the time for an AP

to process and transmit a packet and depends on the

equipment, firmware and load at that point in time.

The combination of these factors means that

processing time is subtly different for every AP and

can be used as a basis for prescribing an AP identity.

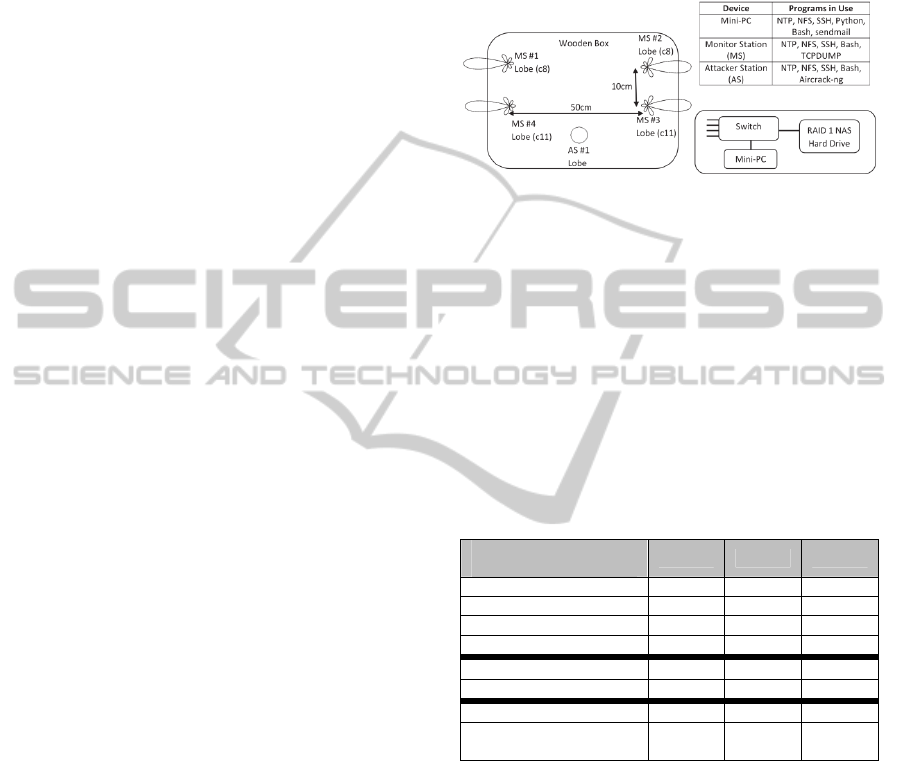

Figure 1: Data Capture System Layout (Milliken and

Marshall, 2012).

The client–AP channel factor concerns the subtle

differences in packet reception depending on

proximity between a client and AP. The authors

have previously demonstrated in (Milliken and

Marshall, 2012) and (Milliken et al., 2012) that data

collected from different locations is statistically

different even if these locations are in very close

proximity, as in Figure 1. This alters how the traffic

is received at each observation location, which can

be used as a further basis for identity.

Table 1: Per AP Information for MS#1 (K1 dataset).

Management Frame

Metrics

AP#1 AP#2 AP#3

# Packets 5.7M 4.7M 17.0M

% Data Packets 15.8 56.4 38.3

% Management Packets 79.5 40.4 60.4

% Control Packets 4.73 3.23 1.33

# Beacons 3.9M 1.7M 7.8M

# Full Probe Exchanges 65.5k 40.3k 194k

Av. Beacon Interval(s) 0.231 0.967 0.222

Av. Probe Exchange

Interval(s)

0.0467 0.0373 0.0194

Information from Table 1 shows that, as

predicted, many of the traffic attributes are distinct

for each AP (AP#1 vs. AP#2 vs. AP#3) collected at

a specific observation location (MS #1). The

“running” average (Av.) values in Table 1 represent

the exponentially weighted moving average, where

each new interval is weighted against the previous

intervals without any being discarded. This makes

the average more resistant to minor outliers. To

combat major outliers, a removal threshold (>60s)

has been applied to improve the stability of the

mean. Exchanges of this length are deemed to be

erroneous factors attributed to excessive impulse

interference or temporary reflective agents. Figures

2 and 3 show the values of these running means for

DevelopmentofDeviceIdentityusingWiFiLayer2ManagementFramesforCombatingRogueAPs

489

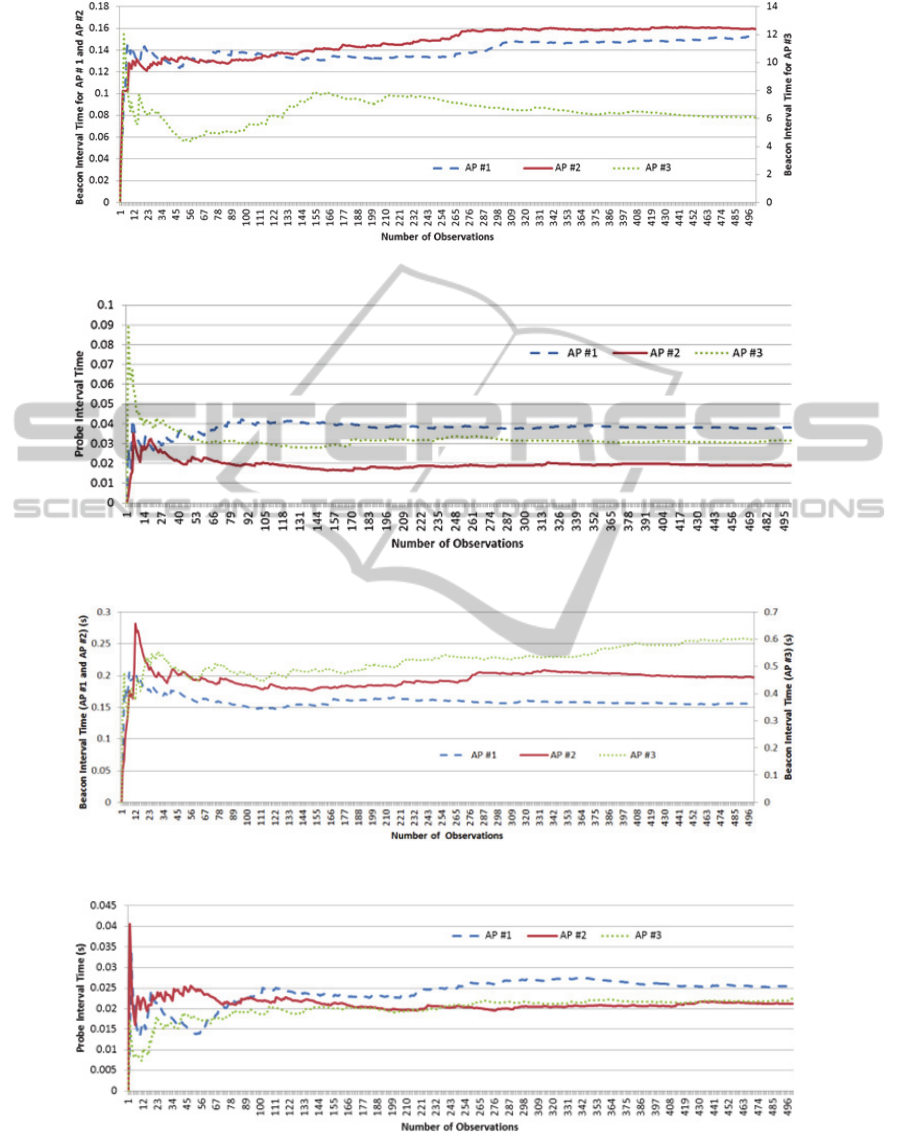

Figure 2: Beaco interval average (s) trace for each AP monitored at MS#1.

Figure 3: Probe exchange interval average (s) trace for each AP monitored at MS#1.

Figure 4: Beacon interval average trace for each AP monitored at MS#2.

Figure 4: Probe exchange interval average (s) trace for each AP monitored at MS#2.

Beacon intervals and Probe Exchange time intervals

over the first 500 observations (i.e. captured frames)

for MS#1 in the K1 dataset. The first conclusion

from the data is that beacons present a high degree

of variance. This is attributed to their constant

broadcast nature making them more sensitive to

SECRYPT2013-InternationalConferenceonSecurityandCryptography

490

interference. Probe information is very stable which

is attributed to their scarcity relative to beacon

frames. Since probe frames are less frequent than

beacons, their transmission over the air is less likely

to coincide with impulse interference.

Comparing Figures 2 and 3 (MS#1) to Figures 4

and 5 (MS#2) it is observed that although the

average values are different, the general

characteristics for each frame type are consistent, i.e.

the frame averages display a settling time, followed

by a smoothly changing average which may overlap

with other observed averages for other APs at

different times. This confirms that these attributes

can be tracked over time and that they are not the

same at all observation locations.

3 ALGORITHM DEVELOPMENT

From Figures 2-5 it is possible to visually

differentiate between each of the APs and each

observation location (MS). However reliance on

visual distinction could result in disagreement

between different observers as to what constitutes

legitimate separation between the APs. A more

reliable, repeatable and programmable method is

applied here to systematically determine the

distinction between the AP frame averages.

3.1 Training Period Estimation

Each of the averages in Figures 2-5 exhibits a

training period, after which minor outliers will have

been absorbed and a settled mean is achieved. Once

the end of this period has been reached then the trace

stabilises and exhibits smooth transitions. This

interference is considered distinct from that removed

by the (>60s) outlier threshold outlined previously.

The less extreme transitions may reflect changes in

client loading or the state of the network

environment such as greater footfall acting as

reflectors. The training period is governed by the

following algorithm:

1. Calculate the current “running” mean and

standard deviation of the intervals observed,

2. Establish the maximum and minimum limits of

accuracy for training period (here they are

chosen as 10% of the standard deviation),

3. If the running mean is observed as being within

the training bounds for 10 consecutive

observations, the training period is deemed to

have ended.

The values of 10% for the accuracy of the standard

deviation and 10 consecutive observations of

conformity are applied here based on human

observations of multiple traces. The impact of

varying this value has been investigated and the

choice of 10% and 10 observations closely matches

visual estimations. While this continues to introduce

human error, since an observer could select 11%

rather than 10% or 20 rather than 10 observations

and get different results, this approach instead

reduces the debate to accuracy rather than

repeatability.

Table 2: Training Period Estimation for MS#1,MS#2.

(OC: Observations until Cut-Off, TS: Timeframe until

Settle).

Beacon

MS#1 MS#2

#OC TS (s) #OC TS (s)

AP #1 85 14.37 44 7.57

AP#2 47 8.33 43 9.40

AP#3 63 425.47 43 28.59

Probe

MS#1 MS#2

#OC TS (s) #OC TS (s)

AP #1 53 90.8 90 102.71

AP#2 55 47.18 46 43.77

AP#3 181 257.18 54 54.53

Applying this algorithm to the traffic for MS#1

and MS#2 produces Table 2, which outlines the

estimated end-point of the training times for each

AP. These training times are exclusive to this dataset

and collection time however this process can be

applied to other datasets or APs. Thus is more

flexible and reliable than using human estimation.

Each of the AP mean interval traces for each MS

exhibits a unique settling point after a set amount of

observations. The range of this observation value

can extend from as few as 47 and as many as 181

depending on the relative stability of the averages

observed. An anticipated time until these numbers of

observations are achieved is given in Table 2, based

on the average observation rate at each AP. This

indicates that the beacon rate settling is relatively

prompt due to the high frequency of the packets

whilst probe rate settling takes longer.

3.2 Distinction Period Estimation

The end of the training period establishes the

number of observations after which the AP averages

can be considered stable. Due to the possibility of

drift however it is not necessarily the case that APs

can be distinguished at all times, so identity may not

be available at all times. The algorithm employed to

determine AP distinction is:

1. Determine the upper and lower limits for the

DevelopmentofDeviceIdentityusingWiFiLayer2ManagementFramesforCombatingRogueAPs

491

mean of each AP by adding and subtracting a

proportion of the current standard deviation from

it (10% here),

2. If the upper bound for AP1 is below the lower

bound of AP2 then they are distinct at that

observation,

3. Alternatively, if the lower bound for AP1 is

above the upper bound of AP2 then they are

distinct at that observation,

4. If the AP under consideration is both settled and

distinct from all other APs under test then

identity is considered to be prescribed for that

AP at that time for that observation location.

This process provides a quantifiable means of

determining if APs are distinguishable and over

what percentage of the operating time, which is

shown in Table 3. The information in the table

indicates that the APs can be distinguished for up to

99% of the total observations for both probes and

beacons. The distinction results are less impressive

for probe exchanges, for which the ability to

separate the APs drops to as low as 12% for AP#2 -

AP#3 in MS#2. This indicates that some locations

may exhibit black spots for frame reception.

Table 3: Identity Availability for MS#1 and MS#2.

(PID: Prescribed

IDentity)

MS#1 MS#2

B’con Probe B’con Probe

First Observation

with PID

85 181 44 102

AP 1–2 PID

Time (%)

75.75 99.06 99.81 92.75

AP 1–3 PID

Time (%)

99.94 47.43 99.93 94.8

AP 2–3 PID

Time (%)

99.94 99.94 99.93 12.3

The disparity in the distinction results for MS#1

and MS#2 in Table 3 shows that difference in

placement location plays a key role in the

application of this identity system. The observation

locations of MS#1 and MS#2 are quite close in

proximity yet the orientation difference between the

two provides sufficiently different data to allow

identity prescription. This indicates that searching

for a suitable location within the deployment

environment has a critical effect on the ability to

prescribe identity. Investigations of how to select

these positions are considered for future work.

Combination of more than one detector in an

environment would bypass this deficiency, as shown

by the different performance levels per MS location.

Each of the routers tested have been produced by

a different manufacturer. The authors have no reason

to believe that any devices exist for which this

technique does not apply, although testing is

necessarily limited by the environment available.

The testing environment is believed to be a typical

representation of open access networking

environments and hence the results from this work

should be broadly applicable.

3.3 Rogue AP Discussion

This experiment demonstrates that live network

environments contain subtleties in traffic reception

that can be used for security research. Due to the

live, operational nature of the network under test it

was not possible to obtain permission to carry out a

Rogue AP attack at this location. Nonetheless the

information available provides insight into the

effectiveness of the system under Rogue AP attack.

The beaconing rates for each of the APs in

Figures 2-5 are set to 100ms intervals. Each device

is attempting to broadcast beacons at precisely this

interval, however due to processing and channel

characteristics they exhibit unique traffic deviations

from the viewpoint of any connected client.

Over both monitoring locations (MS#1 or MS

#2) the distinction level between these APs was

discernible between 75% and 99% of the testing

time. This is in spite of the mean values for Figures

2-5 for APs 1 and 2 being visually very similar. This

demonstrates that small differences in beaconing

interval are perpetuated over time and are an

identifying factor of the device itself.

A similar feature can be attributed to probe

exchange intervals. For every AP, probe responses

will be replied to as soon as possible, rather than at a

set rate (as with beacons). This is more likely to be

susceptible to variation due to loading in the AP,

since processing will slow as additional tasks need

to be carried out concurrently, e.g. serving multiple

connected clients. It is particularly evident in Figure

3 that these response levels are quite different and

stable over time, allowing for minor fluctuations.

The identity system proposed here would be very

difficult for a knowledgeable attacker (one who

knows the detection criteria) to combat. It has been

demonstrated here that location plays a key role in

the observed identity characteristics. It would be

very difficult for any Rogue AP to masquerade this

information, as they would have to be in exactly the

same physical position as the legitimate AP. Even

were this to be achieved, the differences in frame

processing of different manufacturers would need to

be discovered and masqueraded as well. At worst

this raises the bar for potential Rogue AP attacks.

In practice a client could employ this technique

SECRYPT2013-InternationalConferenceonSecurityandCryptography

492

to detect Rogue APs using the following method: 1)

Client connects to a legitimate AP, 2) After the

training time has bypassed the client has created the

AP fingerprint, 3) Should a Rogue AP now appear,

the client will be able to distinguish the new

fingerprint even if the Rogue AP masquerades all

available attributes of the legitimate AP.

This process would have to be carried out every

time a client connects to an AP, even if the

fingerprint has been previously known. Only one

visit to an AP is required to generate the fingerprint,

however due to the channel characteristics changing

with location and time they must be generated on

every new connection. Accounting for user mobility

remains for future work. This technique could be

used in addition to alternative Rogue AP detection

techniques to improve detection confidence.

4 CONCLUSIONS

Rogue APs present a significant threat to public

WiFi infrastructures and their users, which current

detection systems aim to defeat by monitoring

differences in RSSI. These systems are shown to be

insufficient by other research works. This work

presents a new method of determining identification

for WiFi APs, employing a combination of WiFi

packet average intervals for beacons and probe

exchanges to gauge identifying averages for APs.

This layer 2 information has been shown to be

received differently at different distances and

orientations to the source of the traffic, which can be

used to attribute identity to a specific AP from that

collection location.

The fingerprinting technique employed here is

dependent on two characteristics, 1) AP – user

channel and 2) Internal AP processing. Assessing

the relative contribution to fingerprinting of these

two attributes remains for future work. Attribution

of this identity system has been shown to be

available in a live location for up to 99% of

operational lifetime potentially within 9 seconds of

client-AP connection.

ACKNOWLEDGEMENTS

The authors gratefully acknowledge the assistance of

EPRSC (grant number EP/H004793/1), Sunway

University (grant number INT-SCT-0111-03) and

Sunway Pyramid management.

REFERENCES

Beyah, R., et al., 2004, Rogue Access Point Detection

using Temporal Traffic Characteristics. In

GLOBECOM ’04, IEEE Global Telecommunications

Conference.

Beyah, R., Venkataraman, A., 2011. Rogue Access Point

Detection: Challenges, Solutions and Future

Directions. IEEE Journal of Security & Privacy (9/5),

pp. 56-61.

Faria, D. B., Cheriton, D. R., 2006. Detecting Identity-

Based Attacks in Wireless Networks Using

Signalprints. In 5th ACM Workshop on Wireless

Security.

Franklin, J., et al., 2006. Passive Data Link Layer 802.11

Wireless Device Driver Fingerprinting. In 15th

USENIX Security Symposium.

Ma, L., et al., 2007. RAP: Protecting Commodity WiFi

Networks from Rogue Access Points. In 4

Intl. Conf.

on Heterogeneous Networking for Quality, Reliability,

Security and Robustness & Workshops.

Ma L., et al., 2008. A Hybrid Rogue Access Point

Protection Framework for Commodity WiFi

Networks. In INFOCOM ’08, 27th Intl. Conf. on

Computer Communications.

Milliken, J., Marshall, A., 2012. Design and Analysis of

an Independent, Layer 2, Open-Access WiFi

Monitoring Infrastructure in the Wild. In ICWN ’12,

International Conference on Wireless Networks.

Milliken, J., et al., 2012. The Effect of Probe Interval

Estimation on Attack Detection Performance of a

WLAN Independent Intrusion Detection System. In

ICWCA ’12, International Conference on Wireless

Communications and Applications.

Nagarajan, V., et al., 2010. Using Power Hoping to

Counter MAC Spoofing Attacks in WLAN. In 7th

IEEE Consumer Communications and Networking

Conference.

Percoco N. J., 2010. Trustwave Global Security Report

2010. Trustwave, Chicago, USA Shetty, S., et al.,

2007. Rogue Access Point Detection By Analysing

Networking Traffic Characteristics. In MILCOM ’07,

IEEE Military Conference.

Shivaraj, G., et al., 2008. A Hidden Markov Model Based

Approach to Detect Rogue Access Points. In

MILCOM ‘08, IEEE Military Conference.

Tao, Z., et al., 2008. X-mode: A real Time Approach of

Discriminating WiFi Networking Impersonators. In

NWESP ’08, 4th International Conference on Next

Generation Web Services Practices.

DevelopmentofDeviceIdentityusingWiFiLayer2ManagementFramesforCombatingRogueAPs

493
