Policy-based Security Assessment of Mobile End-user Devices

An Alternative to Mobile Device Management Solutions for Android Smartphones

Thomas Zefferer and Peter Teuﬂ

Institute for Applied Information Processing and Communications, Graz University of Technology,

Inffeldgasse 16a, 8010 Graz, Austria

Keywords:

Smartphone, Security, Policy, Assessment, Android.

Abstract:

For security-critical applications, the integrity and security of end-user devices is of particular importance.

This especially applies to mobile applications that use smartphones to process security-critical data. Unfortu-

nately, users often compromise the security of smartphones by disabling security features for convenience rea-

sons or by unintentionally installing malware from untrusted application sources. Mobile device management

(MDM) solutions overcome this problem by providing means to centrally manage and conﬁgure smartphones.

However, MDM is mainly suitable for corporate environments but often cannot be applied in non-corporate

ﬁelds of application such as m-banking or m-government. To address this problem, we propose an alternative

approach to assure the security and integrity of smartphones. Our approach relies on a device assessor that

evaluates the current state of a smartphone according to a security policy. Integration of this device assessor

allows smartphone applications to condition the processing of security-critical data on the smartphone’s com-

pliance with a deﬁned security policy. We have shown the practicability of the proposed approach by means

of a concrete implementation for the Android platform. We have evaluated this implementation on different

Android devices. Obtained results show that our approach constitutes an appropriate alternative for scenarios,

in which MDM cannot be applied.

1 INTRODUCTION

Smartphones have emancipated from classical end-

user devices and are nowadays frequently used to

access services from various ﬁelds of application.

This includes security-critical ﬁelds such as mo-

bile banking (m-banking) or mobile government (m-

government). In many cases, applications from

these ﬁelds of application involve the processing of

security-critical data on the user’s smartphone.

The conﬁdentiality of data being stored and pro-

cessed on the user’s smartphone heavily depends on

the security of this device. The security of the de-

vice, in turn, mainly depends on the device conﬁg-

uration and on the smartphone’s robustness against

malware. Both aspects have recently turned out to

be especially problematicon smartphones running the

mobile operating system Google Android. Android

provides users various ways to conﬁgure their smart-

phones. For instance, Android users are free to en-

able or disable access-protection or encryption mech-

anisms. Hence, the security of data being stored on

smartphones heavily depends on settings chosen by

the user.

At the same time, recent reports (Lookout Mo-

bile Security, 2011) and malware indices (Hack-

mageddon, 2011) indicate that Android seems to be

more prone to malware than other smartphone plat-

forms. A recent incident that substantiates this ob-

servation has become known under the name Eu-

rograbber (Schwartz, 2012). In 2012, Eurograbber

stole $47.000.000 from privateand corporate bank ac-

counts by implementing a combined attack on Web

browsers and Android smartphones to compromise

SMS-based authentication schemes of European e-

banking portals. Main reasons for the vulnerability of

Android against malware such as Eurograbber are the

availability of powerful system APIs for third-party

applications, and Android’s supportfor alternativeap-

plication sources that do not enforce quality checks

on distributed software. While these properties facil-

itate the development and easy distribution of power-

ful third-party applications, they also ease the spread

of malware.

Weak device conﬁgurations and malware nowa-

days represent the main threats for security-critical

347

Zefferer T. and Teuﬂ P..

Policy-based Security Assessment of Mobile End-user Devices - An Alternative to Mobile Device Management Solutions for Android Smartphones.

DOI: 10.5220/0004509903470354

In Proceedings of the 10th International Conference on Security and Cryptography (SECRYPT-2013), pages 347-354

ISBN: 978-989-8565-73-0

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

mobile applications. To dispel these threats, several

vendors such as AirWatch

or Zenprise

have started

to offer mobile device management (MDM) solutions

for Android. These solutions allow for a central con-

ﬁguration of smartphones and can be used to enforce

security policies on Android devices. Additionally,

MDM solutions can be used to restrict the set of in-

stalled applications using black- or whitelists. With-

out doubt, MDM solutions have the potential to im-

prove the overall security of smartphones. Unfortu-

nately, MDM is mainly applicable in corporate envi-

ronments, in which employers provide their employ-

ees with smartphones. In such scenarios, the em-

ployer has the right and the organizational feasibility

to enforce policies on issued devices and to restrict

their functionality. In scenarios such as m-banking or

m-government, in which users typically use their pri-

vate smartphones to access a service, MDM is usually

not an option.

Due to the non-applicability of MDM solutions,

non-corporate smartphone applications cannot make

valid assumptions on the current state, conﬁguration,

and security of the mobile end-user device, on which

these applications are executed. This is a major prob-

lem, as applications from security-critical ﬁelds might

prefer to refuse execution of security-critical opera-

tions on insecure smartphones. As a solution to this

problem, we propose a device assessor that assesses

the current state and security of an Android device at

runtime. By integrating the proposed device assessor,

security-critical applications are able to condition the

execution of security-critical operations on the smart-

phone’s current state and conﬁguration. In this paper,

we discuss the general idea of using a device asses-

sor to assure the security of processed data in appli-

cation scenarios, in which MDM is not an option. We

show the practicability of this approach by means of

a concrete implementation for the Android platform

and present ﬁrst evaluation results.

2 ANDROID SECURITY

The security of Android has been a frequently dis-

cussed topic during the past years. Reports on smart-

phone malware frequently show that Android devices

are more vulnerable to malware and related security

threats than mobile devices from other smartphone

platforms (Lookout Mobile Security, 2011). The top-

icality of security vulnerabilities on Android is also

emphasized by a growing number of scientiﬁc publi-

cations dealing with different aspects of security on

http://www.airwatch.com/solutions/android

http://www.zenprise.com/solutions/MDM

Android smartphones. Comprehensive analyses of

Android’s security model have for instance been pro-

vided in (Enck et al., 2009) and (Enck et al., 2011).

Security mechanisms implemented on Android have

been assessed in detail in (Shabtai et al., 2009). In-

depth analyses of Android’s integrated security sys-

tems and their capabilities to protect applications run-

ning on Android devices have also been provided in

(Bing, 2012) and (Pacatilu, 2011).

From the results of published scientiﬁc work on

Android security and from own experience gained

during several projects dealing with design, imple-

mentation, and assessment of security-critical mobile

applications, the following reasons for Android’s se-

curity vulnerabilities can be derived.

• Support for Alternative Application Sources.

Android users can install smartphone applications

from arbitrary sources such as alternative appli-

cation stores, memory cards, or Web resources.

While applications offered through ofﬁcial appli-

cation stores typically undergo a review process,

this is often not the case for alternative application

sources.

• Optional Security Features. Android provides

a set of integrated security features that are suit-

able to protect data being stored and processed on

smartphones. However, these security features are

optional and often deactivated by default. In many

cases, security features would be available but re-

main deactivated by the user for convenience rea-

sons.

• Inefﬁcient Permission System. During the in-

stallation of an application on an Android device,

the user has to conﬁrm a set of permissions that

are requested by the application to be installed and

that deﬁne its access rights and capabilities. How-

ever, users often do not understand or care for the

implications of conﬁrming arbitrary permissions

requested by applications (Felt, 2012).

• Rich API. Compared to other smartphone plat-

forms, Android offers application developers a

much richer API

to access system functionality.

While this allows for more powerful applications,

it also increases the capabilities of malware. On

Android, malware has – given the required per-

missions – access to resources of the smartphone

(e.g. SMS functionality, ﬁle system, etc.) that

would require root access to the operating system

on other platforms.

• Rich Runtime Capabilities. Android offers a

high degree of ﬂexibility and a rich set of mecha-

http://developer.android.com/reference/packages.html

SECRYPT2013-InternationalConferenceonSecurityandCryptography

348

nisms for inter-process and inter-application com-

munication (Chin et al., 2011). Furthermore, An-

droid supports – in contrast to other platforms –

the execution of arbitrary background services.

Again, these features improve the capabilities of

third-party applications, but also allow for more

powerful malware.

In summary, it can be stated that variousproperties

of Android make this platform especially vulnerable

to different security threats. Possible enhancements

of Android’s security system have been an emerging

topic in scientiﬁc research for the past years. For in-

stance, the use of SELinux on Android devices has

been discussed in (Shabtai et al., 2010). Tang et al.

proposed an extension to Android’s security enforce-

ment using a security distance model (Tang et al.,

2011). Enhancing and replacing Android’s encryp-

tion systems has recently also been a common topic

of scientiﬁc work, which has for instance been dis-

cussed in detail in (Shurui et al., 2010), (Chen and Ku,

2009), and (Gasti and Chen, 2010). Although most of

the proposed concepts and solutions seem promising

at a ﬁrst glance, few of them have actually made their

way to current end-user devices.

From the various reasons for Android’s vulnera-

bility against security threats discussed in this section,

two basic problems can be derived. First, Android’s

architecture obviously eases the development of pow-

erful malware. Second, the user often turns out to

be the weakest link in the line of defense and unin-

tentionally compromises the security of the end-user

device by disabling important security features, in-

stalling applications from untrusted sources, or con-

ﬁrming permissions that allow applications to com-

promise the smartphone’s security. Android’s basic

architecture is usually beyond the sphere of inﬂuence

and cannot be adapted or customized to prevent mal-

ware based attacks. Hence, solutions to improve the

security of Android devicestypically focus on the pre-

vention of weak device conﬁgurations caused by the

user.

The approach to prevent users from making bad

decisions (e.g. disabling of security features, instal-

lation of malware) in order to improve the security

of end-user devices is actually not a new idea. Espe-

cially in corporate environments, mobile device man-

agement (MDM) solutions are increasingly used to

centrally control and manage end-user devices. MDM

solutions are typically based on a server component

(MDM server) that is used to deﬁne security poli-

cies and to transmit these policies to smartphones.

On the smartphone, an MDM client enforces ob-

tained policies by appropriately conﬁguring the mo-

bile device. MDM works well in corporate envi-

ronments, in which companies supply their employ-

ees with smartphones and hence have the legal and

organizational power to manage these devices and

to restrict their functionality according to the com-

pany’s security policies. In non-corporate environ-

ments, MDM is usually not an option. For instance,

a bank has neither the legal nor the organizational

power to limit or reconﬁgurea customer’ssmartphone

before allowing it to access an m-banking application.

For the same reasons, MDM can even be problematic

in corporate environments, when employees are al-

lowed to use their own private smartphones to access

company data. This trend has recently become known

under the term bring-your-own-device(BYOD) and is

increasingly gaining relevance (Woods, 2013).

For scenarios, in which MDM solution cannot be

deployed due to legal and organizational reasons, al-

ternativeapproaches to assure the security of end-user

devices need to be followed. We propose the use of

a device assessor that can be easily integrated into ar-

bitrary third-party applications. In contrast to MDM

solutions, the device assessor does not reconﬁgure the

user’s device. Instead, it assesses if a given secu-

rity policy is fulﬁlled by the smartphone, on which

an application is about to be executed. Based on the

results of this assessment, applications that integrate

the device assessor can decide whether or not to ex-

ecute security-critical operations on the given device.

Details of this approach and the chosen architectural

design of the proposed device assessor are presented

and discussed in the next section.

3 ARCHITECTURE

In this section we present the architecture of the pro-

posed device assessor. Ease of integration, sustain-

ability, and ﬂexibility have been deﬁned as basic

design requirements for the proposed device asses-

sor. Although these requirements appear to be rather

generic, they are indeed of special relevance for this

particular solution. Ease of integration is important

as mobile applications are typically subject to fast de-

velopment processes and short release cycles. Sus-

tainability is another important requirement as it can

be expected that the relevance of smartphones will

continue to increase in future. Finally, also ﬂexibil-

ity is of relevance as different applications potentially

have different requirements regarding the security of

the user’s smartphone.

Considering theses design requirements, the ar-

chitecture shown in Figure 1 has been chosen for the

proposed device assessor. Figure 1 illustrates core

components of the device assessor, as well as exter-

Policy-basedSecurityAssessmentofMobileEnd-userDevices-AnAlternativetoMobileDeviceManagementSolutions

forAndroidSmartphones

349

nal components that interact with the device assessor

through well-deﬁned interfaces.

dŚŝƌĚͲWĂƌƚǇƉƉůŝĐĂƚŝŽŶ

ƐƐĞƐƐŵĞŶƚŽƌĞDŽĚƵůĞ

ƐƐĞƐƐŵĞŶƚ

WůƵŐͲŝŶϭ

͘͘͘

KƉĞƌĂƚŝŶŐ^ǇƐƚĞŵ;W/Ϳ

ZĞƐƵůƚsŝƐƵĂůŝǌĞƌ

WŽůŝĐǇ

/ŶƚĞƌƉƌĞƚĞƌ

ǆƚĞƌŶĂů

/ŶĨŽƌŵĂƚŝŽŶ

^ŽƵƌĐĞ

ǆƚĞƌŶĂů

/ŶĨŽƌŵĂƚŝŽŶ

^ŽƵƌĐĞ

WŽůŝĐǇ

ZĞƐƵůƚ

ƐƐĞŵďůĞƌ

W/

ƐƐĞƐƐŵĞŶƚ

WůƵŐͲŝŶϮ

ƐƐĞƐƐŵĞŶƚ

WůƵŐͲŝŶϯ

ƐƐĞƐƐŵĞŶƚ

WůƵŐͲŝŶE

ZĞƐƵůƚ

Figure 1: Architecture of the device assessor.

As shown in Figure 1, the architectural design

deﬁnes an application programming interface (API),

through which the device assessor’s functionality can

be accessed by third-party applications. Reliance on

an API assures an easy integration of the device as-

sessor’s functionality into arbitrary third-party appli-

cations.

As shown in Figure 1, the provided API can be

used by third-party applications for three purposes.

First, applications can use the API to deﬁne security

policies to be assessed on the given device. Second,

the API provides applications with the results of con-

ducted assessments. Third, applications can option-

ally send obtained results back to the device assessor,

in order to display them to the user. For this purpose,

the device assessor provides a result visualizer. The

result visualizer allows applications to easily inform

users about the results of device-assessment processes

and releases applications from implementing own re-

sult interpretation and visualization methods.

The chosen architecture follows a plug-in based

approach. Assessment plug-ins are used to assess the

given device. Each assessment plug-in supports the

assessment of certain security aspects. To assess these

aspects, plug-ins either access public APIs provided

by the Android operating system, or retrieve addi-

tional information from external information sources.

For instance, information on the current status of the

ﬁle-system encryption can be retrieved directly from

the Android operating system. In contrast, external

information sources might be necessary when apply-

ing black- or whitelist based assessment processes. In

general, the plug-in based approach assures sustain-

ability by guaranteeing that new security aspects and

innovativeassessment methods can easily be added to

the existing solution at a later stage.

Finally, also ﬂexibility has been deﬁned as design

requirement for the proposed device assessor. Hence,

the chosen architectural design shown in Figure 1 de-

ﬁnes the integration of a policy interpreter that is able

to handle arbitrary security policies. This way, each

third-party application that integrates the device as-

sessor can deﬁne its own security policy for the given

device. The policy interpreter extracts relevant secu-

rity aspects from the obtained policy and forwards

them to the device assessor’s assessment core mod-

ule. This module acts as controller and delegates the

assessment of relevant security aspects to appropri-

ate assessment plug-ins. Results of conducted assess-

ment processes are collected by the assessment core

module and forwarded to the result assembler. The

result assembler combines obtained results and re-

turns them to the calling third-party application.

The architecture shown in Figure 1 basically

meets all predeﬁned design requirements. Although

being mainly tailored to the Android platform, the

proposedarchitecture can basically be used to develop

device assessors for arbitrary smartphone platforms.

However, in consideration of the various security vul-

nerabilities of Android that have been discussed in de-

tail in Section 2, we have decided to verify the prac-

ticability of the architectural design by means of a

concrete implementation for the Google Android plat-

form. Details of this implementation are provided in

the next section.

4 IMPLEMENTATION

To assure ease of integration, the developed device

assessor has been implemented as Android library

project

. Implementation details of the developed li-

brary project and its integration into third-party ap-

plications are presented in this section by means of a

concrete example. For this example, we assume that

an Android application wants to condition its execu-

tion on the satisfaction of the following requirements:

• R1. To assure the conﬁdentiality of data stored by

the application, the smartphone’s ﬁle system must

already be encrypted or currently being encrypted.

• R2. To preclude the existence of SMS intercept-

ing malware on the smartphone, alternative appli-

cation sources must be disabled and no static SMS

broadcast receivers must be registered.

• R3. To precludethe existence of manipulatedkey-

boards that log user input, alternative keyboards

must not be installed on the smartphone.

http://developer.android.com/tools/projects/index.html

SECRYPT2013-InternationalConferenceonSecurityandCryptography

350

Note that these speciﬁc requirements have been

deﬁned for demonstration purposes only and do not

necessarily make sense in real-world scenarios. In

the following subsections we will discuss how these

exemplary requirements can be converted into an ap-

propriatesecurity policy, how the implemented device

assessor assesses the given smartphone according to

this policy, and how obtained results of the assess-

ment process are displayed by the device assessor.

4.1 Policy Deﬁnition

The use of security policies guarantees that each ap-

plication that integrates the developed device asses-

sor can deﬁne and assess its own critical security as-

pects. The use of security policies and related pol-

icy description languages (PDL) is a common ap-

proach that is frequently followed when security re-

quirements need to be deﬁned in a structured way (Lv

and Yan, 2006) (Hashimoto et al., 2009). It is thus

reasonable that our solution relies on a policy based

approach as well. However, we have refrained from

using established PDLs for the sake of simplicity. In-

stead of using a powerful but complex PDL, our im-

plementation relies on a simple proprietary security-

policy format. However, due to the modular design of

our implementation, alternative PDLs can easily be

integrated into our implementation at a later stage if

required.

So far, our implementation supports rather simple

policies. The basic building blocks of these policies

are so called security properties. Security properties

and the two logic operators AND and OR can be used

to assemble arbitrary security policies. The device as-

sessor’s current implementation supports assessment

of 22 security properties including the ones listed be-

low.

• SecProp1. A password containing numeric char-

acters is required to access the smartphone.

• SecProp2. A password containing alphabetic

characters is required to access the smartphone.

• SecProp7. Encryption has been activated and the

device’s ﬁle system is encrypted.

• SecProp8. Encryption is currently being acti-

vated.

• SecProp9. Encryption is available on the device

but has not yet been activated.

• SecProp10. Encryption is not available on the de-

vice.

• SecProp12. No alternative keyboards are in-

stalled on the device.

• SecProp13. The device’s default keyboard is cur-

rently in use.

• SecProp14. An alternative keyboard is currently

in use.

• SecProp16. No suspicious application has been

registered to receive incoming SMS messages.

• SecProp17. There is evidence that the device has

been rooted.

• SecProp22. Alternative application sources are

disabled on the device.

Note that some properties have been omitted due

to space limitations. A complete list of all supported

security properties is available in the project docu-

mentation

. Using these security properties, arbitrary

security policies can be deﬁned. Considering our

concrete example, the security properties SecProp7,

SecProp8, SecProp12, SecProp16, and SecProp22

can be used to map the rather informal deﬁnition of

the requirements R1, R2, and R3 to an appropriate se-

curity policy.

Using the identiﬁed relevant security properties

and appropriate logic operators, the overall security

policy SecPol can be assembled according to Equa-

tions (1), (2), and (3).

SubPolA = OR(SecProp7, SecProp8) (1)

SubPolB = AND(SecProp16, SecProp22) (2)

SecPol = AND(SubPolA, SubPolB, SecProp12) (3)

As shown in Figure 2, security policies can be

graphically represented by hierarchical trees. The tree

root represents the complete security policy. Tree

nodes represent sub-policies that in turn consist of

two or more child nodes (security properties or sub-

policies). Leaf nodes (i.e. nodes with no child nodes)

represent security properties.

^ĞĐWŽů

^ƵďWŽů

E

^ĞĐWƌŽƉϭϮ

^ĞĐWƌŽƉϳ

^ĞĐWƌŽƉϴ

^ƵďWŽů

E

^ĞĐWƌŽƉϭϲ ^ĞĐWƌŽƉϮϮ

Figure 2: Tree representation of the security policy deﬁned

in Equations (1), (2), and (3).

The implemented device assessor’s API provides

a PolicyFactory class that allows third-party applica-

tions to deﬁne security properties and to assemble ar-

bitrary security policies from different security prop-

erties using logic AND and OR operators.

http://demo.egiz.gv.at/

Policy-basedSecurityAssessmentofMobileEnd-userDevices-AnAlternativetoMobileDeviceManagementSolutions

forAndroidSmartphones

351

4.2 Device Assessment

According to the architectural design shown in Figure

1, the given Android device is assessed by the assess-

ment core module and a set of assessment plug-ins.

While the assessment core module basically provides

a common API-based interface to the implemented

assessment capabilities, the assessment of different

security properties is implemented by the assessment

plug-ins. Each plug-in is able to assess a certain set of

security properties. So far, seven plug-ins have been

implemented that are able to assess the 22 security

properties that are currently supported by our imple-

mentation.

• Access-Protection Plug-in. This plug-in checks

the conﬁgured access-protection method of the as-

sessed Android device. Required information is

retrieved directly from the Android system.

• Encryption Plug-in. This plug-in checks the cur-

rent state of the assessed device’s encryption sys-

tem.

• Keyboard Plug-in. This plug-in gives security-

critical applications the opportunity to check

whether alternative keyboards are installed and

used on the assessed Android device. A whitelist

containing default keyboards of all common ven-

dors is used to accomplish this task.

• SMS Broadcast-Receiver Plug-in. This plug-

in detects if there are suspicious applications in-

stalled on the assessed device, which have regis-

tered themselves to receive incoming SMS mes-

sages. These applications are identiﬁed by ana-

lyzing the Android manifest ﬁles of installed ap-

plications.

• Root-Detection Plug-in. The terms rooting and

jailbreaking subsume methods to gain root ac-

cess to a smartphone’s operating system. There-

fore, a root-detection plug-in has been developed

that allows security-critical applications to check

whether the underlying device has been rooted.

In contrast to other plug-ins, the root-detection

plug-in is not able to provide deﬁnite results. Al-

though the plug-in implements various different

methods to determine if the assessed device has

been rooted, all implemented methods can in the-

ory be circumvented by attackers (or malware)

with unlimited root access to the device.

• Malware-detection Plug-in. To give applications

the opportunity to refuse execution on devices in-

fected with malware, this plug-in implements a

simple malware-detection method. This detection

method uses an externally provided blacklist in

order to separate benign applications from mali-

cious ones.

• Application-Store Plug-in. This plug-in veriﬁes

whether the assessed device has been conﬁgured

to allow for the installation of third-party applica-

tions from alternative application sources. The re-

quired information for this assessment is obtained

from Android’s public API.

4.3 Result Assembly

Different security properties supported by the imple-

mented plug-ins can be arbitrarily combined to spe-

ciﬁc security policies using logic AND and OR oper-

ators. Assessment results determined by the different

plug-ins are collected by the device assessor’s assess-

ment core module and forwarded to the result assem-

bler. The result assembler combines obtained results

according to the logic operations deﬁned by the se-

curity policy. Reconsidering the exemplary security

policy shown in Figure 2, the ﬁnal result is combined

from assessments conducted by the encryption plug-

in, application-store plug-in, SMS broadcast-receiver

plug-in, and keyboard plug-in.

The ﬁnal result can again be represented by a tree

structure that exactly matches the structure of the se-

curity policy. Figure 3 shows an exemplary result

for the policy shown in Figure 2. In Figure 3, each

leaf node represents the assessment result of the cor-

responding security property. Security properties can

either be fulﬁlled (OK) or not be fulﬁlled (NOK). Re-

sults of sub-policies (i.e. tree nodes) are determined

by applying the sub-policy’s logic operator (AND or

OR) to the results of the tree node’s child nodes. This

way, each tree node evaluates either to OK or to NOK.

The ﬁnal result of the entire assessment process is rep-

resented by the result tree’s root node. In the exam-

ple shown in Figure 3, the given security policy could

obviously not be assessed successfully, as one sub-

policy is not satisﬁed by the assessed device.

EK<

E

EK<

E

K< EK<

Figure 3: Sample assessment result.

The entire result tree is ﬁnally returned to the call-

ing Android application through the device assessor’s

API. By evaluating the result of the tree’s root node,

the calling application can easily determine, whether

its security policy is fulﬁlled by the device or not.

Additionally, the application can parse the obtained

SECRYPT2013-InternationalConferenceonSecurityandCryptography

352

result tree in order to identify problematic security

properties of the assessed device.

4.4 Result Visualization

In most cases, security-critical applications that in-

tegrate the device assessor might want to inform the

user about identiﬁed problematic security properties.

Applications can do so by parsing the obtained result

tree and by implementing own appropriate visualiza-

tion methods. Alternatively, applications can also use

the result visualizer provided by the device assessor.

The result visualizer can be called via the device as-

sessor’s API and takes a result tree as input. The main

task of the result visualizer is to appropriately display

this result tree and related information to the user.

Since security policies – and hence also obtained

result trees – can be of arbitrary length and complex-

ity, the result visualizer follows a modular approach

to display assessment results. Only one hierarchical

level of the result tree is displayed at once. The result

visualizer’s GUI allows users to navigate between dif-

ferent hierarchical levels.

Figure 4 shows the GUI of the result visualizer.

The left screenshot shows the second hierarchical

level of the given result tree. The three horizontal bars

represent the two sub-policies and the security prop-

erty of this level. The bar’s color indicates whether

the property or sub-policy is fulﬁlled on the particular

device or not. Using the info button at the right end of

each bar, the user can access additional information

about the respective sub-policy (or security property)

and its assessment result. This is shown in the right

screenshot of Figure 4 for the sub-policy called Sub-

PolA. The displayed text (as well as the name of the

property or sub-policy) can be dynamically deﬁned

by the calling application during the deﬁnition of the

security policy.

Users can close this view and return to the result-

tree visualization using the leftward-arrowbutton that

can be found below the displayed policy information.

Furthermore, the other displayed arrow buttons can

be used to navigate through different hierarchical lev-

els of the result tree. This way, the result visualizer

helps users to explore identiﬁed security weaknesses

of their smartphones.

5 EVALUATION

In order to evaluate our implementation, we have as-

sessed the implemented device assessor’s applicabil-

ity and reliability in practice. This has been achieved

by evaluating our implementation on both virtual and

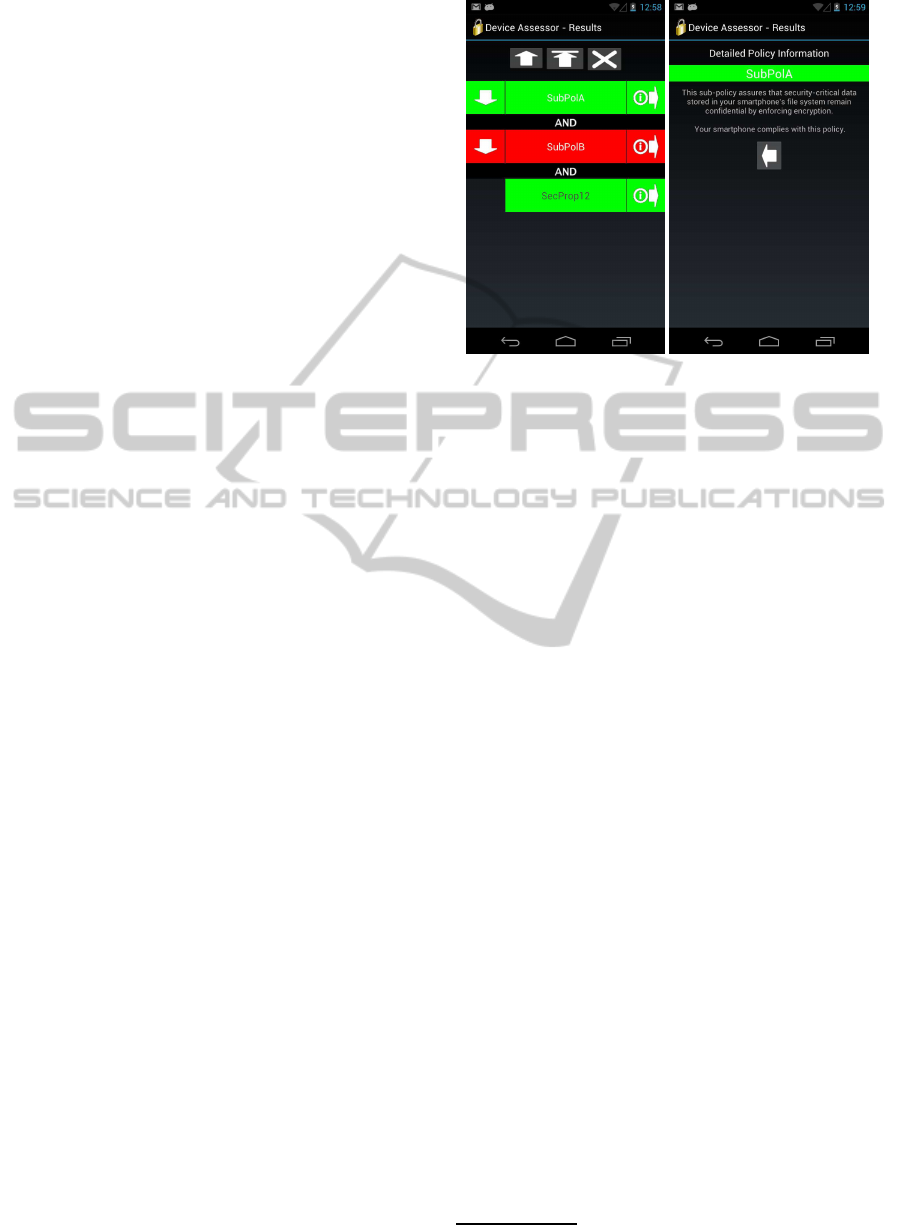

Figure 4: Left screenshot: Assessment results of security

policy’s sub-policies and security properties (child nodes of

root node). Right screenshot: Detailed information on ﬁrst

sub-policy.

real devices covering smartphones manufactured by

different hardware vendors and featured with different

versions of Android. Furthermore, we have made our

implementation publicly available

and have invited

application developers from both the public and the

corporate sector to use our solution. Obtained feed-

back is collected and used to continuously improve

our implementation.

First evaluation results show that our solution ba-

sically works reliably on non-rooted Android devices.

On rooted devices, correct results are likely but cannot

be guaranteed, as the security of the developed solu-

tion itself cannot be taken for granted if an attacker

has gained unlimited root access to the operating sys-

tem.

The conducted evaluation has also shown that the

proposed solution is basically applicable on all cur-

rent Android versions. It might however be necessary

to provide version-speciﬁc instances of the developed

device assessor, in order to consider differences in

the Android API between different Android versions.

Hence, not all features of the proposed solution are

available for all Android versions.

6 CONCLUSIONS

In this paper, we have proposed a device assessor for

smartphones. This device assessor can be integrated

into arbitrary third-party applications in order to ver-

ify if the smartphone, on which the application is exe-

cuted, satisﬁes a certain security policy. This way, the

http://demo.egiz.gv.at

Policy-basedSecurityAssessmentofMobileEnd-userDevices-AnAlternativetoMobileDeviceManagementSolutions

forAndroidSmartphones

353

proposed device assessor allows third-party applica-

tions to refrain from executing security-critical oper-

ations on potentially insecure smartphones. We have

shown the practicability of this approach by means of

a concrete implementation for the Android platform.

Furthermore, we have evaluated the reliability and ap-

plicability of our implementation on a set of virtual

and real Android smartphones. Obtained results of

this evaluation show that the proposed device asses-

sor is able to reliably assess a wide range of security

properties on smartphones.

Although the developed device assessor has al-

ready been made publicly available and is ready for

productive operation, several further developments

are considered as future work. This includes a further

improvement of the implmented assessment methods

and the evaluation of alternative policy-description

languages that could potentially replace the currently

used policy format. We are also evaluating potential-

ities to port the existing Android based solution also

to other smartphone platforms.

Even though there is still room for improvement,

the current implementation presented in this paper al-

ready demonstrates the general practicability of the

proposed approach and its capability to assure the se-

curity of mobile end-user devices in scenarios such as

m-banking or m-government, in which MDM is not

an option.

REFERENCES

Bing, H. (2012). Analysis and Research of System Security

Based on Android. In 2012 Fifth International Con-

ference on Intelligent Computation Technology and

Automation, pages 581–584. IEEE.

Chen, Y. and Ku, W.-S. (2009). Self-Encryption Scheme for

Data Security in Mobile Devices. In 2009 6th IEEE

Consumer Communications and Networking Confer-

ence, number 607, pages 1–5. IEEE.

Chin, E., Felt, A. P., Greenwood, K., and Wagner, D.

(2011). Analyzing Inter-Application Communication

in Android. In Components, MobiSys ’11, pages 239–

252. ACM Press.

Enck, W., Octeau, D., Mcdaniel, P., and Chaudhuri, S.

(2011). A Study of Android Application Security. In

USENIX Security, number August in SEC’11, pages

935–936. USENIX Association.

Enck, W., Ongtang, M., and McDaniel, P. (2009). Under-

standing Android Security. In IEEE Security Privacy

Magazine, volume 7, pages 50–57. IEEE.

Felt, A. P. (2012). Android Permissions : User Attention,

Comprehension, and Behavior. In Science And Tech-

nology, pages 1–16.

Gasti, P. and Chen, Y. C. Y. (2010). Breaking and Fixing the

Self Encryption Scheme for Data Security in Mobile

Devices. In Parallel Distributed and NetworkBased

Processing PDP 2010 18th Euromicro International

Conference on, pages 624–630. IEEE.

Hackmageddon (2011). One Year Of Android Malware

(Full List). http://hackmageddon.com/2011/08/11/

one-year-of-android-malware-full-list/.

Hashimoto, M., Kim, M., Tsuji, H., and Tanaka, H. (2009).

Policy Description Language for Dynamic Access

Control Models. In 2009 Eighth IEEE International

Conference on Dependable Autonomic and Secure

Computing.

Lookout Mobile Security (2011). 2011 Mobile Threat

Report. https://www.lookout.com/resources/reports/

mobile-threat-report.

Lv, T. and Yan, P. (2006). A Web Security Solution based on

XML Technology. In 2006 International Conference

on Communication Technology, pages 1–4. Ieee.

Pacatilu, P. (2011). Android Applications Security. In In-

formatica Economica, volume 15, pages 163–171. In-

formatica Economica.

Schwartz, M. J. (2012). Zeus Botnet Eurograbber Steals

$47 Million. http://www.informationweek.com/

security/attacks/zeus-botnet-eurograbber-steals-47-

millio/240143837.

Shabtai, A., Fledel, Y., and Elovici, Y. (2010). Securing

Android-Powered Mobile Devices Using SELinux. In

IEEE Security Privacy Magazine, volume 8, pages

36–44. IEEE Computer Society.

Shabtai, A., Fledel, Y., Kanonov, U., Elovici, Y., and Dolev,

S. (2009). Google Android: A State-of-the-Art Re-

view of Security Mechanisms. In Neural Networks,

volume 126, page 42.

Shurui, L., Jie, L., Ru, Z., and Cong, W. (2010). A Modi-

ﬁed AES Algorithm for the Platform of Smartphone.

In Computational Aspects of Social Networks CASoN

2010 International Conference on, pages 749–752.

IEEE.

Tang, W., Jin, G., He, J., and Jiang, X. (2011). Extending

Android Security Enforcement with a Security Dis-

tance Model. In 2011 International Conference on In-

ternet Technology and Applications, pages 1–4. IEEE.

Woods, S. (2013). Bring Your Own Device (BYOD)

Increasingly Important to Small Business Budgets.

http://technorati.com/business/small-business/article/

bring-your-own-device-byod-increasingly/.

SECRYPT2013-InternationalConferenceonSecurityandCryptography

354
