A TV Commercial Retrieval System based on Audio Features

Jose E. Borras

, Jorge Igual

, Carlos Fernandez-Llatas

and Vicente Traver

ITACA-TSB, Universidad Politecnica de Valencia, Valencia, Spain

ITEAM, Universidad Politecnica de Valencia, Valencia, Spain

Keywords:

Pattern Recognition, TV Commercial, Audio Features, Detection.

Abstract:

In spite of new digital platforms, television (TV) continues to be the most inﬂuential advertising medium. The

advertisers need to verify that their commercials are broadcasted on TV in the number and time they pay for

them. Nowadays, this job is done manually by visual inspection of recordings of the broadcasted signal every

day, consuming a lot of human resources. We present a system that automatize the process of identiﬁcation

of TV commercials. It is based on the detection of target commercials using their audio features. With the

purpose of reducing the time of detection and the storage requirements, it uses audio features in a compact

transformed domain. The algorithm is based on the similarities in the cepstral domain of the commercial

to be detected and the audio recording of the TV signal. The results show that the system is able to obtain a

satisfactory detection rate in a short time (detection rate above 90% with no false alarms), allowing the analysis

of long recordings in a fast way.

1 INTRODUCTION

This paper focuses on the development of a sys-

tem able to localize known TV commercials in large

databases in a fast and effective way.

The advertising paradigm is changing in the digi-

tal era. Traditional mass media advertising is reveal-

ing less efﬁcient than digital interactive marketing. It

does not mean the end of mass media and general

purpose advertising in a short time. It just means

that marketing is becoming more complicate and that

tools that can help in the automatizing of processes

are becoming very valuable. Traditional advertising

includes direct mail, television (TV), magazines, out-

door, newspapers, and radio. Among all of them, TV

and radio are the ones that probably will never disap-

pear, although their percentage will decrease, increas-

ing the investment in the new digital media, basically

social networks (internet), online video, and mobile

marketing.

The transformation of marketing to the digital era

has the advantage that pattern recognition techniques

(Duda et al., 2000) can be applied to solve classical

detection, identiﬁcation or classiﬁcation problems in

advertising in a more efﬁcient way. Machine learning

can provide a series of very helpful automated mon-

itoring tools to the companies on charge of auditing

advertising campaigns.

Traditional TV is also moving to a new paradigm

where interactivity and, as a consequence, personal

TV is substituting typical broadcasting model. The

fragmentation of audience in different technologies

and speciﬁc content based channels complicates ba-

sic tasks in advertising management.

The measurement of the effectiveness of an ad-

vertising campaign is very controversial (Lavidge and

Steiner, 2000). The ﬁrst and most obvious task in ad-

vertising management is to verify that the commercial

campaign has been broadcasted correctly, satisfying

the signed advertising contract about number of com-

mercials, time, duration, etc. This work is usually car-

ried out manually by experts that visualize hours and

hours of TV and extract the information of interest,

i.e., in channel X the commercial Y was broadcasted

from Monday to Friday at 20:00 PM. This procedure

requires the use of a huge amount of resources, not

only human.

Another problem is that real time supervision is

almost impossible since it requires even more re-

sources. The typical procedure is that at the end of

the day (depending on the contract), reviewers su-

pervise the recorded video looking for the commer-

cial breaks and identifying the corresponding com-

mercials of interest. Considering the growing num-

ber of channels, the increasing number of technolo-

gies involved in the broadcasting of multimedia con-

E. Borras J., Igual J., Fernandez-Llatas C. and Traver V..

A TV Commercial Retrieval System based on Audio Features.

DOI: 10.5220/0004511800650070

In Proceedings of the 10th International Conference on Signal Processing and Multimedia Applications and 10th International Conference on Wireless

Information Networks and Systems (SIGMAP-2013), pages 65-70

ISBN: 978-989-8565-74-7

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

tent and the corresponding logistic problems in the

recording of these contents and human supervision,

advertising agencies are requiring the automating of

many of these processes or at least the development

of tools than can alleviate the load of the expert. Al-

though the ﬁnal decision is taken by the human expert,

any application that can reduce the time dedicated by

the expert to the supervision is very useful.

In the ﬁeld of TV commercials, there are two main

different problems. One is the identiﬁcation of the

commercial breaks. This is done by the detection of

some audio and video features such as blank screens,

change in the volume and some other discriminating

characteristics. In the literature we can ﬁnd many al-

gorithms to detect the commercial breaks; see, e.g.,

(Lienhart et al., 1997), (Satterwhite and Marques,

2004) or (Zhang et al., 2012).

The second problem is the analysis of the com-

mercial. In this case, the pattern recognition problem

can be stated in different ways. The most basic one

is the detection (identiﬁcation) of a known commer-

cial to assure that the campaign is broadcasted accord-

ing to the terms of the agreement with the publicity

agency (Duan et al., 2006). Another one is an un-

supervised classiﬁcation approach, i.e., there is not a

target advertisement to look for but some clusters that

can represent different classes of commercials, e.g.,

attending to their content (Hua et al., 2009).

In this paper, we address the detection problem or

commercial retrieval, i.e., multimedia search in long

recordings of broadcasted TV signals by a given com-

mercial query. We will assume that the commercial

breaks are correctly localized in the time domain and

the goal is the identiﬁcation of some known commer-

cials in the recorded segments in a fast and effective

way.

The key point, as in most pattern recognitionprob-

lems, is to ﬁnd a domain where the classes are sepa-

rable or, in a more realistic approach, to ﬁnd out the

most discriminating features according to the prob-

lem under consideration. In the case of TV commer-

cials, we have two different kinds of signals: the au-

dio and video information. Since we are interested

on a system that works rapidly and not demanding

too many resources in terms of memory and compu-

tational load, we will explore in this paper a solution

based on the audio features.

2 DETECTION OF TV

COMMERCIALS BASED

ON AUDIO FEATURES

The system is composed of three stages: in the ﬁrst

one, the recorded broadcasted signal is preprocessed

in order to reduce its length and to obtain an input sig-

nal that is composed only of commercial breaks; in

the second one, the descriptor of the query commer-

cial is calculated and, in the third one, the detector is

applied.

2.1 Preprocessing

The data come from real recordings of broadcasted

TV signal. The ﬁrst task is the extraction of the com-

mercials. As we mentioned, there are many algo-

rithms to carry out this work. We will assume that it is

done in advance. In our case, we use Comskip (Com-

skip, 2012), a free MPEG commercial detector. It is a

windows console application that reads a MPEG ﬁle

and using information related to logo, black frames,

silences, changes in aspect ratio and so on is able to

indicate the time where a commercial break starts and

ends.

Comskip is a conﬁgurable software, so some pa-

rameters must be set previously by trial and error de-

pending on the broadcaster, i.e., TV channel. We use

a set of parameters that pursue the goal that no com-

mercial fragment is missing. In order to reassure this,

we add a minute of broadcasting before and after to

every commercial break detected by Comskip. This

implies that the input data can contain some content

that does not correspond to advertising. This is a trade

off between the rapidness of the detection procedure

and the overall system type II error or false negatives,

i.e., commercials that are not detected in the broad-

casting.

Finally, the different time periods of advertising

breaks are concatenated obtaining a signal that is

composed mostly of commercials x[n]. We will use

only the audio part of the commercial, reducing the

storage requirements and the time of computation.

Some systems to detect and recognize commercials

using the video content can be found in the literature,

such as (Putpuek et al., 2010) or (Wu et al., 2010).

Note that the duration of commercials on TV

range from a few seconds to a minute or even more in

exceptional circumstances, depending on each coun-

try, broadcaster, time of the day or TV program. Con-

sidering the audio content, the diversity we can ﬁnd is

enormous. Some are based on people talking; some

others are based on music; even there may be silent

in very few occasions. This diversity means that,

SIGMAP2013-InternationalConferenceonSignalProcessingandMultimediaApplications

in order to obtain a general procedure, we can not

exploit speciﬁc properties of speech or music wave-

forms. The goal of our proposal is to obtain a general

purpose algorithm with an effective detection rate and

a low computational cost.

The last step in the preprocessing is the reduction

of the amount of data. Since one of the restrictions of

the detection algorithm is its low computational cost,

it is useful to reduce the dimension of the data. In

addition, considering that the input data x[n], i.e., the

merging of commercial breaks, is extremely huge in

nowadays TV with a lot of different channels brad-

casting 24 hours a day, the dimensional reduction of

the input is a must.

We use wavelets for this purpose. A wavelet is a

waveform of limited duration giving location in time

with some vanishing moments and ﬁnite energy (Mal-

lat, 2009). The waveform depends on which wavelet

family is chosen. Its localization features in time and

frequency domain make them a very attractive tool in

analyzing non stationary signals such as speech sig-

nals.

The discrete wavelet transform of x[n] is obtained

passing it through a set of ﬁlters. At the ﬁrst level,

the input signal is decomposed as the combination

of some approximation coefﬁcients (obtained with a

low pass ﬁlter) and the detail coefﬁcients (obtained

with a high pass ﬁlter). In order to keep the same the

length of the input signal and the decomposition, the

low and high pass ﬁltered signals are downsampled

by 2. Therefore, the ﬁrst level approximation of x[n]

can be expressed such as:

v[n] =

∑

x[k]g[2n− k] (1)

where g[n] is the impulse response of the low pass

ﬁlter. In our case, g[n] corresponds to the Daubechies

wavelet of order 9.

The signal v[n] looks like an approximation of the

original one with half the length, i.e., we havereduced

the time resolution by a factor of 2. In our case, we

work with audio signals sampled at 11025 Hz, so this

reduction is irrelevant in terms of accuracy in the time

location of the commercial.

Next step is the representation of the commercials

in a very compact way; it requires the transformation

to a domain where the discriminative characteristics

of the audio part of a commercial can be represented

by a short feature vector or descriptor. At the same

time, this vector must be as easy to obtain as possible

since we will have to apply the same transformation

to the time series v[n].

2.2 Descriptor of the Commercial

In the case of audio recognition, the feature vector is

usually composed of spectral descriptors and dynamic

time characteristics. In our case, we are not limited

to a kind of particular audio signals, as it is the case

in speech recognition systems or music information

retrieval. It implies that the information is not con-

centrated in a particular type of acoustical signal pa-

rameters, such as for voiced or unvoiced sounds. Any

kind of sound content, including its absence, i.e., a

silent segment, can be helpful in the identiﬁcation of

the commercial.

We use the cepstrum as the starting point to ob-

tain the descriptor; the cepstrum coefﬁcients are being

used as the feature vector in many pattern recognition

applications working on audio input signals, such as

in (Furui, 1986). A variation that takes into account

the way the human ear ﬁlters the sound in the fre-

quency domain is the mel-frequency cepstrum, that

uses a bank of ﬁlters with triangular shape and differ-

ent bandwidth.

The real cepstrum is deﬁned for a real signal z[n]

such as the inverse Fourier transform of the logarithm

of the magnitude of the Fourier transform of z[n]:

[n] =

2π

∞

−∞

log



Z(e

jω

)



jωn

dω (2)

where Z(e

jω

) is the Fourier transform of z[n].

In order to compress the signal, it is common to

keep only the ﬁrst 10 or 20 coefﬁcients. But this is

not possible in our problem since the application of

the same transformation to v[n] would produce a time

series still too long. So we have to reduce the number

of coefﬁcients. To minimize the length of the descrip-

tor, we ﬁnally order the coefﬁcients by magnitude and

keep the index position of the largest coefﬁcient. This

index becomes one element of the descriptor.

Repeating the procedure to every 40 milliseconds

of the signal, we obtain the deﬁnitive vector w[n]

that describes the commercial. The 40 milliseconds

fragments are obtained using a Hamming window to

avoid transients in the border but keeping the signal

quasi stationary in the interval. The window is mov-

ing overlapping one third between blocks.

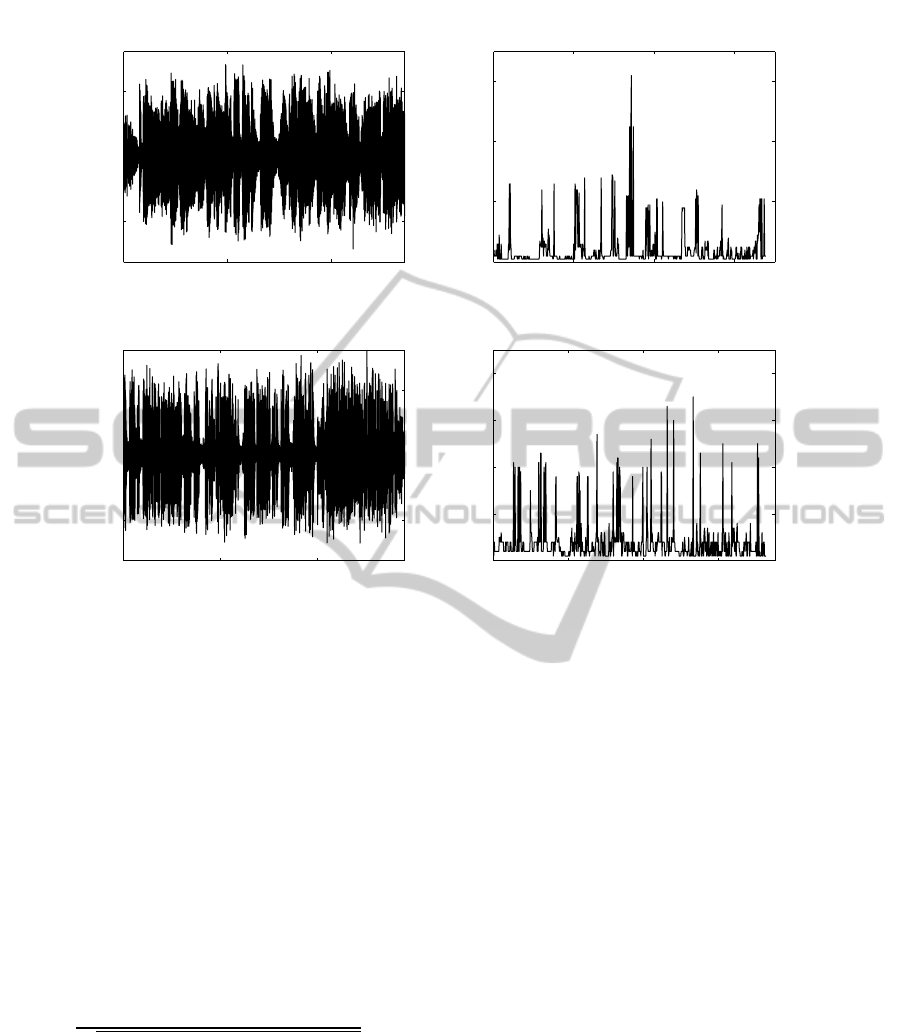

As an example, in ﬁgure 1 we show two com-

mercials and their corresponding representation in the

feature domain. The top ﬁgures correspond to a case

where the audio content is mostly music. We show

the time waveform (left) and the feature vector (right).

The bottom ﬁgures are an example of a waveform

where the audio content is basically a person talking.

Since we are working with commercials of different

ATVCommercialRetrievalSystembasedonAudioFeatures

0 10 20

−0.05

0.05

Wav Music

time (sec)

200 400 600

feature vector Wav Music

0 10 20

−0.05

0.05

Wav Speaking

time (sec)

200 400 600

feature vector Wav Speaking

Figure 1: Top-left: commercial with music. Top-right: feature vector of it. Bottom-left: commercial with speaking. Bottom-

right: feature vector of it.

duration, the length of the descriptor depends on the

duration of the commercial.

The same transformation is applied to the prepro-

cessed input signal v[n], obtaining the vector y[n].

2.3 Detector

The detection is carried out using classical detector

based on the cross-correlation between the feature

vector of the commercial w[n] and the preprocessed

audio signal y[n]. It is deﬁned such as:

r(m) =

∑

i=1

(w(i) − ˆw)(y(m+ i) − ˆy)

∑

i=1

(w(i) − ˆw)

∑

i=1

(y(m+ i)− ˆy)

(3)

where ˆw is the mean value of the vector w =

(w[1], . . . , w[N]) and ˆy is the mean value of the cor-

responding fragment of y[n], i.e., y = (y[m], . . . , y[m+

N − 1]).

The detection rule reads as: a commercial is de-

tected at time m when correlation function r(m) is

greater than certain threshold λ. The value of λ is

established empirically since we do not have a proba-

bilistic model for the underlying hypothesis.

Note that the correlation can be greater than the

threshold for some consecutive time indexes. The al-

gorithm keeps as the detection instant the sample m

where r(m) is maximum. The actual time location of

that index in the original broadcasted signal is easily

obtained since we keep track of all the transforma-

tion of the preprocessed signal. The algorithm can be

personalized if we include the duration of the com-

mercial as a parameter that helps to select the instants

where the detector is applied.

The only parameter of the system is the threshold

value λ. Its valuecan be updated in a dynamic way us-

ing some supervised detection periodically,e.g., when

the broadcaster has changed. In any case, the system

is tested periodically to check that the false alarm and

detection rates are adequate according to the require-

ments of the system.

SIGMAP2013-InternationalConferenceonSignalProcessingandMultimediaApplications

3 RESULTS

The input data are recordings from different digital

television channels. Comskip is applied to the MPEG

signal to extract the commercial blocks and the audio

part is digitized using a sampling frequency of 11025

Hz and 16 bits. Since we are adding one minute be-

fore and after Comskip detects a commercial break,

our detection algorithm can give duplicate positives

when Comskip fails and our searched commercial is

in this extra time and the time between commercial

blocks is one minute or less (a very rare situation).

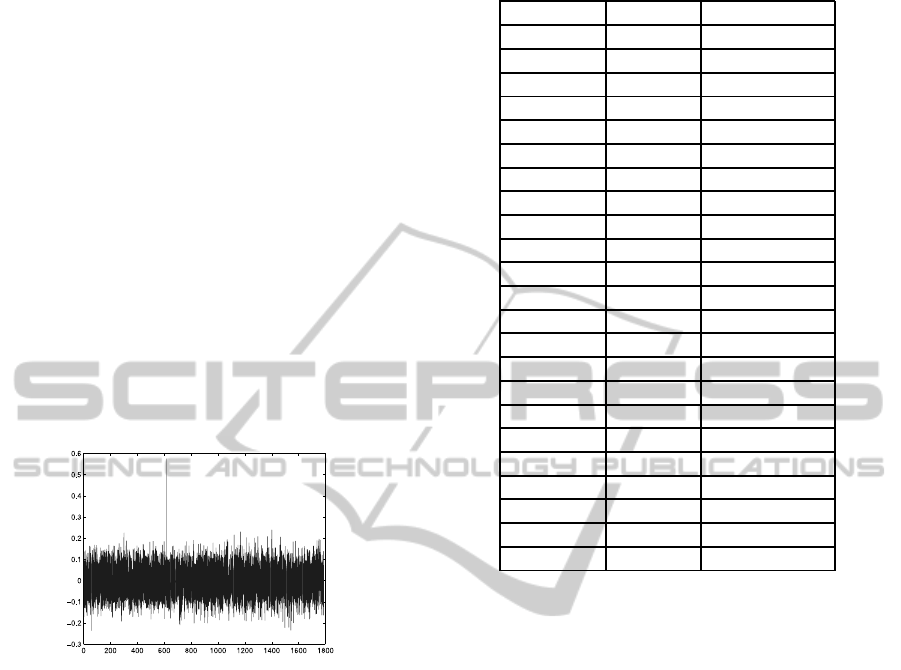

As an example of the detection procedure, in ﬁg-

ure 2 we show the correlation between the searched

commercial and 30 seconds of broadcasted signal af-

ter preprocessing. It is clear that the peak in the func-

tion indicates the presence of the commercial at that

time. As we can appreciate, the signal to noise ratio

is very large, so the threshold in the decision making

can be set in a large conﬁdence interval.

Figure 2: Cross-correlation function. The peak around sam-

ple n = 800 corresponds to a detection.

The algorithm has been tested in different condi-

tions. In table 1 we show the results for the following

experiment. We obtained 22 recordings from a gen-

eral purpose TV channel at different times of the day.

The duration of every recordingis between thirty min-

utes and one hour. The database includes 350 com-

mercials, including some of them very similar since

they belong to the same advertising campaign. The

duration of each of them is between 6 and 70 sec-

onds. The threshold value is set to 0.4 to minimize

false alarms. As we can see, there are recordings

without commercials and some others with a lot of

them (prime time). The average detection rate is 92%

and the false alarm is zero, i.e., there are not false pos-

itives.

The most important advantage of the presented

method with respect to the application of correlation

between the commercial time series (or correspond-

ing Fourier transform) and the input signal is its rapid-

ness. Thus, an important factor to be considered is

how to divide the input audio stream in order to re-

Table 1: Number of commercials that are (are not) detected

in corresponding recording. There are not false alarms.

Record# Detected Non Detected

Record 1 12 0

Record 2 14 2

Record 3 9 0

Record 4 0 0

Record 5 0 0

Record 6 0 0

Record 7 0 0

Record 8 0 0

Record 9 20 3

Record 10 0 0

Record 11 26 1

Record 12 19 2

Record 13 9 0

Record 14 42 2

Record 15 5 1

Record 16 10 3

Record 17 24 4

Record 18 24 1

Record 19 39 4

Record 20 42 3

Record 21 25 1

Record 22 24 1

Total 335 28

duce the time of computation.

The time of computation of the commercial de-

scriptor is ﬁxed; but we can computethe time required

by the overall system attending to two variables. First,

when we transform the input audio signal to the fea-

ture domain, how do we divide the signal?, i.e., the

duration of the fragments where we apply our trans-

formation in order to obtain y[n]. Second, the number

of commercials to be detected.

In order to evaluate these times, we applied the al-

gorithm to a recording of one hour of commercials.

We divided the one hour audio stream in non overlap-

ping fragments of duration 5, 20, 30 and 60 minutes

(the complete signal). We applied the algorithm for

a different number of commercials, from a single one

to ﬁfty.

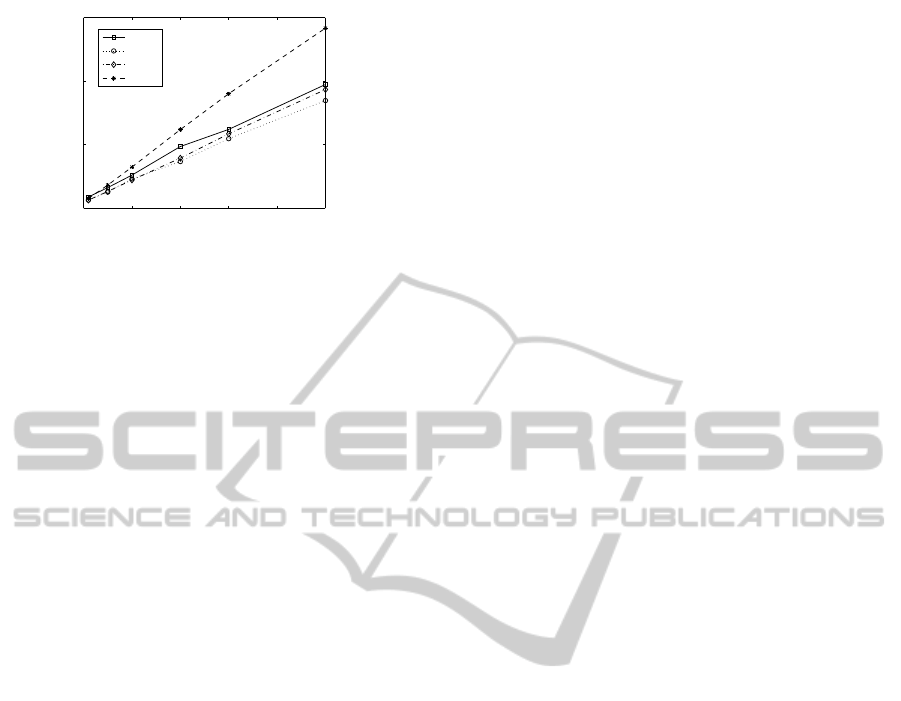

The total computational time is shown in ﬁgure 3.

This time includes the calculation of the commercial

signatures, the transformation of the audio signal to

the feature domain and the correlation. As we can

see, the best results are obtained when the input audio

stream is divided in blocks of 20 minutes each one.

ATVCommercialRetrievalSystembasedonAudioFeatures

0 10 20 30 40 50

number of commercials

time (min)

5 min

20 min

30 min

60 min

Figure 3: Time of computation in minutes vs. number of

commercials to be detected for one hour of commercials.

The input signal (60 minutes) is divided in blocks of 5, 20,

30 or 60 minutes.

4 CONCLUSIONS

We have presented a system for the commercial

recognition in TV signals. We focused on the feature

extraction procedure, where each entry of the feature

vector corresponds to the position of the largest cep-

stral coefﬁcient of a windowed segment of the com-

mercial. This descriptor allows the representation of

the commercial in a very compact and discrimina-

tive way, so the detection algorithm based on clas-

sical similarity measure obtained through the corre-

lation between the input data and the commercial in

the transformed domain achieves a very good perfor-

mance in a short time.

In future work, the algorithm can be optimized

considering speciﬁc additional information about the

commercial, such as duration or content characteris-

tics.

REFERENCES

Comskip (2012). http://www.kaashoek.com/comskip.

Duan, L.-Y., Wang, J., Zheng, Y., Jin, J. S., Lu, H., and Xu,

C. (2006). Segmentation, categorization, and identiﬁ-

cation of commercial clips from tv streams using mul-

timodal analysis. In Proceedings of the 14th annual

ACM international conference on Multimedia, pages

201–210. ACM.

Duda, R. O., Hart, P. E., and Stork, D. G. (2000). Pattern

Classiﬁcation. Wiley-Interscience.

Furui, S. (1986). Speaker-independent isolated word

recognition using dynamic features of speech spec-

trum. Acoustics, Speech and Signal Processing, IEEE

Transactions on, 34(1):52–59.

Hua, X.-S., Lu, L., Li, M., and Zhang, H.-J. (2009).

Learning-based automatic commercial content detec-

tion. US Patent 7,565,016.

Lavidge, R. J. and Steiner, G. A. (2000). A model for pre-

dictive measurements of advertising effectiveness. In

Advertising & Society Review 1, pp. 59–62.

Lienhart, R., Kuhmunch, C., and Effelsberg, W. (1997). On

the detection and recognition of television commer-

cials. In Multimedia Computing and Systems’ 97. Pro-

ceedings., IEEE International Conference on, pages

509–516. IEEE.

Mallat, S. (2009). A Wavelet Tour of Signal Processing.

Elsevier.

Putpuek, N., Cooharojananone, N., Lursinsap, C., and

Satoh, S. (2010). Uniﬁed approach to detection and

identiﬁcation of commercial ﬁlms by temporal occur-

rence pattern. In Pattern Recognition (ICPR), 2010

20th International Conference on, pages 3288 –3291.

Satterwhite, B. and Marques, O. (2004). Automatic detec-

tion of tv commercials. Potentials, IEEE, 23(2):9–12.

Wu, X., Putpuek, N., and Satoh, S. (2010). Commercial ﬁlm

detection and identiﬁcation based on a dual-stage tem-

poral recurrence hashing algorithm. In Proceedings of

the international workshop on Very-large-scale multi-

media corpus, mining and retrieval, VLS-MCMR’10,

pages 25–30, New York, NY, USA. ACM.

Zhang, B., Li, T., Ding, P., and Xu, B. (2012). Tv commer-

cial detection using audiovisual features and support

vector machine. In Instrumentation & Measurement,

Sensor Network and Automation (IMSNA), 2012 In-

ternational Symposium on, volume 1, pages 322–325.

IEEE.

SIGMAP2013-InternationalConferenceonSignalProcessingandMultimediaApplications
