A Fast and Efficient Inter Mode Decision Algorithm for the

H.264/AVC Video Coding Standard

Skoudarli Abdellah

, Nibouche Mokhtar

and Serir Amina

FEI USTHB, BP 32 El Alia Bab Ezzouar, Alger, Algeria

Frenchay Campus, Coldharbour Lane, Bristol BS16 1QY, UWE, U.K.

Keywords: H.264/AVC, Mode Decision, Inter/Intra Prediction, Homogeneity, Stationarity, Complexity Reduction.

Abstract: The H.264/AVC video coding standard is used in a wide range of applications from video conferencing to

high-definition TV. Compared to the previous standard, the H.264/AVC has significantly better

performance in terms of PSNR and visual quality at the same bit rate. It uses a complex mode decision

technique based on rate-distortion optimization (RDO). Therefore, this technique introduces a high

computational complexity. However, the computational complexity is one key challenge for the high

efficient compression. In order to reduce the H.264/AVC complexity a new efficient and fast mode decision

algorithm, based on the spatial homogeneity and temporal stationary characteristics of the current

macroblock, is proposed in this paper. The experimental results show that the proposed algorithm is able to

reduce up to 66,90 % of the computational complexity compared to the high complexity algorithm in the

JM16.1 reference software with tolerant performance degradation.

1 INTRODUCTION

The H.264/AVC encoder represents the latest video

coding standard. Compared to the previous standard,

the H.264/AVC has significantly better performance

in terms of PSNR and visual quality at the same bit

rate (Richardson, 2003).To improve the coding

efficiency, H.264/AVC adopts new coding tools

such as multiple reference frames, sub-pel accuracy

motion estimation (ME), in loop deblocking filter,

Variable Block Size (VBS) (Wiegand, 2003). These

tools permit a higher coding efficiency in

comparison to prior standards. Unfortunately, this

comes at the expense of increased complexity. In

fact, the encoder complexity increases tremendously.

This leads to long encoding processing time and

huge power consumption, which make the

deployment of the algorithm in real time

applications and embedded systems more difficult.

As the improved coding efficiency comes at the

expense of added complexity to the coder/decoder,

H.264/AVC utilizes some methods to reduce the

implementation complexity. One way to speed up

the H.264/AVC encoding time is to reduce the

complexity of macroblock mode selection.

Several fast mode decision algorithms have been

developed to simplify the mode selection by

exploiting the features of regions in a video

sequence.

In (Bharanitharan, 2010) a classified region

algorithm that analyses the spatial and temporal

homogeneity of the macroblock is used. The

proposed algorithm is based on a computation of the

gradient function of the current macroblock (MB).

The intensity differences in vertical and horizontal

directions are computed. In (Young Lee, 2012) the

proposed inter-mode decision scheme determines the

best coding mode of a given macroblock by

predicting the best mode from neighboring MBs in

time and in space and by estimating its rate-

distortion cost RD Cost from the MB in the previous

frame. In (Ri, 2009) the proposed method reduces

the number of candidate modes by detecting

spatially and temporally homogeneous regions and

analyzing motion costs for inter modes and intra

prediction costs for intra modes.

Other relevant approaches for fast algorithms

that consider adaptive thresholding method were

proposed and demonstrate that can improve

performance for a wide range of video sequences.

In (Ren, 2008a) an adaptive threshold for early

termination is introduced with fast multiple

reference frame motion estimation based on texture

and motion information. In (Martinez-Enriquez,

Abdellah S., Mokhtar N. and Amina S..

A Fast and Efﬁcient Inter Mode Decision Algorithm for the H.264/AVC Video Coding Standard.

DOI: 10.5220/0004527800790085

In Proceedings of the 10th International Conference on Signal Processing and Multimedia Applications and 10th International Conference on Wireless

Information Networks and Systems (SIGMAP-2013), pages 79-85

ISBN: 978-989-8565-74-7

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2010) an algorithm based on the rate distortion cost

(RDCost) statistics is also proposed. The differences

between rate distortion costs statistics for each mode

are used to obtain successive adaptive thresholds to

establish several early terminations. In (Ren, 2008b)

a computationally efficient mode prediction and

selection approach is proposed based on the

following attributes: both the spatial and temporal

information are used to achieve early termination

using adaptive thresholds, inclusion of a modulator

capable of trading off computational efficiency and

accuracy, and a homogeneous region detection

procedure for 8x8 blocks based on adaptive

thresholds.

Taking into consideration the spatial

homogeneity and the temporal stationarity of the

current macroblock and in order to reduce the

computational complexity, a fast and efficient mode

decision algorithm is proposed in this paper.

This paper is organized as follows: Section 2

describes the mode decision algorithm for the

H.264/AVC video coding standard. Section 3

highlights the motivation behind the proposed work.

Section 4 is dedicated to the explanation of the

algorithm of the proposed mode decision. The

performance and the experimental results are shown

in section 5. Finally, a conclusion sums up the

findings of paper.

2 MODE DECISION FOR THE

H.264/AVC

The H.264 standard supports various intra prediction

modes and inter prediction modes techniques, where

most of them contribute to the coding efficiently.

2.1 Intra Prediction

The intra-prediction exploits the spatial redundancy

between adjacent macroblocks in a frame. There are

three different intra prediction modes in the

H.264/AVC standard. Intra4x4 (I4_MB), Intra8x8

(I8_MB) and Intra 16x16 (I16_MB), respectively.

The intra16×16 mode has four directional

predictions:

 Intra_16×16_Vertical,

 Intra_16×16_Horizontal,

 Intra_ 16×16_Plane

 and Intra_ 16 × 16_DC.

The intra4×4 mode has nine different directional

predictions:

 Intra_4×4_Vertical,

 Intra_4×4_Horizontal,

 Intra_4×4_Diagonal_Down_Left,

 Intra_4×4_Diagonal_Down_Right,

 Intra_4×4_Vertical_Right,

 Intra_4×4_Horizontal_Down,

 Intra_4×4_Vertical_Left,

 Intra_4×4_Horizontal_Up,and Intra_4×4_DC.

The intra8×8 mode has four directional predictions:

 Intra_8×8_Vertical,

 Intra_8×8_Horizontal,

 Intra_ 8×8_Plane

 and Intra_8 ×8_DC.

In inter-frame coding, intra-modes are also taken

into consideration for seeking the best coding mode

in order to maintain higher encoding efficiency.

2.2 Inter Prediction

The inter prediction exploits temporal redundancy

between macroblocks in different frames. There are

in total seven different block sizes that can be used

in inter prediction (16x16,16x8, 8x16, 8x8, 8x4, 4x8

and 4x4). These different block sizes form two level

of hierarchy inside a macroblock (MB). The first

level includes block size of 16x16, 16x8, 8x16. In

the second level, in which a MB is specified as

P8x8, each 8x8 block can be one of the SubMB 8x8,

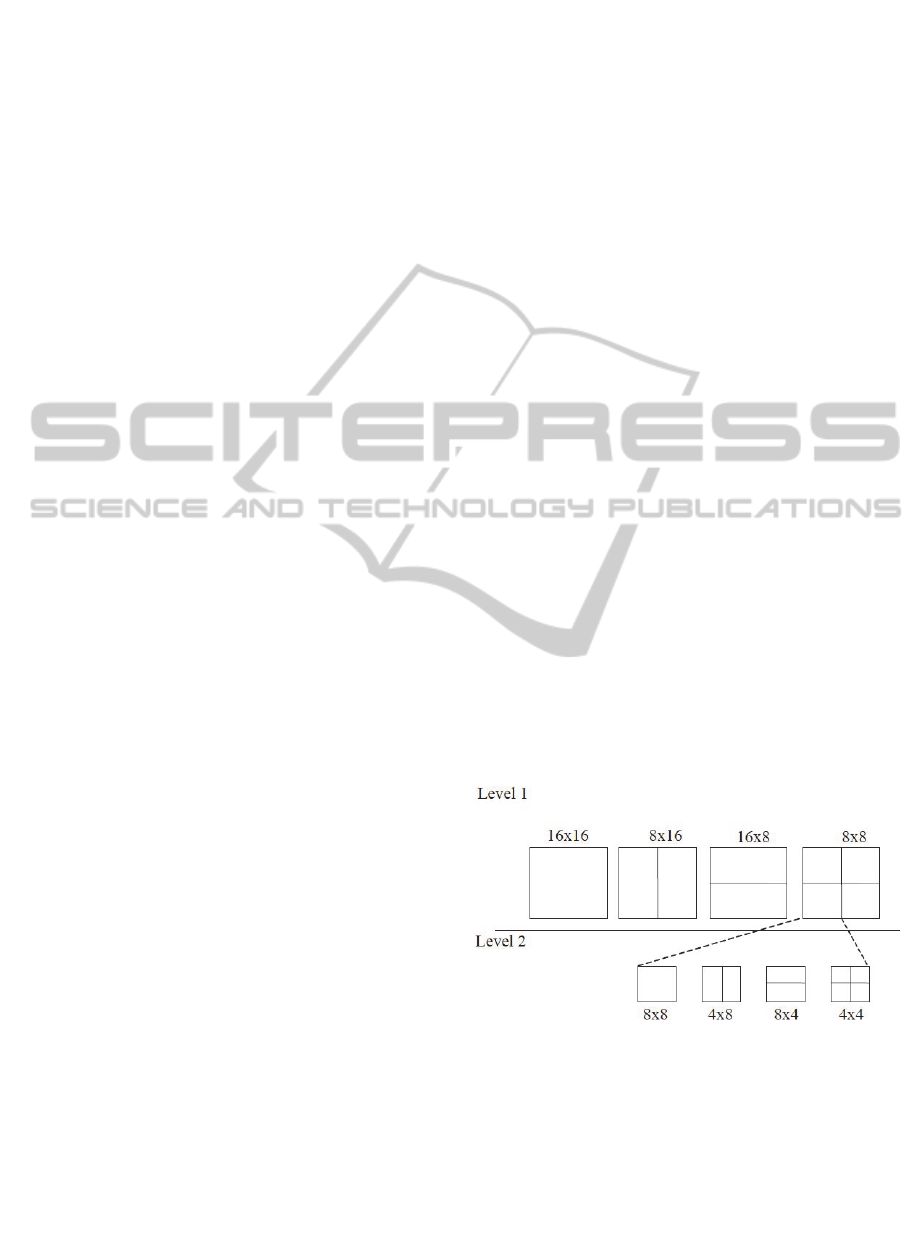

8x4, 4x8, 4x4, respectively. The relationship

between these different block sizes is illustrated in

Figure 1.

Figure1: Different MB partitions and MB sub-partitions.

The whole procedure of inter-modes and intra-

modes in inter-frame coding consists of three parts:

 Calculate the minimum cost of inter-prediction

modes.

 Calculate the minimum cost of intra-prediction

modes.

 Compare the minimum cost of inter-modes with,

SIGMAP2013-InternationalConferenceonSignalProcessingandMultimediaApplications

at least, one of intra-modes to decide on the final

coding mode. If minimum cost of intra-modes is

less than the inter-modes one, then the final

coding mode will be intra and vice versa.

2.3 Mode Decision

The rate distortion cost (RDCost), which helps in

deciding the best prediction mode, is computed

using the Lagrangian function J as follow:

(1)

Where s is the original block and c is its associated

reconstruction, respectively. The sum of the squared

difference (SSD) between s and c is given by:

(2)

The Lagrangian multiplier  is defined by:

(3)

Where R(s,c,MODE|QP) represents the number of

bits (MODE& QP),

MODE={SKIP, 16x16,16x8, 8x16, P8x8}

and QP is the quantization parameter:

QP={0,1, 2, 3, … ,50,51}

The rate distortion cost of all modes in the coding

mode is calculated. The mode decision is made by

selecting the modes having minimum rate distortion

costs, limiting thus the candidate prediction modes

to a small subset. The approach leads to a reduction

of the computational complexity. This concept

constitutes the main idea exploited in this paper.

3 MOTIVATION

To make an algorithm faster is an important aspect

in real time video applications and high performance

low power embedded systems. These challenges,

which are the main motivation behind this proposed

research, are dealt with by exploiting spatial

homogeneity and Temporal stationarity in video to

reduce complexity in encoders.

One of the reasons for adopting different modes

with variable block sizes in H.264/AVC is to

represent the motion more accurately. In general,

homogeneous and/or stationary regions with

motionless are more likely to be coded using large

block sizes, and non-homogeneous or non stationary

regions with motion are to be coded using smaller

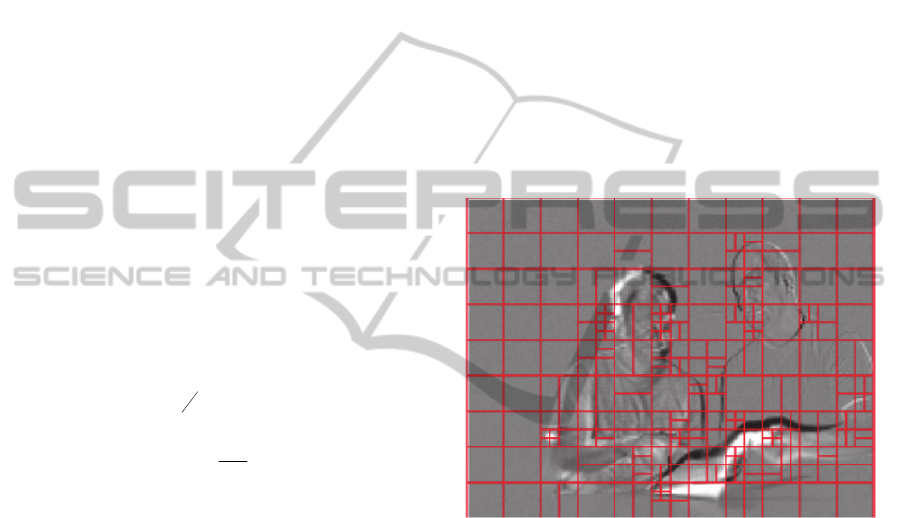

block sizes as illustrated in Figure 2. However, It is

observed in natural video sequences, that there exist

lots of homogeneous and stationary regions and

when objects move, most parts of these objects

move in the similar direction. If we could detect

these homogeneous and stationary regions in the

early stages, a significant time could be saved for the

motion estimation (ME) search and for the rate

distortion optimization (RDO) computations.

Figure 2: Homogeneity in a frame.

4 PROPOSED ALGORITHM

The proposed fast mode decision algorithm is based

on some characteristics of the MB and its collocated

MB in the sequence. Before processing each macro-

block, low level features including spatial

homogeneity and temporal stationarity are extracted.

These features are preferred due to their lower

complexity towards having a real time

implementation.

If a macroblock is homogeneous or stationary,

only large block sizes can be used and small block

sizes can be skipped, which is very useful to reduce

the computation complexity.

4.1 Skip Mode

In the proposed algorithm, the SKIP mode, where no

J(s,c,MODE | QP,



MODE

) 

SSD(s,c,MODE | QP) 



MODE

.R(s,c,MODE | QP)

SSD(s,c,MODE| QP) 

(

[x,y]

[x,y,MODE| QP])

x1,y1

16,16



 (

[x,y]

[x,y,MODE| QP])

x1,y1

8,8



 (

[x,y]

[x,y,MODE| QP])

8,8





MODE,P



0.85 

max(2, min(4,

)) 



MODE,P













AFastandEfficientInterModeDecisionAlgorithmfortheH.264/AVCVideoCodingStandard

motion and no residual information are encoded, is

differentiated from other MB types. Thus, in the first

time, a highest priority is given to this mode.

If a macro-block is encoded in SKIP mode, the

following conditions should be all satisfied :

 The best motion compensated block size is

16x16.(inter mode 16x16).

 The reference frame is the previous frame.

 The best motion vector is the predicted motion

vector.

 The transform coefficients of 16x16 block size

are all quantized to zero.

To decide the skip mode in terms of the above

conditions as quickly as possible becomes the key of

our algorithm. This is achieved by testing the

homogeneity of 16x16 MBs at level one.

4.2 Homogeneity Detection

In general, homogeneous regions have similar

spatial properties and refers to texture similarities

inside a single video frame. There are many

techniques to detect spatial homogeneity in an

image. One method to detect spatial homogeneity is

to exploit edge information. In (Ganguly, 2010) and

(Wu, 2005) edge detection is used to find spatially

homogeneous blocks. In this approach an edge map

is created for each frame using 3x3 Sobel operator.

each pixel in the block will be associated with an

edge vector containing edge amplitude and edge

direction. Another method is proposed in (Rungta,

2010) to evaluate spatial homogeneity by using the

variance of the macro-block. These two approaches

introduce a lot of additional complexity in the form

of pre-calculation cost.

An alternative approach is based on testing

pixels values of the current MB to decide if the MB

is homogeneous or not. The testing homogeneity

procedure is summarized as follows:

i. The mean value of the pixels in a NxN block is

calculated:

Mean

NxN

pi,j

1

i1

(4)

Where, p(i , j) is a pixel intensity at position (i, j) in

the N x N block.

ii. The absolute difference between each pixel in

the block and the mean value of block is

calculated.

ADPM

pi,j‐Mean

(5)

iii. The number of pixels in the block satisfying test

condition 1 (Num_Pix_Less_Th1) is computed

Test condition 1:

ADPMTh1

(6)

Where Th1 is a predefined threshold.

iv. Test the homogeneity of the block as follows:

Test condition 2:

If :Num_Pix_Less_Th1 < Th2,

 then the block is homogeneous,

 otherwise the block is non-homogeneous.

Where, Num_Pix_Less_Th1 represent the number of

pixels in the block NxN less than Th1.

Th2 is the threshold depending on both block size

and a predefined coefficient (%).

Th2NxNxα

(7)

In our experiments the coefficient α is set to 5%.

The threshold Th1 is set equal to 14 in the case of a

macroblock MB and is set equal to 4 in the case of

subMB.

In the first stage, the homogeneity of the 16x16

MB at level 1 is tested. depending on the test

condition the SKIP mode or 16x16, 16x8, 8x16

modes are selected.

In the second stage, the homogeneity of 8x8

subMBs at level 2 is tested. Early sub-partition

termination is considered and the best mode, as

mode 4, is selected.

4.3 Stationarity Detection

Temporal stationarity refers to the stillness between

consecutive frames in the temporal direction. Our

proposed stationarity method detection is based on

the SAD sum of absolute difference between the

current macroblock in the current frame and the

collocated macroblock in the previous frame. The

SAD is computed by:

SAD

cur

i,j‐p

col

i,j

1

i1

(8)

where: p

cur

(i,j) is the pixel in the current MB

and: p

col

(i,j) is the pixel in the co-located MB.

The temporal stationarity is tested by comparing

The SAD with an appropriate threshold Th_S. Then,

if the SAD is less than a certain threshold Th_S, the

macroblock will be encoded in the SKIP mode or in

P_16x16 mode, thus all the other modes can be

skipped.

Several experiments were done for different

types of video sequences at different QP values and

the different threshold were analyzed by the

SIGMAP2013-InternationalConferenceonSignalProcessingandMultimediaApplications

different degradation of video quality to empirically

determine the reliable threshold. These experiments

shown that these Th_S values achieves a good and

consistent performance. Then the average threshold

Th_S can be set according to the following tabulated

values:

Table 1: Threshold Th_S according to QP values.

QP 24 28 32 36

Th_S 750 950 1100 1250

4.4 Overall Algorithm

The proposed algorithm to encode a MB is

developed as follows:

Step 1: Test the homogeneity at level one of the

current MB 16x16.

Step 2: If the 16x16 MB homogeneity is less than

Th_H1 then terminate partition and choose SKIP

mode. (Th_H1=Th2)

Step 3: If the 16x16 MB homogeneity is between

Th_H1 and Th_H2 then perform RD optimization

on the 16x16, 16x8, 8x16 blocks.

(Th_H2=Th2*0.85)

Step 4: If the 16x16 MB is non-homogeneous, then

test stationarity of the MB.

Step 5: If the 16x16 MB is stationary then perform

RD optimization on the 16x16, 16x8, 8x16 blocks.

Step 6: If the 16x16 MB is not stationary then test

homogeneity at level 2 of each 8x8 block in the

current MB.

Step 7: If one of the 8x8 block is homogeneous,

skip the partition of this block and choose the 8x8 as

best mode. After, test other 8x8 subpartitions if not

homogeneous perform RD optimization on 8x8, 8x4,

4x8 and 4x4 blocks.

Step 8: Otherwise, perform a complete RD

optimization on the MB and choose the best mode

among all the modes.

5 EXPERIMENTAL RESULTS

The proposed complexity reduction algorithm was

applied to encode test sequences (Foreman,

Carphone, Salesman, Hall, Container and Akiyo).

For the purpose of evaluation, the reference software

JM16.1 (JVT Reference software) has been used.

Based on the proposed approach and for testing

purposes, a modified version of the JM16.1 software

has been developed. The original and modified

JM16.1 was executed on an Intel Core 2Duo based

computer with 4 Go RAM under windows XP

Professional operating system.

The test conditions are as follows:

 GOP structure is IPPP;

 The number of frames in a sequence is 100;

 The Hadamard transform is adopted;

 The Fast Full Search algorithm is adopted;

 Reference frame number equals 5;

 MV resolution is ¼ pel;

 RD optimization is enabled;

 CABAC is adopted;

The encoding efficiency of the proposed algorithm is

evaluated according to these three parameters:

The encoding time saving rate: Time(%)

∆Time% 

Time

proposed

Time





Time

(9)

The variation of video quality PSNR(dB):

∆  







(10)

Where the Average PSNR of the sequence is defined

as:

PSNR

4.PSNR

PSNR

Cb

PSNR

(11)

The undulation rate of bits: Bit(%)

∆Bit%













(12)

(a)

(b) (c)

Figure 3: Frame N° 50 of the container sequence

(a)Source (b)reconstructed (c) decoded.

AFastandEfficientInterModeDecisionAlgorithmfortheH.264/AVCVideoCodingStandard

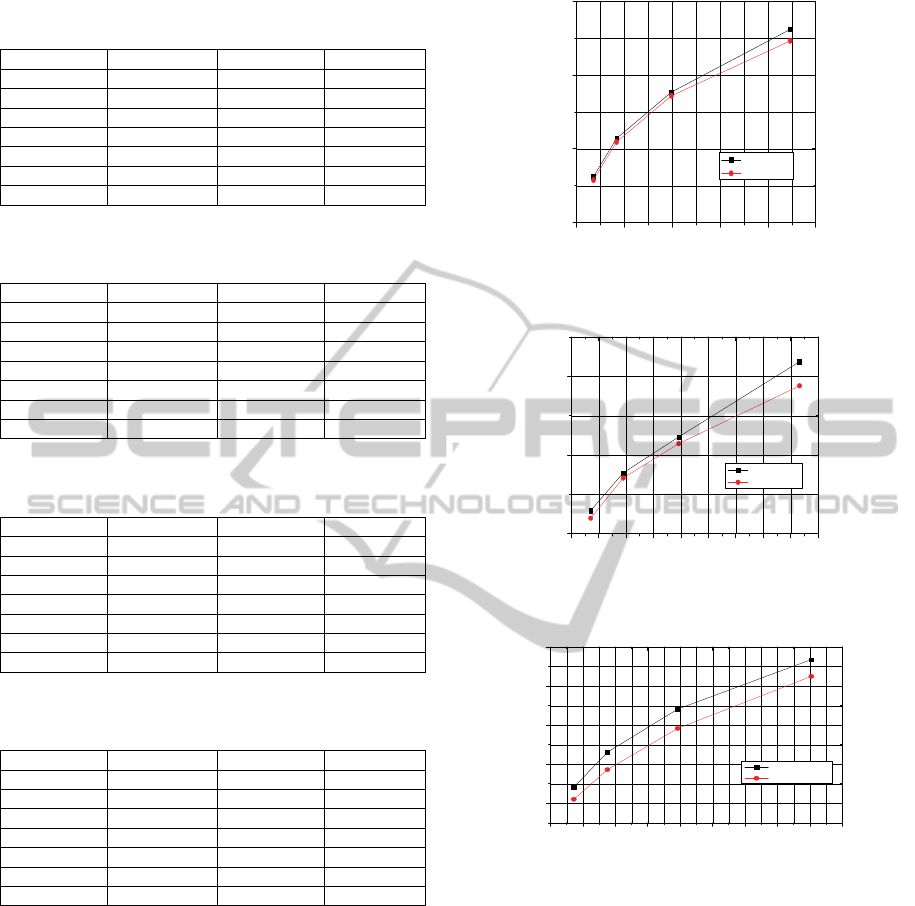

Table 2: Results for “IPPP Sequences (100 frames)” with

QP=24.

Sequence ∆PSNR(dB) ∆Bit(%) ∆Time(%)

Akiyo -0.31 +1.81 -64.56

Container -1.61 +1.13 -48.43

Hall -0.61 +1.15 -39.56

Carphone -1.02 +2.09 -35.59

Salesman -0.28 +2.10 -26.30

Foreman -1.64 +2.34 -23.15

Average -0,91 +1,77 -39,60

Table 3: Results for “IPPP Sequences (100 frames)” with

QP=28.

Sequence ∆PSNR(dB) ∆Bit(%) ∆Time(%)

Akiyo -0.13 +1.02 -65.11

Container -0.82 +0.71 -48.22

Hall -0.17 +1.6 -40.57

Carphone -1.09 +1.42 -37.82

Salesman -0.12 +1.81 -26.13

Foreman -1.12 +2.21 -25.88

Average -0,58 +1,46 -40,62

Table 4: Results for “IPPP Sequences (100 frames)” with

QP=32.

Sequence ∆PSNR(dB) ∆Bit(%) ∆Time(%)

Akiyo -0.10 -0.72 -65.09

Container -0.72 +1.18 -49.32

Hall -0.13 +1.81 -40.98

Carphone -1.09 +1.51 -37.82

Salesman -0.07 +1.12 -26.59

Foreman -0.86 +1.83 -26.13

Average -0,50 +1,12 -40,99

Table 5: Results for “IPPP Sequences (100 frames)” with

QP=36.

Sequence ∆PSNR(dB) ∆Bit(%) ∆Time(%)

Akiyo -0.09 -0.76 -66.90

Container -0.45 +1.15 -51.24

Hall -0.19 +1.82 -39.64

Carphone -0.61 +1.41 -38.37

Salesman -0.10 +0.89 -25.25

Foreman -0.51 +1.91 -26.69

Average -0,33 1,07 -41,35

The above experimental results indicate an

efficient algorithm design that consider both

computation complexity reduction and coding

performance degradation. The proposed method is

very close to JM Reference Software in low bit rate

with less PSNR loss and less bit rate increase.

The rate distortion performance of the proposed

method is shown in the following figures in the form

of R-D curves.

From tables (2, 3, 4 and 5), our experimental

results show that the proposed algorithm achieves

40,64% time saving on average. We can see that the

bit rate increment and PSNR loss depend on the

quantization parameter QP.

Figure 4: Rate distortion curves for JM Ref and proposed

method. QCIF sequence: Akiyo.

Figure 5: Rate distortion curves for JM Ref and proposed

method. QCIF sequence: Hall.

Figure 6: Rate distortion curves JM Ref and proposed

method. QCIF sequence: Carphone.

From the rate distortion curves shown in figures

(4, 5 and 6), we can also see that the rate distortion

degradation is less in low bit rate than in high bit

rate.

6 CONCLUSIONS

A simple and effective scheme for fast mode

decision in the H.264/AVC video coding standard

has been proposed in this research paper. The

scheme exploits the spatial homogeneity and

temporal stationary features in the macroblocks

(MBs) to avoid unnecessary computation. The

10 20 30 40 50 60

PSNR (dB)

Bit Rate (Kb/s))

JMRef

JMProposed

20 30 40 50 60 70 80 90 100 110

PSNR (dB)

Bit Rate (kb/s)

JMRef

JMProposed

20 40 60 80 100 120 140 160 180 200

PSNR (dB)

Bit Ra te (kb/s)

JMRef

JMProposed

SIGMAP2013-InternationalConferenceonSignalProcessingandMultimediaApplications

proposed method, as indicated by the experiments,

provides the best trade-off between coding

efficiency and speed. This simple and effective

reduction of the encoder complexity will be very

useful for real time implementations of the

H.264/AVC standard.

However, the problem with this approach lies in

the fixed thresholds. For the delivery of fast mode

decision performance, the threshold values play a

crucial role on the entire inter mode decision

process. Adaptive thresholds based on spatial and

temporal information can be obtained by analyzing

the texture of the video signal and by analyzing

motion information. So we can improve our method

by adopting an adaptive thresholds used to detect

spatial homogeneity and temporal stationarity of the

macroblocks.

REFERENCES

Richardson I. E. G., 2003. “H.264 and MPEG-4 Video

Compression, Video Coding for Next Generation

Multimedia”, John Wiley & Sons Publications, first

Edition, England.

Wiegand, T., Sullivan, G. J., Bjontegaard, G., and Luthra,

A., 2003. “Overview of the H.264/AVC video coding

standard”, IEEE Transactions on Circuits and Systems

for Video Technology. July. Vol. 13, N°7, pp 560-576.

Bharanitharan, K., Liu, B., Yang, J., Vol. 2010, pp 1-10.

"Classified Region Algorithm for Fast Intermode

Decision in H.264/AVC Encoder". EURASIP Journal

on Advances in Signal Processing.

Young Lee, J., Wook Park, H., Vol. 22, N°3,pp 393-402,

March 2012. “Fast mode Decision Method Based on

Motion Cost and Intra Prediction Cost for

H.264/AVC”, IEEE Transactions on Circuits and

Systems for Video Technology.

Ri, S., Vatis, Y., Ostermann, J., Vol. 19, N°2,pp 302-306,

February 2009. "Fast Inter-Mode Decision in an

H.264/AVC Encoder Using Mode and Lagrangian

Cost Correlation", IEEE Transactions on Circuits and

Systems for Video Technology.

Ren, J., Kehtarnavaz, N., Budagavi, M., 2008a."A Fast

Featured-Assisted Adaptive Early Termination

Approach for Multiple Reference Frames Motion

Estimation in H.264" Springer Journal of Real Time

Image Processing ,vol 3, pp 77-88.

Martinez-Enriquez, E., Jiménez-Moreno, A., Diaz-de

Maria, F., 2010. "An Adaptive Algorithm for Fast

Inter Mode Decision in the H.264/AVC Video Coding

Standard", IEEE Transactions on Consumer

Electronics, May. Vol 56, N° 2,pp 826-834.

Ren, J., Kehtarnavaz, N., Budagavi, M.,

2008b."Computationally Efficient Mode Selection in

H.264/AVC Video Coding" IEEE Transactions on

Consumer Electronics, May. Vol 54, N° 2,pp 877-886.

Wu, D., Pan, F., Lim, K. P., Wu, S. Z., Li, G., Lin, X.,

Rahardja, S., Ko, C. C., 2005. “Fast Intermode

Decision in H.264/AVC Video Coding”, IEEE

Transactions on Circuits and Systems for Video

Technology, July. Vol. 15, N°6, pp 953-958.

Ganguly A., Mahanta, A., 2010. "Fast Mode Decision

Algorithm for H.264/AVC using Edge Characteristics

of Residue Images", ICVGIP'10, 12-15 DECEMBER,

Chenai, India.

Rungta, S., Verma, K., Shukla, A., 2010. “A Fast Mode

Selection Algorithm Using Texture Analysis for

H.264/AVC”, International Journal of Computer

Sciences Issues, July. Vol.7, Issue 4, N°9, pp. 40-44.

JVT Reference Software Version 16.1, available at

http://iphome.hhi.de/suehring/tml/download/.

AFastandEfficientInterModeDecisionAlgorithmfortheH.264/AVCVideoCodingStandard
