Continuous Improvement of Geographic Data Production Processes

Approach and Results of a Case Study

Wolfgang Reinhardt and Thorsten Bockmühl

Institute of Applied Computer Science, University of the Bundeswehr München, Neubiberg, Germany

Keywords: Quality of Geographic Data Production Processes, Continuous Improvement, Process Indicators.

Abstract: The quality of products – in this case the quality of geographic data representing the facilities of utility

companies – depends not only on the used sources and methods of data acquisition but is also significantly

affected by the processes applied for the production of geographic data. Study and optimization of

production processes are important topics in manufacturing for many years and are widely known as

»Process-Based Quality Management«. This means that besides the quality of the final product, the quality

of the production processes is also of high interest. In this paper an overview concerning a three years study

is given, in which a methodology for a continuous improvement of the geographic information production

processes has been developed and applied. Also key figures to describe the quality of products and

processes have been suggested. These key figures have been analyzed over a longer period. The overall

objectives of this procedure are to reveal the quality of products and processes, to detect deficiencies and

weaknesses of the processes and to prove the effectivity of changes of the processes.

1 INTRODUCTION

Quality is an important characteristic of products,

maybe the most important one in many cases.

Therefore, quality assurance is of high importance

for all kinds of productions. Consequently much

effort has been spend to improve it in manufacturing

for many years ended with the development of the

more general concept of Quality Management

(QM). Key drivers for this development were mainly

different industrial branches primarily in Japan, the

US and in Europe. According to (ISO 9000, 2005)

Quality is understood as “the degree a set of inherent

characteristics which fulfill requirements”.

Geographic data quality, also called spatial data

quality, has been a core sub-discipline of

Geographic Information Sciences / Geomatics since

its early development and various related issues have

been investigated. Although there are several issues

which are still subject of intensive research, the ISO

standard 19113 “Geographic information - Quality

principles” establishes the principles for describing

the quality of geographic data and specifies

components for reporting quality information. It also

provides an approach to organize information about

data quality (ISO19113, 2001).

The quality elements defined in ISO 19113 for

describing the quality of geographic data are shortly

outlined here:

 Completeness

 Logical consistency

 Positional accuracy

 Temporal accuracy

 Thematic accuracy

Quality Management (QM), according to ISO 9000,

comprises various organized actions and

arrangements to improve products, processes and

services. The fundamental elements of QM

(Mahoney and Thor, 1994) are:

 Total involvement (of the organization)

 Continuous improvement (processes)

 Customer orientation

One other important feature of QM shall be

mentioned also, which is the Process orientation. It

means that in organizations the overlapping

processes become more important instead of

functions and rigid hierarchies. The definitions for

quality refer to the quality of products and services

but all relevant QM concepts point out that the

quality of the production processes is very important

and of course, have an essential influence on the

quality of the product, e.g. Masing (1994). Quality

of processes will be discussed in section 2.

ISO 9000 is a series of five international standards

344

Reinhardt W. and Bockmühl T..

Continuous Improvement of Geographic Data Production Processes - Approach and Results of a Case Study.

DOI: 10.5220/0004530303440350

In Proceedings of the 4th International Conference on Data Communication Networking, 10th International Conference on e-Business and 4th

International Conference on Optical Communication Systems (ICE-B-2013), pages 344-350

ISBN: 978-989-8565-72-3

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

for quality management. The content of these

standards and instructions for the application and

implementation is published widely, e.g. Mahoney

and Thor (1994). An important concept of ISO 9000

for our work is Process-based Quality Management

(PQM) which is also called process-oriented

Management by some authors. Some of the key

characteristics are:

 Important activities and resources in enterprises

shall be described as processes and shall be

controlled accordingly

 Cross-functional processes need to be identified,

understood and controlled accordingly

 The continuous improvement (CI) of the

processes is a permanent goal of an organization

One of the reasons why these standards became well

known was the fact that organizations could be

certified according to ISO 9000 by specific

legitimated third-party agencies. In this paper we are

not focusing on certification but on the principles of

ISO 9000 as these principles can guide every

organization who is implementing a QM system, and

are therefore of high interest in this context.

As mentioned, quality of spatial data is

investigated intensively but process quality and

quality management have not been discussed much

in the geographic domain. The application of PQM

to production processes of geographic data

especially to so-called GIS based Facility

Management Systems (FM-Systems) within utility

companies were investigated by Stürmer (2007).

Within the framework of a project funded by the

research unit of the German Society for Quality

(DGQ), a PQM related to update processes for

geographic data in utilities was developed

(Bockmühl and Reinhardt, 2008). This project

triggered the idea to evaluate the concepts developed

in a practice study over a longer period. The

intended goal of the study is to measure the effects

of changes in processes, e.g. when new data check

methods have been introduced which in other words

is the implementation of a continuous improvement

cycle for geographic data production processes. For

this reason suitable measures had to be developed. In

this paper our main focus is put on introducing a

developed methodology of CI as well as the results

of a case study where this methodology was applied.

Also we focus on explaining which measures can be

used to unveil the effects of changes of processes.

The remainder of this paper is organized as

follows: In section two we will give an overview

about principles of process tracing and general

approaches for CI. We will discuss approaches to

define process quality in general and outline how

this can be applied for geographic data production

processes. In section three some basics of PQM and

its application to FM-systems at utility companies

within the framework of the project “PQM-NIS”

will be outlined. This is followed by a description of

the case study which has been carried out, its

background, organizational requirements and goals

as well as the basic approach of the study, the

analysis of ratios, developed from process related

data and the results of the study. Finally some

conclusions are drawn.

2 PROCESSES – BASICS,

QUALITY MODEL

AND CONTINUOUS

IMPROVEMENT

2.1 Background and Overview

A process in the context of this paper is understood

as any kind of single or connected activities which

has / have input and output. These activities shall be

targeted on the output, for example a product of

required quality, see e.g. (Masing, 1994).

As already mentioned, processes have to be

monitored and checked (and improved if necessary)

continuously. As a general approach for this task the

method DMAIC (Define - Measure - Analyse -

Improve - Control) is very suitable (see Mahoney

and Thor, 1994). It includes the following steps:

Define: Define the goals of the process together

with the customer (user). Emphasize on the process

output and specific characteristics which are chosen

together with the customer.

Measure: Measure the characteristics through

suitable metrics (indicators) to determine the actual

state of the process.

Analyze: Analyze the characteristics of the process

and detect the reason for weaknesses and

deficiencies.

Improve: Improve the process based on the results

of the analyses and discussions with the customer

Control: Check the results of the re-organized

processes.

Figure 1 illustrates the CI process adapted to

geographic production processes. These general

concepts give us guidelines for the CI methodology

we have to develop. But we further need:

 A quality model suitable for geographic data

production processes which includes proper

ContinuousImprovementofGeographicDataProductionProcesses-ApproachandResultsofaCaseStudy

345

quality elements

 A way to link the quality elements with the

characteristics of the process defined by the

customer

 Metrics for the quality elements

These issues will be discussed in the next sections.

Figure 1: Continuous improvement of geographic data

production processes (adapted after ISO 9000).

2.2 A Process Quality Model and Its

Application

As QM is applied in a very large variety of domains

from health care to mechanical product production

and in our case to the production of geographic data,

it is clear that the indicators of process quality must

be different in the various domains. That means,

criteria for the process quality have to be developed

in a domain specific way. To the knowledge of the

authors, such criteria have not been published for

geographic data production processes. As a

consequence these criteria for our case study had to

be defined by ourselves. A literature study showed

that several authors suggested considering software

quality characteristics for the measurement of the

quality of general business processes. Quality

characteristics for software product quality are

defined in the ISO/IEC 9126 standard (Satpathy et

al.,

2001). Table 1 includes this generic process

quality model.

This model is very comprehensive and due to its

generic approach it offers quality elements for all

process characteristics. That means in each

application the quality focus have to be defined first

and according to this focus the proper elements have

to be chosen from this list (table 1). This selection

process needs intensive discussions with users to

define the focus clearly. In other words: each

organization can define its own profile of a quality

model, even various profiles for specific cases.

Table 1: Factors and examples of sub-factors of the

generic process quality model, after Satpathy et al.,

(2001).

Functionality

Compliance, Completeness,

Consistency, Security

Usability

Understandability, Learnability,

Operability

Efficiency and

Estimation

Cost/ Effort estimation, Cycle Time,

Complexity estimation

Visibility and

Control

Progress, Monitoring, Improvement

Measures

Reliability Failure Frequency, Fault Tolerance

Safety Risk avoidance

Scalability Scalability

Maintainability Analyzability, Modifiability, Stability

To structure this discussion a methodology

which supports the selection of the suitable elements

(and related metrics) for the specific characteristics

of a process would be helpful. A very common

method for such purposes is the Goal-Question-

Metric (GQM) methodology (Satpathy et al., 2001).

GQM is applied in a certain project in a way that at

first the general goals are specified (together with

the customer). An example of a general goal would

be to study the efficiency of certain processes. To

come to a more precise view and to define metrics a

set of questions have to be formulated. Table 2 gives

an example of the application of GQM.

Table 2: Example of GQM application.

Goal

Object of study: Selected data acquisition

process

Purpose: To assess

Focus: E.g. Functionality

Points of view: Relevant actors

Question

Are the data check methods in data capture

suitable?

Metric: Number of errors detected.

The process quality model introduced here

together with the GQM method is a suitable

framework for implementing a CI for geographic

data production processes. But it has to be

emphasized that it requires intensive discussions

with customers (users) who have good process

knowledge to select the quality elements, to ask the

proper questions and to choose the metrics (see 3.2).

3 THE CASE STUDY

3.1 Background of the Study

In many countries utility companies are committed

by legal regulations to keep records of the position

and other properties of their facilities like pipes,

ICE-B2013-InternationalConferenceone-Business

346

cables etc. These facilities are stored in GIS based

Facility Management (FM) Systems, also called

Network Information Systems (NIS). The

continuous updating of the data bases is a very

important permanent task.

The data (and the GIS) is used for many

purposes like the construction of new facilities,

failure management (e.g. in case of a breakdown),

planning of network extensions etc. In the case of

any road constructions which require digging the

data also is used to avoid damages of pipes and

cables. Therefore, utility companies have a high

interest in ensuring the quality of their geographical

and other data.

Against this background, in 2007, the project

“PQM-NIS” was started with the general goal to

develop a PQM for the updating processes of the

data bases of utility companies. The results were

comprised in a best practice booklet which includes

the description of the relevant basics and the update

processes, the quality relevant actions as well as a

guide to introduce a PQM. For details see Bockmühl

and Reinhardt (2008).

Within this project the idea was born to prove the

effects of a PQM in practice and especially to

implement a CI for the update processes and study

the effects over a longer period of time. Finally the

case study was started in 2011. The details are

explained in the following sections.

3.2 Approach of the Case Study

The study has been carried out with five utility

enterprises in the southern part of Germany. The

study is scheduled to be carried out till December

2013. The paper includes results from the first two

years (2011-2012).

The strategic goals of the study:

 To detect deficiencies in the processes and to

identify options to eliminate them.

 To demonstrate quantitatively that any changes

of the processes were effective (or not). Typical

process changes are for example the introduction

of new check methods.

To convert these strategic goals to operative goals

the following steps have to be carried out:

 Selection of processes /sub-processes which shall

be traced

 General PQM activities

 Definition of the detailed (operative) goals and

metrics

These issues are discussed in the next sections.

Selection of Processes /Sub-processes. The

selection of processes and/or sub-processes has to be

carried out with very good process knowledge e.g.

by involving the relevant actors of the processes. In

this case processes had been selected which the

involved operators indicated as “high potential for

improvements”. These processes were “Data

Capture” (DC), that is data acquisition of newly

constructed pipes (geometry and attributes), mainly

pipes that are connecting houses to main pipes and

“Data Input to GIS (DI GIS)” which consists of

“Preparation”, “Input of data into GIS” and “Quality

Assurance in GIS after input” (see fig. 2).

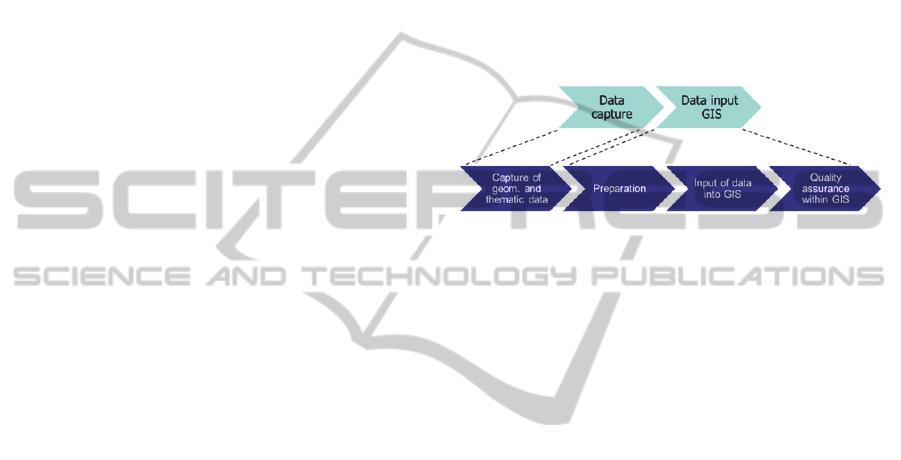

Figure 2: Processes considered in the case study.

General PQM Activities. To perform such a study

and to implement a QM-concept like CI requires a

series of additional actions which are also very

important for the success of such a project like

 the involvement of people or

 the compilation of relevant documents e.g.

process descriptions etc.

With regard to the length of the paper these issues

are not discussed.

Refinement of Goals. This step was also carried out

together with different actors of the processes of the

enterprises. It was agreed with the partners that the

main focus within the first part of the project should

be put on efficiency of the processes as it was

known that the performance within some of the sub

processes was pretty low. Other issues were the

categories and the number of detected errors within

these categories. To refine this and to choose metrics

the GQM method (see section 2) was applied. Table

3 presents some of the results of this part.

The factors and sub-factors of the generic

process quality model (included in “focus” in the

table) together with the GQM method allows for a

user-defined adaption to any other goals. An

important step is, as usual in QM, an involvement of

people to include their deep process knowledge.

To be able to determine the metrics relevant

measurements have to be performed, preferably

automatically whenever it is possible. Some remarks

on terminology: the term “metrics” in GQM is called

“process indicators” or “ratios” in general literature

ContinuousImprovementofGeographicDataProductionProcesses-ApproachandResultsofaCaseStudy

347

on business processes. Therefore the term ratio is

used in the following.

Table 3: Result of the GQM application.

Goal 1

Object of study: Processes DC / DI GIS

Purpose: To assess

Focus: Functionality

Points of view: Relevant actors

Question

Are check methods in DI GIS suitable to detect

errors?

Metric: Number of errors detected by a

specific method.

Goal 2

Object of study: Processes DC / DI GIS

Purpose: To assess

Focus: Efficiency

Points of view: Relevant actors

Question 1

Is the duration of considered processes / sub-

processes adequate?

Metric: Process duration (in days).

Question 2

Is the elapsed time of certain sub-processes

(e.g. problem management) adequate?

Metric: Elapsed time of the sub process (in

hours).

Procedure applied in the Study. In the first period

of the project the documentation of the processes

and workflows of the enterprises were checked and

completed. Also some software components were

developed to be able to collect the necessary process

information and to calculate the defined process

ratios. At the end of the first year we were able to

start with the process of collecting data, calculate

ratios, analyze the ratios and recommend process

changes. The calculation of ratios was performed

monthly.

3.3 Results of the Case Study

In this section we present selected results from the

study to illustrate the methodology and to discuss

the most important issues. Due to the length of the

paper this requires a rather restrictive selection.

Please note that with respect to data privacy

protection all the data have been biased mainly in

the absolute values, but all the effects described here

have been observed with the real data.

The first area of interest was the duration of jobs

related to processes and sub processes. Figure 3

shows the average duration of jobs (including data

capture and data input to GIS) for one of the

involved enterprises for a period of 9 month. In

green colour the jobs without any problems and in

blue colour the jobs with problems are given.

Problem in this case means that something was

unclear and had to be clarified by further

investigations e.g. phone calls or discussions with

people who were involved in the job. In red colour

the duration is given which was needed to solve the

problem. Figure 4 includes the corresponding

durations of the sub processes of the processes DC

and DI GIS.

These figures illustrate some important facts:

o The duration of jobs (DC and DI GIS) in general

is very long (around 100 days!). The target

duration (which is the goal) of the enterprises is

different, but is between 20 and 40 days. In

general the utility companies would need a

higher up-to-dateness, but with regard to the

costs they accept these duration of 20-40 days.

o In case of problems the duration of jobs is

around 30% higher than without problems.

o At around 10-15% of the jobs problems

occurred. With regard to the time needed for

problem management there is a high potential for

savings if it’s possible to reduce this percentage.

o Figure 4 also shows that for the sub process

capture of data the duration is at least double

compared to other sub processes. This is not

caused by a very complex data capture but just

by the fact that the delivery of the results in

general is delayed.

Figure 3: Duration of jobs (DC and DI GIS) for a period of

9 month.

o Data capture in general is performed by external

companies or the companies who are doing the

construction. Figure 4 shows that after 5 months

the average duration of data capture was reduced

by about 30%. This was just caused by

negotiating with the external companies and a

change of the contracts. It is expected that this

will be reduced even more in future.

o Also the duration of the input of data into the

GIS is pretty high (around 30 days). This is due

to limited human resources working for this task.

In future organizational changes shall help to

decrease the duration of this step also.

o In general there is still a high potential to reduce

the duration of the jobs especially related to data

ICE-B2013-InternationalConferenceone-Business

348

capture or the delivery of the results respectively

and related to the data input to GIS.

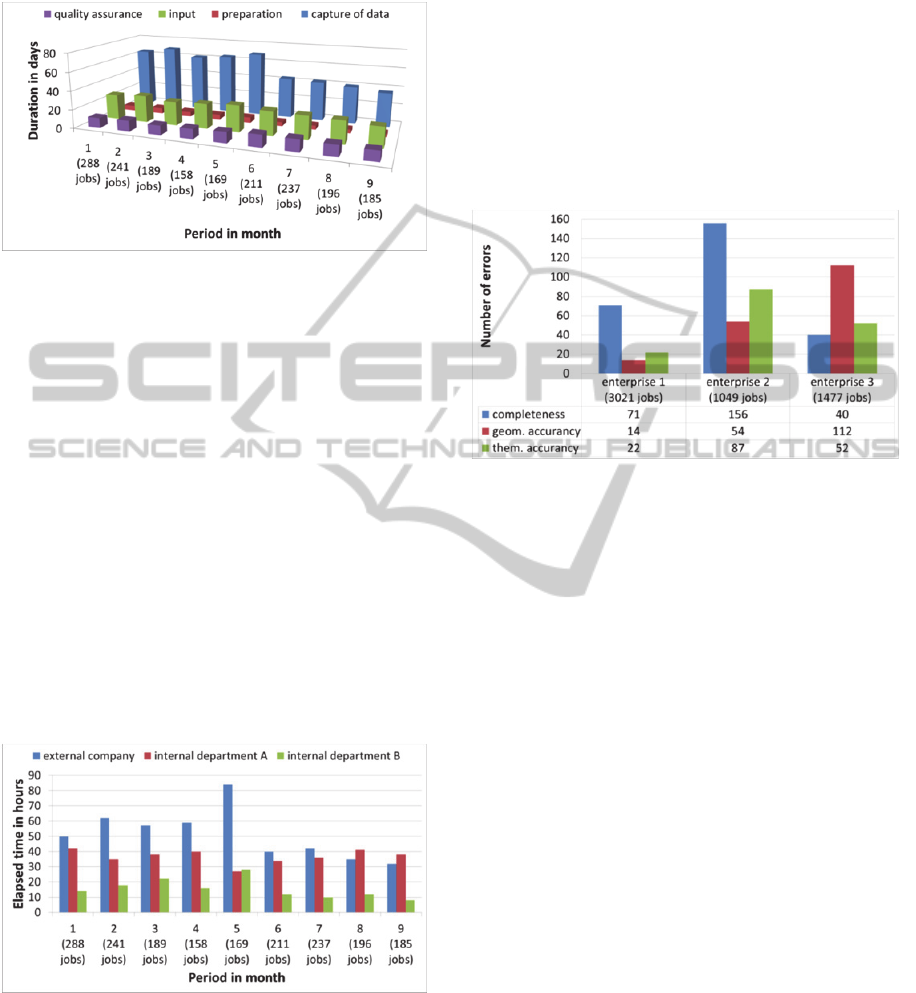

Figure 4: Duration of sub processes for a period of 9

month.

Figure 5 shows the average elapsed time per job

for problem management (not the duration as in the

other cases!). Problem management means finding

the reason for the problem and/or clarifies the

situation and delivers a correct data capture result.

o The average duration of problem management is

around 40 h per job, which none of the orgs

would have expected. It also can be recognized

that there are considerable differences between

the internal departments and the external

company dealing with that. The reason for this

has to do with education / skills of people and

cannot be further discussed here.

o The reduction of the elapsed time of problem

management after 5 months, which can be seen

also in figure 5, was caused by an organizational

change in the problem management process.

Figure 5: Elapsed time for problem management of

different org units.

Figure 6 shows examples of detected errors of

certain error types aggregated for 6 month.

o It clearly shows that in two enterprises the

number of incomplete data sets were much

higher than in the third one. It is assumed that the

reason for this was an unclear communication of

the rules what the data set should include. This

figure also shows a very high number of

geometric errors (detected after input into the

GIS and corresponding checks) for one

enterprise. In this case the reason probably was

that not proper skilled personal (construction

workers) did the surveying. In future these

assumptions have to be verified. Generally in

both cases a considerable reduction of the

corresponding numbers of errors is expected.

Figure 6: Detected numbers of errors of certain error

types.

These examples show that the methodology

developed and applied offers the opportunity to

analyse processes based on objective figures. In

principle much more data can be captured and

analysed in this context as we were able to

demonstrate. In our case study the findings about the

duration of the projects and the possible

improvements (e.g. shorter durations) leaded to

further and deeper investigations related to the

efficiency of the processes so that other issues have

been neglected in the first period of the project.

4 CONCLUSIONS

AND OUTLOOK

We have presented a methodology for a continuous

improvement of geographic data production

processes based on objective figures and results

from its practical application. Continuous

Improvement is one of the most important parts of a

process-oriented quality management. This method

allows for a quantitative presentation of the quality

of data production processes as well as the product

(geographic data). A variety of different kind of

information can be used as quantitative measures

(also called process ratios) like efficiency or

functionality indicators. Based on time series of

ContinuousImprovementofGeographicDataProductionProcesses-ApproachandResultsofaCaseStudy

349

these ratios, reorganizations of the processes can be

designed and its effectivity can be checked and

verified.

The method has been applied to geographic data

production processes within utility companies but

the method doesn´t include any utility specific

things. In consequence it can be applied to the whole

geographic data domain. The only things which of

course can be specific are the processes itself which

means that the analysis of the processes itself can be

specific also.

Also the generic process quality model

(presented in 2.2) is that comprehensive and allows

for a specific adaption with regard to the focus of the

specific investigation. In our case study mainly

efficiency issues have been discussed but in other

applications the focus can be different, of course.

Within the remaining period of the study we will

focus on untreated process characteristics and we

will investigate the usage of other analysis methods,

e.g. methods of the Seven Basic Tools of Quality.

ACKNOWLEDGEMENTS

The financial support of this work as well as the

successful cooperation with the utility companies

Netrion GmbH, energis GmbH, Netzdienste Rhein-

Main GmbH and Stadtwerke München is gratefully

acknowledged.

REFERENCES

Bockmühl T., Reinhardt W., 2008. Leitfaden zur

Entwicklung eines prozessorientierten

Qualitätsmanagements für die Produktion von

Netzinformationen in Versorgungsunternehmen. FQS

Forschungsgemeinschaft Qualität e.V, FQS-DGQ-

Band, 83-04.

ISO 19113:2002 Geographic information — Quality

principles.

ISO 9000:2005 Qualitätsmanagementsysteme –

Grundlagen und Begriffe.

Masing W (ed.), 1994. Handbuch Qualitätsmanagement.

München, Wien, Hanser.

Mahoney F X and Thor C G 1994 The TQM Trilogy,

AMACOM.

Satpathy M, Harrison R, Snook C, Butler M 2001 A

Generic Model for Assessing Process Quality, Lecture

Notes in Computer Science. Berlin, Heidelberg,

Springer: 94–110.

Stürmer S 2007 Qualitätsgesicherter Aufbau digitaler

Netzdokumentation - Möglichkeiten, Grenzen und

Risiken von PQM, Dissertation (Ph.D. Thesis), UniBw

München

ICE-B2013-InternationalConferenceone-Business

350
