HyVVE

A Voronoi based Hybrid Architecture for Massively Multiplayer On-line Games

Laura Ricci, Luca Genovali and Barbara Guidi

Department of Computer Science, University of Pisa, Pisa, Italy

Keywords:

Distributed Virtual Environments, Voronoi, Delaunay, Load Balancing.

Abstract:

Massively Multiplayer Online Games (MMOGs) have gained a lot of popularity in recent years. The problem

of deﬁning a proper architecture supporting MMOGs is still a research challenge because the classical client

server architecture mainly adopted in commercial applications presents several drawbacks like unsatisfactory

scalability and limited fault tolerance. This paper presents HyVVE (Hybrid Voronoi Virtual Environments),

an hybrid architecture exploiting both server and P2P nodes. HyVVE exploits a Voronoi tessellation of the

virtual world to distribute the load for the management of the virtual entities among the server and the peers.

The paper presents a set of experimental results proving the effectiveness of our approach.

1 INTRODUCTION

Distributed Virtual Environments (DVE) (Ohnishi

et al., 2005a; Bharambe et al., 2006; Yu and Vuong,

2005; Knutsson et al., 2004; Carlini et al., 2013) en-

able geographically distant users to communicate, in-

teract and collaborate within a virtual environment. In

particular, online gaming entertainment has acquired

lots of popularity in the last years from both industry

and research communities. The market size of online

gaming has received a 5 billion evaluation in 2010,

while the number of total users have reached around

20 million worldwide.

Currently, most commercial Massively Multi-

player Online Games (MMOGs) rely on a client

server architecture which supports a straightfor-

ward management of the main functionalities of the

MMOG, such as user identiﬁcation, management of

the state of the virtual world, synchronization be-

tween players, and billing. However the most im-

portant drawback of these architectures is their lim-

ited scalability which prevent a satisfactory playabil-

ity when huge amounts of concurrent users are play-

ing simultaneously.

Recently several solutions based on P2P based

MMOG have been presented. The main advantage

of these solutions is that they are inherently scalable

because when the amount of users grows, more re-

sources are added to the infrastructure. However, a

pure P2P-based approach is barely feasible. As a mat-

ter of fact, the lack of a centralized authority makes it

complex to enforce security, consistency of concur-

rent updates to the state of the virtual world and per-

sistence of its state when a few players are present in

the virtual world.

An interesting alternative exploiting the advan-

tages of both the client/server and of the P2P archi-

tecture is to deﬁne an hybrid solution which properly

distributes the functionalities of the MMOG among

the server and the peers. For instance, the state of

the virtual world may be partitioned and distributed to

the server and to the peers by exploiting the locality

property characterizing most MMOGs. As a matter of

fact, an avatar generally interacts with other entities

(avatars and passive entities) located in its proximity,

i.e. in its Area of Interest, AOI. A simple solution is to

deﬁne a partition of the state of the MMOG where a

peer manages the entities in its AOI, while the server

manages entities located in areas not covered by the

AOI of any peer. This solution is simple, however it

does not resolve the problem of the ownership of the

entities which are located in the intersection of the

AOI of a set of peers.

In this paper we propose HyVVE, Hybrid Voronoi-

based Virtual Environment, an hybrid architecture

based on a Voronoi Tessellation (Aurenhammer,

1991) of the virtual world which exploits the local-

ity of MMOGs.

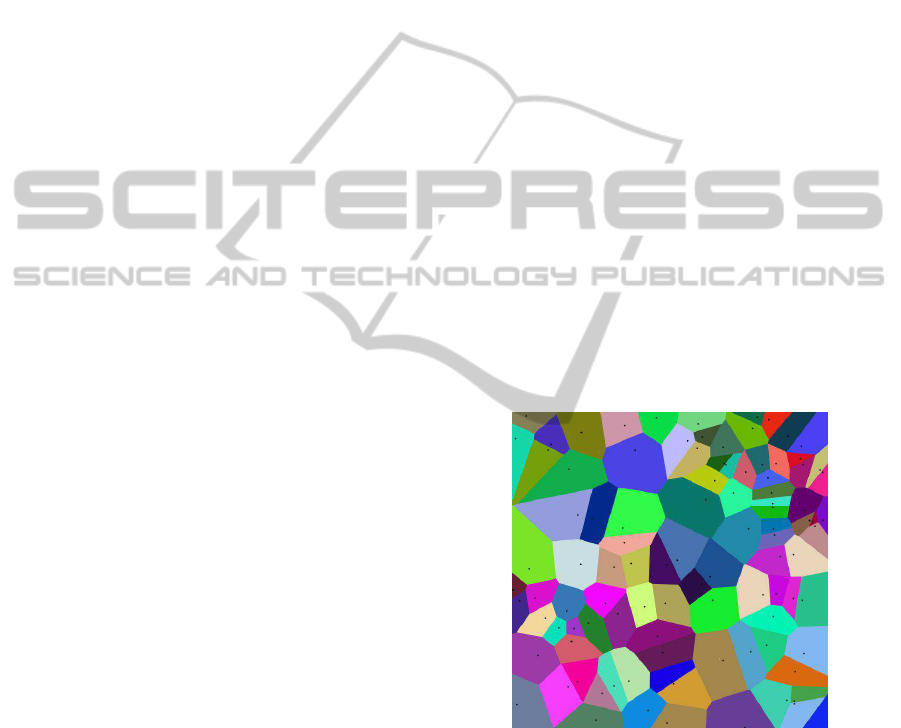

Given n sites in an euclidean space, a Voronoi tes-

sellation partitions the virtual world into n areas such

that the area corresponding to a site n includes all the

points which are closer to n with respect to any other

site.

Ricci L., Genovali L. and Guidi B..

HyVVE - A Voronoi based Hybrid Architecture for Massively Multiplayer On-line Games.

DOI: 10.5220/0004531900150023

In Proceedings of the 4th International Conference on Data Communication Networking, 10th International Conference on e-Business and 4th

International Conference on Optical Communication Systems (DCNET-2013), pages 15-23

ISBN: 978-989-8565-72-3

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

In a Voronoi based MMOG, the position of each

peer in the virtual world is exploited to deﬁne the

Voronoi tessellation of the world which is exploited

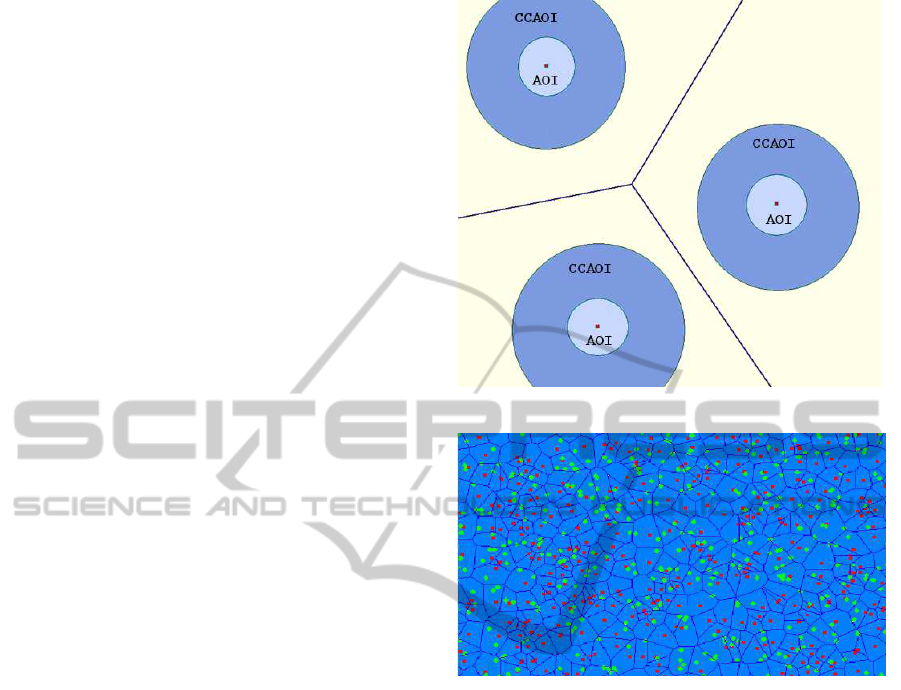

to assign entities to the peers/server. In HyVVE the

entities assigned to a peer are those belonging to the

intersection of its CCAOI, a circular area represent-

ing a super-set of its AOI, and of its Voronoi area.

We consider a superset of the AOI of a peer to imple-

ment a prefetching of the entities close to the border

of the AOI of the peer. The server manages all the

entities belonging to areas not covered by the CCAOI

of any peer. The solution where a peer manages all

the entities in its Voronoi area is not feasible, because

when a few peers are present in the virtual world,

the number of entities assigned to a peer would be

huge, and the peer would not be able to support such

a load, especially if its computational capability is

not high. HyVVE supports a load distribution mech-

anism which scale in a natural way. When the world

is scarcely populated, most entities are mapped to the

server. However, the server load is not high in this

case, because a few entities are accessed and modi-

ﬁed by the peers. When the number of the peers in-

creases, the amount of entities assigned to the peers

increases proportionally so that the load is distributed

between the peers. In a crowding scenario, i.e. when

a huge amount of peers gather in the same region of

the world, the entities located in that region are man-

aged by these peers, while the server manages entities

belonging to inhabited regions of the virtual world.

In this scenario, where peers are close to each other

and their AOIs intersect, the ownership of the entities

is deﬁned by considering the Voronoi regions of the

peers. When a conﬂict occurs because an entity is

located in the CCAOI of a set of peers, the Voronoi

tessellation is exploited to determine the owner of the

entity. Since each point of the space is mapped to a

unique Voronoi Area, each entity of the virtual world

is assigned to a unique node peer.

The paper is organized as follows. Section 2 dis-

cusses the state of art in the area of Voronoi based

virtual worlds. Section 3 introduces the mathemati-

cal notions which are the basis of our approach, while

section 4 discusses how Voronoi tessellation can be

exploited for the deﬁnition of virtual environments.

Section 5 describes the architecture of HyVVE. A

set of experimental results are presented in Section

6, while Section 7 reports some conclusion and dis-

cusses future works.

2 RELATED WORKS

Voronoi diagrams and Delaunay-based overlays are a

well know solution to maintain network topology for

P2P virtual environments.

One of the ﬁrst works along this line is VON (Hu

et al., 2006; Hu et al., 2008; Jiang et al., 2008).

VON exploits a Voronoi division of the DVE in order

to manage event dissemination in a scalable manner.

VON deﬁnes an overlay such that each peer maintains

a direct connection with all the peers within its AOI.

In order to maintain overlay connectivity, each peer

also has a direct link with peers that may also be out-

side of the AOI. To reduce bandwidth consumption,

VON has been further upgraded with an enhanced

event dissemination system (Jiang et al., 2008) and

state management (Hu et al., 2008).

VoroGame (Buyukkaya and Abdallah, 2008; Cav-

agna et al., 2008; Cavagna et al., 2009), proposes an

hybrid architecture for the management of passive en-

tities. Their architecture combines a Voronoi-based

network and a Distributed Hash Table (DHT). Two

different peers, one for each overlay, are responsible

for each entity in the DVE. Voronoi nodes are respon-

sible and maintain a copy for any of the entities that

are in their Voronoi area. They also maintain, for each

of these entities, a list of peers that have to be notiﬁed

for a state change of the given entity. This list is peri-

odically sent to the corresponding DHT node, whose

task is to broadcast state updates.

The work in (Varvello et al., 2007) proposes a

solution to deal with cluster of players in Delaunay-

based topologies. They employ a ﬂooding messaging

strategy to spread notiﬁcation inside the AOI. How-

ever, when a peer detects the message rate to exceed

its maximum capacity, it triggers a procedure for clus-

ter management. This procedure logically collapses

the cluster to a single point, allowing communications

to temporarily skip many small neighbouring Voronoi

regions, which helps reduce the communication over-

head. The approach has been proved effective with

realistic movement traces from Second Life.

The deﬁnition of a P2P overlay for MMOG based

upon Voronoi Diagrams has been investigated in

(Bonotti et al., 2007; Ricci and Salvadori, 2007; Gen-

ovali and Ricci, 2009; Genovali and Ricci, 2008a;

Genovali and Ricci, 2008b; Ricci et al., 2011) (Jiang

et al., 2008; Lee and Lam, 2008; Ohnishi et al.,

2005b; Hu et al., 2006). Some recent proposals

(Ohnishi et al., 2005b; Varvello et al., 2007; Hu et al.,

2006) have discussed the beneﬁts of deﬁning an over-

lay where the P2P connections correspond to the links

of a Delaunay Triangulation generated by considering

the locations of avatars of the DVE (Ghaffari et al.,

DCNET2013-InternationalConferenceonDataCommunicationNetworking

2009). According to this proposal, each peer is paired

with a site of a Voronoi diagram deﬁned on the vir-

tual space and the position of the peer is exploited

to deﬁne the space partition. In this way, the area

corresponding to a peer P includes all the points of

the DVE which are closer to P with respect to any

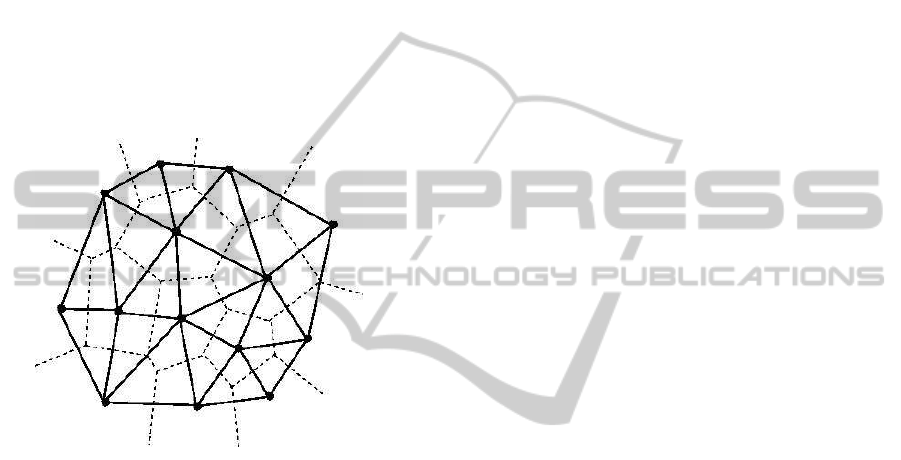

other. The Delaunay Triangulation corresponding to

the Voronoi tessellation deﬁnes the P2P overlay con-

necting the peers.

In a MMOG any event generated by a peer should

be notiﬁed to any other peer in its AOI. This no-

tiﬁcation may be implemented through a AOI-cast

mechanism (Albano et al., 2009), i.e. an applica-

tion level multicast constrained within the boundary

of the area of interest. Flooding the heartbeat through

the Voronoi links generates a large amount of redun-

dant messages and presents evident scalability prob-

lems. A more reﬁned approach dynamically com-

putes a spanning tree on the Voronoi links including

all the peers of the AOI and exploits this tree to notify

the heartbeat. Both solutions are based on forward-

ing, i.e. any heartbeat is routed to the peers in the AOI

through a sequence of intermediate peers. An obvious

drawback of these solutions is the high latency in the

deliveryof an event, especially in crowding scenarios,

i.e. when a set of peers lie close to each other in the

virtual world and their AOI overlap. In this case sev-

eral routing hops may be required to notify an event

due to the large amount of peers located in the AOI.

The resulting latency may be not tolerable in MMOG

and may compromise the interactivity of the applica-

tion. On the other hand, since the number of Voronoi

neighbours is 6 on average (Aurenhammer, 1991), in

this solutions a peer manages a small number of con-

nections.

An alternative solution (Hu et al., 2006) deﬁnes

direct links between a peer and any other one in its

AOI. The resulting overlay includes these links be-

sides the Voronoi ones, which have to be maintained

to guarantee the connectivity of the overlay. This so-

lution minimizes the latency, but increases the num-

ber of connections of each peer. In a crowding sce-

nario like the one previously described, a peer should

manage a large number of connections, since a large

amount of peers are located in its AOI.

The problem of maintaining the Voronoi structure

of the overlay in a dynamic P2P environment, like a

MMOG, where the positions of the peers change con-

tinously and no centralized coordination entity does

exist, is a challenging issue. It is worth noticing

that several distributed algorithm for the management

of the Voronoi overlay have been recently proposed.

(Baraglia et al., 2012; Lee and Lam, 2008; Ohnishi

et al., 2005a; Kato et al., 2006) propose protocols

to build and maintain Delaunay triangulation-based

overlay networks. The approach present in (Baraglia

et al., 2012) is based on a gossip approach which re-

sults particularly suitable in a dynamic environment

like a DVE.

3 VORONOI DIAGRAMS AND

DELAUNAY TRIANGULATIONS

This section introduces the basic mathematical con-

cepts we have exploited for the deﬁnition of HyVVE.

A Voronoi diagram, (Aurenhammer, 1991) also

referred as Voronoi tessellation, is a special kind of

decomposition of a metric space determined by the

distances of the points of the spaces to a speciﬁed dis-

crete set of entities in the space, i.e. the sites.

Let us denote the Euclidean distance between two

points p and q by dist(p,q).

Deﬁnition 1. Let S = {s

, s

, ..., s

} be a set of n dis-

tinct points in the plane, i.e. the sites. The Voronoi

Diagram of S is a partition of the plane into n cells,

one for each site in S, such that the point q belongs

to the cell corresponding to a site s

if and only if

dist(q, s

) < dist(q, s

)∀s

∈ S, i 6= j.

Figure 1: A Voronoi diagram.

In the following, we will denote the Voronoi Dia-

gram of S by Vor(S) and the cell corresponding to a

site s

by V(s

). Fig. 1 shows the Voronoi Tessellation

deﬁned by the set of sites represented by black dots.

Each colored region represents V(s

), where s

is the

site corresponding to the black dot belonging to the

region.

A Delaunay Triangulation is a mathematical

structure dual with respect to the Voronoi Tessellation.

A Delaunay triangulation Dt(P) for a set P of sites

in the plane is a triangulation, i.e. a partition of the

HyVVE-AVoronoibasedHybridArchitectureforMassivelyMultiplayerOn-lineGames

plane into a set of triangles, such that the circumcir-

cle of any triangle in Dt(P) is empty, i.e. it does not

include any other point in P.

Given a set of n sites S = {s

, s

, ..., s

} of the

plane, the Delaunay triangulation is the dual struc-

ture of the Voronoi diagram, where the sites corre-

spond to the vertexes of the triangles, and an edge of

a triangle connects two vertexes s

, s

if and only if

V(s

) and V(s

) share a common edge, i.e. s

and s

are Voronoi neighbours.

Figure 2 shows a Delaunay Triangulation on the

top of s Voronoi diagram, where the borders of the

Voronoi regions are shown by dotted lines and the cor-

responding Delaunay Triangulation links are shown

by continuous lines.

Figure 2: A Delaunay triangulation on top of a Voronoi di-

agram.

4 VORONOI-BASED MMOG

In a Voronoi based approach, the position of each peer

in the virtual world is exploited to deﬁne a Voronoi

tessellation of the virtual world. Given n sites corre-

sponding to the peers, a Voronoi tessellation partitions

the virtual world into n areas such that the area cor-

responding to a site n includes all the points which

are closer to n with respect to any other site. Two

sites are Voronoi neighboursiff the borders of their ar-

eas overlap. The connected graph deﬁned by linking

neighbour sites corresponds to the Delaunay Trian-

gulation associated to the Voronoi tessellation. A P2P

overlay is deﬁned by connecting peers whose sites are

Voronoi neighbours. In the following, the links of this

overlay will be referred as Voronoi links.

. The adoption of this solution presents relevant

advantages:

• Mapping of Entities to the Peers: a straightfor-

ward mapping of entities to the peers assigns each

entity to the peer which manages the Voronoi re-

gion where the entity is located.

• Bandwidth Saving: since each site of a Voronoi

tessellation has on the average 6 neighbours (Au-

renhammer, 1991), each peer manages a bounded

number of connections with other peers, i.e. those

corresponding to the Delaunay links.

• Overlay Connectivity: the connections corre-

sponding to the Delaunay links guarantee that the

overlay is connected. Even if a peer is located in

an uninhabited region of the virtual world, it re-

mains connected with the rest of the DVE through

the Delaunay connections.

• Existence of Routing Algorithms for Delaunay

Networks: compass routing is based on a fast-to-

compute angle argument which exploits the math-

ematical properties of geometric networks and has

been proved to be cycle free for Delaunay net-

works. The algorithm can be exploited to deﬁne

efﬁcient AOI-cast mechanisms.

5 HyVVE: THE ARCHITECTURE

Even if the deﬁnition of a pure P2P network for

MMOG is a challenging alternative to the classical

client/server solution, several problems should still be

solved for the deﬁnition of a comprehensive solution.

One of the main problems still to be solved concerns

the management of the MMOG state when the num-

ber of peers is very low or zero. The main problem

when a low number of peers belong to the MMOG

is related to the high load assigned to each peer. A

further problem is the maintenance of the state of the

MMOG when all the peers have left it, because this

state should be restored later when some peer joins

the MMOG.

To manage the problem of state persistence, we

propose HyVVE, an hybrid architecture including a

small number of ”classical” servers controlling the

state of the MMOG and a huge amount of interacting

peers. Note that this solution differs from a solution

based on the deﬁnition of Super-Peer based architec-

ture, because the set of servers is statically deﬁned,

while the Super-Peers are dynamically elected, they

participate to the MMOG as normal peers and support

the further task of routing the eventnotiﬁcation for the

peers they manage. In HyVVE, the server controls the

join of peers to the MMOG, their authentication and

manages a portion of the MMOG state. For the sake

of simplicity, we consider a system where a single

server S is deﬁned. The server is a supervisor which

does not belong to the P2P overlay and is connected

DCNET2013-InternationalConferenceonDataCommunicationNetworking

to all the peers. When a peer enters the MMOG or up-

dates its position, it notiﬁes this event to the server so

that the server continuously has a vision of the whole

MMOG and is able to compute a Voronoi tessellation

including all the peers of the MMOG. In this way, it

is able to exploit the tessellation to distribute portions

of the state of the MMOG to the joining peers. On the

other way round, HyVVE differs from client/server ar-

chitectures because a distributed protocol is exploited

to exchange events like positional and object updates

directly between the peers, without any intervention

by the server. This avoid that the server becomes,

like in classical client/server solutions, a bottleneck

for the entire system. The server is involved at a peer

bootstrap and then it receives the positional updates

of the peer, but these are not forwarded to other peers,

instead they are exploited by the server to decide if

it must give up entities to the peers or acquire enti-

ties from them. To implement the distributed protocol

supporting events exchange, in HyVVE the peers are

connected by a Delaunay overlay which is built and

maintained through GoDel, a gossip-based protocol

proposed in (Baraglia et al., 2012). The description

of this protocol is out of the scope of this paper, nev-

ertheless it is worth noticing that it is a light-weighted

protocol which maintains the overlay by a straightfor-

ward application of the equiangular property of the

Delaunay triangulations (Aurenhammer, 1991).

Let us consider now the Voronoi-based tessella-

tion enabling a natural mapping of the entities of the

MMOG to the peers. Each entity is mapped to the

peer whose Voronoi region includes it so that each en-

tity is managed by a single peer of the MMOG. The

problem of this approach is that, when the MMOG in-

cludes a small number of peers, a large number of en-

tities may be associated to a single peer which may be

not able to manage all them. As a matter of fact, when

a few peers are present in the MMOG all entities are

partitioned between them and a single peer may result

overloaded. To avoid peer overloading, we associate

with each peer a new circular area, the CCAOI, Cen-

tered Coordination AOI, whose center is the position

of the peer and whose radius is larger than of the AOI.

The goal of the CCAOI is to reduce the number of

entities assigned to a peer when its Voronoi Area is

too large. As a matter of fact, in this solution each

peer manages the entities located inside the Intersec-

tion Area, IA, i.e. the area corresponding to the inter-

section between Voronoi Area and its CCAOI, while

the entities located outside the Intersection Area of

any peer are assigned to the server. Both these areas

change dynamically when the peer moveslike its AOI.

As Figure 3 shows, the area managed by the peer

is only the blue one while the yellow area does not

Figure 3: AOI and CCAOI.

Figure 4: Each Entity is managed by a peer.

belong to any Interaction Area and the entities located

in this area are managed by the server.

The server initially owns the state of the whole

MMOG. When a peer joins the DVE, it ﬁrst contacts

S for the authentication, then it receives from S, and

from its Delaunay neighbours the set of entities be-

longing to its Intersection Area.

It is important to note that when the the CCAOI

is totally included in the Voronoi area of the peer, the

IA overlaps the CCAOI. On the other way round, if

the CCAOI is a super-set of the Voronoi Area, the IA

overlaps the Voronoi Area of the peer. In a third sce-

nario the IA is the portion of the CCAOI overlapping

the Voronoi area of the peer.

The ﬁrst case corresponds to a scenario where a

very small number of peers are present in the MMOG.

Note that in this case the Voronoi Area is much larger

than the CCAOI. In this scenario, the introduction of

the Interaction Area enables each peer to take care

only of the coordination of the closer entities, i.e. the

entities located inside its IA while the server manage

the entities located within its Voronoi Area, but not

belonging to its Intersection Area, i.e. the entities lo-

HyVVE-AVoronoibasedHybridArchitectureforMassivelyMultiplayerOn-lineGames

cated far from it.

Note that in this scenario the server does not be-

come a bottleneck for the system, even if a large num-

ber of entities are mapped to it because of the presence

of a few peers. As a matter of fact, the probability

that the peers update the entities mapped to the re-

gions managed by the server, i.e. the yellow regions

in Fig. 3, is low, because these entities are located

far away the peers. Note that as the number of peers

decreases, the entities are assigned back to the server

that, in a natural way, acquires the total control of the

system, when the last peer leaves the MMOG. In this

case the server acts as a backup server for the MMOG

state, and when each peer exits the MMOG, the state

of the MMOG will be stored by the server to be re-

stored later. Furthermore, in this way the load of the

peers is reduced.

When the number of peers increases, the number

of entities owned by the server decreases, because it

delegates the managementof the entities to the joining

peers. In this scenario, as in a crowding situation, the

Interaction Area of each peer may overlap its Voronoi

region and the management of the state of the MMOG

may be delegated entirely to the peers, as shown in

Figure 4, where the management of the MMOG is to-

tally delegated to the peers and the server owns no

entity. In this scenario the only task of the server is to

control and authenticate the peer joining the network

since all the entities are managed by the peers.

Consider now a crowding scenario, for instance

one where peers ﬁght against each other and a large

number of peers is concentrated in a small portion

of the virtual space, as showed in Figure 5. In this

case, the Voronoi Area of each peer is included in its

CCAOI, hence the IA of the peer overlaps its Voronoi

Area and, despite the large number of peers, the area

that the server must manage is very large. Even in this

situation, the server does not become a bottleneck,

because it does not receive updates for the entities it

owns since they are located far away from the peers.

Again its task is to store the state of the entities and to

decrease the load of the peer.

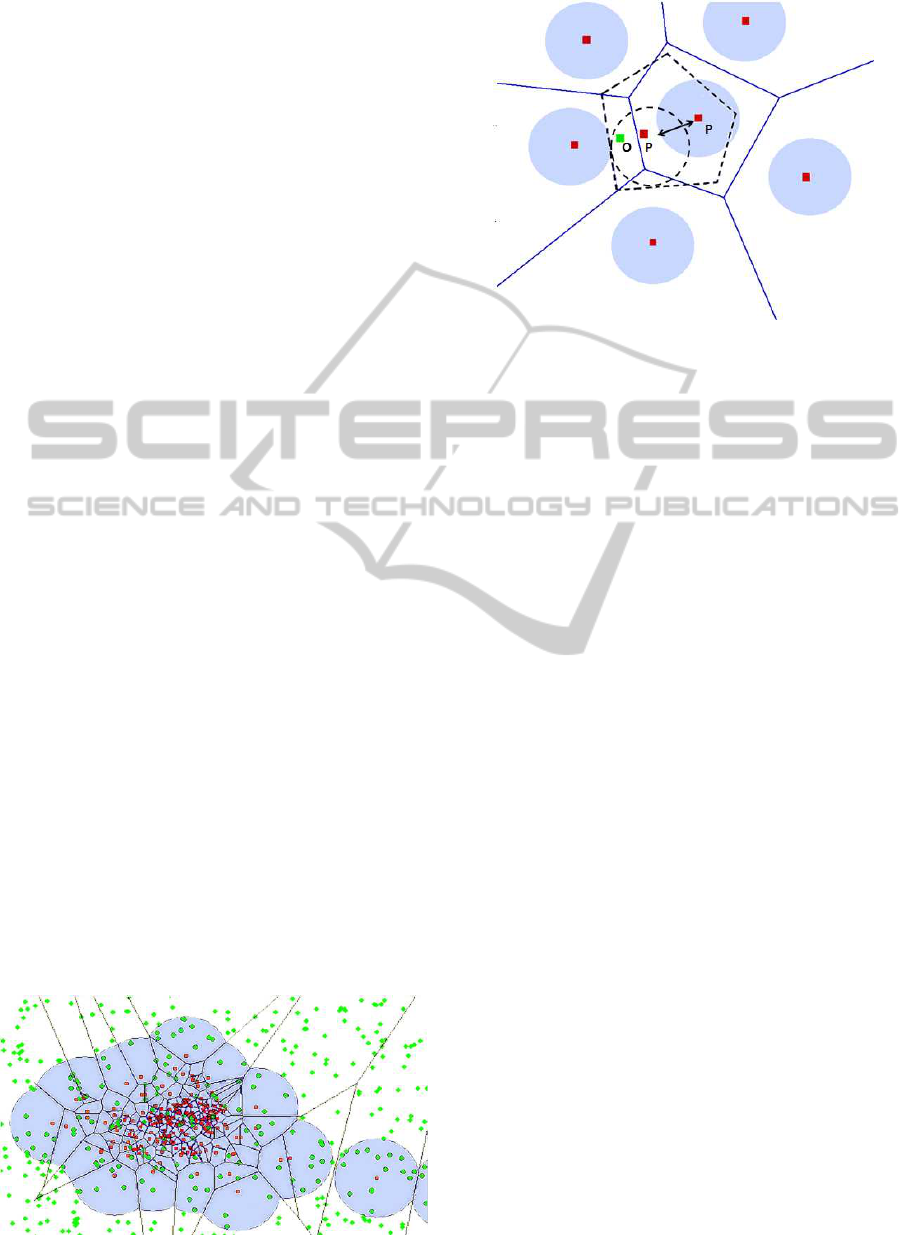

Figure 5: A Crowding Scenario.

Figure 6: Entity delegation between peer and the server.

In our solution, the server itself becomes, com-

pared to the classical client/server model, both a

backup and a load distribution mechanism.

5.1 Entities Delegation

When a new peer enters the MMOG or the overlay is

modiﬁed due to the movement of the peers, the server

checks if some entity it owns falls within the IA of a

peer and, in this case, it sends the entity to this peer.

The peers instead have a limited knowledge of the

MMOG because of the local information obtained by

the direct connections with peers that fall in their AOI

and with their Delaunay neighbours. When a peer P

receives information from a neighbour V about either

a position update or a new neighbour notiﬁcation, P

updates its local Delaunay Triangulation with the new

neighbourspositions and check whether any of the en-

tities owned fall in the IA of its neighbours or in the

server area. In both cases, P is no longer the owner of

the entity and sends the entity to the new owner.

For instance, in Figure 6, the peer P moves from

left to right and the entity O, ﬁrst included in the

IA(P) managed by P, because of the shift of P, en-

ters the area under server competence. If we observe

the movement of P, from left to right, the entity O

would be assigned to the server.

In Figure 7 we see the exchange of an entity be-

tween peer P and P

. Dotted lines show the CCAOI

and the Voronoi region of P before its movement,

when the entity O just falls in IA(P). When P moves

following the arrow, then O enters IA(P

) and P

be-

comes the new owner of O by receiving from P all the

information.

DCNET2013-InternationalConferenceonDataCommunicationNetworking

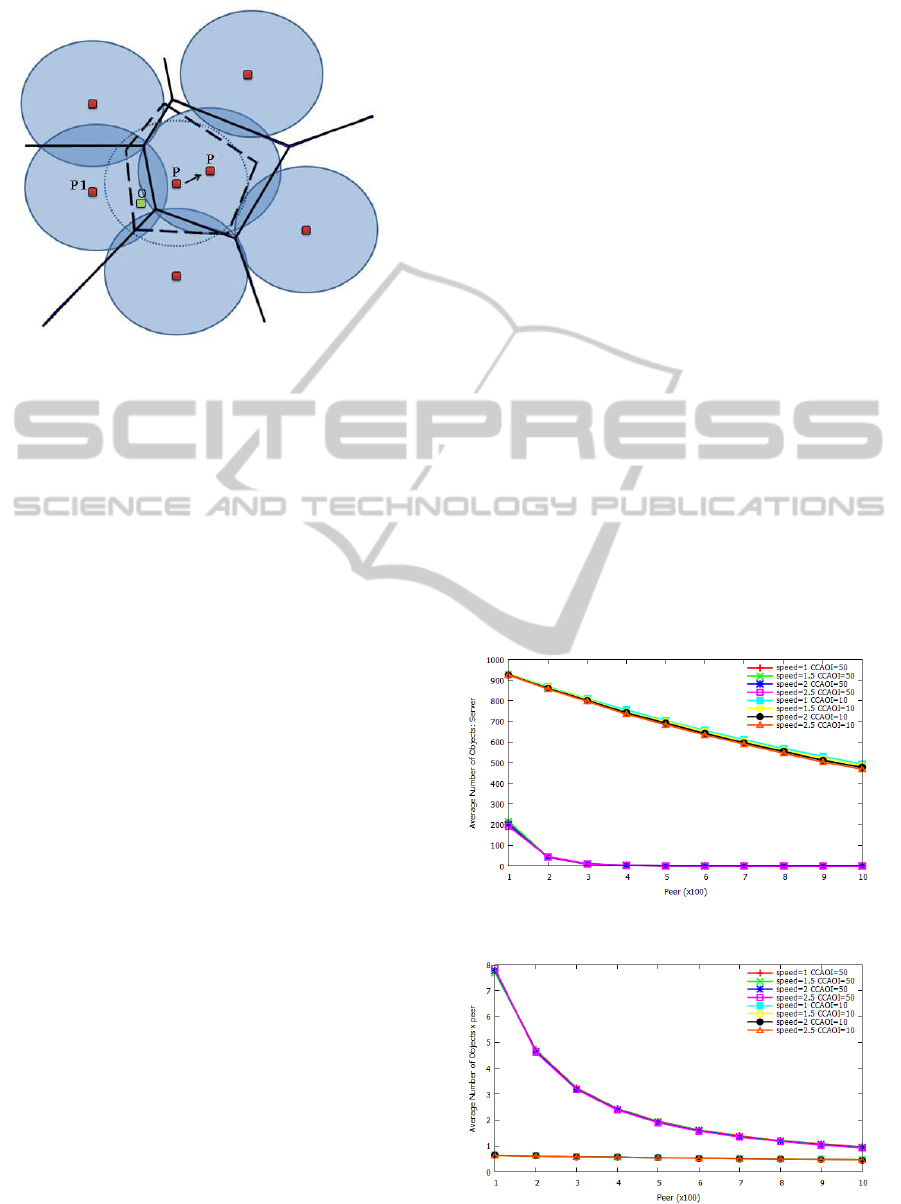

Figure 7: Entity delegation between peers.

6 EXPERIMENTAL RESULTS

This section describes a set of experiments whose

goal is to evaluate the load of the server and of the

peers and the number of transfers between the server

and the peers for management of the entities. The ex-

periments have been conducted by varying the num-

ber of peers, the radius of the CCAOI and the speed

of the peers.

We have exploited PeerSim (Montresor and Je-

lasity, 2009), an highly scalable simulator for P2P

networks. In the experiments we have considered a

2-dimensional virtual environment of size 600× 800

and 1000 simulation cycles. At the start up of each

simulation, peers are positioned at random on the

map, afterwards the the peers move according to the

random way-point mobility model (Bettstetter et al.,

2004).

We consider 1000 entities uniformly positioned in

the virtual world. Initially, all the entities belong to

the server, then the server transfers subset of enti-

ties to the interested peers during the simulation. The

entities may be then exchanged directly between the

peers.

The goal of the ﬁrst set of experiments is to evalu-

ate the average number of entities owned by a peer

and by the server by considering scenarios charac-

terized by different number of peers, radius of the

CCAOI and avatars’ speed. The speed is the number

of pixels covered by a single movement of a peer. We

ﬁx the number of entities to 1000, while the number

of peers varies in the range [1. . . 1000] with a step of

100. We consider two values for the CCAOI radius,

i.e. 50 and 10 pixels, while the speed of the avatars

varies in the range [1. . . 2, 5] with a step of 0.5.

Fig. 8 shows the average number of entities owned

by the server, while the average number of entities

owned by each peer is shown in Fig 9. Note that,

when the radius of the CCAOI is ﬁxed at 50 or at 10,

the behaviour of the function is the same for differ-

ent avatars’ speeds. For this reason, the lines cor-

responding to different speed are completely over-

lapped. First of all, we observe that the server load de-

creases when the number of peers increases, because

a larger set of peers contributes to the management

of the entities. It is interesting to note that the server

does not own any entity when the radius of the CCAOI

is equal to 50 and the number of peers is larger than

300 because, in this case, the IA of the peers covers

the whole virtual environment, no entity is managed

by the server and the partition of the entities among

the peers is determined by the Voronoi partition of

the virtual world. Also the load of the peers decreases

when the number of peers increases, but, while the re-

duction is remarkable when the radius of the CCAOI

is 50, it is negligible when the radius is 10. As a mat-

ter of fact, in the latter scenario, the size of the CCAOI

is very small and each region of the virtual world is

covered by a single peer. On the other side, when

the size of the CCAOI is larger, some portions of the

virtual world are covered by a set of peers, and this

implies a reduction of the average load of a peer.

Fig. 11 shows the average number of entity trans-

Figure 8: Average Number of Entities of the Server with

1000 objects.

Figure 9: Average Number of Entities for each peer with

1000 objects.

HyVVE-AVoronoibasedHybridArchitectureforMassivelyMultiplayerOn-lineGames

fers initiated by a peer and Fig. 10 those initiated

by the server, at each simulation cycle. First of all,

note that the number of transfers is inﬂuenced by the

avatars’ speed. As a matter of fact, the difference be-

tween the IA of a peer before and after its movement

is larger when the speed increases and this implies a

larger number of entities to acquire.

The probability that the IA of a peer is a subset

of its Voronoi area is higher when the radius of the

CCAOI is small, even when the number of peers in-

creases. In this case, a peer must acquire entities from

the server at each movement. As a matter of fact note

that the number of transfers from the server is larger

when the size of the CCAOI is 10 with respect to 50.

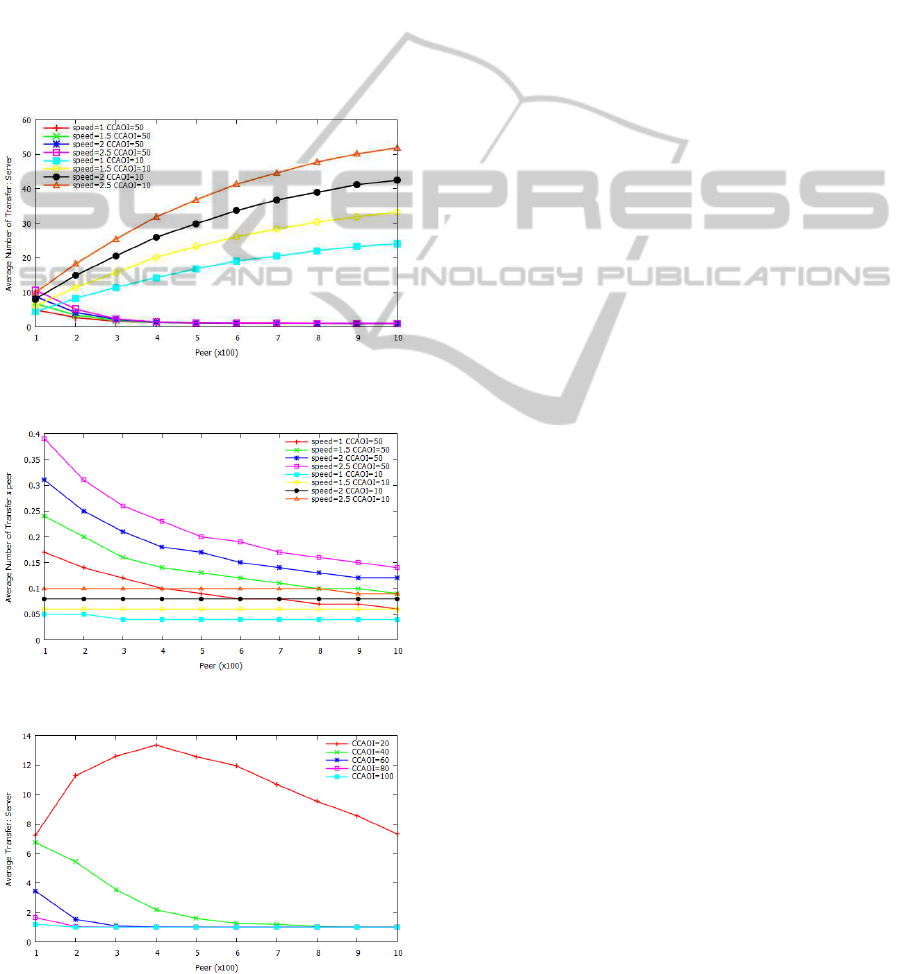

Figure 10: Average Transfers of the Server with 1000 ob-

jects.

Figure 11: Average Transfer of a Peer with 1000 objects.

Figure 12: Average Number of Entities for the Server: Vari-

able CCAOI.

When the radius of the CCAOI is 50 and the num-

ber of peers is larger than 300 no transfer between

the server and the peers occurs since, as observed be-

fore, the server does not manage any entity. As far as

concerns the transfers initiated by the peers, the av-

erage number of transfers for each peer does not de-

pend from their number when the size of the CCAOI is

small, because, as observed before, the number of en-

tities managed by each peer is nearly constant. When

the CCAOI is large, the average number of transfers

of a peer at each cycle decreases proportionally to the

number of peers, because when the number of peers

is high, no entity is transferred between peers and the

server.

The last set of experiments evaluates the aver-

age number of transfers initiated by the server/by the

peers by considering different radius of the CCAOI.

Note in Fig 12 that, when the radius of the CCAOI

is equal to 20, the average transfers initiated by a the

server increases until the radius of the AOIis 400, then

it decreases. As a matter of fact, the IA of each peer

is included in its Voronoi Area, when the number of

peers is lower than 400 and the number of transfers in-

creases with the number of peers. When the number

of peer is larger than 400, the peers starts to exchange

entities so that the number of transfers with the server

decreases. This phenomenon occurs for smaller num-

ber of peers when the radius of the CCAOI is larger.

7 CONCLUSIONS

This paper presents an hybrid architecture for MMOG

based on a Voronoi tessellation of the virtual world.

Our approach allows a dynamical distribution of the

load for the management of the entities of the virtual

world among the server and the peers. We have in-

troduced the concept of CCAOI to avoid peer over-

loading. The CCAOI allows to reduce the number of

objects assigned to each peer. We plan to consider

further mobility models to evaluate our approach in

different scenarios. Further, we are considering sev-

eral distributed algorithms for the management of the

consistency of the entities managed by the peers.

ACKNOWLEDGMENTS

The authors thank Katia Monni for her support in de-

veloping the experiments.

DCNET2013-InternationalConferenceonDataCommunicationNetworking

REFERENCES

Albano, M., Quartulli, A., Ricci, L., and Genovali, L.

(2009). Aoi cast by tolerance based compass routing

in distributed virtual environments. In Proceedings

of the 8th Annual Workshop on Network and Systems

Support for Games, NetGames ’09, pages 13:1–13:2.

Aurenhammer, F. (1991). Voronoi diagrams - a survey of a

fundamental geometric data structure. ACM Comput.

Surv., 23(3):345–405.

Baraglia, R., Dazzi, P., Guidi, B., and Ricci, L. (2012).

Godel: Delaunay overlays in p2p networks via gos-

sip. In IEEE P2P, International Conference on P2P

Computing, pages 1–12.

Bettstetter, C., Hartenstein, H., and P´erez-Costa, X. (2004).

Stochastic properties of the random waypoint mobility

model. Wireless Networks, 10(5):555–567.

Bharambe, A., Pang, J., and Seshan, S. (2006). Coly-

seus: a distributed architecture for online multiplayer

games. In Proceedings of the 3rd conference on Net-

worked Systems Design & Implementation - Volume 3,

NSDI’06, pages 12–12, Berkeley, CA, USA. USENIX

Association.

Bonotti, A., Genovali, L., and Ricci, L. (2007). A publish

subscribe support for networked multiplayer games.

In Proceedings of the Third IASTED European Con-

ference on Internet and Multimedia Systems and Ap-

plications, EurolMSA ’07, pages 236–241.

Buyukkaya, E. and Abdallah, M. (2008). Efﬁcient trian-

gulation for p2p networked virtual environments. In

Proceedings of the 7th ACM SIGCOMM Workshop on

Network and System Support for Games, NetGames

’08, pages 34–39.

Carlini, E., Ricci, L., and Coppola, M. (2013). Flexible

load distribution for hybrid distributed virtual environ-

ments. Future Generation Comp. Syst., 29(6):1561–

1572.

Cavagna, R., Abdallah, M., Buyukkaya, E., and Bouville,

C. (2008). “A Framework for Scalable Virtual Worlds

using Spatially Organized P2P Networks”. In IEEE

ICPADS workshop on Peer-to-Peer Network Virtual

Environment, P2P-NVE.

Cavagna, R., Abdallah, M., Buyukkaya, E., and Bouville,

C. (2009). “VoroGame: A Hybrid P2P Architecture

for Massively Multiplayer Games”. Ieee.

Genovali, L. and Ricci, L. (2008a). “JaDE: A JXTA Sup-

port for Distributed Virtual Environments”. In 13th

IEEE Symposium on Computers and Communications

Program, ISCC, Marrakesh,Morocco.

Genovali, L. and Ricci, L. (2008b). “Voronoi Models for

Distributed Environments”. In ACM CoNEXT Student

Workshop, Madrid, Spain.

Genovali, L. and Ricci, L. (2009). Aoi-cast strategies for

p2p massively multiplayer online games. In Proceed-

ings of the 6th IEEE Conference on Consumer Com-

munications and Networking Conference, CCNC’09,

pages 1317–1321.

Ghaffari, M., Hariri, B., and Shirmohammadi, S. (2009). A

delaunay triangulation architecture supporting churn

and user mobility in mmves. In Proceedings of the

18th international workshop on Network and oper-

ating systems support for digital audio and video,

NOSSDAV ’09, pages 61–66.

Hu, S., Chang, S., and Jiang, J. (2008). Voronoi state man-

agement for peer-to-peer massively multiplayer online

games. In Consumer Communications and Network-

ing Conference, 2008. CCNC 2008. 5th IEEE, pages

1134–1138. IEEE.

Hu, S.-Y., Chen, J.-F., and Chen, T.-H. (2006). Von: a scal-

able peer-to-peer network for virtual environments.

Netwrk. Mag. of Global Internetwkg., 20(4):22–31.

Jiang, J., Huang, Y., and Hu, S. (2008). “Scalable AOI-cast

for Peer-to-Peer Networked Virtual Environments”. In

ICDCSW The 28th International Conference on Dis-

tributed Computing Systems Workshops.

Kato, H., Eguchi, T., Ohnishi, M., and Ueshima, S. (2006).

Autonomous generation of spherical p2p delaunay

network for global internet applications. In Creat-

ing, Connecting and Collaborating through Comput-

ing, 2006. C5’06. The Fourth International Confer-

ence on, pages 184–191. IEEE.

Knutsson, B., Lu, H., Xu, W., and Hopkins, B. (2004). Peer-

to-peer support for massively multiplayer games. In

INFOCOM 2004. Twenty-third AnnualJoint Confer-

ence of the IEEE Computer and Communications So-

cieties, volume 1, pages 96–107. IEEE.

Lee, D. and Lam, S. (2008). “Efﬁcient and Accurate Pro-

tocols for Distributed Delaunay Triangulation under

Churn”. In ICNP.

Montresor, A. and Jelasity, M. (2009). PeerSim: A scalable

P2P simulator. In Proc. of the 9th Int. Conference on

Peer-to-Peer (P2P’09).

Ohnishi, M., Nishide, R., and Ueshima, S. (2005a). In-

cremental construction of delaunay overlaid network

for virtual collaborative space. In Proceedings of the

Third International Conference on Creating, Connect-

ing and Collaborating through Computing, C5 ’05,

pages 75–82.

Ohnishi, M., Nishide, R., and Ueshima, S. (2005b). “In-

cremental Construction of Delaunay Overlay Network

for Virtual Collaborative Space”. In ”Third Int. Conf.

on Creating, Connecting and Collaborating through

Computing”.

Ricci, L., Genovali, L., Carlini, E., and Coppola, M. (July

2011). ”AOI-cast by Compass Routing in Delau-

nay Based DVE Overlays”. In The 2011 Interna-

tional Conference on High Performance Computing

and Simulation, HPCS 2011, Istanbul, Turkey.

Ricci, L. and Salvadori, A. (2007). “Nomad: Virtual En-

vironments on P2P Voronoi Overlays”. In 1th Int.

Work. on Peer to Peer Networks, PPN’07, Vilam-

oura,Portugal.

Varvello, M., Biersack, E., and Diot, C. (2007). Dynamic

clustering in delaunay-based p2p networked virtual

environments. In Proceedings of the 6th ACM SIG-

COMM workshop on Network and system support for

games, NetGames ’07, pages 105–110.

Yu, A. P. and Vuong, S. T. (2005). Mopar: a mobile peer-

to-peer overlay architecture for interest management

of massively multiplayer online games. In Proceed-

ings of the international workshop on Network and

operating systems support for digital audio and video,

NOSSDAV ’05, pages 99–104.

HyVVE-AVoronoibasedHybridArchitectureforMassivelyMultiplayerOn-lineGames
