Secure Computation of Hidden Markov Models

Mehrdad Aliasgari and Marina Blanton

Department of Computer Science and Engineering, University of Notre Dame, Notre Dame, IN, U.S.A.

Keywords:

Secure Computation, Floating Point, Hidden Markov Models, Gaussian Mixture Models.

Abstract:

Hidden Markov Model (HMM) is a popular statistical tool with a large number of applications in pattern

recognition. In some of such applications, including speaker recognition in particular, the computation in-

volves personal data that can identify individuals and must be protected. For that reason, we develop privacy-

preserving techniques for HMM and Gaussian mixture model (GMM) computation suitable for use in speaker

recognition and other applications. Unlike prior work, our solution uses ﬂoating point arithmetic, which al-

lows us to simultaneously achieve high accuracy, provable security guarantees, and reasonable performance.

We develop techniques for both two-party HMM and GMM computation based on threshold homomorphic

encryption and multi-party computation based on threshold linear secret sharing, which are suitable for secure

collaborative computation as well as secure outsourcing.

1 INTRODUCTION

Hidden Markov Models (HMMs) have been an in-

valuable and widely used tool in the area of pattern

recognition. They have applications in bioinformat-

ics, credit card fraud detection, intrusion detection,

communication networks, machine translation, crypt-

analysis, robotics, and many other areas. An HMM

is a powerful statistical tool for modeling sequences

that can be characterized by an underlying Markov

process with unobserved (or hidden) states, but visi-

ble outcomes. One important application of HMMs

is voice recognition, which includes both speech and

speaker recognition. For both, HMMs are the most

common and accurate approach, and we use this ap-

plication as a running example that guides the com-

putation and security model for this work.

When an HMM is used for the purpose of speaker

recognition, usually one party supplies a voice sample

and the other party holds a description of an HMM

that represents how a particular individual speaks

and processes the voice sample using its model and

the corresponding HMM algorithms. Security issues

arise in this context because one’s voice sample and

HMMs are valuable personal information that must

be protected. In particular, a server that stores hid-

den Markov models for users is in possession of sen-

sitive biometric data, which once leaked to insiders or

outsiders can be used to impersonate the users. For

that reason, it is desirable to minimize exposure of

voice samples and HMMs corresponding to an indi-

vidual when such data are being used for authenti-

cation or other purposes. To this end, in this work

we design solutions for securely performing compu-

tation on HMMs in such a way that no information

about private data is revealed as a result of execution

other than the agreed upon output. This will immedi-

ately imply privacy-preserving techniques for speaker

recognition as well as other applications of HMMs.

There are three different types of problems and

corresponding algorithms for HMM computation: the

Forward algorithm, the Viterbi algorithm, and the Ex-

pectation Maximization (EM) algorithm. Because the

Viterbi algorithm is most commonly used in voice

recognition, we develop a privacy-preserving solu-

tion for that algorithm, but our techniques can be

used to securely execute other HMM algorithms as

well. Furthermore, to ensure that Gaussian mixture

models (GMMs), which are commonly used in HMM

computation, can be part of secure computation as

well, we integrate GMM computation in our privacy-

preserving solution.

One signiﬁcant difference between our and prior

work is that, unlike other publications, we develop

techniques for computation on ﬂoating point num-

bers which provide adequate precision and are most

appropriate for HMM computation. We also do not

compromise on security, and all of the techniques we

develop are provably secure under standard and rigor-

ous security models, while at the same time providing

reasonable performance.

To cover as wide of a range of application sce-

242

Aliasgari M. and Blanton M..

Secure Computation of Hidden Markov Models.

DOI: 10.5220/0004533502420253

In Proceedings of the 10th International Conference on Security and Cryptography (SECRYPT-2013), pages 242-253

ISBN: 978-989-8565-73-0

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

narios as possible, we consider multiple settings for

HMM computation: (i) the two-party setting in which

a client interacts with a server and (ii) the multi-party

setting in which the HMM computation is carried out

by n > 2 parties, which is suitable for joint computa-

tion by several participants as well as secure outsourc-

ing of HMM computation to multiple servers by one

or more computationally limited clients.

To summarize, our contributions consist of devel-

oping provably secure HMM and GMM computation

techniques based on Viterbi algorithm using ﬂoating

point arithmetic. Our techniques are suitable for two-

party and multi-party computation in a variety of set-

tings and are designed with their efﬁciency in mind.

2 RELATED WORK

To the best of our knowledge, privacy-preserving

HMM computation was ﬁrst considered

in (Smaragdis and Shashanka, 2007) which provides

a secure two-party solution for speech recognition

using a homomorphic encryption scheme on integer

domain. Unfortunately, integer representation is

not sufﬁcient for HMM computation, and this work

failed to address non-integer values. In particular,

HMM computation involves various operations on

probability values which occupy a large range of real

numbers and demand high precision.

Nevertheless, the techniques provided

in (Smaragdis and Shashanka, 2007) were later used

as-is in (Shashanka, 2010) for Gaussian mixture mod-

els. The same idea was used in (Pathak et al., 2011;

Pathak et al., 2012) to develop privacy-preserving

speaker veriﬁcation for joint two-party computation,

where the HMM parameters were stored in an

encrypted domain. Similar to (Shashanka, 2010),

the goal of (Pathak and Raj, 2011) was to provide

secure two-party GMM computation using the same

high-level idea but with implementation differences,

yet their solution has security weaknesses. In

particular, the proposed Logsum protocol reveals a

non-trivial amount of information about the private

inputs, which, in combination with other computation

or outside knowledge, may allow for full recovery

of the inputs. We provide more detail regarding

this security weakness in Appendix 7. All the

above work addresses integer-based solutions in the

two-party setting. In addition, some of the above

techniques were used in privacy-preserving network

analysis and anomaly detection in a joint two-party

(or multi-party) computation (Nguyen and Roughan,

2012b; Nguyen and Roughan, 2012a). Clearly, there

is need to develop secure computation techniques for

HMMs on standard real number representations with

provable security. In particular, integer or ﬁxed point

representations have at least two disadvantages: They

demand substantially larger bit length representation

than could be used otherwise and the representation

error can accumulate and introduce fatal inaccuracies.

Subsequently, integer or ﬁxed-point representations

become impractical for applications that require

high precisions such as HMM computations. To

address this, Franz et al. (Franz et al., 2012) proposed

solutions for secure HMM forward algorithm com-

putation in the two-party setting using logarithmic

representation of real numbers. The logarithmic

representation, although better than ﬁxed point or

integer representation, still fails to cope with the vast

range of real numbers used in HMMs. The look-up

tables in (Franz et al., 2012) grow exponentially in

the bitlength of the operands. In fact, in practice

HMMs are run on ﬂoating point numbers to avoid the

difﬁculties mentioned above. Therefore, in this work

we propose the ﬁrst provably secure ﬂoating point

computation for HMM algorithms with reasonable

performance.

3 HIDDEN MARKOV MODELS

AND GAUSSIAN MIXTURE

MODELS

A Hidden Markov Model (HMM) in a statistical

model that follows the Markov property (where the

transition at each step depends only on the previ-

ous transition) with hidden states, but visible out-

comes. The inputs are a sequence of observations,and

for each sequence of observations (or outcomes), the

computation consists of determining a path of state

transitions which is the likeliest among all paths that

could produce the given observations. More formally,

an HMM consists of:

• N states S

,··· ,S

;

• M possible outcomes m

,··· , m

;

• a vector π = hπ

,...,π

i that contains the initial

state probability distribution, i.e., π

= Pr[q

= S

where q is a random variable over the set of states

indexed by the transition number;

• a matrix A of size N×N that contains state transi-

tion probabilities, i.e., a cell a

of A at row i and

column j contains the probability of the transition

from state S

to state S

= Pr[q

k+1

= S

| q

];

• a matrix B of size N × M that contains output

probabilities, i.e., a cell b

of B at row i and

SecureComputationofHiddenMarkovModels

243

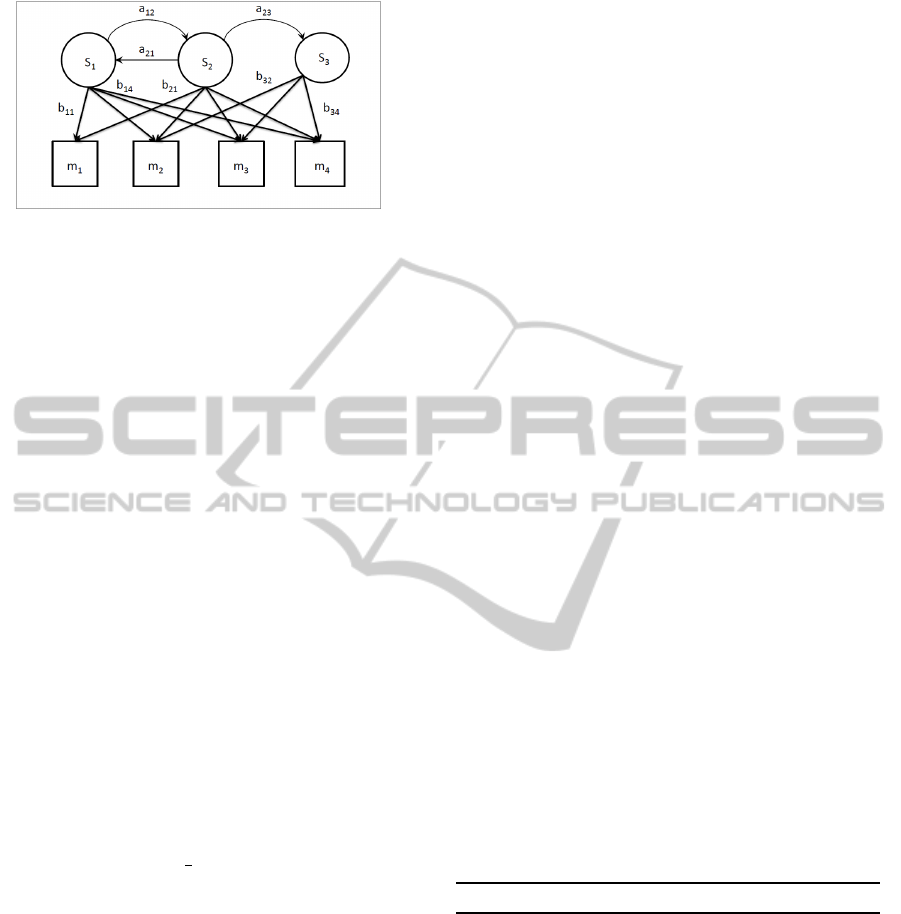

Figure 1: An example of a hidden Markov model with s

’s

representing states and m

’s representing outcomes.

column j contains the probability of state S

out-

putting outcome m

= Pr[q

= S

| X

= m

In the above, observations X

,...,X

form HMM’s in-

put, to which we collectively refer as X. The above

parameters deﬁne an HMM. In our running applica-

tion of speaker recognition, an HMM is a model that

represents how a particular person speaks and an input

corresponds to the captured voice sample of a client.

Figure 1 shows an example of an HMM.

In most cases, matrix B should be computed based

on observations. Usually this is done by evalua-

tion of the observed value on probability distributions

of states’ outcomes. One very common distribution

model is a Gaussian Mixture Model (GMM) which is

used to compute the elements of matrix B. GMMs are

mixtures of Gaussian distributions that represent the

overall distribution of observations. Namely, an ob-

servation is evaluated on a number of Gaussian distri-

butions with different parameters and the evaluations

are combined together to produce the ﬁnal probabil-

ity of a random variable acquiring that particular ob-

servation. In the case of HMMs, we use a GMM to

compute the output probability of state S

producing

an observation at time k as follows:

∑

i=1

−

−µ

)

−1

−µ

)

(1)

In the above, X

is a vector of size f that represents the

random variable corresponding to the observation at

time k. In voice applications, X

usually contains the

Mel-frequency cepstral coefﬁcients (MFCCs). The

parameter α is the total number of mixture compo-

nents (here, Gaussian distributions). The ith compo-

nent has a mean vector µ

of size f and a covariance

matrix Σ

of size f × f. The components are added

together, each weighted by a mixture weight w

, to

produce the probability distribution of state S

when

the observed random variable is X

. We use notation

µ, Σ, and w to refer to the sequence of µ

, Σ

, and w

respectively, for i = 1, . . ., α.

There are three different types of problems and re-

spective dynamic-programming algorithms for HMM

computation: the Forward Algorithm, the Viterbi Al-

gorithm, and the EM (Expectation Maximization) Al-

gorithm (Rabiner, 1989). In the Forward Algorithm,

the goal is to compute the probability of each state

for each transition given a particular sequence of ob-

servations. Namely, in this algorithm, we compute

Pr[q

= S

| X

···X

]. In the Viterbi algorithm, after

observing the outcomes, the goal is to construct the

path of states which is the most likely among all pos-

sible paths that can produce the observations, as well

as the probability of the most likely path. In other

words, for any given sequence of observations, each

path has a certain probability of producing that se-

quence of observations. The output of Viterbi algo-

rithm is the path with the highest probability and the

value of the probability. The computation performed

in Viterbi algorithm uses Forward algorithm. In the

EM algorithm, the goal is to learn the HMM. Namely,

given a sequence of observations, this algorithm com-

putes the parameters of the most likely HMM that

could have produced this sequence of observations.

All of these three algorithms use dynamic program-

ming techniques and have complexity of O(TN

Because in this work we use speaker recognition

to demonstrate secure techniques for HMM compu-

tation, we focus on the Viterbi algorithm used in

speaker recognition. The techniques developed in this

work, however, can also be used to construct secure

solutions for the other two algorithm. In what follows,

we providea brief description of the Viterbi algorithm

and refer the reader to online materials for the For-

ward and EM algorithms. In the algorithm below, P

∗

is the probability of the most likely path for a givense-

quence of observations and q

∗

= hq

∗

,...,q

∗

i denotes

the most likely path itself. The computation uses dy-

namic programming to store intermediate probabili-

ties in δ, after which the path of the maximum likeli-

hood is computed and placed in q

∗

i ← Viterbi(λ = hN,T,π,A,Bi)

1. Initialization Step: for i = 1 to N do

(a) δ

(i) = π

(b) ψ

(i) = 0

2. Recursion Step: for k = 2 to T and j = 1 to N do

(a) δ

( j) =



max

1≤i≤N

[δ

k−1

(i)a

]



(b) ψ

(i) = argmax

1≤i≤N

[δ

k−1

(i)a

]

3. Termination Step:

(a) P

∗

= max

1≤i≤N

[δ

(i)]

(b) q

∗

= argmax

1≤i≤N

(i)

∗

= ψ

k+1

∗

k+1

)

SECRYPT2013-InternationalConferenceonSecurityandCryptography

244

4. Return hP

∗

In speaker recognition, we apply the Viterbi algo-

rithm to extracted voice features and an HMM that

was created using a GMM and training voice fea-

tures. The overall computation then consists of form-

ing an HMM using GMM computation and executing

the Viterbi algorithm, as given next.

∗

i ← HMM(N, T, π, A, α, w,µ, Σ,X)

1. For j = 1 to N and k = 1 to T, compute b

as in

equation 1 using α, w

’s, µ

’s, Σ

’s, and X

2. Set λ = hN,T,π,A,Bi.

3. Execute hP

∗

i = Viterbi(λ).

4. Return hP

∗

4 FRAMEWORK

In this section, we introduce two categories of secure

computation that we consider in this work, precisely

deﬁne the computation to be carried out, and the se-

curity model for each respective type of secure com-

putation.

The ﬁrst category of secure computation that we

consider is secure two-party computation. Without

loss of generality, we will refer to the participants

as the client and the server. Using speaker recogni-

tion as the example application, the client possesses

a voice sample, the server stores a model that rep-

resents how a registered user speaks, and user au-

thentication is performed by conducting HMM com-

putation on the client’s and server’s inputs. There-

fore, for the purposes of this work, we assume that

the client owns the observations to an HMM, i.e.,

,...,X

, and the server holds the parameters of the

HMM and GMM, i.e., N, vector π, matrix A, α, mix-

ture weights w, vectors µ, and matrices Σ. Because

even the parameters of HMM might reveal informa-

tion about the possible input observations, to build a

fully privacy-preserving solution in which the server

does not learn information about user biometrics, the

server should not have access to the HMM parame-

ters in the clear. For that reason, we assume that the

server holds the parameters π, A, B, w, µ, and Σ in an

encrypted form. Then to permit the computation to

take place on encrypted data, we resort to an encryp-

tion scheme with special properties, namely, semanti-

cally secure additively homomorphic public-key en-

cryption scheme (deﬁned below). Furthermore, to

ensure that neither the server can decrypt the data it

stores, nor the (untrusted) client can decrypt the data

(or a function thereof) without the server’s consent,

we utilize a (2, 2)-threshold encryption scheme. In-

formally, it means that the decryption key is parti-

tioned between the client and the server, and each de-

cryption requires that both of them participate. This

means that the client and the server can jointly carry

out the HMM computation, and make the result avail-

able to either or both of them. For concreteness of our

description, we will assume that the server learns the

outcome.

A public-key encryption scheme is deﬁned by

three algorithms Gen, Enc, Dec, where Gen is a key

generation algorithm that on input a security parame-

ter κ produces a public-private key pair (pk,sk); Enc

is an encryption algorithm that on input a public key

pk and message m produces ciphertext c; and Dec is a

decryption algorithm that on input private key sk and

ciphertext c produces decrypted message m or spe-

cial character ⊥ that indicates failure. For concise-

ness, we use notation Enc

(m) and Dec

of Enc(pk,m) and Dec(sk,c), respectively. An en-

cryption scheme is said to be additively homomorphic

if applying an operation to two ciphertexts results in

the addition of the messages that they encrypt, i.e.,

Enc

) · Enc

) = Enc(m

+ m

). This prop-

erty also implies that Enc

(m)

= Enc

(k · m) for a

known k. In a public-key (n,t)-threshold encryption

scheme, the decryption key sk is partitioned among n

parties, and t ≤ n of them are required to participate

in order to decrypt a ciphertext. Lastly, a semantically

secure encryption scheme guarantees that no informa-

tion about the encrypted message can be learned from

its ciphertext with more than a negligible (in κ) prob-

ability. Semantically secure additively homomorphic

threshold public-key encryption schemes are known,

one example of which is Pailler encryption (Paillier,

1999).

We obtain that in the two-party setting, the client

and the server share the decryption key to a semanti-

cally secure additively homomorphic (2, 2)-threshold

public-key encryption scheme. The client has pri-

vate input X

,...,X

and its share of the decryption

key sk; the server has input Enc

(π

) for i ∈ [1, N],

Enc

) for i ∈ [1, N] and j ∈ [1,N], Enc

) for

i ∈ [1,α], encryption of each element of µ

and Σ

for

i ∈ [1,α], and its share of sk. The computation con-

sists of executing the Viterbi algorithm on their in-

puts, at the end of which the server learns P

∗

and q

∗

for i = 1,...,T. The size of the problem, i.e., parame-

ters N, T, α, and f, are assumed to be known to both

parties.

The second category of secure computation that

we consider is secure multi-party computation on

SecureComputationofHiddenMarkovModels

245

HMMs. In this setting, either a number of parties

hold inputs to a multi-observer HMM or one or more

clients wish to outsource HMM computations to a

collection of servers. More generally, we divide all

participants into three groups: (i) the input parties

who collectively possess the private inputs, (ii) the

computational parties who carry out the computation,

and (iii) the output parties who receive the result(s)

of the computation. These groups can be arbitrarily

overlapping, which gives great ﬂexibility in the setup

and covers all possible cases of joint multi-party com-

putation (where the input owners carry out the com-

putation themselves, select a subset of them, or seek

help of external computational parties) and outsourc-

ing scenarios (by either a single party or multiple in-

put owners).

To conduct computation on protected values in

this setting, we utilize an information-theoretically

secure threshold linear secret sharing scheme (such as

Shamir secret sharing scheme (Shamir, 1979)). In a

(n,t)-threshold secret sharing scheme, a secret value

s is partitioned among n participants in such a way

that the knowledge of t or fewer shares information-

theoretically reveals no information about s, while

t + 1 or more shares allow for efﬁcient reconstruction

of s. Such schemes avoid the use of computationally

expensive public-key encryption techniques and in-

stead operate on small integers (in a ﬁeld F

, normally

with prime p) of sufﬁcient size to represent all values.

In a linear secret sharing scheme, any linear combi-

nation of secret sharing values (which in particular

includes addition and multiplication by a known con-

stant) is performed by each participant locally, while

multiplication requires interaction of all parties. It is

usually required that t < n/2 and therefore the num-

ber of computational parties n > 2.

We then obtain that in this setting the input parties

share their private inputs among n > 2 computational

parties, the computational parties execute the Viterbi

algorithm on secret-shared values, and communicate

shares of the result to the output parties, who recon-

struct the result from their shares. As before, the size

of the problem, namely, the parameters N, T, α, and

f, is known to all parties.

We next formally deﬁne security using the stan-

dard deﬁnition in secure multi-party computation for

semi-honest (also known as honest-but-curious or

passive) adversaries, i.e., those that follow the com-

putation as prescribed, but might attempt to learn ad-

ditional information about the data from the interme-

diate results. We show our techniques secure in the

semi-honest model. Standard techniques for making

the computation robust to malicious behavior, where

the participants can arbitrarily deviate from the pre-

scribed computation, apply to our protocols as well.

Deﬁnition 1. Let parties P

,...,P

engage in a

protocol Π that computes function f(in

,...,in

) =

(out

,...,out

), where in

and out

denote the input

and output of party P

, respectively. Let VIEW

)

denote the view of participant P

during the execution

of protocol Π. More precisely, P

’s view is formed by

its input and internal random coin tosses r

, as well as

messages m

,...,m

passed between the parties dur-

ing protocol execution

VIEW

) = (in

,...,m

Let I = {P

,...,P

} denote a subset of the partic-

ipants for t < n and VIEW

(I) denote the combined

view of participants in I during the execution of pro-

tocol Π (i.e., the union of the views of the participants

in I). We say that protocol Π is t-private in presence

of semi-honest adversaries if for each coalition of size

at most t there exists a probabilistic polynomial time

simulator S

such that

(in

, f(in

,...,in

)} ≡ {VIEW

(I), out

where in

∈I

{in

}, out

∈I

{out

}, and ≡

denotes computational or statistical indistinguisha-

bility.

In the two-party setting, we have that n = 2, t = 1,

and the participants’ inputs in

, in

and outputs out

out

are set as described above. In the multi-party

setting, n > 2, t < n/2, and the computational parties

are assumed to contribute no input and receive no out-

put to ensure that they can be disjoint from the input

and output parties. Then the input parties secret-share

their inputs among the computational parties prior the

protocol execution takes place and the output parties

receive shares of the output and reconstruct the re-

sult after the protocol termination. This in particular

means that, in order to comply with the abovesecurity

deﬁnition, the computation used in protocol Π must

be data-oblivious, which means that the sequence of

operations and memory accesses used in Π must be

independent of the input.

Performance of secure computation techniques is

of grand signiﬁcance, as protecting secrecy of data

throughout the computation often incurs substantial

computational costs. For that reason, besides security,

efﬁcient performance of the developed techniques is

one of our primary goals. In both of our settings,

computation of a linear combination of protected val-

ues can be performed locally by each participant (i.e.,

on encrypted values in the two-party setting and on

secret-shared values in the multi-party setting), while

multiplication is interactive. Because normally the

overhead of interactive operations dominates the run-

time of a secure multi-party computation algorithm,

SECRYPT2013-InternationalConferenceonSecurityandCryptography

246

its performance is measured in the number of inter-

active operations (such as multiplications, as well as

other instances which include distributing shares of

a private value or opening a secret-shared value in

the multi-party setting). Furthermore, the round com-

plexity, i.e., the number of sequential interactions,

can have a substantial impact on the overall execu-

tion time, and serves as the second major performance

metric. Lastly, in the two-party setting, public-key

operations (and modulo exponentiations in particular)

impose a signiﬁcant computational overhead, and are

used as an additional performance metric.

In this work, we use notation [x] to denote that the

value of x is protected, either through encryption or

secret sharing.

5 BUILDING BLOCKS

Before presenting our solution, we give a brief de-

scription of the building blocks from the literature

used in our solution. While the computation proceeds

on ﬂoating point numbers, we ﬁrst present building

blocks that operate on integers followed by ﬂoating

point operations.

5.1 Integer Building Blocks

First note that having secure implementations of addi-

tion and multiplication operations alone can be used

to securely evaluate any functionality on protected

values represented as an arithmetic circuit. Prior lit-

erature, however, concentrated on developing secure

protocols for commonly used operations which are

more efﬁcient than general techniques. In particular,

prior literature contains a large number of publica-

tions for secure computation on integers such as com-

parisons, bit decomposition, and other operations.

From all of the available techniques, we have chosen

the building blocks that yield the best performance for

our construction, and are listed below.

Note that we use the following complexity for el-

ementary arithmetic operations: addition and subtrac-

tion of two protected values in either two-party or

multi-party setting involves no communication. Mul-

tiplication in the multi-party setting requires a com-

putational party to send values to all other parties and

wait for values from them, where all parties commu-

nicate their values simultaneously. This is treated as

an elementary interactive operation in a single round.

In the two-party setting, multiplication of two en-

crypted values Enc

(a) and Enc

(b) is computed

interactively, during which one party chooses a ran-

dom value r, forms Enc

(a− r) using homomorphic

properties of the encryption scheme, helps the second

party to decrypt a− r, after which the parties locally

compute Enc

(br) and Enc

(b(a−r)), respectively,

and exchange the ciphertexts to obtain Enc

(ba).

This involves two sequential messages, which we

count as 2 rounds, and a small constant number of

modulo exponentiations. This two-party implementa-

tion of the multiplication operation is used in comput-

ing the complexity of the building blocks that follow.

• [c] ← XOR([a],[b]) computes exclusive OR of bits

a and b as [a] + [b] − 2[a][b] using one multiplica-

tion.

• [c] ← OR([a],[b]) computes OR of bits a and b as

[a] + [b] − [a][b].

• [r] ← RandInt(ℓ) allows the parties to generate a

random ℓ-bit value [r] without any interaction. In

the two-party setting, the participants produce an

encryption of r, and in the multi-party setting, the

parties use what can be viewed as a distributed

pseudo-random function to produce shares of r

(see, e.g., (Catrina and Saxena, 2010)).

• [r] ← RandBit() allows the parties to produce

shares of a random bit [r] using one interactive

operation in the multi-party setting and using one

multiplication (more precisely, by executing the

XOR of two bits) in the two-party setting.

• [b] ← Inv([a]) computes b = a

−1

(in the respective

group or ﬁeld). For a non-zero a this operation can

be implemented by creating a random [r], comput-

ing and opening c = ra, and setting [b] = c

−1

[r].

• ([y

],...,[y

ℓ

]) ← PreMul([x

],...,[x

ℓ

]) computes

preﬁx-multiplication, where on input a sequence

of integers x

,...,x

ℓ

, the output consists of val-

ues y

,...,y

ℓ

, where each y

∏

j=1

. The most

efﬁcient implementation of this operation in our

framework that we are aware of is from (Catrina

and de Hoogh, 2010) that works only on non-zero

elements, which is sufﬁcient for our purposes.

• ([y

],...,[y

ℓ

]) ← PreOR([x

],...,[x

ℓ

]) computes

preﬁx-OR of n input bits x

,...,x

ℓ

and outputs

,...,y

ℓ

such that each y

j=1

, which we

assume is implemented as in (Catrina and de

Hoogh, 2010).

• [b] ← EQ([x],[y],ℓ) is an equality protocol that on

two ℓ-bit inputs x and y outputs a bit b which

is set to 1 iff x = y. We use a secure imple-

mentation of this operation from (Catrina and de

Hoogh, 2010), which is built using another pro-

tocol [b] ← EQZ([x

′

],ℓ) that outputs bit b = 1 iff

′

= 0 by calling EQZ([x] − [y],ℓ). EQ and EQZ

thus have the same complexity for the same ℓ.

SecureComputationofHiddenMarkovModels

247

• [b] ← LT([x],[y],ℓ) is a comparison protocol that

on input two secret-shared ℓ-bit valuesx and y out-

puts a bit b which is set to 1 iff x < y. For the

multi-party setting, we use the protocolfrom (Cat-

rina and de Hoogh, 2010) and for the two-party

setting, we use the protocol from (Kerschbaum

et al., 2009).

• [r] ← TruncPR([x],ℓ,k) computes



[x]/2



where ℓ is the bitlength of x, with an additive

error c ≤ 1. When such an error is permissible,

the protocol is signiﬁcantly faster than precise

truncation. In the two-party setting, (Dahl et al.,

2012) proposes a constant-work protocol, while

(Catrina and de Hoogh, 2010) provides the

most efﬁcient implementation in the multi-party

setting.

• [y] ← Trunc([x],ℓ,k) computes ⌊[x]/2

⌋ for an

ℓ-bit x. This operation can be efﬁciently im-

plemented using, for example, the techniques

of (Catrina and de Hoogh, 2010) in the multi-party

setting. In the two-party setting, the most efﬁcient

way of implementing the functionality is by ex-

ecuting [y] ← TruncPR([x],ℓ,k), then correcting

the error (if any) by comparing x and y· 2

by call-

ing [c] ← LT([x],2

[y]), and setting the result to

[y] − [c].

• [x

k−1

],...,[x

] ← BitDec([x],ℓ, k) performs bit de-

composition of k least signiﬁcant bits of x, where ℓ

is the size of x. An efﬁcientimplementationof this

functionality in both settings can be found in (Cat-

rina and Saxena, 2010), the complexity of which

is independent of the bitlength of x ℓ.

• [2

] ← Pow2([x],ℓ) raises 2 in the (unknown)

power x supplied as the ﬁrst argument, where the

second argument ℓ speciﬁes the bitlength of the

representation. To ensure that 2

can be repre-

sented using ℓ bits, the value of x is expected to

be in the range [0,ℓ). We use an efﬁcient imple-

mentation of this protocol from (Aliasgari et al.,

2013).

Many of these protocols are used as building

blocks in ﬂoating point protocols as opposed to be-

ing used directly in our solution. The complexities of

these protocols in the two-party and multi-party set-

tings are provided in Tables 1 and 2, respectively. In

Table 1, notation C denotes the ciphertext length in

bits, and notation D denotes the length of the aux-

iliary decryption information, which when sent by

one of the parties allows the other party to decrypts

a ciphertext. Communication is measured in bits,

and computation is measured in modulo exponenti-

ations. We list computational overhead incurred by

each party separately, with the smaller amount of

work ﬁrst (which can be carried out by a client) fol-

lowed by the larger amount of work (which can be

carried out by a server).

5.2 Floating Point Building Blocks

For ﬂoating point operation we adopt the same ﬂoat-

ing point representation that was used in (Aliasgari

et al., 2013). Namely, a real number x is represented

as 4-tuple hv, p,s,zi, where v is an ℓ-bit normalized

signiﬁcand (i.e., the most signiﬁcant bit of v is 1), p is

a k-bit exponent, z is a bit that indicates whether the

value is zero, and s is a bit set only when the value is

negative. We obtain that x = (1− 2s)(1− z)v· 2

. As

in (Aliasgari et al., 2013), when x = 0, we maintain

that z = 1, v = 0, and p = 0.

The work (Aliasgari et al., 2013) provides a num-

ber of secure ﬂoating point protocols, some of which

we use in our solution as ﬂoating point building

blocks. While the techniques of (Aliasgari et al.,

2013) also provide the capability to detect and re-

port errors (e.g., in case of division by 0, overﬂow

or underﬂow, etc.), for simplicity of presentation, we

omit error handling in this work. The building blocks

from (Aliasgari et al., 2013) that we use here are:

• h[v],[p], [z], [s]i ← FLMul(h[v

],[p

],[z

],[s

]i,

h[v

],[p

],[z

],[s

]i) performs ﬂoating point

multiplication of its two real valued arguments.

• h[v],[p], [z], [s]i ← FLDiv(h[v

],[p

],[z

],[s

]i,

h[v

],[p

],[z

],[s

]i) allows the parties to perform

ﬂoating point division using h[v

],[p

],[z

],[s

as the dividend and h[v

],[p

],[z

],[s

]i as the

divisor.

• h[v],[p], [z], [s]i ← FLAdd(h[v

],[p

],[z

],[s

]i,

h[v

],[p

],[z

],[s

]i) performs the computation

of addition (or subtraction) of two ﬂoating point

arguments.

• [b] ← FLLT(h[v

],[p

],[z

],[s

]i,h[v

],[p

],[z

],[s

]i)

produces a bit, which is set to 1 iff the ﬁrst ﬂoating

point argument is less than the second argument.

• h[v],[p], [z], [s]i ← FLExp2(h[v

],[p

],[z

],[s

]i)

computes the ﬂoating point represen-

tation of exponentiation [2

], where

[x] = (1− 2[s

])(1− [z

])[v

]

These protocols were given in (Aliasgari et al., 2013)

only for the multi-party setting, but we also evaluate

their performance in the two-party setting using the

previously listed integer building blocks. The com-

plexities of these ﬂoating point protocols in both set-

tings are reported in Tables 1 and 2.

SECRYPT2013-InternationalConferenceonSecurityandCryptography

248

Table 1: Complexity of building blocks in the two-party setting.

Protocol Rounds Communication size

Computation complexity

Client Server

Mul 2 3C + D 2 3

Inv 1 2C + 2D 4 4

TruncPR 2 3C + D 1 3

PreMul 5 6ℓD+ 11ℓC 13ℓ− 4 16ℓ− 5

PreOR 6 6ℓD+ 13ℓC 16ℓ− 7 19ℓ− 8

LT 2 D+ 6C 4 5

EQZ 6 (6logℓ+1)D+ 13logℓC ℓ + 14logℓ + 3 ℓ + 17logℓ + 2

Trunc 4 2D+ 9C 5 8

BitDec logk+ 2 (klogk+ 1)D+ (3klogk + 2k+ 1)C 2klogk+ k + 2 3klogk+ k + 2

Pow2

loglogℓ+7

(6logℓ + (loglogℓ)logℓ + 1)D +

(3logℓloglogℓ + 13logℓ + 1)C

2logℓloglogℓ +

14logℓ− 2

3logℓloglogℓ +

17logℓ− 3

FLMul 13 10D+ 39C 17 25

FLDiv 2logℓ+ 8 4logℓ(D+ 3C) + 4D+ 18C 6logℓ+12 12logℓ+ 16

FLAdd

logℓ + 45+

loglogℓ

(ℓlogℓ + 14logℓ + logℓ(loglogℓ) + 6logk +

54)D + (15ℓ + 3ℓ logℓ + 19logℓ + 13logk +

3(logℓ)loglogℓ + 155)C

18ℓ + k + 2ℓlogℓ +

32logℓ + 14logk +

2logℓloglogℓ + 125

21ℓ + k + 3ℓlogℓ +

40logℓ + 17logk +

3logℓloglogℓ+144

FLLT 10 (6logℓ+20)D+ (13logℓ + 63)C k+ 14logk+ 41 k+ 17logk+ 57

FLExp2

15logℓ+

(10ℓ+ℓlogℓ+12logℓ+logℓloglogℓ +35)D+

(34ℓ + 3ℓlogℓ + 26logℓ + 3(logℓ)loglogℓ +

107)C

40ℓ+2ℓlogℓ + 28logℓ+

2logℓloglogℓ + 44

53ℓ + 3ℓlogℓ +

3logℓloglogℓ +

34logℓ+ 59

Table 2: Complexity of building blocks in the multi-party setting.

Protocol Rounds Interactive operations

Mul 1 1

TruncPR 2 k+ 1

PreMul 2 3n− 1

PreOR 3 5n− 1

LT 4 4ℓ − 2

EQZ 4 ℓ + 4logℓ

Trunc 4 4k + 1

BitDec logk klogk

Pow2 loglogℓ+ 1 logℓ(loglogℓ)+3logℓ − 1

Trunc loglogℓ+ 9 12ℓ+ (logℓ) loglogℓ + 3logℓ

FLMul 11 8ℓ + 10

FLDiv 2logℓ+ 7 2logℓ(ℓ+ 2) + 3ℓ + 8

FLAdd logℓ + loglogℓ+ 27 14ℓ+9k+ (logℓ)loglogℓ + (ℓ + 9)logℓ + 4logk + 37

FLLT 6 4ℓ + 5k + 4logk + 13

FLExp2 12logℓ+ loglogℓ + 24 8ℓ

+ 11ℓ + ℓ logℓ + (logℓ)loglogℓ + 7logℓ + 16k+ 5

New FLExp2 6logℓ + loglogℓ + 31 4ℓ

+ 23ℓ + 3ℓ logℓ + (logℓ)loglogℓ+6logℓ+ 16k+ 1

5.3 Improved Exponentiation

Floating point exponentiation is the most expensive

operation used in the computation of our target HMM

functionality. Furthermore, because each element of

the HMM’s output probability matrix is derived using

GMM formula that involves exponentiation, the ex-

ponentiation protocol must be executed a large num-

ber of times. This means that any improvement in the

performance of this operation results in a faster exe-

cution of the overall computation. For that reason, in

this section, we describe a modiﬁed solution for the

exponentiation operation that improves performance

of the solution in (Aliasgari et al., 2013).

As mentioned in (Aliasgari et al., 2013), the ma-

jor overhead of FLExp2 is caused by a sub-protocol

FLProd, which computes the product of ℓ ﬂoating

point values. FLProd accounts for 90% of FLExp2’s

overall time and we therefore focus on improving per-

formance of this functionality. The original imple-

mentation of FLProd in (Aliasgari et al., 2013) exe-

cutes ℓ − 1 ﬂoating point FLMul in a tree like fashion

using a logarithmic number of rounds. In each round,

FLProd calls FLMul on all pairs of available values in

parallel and passes the result to the next round. FLMul

is given below. The comparison and the second trun-

cation are to ensure that the output’s signiﬁcand is a

normalized ℓ-bit value, where ℓ is the bitlength of the

SecureComputationofHiddenMarkovModels

249

signiﬁcand’s representation and the number of inputs

to FLProd.

h[v], [p],[z],[s]i ← FLMul(h[v

],[p

],[z

],[s

]i, h[v

],[p

],[s

]i)

1. [v] ← [v

][v

];

2. [v] ← Trunc([v],2ℓ, ℓ − 1);

3. [b] ← LT([v],2

ℓ

,ℓ + 1);

4. [v] ← Trunc(2[b][v] + (1− [b])[v],ℓ + 1,1);

5. [z] ← OR([z

],[z

]);

6. [s] ← XOR([s

],[s

]);

7. [p] ← ([p

] + [p

] + ℓ − [b])(1− [z]);

8. return h[v],[p], [z], [s]i;

Our main idea consists of changing FLProd by letting

the intermediate values slightly grow in each round

and removing the extra bits only after the ﬁnal round

of multiplication. This allows us to remove the com-

parison and the second truncation from FLMul. Note

that the performance improvement of this modiﬁca-

tion is pronounced only in the multi-party setting be-

cause comparisons are very efﬁcient in the two-party

setting. We call this modiﬁed multiplication protocol

as simpliﬁed ﬂoating point multiplication, SFLMul.

SFLMul performs a simple multiplication of two sig-

niﬁcands and truncates the result by ℓ − 1 bits. This

means the output signiﬁcand is of length either γ + 1

or γ bits when the input signiﬁcands were of size

γ. In the ﬁrst round of FLProd, γ is equal to ℓ. In

round i, for 1 ≤ i ≤ ⌈logℓ⌉, the maximum bitlength

is γ = ℓ + 2

− 1. To be able to multiply signiﬁcands

in this round, we want to be able to represent values

larger than 2ℓ + 2

− 2 bits and the solution to work

correctly on this larger length representation. When ℓ

is a power of 2, which we assume for the simplicity

of exposition, 2ℓ+ 2

⌈logℓ⌉

−2 = 3ℓ− 2, which dictates

our choice of parameters in SFLMul protocol below.

[v] ← SFLMul([v

],[v

])

1. [v] ← [v

][v

];

2. [v] ← Trunc([v],3ℓ − 2, ℓ − 1);

3. return [v];

After the last, (logℓ)th, round of multiplication in

FLProd, the resulting signiﬁcand will have at most

2ℓ− 1 bits, and the extra bits should be removed. This

can be done by a normalization method similar to the

one used in (Aliasgari et al., 2013), where we ﬁrst

bit-decompose the value, compute the most signiﬁ-

cant non-zero bit, and truncate the result to retain ℓ

bits starting from the most signiﬁcant non-zero bit.

We also need to adjust the resulting exponent by the

number of truncated bits. Our new FLProd protocol is

given next. Because it is used for exponentiation with

positive non-zero values, we disregard (constant) zero

and sign bits, and operate on signiﬁcands [v

] and ex-

ponents [p

h[v],[p]i ← FLProd(h[v

],[p

]i,...,h[v

ℓ

],[p

ℓ

]i)

1. for i = 1 to logℓ do

2. for j = 1 to ℓ/2

do in parallel

3. [v

] ← SFLMul([v

2j−1

],[v

]);

4. [u

2ℓ−2

],...,[u

] ← BitDec([v

],2ℓ − 1,2ℓ − 1);

5. [h

],...,[h

2ℓ−2

] ← PreOR([u

2ℓ−2

],...,[u

]);

6. [p

] ← 2ℓ − 1−

∑

2ℓ−2

i=0

];

7. [2

] ← 1+

∑

2ℓ−2

i=0

(1− [h

]);

8. [v] ← Trunc([2

][v],2ℓ − 1,ℓ − 1);

9. [p] ← Σ

ℓ

i=1

] − [p

] + ℓ(ℓ − 1);

10. return h[v],[p]i;

The increase in the size of the intermediate values

from the original 2ℓ+1 to 3ℓ− 2 requires that the rep-

resentation of the values is large enough to preserve

correctness of the computation. In the two-party set-

ting, this does not require any additional provisions

as the group size over which the computation takes

place is signiﬁcantly larger than 2

3ℓ

for any practi-

cal value of ℓ. In the multi-party setting, however,

the ﬁeld size should be chosen appropriately to ac-

commodate the need to represent larger values. This

means that we need to increase the bitlength |p| from

> 2ℓ + 1 + σ to > 3ℓ − 2 + σ, where σ is the secu-

rity parameter for achieving information-theoretical

statistical security. A larger ﬁeld size yields slower

execution and thus decreased performance. To avoid

this issue, we utilize the idea of ﬁeld and the cor-

responding share conversion proposed in (Damg˚ard

and Thorbek, 2008; Cramer et al., 2005). All com-

putation prior and after FLProd is performed with

the ﬁeld size originally suggested in (Aliasgari et al.,

2013), while the FLProd protocol is executed using

a larger ﬁeld. Fortunately, the share-conversion from

one ﬁeld to another can in our case be performed non-

interactively with no communication cost.

6 SECURE VITERBI AND GMM

COMPUTATION

Now we are ready to put everything together and de-

scribe our privacy-preserving solution for HMM and

GMM computation based on Viterbi algorithm using

ﬂoating point numbers.

To execute the HMM algorithm given in section 3,

we ﬁrst need to perform GMM computation to de-

rive the output probabilities b

using equation 1. It

was suggested in (Smaragdis and Shashanka, 2007)

that the ith components of a GMM, g

(x) = −

(x −

SECRYPT2013-InternationalConferenceonSecurityandCryptography

250

)

−1

(x − µ

), is represented as x

x + y

whereY

= −

−1

, y

= Σ

−1

, and y

= −

−1

The suggested representation increases the number of

additions and multiplications than the original for-

mula and therefore would result in a slower perfor-

mance. In particular, because FLAdd is a relatively

expensive protocol, we would like to minimize the

use of this function. Thus we suggest that the par-

ties ﬁrst subtract µ

from the observed vector x and

engage in matrix multiplication to compute g

. Note

that the parties can run the above computation in par-

allel for all values of i, j, and k in equation 1. After

its completion, the parties proceed with performing

the secure version of the Viterbi algorithm.

The Viterbi algorithm requires (ﬂoating point)

multiplication, max, and argmax. The multiplica-

tion is implemented using FLMul, while the max and

argmax operations can be implemented using FLLT

in a tree like fashion (i.e., we ﬁrst compare every two

adjacent elements, then every two maximum elements

from the ﬁrst round of comparisons, etc.). To perform

argmax of two ﬂoating point numbers at indices i and

j, let [b] be the outcome of the FLLT operation applied

to the numbers at these indices. Then we set argmax

to be equal to [b] j + (1− [b])i. Therefore, argmax of

a number of ﬂoating point values can be computed in

a tree like fashion using the above method for each

comparison.

After completing the recursion step of the Viterbi

algorithm, we need to retrieve the sequence of states

in the HMM that resulted in the most likely path

(lines b and c of the termination step in the Viterbi

algorithm). If the sequence of these states can

be made publicly available, then the parties open

the values corresponding to q

∗

for 1 ≤ i ≤ T to

learn the sequence. However, in a more likely

event that this sequence needs to stay protected from

one or more parties, we make use of the proto-

col Pow2 from (Aliasgari et al., 2013). To com-

pute [q

∗

] = ψ

t+1

([q

∗

t+1

]) given [q

∗

t+1

], we execute

BitDec(Pow2([q

∗

t+1

] − 1,N), N, N) that will produce

N bits, all of which are 0 except the bit at position

∗

t+1

. We then multiply each bit of the result by the

respective element of the vector ψ

t+1

and add the re-

sulting values to obtain [q

∗

In the two-party setting, however, one of the par-

ties (e.g., the server) will learn the sequence as its out-

put and a more efﬁcient approach is possible. The

idea is to take advantage of the fact that all encrypted

values of the matrix ψ are held by both parties. In

this case, the party receiving the output retrieves

Enc

(ψ

t+1

∗

t+1

)) using its knowledge of q

∗

t+1

which

became available to that party in the previous step,

randomizes the ciphertext by multiplying it with a

fresh encryption of 0, and sends the result to the other

party. Note that this randomization does not change

the value of the underlying plaintext, but makes it

such that the party receiving it cannot link the ran-

domized ciphertext to one of the encryptions it pos-

sesses. This party then applies decryption to the re-

ceived ciphertext and sends it back to the receiving

party, who ﬁnishes the decryption, learns q

∗

, and con-

tinues to the next iteration of the computation.

The security of the proposed solution can be stated

as follows:

Theorem 1. The Viterbi solution above is secure both

in the two-party and multi-party settings in the semi-

honest security model.

Proof Sketch. The security of our solution in the

semi-honest model with respect to Deﬁnition 1 is

based on the fact that we only combine previously

known secure building blocks. Such building blocks

take protected inputs and produce protected outputs,

which means that their composition does not reveal

information about private values. In particular, we

can apply Cannetti’s composition theorem (Canetti,

2000), which states that a composition of secure sub-

protocols leads to security of the overall solution, to

arrive at security of the overall solution. More for-

mally, in both two-party and multi-party settings, we

can build a simulator S of the overall solution ac-

cording to Deﬁnition 1, which without access to pri-

vate data produces a view that cannot be distinguished

from the participants’ views in the real protocol exe-

cution. Our simulator calls the corresponding simu-

lators for the underlying building blocks. Then be-

cause each underlying simulator produces a view that

is either computationally or statistically indistinguish-

able (depending on the setting) from the view of a

particular party and no information is revealed while

combining the building blocks, the simulation of each

participant’s view in the overall protocol also cannot

be distinguished from a real protocol execution. We

thus obtain security of the solution in the semi-honest

model.

The security of our solution in the multi-party set-

ting can also be extended to the malicious security

model. In that case, to show security in presence

of malicious adversaries, we need to ensure that (i)

all participants prove that each step of their compu-

tation was performed correctly and that (ii) if some

dishonest participants quit, others will be able to re-

construct their shares and proceed with the rest of the

computation. The above is normally achieved using

a veriﬁable secret sharing scheme (VSS), and a large

number of results have been developed over the years

(e.g., (Gennaro et al., 1998; Hirt and Maurer, 2001;

SecureComputationofHiddenMarkovModels

251

Beerliova-Trubiniova and Hirt, 2008; Damg˚ard et al.,

2008; Damg˚ard et al., 2010) and others). In particu-

lar, because any linear combination of shares is com-

puted locally, each participant is required to prove

that it performed each multiplication correctly on its

shares. Such results normally work for t <

in the

information theoretic or computational setting with

different communication overhead and under a vari-

ety of assumptions about the communication chan-

nels. Additional proofs associated with this setting

include proofs that shares of a private value were dis-

tributed correctly among the participants (when the

dealer is dishonest) and proofs of proper reconstruc-

tion of a value from its shares (when not already im-

plied by other techniques). In addition, if at any point

of the computation the participants are required to in-

put values of a speciﬁc form, theywould have to prove

that the values they supplied are well formed. Such

proofs are needed by the implementations of some of

the building blocks (e.g., RandInt).

Thus, security of our protocols in the malicious

model in the multi-party setting can be achieved by

using standard VSS techniques, e.g., (Gennaro et al.,

1998; Cramer et al., 2000), where a range proof, e.g.,

(Peng and Bao, 2010) will be additionally needed for

the building blocks. These VSS techniques would

also work with malicious input parties (who distribute

inputs among the computational parties), who would

need to prove that they generate legitimate shares of

their data.

To show security of our solution in presence of

malicious adversaries in the two-party setting, we

likewise need to show that the participants perform all

operations correctly. Because Paillier encryption is an

additively homomorphic encryption that can be used

as a threshold encryption scheme, we can employ ex-

isting zero-knowledge proofs of knowledge for Pail-

lier ciphertexts. Example existing proofs for Paillier

encryption include a proof of knowledge of plain-

text (Damg˚ard and Jurik, 2001; Baudron et al., 2001),

a proof that two plaintexts are equal (Baudron et al.,

2001), a proof that a ciphertext encrypts one value

from a given set (Damg˚ard and Jurik, 2001; Baudron

et al., 2001), a proof that a ciphertext encrypts a prod-

uct of two other given encrypted values (Cramer et al.,

2001), and a range proof for the exponent a of plain-

text b

(Lipmaa et al., 2002). We leave the investiga-

tion of how these and possibly newly designed zero-

knowledge proofs can be used to achieve security of

our solution in the malicious model in the two-party

setting to the full version of this work.

Lastly, we defer experimental results that empiri-

cally evaluate performance of the developed solution

to the full version of this work.

7 CONCLUSIONS

In this work, we treat the problem of privacy-

preserving Hidden Markov models computation

which is commonly used for many applications in-

cluding speaker recognition. We develop the ﬁrst

provably secure techniques for HMM’s Viterbi and

GMM computation using ﬂoating point arithmetic.

Our solutions are designed for both two-party com-

putation that utilizes homomorphic encryption and

multi-party computation based on secret sharing,

which cover a wide variety of real-life settings, and

are designed to minimize their overhead.

ACKNOWLEDGEMENTS

This work was supported in part by grants CNS-

1223699 from the National Science Foundation and

FA9550-13-1-0066 from the Air Force Ofﬁce of Sci-

entiﬁc Research. Any opinions, ﬁndings, and conclu-

sions or recommendations expressed in this publica-

tion are those of the authors and do not necessarily

reﬂect the views of the funding agencies.

REFERENCES

Aliasgari, M., Blanton, M., Zhang, Y., and Steele, A.

(2013). Secure computation on ﬂoating point num-

bers. In Network and Distributed System Security

Symposuim (NDSS).

Baudron, O., Fouque, P.-A., Pointcheval, D., Stern, J., and

Poupard, G. (2001). Practical multi-candidate election

scheme. In ACM Symposium on Principles of Dis-

tributed Computing (PODC), pages 274–283.

Beerliova-Trubiniova, Z. and Hirt, M. (2008). Perfectly-

secure MPC with linear communication complexity.

In Theory of Cryptography Conference (TCC), pages

213–230.

Canetti, R. (2000). Security and composition of multi-

party cryptographic protocols. Journal of Cryptology,

13(1):143–202.

Catrina, O. and de Hoogh, S. (2010). Improved primitives

for secure multiparty integer computation. In Security

and Cryptography for Networks (SCN), pages 182–

199.

Catrina, O. and Saxena, A. (2010). Secure computation with

ﬁxed-point numbers. In Financial Cryptography and

Data Security (FC), pages 35–50.

Cramer, R., Damg˚ard, I., and Ishai, Y. (2005). Share conver-

sion, pseudorandom secret-sharing and applications to

secure computation. In Theory of Cryptography Con-

ference (TCC), pages 342–362.

Cramer, R., Damg˚ard, I., and Maurer, U. (2000). Gen-

eral secure multi-party computation from any linear

SECRYPT2013-InternationalConferenceonSecurityandCryptography

252

secret-sharing scheme. In Advances in Cryptology –

EUROCRYPT, pages 316–334.

Cramer, R., Damg˚ard, I., and Nielsen, J. (2001). Multi-

party computation from threshold homomorphic en-

cryption. In Advances in Cryptology – EUROCRYPT,

pages 280–289.

Dahl, M., Ning, C., and Toft, T. (2012). On secure two-

party integer division. In Financial Cryptography and

Data Security (FC), pages 164–178.

Damg˚ard, I., Ishai, Y., and Krøigaard, M. (2010). Perfectly

secure multiparty computation and the computational

overhead of cryptography. In Advances in Cryptology

– EUROCRYPT, pages 445–465.

Damg˚ard, I., Ishai, Y., Krøigaard, M., Nielsen, J., and

Smith, A. (2008). Scalable multiparty computation

with nearly optimal work and resilience. In Advances

in Cryptology – CRYPTO, pages 241–261.

Damg˚ard, I. and Jurik, M. (2001). A generalisation, a sim-

pliﬁcation and some applications of Paillier’s proba-

bilistic public-key system. In International Workshop

on Practice and Theory in Public Key Cryptography

(PKC), pages 119–136.

Damg˚ard, I. and Thorbek, R. (2008). Efﬁcient conversion

of secret-shared values between different ﬁelds. ePrint

Archive Report 2008/221.

Franz, M., Deiseroth, B., Hamacher, K., Jha, S., Katzen-

beisser, S., and Schr¨oder, H. (2012). Towards secure

bioinformatics services (short paper). In Financial

Cryptography and Data Security (FC), pages 276–

283. Springer.

Gennaro, R., Rabin, M., and Rabin, T. (1998). Sim-

pliﬁed VSS and fast-track multiparty computations

with applications to threshold cryptography. In ACM

Symposium on Principles of Distributed Computing

(PODC), pages 101–111.

Hirt, M. and Maurer, U. (2001). Robustness for free in un-

conditional multi-party computation. In Advances in

Cryptology – CRYPTO, pages 101–118.

Kerschbaum, F., Biswas, D., and de Hoogh, S. (2009). Per-

formance comparison of secure comparison protocols.

In International Workshop on Database and Expert

Systems Application (DEXA), pages 133–136.

Lipmaa, H., Asokan, N., and Niemi, V. (2002). Secure

Vickrey auctions without threshold trust. In Financial

Cryptography (FC), pages 87–101.

Nguyen, H. and Roughan, M. (2012a). Multi-observer

privacy-preserving hidden markov models. In

Network Operations and Management Symposium

(NOMS), pages 514–517.

Nguyen, H. and Roughan, M. (2012b). On the identiﬁabil-

ity of multi-observer hidden markov models. In Inter-

national Conference on Acoustics, Speech and Signal

Processing (ICASSP), pages 1873–1876.

Paillier, P. (1999). Public-key cryptosystems based on com-

posite degree residuosity classes. In Advances in

Cryptology – EUROCRYPT, pages 223–238.

Pathak, M., Portelo, J., Raj, B., and Trancoso, I. (2012).

Privacy-preserving speaker authentication. Informa-

tion Security Conference (ISC), pages 1–22.

Pathak, M. and Raj, B. (2011). Privacy preserving speaker

veriﬁcation using adapted gmms. In Interspeech,

pages 2405–2408.

Pathak, M., Rane, S., Sun, W., and Raj, B. (2011). Pri-

vacy preserving probabilistic inference with hidden

Markov models. In International Conference on

Acoustics, Speech and Signal Processing (ICASSP),

pages 5868–5871.

Peng, K. and Bao, F. (2010). An efﬁcient range proof

scheme. In IEEE International Conference on Infor-

mation Privacy, Security, Risk and Trust (PASSAT),

pages 826–833.

Rabiner, L. (1989). A tutorial on hidden Markov-models

and selected applications in speech recognition. Pro-

ceedings of the IEEE, 77(2):257–286.

Shamir, A. (1979). How to share a secret. Communications

of the ACM, 22(11):612–613.

Shashanka, M. (2010). A privacy preserving framework for

gaussian mixture models. In IEEE International Con-

ference on Data Mining Workshops (ICDMW), pages

499–506. IEEE.

Smaragdis, P. and Shashanka, M. (2007). A framework for

secure speech recognition. IEEE Transactions on Au-

dio, Speech, and Language Processing, 15(4):1404–

1413.

APPENDIX

Security Weakness of (Pathak and Raj,

2011)

Here we show that the logsum protocol used

in (Pathak and Raj, 2011) for HMM computation has

a security ﬂaw, which demonstrates the importance of

rigorous analysis of protocols with respect to the level

of security they can offer.

The input to the two-party logsum protocol

in (Pathak and Raj, 2011) consists of N encrypted log-

arithms of private values x

. During the protocol, one

party, Alice, learns products e

for all inputs and sin-

gle random r. Alice thus knows the ratios of the pri-

vate values. These ratios reveal a substantial amount

of information about the secret values, and in partic-

ular the relative magnitude of the inputs, no informa-

tion about which should be revealed. This informa-

tion leakage can lead to more signiﬁcant or even full

data recovery if these private values are used in other

operations and a function of them is known or if an

outside information about at least one of the x

’s is

available (e.g., if one of them comes from Alice). For

example, if Alice knows only one x

, she will be able

to recover all remaining private values. This clearly

undermines the security of the designed system and is

unacceptable for a security solution.

SecureComputationofHiddenMarkovModels

253
