A New Methodology for Mitigation of Lava Flow Invasion Hazard

Morphological Evolution of Protective Works by Parallel Genetic Algorithms

G. Filippone

, W. Spataro

, D. D’Ambrosio

and D. Marocco

Department of Mathematics and High-Performance Computing Center, University of Calabria, Arcavacata di Rende, Italy

Centre of Robotics and Neural Systems, School of Computing and Mathematics, Plymouth University, Plymouth, U.K.

Keywords:

Evolutionary Computation, Genetic Algorithms, Parallel Computing, Cellular Automata, Lava Flow Simula-

tion, Lava Flow Control.

Abstract:

The determination of areas exposed to be interested by new eruptive events in volcanic regions is crucial for

diminishing consequences in terms of human causalities and damages of material properties. Nevertheless,

urbanized areas, cultural heritage sites or even important infrastructures, such as power plants, hospitals and

schools can be protected by diverting the ﬂow towards lower interest regions. This paper describes the applica-

tion of Parallel Genetic Algorithms for optimizing earth barriers construction by morphological evolution, to

divert a case study lava ﬂow that is simulated by the numerical Cellular Automata model Sciara-fv2 at Mt Etna

(Sicily, Italy). In particular, the application regards the optimization of the position, orientation and extension

of an earth barrier built to protect Rifugio Sapienza, a touristic facility located near the summit of the volcano.

The study has produced extremely positive results and represents, to our knowledge, the ﬁrst application of

morphological evolution for lava ﬂow mitigation. Among different alternatives generated by the Genetic Al-

gorithm, an interesting scenario consists of an earthen barrier solution (with a length of 225 m, average height

of 25 m, base width of 10 m and volume of 56180 m

) which completely deviates the ﬂow avoiding that the

lava reaches the inhabited area.

1 INTRODUCTION

Among several approaches for modeling natural com-

plex phenomena proposed in the literature, Cellular

Automata (CA) represent a possible solution when the

phenomena to be simulated evolve on the basis of lo-

cal interactions of their constituent parts. CA are dy-

namical systems, discrete in space and time. They can

be thought of as a lattice of cells, each one embedding

an identical ﬁnite automaton, interacting only with a

small set of neighbouring cells. The state of each ﬁ-

nite automaton is changed by applying the transition

function, which deﬁnes local rules of evolution for the

cell. The CA overall global dynamic emerges from

the simultaneous application of the local rules to each

cell.

In the speciﬁc case of simulating macroscopic nat-

ural events, Macroscopic Cellular Automata (MCA)

can represent a valid methodology to model numer-

ous complex non-linear phenomena (Di Gregorio and

Serra, 1999), such as lava and debris ﬂows. MCA

are an extension of classical CA, developed for over-

coming some of the limitations affecting conventional

CA frames such as the modeling of large scale com-

plex phenomena. Due to its particulate nature and lo-

cal dynamics, MCA are very powerful in dealing with

complex boundaries, incorporating microscopic inter-

actions and parallelization of the algorithm.

In the risk assessment of lava ﬂow context, the

use of thematic maps of volcanic hazard is of fun-

damental relevance to support policy managers and

administrators in effective land use planning and tak-

ing proper actions that are required during an emer-

gency phase. In particular, hazard maps are a key tool

for emergency management by describing the threat

that can be expected at a certain location for future

eruptions. At Mt. Etna (Italy), the most active vol-

cano in Europe, the majority of events that have oc-

cured in the last four centuries report damage to hu-

man properties in numerous towns on the volcano

ﬂanks (Behncke and Neri, 2003). Notwithstanding,

the susceptibility of the Etnean area to lava invasion

has increased in last decades due to continued urban-

ization (Dibben, 2008), the inevitable consequence

being that new eruptions may involve even greater

risks. Current efforts for hazard evaluation and con-

Filippone G., Spataro W., D’Ambrosio D. and Marocco D..

A New Methodology for Mitigation of Lava Flow Invasion Hazard - Morphological Evolution of Protective Works by Parallel Genetic Algorithms.

DOI: 10.5220/0004540400130024

In Proceedings of the 5th International Joint Conference on Computational Intelligence (ECTA-2013), pages 13-24

ISBN: 978-989-8565-77-8

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

tingency planning in volcanic areas draw heavily on

hazard maps and numerical simulations for the pur-

pose of individuating affected areas in advance. Al-

though many computational modeling methods (Ishi-

hara et al., 1990; Miyamoto and Sasaki, 1997; Avo-

lio et al., 2006; Del Negro et al., 2008) for lava ﬂow

simulation and related techniques for the compilation

of susceptibility maps are already known to the inter-

national scientiﬁc community, the problem of deﬁn-

ing a standard methodology for the construction of

protection works, in order to mitigate volcanic risk,

remains open. Techniques to slow down and divert

lava ﬂows, caused by collisions with protective mea-

sures such as artiﬁcial barriers (Barberi et al., 2003;

Colombrita, 1984; MacDonald, 1962) or dams (Bar-

beri et al., 1993), are now to be considered empirical,

exclusively based on past experiences.The proper po-

sitioning of protective measures in the considered area

may depend on many factors (viscosity of the magma,

output rates, volume erupted, steepness of the slope,

topography, economic costs). As a consequence, in

this context one of the major scientiﬁc challenges for

volcanologists is to provide efﬁcient and effective so-

lutions.

Morphological evolution is a recent development

within the ﬁeld of engineering design, by which evo-

lutionary computation techniques are used to tackle

complex design projects. This branch of evolutionary

computation is also known as evolutionary design and

is a multidisciplinary endeavour that integrates con-

cepts from evolutionary algorithms, engineering and

complex systems to solve engineering design prob-

lems (Bentley, 1999). Morphological evolution has

been largely explored in evolutionary robotics, both

for the design of imaginary 3D robotics bodies (Sims,

1994) and for the efﬁcient and autonomous design

of adaptive moving robots (Bongard, 2011; Lipson

and Pollack, 2000). Principles of evolutionary design

have been also applied in structural engineering at dif-

ferent level of the design process, from the structural

design itself to the logistic involved in the construc-

tion (Kicinger et al., 2005).

This paper describes the application of Parallel

Genetic Algorithms (PGAs), for the ﬁrst time to our

knowledge, for optimizing earth barriers construction

by morphological evolution, to divert a case study

lava ﬂow that is simulated by a CA model. The GA

ﬁtness evaluation has implied a massive use of the

numerical simulator running thousands of concurrent

simulations for every generation computation. There-

fore, a GPGPU (General Purpose computation with

Graphic Processor Units) library was developed to

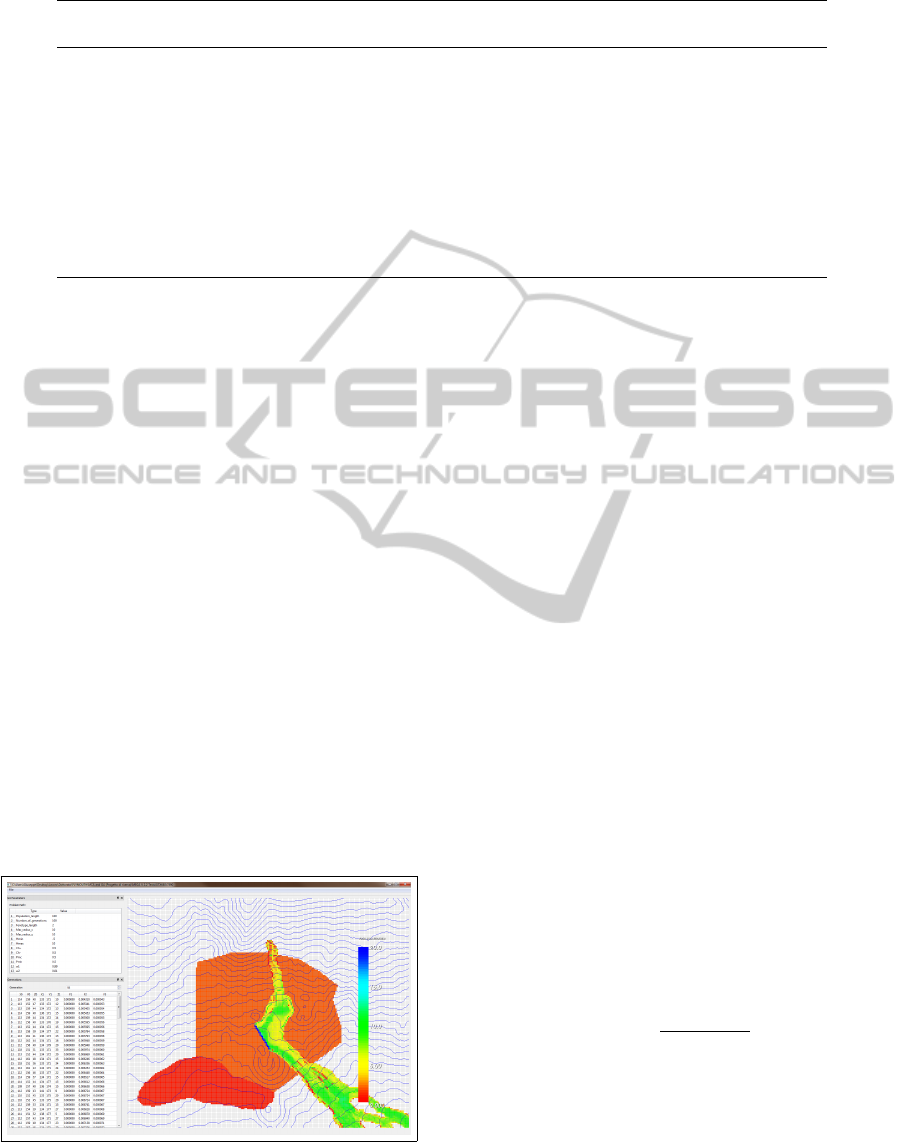

accelerate the GA execution. A visualization sys-

tem (Filippone et al., 2013) was also implemented,

thereby allowing interactive analysis of the results. A

study of GA dynamics, with reference to emergent be-

haviors, is also discussed later. The paper is organized

as follows: after a brief description of the SCIARA-

fv2 CA model (Section 2) that was used for lava ﬂow

simulation of the case study adopted for the experi-

ments (Section 3), the main characteristics of the im-

plemented algorithm, framework and results are pre-

sented (Section 4). Section 5 concludes the paper with

ﬁnal comments and future works.

2 THE CELLULAR AUTOMATA

MODEL SCIARA - f v2

For the morphological evolution of protective works

by PGAs, the latest release fv2 of the SCIARA

CA model for simulating lava ﬂows was adopted.

SCIARA is a family of bi-dimensional MCA lava

ﬂow models, successfully applied to the simulation

of many real cases such as the 2001 Mt. Etna (Italy)

Nicolosi lava ﬂow (Crisci et al., 2004) and the 1991

Valle del Bove (Italy) lava event (Barca et al., 1994),

which occurred on the same volcano and was em-

ployed for risk mitigation. In formal terms, the

SCIARA-fv2 model (Spataro et al., 2010) is deﬁned

as:

SCIARA − f v2 =< R, L, X, Q, P, τ, γ > (1)

where:

• R is the set of square cells covering the bi-

dimensional ﬁnite region where the phenomenon

evolves;

• L ⊂ R speciﬁes the lava source cells (i.e. craters);

• X = {(0, 0), (0, 1), (−1, 0), (1, 0), (0, −1), (−1, 1),

(−1, −1), (1, −1), (1, 1)} is the set that identiﬁes

the pattern of 8 cells inﬂuencing the cell state

change (i.e., the Moore neighborhood);

• Q = Q

× Q

is the ﬁnite set of states,

considered as a Cartesian product of substates.

SCIARA-fv2 substates, which describe relevant

quantities representing a particular feature of the

phenomenon to be modeled are: cell elevation

a.s.l., cell lava thickness, cell lava temperature,

and lava thickness outﬂows from the central cell

toward neighbours, respectively;

• P = {w,t, T

sol

, T

vent

, r

T sol

, r

T vent

, hc

T sol

, hc

T vent

, δ,

ρ, ε, σ, c

} is the ﬁnite set of parameters (invari-

ant in time and space) which affect the transition

function (refer to (Spataro et al., 2010) for their

speciﬁcations);

IJCCI2013-InternationalJointConferenceonComputationalIntelligence

• τ : Q

→ Q is the cell deterministic transition

function, applied to each cell at each time step,

which describes the dynamics of lava ﬂows, such

as cooling, solidiﬁcation and lava outﬂows from

the central cell towards neighbouring ones.

• γ : Q

× N → Q

speciﬁes the emitted lava thick-

ness, h, from the source cells at each step k ∈ N

(N is the set of natural numbers).

3 THE CASE STUDY: THE 2001

Mt Etna ERUPTION

As reported in (Barberi and Carapezza, 2004), the

2001 eruption of Mt. Etna began on July 17, char-

acterized by lava emission from several vents on the

southern ﬂank of the volcano, at elevations of 2100

m, 2550 m, 2600 m, 2700 m, 2950 m, 3050 m, the

latter four being directly connected to the conduit of

the SE crater (see Figure 1). Only lava ﬂows emit-

ted from the lowermost vents (2100 m, 2550 m, 2600

2700 m) caused damage and threatened some impor-

tant facilities and infrastructure, which were protected

by earthen barriers. Effusion rates at the main erup-

tive vents were estimated daily by (Behncke and Neri,

2003)from the volume/time ratio and were obtained

by careful mapping of the ﬂow area and estimating its

mean thickness. The facilities of the Sapienza zone

were undoubtedly at risk because of their short dis-

tance from the 2700-m and 2550-m effusive vents (re-

spectively 3 and 2.5 km). The most probable path

for the lava ﬂow emitted from the 2100-m ﬁssure was

simulated (Crisci et al., 2001 and M.T. Pareschi, un-

published reports to Civil Protection) and was consid-

ered for the carried out experiments presented in the

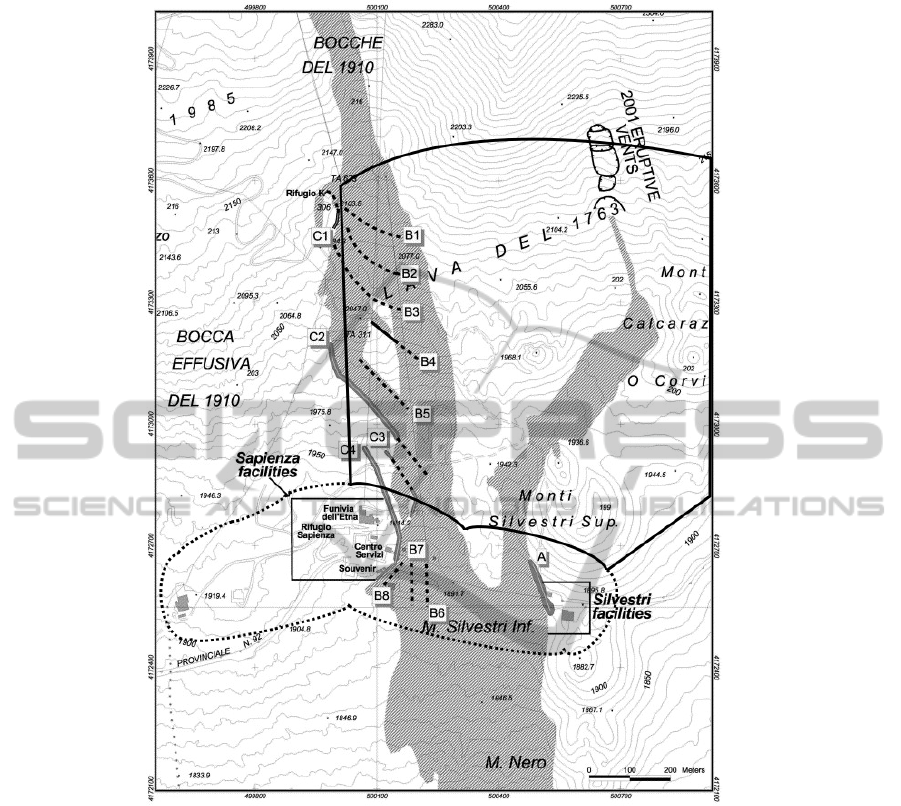

next sections. Thirteen artiﬁcial barriers were built

during the July August 2001 Mt. Etna eruption. Their

locations, together with investigated area here consid-

ered, are shown in the map of Figure 1. The ﬂow emit-

ted from the lower vent, the 2100-m ﬁssure, immedi-

ately interrupted the road SP92 and invaded a part of

the adjacent wide parking area located between Mts.

Silvestri and the Sapienza zone (1900 m a.s.l.). Start-

ing on 21 July, a large barrier was progressively built

on the eastern ﬂank of the ﬂow to protect two tourist

facilities. This barrier worked properly and the two

buildings were saved. The lava ﬂow emitted from the

2100-m fracture descended about 6 km southwards

(Figure 1) and after the SP92 road near Mts. Silvestri

it cut some other minor rural roads and destroyed a

few isolated country houses. Had the lava advanced

further, it would have re-crossed the SP92 road at a

lower elevation, causing the complete isolation of the

upper part of Mt. Etna. Workers and machines were

moved to a possible critical point on the western front

ready to build a diversion barrier to protect the road.

An intervention plan was also set up for the protec-

tion of the Nicolosi and Belpasso villages, located on

the most probable path of the lava, at only 4 km dis-

tance from its lowermost front. The plan included:

(a) the building of lateral barriers to drive the ﬂow to-

ward large depressions of old quarries, located near

the lava trajectory, (b) the erection of other barriers

orthogonal to the ﬂow direction to increase the retain-

ing capacity of the quarries and (c) the establishment

of a detailed preparedness plan for the Nicolosi and

Belpasso populations, mobile goods and cultural her-

itage. Diversion of the ﬂow from its natural channel

near the 2100-m vent, using the technique employed

in 1992 in Valle del Bove (Barberi et al., 1993), was

also considered, as a possible last emergency measure

to be adopted should the lava have approached the vil-

lages. The decrease in the rate of effusion beginning

in the last days of July prevented any further advance

of the ﬂow and so, fortunately, the planned interven-

tions were not necessary.

4 MORPHOLOGICAL

EVOLUTION OF PROTECTIVE

WORKS THROUGH PARALLEL

GENETIC ALGORITHMS

Genetic Algorithms (GAs) (Holland, 1992) are

general-purpose iterative search algorithms inspired

by natural selection and genetics. They have been

applied, with good results, in many different ﬁelds:

for the solution of difﬁcult combinatorial problems

(Goncalves and Resende, 2011) in the study of the

interaction between evolution and learning (Hinton

and Nowlan, 1987); in evolutionary robotics (Nolﬁ

and Marocco, 2001; ElSayed et al., 2012). GAs have

also been used for improving the performance of CA

in resolving difﬁcult computational tasks: (Piwon-

ska et al., 2013) applied GAs to a cellular automata-

based solution of a binary classiﬁcation problem;

(Tomassini and Venzi, 2002) evolved asynchronous

CA to face similar problems. GAs based methods

have also been applied to CA for modelling biore-

mediation of contaminated soils (Di Gregorio et al.,

1999) and for the optimisation of lava and debris ﬂow

simulation models (e.g., (Spataro et al., 2004; Iovine

et al., 2005; Rongo et al., 2008; D’Ambrosio et al.,

2012c; D’Ambrosio et al., 2012b)).

GAs simulate the evolution of a population of can-

didate solutions, called phenotypes, to a speciﬁc prob-

ANewMethodologyforMitigationofLavaFlowInvasionHazard-MorphologicalEvolutionofProtectiveWorksby

ParallelGeneticAlgorithms

Figure 1: Set of interventions carried out during the 2001 eruption event to divert the lava ﬂow away from the facilities. The

dashed perimeter represents the Rifugio (security area), which delimitates the area that has to be protected by the ﬂow for the

study. The solid line perimeter (work area), speciﬁes the area in which the earth barrier can be located (Base ﬁgure taken from

(Barberi et al., 2003)).

lem by favouring the reproduction of the best individ-

uals. Phenotypes are codiﬁed by genotypes, typically

using strings, whose elements are called genes. In or-

der to determine the best possible solution of a given

problem, the GA must explore the so-called search

(or solution) space, deﬁned as the set of all possible

values that the genotype can assume. For example, if

the genotype codiﬁes real numbers, the search space

is deﬁned as the Cartesian product of the ranges in

which they are allowed to vary. The members of the

initial population are usually randomly generated and

successively evaluated by means of a “ﬁtness func-

tion”. This latter determines the individuals “adaptiv-

ity” value (also called ﬁtness value), i.e. a measure of

its goodness in resolving the problem. Best individu-

als are chosen by means of a “selection” operator and

reproduced by applying random “genetic” operators

to form a new population of offspring. Typical genetic

operators are “crossover” and “mutation”: they rep-

resent a metaphor of sexual reproduction and of ge-

netic mutation, respectively. According to a preﬁxed

probability, pairs of genotypes produce offspring via

crossover, receiving components from each parent.

Then, according to a preﬁxed and usually small prob-

ability, each gene of the offspring is subject to muta-

tion. The mutation operator simply changes the gene

value with another one, randomly chosen within those

allowed. The overall sequence of ﬁtness assignment,

selection, crossover, and mutation is repeated over

many generations (i.e. the GA iterations) producing

IJCCI2013-InternationalJointConferenceonComputationalIntelligence

new populations of individuals. The basic idea is that

better individuals (i.e. characterised by higher ﬁtness)

can be obtained over time by combining partial solu-

tions (i.e. portions of the genotypes) and by randomly

changing the genes values. According to the individ-

ual’s probability of selection, any change that actually

increases the individual’s ﬁtness will be more likely

to be preserved over the selection process, thus ob-

taining better generationsas stated by the fundamental

theorem of genetic algorithms (Holland, 1992). For a

complete overview of GAs, see (Goldberg, 1989) and

(Mitchell, 1996).

While GAs have been applied several times in the

past for optimizing CA models, as the ones previ-

ously reported, by considering the 2001 Nicolosi case

study, in this work GAs were adopted in conjunction

with the SCIARA-fv2 CA model for the morphologi-

cal evolution of protective works to control lava ﬂows.

The numerical model ﬁnite set of states was extended

by introducing two substates deﬁned as:

Z ⊆ R (2)

where Z is the set of cells of the cellular automaton

that speciﬁes the Safety Zone, which delimitates the

area that has to be protected by the lava ﬂow and

P ⊆ R, P ∩ Z =  (3)

where P is the set of cells of the cellular automa-

ton that indentiﬁes the Protection Measures Zone that

identiﬁes the area in which the protection works are

to be located.

The Protection work W = {B

, B

, ..., B

} was

represented as a set of barriers, where every bar-

rier B

= {N

, N

} is composed by a pair of nodes

i j

= {x

i j

, y

i j

, z

i j

}, where (x

i j

, y

i j

) represent CA co-

ordinates for the generic node j of the barrier i, and

i j

the height (expressed in m). The solutions were

encoded into a GA genotype, directly as integer val-

ues (ﬁgure 2) and a population of 100 individuals,

randomly generated inside the Protection Measures

Zone, was considered.

The choice of an appropriate ﬁtness function is

essential to evaluate the goodness of a given solu-

tion. In the present study, two different ﬁtness func-

tions were considered: f

, based on the areal com-

parison between the simulated event and the Safety

Zone (in terms of affected area) and f

, which consid-

ers the total volume of the protection works in order

to reduce intervention costs and environmental im-

pact.More formally, the f

objective function is de-

ﬁned as:

µ(S ∩ Z)

µ(S ∪ Z)

(4)

where S and Z respectively identify the areal extent

of the simulated lava event and the Safety Zone area,

with µ(S ∩ Z) e µ(S ∪ Z) being the measures of their

intersection and union. The function f

, assumes

values within the range [0, 1] where 0 occurs when

the simulated event and Safety Zone Area are com-

pletely disjointed (best possible simulation) and 1 oc-

curs when simulated event and Safety Zone Area per-

fectly overlap (worst possible simulation). The f

ob-

jective function is deﬁned as:

∑

|W |

i=1

· d(B

) · h(B

)

max

(5)

and since the barriers are composed of two nodes, the

function can be written as:

∑

|W |

i=1

· d(N

, N

) ·

h(N

, N

)

max

(6)

where

h(N

, N

) =

represents the aver-

age height value between two different nodes and

d(N

, N

) =

− x

)

+ (y

− y

)

identiﬁes its

length (in meters). The ﬁnal ﬁtness function f

can

be written as:

∑

|W |

i=1

− x

)

+ (y

− y

)

max

(7)

where the parameter p

is the cell side and V

max

∈ R

is a threshold parameter (i.e., the maximum building

volume) given by experts, for the function normaliza-

tion. The function f

, assumes values within the range

[0, 1]: it is nearly 0 when the work protection is the

cheapest possible, 1 otherwise. For the genotype ﬁt-

ness evaluation, a composite (aggregate) function f

was also introduced as follows:

= f

· ω

+ f

· ω

(8)

where ω

, ω

∈ R and (ω

+ω

) = 1, represent weight

parameters associated to f

and f

. Several dif-

ferent values were tested and the considered ones

in this work chosen on the basis of trial and error

techniques.The goal for the GA is to ﬁnd a solu-

tion that minimizes the considered objective function

∈ [0, 1].

In order to classify each genotype in the popula-

tion, at every generation run, the algorithm executes

the following steps:

1. CA cells elevation a.s.l. are increased/decreased

in height on the basis of the genotype decoding

ANewMethodologyforMitigationofLavaFlowInvasionHazard-MorphologicalEvolutionofProtectiveWorksby

ParallelGeneticAlgorithms

max

2 2 5

6 6 1

3 7 2

3 10 2

y coordinate

x coordinate

Height (m)

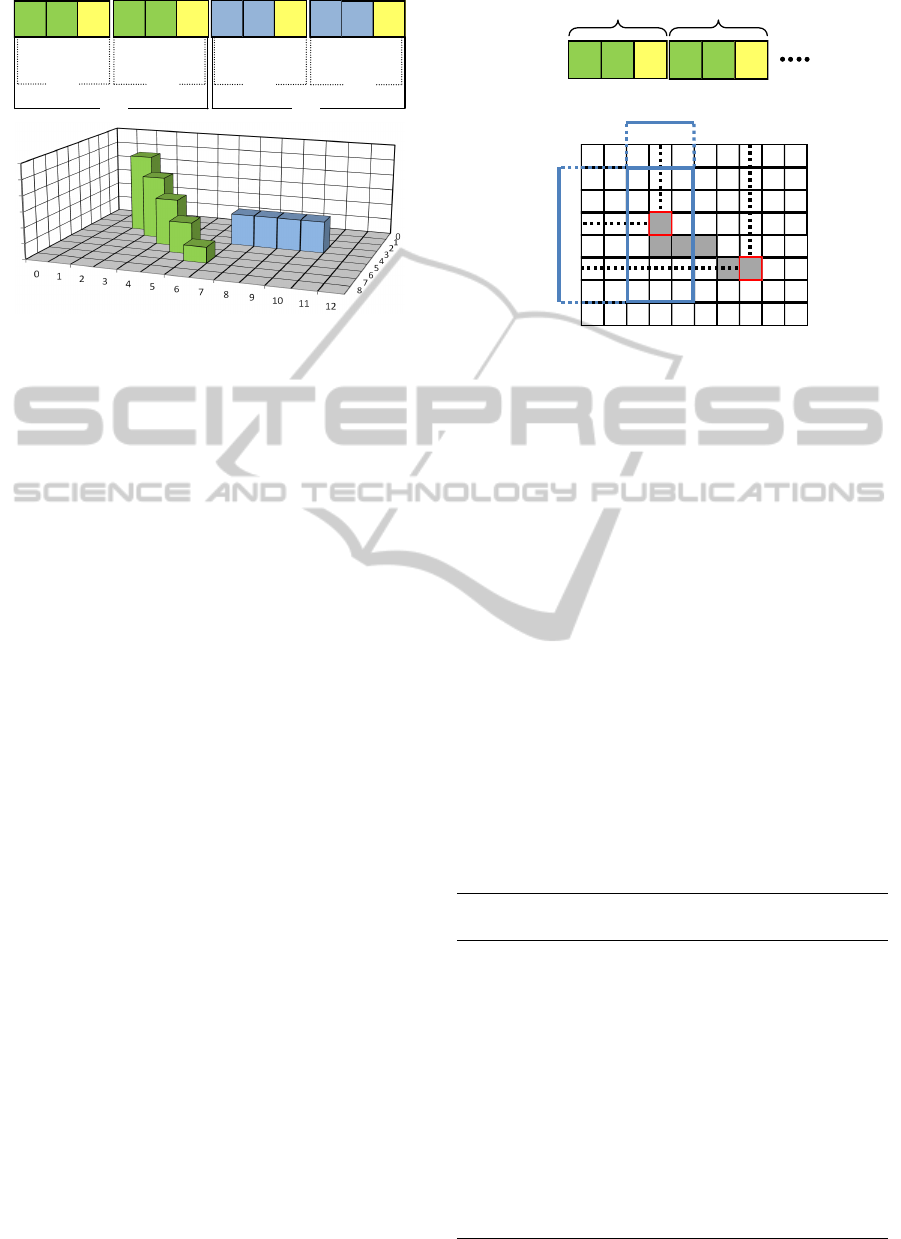

Figure 2: Barriers encoding into a GA genotype.

(i.e, the barrier cells). To complete this step, an

extending Bresenham‘s original algorithm (Bre-

senham, 1965) is applied to determine the cells

inside the segment between the work protection

extremes and f

subsequently computed.

2. A SCIARA-fv2 simulation is performed (about

40000 calculation steps) and the impact of the lava

thickness on Z area ( f

computation) is evaluated.

3. f

is computed and individuals are sorted accord-

ing to their ﬁtness.

The adopted GA is a rank based and elitist model,

as at each step only the best genotypes generate off-

spring. The 20 individuals which have the highest ﬁt-

ness generate ﬁve off-spring each and the 20 × 5 =

100 offspring constitute the next generation. After the

rank based selection, the mutation operator is applied

with the exception of the ﬁrst 5 individuals.

The complete list of GA characteristics and pa-

rameters is reported in Table 1. Each gene muta-

tion probability depends on its representation: p

for genes corresponding to coordinates value and p

viceversa. Therefore, if during the mutation process,

a coordinate gene is chosen to be modiﬁed, the new

value will depend on the parameters x

max

and y

max

which represent the cell radius within the node, the

position of which can vary. The interval [h

min

, h

max

]

is the range within which the values of height nodes

are allowed to vary (Figure 3). This strategy ensures

the possibility for the GA to provide, as output, either

protective barriers or dams.

4.1 Parallel Implementation and

Performance

To evaluate a given GA individual, an entire CA simu-

lation has to be performed, followed by a comparison

max

Figure 3: Graphical representation of the genotype mutation

phase. Each gene, representing a CA coordinate, can vary

within a variation radius (x

max

, y

max

of the obtained result with the actual case study. De-

pending on the adopted computer framework, such an

operation may require several seconds, or even sev-

eral hours. For example, on a 2-Quadcore Intel Xeon

E5472, 3.00 GHz CPU such evaluation requires ap-

proximately 10 min, as at least 40,000 CA steps are

required for a simulation. Thus, if the GA population

is composed of 100 individuals, the time required to

run one seed test (100 steps) exceeds 69 days. More-

over, the GA execution can grow, depending on both

the extent of the considered area and the number of

different tests to run.

Due to the high computational complexity of the

algorithm, a CPU/GPU library was developed to ac-

celerate the GA running. A “Master-Slave” model

was adopted in which the Host-CPU (Master) exe-

cutes the GA steps (selection, population replacement

Table 1: List of parameters of the adopted GA.

GA Speciﬁcation Value

parameters

Genotypes length 6

Population size 100

Number of generations 100

Coord. gene mutation probability 0.5

max

Gene x position variation radius 10

max

Gene y position variation radius 10

Height gene mutation probability 0.5

min

height min variation range -5

max

height max variation range 10

Cost to build 1

h−

Cost to dig 1

f 1

weight parameter 0.90

f 2

weight parameter 0.10

IJCCI2013-InternationalJointConferenceonComputationalIntelligence

0 20 40

80 100

600

800

1,000

1,200

1,400

Number of simultaneous simulations

Elapsed time in s

WCSI ALGORITHM

GTX 480

GTX 580

GTX 680

Tesla 2075

(a)

0 20 40

80 100

200

400

600

800

1,000

1,200

Number of simultaneous simulations

Elapsed time in s

MDGI ALGORITHM

GTX 480

GTX 580

GTX 680

Tesla 2075

(b)

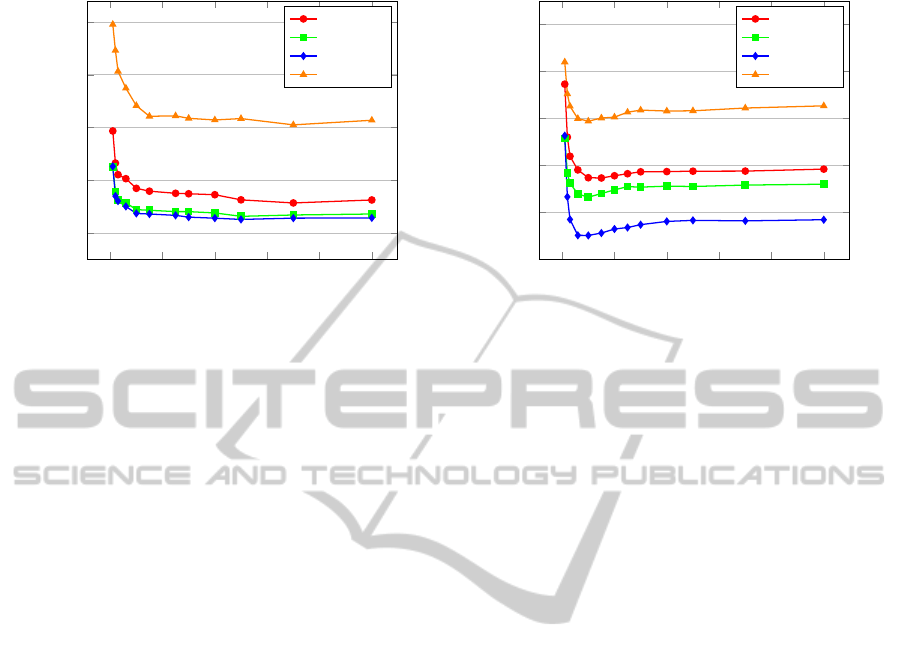

Figure 4: Elapsed time as a function of simultaneus lava events usign the WCSI (a) and MDGI (b) approaches on different

considered GPGPU hardware.

and mutation), while GPU cores (slaves) evaluate the

individuals ﬁtness.

In order to test and evaluate the different im-

plementation strategies, a landscape benchmark case

study was considered, modeled through a Digital El-

evation Model composed of 200 × 318 square cells

with a side of 10 m. A set of 50 hypothetical barriers

placed with 2 different inclinations (135

◦

, 225

◦

) to the

lava ﬂow direction was considered leading to a total

of 100 simulations to be performed. Two paralleli-

sation strategies and different graphic hardware were

adopted in all experiments reported below. In particu-

lar, four CUDA devices were used in the experiments:

one nVidia Tesla C2075 and three nVidia Geforce

graphic cards, namely the GTX480, GTX 580 and the

GTX 680.Also, in order to quantify the achieved par-

allel speedup, sequential versions of the same GPU

strategies were run on a workstation equipped with a

2-Quadcore Intel Xeon E5472 (3.00 GHz) CPU.

Inspired by previous works in CA modelling with

GPGPU (D’Ambrosio et al., 2012a; Filippone et al.,

2011), a ﬁrst straightforward parallel implementation,

labeled as WCSI (Whole Cellular Space Implemen-

tation) was considered where the CUDA kernels op-

erate on the whole automaton. Since during a lava

ﬂow simulation only the transition function of the cur-

rently active cells do signiﬁcant computation, simu-

lating only one simulation at a time would imply a

high percentage of uselessly scheduled threads. In

addition, given the small size of most simulations (on

average, 20% of cells of the entire automaton are ac-

tive during a single simulation), the number of active

threads would be too low to allow the GPU to ef-

fectively activate the latency-hiding mechanism. For

these reasons, in the WCSI approach more than a sin-

gle lava episode are simultaneously executed. This

means that the main CUDA kernel is executed over a

number of simulations which are propagated at the

same CA step. In particular, each simulation per-

formed is mapped on a different value of z and on

a grid of threads composed of 16 × 16 blocks. That

is, the grid of threads used for the CA transition func-

tion is three-dimensional, with the base representing

the considered CA space and the vertical dimension

corresponding to the simulations.

For a fair comparison, the sequential version of

the same algorithm was used and the elapsed time

achieved by the CPU was 26039 s. Using the adopted

GPU devices, the algorithm was solved with the

WCSI approach and a variable number of simulta-

neous lava simulations. According to the results

shown in Figure 4.a, the GTX 680 achieved the low-

est elapsed time of 650,96s, concurrently simulating

50 lava events. The gain provided by the paralleli-

sation in terms of computing time was signiﬁcant and

corresponded to a parallel speedup of 40 over the used

CPU.

A critical aspect of CA implementations that can

improve performance, which is also related to CA se-

quential versions, is that the application of the transi-

tion function can be restricted to the only active cells

where computation is actually taking place. When

considering a phenomenon (e.g., a lava ﬂow) that is

topologically connected (i.e., a simulation starts from

few active cells and evolves by activating neighbour

cells), the CA space can be conﬁned within a rectan-

gular bounding box (RBB). This optimization drasti-

cally reduces execution times, since the sub-rectangle

is usually quite smaller than the original CA space. In

case of the above WCSI CA GPGPU implementation,

ANewMethodologyforMitigationofLavaFlowInvasionHazard-MorphologicalEvolutionofProtectiveWorksby

ParallelGeneticAlgorithms

0 20 40

80 100

0.00

0.05

0.10

0.15

0.20

0.25

0.30

generation

ﬁtness

Fitness f

(average on 10 seeds)

best individual

average f

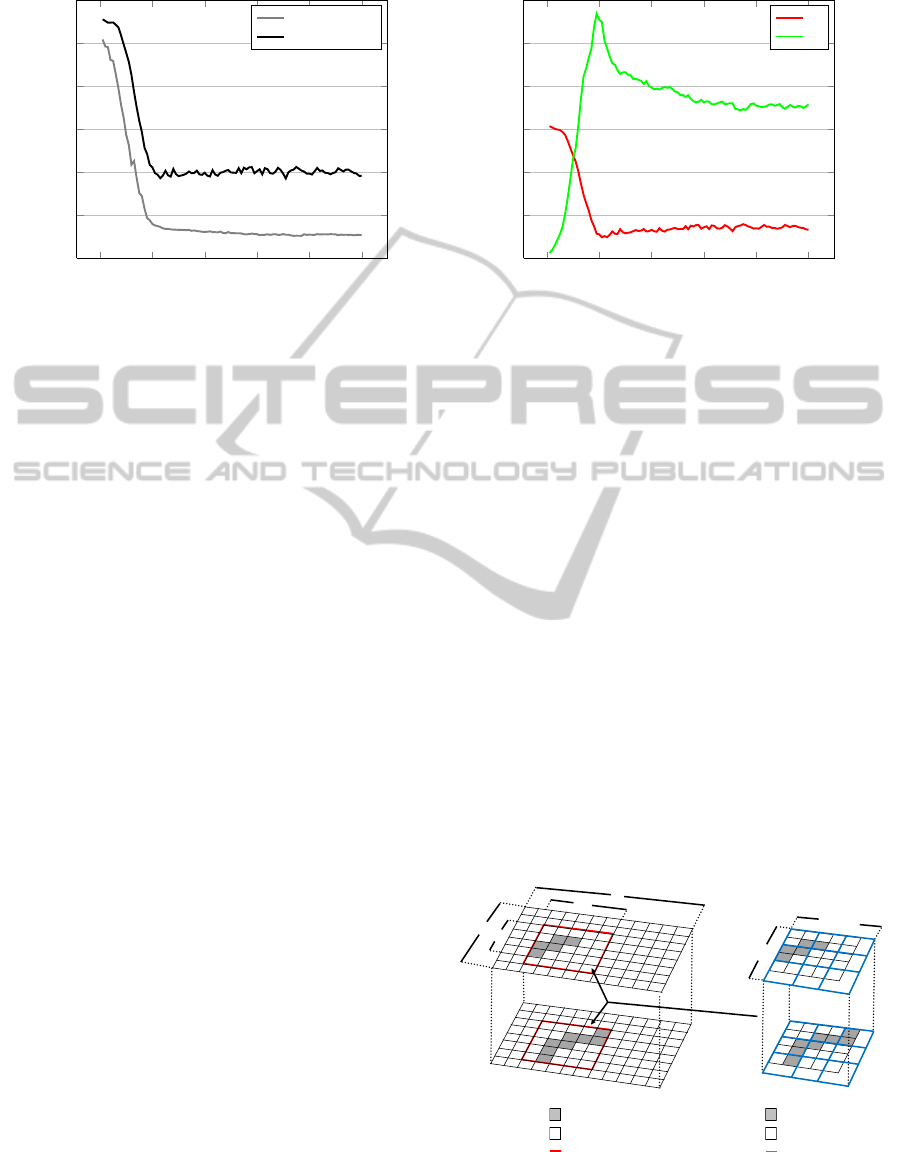

Figure 5: Temporal evolution of composite f

ﬁtness of best

individual (in black) and of average ﬁtness of whole popu-

lation (in gray). Fitness values were obtained as an average

of 10 GA runs, carried out by adopting different seeds for

generation of random numbers.

this weakness is even more evident due to the difﬁ-

culty of having a high percentage of computationally

active threads in the CUDA grid. For these reasons,

an alternative approach was developed in which the

grid of threads is dynamically computed during the

simulation in order to keep low the number of com-

putationally irrelevant threads. In such an approach,

labelled as DGI (Dynamic Grid Implementation), a

number of lava ﬂow simulations are simultaneously

executed as in the WCSI procedure.

In order to perform a fair comparison, an anal-

ogous strategy based on the bounding box has been

developed for the sequential version of the program.

Using the reference CPU, such sequential procedure

required 20180 s for the case study adopted. Figure

4.b shows the corresponding times taken by the paral-

lel DGI approach as a function of the number of con-

current simulations. As seen, the GTX 680 achieved

the lowest elapsed time of 301,18s, corresponding to

a parallel speedup of 67.

4.2 Experiment and Results

By considering the Nicolosi lava ﬂow event, ten GA

runs (based on different random seeds) of 100 gener-

ation steps each were carried out, each one with a dif-

ferent initial population. The elapsed time achieved

for the ten GA runs was less than nine hours of com-

putation on a 10 multi-GPU GTX 680 GPU Kepler

Devices Cluster (note that the same experiment, on a

sequential machine, would had lasted more than seven

months). Furthermore, during the running, a Visu-

alization System Software (Filippone et al., 2013),

0 20 40

80 100

0.1

0.2

0.3

0.4

0.5

0.6

generation

ﬁtness

Fitness f

and f

(average on 10 seeds)

Figure 6: Temporal evolution of average ﬁtness f

(in red)

and f

(in green) of whole population. Fitness values were

obtained as an average of 10 GA runs, carried out by adopt-

ing different seeds for generation of random numbers.

based on OpenGL and C ++ and integrated into Qt in-

terface, allowed the interactive visualization and anal-

ysis phases of the results.

For this preliminary experiment, only solutions

with two nodes were considered (|W | = 1), while Z

and P were chosen as in Figure 1. The cardinality

of W (Protection work) and the gene values in which

they are allowed to vary (depending of Z area), deﬁne

the search space S

for the GA:

= {[P

min

, P

max

] × [P

min

, P

max

]×

[(h

min

· n

), (h

max

· n

)]}

2|W |

(9)

The temporal evolution of the f

ﬁtness is graphically

reported in Figure 5, in terms of average results over

the ten considered experiments. GA experiment pa-

Active cells

Inactive cells

Computing thread

Inactive thread

RBB

Grid blocks

Simulation n

Simulation 1

Common RBB

Grids of threads

MS-DGM

AGA/HMA DGA

Active cells

Inactive cells

RBB

Computing thread

Inactive thread

Grid blocks

Figure 7: Mapping of the CA transition function into a

CUDA grid of threads (right) in case of the simultaneous

lava ﬂows (left).

IJCCI2013-InternationalJointConferenceonComputationalIntelligence

Table 2: Dimensions of the ten best barriers carried out by GA run.

Seed Barrier Length Height Base Width Volume Inclination

test (m) (m) (m) (m

) (degrees)

1234 [134,173,18] [114,158,35] 250 26,5 10 66250 143

2345 [135,178,8] [114,157,43] 297 25,5 10 75731 135

3456 [133,172,19] [115,155,37] 247 28 10 69324 137

4567 [113,158,45] [ 132,177,9] 269 27 10 72549 135

5678 [115,154,44] [133,171,14] 248 29 10 71800 137

6789 [133,172,12] [115,155,42] 248 27 10 66848 137

7890 [114,159,40] [133,171,10] 225 25 10 56180 148

8901 [115,156,48] [134,173,9] 255 28,5 10 72661 138

9101 [134,173,8] [114,157,41] 256 24,5 10 62750 141

1011 [115,152,38] [134,172,18] 276 28 10 77241 134

rameters values are also listed in table 1. The related

CA simulation, obtained by adopting the best individ-

ual is shown in Figure 8.

The study, though preliminary, has produced quite

satisfying results. Among different best individuals

generated by the GA for each seed test (table 2), the

best one consists of a barrier with an average height

of 25 m and 220 m in length with an inclination angle

of 130

◦

with respect to the direction of the lava ﬂow.

The barrier (seed 7890 in table 2) completely deviates

the ﬂow avoiding that the lava reaches the inhabited

area. The relative elevated height of the barrier is due

to the adopted GA (only solutions characterized by

single walls) and problem constraints, like the crater

location too close to the area to be protected or the

morphology characteristics.

4.3 Considerations on the GA Dynamics

and Emergent Behaviors

In the GA experiments that have been performed, in-

dividuals with high ﬁtness evolved rapidly, even if

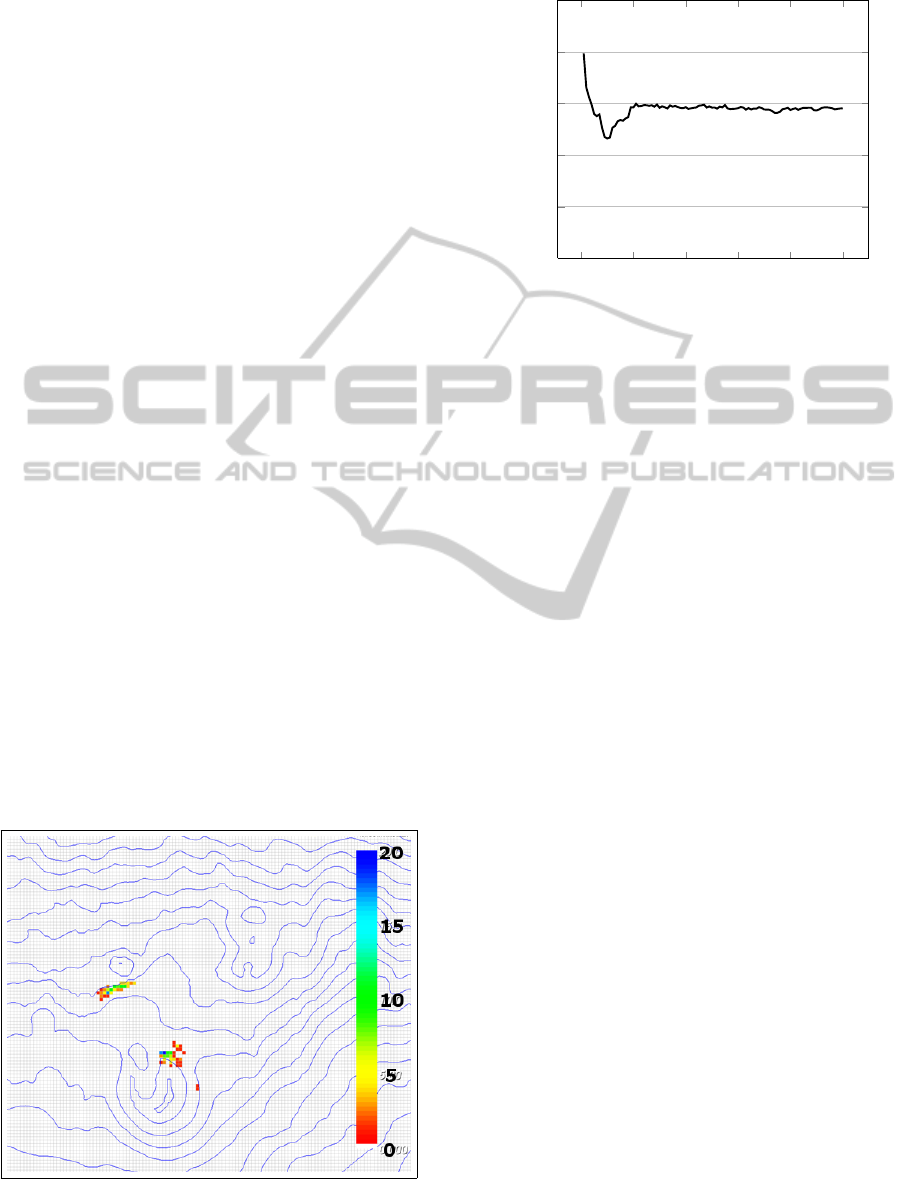

Figure 8: SCIARA - fv2 simulation visualization adopting

the GA best solution. As seen, the devised barrier (in blue)

completely diverts the lava ﬂow from the Safety Area (in

red).

the initial population was randomly generated and the

search space was quite large (Equation 9). By ana-

lyzing several individuals evolved in ten different GA

executions, similar solutions were observed. This be-

havior is due to the presence of problem constraints

(e.g. morphology, lava vent, emission rate, Z and P

areas) that lead the GA to search in a “region” of the

solution space characterized by a so called “local op-

timum”. In particular, f

reaches the minimum value

(0) around the twentieth GA generation and the re-

maining 80 runs are used by GA for the f

optimiza-

tion (cf. Figure 6).

In any case, the evolutionary process has shown,

in accordance with the opinion of the scientiﬁc com-

munity (Barberi et al., 2003; Fujita et al., 2009), the

ineffectiveness of barriers placed perpendicular to the

lava ﬂow direction despite diagonally oriented solu-

tions (130

◦

− 160

◦

) (see Table 2).

Furthermore, a systematic exploitation of morpho-

logical characteristics by GA, during the evolution-

ary process, has emerged. To better investigate such

GA emergence behaviour, a study of nodes distribu-

tion was conducted (Figure 9). By considering the

best 100 solutions provided by GA, each node was

classiﬁed on the basis of the slope proximity calcu-

lation, as an average of altitude differences between

node neighborhood cells (radius 10) and the central

cell. More formally, the function that assigns to each

generic node j a slope proximity value is deﬁned as:

∑

|X|

i=1

¯z

− ¯z

|X|

(10)

where X is the set of cells that identiﬁes the neighbor-

hood of j and ¯z

∈ Q

is the topographics altitude (in-

dex 0 represents the central cell). As shown in Figure

10, starting from the tenth GA generation, the evolu-

tionary process has shown an increase in slope prox-

imity values. Therefore, after the f

optimization (cf.

Figure 6), in order to minimize f

, there is a speciﬁc

ANewMethodologyforMitigationofLavaFlowInvasionHazard-MorphologicalEvolutionofProtectiveWorksby

ParallelGeneticAlgorithms

evolutionary temporal phase (i.e., up to the 25

gen-

eration) where the algorithm generates solutions that

are located in the proximity of elevated slopes.

5 CONCLUSIONS AND FUTURE

WORKS

This paper has presented a novel approach for devis-

ing protective measures to divert lava ﬂows. Starting

from the problem of the high computational complex-

ity of the GA algorithm, a library was developed for

executing a large number of concurrent lava simula-

tions using GPGPU. The parallel speedups attained

through the proposed approaches and by considering

GPGPU hardware, were indeed signiﬁcant. In fact,

the adoption of PGAs permitted to perform, in rea-

sonable times, a greater number of tests shortening

the execution by a factor of 67. In addition to the GA

algorithm acceleration implementation, an interaction

visualization system was also developed for the anal-

ysis phases of the results.

In this preliminary release of the algorithm only

two nodes based solutions were considered and eval-

uated on the basis of two ﬁtness functions. The ﬁrst

ﬁtness function guarantees the goodness of the solu-

tion in terms of security; the second one minimizes

the environmental impact.

First observations of the GA results permitted to

conjecture the presence of a local optima in the search

space, probably due to problem constraints. To bet-

ter investigate GA dynamic characteristics, a study of

nodes distribution was also conducted and a system-

atic exploitation of morphological characteristics by

GA during the evolutionary process emerged.

Figure 9: Nodes distribution of the best 100 solutions gener-

ated by the GA. Scale values indicates occurrence of nodes.

0 20 40

80 100

generation

¯sp

sp evolution(average on 10 seeds)

Figure 10: Temporal evolution of average slope proximity

values for the best individuals.

PGAs experiments, carried out by considering the

Nicolosi case-study, demonstrated that artiﬁcial barri-

ers can successfully change the direction of lava ﬂow

in order to protect predeﬁned point of interests. In

particular, by performing extensive experiments, sim-

ulations demonstrated that protective works are more

effective when placed nearly parallel to the ﬂow di-

rection, while a barrier placed perpendicular to the

ﬂow direction can only stop the ﬂux temporarily, ulti-

mately allowing the solidiﬁed crust to accumulate and

cause the following mass to go over the barrier.

Though preliminary, the study has produced ex-

tremely positive results and simulations have demon-

strated that GAs can represent a valid tool to deter-

mine protection works construction in order to miti-

gate the lava ﬂows risk.

Future work will consider the investigation of so-

lutions consisting of multiple protective interventions

and the introduction, within the methodology, of lava

cooling by water jets.

ACKNOWLEDGEMENTS

This work was partially funded by the European Com-

mission European Social Fund (ESF) and by the Re-

gione Calabria (Italy). Authors are also grateful to

Plymouth University (UK) and the CUDA Teaching

Center of the same University for supplying comput-

ing facilities.

IJCCI2013-InternationalJointConferenceonComputationalIntelligence

REFERENCES

Avolio, M. V., Crisci, G. M., Di Gregorio, S., Rongo, R.,

Spataro, W., and D’Ambrosio, D. (2006). Pyroclastic

ﬂows modelling using Cellular Automata. Computers

& Geosciences, 32:897–911.

Barberi, F., Brondi, F., Carapezza, M., Cavarra, L., and

Murgia, C. (2003). Earthen barriers to control lava

ﬂows in the 2001 eruption of Mt. Etna. Journal of

Volcanology and Geothermal Research, 123:231–243.

Barberi, F., Carapezza, M., Valenza, M., and Villari, L.

(1993). The control of lava ﬂow during the 1991-

1992 eruption of Mt. Etna. Journal of Volcanology

and Geothermal Research, 56:1–34.

Barberi, F. and Carapezza, M. L. (2004). Mt. Etna: Volcano

Laboratory, chapter The Control of Lava Flows at Mt.

Etna, pages 357–369. American Geophysical Union,

Washington, D. C.

Barca, D., Crisci, G. M., Di Gregorio, S., and Nicoletta, F.

(1994). Cellular Automata for simulating lava ﬂows: a

method and examples of the etnean eruptions. Trans-

port Theory and Statistical Physics, 23(1-3):195–232.

Behncke, B. and Neri, M. (2003). The July-August 2001

eruption of Mt. Etna (Sicily). Bulletin of Volcanology,

65(7):461–476.

Bentley, P. (1999). An introduction to evolutionary design

by computers. In Bentley, P. J., editor, Evolutionary

Design by Computers, chapter 1, pages 1–73. Morgan

Kaufman, San Francisco, USA.

Bongard, J. (2011). Morphological change in ma-

chines accelerates the evolution of robust behavior.

Proceedings of the National Academy of Sciences,

108(4):1234–1239.

Bresenham, J. (1965). Algorithm for computer control of a

digital plotter. IBM Systems Journal, 4(1):25–30.

Colombrita, R. (1984). Methodology for the construction of

earth barriers to divert lava ﬂows: The Mt. Etna 1983

eruption. Bulletin Volcanologique, 47(4):1009–1038.

Crisci, G. M., Rongo, R., Gregorio, S. D., and Spataro, W.

(2004). The simulation model SCIARA: the 1991 and

2001 lava ﬂows at Mount Etna. Journal of Volcanol-

ogy and Geothermal Research, 132(23):253 – 267.

D’Ambrosio, D., Filippone, G., Rongo, R., Spataro, W.,

and Trunﬁo, G. A. (2012a). Cellular automata and

GPGPU: an application to lava ﬂow modeling. Inter-

national Journal of Grid and High Performance Com-

puting, 4(3):30–47.

D’Ambrosio, D., Rongo, R., Spataro, W., and Trunﬁo, G.

(2012b). Optimizing Cellular Automata through a

Meta-model Assisted Memetic Algorithm. In Pro-

ceedings of Parallel Problem Solving from Nature -

PPSN XII, volume 7492 of Lecture Notes in Computer

Science, pages 317–326. Springer Berlin Heidelberg.

D’Ambrosio, D., Rongo, R., Spataro, W., and Trunﬁo, G. A.

(2012c). Meta-model assisted evolutionary optimiza-

tion of cellular automata: an application to the sciara

model. In Proceedings of the 9th international confer-

ence on Parallel Processing and Applied Mathematics

- Volume Part II, PPAM’11, pages 533 – 542, Berlin,

Heidelberg. Springer-Verlag.

Del Negro, C., Fortuna, L., Herault, A., and Vicari, A.

(2008). Simulations of the 2004 lava ﬂow at Etna

volcano using the magﬂow cellular automata model.

Bulletin of Volcanology, 70(7):805–812.

Di Gregorio, S. and Serra, R. (1999). An empirical method

for modelling and simulating some complex macro-

scopic phenomena by cellular automata. Future Gen-

eration Computer Systems, 16(2-3):259–271.

Di Gregorio, S., Serra, R., and Villani, M. (1999). Ap-

plying cellular automata to complex environmental

problems: The simulation of the bioremediation of

contaminated soils. Theoretical Computer Science,

217(1):131 – 156.

Dibben, C. (2008). Leaving the city for the suburbs -

The domincance of ’ordinary’ decision making over

volkanik risk perception in the production of volcanic

risk on Mt. Etna, sicily. Journal of Volcanology and

Geothermal Research, 172(7):288–299.

ElSayed, A., Kongar, E., Gupta, S., and Sobh, T. (2012). A

Robotic-Driven Disassembly Sequence Generator for

End-Of-Life Electronic Products. Journal of Intelli-

gent & Robotic Systems, 68(1):43–52.

Filippone, G., Spataro, D’Ambrosio, D., and Marocco, D.

(2013). An interactive Visualization System for Lava

Flows Cellular Automata Simulations using CUDA.

Poster presented at GPU Technology Conference, San

Jose, California.

Filippone, G., Spataro, W., Spingola, G., D’Ambrosio, D.,

Rongo, R., Perna, G., and Di Gregorio, S. (2011).

GPGPU programming and cellular automata: Imple-

mentation of the SCIARA lava ﬂow simulation code.

In 23rd European Modeling and simulation Sympo-

sium (WMSS), Rome, Italy.

Fujita, E., Hidaka, M., Goto, A., and Umino, S. (2009).

Simulations of measures to control lava ﬂows. Bul-

letin of Volcanology, 71:401–408.

Goldberg, D. E. (1989). Genetic Algorithms in Search, Op-

timization and Machine Learning. Addison-Wesley

Longman Publishing Co., Inc., Boston, MA, USA, 1st

edition.

Goncalves, J. F. and Resende, M. G. (2011). Biased

random-key genetic algorithms forcombinatorial op-

timization. Journal of Heuristics, 17(5):487–525.

Hinton, G. E. and Nowlan, S. J. (1987). How learning can

guide evolution. Complex Systems, pages 495–502.

Holland, J. H. (1992). Adaptation in Natural and Artiﬁcial

Systems: An Introductory Analysis with Applications

to Biology, Control, and Artiﬁcial Intelligence. The

MIT Press.

Iovine, G., D’Ambrosio, D., and Di Gregorio, S. (2005).

Applying genetic algorithms for calibrating a hexago-

nal cellular automata model for the simulation of de-

bris ﬂows characterised by strong inertial effects. Ge-

omorphology, 66(14):287 – 303.

Ishihara, K., Iguchi, M., and Kamo, K. (1990). Numerical

simulation of lava ﬂows on some volcanoes in Japan.

In Fink, J. H., editor, Lava Flows and Domes, vol-

ume 2 of IAVCEI Proceedings in Volcanology, pages

174–207. Springer Berlin Heidelberg.

ANewMethodologyforMitigationofLavaFlowInvasionHazard-MorphologicalEvolutionofProtectiveWorksby

ParallelGeneticAlgorithms

Kicinger, R., Arciszewski, T., and Jong, K. D. (2005). Evo-

lutionary computation and structural design: A sur-

vey of the state-of-the-art. Comput. Struct., 83(23-

24):1943–1978.

Lipson, H. and Pollack, J. B. (2000). Automatic De-

sign and Manufacture of Artiﬁcial Lifeforms. Nature,

406:974–978.

MacDonald, G. A. (1962). The 1959 and 1960 eruptions

of Kilauea volcano, Hawaii, and the construction of

walls to restrict the spread of the lava ﬂows. Bulletin

Volcanologique, 24(1):249–294.

Mitchell, M. (1996). An introduction to Genetic Algorithms.

MIT Press, Cambridge, MA, USA.

Miyamoto, H. and Sasaki, S. (1997). Simulating lava ﬂows

by an improved cellular automata method. Computers

& Geosciences, 23(3):283–292.

Nolﬁ, S. and Marocco, D. (2001). Evolving robots able to

integrate sensory-motor information over time. The-

ory in Biosciences, 120:287–310.

Piwonska, A., Seredynski, F., and Szaban, M. (2013).

Learning cellular automata rules for binary classi-

ﬁcation problem. The Journal of Supercomputing,

63(3):800–815.

Rongo, R., Spataro, W., D’Ambrosio, D., Avolio, M. V.,

Trunﬁo, G. A., and Di Gregorio, S. (2008). Lava ﬂow

hazard evaluation through cellular automata and ge-

netic algorithms: an application to Mt Etna volcano.

Fundam. Inf., 87:247–267.

Sims, K. (1994). Evolving 3d morphology and behavior

by competition. In Proceedings of Artiﬁcial Life IV,

pages 28–39. MIT Press.

Spataro, W., Avolio, M. V., Lupiano, V., Trunﬁo, G. A.,

Rongo, R., and D’Ambrosio, D. (2010). The latest

release of the lava ﬂows simulation model SCIARA:

First application to Mt Etna (Italy) and solution of the

anisotropic ﬂow direction problem on an ideal sur-

face. In International Conference on Computational

Science, pages 17–26.

Spataro, W., D’Ambrosio, D., Rongo, R., and Trunﬁo, G.

(2004). An Evolutionary Approach for Modelling

Lava Flows through Cellular Automata. In ACRI

2004, volume 3305 of Lecture Notes in Computer Sci-

ence, pages 725–734. Springer Berlin Heidelberg.

Tomassini, M. and Venzi, M. (2002). Artiﬁcially evolved

asynchronous cellular automata for the density task.

In Procedings of the ﬁfth International Conference on

Cellular Automata for Research and Industry., volume

2493 of Lecture Notes in Computer Science, pages

44–55. Springer Berlin Heidelberg.

IJCCI2013-InternationalJointConferenceonComputationalIntelligence
