A Multiple Instance Learning Approach to

Image Annotation with Saliency Map

Tran Phuong Nhung

, Cam-Tu Nguyen

, Jinhee Chun

, Ha Vu Le

and Takeshi Tokuyama

Graduate School of Information Sciences, Tohoku University, Sendai, Japan

National Key Laboratory for Novel Software Technology, Nanjing University, Nanjing, China

VNU University of Engineering and Technology, Hanoi, Vietnam

Keywords:

Visual Saliency, Image Annotation, Multiple Instance Learning.

Abstract:

This paper presents a novel approach to image annotation based on multi-instance learning (MIL) and saliency

map. Image Annotation is an automatic process of assigning labels to images so as to obtain semantic retrieval

of images. This problem is often ambiguous as a label is given to the whole image while it may only cor-

responds to a small region in the image. As a result, MIL methods are suitable solutions to resolve the

ambiguities during learning. On the other hand, saliency detection aims at detecting foreground/background

regions in images. Once we obtain this information, labels and image regions can be aligned better, i.e., fore-

ground labels (background labels) are more sensitive to foreground areas (background areas). Our proposed

method, which is based on an ensemble of MIL classiﬁers from two views (background/foreground), improves

annotation performance in comparison to baseline methods that do not exploit saliency information.

1 INTRODUCTION

Image annotation is an automatic process of ﬁnding

appropriate semantic labels for images from a prede-

ﬁned vocabulary. In other words, an image is assigned

with a few relevant text keywords that reﬂect the im-

age’s visual content. Image annotation has become

a prominent research topic in the domain of medical

image interpretation, computer vision and semantic

scene classiﬁcation. In particular, it is useful towards

image retrieval as annotated keywords greatly narrow

the semantic gap between low level (visual) features

and high level semantics.

Automatic image annotation is a challenging task

due to various imaging conditions, complex and hard-

to-describe objects, as well as a highly textured back-

ground (Qi and Han, 2007). Unlike object recog-

nition, image annotation is a “weak labeling” prob-

lem. That means a label is assigned to the whole im-

age without any alignment of regions and the label

(Carneiro et al., 2007). As a result, the multi-instance

approach (Zhou and Zhang, 2007) is a natural solu-

tion to resolve the ambiguities in training data. Un-

like traditional supervised learning, an example (e.g.

an image) in MIL is not described by a feature vector

(a single instance) but a set of feature vectors (a bag

of instances). By considering an image as an exam-

ple and its instances as feature vectors extracted from

subregions of the image, the problem of image anno-

tation naturally ﬁts the multi-instance setting. There

were several studies (Carneiro et al., 2007; Nguyen

et al., 2010; Yang et al., 2006) that have successfully

applied MIL to the problem of image annotation. One

disadvantage of those methods is that they treated in-

stances (sub-regions in images) equally for every la-

bel. Our observation is that we can weight instances

differently with respect to different labels. An ex-

ample is given in Figure 1, the instance (feature vec-

tor) that falls into the salient region is more relevant

the foreground object (polar bear), while the other in-

stances (background regions) are more important to-

wards the background label (snow). Even though we

do not really have the correspondence between the in-

stances (regions) and the labels (polar bear, snow) due

to the “weak labeling” problem, the observation can

be useful towards reducing noises in learning an im-

age annotation system.

In order to apply the above idea, there are several

questions that need to be addressed. The ﬁrst ques-

tion is how to obtain visual saliency for image annota-

tion. Fortunately, this problem has been well studied

in computer vision (Hou et al., 2012) where the main

assumption is that “the image energy focuses on the

locations of a spatially sparse foreground, relative to a

152

Phuong Nhung T., Nguyen C., Chun J., Le H. and Tokuyama T..

A Multiple Instance Learning Approach to Image Annotation with Saliency Map.

DOI: 10.5220/0004543901520159

In Proceedings of the International Conference on Knowledge Discovery and Information Retrieval and the International Conference on Knowledge

Management and Information Sharing (KDIR-2013), pages 152-159

ISBN: 978-989-8565-75-4

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

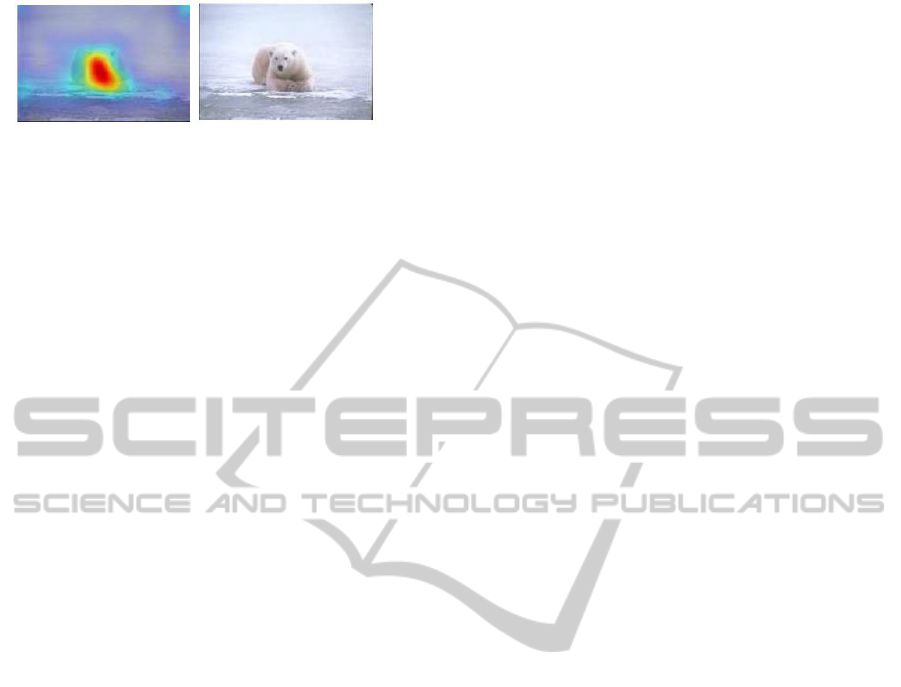

Figure 1: An example image from Corel5K data set with its

detected saliency map.

spectrally sparse background”. The second question

is that given a set of labels, how can we know a la-

bel is a foreground label or background label without

additional information from humans. Our approach

is that we let the training data decide. More speciﬁ-

cally, we ﬁrstly obtain two kinds of learners from two

different views (background instances/foreground in-

stances). Next, we base on the performances on the

training data to decide the weights, and then combine

two kind of learners to obtain the ﬁnal learner for an-

notation. To the best of our knowledge, this is the ﬁrst

attempt that exploits saliency map for image annota-

tion. Experimental results show the effectiveness of

our proposed method.

The rest of the paper is organized as follows. Sec-

tion 2 reviews related works. Section 3 and 4 describe

the fundamental introduction to two building theories

(MIL and visual saliency detection) in our approach.

Section 5 introduces the proposed image annotation

approach based on MIL and visual saliency. Section

6 reports and discusses the experimental results. Sec-

tion 7 summarizes the main idea of the paper and con-

cludes some remarks.

2 RELATED WORKS

Image annotation is a typical Multi-instance Multi-

label problem (MIML) (Zhou and Zhang, 2007)

where an image is represented by a set of regions

(instances) and assigned with multiple labels. The

most successful method is based on propagating la-

bels from the nearest neighbors in the training data

(Lavrenko et al., 2003; Guillaumin et al., 2009). The

methods, however, degenerate the task of image an-

notation from a MIML problem into a set of single-

instance multi-label (SIML) problems; thus, they do

not explicitly cope with noises in training process. Al-

though the propagation approach is simple, the anno-

tation time increases linearly with the size of the train-

ing data set.

Another approach is to degenerate the image an-

notation problem into a set of multi-instance single-

label problems. Considering one speciﬁc label, we

build a classiﬁer that determines whether to assign a

given label to an image. This classiﬁcation problem

is a multi-instance problem as a label (e.g. tiger) is

assigned to an image but only relevant to some subre-

gions of the image (the other subregions are relevant

to other labels such as “forest”, “tree”). The MIL

approach explicitly takes into account these noises

in training. In the following, we will follow the

terminologies in MIL and respectively refer to “in-

stance” and “bag” as a feature vector correspond-

ing to a subregion of an image and the image it-

self. MISVM and miSVM algorithms (Andrews et al.,

2002) were adapted from single-instance learning ver-

sion of SVM in order to cope with multiple instance

data version. On the other hand, Yang et al. in-

troduced Asymmetric SVM (ASVM) to pose differ-

ent asymmetrical loss function to two types of errors

(false positive and false negative) in order to improve

the accuracy of annotation process (Yang et al., 2006).

In addition, Supervised Multi-class Labeling (SML)

(Carneiro et al., 2007) is based on MIL and density es-

timation in order to measure the conditional distribu-

tion of feature given a speciﬁc word. SML uses a bag

of image examples annotated by a particular word and

estimate the distribution of image features extracted

from the bag of images. The distribution is ﬁtted by

mixture Gaussian distribution in a hierarchical man-

ner. SML does not consider the negative examples

in the learning binary examples. Since SML only

uses positive examples for each concept in training,

the training complexity is reduced considerably. On

another attempt, CMLMI (Nguyen et al., 2011) pro-

posed a cascade of multi-level multi-instance classi-

ﬁers to reduce class imbalance in MIL, and exploited

multiple modalities to improve image annotation. In

this paper, we propose an approach to image anno-

tation that uses saliency information (visual saliency

map). Our main idea is that the salient regions are

more important towards assigning foreground labels

to images.

Visual saliency detection has attracted a lot of in-

terest in computer vision as it provides fast solutions

to several complex processing. There are many stud-

ies (Ueli et al., 2004) (Navalpakkam and Itti, 2006)

that show the effectiveness of visual saliency map for

object recognition, tracking and detection. To the our

best knowledge, however, such kind of information

has not been used for image annotation before. This

paper shows that incorporating visual saliency infor-

mation to image annotation can reduce the noises as-

sociated with “weak labeling” problem, thus improve

the performance annotation process. We demonstrate

our method with miSVM, the multi-instance version

of SVM, with the support of visual saliency. Thus,

in the following, we will give a brief introduction to

these methods.

AMultipleInstanceLearningApproachtoImageAnnotationwithSaliencyMap

153

3 MULTIPLE INSTANCE

LEARNING WITH miSVM

MIL is a variation of supervised learning problems

with incomplete knowledge about labels of training

examples (Zhou and Zhang, 2007). The majority of

the work in MIL is concerned with binary classiﬁca-

tion problems, where each example has a classiﬁca-

tion label that assigns it into one of two categories

“positive” or “negative”. The goal is to learn a model

based on the training examples that are effective in

predicting the classiﬁcation labels of future examples.

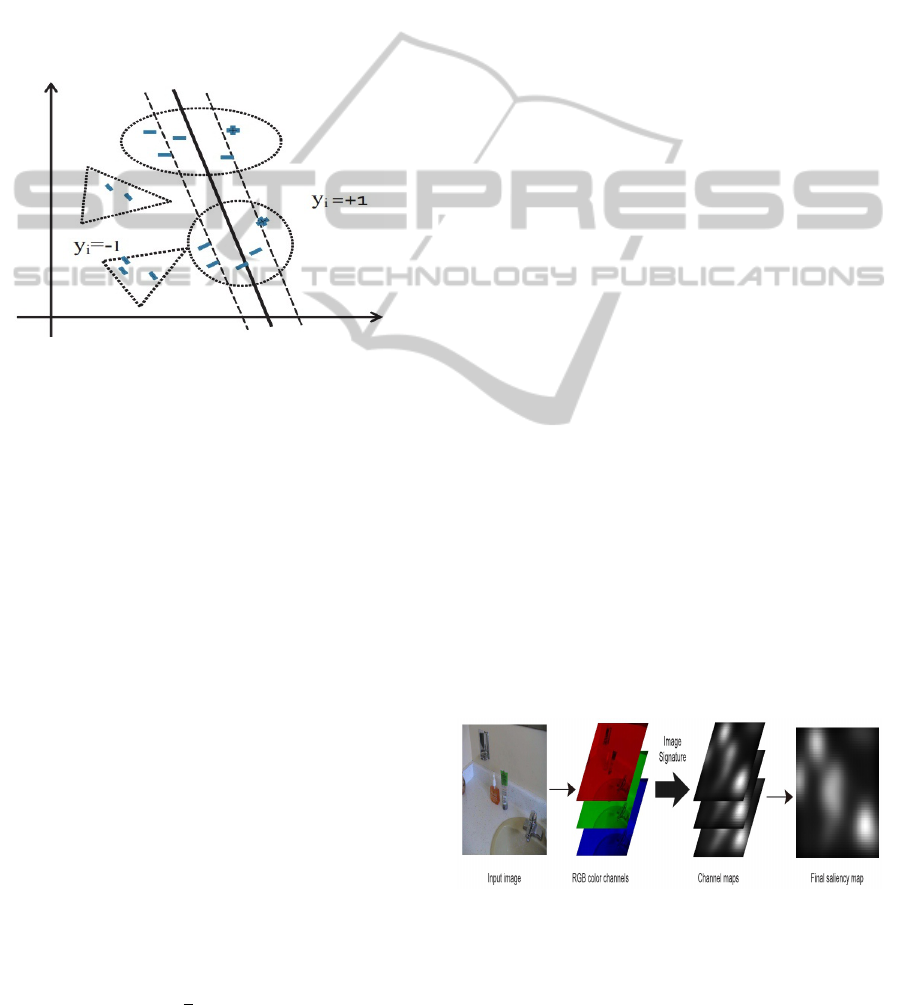

Figure 2: Multiple Instance Learning: positive and negative

bags are denoted by circles and triangles respectively.

miSVM (Andrews et al., 2002; Nguyen et al.,

2011) extends the notion of the margin from an in-

dividual instance to a set of instances (Figure 2). Let

= {(X

, Y

)|i = 1, . . . , N, X

= {x

};Y

= {+1, −1}}

be a set of images (bags), where a bag X

of instances

) is positive (Y

= 1) if at least one instance x

∈ X

has its label Y

positive (the subregion in the image

corresponds to positive label). As shown in Figure 2,

positive bags are denoted by circles and negative bags

are marked as triangles. The relationship between in-

stance labels and bag labels can be compressed as

= max(y

), j = 1, . . . , |X

|. The functional margin

of a bag with respect to a hyperplane is deﬁned in

(Andrews et al., 2002) as follows:

max

∈X

(ax

+ b)

The prediction then has the form Y

sgnmax

∈X

(ax

+ b). The margin of a positive

bag is the margin of the most positive instance,

while the margin of a negative bag is deﬁned as the

“least negative” instance. Keeping the deﬁnition

of bag margin in mind, the Multiple Instance SVM

(miSVM) is deﬁned as following:

minimize:

||a|| +C

∑

i=1

subject to: Y

max

∈X

(ax

+b) ≥ 1 −ξ

, i = 1, . . . , N, ξ

≥ 0

By introducing selector variables s

which denotes the

instance selected as the positive “witness” of a posi-

tive bag X

, Andrews et al. has derived an optimiza-

tion heuristics. The general scheme of optimization

heuristics alternates two steps: 1) for given selector

variables, train SVMs based on selected positive in-

stances and all negative ones; 2) based on current

trained SVMs, updates selector variables. The pro-

cess ﬁnishes when no change in selector variables.

4 VISUAL SALIENCY

Research of visual psychology has shown that when

observing an image, people do not have the same in-

terest in all of it. The Human Visual System (HVS)

has a remarkable ability to automatically focus on

only salient regions. Saliency at a given location is

determined by the degree of difference between that

location and its surrounds in a small neighborhood.

Thus, saliency map is obtained from summing up dif-

ferences of image pixels with their respective sur-

rounding pixels.

In this paper, we propose an approach to image an-

notation that uses salient interesting points. We use a

vector space representation of the local descriptors of

the salient regions to describe the image in an invari-

ant manner, and a classiﬁer which is achieved based

on learning processes generates the correct annotation

for the images. In particular, for our algorithm, we se-

lect salient regions using the method which is called

“image signature” (Hou et al., 2012). It is deﬁned

as the sign function of the Discrete Cosine Transform

(DCT) of an image. An overview of the complete al-

gorithm is presented in the Figure 3. Firstly, the im-

age is decomposed into three channels (RGB). Then,

a saliency map is computed for each color channel in-

dependently. Finally, saliency map is simply summed

across three color channels.

Figure 3: Overview of the process of ﬁnding salient regions

(Hou et al., 2012).

Initially, they consider gray-scale images which

are presented as follows:

x = f + b (x, f , b ∈ R

) (1)

KDIR2013-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

154

where, f represents the foreground and is assumed

to be sparsely supported in the standard spatial ba-

sis; b represents the background and is assumed to be

sparsely supported in the basis of DCT. That means

both f and

b which is DCT(b) have only a small num-

ber of nonzero components in the standard spatial ba-

sis and the DCT domain respectively.

An illustration of image is standard spatial basis

and DCT is shown in Figure 4. The ﬁrst row: f, b, x in

the spatial domain. The second row: the same signals

are represented in the DCT domain:

f ,

b, ˆx.

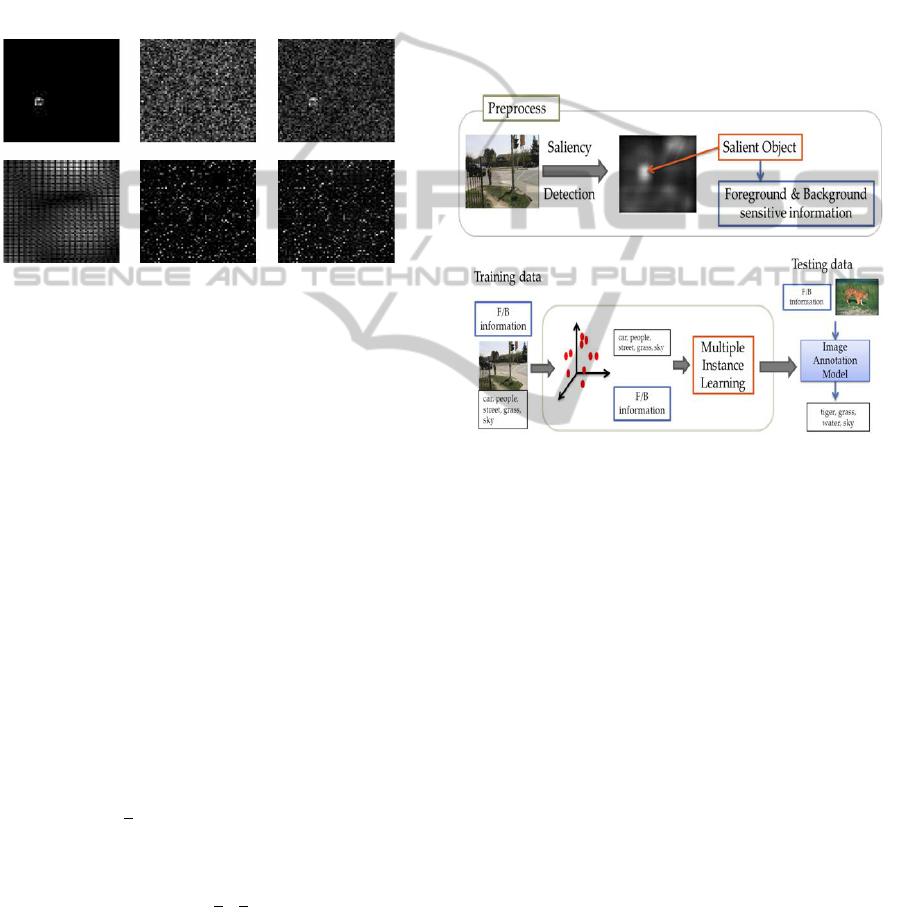

Figure 4: An illustration of the randomly generated images

in the spatial domain and Discrete Cosine Transform do-

main (Hou et al., 2012).

In Figure 4, f is randomly generated in the standard

spatial basis, then f is presented in DCT domain by

computing DCT(f). Since b is assumed sparsely sup-

ported in DCT domain, ﬁrstly generate DCT(b), and

then b is achieved by inversely transformed back into

spatial domain b=IDCT(DCT(b)). This idea is the

same to represent for x in spatial domain and DCT do-

main. Based on the property that f and b are sparsely

supported in different domains, they can isolate the

set of ﬁxes for f which is nonzero.

Given an image x, the main idea of image signa-

ture algorithm is described as follows: ﬁrstly, they

separate the support of f by taking the sign of the mix-

ture signal x in the DCT domain. The purpose of this

step is to sharpen the image by keeping only the high

frequency components.

ImageSignature(x) = sign(DCT (x)) = sign( ˆx) (2)

Then, inversely transform it back into the spatial do-

main by computing the reconstructed image.

x = IDCT [sign( ˆx)] (3)

Finally, the saliency map m of an image is generated

by smoothing the squared reconstructed image.

m = g ∗ (x ◦ x) (4)

where, g is a Gaussian kernel. In this case, a Gaussian

smoothing is necessary since a salient object is not

only spatially sparse but also localized in a contiguous

region.

5 IMAGE ANNOTATION BASED

ON MIL & VISUAL SALIENCY

In this section, we formulate image annotation as a

supervised learning problem under multiple instance

learning frameworks. In order to improve the accu-

racy and efﬁcient in image annotation, we introduce

the approach to it based on visual saliency.

5.1 Overview of proposed Model

Our model contains two processes and it is showed in

the Figure 5.

Figure 5: Overview of proposed model.

In the pre-process, we apply image signature al-

gorithm (Hou et al., 2012) to detect the salient object

of images. Based on the saliency map, we achieve the

foreground and background sensitive information of

the image. In the next step, we construct an automatic

image annotation system based on saliency map. As

mentioned earlier, we decompose the problem of im-

age annotation into a set of multi-instance single-label

problems. In other words, a MIL binary classiﬁer is

learned in order to link a image region to a speciﬁc

keyword (e.g. tiger) , i.e. an image is assigned with

“tiger” if it is classiﬁed “positive” according to the

“tiger” MIL classiﬁer . Then the learned classiﬁers

are used to produce the annotation for new input im-

ages. During learning MIL classiﬁers, we further re-

duce the ambiguity in image annotation by using the

saliency information as a supporting factor for MIL.

The idea is that the region is more salient is sam-

pled more for foreground labels. A simple solution

is based on sampling/weighting method. A salient re-

gion is weighted more, thus it have higher ability to

be annotated for foreground label.

AMultipleInstanceLearningApproachtoImageAnnotationwithSaliencyMap

155

5.2 Image Annotation with Foreground

and Background Decomposition

We assume that every image is divided into regions,

and each region is described by a feature vector (in-

stance). Thus, an image X

is presented by a set of

feature vectors X

= {x

, x

, ..., x

}, where n is the

number of regions in image X

Based on the saliency map which is achieved by

image signature algorithm (Hou et al., 2012), we as-

sign the saliency values to regions of one image. Note

again that we have a one-to-one correspondence be-

tween regions and instances. Supposed that m is the

saliency map, where m(l, k) represents the saliency

value of pixel (l, k) in the image, δ

i j

that a probability

of region

(or instance j) of image X

is foreground.

Therefore, δ

i j

is deﬁned as follows:

i j

∑

(l,k) in region r

m(l, k)

∑

) in image X

m(l

, k

)

(5)

Then, (1−δ

i j

) indicates the probability for region

image X

to be a background region.

Considering the multiple instance Support Vector

Machine (miSVM) algorithm (Andrews et al., 2002)

that work directly with the bags of instances, the

question is that how we modify the instance weights

when we have already gained foreground-sensitive

and background-sensitive information. The proposed

solution is that add more “foreground-sensitive” or

“background-sensitive” information to positive bags.

Note that we only deal with the instances in the posi-

tive bags during training since negative bags have no

ambiguous (all the instances in negative bags are neg-

ative).

For foreground enhanced bags (images with

more “foreground-sensitive” information”), we will

enforce foreground instances by adding more

foreground-sensitive “pseudo” instances. On the

other hand, for background enhanced bags, we

will enforce background instances by adding more

background-sensitive “pseudo” instances. Note that

foreground enhanced bags (background enhanced

bags) have more useful information towards fore-

ground (background) labels.

Given a maximum the number of added pseudo

instances K, and X

is the bag of instances/regions;

the pseudo code for adding more pseudo instance is

presented as in Algorithms 1-2.

Foreground-enhanced bag X

is enriched with

foreground-sensitive information. The probability

of instance/region c added to bag X

is estimated

based on the multinomial distribution of δ; where

δ = {δ

, δ

, , δ

} is a vector of n elements (n is num-

ber of regions), and δ

i j

( j = 1 : n) is the probability

Algorithm 1: Generating Foreground-sensitive Bag.

1: Input:

= {X

, δ

}, K is the number of added

pseudo-instance.

2: Output: Foreground-enhanced bag X

3: Initialize X

= X

4: Consider the set of C instances in X

5: for i=1:K do

6: Sample c from Multinominal(δ

)

7: Add instance c to bag X

8: end for

Algorithm 2: Generating Background-sensitive Bag.

1: Input:

= {X

, δ

}, K is the number of added

pseudo-instance.

2: Output: Background-enhanced bag X

3: Initialize X

= X

4: Consider the set of C instances in X

5: for i=1:K do

6: Sample c from Multinominal(1-δ

)

7: Add instance c to bag X

8: end for

of region

is foreground so that

∑

j=1

i j

= 1. δ

i j

value

is calculated based on the saliency value.

Besides, background-enhanced bag X

enriched with background-sensitive informa-

tion. The probability of instance/region c

added to bag X

is estimated based on the

multinomial distribution of (1 − δ); where

(1 − δ) = {

1−δ

∑

j=1

(1−δ

i j

)

1−δ

∑

j=1

(1−δ

i j

)

, ...,

1−δ

∑

j=1

(1−δ

i j

)

}: is

a vector of n elements, and (1 −δ

i j

) (with j = 1, ..., n)

is the probability of region

is background.

Furthermore, in order to combine foreground-

sensitive and background-sensitive information at

classiﬁer level, we will build the classiﬁer based on

AdaBoost two-step boosting model. Assume that,

based on the foreground-sensitive and background-

sensitive information we can build two classiﬁers H

respectively. The ﬁnal classiﬁer of bag X

is the

combination of H

and H

H(X

) = λ × H

+ (1 − λ) × H

(6)

In order to automatically estimate the parameter λ, we

build classiﬁer ensemble based on AdaBoost two-step

boosting with base learner is miSVM. The pseudo

code of AdaBoost two-step boosting is presented as

follows:

The method of combining the class predictions

from multiple classiﬁers is known as ensemble learn-

ing (Rokach, 2010). AdaBoost is one of the most

prominent ensemble learning algorithms. The main

idea is that AdaBoost generates multiple training sets

from the original training sets and then trains compo-

KDIR2013-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

156

Algorithm 3: Two-Step Boosting with MIL.

1: Input:

Given a training dataset D =

{(

, y

), . . . , (

, y

)} w.r.t the label y

where y

∈ {−1, +1} and

= {X

, δ

};

A testing image

The number of iterations T for AdaBoost.

2: Output:

H - an ensemble classiﬁer of 2 × T weak classi-

ﬁers;

The predictive value for X.

3: TRAINING:

4: Initialize D

= {}, D

= {}

5: for each positive bag X

in D do

6: Obtain X

, X

from

using Algorithm 1-2.

7: D

= D

∪ X

and D

= D

∪ X

8: end for

9: Boosting 1st step: foreground-sensitive

10: [H

, λ

] ← miSVM.Adaboost(D

, T )

11: Boosting 2st step: background-sensitive

12: [H

, λ

] ← miSVM.Adaboost(D

, T )

13: TESTING:

14: Obtain X

and X

from

X = {X, δ}.

15: Predictive value for testing image

X) =

∑

i=1

) +

∑

i=1

)

∑

i=1

∑

i=1

nent learners. It focus on the misclassiﬁed from pre-

vious round. From each generated training set, Ad-

aBoost induces the ensemble of classiﬁers by adap-

tively changing the distribution of the training set

based on the accuracy of the previously created classi-

ﬁers and then use a measure of classiﬁer performance

to weight the selection of training examples and the

voting. Initially, all weights are set equally, but on

each round, the weights of incorrectly classiﬁed ex-

amples are increased so that the weak learner is forced

to focus on the hard examples in the training set. The

predictions of the component learners are combined

via majority voting, where the class label receiving

the most number of votes is regarded as the ﬁnal pre-

diction.

6 RESULTS AND DISCUSSIONS

6.1 Dataset and Experimental Settings

We use the Corel5k benchmark for the experiment

(Duygulu et al., 2002). It contains 5,000 images and

each image is segmented into 1-10 regions. The data

set is divide into two parts: training set contains 4,500

images and the rest of 500 images for testing. In ad-

dition, each image is manually annotated with 1 to

5 keywords from the vocabulary list of 371 distinct

words. Prior to modeling, every image in the data set

is pre-segmented into sub-regions using normalized

cuts algorithms (Shi and Malik, 2000). The feature set

consists of 36 features were extracted for each region:

18 color features, 12 texture features and 6 shape fea-

tures (Duygulu et al., 2002).

We implement classiﬁer ensemble based-on Ad-

aboost with base learner is miSVM (Rokach, 2010).

We use the AdaBoost algorithm which is imple-

mented in the WEKA (Hall et al., 2009) with the num-

ber of iterations is set to 10. We compare 5 models

with base learner is miSVM:

• Baseline_miSVM: baseline model;

• AdaBoost_miSVM: classiﬁer ensemble based on

Adaboost;

• F_AdaBoost_miSVM: classiﬁer ensemble based

on Adaboost and boosting one step with fore-

ground sensitive;

• B_AdaBoost_miSVM: classiﬁer ensemble based

on Adaboost and boosting one step with back-

ground sensitive;

• FB_AdaBoost_miSVM: classiﬁer ensemble

based on Adaboost and boosting two step with

foreground and background sensitive.

The quality of automatic image annotation is also

measured through the process of retrieving the test

images with a single keyword. For each image, top

words are indexes using probabilities of those words

generated by image annotation. Given a single-word

query, the system returns all images annotated with

that word, ordered by probabilities. We limited the

number of indexed words per image; in particular, we

only obtained top 5 words per image for indexing. Re-

garding a word w, the number of correctly annotated

images is denoted as N

, the number of retrieved im-

ages is denoted as N

, and the number of truly related

images in the testing set is denoted as N

. The preci-

sion (P), recall (R) and F

are deﬁned as follows:

P(w) =

, R(w) =

, F

2 × P × R

P + R

(7)

We select 70 mostly used keywords in vocabulary

list and perform our experiments. The precision and

recall averaged over the set of words occurring in the

test images are using for evaluating image annotation

process.

AMultipleInstanceLearningApproachtoImageAnnotationwithSaliencyMap

157

6.2 Results and Discussions

Our proposed models using foreground and

background-sensitive information in image an-

notation are compared to baseline work in order to

demonstrate that image annotation with foreground

and background decomposition outperforms other

traditional methods.

The average precision, recall and F

for baseline

work and our four proposed models on 70 mostly used

keywords are reported in Table 1.

Table 1: Precision, Recall and F

of ﬁve models.

P R F

Baseline_miSVM 19.5% 37.5% 24.7%

AdaBoost_miSVM 26.7% 37.8% 30.5%

F_AdaBoost_miSVM 27.4% 37.8% 30.9%

B_AdaBoost_miSVM 25.3% 35.8% 28.6%

FB_AdaBoost_miSVM 31.9% 42.2% 36.3%

According to Table 1, it is obviously that all

of four proposed models have better results com-

pared to baseline work. Especially, the proposed

model FB_AdaBoost_miSVM has the best result in

annotation performance, which gains 31.9%, 42.2%

and 36.3% on precision, recall and F

value respec-

tively. Besides, the model use both foreground and

background sensitive information gain better preci-

sion, recall and F

value than models only use fore-

ground sensitive or background sensitive information.

Foreground-sensitive information seems useful than

background-sensitive information for image annota-

tion. It is observed that F_AdaBoost_miSVM model

has better results in terms of precision, recall and F

than B_AdaBoost_miSVM.

Figure 6: Top ﬁve retrieval images for query “tiger”. From

top to bottom: Baseline_miSVM, F_AdaBoost_miSVM,

FB_AdaBoost_miSVM method.

Table 1 demonstrates that our proposed meth-

ods have some improvement on baseline work via

statistical view. In Figure 6, we illustrate this im-

provement via image retrieval process. Consider-

ing top ﬁve retrieval images for query “tiger” by

using Baseline_miSVM, F_AdaBoost_miSVM and

FB_AdaBoost_miSVM model, the difference is easy

to notice. For Baseline_miSVM, two of top ﬁve

images are not correct. While one image in top

ﬁve is not exactly corresponded to the query for

F_AdaBoost_miSVM, FB_AdaBoost_miSVM suc-

cessfully retrieved all correct top ﬁve images.

In addition, Figure 7 shows the comparison of the

ground truth of sample images with their annotation

results produced by our four proposed models.

Figure 7: Comparisons of annotations made by our pro-

posed methods and annotations made by human.

In comparison to manual annotation by human, the

annotations made by our methods are signiﬁcantly

reliable. In most cases, the proposed models are

able to annotate the important keywords to images

somehow accurately reﬂect its semantic meaning.

In addition, applying both foreground and back-

ground sensitive information give us the best re-

sults in annotation compared to model with or with-

out foreground/background sensitive information. As

you can see on three examples in Figure 7, while

the AdaBoost_miSVM, F_AdaBoost_miSVM and

B_AdaBoost_miSVM only products two correct key-

words to images, FB_AdaBoost_miSVM model pre-

cisely products three out of ﬁve keywords.

From the experimental results, we also ob-

served that labels which are considered sensitive to

background-information (e.g. water, grass, sky, coast,

etc) have performance of B_Adaboost_miSVM better

than F_Adaboost_miSVM. In order to achieve better

results, the models like B_AdaBoost_miSVM

should be more important for background-

sensitive labels. On the contrary, the key-

words like tiger, bear, horses and so on are

foreground-sensitive labels (F_Adaboost_miSVM

is better than B_AdaBoost_miSVM). Models

like F_AdaBoost_miSVM should be used in

KDIR2013-InternationalConferenceonKnowledgeDiscoveryandInformationRetrieval

158

this case. However, if there is no informa-

tion about foreground/background labels, the

FB_Adaboost_miSVM is the most suitable method

as it will automatically estimate the weights of

foreground/background information in learning the

ensemble classiﬁer.

7 CONCLUSIONS

In this paper, we have presented a novel approach

for image annotation with the foreground and back-

ground decomposition on the view of multiple in-

stance learning. This study is to make use of saliency

map to reduce the ambiguity in multiple instance

learning for image annotation. Therefore, a simple

method based on sampling/weighting method is con-

sidered. The main idea is that the salient objects have

higher probability to be foreground.

The empirical results in this paper show that ap-

plying the foreground and background decomposition

to image annotation can yield good performance in

most cases. This provides a very simple and efﬁcient

solution to weak labeling problem in image annota-

tion.

The results in this paper additionally show that

models using both foreground and background infor-

mation in image annotation outperforms models only

use foreground or background information. Besides,

it also proves that classiﬁer ensemble based on Ad-

aBoost signiﬁcantly improves the classiﬁcation accu-

racy.

REFERENCES

Andrews, S., Tsochantaridis, I., and Hofmann, T. (2002).

Support vector machines for multiple-instance learn-

ing. In NIPS, pages 561–568.

Carneiro, G., Chan, A. B., Moreno, P. J., and Vasconcelos,

N. (2007). Supervised learning of semantic classes for

image annotation and retrieval. IEEE Trans. Pattern

Anal. Mach. Intell., 29(3):394–410.

Duygulu, P., Barnard, K., Freitas, J. F. G. d., and Forsyth,

D. A. (2002). Object recognition as machine trans-

lation: Learning a lexicon for a ﬁxed image vocabu-

lary. In Proceedings of the 7th European Conference

on Computer Vision-Part IV, ECCV ’02, pages 97–

112, London, UK.

Guillaumin, M., Mensink, T., Verbeek, J., and Schmid, C.

(2009). Tagprop: Discriminative metric learning in

nearest neighbor models for image auto-annotation. In

Proceedings of the 12th International Conference on

Computer Vision (ICCV), pages 309–316.

Hall, M., Frank, E., Holmes, G., Pfahringer, B., Reutemann,

P., and Witten, I. H. (2009). The weka data mining

software: An update. In SIGKDD Explorations, vol-

ume 11.

Hou, X., Harel, J., and Koch, C. (2012). Image signature:

Highlighting sparse salient regions. IEEE Trans. Pat-

tern Anal. Mach. Intell., 34(1):194–201.

Lavrenko, V., Manmatha, R., and Jeon, J. (2003). A model

for learning the semantics of pictures. In Proccedings

of the 16th Conference on Neural Information Pro-

cessing Systems (NIPS’03). MIT Press.

Navalpakkam, V. and Itti, L. (2006). An integrated model of

top-down and bottom-up attention for optimizing de-

tection speed. In In IEEE Conference on Computer Vi-

sion and Pattern Recognition, CVPR ’06, pages 2049–

2056.

Nguyen, C.-T., Kaothanthong, N., Phan, X.-H., and

Tokuyama, T. (2010). A feature-word-topic model for

image annotation. In Proceedings of the 19th ACM

international conference on Information and knowl-

edge management, CIKM ’10, pages 1481–1484, New

York, USA. ACM.

Nguyen, C.-T., Le, H. V., and Tokuyama, T. (2011). Cas-

cade of multi-level multi-instance classiﬁers for image

annotation. In KDIR ’11: Proceedings of the Interna-

tional Conference on Knowledge Discovery and Infor-

mation Retrieval, pages 14–23, Paris, France.

Qi, X. and Han, Y. (2007). Incorporating multiple svms

for automatic image annotation. Pattern Recogn.,

40(2):728–741.

Rokach, L. (2010). Ensemble-based classiﬁers. Artif. Intell.

Rev., 33(1-2):1–39.

Shi, J. and Malik, J. (2000). Normalized cuts and image

segmentation. IEEE Trans. Pattern Anal. Mach. In-

tell., 22(8):888–905.

Ueli, R., Dirk, W., Christof, K., and Pietro, P. (2004). Is

bottom-up attention useful for object recognition. In

In IEEE Conference on Computer Vision and Pattern

Recognition, CVPR 2004, pages 37–44.

Yang, C., Dong, M., and Hua, J. (2006). Region-based

image annotation using asymmetrical support vector

machine-based multiple-instance learning. In Pro-

ceedings of the 2006 IEEE Computer Society Confer-

ence on Computer Vision and Pattern Recognition -

Volume 2, CVPR ’06, pages 2057–2063, Washington,

DC, USA. IEEE Computer Society.

Zhou, Z.-H. and Zhang, M.-L. (2007). Multi-instance multi-

label learning with application to scene classiﬁcation.

In Proceedings of the 19th Conference on Neural In-

formation Processing Systems (NIPS), pages 1609–

1616. Monreal, Canada.

AMultipleInstanceLearningApproachtoImageAnnotationwithSaliencyMap

159
