Universal Enterprise Adaptive Object Model

David Aveiro

1,2,3

and Duarte Pinto

Exact Sciences and Engineering Centre, University of Madeira, Caminho da Penteada 9020-105 Funchal, Portugal

Madeira Interactive Technologies Institute, Caminho da Penteada, 9020-105 Funchal, Portugal

Center for Organizational Design and Engineering, INESC-INOV Rua Alves Redol 9, 1000-029 Lisboa, Portugal

Keywords: Enterprise Engineering, Model, Meta-Model, Abstract Syntax, Concrete Syntax, Adaptive Object Model,

DEMO.

Abstract: In this paper we present a novel conceptual model that systematizes the integrated management and

adaptation of: (1) enterprise models, (2) their representations, (3) their underlying meta-models, i.e., their

abstract syntax and (4) the representation rules, i.e., concrete syntax for the respective models. All this for

different modeling languages and also different versions of these languages. Thanks to our original use of

the adaptive object model and type square patterns – normally applied in the context of software

engineering, but here applied for enterprise engineering – we manage to provide a strong conceptual

foundation for the development of software tools that will allow a precise and coherent specification of

models and their evolution and also of meta-models and their evolution.

1 INTRODUCTION

A large amount of time is lost, in organizations, in

the handling of unknown exceptions causing

dysfunctions as exception handling can sometimes

take almost half of the total working time, and the

handling of, and recovering from, exceptions is

expensive (Saastamoinen and White, 1995). On

another hand, current Enterprise Engineering (EE)

approaches seem to lack in concepts and method for

a continuous update of organizational models, so

that they are always up to date and available as a

more useful input for the process of continuous

change of organizational reality and decision on

possible evolution choices. It seems that the root

problem is an absence of concepts and method for

explicit capture, and management of information of

exceptions and their handling, which includes the

design and operationalization of organization

artifacts (OA) – e.g., actor role pizza deliverer – that

solve caused dysfunctions. Not immediately

capturing this handling and the consequent resulting

changes in reality and the model of reality itself, will

result that, as time passes, the organization will be

less aware of itself than it should be, when facing the

need of future change due to other unexpected

exceptions. The lack of awareness of organizational

reality has been addressed with the coining of the

term “Organizational Self-Awareness” (OSA),

presented and refined in (Magalhaes et al., 2007)

and (Zacarias et al., 2007). OSA stresses the

importance and need of continuously available,

coherent, updated and updateable models of

organizational reality. With our research work we

aim to facilitate distributed awareness of

organizational reality and also coordinated

distributed change of models of the enterprise's

reality using adequate methods and software tools as

a support. In our tool development efforts a

necessity arose of allowing a precise way of

conceptualizing and implementing the separation of

3 concerns: reality; models of reality; and their

representations, while having adequate flexibility for

model and meta-model evolution. In section 2 –

Related Work & Problem – we present the basic

notions for a proper understanding of our work as

well as the problem itself and in section 3 – The

Universal Enterprise Adaptive Object Model – we

present our proposal contextualizing it and

explaining in detail its principles and applicability.

Finally, in section 4 – Conclusions – we briefly

present our conclusions and discuss what

contributions it brings.

Aveiro D. and Pinto D..

Universal Enterprise Adaptive Object Model.

DOI: 10.5220/0004550000890099

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2013), pages 89-99

ISBN: 978-989-8565-81-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2 RELATED WORK & PROBLEM

We ground our research in a particular

Organizational Engineering approach, namely, the

Design & Engineering Methodology for

Organizations (DEMO) (Dietz, 2006) and its

underlying theory. Our research – presented in this

and the next sections – are heavily based in DEMO

so, while proceeding, the reader which is unfamiliar

with this methodology is advised to also consult

(Dietz, 2006) or (Dietz and Albani, 2005) or other

publications in: www.demo.nl. From several

approaches to support EE being proposed, DEMO

seems to be one of the most coherent,

comprehensive, consistent and concise (Dietz,

2006). It has shown to be useful in a number of

applications, from small to large scale organizations

– see, for example, (Dietz and Albani 2005) and

(Op’ t Land 2008) (p. 39). Nevertheless, DEMO

suffers from the shortcoming referred above.

Namely, DEMO models have been mostly used to

devise blueprints to serve as instruments for

discussion of broader scale organizational change or

development/change of IT systems (Op’ t Land,

2008) (p. 58) and does not, yet, provide modeling

constructs and a method for a continuous update of

its models as reality changes. Current software tools

supporting DEMO also suffer from the same

shortcoming, the problem we address in this paper.

2.1 Basic Ontological Notions

We adopt the ontological system definition from

(Dietz 2008) (citing (Bunge, 1979)) which concerns

the construction and operation of a system. The

corresponding type of model is the white-box model,

which is a direct conceptualization of the ontological

system definition presented next. Something is a

system if and only if it has the next properties: (1)

composition: a set of elements of some category

(physical, biological, social, chemical etc.); (2)

environment: a set of elements of the same category,

where the composition and the environment are

disjoint; (3) structure: a set of influencing bonds

among the elements in the composition and between

these and the elements in the environment; (4)

production: the elements in the composition produce

services that are delivered to the elements in the

environment. From (Dietz, 2008) we find that in the

Ψ-theory based DEMO methodology, four aspect

models of the complete ontological model of an

organization are distinguished. The Construction

Model (CM) specifies the construction of the

organization: the actor roles in the composition and

Figure 1: The meaning triangle.

Figure 2: The ontological parallelogram.

Figure 3: The model triangle.

Figure 4: Model triangle applied to organizations.

Figure 5: Meaning triangle applied to a transaction OA.

Figure 6: Model triangle applied to the organization space.

KEOD2013-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

the environment, as well as the transaction kinds in

which they are involved. The Process Model (PM)

specifies the state space and the transition space of

the coordination world. The State Model (SM)

specifies the state space and the transition space of

the production world. The Action Model (AM)

consists of the action rules that serve as guidelines

for the actor roles in the composition of the

organization.

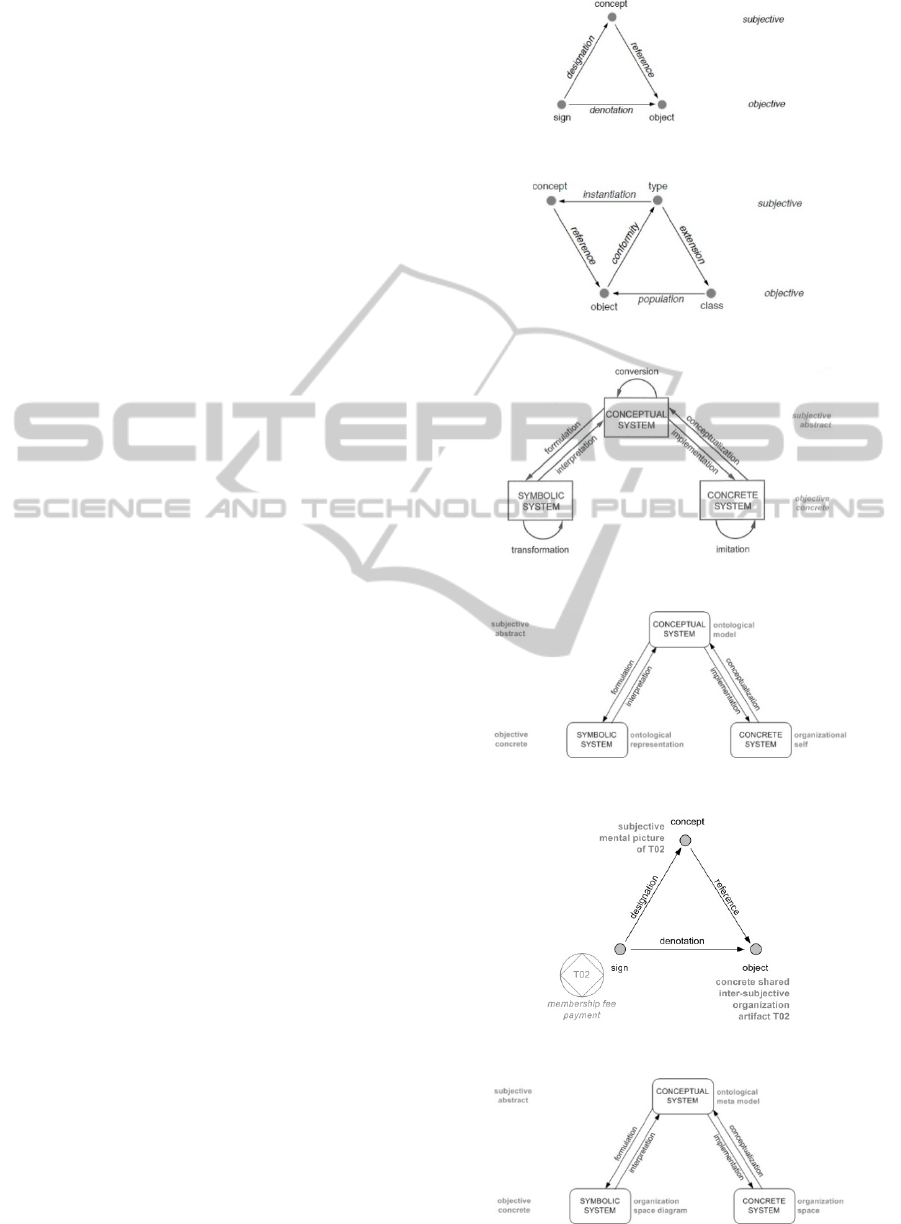

In Figures 1 and 2, we find, respectively, the

meaning triangle and the ontological parallelogram,

taken from (Dietz, 2005) which explain how

(individual) concepts are created in the human mind.

We will also base our claims in the model triangle,

taken from (Dietz, 2006) and presented in Figure 3.

We find that the model triangle coherently overlaps

the meaning triangle. This happens because a set of

symbols – like a set of DEMO representations

(signs) that constitute a symbolic system – allows

the interpretation of a set of concepts – like a set of

DEMO aspect models, part of the ontological model,

constituting a conceptual system. This conceptual

system, in turn, consists in the conceptualization of

the “real” inter-subjective organizational self, i.e.,

the set of OAs constituting the concrete organization

system's composition structure and production.

Figure 4 is an adaptation from the model triangle of

Figure 3 and depicts our reasoning. We call the set

of all DEMO diagrams, tables and lists used to

formulate the ontological model as ontological

representation.

Now relating with the meaning triangle, we can

verify that a particular sign (e.g., a transaction

symbol with label membership fee payment), part of

an ontological representation (e.g., actor transaction

diagram, representing a library's construction model)

designates (i.e., allows the interpretation or is the

formulation) of the respective concept of the

particular transaction part of the respective

ontological model (e.g., construction model). This

subjective concept, in turn, refers to a concrete

object of the shared inter-subjective reality of the

organization's human agents (e.g., the particular OA

transaction T02). Figure 5, an adaptation from the

meaning triangle depicts this other reasoning.

Another example of an OA related with T02

would be the transaction initiation OA, relating T02

with actor role registrar (also designated by A02)

and formulated by a line connecting the transaction

and actor role symbols of T02 and A02. Actor role

registrar is, in turn, another OA of the construction

space of the library. Once such role is communicated

to all employees of a library, it becomes a “living”

abstract object part of the shared inter-subjective

reality of the library's human agents. Such object,

along with other OAs of the organizational inter-

subjective reality, give human agents a way to

conceptualize their organizational responsibilities –

in this case, requesting membership fee payments to

aspirant members. We name this set of all abstract

objects living in the inter-subjective reality of an

organization's members as the organizational self.

From these notions we proposed a set of claims

presented in more detail in (Aveiro et al., 2010) and

summarized next. An organization – besides

producing a set of products or services for its

environment – also produces itself. That is, enclosed

in its day-to-day operation, there will be parts of its

operation which change the organization system

itself, i.e., change the set of OAs that constitute its

composition, structure and production. By formally

and explicitly specifying these change acts one

keeps a definite and updated record of produced

OAs. Such a record – the OAs base – constitutes the

means for one to always be able to conceptualize the

most current and updated ontological model of the

organizational self. Thus the continuous production

of the organizational self should include the

synchronized production of the collective and

subjective “picture” (awareness) of the

organizational self – the conceptualization that

constitutes its ontological model – thanks to the

synchronized production of the respective symbolic

system – an ontological representation that allows

the interpretation of the ontological model and the

conceptualization (awareness) of the organizational

self. To separate concerns, we propose that change

acts are performed by a (sub-)organization

considered to exist in every organization (O) that we

call: G.O.D. Organization (GO) – change acts lead

to the Generation, Operationalization and

Discontinuation of OAs. The GO's production world

will contain the current state of O's self as well as its

relevant state change history. The GO has the role of

continuously realizing and capturing changes of

organizational reality. Thus, by implementing the

GO pattern in a real organization, in an appropriate

manner, providing automatic generation of

ontological representations derived from the OAs

base, one can achieve OSA. This is possible because

one can implement clear rules that, based on the

arrangement of OAs of the organizational self,

automatically produce the appropriate ontological

representation which, in turn, allows the appropriate

interpretation of the ontological model, that is, the

correct conceptualization of the organizational self.

OAs constituting the organizational self are

arranged in a certain manner as to specify all the

UniversalEnterpriseAdaptiveObjectModel

spaces (state, process, action and structure) of an

organization's world, i.e., they have to obey certain

rules of arrangement between them. We call the

specification of these rules as the ontological meta

model. The ontological meta-model is the

conceptualization of the OA space. By OA space we

understand the set of allowed OAs. It is specified by

the OA base and OA laws. The OA base is the set of

OA kinds of which instances, called OAs, may occur

in the state base of the GO's world. The OA laws

determine the inclusion or exclusion of the

coexistence of OAs. The definition of the OA space

is quite similar to the definition of state space of an

organization's production world – specified in World

Ontology Specification Language (WOSL) (Dietz

2006) – and, thus, it is appropriate to use WOSL to

express the ontological meta-model in, what we

propose to call: the Organization Space Diagram

(OSD). DEMO's OSD is currently called as the

DEMO Meta Model (DMM), the chosen name for

the specification provided in (Dietz, 2009) and

consisting, in practice, in the OSDs corresponding to

the four DEMO aspect models: SM, CM, PM and

AM. These diagrams formulate, for each aspect

model, the OA kinds out of which instances – OAs –

can occur in the organizational self and coexistence

rules governing how to arrange these instances.

Another reason we propose to use the expression

Organization Space Diagram is because we're in fact

looking at a Space Diagram which, following the

model triangle (Dietz, 2006), is a symbolic system

which is a formulation of the conceptual system of

the ontological meta model. So, for coherency

reasons, one should not use terms “Meta” and

“Model” to name those figures but use, instead, the

term Organization Space Diagram. The OSD allows

the interpretation, in one's mind, of the ontological

meta model. The complete set of organization

artifact kinds and laws governing the arrangement of

their instances constitutes the organization space.

The conceptualization of the organization space

consists in the ontological meta-model which, in

turn, is formulated in what we call the Organization

Space Diagram. A depiction of this reasoning is

present in Figure 6, another adaptation from the

model triangle. The G.O.D. organization is

addressed in detail in (Aveiro et al., 2010). The

proposal presented in this current paper consists in

an evolution of the conceptual model proposed in

this other paper, taking in account state-of-the-art

related model theory and concepts described next.

2.2 Theoretical Foundations on Models

In a graphical modeling language, the vocabulary is

expressed in terms of pictorial signs. Those

graphical primitives form the concrete syntax i.e the

lexical layer of such language. The abstract syntax,

on the other hand, is usually defined in terms of an

abstract visual graph or a meta-model specification.

A meta-model specification of a language defines

the set of grammatically correct models that can be

constructed using that language, a vocabulary. The

concrete syntax provides a concrete representational

system for expressing the elements of that meta-

model (Guizzardi, 2005). In a communication

process, besides agreeing on a common vocabulary,

the participants need to also share the meaning for

the syntactical constructs being communicated so

they are able to interpret in a compatible manner the

expressions being used. To this end a language's

semantics can be constructed in two parts: a

semantic domain i.e. the real world entities to which

those semantics apply and a semantic mapping from

the syntactic vocabulary to such domain that tells us

the meaning of each of the language's expressions as

an element in that specific domain. In graphical

languages, vocabulary, syntax and semantics cannot

be clearly separable. A graphical vocabulary of a

modeling language may include shapes of differing

sizes and colors that often fall into a hierarchical

typing that constrains the syntax and informs about

the semantics of the system (Guizzardi, 2005). The

abstract syntax of a model manages the formal

structure of the model elements and the relationships

amongst them (La Rosa et al., 2011).

The MetaObject Facility (MOF) Specification is

the industry-standard environment where models can

be exported from one application, imported into

another, transported across a network, stored in a

repository and then retrieved, rendered into different

formats like XMI or XML, transformed, and used to

generate application code (OMG, 2012). The

Adaptive Object Model (AOM) is a pattern that

represents classes, attributes, and relationships as

meta-data. It is a model based on instances rather

than classes. Users change the meta-data (object

model) to reflect changes in the domain. These

changes modify the system’s behavior. In other

words, it stores its Object-Model in a database and

interprets it. Consequently, the object model is

active, when you change it, the system changes

immediately (Yoder et al., 2001).

KEOD2013-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

3 THE UNIVERSAL

ENTERPRISE ADAPTIVE

OBJECT MODEL

Figure 7: Type Square.

The long term objective of our research is the

development of a wiki-based system that allows an

effective integrated enterprise modeling, while

allowing dynamic evolution of meta-models, models

and their representations, while providing intuitive

navigation through their elements and also their

semantics, allowing wide-spread model

interpretation and distributed model creation and

change, reflecting enterprise changes, thus

addressing our problem. An essential step in this

direction is what we call the Universal Enterprise

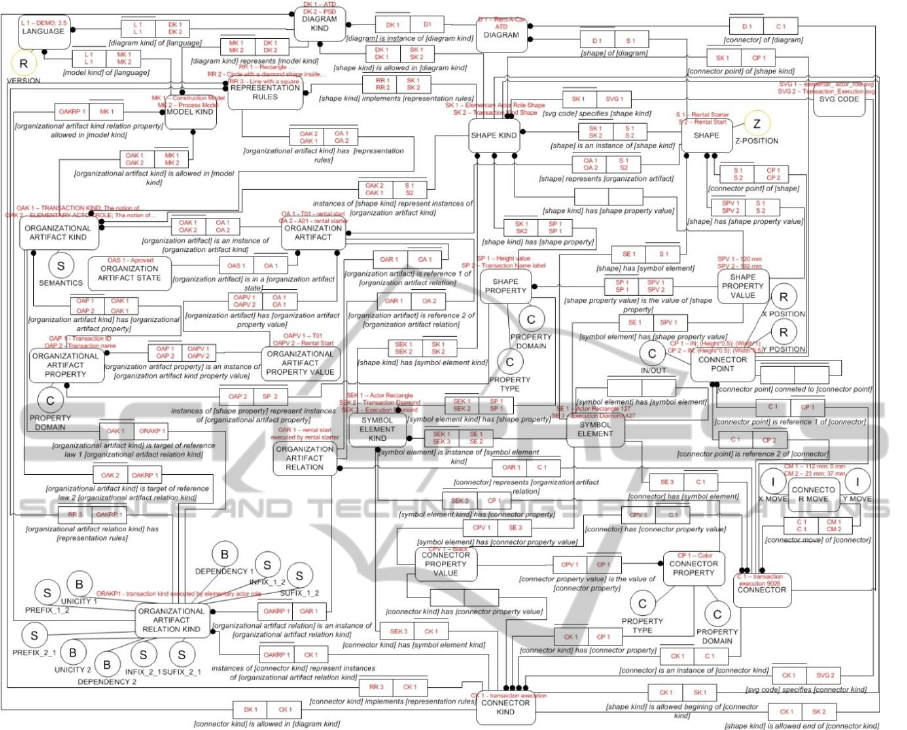

Adaptive Object Model (UEAOM), depicted in

Figure 8. We apply the AOM pattern referred in the

previous section so that each page or semantic

property of our semantic wiki-based system

corresponds to instances of classes of our AOM.

Wiki pages, that are instances of class

DIAGRAM, automatically generate SVG diagrams

based on shape and connector pages. These pages

also allow dynamic editing of diagrams and

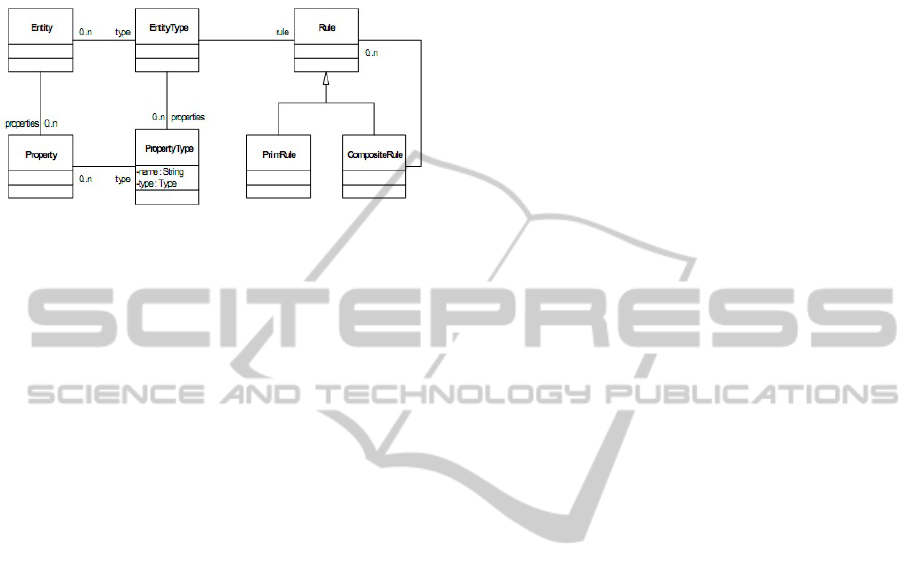

underlying models. We also apply the type-square

pattern (Yoder et al., 2001) – depicted in Figure 7 –

4 times as to allow run-time dynamic change of: (1)

meta-model elements, (2) model elements, (3) shape

elements and (4) connector elements. Our UEAOM

is represented with the World Ontology

Specification Language (WOSL) (Dietz, 2005).

WOSL is based in Object Role Modeling language

(Halpin, 1998) which is also used as a base for the

specification of the anatomy of Archimate

(Lankhorst et al., 2010), a similar effort to ours. In

(Ferreira et al., 2008) a relation between Adaptive

Object Model pattern and the MOF standard is

presented, where run-time instances of the

operational level are equivalent to MOF's M0 and

knowledge level; classes, attributes, relations and

behavior is equivalent to M1, being M2 an

equivalent to the models used to define an AOM. As

in the work of Ferreira et al., in our UEAOM all

these MOF levels are projected as run-time

instances. In our prototype system, we have as

instances both organization artifacts – i.e., concrete

organization models – and organization artifact

kinds – i.e., the meta-model specification or, in other

words, the abstract syntax. So both M1 and M2

levels of the MOF framework exist and change at

run-time. But the MOF and Ferreira's initiative are

too software development oriented and too complex

for our needs. Our main contribution in this paper is

to apply these fundamental theoretical foundations

and adapt them to the field of enterprise ontology.

Having the UEAOM contextualized, an

explanation of its content is now due. With the

UEAOM's classes we are not explicitly specifying

syntaxes of particular modeling languages. What we

can do, while instantiating these classes, is to specify

any syntax of any modeling language, along with

particular models of each language, and also their

evolution, all this in run-time. For a better

understanding and following the essential and

important validation by instantiation principle

(Dietz, 2009) we present, for all elements of our

AOM, example instances for the DEMO language,

namely a fragment of the EU-rent case's

Construction Model and its respective Actor

Transaction Diagram. Thus, we can find, in red color

expressions, instances of both our classes and fact

types of our UEAOM concerning the EU-rent case

which allow a better interpretation of our proposal.

3.1 Abstract Syntax

Relevant classes for the specification of the abstract

syntax of any version of any language are presented

in Figure 9. The main concepts of the abstract syntax

specification are expressed in the classes

LANGUAGE, MODEL KIND,

ORGANIZATIONAL ARTIFACT KIND (OAK)

and ORGANIZATIONAL ARTIFACT RELATION

KIND (OARK). They specify all allowed artifacts

(e.g. transaction kind OAK and transaction

execution relation OARK) for different types of

models that can exist for different languages. Class

ORGANIZATIONAL ARTIFACT RELATION

KIND has ten properties that can be divided in two

groups of five where each group specifies one of the

two sides of an allowed relation between two OAKs.

The ones named prefix, infix and suffix specify the

formulation that can be done around the names of

the two OAKs being related. Most times, only the

infix needs to be specified. With the unicity and

dependency properties we specify the cardinality of

UniversalEnterpriseAdaptiveObjectModel

Figure 8: Universal Enterprise Adaptive Object Model.

the relation and which OAKs are mandatory or not

to participate in the relation. Reference law fact

types specify which two OAKs are allowed to

participate in this relation. Practical example of the

first set of the referred 5 properties: F Transaction

Kind T is initiated by Elementary Actor Role

corresponds to a set of Dependency 1, Reference law

1, Unicitiy 1, Infix_1_2 and Reference law 2. F

Elementary Actor Role T is initiator of Transaction

Kind would be its corresponding Dependency 2,

Reference law 2, Unicitiy 2, Infix_2_1 and

Reference law 1. Thanks to this part of our UEAOM

specification we allow a precise and formal

formulation of the abstract syntax of models, already

giving considerable semantics thanks to the prefix,

infix, suffix and OAK names that can be composed

in formulations for each direction of the relation.

Instances of class ORGANIZATION ARTIFACT

PROPERTY specify intrinsic properties of OAKs,

like identifiers and names. The respective property

PROPERTY DOMAIN allows us to specify the

domain for each intrinsic property of an OAK (e.g.,

string, number, etc.). Examples of instances are

property transaction id with domain T<number> or

transaction name with domain <string>.

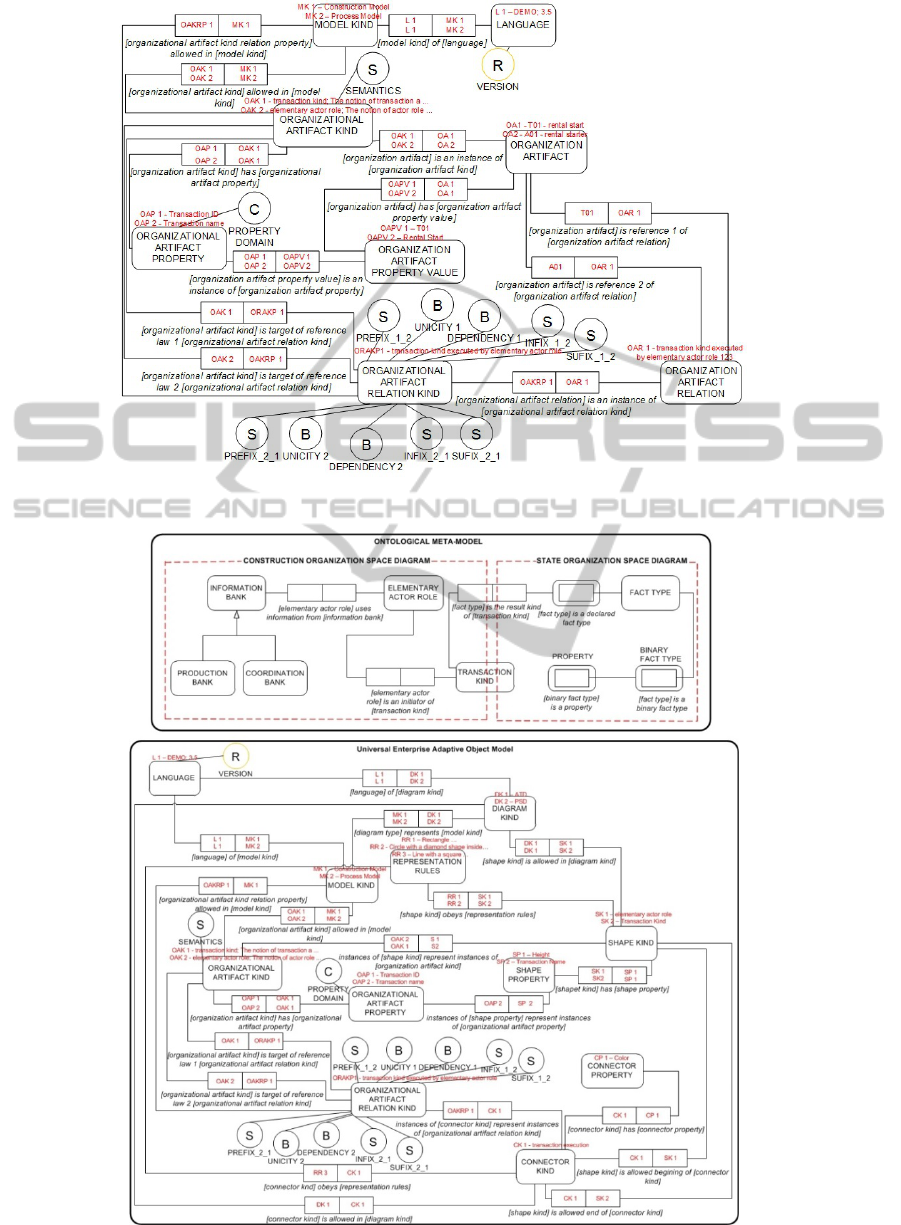

In Figure 10 we can see an excerpt of the current

DEMO ontological meta-model and the UEAOM

classes used to define it. Both these models are the

equivalent to the M2 MOF model that, as we have

seen, sets the rules for specifying concrete models.

All elements of this meta-model can be considered

instances of the classes we just have presented. The

binary fact type [elementary actor role] is an

initiator of [transaction kind] is, in our UEAOM, an

instance of ORGANIZATIONAL ARTIFACT

RELATION KIND class, with values for the infixes

being: initiates and initiated by. There are, however,

other classes: DIAGRAM KIND, SHAPE KIND,

CONNECTOR KIND, CONNECTOR and SHAPE

PROPERTY that are present in this Figure 10 and

KEOD2013-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

Figure 9: UEAOM - Abstract Syntax classes.

Figure 10: DEMO Ontological Meta-Model and UAOM classes used to represent it.

UniversalEnterpriseAdaptiveObjectModel

Figure 11: UEAOM - Concrete syntax.

are part of the meta-model level of the UEAOM but

are not part of the abstract syntax, these will be

explained in more detail in the next section.

3.2 Concrete Syntax

The UEAOM classes that allow the specification of

rules for the concrete representation of models, i.e.,

the concrete syntax, are presented next. These

classes, together with all their inter-relating fact

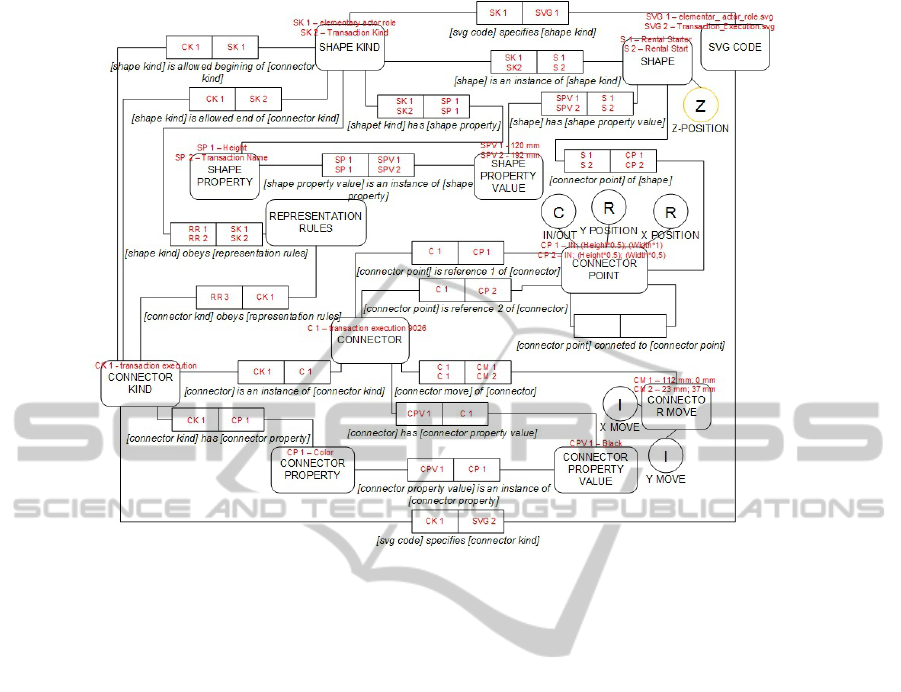

types are present in Figure 11. With the class

SHAPE KIND, instances of the types of shapes

allowed to be part of diagram kinds representing

certain model kinds are specified. These shape kinds

are also specifically connected to the OAKs whose

instances they will represent. For example, the

elementary actor role shape is allowed in diagram

kind Actor Transaction Diagram, that represents the

construction model of DEMO language. Instances of

this shape represent instances of OAK actor role.

With SHAPE PROPERTY, we specify the

properties for each shape, e.g., line color and actor

id label of actor role shape. Instances of

CONNECTOR KIND specify allowed

representations for OAKRs, e.g. transaction

initiation connector instances represent instances of

OAKR transaction initiation. With CONNECTOR

PROPERTY, the properties of each connector are

specified, e.g., for the just mentioned connector, line

color: black and line dashing: continuous.

Instances of REPRESENTATION RULES, class

are an informal textual based specification of rules

on how ORGANIZATIONAL ARTIFACT KINDS

and ORGANIZATIONAL ARTIFACT RELATION

KINDS should be represented. These rules are taken

in consideration in either SHAPES or

CONNECTORS that represent those OAKs and

OARKs. For example, a transaction is a black circle

with a black diamond inside. It is also according to

the REPRESENTATION RULES that we have a

definite answer if an OARK will give origin or not

to a connector or if instead it will be represented by

the connection of two shape kinds directly.

Revisiting the full example from Figure 8, an

elementary actor role shape would be an instance of

class SHAPE KIND, for the representation of

instances of the actor role OAK. Transaction shape

would also be an instance of SHAPE KIND for the

representation of instances of transaction OAK. So

an instance of class CONNECTOR KIND for the

representation of this OAKR would be transaction

initiator connector, with properties like line type:

dashed. Many of the SHAPE KINDs and

CONNECTOR KINDs are comprised by multiple

symbols that need to be considered individually as

having a set of properties. Although in most cases

KEOD2013-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

Figure 12: DEMO concrete diagrams example and UEAOM classes used to represent them.

the aggregate of composing symbols are treated as

“one” in the diagram drafting, such as a circle and

diamond in an actor transaction diagram transaction,

that have a fixed size (height and width) and none of

them can be altered, there are also cases in which

symbols need to be treated and moved in the

diagrams in a separate and independent way having

their own set of SHAPE PROPERTIES or

CONNECTOR PROPERTIES like, for example, in

a process step diagram where the diamond inside the

transaction can be moved and re-sized according to

the needs. As a solution for this, we have classes

SYMBOL ELEMENT KIND that specify each

symbol element to be present in a shape kind or

connector kind and SYMBOL ELEMENT that are

instances of SYMBOL ELEMENT KIND and

specify concrete representations of SYMBOL

ELEMENTS of a specific kind. As an example of

this we can consider the actor transaction diagram

SHAPE KIND transaction as being composed by the

UniversalEnterpriseAdaptiveObjectModel

SYMBOL ELEMENT KINDS Transaction

Diamond and Transaction Circle.

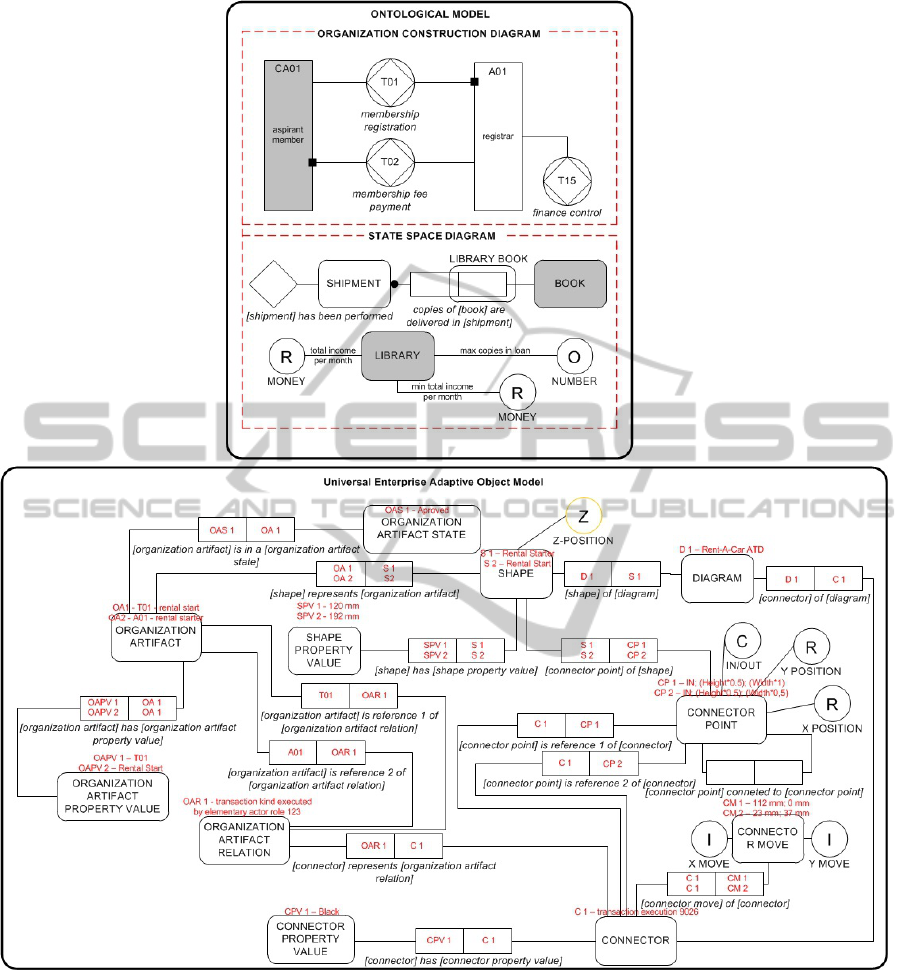

In Figure 12 we have a partial example of a

concrete representation of the DEMO ontological

models of an Actor Transaction Diagram and Object

Fact Diagram and the corresponding part in the

UEAOM. DEMO Ontological models are the

equivalent to the M1 level of MOF and instances of

their OA's to the MOF's M0 level.

Ontological Models and their representation are

covered in the UEAOM by the classes: DIAGRAM,

where concrete instances of a certain DIAGRAM

KIND are specified; SHAPE, where concrete

instances of SHAPE KIND are specified; SHAPE

PROPERTY VALUE, where concrete instances of

SHAPE PROPERTY are specified; CONNECTOR,

where concrete instances of CONNECTOR KIND

are specified; CONNECTOR PROPERTY VALUE,

where concrete properties of the CONNECTOR

PROPERTY are specified; ORGANIZATIONAL

ARTIFACT, where concrete instances of

ORGANIZATIONAL ARTIFACT KIND are

specified; ORGANIZATIONAL ARTIFACT

PROPERTY VALUE, where concrete OA

properties are specified and ORGANIZATIONAL

ARTIFACT RELATION, where concrete instances

of ORGANIZATIONAL ARTIFACT RELATION

KIND are specified and all their relating fact types.

In this way also allowing them to be changed in an

easy and consistent way in run-time environment.

Again using a concrete example from Figure 12,

we have the “CA-01 aspirant member shape”, this is

an instance of SHAPE (this SHAPE an instance

itself of the SHAPE KIND “Composite Actor Role”)

that represents the ORGANIZATIONAL

ARTIFACT “CA-01 aspirant member” (itself an

instance of the ORGANIZATIONAL ARTIFACT

KIND “Composite Actor Role”); the string “aspirant

member” is an instance of SHAPE PROPERTY

VALUE (that represents the instance of

ORGANIZATIONAL ARTIFACT PROPERTY

VALUE “aspirant member”) and so is “CA-01”.

These two strings are VALUES, instances of the

SHAPE PROPERTIES “Actor Name” and “Actor

ID” respectively (that again represent the instances

of ORGANIZATIONAL ARTIFACT PROPERTY

VALUE “Composite Actor Name” and “Composite

Actor ID”).

The DIAGRAM KIND and MODEL KIND

classes were not present in the original DEMO

Ontological meta-model as all models were

specified in this single meta-model. But in our

UEAOM, as we have generalized this definition to

accommodate any language for organizational

modeling, the DIAGRAM KIND and MODEL

KIND classes are vital so we can relate to each

specific Ontological Model. Actor Transaction

Diagram or Process Step Diagram would be

examples of instances of this DIAGRAM KIND

while the first would be a representation of the

MODEL KIND Construction Model and the second

a representation of the MODEL KIND Process

Model. The LANGUAGE class and its property

VERSION is used to define the modeling language

being modeled and the version of such language.

4 CONCLUSIONS

In this paper we proposed what we call the

Universal Enterprise Adaptive Object Model,

(UEAOM) that, through the multiple application of

the type square pattern and the adaptive object

model pattern, allows a robust and precise

conceptual solution to manage changes in

organization artifacts, their models and meta-

models, all in run time environment. It is possible,

through specification of instances of our UEAOM,

to manage the various aspects of modeling

languages: the semantics; the abstract and concrete

syntaxes and the pragmatics all in the same

implementation and object model. This gives

flexibility for a very important contribution of our

proposal: the possibility to completely change or

create a new behavior for the system by changing its

concrete and/or abstract syntax on the fly.

As we can see, important and essential

representation aspects like shapes, connectors and

their properties and representation rules, are not

specified formally and precisely (as we do in our

examples) in DEMO's original meta-model, nor in

the meta-model of other mainstream languages such

as BPMN or Archimate. The abstract and concrete

syntaxes as well as the language's pragmatics are

very important aspects of the modeling activity and

should be specified in the meta-model specification

itself, even if with semi-formal textual information

(in our case provided by instances of the class

REPRESETATION RULES) as to allow the least

ambiguity possible. Our UEAOM approach to

enterprise modeling differentiates itself from other

enterprise modeling languages like BPMN and

Archimate in the way that in expands the AOM

principles to also model the meta-model level in run

time environment taking as an advantage also of the

type square pattern in a coherent, consistent and

robust way. Our conceptual solution offers tool

makers a sound theoretical base for an extensive and

KEOD2013-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

thorough management of knowledge of an

organization and also of the languages being used to

create models. It also considers the DEMO's Ψ-

theory principle that nothing ceases to exist, but

instead, artifacts have their state changed. Although

specified with the implementation of the DEMO

methodology in mind, the UEAOM is flexible

enough to allow the modeling of multiple languages

like Archimate or BPMN.

As future developments of this work, we will

provide a more detailed specification of how to

manage the versions of the language and the

possibility to migrate models and also a better

specification of the state changes that can occur with

all artifacts that are instances of our UEAOM

classes.

REFERENCES

Aveiro, D., Rito Silva, A. & M. Tribolet, J., 2010.

Extending the Design and Engineering Methodology

for Organizations with the Generation

Operationalization and Discontinuation Organization.

Em 5th International Conference, DESRIST 2010. St.

Gallen, Switzerland, June 4-5, 2010: Springer, pp

226–241.

Bunge, M. A., 1979. Treatise on basic philosophy, vol. 4,

a world of systems, Reidel Publishing Company.

Dietz, J. L. G., 2005. A World Ontology Specification

Language. Em S. B. / Heidelberg, ed. On the Move to

Meaningful Internet Systems 2005: OTM Workshops.

pp 688–699. Available at: http://dx.doi.org/10.1007/

11575863_88.

Dietz, J. L. G., 2009. Demo meta model specification

(forthcoming, in www.demo.nl).

Dietz, J.L.G., Enterprise ontology: theory and

methodology. Springer-Verlag New York, Inc.

Secaucus, NJ, USA. (2006).

Dietz, J. L. G., 2009. Is it PHI TAO PSI or Bullshit? Em

The enterprise engineering series. Methodologies for

Enterprise Engineering symposium. Delft: TU Delft,

Faculteit Elektrotechniek, Wiskunde en Informatica.

Dietz, J. L. G., 2008. On the Nature of Business Rules.

Advances in Enterprise Engineering I, pp.1–15.

Dietz, J. L. G. & Albani, A., 2005. Basic notions regarding

business processes and supporting information

systems. Requirements Engineering, 10(3),pp.175–183.

Ferreira, H. S., Correia, F. F. & Welicki, L., 2008. Patterns

for data and metadata evolution in adaptive object-

models. Em Proceedings of the 15th Conference on

Pattern Languages of Programs. PLoP ’08. New

York, NY, USA: ACM, pp 5:1–5:9. Available at:

http:// doi.acm.org/ 10.1145/ 1753196.1753203.

Guizzardi, G., 2005. Ontological foundations for structural

conceptual models. Available at: http://doc.utwente.nl/

50826/.

Halpin, T., 1998. Object-Role Modeling: an overview. Em

In http://www.orm.net/pdf/ORMwhitePaper.pdf.

Lankhorst, M. M., Proper, H. A. & Jonkers, H., 2010. The

Anatomy of the ArchiMate Language. International

Journal of Information System Modeling and Design,

1(1), pp.1–32.

Magalhaes, R., Zacarias, M. & Tribolet, J., 2007. Making

Sense of Enterprise Architectures as Tools of

Organizational Self-Awareness (OSA). Proceedings of

the Second Workshop on Trends in Enterprise

Architecture Research (TEAR 2007), June, 6,pp.61–70.

OMG, 2012. OMG’s MetaObject Facility (MOF) Home

Page. Available at: http://www.omg.org/mof/.

Op’ t Land, M., 2008. Applying Architecture and Ontology

to the Splitting and Allying of Enterprises. TU Delft.

La Rosa, M. et al., 2011. Managing Process Model

Complexity Via Abstract Syntax Modifications. IEEE

Transactions on Industrial Informatics, 7(4), pp.614–

629.

Saastamoinen, H. & White, G. M., 1995. On handling

exceptions. Proceedings of conference on

Organizational computing systems, pp.302–310.

Yoder, J. W., Balaguer, F. & Johnson, R., 2001.

Architecture and design of adaptive object-models.

SIGPLAN Not., 36(12), pp.50–60.

Zacarias, M. et al., 2007. Towards Organizational Self-

Awareness: An Initial Architecture and Ontology. Em

P. Rittgen, ed. Handbook of Ontologies for Business

Interaction. Information Science Reference, pp 101–

121.

UniversalEnterpriseAdaptiveObjectModel
