Morphological ECG Analysis for Attention Detection

Carlos Carreiras

, Andr

e Lourenc¸o

1,2

, Helena Aidos

, Hugo Silva

and Ana Fred

Instituto de Telecomunicac¸

oes, Instituto Superior T

ecnico, Lisbon, Portugal

Instituto Superior de Engenharia de Lisboa, Lisbon, Portugal

Keywords:

Physiological Computing, Attention, ECG, EEG, Unsupervised Learning, Cluster Validation.

Abstract:

The electroencephalogram (EEG) signal, acquired on the scalp, has been extensively used to understand cog-

nitive function, and in particular attention. However, this type of signal has several drawbacks in a context

of Physiological Computing, being susceptible to noise and requiring the use of impractical head-mounted

apparatuses, which impacts normal human-computer interaction. For these reasons, the electrocardiogram

(ECG) has been proposed as an alternative source to assess emotion, which is also continuously available,

and related with the psychophysiological state of the subject. In this paper we present a study focused on the

morphological analysis of the ECG signal acquired from subjects performing a task demanding high levels of

attention. The analysis is made using various unsupervised learning techniques, which are validated against

evidence found in a previous study by our team, where EEG signals collected for the same task exhibit distinct

patterns as the subjects progress in the task.

1 INTRODUCTION

Standard methods for communication between hu-

mans and computing systems, using a keyboard and

mouse, or a touch screen, provide a very limited in-

formation bandwidth when compared to the richness

of the user’s psychophysiological state (Fairclough,

2009). Indeed, in natural human communication, the

speaker’s attitude, posture, tone, and facial expres-

sions, among others, strongly inﬂuence the semantic

interpretation done by the receiver (Pell et al., 2011).

These characteristics are often related with the emo-

tional state of the speaker, adding an extra layer of

information that a computer cannot yet easily under-

stand. The integration of this psychophysiological in-

formation into computer systems, by continuous, real-

time monitoring of the user, is known as Physiological

Computing (Fairclough, 2009).

Straightforward approaches to physiological com-

puting, requiring no extra hardware, are, for example,

keystroke dynamics (Epp et al., 2011), speech anal-

ysis (Murray and Arnott, 1993), and automatic facial

expression recognition (Zheng et al., 2006). However,

all these examples exhibit serious problems to their

usefulness. Keystroke dynamics requires continuous

typing, speech analysis requires continuous speech, in

addition to disclosing sensitive and/or private infor-

mation to possible eavesdroppers, and a facial expres-

sion is a vague concept to be described objectively,

with its usefulness for behavioral science being ques-

tioned in (Aviezer et al., 2012). One possible alter-

native to these modalities, although requiring extra

hardware, is the use of the subject’s biosignals (e.g.

electrodermal activity, peripheral temperature, blood

volume pulse, electrocardiogram, electroencephalo-

gram signals), acquiring them during normal human-

computer interaction tasks (Canento et al., 2011; Silva

et al., 2012). These signals have the twofold advan-

tage of being always available, and measuring the nat-

ural physiological responses of the body to a given

affective state, which cannot be voluntarily masked.

The electroencephalogram (EEG) signal, acquired

on the scalp, has been extensively used to understand

cognitive function, and in particular emotion (Ahern

and Schwartz, 1985; Coan and Allen, 2007), being a

noninvasive, cost-effective technique, with good tem-

poral resolution (Mak and Wolpaw, 2009). However,

it has various drawbacks, such as susceptibility to

noise (in particular motion artifacts and eye blinks)

and, most importantly, requires the use of some kind

of head-mounted equipment to support the (typically

wet) electrodes, which becomes impractical for con-

tinued use. In this context, the electrocardiogram

(ECG) signal has been suggested as a possible option

(Medina, 2009; Belle et al., 2010). Nevertheless, the

usefulness of the EEG as source of ground-truth in-

381

Carreiras C., Lourenço A., Aidos H., Plácido da Silva H. and Fred A..

Morphological ECG Analysis for Attention Detection.

DOI: 10.5220/0004554403810390

In Proceedings of the 5th International Joint Conference on Computational Intelligence (NCTA-2013), pages 381-390

ISBN: 978-989-8565-77-8

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

formation has not been discarded (Belle et al., 2012).

In this paper, we make a morphological analy-

sis, using unsupervised learning techniques, of the

ECG acquired from subjects performing a task that

demands high levels of attention over a long period

of time. This experiment simulates what may happen,

for instance, during an interactive educational game,

extended work hours, repetitive daily tasks, or sleep

deprivation, where attention levels ﬂuctuate through-

out the execution of the task. This is particularly im-

portant in various professions, such as doctors, pilots,

drivers or industrial equipment operators, for which

momentary or prolonged lapses of attention may be

catastrophic (Belle et al., 2012). In addition, we com-

pare the results obtained with the ECG signal to our

previous work using the EEG, which provided evi-

dence that the subjects indeed exhibit distinct affec-

tive states throughout the completion of the task (Car-

reiras et al., 2013).

The remainder of the paper is organized as fol-

lows: Section 2 describes the experimental setup.

Section 3 details the proposed methodology, includ-

ing the description of the clustering methods used,

as well as several clustering validation metrics. Sec-

tion 4 presents the obtained results, which are dis-

cussed in Section 5. Finally, Section 6 concludes the

paper.

2 AFFECTIVE ELICITATION

AND DATA ACQUISITION

The ECG signal presents several attributes that make

it especially interesting in a physiological comput-

ing framework. Speciﬁcally, it is continuously avail-

able, providing a rich wellbeing indicator, is related

with the psychophysiological state of the subject, and

is easy to acquire unobtrusively with wearable de-

vices. This is further enhanced by following an off-

the-person approach, where the sensors are seam-

lessly integrated into objects with which subjects reg-

ularly interact, such as a keyboard, a video game con-

troller, or a mobile device, without the need to change

normal interaction patterns (Silva et al., 2011).

It is widely known that the basic function of the

heart is to pump blood throughout the body, de-

manding a highly synchronized sequence of muscu-

lar contractions. These contractions are initiated by

small electrical currents that propagate through the

heart’s muscle cells, generating an electrical signal

that can be recorded at the body surface (the ECG).

In healthy individuals, the electrical activity of the

heart is guided by the self-excitatory nature of the

sinus node on the left atrium (see Figure 1), which

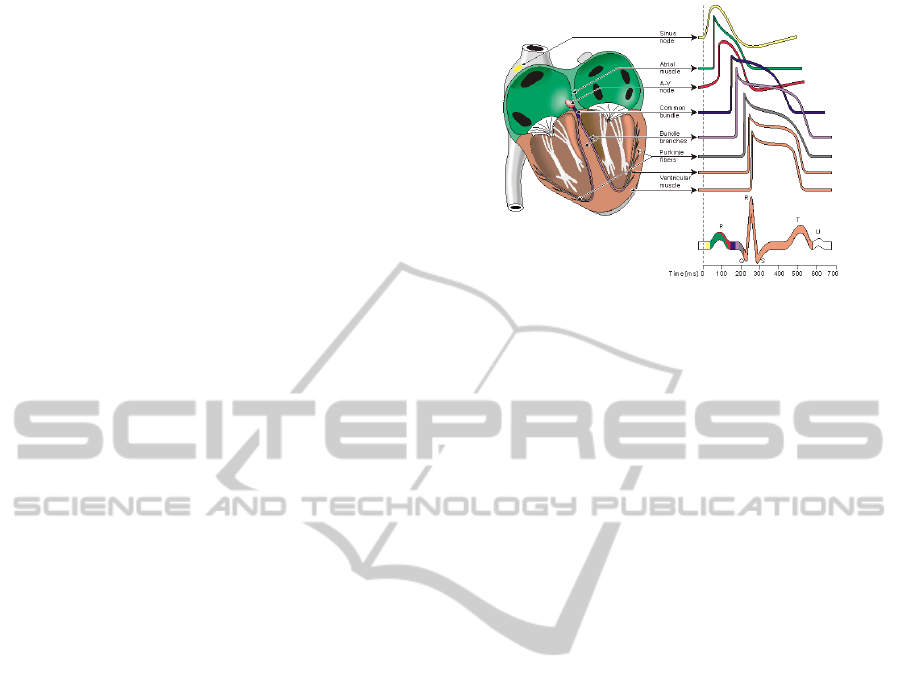

Figure 1: Schematic representation of the heart compart-

ments and its electric system, showing the contribution

of each component to the prototypical heartbeat signal

recorded at the body surface (used with permission from

(Malmivuo and Plonsey, 1995)).

naturally produces electrical depolarizations at a rate

of about 100 beats per minute. However, the si-

nus node is under systemic control by the endocrine

system and the Autonomic Nervous System (ANS).

The ANS is composed by two complementing, self-

balancing subsystems, the Sympathetic and Parasym-

pathetic Nervous Systems (SNS and PSNS, respec-

tively). While the SNS is typically responsible for the

promotion of ﬁght-or-ﬂight responses in the organism

(e.g. by increasing the heart rate), the PSNS is respon-

sible for the promotion of rest-and-digest responses,

which induce relaxation and a return to normal func-

tion. As a whole, the ANS provides an access route

to the affective state of a person (Levenson, 1992), by

analyzing the patterns of physiological activity initi-

ated by both the SNS and PSNS. In particular for the

ECG, the amplitude and latency of the P-QRS-T com-

plexes is inﬂuenced by multiple psychophysiological

factors, and some changes in the user’s behavior re-

sult in slight variations in the heart rate and waveform

morphology.

The ECG and EEG signals analyzed here were ac-

quired in the context of the HiMotion project (Gam-

boa et al., 2007), an experiment to acquire informa-

tion related to human-computer interaction and phys-

iological signals on different cognitive activities. Dur-

ing the experimental session, the subjects were asked

to execute various interactive cognitive tasks. Partic-

ularly, a concentration task was performed, adapted

from a similar test from the MENSA set (Fulton,

1999). In this test, the subject is presented with a

matrix of 800 integers (20 lines by 40 columns), as

shown in Figure 2. The goal of the game is to iden-

tify, line by line, all the pairs of consecutive numbers

that add to 10. This task requires high levels of atten-

tion, as the pairs may overlap (i.e. the same number

IJCCI2013-InternationalJointConferenceonComputationalIntelligence

382

may belong to two pairs), measuring the capacity of

the subject to maintain an attentive state over a long

period of time.

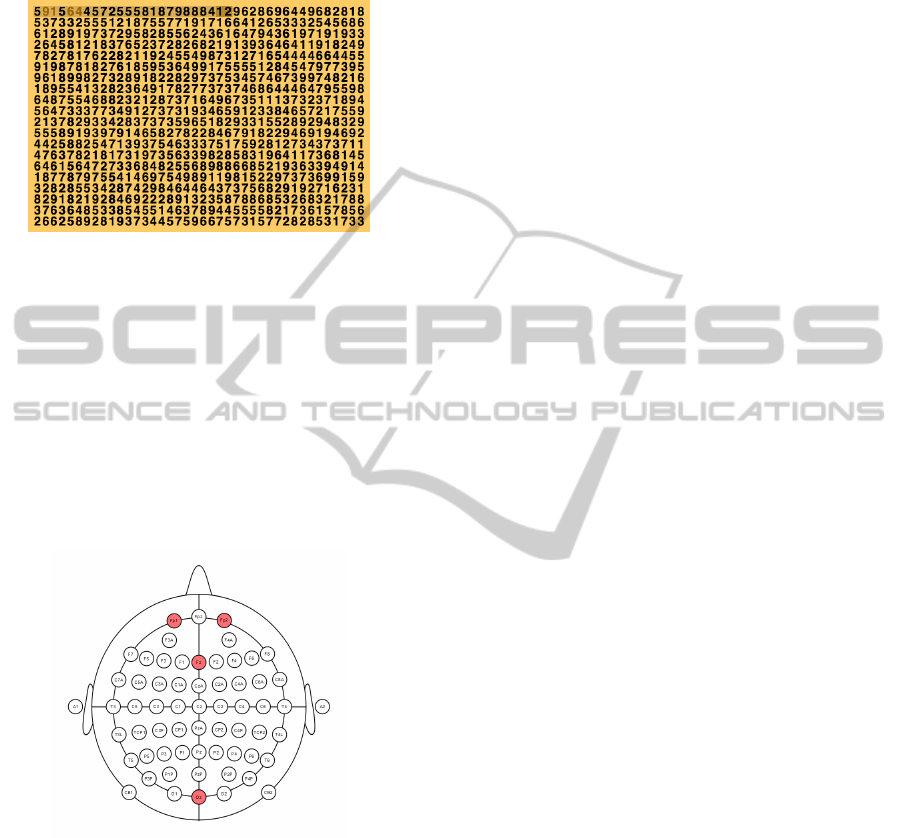

Figure 2: Example matrix of the concentration test; the user

selects, line by line, the pairs of consecutive numbers that

add to 10.

Biosignal data was obtained from 24 subjects (17

males and 7 females) with ages in the range 23.3±2.4

years, using a Thought Technology ProComp2 acqui-

sition system, with a sampling rate of 256 Hz. The

ECG was acquired with Ag/AgCl electrodes placed

on the chest (4th intercostal space in the mid clavic-

ular line), while the EEG was acquired at four scalp

locations according to the 10-20 system (F

, F

and O

), as shown in Figure 3.

Figure 3: Locations of the acquired EEG electrodes on the

scalp (red).

3 PROPOSED METHODOLOGY

It should be noted that each person has different char-

acteristics in terms of attention span and, as such,

aside from the temporal information regarding the

start and the end of each line of the attention game, no

more information is available for this data set. Partic-

ularly, there is no ground-truth information regarding

the time instants in which the affective state of each

test subject has really changed. For this reason, we

propose the use of unsupervised learning techniques

to analyze the ECG data.

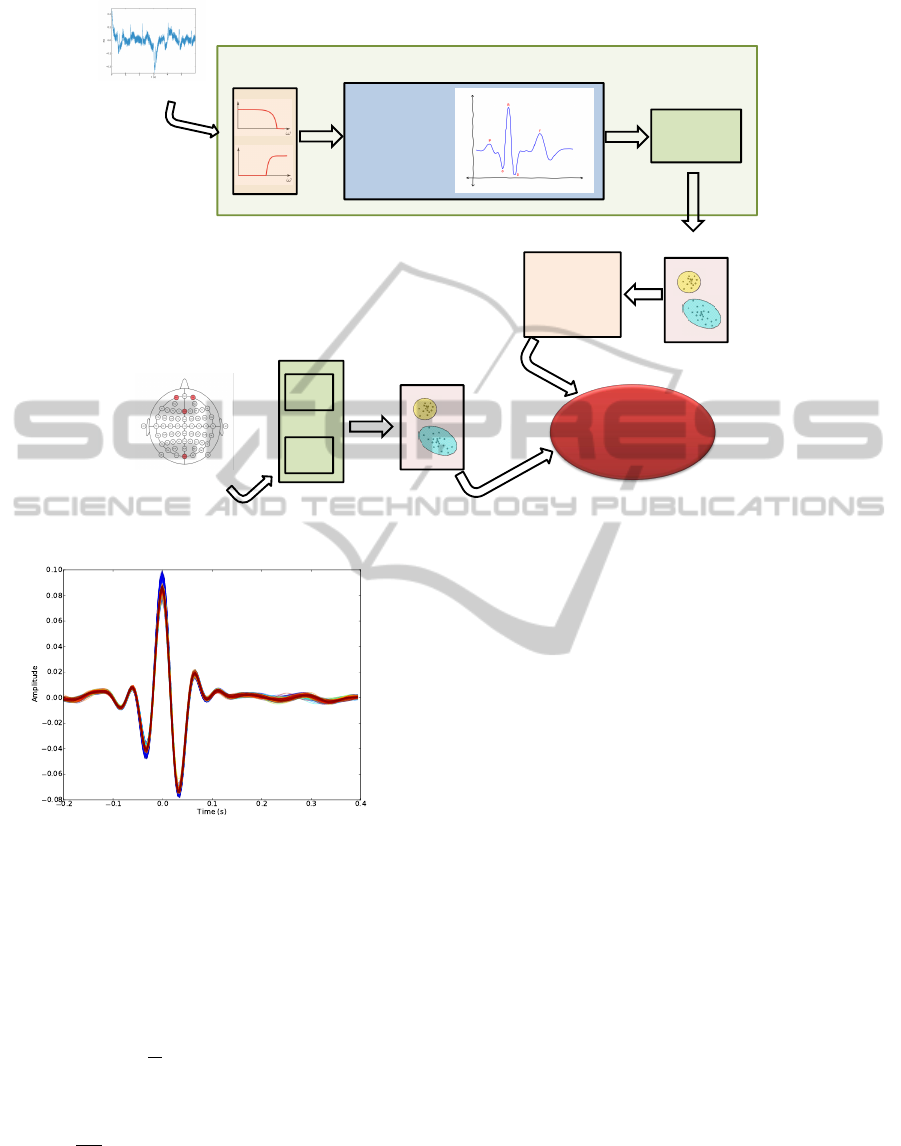

The proposed methodology is presented in Fig-

ure 4 and it is divided in three main stages: feature

extraction, clustering, and validation of the cluster-

ing results. We start by ﬁltering and segmenting the

raw ECG, and then we apply clustering techniques to

analyze the data. Subsequently, the results of those

clustering algorithms are validated using several met-

rics, exploiting our previous analysis of the same

data set with the EEG signal (Carreiras et al., 2013).

This somewhat follows the methodology proposed in

(Belle et al., 2012), where the EEG signal is used as

a benchmark against which the performance of atten-

tion recognition via the ECG is compared. All these

stages are explained in the following subsections.

3.1 ECG Feature Extraction

Raw ECG signals are typically affected by various

noise sources such as motion artifacts, power line in-

terference, and electromyographic noise. To enhance

the signal-to-noise ratio (SNR), and to reduce the in-

ﬂuence of the cited noise sources, we used a band-

pass Finite Impulse Response (FIR) ﬁlter with a Ham-

ming window of 300ms, and cutoff frequencies of

5 −20 Hz. The ﬁltered signal was then fed to a seg-

mentation algorithm, with the purpose of identifying

the locations of the R peaks. For that we used the

algorithm by Engelse and Zeelenberg (Engelse and

Zeelenberg, 1979), with the modiﬁcations proposed

in (Canento et al., 2013). Individual heartbeat seg-

ments of 600 ms were extracted from the ﬁltered sig-

nal, between 200ms before and 400 ms after the R

peak. Finally, in order to further improve the SNR,

heartbeat templates were formed using sequences of 5

consecutive heartbeats, computing their element-wise

mean (an example of these templates can be seen in

Figure 5). These templates form the feature space

used by the clustering algorithms, described in Sec-

tion 3.3.

3.2 EEG Feature Extraction

Our previous work, focusing on the EEG signal, is

based on two distinct feature extraction techniques.

The ﬁrst follows the traditional approach of analyz-

ing the various EEG frequency bands, the Band Power

Features (BPF). Speciﬁcally, we used the theta (from

4 to 8 Hz), lower alpha (from 8 to 10 Hz), upper al-

pha (from 10 to 13 Hz), beta (from 13 to 25 Hz), and

gamma (from 25 to 40 Hz) bands. The second ap-

proach uses a method of synchronization quantiﬁca-

MorphologicalECGAnalysisforAttentionDetection

383

EEG data

BPF

PLF

Feature

Extraction

ECG data

Filtering

Feature Extraction

Segmentation

Algorithm by

Engelese with

some

modifications to

identify R peaks

Means of 5

heartbeats

Clustering

External

Validation

using EEG

Choose a

representative

cluster for

each line

Post-process

Figure 4: The proposed methodology.

Figure 5: ECG templates obtained for subject 11.

tion, the Phase-Locking Factor (PLF), which lever-

ages the fact that EEG signals exhibit an oscillatory

behavior whose phase dynamics are modulated by the

neurological tasks (Pfurtscheller and Lopes da Silva,

1999). The PLF between two signals is deﬁned as

(Almeida et al., 2009):



∑

n=1

j(φ

[n]−φ

[n])



, (1)

where φ

[n] and φ

[n], n = 1, ..., T are the phases of

the signals, T is the number of discrete time samples,

and j =

√

−1 is the imaginary unit. This measure

ranges from 0 to 1, with a value of ρ

= 1 corre-

sponding to perfect synchronization between the two

signals (constant phase lag), while the value ρ

= 0

corresponds to no synchronization. These two feature

extraction methods form distinct feature spaces, upon

which clustering methods were applied.

3.3 Unsupervised Learning

3.3.1 Clustering

Clustering is one of the central problems in Pattern

Recognition and Machine Learning. Hundreds of

clustering algorithms exist, differently handling is-

sues such as cluster shape, density, and noise, among

other aspects. These techniques require the deﬁnition

of a similarity measure between patterns, be it geo-

metrical or probabilistic, which is not easy to specify

in the absence of any prior knowledge about cluster

shapes and structure.

One of the classical approaches for clustering is

the use of hierarchical agglomerative algorithms (Jain

and Dubes, 1988), which produce a tree of nested

objects (the dendrogram) that establishes the hierar-

chy between the clusters. These methods only re-

quire a measure of (dis)similarity and a linkage cri-

terion between instances, while partitional methods

(e.g. k−means or k−medoids) also require a pri-

ori the number of clusters, and an initial assignment

of data to clusters. The linkage criterion allows to

chose how to deﬁne intergroup similarity. In partic-

ular, we apply the Average Link (AL) and Ward’s

Linkage (WL) criteria (Theodoridis and Koutroum-

bas, 1999). Furthermore, to obtain a partition of the

IJCCI2013-InternationalJointConferenceonComputationalIntelligence

384

data from a dendrogram, we use the largest lifetime

criterion (Fred and Jain, 2002).

Moreover, we use a new high order dissimilarity

measure, called dissimilarity increments, proposed by

(Fred and Leit

ao, 2003). This measure is computed

over triplets of nearest neighbor patterns and is de-

ﬁned as:

inc

, x

) = |D

∗

, x

) −D

∗

, x

)|, (2)

where x

is the nearest neighbor of x

, and x

is the

nearest neighbor of x

, different from x

. In equation

(2), D

∗

(·, ·) can be any dissimilarity measure, such as

the Euclidean distance. The dissimilarity increments

measure can give more information about patterns be-

longing to the same cluster, since it changes smoothly

if the patterns are in the same cluster. In (Aidos and

Fred, 2011), an agglomerative hierarchical algorithm,

called SLDID, was proposed. This algorithm is a vari-

ant of the Single Link (SL) criterion using the dissim-

ilarity increments distribution (DID), which was de-

rived under mild approximations in (Aidos and Fred,

2012), to modify the way that clusters are merged.

In this paper we used a family of DID algorithms:

ALDID and WLDID. They are variants of the tradi-

tional hierarchical clustering algorithms AL and WL,

respectively. The main difference between AL and

ALDID is that in AL, in each iteration the pair of

clusters with the highest cohesion is always merged;

in ALDID some tests are made using the minimum

description length (MDL) criterion between two pos-

sibilities. These two possibilities consist in the DID

of the two clusters combined, and the DID of the two

clusters separated. One advantage in using an algo-

rithm from this family is that it stops merging clusters

before all the data is merged into one cluster, reveal-

ing intrinsic cluster structure in the data when the true

number of clusters is unknown.

3.3.2 Consensus Clustering

Consensus clustering, also known as Clustering com-

bination, is a powerful technique that combines the

information of multiple clustering partitions, form-

ing a clustering ensemble (P), and creating a con-

sensus partition that leverages the results of individ-

ual clustering algorithms. Recent surveys present an

overview on this research topic (Ghosh and Acharya,

2011; Vega-Pons and Ruiz-Shulcloper, 2011). One of

the signiﬁcant approaches is the Evidence Accumu-

lation Clustering (EAC) (Fred and Jain, 2005). This

framework is based on the aggregation of object co-

occurences, and the consensus partition is obtained

through a voting process among the objects. Specif-

ically, the consensus clustering problem is addressed

by summarizing the information of the ensemble into

a pairwise co-association matrix, where each entry

holds the fraction of clusterings in the ensemble in

which a given pair of objects is placed in the same

cluster:

C (i, j) =

i j

, i, j ∈ 1, . . . , N. (3)

For the construction of the ensemble, we use the

k-means algorithm (Jain and Dubes, 1988) with dif-

ferent parameters and initializations. We created a

set of N = 100 partitions

by randomly choosing the

number of clusters, following the work by (Lourenc¸o

et al., 2010) where the minimum and maximum num-

ber of clusters per partition depends on the number of

objects n, and is bound to the interval [

√

n].

The extraction of the consensus partition can

be performed using several approaches based on

the induced co-association matrix: i) as a new

(dis)similarity-based representation of objects, where

the intrinsic structure of the data is enhanced through

the evidence accumulation process, enabling the de-

termination of the consensus partition using algo-

rithms that explicitly use similarities as input, such

as hierarchical linkage methods (as classically per-

formed in (Fred and Jain, 2005)); ii) as a new vector-

based object description, considering each line of the

matrix a new feature vector representation, and us-

ing it as input to a clustering algorithm such as the

k-means (Kuncheva and Vetrov, 2006); iii) as a new

probabilistic distribution characterized by the prob-

ability of pairs of objects being in the same cluster

(Lourenc¸o et al., 2013).

3.3.3 Application to EEG and ECG

The focus of this work was the unsupervised analy-

sis of the ECG signals, and for that we applied all the

described techniques: i) hierarchical agglomerative

algorithms; ii) hierarchical agglomerative algorithms

with dissimilarity increments; iii) consensus cluster-

ing based on evidence accumulation clustering, us-

ing as extraction criterion the average linkage method

with the number of clusters automatically determined

by the life-time criterion.

The clustering of the ECG heartbeats was per-

formed over the means of 5 consecutive heartbeats.

Since we are willing to compare these partitions with

the ones obtained on the context of EEG, where for

each line of the test there is only one cluster, it

was necessary to post-process the obtained partitions,

choosing as representative cluster for each line the

one with highest cardinality (largest time span).

This is the number typically proposed in the reference

literature.

MorphologicalECGAnalysisforAttentionDetection

385

In the context of EEG clustering, we applied the

hierarchical agglomerative methods with and without

dissimilarity increments.

3.4 Cluster Validation

Cluster validation techniques have been developed to

guide the design of clustering experiments and to as-

sess the quality of the outcome. There are three types

of cluster validity measures (Dubes and Jain, 1979;

Halkidi et al., 2001; Meil

a, 2007; Ben-Hur et al.,

2002; Luo et al., 2009): i) External: used to measure

the goodness of a clustering structure with respect to

external information; ii) Internal: used to measure

the goodness of a clustering structure without supply-

ing any class labels; and iii) Relative: used to com-

pare different clusterings.

We adopt an external clustering validation per-

spective, using as external source of information the

clusterings obtained with the EEG. There is a long

list of external validation indices proposed in the lit-

erature (Meil

a, 2007; Fowlkes and Mallows, 1983;

Ben-Hur et al., 2002; Dom, 2001), which can be

categorized as follows: i) Counting Pairs Methods:

a class of criteria based on counting the pairs of

points on which two clusterings agree/disagree, Wal-

lace (Wallace, 1983), Fowlkes and Mallows (Fowlkes

and Mallows, 1983), and Rand’s (Rand, 1971) are the

most representatives of this class; ii) Set Matching:

based on set matching cardinality, H criterion (Meil

2007), and consistency index (Ci) (Fred, 2001; Duarte

et al., 2011) are representative of this class; iii) In-

formation Theoretic: based on information theoretic

concepts (entropy and mutual information); represen-

tatives of this class of criteria are the Variation of In-

formation (VI) index (Meil

a, 2007) and Dom’s index

(Dom, 2001)

In this work, we compare the partitions obtained

with the ECG with the ones obtained with the EEG

(taken as ground-truth), and following the idea pro-

posed in (Belle et al., 2012). We use indices of the

three categories, to verify the consistency of the re-

sults in several perspectives, namely: Rand (Rand,

1971), a modiﬁed version of the Consistency Index

entitled Average Cluster Consistency (ACC) (Duarte

et al., 2011), and VI (Meil

a, 2007). All the three in-

dices take values between 0 and 1. Rand’s index and

the ACC take the value 1 for a perfect match between

partitions, and for the VI index, 0 corresponds to a

perfect match.

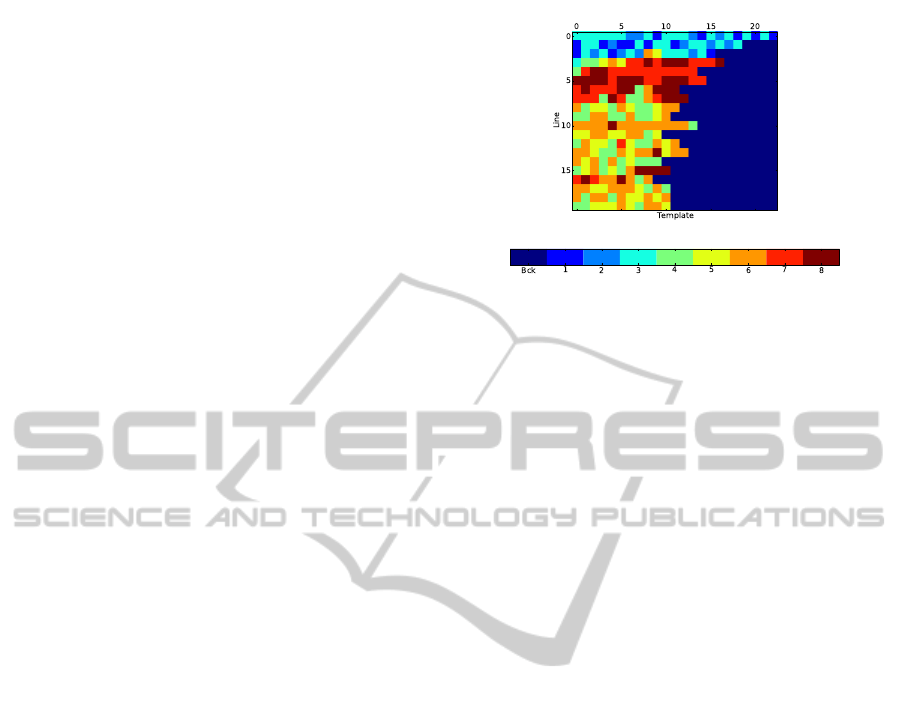

Figure 6: Clustering obtained for subject 11, using the clus-

tering combination method, where each color represents a

cluster, with a total of 8 clusters; Bck denotes the back-

ground color of the matrix.

4 EXPERIMENTAL RESULTS

Figure 6 exempliﬁes the clustering of the ECG tem-

plates obtained for one of the subjects, using the clus-

tering combination (CC) method. It shows, for each

line of the concentration task, the clusters to which

the templates in that line belong to. The ﬁrst observa-

tion to note is that the lines are not characterized by a

single cluster, but rather by two or three clusters that

alternate between them. However, it is possible to per-

ceive the existence of different groups of lines. In this

particular case, lines 0 to 2 are mainly composed by

clusters 1, 2, and 3, lines 4 to 7 are composed by clus-

ters 7 and 8, and the remaining lines are composed by

clusters 4, 5, and 6. Another interesting note is the

fact that the number of templates per line decreases

throughout the completion of the task, implying that

the ﬁrst few lines of the task take longer to complete

than the last lines. These observations are valid for

the majority of the subjects, although the number of

clusters and their distribution differs from subject to

subject, forming different groups of lines.

Inter-subject variability is evidenced in Figure 7,

where the clustering obtained, across all subjects,

with the EEG (using PLF features and ALDID clus-

tering – Figure 7(a)) is compared to the clustering

obtained with the ECG (using CC clustering – Fig-

ure 7(b)). Remember that, in the case of the ECG,

each line is represented by the most frequent cluster

in that line. It is possible to observe that the ECG

produces a higher number of clusters than the EEG,

where each cluster tends to form groups of contigu-

ous lines. Contrastingly, in the ECG it is frequent to

have transitions to clusters seen in previous lines.

The results of the cluster validation are shown in

Tables 1, 2, and 3 for the Average Cluster Consistency

IJCCI2013-InternationalJointConferenceonComputationalIntelligence

386

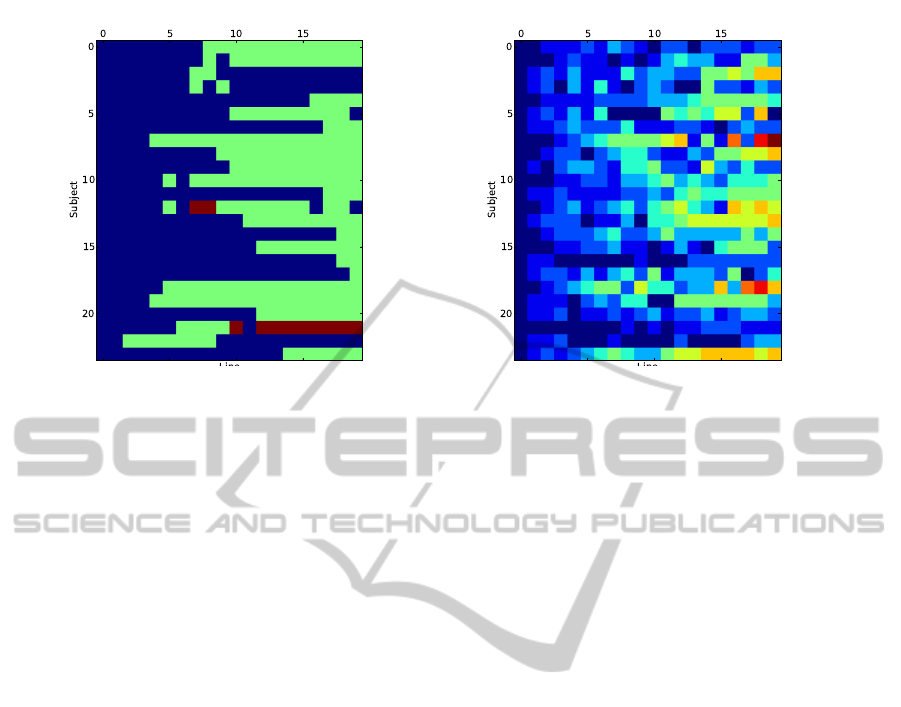

(a) EEG clustering (ALDID) using PLF features. (b) ECG clustering (CC).

Figure 7: Comparison of the clustering obtained with the EEG to the one obtained with the ECG, across all subjects; each

color represents one cluster.

(ACC), Variation of Information (VI), and Rand’s in-

dex, respectively. For the ACC criterion, the high-

est agreement is obtained between the ECG clustering

with CC and both the EEG clustering using AL (BPF)

and ALDID (PLF), with a value of 0.79. Regarding

the VI measure, the strongest agreements are seen for

the ECG clustering using the AL algorithm, in partic-

ular with the ALDID method applied to the PLF fea-

tures from the EEG, with a value of 0.20. Concerning

Rand’s index, the highest value, 0.63, is obtained be-

tween the ECG clustering through CC with the EEG

clustering using WLDID (BPF).

5 DISCUSSION

Our work addresses the following questions: i) “Is

ECG morphological analysis capable of identifying

affective states throughout the realization of a task

that demands a high attention span?”; ii) “Are the

obtained states related to the ones found while ana-

lyzing EEG data?”; and iii) “What techniques can be

considered to be more suitable for the analysis of the

ECG?”

The validation of the partitions found using ECG,

when considering the EEG partitions as ground-truth,

shows that there is evidence of correlation between

them, revealing that ECG can be used to infer affec-

tive states. The ECG partitions have a much higher

number of partitions than the EEG ones, leading

to distinct results over the various validation crite-

ria (considering the different perspectives), associated

with moderate to high matching. This was mainly due

to small variations over time of the ECG heartbeats,

that lead to slow time transitions between the different

clusters.

The clustering technique that presents the best re-

sults varies depending on the validation index. When

considering the average cluster consistency (ACC),

the consensus clustering (CC) obtains partitions that

lead to a best match; when using variation of infor-

mation (VI) criterion, the Average Link (AL) method

is the one that leads to best match; and when using

the Rand’s index there is not a method which can be

considered a clear winner. The situations with best

results are partitions with high number of clusters,

which correspond to Average linkage and Consensus

Clustering.

6 CONCLUSIONS

In this work we present a methodology for atten-

tion detection based on the morphological analysis of

ECG signals, using data collected during the course

of a task requiring a high level of attention span. We

compare the ECG morphology results with the anal-

ysis performed using the EEG. This comparison was

accomplished using clustering validation indices.

The ECG analysis was divided into several steps.

For the feature extraction step, the signal was ﬁrst dig-

itally ﬁltered, segmented based on the peaks found by

a modiﬁcation of the Engelse and Zeelenberg algo-

rithm, and templates were formed using means of 5

consecutive heart beats. For the clustering step, sev-

eral state of the art techniques were used, since the

ECG heartbeats have very small variations over time,

leading to touching clusters.

MorphologicalECGAnalysisforAttentionDetection

387

Table 1: Cluster validation results (µ ±σ) using the Average Cluster Consistency (ACC) metric; higher values suggest a

stronger agreement.

ECG Clustering

AL WL ALDID WLDID CC

EEG Clustering

PLF 0.70 ± 0.16 0.72 ± 0.17 0.71 ± 0.14 0.73 ± 0.15 0.78 ± 0.16

BPF 0.70 ± 0.15 0.74 ± 0.15 0.70 ± 0.18 0.72 ± 0.17 0.79 ± 0.15

PLF 0.61 ± 0.12 0.65 ± 0.16 0.62 ± 0.11 0.67 ± 0.13 0.76 ± 0.17

BPF 0.68 ± 0.11 0.72 ± 0.14 0.68 ± 0.13 0.70 ± 0.15 0.78 ± 0.15

ALDID

PLF 0.71 ± 0.16 0.73 ± 0.15 0.73 ± 0.14 0.74 ± 0.15 0.79 ± 0.16

BPF 0.55 ± 0.13 0.60 ± 0.16 0.55 ± 0.14 0.60 ± 0.14 0.69 ± 0.14

WLDID

PLF 0.62 ± 0.16 0.66 ± 0.16 0.64 ± 0.14 0.69 ± 0.16 0.77 ± 0.18

BPF 0.51 ± 0.14 0.56 ± 0.14 0.52 ± 0.14 0.57 ± 0.16 0.65 ± 0.15

Table 2: Cluster validation results (µ ±σ) using the Variation of Information (VI) metric; lower values suggest a stronger

agreement.

ECG Clustering

AL WL ALDID WLDID CC

EEG Clustering

PLF 0.21 ± 0.07 0.33 ± 0.13 0.27 ± 0.11 0.34 ± 0.12 0.55 ± 0.11

BPF 0.22 ± 0.09 0.32 ± 0.11 0.28 ± 0.09 0.35 ± 0.14 0.55 ± 0.11

PLF 0.26 ± 0.06 0.36 ± 0.11 0.32 ± 0.08 0.37 ± 0.11 0.54 ± 0.13

BPF 0.21 ± 0.06 0.32 ± 0.11 0.27 ± 0.06 0.35 ± 0.12 0.55 ± 0.11

ALDID

PLF 0.20 ± 0.07 0.32 ± 0.13 0.26 ± 0.11 0.34 ± 0.11 0.55 ± 0.11

BPF 0.34 ± 0.10 0.40 ± 0.13 0.38 ± 0.09 0.43 ± 0.12 0.55 ± 0.10

WLDID

PLF 0.25 ± 0.08 0.36 ± 0.12 0.31 ± 0.10 0.36 ± 0.12 0.55 ± 0.11

BPF 0.35 ± 0.10 0.42 ± 0.12 0.40 ± 0.09 0.45 ± 0.11 0.56 ± 0.09

Table 3: Cluster validation results (µ ±σ) using Rand’s metric; higher values suggest a stronger agreement.

ECG Clustering

AL WL ALDID WLDID CC

EEG Clustering

PLF 0.59 ± 0.15 0.59 ± 0.14 0.59 ± 0.12 0.54 ± 0.10 0.49 ± 0.11

BPF 0.58 ± 0.16 0.56 ± 0.12 0.54 ± 0.13 0.57 ± 0.11 0.50 ± 0.14

PLF 0.49 ± 0.10 0.54 ± 0.11 0.50 ± 0.08 0.54 ± 0.09 0.57 ± 0.08

BPF 0.56 ± 0.11 0.57 ± 0.13 0.52 ± 0.06 0.55 ± 0.08 0.51 ± 0.11

ALDID

PLF 0.61 ± 0.16 0.59 ± 0.14 0.60 ± 0.13 0.53 ± 0.11 0.48 ± 0.12

BPF 0.42 ± 0.13 0.55 ± 0.13 0.44 ± 0.10 0.53 ± 0.11 0.61 ± 0.10

WLDID

PLF 0.51 ± 0.14 0.55 ± 0.11 0.52 ± 0.12 0.54 ± 0.13 0.54 ± 0.12

BPF 0.39 ± 0.13 0.53 ± 0.13 0.42 ± 0.11 0.51 ± 0.12 0.63 ± 0.10

Several clustering validation indices were used,

trying to compare the partitions using different per-

spectives. Each of the validation indices showed that

there is a high evidence of correlation between the

partitions obtained by the ECG and the EEG. There

is not a clear winner method, but Average Linkage

and Consensus Clustering can be considered suitable

methods for this kind of analysis.

ACKNOWLEDGEMENTS

This work was partially funded by Fundac¸

para a Ci

encia e Tecnologia (FCT) under grants

PTDC/EEI-SII/2312/2012, SFRH/BD/65248/2009

and SFRH/PROTEC/49512/2009, and by

Area

Departamental de Engenharia Electr

onica e

Telecomunicac¸

oes e de Computadores (ISEL),

IJCCI2013-InternationalJointConferenceonComputationalIntelligence

388

whose support the authors gratefully acknowledge.

REFERENCES

Ahern, G. L. and Schwartz, G. E. (1985). Differential later-

alization for positive and negative emotion in the hu-

man brain: Eeg spectral analysis. Neuropsychologia,

23(6):745–755.

Aidos, H. and Fred, A. (2011). Hierarchical clustering with

high order dissimilarities. In Proceedings of the 7th

International Conference on Machine Learning and

Data Mining (MLDM 2011), volume 6871 of Lec-

ture Notes in Computer Science, pages 280–293, New

York, USA.

Aidos, H. and Fred, A. (2012). Statistical modeling of dis-

similarity increments for d-dimensional data: Appli-

cation in partitional clustering. Pattern Recognition,

45(9):3061–3071.

Almeida, M., Bioucas-Dias, J., and Vig

ario, R. (2009).

Source separation of phase-locked subspaces. In Pro-

ceedings of the International Conference on Indepen-

dent Component Analysis and Signal Separation, vol-

ume 5441, pages 203–210.

Aviezer, H., Trope, Y., and Todorov, A. (2012). Body

cues, not facial expressions, discriminate between

intense positive and negative emotions. Science,

338(6111):1225–1229.

Belle, A., Hargraves, R. H., and Najarian, K. (2012). An au-

tomated optimal engagement and attention detection

system using electrocardiogram. Computational and

Mathematical Methods in Medicine, 2012.

Belle, A., Ji, S.-Y., Ansari, S., Hakimzadeh, R., Ward, K.,

and Najarian, K. (2010). Frustration detection with

electrocardiograph signal using wavelet transform. In

IEEE International Conference on Biosciences (BIO-

SCIENCESWORLD), pages 91–94. IEEE.

Ben-Hur, A., Elisseeff, A., and Guyon, I. (2002). A stabil-

ity based method for discovering structure in clustered

data. In Paciﬁc Symposium on Biocomputing.

Canento, F., Fred, A., Silva, H., Gamboa, H., and Lourenc¸o,

A. (2011). Multimodal biosignal sensor data handling

for emotion recognition. In Proceedings of the IEEE

Sensors Conference.

Canento, F., Lourenc¸o, A., Silva, H., Fred, A., and Raposo,

N. (2013). On real time ECG algorithms for biometric

applications. In Proceedings of the 6th Conference on

Bio-Inspired Systems and Signal Processing (BIOSIG-

NALS).

Carreiras, C., Aidos, H., Silva, H., and Fred, A. (2013).

Exploratory eeg analysis using clustering and phase-

locking factor. In Proceedings of the 6th Confer-

ence on Bio-Inspired Systems and Signal Processing

(BIOSIGNALS 2013).

Coan, J. A. and Allen, J. J. (2007). Handbook of emotion

elicitation and assessment. Oxford University Press,

USA.

Dom, B. E. (2001). An information-theoretic external

cluster-validity measure. Technical Report IBM Re-

search Report RJ 10219, IBM Research Report.

Duarte, F., Duarte, J., Fred, A., and Rodrigues, M. (2011).

Average cluster consistency for cluster ensemble se-

lection. In Fred, A., Dietz, J., Liu, K., and Filipe, J.,

editors, Knowledge Discovery, Knowlege Engineering

and Knowledge Management, volume 128 of Commu-

nications in Computer and Information Science, pages

133–148. Springer Berlin Heidelberg.

Dubes, R. and Jain, A. (1979). Validity studies in clustering

methodologies. Pattern Recognition, 11:235–254.

Engelse, W. A. H. and Zeelenberg, C. (1979). A single scan

algorithm for QRS-detection and feature extraction.

Computers in Cardiology, 6:37–42.

Epp, C., Lippold, M., and Mandryk, R. L. (2011). Identi-

fying emotional states using keystroke dynamics. In

Proceedings of the 2011 annual conference on Human

factors in computing systems, pages 715–724. ACM.

Fairclough, S. H. (2009). Fundamentals of physiological

computing. Interacting with computers, 21(1):133–

145.

Fowlkes, E. B. and Mallows, C. L. (1983). A method for

comparing two hierarchical clusterings. Journal of the

American Statistical Association, 78(383):553–569.

Fred, A. (2001). Finding consistent clusters in data par-

titions. In Proceedings of the Second International

Workshop on Multiple Classiﬁer Systems, pages 309–

318, London, UK. Springer-Verlag.

Fred, A. and Jain, A. (2002). Evidence accumulation clus-

tering based on the k-means algorithm. Structural,

syntactic, and statistical pattern recognition, pages

303–333.

Fred, A. and Jain, A. K. (2005). Combining multiple clus-

tering using evidence accumulation. IEEE Trans. Pat-

tern Analysis and Machine Intelligence, 27(6):835–

850.

Fred, A. and Leit

ao, J. (2003). A new cluster isolation cri-

terion based on dissimilarity increments. IEEE Trans-

actions on Pattern Analysis and Machine Intelligence,

25(8):944–958.

Fulton, J. (1999). Mensa book of total genius. Barnes &

Noble Books.

Gamboa, H., Silva, H., and Fred, A. (2007). HiMotion

Project. Technical report, Instituto Superior T

ecnico,

Lisbon, Portugal.

Ghosh, J. and Acharya, A. (2011). Cluster ensem-

bles. WIREs Data Mining and Knowledge Discovery,

1(4):305–315.

Halkidi, M., Batistakis, Y., and Vazirgiannis, M. (2001). On

clustering validation techniques. Journal of Intelligent

Information Systems, 17:107–145.

Jain, A. K. and Dubes, R. C. (1988). Algorithms for clus-

tering data. Prentice-Hall, Inc., Upper Saddle River,

NJ, USA.

Kuncheva, L. I. and Vetrov, D. P. (2006). Evaluation of

stability of k-means cluster ensembles with respect

to random initialization. IEEE Trans. Pattern Anal.

Mach. Intell., 28(11):1798–1808.

Levenson, R. W. (1992). Autonomic nervous system dif-

ferences among emotions. Psychological science,

3(1):23–27.

Lourenc¸o, A., Rota Bul

o, S., Rebagliati, N., Figueiredo,

M., Fred, A., and Pelillo, M. (2013). Probabilistic

MorphologicalECGAnalysisforAttentionDetection

389

evidence accumulation for clustering ensembles. In

Proc Int. Conf. on Pattern Recognition Applications

and Methods (ICPRAM).

Lourenc¸o, A., Fred, A., and Jain, A. K. (2010). On the scal-

ability of Evidence Accumulation Clustering. In Proc.

20th International Conference on Pattern Recognition

(ICPR), Istanbul Turkey.

Luo, P., Xiong, H., Zhan, G., Wu, J., and Shi, Z. (2009).

Information-theoretic distance measures for clustering

validation: Generalization and normalization. IEEE

Trans. on Knowl. and Data Eng., 21(9):1249–1262.

Mak, J. N. and Wolpaw, J. R. (2009). Clinical applications

of brain-computer interfaces: current state and future

prospects. IEEE Reviews in Biomedical Engineering,

2:187–199.

Malmivuo, J. and Plonsey, R. (1995). Bioelectromagnetism:

Principles and Applications of Bioelectric and Bio-

magnetic Fields. Oxford University Press, USA.

Medina, L. (2009). Identiﬁcation of stress states from ECG

signals using unsupervised learning methods. Mas-

ter’s thesis, Universidade T

ecnica de Lisboa, Instituto

Superior T

ecnico.

Meil

a, M. (2007). Comparing clusterings—an information

based distance. J. Multivar. Anal., 98(5):873–895.

Murray, I. R. and Arnott, J. L. (1993). Toward the simula-

tion of emotion in synthetic speech: A review of the

literature on human vocal emotion. The Journal of the

Acoustical Society of America, 93:1097.

Pell, M. D., Jaywant, A., Monetta, L., and Kotz, S. A.

(2011). Emotional speech processing: disentangling

the effects of prosody and semantic cues. Cognition

& Emotion, 25(5):834–853.

Pfurtscheller, G. and Lopes da Silva, F. H. (1999). Event-

related EEG/MEG synchronization and desynchro-

nization: basic principles. Clinical Neurophysiology,

110:1842 – 1857.

Rand, W. M. (1971). Objective criteria for the evaluation of

clustering methods. Journal of the American Statisti-

cal Association, 66(336):pp. 846–850.

Silva, H., Fred, A., Eusebio, S., Torrado, M., and Ouakinin,

S. (2012). Feature extraction for psychophysiological

load assessment in unconstrained scenarios. In Annual

International Conference of the IEEE Engineering in

Medicine and Biology Society (EMBC), pages 4784–

4787. IEEE.

Silva, H., Lourenc¸o, A., Lourenc¸o, R., Leite, P., Coutinho,

D., and Fred, A. (2011). Study and evaluation of a sin-

gle differential sensor design based on electro-textile

electrodes for ECG biometrics applications. In Pro-

ceedings of the IEEE Sensors Conference.

Theodoridis, S. and Koutroumbas, K. (1999). Patern recog-

nition. Academic Press.

Vega-Pons, S. and Ruiz-Shulcloper, J. (2011). A survey of

clustering ensemble algorithms. International Jour-

nal of Pattern Recognition and Artiﬁcal Intelligence

(IJPRAI), 25(3):337–372.

Wallace, D. L. (1983). A method for comparing two hierar-

chical clusterings: Comment. Journal of the American

Statistical Association, 78(383):pp. 569–576.

Zheng, W., Zhou, X., Zou, C., and Zhao, L. (2006). Facial

expression recognition using kernel canonical corre-

lation analysis (kcca). IEEE Transactions on Neural

Networks, 17(1):233–238.

IJCCI2013-InternationalJointConferenceonComputationalIntelligence

390
