Investigation of Prediction Capabilities using RNN Ensembles

Nijole Maknickiene

and Algirdas Maknickas

Department of Financial Engineering, Vilnius Gediminas Technical University, Sauletekio al. 11, Vilnius, Lithuania

Department of Information Technologies, Vilnius Gediminas Technical University, Sauletekio al. 11, Vilnius, Lithuania

Keywords:

Prediction, EVOLINO, Financial Markets, Recurrent Neural Networks Ensembles.

Abstract:

Modern portfolio theory of investment-based ﬁnancial market forecasting use probability distributions. This

investigation used a neural network architecture, which allows to obtain distribution for predictions. Com-

parison of the two different models - points based prediction and distributions based prediction - opens new

investment opportunities. Dependence of forecasting accuracy on the number of EVOLINO recurrent neural

networks (RNN) ensemble was obtained for ﬁve forecasting points ahead. This study allows to optimize the

computational time and resources required for sufﬁciently accurate prediction.

1 INTRODUCTION

Neural networks and their systems are successfully

used in forecasting. There are several factors that

determine the predictive accuracy of the prediction -

input selection, neural network architecture and the

quantity of training data.

The paper (Kaastra and Boyd, 1996)is to provide

a practical introductory guide in the design of a neural

network for forecasting economic time series data.

An eight-step procedure to design a neural net-

work forecasting model is explained including a dis-

cussion of trade offs in parameter selection, prediction

dependence on number of iterations. In paper (Wal-

czak, 2001), the effects of different sizes of training

sample sets on forecasting currency exchange rates

are examined. It is shown that those neural networks-

given an appropriate amount of historical knowledge

- can forecast future currency exchange rates with 60

percent accuracy, while those neural networks trained

on a larger training set have a worse forecasting per-

formance. More over, the higher-quality forecasts, the

reduced training set sizes reduced development cost

and time. In the paper (Zhou et al., 2002), the re-

lationship between the ensemble and its component

neural networks is analysed, which reveals that it may

be a better choice to ensemble many instead of all the

available neural networks. This theory may be useful

in designing powerful ensemble approaches. In order

to show the feasibility of the theory, an ensemble of

twelve NN approach named GASEN is presented.

The methodology in paper (Tsakonas and Dou-

nias, 2005) proposes an architecture-altering tech-

nique, which enables the production of highly antag-

onistic solutions while preserving any weight-related

information. The implementation involves genetic

programming using a grammar-guided training ap-

proach, in order to provide arbitrarily large and con-

nected neural logic network. The ensemble of 1-

5 neural networks was researched by (Nguyen and

Chan, 2004), resumed that ”incorporating more neu-

ral networks into the model does not guarantee that

the error would be lowered. As it can be seen in

the application case study, the model with two neu-

ral networks did not perform more satisfactorily than

the single neural network.

In paper (Garcia-Pedrajas et al., 2005), was pro-

posed a general framework for designing neural net-

work ensembles by means of cooperative coevolution.

The proposed model has two main objectives: ﬁrst,

the improvement of the combination of the trained in-

dividual networks; second, the cooperative evolution

of such networks, encouraging collaboration among

them, instead of a separate training of each network.

Authors (Siwek et al., 2009)made ensemble of neu-

ral predictors is composed of three individual neu-

ral networks. The experimental results have shown

that the performance of individual predictors was im-

proved signiﬁcantly by the integration of their results.

The improvement is observed even during the appli-

cation of different quality. In paper (Uchigaki et al.,

2012) a prediction technique was proposed which was

called ”an ensemble of simple regression models” to

improve the prediction accuracy of cross-project pre-

391

Maknickien

e N. and Maknickas A..

Investigation of Prediction Capabilities using RNN Ensembles.

DOI: 10.5220/0004554703910395

In Proceedings of the 5th International Joint Conference on Computational Intelligence (NCTA-2013), pages 391-395

ISBN: 978-989-8565-77-8

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

diction. To evaluate the performance of the proposed

method, was conducted 132 combinations of cross-

project prediction were conducted using datasets of

12 projects from NASA IVV Facility Metrics Data

Program. (Brezak et al., 2012)made a comparison of

feed-forward and recurrent neural networks in time

series forecasting. The obtained results indicate sat-

isfactory forecasting characteristics of both networks.

However, recurrent NN was more accurate in practi-

cally all tests using less number of hidden layer neu-

rons than the feed-forward NN. This study once again

conﬁrmed a great effectiveness and potential of dy-

namic neural networks in modelling and predicting

highly nonliner processes.

In order to form the investment strategies in ﬁ-

nancial markets, there is a need for a proper fore-

casting technique, which can forecast the future prof-

itabilities of assets (stock prices or currency exchange

rates) not as particular values but as probability dis-

tributions of values. Such approach is analytically

meaningful because future is always uncertain and we

cannot make any unambiguous conclusion about it.

For this reason the adequate portfolio model is used,

developed by (Rutkauskas, 2000), which is an am-

pliﬁcation of Markowitz portfolio model. The ade-

quate portfolio conception is based on the adequate

perception of reality that portfolio return possibili-

ties should be expressed as a probability distribu-

tion with its parameters. The analysis of the whole

probability distribution is especially important tak-

ing into account that portfolio return possibilities usu-

ally do not conform to Normal probability distribu-

tion form and therefore it is not enough to know

their mean value and standard deviation. The ini-

tial concept of adequate portfolio over time was also

applied to the analysis of other complex processes

in the scientiﬁc works of A.V.Rutkauskas and his

coauthors (Rutkauskas et al., 2008), (Rutkauskas and

Lapinskait-Vvohlfahrt, 2010), (Rutkauskas and Sta-

sytyte, 2011), (Rutkauskas, 2012).

Decision maker is soliciting opinions as data for

statistic inference, with the additional complication of

strategic manipulation from interested experts (Riley,

2012). Authors investigated proportion of correct de-

cisions made by different number of agents - 1; 1000.

The aim of the paper is to investigate the inﬂuence

of the number of neural nets on accuracy of ﬁnan-

cial markets prediction, to ﬁnd new conditions of con-

structing investment portfolios. Knowing how much

RNN is enough that the ensemble makes sufﬁciently

accurate forecasting, to allow the saving of time and

power resources.

2 PREDICTION USING

ARTIFICIAL INTELLIGENCE

The forecasting we understand the ability to correctly

guess a certain amount of unknown data in time with

some precision. After all, the predicted data set is

compared with a set of known data to evaluate the

correlation between these. Suppose it is known that p

is an element of some set of distributions P. Choose

a ﬁxed weight w

for each q in P such that the w

add up to 1 (for simplicity, suppose P is countable).

Then construct the Bayesmix M(x) =

∑

q(x), and

predict using M instead of the optimal but unknown

p. How wrong could this be? The recent work of

Hutter provides general and sharp loss bounds (Hut-

ter, 2007): Let LM(n) and Lp(n) be the total expected

unit losses of the M-predictor and the p-predictor, re-

spectively, for the ﬁrst n events. Then L M(n)Lp(n)

is at most of the order of

√

Lp(n). That is, M is

not much worse than p. And in general, no other

predictor can do better than that. In particular, if

p is deterministic, then the M-predictor won’t make

any more errors. If P contains all recursively com-

putable distributions, then M becomes the celebrated

enumerable universal prior. The aim of this paper is

to construct a model that can make predictions with

a small enough difference M(t)p(t) for some ﬁxed

time t. Autors (Schmidhuber et al., 2005), (Wier-

stra et al., 2005)propouse a new class of learning al-

gorithms for supervised recurrent neural networks -

RNN EVOLINO. EVolution of recurrent systems with

Optimal LINear Output. EVOLINO- based LSTM re-

current networks learn to solve several previously un-

learnable tasks. ”EVOLINO-based LSTM was able

to learn up to 5 sines, certain context-sensitive gram-

mars, and the Mackey-Glass time series, which is not

a very good RNN benchmark though, since even feed-

forward nets can learn it well” (Schmidhuber et al.,

2007). Modularity is a feature often found in na-

ture. It can be of two types-1) when the modules are

connected to each other in parallel or sequentially, 2)

when the modules are connected by another module

inside. We constructed a modular EVOLONO RNN

system connecting them in parallel. It is very impor-

tant to investigate an accuracy of prediction when new

models are testing. The comparison of the perfor-

mance of the forecasting models was made in terms

of the accuracy of the forecasts on the test case do-

main.

IJCCI2013-InternationalJointConferenceonComputationalIntelligence

392

3 DESCRIPTION OF MODELS

BASED ON ENSEMBLES OF

RECURRENT NEURAL

NETWORKS

Two different models have been developed and tested.

Technical feasibility has been a major factor in deter-

mining both the creation of models.

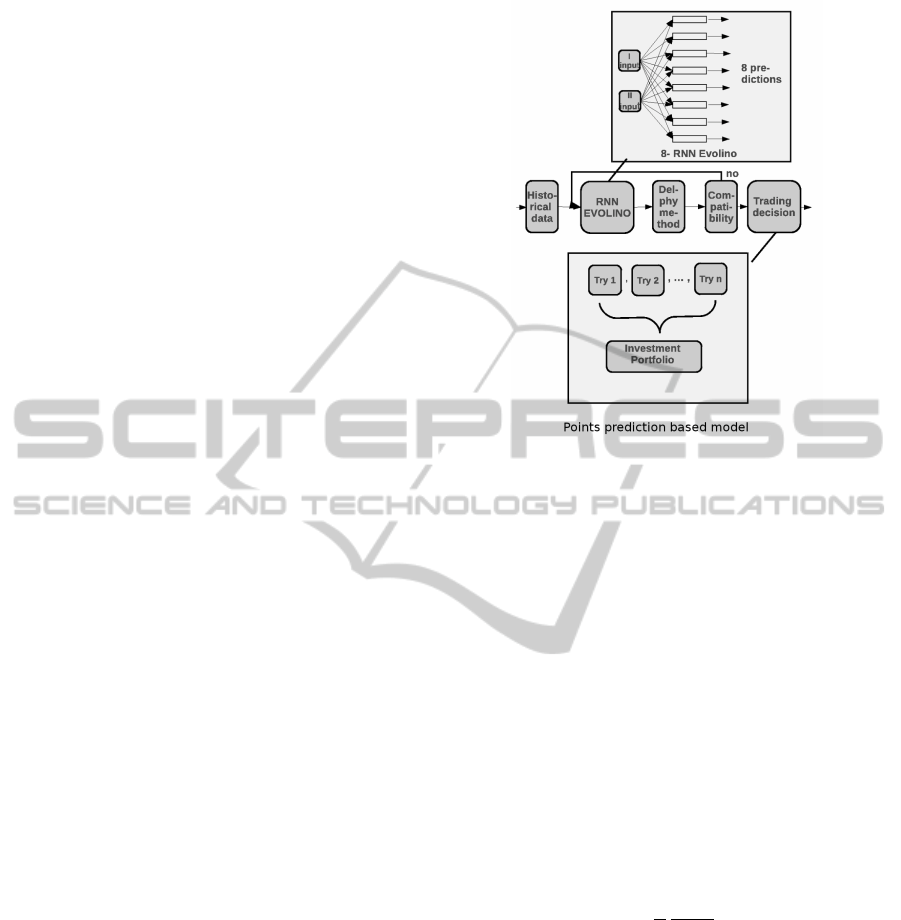

3.1 Points based Prediction Model

Evolino RNN-based prediction model, which is ap-

plied to the average for PC. This model, which uses

eight predictors, was investigated with the phython

program by the following steps:

Data step. Getting historical ﬁnancial markets

data from Meta Trader - Alpari. We choose for

prediction EUR/USD (Euro and American Dollar),

GBP/USD (Great Britain Pound and American Dol-

lar), exchange rates and their historical data for the

ﬁrst input, and for the second input, two years histor-

ical data for XAUUSD (gold prise in USA dollars),

XAGUSD (Silver price of USA dollars), QM (Oil

price in USA dollars), and QG (Gass price in USD

dollars). At the end of this step we have a basis of

historical data.

Input step. The python script calculates the ranges

of orthogonality of the last 80140 points of the ex-

change rate historical data chosen for prediction, and

an adequate interval from the two years historical data

of XAUUSD, XAGUSD, QM, and QG. A value closer

to zero indicates higher orthogonality of the input

base pairs. Eight pairs of data intervals with the best

orthogonality were used for the inputs to the Evolino

recurrent neural network. Inﬂuence of data orthog-

onality to accuracy and stability of ﬁnancial market

predictions was described in paper (Maknickas and

Maknickiene, 2012).

Prediction Step. Eight Evolino recurrent neural

networks made predictions for a selected point in the

future. At the end of this step, we have eight different

predictions for one point of time in the future.

Consensus Step. The resulting eight predictions

are arranged in ascending order, and then the me-

dian, quartiles, and compatibility are calculated. If

the compatibility is within the range [0; 0.024], the

prediction is right. If not, then step 3 is repeated,

sometimes with another ”teacher” if the orthogonality

is similar. At the end of this step, we have one most

probable prediction for the chosen exchange rate.

Decision of trading are making by constructing

portfolio of exchange rates with taking into account

of predictions - medians, got by described model.

Figure 1: Scheme of point prediction based model.

3.2 Distribution based Predictions

Model

Second - Evolino RNN-based prediction model. For

calculation of big amount of ensembles software and

hardware acceleration were employed. Every pre-

dicting neural network from ensemble could be cal-

culated separately So, calculations could be done in

parallel. MPI wrapper mpi4py (Dalcin, 2012)were

used for this purpose. Cycle of each predicting neural

network was divided into equal intervals and every

interval were calculated on separate processor node.

There are not needs for communication between mpi

threads, so obtained equal to one efﬁciency of par-

allelism, where efﬁciency is described as folow (Fox

et al., 1988), (Kumar et al., 1994):

S =

seq

T (P)

, (1)

where P is number of processors, T (P) is the runtime

of the parallel algorithm, and T

eq is the runtime of

the sequential algorithm. Hardware acceleration were

achieved using six nodes of Intel(R) Xeon(R) CPU

E5645 @ 2.40 GHz on the cloud www.time4vps.eu.

So calculations of ensemble of 300 predicting neural

networks are 6.25 hours time long.

The ﬁrst two steps - Data step and Input step -

remain the same as in the ﬁrst model. This is followed

by other steps:

Prediction Step. We can choose n neural network

forecasting. Neural networks can lead to the num-

ber of hours required for a decision. Therefore, it is

InvestigationofPredictionCapabilitiesusingRNNEnsembles

393

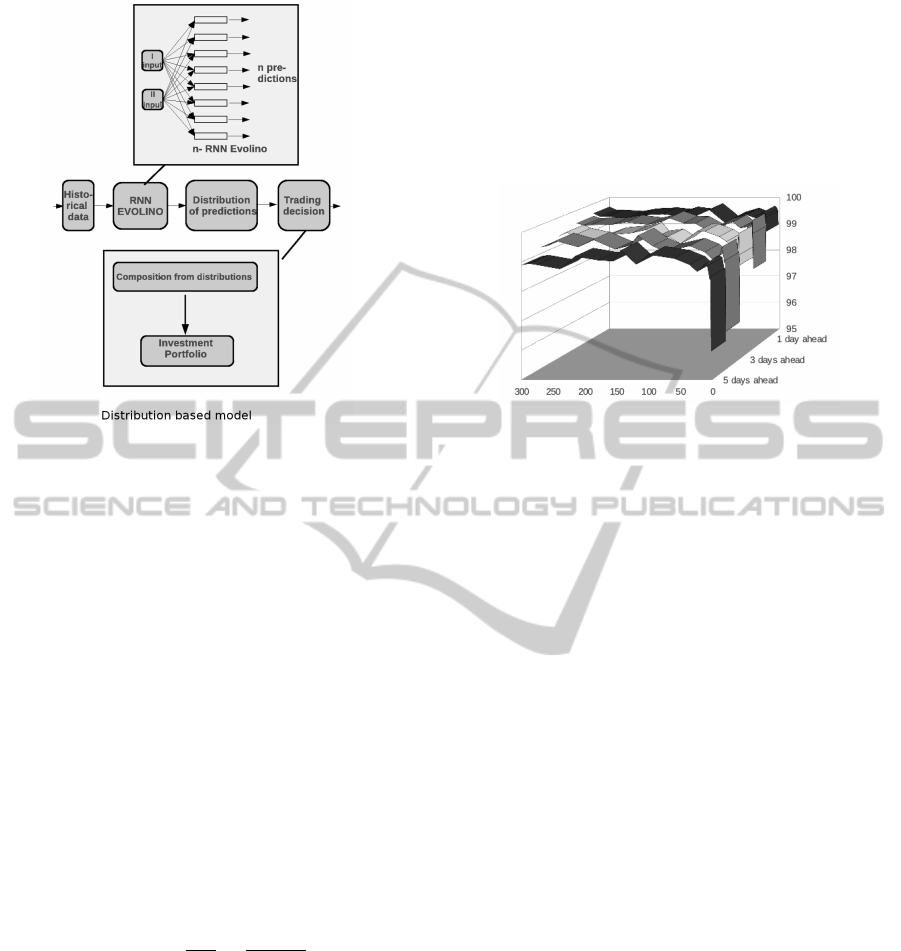

Figure 2: Scheme of distribution based model.

necessary to select the optimum number of ensem-

ble. When n > 60, the forecast assumes the shape of

the distribution. At the end of this step, we have a

distribution with all parameters of it - mean, median,

mode, skewness, kurtosis and et. Decision of trading

are making by composed portfolio of exchange rates

by analysing the distribution parameters.

4 COMPARISON OF

PREDICTIONS ACCURACY

The test of the accuracy of models on 1-5 steps ahead

6 forecasts was investigated by MAPE. An interval

forecast is considered to be correct if the actual value

falls in side the predicted 95 % conﬁdence interval.

Point estimation accuracy was measured using the

Mean Absolute Percentage Error (MAPE) of fore-

casts:

= 100 −

100

∑

−

, (2)

where N - number of observations in the test set, Y

- actual output and

- forecasted output. Test from

5 observations was made in 20/01/2012 - 15/03/2012

(Fig. 3) Accuracy of predictions obtained in the inter-

val 94-99,6%. Increase of accuracy depends on num-

ber of networks and forecasting becomes more stable.

This investigation shows that in some cases more is

not always better - with a lot of predictions EVOLINO

RNN require more calculating processes time and re-

sources. An interval of number of EVOLINO RNN

[1; 100] has hight accuracy, but is not stable. Dis-

tribution of predictions has not form of clear shape

and parameters are not informative. An interval [100;

200] is accurate and stable, so it not require too many

time and resources. Distribution of predictions is suf-

ﬁciently informative. An interval of n [200; 300] is

good for investigation, but require to many calcula-

tion time - the investment decision in ﬁnance market

so could be too late.

Figure 3: Dependency forecasting accuracy of the number

of RNN EVOLINO: a) in 1 and 2 days ahead; b) 3, 4 and 5

days ahead.

1 and 2 points ahead forecasts are accurate and

stable, and 3, 4 and 5 points ahead forecasts stability

is reached only when the ensemble consists of over 64

RNN. In time series forecasting, the magnitude of the

forecasting error increases over time, since the uncer-

tainty increases with the horizon of the forecast.

5 CONCLUSIONS

Neural network architecture is very important in the

forecasting process. The single neural network sys-

tem provides a point forecast that accuracy is very

unstable. Ensemble from eight neural networks pro-

vides more accurate forecasting point in the expected

range. When number of neural networks exceeds 120,

obtained distribution of predictions, which opens up

new opportunities for investment portfolio opportu-

nity. However, more is not always better. The ensem-

ble for prediction requires more calculating time and

resources. Stable and not feather growing prediction

accuracy, gotten by increasing the number of RNN in

ensemble, when n > 120, allows to optimize the in-

vestment decision-making process.

Those ensembles makes it possible to expect pre-

diction accuracy of up to 5 days into the future. The

decision to invest in the ﬁnancial markets are always

taken under uncertainty. Therefore, distributions are

more informative and more reliable than the scatter

projections. Application of distributions of probabil-

ities in the investment portfolio needs further investi-

gation.

IJCCI2013-InternationalJointConferenceonComputationalIntelligence

394

REFERENCES

Brezak, D., Bacek, T., Majetic, D., Kasac, J., and No-

vakovic, B. (March, 2012). A comparison of feed-

forward and recurrent neural networks in time series

forecasting. In Computational Intelligence for Fi-

nancial Engineering Economics (CIFEr), 2012 IEEE

Conference on, pages 1–6.

Dalcin, L. (12/01/2012).

https://code.google.com/p/mpi4py/.

Fox, G., Johnson, M., Lyzenga, G., Otto, S., Salmon, J., and

Walker, D. (1988). Solving problems on concurrent

processors vol 1. 1373849.

Garcia-Pedrajas, N., Hervas-Martinez, C., and Ortiz-Boyer,

D. (June, 2005). Cooperative coevolution of artiﬁ-

cial neural network ensembles for pattern classiﬁca-

tion. Evolutionary Computation, IEEE Transactions

on, 9(3):271–302.

Hutter, M. (2007). On universal prediction and

bayesian conﬁrmation. Theoretical Computer Sci-

ence, 384(1):33–48.

Kaastra, I. and Boyd, M. (1996). Designing a neural net-

work for forecasting ﬁnancial and economic time se-

ries. Neurocomputing, 10(3):215–236.

Kumar, V., Gmma, A., and Anshul, G. (1994). Introduction

to parallel computing: Design and analysis of algo-

rithms.

Maknickas, A. and Maknickiene, N. (2012). Inﬂuence of

data orthogonality to accuracy and stability of ﬁnan-

cial market predictions. In The Fourth International

Conference on Neural Computation Theory and Ap-

plications (NCTA 2012), pages 616–619, Barcelona,

Spain.

Nguyen, H. and Chan, C. (2004). Multiple neural networks

for a long term time series forecast. Neural Computing

& Applications, 13(1):90–98.

Riley, B. (2012). Practical statistical inference for the opin-

ions a.of biased experts blake riley. In In: The 50th

Annual Meeting of the MVEA, volume 2. Missouri

Valley Economic Association.

Rutkauskas, A. and Lapinskait-Vvohlfahrt, I. (2010). Mar-

keting ﬁnance strategy based on effective risk man-

agement. In The Sixth International Scientiﬁc Con-

ference Business and Managemen, volume 1, pages

162–169. Technika.

Rutkauskas, A., Mie

cinskien, A., and Stasytyt, V. (2008).

Investment decisions modelling along sustainable de-

velopment concept on ﬁnancial markets. Tech-

nological and Economic Development of Economy,

14(3):417–427.

Rutkauskas, A. V. (2000). Formation of adequate invest-

ment portfolio for stochasticity of proﬁt possibilities.

Property management, 4(2):100–115.

Rutkauskas, A. V. (2012). Using sustainability engineering

to gain universal sustainability efﬁciency. Sustainabil-

ity, 4(6):1135–1153.

Rutkauskas, A. V. and Stasytyte, V. (2011). Optimal

portfolio search using efﬁcient surface and three-

dimensional utility function. Technological and Eco-

nomic Development of Economy, 17(2):305–326.

Schmidhuber, J., Wierstra, D., Gagliolo, M., and Gomez, F.

(2007). Training recurrent networks by evolino. Neu-

ral Computation, 19(3):757–779.

Schmidhuber, J., Wierstra, D., and Gomez, F. (2005). Mod-

eling systems with internal state using evolino. In In

Proc. of the 2005 conference on genetic and evolution-

ary computation (GECCO), pages 1795–1802, Wash-

ington. ACM Press, New York, NY, USA.

Siwek, K., Osowski, S., and Szupiluk, R. (2009). Ensemble

neural network approach for accurate load forecasting

in a power system. International Journal of Applied

Mathematics and Computer Science, 19(2):303–315.

Tsakonas, A. and Dounias, G. (2005). An architecture-

altering and training methodology for neural logic net-

works: Application in the banking sector. In Madani,

K., editor, Proceedings of the 1st International Work-

shop on Artiﬁcial Neural Networks and Intelligent In-

formation Processing, ANNIIP 2005, pages 82–93,

Barcelona, Spain. NSTICC Press. In conjunction with

ICINCO 2005.

Uchigaki, S., Uchida, S., Toda, K., and Monden, A.

(Aug.2012). An ensemble approach of simple regres-

sion models to cross-project fault prediction. In Soft-

ware Engineering, Artiﬁcial Intelligence, Networking

and Parallel Distributed Computing (SNPD), 2012

13th ACIS International Conference on, pages 476–

481.

Walczak, S. (2001). An empirical analysis of data re-

quirements for ﬁnancial forecasting with neural net-

works. Journal of management information systems,

17(4):203–222.

Wierstra, D., Gomez, F. J., and Schmidhuber, J. (2005).

Evolino: Hybrid neuroevolution / optimal linear

search for sequence learning. In Proceedings of the

19th International Joint Conference on Artiﬁcial In-

telligence (IJCAI),, pages 853–858, Edinburgh.

Zhou, Z.-H., Wu, J., and Tang, W. (2002). Ensembling neu-

ral networks: many could be better than all. Artiﬁcial

intelligence, 137(1):239–263.

InvestigationofPredictionCapabilitiesusingRNNEnsembles

395
