Integrated Data Management

A Case Study in Heterogeneous Data Sources in Brazilian Government

Sergio Assis Rodrigues

, Marlon Alves

, Allan Freitas Girao

, Ricardo Silva

Miriam Chaves

and Jano Moreira de Souza

COPPE – Computer Science Department, Federal University of Rio de Janeiro, Rio de Janeiro, Brazil

Ministry of Planning, Budget and Management, Brasilia, Brazil

Keywords: Data Integration, Heterogeneous Data Sources, Web Services, Government Management.

Abstract: Typically, governments deal with huge masses of data generated by a variety of agencies at different

hierarchical levels. Generally, this information is organized into different data sources resulting from legacy

and heterogeneous systems. This lack of integration leads to management difficulties, since without a set of

consolidated information; decisions are made lacking the proper grounding. Therefore, this work presents

two initiatives of integrating data, based on service oriented architecture, from heterogeneous sources in the

Brazilian Government aiming at better management and information usage.

1 INTRODUCTION

Government agencies maintain many databases that

commonly contain data related to planning,

budgeting, costs, work progress, and other relevant

information. Generally, these data are spread over

heterogeneous data sources like databases, files or

other forms containing unstructured and

semistructured data (Domenig and Dittrich, 2000).

In modern e-government operations, all these pieces

of information need to be consolidated for the

appropriate management and evaluation.

However, this information generated by different

government agency levels and stored in

heterogeneous data sources makes management a

challenging task. Even within one simple agency, a

variety of databases are maintained by different

administrative departments representing the same

kind of data.

Depending on the data collection and

representation done by a government agency, the

values can be differently measured hindering the

data consolidation and even leading to

inconsistencies. The rapid changes taking place in

globalized world and the evolution of technology

has brought the need for an e-government

development (Fei Ye et al., 2011).

The focus of e-government construction has

changed gradually from just business ideology to the

incorporation of information resources integrating

and sharing ideias (Fei et al., 2011). The key point to

the e-government success is how to realize this

information sharing and systems integration, with an

effective data exchange, through several

heterogeneous data sources.

This article presents case studies about two

initiatives within a Brazilian program to promote the

data integration inside the government agencies. The

first one deals with data that represent the agencies

hierarchy and responsibility while, the second, with

data related to the cost and progress of government

works. The main goal of this study is to develop

tools to achieve better information control and

consolidation for management improvement.

2 BACKGROUND

2.1 e-Government and Integration

Benefits

e-Government normally refers to the use of

information and telecommunication technologies by

government agencies to offer services to citizens and

enterprises, focusing on information exchange.

This interaction between the government and the

country stakeholders has become a relevant way of

economic growth and human development (Rahman,

316

Assis Rodrigues S., Alves M., Freitas Girão A., Silva R., Chaves M. and Moreira de Souza J..

Integrated Data Management - A Case Study in Heterogeneous Data Sources in Brazilian Government.

DOI: 10.5220/0004557203160321

In Proceedings of the 15th International Conference on Enterprise Information Systems (ICEIS-2013), pages 316-321

ISBN: 978-989-8565-59-4

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2007). This can be so impactful that the gap between

countries that have access to information and

communication technologies (ICT) and those which

do not, was named global digital divide, and reflects

great educational, cultural and income differences.

However, to achieve a management level of

efficiency and flexibility as same as developed

countries needs a great use of ICT's and a planned

way for information exchange. The experience in

developed countries shows that this is possible if

governments decentralize their responsibilities and

processes, in the same time they integrate their data

for a consolidation management (PCIP, 2002).

Therefore, in order to promote e-government, data

integration and information exchange are considered

key features for success.

2.2 Web Services

With the advent of internet and telecommunication

technologies, the world has interconnected itself and

dramatically increased the amount of information

exchanged. In this scenario, web service is a

technology used to facilitate the automated

integration between distributed and/or

heterogeneous systems, aiming to support the

information exchange, collaboratively tasks

execution and business processes interconnection

(Benslimane et al., 2005).

Thus, the use of web services as a way to integrate

applications and data is quite broadcasted in the world

and has changed the way organizations project their

systems and data. With standards used by large

organizations, componentization and reuse features,

favoring the cost reduction and rapid feature

composition, web services are an integration

technology from simple scenarios to highly complex

cases.

2.3 Model Driven Integration Strategy

The development of web services was envisioned as

the architectural solution for modularisation and

integration both between and intra companies,

promising that the service-oriented architecture

(SOA) would offer easy integration by different and

independent services over the internet. However, its

construction ends up not being automatic and requires

a large human effort (Brambilla et al., 2007).

To change this scenario, the semantic web

services concept emerged, i.e., web services

centered on the web semantic ideology, where one

glimpses a web not only for humans but also

designed for automatic interaction between

machines. Thus, research (Brambilla et al., 2007;

Bensaber and Malki, 2008) has sought ways in

Software Engineering to raise the abstraction of

these mechanisms’ construction in order to make its

creation faster and simple and facilitate their reuse.

In this context, the Model Driven Engineering

theory aims at reusability, portability and

interoperability through the separation of

architectural concerns between the system

specification and implementation. Thus, on this kind

of approach, the focus is on the model creation

based on industry standards such as XML and UML,

representing the requirements, processes and

information flow to be managed by an application.

In this paper, considering the great mass of

information produced inside the Brazilian

Government agencies, we looked up and used a

methodology based on models just to contribute to

building web services that increase the data

availability and integration.

This methodology, called MDArte, is based on

the MDA architecture and is supported by UML -

Unified Modelling Language (OMG, 2003). From

the use of a standard language such as UML scale is

gained, spread and supported as there is a diverse set

of tools for UML modelling.

Addressing the web service development issue,

the first step is to establish the service principles,

i.e., what it will provide; the procedures involved,

the return patterns, as if a contract was being

established. Figure 1 shows an example of

modelling a web service for managing employees.

«WebSrv,service»

WebServiceHandler

+ getEmployee() : void

Figure 1: Developing web services using MDArte.

In the example, an operation is available to get

an employee's list. For this specification, the web

service is modelled as a class with "Service" and

"WebSrv" stereotypes, where the first refers to the

construction of a standard service used for code

separation into a business layer, where the business

rules reside, while the second tells the engine that

this service should be available as a web service.

With this stereotype addition, the approach is in

charge of building and inferring the needed

components and dependencies, besides making its

composition, organization and packaging, removing

this responsibility and effort from the developer.

Analogously, the web service operation parameters

are also modelled with a "WebServiceData"

IntegratedDataManagement-ACaseStudyinHeterogeneousDataSourcesinBrazilianGovernment

317

stereotype like Figure 2 shows.

«WebServiceData»

Employee

- id: int

- name: string

Figure 2: Developing WS parameters using MDArte.

This parameter information will be used by the

web service operations, so that the approach can

generate all artifacts needed for the service call and

execution, like description, stub classes and etc.

On the other hand, to build a mechanism to consume

an existent web service, the approach helps by

simply modelling again a class using stereotypes.

However, the stereotypes used are "Service" and

"WebService-Client" as Figure 3 presents.

«WebServiceClient,service»

WSClient

- @andromda.web.service.wsdl.location : String

Figure 3: Configuring a web service client using MDArte.

Furthermore, through the tagged value named as

@andromda.web.service.wsdl.location, it is

specified where the service WSDL is that one

wishes to create a client. From this, the MDArte is

responsible for interpreting the service description

and generate the classes and operations necessary to

use the web service transparently to the developer.

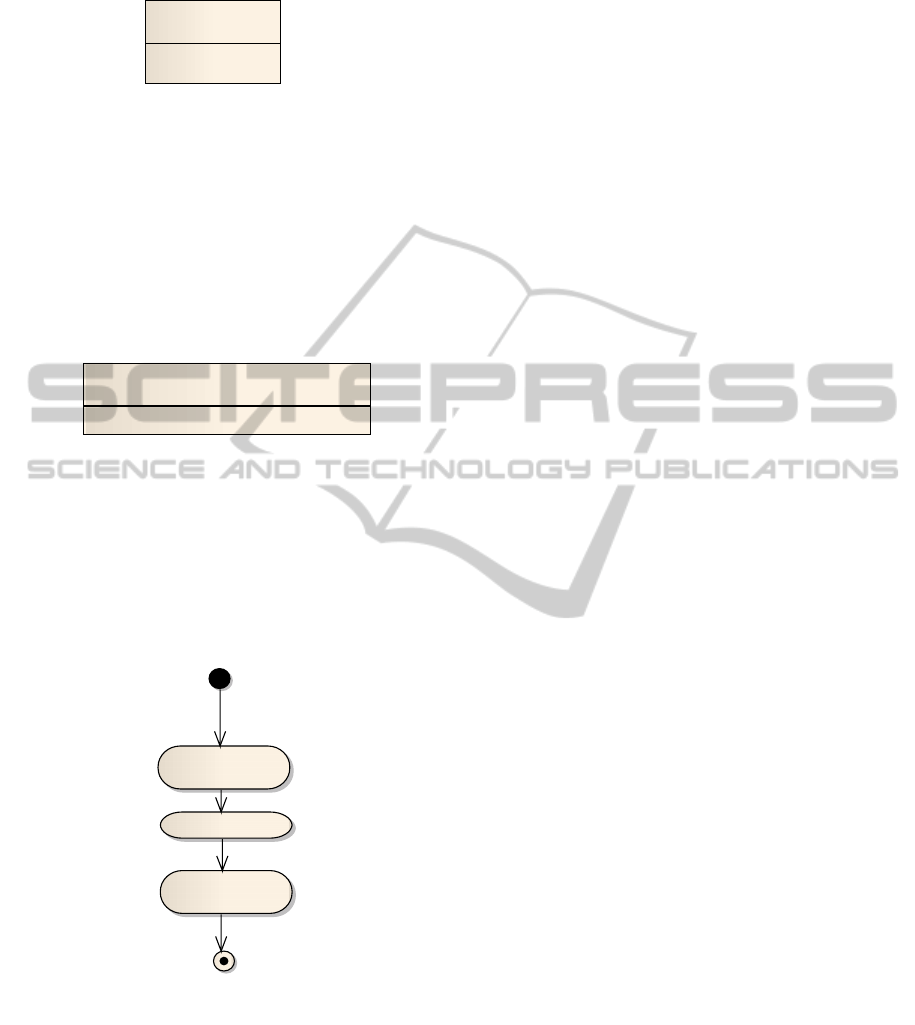

Initial

«FrontEndView»

Fill the fields

Search employee

«FrontEndView»

Search results

Final

se arc h

back

Figure 4: Modelling for generating pages in a web

application with MDArte.

The MDArte approach extends its activities to

building web applications in general, following the

MVC architecture, being able to generate the entire

structure of folders, classes, pages and libraries

necessary for a web system implementation. For

this, it takes use case diagrams and activity diagrams

specifying the information flow through the system

pages, as illustrated in Figure 4.

Again, stereotypes are used to specify behaviors,

such as that used to specify activities that will

become web pages. In this case, the stereotype

"FrontEndView" represents that kind of behavior.

With the MDArte approach context, the next

section presents two integration initiatives designed

in the Brazilian Government context to support

information management and exchange. Considering

the size and complexity, the use of model driven

web services with the MDArte's approach support

aims accelerating and reducing team development

effort on the integration mechanisms.

3 INTEGRATION INITIATIVES

This work seeks to improve the relationship between

the government and the society that surrounds it.

The integration techniques and tools described

above were applied aiming to achieve a more

efficient management of government information.

Noting the complexity of Brazilian government

and the vast integration needs, this work focused on

two initiatives in areas of large mass of data and

relevant information to the government

administration.

The first initiative deals with data on the

definition, creation, extinction and competence of

various bodies that comprise the Brazilian

government. The latter, in turn, comes to tracking

and monitoring the progress of government projects.

3.1 Ghelos Integration System

The publication of the decree 6944 of August 21,

2009, which institutionalizes the Organizational

Information System of the Federal Government -

SIORG, defined it as responsible for establishing

information flows between agencies forming part of

the Brazilian Government, aiming to support

decision making processes, coordination of

government activities and administer the registration

of agencies and entities of the Federal Government.

This decree also established the SIORG as

reference for other structural systems (Integrated

Human Resource Management - SIAPE, Integrated

Data Budgetary - SIDOR, Financial Management

System of the Federal Government - SIAFI,

Integrated General Services Administration -

SIASG, Management Information System and

Planning - SIGPLAN, Flights and Daily Award

System - SCDP, Computer Information Resources

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

318

and Administration System - SISP and all systems of

corporate use of the Federal Executive sphere which

will be established) that need to use the registry of

organs and administrative units.

In this situation of centralization and unification

of the organizational units’ registration and

management in the Federal Government, the need

for a single view between the SIORG's structural

reference and the multiple structuring systems arose.

To achieve this goal, an integration system

named GHELOS (Management System for Organs

Harmonization) provides the possibility of a single

view of systems to be integrated in order to establish

the relationship of the various systems that are not

mapped to the SIORG’s organizational structure.

Using the MDArte technology, described in

section 2.3, service oriented architecture (Figure 5)

was developed and three layers can be detailed:

 Integration Layer: in this step, the information

from the structure systems are evaluated and

treated in a special apuration. Then, this data is

loaded into the GHELOS harmonization

database. At the same time, data from the

SIORG structure system is loaded using a web

service into the harmonization base;

 Management Layer: this module is responsible

for consolidating all the organizational

information from SIORG and the structure

systems in a single view with their mapping;

 Client Layer: different stakeholders like

agencies directors, politicians and government

employees can consult the consolidated

information and use them for decision making.

Agencies users will access the GHELOS system

through a Web Application and obtain information

about the mapped and unmapped organs through

interfaces supported by the application.

Figure 6 illustrates the mapping bulletin

functionality, where the GHELOS system shows the

amount of mappings carried by the government

organizational units. This information can be filtered

by the government unit administration type, like

direct and indirect or the power sphere, as executive,

legislative and judiciary.

Other feature of this system is the mapping view

where the organizational map between SIORG and

the structure system is visualized aiding the

stakeholder to relate the organs and unifying data.

Periodically, GHELOS sends notifications to

government agencies representatives informing the

WS-S IORG

Load Process (ETL)

Special Apuration

Structure System

GHELOS

Management Interface

Client1 Client2 Client3 Client4

«flow» «flow»

«flow»

«flow» «flow»

«flow»

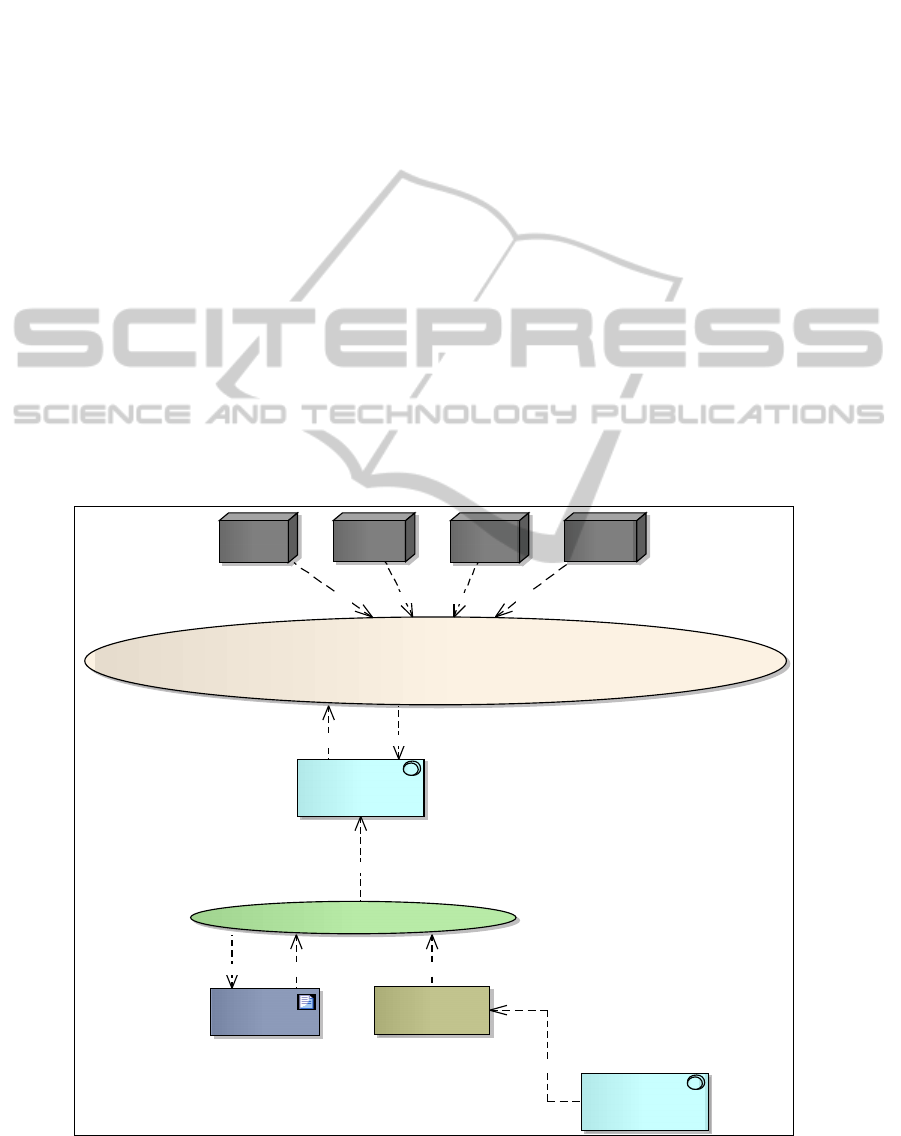

Figure 5: GHELOS architecture.

IntegratedDataManagement-ACaseStudyinHeterogeneousDataSourcesinBrazilianGovernment

319

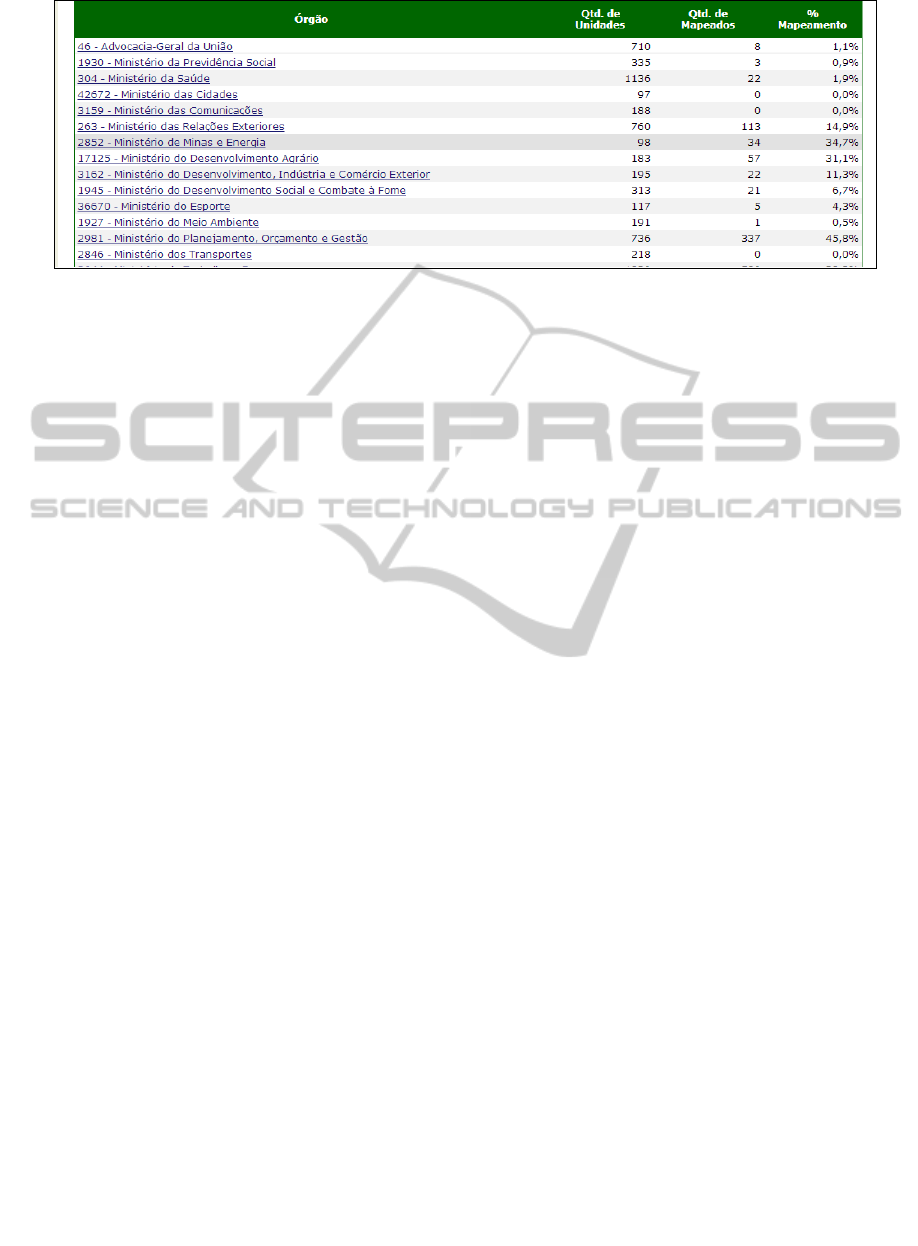

Figure 6: GHELOS mapping bulletin functionality shows the integration level of adherence.

mapping of their respective units, to remember the

importance of this mapping constant review for the

correct integration and data quality.

All development made in the GHELOS system,

using the MDArte approach, took 8 domain classes

representing the necessary entities to model the

integration map between SIORG and the structuring

systems. The normal flow involves around 60000

organs in the SIORG structure (by web service)

while the structure systems like SIAPE generate

above 120000 entries (by ETL).

With GHELOS, Brazilian government organs

obtained from the tool assistance in the integration

and unification process determined by decree 6944.

In addition, the system offered means of monitoring

the entire integration progress to those responsible,

in order to support decision making.

3.2 Helos Integration System

Currently, there are two systems called PACINTER

(PAC Integration) and SISPAC (PAC System),

which deal with the same projects, but have different

identification (project code). These systems deal

with government projects developed along all over

the country, from bridges, roads to airports and

housing.

The proposal of this integration system is that

these systems are synchronized, but for this they need

the mapping of their ventures. In order to provide this

feature, HELOS (Venture Harmonisation System)

was created. This application has as main objective to

map the projects managed by the PACINTER base

with the SISPAC base.

Currently, this scenario makes it difficult to

analyse these projects progress for the Federal

Government, which frustrate preventive measures on

their administration to be taken.

The application consists of four software

elements that implement its functionality. They are:

the Web Service for mapping (WS-

DeparaPACInterSISPAC), the PACINTER base

Query Web Service (WS-EspelhoPACINTER), the

interface screens, the Web Services orchestrator.

The Web Service was developed by making use of

the standard architecture MDA (Model Driven

Architecture) with the MDArte Framework. The

screens through which users interact with the

application were developed using JSP and were

incorporated into the process model defined on the

service orchestration environment.

Agencies users will access all these integration

services for mapping the projects through a Web

Application (the HELOS system) and fill the details

of the mapping process through the application

interfaces.

Figure 7 shows the HELOS architecture

illustrating the layers designed to support the

integration desired for the project management

between PACINTER and SISPAC. The clients use

their preferred browser (in computer, laptop, phone,

tablet, etc) to access the web application layer that,

behind the scenes, uses a service orchestrator to

collect the mapping between both legacy systems.

The integration system offers a functionality to

observe the general mapping status per project type.

It is a relevant mechanism to analyze the integration

level acquired at that moment.

The main feature, otherwise, is the possibility to

make the mapping between data from both systems.

An expert of the project's information can associate

them using the integration system and, all this

information, is disseminated beyond all government

organizational units.

There is also a management view to describe all the

ventures that have not had a map yet. An agency

director can take advantage of this information to

demand the responsible for that data to realize that

map.

HELOS development, using the MDArte approach

ICEIS2013-15thInternationalConferenceonEnterpriseInformationSystems

320

IntegrationApplicationClients

Browse

Internet Explorer

Firefox

Chrome

Opera

Safari

Other

Client

Web Application Service Orchestrato

PACINTER

SISPAC

WSDL

pplication Integration

«flow»

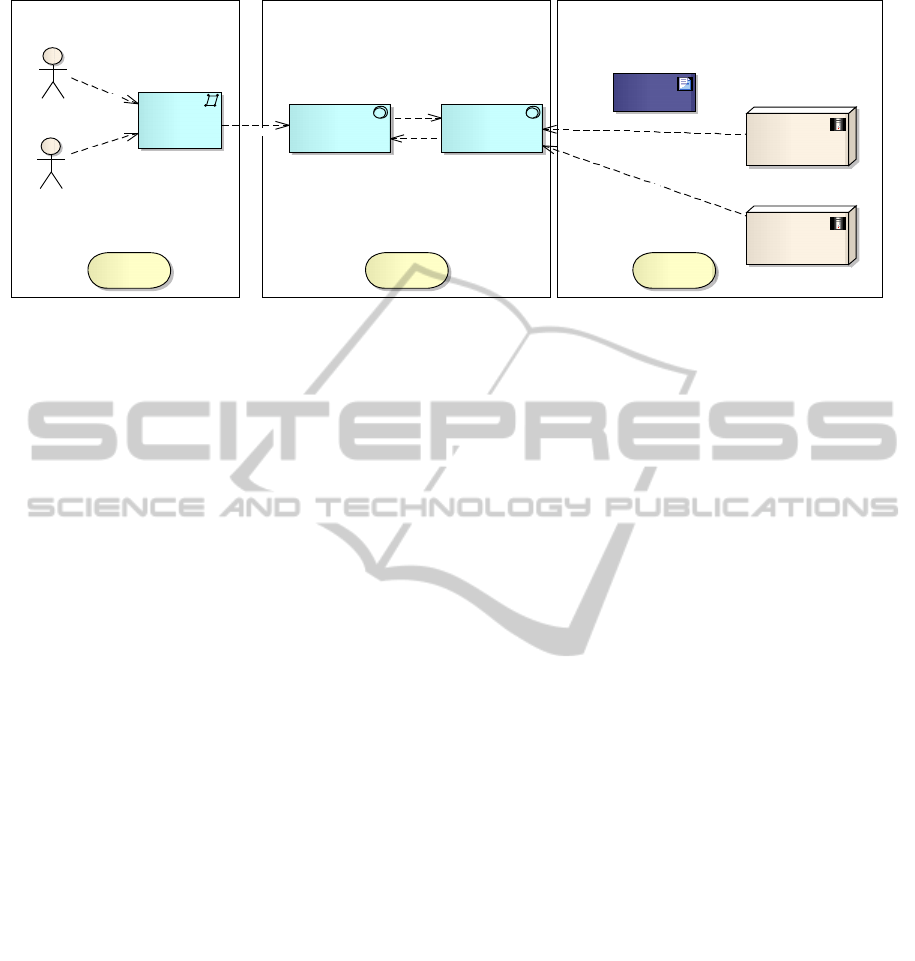

Figure 7: HELOS architecture.

approach, requires just the use of two web service

clients that access the PACINTER base and the

SISPAC base. While the SISPAC service already

exists, the PACINTER web service was also

developed using the MDArte tool leading to more

than 58 domain classes that were exposed by a web

service interface automatically generated through the

model that contained their specification.

4 CONCLUSIONS

Brazilian Government has had several

heterogeneous systems leading with the same kind

of information which make consolidation and

management analysis difficult. To improve this

scenario, two preliminary initiatives were built to

support better information environment with more

integration and availability.

As any kind of integration initiative in a complex

case, like the Brazilian one, leads to huge effort of

development. Therefore, this paper presented a

different approach based on a model driven

architecture, where the focus is on the specification

level to build integration systems that comprises the

needs described with less effort.

Both initiatives, GHELOS and HELOS were

developed with this technology and have proved to

be a great tool for promoting integration in

Government. This led the Brazilian Government to a

better management environment where the

consolidated information was available and allowed

the stakeholders to make better decisions when

required.

REFERENCES

Bensaber, D.A., Malki, M., 2008. Development of semantic

web services: model driven approach. In NOTERE '08,

Proceedings of the 8th international conference on New

technologies in distributed systems, ACM New York,

NY, USA, Article 40 , 11 pages.

Benslimane, D., Dustdar, S., Sheth, A.., 2008. Services

Mashups: The New Generation of Web Applications.

In IEEE Internet Computing, vol.12, no.5, pp. 13-15.

Brambilla, M., Ceri, S., Facca, F.M., Celino, I., Cerizza,

D., Valle, E.D., 2007. Model-driven design and

development of semantic Web service applications. In

ACM Transactions of Internet Technologies, 8, 1,

Article 3.

Domenig, R., Dittrich, K. R., 2000. A query based

approach for integrating heterogeneous data sources.

In CIKM '00, Proceedings of the ninth international

conference on Information and knowledge

management . ACM, New York, NY, USA, 453-460.

Fei Ye, Hao Li, Min Hu, 2011. The Construct of Data

Integration Model of Heterogeneous E-Government

System Based on Topic Maps. In ICICTA,

International Conference on Intelligent Computation

Technology and Automation , vol.1, pp. 263-266, 28-

29 March.

Rahman H., 2007. E-government readiness: from the

design table to the grass roots. In (ICEGOV '07),

Proceedings of the 1st international conference on

Theory and practice of electronic governance, Tomasz

Janowski and Theresa A. Pardo (Eds.). ACM, New

York, NY, USA, pp. 225-232.

Moore, R., Lopes, J., 1999. Paper templates. In

TEMPLATE’06, 1st International Conference on

Template Production. SciTePress.

PCIP, 2002. Roadmap for E-Government in the

Developing World: 10 Questions E-Government

Leaders should ask themselves, The Working Group

on E-Government in the Developing World, Pacific

Council on International Policy, Los Angeles, CA.

Smith, J., 1998. The book, The publishing company.

London, 2

edition.

IntegratedDataManagement-ACaseStudyinHeterogeneousDataSourcesinBrazilianGovernment

321
