Extracting Behavioral Models from Service Implementations

Ioana S¸ora

1,2

and Doru-Thom Popovici

1,2

Department of Computer and Software Engineering, Politehnica University of Timis¸ora, Timis¸ora, Romania

Institute e-Austria (IeAT) Timis¸ora, Timis¸ora, Romania

Keywords:

Reverse Engineering, Behavioral Model, EFSM, Distributed Computing, Service Computing.

Abstract:

Formal behavioral models of software services are used as input by analysis tools which check their properties

on hand of the given models. However, there is a gap between the real systems which have to be validated and

their abstract models. This work proposes to bridge this gap by tools which extract behavioral models from

software services implementations. The method proposed here aims at ensuring a general solution, applicable

to several service technologies. The core of this solution consists of transforming the control ﬂow graph of

a communicating system into its corresponding behavioral model represented as an EFSM (Extended Finite

State Machine). The extracted EFSM model can be automatically translated into an entity description in a

formal security speciﬁcation language for distributed systems. This will enable the use of formal analysis

tools for real service implementations.

1 INTRODUCTION

Important research efforts aim at improving security

in the Internet of Services by developing a new gen-

eration of security analyzers for service deployment,

provision and consumption (Vigano, 2012). The tech-

niques used for discovering faults and vulnerabilities

comprise model checking or model based testing. All

these techniques take as input a model of the system

under validation and the expected security goals, ex-

pressed in a speciﬁc description formalism. Usually

the models are hand written by the security analyst,

based on the service speciﬁcations. This approach has

been successfully used in the discovery of protocol er-

rors, of logical errors which are present in the known

models of systems, or the discovery of errors due to

the interaction of known systems.

However, relying on hand-written models is not a

suitable approach in following situations:

At service consumption time, services are black-

boxes that come without (trusted) models and their

code is not available. A model can be inferred from

I/O sequences. There is a large ﬁeld of research of

learning behavioral models by combining black-box

testing and automata learning (Lorenzoli et al., 2008),

and it begins to be used for inferring models of web

applications (Bertolino et al., 2009), (Hossen et al.,

2011), (Merten et al., 2012).

At service implementation and deployment time,

service developers could beneﬁt more from the large

variety of tools for security analysis and validation,

such as the SPaCIoS tool (Vigano, 2012), if they

had model-extractor tools able to extract behavioral

models from service implementations. Currently

they have to manually write such models using the

Aslan++ speciﬁcation language (Oheimb and Moder-

sheim, 2012). These model extraction tools are dif-

ferent from the ones used in the service consumption

use case, since they should take advantage of having

full access to the code of the implementation. Our

current work addresses this issue of extracting behav-

ioral models from service implementations, by apply-

ing speciﬁc white box techniques based on the analy-

sis of their control ﬂow graph.

The remainder of this article is organized as fol-

lows. Section 2 presents background information

about representing behavioral models as extended ﬁ-

nite state machines. Since services come in a variety

of technologies, their implementation using different

frameworks, we ﬁrst deﬁne our method of model ex-

traction in abstract, technology-independent terms in

Section 3. Section 4 presents speciﬁc issues of partic-

ularizing our method for extracting models from ser-

vices implemented using different technologies.

226

¸Sora I. and Popovici D..

Extracting Behavioral Models from Service Implementations.

DOI: 10.5220/0004562002260231

In Proceedings of the 8th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2013), pages 226-231

ISBN: 978-989-8565-62-4

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2 EXTENDED FINITE STATE

MACHINES USED FOR

BEHAVIORAL MODELING

In this work we use a form of Extended Finite State

Machines (EFSM) for representing behavioral mod-

els. Our EFSMs are Mealy machine models which

are speciﬁcally tailored for white-box modeling of I/O

based systems.

We consider as I/O the messages exchanged by the

system with its environment. Each message is char-

acterized by a message type and a set of message pa-

rameters which may have different values. The input

alphabet of the EFSM is the set RM of all message

types rm, which may be received by the system. The

output alphabet of the EFSM is the set SM of all mes-

sage types sm, which may be sent by the system. For

each message type m, m ∈ RM or m ∈ SM, the set of

parameter types P(m) is known.

An EFSM model consists of S, the set of all states

s, with only one state being the initial state s

, a set T

of all transitions t between states, and V the set of all

state variables v.

A transition t is deﬁned by six components: its

origin state s

∈ S, its destination state s

∈ S, the re-

ceived message rm ∈ RM, the guard predicate g, the

action list al, the sent message sm ∈ SM.

A transition t between two states s

and s

occurs

when a message rm is received and a guard condition

predicate g is true. In this case, the list of actions asso-

ciated with the transition al is executed and a message

sm is sent. It is possible that some of the following

components of a transition are missing: rm, g, al, sm.

State variables and parameters may be scalar vari-

ables or sets.

A guard condition predicate g is a boolean expres-

sion. The operands of the guard predicate g on a tran-

sition ﬁred by a received message rm with a set of

parameters P(rm) can be both state variables v ∈ V

and parameters of the received message p ∈ P(rm).

The operators can be boolean operators (and, or, not),

relational operators, or set operators (contains).

A list of actions al is a ordered sequence of actions

. An action a

on a transition ﬁred by a received

message rm with a set of parameters P(rm), which

sends a message sm with a set of parameters P(sm) is

an assignment. The left value of the assignment is a

state variable v ∈ V or a parameter of the sent mes-

sage p ∈ P(sm). The right value of the assignment is

an expression which can have as operands state vari-

ables v ∈ V, or parameters of the received message

p ∈ P(rm). Operators are boolean, relational and set

operators (add to, remove from).

3 FROM (ABSTRACT) CONTROL

FLOW GRAPH TO EXTENDED

FINITE STATE MACHINE

3.1 Preliminary Assumptions

We present the principles of our model inference al-

gorithm starting from the following assumptions:

• The system is described by a complete, inter-

procedural Control Flow Graph (CFG).

• There are explicit statements, corresponding to a

node in the CFG, for receiving and sending mes-

sages of a speciﬁed message type and having mes-

sage parameters.

In our approach, we choose to determine the set

of states in the EFSM model corresponding to a set

of essential program counter values (a set of essen-

tial nodes in the CFG). A transition between two

EFSM states corresponds to a path between CFG

nodes which contains at least one relevant node. (We

will detail the concepts of relevant and essential CFG

nodes in Section 3.2).

This is different from the classical approach of

deﬁning the states as corresponding to predicates over

the state variables, as done in the related approaches

in the context of speciﬁcation mining by static anal-

ysis for classes (Shoham et al., 2008), (Alur et al.,

2005). We have chosen this approach because in real

applications all the state variables can be complex

data structures and it may be a complex task to de-

termine predicate abstractions in this case.

3.2 Building the EFSM

3.2.1 Relevant Nodes

An important preliminary step consists in identifying

the relevant nodes of the CFG.

In principle, an aspect is considered to be relevant

for our model if it inﬂuences the external observable

behavior which consists of the messages received or

sent by the system.

A variable is marked as relevant if one of the fol-

lowing occurs:

• it is on a downstream dataﬂow from a parameter

of a received message

• it is on an upstream dataﬂow ending in a parame-

ter of a sent message

A CFG node is marked as relevant if one of the fol-

lowing occurs:

• it corresponds to a message receive or message

send instruction

ExtractingBehavioralModelsfromServiceImplementations

227

• it handles a relevant variable

A CFG path is relevant if it contains at least one

relevant node. Determining the relevant paths is actu-

ally a form of program slicing.

3.2.2 Essential Nodes, EFSM States

and Transitions

It is not necessary that all relevant CFG nodes (which

may be far too many) become states in the EFSM

model. We call essential nodes only the CFG nodes

which correspond to nodes of the EFSM.

We propose the followingalgorithm to identify the

essential nodes and the transitions between them:

• The start node is an essential node, and it corre-

sponds to the initial state of the EFSM.

• Any CFG node containing a ReceiveMesage

statement is an essential node. It introduces a

new EFSM state. The relevant outgoing paths will

correspond to outgoing transitions enabled by the

received message. Each of these transitions will

end in the next state which will be identiﬁed as

essential on the respective outgoing path. The

relevant path conditions are collected as guard

predicates for the corresponding transition, while

assignments involving relevant variables are col-

lected as list of actions for the corresponding tran-

sition.

• A conditional branching node in the CFG is an

essential node only if it uses a relevant variable

which has been deﬁned in a node preceding it on

an incoming path (this includes also the case of

loops). It introduces a new EFSM state which

has an incoming transition corresponding to the

incoming path with the deﬁnition node and outgo-

ing transitions corresponding to the outgoing con-

ditional paths.

After determining the essential nodes and iden-

tifying the paths between them which correspond to

transitions, for each transition we determine its re-

ceived messages, guard predicates, actions, sent mes-

sages. The guard predicate of a transition is composed

of all relevant conditions that are on the correspond-

ing path between the two nodes. The action list of

a transition contains all assignment or set operations

executed on relevant variables on the corresponding

path between the two nodes.

An EFSM is deterministic if from any state s,

when any message rm is received, there is at most one

transition possible. The EFSM built according to the

method presented above is deterministic, since transi-

tions outgoingfrom a state, in the case that they are la-

beled with the same received message, they have mu-

tually exclusive guard predicates, since they resulted

from different paths of the CFG .

3.3 Example

We consider as example the control ﬂow graph of a

typical server. For presentation purpose, we use pseu-

docode to describe the abstract control ﬂow of a sim-

ple online Shop. It manages orders, their payment

and their delivery. As we will discuss in Section 4,

the actual code implementing this simple online Shop

may look very different, depending on the particular

technologies or APIs used.

1: orders:={}

2: payments:={}

3: while(true)

4: switch ReceiveMesssage():

5: case:(orderType, name)

6: add name to orders

7: case:(payType, name)

8: if (name in orders)

9: add name to payments

10: case:(deliveryType, name)

11: if (name in payments)

12 remove name from payments

13: remove name from orders

14: SendMessage

deliveryResp, goods

15: else SendMessage

deliveryResp, error

16: endwhile

We determine the nodes (pseudocode statements)

1 and 4 as being the essential nodes, according to

the method outlined before. The ﬁve possible execu-

tion paths below this node correspond to ﬁve self-loop

transitions.

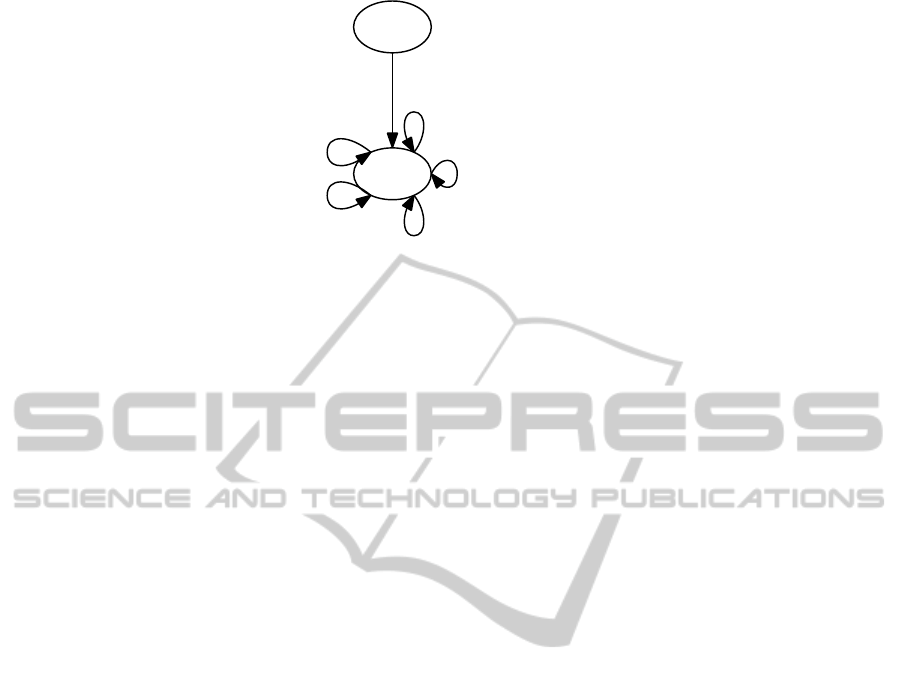

Figure 1 presents the corresponding EFSM of the

simple Shop server. In this ﬁgure we shortened for

presentation purposes the names: the message types

are denoted by

, and

(for

orderType

payType

deliveryType

, and

deliveryResp

), the

parameter

name

is denoted

, the state variables

orders

and

payments

are named

and

4 MODELING SERVICES OF

DIFFERENT TECHNOLOGIES

In section 3.2 we have outlined our model construc-

tion algorithm assuming as starting point an abstract

CFG (i.e., a complete CFG of the whole system, hav-

ing special explicit instructions for sending and re-

ceiving messages).

The basics of our method are set by building

blocks for static code analysis such as call graph

ENASE2013-8thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

228

init

loop

os:={}, ps:={}

Recv o(n), true | os:=os+{n}

Recv p(n), n in os | ps:=ps+{n}

Recv p(n), not (n in os) |

Recv d(n), n in ps |

ps:=ps-{n}, os:=os-{n},

Send dR(good)

Recv d(n), not (n in ps) |

Send dR(error)

Figure 1: Example: EFSM model of simple Shop server.

construction, inter-procedural control ﬂow graph con-

struction, and data ﬂow analysis. For implementation

we focused on systems implemented in the Java pro-

gramming language and we used the Watson Libraries

for Analysis (WALA) (IBM, 2010).

In practice, only analyzing the application code

of real distributed or service-oriented systems will

not directly produce a CFG such as the abstract one

needed by the model construction algorithm. This is

because real applications are usually developed with

the help of special frameworks and APIs that help

the application developer cope with the complexity of

such systems. Two immediate consequences are:

• Instead of explicit SendMessage and

ReceiveMessage instructions, frameworks

offer complex APIs to describe the interactions of

a server.

The ﬁrst step towards applying our model ex-

traction method is to identify for each API the

constructions which are equivalent with sending

and receiving messages and deﬁne abstractions

for them.

• Frameworks also provide infrastructure support

for the execution of developed applications. Most

often, by analyzing only the application code writ-

ten by the application developer one cannot obtain

the whole CFG of the real system. For example, in

all frameworks the application developer does not

explicitly provide the server loop, which is added

by default through the framework.

The particularities of each framework have to be

known and the partial CFG or CFGs extracted

from the application code must be completed or

combined in order to obtain the complete CFG.

These issues (identifying and abstracting

send/receive message operations, completing the par-

tial CFG from application code) have to be solved by

technology speciﬁc preprocessing frontends before

the generic model construction method presented in

3.2 may proceed.

We consider modeling servers which are imple-

mented in Java and according to a set of speciﬁc tech-

nologies. We categorize these technologies as being

with or without explicit interfaces. Technologies such

as WSDL Web Services, Java RMI, and CORBA,

make the interfaces of the services explicit, either as

language interfaces or as interfaces described in a spe-

cial interface description language. Other technolo-

gies such as Servlets or JSP do not make the interfaces

explicit.

4.1 Preprocessing Frontend for

Interface-explicit Technologies

In the case of Java RMI, but also in case of other

interface-explicit technologies, a server is a special

kind of object, implementing the methods described

in an explicit interface. The interface description con-

tains the list of possible operations, with their full sig-

nature (method name, number and types of parame-

ters, return type). Clients can interact with a server

invoking these methods. These are the entrypoints of

the server application.

The entry points for a RMI application are those

methods declared in an interface that extends the

rmi.Remote

interface. When analyzing an applica-

tion that uses RMI, the preprocessing frontend looks

for this kind of methods as entrypoints.

We can deﬁne the needed SendMessage and

ReceiveMessage abstractions in RMI code in the fol-

lowing way: A RMI object receives a message when

one of its remote methods is invoked. Thus the en-

trypoint of every remote method is modeled as an ab-

stract ReceiveMessage operation. A RMI object sends

a message when returning from a remote method in-

vocation or when raising an exception.

Names for message types are derived automati-

cally from method names. The type of the sent mes-

sage differs from the type of the received message

ExtractingBehavioralModelsfromServiceImplementations

229

corresponding to the method invocation (it is a return-

methodname type of message). The parameters of the

received message correspond to the arguments of the

method. The parameters of the sent message corre-

spond to the returned values or exceptions raised.

For example, a method with following signature:

String deliver(String name) {

... // some statements

}

will be abstracted to:

ReceiveMessage deliverType, name

... // some statements

SendMessage deliverResp, aString

By analyzing the RMI application code, the CFGs

of each entrypoint method can be built. In order to

get the whole CFG of the RMI server, all these partial

CFGs have to be framed by a server loop and pre-

ceded by the initialization code. After these prepro-

cessing are done, the core model construction algo-

rithm can be applied on the adjusted CFG.

4.2 Preprocessing Frontend for Servlets

and JSP

Web applications are dynamic extensions of web or

application servers, which may generate interactive

web pages with dynamic content in response to re-

quests. In the Java EE platform, the web components

which provide these dynamic extension capabilities

are either Java servlets or Java Server Pages (JSP).

A servlet is a Java class that conforms to the Java

Servlet API, which establishes the protocol by which

it responds to HTTP requests, and generates dynamic

web content as response. The popular JSP technol-

ogy, which embeds Java code into HTML, relies on

Servlets, as these are automatically generated by the

application server from JSP pages. When analyzing

JSP pages, we ﬁrst explicitly call the JSP compiler in

order to obtain the source code of their corresponding

servlet classes.

In the code analysis, we identify Java

Servlets as the classes that extend the

javax.servlet.HttpServlet

class. Their entry-

points are the methods:

doGet

doDelete

doHead

doOptions

doPost

doPut

doTrace

service

. The

servlets generated from JSP are classes which ex-

tend

org.apache.jasper.runtime.HttpJspBase

and their entrypoints are methods

jspInit()

and

jspService()

When analyzing an application that uses servlets,

the preprocessing frontend looks for this kind of

methods as entrypoints. Similarly to the RMI prepro-

cessor, the CFGs of each entrypoint can be built and

in order to get the whole CFG all these partial CFGs

have to be framed by a server loop and preceded by

the initialization code.

All entrypoint methods have as parameters

HttpServletRequest

and

HttpServletResponse

which correspond to the types of the messages which

are sent and received.

The

HttpServletRequest

allows access to all in-

coming data. The class has methods for retrieving

form (query) data, HTTP request headers, and client

information. The

HttpServletResponse

speciﬁes

all outgoing information, such as HTTP status codes,

response headers, cookies, and also has a method of

retrieving a

PrintWriter

used to create the HTML

document which is sent to the client.

What is different and more difﬁcult in this case

is abstracting the parameters of the SendMessage

and ReceiveMessage statements. Message parame-

ters cannot be identiﬁed directly in this case, since

incoming and outgoing data are handled through a

large number of speciﬁc methods on the request and

response objects.

As an example, we consider below an excerpt of

the simple Shop, whose abstract control ﬂow has been

described in Section 3.3, this time in an implementa-

tion with servlets:

public class Shop extends HttpServlet {

// ... omitted parts

protected void doGet(HttpServletRequest req,

HttpServletResponse resp)

// ... parts are omitted or simplified

String op = req.getParameter("operation");

if (op.equals("deliver")) {

String name=req.getParameter("name");

if (payments.contains(name))

delivResp=doService();

else delivResp=error();

Writer w=response.getWriter();

w.write(delivResp);

}

else if (op.equals("pay"))

// ...

Abstracting send and receive operations with pa-

rameters from the code of each entry point method

is a complex task which must take into account every

method that can be called on a

HttpServletRequest

HttpServletResponse

object.

The entrypoiny of the method corresponds to a

ReceiveMessage statement, receiving a message of

type HttpRequest. The parameters of this received

message may contain: a set of name - value pairs,

corresponding to the

ParameterMap

, and a set cor-

responding to the Session attributes. The parameters

will be added to the ReceiveMessage statement only

if they are used in the method body: the ﬁrst param-

eter will be added only if the method body contains

ENASE2013-8thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

230

statements for retrieving the ParameterMap or spe-

ciﬁc parameters from the request object. The second

parameter will be added only if there are statements

retrieving a Session from the request object and get-

ting values from there.

In our example, we have only calls of method

getParameter

on the

request

object, no

Session

object has been retrieved and used, thus the received

abstract message is:

ReceiveMessage HttpRequest (

("operation", op), ("name", name))

Each path leading to an exit point of the method

will end in a SendMessage statement, sending a mes-

sage of type HttpResponse. The parameters of this

sent message are: all the variables which are written

by the output Writer along this path, and session at-

tributes if they have been retrieved and handled in the

method body.

In our example, following SendMessage state-

ments are abstracted on the different paths:

SendMessage HttpResponse (delivResp)

SendMessage HttpResponse ("Order finished")

SendMessage HttpResponse ("Pay finished")

5 CONCLUSIONS

The goal of our work is to build a tool for the auto-

matic extraction of behavioral models from service

implementations. In order to cope with the diver-

sity of technologies and APIs which can be used

by service implementations, we propose an approach

for model extraction in two steps: a technology-

dependent preprocessing step, followed by the sta-

ble core step that implements a general method of

transforming the abstracted control ﬂow graph into an

EFSM.

The kind of EFSM inferred by our approach is

suitable to be automatically translated into an entity

description in a formal security speciﬁcation language

for distributed systems such as Aslan++, the language

used by the SPaCIoS tool. The security analyst will

have to add manually only the security-related proper-

ties of the communication channels, which cannot be

known from the implementation code, and to specify

the desired properties to be checked.

Having tools which extract behavioral models

from actual service implementations is an important

step towards enabling formal security validation tech-

niques to be applied on real systems at their imple-

mentation and deployment time.

ACKNOWLEDGEMENTS

This work has been supported by the FP7-ICT-2009-5

project no. 257876 SPaCIoS (”Secure Provision and

Consumption in the Internet of Services”)

REFERENCES

Alur, R.,

Cern´y, P., Madhusudan, P., and Nam, W. (2005).

Synthesis of interface speciﬁcations for Java classes.

In Proceedings of the 32nd ACM SIGPLAN-SIGACT

symposium on Principles of programming languages,

POPL ’05, pages 98–109, New York, NY, USA. ACM.

Bertolino, A., Inverardi, P., Pelliccione, P., and Tivoli, M.

(2009). Automatic synthesis of behavior protocols for

composable web-services. In Proceedings of the the

7th joint meeting of the European software engineer-

ing conference and the ACM SIGSOFT symposium on

The foundations of software engineering, ESEC/FSE

’09, pages 141–150, New York, NY, USA. ACM.

Hossen, K., Groz, R., and Richier, J. (2011). Security vul-

nerabilities detection using model inference for ap-

plications and security protocols. In IEEE 4th Inter-

national Conference on Software Testing, Veriﬁcation

and Validation Workshops, pages 534–536.

IBM (2010). T.J.Watson Libraries for Analysis (WALA).

Technical report, IBM T.J.Watson Research Centre.

Lorenzoli, D., Mariani, L., and Pezze, M. (2008). Auto-

matic generation of software behavioral models. In

Software Engineering, 2008. ICSE ’08. ACM/IEEE

30th International Conference on, pages 501–510.

Merten, M., Howar, F., Steffen, B., Pellicione, P., and

Tivoli, M. (2012). Automated inference of models for

black box systems based on interface descriptions. In

Margaria, T. and Steffen, B., editors, Leveraging Ap-

plications of Formal Methods, Veriﬁcation and Vali-

dation. Technologies for Mastering Change, volume

7609 of Lecture Notes in Computer Science, pages

79–96. Springer Berlin Heidelberg.

Oheimb, D. and Modersheim, S. (2012). Aslan++ a

formal security speciﬁcation language for distributed

systems. In Aichernig, B., Boer, F., and Bonsangue,

M., editors, Formal Methods for Components and Ob-

jects, volume 6957 of Lecture Notes in Computer Sci-

ence, pages 1–22. Springer Berlin Heidelberg.

Shoham, S., Yahav, E., Fink, S., and Pistoia, M. (2008).

Static speciﬁcation mining using automata-based ab-

stractions. Software Engineering, IEEE Transactions

on, 34(5):651–666.

Vigano, L. (2012). Towards the secure provision and con-

sumption in the internet of services. In Fischer-

Hobner, S., Katsikas, S., and Quirchmayr, G., edi-

tors, Trust, Privacy and Security in Digital Business,

volume 7449 of Lecture Notes in Computer Science,

pages 214–215. Springer Berlin Heidelberg.

ExtractingBehavioralModelsfromServiceImplementations

231
