Dynamic Software Updating with Gosh!

Current Status and the Road Ahead

Allan Raundahl Gregersen

, Michael Rasmussen

and Bo Nørregaard Jørgensen

ZeroTurnaround, Tartu, Estonia

The Maersk Mc-Kinney Moller Institute, University of Southern Denmark, Odense, Denmark

Keywords: Dynamic Software Updating, Unanticipated Run-time Evolution, Run-time Phenomena.

Abstract: Any non-trivial software system has to be upgraded regularly to incorporate bug fixes and security patches

or simply to keep up with the inevitable evolution in end-user requirements. Software upgrading is

challenging, especially when it comes to online upgrading of running systems. In this paper, we present the

current status of Gosh!, a dynamic-software-updating system for Java, which provides comprehensive

support for changing class definitions of live objects, including adding, removing and moving fields,

methods, classes and interfaces anywhere in the inheritance hierarchy. Prior to the acquisition by

zeroturnaround.com, Gosh! was known as Javeleon. In this paper we demonstrate the capabilities of Gosh!

by performing a dynamic updating experiment on five consecutive revisions of the classical arcade game

Breakout. Based on the result of this experiment we show that dynamic updating of class definitions for live

objects may under some circumstances result in different run-time behavior than would be observed after a

cold restart of the upgraded application. Finally, we conclude by discussing the implication of this finding

for future research directions within dynamic software updating.

1 INTRODUCTION

Software is subject to continuous change, not only as

part of its development cycles, but also over time to

stay useful to its users (Lehman, 1997). In most

standard deployment environments this implies that

use of the next software version typically requires

halting the currently running version before

deploying and starting the new version. Using a

dynamic software-updating system (DSU) this is no

longer necessary, as the DSU system will

dynamically replace the running version with the

new version. Depending on how advanced the DSU

system is this may happen more or less transparent

to end-users. We say that a DSU system is end-user

transparent if it does not require any intervention of

end-users during an update, and similarly we say it

is developer transparent if it does not require

developers to take specific precautions. Hence, the

two forms of transparency is a key quality for any

DSU system, since it strongly influences the degree

to which it will be successful. The success of DSU

systems is especially important as software systems

tend to become more complex in terms of internal

run-time state and interactions with external

systems. This trend is for instance present in

mission-critical systems such as surveillance and

control of air traffic, ground transportation, oil and

gas production, industrial process, power generation,

and smart-grids. These application domains are all

subject to safety, environmental and economical

regulations and restrictions, which make system

downtime due to maintenance tasks like software

updates not only inconvenient but also very

expensive.

Where past research has contributed significantly

toward making DSU practical for systems written in

C or C++, upgrading of server functionality

(Neamtiu et al., 2006; Chen et al., 2007; Makris and

Bazzi, 2009), deploying security patches (Altekar et

al., 2005), and operating systems upgrades (Soules

et al., 2003; Baumann et al., 2005; Baumann et al.,

2007; Makris and Ryu, 2007; Chen et al., 2006;

Arnold and Kaashoek, 2009), there used to be a gap

when it comes to systems written in managed

languages, such as Java, Ruby, and C#. In the past

DSU for managed languages was limited to HotSpot

JVM (Sun Microsystems, 2004) for Java. For some

.NET languages (Microsoft Corporation, 2008) a

similar limited support of on-the-fly updating of

220

Raundahl Gregersen A., Rasmussen M. and Nørregaard Jørgensen B..

Dynamic Software Updating with Gosh! - Current Status and the Road Ahead.

DOI: 10.5220/0004562302200226

In Proceedings of the 8th International Joint Conference on Software Technologies (ICSOFT-EA-2013), pages 220-226

ISBN: 978-989-8565-68-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

method bodies applies. However, this support is too

restricting for all but the simplest updates. Limiting

changes to method bodies would render the DSU

system useless for updating most of the revision

improvements reported for the Jetty webserver in

(Gustavson, 2003). Academic approaches (Ritzau

and Andersson, 2000; Malabarba et al, 2000; Orso et

al., 2002; Bierman et al., 2008) offer more

flexibility, but remain still to be proven on realistic

development scenarios. Furthermore, these

approaches employ designs for method and object

indirection, which impose substantial space and time

overheads on steady-state execution. The lack of

approaches supporting managed languages had the

potential to become a severe problem as an

increasing number of enterprise systems and

embedded systems are written in those languages.

Fortunately, the research on DSU for managed

languages has caught up and includes now multiple

promising approaches. State-of-the-art approaches

for Java includes; JRebel (Kabanov, 2010), an

application-level system which is currently the de-

facto commercial tool for class reloading in Java;

Dynamic Code Evolution VM (Würthinger et al.,

2010), a VM-enhancement of the Java HotSwap

VM (Dmitriev, 2001); JVolve (Subramanian et al.,

2009), a VM approach based on the Jikes Research

VM, and Gosh! (Gregersen and Jørgensen, 2009), an

application-level system.

In this paper, we first provide an overview of

code changes supported by DSU systems targeting

Java; we then give an introduction to the design and

implementation of Gosh!, followed by the latest

development in the performance benchmarking of

Gosh!. Then, we demonstrate the capabilities of

Gosh! by applying it to a series of consecutive

revisions of an in-house implementation of the

classical arcade game Breakout. Finally, we discuss

the result of this experiment and its implication for

future research direction within dynamic software

updating.

2 GOSH! COMPARED TO OTHER

APPROACHES

A comparison of the code changes supported by

DSU systems that are currently public available is

given in table 1. As the table shows, Gosh! is at the

moment the DSU system with the most

comprehensive support for redefinition of Java

classes. The Issues symbol in table 1 indicates that

there are circumstances where the code change is not

fully supported by the DSU system.

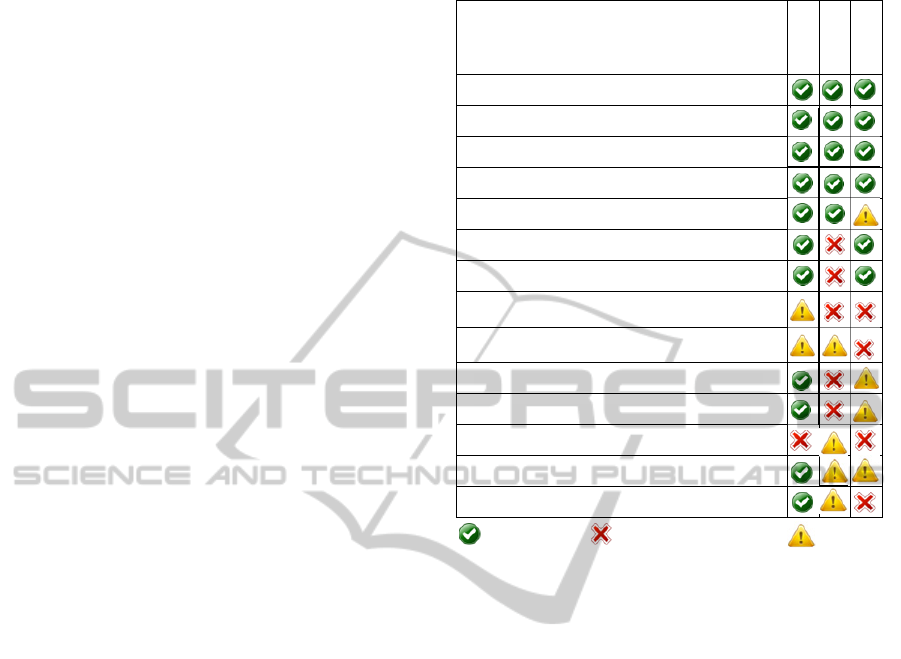

Tabel 1: DSU system comparison.

Code change

Gosh!

JRebel

DCEVM

Changes to method bodies

Adding/removing fields

Adding/removing methods

Adding/removing constructors

Adding/removing classes

Replace superclass

Adding/removing implemented interfaces

Automatic new instance field initialization

(developer-defined default value)

Automatic new static field initialization

(developer-defined default value)

iii, iv

Move field to super class (preserving the state)

Move field to sub class (preserving the state)

Changing static field value

iii

Changing primitive static final field value

Adding/removing enum values

Supported Not supported

Issues

i. Only Gosh! and JRebel provide integration with custom

class-loaders for adding new classes that is not present on

the class path.

ii. Gosh! supports automatic field initialization without re-

executing the constructor/static initializer. However,

automatic initialization does currently not support

branching (try/catch, ternary operator etc.)

iii. Currently, JRebel is the only approach with support for

changing static field values. However, it is based on re-

executing the entire static initializer which may lead to

serious side-effects caused by repeated execution of code

which should only execute once.

iv. Gosh! is currently the only DSU system cable of correctly

transferring values of fields which have been moved up or

down in the inheritance hierarchy. DCEVM copies field

values to super/sub classes even in situations where the

field is also retained in the former class version.

v. Only Gosh! fully supports changing primitive static final

field values, as both JRebel and DCEVM gives wrong

results for constant values accessed through reflection after

updating.

vi. JRebel claims support. However, simple tests show that e.g.

removing and adding enum values is not handled correctly

in switch statements.

3 GOSH! DESIGN AND

IMPLEMENTATION

The core idea of the Gosh! updating model is to

allow multiple versions of the same objects to co-

exist in a running system. This is achieved by

creating new class loaders for each new version, thus

setting up distinct type namespaces. Since this

DynamicSoftwareUpdatingwithGosh-CurrentStatusandtheRoadAhead

221

approach imposes a version barrier (Sato and Chiba,

2005) of incompatibility between differently

versioned classes and objects, the updating model

must maintain a versioned view of the involved

objects and classes. Gosh! utilizes a novel concept of

Dynamic Correspondence Proxification, a

combination of the two mechanisms In-Place

Proxification and Correspondence Mapping which

transform live objects and classes of former versions

into proxies that delegate to the most recent

versions. In-Place Proxification enforces shared

identity and state across the version barrier, while

Correspondence Mapping handles type conversion

for crossing the version barrier. Details on Dynamic

Correspondence Mapping can be found in prior

work (Gregersen and Jørgensen, 2009). In this

paper, we solely outline the architecture of Gosh!.

Details on the architecture are provided in

(Gregersen et al., 2012).

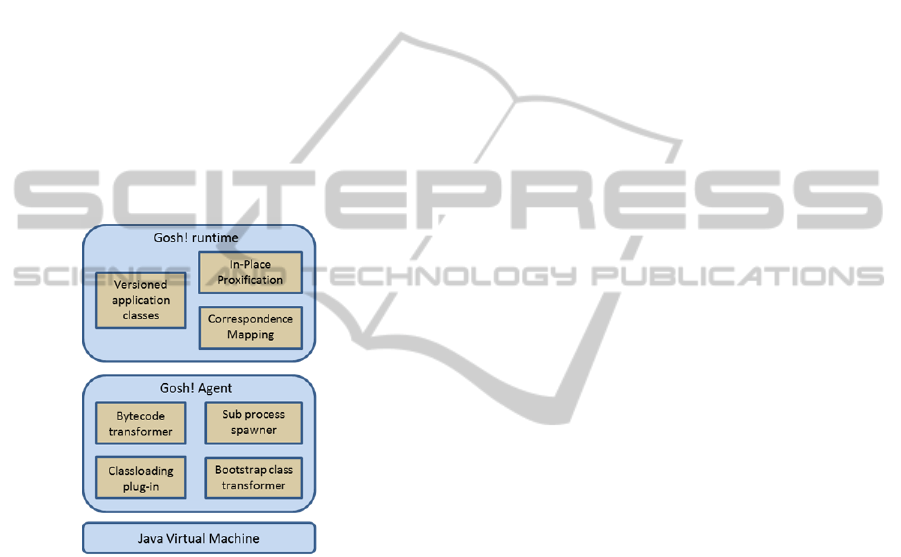

Figure 1: Architectural overview of Gosh!.

The architecture of Gosh!, shown in figure 1,

features the following components:

 The bootstrap-class-transformer and sub-

process-spawner components are responsible for

statically transforming the JVM bootstrap-classes

and to automatically spawn a new JVM process

with the set of modified bootstrap-classes. This

setup is necessary to make Gosh! transparent to

the end-user, as the class instrumentation

mechanism introduced in JDK 5.0 does not

support instrumentation of bootstrap-classes on

class loading.

 The class-loading plug-in component is used to

integrate Gosh! with the class loading and

resource management of different application

frameworks. At present, Gosh! only provides an

integration component for the NetBeans Platform,

besides standard Java SE support. In general, the

responsibility of these components is to deal with

all the issues that cannot be handled simply by

updating Java class files, i.e. reflecting changes

made to application resources and configuration

files.

 The bytecode-transformer component is

responsible of instrumenting classes as they are

loaded into the JVM. We distinguish between

system classes that are made dynamic update-

aware and application classes that are made

dynamic update-enabled. Update-aware classes

impose less run-time overhead than update-

enabled classes. We make this distinction,

because we consider it less likely that system

classes are dynamically updated, as this would

most likely include a dynamic update of the JVM.

However, although system classes are not

considered subject to dynamic updating they must

be instrumented to accommodate changes to their

possible subclasses.

 The run-time component implements the

underlying dynamic updating model, which uses

the In-Place-Proxification technique in

combination with Correspondence Mapping to

delegate requests to the most recent versions of

updated classes. This component also ensures

correct identity and equality preservation,

handling of hashCode, thread synchronization,

array-access handling for differently versioned

objects etc. The core execution component is also

responsible of transferring state from former

versions to the new version. State is transferred

using a thread-safe, non-blocking, lazy-state

copying mechanism, which only transfers state

when it is requested from within the new version.

This ensures that the application stays responsive

during dynamic updating as all state does not

have to be transferred at once. In case all state

had to be transferred at once, the end-user would

experience a transition bump, where the

application turns temporally inaccessible.

4 BENCHMARKING GOSH!

We have used SPECjvm2008 to measure the steady-

state performance overhead introduced by Gosh! and

JRebel 4.5.2. We chose to compare Gosh! with

JRebel and not DCEVM, as Gosh! and JRebel are

both application-level approaches whereas DCEVM

is based on a modified Java HotSpot

VM. As

shown by figure 2, Gosh! and JRebel are comparable

in performance, both approaches also show similar

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

222

bottlenecks. The tests were performed so both Gosh!

and JRebel identified the benchmark classes as

update-enabled.

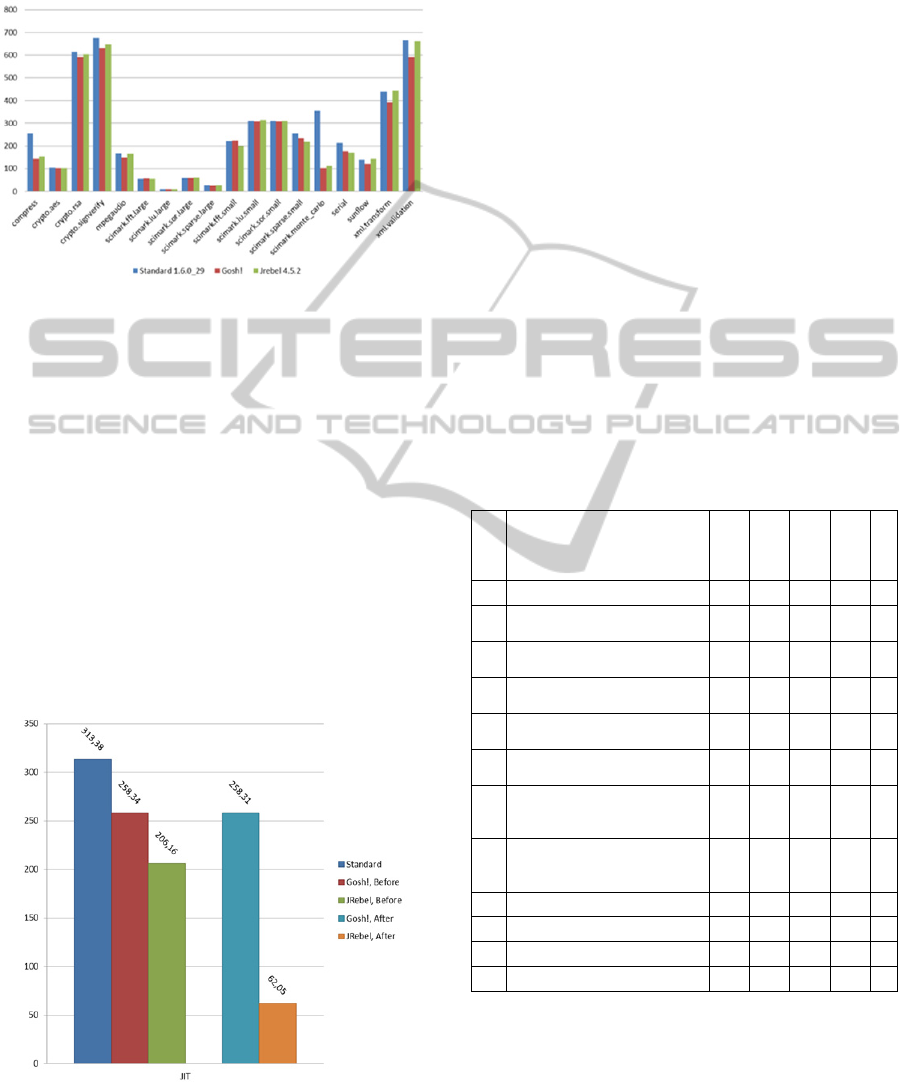

Figure 2: Gosh! vs. JRebel 4.5.2 [operations/min.].

Since the SPECjvm2008 test only allowed us to

measure the steady-state performance overhead

before updating we also designed a number of micro

benchmarks to measure the run-time overhead

imposed by newly inserted code after updating. The

result of our recursive Fibonacci number

benchmarks is shown in figure 3. The dynamic

update simply renames the recursive method, thus

simulating the insertion of a new method. The

benchmark results show that Gosh! is faster than

JRebel both before and after an update. Furthermore,

the results also show that the runtime overhead

remains constant for Gosh! after updating whereas it

increases drastically for JRebel. Hence, Gosh!

demonstrates that it scales for supporting continues

updating.

Figure 3: Recursive Fibonacci Benchmark

[operations/min.].

5 EXPERIENCE

To evaluate practical application of Gosh!, we made

four updates using five revisions of an in-house-

developed version of the classical arcade game

Breakout. The first version of the game contains 14

classes and 1.012 lines of code, which developed

into 36 classes and 2.405 lines of code in the final

version. The five revisions of the game contain

many non-trivial code changes. A total of 120 code

changes were found by manual inspection. Each

code change has been classified according to the

classification developed in (Gustavson, 2003). Table

2 summarizes the code changes found for successive

revisions. The ID numbering of the code changes is

not consecutive, as we have only listed the code

changes that took place between successive

revisions. A blank field in the table indicates that no

occurrences of the code change were found. The last

column in the table summarizes the frequency of

each code change for all revisions. We included this

column to show how often a particular code change

occurs during development of the game.

Tabel

Code change analysis of Breakout.

ID Code change description

R1-R2

R2-R3

R3-R4

R4-R5

6 Class added

2 9 3 3

Constructor implementation

changed in class

 1 1

Instance method added to

class

3 11 2 8

Instance method removed

from class

2

Instance method renamed in

class

4

Instance method return type

changed in class

4

Instance method

implementation changed in

class

12 11 3 10

Static method

implementation changed in

class

4

68 Instance field added to class

 22

84 Interface added

1

120 Resource added

8 1 4 8

121 Resource removed

1

a. ID 120 and 121 is a refinement of ID 117 ‘Environment state change’ in 0

The experiment showed that the Breakout game

could be successfully updated from one revision to

the next, however, under some circumstances the

applied updating sequence resulted in a run-time

behavior that was quite different from that of a cold

restart of the game. Updates that resulted in different

DynamicSoftwareUpdatingwithGosh-CurrentStatusandtheRoadAhead

223

behavior did so, because they introduced code

changes that caused run-time phenomena. A

classification of run-time phenomena in dynamic

software updating was first introduced in (Gregersen

and Jørgensen, 2011). The code changes listed in

table 3 were herein identified as the cause of these

phenomena. It is important to note that these code

changes may cause run-time phenomena, but that it

is not always the case. Whether run-time phenomena

do occur is very dependent on the application’s

design and the time of updating.

Tabel 3: Run-time Phenomena.

ID Code change description

Possible run-time

phenomenon

7 Class removed Phantom objects

8 Class renamed

Phantom objects / Lost

State

Modifier abstract added to

class

Phantom objects

6 Class added Absent state

22 Super class of class changed Absent state

68/

Instance/static field added to

class

Absent state

Modifier static removed from

inner class

Absent state

70/

Instance/static field type

changed in class

Lost state

Static initialization impl.

changed in class

Oblivious update

Constructor impl. changed in

class

Oblivious update

114 Static field value changed Broken assumption

38/

Instance/static method impl.

changed (e.g., conditional

statement, method split /

merged)

Broken assumption /

Transient inconsistency

 Phantom Objects are live objects whose classes

have been removed by a dynamic update. Whilst

phantom objects will continue to exist in the

system, their existence in the updated application

will be void. Hence, if such objects are part of the

existing application state, the updated application

may try to reference them indirectly through, for

instance, an array or a collection. Although

removing classes is typically discouraged, there

are situations where classes are either in-lined or

renamed due to refactoring. For the DSU systems

discussed in this paper, in-lining and class

renaming corresponds to class-removed and

class-added operations. Likewise, the use of

dayfly classes (Lanza et al., 2005) is another

example of class removals. Dayfly classes are

classes that are typically created for evaluating a

new idea and then removed shortly thereafter.

 Absent State refers to the situation where objects

created in a former version lack state defined by

the updated versions of their classes. Such state

would typically have been created during a cold

restart by an extra argument in a modified

constructor.

 Lost State happens when an updated class makes

binary incompatible changes to the type of a

member field. E.g., change the field ‘name’ of

type String to type Name. Given that it is not

possible for the automatic state-transfer

mechanism of Gosh! to automatically deduct how

a changed type relates to a previously declared

type, the run-time effect of changing the field

type is that the field value for all existing objects

of that class is lost and the new value is set to the

default value.

 Oblivious Update refers to the situation where

some or all features introduced in the new

revision are missing after updating. That is, the

run-time behavior of the updated application is

different from that of a cool restart. Changing

constructors to initialize new state fields is often

the cause for oblivious updates, as constructor

changes will not have any effect on already

created objects.

 Broken Assumption may surface when constraints

governing the interrelationship between program

state and program logic change between

successive revisions. If, for instance, the value of

a member field, e.g. a counter, depends on some

other member field, e.g. a constant, then changing

either the value of the constant or the logic of the

code maintaining this interdependency may break

objects when moved to the new class. Exception-

based program termination is often the result.

 Transient Inconsistency refers to the situation

where an updated application is temporally

brought into a run-time state that the new version

of the application would never enter after a cold

restart. If the updated application does not enter a

valid run-time state in the new version after a

finite period of time, it is said to be captured in an

erroneous state. Erroneous state can be caused by

a Broken Assumption that does not produce any

run-time exceptions.

An interesting example of the Phantom Object

and Lost State phenomena can be observed if we

perform a dynamic roll-back by dynamically

updating revision 4 back to revision 3 in the middle

of a level. The resulting run-time effect of dynamic

update is shown in figure 4. Here we see that the

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

224

special bricks introduced in revision 4 disappear

after the roll-back to revision 3. This happens

because revision 4 uses subclasses of the abstract

parent class (Brick.class) to model special feature

bricks, such as concrete bricks and bonus bricks that

drop bonuses when hit. This roll-back corresponds

to a class-removed code change, as the subclasses do

not exist in revision 3. Hence, the roll-back resulted

in a run-time behavior that is different from that of a

cold restart, where the brick wall would have

appeared solid consisting of only blue bricks.

However, this effect is a Transient Inconsistency as

the brick wall is drawn correctly when continuing to

the next game level.

We observed during our experiments with

dynamically updating of the Breakout game that the

result of a dynamic update is highly dependent on

application design. The roll-back goes through

despite the occurrence of run-time phenomena,

because of a loosely coupled design that uses a

lookup service for storing the brick wall. An

alternative design storing the brick wall in an array

of type Brick[][] would result in program

termination due to a null pointer exception, because

the state-migration mechanism in Gosh! cannot map

objects of subclasses for special feature bricks in

revision 4 to any objects in revision 3, as the

subclasses do not exist here. Hence, the state-

migration mechanism will instead insert null

references in place of the original special brick

objects in the array. It is these null-references that

cause program termination due to a null pointer

exception when traversing the array. More examples

on the run-time phenomena and their causes are

given in (Gregersen and Jørgensen, 2011).

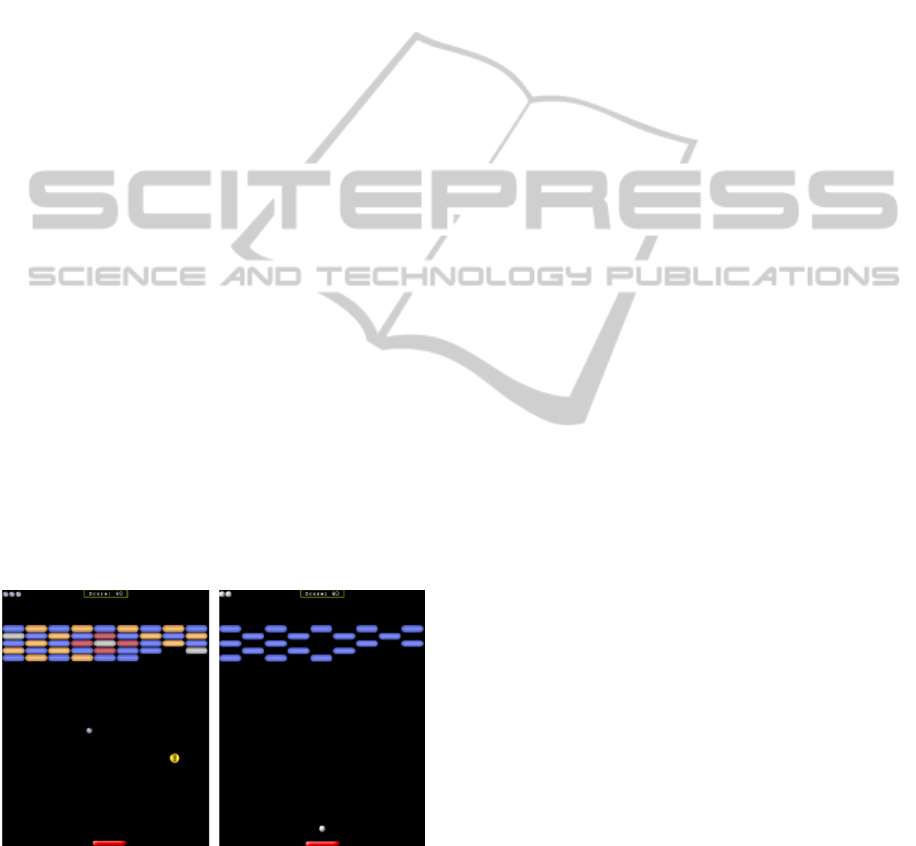

Figure 4: Disappearing objects after class removals.

6 CONCLUSIONS

In this paper, we have provided an overview of the

current state-of-the-art of the DSU systems targeting

Java, by comparing the set of code changes they

support. The comparison shows that Gosh! is

currently the most comprehensive DSU system

available. Furthermore, we have benchmarked Gosh!

against the only commercially available DSU system

JRebel and shown that Gosh! delivers comparable

run-time performance before updating and

considerable better performance after updating.

Whereas JRebel’s updating model introduces a

significant overhead for handling changed code,

Gosh!’s updating model scales and continues to

perform with the same constant run-time overhead.

Hence, Gosh! shows the capability to provide

support for dynamic updating of long-lived

applications, like application- and web-servers. To

evaluate Gosh!, we made four updates using five

revisions of an in-house developed version of the

classical arcade game Breakout. The experiment

showed that it was possible to incrementally update

the consecutive revisions of the Breakout game.

However, what the experiment also showed was that

dynamic updating may result in so-called run-time

phenomena. I.e., situations where the run-time

behavior of the updated application diverges from

the behavior expected after a cold restart. Hence, to

increase predictability of DSU systems there is a

need for creating dynamic impact analysis tools that

can determine whether code changes differentiating

successive revisions may potentially lead to

manifestation of run-time phenomena or not.

Dynamic analysis is necessary as both the run-time

state and the time of updating have significant

impact on the result of an update, hence static

impact analysis alone cannot determine whether a

dynamic update will be successful, it can only

identify potential risks of run-time phenomena. The

advent of dynamic analysis tools will, among other

things, determine the future success and feasibility

of dynamic updating for mission critical software

systems.

REFERENCES

Altekar, G., Bagrak, I., Burstein, P., Schultz, A., 2005.

OPUS: Online patches and updates for security. In

Proc. USENIX Security.

Arnold, J., Kaashoek, F., 2009. Ksplice: Automatic

rebootless kernel updates. In Proc. EuroSys.

Baumann, A., Appavoo, J., Silva, D. D., Kerr, J., Krieger,

O., Wisniewski, R. W., 2005. Providing dynamic

update in an operating system. In Proc. USENIX

Annual Technical Conference.

Baumann, A., Appavoo, J., Wisniewski, R. W., Silva, D.

D., Krieger, O., Heiser, G., 2007. Reboots are for

DynamicSoftwareUpdatingwithGosh-CurrentStatusandtheRoadAhead

225

hardware: challenges and solutions to updating an

operating system on the fly. In Proc. USENIX Annual

Technical Conference.

Bierman, G., Parkinson, M., Noble, J., 2008. UpgradeJ:

Incremental typechecking for class upgrades. In Proc.

ECOOP.

Chen, H., Chen, R., Zhang, F., Zang, B., Yew, P. C., 2006.

Live updating operating systems using virtualization.

In Proc. VEE.

Chen, H., Yu, J., Chen, R., Zang, B., Yew, P., 2007.

POLUS: A POwerful Live Updating System. In Proc.

ICSE.

Dmitriev, M., 2001. Safe Evolution of Large and Long-

Lived Java Applications. PhD thesis, Department of

Computing Science, University of Glasgow, Glasgow

G12 8QQ, Scotland.

Gustavson, J., 2003. A Classification of Unanticipated

Runtime Software Changes in Java. In Proc. ICSM.

Gregersen, A. R., Jørgensen, B. N., 2009. Dynamic update

of Java applications—balancing change flexibility vs

programming transparency. In J. Softw. Maint. Evol.:

Res. Pract. 21.

Gregersen, A. R., Jørgensen, B. N., 2011. Run-time

Phenomena in Dynamic Software Updating: Causes

and Effects. In Proc. IWPSE-EVOL.

Gregersen, A. R., Hadaytullah, Koskimies, K., Jørgensen,

B. N., 2012. An Integrated Platform for Dynamic

Software Updating and its Application in Self-*

systems. In Proc. SCET.

Kabanov, J., 2010. JRebel Tool Demo. In Proc. Bytecode

2010.

Lanza, M., Ducasse, S., Gall, H., and Pinzger, M., 2005.

CodeCrawler: an information visualization tool for

program comprehension. In Proc. ICSE.

Lehman, M. M., 1997. Laws of Software Evolution

Revisited, pos. paper, EWSPT96, Oct. 1996, Lecture

Notes in Computer Science, Vol. 1149, Springer-

Verlag.

Makris, K., Bazzi, R., 2009. Multi-threaded dynamic

software updates using stack reconstruction. In Proc.

USENIX Annual Technical Conference.

Makris, K., Ryu, K. D., 2007. Dynamic and adaptive

updates of non-quiescent subsystems in commodity

operating system kernels. In Proc. EuroSys.

Malabarba, S., Pandey, R., Gragg, J., Barr, E., Barnes, J.

F., 2000. Runtime support for type-safe dynamic Java

classes. In Proc. ECOOP.

Microsoft Corporation. Edit and continue.

http://msdn2.microsoft.com/en-us/library/

bcew296c.aspx, 2008.

Neamtiu, I., Hicks, M., Stoyle, G., Oriol, M., 2006.

Practical dynamic software updating for C. In Proc.

PLDI.

Orso, A., Rao, A., Harrold, M. J., 2002. A technique for

dynamic updating of Java software. In Proc. ICSM.

Ritzau, T., Andersson, J., 2000. Dynamic deployment of

Java applications. In Proc. Java for Embedded

Systems Workshop.

Sato, Y., Chiba, S.,2005. Loosely-separated "Sister"

Namespaces in Java. In Proc. ECOOP’05.

Soules, C., Appavoo, J., Hui, K., Silva, D. D., Ganger, G.,

Krieger, O., Stumm, M., Wisniewski, R., Auslander,

M., Ostrowski, M., Rosenburg, B., Xenidis, J., 2003.

System support for online reconfiguration. In Proc.

USENIX Annual Technical Conference.

Subramanian, S., Hicks, M., McKinley K. S., 2009.

Dynamic software updates: a VM-centric approach.

SIGPLAN No. 44, 6.

Sun Microsystems. Java Platform Debugger Architecture,

2004. This supports class replacement. See

http://java.sun.com/javase/6/docs/technotes/guides

/jpda/.

Würthinger, T., Wimmer,C. and Stadler, L. 2010.

Dynamic code evolution for Java. In Proc. PPPJ.

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

226
