Integrating Validation Techniques for Process-based Models

Andreas Speck

, Sören Witt

, Sven Feja

, Sören Feja

and Elke Pulvermüller

Christian-Albrechts-University of Kiel, Institute of Computer Science, Kiel, Germany

University of Osnabrueck, Department of Mathematics and Computer Science, Osnabrück, Germany

Keywords:

Integration, Validation Techniques, (Business) Process Models, Behavioral Properties, Structural Properties.

Abstract:

Model checking has been established as an appropriate technology to validate behavioral properties of (busi-

ness) process based systems. However, further validation technologies (e. g. for structural properties) may be

of interest for process models. We propose a concept to integrate validation technologies in a unique system

with a common user interface.

1 INTRODUCTION

Process models in general and business process mod-

els in particular are issue of validation concepts. Pri-

marily, these concepts are used to ensure that the pro-

cess models satisfy speciﬁc quality requirements (e. g.

correctness). Approaches like (van der Aalst, 1999),

(van Dongen et al., 2007) or the Business Applica-

tion Modeler (BAM) (Pulvermüller et al., 2010; Feja

et al., 2011) rely on model checking as veriﬁcation

technique. Model checkers are used to verify tem-

poral sequences in the processes. Rules to be vali-

dated by model checkers are speciﬁcations in tempo-

ral logic, which is an extension of Boolean logic with

additional operators, expressing temporal sequences.

By observing typical validation situations we

learned that a certain number of validation requests

do not consider temporal aspects (e.g. a speciﬁc se-

quence of states in a process) but affect the structure

of the process models. This means that temporal op-

erators are not required to express these requirements

and speciﬁcations respectively.

The paper presents and discusses solutions to han-

dle the different kinds of veriﬁcation techniques for

structural and behavioral properties. In our context

structural properties concern the sequencing of the

model elements (including its attached elements and

attributes), "while behavioral properties consider their

executional sequencing" (Deutch and Milo, 2007). In

addition we especially emphasize the consideration

of the functional/intentional meaning of the consid-

ered model elements/content. This means that re-

quirements of speciﬁc use cases have to be validated.

In contrast, many approaches often only check prede-

ﬁned requirements (e. g. syntactical rules) and do not

consider user-deﬁned rules.

Generally, it may be possible to verify behavioral

as well as structural properties with model checkers.

As the speciﬁcation language of model checkers is

based on an extension of Boolean logic, model check-

ers can handle structures which are based on Boolean

logic. However, model checkers are optimized for

checking behavioral (as in dynamic) properties in pro-

cess models. Another alternative is simply to use dif-

ferent validation systems. This lets the user to de-

cide which technique to use. A third possibility would

be an integrated system providing both Boolean logic

validation and model checking.

After the look at the base and related work in sec-

tion 2 we give in section 3 a more elaborated examina-

tion of structural and behavioral properties and a dis-

cussion of the different validation solutions. Section 4

describes the design and architecture of our integrated

validation system, illustrated with an example.

2 RELATED WORK

The validation of structural and behavioral proper-

ties of software and software models is a key prob-

lem in software development. Model checking has

been applied very early ((Emerson and Clarke, 1980)

or (McMillan, 1993)) as presented in the overview in

(Bérard et al., 2001).

Business processes in particular have been in the

focus of model checking based approaches. Some

examples may be (Köhler et al., 2002), (Anderson

et al., 2005) or (Speck, 2006). Further typical ap-

proaches are (van der Aalst, 1999) and (Pulvermüller,

246

Speck A., Witt S., Feja S., Feja S. and Pulvermueller E..

Integrating Validation Techniques for Process-based Models.

DOI: 10.5220/0004569202460253

In Proceedings of the 8th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2013), pages 246-253

ISBN: 978-989-8565-62-4

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

2002) which require transforming business process

models to veriﬁcation models (here, Petri nets and

SMV Kripke structures).

Besides model checking as only validation tech-

nique other approaches like (Köhler et al., 2002) con-

sider alternative checking technologies for business

processes and compare these. Incompatible seman-

tics of the business process models and the veriﬁca-

tion models are identiﬁed as one reason for differ-

ent validation approaches (van Dongen et al., 2007).

(Fahland et al., 2009) proposes problem-speciﬁc vali-

dation solutions.

Examples of further speciﬁc validation techniques

are the Petri net based approaches based on bi-

simulation and algebraic solutions (Morimoto, 2008)

which allow to compare two models instead of vali-

date a model against explicit speciﬁcations. The se-

mantic expressiveness of the speciﬁcation languages

may be increased (e.g. with µ-calculus (Bradﬁeld and

Stirling, 2001; Kozen, 1983) or in the multi-valued

logic research as in (Chechik et al., 2003)).

A motivation for our work is (Gruhn and Laue,

2007) which presents the checking of speciﬁc pat-

terns in process models by applying a Prolog based

concept. This lead us to the question if it is possi-

ble to integrate the Prolog based approach with model

checking approaches in order to increase the part of

(automatically) veriﬁable speciﬁcations. In the design

of electronic systems there are approaches to combine

static and dynamic testing like (Bormann et al., 2005).

A general proof of the applicability of this combina-

tion in software is presented in (May, 1998). (Xu,

2008) presents an approach of combining of model

checking and theorem proving. A more recent ap-

proach is the integrated checking of UML class di-

agrams and state transition diagrams and their struc-

tural and behavioral properties (Weitl and Nakajima,

2011). A concept of combining different validation

concept is the integration of structural checking with

behavioral testing. This also increases the considered

cases of validation and testing and may improve the

rate of detected errors in systems.

A general requirement for us is the usability of

the validation techniques by applying graphical in-

terfaces. This is the background of the checking en-

vironment as we propose it in our paper. Similarly,

(Förster et al., 2007) points out the importance of a

graphical representation of the requirements and pro-

poses an UML Activities based modeling approach

for constraints for business processes. Other valida-

tion approaches which provide such graphical repre-

sentations are for example BPMN-Q (Awad, 2007)

and BPSL Modeler (Xu et al., 2008). Though of

the aforementioned approaches for graphical require-

ments modeling only BPMN-Q integrates different

veriﬁcation techniques for structural and behavioral

properties. However, while behavioral properties can

be checked by explicitly deﬁned graphical rules the

rules to check structural properties are only derived

implicitly from the behavioral rules. On the one hand

this can reduce the effort for the modeler but on the

other hand the modeler has to rely on the "proper"

structural rules.

3 DISCUSSION

3.1 Structural vs. Behavioral Properties

By reasoning about the structure of a process model,

we do not necessarily assert properties about the (exe-

cution) behavior of a process model. However, struc-

tural properties might deﬁne prerequisites for behav-

ioral properties. For example, syntactical properties

must be valid, to allow a reasonable semantic com-

putation. Beside syntactical requirements, several

requirements from various functional domains may

have to be considered. For example: The existence of

a process element of type X, with an attribute p = q,

implies the existence of an element of type Y con-

nected to an element of type Z by a certain edge type.

Such requirements are not as generic as syntactical re-

quirements. Typical ways to express structural prop-

erties are description logic (Baader et al., 2003) and

other Boolean logic based speciﬁcation languages.

Behavioral properties in general are visible after

applying an execution semantic for the process model.

The modeled system is observed in a temporal do-

main. Behavioral requirements therefore address tem-

poral relations between entities in a process model,

e.g. the order of execution or reachability. For ex-

ample, a certain action must take place before another

action may be executed. Such requirements are gen-

erally expressed by temporal logics like LTL or CTL.

Nevertheless, behavioral properties might con-

sider structural properties at a certain point in time,

i.e. in a certain state of the process. An example

might be to check for the reachability of an action,

that is connected to a certain data object. The connec-

tion between the action and the data object may char-

acterized by a certain type and direction of an edge.

Of course, this is a kind of structural property, but it

is temporally invariant during the activity phase of the

action, it is related to. Therefore, it makes sense, to

consider such a structural property within an atomic

expression in a behavioral property.

However, the evaluation of behavioral properties

requires the interpretation of the process model with

IntegratingValidationTechniquesforProcess-basedModels

247

respect to an execution semantic. Generally, this in-

terpretation is guided by the control ﬂow elements of

the process model. We call the result of this interpre-

tation the behavioral model, while we call the process

model, as it is "painted", the structural model. The

behavioral model does not necessarily preserve struc-

tural information any more. For example, control ﬂow

operators might not have an instance in such a behav-

ioral model, only the execution behavior deﬁned by

the control ﬂow is preserved.

Structural and behavioral properties can express

different things and can be considered as complemen-

tary. For example, the behavioral CTL requirement

AF(p), requires p to become true eventually on ev-

ery temporal path, but it does not require p to occur

on every control ﬂow path after an AND-split in the

process model. Actually, there is no reason why the

structural aspect of ﬁnding this property eventually on

every control ﬂow path, should be checked implicitly.

Another example is a CTL requirement like

AG(action

→ ¬EF(action

)). It requires that from a

state in which action

occurs no state can be reached

in which action

is active. This rule does not require

the existence of a control ﬂow path between these two

actions. Hence, the occurrence of action

in a com-

pletely independent (in terms of a control ﬂow con-

nection) part of the process, might cause this rule to

evaluate to false. It depends on the actual functional

background, if this behavior is adequate. An addi-

tional structural requirement, that checks for the ex-

istence of a control ﬂow path between these actions,

would avoid the false positive result. However, for

both variants reasonable use cases exist.

In this contribution, we propose the integration of

structural and behavioral properties and their corre-

sponding checking techniques respectively. On the

one hand in order to provide a consistent UI for the

speciﬁcation. On the other hand we expect, that it al-

lows more efﬁcient veriﬁcation procedures.

3.2 Integration Approaches

We consider three alternatives for supporting the val-

idation of the aforementioned properties of process

models (structural relations/hierarchies and dynamic

behavior). Key issues that have to be considered are:

• Ability to specify a wide range of requirements.

• Effort for implementing these solutions as well as

extensibility, e.g. for new kinds of speciﬁcation or

new checking techniques.

• Degree of integration from the users perspective.

• Compatibility of the validation results.

3.2.1 Singular Validation Technique

Here a single checking technique is used to check the

process models against the requirements. For a exam-

ple ﬁrst order logic actually allows reasoning about

behavioral properties as well (Bérard et al., 2001). Or

a model checker may be used to check structural prop-

erties, e.g. by checking an expression like AG(p),

where p is a Boolean statement, which must be true

in every state of the process (AG operator).

A singular validation technique needs to be quite

generic in order to allow the checking of a wide range

of requirements. The more generic the technique is,

the less abstraction is offered. This may raise the

complexity of mapping process model and require-

ment speciﬁcations, resulting in high implementation

effort. The mapping procedure is even responsible for

providing an acceptable efﬁciency. Results of a singu-

lar validation technique cannot be incompatible. Nev-

ertheless, a complex mapping towards the checking

tool, may induce a complex mapping of results into

an appropriate visualization in the process model.

Changing the validation technique, may have a

strong impact on the mapping for all kinds of spec-

iﬁcations, making it less extensible.

Such a generic technique and a powerful mapping

may allow various levels of abstraction for require-

ment speciﬁcation, presented to the user. The proce-

dure of integration is (ideally) not visible to the user.

3.2.2 Multiple Dedicated Checking Systems

This is for sure the simplest solution. It is up to the

user to chose the veriﬁcation technique, to formulate

the speciﬁcation in the correct syntax and semantics

and to interpret the results. In a certain case this is the

most open solution, since the modeling system acts

as an editor, providing to model data via interfaces to

checking systems. In contrast to the ﬁrst approach,

this simple solution leaves the effort to integrate the

models, speciﬁcations, checking technique and result

presentation to the user, it actually provides no tool-

based support regarding the integration.

3.2.3 Uniﬁed Validation System

In case of a more elaborated validation system like

BAM it may be of interest to have an integrated vali-

dation. This means that two or more validation tech-

nologies are integrated into one (modeling and) vali-

dation system. Such a system allows the user to spec-

ify structural as well as behavioral properties in a sim-

ilar manner. Then the validation system chooses auto-

matically the corresponding transformation algorithm

and checking tool, executes the checking and returns

ENASE2013-8thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

248

the result. In the simplest case, the selection of the

right validation technique is based on the operators

which are used in the speciﬁed rule. But there is a va-

riety of criteria that could be considered in the selec-

tion process (e. g. strictness or performance issues).

Technically, the integration of the different valida-

tion techniques can be realized with a layered struc-

ture of the validation system: modeling and speciﬁca-

tion layer, transformation layer and validation layer.

We just have to introduce a further validation technol-

ogy in the validation layer and we need to adapt the

transformation in order to connect the further valida-

tion technology.

An advantage of this solution is that different val-

idation technologies are provided in one tool for the

speciﬁcation of processes and rules. If the user does

have knowledge about validation techniques he may

choose the desired technique explicitly or the valida-

tion system may automatically chose the appropriate

validation technology.

This third solution has the problem of extra effort

to integrate the validation technologies. This requires

also the realization of speciﬁc transformation con-

cepts. For example, a transformation into the struc-

tural and behavioral model as well as the requirements

transformation into the appropriate representation for

the checking tool. Furthermore, it may be possible to

combine different speciﬁcation languages in one rule

modeling language. This combination requires a spe-

cial consideration in the transformation and the exe-

cution of the checking tool respectively. Besides the

mentioned higher effort for this solution the extended

transformation allows the deﬁnition of a common in-

terface for the validation concerning the usage of the

system and concerning the validation result. In gen-

eral, an integrated validation concept looks promis-

ing. Being able to choose the appropriate checking

technology would make the validation more efﬁcient

than the ﬁrst solution but it bears the option to provide

different validation technologies to the user.

Solution 2 is quite easy to realize from the mod-

eling tool perspective, but does not provide any tool-

based support for the integrated validation, leave the

effort to use different validation techniques to the

user. It requires the understanding of different mod-

eling and speciﬁcation languages. For solution 1 the

effort and capabilities depend on how generic the val-

idation technique is. Although it might increase con-

sistency in the speciﬁcation, we consider the mapping

effort, which actually realizes integration, as too high.

Also changing or extending the validation technique

induces high effort.

The third solution can be seen as an integrated

validation system which may be enhanced to further

checking technologies and may provide a unique user

interface. The drawback of solution 3 is the higher

effort to realize the integration of the validation tech-

nologies (including the translation and transformation

mechanisms).

4 DESIGN OF AN INTEGRATED

VALIDATION

The realization of the concept we propose is based

on the validation system BAM (Business Application

Modeler). BAM has a layered design with the three

layers: business process and speciﬁcation (rule) mod-

eling layer on top. An intermediate transformation

layer and the veriﬁcation tool layer at bottom.

4.1 Rule Modelling

BAM provides a graphical interface for modeling

rules (speciﬁcations) very close to the graphical no-

tation of the process models, called graphical valida-

tion rules. Basically, the meta model of these rules

consist of the graphically represented set of opera-

tors of a certain speciﬁcation language (e.g. Boolean

Logic or Computation Tree Logic) and a subset of

the meta model of the process modeling notation of

models to be checked. Rules are speciﬁed by con-

necting patterns of process elements and operators of

the speciﬁcation language. The rule modeler does not

have to know anything about the representation of the

process model in the checking tool.

An example for such a graphical validation rule

notation is the Graphical Computation Tree Logic (G-

CTL), ﬁrst introduced in (Feja and Fötsch, 2008). G-

CTL provides a graphical representation of all oper-

ators of the textual speciﬁcation language CTL, i.e.

Future, Globally, neXt or Until which are combined

with path quantiﬁers Exist and Always. The atomic

expressions of G-CTL rules are speciﬁed by patterns

of process elements. These patterns are atomic in

terms of time, i.e. they can exist in a step in the dis-

crete model of time in CTL. They are not atomic in

terms of the process modeling notation. G-CTL has

different appearances for different process modeling

notations. E.G. for the Event-driven Process Chains

(EPC), we call G-CTL correspondingly EPC-G-CTL.

Hence, the modeling component of BAM can eas-

ily be extended by further speciﬁcation languages

(e.g. Boolean Logic, CTL* or LTL) for different pro-

cess modeling notations.

Figure 1 depicts an example for an EPC-G-CTL

speciﬁcation. Besides the temporal operators with

path quantiﬁers, Boolean operators are contained as

IntegratingValidationTechniquesforProcess-basedModels

249

i=1

external

i=1

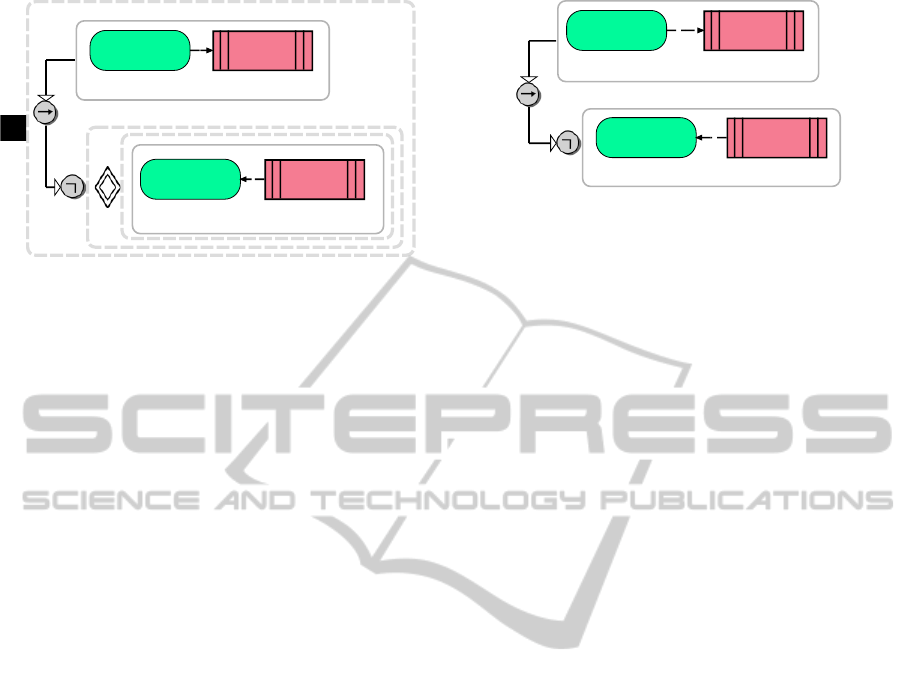

Figure 1: EPC-G-CTL rule: Personal data must not be ac-

cessed externally.

well. Dashed boxes can be understood as brackets.

Solid boxes contain the patterns of process elements.

The example in ﬁgure 1 is a rule for handling

data privacy, further examples are described in (Witt

et al., 2012). Prosaically the rule can be read as fol-

lows: Once personal data are created by a function,

they must not be read by a function with the attribute

external. Reading the rule in terms of the operators

means: In any state of the process (always globally)

holds: If (implication) a function occurs, creating per-

sonal data (indicated by the attribute pd) then from

this state on there must not (not operator) exist any

course of action which eventually (Exists in Future)

leads to a state, where a function with the attribute ex-

ternal reads the data, created before. The request for

the identity of these data is speciﬁed by the identity

constraint i = 1 in the data cluster.

Although this is a valid (EPC-G-)CTL rule it may

be sufﬁcient for most processes to express this rule

without the overhead of evaluating temporal opera-

tors. This is because the order of these patterns of

process elements, does not matter regarding the pro-

hibition of using personal data externally. (The re-

quirement that data should be created before they are

used could be expressed more generally by a further

behavioral rule.)

We propose the solution to use another valida-

tion technique that allows to validate against struc-

tural properties, expressed in Boolean logic. Such a

graphical validation rule is depicted in ﬁgure 2. The

logic is similar to the logic of the G-CTL rule in ﬁg-

ure 1, but temporal operators have been omitted. The

syntax is basically the same. In this rule the existence

of a function, creating personal data, implies the non-

existence of an "external function", using these data.

4.2 Checking Techniques Integration

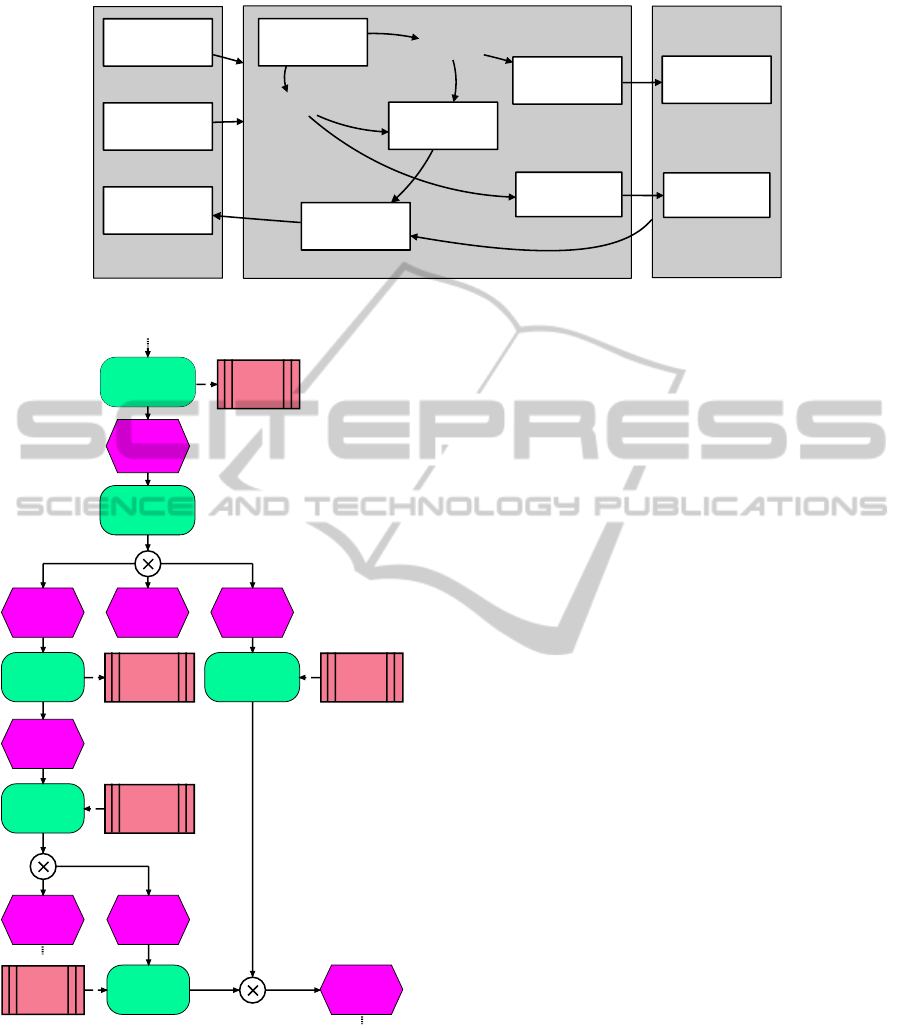

Above, we already introduced the layers of our in-

tegration architecture, which is outlined in ﬁgure 3.

i=1

external

i=1

Figure 2: Graphical structural rule: collected personal data

implies that it is not accessed externally.

The modeling layer basically provides three features:

Modeling of processes, modeling of graphical vali-

dation rules and generic mechanisms to visualize the

checking results inside the process models. The trans-

formation layer is triggered by passing process mod-

els and rules to it. We will describe this layer more

detailed in the following section. The validation layer

is responsible for executing the checking techniques

and returns the checking results to the transformation

layer, which ﬁnally uses the visualization capabilities

of the modeling layer to visualize results.

The transformation layer is the core component of

the proposed integration architecture and will be de-

scribed in the following. We are going to illustrate

this with an example process, shown in ﬁgure 4 and

the example rules in ﬁgure 1 and 2. The example pro-

cess shows a cut-out of a payment process.

4.2.1 Choosing the Evaluation Path

The basic rule processing starts with analyzing in-

coming rules. Here the transformation layer decides

on basis of the operators in the rule, which check-

ing technique to use. Roughly we distinguish be-

tween structural and behavioral evaluation path. For

the behavioral path the model checker Cadence SMV

(McMillan and Cadence Berkeley Labs, ) is currently

adapted. For structural evaluation, SWI Prolog is

adapted. Both paths also allow a direct evaluation for

"simple" cases.

The basic decision between both evaluation paths

is quite simple: The behavioral path will be taken, if

the rule contains temporal operators as in ﬁgure 1. In

case of purely Boolean operators (ﬁgure 2), the struc-

tural evaluation path is chosen.

4.2.2 Behavioral Evaluation Path

Still in the step of basic rule processing, the graphical

rules are preprocessed by identifying the places in the

process model, which are matched by the patterns of

process elements in the rule. We call such places sub-

states, which are atomic parts of the process model in

ENASE2013-8thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

250

tool based

evaluation

(e.g. Prolog)

model checking

direct evaluation

basic rule

processing

behavioral property

structural

transformation

(e.g. Prolog)

result processing

structural property

semantic model

transformation

Transformation Layer

Validation Layer

Modeling &

Speciﬁcation Layer

process modeling

rule modeling

result visualization

Figure 3: Outline of the checking technique integration in BAM.

customer

data

entered

credit

card

payment

cash on

delivery

record

outstanding

cash on delivery

credit

card data

entered

external

charge credit

card

payment

failed

payment

succeeded

book

received

amount

payment

processed

order

canceled

customer

data

customer

selects payment

method

customer enters

credit card data

customer

data

credit card

data

credit card

data

customer

enters data

customer

data

Figure 4: EPC business process model sample.

terms of time consumption. E. g. for EPC a function

and all objects attached by non-control ﬂow edges

(clusters, systems etc.) form a sub-state. Sub-states

are connected via the control ﬂow and can be concur-

rently active, therefore, the patterns in G-CTL may

not contain control ﬂow elements.

The rule in ﬁgure 1 contains two patterns. For

each pattern a (possibly empty) set of matching

sub-states can be identiﬁed. Regarding the exam-

ple process, the ﬁrst pattern of the rule matches

the sub-state around the function customer enters

data (let this be sub-state s

) and customer enters

credit card data (sub-state s

), both connected to

a data cluster with the attribute pd via outgoing data

ﬂow. For the second pattern only the function charge

credit card and the corresponding cluster matches

(sub-state s

Due to the identity constraints (i = 1) for the data

cluster, not every assignment of matching sub-states

to the patterns is consistent. Therefore, consistent as-

signments of substates to the patterns are determined

and will be evaluated in a dedicated instance of the

rule. Regarding the example rule, the clusters need

to be named identically, which is only the case for s

and s

. This is the ﬁrst instance of the rule to be eval-

uated. For assigning s

to the ﬁrst (upper) pattern,

the second pattern is constantly set to false, since no

matching sub-state exists. This is the second instance

of the rule to be evaluated.

Next, for each rule instance will be checked, if

it can be evaluated directly. Currently, direct eval-

uation is performed for trivial cases like the second

instance, where the result can be determined without

actually observing the process behavior. Because the

second pattern is set to false, the EF operator evalu-

ates to false. This is inverted to true by the negation

and therefore the implication is always true, which al-

ways satisﬁes the AG operator. This direct evaluation

is performed by simply using a parse tree of the rule.

The evaluation of the ﬁrst instance is not as triv-

ial. Here, model checking will be used. Therefore the

semantic model transformation will be performed. In

this step the process model is transformed into a rep-

resentation, readable as input for the Cadence SMV.

This representation describes the dynamic behavior

of the process, i. e. all possible sequences of sub-state

activity. Hence, an execution semantic needs to be ap-

plied in this step. The rule instances to be checked by

IntegratingValidationTechniquesforProcess-basedModels

251

the model checker are transformed straight forward,

where the patterns are replaced by tests for the activ-

ity of the assigned sub-states.

Running the model checker leads to a counter ex-

ample for each rule instance, violated by the pro-

cess model. A counter examples provides a sequence

of the involved sub-states, causing a rule violation,

which can be utilized to visualize the error. Here, the

second rule is violated by the example process, since

a state exists where s

is active and from where a state

can be reached in which s

is active.

4.2.3 Structural Evaluation Path

The structural evaluation path currently also chooses

between a direct evaluation and the utilization of a

checking tool like Prolog. For now the criteria applied

for this decision is the "complexity" of the patterns. In

contrast to model checking, the pattern matching and

evaluation of identity constraints can be implemented

quite elegant in Prolog. Moreover, the notion of sub-

states as in the behavioral evaluation has not the same

relevance for structural observations. Here, the pat-

terns may also contain control ﬂow elements.

For simple patterns also a direct evaluation is pos-

sible, similar to the direct evaluation in the behavioral

path. Here again, the rule instances are created in

the same way, for the rule in ﬁgure 2, which has the

same pattern and therefore the same consistent assign-

ments. If an assignment for a pattern is found, it is set

to true, otherwise to false. Hence, in case of the ﬁrst

instance, both patterns are set to true and the rule eval-

uates to false. For the second instance the ﬁrst (upper)

pattern is true, the second false and the rule is true.

For more sophisticated rules, a structural transfor-

mation into Prolog is implemented, which will not be

described in detail. However, the graph structure of

the process model is transformed into the knowledge-

base of Prolog, including node and edge types. Rules

are transformed into Prolog requests. Although this

procedure is similar to the model checker based eval-

uation, it is not as expensive, since no execution se-

mantic needs to be applied.

4.2.4 Result Processing and Visualization

Once results are returned, available information like

error traces or matched patterns are used to visualize

the error in the process model. Figure 5 depicts the vi-

sualization for the violation of the rule in ﬁgure 2, de-

termined by the structural evaluation path. Currently,

critical elements of the process model are highlighted.

credit

card

payment

credit

card data

entered

external

charge credit

card

order

canceled

customer enters

credit card data

credit card

data

credit card

data

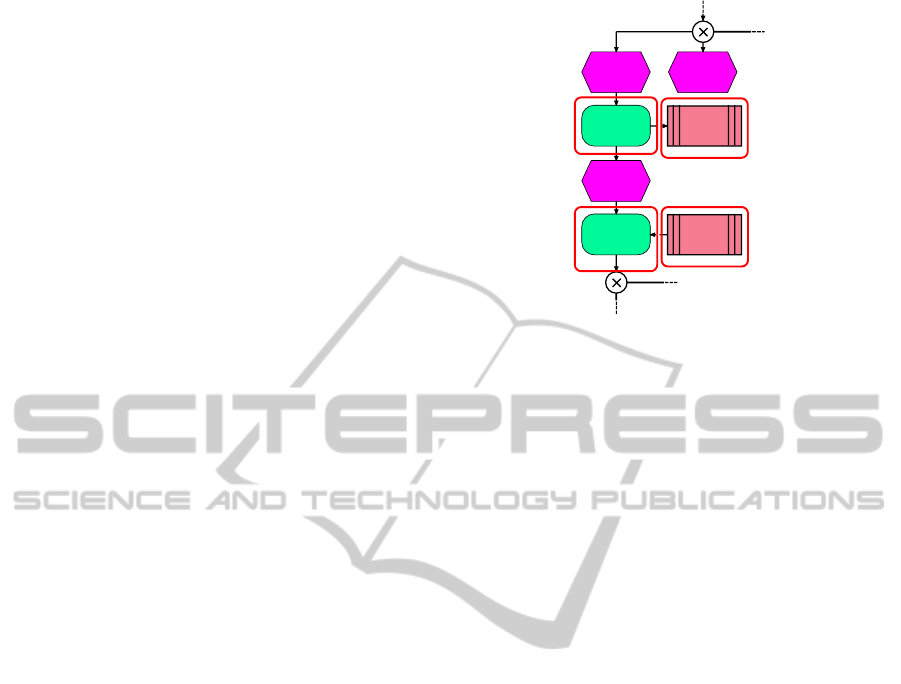

Figure 5: Error visualization in process model sample.

5 CONCLUSIONS

This paper presents concepts to integrate different val-

idation techniques in one easy to use system, based

on the Business Application Modeler. The valida-

tion techniques are integrated in or by the transfor-

mation layer between the modeling and speciﬁcation

layer and the validation layer. In our work we fo-

cus on the validation of business process models. The

approach hides the complexity of transformation and

choice of checking techniques from the users and pro-

vides a uniﬁed user interface. This enables checking

of sophisticated requirements on a functional level for

users, that are not necessarily familiar with the formal

syntax and semantics of different elaborated checking

techniques.

Current work in progress is the conjunction of

structural and behavioral requirement speciﬁcations.

Such a combined language could deliver an unique

speciﬁcation mechanism and would be more expres-

sive at the same time. To achieve this, the notation for

graphical validation rules needs to be extended and

the integration mechanisms must be able to manage

the evaluation of such rules efﬁciently. Moreover we

intend to extend the selection mechanism of the ap-

propriate validation technique.

A further problem, which may be addressed by the

validation of business processes, may be constraint

satisfaction. Constraints may be useful when trade-

offs between different business process solutions have

to be made. Bi-simulations would also be of interest.

With bi-simulations different models may be com-

pared. For instance this may help to validate the se-

mantically identity of processes on different levels of

abstraction.

ENASE2013-8thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

252

REFERENCES

Anderson, B. B., Hansen, J. V., Lowry, P. B., and Summers,

S. L. (2005). Model checking for design and assurance

of e-Business processes. Decision Support Systems,

39(3):333–344.

Awad, A. M. H. A. (2007). BPMN-Q: A Language to Query

Business Processes. In Reichert, M., Strecker, S., and

Turowski, K., editors, Proceedings of the 2nd Int’l

Workshop Enterprise Modelling and Information Sys-

tems Architectures Concepts and Applications, pages

115–128, Bonn. Gesellschaft für Informatik.

Baader, F., Calvanese, D., McGuinness, D. L., Nardi, D.,

and Patel-Schneider, P. F., editors (2003). The descrip-

tion logic handbook: theory, implementation, and ap-

plications. Cambridge University Press, New York,

NY, USA.

Bérard, B., Bidoit, M., Finkel, A., Laroussinie, F., Petit, A.,

Petrucci, L., and Schnoebelen, P. (2001). Systems and

Software Veriﬁcation – Model-Checking Techniques

and Tools. Springer, Berlin, Germany.

Bormann, J., Fedeli, A., Frank, R., and Winkelmann, K.

(2005). Combined Static and Dynamic Veriﬁcation,

Version 2, Public Version March 31st, 2005, (Deliver-

able 3.1/1), Research Report. Technical report, project

PROSYD, European IST.

Bradﬁeld, J. and Stirling, C. (2001). Modal logics and mu-

calculi: an introduction. In Handbook of Process Al-

gebra, pages 293–33. Elsevier Science Publishers.

Chechik, M., Devereux, B., Easterbrook, S., and Gurﬁnkel,

A. (2003). Multi-Valued Symbolic Model-Checking.

ACM Transactions on Software Engineering Method-

ology, 12(4):371–408.

Deutch, D. and Milo, T. (2007). Querying Structural

and Behavioral Properties of Business Processes. In

Proceedings of the 11th international conference on

Database programming languages, pages 169–185,

Berlin / Heidelberg. Springer Verlag.

Emerson, E. A. and Clarke, E. M. (1980). Characteriz-

ing Correctness Properties of Parallel Programs Us-

ing Fixpoints. In ICALP 1980, Automata, Languages

and Programming, 7th Colloquium, pages 169–181.

Springer LNCS 85.

Fahland, D., Favre, C., Jobstmann, B., Köhler, J., Lohmann,

N., Völzer, H., and Wolf, K. (2009). Instantaneous

Soundness Checking of Industrial Business Process

Models. In Proceedings of the 7th International

Conference on Business Process Management (BPM

2009), pages 278–293. Springer, LNSC 5701.

Feja, S. and Fötsch, D. (2008). Model Checking with

Graphical Validation Rules. In Proceedings of the

15th IEEE International Conference on the Engineer-

ing of Computer-Based Systems (ECBS 2008), pages

117–125. IEEE.

Feja, S., Witt, S., and Speck, A. (2011). BAM: A Re-

quirements Validation and Veriﬁcation Framework for

Business Process Models. In 11th International Con-

ference On Quality Software, pages 186–191, Los

Alamitos, CA, USA. IEEE Computer Society.

Förster, A., Engels, G., Schattkowsky, T., and

Van Der Straeten, R. (2007). Veriﬁcation of

Business Process Quality Constraints Based on Visual

Process Patterns. In Proceedings of the First Joint

IEEE/IFIP Symposium on Theoretical Aspects of

Software Engineering (TASE ’07), pages 197–208.

Gruhn, V. and Laue, R. (2007). Checking Properties of

Business Process Models with Logic Programming.

In 5th International Workshop on Modeling, Simu-

lation, Veriﬁcation and Validation of Enterprise In-

formation Systems (MSVVEIS’07), pages 84–93. IN-

STICC PRESS.

Köhler, J., Tirenni, G., and Kumaran, S. (2002). From Busi-

ness Process Model to Consistent Implementation: A

Case for Formal Veriﬁcation Methods. In 6th Interna-

tional Enterprise Distributed Object Computing Con-

ference (EDOC 2002), pages 96–106.

Kozen, D. (1983). Results on the propositional mu-calculus.

Theoretical Computer Science, 3(27):333–354.

May, W. (1998). Integrated Static and Dynamic Modeling

of Processes. PhD thesis, Universität Freiburg, Ger-

many.

McMillan, K. and Cadence Berkeley Labs. The cadence

smv model checker.

McMillan, K. L. (1993). Symbolic Model Checking. Kluwer

Academic Publishers.

Morimoto, S. (2008). A Survey of Formal Veriﬁcation for

Business Process Modeling. In 8th International Con-

ference on Computational Science, pages 514–522.

Springer.

Pulvermüller, E. (2002). Composition and Correctness. In

SC 2002: Workshop on Software Composition, vol-

ume 65 of Electronic Notes in Theoretical Computer

Science (ENTCS). Elsevier Science Publishers.

Pulvermüller, E., Feja, S., and Speck, A. (2010).

Developer-friendly veriﬁcation of process-based sys-

tems. Knowledge-based Systems, 23(7):667–676.

Speck, A. (2006). Modelling and Verifying of e-Commerce

Systems. In Proceedings of International Work-

shop on Regulations Modelling and their Validation

and Veriﬁcation (REMO2V’06) in conjunction with

CAiSE’06, pages 857–863.

van der Aalst, W. M. P. (1999). Formalization and Veriﬁca-

tion of Event-driven Process Chains. Information and

Software Technology, 41(10):639–650.

van Dongen, B. F., Jansen-Vullers, M. H., Verbeek, H.

M. W., and van der Aalst, W. M. P. (2007). Veriﬁ-

cation of the SAP reference models using EPC reduc-

tion, state-space analysis, and invariants. Computers

in Industry, 58(6):578–601.

Weitl, F. and Nakajima, S. (2011). Integrated model check-

ing of static structure and dynamic behavior using

temporal description logics. Electronic Communica-

tions of the ECEASST, 46:1–16.

Witt, S., Feja, S., Speck, A., and Prietz, C. (2012). Inte-

grated privacy modeling and validation for business

process models. In Proceedings of the 2012 Joint

EDBT/ICDT Workshops, EDBT-ICDT ’12, pages

196–205, New York, NY, USA. ACM.

Xu, K., Liu, Y., and Wu, C. (2008). BPSL Modeler – Vi-

sual Notation Language for Intuitive Business Prop-

erty Reasoning. Electronic Notes in Theoretical Com-

puter Science, 211:211–220.

Xu, Z. (2008). Combination of Model Checking and The-

orem Proving to Develop and Verify Embedded Soft-

ware. Information Technology Journal, 7(4):623–630.

IntegratingValidationTechniquesforProcess-basedModels

253
