Requirements Engineering with Agent-Oriented Models

Tanel Tenso and Kuldar Taveter

Department of Informatics, Tallinn University of Technology, Raja 15, 12618, Tallinn, Harjumaa, Estonia

Keywords:

Requirements Engineering, Agent-Oriented Modeling, Systems Modeling, User Stories, Agile Development.

Abstract:

This paper provides a solution how to gather requirements using modiﬁed principles of agent-oriented mod-

eling. By simplifying the concepts of agent-oriented modeling for requirements engineering we have found

that this kind of modeling can be used in various software development projects including agile software de-

velopment for agile requirements engineering. To verify our theories, we’ve used our practice in two real-life

projects. This paper contains summary of ideas and practices developed during these projects.

1 INTRODUCTION

There is evidence that main cause for the failure of

software projects is missing stakeholder input and in-

valid requirements (Group, 1995; El Emam and Koru,

2008). We have encountered these problems also in

our work. This has prompted us to come up with

a novel idea to mitigate the problem of collecting

and documenting requirements. In the center of our

approach to requirements engineering (RE) lies us-

ing the goal modeling technique from agent-oriented

modeling (AOM) as a backbone for requirements elic-

itation and representation. Goal modeling alone is not

a new idea because goal-based RE is described by

several authors (Hull et al., 2011; Sillitti and Succi,

2005; Dardenne et al., 1993; van Lamsweerde, 2001;

van Lamsweerde, 2009). The novelty of our ap-

proach is linking goal models to user stories (Cohn,

2004), which are regarded as most widely used re-

quirements documentation artifacts in agile software

development (ASD) (Ramesh et al., 2010; Cao and

Ramesh, 2008). In this paper we present our tech-

nique for improving RE in both agile and non-agile

settings.

We have successfully tried out our approach in

two real-life projects. The nature of these projects

is different: one is concerned with complementing

an existing client-server web application with a new

functionality, while the other addresses RE for a large

crisis simulation system. In this paper we use the ex-

amples from these experiments for illustrating our ap-

proach. We plan to publish ﬁndings from these appli-

cations as detailed case studies.

The structure of this paper is as follows. In Sec-

tion 2, we provide short overviews of RE, ASD and

brieﬂy describe AOM. In Section 3, we present our

approach of using AOM in RE, and illustrate it with

examples from application projects. In Section 4,

we discuss anecdotal evidence received from real-life

projects and set future research directions.

2 BACKGROUND

To summarize RE very shortly we can say that it is

process for ﬁnding out, analyzing, documenting and

checking requirements for what and how should some

complex system work (lan Sommerville and Sawyer,

1997; Hull et al., 2011; Kotonya and Sommerville,

1998; Sommerville, 2010). RE is quite a wide area

and in the context of this paper we concentrate on the

requirements elicitation activity. We leave validation

and management of requirements out of the scope.

ASD can be viewed as consisting of agile prac-

tices. In ASD the emphasis is on code and collabora-

tion rather than on documentation and up-front elici-

tation (Alliance, 2013; Paetsch et al., 2003). In prin-

ciple RE processes are present in ASD but they are

less distinctive and iterative. Identifying a link be-

tween RE and ASD has been the goal for several re-

searchers (Haugset and Stalhane, 2012; Paetsch et al.,

2003; Cao and Ramesh, 2008).

Due to preferring collaboration over documenta-

tion, there are different approaches for documentation

in agile projects. Some are quite radical by minimiz-

ing documentation to almost non-existing (Cockburn,

2002), while some others acknowledge the need for

some documentation (Ambler, 2002). We take the

254

Tenso T. and Taveter K..

Requirements Engineering with Agent-Oriented Models.

DOI: 10.5220/0004569302540259

In Proceedings of the 8th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2013), pages 254-259

ISBN: 978-989-8565-62-4

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

latter viewpoint. Several researchers (Ambler, 2002;

Beck, 2008; Kazyrevich, 2010) have proposed ideas

to be considered when collecting and documenting re-

quirements in ASD projects. We have used principles

that have been expressed in a more detailed context

by (Ambler, 2002). The author subsumed his research

results under the term ”Agile Modeling” (AM), which

is essentially a practice-based methodology for effec-

tive modeling and documentation of software-based

systems. For example, we have adapted the number

and content of models usually used in AOM to match

the AM principle “just barely enough”.

User story is one of the most popular requirements

artifact in ASD (Cohn, 2004; Ramesh et al., 2010;

Paetsch et al., 2003). There are several approaches

to user stories in agile development, out of which we

have employed in our approach a format proposed by

(Cohn, 2004). A user story includes a written sen-

tence or two and should invoke a series of conversa-

tions about the desired functionality. The format of

composing user stories can be described as follows:

1. A user story is a short, simple description of a fea-

ture described from the perspective of the person

or role who desires the new capability, usually a

user or customer of the system.

2. The template for user stories could correspond to

the following pattern according to (Cohn, 2004):

As a htype of user or rolei, I want/must hsome

goali so that hsome reasoni.

3. A user story must be small enough to be imple-

mented within one iteration. Large user stories

must be divided into smaller user stories.

Final cornerstone of our approach is agent-

oriented modeling (AOM) (Sterling and Taveter,

2009). AOM is a holistic approach for analyzing

and designing socio-technical systems consisting of

humans and technical components. The case stud-

ies (Miller et al., 2011; Miller et al., 2012; Taveter

et al., 2012) and several others have demonstrated

that the agent-oriented paradigm is useful for require-

ments engineering and design, irrelevant of whether

the eventuating system is a multi-agent system in the

classical sense (Wooldridge, 2001). AOM is centered

on the notion of agent

We have selected AOM as the central part of our

RE and design approach because the types of models

included by AOM are clear and understandable for

all stakeholders when building any complex socio-

technical system (Miller et al., 2011). AOM canon-

ical models are described in detail by (Sterling and

Agent is an entity that performs speciﬁc activities in

an environment of which it is aware and can respond to

changes in the environment.

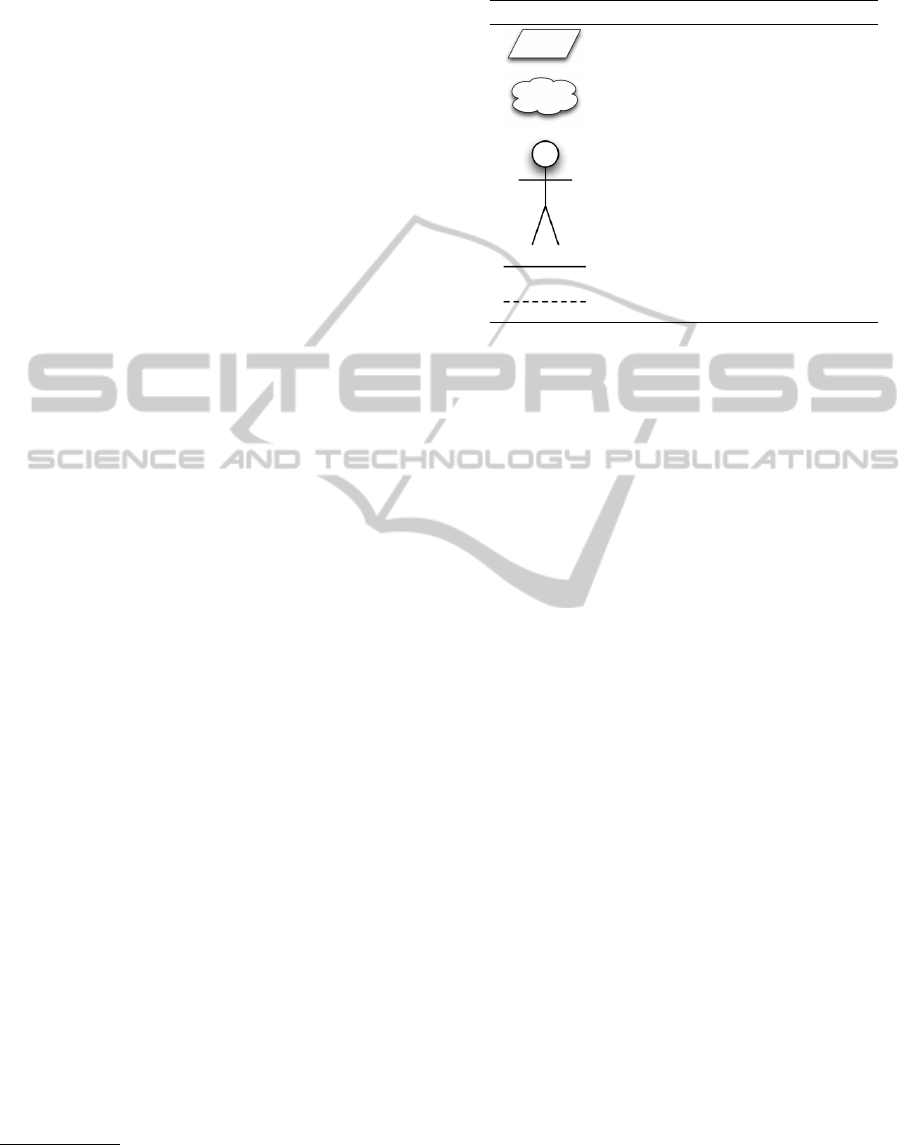

Table 1: Notation for modeling goals and roles.

Symbol Meaning

Goal

Quality goal

Role

Relationship between goals

Relationship between goals and

quality goals

Taveter, 2009). Next we will give an overview of two

models that we decided to use from the AOM method-

ology in our approach for RE. These are goal models

and behavioral scenarios.

Goal model can be considered as a container of

three components: goals, quality goals, and roles

(Sterling and Taveter, 2009). A goal is a representa-

tion of a functional requirement of the socio-technical

system. A quality goal, as its name implies, is a

non-functional or quality requirement of the system.

Goals and quality goals can be further decomposed

into smaller related sub-goals and sub-quality goals.

The hierarchical structure is to show that the subcom-

ponent is an aspect of the top-level component. Func-

tional goals represent functional requirements, while

quality goals represent non-functional requirements.

Goal models also determine roles that are capacities

or positions that are needed to achieve the goals. In

the original AOM methodology roles are modeled

in detail by role models in the viewpoint of interac-

tion analysis. The notation for representing goals and

roles is shown in Table 1.

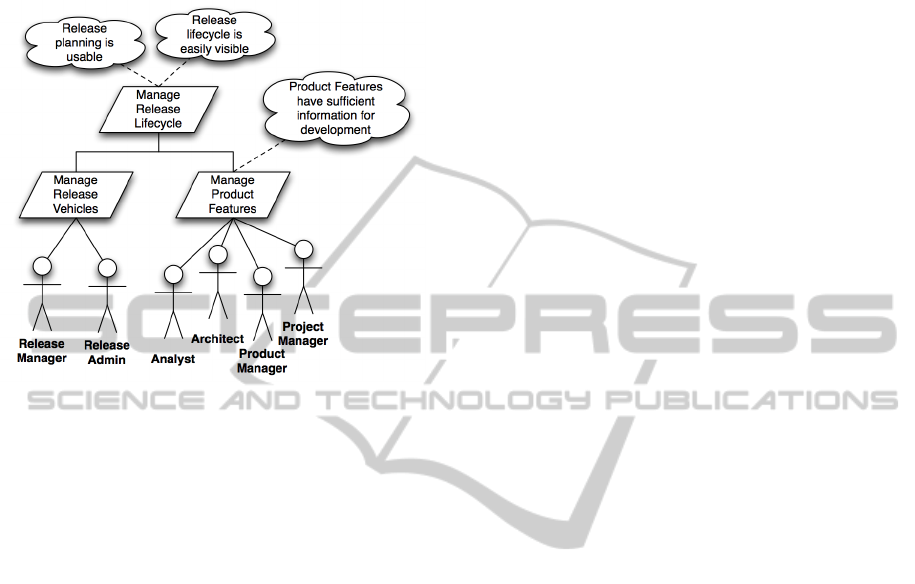

An example of a goal model is represented on

Figure 1. The example is taken from the Release

Management System (RMS) project that is brieﬂy

described in Section 3. The model expresses that

the highest-level goal – purpose – of the system is

“Manage Release Lifecycle”. This goal is elaborated

into two sub-goals. The ﬁrst of them – Manage Re-

lease Vehicles – is performed by the roles Release

Manager and Release Admin. Achieving of the sec-

ond sub-goal – Manage Product Features – requires

the roles Analyst, Architect, Product Manager, and

Project Manager. We can also see that Figure 1 repre-

sents several quality goals describing non-functional

requirements that characterize how functional goals

should be achieved. For example, the quality goal at-

tached to the functional goal “Manage Product Fea-

RequirementsEngineeringwithAgent-OrientedModels

255

tures” expresses that Product Features (whatever they

are, this is not important here) should be managed in

such a manner that they have sufﬁcient information

for development.

Figure 1: An excerpt of the main goal model for the RMS.

The setup and usage of goal models is quite sim-

ilar to the principles suggested by (Hull et al., 2011).

Like in some other modeling frameworks like i*(Yu,

1996; Bresciani et al., 2004), in AOM non-functional

requirements can be represented as quality goals vi-

sually separated from functional goals but at the same

time linked to them. A resulting goal model con-

tains sufﬁcient amount of information, but compared

to i*(Yu, 1996; Bresciani et al., 2004) is still simple to

understand for all participants in RE process (Sterling

and Taveter, 2009; Miller et al., 2011). We consider

goal models to be used for high-level problem domain

analysis rather than for system-speciﬁc design. We

employ for design user stories from ASD methodol-

ogy.

A behavioral scenario in the AOM methodology

describes how agents achieve the goals set for the

system by performing a sequence of activities (Ster-

ling and Taveter, 2009). In our approach to RE, we

modiﬁed the original format of behavioral scenarios.

A behavioral scenario of the resulting kind describes

the sequence of activities required for achieving the

goals, as well as the resources used by and the roles

involved in the scenario.

An example behavioral scenario is represented in

Table 2. This behavioral scenario consists of a se-

quence of activities that are required for achieving the

“Manage Release Vehicles” goal modeled in Figure 1.

The scenario also includes its initiating role(s), trig-

gering condition, and failure condition. The latter de-

scribes the state of affairs in case the scenario fails.

For each activity is shown the condition for perform-

ing the activity. The implicit performing condition is

“Sequential”.

3 METHOD

Goal based requirements modeling in RE has been

found to be useful by several authors (Hull et al.,

2011; Sillitti and Succi, 2005). User stories have been

connected to RE in several publications about require-

ments‘ collecting problems in ASD (Sillitti and Succi,

2005; Ramesh et al., 2010; Haugset and Stalhane,

2012). One can conclude based on these sources that

user stories can basically be viewed as goals (Haugset

and Stalhane, 2012; Vanhanen et al., 2009). This was

one important factor contributing to the idea of con-

necting user stores to AOM goal models.

We have tried our combined approach out in two

real-life applications. The ﬁrst application was devel-

oping a RMS. The purpose of the project was to en-

hance an existing Issue Management System (IMS)

with additional functionality for release management.

The second was a real-life project on developing a cri-

sis simulation system. The purpose of this project

was to provide a universal tool for studying evolve-

ments of different kinds of crises, such as earth-

quakes, ﬂoods, industrial accidents, etc., and train-

ing personnel for the crises. Both projects are quite

different starting from the scope and ending with the

number of participants.

Our purpose in both projects was to ﬁnd if our ap-

proach combining AOM and user stories could im-

prove communication between participants in soft-

ware process. The rationale for choosing AOM was

its simplicity and the fact that goal-based approaches

to requirements engineering have considerably im-

proved communication in various software engineer-

ing projects (Miller et al., 2011). We chose user sto-

ries because they are common for ASD (Cohn, 2004).

In the following, we will outline the software en-

gineering process of our approach. The following de-

scription is illustrated by Figure 2:

1. Create the top-level hierarchical goal model:

1.1. Determine the purpose of the socio-technical

system being designed. Represent the purpose

of the system as the root goal. For example in

Figure 1 the root goal is “Manage Release Life-

cycle”.

1.2. Elaborate the main goal into sub-goals, each

representing an aspect of achieving the main

goal. For example, in Figure 1 the main goal

has been elaborated into the Manage Release

ENASE2013-8thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

256

Table 2: Manage Release Vehicles behavioral scenario.

SCENARIO 2

Goal Manage Release Vehicles

Initiator Release Manager, Release Admin

Trigger New planning session begins

Failure No Release Vehicle will be produced

Cond. Step Activity Roles Resources/

Knowledge Items

Additional comments on design

Optional,

Interleaved

1 Create Release

Category

Release

Admin

Release Category Deﬁne category name and order

2 Create Release

Track

Release

Admin

Release Track Deﬁne track name and order

3 Create Release

Status

Release

Admin

Release Status Deﬁne status name and order

Sequential

4 Create Release

Vehicle

Release

Man-

ager

Release Vehicle,

Release Track,

Release Status,

Release Category

Release Vehicle has some prelimi-

nary metadata deﬁned

5 Edit Release

Vehicle

Release

Admin

Release Vehicle,

Release Track,

Release Status,

Release Category

Release Vehicle metadata is changed

to appropriate values when release

scope and responsible persons have

approved the change

Optional 6 Delete Re-

lease Vehicle

(Scenario 7)

Release

Man-

ager

Release Vehicle,

Issue

Release Vehicle is deleted, a con-

nected objects of the Issue type are

associated with another Release Ve-

hicle or the connection is deleted

Vehicles and Manage Product Features sub-

goals.

1.3. For the main goal and its sub-goals: where ap-

propriate, complement a functional goal with a

quality goal, representing a quality aspect of

achieving the functional goal. For example,

in Figure 1 the functional goal Manage Prod-

uct Features has been modiﬁed by the quality

goal Product Features have sufﬁcient informa-

tion for development”.

2. Elaborate the top-level goal model into lower-

level goals:

2.1. Choose each sub-goal of the top-level goal

model as the main goal.

2.2. Apply step 1 of the process to the main goal.

3. Repeat elaboration of the goal model until you

have reached the lowest level of reasonable and

achievable goals:

3.1. Lowest level goal model is usually a goal that

can be accomplished by single role or accom-

plishing goal can be easily described.

3.2. Revise goal models at any point whenever more

accurate information becomes known.

4. Elaborate lowest level of sub-goals with behav-

ioral scenarios, the format of behavioral scenarios

is deﬁned by Table 2:

4.1. Add temporal and conditional perspectives to

achieving the goals in behavioral scenarios.

4.2. List goals as activities in behavioral scenarios,

adding additional information about what to do

4.3. Specify roles, resources, and knowledge, and

any additional information relevant for achiev-

ing the goals.

4.4. Behavioral scenario is ﬁnished when the

achievement of all goals in the goal model is

described

5. Link User Stories to Behavioral Scenarios:

5.1. A user story covers only one aspect of the goal

or behavioral scenario. For example elaborat-

ing Step 4 “Create Release Vehicle” in Table 2

can be elaborated with User Stories as follows:

• As a (human playing the role of) Release Ad-

min, I must be able to add a new Release Ve-

hicle;

• As a Release Admin, I must be able to change

Release Vehicles;

• As a Release Manager, I must be able to see a

list of Release Vehicles;

• As a Release Manager, I should not be able to

edit a list of Release Vehicles;

• As a Release Manager or Release Admin, I

should be able to sort a list of Release Vehicles

into the ascending or descending order.

RequirementsEngineeringwithAgent-OrientedModels

257

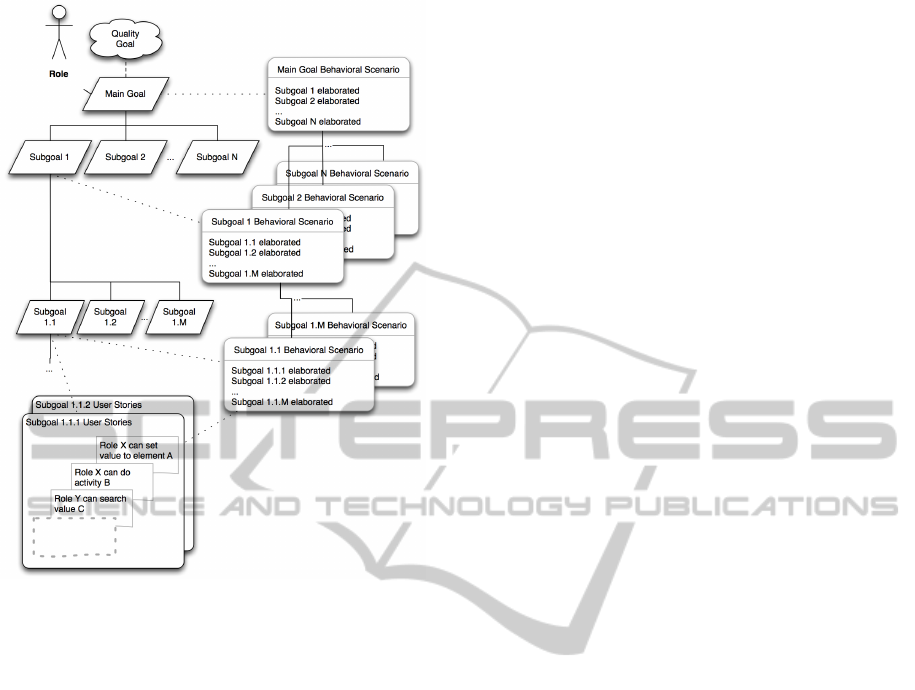

Figure 2: Concept of using models.

5.2. Mapping of terms from goals and behavioral

scenarios to user stories is following:

• Roles – a user story is always written from the

perspective of a particular role.

• Activity – activity deﬁnes how the corre-

sponding goal is achieved. Performing an ac-

tivity can be described by a number of imple-

mentable user stories.

• Resource/ Knowledge Item – a resource of

any kind required by actors playing Roles to

achieve the goals set for the system. They may

be knowledge items that actors playing Roles

create or physical or virtual resources that are

provided beforehand.

• Additional comments on design – any kind of

project-related information that is useful when

describing and implementing user stories.

• Step – provides a temporal view to be consid-

ered in user stories.

• Condition – can be reﬂected in a user story as

a Condition of Satisfaction or a separate user

story (stories) that will cover the functionality

of the condition.

6. Remember following remarks when creating

models:

6.1. Completing all goal models at once is not re-

quired. For example, one branch of the goal

model can be elaborated down to the lowest

sensible level, while the rest of the branches are

not. Other branches can be revisited and further

elaborated later on.

6.2. Completing all behavioral scenarios at once is

not required. Different independent branches

of the overall goal model can be analyzed in

parallel and at different paces.

6.3. Goal models can change according to the ﬁnd-

ings during the implementation of user stories.

6.4. Goal models and behavioral scenarios present

an overall view of the system to be designed,

describing what is required to be accomplished.

User stories present speciﬁc design-related de-

tails for the system and link goals to concrete

features of the system to be implemented.

6.5. An unlimited number of user stories can be cre-

ated for each lowest behavioral scenario.

4 CONCLUSIONS AND FUTURE

WORK

This was a nutshell description of our approach to RE

by means of AOM and user stories. We claim that

identifying, tracing and documenting is more simpler

and lightweight with our method than full ﬂedged RE

practices. We have veriﬁed the simplicity of our ap-

proach by applying it in two real-life ASD projects.

We acknowledge that we have not yet used any for-

mal method or metric for measuring the efﬁciency of

our approach. This is one of the major tasks for our

future research work. We intend to investigate the rel-

evant literature, e.g. (El Emam and Madhavji, 1995),

and ﬁnd an appropriate method for measuring the ef-

ﬁciency of our approach. However, so far we have

a lot of overwhelmingly positive anecdotal evidence

about successful application of our method. Partic-

ipants in projects conducted by us have adopted the

method and have successfully used it for eliciting and

representing requirements, as well as for turning re-

quirements into user stories for design and implemen-

tation.

The future work to be performed by us will in-

clude presenting our ﬁndings from the projects as de-

tailed case studies. This should validate our ﬁndings

with hard evidence. We have also been working on a

prototypical RE and design environment that would

accommodate our method. The prototype will be

based on a wiki and will include an issue and project

tracking system to add some ﬂexibility and visibility

to the RE and design processes.

ENASE2013-8thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

258

REFERENCES

Alliance, A. (2013). Manifesto for agile software de-

velopment. http://www.agilealliance.org/the-alliance/

the-agile-manifesto/. [Online, accessed May 2013].

Ambler, S. W. (2002). Agile Modeling. John Wiley & Sons.

Beck, K. (2008). Tools for agility - a white

paper. http://www.microsoft.com/en-us/download/

details.aspx?id=4401. [Online, accessed May 2013].

Bresciani, P., Giorgini, P., Giunchiglia, F., Mylopoulos, J.,

and Perini, A. (2004). Tropos: An agent-oriented

software development methodology. Journal of Au-

tonomous Agents and Multi-Agent Systems.

Cao, L. and Ramesh, B. (2008). Agile requirements engi-

neering practices: An empirical study. IEEE Softw.,

25(1):60–67.

Cockburn, A. (2002). Agile Software Development.

Addison-Wesley.

Cohn, M. (2004). User Stories Applied: For Agile Software

Development. The Addison-Wesley Signature Series.

Addison-Wesley.

Dardenne, A., van Lamsweerde, A., and Fickas, S. (1993).

Goal-directed requirements acquisition. In Science of

Computer Programming, pages 3–50.

El Emam, K. and Koru, A. (2008). A replicated survey of it

software project failures. Software, IEEE, 25(5):84–

90.

El Emam, K. and Madhavji, N. (1995). Measuring the

success of requirements engineering processes. In

Requirements Engineering, 1995., Proceedings of the

Second IEEE International Symposium on, pages 204

– 211.

Group, S. (1995). Chaos report. https://cs.nmt.edu/

∼cs328/reading/Standish.pdf. [Online, accessed May

2013].

Haugset, B. and Stalhane, T. (2012). Automated acceptance

testing as an agile requirements engineering practice.

In Proceedings of the 2012 45th Hawaii International

Conference on System Sciences, HICSS ’12, pages

5289–5298, Washington, DC, USA. IEEE Computer

Society.

Hull, E., Jackson, K., and Dick, J. (2011). Requirements

Engineering. Springer.

Kazyrevich, A. (2010). Distributed agile develop-

ment. http://codevanced.net/page/Talks-Distributed-

Agile-Development.aspx. [Online, accessed May

2013].

Kotonya, G. and Sommerville, I. (1998). Requirements en-

gineering: processes and techniques. Worldwide se-

ries in computer science. John Wiley & Sons.

lan Sommerville and Sawyer, P. (1997). Requirements En-

gineering - A Good Practice Guide. John Wiley &

Sons.

Miller, T., Pedell, M., Sterling, L. S., and Lu, B. (2011).

Engaging stakeholders with agent-oriented require-

ments modelling. Agent-Oriented Software Engineer-

ing, 6788(XI).

Miller, T., Pedell, S., Sterling, L., Vetere, F., and Howard,

S. (2012). Understanding socially oriented roles and

goals through motivational modelling. J. Syst. Softw.,

85(9):2160–2170.

Paetsch, F., Eberlein, A., and Maurer, F. (2003). Require-

ments engineering and agile software development. In

Proceedings of the Twelfth International Workshop on

Enabling Technologies: Infrastructure for Collabora-

tive Enterprises, WETICE ’03, pages 308–, Washing-

ton, DC, USA. IEEE Computer Society.

Ramesh, B., Cao, L., and Baskerville, R. (2010). Ag-

ile requirements engineering practices and challenges:

an empirical study. Information Systems Journal,

20(5):449–480.

Sillitti, A. and Succi, G. (2005). Requirements engineering

for agile methods. In Engineering and Managing Soft-

ware Requirements, pages 309–326. Springer Berlin

Heidelberg.

Sommerville, I. (2010). Software Engineering. Addison-

Wesley, Harlow, England, 9. edition.

Sterling, L. and Taveter, K. (2009). The Art of Agent-

Oriented Modeling. MIT Press.

Taveter, K., Du, H., and Huhns, M. N. (2012). Engineering

societal information systems by agent-oriented mod-

eling. J. Ambient Intell. Smart Environ., 4(3):227–

252.

van Lamsweerde, A. (2001). Goal-oriented requirements

engineering: a guided tour. In Requirements Engi-

neering, 2001. Proceedings. Fifth IEEE International

Symposium on, pages 249 –262.

van Lamsweerde, A. (2009). Requirements Engineering -

From System Goals to UML Models to Software Spec-

iﬁcations. Wiley.

Vanhanen, J., Mantyla, M., and Itkonen, J. (2009).

Lightweight elicitation and analysis of software prod-

uct quality goals: A multiple industrial case study.

In Third International Workshop on Software Product

Management (IWSPM), pages 42 –52.

Wooldridge, M. (2001). Introduction to Multiagent Systems.

John Wiley & Sons, Inc., New York, NY, USA.

Yu, E. S.-K. (1996). Modelling strategic relationships for

process reengineering. PhD thesis, Toronto, Ont.,

Canada, Canada. UMI Order No. GAXNN-02887

(Canadian dissertation).

RequirementsEngineeringwithAgent-OrientedModels

259
