Extracting Services from Legacy for Service-Oriented

Business Processes: Challenges and Issues

Youcef Baghdadi

and Ricardo Pérez-Castillo

Department of Computer Science, Sultan Qaboos University,

PO Box 36 – PC 123, Al-Khod, Oman

Alarcos Research Group, University of Castilla-La Mancha,

Paseo de la Universidad, 4 13071, Ciudad Real, Spain

Abstract. Non-agile enterprises slowly adapts to changing business require-

ments, which could be harmful and affects their competitiveness. Their busi-

ness processes are rigid and could not respond to the changes. One of the solu-

tions is to use a service-oriented business modeling by stressing out role of

SOA and Web services. In this modeling, business processes are represented by

specialized services having separated concerns. These are (i) controller service,

(ii) state service, and (iii) worker services. This solution requires an approach

to: (1) map the existing services of the organization or its partners, or (2) re-

verse engineering techniques to provide business objects, represented in the in-

formation system, as a set of common, consistent service providers.

1 Introduction

Non-agile enterprises slowly adapts to changing business requirements, which could

be harmful and affects their competitiveness. Their Business Processes (BPs) are rigid

and could not adapt to the changes. This agility is not possible if all the instances of a

same BP run the same way because of the architecture of the existing Information

System (IS) that supports the BPs.

One of the solutions is to reengineer the BPs by using a service-oriented business

modeling stressing out the roles of SOA, and Web services in promoting agility. First,

we define a BP a service that responds to Business Events (BEs) of different natures.

It specifies a state that reflects the control flow and data flow, where changes in BEs

are solely reflected in the state. The BP adapts to the state changes, which allows a

dynamic realization. This service is itself realized by enterprise assets that play the

role of service providers[1]. Then, we model a BP by a set of specialized services,

having separated concerns. These are: (i) controller service, (ii) state service, and (iii)

worker services. The controller service uses the state service to match and invoke the

worker services that realize the required activities [2]. The worker services are them-

selves provided by shared, discoverable, reusable enterprise assets known as Business

Objects (BOs). BOs model the enterprise service units that encapsulate activities and

data; and provide them as services to all BPs.

Baghdadi Y. and Pérez-Castillo R..

Extracting Services from Legacy for Service-Oriented Business Processes: Challenges and Issues.

DOI: 10.5220/0004574100030011

In Proceedings of the 1st International Workshop in Software Evolution and Modernization (SEM-2013), pages 3-11

ISBN: 978-989-8565-66-2

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

This solution requires both reverse and forward engineering. This work limits to a

reverse engineering that (i) transforms the IS into BOs, including the existing enter-

prise service portfolio into some of the specialized services, (ii) extract services from

existing BPs (if any), and (iii) reusing partner and provider services, or (iv) all of

them.

 The reverse engineering would modernize the IS so that it provides the required

worker services.

 The mapping would map the existing service portfolio into specialized services,

including the controller and worker services.

 The extraction would abstract the existing BPs.

This approach would have practical implications in terms of (i) compliance with

SOA, and (ii) reuse of the existing assets of an organization to rapidly modeling,

enacting, and execution of BPs.

The remainder of this paper is organized as follows: Section 2 provides some re-

lated work. Section 3 details the concepts of the BP modeling. Section 4 develops the

reverse engineering approach. Finally, Section 5 discusses further development.

2 Related Work

Managing BPs as services has recently started making its way in IS by promoting BPs

as compositions of loosely coupled services having separated concerns. This work

concerns with two perspectives: (1) modeling BPs as services, (2) modernizing sup-

porting ISs with respect to SOA. From service-oriented BP modeling, the academics

have raised the importance of service-oriented as one of the top three issues to deal

within BPs [3]. In [4], the author proposed a business model for B2B integration

through Web services. The authors in [5] proposed an approach for designing BPs in

service-oriented way, where a service composition process organizes the discovery,

selection and assembly of business services to build BPs tailored to business design-

er's requirements. In [6], the author investigated how to extend Event-Process Chain

(EPC) to come up with a new modeling language for service-oriented BP manage-

ment.

From a general perspective of modernizing ISs and BPs, different approaches

have been proposed [7]. In [8], the authors developed Marble to reengineer BPs with-

in a BP archeology. This approach makes it possible to obtain BP models from source

code and other software artifacts by reverse engineering. Efforts that concern with

modernization for SOA have been reported in [9]. In [10], the author proposed to

reverse engineer relational databases into services. In [11] the authors have defined a

technique to wrap legacy applications for reuse in a SOA.

From the perspective of mapping enterprise services into a given service-oriented

business modeling, there is a lack of approaches, though many authors such [12],

[13], [14], [15],[16],[17],[18], [19] and [20] have attempted to classify services into

taxonomy.

The drawback of these approaches is that they do not explicitly consider the reuse

existing service portfolio of services in their service-oriented BP modeling neither

have they reverse engineered the IS into BOs that provide reusable services.

3 Service-Oriented Business Process Modeling

Modeling is a representation technique that relies on first, a set of limited notations

and concepts to represent relevant elements such as enterprise BPs and second, a set

of rules that guarantee the proper use of these concepts.

A BP has a value expressed in terms of quality of services to customers. That is, a

BP is a description of a service provided to customers upon their demands (of differ-

ent natures). A set of coordinated activities realize the service. The IS supports these

activities by providing them with data they consume.

A BP modeling captures the relevant properties with respect to the above-

mentioned definition of BP. In our service-oriented modeling approach, specialized

services are used as constructs to represent the different relevant elements of BPs.

A BP has a set of state values (including initial and final state values) that the BP

modeler sets and changes over time when business requirements change. A state

value reflects the execution BP.

The following are the related concepts used to model a BP with services and the

relationships between them. These are ‘use’, ‘has’, or ‘is’ relationships.

3.1 Modeling Concepts

A service [14] may be defined from business and technology perspectives. In our

modeling, we use web services and data services.

Our service-oriented approach for BP modeling emphasizes the separation of con-

cerns that differentiate the activities of control and execution. Similarly, the data

packaged into BOs are separated from the state of the BP. Therefore, we specialize a

service into controller service, state service, and worker service.

The Controller Service (CS) is the central element of our modeling. It oversees a

BP execution through its state. The CS deals only with the control and coordination

of the BP. It invokes a State Service (SS) to retrieve the state of the BP; and accord-

ingly invokes the respective Worker Service (WW) and updates the BP state when

any of the WS terminates its job. The CS is invoked by an Initiator Web Service

(IWS).

The Initiator Web Service (IWS) deals only with the initialization and starting of

an instance of the BP.

The State Service (SS) is a data service that represents the structure of the state of

a BP. It is used by the CS to retrieve the state of the BP.

The Worker Services (WWs) add value to a BP towards the achievement of its

goal. WWs are provided by BOs. The CS according to the BP state invokes them.

Inversely, WWs report the outcome of their execution to the CS.

WWs may use Data Services (DS) if necessary to retrieve simple or integrate data

from BOs. DSs retrieve or integrate the requested data from the BOs.

Business Object is “a representation of a thing active in the business domain, in-

cluding its business name and definition, attributes, behavior, relationships, and con

straints” (OMG). To represent BOs in a consistent way regardless of the needs of BP

modeling, we insist on the monolithic representation of the activities and data of these

BOs. Unfortunately, this representation is not happening nowadays as different repre-

sentations (or images) of the same BO are developed depending on the needs of each

organizational body, which leads to a limited view and inconsistency of BO across

the whole organization.

3.2 Relationships between the Specialized Services

There are four types of relationships: association, specialization, realization, and use.

 Association Relationships indicate how the elements of a BP environment are

associated with each other. For instance, a BP is associated with an event, a set of

BOs, a set of states, including an initial state, and a final state.

 Specialization Relationships indicate the specific roles of some elements of the

model. For instance, a service may be a CS, a SS, or a WW.

 Use Relationships show that some services use the capabilities of others. For

instance, the CS uses both WWs and SS. The latter provides it with the state of the

BP, whereas the former perform the required activity. The IWS uses the CS.

 Realization Relationships show that WWs are realized in the IS by the BOs,

whereas the SS is realized by a specific data structure representing the state val-

ues.

4 Mining Services for Service-Oriented Business Processes

The common problem of service-oriented BP modeling is that most techniques dis-

card existing services of organizations. Our approach proposes to transform an as-is

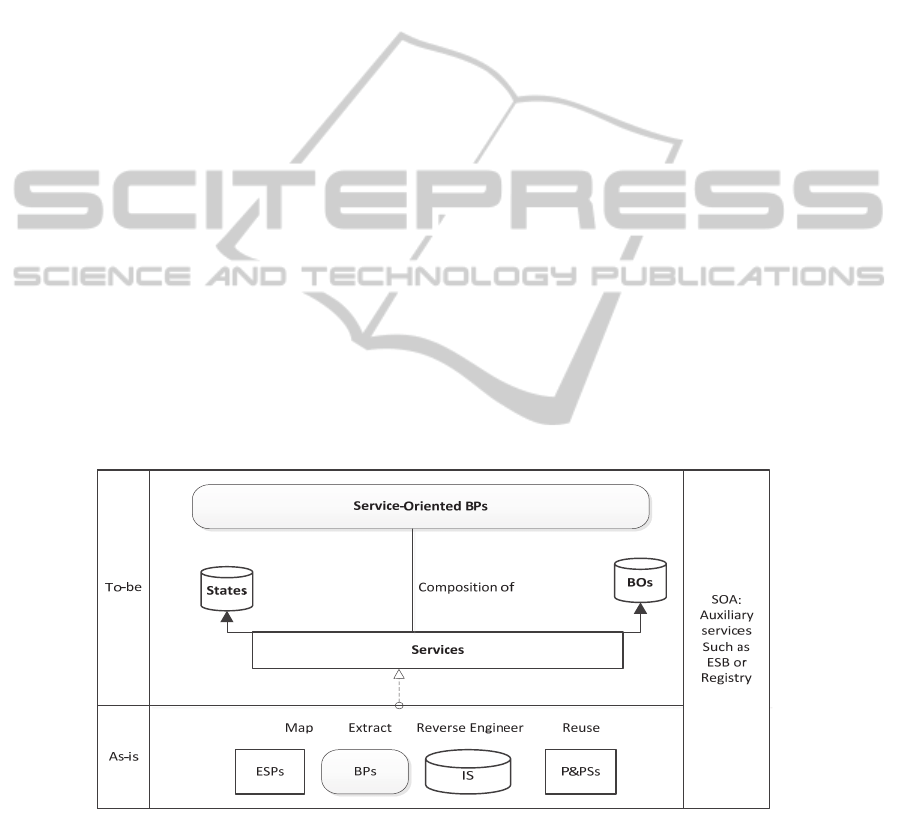

BPs into to-be BPs by using different techniques as shown in Figure 1, namely (i): a

mapping existing Enterprise Portfolio Services (ESP), (ii) reverse engineering IS, (iii)

extract services from exiting BPs, or (iv) reuse Partner and Provider Services (P&P).

In this approach, everything transforms to reusable services.

4.1 Service Taxonomy

The objective of service mapping is to identify services that are valuable, from busi-

ness and IT perspectives. However, what constitutes a service has different meanings

due to the lack of a standard classification. Several researchers attempted to provide

taxonomy [15],[16],[17],[18], [19] and [20]. Taxonomy supports service-mapping

process by clarifying the roles of the different types of services, which helps in under-

standing the role of each service. It also assists with the discoverability of services,

which can further promote reuse. In addition, taxonomy helps to make organizational

decisions like how to obtain a capability (build vs. buy vs. lease). To summarize the

classification efforts of these researchers, services can be divided into three broad

categories:

1. Conceptual Services (also called business services) service represents the core of

software product requirements. They express organizational ideas, thoughts, opin-

ions, views, or themes that propose software solutions to organization.

2. Capability Services provide an explicit business value, ranging from generic ser-

vices, reused in multiple service-oriented applications to specialized services, part

of a single service-oriented application. Capability services include: (i) Process

services are services whose operations are directed by the BP definition. BPEL are

example of such kinds of services. (ii) Task services (aka applica-

tion/activity/capability) encapsulate business logic specific to activities or BP. A

task service represents an atomic unit of process logic. (iii) Entity services (also

called data service) represent one or more related business entities such as invoice.

Entity service is considered a highly reusable service because it is agnostic to

most BPs. (iv) Utility services contain logic derived from a solution or technology

platform. Utility services expose capabilities of multiple applications within the

organization, including migrated, reengineered legacy systems, and some Com-

mercial Of-The-Shelf software (COTS). (v) Hybrid services contain logic derived

from both BPs and applications. Hybrid services expose capabilities wrapped leg-

acy systems and some COTS that may exists within the organization. (vi) Partner

services are offered to/by external partners based on agreed terms, this type of

services is known as Application as a Service (AaaS) or Software as a Service

(SaaS).

3. Infrastructure Services are part of the organization supporting distributed compu-

ting infrastructure. These are: (i) Communication services transport messages into,

out of, and within the system. Examples include publish-subscribe services,

queues, and ESB; and (ii) Auxiliary services provide facilities for monitoring, di-

agnostics, and management activities of other services. These may include statisti-

cal information.

Fig. 1. Techniques to transform as-is BP into service-oriented BP.

4.2 Service to Business Process Mapping

Table 1 shows that any kind of existing services within the organization portfolio

(first column) could be mapped into one of the services we use in our modeling: a CS,

a WW, or a DS. It is worth noting that none of the ESP is mapped into a SS since SS

is specific to our modeling. Infrastructure services map to SOA auxiliary services.

Table 1. Services-to-service-oriented BP Mapping.

Existing (ESPs) Refined Services Service-Oriented BP

Conceptual services

Capability services

Process service

Task service

Entity service

WW or DS

Utility service

Hybrid service

Partner services

Infrastructure services

Communication services (e.g.,

ESB)

SOA auxiliary services

Auxiliary services (e.g., Registry)

This mapping might be automated if the organization could have a portfolio or

services that have common meaning, which is the role of the BOs in our modeling.

4.3 Reverse Engineering LIS to Extract Services

When organizations do not have a portfolio of services, the reverse engineering of

legacy IS (LIS) is required to first mine BPs, then extract services from these BPs to

further reuse them in service-oriented BP modeling.

Most BPs in organizations are supported by their IS. The optimal BPM is there-

fore achieved when organizations additionally combine the management of their LIS

[21]. The configuration management of LIS is particularly important since these sys-

tems undergo a considerable amount of changes during their lifecycles. Because of

the evolutionary maintenance over time, new business knowledge and rules are em-

bedded in LIS. This embedded business knowledge may not exist anywhere else [22].

The evolution of IS in isolation consequently affects the evolution of BPs (see scenar-

io 1 in Fig. 2). In this case, it is necessary to discover and reconstitute the underlying

BPs that are currently supported by LIS [23].

However, there are many organizations that currently carry out a vast amount of

daily transactions through their IS without having ever done their own BP modeling.

When these organizations deal with BP modeling for the first time, a recurrent meth-

od by which to attempt this modeling is the extraction of BP from LIS [24] (see sce-

nario 2 in Fig. 2). This is owing to the fact that LIS is one of the few knowledge as-

sets in organizations that can be used to attain an accurate understanding of the actual

BP.

In both scenarios (Fig. 2), retrieving an up-to-date version of BPs from LIS allows

organizations to take advantage of at least two main benefits:

 Benefits for BP modeling: BPs can always be up-to-date. Organizations may

therefore conduct BPM by following the continuous improvement process [25].

This kind of BPM facilitates an agile adaptation of BP to meet the changes that

occur in the uncertain environment. The rapid evolution of BPs allows organiza-

tions to maintain, or even improve, their degree of competitiveness [26].

 Benefits for LIS: LIS continue to be modernized on more occasions. A recent

study by the SEI (Software Engineering Institute) states that it is first necessary to

retrieve embedded business knowledge in order to modernize systems in line with

the organization BPs [27]. Organizations can thus modernize their LIS whilst they

align the new systems with their actual BPs. LIS is therefore evolved rather than

being immediately retired and the ROI (return of investment) on such systems is

improved.

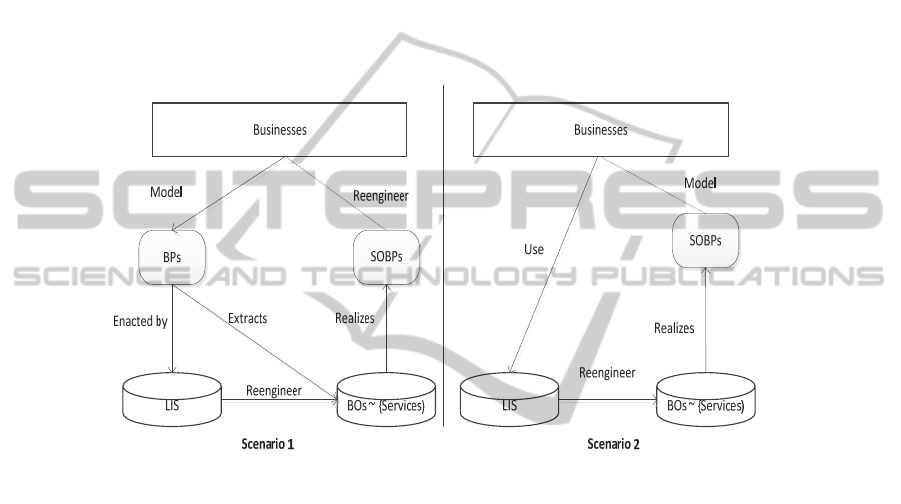

Fig. 2. Scenarios to discover and reconstitute BP embedded in systems.

Once we extract a BP from LIS, it is then possible to present it as a set of coordi-

nated activities and data. The BP, its activities and data could easily be mapped into

services. Indeed:

 A BP is mapped into CS

 Each activity output of an activity is mapped into state value

 Each activity is mapped into WW

 Each piece of data is mapped into data service

5 Conclusions

We have defined a service-oriented business process modeling, where the elements of

business process environment are modeled as services, including controller service,

state service and worker services. The worker services and state service are provided

by real and artifact business objects respectively.

This modeling has required different techniques to move from as-is BPs to to-be

BPs. We have categorized these techniques into: (i) reverse engineering the legacy

information system and mapping the enterprise service portfolio, (ii) extracting ser-

vices from traces of running business processes, and (iii) reusing partner and provider

services. Then, we have sketched out the process of each technique.

This is a step towards moving SOA maturity towards the next levels, where ser-

vices are part of the requirements and the solutions as business-related services and

IT-related services respectively. This would promote integration, composition, flexi-

bility, and agility in response to changing business events.

Although, we have presented approaches and processes for transformation tech-

niques having a real impact on the way BPs should responsive to the changes in the

business requirements by using web service-based SOA, this work has limitation.

Therefore, we would consider that this work has presented the service-oriented busi-

ness process as rather a roadmap towards research issues and questions related to

transformation techniques than a definitive solution.

We need to develop tools and dig deeper in the different transformation tech-

niques.

Further work would complete the close the cycle with the forward engineering

phase by using MDD, as services define both the requirements and the solutions.

References

1. Cummins, F. A.: Building the Agile Enterprise: With SOA, BPM and MBM, Morgan

Kaufmann, 2010.

2. Baghdadi, Y.: A methodology for web services–based SOA realisation, Int. Journal of

Business Information Systems, 10(3), pp. 264-297, 2012.

3. Indulska, M., Recker, J., Rosemann, M. and Green, P.: Business Process Modeling: Current

Issues and Future Challenges, Advanced Information Systems Engineering

4. LNCS, Vol. 5565, 2009, pp 501-514, 2009.

5. Baghdadi, Y.: A business model for B2B integration through Web services, in Proc. of

IEEE Int. Conference on e-Commerce Technology, 2004. CEC 2004, pp. 187–194, 2004.

6. Cauvet, C. and Guezilian, J.: Business Process Modeling : a Service-Oriented Approach, in

Proc. of Hawaii Int. Conference on System Sciences, 41

Annual pp. 1–8, 2008.

7. Stein, S.: Modelling Method Extension for Service-Oriented Business Process

Management,” Thesis, 2008.

8. Rahgozar, M. and Oroumchian, F: An effective strategy for legacy systems evolution,

Journal of Software Maintenance and Evolution: Research and Practice, Vol. 15, no. 5, pp.

325–344, Sep. 2003.

9. Pérez-Castillo, R., de Guzmán, I. G.-R. and Piattini, M.: Business process archeology using

MARBLE, Information and Software Technology, Vol. 53, no. 10, pp. 1023–1044, 2011.

10. Khadka, R., Saeidi, A., Idu, A. Hage, J and Jansen, S.: Legacy to SOA Evolution :

Evolution : A Systematic Literature Review, Technical Report UU-CS-2012-006, 2012.

11. Baghdadi, Y.: Reverse engineering relational databases to identify and specify basic Web

services with respect to service oriented computing, Information Systems Frontiers, Vol. 8,

No. 5, pp. 395–410, Nov. 2006.

12. Sneed, H. M., Schedl, S and. Sneed, S. H.: Linking legacy services to the business process

model, in IEEE 6th International Workshop on the Maintenance and Evolution of Service-

Oriented and Cloud-Based Systems (MESOCA), pp. 17–26, 2012.

13. Al-Rawahi, N. and Baghdadi, Y.: Approaches to identify and develop Web services as

instance of SOA architecture, In Proc. of ICSSSM ’05. Int. Conference on Services

Systems and Services Management, 2005, pp. 579–584, 2005.

14. Baghdadi, Y. and Al-Rawahi, N.: An architecture and a method for Web services design:

Towards the realization of service-oriented computing’, Int. Journal of Web and Grid

Services (IJWGS: InderScience), 2(2): pp 119-147, 2006

15. Chesbrough, H. and Spohrer, J.: A research manifesto for services science,

Communications of the ACM, vol. 49, no. 7, p. 35, Jul. 2006.

16. Gu, Q. and Lago, P.: Service Identification Methods : A Systematic review, LNCS 6481,

pp. 37–50, 2013.

17. Lago, P. and Razavian, M.: Pragmatic Approach for Analysis and Design of Service

Inventories, LNCS, Vol. 7221, pp. 44-53 pp. 44–53, 2012.

18. Marks, E. A. and Bell, M.: Executive’s Guide to Service-Oriented Architecture, John

Wiley & Sons, 2006.

19. Cohen, S.: Ontology and taxonomy of services in a service-oriented architecture, The

Architecture Journal, Vol. 11, pp. 30-35, 2007.

20. Cho, M. J.. Choi, H. R. Kim, H. S. Hong, S. G. Keceli, Y and Park, J: Service

Identification and Modeling for Service Oriented Architecture Applications, In Int.

Conference on Software Engineering, Parallel and Distributed Systems, pp. 193–199, 2008

21. Erl, T., Taub, M. L., Hart, K. Mcfarland, J. and Young, T: SOA Design Patterns. 2009.

22. Jeston, J. and Nelis, J.: Business process management, Elsevier Publisher, 2012.

23. B. Paradauskas, B. Laurikaitis, A.: Business knowledge extraction from legacy information

systems, Information Technolgy and Control, Vol. 35, No. 3, pp. 214-221, 2006.

24. Van Den Heuvel, W. J.: Aligning modern business processes and legacy systems : a

25. Van der Aalst, W. and Reijers, H.A.,: A.J.M.M. Weijters, A.J.M.M, van Dongen, B.F.,

A.K. Alves de Medeiros, Song, M. and H.M.W. Verbeeka, H.M.W: Business process

mining: An industrial application, Information Systems, Vol. 32, Issue 5, July 2007, Pages

713–732007.

26. Davenport, T. H.: Need radical innovation and continuous improvement? Integrate process

reengineering and TQM, Strategy & Leadership, vol. 21, no. 3, pp. 6–12, Dec. 1993.

27. Weske, M.: Business Process Management: Concepts, Languages, Architectures, Springer,

2012

28. Lewis, G. A. Smith, D. B.: A Research Agenda for Service-Oriented Architecture):

Maintenance and Evolution of Service-Oriented Systems, TECHNICAL NOTE CMU/SEI-

2010-TN-003, no. March, 2010.
