Indexing Multimedia Content for Textual Querying: A

Multimodal Approach

Abdesalam Amrane

, Hakima Mellah

Youssef Amghar

and Rachid Aliradi

Research Center on Scientific and Technical Information (CERIST), Algiers, Algeria

University of Lyon, CNRS, INSA-Lyon, LIRIS, UMR5205, F-69621, Villeurbanne, France

Abstract. Multimedia retrieval approaches are classified into three categories:

those using textual information, and those using low-level information and

those that combine different information extracted from multimedia. Each ap-

proach has its advantages and disadvantages as well to improving multimedia

retrieval systems. The recent works are oriented towards multimodal approach-

es. It is in this context that we propose an approach that combines the surround-

ing text with the information extracted from the visual content of multimedia

and represented in the same repository in order to allow querying multimedia

content based on keywords or concepts. Each word contained in queries or in

description of multimedia is disambiguated by using the WordNet in order to

define its semantic concept.

1 Introduction

Multimedia information retrieval approaches are classified into three categories that

are: text-based retrieval, content-based retrieval and multimodal retrieval [1]. In text-

based retrieval approach, multimedia content is described by a number of keywords.

In content-based retrieval approach, various low-level features like color, texture and

shape are extracted for describing image and video, or spectrum of a signal to de-

scribe audio content. In multimodal approach, high-level and low-level information

are combined to improve description of multimedia content.

Some work has been done to combine ontologies with visual features [20], for ex-

ample Hoogs et al. [11] linked ontologies and visual features by manually extending

WordNet with tags describing visibility, different aspects of motion, location inside or

outside, and frequency of occurrence. [10] A visual ontology contains general and

visual knowledge from two existing sources: WordNet and MPEG-7. Bertini et al. [3]

suggests a “pictorially enriched” ontology in which both linguistic terms and visual

prototypes constitute the nodes of the ontology.

Multimedia annotation has become a very important task for multimedia content

semantic description; it can be done either manually or automatically. One of the

technical manual annotation is the collaborative tagging, Flickr and Facebook are

examples of systems that allow users to annotate multimedia content [14]. However,

this technique suffers from some disadvantages, we can mention:

Amrane A., Mellah H., Amghar Y. and Aliradi R..

Indexing Multimedia Content for Textual Querying: A Multimodal Approach.

DOI: 10.5220/0004576200030012

In Proceedings of the 2nd International Workshop on Web Intelligence (WEBI-2013), pages 3-12

ISBN: 978-989-8565-63-1

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

 Indexing subjectivity: two annotators do not produce systematically the same anno-

tation for the same multimedia content.

 Language dependence: annotation is generally achieved in the language of the

annotator.

A critical point in the progress of content-based retrieval is the semantic gap

, where

the meaning of an image is rarely self-evident [12]. Detection techniques of semantic

concepts by classification methods based on supervised learning have been proposed

to reduce this semantic gap [16].

To retrieve multimedia contents, several query languages have been proposed. In

the work of Richard Chbeir [5], the query languages are classified into three genera-

tions: textual, graphical and visual languages. The first generation of languages was

based on textual resources (keywords, free text). The latter allows the user to easily

express his information needs and it is adapted to all media; while the second genera-

tion deal with the graphical languages, the most famous query languages of the latter

is the QBE (Query By Example) language [7].

In order to improve the multimedia search and allow textual querying, while bridg-

ing the semantic gap between user’s needs and content description, we propose a

model for semantic search of multimedia content that combine contextual information

with visual multimedia content.

In order to achieve the latter process, we have organized our paper as follows: In

the second section, we have described the existing works proposed in multimodal

retrieval systems. The proposed approach is presented in the third section, where our

indexing techniques and querying method are detailed. Finally, section four describes

the results of our experiments.

2 Related Works

Multimodal retrieval approach combines semantic and visual features. In addition to

visual content, the semantic content (keywords, manual annotations ...) is analyzed

and put under adequate representation. Most of the research works in text/image in-

formation retrieval have shown that combining text and image information even with

simple fusion strategies, allows us to increase multimedia retrieval results [6]. Two

methods of fusion are used: early fusion and late fusion. The early fusion method

consists in concatenating both image and text feature representations [6]. The visual

and textual information are taken into account simultaneously in the different treat-

ments. The late fusion is consisted to separately treat the visual similarity and the

textual similarity [23]. Two ordered lists of results are obtained and should be merged

by a suitable method before presenting them to the user.

Several works have been proposed in the framework of information fusion textual

and visual multimedia retrieval: Belkhatir et al. [2] have proposed the combination of

textual image retrieval with query by example (QBE); Lemaitre et al. [15] have pro-

posed the combination of visual and textual information for multimedia information

retrieval; Tollari et al. [22] used a Forest of Fuzzy Decision Trees (FFDTs) to auto-

The gap between the low level description and semantics of visual content.

matically annotate images with visual concepts to improve text-based images retriev-

al.

The visual query languages suffer from a major problem which is the ambiguities

of communication between man and machine [8]. The disadvantage of the graphical

languages that is the formulation of complex queries consisting of combinations of

several criteria remains a weak point for these languages [5]. The advantage of textual

query languages is that they give the user the possibility to pose queries in a high-

level language in allowing him to express his information need easily [17]. Users

often express their queries in a textual description representing high level concepts

[4], In this case, the use of lexical ontology becomes necessary to align the user query

and multimedia contents in the same repository.

3 The proposed Model

In the model MMSemSearch (Multimedia Semantic Search) that we propose, the type

of media considered is the image and this restriction does not exclude its extension to

other types of media such as video or audio. To address the problem of semantics, two

types of ontologies are used: a lexical ontology and multimedia ontology. These two

ontologyies are used in the extraction phase of semantic concepts.

The following figure (Fig. 1) describes the system of architecture:

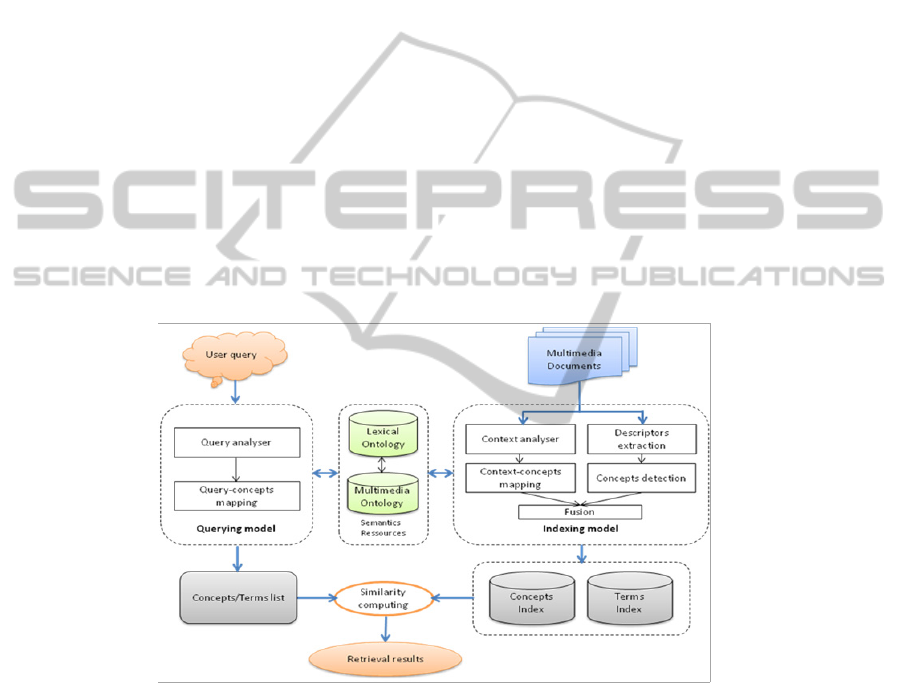

Fig. 1. Architecture of automatic indexing and semantic search of multimedia information.

In the proposed architecture, three main models are considered:

 Indexing model,

 Querying model,

 Matching model.

The proposed system for multimedia information indexing and retrieval use automatic

extraction of semantic concepts combined with textual information that is extracted

from surrounding text of multimedia resource.

3.1 Indexing Model

Indexing by Context. Two steps to indexing the surrounding text of multimedia are

considered:

 Context analysis, which is to extract the words from the context of the image, re-

moving stop words, stemming the words and the weighting of terms used,

 Context-concepts mapping, which consists to identify concepts in the lexical on-

tology by a disambiguation process, the terms are not identified as stored in the

corresponding index.

In the work of Heng Tao Shen et al [9], four parts of the textual information (sur-

rounding image) of the web page are listed and used to represent the image, these

parts are:

 Image title: Image file title (simply image title) is a single word that basically indi-

cates the main object that the image is concerned with.

 Image ALT: (alternate text). The image ALT tag in HTML document is a phrase

that usually represents an abstract of the image semantics.

 Image caption: The image caption usually provides the most semantics about an

image. It is the image's surrounding text in the HTML document. It can range from

one sentence to a paragraph of text that contains many sentences.

 Page title: Since images are used for enhancing the Web page's content, page title

is most probably related to the image's semantics. It is usually a short sentence that

summarizes the Web page's content.

We have just used these four parts to represent image content, this information is

projected on the lexical ontology. Terms having an entry in the ontology are taken

afterward as the concepts describing image, against the terms in the ontology uniden-

tified are kept in the index of terms. We have not ignored the terms that we have not

find them corresponding concepts in the ontology as these terms may be important,

such as proper names or neologisms (a neologism is the phenomenon of creating new

words).

For automatic sense disambiguation of words we adapt in our experiments to use a

simplified Lesk algorithm proposed by Adam Kilgarriff and Rosenzweig [13], where

meanings of words in the text are determined individually, by finding the highest

overlap between the sense dictionary definitions of each word and the current context.

Indexing by Content. The content is indexed by an automatic annotation process of

semantic concepts; it is done in three steps:

 Extraction of low-level descriptors,

 The training of the classifiers (learning)

 Prediction of concepts.

Given the image descriptors, a classifier is applied to predict the classes of the test

images. The parameters of the classifier are trained on the training data and tuned

using the validation data [18]. Some examples of classes are: airplane, horse, person,

motorcycle.

Currently, support vector machines (SVM) [24] are the most frequently used clas-

sifiers for the detection of concepts [21]. Therefore we chose the SVM classifiers as

the classification method. For training classifiers and predicting concepts, we extract

from all images, the SIFT (Scale Invariant Feature Transform) features under 16x16

scale.

Weighting of Concepts and Terms. Once the concepts/terms are extracted, the

weighting step allows estimate the important concept and thus to classify images from

their information.

We have used a variant of TF-IDF for weighting concepts. The concept weight is

measured by its occurrence frequency in the context and in the image visual content,

whereas terms weight depends only on the term frequency in the context of the image.

To calculate the degree of similarity of the images relatively to the user query,

arithmetic sum of concepts and terms weights is used.

In our approach we call cf.idf (c, d) the weight of a concept c with respect to the

image (the concept c is either identified in the lexical ontology or not), this weight is

calculated by the following formula:

.

,



,











(1)

Where cf

c,d

is the frequency of concept in the context of the image and in visual

content,

N is the number of images in the database,

is the number of images containing the concept c.

c,d

is calculated by the following formula :



,

.

,















.

,



(2)

Where α Є [0..1], is a parameter for adjusting the weight assigned to each modality.

It can play the role of confidence score assigned arbitrarily to context information and

SVM classifiers, the value of α is determined by experimentation,

c,d

(content) is the frequency of the concept in the visual content of the image (the

concepts are detected by the SVM classifier, the weight of each concept can match the

frequency of each word extracted from the visual image),

c,d

(context) is the frequency of the concept in the context of the image (the concepts

are derived from the mapping context with lexical ontology).

It happens that a concept appears simultaneously in the context and in the content

of the visual image, in this case its weight (cf.idf) will be higher compared to other

images containing that concept but only on one of the two modality context or visual

content.

Concerning the terms that are not identified in the lexical ontology, the weighting

formula derived from previous formulas (1) and (2), is as follows:

.

,

.

,

















(3)

Where N, df

and α are the same parameters described in the above formulas.

3.2 Query Model

The multimodal retrieval approaches propose to users a query language that combines

two modalities of information. To express their needs, users must provide for the

system keywords or image as an example. Then, the system combines the two pieces

of information to retrieve the images corresponding to the query. Our semantic re-

trieval model is based only on textual queries. The user formulates his query by sim-

ple keywords which will be analyzed and identified or not identified as ontological

concepts.

Concepts or keywords contained in the user request will be used to build a new

SQL query that uses two indexes proposed in our model.

We give an overview on the content of database that we have used in our experi-

ments:

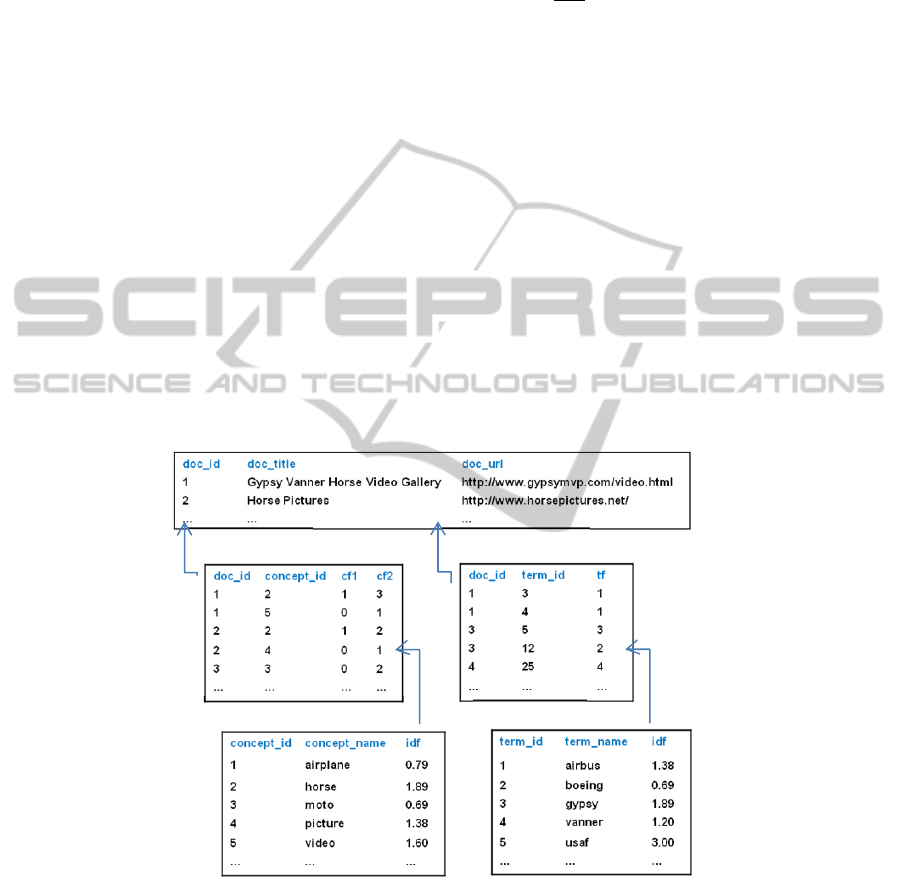

Fig. 2. Overview of database contents.

3.3 Matching Model

The proposed research system is based on semantic search; it allows the user to for

documents(images)

index_concepts

concepts

index_non‐concepts

non‐concepts

mulate his query with simple keywords. These keywords can identify semantic con-

cepts in the ontology vocabulary or simple words. The matching between multimedia

contents and the query image is established in order to classify the search result in

order of relevance. The similarity score of an image based on a query q is calculated

by the following formula:



,





.

,

∈



∩

.

,

∈



∩

(4)

Where t is a term and c a concept in the lexical ontology.

4 Experimental Evaluation

To evaluate the proposed indexing and retrieval model, we have used a collection

consisting of 125 web pages containing a set of 200 images with contextual infor-

mation for testing.

The learning database used for the detection of concepts consists of 500 images, as

follows:

Table 1. Training and testing data for image classification.

Concepts

Aircraft Motorcycle Car Person Horse

Training

100 100 100 100 100

Tests

22 25 35 50 68

Total

122 125 135 150 168

In the indexing phase by the context, we have used the Porter algorithm [19], the

Lesk algorithm [25] and WordNet ontology to give a semantic representation of im-

ages. Concepts are weighted by TF-IDF formula.

To index the image content, we calculated the SIFT (Scale-Invariant Features

Transform) descriptors [4], which are invariant to scale changes and rotations.

Here is a query example executed by the realized system. The query consists of the

keyword "horse", which is then translated into a SQL format, to be executed. The

corresponding SQL query is:

SELECT i.doc_id, doc_title,

sum((α*i.cf1+(1- α)*i.cf2)*c.idf)

FROM index_concepts i, documents d, concepts c

WHERE d.doc_id=i.doc_id and c.concept_id=i.concept_id and

c.concept_name in ('horse')

GROUP BY doc_id, doc_title

The results returned by the system are sorted by relevance and focuses on the context

and visual content of images.

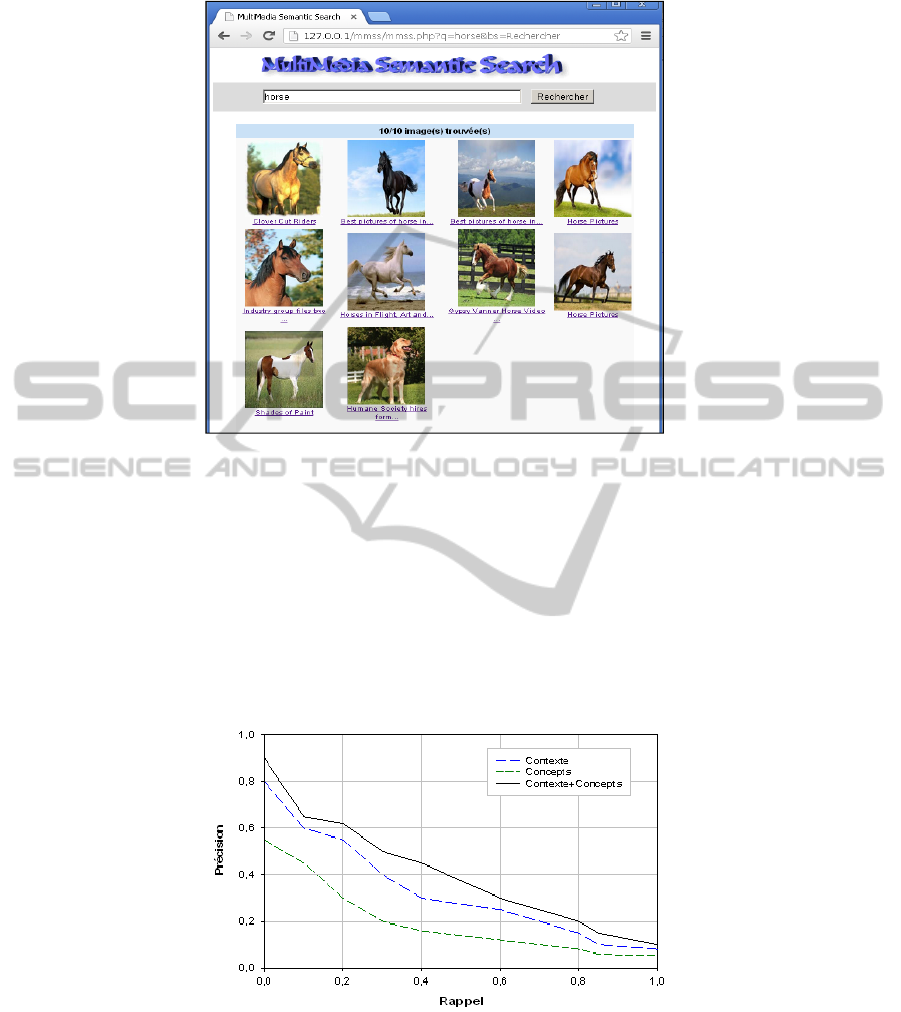

Fig. 3. Results returned by « horse » query.

To evaluate our model, in a first time of experimentations we tested a single modality

context or concepts. In a second time, we combined the two methods. The search

system uses two indexes built in the indexing process.

Several experiments were realized to set the value of the score of confidence α, the

value which gave a better precision is the value α = 0.40, which attaches importance

to information as context more than visual content for weighting concepts (the num-

ber of concepts detected is low compared to concepts extracted from visual content of

images).

The evaluation measures calculated are precision and recall (Fig. 4).

Fig. 4. Curves Recall / Precision for the three modality of retrieval.

In this graph it is clear that the combination of context information and semantic con-

cepts slightly improves the image retrieval. However, to generalize the use of this

method requires a lot of effort for the establishment of several classifiers.

5 Conclusions

The work presented remains in the area of multimedia information retrieval based on

semantic concepts. A uniform representation of images and query content is done, to

allow the user expressing his needs on a semantic level. Our contribution is mainly

concerned with the following points:

 A conceptual representation of images,

 Semantic concept detection method based on SVM classifiers,

 A fusion model of textual and visual information,

 A contribution to an expressive textual query language.

Among the perspectives considered we quote:

 Improve the disambiguation technique of verbs in the sentence with the lexical

ontology mapping,

 Diversify the number of semantic concepts detectable by the classification meth-

ods,

 Intend introducing the relevance feedback function in the retrieval process to refine

the learning of concepts process.

References

1. Bannour, H., A Survey of Image Retrieval Approaches and their limitations, Report of

Laboratoire Mathématiques Appliquées aux Systèmes, 2009.

2. Belkhatir, M., Mulhem, P. and Chiaramella, Y., A Conceptual Image Retrieval Architecture

Combining Keyword-Based Querying with Transparent and Penetrable Query-by-Example,

Springer-Verlag, pp. 528-539, 2005.

3. Bertini, M., Torniai, C. and Del Bimbo, A., Automatic video annotation using ontologies

extended with visual information, ACM Multimedia, pp. 395-398, 2005

4. Brilhault, A., Indexation et recherche par le contenu de documents vidéos, Grenoble,

France, 2009.

5. Chbeir, R., Modélisation de la description d’images : Application au domaine médical,

2001.

6. Clinchant, S., Ah-Pine, J. and Csurka, G., Semantic combination of textual and visual

information in multimedia retrieval, Proceedings of ICMR, pp. 44-44, 2011

7. Del Bimbo, A., Visual Information Retrieval, Morgan Kaufmann, 1999.

8. Favetta, F. and Aufaure-Portier, M., About Ambiguities in Visual GIS Query Languages: a

Taxonomy and Solutions, Proceedings of the Fourth International Conference on Visual

Information Systems (VISUAL’2000), pp. 154-165, 2000.

9. Heng, T. S., Beng, C. O. and Kian, L. T., Giving meanings to WWW images, The eighth

ACM international conference on Multimedia, p. 39–47, 2000.

10. Hollink, L. and Worring, M., Building a visual ontology for video retrieval, Proceedings of

ACM Multimedia, pp. 479-482, 2005.

11. Hoogs, A., Rittscher, J., Stein, G. and Schmiederer, J., Video content annotation using

visual analysis and a large semantic knowledgebase, IEEE Int'l Conf. on Computer Vision

and Pattern Recognition, vol. 2, pp. 327-334, 2003.

12. Jonathon, S.H., Patrick, S., Paul, L., Kirk, M., Peter, E. and Christine, S., Bridging the

Semantic Gap in Multimedia Information Retrieval, Workshop on Mastering the Gap, From

Information Extraction to Semantic Representation, 2006.

13. Kilgarriff, A. and Rosenzweig, R., Framework and results for English SENSEVAL,

Computers and the Humanities, p. 15–48, 2000.

14. Kim, H., Roczniak, A., Lévy, P. and El-Saddik, A., Social media filtering based on

collaborative tagging in semantic space, Multimedia Tools Appl, pp. 63-89, 2012.

15. Lemaitre, C., Moulin, C., Barat C, C. and Ducottet, C., Combinaison d'information visuelle

et textuelle pour la recherche d'information multimédia, GRETSI2009, 2009.

16. Liu, Y., Zhang, D., Lu, G. and Ma, W., Asurvey of content-based image retrieval with

high-level semantics, Elsevier J. Pattern Recognition, no. 40, pp. 262-282, 2007.

17. Mulhem, P., Lim, J.H., Leow, W.K. and Kankanhalli, M., Advances in digital home photo

albums, 2004.

18. Nowak, S., Hanbury, A. and Deselaers, T., Object and Concept Recognition for Image

Retrieval, vol. The Information Retrieval Series, no. 32, 2010.

19. Porter, M. F., An Algorithm for Suffix Stripping, Program, vol. 14, no. 3, pp. 130-137,

1980.

20. Snoek, C. G. M., Huurnink, B., Hollink, L. and Rijke, M., Adding Semantics to Detectors

for Video Retrieval, IEEE Transactions on Multimedia, vol. 9, no. 5, pp. 975-986, 2007.

21. Snoek, C. G. M. and Worring, M., Concept-based video retrieval, Foundations and Trends

in Information Retrieval, p. 215–322, 2009.

22. Tollari, S., Detyniecki, M., Marsala, C., Tabrizi, A., Amini, M. and Gallinari, P., Exploiting

Visual Concepts to Improve Text-Based Image Retrieval, ECIR '09 Proceedings of the 31th

European Conference on IR Research on Advances in Information Retrieval, pp. 701-705,

2009.

23. Torjmen, M., Approches de Recherche Multimedia dans des Documents Semi-Structurés :

Utilisation du contexte textuel et structurel pour la sélection d’objets multimedia, 2009

24. Vapnik, V. N., The Nature of Statistical Learning Theory, New York, 1999.

25. Vasilescu, F., Désambiguïsation de corpus monolingues par des approches de type Lesk,

2003.
