Soccer Ball Detection in Occluded Situations for Single Static Camera

Systems

Josef Halbinger and J

urgen Metzler

Fraunhofer Institute of Optronics, System Technologies and Image Exploitation IOSB,

Fraunhoferstr. 1, 76131 Karlsruhe, Germany

Keywords:

Soccer, Sport Analysis, Ball Tracking.

Abstract:

The interest on acquiring player and ball data during soccer games is increasing in several domains such as

media. Consequently, tracking systems are becoming widely used for live data gathering. Due to costs, sta-

dium infrastructure, media rights etc. there is a trend for stand-alone mobile low-cost soccer tracking systems.

The drawback of such systems is that generally only low-resolution images of the players are available which

strongly exacerbates the problem of detection and tracking the soccer ball. Besides difﬁculties that arise from

the appearance of the ball by itself, the detection of the ball in situations where it is occluded by the players

is very challenging. This paper presents a tracking framework for the reconstruction of the ball trajectory

from monocular low-resolution soccer image sequences. The focus of this paper is the detection of the ball in

occluded situations. The approach is tested and evaluated on Bundesliga data sets.

1 INTRODUCTION

The increasing professionalization of soccer is ac-

companied by a growing media attention as well as

game analysis and professional training. Especially

the automation of live analysis of soccer games is in-

teresting for several domains such as media. How-

ever, the automation requires a robust acquisition of

player and ball data that still relies heavily on the

interaction of operators (so-called scouts) in current

systems. Live acquisition of quantitative motion data

such as distances covered by players, distances be-

tween players or ball possession can only be done

by sophisticated automation. Our overall two-camera

tracking system provides this kind of quantitative data

for supporting a scout and for the automated acquisi-

tion of the relevant data (Herrmann et al., 2011). It au-

tomatically detects, classiﬁes and tracks the ball, the

22 soccer players, the referee and the two linesmen in

one image sequence of double Full HD resolution.

The main contribution of this work is the detection

of the ball in situations in which the ball is close to a

player or even partially covered by one. Detection of

the ball in image sequences generally is a difﬁcult task

as the appearance of the ball varies from image to im-

age. For instance, the high accelerations occurring at

the ball may cause motion blur so that the shape of the

ball is then more of an ellipse than a circle (see Fig.

1 (a)). Also, the color of the ball may be vary from

image to image because of changes of the illumina-

tion conditions or it has the same color as the lines of

the pitch which exacerbates the ball detection task.

(a) (b)

Figure 1: (a) Variety of the appearance of the ball extracted

from one image sequence and (b) examples for partially oc-

cluded situations.

Another challenge is the image resolution of the ball

which is usually very small so that also confusions

with body parts may occur. Depending on the camera

perspective, the ball is in front of a complex image

background such as the audience which exacerbates

its detection as well. Besides difﬁculties that arise

from the appearance of the ball by itself, the detec-

tion of the ball is very challenging in situations where

it is occluded by the players (see Fig. 1 (b)). Every

time a player touches the ball there is a chance that

the ball is not fully visible for a short time as parts of

the player’s body can move between ball and the cam-

111

Halbinger J. and Metzler J..

Soccer Ball Detection in Occluded Situations for Single Static Camera Systems.

DOI: 10.5220/0004586001110115

In Proceedings of the International Congress on Sports Science Research and Technology Support (icSPORTS-2013), pages 111-115

ISBN: 978-989-8565-79-2

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

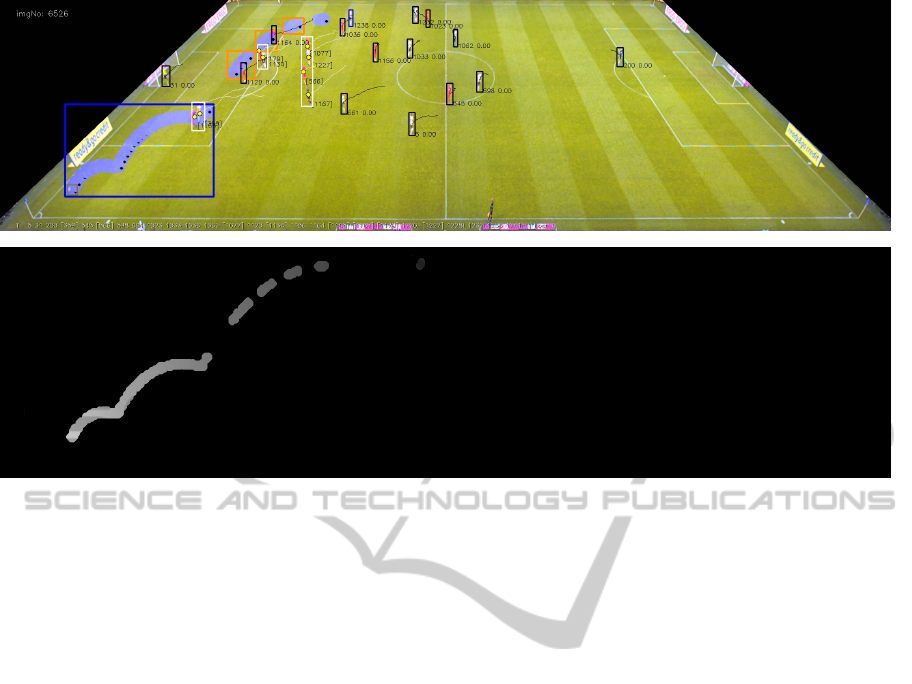

Figure 2: Sample snapshot of the processed input image sequence including detected ball tracklets marked by rectangles (top)

and one for the corresponding motion history image (bottom).

era. However, as long as the ball is at least partially

visible, there is an opportunity to identify the ball in

the image.

The motivation of this work is to ﬁnd a solution

which can help to detect the ball in such cases. At

the ﬁrst stage, a circle detection method is applied be-

fore, at the second stage, the detected circles are eval-

uated by examining the Freeman chain code (Free-

man, 1961) of the found contours. There are a cou-

ple publications for detecting and tracking the soccer

ball as seen in (D’Orazi and Leo, 2010). However,

most of these approaches focus on tracking the ball

in broadcast soccer videos and require a high image

resolution. The approach presented in this contribu-

tion, is applicable to static camera systems, even for

low-resolution cameras. So it can be used in huge

tracking systems consisting of several cameras usu-

ally ﬁxed installed in stadiums as well as for low-cost

tracking systems that generally consist of 1-3 cameras

capturing the entire pitch.

The contribution is structured as follows: In Sec-

tion 2, the module for the ball detection is described.

It is a two-stage approach: At the ﬁrst stage, the ball

is detected in situations in which the ball is gener-

ally not occluded. Also, robust partial ball trajectories

(tracklets) are extracted. In order to get also detection

hypotheses in occluded situations (within the gaps be-

tween the tracklets), a ball detector specialized for oc-

cluded situations is used at the second stage. Then, in

Section 3, results of an evaluation on data sets of a

Bundesliga match are presented.

2 BALL DETECTION

The reconstruction of the ball trajectory requires a re-

liable soccer ball detection. However, this is chal-

lenging as there are usually a lot of occlusions. Fur-

thermore, a high detection rate should be achieved

at a low false alarm rate.In order to be able to ful-

ﬁll this requirement, we follow a detection approach

that has been widely established (see e.g. (D’Orazi

and Leo, 2010)): we divide the detection task in two

steps. First, ball candidates are extracted followed by

an add-on veriﬁcation of them.

2.1 Not Occluded Situations

At the ﬁrst stage, the soccer ball has to be detected.

Due to the real-time constraint for live applications,

a feature-based detection with e.g. a sliding win-

dows approach cannot be used. Instead, as we cap-

ture the images from a static camera, we ﬁrst apply

the foreground/background segmentation from Kim

et al. (Kim et al., 2004). Temporal static background

like the pitch and marking lines are segmented as

background, whereas moving objects generate chang-

ing appearance and are therefore segmented as fore-

icSPORTS2013-InternationalCongressonSportsScienceResearchandTechnologySupport

112

ground. During the ball candidate extraction, all fore-

ground regions are extracted and checked for their

size using calibration information of the cameras.

Foreground regions that are no candidates for the

soccer ball due to their size are removed. Out of

the remaining regions, the external contours are ex-

tracted as a sequence of points and analyzed after-

ward. If the number of the contour pixels is higher

than a bias, an ellipse is ﬁtted to it and the mean

squared error between every sequence point and the

ellipse is calculated. Ball candidates with a high mean

squared error are removed. The remaining candidates

are kept as veriﬁed foreground regions in the fore-

ground/background segmented image. Then, a dilata-

tion is applied and the last n binary images are accu-

mulated to a so-called Motion History Image (MHI)

of veriﬁed ball candidates. Finally, ball tracklets (ro-

bust partial ball trajectories) are ﬁnally extracted from

the MHI. Fig. 2 shows a MHI and some results of de-

tected/extracted ball tracklets.

2.2 Partially Occluded Situations

The foreground/background segmentation often

merges ball and player into a single silhouette if they

are either close to each other or partially occlude

each other. Thus, the ball is not a singular object and

only appears as a bump poking out of the player’s

silhouette in the resulting image (Fig. 3 (a) and (b)).

(a) (b) (c) (d) (e)

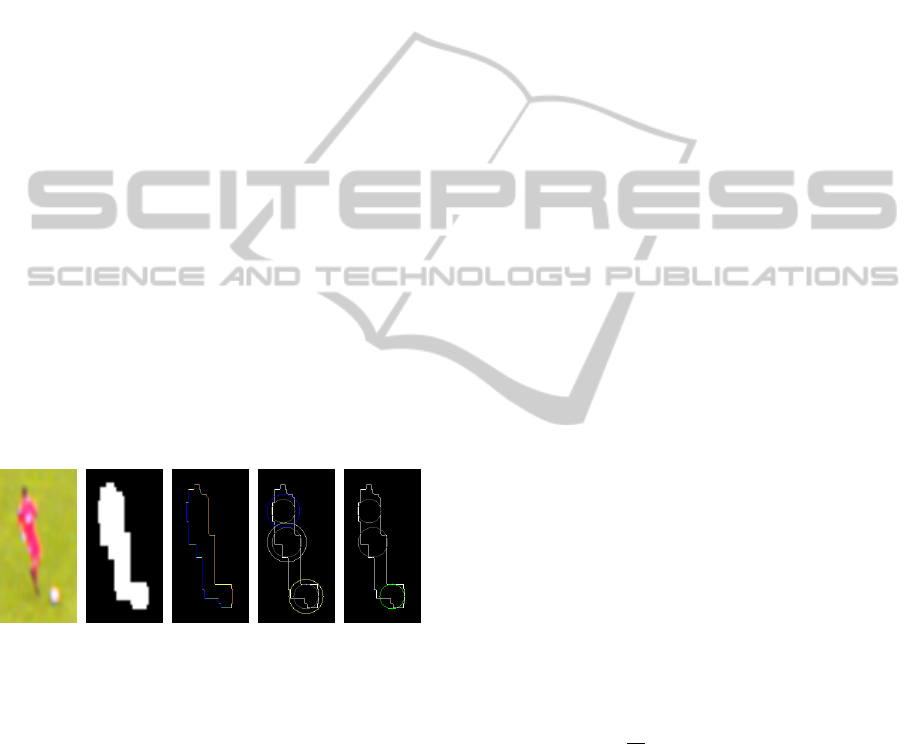

Figure 3: (a) Input image, (b) foreground/background seg-

mentation of the input image, (c) chain code representation

of the outer contour: le ft- and right-values (yellow and

light blue/horizontal lines) of the chain code are of partic-

ular interest, (d) detected Hough circles (gray/smaller cir-

cles) and circular RoI RoI

in which the CCH is calculated

(blue/upper, brown/central and yellow/lower circle), (e) de-

tected Hough circles and identiﬁed ball (green/lower cirlce).

At the second stage, the goal is to identify these

bumps. In order to achieve this, we apply a two-step

approach again. In the ﬁrst step, circles (or at least

parts of circles) in the image are detected via Hough

transform (Kimme et al., 1975). In the second step,

the Freeman chain code (Freeman, 1961) is consid-

ered to decide if a detected circle is a soccer ball.

In the following, the details of the procedure are

given: At the beginning of the ﬁrst step, all the player

silhouettes of the foreground/background segmented

image are extracted into separate images. On each of

these silhouette images, a Hough transform for circle

detection is applied. All detected circles and circu-

lar arcs that approximately match the predeﬁned ball

dimensions are determined as ball candidates. A re-

sulting Hough circle c is characterized by the center

coordinates x and y as well as the radius r : c = (x, y, r).

The Hough transform variant chosen in this work

is called the Hough gradient method (Bradski and

Kaehler, 2008). Unlike comparable methods, this

variant only uses a two-dimensional accumulator in-

stead of a three dimensional one. This is achieved by

incrementing only accumulator cells along the gradi-

ent direction of each non zero pixel of the edge map

instead of incrementing a complete circle and there-

fore keeping a separate accumulator for every pre-

deﬁned possible circle radius. This is beneﬁcial to

the running time of the algorithm. The downside is

a lower recognition rate of circles with a concentric

counterpart. But this ﬂaw is acceptable since con-

centric circles do not occur in the segmented image

material.

At the beginning of the second step, the outer con-

tour of the silhouette image is calculated. Then the

Freeman chain code of the contour is determined (Fig.

3 (c)). Now, in a circular Region of Interest (RoI)

around the ball candidates that were identiﬁed be-

fore, the Chain Code Histogram (CCH) is computed

(Iivarinen and Visa, 1996).

The circular RoI is constructed around the cen-

ter coordinates x and y of the ball candidate, adding

a small ∆ to the radius r (Fig. 3 (d)). The ∆ is

added to encounter the problem that the detected cir-

cles of the Hough gradient method tend to be slightly

smaller than they actually are. As a result, the consid-

ered RoI around the ball candidate RoI

is deﬁned as

RoI

= (x, y, r + ∆).

As described in (Iivarinen and Visa, 1996), the

CCH is a discrete function

p(k) =

, k = 0, 1, ..., K − 1 , (1)

where n

is the number of chain code values k in a

chain code, and n is the number of links in a chain

code. In case of the Freeman chain code there are

K = 8 possible directions.

Generally, a bump has a high amount of le f t and

right-values of the chain code at the same time, while

the le f t-values are on the upper side of the bump and

right-values on the lower side of the bump. As a con-

sequence, a RoI

with a CCH that provides certain

frequencies of occurrence of le f t- and right-values λ

and ρ is deﬁned to indicate a bump in the silhouette. If

SoccerBallDetectioninOccludedSituationsforSingleStaticCameraSystems

113

this frequency lies beyond a certain threshold τ (and

RoI

originates from inside the silhouette), it is as-

sumed that a bump exists in this area. As this bump

also matches the dimensions of the soccer ball, the ex-

amined RoI

is identiﬁed to have the soccer ball in it

(Fig. 3 (e)):

Ball =

(

1 : λ ≥ τ and ρ ≥ τ

0 : else

. (2)

3 EXPERIMENTAL RESULTS

We tested the ﬁrst-stage of our approach - the track-

let extraction - on a data set of a Bundesliga match

consisting of an image sequence with about 140.000

images of double Full HD resolution (see Fig. 2 for

an example). There are 1428 tracklets to detect, in sit-

uations where the ball is neither occluded nor merged

with a player. In these situations the approach de-

tected 1343 tracklets and missed 85. There was no

false alarm, i.e. all detected ball tracklets were cor-

rectly detected as such.

The second-stage - ball detection in occluded sit-

uations - was tested on two data sets of a Bundesliga

match. Both sets consist of image regions that were

extracted from the same Bundesliga sequence as in

the ﬁrst stage test. The ﬁrst data set consists of 1408

non-consecutive images with a resolution of 50×100

pixels, 704 of them showing the ball close to a player

or partially occluded by a player. The other 704 im-

ages don’t show a ball. The second data set consists of

9634 consecutive images with a resolution of 64×128

pixels, 111 of them showing the ball close to a player

or partially occluded by a player. 9323 images don’t

show the ball.

As mentioned in Section 2.2, the threshold τ de-

scribes the required frequencies of occurrence λ and

ρ of le f t and right chain code values inside of RoI

In order to determine the optimal threshold, τ is iter-

ated from a speciﬁed minimum to a speciﬁed maxi-

mum in both data sets. The range is set in a way that

all possible cases are covered: it starts with a con-

ﬁguration that identiﬁes every Hough circle as a ball

and ends with a conﬁguration that detects no single

Hough circle as a ball. The results are displayed in a

ROC (Receiver Operating Characteristics) curve that

puts the true positive rate of a data set in relationship

with its false positive rate (see Fig. 4).

In the second data set, a true positive respectively

false positive rate of 1.0 could not be reached. The

reason for this is that no Hough circles matching the

predeﬁned ball dimensions were found. This leads to

scenarios where varying the τ-threshold has no effect.

0,1

0,2

0,3

0,4

0,5

0,6

0,7

0,8

0,9

0 0,1 0,2 0,3 0,4 0,5 0,6 0,7 0,8 0,9 1

True Positive Rate

False Positive Rate

data set 1

data set 2

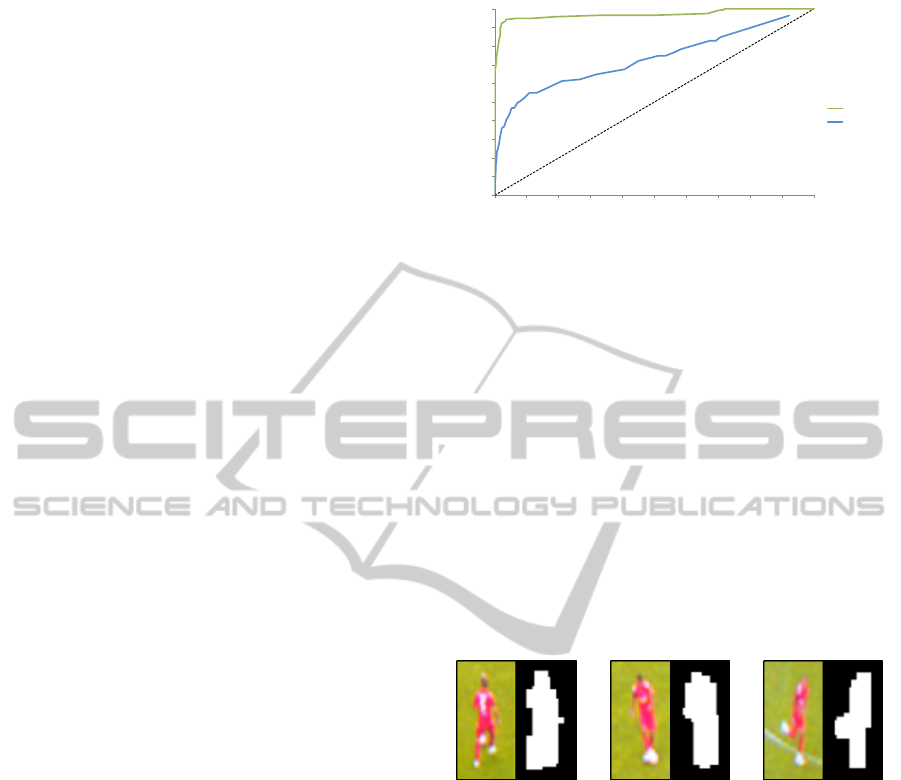

Figure 4: ROC curve of the tested second-stage approach:

the ball detection approach for occluded situations. “data

set 1” consists of 1408 non-consecutive images: 704 of

them showing the ball close to a player or partially occluded

by a player and the other 704 images don’t show a ball.

“data set 2” consists of 9634 consecutive images: 111 of

them showing the ball close to a player or partially occluded

by a player and 9323 images don’t show the ball.

The results also differ because the second data set has

more difﬁcult cases: On the one hand, there are sev-

eral images in which the ball is between the player’s

legs as illustrated in Fig. 5 (a) or right in front of the

foot as shown in Fig. 5 (b). As a result, the ball does

not appear as a bump in the segmented image. On

the other hand, there are segmented images that have

a strong bump, although there is no ball on the input

image as shown in Fig. 5 (c).

(a) (b) (c)

Figure 5: Difﬁcult cases for the ball detector: (a) Ball be-

tween player’s legs, (b) ball right in front of a player and

segmented image.

4 CONCLUSIONS

In this paper, a two-stage approach for the detection of

the soccer ball with the focus on occluded situations

where the ball is partially occluded or merged with a

player has been presented. We could yield a reliable

extraction of ball tracklets in not occluded situations.

Also, the ball detector for occluded situations is able

to reliably detect balls in cases where the ball is par-

tially occluded. With the exception of the delay in the

output of the ball coordinates, which depends on the

length of the motion history, the proposed approach is

real-time capable.

icSPORTS2013-InternationalCongressonSportsScienceResearchandTechnologySupport

114

REFERENCES

Bradski, G. and Kaehler, A. (2008). Learning OpenCV:

Computer vision with the OpenCV Library. O’Reilly

Media, Sebastopol.

D’Orazi, T. and Leo, M. (2010). A review of vision-based

systems for soccer video analysis. Pattern Recogni-

tion, 43(8):2911–2926.

Freeman, H. (1961). On the encoding of arbitrary geometric

conﬁgurations. IRE Transactions on Electronic Com-

puters EC, 10(2):260–268.

Herrmann, C., Manger, D., and Metzler, J. (2011). Feature-

based localization reﬁnement of players in soccer us-

ing plausibility maps. In Proc. of the IPCV (WORLD-

COMP), volume 2.

Iivarinen, J. and Visa, A. (1996). Shape recognition of ir-

regular objects. In Proc. SPIE 2904, pages 25–32.

Kim, K., Chalidabhongse, T., Harwood, D., and Davis, L.

(2004). Real-time foreground-background segmen-

tation using codebook model. Real-Time Imaging,

11(3):172–185.

Kimme, C., Ballard, D., and Sklansky, J. (1975). Finding

circles by an array of accumulators. Communications

of the ACM, 18(2):120–122.

SoccerBallDetectioninOccludedSituationsforSingleStaticCameraSystems

115
