Use of a Duplex Construction of SHA-3 for Certiﬁcate

Revocation in VANETs

F. Mart

ın-Fern

andez, P. Caballero-Gil, and C. Caballero-Gil

Department of Statistics, Operations Research and Computing,

University of La Laguna, La Laguna, Spain

Abstract. This work describes the application of a version of the new standard

SHA-3 to improve the performance of certiﬁcate revocation in Vehicular Ad-hoc

NETworks (VANETs). In particular, it proposes the use of a duplex construction

instead of the sponge one present in the SHA-3 version of the Keccak hash func-

tion, combined with a dynamic authenticated data structure based on k-ary trees

that allows taking advantage of such a construction. Besides, a new scheme for

authenticated encryption is also introduced to ensure integrity, authenticity and

privacy of an auxiliary structure used to link the ordered identiﬁer in the k-ary

tree with the corresponding certiﬁcate serial number. This is an ongoing work,

and the implementation of a prototype based on smartphones is being developed.

1 Introduction

Vehicular ad-hoc networks are self-organizing networks built up from moving vehicles

that communicate with each other mainly to prevent adverse circumstances on the roads,

but also to achieve a more efﬁcient trafﬁc management. Particularly, these networks are

considered an emerging research area of mobile communications because they offer a

wide variety of possible applications, ranging from road safety and transport efﬁciency,

to commercial services, passenger comfort, and infotainment delivery. Furthermore,

VANETs can be seen as an extension of mobile ad-hoc networks where there are not

only mobile nodes, called On-Board Units (OBUs), but also static nodes, called Road-

Side Units (RSUs).

Without security, all network nodes are potentially vulnerable to misbehavior of any

dishonest user, what would make all services provided by the VANET untrustworthy.

Therefore, it is absolutely necessary to have a secure procedure not only to identify

misbehaving nodes, but also to exclude them from the network. One of the basic solu-

tions to accomplish this task in networks where communications are based on a Public

Key Infrastructure (PKI) is the use of certiﬁcate revocation. Thus, a critical part in such

networks is the management of revoked certiﬁcates. Related to this issue, in the bibli-

ography we can ﬁnd two different types of solutions. On the one hand, a decentralized

proposal enables revocation without the participation of any centralized infrastructure,

based on trusting the criteria of honest network nodes. On the other hand, a central-

ized approach relies on the existence of a central trustful Certiﬁcate Authority (CA),

which is the only entity responsible for deciding on the validity of each node certiﬁcate.

Martín-Fernández F., Caballero-Gil P. and Caballero-Gil C..

Use of a Duplex Construction of SHA-3 for Certiﬁcate Revocation in VANETs.

DOI: 10.5220/0004587300030011

In Proceedings of the 10th International Workshop on Security in Information Systems (WOSIS-2013), pages 3-11

ISBN: 978-989-8565-64-8

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

This second approach is usually based on the distribution of the so-called Certiﬁcate

Revocation Lists (CRLs), which can be seen as blacklists of revoked certiﬁcates.

IEEE 1609 is a family of standards based on the IEEE 802.11p, which is an ap-

proved amendment to the IEEE 802.11 standard for vehicular communications [8].

Within such a family, 1609.2 deals with the issues related to security services for appli-

cations and management messages. In particular, the IEEE 1609.2 standard deﬁnes the

use of PKIs, CAs and CRLs in VANETs, and implies that in order to revoke a vehicle,

a CRL has to be issued by the CA to the RSUs, who are in charge of sending the infor-

mation to the OBUs. Thus, an efﬁcient management of certiﬁcate revocation is crucial

for the robust and reliable operation of VANETs.

Once VANETs are implemented in practice on a large scale, their size will grow

and the use of multiple temporary certiﬁcates or pseudonyms will become necessary

to protect the privacy of the users. Thus, it is foreseeable that CRLs will grow up to

become very large. Moreover, in this context it is also expected a phenomena known

as implosion request, consisting of several nodes who synchronously want to download

the CRL at the time of its updating, producing serious congestion and overload of the

network, what could ultimately lead to a longer latency in the process of validating a

certiﬁcate. Consequently, since known naive approaches for the management of revoked

certiﬁcates do not scale to large networks, the main motivation of this paper is to reduce

the size of the part of the CRL that must be sent to the OBUs.

This proposal uses a k-ary tree as an Authenticated Data Structure (ADS), for the

management of certiﬁcate revocation in VANETs. By using this ADS, the process of

query on the validity of certiﬁcates will be more efﬁcient because OBUs will send

queries to RSUs, who will answer them on behalf of the CA. In this way, at the same

time the CA will no longer be a bottleneck, and OBUs will not have to download the

entire CRL. In particular, the used perfect k-ary trees are based on a version of the

Secure Hash Algorithm SHA-3 that was recently chosen as standard [5].

Whereas the original SHA-3 uses the sponge construction [3], the proposal pre-

sented in this work applies a duplex construction of SHA-3 [4] because the combination

of both structures allows improving the efﬁciency of updating and querying of revoked

certiﬁcates. Besides, the proposal uses Authentication Encryption (AE) for providing

conﬁdentiality, integrity and authenticity during the transmission of information from

the CA to the RSUs.

This paper is organized as follows. Section 2 addresses the general problem of the

use of certiﬁcate revocation lists in VANETs, and provides a succinct revision of related

works. Then, Section 3 focuses on the necessary preliminaries and a brief explanation

of the tree-based module of the proposal. Afterwards, Section 4 introduces a novel

authenticated encryption scheme proposed for transferring the CRL tree from the CA

to the RSU. Finally, Section 5 discusses conclusions and possible future research lines.

2 Related Work

The general procedure when CRLs are used and a CA has to revoke a public-key cer-

tiﬁcate consists in including the corresponding certiﬁcate serial number in the CRL and

distribute this CRL within the network in order to let users know which nodes are no

longer trustworthy [15]. It is important that the distribution of the CRL is done efﬁ-

ciently in order to allow that the knowledge about untrustworthy nodes can be spread

quickly to the entire network.

In the particular case of VANETs, previous works assume that the entire CRL

may be delivered by broadcasting it directly from RSUs to OBUs [10], and then dis-

tributed among OBUs cooperatively [14]. However, the large size of VANETs, and

consequent large size of the CRLs, makes this approach infeasible due to the overhead

it would cause to network communications. This issue is further increased with the use

of multiple pseudonyms for the nodes, what has been suggested to protect privacy and

anonymity of OBUs [16].

Since there are almost one thousand million cars in the world [11], considering

the use of pseudonyms, a direct conclusion is that the number of revoked certiﬁcates

might reach soon the same amount, one thousand million. On the other hand, assuming

that each certiﬁcate takes at least 224 bits, in such a case the CRL size would be 224

Gbits, what means that its management following the traditional approach would not

be efﬁcient. Even though regional CAs were used and the CRLs could be reduced to 1

Gbit, by using the 802.11a protocol to communicate with RSUs in range, the maximum

download speed of OBUs would be between 6 and 54 Mbit/s depending on vehicle

speed and road congestion, so on average an OBU would need more than 30 seconds to

download a regional CRL from an RSU.

A straight consequence of this size problem is that a new CRL cannot be issued very

often, what would affect the freshness of revocation data. On the other hand, if a known

technique for large data transfers were used for CRL distribution as solution for the size

problem, it would result in higher latencies, what would also impact in the revocation

data validity. Consequently, a solution not requiring the distribution of the full CRL

from RSUs to OBUs, like the one proposed in this work, would be very helpful for the

secure and efﬁcient operation of VANETs.

In particular, to improve efﬁciency of communication and computation in the man-

agement of revoked public-key certiﬁcates in VANETs, some authors have proposed

the use of particular ADSs such as Merkle trees [12] and skip lists [6] [9]. However,

to the best of our knowledge no previous work has described in detail the use of k-ary

trees in general as ADSs for the management of certiﬁcate revocation.

In general, a hash tree is a tree structure whose nodes contain digests that can be

used to verify larger pieces of data [13]. The leaves in a hash tree are hashes of data

blocks while nodes further up in the tree are the hashes of their respective children so

that the root of the tree is the digest representing the whole structure. Hash trees usually

require the use of a cryptographic hash function in order to prevent collisions. Most

implementations of hash trees are binary, but this work proposes the use of the more

general structure of k-ary trees because when combining it with a particular choice of

cryptographic hash function, it is possible to optimize the update of the hash tree.

This paper proposes the use of a new version of Keccak as cryptographic hash func-

tion in the hash tree. Keccak is the cryptographic hash function used in the new SHA-3

standard [17]. The requirements set by NIST for SHA-3 candidates included classical

security properties of hash functions, such as collision resistance, preimage resistance

and second preimage resistance [1]. Different types of implementations of SHA-3 ﬁ-

nalists have been evaluated in several works [7] [2], obtaining in most cases positive

conclusions. The original SHA-3 uses a sponge construction [3], which in a crypto-

graphic context is an operating mode on the base of a ﬁxed length transformation and

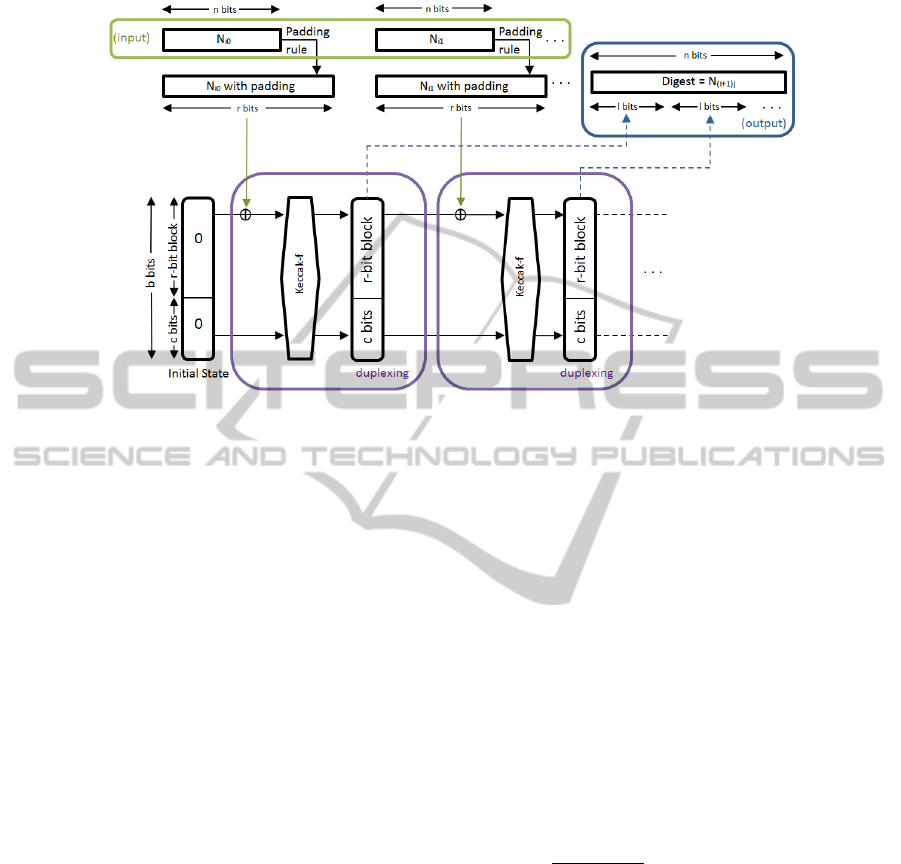

a padding rule. Instead of it, this paper proposes a duplex construction [4]. The main

advantage of the duplex construction is that it provides digests on the input blocks re-

ceived so far. This beneﬁt is applied in the proposal here described so that the hash tree

is constructed efﬁciently.

3 Tree-based Module of the Proposal

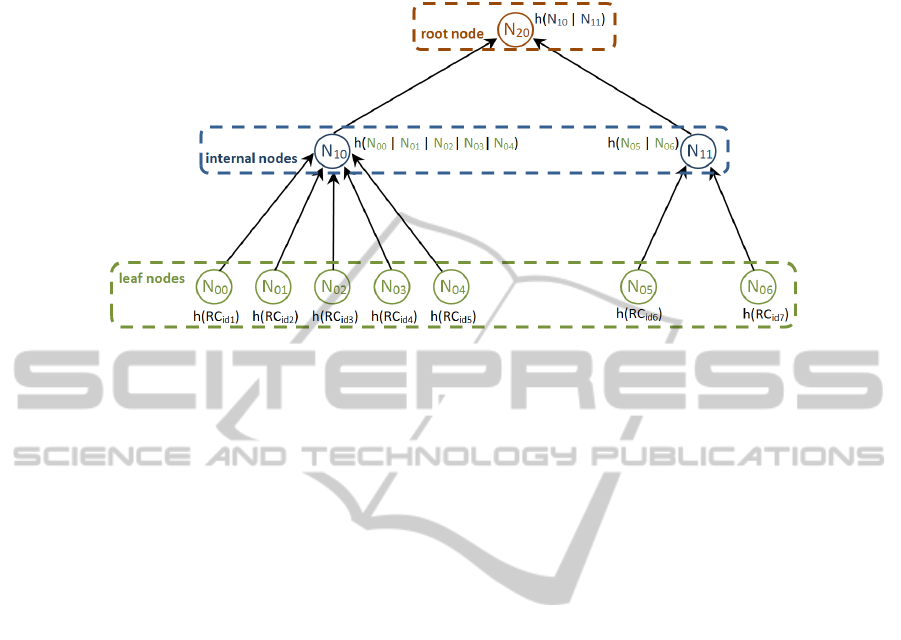

The scheme described in this paper is based on using as ADS a k-ary tree, which is a

rooted tree where each node has no more than k children. The use of k-ary hash trees

instead of binary trees allows increasing efﬁciency of the construction and update of

hash trees, as we will see later. Speciﬁcally we propose the use of a perfect k-ary tree in

which all leaf nodes are at the same depth. Thus, one of the major drawbacks of ordered

tree structures, which is the necessary restructuring when there are changes in the tree,

only occurs when the perfect k-ary tree requires a new level of depth, because otherwise

the nodes simply are inserted from left to right to complete each level of depth. In this

way, our proposal is based on a dynamic tree-based data structure that varies depending

on the number of revoked certiﬁcates.

In the proposed scheme, the bandwidth cost of sending the new versions of the

CRL tree from the CA to the OBUs is signiﬁcantly reduced because only nodes in the

tree that have changed need to be updated. This implies a signiﬁcant improvement with

respect to previous tree-based schemes for revoked certiﬁcate management because one

of their main problems is the necessary update of the entire hash tree every time a new

leaf node is added or an existing leaf node is deleted.

The authenticity of the used hash tree structure is guaranteed thanks to the CA

signature of the root. The procedure to follow when the part of the CRL tree that is

necessary for authenticity veriﬁcation is pushed from an RSU to an OBU after this

latter queries the ﬁrst one about a certiﬁcate, is as follows. If the RSU ﬁnds the digest

of the certiﬁcate among the leaves of the tree because it is a revoked certiﬁcate, then

the RSU sends to the OBU the route from the root to the corresponding leaf, along with

all the siblings of the nodes on this path. After checking all the digests corresponding

to the received path and the CA signature of the root, the OBU gets convinced of the

validity of the evidence on the revoked certiﬁcate received from the RSU.

The proposed model is based on the following notation:

– h: Cryptographic hash function used in the hash tree.

– D (≥ 1): Depth of the hash tree.

– d (< D): Depth of an internal node in the hash tree.

– s: Number of revoked certiﬁcates.

– RC

(j = 1, 2, ..., s): Serial number of the j − th Revoked Certiﬁcate.

– N

(i = D − d and j = 0, 1...): Internal Node of the hash tree obtained by hashing

the concatenation of all the digests contained in its children.

– N

(j = 0, 1...): Leaf node of the hash tree containing h(RC

), ordered according

to revocation.

Fig. 1. Hash tree based on a perfect 5-ary tree.

– k: Maximum number of children for each internal node in the hash tree.

– f: Keccak function used in SHA-3.

– n: Bit size of the digest of h, which is here assumed to be the lowest possible size

of SHA-3 digest, 224.

– b: Bit size of the input to f, which is here assumed to be one of the possible values

of Keccak, 800.

– r: Bit size of input blocks after padding for h, which is here assumed to be 352.

– c: Difference between b and r, which is here assumed to be as in SHA-3, 2n, that

is 448.

– l: Bit size of output blocks for building the digest of h, which is here assumed to be

lower than r.

– m: Bit size of input message blocks for the AE scheme.

Regarding the cryptographic hash function h used in the hash tree (see Figure 1),

our proposal is based on the use of a new version of the Secure Hash Algorithm SHA-3.

In SHA-3, the basic cryptographic hash function f called Keccak contains 24 rounds of

a basic transformation and its input is represented by a 5 × 5 matrix of 64-bit lanes. In

contrast, our proposal is based on 32-bit lanes. Another proposed variation of SHA-3 is

the use of a duplex version of the sponge structure of SHA-3. On the one hand, like the

sponge construction of SHA-3, our proposal based on a duplex construction also uses

Keccak as ﬁxed-length transformation f , the same padding rule and data bit rate r. On

the other hand, unlike a sponge function, the duplex construction output corresponding

to an input string might be obtained through the concatenation of the outputs resulting

from successive input blocks (see Figure 2). Thus, the use of the duplex construction in

the proposed hash tree allows the insertion of a new revoked certiﬁcate as new leaf of

the tree by running a new iteration of the duplex construction only on the new revoked

certiﬁcate. In particular, the RSU can take advantage of all the digests corresponding

to the sibling nodes of the new node, which were computed in previous iterations, by

simply discarding the same minimum number of the last bits of each one of those digests

so that the total size of the resulting digest of all the children remains the same, n. This

Fig. 2. Proposed duplex construction.

proposed procedure makes the hash tree construction more efﬁcient than previous tree-

based schemes when a new leaf corresponding to a new revoked certiﬁcate has to be

added to the tree.

Note that, while the maximum number of children of an internal node has not been

reached, the RSU has to store not only all the digests of the tree structure but also

the state resulting from the application of Keccak hash function f in the last iteration

corresponding to such internal node, in order to use it as input in a next iteration.

On the other hand, periodic delete operations of certiﬁcates that are in the tree and

reach their expiration date, require rebuilding the part of the tree involving the path from

those nodes to the root. Thus, in order to maximize our proposal, such tree rebuilding is

proposed to be linked to the moment when all the sibling nodes of some internal node

expire because this avoids unnecessary reductions of the system efﬁciency by having to

rebuild the tree very often.

The choice of adequate values for the different parameters in our proposal must be

done carefully, taking into account the relationships among them. In particular, since

the maximum tree size:

n(1 + k + k

+ k

+ · · · + k

) =

n(k

(D+1)

−1)

k−1

is upperbounded by the size of available memory in the RSU, and the maximum number

of leaves of the k-ary tree k

is lowerbounded by the number of revoked certiﬁcates s,

both conditions can be used to deduce the optimal value for k.

4 Authenticated Encryption Module of the Proposal

In our proposal, the used k-ary tree structure assigns a unique identiﬁer to each revoked

certiﬁcate to represent it in in order in each one of its leafs. Consequently, an auxiliary

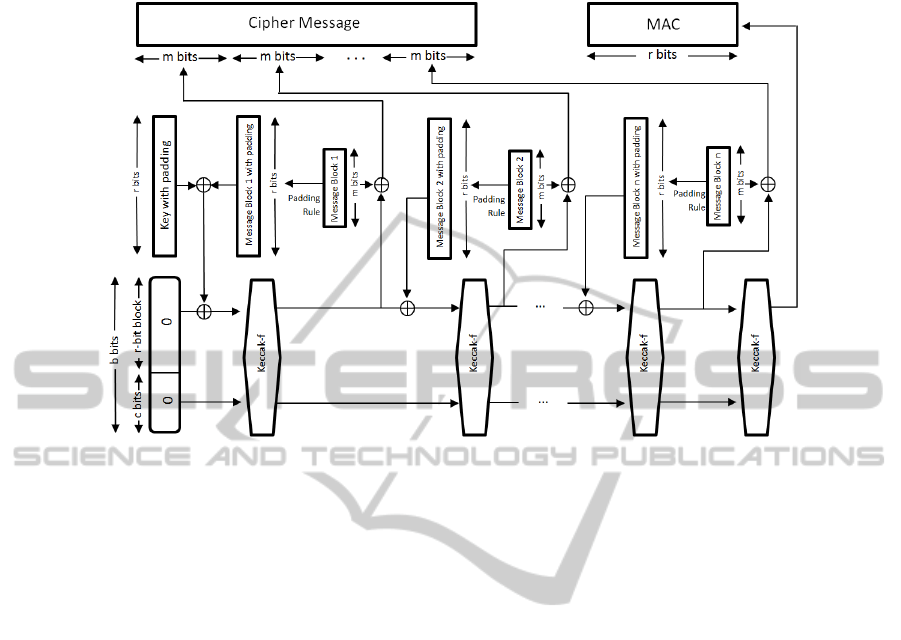

Fig. 3. Proposed authentication encryption.

structure linking such identiﬁers with the corresponding certiﬁcate serial number must

be also stored in the RSU. Thus, when an OBU sends a request about a certiﬁcate, the

RSU ﬁrst gets from such structure the identiﬁer generated by the k-ary tree structure by

using the certiﬁcate serial number. Then it can proceed with the tree search.

In order to allow the ordered insertion of revoked certiﬁcates in the tree, the afore-

mentioned auxiliary structure may be deﬁned as a hash table (data structure used to

implement an associative array mapping keys to values), or any other structure having

a quick and efﬁcient way to return the order value required for the search in the tree.

This structure is ﬁrst generated by the CA and then sent to all RSUs so that they can

properly perform searches. Since the information contained in this structure is sensitive,

it is necessary to ensure its authenticity, integrity and privacy along the communication

between CA and RSUs. To achieve this, the use the authenticated encryption is here pro-

posed. AE can be deﬁned as an operation that simultaneously provides conﬁdentiality,

integrity and authenticity on the input data.

Many specialized authenticated encryptions have been proposed based on block ci-

phers. However, authenticated encryption can be generically constructed by combining

an encryption scheme with a Message Authentication Code (MAC), provided that the

encryption scheme is semantically secure under chosen plaintext attack and the MAC

function is unforgeable under chosen message attack.

Here we propose the use of AE under the Output FeedBack (OFB) mode that applies

a block cipher as a synchronous stream cipher. Speciﬁcally, we suggest an adaptation

of the scheme proposed in [4], which combines a cipher-block chaining mode encryp-

tion with a duplex construction in a new mode of authenticated encryption (see Figure

3). The CA applies the proposed AE to encrypt and authenticate the auxiliary structure

containing the unique identiﬁers of the revoked certiﬁcate and the corresponding tree

identiﬁers, when sending it to the RSUs in order to protect its integrity, authenticity and

conﬁdentiality.

5 Conclusions and Future Works

One of the most important security issues in VANETs is the problem of management

of revoked certiﬁcates, because efﬁcient veriﬁcation of public-key certiﬁcates by OBUs

is crucial in order to ensure the safe operation of the network. This paper proposes an

alternative solution to CRL distribution, which uses authenticated data structures based

on dynamic k-ary trees. In particular, the proposed mechanism applies the basic hash

function of the new SHA-3 standard called Keccak combined with a duplex construc-

tion. Thanks to the structure of the used k-ary tree, the duplex construction allows taking

advantage of the digests of previous revoked certiﬁcates for calculating the hash of ev-

ery new revoked certiﬁcate, so that its inclusion in the tree can be performed by a single

iteration of the hash function. Consequently, the whole process is more efﬁcient. This

work also includes the description of a new authenticated encryption scheme to ensure

integrity, authenticity and privacy of the auxiliary structure linking the tree identiﬁer

with the corresponding certiﬁcate serial number, when such a structure is sent from the

CA to the RSU. A complete analysis of optimal values for the parameters, a perfor-

mance comparison with previous proposals, and the evaluation of practical and mea-

surable outcomes obtained from the implementation of the proposal both on VANET

devices and on Android and iOS smartphones are part of work in progress.

Acknowledgements

Research supported by the Spanish MINECO and the European FEDER Funds under

projects TIN2011-25452 and IPT-2012-0585-370000, and the FPI scholarships BES-

2009-016774 and BES-2012-051817.

References

1. E. Andreeva, B. Mennink, B. Preneel, M. Skrobot, Security analysis and comparison of

the SHA-3 ﬁnalists BLAKE, Grostl, JH, Keccak, and Skein. Progress in Cryptology-

AFRICACRYPT, pp. 287-305, 2012.

2. K. Aoki, K.Matusiewicz, G. Roland, Y. Sasaki, M. Schlffer, Byte Slicing Grstl: Improved

Intel AES-NI and Vector-Permute Implementations of the SHA-3 Finalist Grstl, International

Conference on E-Business and Telecommunications, pp. 281-295, 2012.

3. G. Bertoni, J. Daemen, M. Peeters, G. Van Assche, Keccak sponge function family main

document version 2.1, Updated submission to NIST (Round 2), 2010.

4. G. Bertoni, J. Daemen, M. Peeters, G. Van Assche, Duplexing the Sponge: Single-Pass Au-

thenticated Encryption and Other Applications, Selected Areas in Cryptography, pp. 320-

337, 2011.

5. S. Chang, R. Perlner, W. Burr, M. Turan, J. Kelsey, S. Paul, L. Bassham, Third-

Round Report of the SHA-3 Cryptographic Hash Algorithm Competition, http://

nvlpubs.nist.gov/nistpubs/ir/2012/NIST.IR.7896.pdf, 2012.

6. C. Ganan, J. Munoz, O. Esparza, J. Mata-Diaz, J. Alins, Toward Revocation Data Handling

Efﬁciency in VANETs, Communication Technologies for Vehicles, Lecture Notes in Com-

puter Science 7266, pp. 80-90, 2012.

7. X. Guo, M. Srivastav, S. Huang, D. Ganta, M.B. Henry, L. Nazhandali, P. Schaumont, ASIC

implementations of ﬁve SHA-3 ﬁnalists. IEEE Design, Automation and Test in Europe Con-

ference and Exhibition, pp. 1006-1011, 2012.

8. IEEE 1609.3-2010 Standard for Wireless Access in Vehicular Environments (WAVE) - Net-

working Services. Amendment 1 to Version 2. http://www.standards.its.dot.gov/Standard/

406, 2012.

9. M. Jakobsson, S. Wetzel, Efﬁcient attribute authentication with applications to ad hoc net-

works, ACM international workshop on Vehicular ad hoc networks, pp. 38-46, 2004.

10. D. Jiang, L. Delgrossi, IEEE 802.11 p: Towards an international standard for wireless access

in vehicular environments, IEEE Vehicular Technology Conference VTC Spring, pp. 2036-

2040, 2008.

11. A. J. McMichael, The urban environment and health in a world of increasing globalization:

issues for developing countries. Bulletin of the World Health Organization 78(9), pp. 1117-

1126, 2000.

12. R. C. Merkle, Protocols for public key cryptosystems. IEEE Symposium on Security and

privacy 1109, pp. 122-134, 1980.

13. R. C. Merkle, Method of providing digital signatures. U.S. Patent No. 4,309,569, 1982.

14. J. Molina-Gil, P. Caballero-Gil, C. Caballero-Gil, Enhancing Cooperation in Wireless Ve-

hicular Networks, International Workshop on Security in Information Systems, pp. 91-102,

2011.

15. M. Naor, K. Nissim, Certiﬁcate revocation and certiﬁcate update. IEEE Journal on Selected

Areas in Communications 18(4), pp. 561-570, 2000.

16. P. Papadimitratos, L. Buttyan, T. Holczer, E. Schoch, J. Freudiger, M. Raya, Z. Ma, F. Kargl,

A. Kung, J.-P. Hubaux, Secure vehicular communications: Design and architecture. IEEE

Communications Magazine 46(11), pp. 28, 2008.

17. V. Rijmen, Extracts from the SHA-3 Competition, Selected Areas in Cryptography, pp. 81-

85, 2013.
