Enhance Your Model-driven Modernization Process with

Agile Practices

Sylvia Ilieva

, Iva Krasteva

, Gorka Benguria

and Brian Elvesæter

IICT-BAS, Acad. G. Bonchev str., bl.25A, Sofia 1113, Bulgaria

Rila Solutions EAD, Acad. G. Bonchev str., bl.27, Sofia 1113, Bulgaria

TECNALIA R&I, Ed 202, Zamudio 48170, Spain

SINTEF ICT, P. O. Box 124 Blindern, N-0314 Oslo, Norway

Abstract. Cloud computing is currently recognized as an important platform

technology that enables service clouds supporting the Software as a Service

(SaaS) paradigm. This paper presents the REMICS Methodology, which com-

bines the model-driven approach with agile practices, for the migration of lega-

cy applications to service clouds. The paper gives an overview of the method-

ology and its application in one case study, the issues faced by three case study

providers in applying the methodology and the results of a questionnaire of the

applicability of agile practices in addressing the issues.

1 Introduction

Cloud computing and service-oriented architecture (SOA) are recognized game-

changing technologies for a cost-efficient and reliable service delivery supporting the

Software as a Service (SaaS) paradigm that enables flexible license payment schemas

and moves the infrastructure management costs from consumers to service providers.

However, building a cloud service system from scratch may require a huge invest-

ment in time and efforts. Moreover, legacy systems are difficult to reuse due to plat-

form, documentation and architecture obsolescence.

Model-driven approaches such as the Object Management Group Model Driven

Architecture (OMG MDA) and related efforts on domain-specific languages that

emphasize the use of formal models in the software development process are gaining

popularity. Furthermore, agile methods and techniques are widely adapted and suc-

cessfully applied in many software development efforts today.

This paper presents an agile model-driven modernization methodology, the

REMICS Methodology, for the migration of legacy applications to cloud and SOA.

The work is motivated by the need to migrate stand-alone legacy applications that still

is of key business value to service cloud systems. Such migration implies advantages

in terms of easier maintenance, better accessibility and wider distribution to a range

of different users.

Ilieva S., Krasteva I., Benguria G. and Elvesæter B..

Enhance Your Model-driven Modernization Process with Agile Practices.

DOI: 10.5220/0004588800950102

In Proceedings of the 1st International Workshop in Software Evolution and Modernization (SEM-2013), pages 95-102

ISBN: 978-989-8565-66-2

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

The remainder of the paper is structured as follows. Section 2 provides a back-

ground summary on related work. Section 3 outlines the initial REMICS Methodolo-

gy and presents the issues faced by three case study providers in applying it. Section

4 describes the revised agile REMICS Methodology and the results of a questionnaire

of applicability of the agile practices. Section 5 presents how the agile methodology is

applied in one of the case studies. Finally, Section 6 concludes the paper.

2 Related Work

Comella-Dorda et al. [1] give a survey of legacy system modernization approaches.

They distinguish between two main types of modernization: white-box and black-box

modernization. White box modernization requires an understanding of the internal

parts of a system, and involves re-architecting and re-implementing the system.

Black-box modernization is only concerned with the input/output, i.e. the interfaces,

of the legacy system, and is often based on wrapping. The REMICS Methodology can

be seen as a model-driven black-box modernization approach with flavours of white-

box migration, in particular in understanding and transforming the legacy data for-

mats.

Within the OMG, the Architecture-Driven Modernization (ADM) task force [2] is

working on standards to support legacy modernization, such as metamodels for

knowledge discovery, software visualisation and refactoring.

There are also a number of methods developed in various projects. One of them is

the XIRUP process for modernization developed in the MOMOCS project [3]. The

method relies on models and transformations but does not include services and SOA.

Nowadays, agile methods and techniques are being widely adapted and success-

fully applied in many business and application domains. The combination of Model-

Driven Development (MDD) and agile software development (known as Agile MDD

(AMDD)), is broadly researched and applied ([4], [5] [6]). Although there are many

existing SOA methodologies, only few were found to be specifically concerned with

incorporating agile software development (e.g. [7]). The mScrum4SOSR is one such

methodology, proposed by Chung et al [8]. The methodology extends Scrum with

UML modelling and XP techniques in order to provide a comprehensive service-

oriented software reengineering process model. Another similar approach is the itera-

tive development approach Model-driven Rapid Development Architecture

(SMRDA), which unifies SOA and MDD in order to enhance the efficiency of the

development efforts and the reusability of the developed services [9].

Based on the literature review we conducted, there are few methodologies that

combine agile software development with both MDD and SOA for software reengi-

neering. Moreover, we are lacking agile methodologies that specifically address mod-

el-driven modernization to service clouds.

3 Problems of Modernization Projects

Before elaborating the problems of modernization projects faced in the case studies,

we shortly present the initial methodology that was applied in order to provide infor-

mation about the context of the experience.

The initial REMICS Methodology focused on the migration of legacy applications

to the new cloud infrastructures. The initial release was heavily based on the applica-

tion of tools along the main activity areas of the methodology. These activity areas

define the phases of the migration process.

 Requirements and Feasibility: Evaluating feasibility of migration and taking

decisions on whether to migrate and what to include in the process.

 Recover: Understanding the legacy in terms of functionality, data, constraints,

quality of service, and the structure of components or the software architecture.

 Migrate: Developing the new architecture and modernizing components, imple-

menting new ones or identifying external services and composing services accord-

ing to the new architecture.

 Validate: Testing and checking the quality of the new system, the coverage of the

legacy features and the changes introduced in the migration

 Control and Supervise: Provide elements to control the performance of the sys-

tem and to modify that performance.

 Withdrawal: Finalizing it or moving to another cloud infrastructure.

An additional cross-cutting activity area interoperability introduced tasks along all

the phases with tool support to solve interoperability problems with 3rd party provid-

ers or any external components and services.

The initial methodology provided limited support in the sequencing of these activ-

ity areas and suggested organizing them in phases following the OpenUp process

Fig. 1 shows a simplified illustration of the phases and their overall sequence as it

was provided in the initial methodology.

Recover Migrate Validate

Control &

Supervise

Req &

Feasibility

Withdrawal

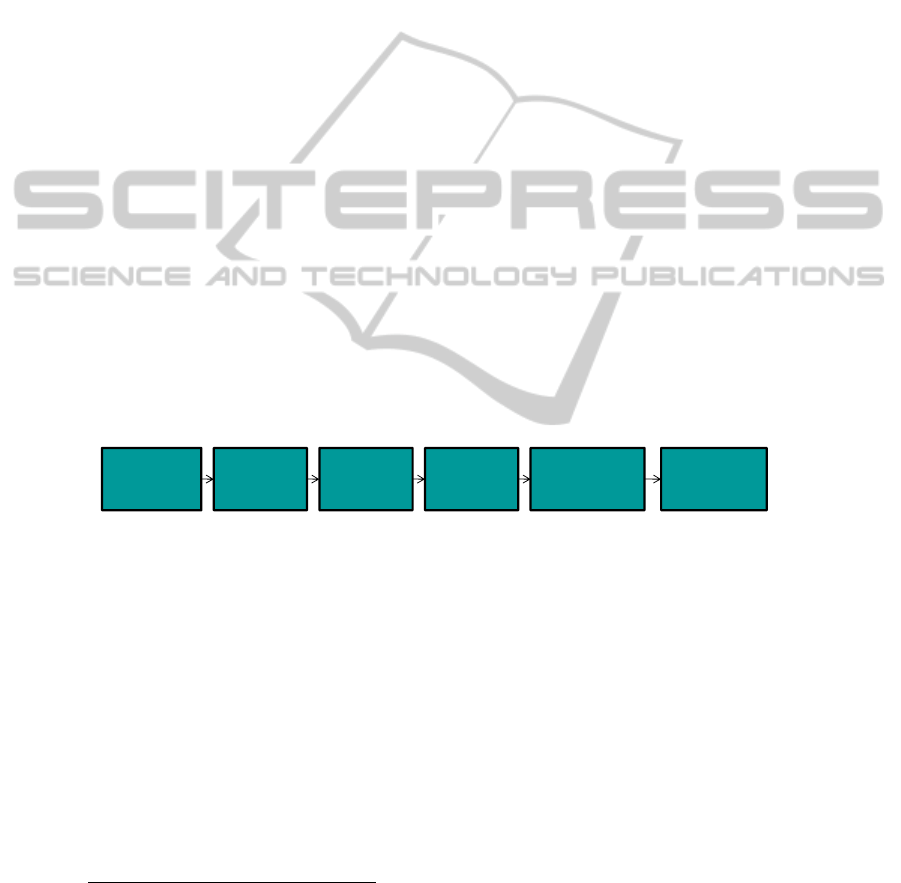

Fig. 1. The REMICS Methodology phases (modified from [12]).

Next we present a summary of the problems identified in the first phases for the

different use cases. The three case studies (CS) in the project differ in business do-

main and technologies used in the legacy systems. The CS1 provides a part of a fi-

nancial legacy system for generation of financial reports from accounting history,

written in COBOL. The source code was written decades ago and has been extended

step by step without having refactoring in mind. The CS2 provides a use case “Excur-

sion Management” from a reservation system. The system is written in PL/SQL and

Delphi and does not provide web interface. The CS3 provides part of a software

product for management of an auto park. The part provided includes administration

and maintenance of vehicles in the auto park. The first version of the product was

delivered about 10 years ago when it was not intended to serve diverse clients. The

code is written in Java and has not undergone any significant refactoring since the

http:// epf.eclipse.org/wikis/openup/

beginning. All of the three case studies started moving their systems to SaaS para-

digm according to the suggested traditional sequential approach. Following is a brief

description of the problems they faced during the first phases of the modernization

process.

During the requirements identification, case studies reported similar problems.

The most challenging issues were: a) identification of new requirements due to lack

of system and/or business domain knowledge; b) specification of components for the

new cloud deployment models; c) change and evaluation of requirements specifica-

tion during the project execution and d) definition of validation criteria for the new

requirements.

The recovery phase posed different problems depending on the technologies pre-

sent in the legacy systems. The CS1 reported that the GOTO statements of the

COBOL code worsened the recovery substantially. The granularity of the recovered

models was too fine and the high source code volume results in large recovery mod-

els. High degree of manual intervention was required including expert knowledge in

COBOL, UML and the business domain. The CS2 reported that the automated recov-

ery of the legacy code resulted in loss of data and functionality, which had to be re-

covered manually. Another problem with medium impact was that the team did not

understand the generated UML models due to lack of knowledge. The CS3 also re-

ported that the lack of knowledge of the used recovery tools and standards were one

of the problems with highest impact on the project. The case study reported that they

had to do refactoring of the legacy code so that the tool can properly recover it.

Only the CS2 and CS3 have passed the migration phases so far. They both report-

ed similar problems during the migration. One main issue was the need of interdisci-

plinary knowledge of tools and standards in the team. Moreover, both case studies

reported the need of handling new emerging requirements for their user interfaces,

which were not identified in sufficient details in advance, to keep them as similar to

the legacy one as possible.

The new agile methodology is supposed to address the problems faced by the case

study providers while applying the initial REMICS Methodology. It is intended to

improve the way modernisation is performed by responding to the needs of the indus-

try projects provided by the REMICS case studies.

4 Applicability of Agile Practices

The agile REMICS Methodology has been designed following both top-down and

bottom-up approaches. First, five steps were executed to specify the initial moderni-

zation methodology in a top-down manner. The aim of the initial methodology is to

provide specification of a set of agile practices and techniques, which can be used by

modernization projects. The proposed agile practices and techniques have been eval-

uated to address general challenges of modernization projects. The five steps that

were followed for the definition of the initial agile REMICS Methodology are: Identi-

fy, Analyze, Select, Define and Formalize. For detailed presentation of the agile

REMICS Methodology please refer to [10], [11]. The agile REMICS Methodology

proposes a particular implementation of Scrum [13] for large projects. The methodol-

ogy has been adjusted for the characteristics of the REMICS project by defining a

number of Modernization Scrum types. Each Scrum type defines Sprint types with

particular activities based on the initial REMICS activity areas presented in Section 3.

The five Modernization Scrum types are Requirements (RqS), Recovery (RcS), Mi-

gration (MgS), Validation (VdS) and Supervise (SpS) (Fig. 2). The interoperability

activities are added to the related Sprint types. In addition to the Scrum types, a num-

ber of agile development techniques have been adjusted for the extensively used

model-driven engineering activities in the REMICS project.

WithdrawalExploitation

Supervision

Modernization

Cycle [1..n]

Initiation

Requir

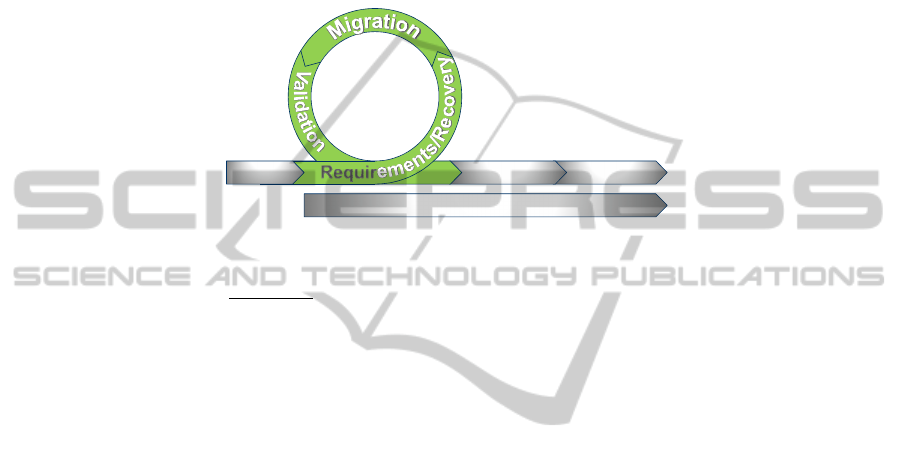

Fig 2. Modernization Scrum types.

Following a bottom-up approach the initial agile REMICS methodology was

evaluated and adapted according to the feedback provided by case study providers. A

questionnaire on whether particular agile practices are applicable in each of the case

study settings was conducted. The three case study providers are either moderately or

very familiar with both Scrum and XP methods so their judgement could be consid-

ered adequate. As well, the questionnaire surveyed the motivation for applying given

practice by answering which particular problem(s) it could address. The overall re-

sults showed that most of the suggested agile practices of the initial methodology

were applicable in the three case study projects. The results are shown in Table 1.

Practices Modelling by two, Continuous Modelling and Collective Model Ownership

are customized by Pair programming, Continuous integration and Collective code

ownership practices of XP as described in [10]. The Modernization team practice is

based on the Scrum team practice with a particular specialization of team members

due to the diverse and special skills needed for activities in the Scrum types. Howev-

er, the team acts as a whole and there is no definition of which role can perform cer-

tain activity. The team can be seen as a set of skills that are needed to perform all the

activities in particular Scrum type. During the Requirements Scrum, the practices

Modernization team and Product Owner address three of the problems by the case

study providers presented in the previous section, namely identification of new re-

quirements, specification of cloud-related components and definition of validation

criteria for the new requirements. The third issue - evaluation of the requirements, is

addressed by the Product backlog and Sprints practices.

The CS3 answered that Sprints are not fully applicable during the RcS since they

needed to perform refactoring of the legacy code, which should be done on the whole

code before start of the knowledge acquisition. However, the iterative and incremen-

tal cycle of refactoring and code recovery is possible followed by a number of

knowledge refinement sprints. Modernization team, including a tool provider as part

of the team, addresses the lack of knowledge problem identified by case studies. CS1

answered that the Customer reviews practice is not applicable in their case because

the generated models are too finely-grained and it is not possible to be understood by

a business domain expert. The loss of data and functionality problem reported by CS2

could be addressed by the Modelling by two practice in a business analyst and a de-

veloper work together and manually refine the recovered knowledge. Modernization

team practice addresses the need of interdisciplinary knowledge during the MgS.

Emerging requirements during the MgS are handled by one or more Requirements

sprints, followed by a number of Migration sprints.

Table 1. Applicability of agile practices. RqS stands for Requirements Scrum; RcS stands for

Recovery Scrum; MgS stands for Migration Scrum; ‘+’ sign denotes applicability; ‘-‘ sign

denotes inapplicability; ‘/’ marks that the practice is not relevant for a scrum.

Agile practice

CS1 CS2 CS3

RqS RcS RqS RcS MgS RqS RcS MgS

Product Owner

+ + + + + + + +

Modernization Team

+ + + + + + + +

Sprints

+ + + + + + - +

Product Backlog

+ + + + + + + +

Modelling by Two

/ - / + / / + /

Customer reviews

+ - + + + + + +

Collective Model Ownership

+ + / + + + + +

Pair Programming

/ / / / + / / -

Collective Code Ownership

/ / / / + / / +

Based on the answers of the questionnaire and the requirements of each case study

with respect to the methodology, a customized version of the agile methodology for

each case study called Migration paths were created. The migration path for the CS3

is presented in the following section.

5 Agile Methodology Deployment

The section describes an approach to evaluate the deployment of the Agile REMICS

Methodology in one case study. The approach suggests a life cycle customised for the

particular case study and its execution for part of the functionality of the legacy sys-

tem. Based on the responses of the questionnaire of agile practices applicability and

further interviews with the providers of the CS3, a customized agile methodology was

specified and deployed in the project. One team executes the scrums in the project

and thus the sprints are sequential. The project starts with initiation project activity

during which the system is presented to the team, the goal of migration are discussed

and feasibility analysis is performed. First to execute is a RqS with one or two sprints

to identify the overall requirements for the new system (i.e. new functional modules,

new interfaces and new non-functional requirements). Then, a RcS with two types of

sprints is executed. The first type is a refactoring sprint during which the code of the

legacy system is refactored to provide proper input for the recovery transformation

tool. After the program and database code is successfully recovered a series of re-

finement sprints are executed. During a refinement sprint the recovered system

100

knowledge is further reviewed, refined and validated. As soon as a part of the system

knowledge is ready to be migrated a MgS starts. Both the new functionality as well as

the recovered one is implemented during the sprints inside the MgS. The migrated

functionalities are integrated and validated in a VdS. Testing and validation of the

integrated part of the system is performed in a sprint or two based on the items in the

product backlog for the VdS. Depending on the release strategy, the part of the sys-

tem might be deployed and a SpS starts. At least one sprint of the SpS is executed to

monitor the system execution. Then, the process proceeds to a new requirements,

recovery or migration sprint.

The deployment of the agile methodology was done for a part of the legacy sys-

tem handling maintenance operations. The sprints length is set to two weeks. There is

a separate migration team for the VdS for this particular deployment. Since the sys-

tem has undergone migration following the traditional methodology, some of the

activities have been already performed. The overall requirements specification has

been done. As well, the code has been refactored and recovered by a recovery tool.

Given that, the deployment of the method started with a recovery sprint as part of the

RcS. During the RcS the system knowledge regarding planned and unplanned

maintenance operations was refined and validated. Then the MgS started with two

sprints implementing the functionality recovered in the recovery sprint. The VdS is

executed by a dedicated team, which is currently executing the first sprint. In parallel,

the other team proceeds to another requirements sprint for the vehicles part inventory

functionality, which was decided not to be migrated. The preliminary plan for the

pilot deployment is to undergo two other migration sprints, two validation and one

supervision sprint.

6 Conclusions

This paper has presented the applicability of agile practices for solving particular

problems of model-driven modernization processes by conducting a questionnaire

survey on agile practices applicability in particular case studies and by applying an

agile modernization methodology in a case study setting.

The contributions of the paper could be summarized as follows: provides descrip-

tion of challenges and problems in traditional model-driven modernization process in

three case studies; examines the applicability of particular agile practices for address-

ing the problems faced by the case study providers; exemplifies the deployment of an

agile methodology for model-driven modernization in a project setting.

The findings from the application of the initial methodology in the case studies are

currently being used to update and improve the agile version of methodology. Guide-

lines on possible agile practices that could be applied in the different phases and ac-

tivity areas are being revised and a new delivery process has been defined according

to the presented Modernization Scrum types. We are now preparing a new evaluation

round with the case studies to investigate the application of the agile version of the

methodology.

101

Acknowledgements

The research leading to these results has received funding from the European Union

Seventh Framework Programme FP7/2007-2013 under grant agreement n° 257793

REMICS. The REMICS Methodology is available online at

http://epf.remics.eu/wikis/remics/index.htm

References

1. Comella-Dorda, S., Wallnau, K., Seacord, R. C., & Robert, J. (2000). A Survey of Legacy

System Modernization Approaches (Technical Note No. CMU/SEI-2000-TN-003): Carne-

gie Mellon Software Engineering Institute.

2. Khusidman, V., & Ulrich, W. (2007). Architecture-Driven Modernization: Transforming

the Enterprise (White paper No. admtf/07-12-01): Object Management Group (OMG).

3. MOdel driven MOdernization of Complex Systems. (2006-2008) http://www.momocs.org/

4. Matinnejad R., Agile Model Driven Development: An Intelligent Compromise, in Software

Engineering Research, Management and Applications (SERA), 2011 9th International Con-

ference on, 2011, pp. 197-202.

5. Picek R., Suitability of Modern Software Development Methodologies for Model Driven

Development, Journal of Information and Organizational Sciences, vol. 33, pp. 285-295,

2009.

6. Mahé V., et al., Crossing Model Driven Engineering and Agility: Preliminary Thought on

Benefits and Challenges, in 3rd Workshop on Model-Driven Tool & Process Integration, in

conjunction with Sxth European Conference on Modelling Foundations and Applications

2010, Paris, France, 2010, pp. 97-108.

7. Christou I., et al., Using the Agile Unified Process in Banking, IEEE Softw., vol. 27, pp.

72-79, 2010.

8. Chung S., et al., A Model-Driven Scrum Process for Service-Oriented Software Reengi-

neering: mScrum4SOSR, in The 2nd International Conference on Computer Science and its

Applications (CSA 2009), Jeju Island, Korea, 2009, pp. 1-8.

9. Wang B., et al., A SOA based Model driven Rapid Development Architecture - SMRDA,

in The 2nd International Conference on Education Technology and Computer (ICETC

2010), Shanghai, China, 2010.

10. Krasteva I., Stavros S., Ilieva S., Agile Model-Driven Modernization to the Service Cloud,

in The Eighth International Conference on Internet and Web Applications and Services

ICIW 2013, Rome, Italy

11. REMICS. 2011, Project deliverable: REMICS methodology with agile extension. Availa-

ble: http://www.remics.eu/publicdeliverables

12. Leire Orue-Echevarria, Marisa Escalante, Juncal Alonso, Gorka Benguria. “Moving to

SaaS: Building a Migration Strategy from Concept to Deployment”. DOI:10.4018/978-1-

4666-2488-7.ch008.

13. K. Schwaber and J. Sutherland, "The Scrum Guide", Scrum.org, October 2011.

http://www.scrum.org/storage/scrumguides/Scrum_Guide.pdf

102
