Platform-independence in Model-based Multi-device UI Development

David Raneburger

, Gerrit Meixner

and Marco Brambilla

Institute of Computer Technology, Vienna University of Technology, Gusshausstr. 27-29, 1040 Vienna, Austria

Faculty of Computer Science, Heilbronn University, Max-Planck-Str. 39, 74081 Heilbronn, Germany

Dipartimento di Elettronica, Informazione e Bioingegneria, Politecnico di Milano, Via Ponzio 34/5, 20133 Milano, Italy

Keywords:

Multi-Device, Platform, Model-driven Development, Model-based Development, User Interface, Model

Driven Architecture, Cameleon Reference Framework.

Abstract:

Platform-independence of a model clearly means that a certain model does not depend on characteristics

of a certain platform. The crucial issue in this deﬁnition to make it concise is: what is a platform? The

answer to this question is important as such a platform deﬁnition deﬁnes which characteristics must not be

considered in platform-independent models. This paper compares the notion of platform and the corresponding

implications in the Model Driven Architecture proposed by OMG and the Cameleon Reference Framework, a

framework that has been developed to classify model-based user interface generation approaches. In particular

we compare the implications of platform-independence in the context of different model-based user interface

development approaches that support multi-device UI development.

1 INTRODUCTION

One of the main promises of model-based software

development is to allow for building higher-level

models that do not require the designer to specify

all implementation details at the beginning of the de-

velopment process. Subsequently, such higher-level

models can be transformed to implementations for

different platforms, with the main intention to save

development time and effort. The term platform is

overloaded with different meanings, which may lead

to confusions if no concise speciﬁcation is provided

for a certain development context.

The platform deﬁnition provided by the Model-

Driven Architecture (MDA) (Miller and Mukerjij,

2003) has a very wide scope, as it has been designed

to support model-based application development for

a wide range of different application domains. It

does not require the explicit consideration of hard-

ware characteristics. An MDA compliant platform

model may therefore consider hardware and software

characteristics, or software characteristics only.

If the MDA platform deﬁnition is applied in the

context of Model-based User Interface Development

(MBUID), a platform can be interpreted as user inter-

face toolkit (Truyen, 2006). Hence, MDA compliant

transformation approaches support multi-modal user

interface (UI) development. Such multi-modal UIs

typically combine different modalities (e.g., graphi-

cal, speech, or gesture UIs) to allow for a more nat-

ural and more robust interaction. Graphical User

Interfaces (GUIs) are special in comparison to se-

rial modalities like speech or gesture, as they allow

for parallel information exchange. GUIs shall ﬁt the

screen of a certain device to achieve a good level of

usability. If hardware characteristics like screen size

are not considered in the platform model they have

either to be considered by the transformations, or dur-

ing the creation of the high-level model that speciﬁes

the ﬂow of information (e.g., which information is ex-

changed in parallel).

Models that implicitly consider hardware features

of the target platform are still platform-independent

models according to the MDA deﬁnition, as they do

not consider software features of the target device,

but they do not support multi-device UI development.

For supporting multi-device UI generation, platform-

independence must include independence of a cer-

tain software and independence of a certain hardware.

A device is thus speciﬁed through a platform deﬁ-

nition that considers software and hardware charac-

teristics. Such a platform deﬁnition is provided by

the Cameleon Reference Framework (CRF) (Calvary

et al., 2003) that support the classiﬁcation of UI gen-

eration approaches and their models in the context of

MBUID.

265

Raneburger D., Meixner G. and Brambilla M..

Platform-independence in Model-based Multi-device UI Development.

DOI: 10.5220/0004593102650272

In Proceedings of the 8th International Joint Conference on Software Technologies (ICSOFT-EA-2013), pages 265-272

ISBN: 978-989-8565-68-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

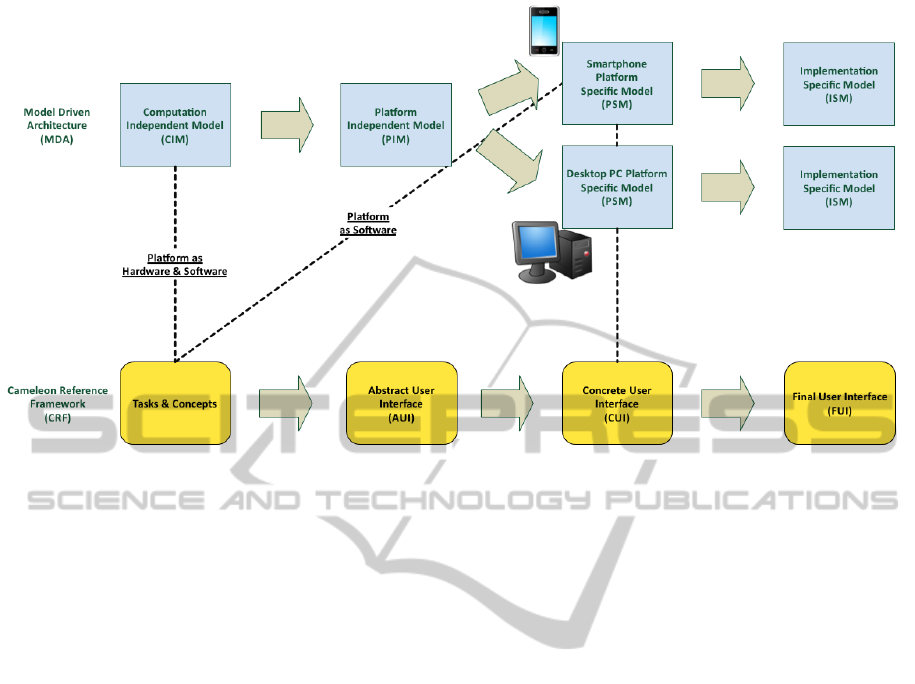

This paper recaptures the MDA and CRF platform

deﬁnitions, showing that both deﬁnitions support the

inclusion of hardware characteristics in addition to

software characteristics in the platform model. We

show that such a platform deﬁnition supports model-

based multi-device UI development and illustrate its

implications on the involved models and the transfor-

mation approach through testing a one-to-one corre-

spondence between MDA models and CRF levels. To

test this correspondence, we classify the models of

six existing model-based UI generation approaches

that support multi-device UI generation. In particu-

lar we compare the recently adopted Object Manage-

ment Group standard IFML

(Interaction Flow Mod-

eling Language), four task-based approaches that are

well established in the MBUID community (Meixner

et al., 2011b) and contribute to a currently proposed

W3C standard

, and a Communication-Model-based

transformation approach that supports automated GUI

optimization for different devices (Raneburger et al.,

2011).

2 BACKGROUND

This section presents the platform deﬁnitions of the

MDA and the CRF together with the context in which

they have been developed.

2.1 Model Driven Architecture

The Object Management Group’s (OMG) MDA

(Miller and Mukerjij, 2003) distinguishes three dif-

ferent types of models that reside on different levels

of abstraction. These levels are (from abstract to con-

crete):

1. the Computation Independent Model (CIM),

2. the Platform Independent Model (PIM) and

3. the Platform Speciﬁc Model (PSM).

The Computation Independent Model is on the

highest level of abstraction and therefore also plat-

form independent. It describes the usage scenarios

in which the system will be used, specifying exactly

what the system is expected to do. These models are

sometimes referred to as domain, business, or require-

ment models in the context of MDA.

The Platform Independent Model describes the

system to be built, without specifying details on the

implementation platform that will be used. It will be

http://www.omg.org/spec/IFML/

http://www.w3.org/wiki/Model-Based_User_

Interfaces

suited for a particular architectural style, but can be

mapped onto different platforms. Requirements spec-

iﬁed through a certain platform model must not be

considered in a PIM.

The Platform Speciﬁc Model speciﬁes how a sys-

tem is implemented upon or uses a particular plat-

form. This model needs to specify all details neces-

sary to derive the Implementation of the system.

MDA applies Model Transformations to transform

PIMs to PSMs. Such transformations need to pro-

vide the additional information required to produce

the PSM from the PIM. Sometimes, no transforma-

tion between CIM and PIM is possible, as CIMs may

not be speciﬁed in a formal way, or could describe

completely manual behaviors, not implemented on

any platforms.

Platform is probably the most fundamental con-

cept, as the MDA promises of resilience to technology

obsolescence, rapid portability, increased productiv-

ity, shorter time-to-market, consistency and reliability

of produced artifacts (Truyen, 2006) are based on the

abstraction from a certain platform.

According to MDA, platform is deﬁned in the fol-

lowing way:

“A platform is a set of subsystems and

technologies that provide a coherent set of

functionality through interfaces and speciﬁed

usage patterns, which any application sup-

ported by that platform can use without con-

cern for the details of how the functional-

ity provided by the platform is implemented

(Miller and Mukerjij, 2003).”

A platform is represented as a platform model,

which is deﬁned as:

“A platform model provides a set of

technical concepts, representing the different

kinds of parts that make up a platform and

the services provided by that platform. It also

provides, for use in a platform speciﬁc model,

concepts representing the different kinds of el-

ements to be used in specifying the use of the

platform by an application. A platform model

also speciﬁes requirements on the connection

and use of the parts of the platform, and the

connections of an application to the platform.

A generic platform model can amount to a

speciﬁcation of a particular architectural style

(Miller and Mukerjij, 2003).”

The MDA platform and the platform model deﬁ-

nition do not distinguish hardware and software of a

system explicitly. Thus, such models may consider

hardware characteristics in addition to software char-

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

266

acteristics, but the corresponding deﬁnitions do not

enforce their consideration.

2.2 Cameleon Reference Framework

Model-based UI Development uses models to spec-

ify all aspects that are involved in the development of

user interfaces. MBUID approaches typically reﬁne

high-level interaction models over different levels of

abstraction to source code that represents the UI. The

Cameleon Reference Framework (CRF) supports the

classiﬁcation of UIs that support multiple targets, or

multiple contexts of use in the ﬁeld of context aware

computing (Calvary et al., 2003). It additionally intro-

duces the notion of plasticity. Multi-targeting focuses

on the technical aspects of context adaptations, while

plasticity provides a way to qualify the usability of an

adapted UI. Thus, a plastic UI preserves its usability

on all targets. The CRF is an established approach in

the MBUID community and can be used to specify

methods and tools (for run- and design-time UI gen-

eration), with the intention to ease understanding and

comparing them.

In particular, the CRF introduces four levels of ab-

straction. These are (from abstract to concrete):

1. Tasks & Concepts,

2. Abstract User Interface (AUI),

3. Concrete User Interface (CUI) and

4. Final User Interface (FUI).

The Tasks & Concepts level contains interaction

models, specifying the interaction between the user

and the system to be built, and models of the domain

of activity (Vanderdonckt, 2008).

The Abstract User Interface level typically con-

tains a presentation and a dialog model that render

the domain concepts into canonical expressions that

are independent from any concrete interactors avail-

able on a certain platform.

The Concrete User Interface level contains mod-

els in which the canonical expressions have been re-

placed through concrete interactors that specify the

look and feel of the user interface, but are still inde-

pendent from a certain toolkit.

The Final User Interface represents the UI source

code that can be compiled and run.

MBUI typically applies model-to-model transfor-

mations between the upper three levels of abstraction

and model-to-code transformations for concrete to ﬁ-

nal UI transformations.

The term platform is here tailored to UI develop-

ment and deﬁned as part of the context of use, together

with the user and the environment

. The platform

consists of:

“a set of hardware (e.g., processor, screen,

and mouse) and software resources (e.g.,

operating system, technological space) that

function together to form a working computa-

tional unit whose state can be observed and/or

modiﬁed by a human user. Single resources

(processor, peripheral devices etc.) are un-

able, individually, to provide this functional-

ity. A platform may be either elementary or

form a cluster of platforms. Synonyms: target

platform.”

The CRF platform deﬁnition explicitly distin-

guishes hardware and software of a computational

unit. The consideration of both, hardware and soft-

ware characteristics, is important in the context of UI

development as it allows for tailoring a UI to a certain

device, and thus to achieve a good level of usability.

3 COMPARISON OF MDA AND

CRF ON

PLATFORM-INDEPENDENCE

IN MODEL-BASED UI

DEVELOPMENT

A platform deﬁnition that shall support multi-device

UI development needs to consider software and hard-

ware characteristics of a device. Considering this in-

formation in the platform deﬁnition implies that it

does not have to be considered in other high-level ap-

plication models. Encapsulating this information in

the platform model therefore supports the creation of

platform-independent high-level models, as the plat-

form information is added during their transformation

to PSMs.

An MDA platform speciﬁes a coherent set of

functionalities through interfaces and usage patterns.

Examples are operating systems, programming lan-

guages, databases, middleware solutions or user in-

terfaces (Truyen, 2006). The MDA platform deﬁni-

tion is very generic and does not inhibit its interpre-

tation as depending on software alone or on software

and hardware together (e.g., a smartphone with a cer-

tain operating system and physical characteristics like

memory or screen size).

It is recommendable to reﬁne the MDA platform

deﬁnition for a certain application domain to facil-

itate its applicability and avoid misunderstandings.

see also http://www.w3.org/wiki/Model-Based_

User_Interfaces

Platform-independenceinModel-basedMulti-deviceUIDevelopment

267

The CRF platform deﬁnition can be seen as such a

reﬁned deﬁnition for the MBUID domain. A CRF

platform consists of hardware (physical) properties

(e.g., screen size and resolution, supported interaction

modalities) and software properties, meaning toolkits

that implement a certain modality (e.g., Java Swing or

HTML). A platform deﬁnition that contains software

and hardware characteristics supports multi-device UI

development and allows to establish a clear one-to-

one correspondence between MDA models and CRF

levels. This one-to-one correspondence is shown in

Table 1 and was most probably intended when the

CRF was deﬁned, as the MDA deﬁnition was already

available and established then. Additionally, it has al-

ready been used during the initial development of the

UsiXML approach that is also presented in the next

section (Vanderdonckt, 2005).

Table 1: Correspondence Scheme.

MDA CRF

CIM ↔ Tasks & Concepts Level

PIM ↔ AUI Level

PSM ↔ CUI Level

ISM ↔ FUI Level

High-level interaction models, typically used to

specify the interaction between the user and a sys-

tem, together with models that specify the concepts

of a certain application domain (i.e., domain models)

are CIMs. Such models reside on the tasks&concepts

level and can be used as a basis for multi-device UI

development if they do not consider any platform

characteristics. There is no need to consider hardware

and software characteristics of a certain platform in

the models used on the tasks&concepts level if these

characteristics are speciﬁed in the platform model.

A PIM that is derived from a CIM is still platform-

independent. Thus AUI models derived from platform

independent models that reside on the tasks&concepts

level correspond to PIMs.

Platform speciﬁc information is added during the

transformation of an AUI model to a certain CUI

model, which means that PSMs reside on CUI level.

Finally the PSM is transformed to the source code

that implements the UI. Thus, the implementation (or

Implementation Speciﬁc Model (ISM)) corresponds

to the FUI.

So, what does this assignment imply for models

on Tasks&Concepts level and implicitly also for AUI

models derived from them? Models on these levels

must not restrict the rendering possibilities that are

supported through the platform model.

The implication for the domain model is that it

needs to deﬁne all concepts of the application domain,

regardless whether they are used by a certain model

(that may already be device-dependent).

The implication for the high-level interaction

model is that it must not constrain the amount of

exchanged information (e.g., based on the available

screen space). This means that all information that

can be exchanged at a certain point in time needs to

be modeled as concurrently available.

The same implication as for the high-level inter-

action model is valid for the abstract user interface

model. An AUI model still needs to specify all canon-

ical expressions that render the information speciﬁed

as concurrently available in the high-level interaction

model, as part of the same presentation (i.e., presen-

tation or dialog model unit).

In terms of GUI development this means that both,

the high-level interaction models and AUI models

such models, assume a “potentially inﬁnite” screen.

Specifying information as concurrently available on

Tasks&Concept and on AUI level allows for splitting

it to different (smaller) screens according to platform

constraints on concrete user interface level. Tailor-

ing the UI to ﬁt a limited screen on CUI level allows

for top-down multi-device UI generation (i.e., starting

from the Tasks&Concept or AUI level). Doing it the

other way round (i.e., combining information bottom

up from the CUI level) is hard to achieve as it requires

the analysis of dependencies between the exchanged

information to detect which information can be ex-

changed in parallel on a device with a larger screen.

The remainder of this paper tests whether existing

MBUID approaches support multi-device UI gener-

ation and discusses whether the meta-models of the

corresponding models can be assigned according to

the one-to-one correspondence scheme presented in

Table 1.

4 CLASSIFYING MBUID

APPROACHES AND THEIR

MODELS

Model-based UI development approaches typically

support multi-platform development. Their presen-

tation, however, frequently focuses on the involved

models and does not provide a clear deﬁnition of the

platform model used, which has already been raised

as an issue at the Model-Driven Development of Ad-

vanced User Interfaces Workshop (Van den Bergh

et al., 2010). In this section we classify the models of

six MBUID approaches that support multi-platform

development to test the correspondence scheme intro-

duced in Table 1. Table 2 lists the approaches and as-

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

268

signs their models to MDA levels using the CRF plat-

form deﬁnition. The remainder of this section sum-

marizes each approach and discusses the assignment

of Table 2 in detail.

4.1 Interaction Flow Modeling

Language (IFML)

The Interaction Flow Modeling Language

(IFML)

supports the creation of visual models of user in-

teractions and front-end behavior in software sys-

tems, independently of a certain execution platform

and has been adopted as a standard by the OMG

in March 2013. IFML is a PIM-level language in

MDA parlance, and it perfectly ﬁts into the AUI level

of the CRF. The Business Process Model and Nota-

tion (BPMN) language may be used in the context of

IFML to provide CIM models. The Web Extension

of IFML, called WebML

(Ceri et al., 2009) extends

the general purpose IFML concepts with some more

precise UI characteristics, considering the peculiarity

of the user interaction on the Web, while still keep-

ing a platform-independent vision (both in terms of

independence from software and hardware features).

WebML also includes a presentation model that cov-

ers the PSM level. The WebRatio tool-suite auto-

matically generates industrial-strength running appli-

cations (Acerbis et al., 2008) from WebML/IFML

models, exploiting the presentation model at the PSM

level. The IFML standardization document includes

a set of guidelines for the mapping of IFML models

to PSMs, namely software platform models, such as

Java, .Net WPF, and HTML. IFML supports multi-

device UI generation through the deﬁnition of rules

at the PIM level for self-adaptation of user interfaces

depending on the device, screen size, or location. It

also allows to incorporate platform-speciﬁc aspects

in the transformation towards the PSM level. IFML

therefore satisﬁes the correspondence scheme shown

in Table 2.

4.2 TERESA

TERESA (Transformation Environment for inteRac-

tivE Systems representAtions) uses a so-called “One

Model, Many Interfaces” approach to support model-

based GUI development for multiple devices from

the same ConcurTaskTree (CTT) model (Mori et al.,

2004). This approach deﬁnes a platform as “a class of

systems that share the same characteristics in terms

http://www.ifml.org/

http://www.omg.org/spec/IFML/

http://www.webml.org

of interaction resources (e.g., the graphical desktop,

PDAs, mobile phones, vocal systems). Their range

varies from small devices such as interactive watches

to very large ﬂat displays (Mori et al., 2004)”. The

corresponding transformation method requires the

manual reﬁnement of the platform-independent CTT

model to different platform-dependent System Task

Models (e.g., a desktop, a cellphone or a voice Sys-

tem Task model, still speciﬁed in CTT). This already

platform-dependent CTT model is subsequently re-

ﬁned to an AUI, a CUI and ﬁnally the FUI for the

corresponding platform.

The System Task Models that are derived from

the platform-independent task model are platform de-

pendent, but are still assigned to the tasks&concepts

level of the CRF. This means that the correspondence

scheme deﬁned in Table1 is not valid for this ap-

proach, but its models are rather assigned to the MDA

models as speciﬁed in Table 2. The reason is that

the transformation approach requires the System Task

Models already to take platform speciﬁc information

into account. This allows for a more straight forward

transformation approach, but reduces the re-usability

of involved models to the topmost CTT models.

TERESA also shows that models and transforma-

tion method are closely intertwined. In general, it is

not feasible to assign a certain meta-model to a cer-

tain MDA model type or MDA models to a certain

CRF level. TERESA uses CTT instances on CIM,

PIM and PSM level for example and several PIMs that

reside on different CRF levels (see Table 2).

4.3 MARIA

A more recent approach based on CTT models uses

the MARIA language to specify the AUI and CUI

model (Patern

o et al., 2009). This approach speciﬁes

platform according to the CRF deﬁnition and the cor-

responding transformation method supports the gen-

eration of multi-device UIs based on annotated Web-

services. Platform-speciﬁc information does not have

to be provided in the AUI model, but is encapsulated

in the Web-service annotations. This means that the

AUI and the corresponding CTT model are platform-

independent and can be used for multi-device UI gen-

eration. Table 2 shows a one-to-one correspondence

between MDA and CRF levels.

It is noteworthy that MARIA does not annotate the

high-level interaction model (i.e., the CTT model),

but rather the Web-service speciﬁcation that provides

the functional description of the UI. The reason is that

the such an annotated Web-service speciﬁcation pro-

vides the basis for multi-modal multi-device UI gen-

eration in the context of MARIA and not the CTT

Platform-independenceinModel-basedMulti-deviceUIDevelopment

269

Table 2: Classiﬁcation of UI generation approaches based on the CRF platform deﬁnition (i.e., device).

IFML TERESA MARIA MBUE UsiXML UCP

CIM BPMN CTT CTT UseML Task Model Communication Model

PIM IFML (and WebML) CTT MARIA DISL AUI UI Behavior Model

PSM Presentation + SW Model CTT/AUI/CUI MARIA UIML CUI Screen Model

ISM FUI FUI FUI FUI FUI FUI

model. The CTT model for a certain device can be

derived automatically from this speciﬁcation with the

corresponding tool support (MARIAE

4.4 Model Based Useware Engineering

(MBUE)

The Model Based Useware Engineering (MBUE) ar-

chitecture has been derived and reﬁned on the basis

of the (meta-)architecture of the CRF (Meixner et al.,

2011a). Therefore, the levels of the MBUE corre-

spond to the levels of the CRF as shown in Table 2.

The MBUE relies on the CRF platform deﬁni-

tion and its transformation approach ensures that the

models can be assigned according to the correspon-

dence scheme deﬁned in Table 1. It is noteworthy

that MBUE applies task annotations in its useML task

model that assign tasks to a certain context of use (i.e.,

platform and/or user and/or environment). This way

MBUE supports the automated tailoring of the UIs to

a certain context of use. Such annotations are simi-

lar to the Web-service annotations used in MARIA.

Similar to the platform-independent AUI model in

MARIA, there is only one platform-independent (an-

notated) task (i.e., useML) model in MBUE which

can be used for multi-device UI generation.

4.5 USer Interface eXtended Markup

Language (UsiXML)

The USer Interface eXtended Markup Language

(UsiXML) speciﬁes different meta-models that sup-

port MDA compliant multi-platform UI development

(Vanderdonckt, 2005). UsiXML support the speciﬁ-

cation of UIs in a way that remains independent of a

certain interaction technique (e.g., mouse, touch, key-

board or voice recognition) and a certain computing

platform (e.g.,. mobile phone, Tablet PC, kiosk, lap-

top or wall screen). UsiXML also supports the inclu-

sion of references to a certain platform in its mod-

els similar to the annotations used by MARIA and

MBUE. The development of UsiXML started with the

deﬁnition of the CRF and it was designed to support

http://giove.isti.cnr.it/tools/Mariae/

http://www.usixml.org

the one-to-one correspondence scheme shown in Ta-

ble 1.

UsiXML is currently available in Version 2.0

and its meta-models are applied in various other ap-

proaches too (e.g., (Garc

ıa Frey et al., 2012)). Please

note that the classiﬁcation shown in Table 2 is not nec-

essarily valid for those approaches. The way how the

instances of the UsiXML meta-models are applied in

a speciﬁc UI development approach depends on if and

how multi-device UI generation is achieved by the ap-

proach’s transformation method and may still violate

the one-to-one correspondence.

4.6 Uniﬁed Communication Platform

(UCP)

The Uniﬁed Communication Platform

(UCP) sup-

ports the automated generation of GUIs that are opti-

mized for different devices (e.g., smartphone or tablet

PC) (Raneburger et al., 2011). This approach relies on

Discourse-based Communication Models (Falb et al.,

2006) to model the high-level interaction between a

user and the system platform-independently. A plat-

form is deﬁned through software (e.g., supported GUI

toolkits) and hardware characteristics (e.g., screen

size) of a certain device. Communication Models

are CIMs and can be transformed automatically to a

UI Behavior model that resides on AUI level (Popp

et al., 2009) and is still platform-independent, and to

a Screen Model that is tailored to a certain device and

thus already platform-dependent. The Screen Model

is ﬁnally transformed to HTML code that represents

the FUI/ISM. Table 2 shows that a one-to-one corre-

spondence can be established for UCP.

5 DISCUSSION

The classiﬁcation of the MBUID approaches pre-

sented above reveals that no simple one-to-one cor-

respondence as in Table 1 can be established in gen-

eral, but that the used meta-models and how their in-

stances are applied depend on the platform deﬁnition

and are characteristic for a certain transformation ap-

proach. For example, a transformation approach that

http://ucp.ict.tuwien.ac.at

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

270

Figure 1: Correspondence between MDA and CRF.

does not explicitly consider hardware characteristics

in the platform model requires their implicit consid-

eration in the high-level interaction model. However,

the same high-level interaction meta-model can be

used by another approach to model interaction inde-

pendently of hardware constraints if they are consid-

ered in the corresponding platform deﬁnition.

Figure 1 illustrates the implications of these two

different platform deﬁnition on the correspondence

between the MDA models and the CRF levels. The

upper part of Figure 1 shows how multi-device UI

generation is supported in MDA. The lower part

shows the corresponding CRF levels.

A one-to-one correspondence can be established if

the platform model considers software and hardware

characteristics and if the high-level interaction mod-

els (e.g., task or communication models) specify all

information that can be exchanged in parallel as con-

currently available. This is indicated by the dotted

line labeled “Platform as Hardware & Software” in

Figure 1. All approaches whose classiﬁcation shows

a one-to-one correspondence support multi-device UI

generation, which can thus be used as a criteria to de-

tect such approaches.

No one-to-one correspondence can be established

if the platform deﬁnition considers only software

characteristics explicitly. Hardware characteristics

like available screen space may already have to be

considered in high-level interaction models that reside

on Tasks & Concepts level in this case. Such mod-

els are already device speciﬁc just like the AUI and

CUI models that are derived from them and therefore

correspond to PSMs. This is indicated by the dot-

ted line labeled “Platform as Software” and the unla-

beled dotted line in Figure 1, that relate the Tasks &

Concepts, the AUI and the CUI level to the PSMs. A

platform model that considers software characteristics

only does not support multi-device UI generation but

it is still suitable to support multi-modal UI genera-

tion. The CRF levels can be used to classify different

PSMs in this case.

We conjecture that a clear deﬁnition of the no-

tion platform is also important in other application

domains of model-based software development than

MBUID to support multi-device development. The

encapsulation of platform characteristics in the cor-

responding platform model together with the use of

annotations as used in MBUID to avoid dependencies

between a high-level model and a certain platform, is

a generally applicable way to separate platform spe-

ciﬁc information from the model itself. Alternatively

the platform-tailoring can be automated according to

given optimization objectives, as shown for GUI opti-

mization in (Raneburger et al., 2011). This saves the

time and effort required for creating annotations man-

ually, but may not produce the exact result expected

by the designer.

6 CONCLUSIONS

Platform-independence for a model requires that this

information has to to be encapsulated in the corre-

sponding platform model and must not be considered

in the CIM and PIM model. Thus, the ﬁrst implication

Platform-independenceinModel-basedMulti-deviceUIDevelopment

271

in the context of model-based multi-device UI devel-

opment is that a platform must specify software and

hardware characteristics, so that such characteristics

do not have to be considered in the high-level interac-

tion models. The information required to transform

such PIMs to PSMs is typically either provided in

form of model annotations or platform-speciﬁc trans-

formations. One further implication is that high-level

interaction models need to specify all information that

can be exchanged in parallel as concurrently avail-

able. This allows for splitting the information accord-

ing to certain platform characteristics while the PSM

is derived and thus for tailoring a GUI for a certain

screen space.

We showed that the CRF platform deﬁnition re-

ﬁnes the MDA platform deﬁnition. So, both deﬁ-

nitions support multi-device UI development, but no

general one-to-one correspondence between the meta-

models involved in a certain MBUID approach clas-

siﬁed as MDA models, and the CRF levels can be

established. The reason is that the use of a certain

meta-model instance strongly depends on the trans-

formation approach. For example, task models are

platform-independent if they use annotations to spec-

ify which task is available on a certain device, or

platform-dependent if they consider hardware charac-

teristics like screen-size when specifying which infor-

mation is concurrently available. However, a one-to-

one correspondence indicates that a certain approach

supports multi-device UI generation.

REFERENCES

Acerbis, R., Bongio, A., Brambilla, M., Butti, S., Ceri,

S., and Fraternali, P. (2008). Web applications de-

sign and development with webml and webratio 5.0.

In Paige, R. and Meyer, B., editors, Objects, Com-

ponents, Models and Patterns, volume 11 of Lecture

Notes in Business Information Processing, pages 392–

411. Springer Berlin Heidelberg.

Calvary, G., Coutaz, J., Thevenin, D., Limbourg, Q., Bouil-

lon, L., and Vanderdonckt, J. (2003). A unifying ref-

erence framework for multi-target user interfaces. In-

teracting with Computers, 15(3):289–308.

Ceri, S., Brambilla, M., and Fraternali, P. (2009). The his-

tory of webml lessons learned from 10 years of model-

driven development of web applications. In Borgida,

A., Chaudhri, V., Giorgini, P., and Yu, E., editors,

Conceptual Modeling: Foundations and Applications,

volume 5600 of Lecture Notes in Computer Science,

pages 273–292. Springer Berlin Heidelberg.

Falb, J., Kaindl, H., Horacek, H., Bogdan, C., Popp, R., and

Arnautovic, E. (2006). A discourse model for inter-

action design based on theories of human communi-

cation. In Extended Abstracts on Human Factors in

Computing Systems (CHI ’06), pages 754–759. ACM

Press: New York, NY.

Garc

ıa Frey, A., C

eret, E., Dupuy-Chessa, S., Calvary, G.,

and Gabillon, Y. (2012). Usicomp: an extensible

model-driven composer. In Proceedings of the 4th

ACM SIGCHI Symposium on Engineering Interactive

Computing Systems, EICS ’12, pages 263–268, New

York, NY, USA. ACM.

Meixner, G., Breiner, K., and Seissler, M. (2011a). Model-

Driven Useware Engineering, chapter 1, pages 1–26.

Studies in Computational Intelligence, SCI. Springer,

Heidelberg.

Meixner, G., Patern

o, F., and Vanderdonckt, J. (2011b).

Past, present, and future of model-based user interface

development. i-com, 10(3):2–10.

Miller, E. J. and Mukerjij, J. (2003). MDA guide version

1.0.1. Technical report, Object Management Group

(OMG).

Mori, G., Patern

o, F., and Santoro, C. (2004). Design and

development of multidevice user interfaces through

multiple logical descriptions. IEEE Transactions on

Software Engineering, 30(8):507–520.

Patern

o, F., Santoro, C., and Spano, L. D. (2009). Maria: A

universal, declarative, multiple abstraction-level lan-

guage for service-oriented applications in ubiquitous

environments. ACM Trans. Comput.-Hum. Interact.,

16:19:1–19:30.

Popp, R., Falb, J., Arnautovic, E., Kaindl, H., Kavaldjian,

S., Ertl, D., Horacek, H., and Bogdan, C. (2009). Au-

tomatic generation of the behavior of a user interface

from a high-level discourse model. In Proceedings of

the 42nd Annual Hawaii International Conference on

System Sciences (HICSS-42), Piscataway, NJ, USA.

IEEE Computer Society Press.

Raneburger, D., Popp, R., Kavaldjian, S., Kaindl, H., and

Falb, J. (2011). Optimized GUI generation for small

screens. In Hussmann, H., Meixner, G., and Zuehlke,

D., editors, Model-Driven Development of Advanced

User Interfaces, volume 340 of Studies in Computa-

tional Intelligence, pages 107–122. Springer Berlin /

Heidelberg.

Truyen, F. (2006). The Fast Guide to Model Driven Archi-

tecture - The basics of Model Driven Architecture.

Van den Bergh, J., Meixner, G., and Sauer, S. (2010).

MDDAUI 2010 workshop report. In Proceedings

of the 5th International Workshop on Model Driven

Development of Advanced User Interfaces (MDDAUI

2010).

Vanderdonckt, J. (2005). A MDA-compliant environment

for developing user interfaces of information systems.

In CAiSE, pages 16–31.

Vanderdonckt, J. M. (2008). Model-driven engineering

of user interfaces: Promises, successes, and fail-

ures. In Proceedings of 5th Annual Romanian Conf.

on Human-Computer Interaction, pages 1–10. Matrix

ROM.

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

272
