Abstract Modeling of embedded Systems Hardware

Christian Hausner and Frank Slomka

Institute of Embedded Systems / Real-Time Systems, Ulm University, 89069 Ulm, Germany

Keywords:

Embedded Systems Design, Cyber-physical Systems, Electronic System Level (ESL), Platform-based Design.

Abstract:

Designing cyber-physical systems is a challenge originating from the multidisciplinary and mixed-signal re-

quirements. In order to handle this challenge, many design languages have been developed, but none covers

the platform-based design and system view well. In this paper we extend our methodology by considering

the aspects of the platform. A new abstraction layer, the domain layer is explained. This new layer allows

the description of embedded hardware as well as system on chips in a way which can be easily understood by

application or software engineers as well as hardware engineers. It closes the gap between hardware structure

diagrams as given by hardware designers on system level and class diagrams as used by software engineers.

Together with a new diagram type to describe hardware structures on system level the approach opens a door

to describe the binding or deployment of software to operating system services and hardware in a formal way

considering aspects of memory management and the structure of address spaces. Aspects not covered by

common system description languages.

1 INTRODUCTION

The design of cyber-physical systems (Lee, 2008) –

consisting of software as well as digital and analog

hardware – is still a great challenge that is caused by

the increasing complexity and the multidisciplinary

requirements which are typical for mixed-signal ap-

plications. Hence, it should be taken into account that

reuse of the hardware and software platform for dif-

ferent products is another strong requirement.

Model-based design with the UML (Object Man-

agement Group (OMG), 2013) is a common way to

model software systems. During the last years it has

been adapted to embedded systems. For this, UML

has been extended by the proﬁles MARTE (Object

Management Group (OMG), 2011) and SysML (Ob-

ject Management Group (OMG), 2010). However, for

both the system design is not considered well. Cer-

tainly it is possible to deﬁne hardware architectures as

well as the binding of computational elements to pro-

cessing elements, but the language does among oth-

ers not support hierarchical bindings. Therefore the

system view in the Y-diagram of platform-based de-

sign (Carloni et al., 2005) is poorly implemented in

MARTE and UML.

Established hardware description languages like

VHDL and Verilog ((Marwedel, 2011), chapter 2) or

classical wiring diagrams are very detailed but not

best suited for designing entire systems. They con-

centrate on wiring and interconnection but not on

functionality. On the other hand, block diagrams as

used in SysML will not graphically represent func-

tion details that are important for the platform and

system design process. The software platform or op-

erating system issues are not covered by one of these

languages and methodologies.

To handle the problems discussed above, a new

approach for system modeling was introduced in

(Slomka et al., 2011). The approach extends the

object-oriented philosophy of designing software sys-

tems to multidisciplinary, multi-technology hard-

ware/software systems. In contrast to other model-

ing approaches, systems are modeled with their in-

ﬂuencing physical properties. A system view (see

Sect. 3.3) unites application design and platform de-

sign. The main focus of the previous work was to ex-

plain the design of the application and its reﬁnement

during design. Introductory information about the ap-

plication view can be found in this work in Sect. 3.1

and in Figure 1, detailed information is provided in

(Slomka et al., 2011). In contrast to (Slomka et al.,

2011) this work shows how the architecture of the

platform can be described in an intuitive way. It in-

cludes two different views of the platform and also

gives the designer the opportunity to reﬁne a system

during design. These views are independent from

UML, MARTE, or SysML but can be easily adapted

to them.

251

Hausner C. and Slomka F..

Abstract Modeling of embedded Systems Hardware.

DOI: 10.5220/0004594802510258

In Proceedings of the 3rd International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2013),

pages 251-258

ISBN: 978-989-8565-69-3

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

Module

Level

Task

Level

Technology Partitioned

Level

Module

Level

Component Level

Domain

Level

System (Time & Space) Partitioned

Level

System View

Application View Platform View

Operating

System

with

Process

and

Threads

NIOS

EDF

Process

Scheduling

Thread

Scheduling

Thread

Scheduling

Memory

Comp.

Task

Physical

Task

Domain

ISP

Mem

ory

CAN

Bus

Module Module

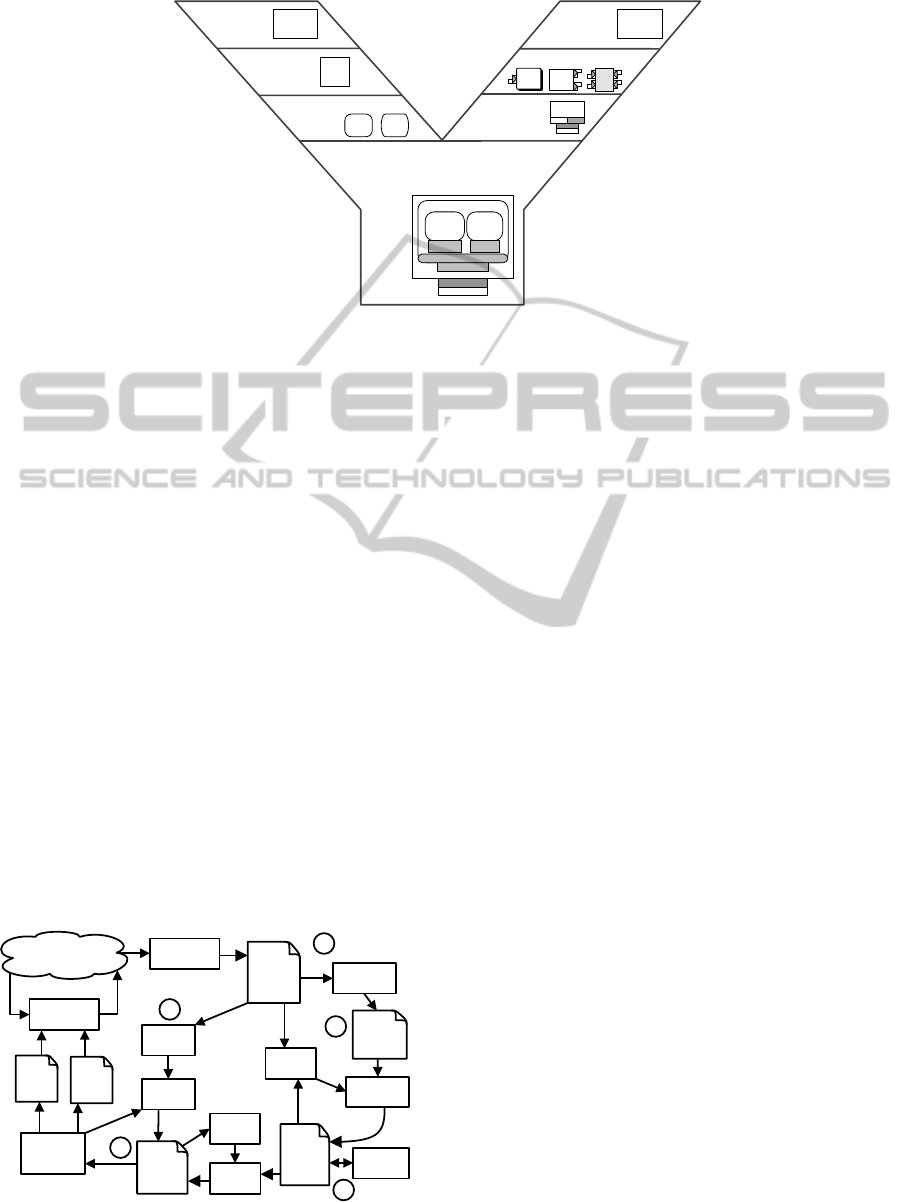

Figure 1: Abstraction levels in the design ﬂow.

The remainder of the paper is as follows: The de-

sign ﬂow is presented in Sect. 2 followed by the dif-

ferent abstraction layers in Sect. 3. In Sect. 4, the

platform model is introduced. After this, an exhaus-

tive case study is given (Sect. 5), followed by a con-

clusion.

2 DESIGN FLOW

The proposed design methodology is described in

(Slomka et al., 2011), the following will concentrate

on the platform aspects only.

In the ﬁrst step a requirement speciﬁcation is con-

ducted

. After ﬁnding the requirements, the sys-

tem’s functionality has to be worked out. For this,

a system analysis based on the requirements is per-

formed. The result is a small system speciﬁcation

which considers all aspects of the whole system.

Based on the resulting system speciﬁcation

, the

system design and component speciﬁcation starts

.

The subsystem has to be partitioned into different

Technical

System

Requirements

Engineering

System

Analysis

System

Design

System

Implemen-

tation

System

Specifi-

cation

System

Architec-

ture

Require-

ments

Specifi-

cation

Comp-

onent

Specifi-

cation

Platform

Design

Parameter

Extraction

Constraint

Checking

Technology

Partitioning

Stability

Checking

Constraint

Analysis

Cyber-physical

System

Hard-

ware

Soft-

ware

Figure 2: Generic design ﬂow of cyber-physical systems.

technology domains.

The step after the technology partitioning is the

platform design, where hardware elements like com-

ponents, tasks, or controllers and software like operat-

ing systems and frameworks are mapped to allocated

computational resources offered as services to the ap-

plication. The platform design contains several design

steps like the allocation of processing elements, com-

munication elements or memory elements, the gen-

eration of platform modules and depending platform

domains for resources and services that could be con-

nected to the application by service access points. The

result is the system architecture

.

In this paper the design of the platform is de-

scribed. It is discussed how a platform architecture

can be described. Therefore we will not discuss the

other parts of the development process in the rest of

the paper.

3 SYSTEM ABSTRACTIONS

Since the introduction of the system-on-a-chip

paradigm, the conventional model consisting of clas-

sic abstraction layers for hardware and software does

not apply anymore. In this model six different layers

of hardware abstractions are known. The classiﬁca-

tion is given in (Gajski, 1992) and is divided into sys-

tem level, behavioral level, register transfer level, gate

level, transistor level, and layout level. In the design

ﬂow we ﬁnd these parts downwards from the plat-

form design. Software development is here also sepa-

rated into the different abstraction layers architecture

level, component level, algorithmic level and machine

code level. This classiﬁcation is adapted from (Som-

merville, 2001).

SIMULTECH2013-3rdInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

252

This common approach ends below the system

level, but systems have to be consistently explained

in the whole. Therefore a new paradigm has been de-

veloped to support system synthesis. This platform

based design is shown in Figure 1 by a Y-structure.

It is distinguished between the different views Ap-

plication, Platform and System, as further discussed

in (Sangiovanni-Vincentelli and Martin, 2001). This

means the development of the application’s function-

ality is separated from the development of the hard-

ware and software platform. Hence, this approach

takes into account that in many projects, platforms

are used for different products. The system axis de-

scribes the mapping or binding of application func-

tions to the hardware components. Although the ap-

plication and the platform view are covered by UML

and AUTOSAR (AUTOSAR development coopera-

tion, 2013), the system view is not supported well by

these techniques.

3.1 Application View

The application view as described in (Slomka et al.,

2011) is supported in three abstraction levels (see also

Figure 1) We distinguish between the module and the

task level that is subdivided into the task level itself

and the technology partitioned level. The behavior

of speciﬁc system parts is encapsulated by a task and

tasks may communicate with each other. Note that in

this context a task does not mean an operating system

task or process. The tasks are mapped to the platform

in a later stage described in detail in the step “system

view”.

3.2 Platform View

The platform view considers hardware as well as ba-

sic software (operating systems and frameworks). It

is an enhancement of the classic hardware and soft-

ware abstraction layers as described in Sect. 3 but it

focuses on the description of systems. In this paper

the platform view is limited to the digital domain. The

process starts with the module level to describe the

approximated platform consisting of modules like de-

vices, cards or chips and their interconnections. The

reﬁnement step component level deﬁnes the system

platform in more detail. Components are the basic

functional blocks of the platform hardware. The com-

ponent level is a new abstraction level considering the

entire system’s hardware. It reduces hardware plat-

forms to addressable objects and their interconnec-

tions but encapsulates from wiring and physical di-

mensions.

The resulting architecture from the component

level can then be reﬁned at the domain level that is

especially new in our methodology. Groups of com-

ponents are transformed to platform domains describ-

ing the resources and services that are offered by these

components. Domains describe the scheduling behav-

ior, memory layout and usable resources (e.g. com-

munication buses, I/O) of the platform.

Note that this is a new abstraction level to better

support the mapping of applications. For the applica-

tions it is not important how the components are con-

nected. It is important which memory can be used,

what resources are available and when it gets resource

time. Therefore this level supports an abstraction for

operating systems and frameworks.

3.3 System View

The system view unites the application and platform

view. At this level application elements (like tasks,

ports and links) are bound to the elements of the plat-

form domains that are called service access points.

Each computational task is assigned to a platform

domain describing its scheduling and memory layout.

Each port of the computational task is mapped to a

communication service access point of that domain.

The information what ports are involved in the com-

munication is given by the related computational link

and can be distributed through the system. Based on

the mapping it is possible to classify if a task is imple-

mented as a thread sharing memory with other threads

or as a process having its own memory or if an appli-

cation task is implemented as a function call.

In MARTE, allocation means the mapping of ap-

plication to a platform (Boulet et al., 2007). Un-

fortunately software engineers are talking about de-

ployment if they want to map software functions to

components. In system synthesis, allocation means

to choose a component, while binding is the term to

describe mappings of tasks to allocated components.

In this paper we use the system synthesis terms in-

stead, as the aim of the methodology is to synthesize

embedded systems.

First we introduce domains. Domains are an ab-

stract model of the platform and are especially useful

for the binding of application elements to platforms.

We introduce two types of domains that describe re-

sources, services with access points and the memory

layout. Domains group platform elements in a logical

way.

However, domains and their contained elements

are not the concept needed by synthesis, because they

hide architectural aspects. Therefore domains allow

an abstract formulation of architectures. Using the

concept of hierarchical composition of domains, it

AbstractModelingofembeddedSystemsHardware

253

Bus Master and Timing Elements

Clock

ISP

Princeton

Memory

Hub

Controller

Direct

Memory

Access

ASIP

Princeton

ASP

ISP

Harvard

ASIP

Harvard

Timer

Bus Slaves

D/A

Converter

A/D

Converter

Bus

(e.g.

CAN)

SPI

ASP

Memory

(Dual Port)

Cache

CAM

Passive Bus Components

A/D

Converter

8 Bit

D/A

Converter

Arbiter

Bus

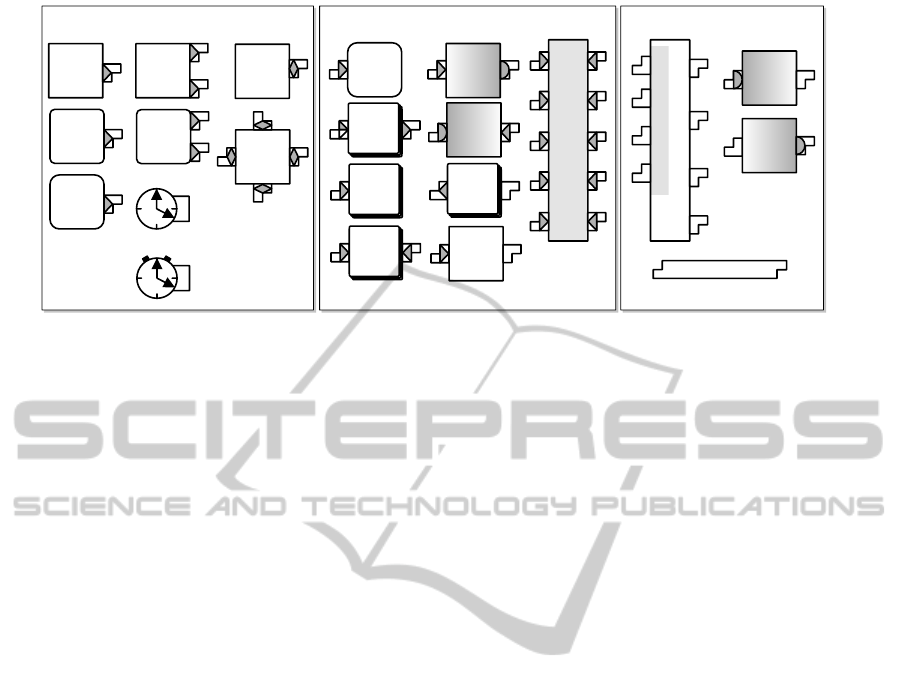

Figure 3: Symbols of components.

is possible to describe complex architectures easily.

Such a model is needed because a complex binding

relationship as proposed by MARTE is very hard to

use if an automatic design space exploration has to

be designed and implemented because there exist a

lot of dependency rules between the different views.

A comparable approach is presented in (Liehr et al.,

2008).

In UML, MARTE, or SysML it is only possible

to describe the application or platform view. Bind-

ing and mapping is only supported in a graph based

approach like in (Teich et al., 1997). Memory is not

considered in it. The whole system view is also miss-

ing in all cases. This gap is closed in this paper by

the newly introduced system view and the concept of

platform domains.

4 PLATFORM LANGUAGE

The platform view enables hierarchical design as well

as reﬁnement processes and is divided into two differ-

ent views of a platform. All views describe the same

platform but with different intentions.

4.1 Module and Component Level

The platform view (see Figure 1) starts with modules

to support a hierarchical design methodology. Mod-

ules are for example devices, cards or chips. The

modules can consist of several modules or compo-

nents. Components are the basic functional hard-

ware elements. Therefore modules and components

are elements of a hardware view of addressable ob-

jects. We distinguish between different types of com-

ponents (see Figure 3).

4.1.1 Bus Control Interfaces

Components contain bus control interfaces that are

connection points with a technology type and a bus

control interface contract. The bus control interface

contract is something like the interface type in object

oriented languages. At this level of detail we distin-

guish between the following bus control interfaces:

Active, Passive, Analog and Timing. Only bus control

interfaces with compatible types could be connected

to each other. The interfaces and their symbols are

shown in Figure 3.

The bus control interface could be an active bus

control interface what implies that the component

contains the controller needed for connecting to the

appropriate communication system like a bus. Ac-

tive bus control interfaces are symbolized by a tri-

angle inside the bus control interface symbol. Pas-

sive bus control interfaces will not contain any con-

troller and are therefore only seen as a wiring connec-

tion point. The interface symbol contains no trian-

gle. Analog interfaces are speciﬁed to connect analog

building blocks (see section 6). They are symbolized

by a semicircle inside the interface symbol. Finally

Timing interfaces connect timing elements with time

users that could be almost all other components. The

interface symbol differs from the other symbols and it

contains a “T” indicating the timing interface.

4.1.2 Components

Model elements that can act as a bus master are called

bus master components. They are equipped with ac-

tive interfaces with a triangle pointing away from the

component. This indicates the component can com-

mand the bus. Another possibility is a diamond sym-

bol indicating the component can also be commanded

by other components. Examples of bus masters are

processing elements like instruction set processors

SIMULTECH2013-3rdInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

254

Services, service access points

and their attributes

mem

memmem

blocking write

non blocking read

blocking write

non blocking read

mem

blocking write

blocking read

non blocking write

non blocking read

memory binding

Direct memory

access (pointer)

Domains

Resource domain containing

e.g. service domains

Allocation of resources

Memory Layout

CAN AD ISPMEM

Layout

Service domain, e.g. operating system

with process and thread binding

Scheduling service layer

Processing resource binding

Process

Scheduling

Thread

Process

Thread

Memory

write

read

Memory

write

Device driver and service layer

Memory layout layer

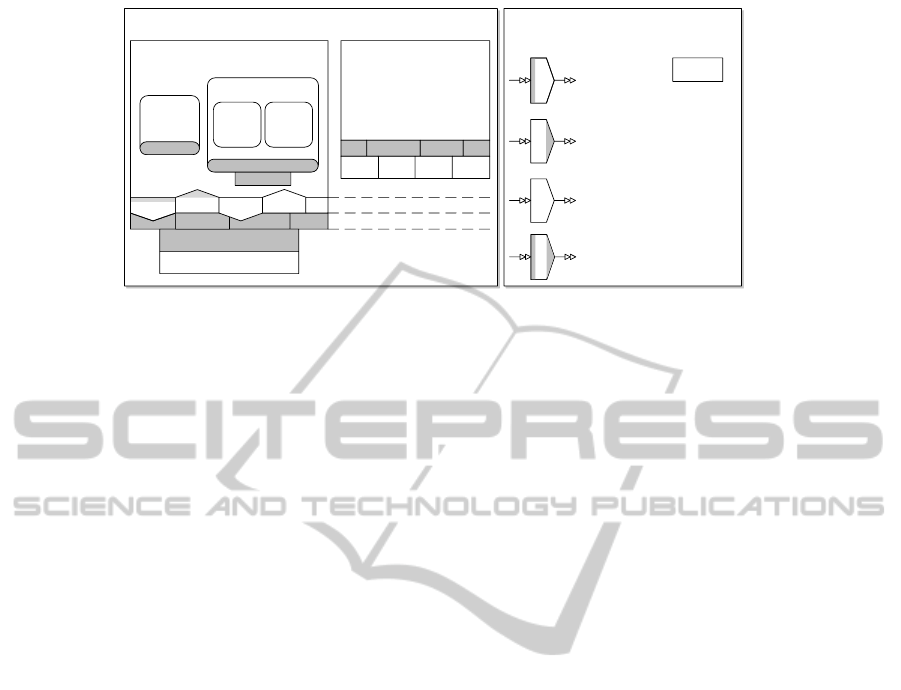

Figure 4: Symbols of domain level elements.

(ISP) or application speciﬁc instruction set processors

(ASIP), direct memory access controllers and mem-

ory controller hubs also known as bus bridges. These

components and their symbols can be found in Fig-

ure 3 in the area of Bus Master Components.

Bus slave components are components that will

be commanded by bus masters. They are equipped

with active interfaces containing a triangle pointing to

the component. Bus slave components are for exam-

ple memories and caches including their controllers

(symbolized by a stack of memory cells) or buses

with active controllers as a CAN bus for example.

The memory addressing scheme – virtual or physi-

cal - could be modeled as an attribute of a component

like a cache or instruction set processor. This implies

that a memory management unit or a memory protec-

tion unit is not modeled as separate component but

as this attribute. The interface of such a virtual ad-

dressing is indicated by a double bar triangle. These

components can be found in Figure 3 in the area of

Bus Slave Components.

Passive bus components will not contain an active

controller. They are connected by passive bus con-

trol interfaces. For example buses without controllers

are passive bus components. Another example is an

AD/DA converter that should be connected to a pas-

sive bus control interface (only wires).

Timing elements are components that model

timers and clocks. They can be connected to all other

elements and will be symbolized by a clock with a

timing interface.

4.2 Domain Level

The modules and components can then be reﬁned by

domains. In our approach we distinguish between

two types of domains: Resource domains describing

the resources of the platform and service domains de-

scribing the offered services with their access points

that are mapped to application elements in the system

view. Symbols for domains and their containing el-

ements are shown in Figure 4). In the domain level

no direct connections between model elements with

arrows or lines are used, elements are connected by

their names and position.

The idea is to deﬁne an abstraction layer which

covers all aspects of a platform as seen by the appli-

cation. In embedded or cyber-physical system design

this could be a view on operating system services as

device drivers or schedulers as well as the memory

layout. The new layer deﬁned in this section allows

to model the platform aspects in an abstract way. It

allows the designer to concentrate on the architecture

and it hides the aspects of implementation details. To

introduce modeling components and graphic symbols

for this part is new. In further work software engi-

neers model the platform in a software way to inter-

pret the services as software functions like applica-

tion functions and hardware engineers are not inter-

ested to consider scheduling or memory architectures

as seen by software. Therefore to describe the archi-

tecture of a hardware/software system the aspects of

the platform must be considered as an architecture of

hardware as seen by the application (and not only by

software).

4.2.1 Resource Domains and Resources

Resource domains can contain other resource do-

mains, service domains and resources that are the sub-

stitution of hardware components. They also contain

the memory layout of their resources. A resource

domain contains all relevant resources of the consid-

ered system or subsystem. Resource domains inside

of other resource domains are a logical group of the

system resources. This enables hierarchical composi-

tion of resource domains and encapsulation of subsys-

tems. For communication between these subsystems,

a resource in the superior resource domains is needed.

AbstractModelingofembeddedSystemsHardware

255

FFT

IFFT

Main

Controller

Multiplication

NIOS

Aplication Specific Scheduling

FFT

«analog» Tranceiver

Low Pass Filter

Amplifier

Transducer

Voltage

Source

Level

Converter

Voltage

Multiplier

Sound

A/D

D/A

DM1

PRIO

MEM

($07FFF - $FFFF, 24 K)

DM2

($03FFF - $07FF, 16 K)

DM1

($0000 - $03FF, 16 K)

NIOS

FFT

CANPWM

DM2

wmem

CAN

DM2

DM1

wmem

CANCAN

DM1

DM2

MEM

Envelope Filter

MEM

wmem

Threshold

Filter

Application Specific Register File

REG3

REG REG2

Sample

Time

1 MHz

DM2

Signal

Generator

PWM

Pulse Response

Time

4 Hz

Timer

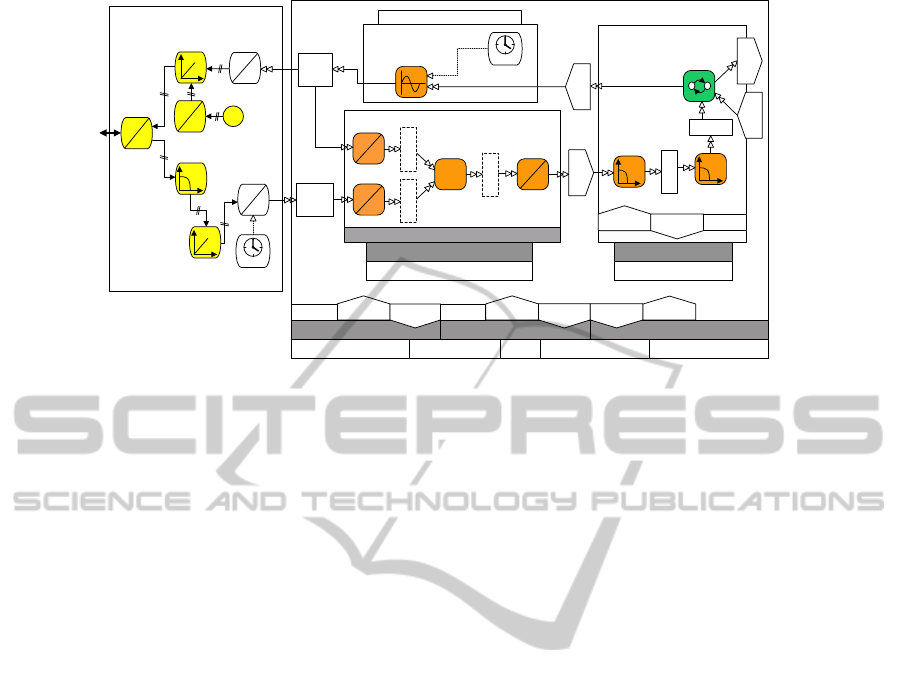

Figure 5: The system level domain architecture of the sonar system.

The root node of domains is in every case a resource

domain that is a visualization of the system border.

As mentioned above, resource domains contain

only relevant resources. That are resources used

by the services of the containing service domains.

It is not intended that all hardware components are

mapped to resources e.g. an address bus is a com-

ponent element that is needed for the correct work of

the system but it is not used explicitly (but implicit)

by services and not modeled as a resource.

Resources are the substitution of hardware com-

ponents in the domain level. A domain contains all

relevant resources of the considered system or sub-

system modeled by the domain. As mentioned above,

domains contain only relevant resources. That are re-

sources that will be used by services.

4.2.2 Service Domains and Services

The concept of service domains establishes a service-

oriented view to platforms. They are an abstraction

for operating systems, frameworks, processes and

threads. Service domains itself can contain service

domains. At the lowest level a service domain is a

process or thread. They contain services, their access

points and the memory layout of these services.

Services are a concept to provide and manage

computing resources. They are bound to underlying

services or directly to resources. Services are divided

into the following types: processing, communication,

storage and timing. This categorization can be ex-

tended easily. Services are used by the application

through service access points. They model the usage

of services and are therefore a kind of conﬁguration

of the services depending on the current application.

4.2.3 Memory Layout

The memory layout consisting of memory partitions

is available in every kind of domain. It describes the

address space and size available for that domain. Re-

sources and services will be assigned to memory par-

titions. A memory layout of a process describes the

private memory of that process. This private memory

is only virtual as it is not directly bound to a memory

resource but to a memory service of the containing

operating system.

5 CASE STUDY

In this section, a design example is considered that is

derived from (Slomka et al., 2011). The sonar system

is part of a larger project, an autonomous underwater

vehicle (AUV). The major task of the sonar system is

to detect objects in the water that will be used for nav-

igation and maneuvering of the robot. The sonar sys-

tem sends acoustic waves into the water and, if there

is any object, receives the acoustic reverberation of

that object. It consists of an electromechanical part

to generate acoustic signals, an analog electronic part

to drive the electromechanical sound generator and to

receive the reverberation, and a digital electronic part

with hard- and software for signal processing and tar-

get detection.

In this case study we will focus on the design of

the platform fulﬁlling the requirements of the applica-

tion as stated above. The application design, system

design and requirements analysis are shown in detail

in (Slomka et al., 2011).

SIMULTECH2013-3rdInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

256

Direct

Memory

Access

MEM

DM2

A/D

Converter

D/A

Converter

Arbiter

Bus

FFT

DM1

NIOS

Direct

Memory

Access

BusBus

PWM

4 Hz

Timer

CAN

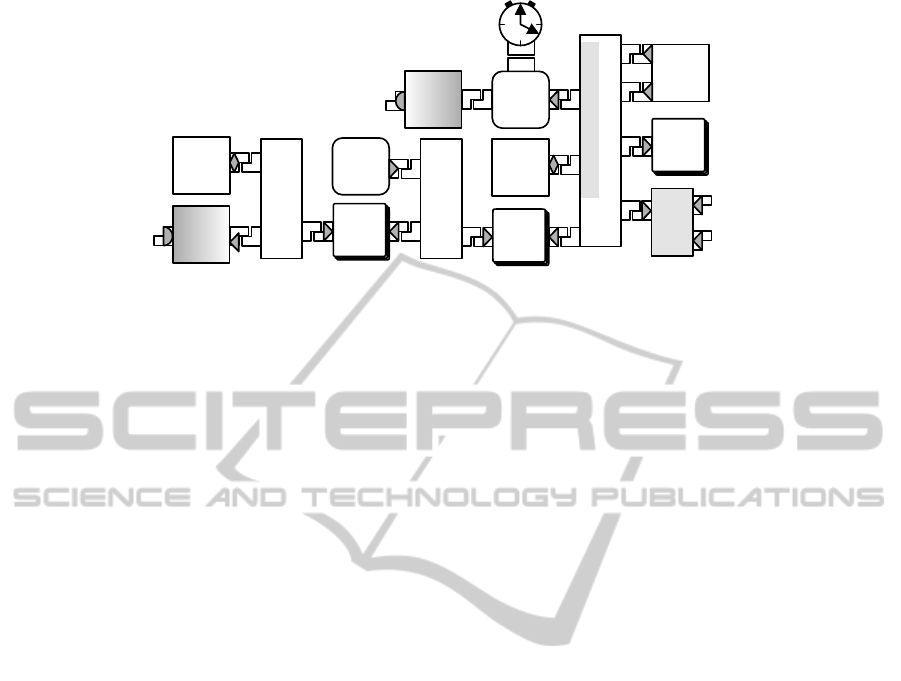

Figure 6: Platform level component architecture of the sonar system.

5.1 System Mapping and Domains

Three service domains are manually chosen for sig-

nal generation, fast fourier transformation (FFT) and

main controller (see Figure 5). This is one possible

kind the domain architecture chosen here for simplic-

ity.

The next step is specifying the services to real-

ize the communication that is modeled by messages

or binary signals between computational tasks. As

displayed in Figure 5 the communication services are

placed between the communication links of the ap-

plication. The points were the communication links

are connected to the service are the service access

points. This is the way to visualize the binding of

communication to the platform. Tasks that transform

from digital to analog domain or vice versa are known

as transformers and contain a digital and an analog

port. The digital port will be mapped to a communi-

cation service access point. Next, the tasks itself are

all mapped to a processing service access point to en-

able scheduling of the tasks. Application tasks that

use timing information are called timing tasks. They

will be mapped to a timing access point. They pro-

vide the timing information via ports and are mapped

to communication service access points.

It is already needed to create at least one resource

domain containing all the hardware resources of the

entire system. The result is shown in Figure 5. The

domain implementing the fast fourier transformation

(FFT) is not considered any more in the system level

but speciﬁed in the hardware synthesis. Therefore the

communication services are displayed with dashed

lines and the memory layout and scheduling is deﬁned

as “application speciﬁc”.

5.2 Generation of Components

After specifying the domain architecture components

and modules are generated or selected implementing

that domains. This decision is a task of the system

architect. Both ways are supported by the approached

methodology and both ways could be mixed. In our

current case study we decided to select components

and modules manually from a list of available items.

Processing resources are transformed to bus mas-

ters like ISPs, ASIPs or ASPs (see Figure 3) depend-

ing on the scheduling services and attributes. Memory

resources will be transformed to memory elements.

If caching is used by the memory layout, cache ele-

ments are added. Timing resources are transformed

to timers and clocks. Communication resources are

transformed into the active or passive communication

infrastructure. Resources of different domains can

communicate with each other by coupling elements.

Examples are memory hub controllers, buses or dual

ported memories. In our case study the dual ported

memory DM2 (see Figure 6) is used as a coupling el-

ement.

The automatic generation of components and

modules will be done using formal transformation

rules. They describe the transformation of elements

of the resource domains and corresponding service

domains to elements of the component level. For-

mal transformations are part of our future work (see

Sect. 6).

6 CONCLUSIONS

The paper introduces a new abstraction level in sys-

tem design. The goal is to bridge the gap between

structure diagrams as used by hardware engineers and

class and module based diagrams as used by software

engineers. It includes graphical modeling of applica-

tion and platform which are mapped together at the

newly introduced system view in an intuitive graph-

ical way. The fact is, that methods like UML are

AbstractModelingofembeddedSystemsHardware

257

mainly used to model applications and therefore ab-

stract from architectural details as memory layout or

scheduling. But both these parts are essential for the

design of cyber-physical or in general way embedded

systems. The results presented in this paper are a new

way to describe architectures of embedded platforms

considering aspects of the design of the hardware plat-

form. Therefore it allows the exploration of different

platform implementations in early design phases of a

project.

Future work will cover the meta modeling to inte-

grate this new technique to UML as well as formal

transformations to support system optimization and

design space exploration. To validate our approach

an implementation of the design methodology and de-

sign ﬂow in combination with usability investigations

are some more tasks to do. This will include a com-

parison with other modeling methodologies.

REFERENCES

AUTOSAR development cooperation (2013). AUTomotive

Open System ARchitecture. http://www.autosar.org/.

Boulet, P., Marquet, P., Piel,

E., and Taillard, J. (2007).

Repetitive allocation modeling with marte. In Forum

on speciﬁcation and design languages (FDL07).

Carloni, L., De Bernardinis, F., Pinello, C., Sangiovanni-

Vincentelli, A., and Sgroi, M. (2005). Platform-Based

Design for Embedded Systems. In The Embedded Sys-

tems Handbook. R. Zurawski (Ed.).

Gajski, D. (1992). High-Level Synthesis. Kluwer.

Lee, E. (2008). Cyber physical systems: Design challenges.

In 11th IEEE Symposium on Object Oriented Real-

Time Distributed Computing (ISORC).

Liehr, A., Rolfs, H., Buchenrieder, K., and Nageldinger,

U. (2008). Generating marte allocation models from

activity threads. In Forum on Speciﬁcation, Veriﬁca-

tion and Design Languages (FDL08), pages 215–220.

IEEE.

Marwedel, P. (2011). Embedded Systems Design - Embed-

ded Systems Foundations of Cyber-Physical Systems.

Springer, 2nd edition.

Object Management Group (OMG) (2010). OMG Systems

Modeling Language, version 1.2 (OMG SysML).

http://www.sysml.org/specs/.

Object Management Group (OMG) (2011). Modeling

and Analysis of Real Time and Embedded sys-

tems, version 1.1 (MARTE). http://www.omg.org/

spec/MARTE/1.1/.

Object Management Group (OMG) (2013). Uniﬁed Mod-

eling Langauge (UML). http://www.uml.org/.

Sangiovanni-Vincentelli, A. and Martin, G. (2001).

Platform-Based Design and Software Design Method-

ology for Embedded Systems. In IEEE Design and

Test of Computers, volume 18, pages 23–33.

Slomka, F., Kollmann, S., Moser, S., and Kempf, K. (2011).

A multidisciplinary design methodology for cyber-

physical systems. In 11th IEEE Symposium on Object

Oriented Real-Time Distributed Computing (ISORC).

Sommerville, I. (2001). Software Engineering. Pearson

Studium.

Teich, J., Blickle, T., and Thiele, L. (1997). An evolutionary

approach to system-level synthesis. In CODES, pages

167–172.

SIMULTECH2013-3rdInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

258
