Upgrading Unupgradable Middleware Legacy Processes:

Misconceptions, Challenges, and a Roadmap

Radhouane B. N. Jrad

, M. Daud Ahmed

and David Sundaram

Carter Holt Harvey, Auckland, New Zealand

Manukau Institute of Technology, Auckland, New Zealand

University of Auckland, Auckland, New Zealand

Abstract. Middleware systems are information systems which live in the mid-

dle of business processes, enabling communication between various businesses

and their heterogeneous information systems. When it comes to upgrading their

legacy processes, middleware systems have their own particular requirements

and complexities that standard upgrade roadmaps are incapable of fully ad-

dressing. In particular, legacy processes that cannot be upgraded using vendor

or market tools due to the lack of knowledge about their mechanisms or due to

their complexity represent a challenge to upgrade projects. This paper proposes

a roadmap to address this challenge by offering a side-by-side approach to mi-

grate unupgradable legacy processes in middleware systems with minimum

business and financial impact.

1 Introduction

Enterprise Messaging Systems (EMS), commonly known as Middleware Systems or

Middleware Applications, are sets of published standards and tools that allow archi-

tecturally heterogeneous computer systems to exchange information through usage of

sector-endorsed structured messages (e.g. XML) and protocols (e.g. SOAP with web

services) [10]. This intra-systems communication mechanism is key to establishing

Business-to-Business (B2B) electronic trades [14] and can be thought of as the

“postman” and the “translator” between various information systems of business

partners that cannot communicate directly. Middleware systems have also been used

to establish technological relationships between non-business systems such as be-

tween a web server and the cloud [14, 17].

A middleware system is part of the business process spectrum, i.e. it does not only

play the role of bridging the technological differences between business partners, but

its processes are part of the business logic itself. For instance, if a Business Partner

1sends a Purchase Order (PO) to a Business Partner 2 (step 1 in Fig.1 below), the

middleware may need to map various fields from the purchase order into meaningful

fields for the target systems. This requires understanding of business-process-related

logics such as which fields represent the total PO value, delivery address, etc. and

what conditions do they need to fulfill (e.g. a total must not be negative). Although

B. N. Jrad R., Daud Ahmed M. and Sundaram D..

Upgrading Unupgradable Middleware Legacy Processes: Misconceptions, Challenges, and a Roadmap.

DOI: 10.5220/0004602201110118

In Proceedings of the 1st International Workshop in Software Evolution and Modernization (SEM-2013), pages 111-118

ISBN: 978-989-8565-66-2

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

the business logic might reside outside the middleware flow, it still needs to be assim-

ilated for the conversion to occur; and it is not uncommon to use the middleware as a

validation tool in order to avoid lengthy traffic and delays between end-systems. The

middleware system would also be required to inform systems and/or stakeholders of

any delivery problems, and relay messages, such as acknowledgements, between end-

systems. Fig.1 below illustrates an example on how middleware systems are implicat-

ed in a B2B process between 3 business partners: a Customer (Partner 1), a Seller

(Partner 2), and a Deliverer (partner 3). The figure illustrates both the complexity that

middleware systems add to the entire design but also the level of complexity taken

out of end-systems (referred to in Fig.1 as Internal Business Processes) allowing them

to focus on their core processes.

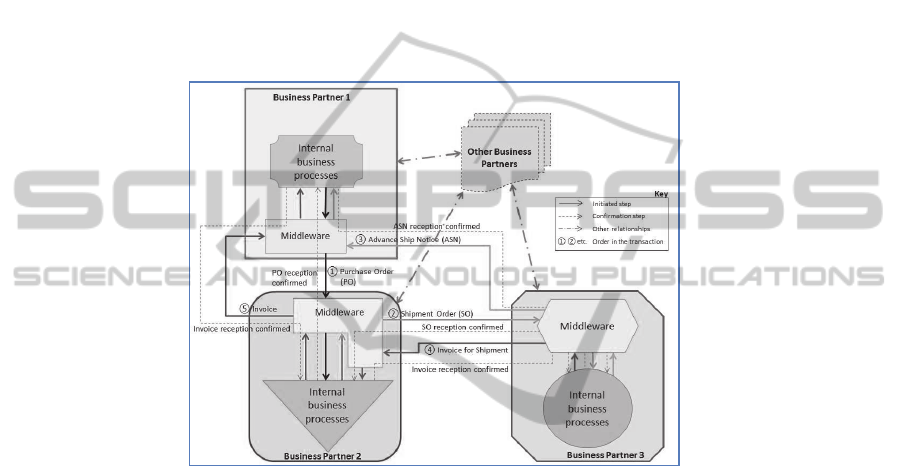

Fig. 1. Middleware as B2B enabler.

Middleware systems also facilitate communication between two or more distribut-

ed information systems, without directly being part of a B2B process [17]. This is

achieved through bridging the gap of systems heterogeneity and distribution [7]. In

this case, the middleware layer sits between applications and lower layers, such as

operating systems, network, hardware, etc. [10, 15]. Most notably, middleware sys-

tems are used with the cloud technology where companies might either opt for the

classic middleware framework, and/or in line with the Software-as-a-Service

(SaaS),the Platform-as-a-Service (PaaS), and the integration-as-a-service (IAS) con-

cepts [14]. Complexity of upgrade for these systems is more likely to be associated

with the complexity of the systems themselves [8, 18], be it a genuine complexity or

due to bad design, than about the obsolesce of the As-Is systems.

It is possible to utilize middleware system both as B2B and technology enablers.

The scope of this paper, however, is specific to middleware systems for B2B relation-

ships, and it addresses complex legacy processes. By legacy systems we reflect on

“techniques, tools, and processes” that may have once been state-of-the-art but now

are nonresponsive to changes that are happening in the business processes or the

112

technological environment [19]. These legacy systems usually are so outdated that

knowledge about their internal processes and characteristics (e.g. contexts in which

they were created or modified) are lost with the loss of people who built or custom-

ized them. And while some of these legacy systems can be upgraded using standard

or specific vendor tools, a good number of them require either full reengineering, or

end up being partially or totally left untouched; and in the process engaging the rest

of the process to deal with them as black boxes with only inputs and outputs as un-

derstandable components. We refer to these black box processes as ‘Unupgradable

Legacy Processes’ because they are considered as such in the scope of the middle-

ware systems upgrade projects. We refer to the act of treating them as black box as a

“Wrapping” based on Callaway’s definition [2] because usually more code is added

around them to get them to work in the new systems.

Businesses expect to use one middleware solution for their entire needs. These

one-stop solutions need to be scalable, standardised and capable of integrating with

existing technologies, including legacy systems [13]. B2B processes have been

around for tens of years and middleware process enabling them have also been

around long enough [1] for waves of designers, architects, analysts, and developers

who contributed to tailor the excessively standard initial installation to the company’s

need [11] to retire or move on to different roles and companies leaving behind pro-

cesses that have now become legacy and unupgradable. And while the simple mid-

dleware legacy processes are easy and cheap to reengineer, unupgradable complex

legacy systems represent the biggest challenge in middleware systems upgrade pro-

jects.

2 Misconceptions about Managing Changes in EMS

Because the middleware environment does not generate income and is usually hidden

from business stakeholders, it is common to resist upgrading the middleware systems

because “they work fine”, unless there is a drive to manage/reduce their costs [6].

From another angle, there is also an implicit assumption that middleware systems are

just sub-systems, fitting under the general requirements and frameworks for enter-

prise systems upgrades. This is apparent in the generalisation of risk analysis in re-

search about implementation of enterprise systems (e.g. Scott & Vessey [16]). This

misconception ignores unique characteristics of middleware systems and particular

risks and impact associated with their management and upgrade project, which all

makes their management significantly different from other Information systems. The

difference includes the management of:

Requirements: Middleware systems need to respond to requirements from different

information systems and processes that may not use the same definitions or standards

for their processes. This makes their design and architecture a challenging exercise.

System: When the middleware system is undergoing an upgrade there is the assump-

tion that B2B end-systems are not affected, with minimum or no downtime, despite

the fact that middleware systems outages directly affect the B2B process even if end-

systems are up and running. Therefore, middleware systems usually are attributed

higher sensitivity, risk, and impact than other B2B information systems in the same

113

organization, and when one B2B system is down, other B2B systems see the error at

the middleware system’s level due to its positioning between all the B2B systems.

Life-Cycle: As new business processes and information systems come into the foray,

middleware systems need to both accommodate the legacy information systems, as

well as the new technologies and standards. During its life, a middleware system

would receive many updates until a point where a revamp is required. Due to the high

risk and impact associated with them, managing the lifecycle of a middleware system

is a consistent challenge both technologically and from business perspective.

Upgrading a middleware system is a unique exercise in IT and requires addressing its

challenges in a more specific context than within the broad theories about upgrading

information systems. In particular, addressing unupgradable legacy processes within

middleware systems requires a particular set of concepts and theories in order to

properly face the associated challenges.

3 Challenges of EMS Upgrades – Legacy Processes

Scott and Vessey [16] presented a risk factor model for implementing enterprise sys-

tems in general, and Davenport [3] highlighted general challenges associated with

upgrading these enterprise systems. While such models and challenges do apply to

middleware systems in B2B processes, they have more associated risks and challeng-

es than what these model offer, and there are multiple ways to illustrate this differ-

ence. One of the most visible and critical situations is when the middleware system is

down. Downtime is when the system is witnessing a partial or total outage and is

unable to operate adequately [4]. Let’s consider a scenario where two information

flows are required going from Enterprise A to Enterprise B (Fig.2). The flows are as

follows:

‐ Flow 1: Process A1 Middleware1  Middleware 2  Process B1

‐ Flow 2: Process A2 Middleware1  Middleware 2  Process B2

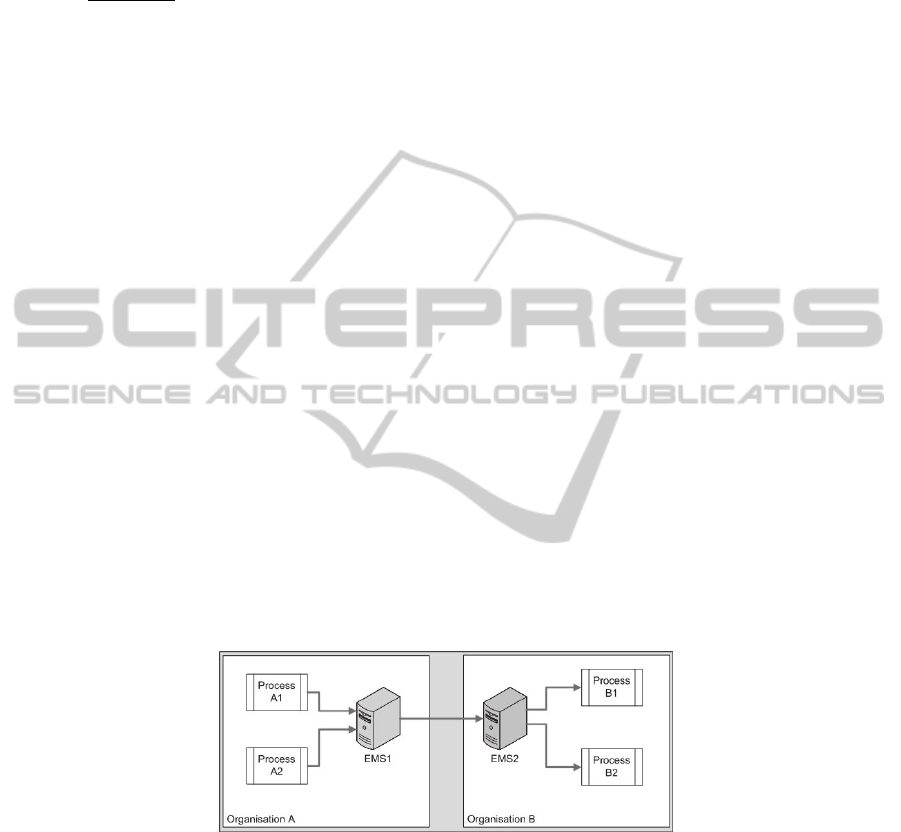

Fig. 2. A simplified representation of B2B information exchange.

If for any reason Process A1, and only process A1, stops, Flow 2 can continue to

perform while EMS1 is sending alerts (e.g. emails or paging messages) about A1’s

unavailability or inaccessibility. However, an outage of EMS1 would disrupt infor-

mation flow completely between the two enterprises, and processes A1 and A2 would

either throw errors or create backlogs while EMS2 would also throw connectivity

errors due to non-responsiveness of EMS1. In this simple scenario, middleware out-

114

age has greater impact than the outage of a B2B end-system. Because of such risks,

practitioners and users of middleware systems often face serious challenges to up-

grade legacy processes into latest state-of-the-art-technology middleware products.

New systems and processes usually adhere to current best practices, frameworks,

philosophies, and paradigms. The upgrade becomes complex since middleware sys-

tems contain interdependent unupgradable legacy processes (Fig.3).

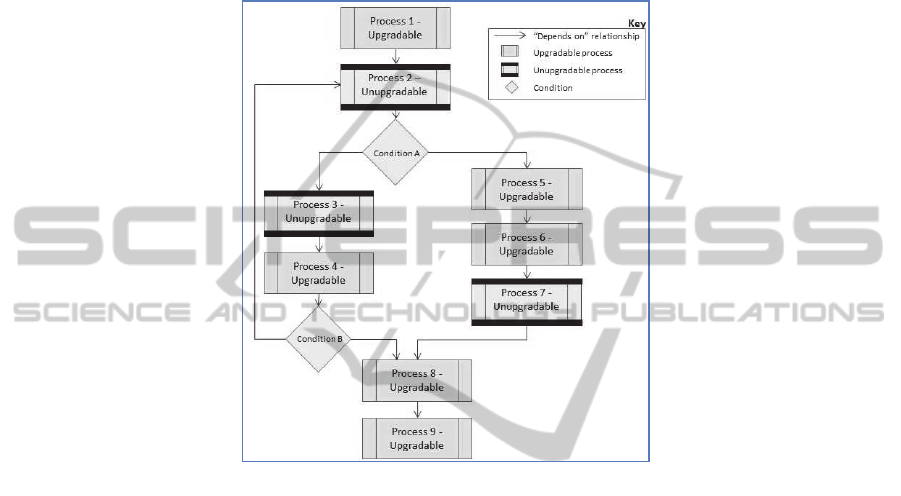

Fig. 3. Interdependence of unupgradable legacy middleware processes.

While an unupgradable process is in itself a challenge, having unupgradable pro-

cesses referring to each other increases the level of complexity. Fig.3 illustrates how

dependency between unupgradable processes can be bidirectional. This is possible

when one service’s code calls on another service if a certain condition is met. The

loop allows the code to flow in any direction between various services, effectively

creating a complex dependency net. This complexity is further deepened if these

processes belong to different interfaces. Interfaces are sub-mechanisms of the infor-

mation system that have common logic to be grouped together, and usually represent

either a B2B process specific to a partner or a common central processes (e.g. an

email interface). The lack of knowledge about some legacy processes in these inter-

faces puts them in the heart of the upgrade challenges. Interdependency of un-

upgradable legacy processes implies that migrating one process also requires concur-

rent migration of all other related unupgradable legacy processes, which may in turn

have dependency on other unupgradable legacy processes. The snowball effect can

result in a large number of legacy interfaces requiring the upgrade, all at once. This is

a Mild or Big Bang approach [3]. While a Big Bang approach does have advantages,

it brings time and budgetary constraints to the business and has high risk of business

disruption [12]. One commonly used method to avoid the Big Bang approach is to

115

wrap existing unupgradable legacy processes. Wrapping a process consists of keeping

it like a black box and adding header processes to manipulate the outputs to fit the

new paradigms. Not only does such an approach present risks due to unknowns asso-

ciated with it, it also presents the challenge of only delaying the inevitable require-

ment for reengineering. During subsequent upgrades, wrapped processes become too

complex and too inefficient to be double/triple/n-tuple wrapped and the knowledge of

what’s inside the black box fades with time, making it an even harder exercise to

reengineer it.

4 Roadmap to Upgrading Unupgradable Legacy Processes in EMS

To address the issue of upgrading complex unupgradable legacy processes in mid-

dleware systems, we propose a roadmap that is invasive to the existing process [9]

and based upon the side-by-side approach that ensures business continuity but also a

softer upgrade process[20]. It is indeed intentional to step away from Mild and Big

Bang approaches due to the inherent risks and costs associated with them [12], while

acknowledging that reengineering all unupgradable legacy systems might not be pos-

sible due to budget and time constraints. As Fig.4 shows, the proposed roadmap can

be combined with various known practices in the market, including wrapping pro-

cesses where/if necessary for transition phases.

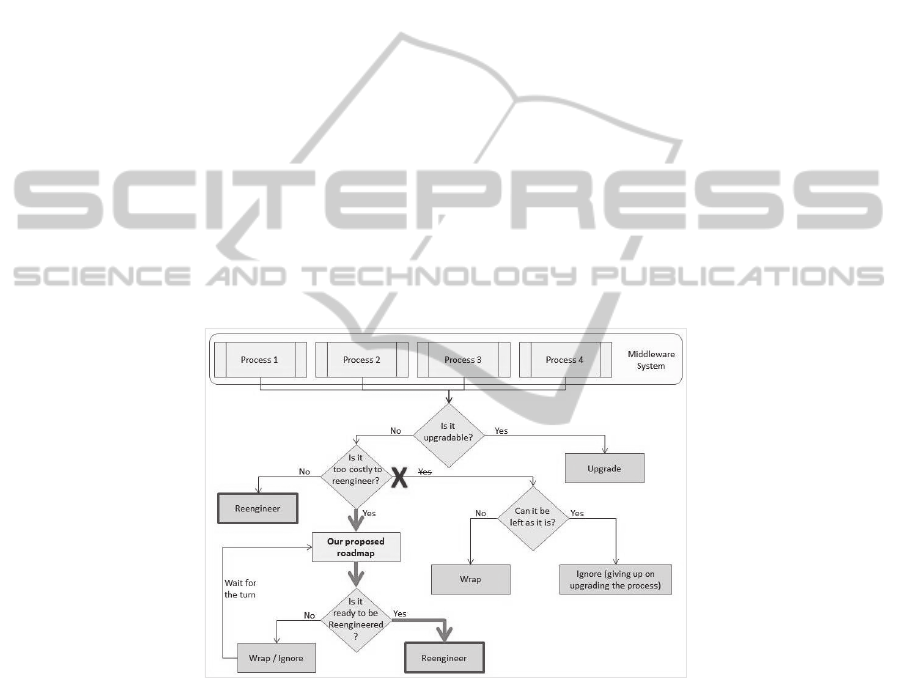

Fig. 4. Decision flow for upgrading unupgradable legacy processes.

Fig. 5 shows how an existing process (“S2 B2  B3  B4 A4S4) can be

upgraded to process (“S2C1Standard ProcessS4”) without affecting other

processes and flows. In the existing process, both interfaces A and B use custom (i.e.

not vendor-provided) code to process transactions, while in the new process the new

interface C transforms data in a format that the new Interface D can handle in a stand-

ard way. Interface D offers the same standard process for all interfaces of similar

nature, such as converting all Purchase Orders from different partners into one canon-

116

ical format before sending it to the organisation’s B2B end-system. While interfaces

A and B remain available, the two new interfaces (C and D) cater for the newly up-

graded process. The step-by-step approach would gradually move processes into the

new interfaces until a point where all processes have shifted to the new paradigm, and

the old interfaces can be decommissioned –it is also possible to decommission inter-

face as they get migrated to the new system. This approach is agnostic to the details in

the existing processes, which minimizes downtime for the process and the entire

middleware system, and reduces the burden of handling the black box by eliminating

the need for tracking known dependencies or discovering hidden dependencies [5].

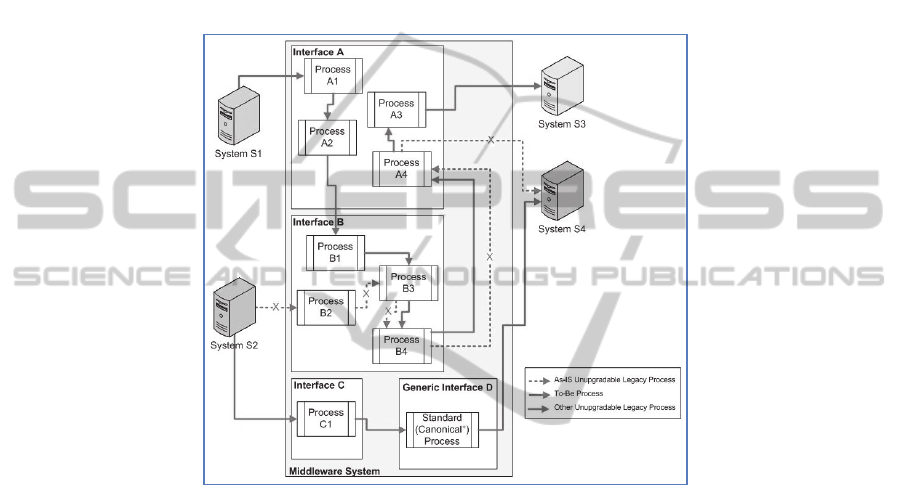

Fig. 5. Side-by-side upgrade of an unupgradable legacy process in a middleware system.

5 Conclusions

Middleware systems for B2B are information systems which by essence live in the

middle of business processes, enabling seamless communication between various

business partners and their heterogeneous information systems. Upgrading un-

upgradable legacy processes in middleware systems is a challenging exercise that

standard upgrade procedures are not sufficient to deal with. Although some of these

processes can be reengineered, complex processes are usually treated like a black box

and wrapped towards the new standards with focus on inputs and output. Such exer-

cise becomes more tedious as subsequent upgrade projects are run. The fact that these

unupgradable processes may be interdependent adds yet another level of complexity.

This paper proposes a roadmap to address these challenges by offering a side-by-side

timely-controlled migration for unupgradable legacy processes in EMS with mini-

mum business and financial impact. This roadmap has been conceptualized from the

117

synthesis of academia and practices of a highly specialized middleware integration

team in a large corporate. Though the roadmap has been used in a number of projects

and platforms, it is still in its incipient stage, and requires further refining and en-

hancement.

References

1. Bye, P.: What is middleware and where is it going?, in S. Nilsen “A CORBA service for

the OSA+ Real-Time Middleware”. (2003).

2. Callaway, E.: Enterprise resource planning: Integrating applications and business processes

across the enterprise. Computer Technology Research Corporation, Charleston, South Car-

olina (1999).

3. Davenport, T.H.: Mission critical: realizing the promise of enterprise systems. Harvard

Business School Press, Boston (2000).

4. Dhillon, B.: Engineering Maintainability: How to Design for Reliability and Easy Mainte-

nance. Gulf Pub. Co., Houston, Texas (1999).

5. Dumitraş, T. et al.: No more Hot Dependencies: toward dependency-agnostic online up-

grades in distributed systems. a Carnegie Mellon University Pittsburgh publication. (2007).

6. Dutta, K., VanderMeer, D.: Cost-based decision-making in middleware virtualization

environments. European Journal of Operational Research. 210, 2, 344–357 (2011).

7. Hasselbring, W.: Information system integration. Communications of the ACM. 43, 6, 32–

38 (2000).

8. Herbert, L. et al.: SaaS Adoption 2010 : Buyers See More Options But Must Balance TCO ,

Security , And Integration. www.forrester.com. June, 1–7 (2010).

9. Jingyong, L. et al.: Middleware-based Distributed Systems Software Process. International

Journal of Advanced Science and Technology. December, 13, 27–48 (2009).

10. Kajan, E., Stoimenov, L.: Toward an ontology-driven architectural framework for B2B.

Communications of the ACM. 48, 12, 60–66 (2005).

11. Krishna, A. et al.: Context-specific middleware specialization techniques for optimizing

software product-line architectures. ACM SIGOPS Operating …. (2006).

12. Markus, M., Tanis, C.: The enterprise systems experience–from adoption to success. In:

Zmud, R.W. (ed.) Framing the domains of IT management: projecting the future... through

the past. pp. 173–207 Cincinnati, OH: Pinnaflex Education Resources Inc. (2000).

13. Mehling, H.: B2B Takes the Next Step Forward -- New Internet middleware products bring

together key e-business technologies. VARbusiness. October, 117 (2000).

14. Mitchell, R.L.: Wrapped in Complexity, (2009).

15. Pinus, H.: Middleware: Past and present a comparison. University of Maryland Baltimore

County publication. October, 1–5 (2004).

16. Scott, J., Vessey, I.: Managing risks in enterprise systems implementations. Communica-

tions of the ACM. 45, 4, 74–81 (2002).

17. Taiani, F. et al.: What is middleware made of?: exploring abstractions, concepts, and class

names in modern middleware. The 11th Workshop on Adaptive and Reflective Middle-

ware1th Workshop on Adaptive and Reflective Middleware. (2012).

18. Wailgum, T.: SaaS’s Troubled Adolescence: Three Signs of Immaturity,

http://www.cio.com/article/595654/SaaS_s_Troubled_Adolescence_Three_Signs_of_Imma

turity.

19. Warren, I., Avallone, D.: The Renaissance of Legacy Systems. Springer (1999).

20. Welti, N.: Successful SAP R/3 implementation: Practical management of ERP projects.

Addison-Wesley Longman Publishing Co., Boston (1999).

118
