Is Usability an Obstacle for Information Systems

Security?

Laura Zapata

, Ana M

Moreno

and Eduardo Fernandez-Medina

Faculty of Informatics, Technical University of Madrid, Campus de Montegancedo s/n,

28660 Boadilla del Monte, Madrid, Spain

Department of Information Technologies and Systems, University of Castilla-La Mancha,

Paseo de la Universidad 4, 13071 Ciudad Real, Spain

Abstract. Keeping information systems secure is costly. Organizations allocate

ﬁnancial and human resources in order to prevent security incidents having an im-

pact on software applications. There is evidence that information systems security

has in some cases been affected by human errors that might be caused by a poor

usability design. There is clearly a link between security and usability. To clar-

ify this, we have conducted a systematic mapping study of the literature produced

over the last decade. We identiﬁed ﬁve relationship types: inverse, direct, relative,

one-way inverse, and no-relationship. Most authors agree that there is an inverse

relationship between security and usability, which means that increasing usability

leads to a decrease in security issues in a product and vice versa. However, this is

not a unanimous ﬁnding, and this study unveils a number of open questions, like

application domain dependency and the need to explore lower level relationships

between attribute sub-characteristics.

1 Introduction

The development of secure information systems has become critical in the last decade.

The use of electronic transactions over the Internet and other networks, and the storage

of an ever-increasing amount of sensitive data, is among the main factors behind this

development [1].

Therefore, keeping information systems secure is by no means a simple and inex-

pensive task, as discussed by the Australian Governments Department of Defence [2].

Cyber security incidents can be costly, consuming ﬁnancial and human resources. Ex-

amples of impacts are: service unavailability and loss of productivity, damage to the

reputation of and customers conﬁdence in the targeted organization, lost or stolen in-

formation, loss of privacy, etc.

The Microsoft Security TechCenter [3] reported a similar study, adding, however,

more detailed information about costs. They consider direct and indirect costs, such

as costs due to the loss of competitive edge as a result of the release of proprietary

or sensitive information, legal costs, labour costs on the analysis of breaches, software

reinstallation, and data recovery, costs of system downtime (for example, lost employee

productivity, lost sales, replacement of hardware, software and so on).

Zapata L., M

Moreno A. and Fernandez-Medina E..

Is Usability an Obstacle for Information Systems Security?.

DOI: 10.5220/0004602300530065

In Proceedings of the 10th International Workshop on Security in Information Systems (WOSIS-2013), pages 53-65

ISBN: 978-989-8565-64-8

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

On the other hand, Braz et al. [4] pointed out that secure systems also need to be

usable. Usability is, however, wrongly added on at the end of the life cycle development

process because of the mistaken belief that security is related to the software system

functionality and can be designed independently of usability which relates only to the

UI component.

Mechanisms for ensuring security in information systems, such as authentication,

sophisticated encryption algorithms and so on are only effective when they are conﬁg-

ured and used correctly. As a result, security experts have identiﬁed users as being the

weakest link in the security chain [1].

This is when we instinctively realize that there is a link between security and usabil-

ity, and system users are the nexus between the two. We might even venture to say that

usability goes hand in hand with security in the context of secure information systems.

The literature is replete with major debates concerning the relationship between se-

curity and usability. For instance, Cranor and Garﬁnkel [5] refer to e-banking systems

and some secure implementations that use the two-factor authentication method. This

method consists of a user-password and an automatically generated password generally

sent to a mobile device for user authentication. This clearly detracts from system us-

ability but is, at the same time, necessary in order to establish a level of security. As

the authors state, ”At ﬁrst glance, the source of conﬂict might appear obvious: security

usually aims to make operations harder to do, while usability aims to make operations

easier. However, it

s more precise to say that security restricts access to operations that

have undesirable results, whereas usability improves access to operations that have de-

sirable results.”

From a software engineering (SE) point of view, security and usability are two in-

dependent quality factors that are speciﬁed in quality standards [6],[7],[8].

The most recent software quality standard, ISO/IEC25010 also called SQuaRE [6],

deﬁnes security as ”the degree of protection of information and data so that unautho-

rized persons or systems cannot read or modify them and authorized persons or system

are not denied access to them”. On the other hand, usability is deﬁned as ”the extent

to which a product can be used by speciﬁc users to achieve speciﬁc goals with ef-

fectiveness, efﬁciency and satisfaction in a speciﬁed context of use”. Additionally, the

standards provide a set of subfactors for each of these quality attributes. The subfactors

speciﬁed for security include conﬁdentiality, integrity, non-repudiation, accountability,

authenticity and security compliance, whereas, according to this standard, usability sub-

factors are effectiveness, efﬁciency and satisfaction.

Even though a thorough reading of the deﬁnitions of security and usability suggest

that there is a relationship, the detailed link between the two concepts is today an open

issue in the SE ﬁeld. In this context, and bearing in mind that users are a key factor in

secure systems, we believe that it would be important to ﬁnd out of the details of the

relationship between security and usability.

As far as we know, no other literature review has addressed this issue. On this

ground, we conducted a systematic mapping study designed to summarize, analyse and

understand what authors have been researching with respect to the relationship between

security and usability over the last decade.

Our literature review focuses on security and usability as high-level quality factors.

This is the prelude to more thorough-going research addressing the relationship between

the characteristics and sub-characteristics of each of these two attributes.

To do this, the remainder of the paper is structured as follows. Section 2 outlines

the research method that we have followed to perform the systematic mapping study.

Section 3 reports the results, and Section 4 discusses our conclusions.

2 Research Method and Procedure

This section presents the process enacted to conduct our systematic mapping study of

the literature related to security and usability. The guidelines provided by Petersen et

al. [9] were used to build this systematic map.

2.1 Research Question

As stated above, software quality models establish security and usability as quality

factors. Accordingly, we formulated the following research question:

RQ. 1. What type of relationship is there between security and usability?

This question intends to clarify the relationship between security and usability fac-

tors globally. Once we have the answer to this question, we will extend the mapping

study to the characteristics and subcharacteristics of each factor.

2.2 Search Strategy

The search was run on several well-known databases, such as IEEE Xplore, ACM Dig-

ital Library and Inspec, as well as some individual journals and papers.

The publication year was set between 2002 and 2012 to limit the results to docu-

ments published within the last 10 years. Then, the titles and the abstracts of the identi-

ﬁed articles were checked against set eligibility and relevance criteria (this criterion is

explained in Section 2.3).

The literature was reviewed by a second researcher, and overlapping papers were

removed.

2.3 Data Retrieval

Search strings were devised in order to collect information that can be used to answer

the research question. The search strings were designed as follows:

X was composed of synonyms of or words possibly related to security in computer

science, each linked by the ”OR” operator.

X: Security OR secure systems OR critical systems OR critical software OR security

software constraints OR security software permissions

Y was composed of synonyms of or words possibly related to usability in computer

science, using each linked by the ”OR” operator.

Y: Usability OR operability OR user-centred design OR UCD OR human-computer

interaction OR HCI OR user interface OR UI OR ergonomics

Finally, the ”AND” operator was added between X and Y to retrieve relevant lit-

erature related to security and usability (or respective synonyms) from the above data

sources. Search string matching was conﬁned to terms in the title and abstract of each

publication.

2.4 Inclusion Process

The query strings devised in Section 2.3 were matched with the titles and abstracts of

publications published in the last decade (2002-2012). As a result, the search process

returned 120 papers for the three data sources. We read the abstract and introduction of

these papers and discarded 55 papers as being irrelevant. The other 65 were retained as

relevant for the research. From the resulting 65 papers, ﬁve were duplicate publications,

that is, multiple data sources returned the same papers. These duplicates were discarded,

leaving 60 papers. Two papers were unavailable from the electronic data sources, leav-

ing 58 available full-text papers. We located another 17 papers in other sources, making

a total of 75 papers. Of these, 33 were considered irrelevant and 42 papers were selected

as being possibly useful for the research.

Finally, these 42 papers where analysed by reading the entire content in order to

decide whether they were of any use for answering the research question. As a result,

25 papers were considered irrelevant, and only 17 papers were found directly related to

security and usability.

3 Results

This section reports the results from the analysis of the seventeen papers detailed in the

Appendix. First, we identify the different types of relationships identiﬁed by authors.

Next, we classify the papers into research categories. Finally, we discuss the answers to

the stated research question.

3.1 Taxonomy of Relationship Type

As already mentioned, the papers are detailed in the Appendix. From these papers, we

established a taxonomy for the different relationships identiﬁed by the authors. These

relationships are listed and explained below.

Inverse Relationship. Increasing or decreasing usability has the inverse or reciprocal

effect on security and vice versa.

Direct Relationship. Increasing or decreasing usability has the same effect on occur in

security, and vice versa.

No Relationship. The two factors are unrelated, so increasing or decreasing usability

has no effect on security and vice versa.

One-way Inverse Relationship. There is an inverse relationship between the two fac-

tors, provided that the order is not changed.

Relative or Dependent Relationship. The relationship depends on some characteristic

and could be direct in some cases and inverse in others.

Another point that researchers made is that the increases or decreases are not nec-

essarily proportional. For example, increasing usability by 20% does not necessarily

mean that security will decrease by the same percentage.

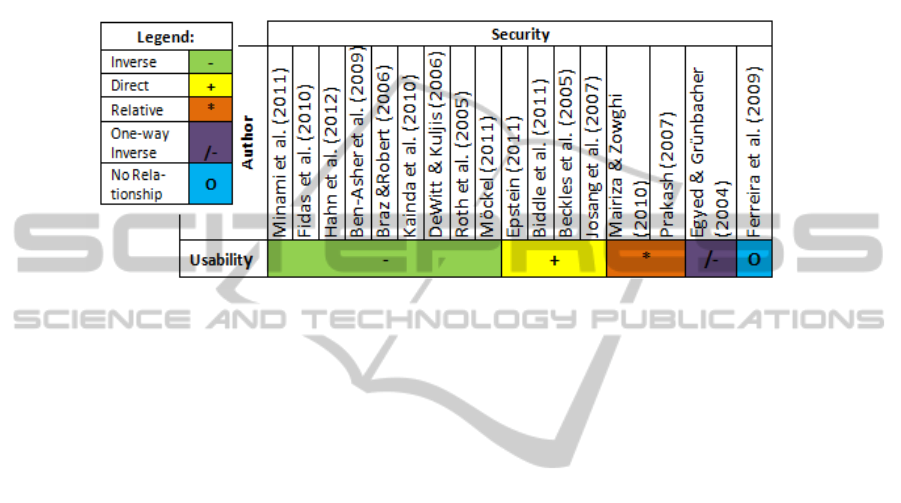

Fig. 1 summarizes the ﬁndings by author and type of relationship.

Fig. 1. Authors grouped by the type of relationship agreed.

3.2 Papers Grouped by Research Category

We grouped papers according to the classiﬁcation scheme proposed by Wieringa et al.

[10]. The short description of each category follows.

Evaluation research is a technique or a solution implemented and evaluated in prac-

tice. In a validation research, techniques are novel, but still have not been implemented

in practice, however, it probably tested in a laboratory environment. In a solution pro-

posal, a solution for a problem is proposed. In a philosophical paper, the ﬁeld is struc-

tured in the form of a taxonomy, outlining a new way of looking at existing things.

In an experience paper, the personal experience of the author on what and how some-

thing happened in practice is reported. In an opinion paper, the personal opinion on a

particular matter is expressed.

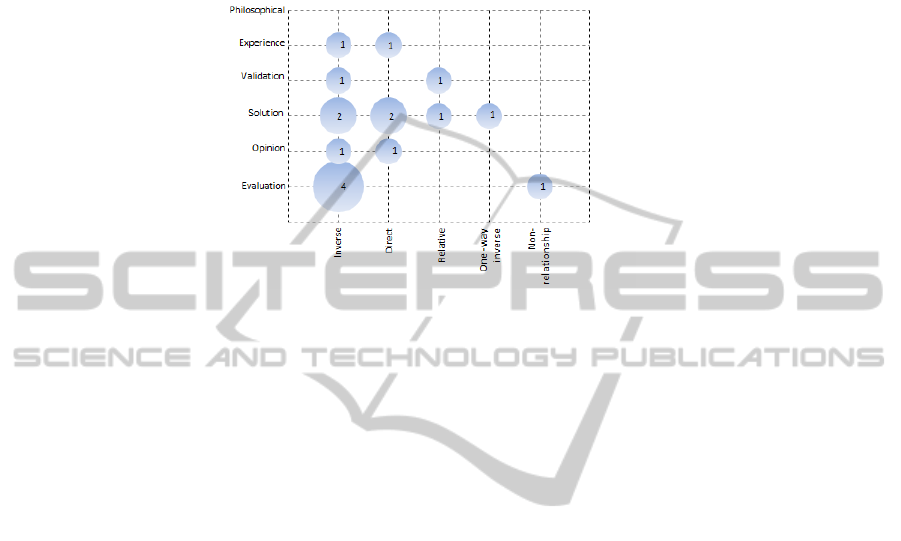

Papers were grouped as follows: six were classed as solution proposals, ﬁve, as

evaluation research, and the experience paper, validation research and opinion paper

categories each contained two papers. In the next section (3.3) are explained the papers

and the research category assigned.

3.3 Relationships Grouped by Authors and Assignation of Research Category

In this section, we detail the different types of relationships between security and us-

ability identiﬁed by the reviewed authors, and the type of research category assigned to

the publication.

Inverse Relationship. Fig. 1 shows that over half of the authors (nine out of seventeen)

identiﬁed an inverse relationship between security and usability and vice versa. The

reasons follow.

Minami et al. (2011). This paper reports evaluation research addressing the trade-off be-

tween usability and security in the context of medical systems. The authors were tasked

with adding an access control and encryption method to an existing system in order to

protect patient security and privacy. They gathered feedback from health professionals

in order to strike a balance between strict protection and usability.

Finally, they concluded that security compromises usability, but a good balance

could be achieved. Their results are valuable for our research because they used a real

system tested in a real environment, and this research used other sub-factors, such as

privacy and identiﬁcation, which other papers often do not cover.

Fidas et al. (2010). Based on their experience, the authors argue that system design-

ers face contradicting requirements. On one side, stakeholders are willing to sacriﬁce

user convenience in order to achieve system security, whereas, on the other, users are

interested in system usability.

The argument suggests an inverse relationship, although the authors provide no ev-

idence. The solution that they propose is a user-centric approach to the design of a se-

cure and usable system. This does not provide a direct answer to our research question.

However, their experience is considered to be relevant for our research.

Hahn et al. (2012). This is a solution proposal paper analysing the security of many

popular cloud services, such as CloudMe, Dropbox, HiDrive, etc. They analysed their

vulnerabilities and listed possible attacks in an attempt to solve the discovered prob-

lems. In their analysis, they found that providers omitted email veriﬁcation during reg-

istration, which is a security pitfall designed to avoid system usability problems.

From their analysis we can infer that increasing usability will decrease security and

vice versa.

Ben-Asher et al. (2009). This is a validation research paper reporting the construction

of a controlled research environment that they called ”microworld” to quantitatively

evaluate and model the acceptability of security features as a function of the usability

cost of their use, efﬁciency and threat severity. Their study is based on the behaviour of

users overriding or ignoring security features to facilitate system use. This includes an

alert system that warns about possible attacks, which, if not prevented, can cause losses

of monetary earnings. Using the system they were able to manipulate the usability costs

of using a security feature.

Their results showed that the percentage of usage was lower at a high security level,

and the percentage of usage was higher at a low security level. This suggests that there

is an inverse relationship between factors tested in a laboratory experiment.

Braz and Robert (2006). This is an evaluation research paper, developing a comparative

analysis of different authentication methods, such as passwords, PIN, proximity card,

multifunctional card, public key, ﬁnger print and so on, and the perception of security

that the user has. Results from their comparative analysis showed that methods that

scored high on security were rated as having a signiﬁcant level of usability issues. This

applies to the listed authentication methods, including multifunctional card, public key,

and Kerberos and retina/iris techniques, which have a signiﬁcant impact on the usability,

and especially to retina analysis, because it requires more user cooperation. On the other

hand, the authentication methods that scored low on security were rated as having a low

level of usability issues. This applies to methods, such as passwords, PIN, and especially

to voice, because it changes over the time, thereby decreasing security.

In other words, more security implies less usability, and less security implies more

usability. They demonstrated an inverse relationship.

Kainda et al. (2010). This is a solution proposal enacting a security-usability analysis

process based on a threat model. The authors highlight a difference between standard

security threat models and the HCISec (HCI over information security systems) model,

because malicious attackers may or may not be legitimate users in standard models,

whereas HCISec focuses on legitimate user mistakes that may compromise the system.

Legitimate users make mistakes that breach system security because threat scenarios are

more usable than secure scenarios. The idea is to make secure scenarios more usable to

reduce the risk of users making mistakes.

We infer from the view that the authors take that the relationship between factors is

inverse.

DeWitt and Kuljis (2006). This is an evaluation research paper conducting a usability

study on Polaris, which was built to make the Windows operating system safer from

viruses and malicious code, but highly usable as well as secure. The study used a labo-

ratory test during which users were asked to perform tasks that included the use of se-

curity. They measured learnability and usability based on standard ISO 9241-11, which

deﬁnes usability as comprising effectiveness, efﬁciency, and satisfaction. With respect

to security, they include tasks such as browsing an Internet banking website, checking

emails and following hyperlinks to try out attached ﬁles.

They found that participants were willing to compromise security. They reasoned

this behaviour by declaring that the speed and ease with which tasks were completed is

more important than the protection of their ﬁles. This means that people favour ease of

use over security.

Roth et al. (2005). This is an evaluation research paper conducting an experiment where

security mechanisms were applied to protect mails sent by non-commercial users in

order to ﬁnd the correct trade-off between usability and security. The authors researched

what the optimum trade-off should be and how security benets can be maximized with

minimum damage to usability. In the case of usability, they improved the user interface

by decreasing the number of interactions, and letting users handle concepts with which

they were familiar, like, for example, ”mail” rather than ”keys”. They aimed to provide

a familiar context and mental model representation. In the case of security, they tried to

protect the email communication from external attack and assure the data integrity.

This experiment was conducted on a particular security ﬁeld, known as Attack/Harm

Detection and Integrity, where the user interacts as little as possible with the issues re-

lated to security. Although this is a particular case at the subfactor level, it is a good

result as far as we are concerned because few researchers have considered these secu-

rity issues.

ockel (2011). This is a solution proposal paper aiming to build an evaluation frame-

work to align usability and security in the context of e-banking systems. We are pri-

marily concerned with one of its research questions, namely, What is the relationship

between security criteria inﬂuencing mitigation quality and usability criteria?

ockel intimates that the relation is inverse, stating that ”Most works have focused

on the balance between security and usability in regard to authentication methods, of-

ten in a comparative fashion or on individual solutions. Author Murdoch discusses the

problem of

usability optimization

with a negative effect on overall system security. . . ”

Unfortunately, this research is incomplete and, consequently, we class it as an opinion

paper.

Direct Relationship. Four out of the seventeen authors identiﬁed a direct relationship

between security and usability and vice versa on the following grounds.

Epstein (2011). This is an experience paper establishing that it is possible to align

usability and security as part of the software development cycle and not as an add-on at

the end.

We interpret this as meaning that there is direct relationship between the two factors:

”On occasions, security and usability are perceived as being at odds. . . However, this is

a false dichotomy −usability also requires preventing inappropriate actions. . . ”

Biddle et al. (2011). This is an opinion paper expressing the viewpoint that usability

and security are directly related because when one is negatively affected the other will

be negatively affected as well: ”Usability and security are not simply inversely related,

most especially because faults in one lead to faults in the other. . . ” The authors based

their opinion on their experience.

Beckles et al. (2005). This is a solution proposal paper describing two proposals to

improve grid security usability.

Grid security is based on public key infrastructure (PKI), but PKI implementations

have unfortunately suffered, from serious usability issues in terms of end-user acquisi-

tion and management of credentials. The speciﬁc usability issues that they found were

credential acquisition, conﬁguration complexity, mobility, user management of creden-

tials and revocation. The approach of the ﬁrst solution, named PKIBoot, is for every-

thing to be automatically conﬁgured via user-password authentication, i.e., the client

has nothing to do with settings. According to the second solution, named GridLogon,

users log in for a service to access their entire security conﬁguration.

Regarding the relationship between grid usability and security their results suggest

that improvements in usability (in the area of credential management) are required if

the security of these environments is to be maintained.

Josang et al. (2007). This is a solution proposal paper reporting a set of security usabil-

ity vulnerabilities that can be used to assess the risk to secure systems. The solution is

designed at the usability and security factor level, but the example only shows how to

apply the solution at the level of one subfactor, namely, authentication for web security

solutions.

The authors analyse whether upgrading usability improves security. This proposal

would beneﬁt from evaluation in practice, but the examples and the way in which the

authors illustrated their solution is quite suitable for our purpose.

Relative Relationship

Mairiza and Zowghi (2010). This is a solution proposal paper cataloguing conﬂicts

between non-functional requirements (NFR) like accuracy, usability, availability, relia-

bility, security, etc. The conﬂicts were categorized as absolute conﬂict, relative conﬂict

and never conﬂict. Their results establish that conﬂict between usability and security

(and vice versa) is relative, because they conﬂicted sometimes but not always.

Prakash (2007). This is a validation research paper reporting two studies of vulnera-

bilities at the user level. The ﬁrst study was conducted on a group of computer science

graduate students and some faculty (non-regular users). It examined the vulnerability of

users to man-in-the-middle attacks on SSH. The second study analysed over 700 bank

web sites for a range of vulnerabilities that resulted from poor website design decisions

from a security perspective.

For the ﬁrst experiment, the results indicate a direct relationship: there are wide-

spread security problems at the end-user level in systems that attempt to deploy secu-

rity protocols to secure user interactions. Advanced users bypassed the SSH security

warning to log on to the server, perceiving it as an obstacle because SSH does not indi-

cate what to do to solve the problem save contacting the administrator. This means that

usability was not good enough causing security problems. From this we infer that poor

usability compromises security. For the second experiment, results show an inverse re-

lationship: setting the credential inputs on an insecure page (even when the data were

sent to the server in a secure form) in order to increase the usability caused a security

problem. From this we infer that good usability compromises security.

One-way Inverse Relationship

Egyed and Gr

unbacher (2004). This is a solution proposal paper consolidating a matrix

of potential conﬂicts and cooperation between quality attributes from a wide range of

literature and ISO 9126, such as functionality, efﬁciency, usability, accuracy, security

and so on. This model takes into account that attributes might be indifferent to one

another, cooperative or conﬂicting.

They found that usability is indifferent with respect to security. Inversely, however,

security enters into conﬂict with usability. In other words, improving usability does not

affect system security (there is no relationship). In the other case, however, security is

inversely related to usability, because, if it increases, system usability will decrease.

No Relationship

Ferreira et al. (2009). This is an evaluation research paper consolidating a model of

patterns to align usability and security. Factor patterns, such as explicit user audit, com-

plete delete, email-based identiﬁcation and authentication and so on (previously created

by Garﬁnkel et al.). The authors validate these patterns in an experiment with computer

experts, who managed to apply 61.67% of these patterns in software, concluding that

they are a useful guide for developers.

These authors establish that there is no conﬂict between security and usability, stat-

ing that ”Some authors argue that it can be complicated to build systems with both

security and usability, but the reality is that there is no real conﬂict between these two

properties”. Following these guidelines, they were able to build secure software with a

trade-off and without conﬂicts between security and usability.

3.4 Discussion

Fig. 2 shows the ﬁve types of relationship between security and usability on the hori-

zontal axis, whereas the six research categories appear on the vertical axis.

Fig. 2. Distribution of papers per category and relationship.

Clearly, most of the authors (nine) agree that security and usability are inversely

related. The next group (four) agreed that there is a direct relationship. Only two authors

found a relative relationship. The one-way inverse relationship and non-relationship are

supported by only one author, respectively.

We consider evaluation research to be the best method for gathering evidence, be-

cause it reports solutions that have been implemented and evaluated in practice in a real

environment.

As Fig. 2 shows, four out of nine papers report evaluation research that found that

there was an inverse relationship, which is the relationship upon which most authors

agreed.

This evaluation research was conducted in a speciﬁc setting, including access con-

trol and encryption, authentication methods, attack detection in an operating system,

and attack detection over emails.

From these results, we can conclude that the inverse relationship is the most reliable

response to our research question. However, we also found some evidence of contrary

ﬁndings.

There is one prominent case. Prakash (2007) reports validation research showing

a relative relationship between security and usability. He found a direct relationship in

one experiment and an inverse relationship in another experiment. The ﬁrst experiment

involved computer science students using Secure Shell (SSH), which is a cryptographic

network protocol. The second experiment was about vulnerabilities produced by poor

user interface decisions.

Comparing these two results, the relationship appears in our opinion to be relative,

that is, it depends on the subfactor of security and/or usability to be measured. There-

fore, more research is required at the subfactor level, as it is far from straightforward to

deﬁne a relationship from a global perspective between security and usability without

analysing each of their subfactors.

Another point is that the relationship probably depends of the application type.

However, more research is needed to formally assure this issue.

There is not much evidence to defend the other relationships (direct, one-way in-

verse and no relationship). For example, one paper that found a direct relationship is

based on experience and the other exempliﬁes the author

s opinion. This means that

there is no real quantiﬁed evidence. Finally, the other two are solution proposals which

required evaluation in a real environment.

Only one author proposes a one-way inverse relationship. He claims that security

changes alter usability, but the opposite does not apply. From this we infer that this

relationship is probably a particular case of a relative relationship.

One paper suggests that security and usability are not related. In this case, the au-

thors claim that there is no conﬂict between these factors. However, we think that their

solution targets the alignment of these two factors. In this case, striking a balance be-

tween security and usability in order to improve these two factors does not necessarily

mean that there is no conﬂict.

A signiﬁcant number of papers examine the trade-off between security and usability

to strike the correct balance between the two factors. This balance is important, because

users are unlikely to use a 100% secure system if this signiﬁcantly compromises usabil-

ity, for example, by 50%.

Other authors claim that there is a relationship between security and usability, al-

though they do not provide explicit details about the connections. This is the case of

Cranor and Garﬁnkel [5], who have identiﬁed users as the weakest link in the security

chain. This is a clear sign of there being a relationship, because it is the users that op-

erate the systems and, at the same time, handle sensitive information like passwords,

bank information, and so forth.

3.5 Threats to Validity

Until we ﬁnd other systematic reviews focusing on the taxonomy of the relationship

between security and usability, we will not be able to validate our study externally.

Regarding internal validity, all three authors were involved in this systematic mapping

study. We discussed and agreed on the procedure and considered activities to counteract

the effect of researcher bias. On the other hand, we used general terms and placed no

constraints on the search strings in order to achieve better coverage as well as high

accuracy. We selected three of the most important electronic data sources to which we

had access, and added other external sources. The chosen time-frame was intended to

include the last decade of research.

During the exclusion process, we were particularly careful not to discard any po-

tentially interesting paper. For this reason, we also included papers whose abstract or

title was not completely clear with respect to our research question for further reading.

It was also rather difﬁcult to distinguish the research focus of some papers. So, even

though we agree on the result of this process, replicating authors might categorize the

studies differently.

The papers do not directly answer the research question, and we had to identify the

response by analysing and inferring what authors had found in their research. However,

we negotiated this process.

4 Conclusions

Our systematic mapping found ﬁve types of relationships between security and usability

addressed by authors during the last decade. These types are: inverse, direct, relative,

one-way inverse and no relationship.

The inverse relationship is the most often mentioned connection, followed by the

direct, and relative relationships, where the least supported associations are one-way

inverse and no relationships.

We based our results on the type of research conducted by the authors, where more

weight is attached to evaluation research because results are more reliable.

A signiﬁcant number of authors agreeing on an inverse relationship conducted eval-

uation research; however, another author who ran two different experiments found a

relative relationship. Therefore, it is also necessary to analyse whether application type

inﬂuences the results.

There is less evidence to support the other relationships (direct, one-way inverse

and no relationship).

In sum, the literature regarding the relationship between security and usability pub-

lished over the last decade is not unanimous. This point required further empirical re-

search to study this relationship at the level of characteristics and subcharacteristics of

both quality factors. This is the next step in our research.

References

1. Ben-asher, N., Meyer, J., Parmet, Y., Moeller, S., Englert, R.: An Experimental System for

Studying the Tradeoff between Usability and Security. International Conference on Avail-

ability, Reliability and Security (2009)

2. Australian Government

s Department of Defence: Preparing for and Responding

to Cyber Security Incidents. (2012) [Online] Available from: http://www.dsd.gov.au/

publications/csocprotect/preparing for cyber incidents.htm.[Accessed 5th April 2013]

3. The Microsoft Security TechCenter: Responding to IT Security Incidents. (no date) [On-

line] Available from: http://technet.microsoft.com/enus/library/cc875825.aspx. [Accessed

5th April 2013]

4. Braz, C., Seffah, A., M

Raihi, D.: Designing a Trade-off between Usability and Security: A

Metrics Based-Model. Springer volume 4663, (2007) 114-126

5. Cranor, L., Garﬁnkel, S.: Security and Usability Designing Secure Systems that People Can

Use. INTERNATIONAL Journal of Computers and Communications Issue 1, OReilly Me-

dia. (2005)

6. ISO/IEC, 2011, ISO/IEC 25010, Software Product Quality Requirements and Evaluation

(SQuaRE) Quality Models for Software Product Quality and System Quality in use. Inter-

national Standard. Switzerland

7. ISO 9126-1, 2001, Software engineering Product quality Part 1: Quality model. Interna-

tional Standard. Switzerland.

8. ISO 9241-11, 1998, Ergonomics of Human System Interaction - Part 11: Guidance on Us-

ability. International Standard. Switzerland.

9. Petersen, K., Feldt, R., Mujtaba, S., Mattsson, M.: Systematic Mapping Studies in Software

Engineering. 12th International Conference on Evaluation and Assessment in Software En-

gineering, (2008)

10. Wieringa, R., Maiden, N., Mead, N., Rolland, C.: Requirements Engineering Paper Classiﬁ-

cation and Evaluation Criteria: a Proposal and a Discussion. Journal of Requirements Eng,

(2006)

Appendix

Literature Reviewed

-Beckles, B., Welch, V., Basney, J.: Mechanisms for increasing the usability of grid security. Int.

J. Human-Computer Studies 63, (2005) 74101

-Ben-asher, N., Meyer, J., Parmet, Y., Moeller, S., Englert, R.: Security and Usability Research

Using a Microworld Environment. Deutsche Telekom AG as part of the Telekom Laboratories,

(2009)

-Biddle, R., Brown, J., Chiasson, S., Martin, A.: Security Dialectics and Agile Software Devel-

opment. Position Paper for the 1st Software and Usable Security Aligned for Good Engineering

(SAUSAGE) Workshop, (2011)

-Braz, C., Robert, JM.: Security and Usability: The Case of the User Authentication Methods.

International Journal of Human-Computer Studies, (2006)

-Dewitt, A., Kuljis J.: Aligning Usability and Security: A Usability Study of Polaris. SOUPS ’06

Proceedings of the second symposium on Usable privacy and security, (2006)

- Egyed, A., Gr

unbacher, P.: Identifying Requirements Conﬂicts and Cooperation: How Quality

Attributes and Automated Traceability Can Help. Focus persistent software attributes, (2004)

-Epstein, J.: Integrating Security & Usability Into the Software Development Lifecycle. Posi-

tion Paper for the 1st Software and Usable Security Aligned for Good Engineering (SAUSAGE)

Workshop, (2011)

-Ferreira, A., Rusu, C.: Roncagliolo, S.: Usability and Security Patterns. Second International

Conferences on Advances in Computer-Human Interactions, (2009)

-Fidas, C., Voyiatzis, A., Avouris, N.: When Security Meets Usability: A User-Centric Approach

on a Crossroads Priority Problem. 14th Panhellenic Conference on Informatics, (2010)

-Hahn, T., Kunz, T., Scheneider, M., Sven, V., Moeller, S., Englert, R.: Vulnerabilities through

Usability Pitfalls in Cloud Services: Security Problems due to Unveried Email Addresses. IEEE

11th International Conference on Trust, Security and Privacy in Computing and Communica-

tions, (2012)

-Josang, A., AlFayyadh, B., Grandison, T., AlZomai, M., McNamara, J.: Security Usa-bility Prin-

ciples for Vulnerability Analysis and Risk Assessment, 23rd Annual Computer Se-curity Appli-

cations Conference, (2007)

-Kainda, R., Flechais, I., Roscoe, A.: Security and Usability: Analysis and Evaluation, Interna-

tional Conference on Availability, Reliability and Security, (2010)

-Mairiza, D., Zowghi, D.: Constructing a Catalogue of conﬂicts among non-functional Re-quirements,

5th International Conference, ENASE, Athens, Greece, (2010)

-Minami, M., Suzaki, K., Okumura, T.: Security considered harmful A case study of trade-off be-

tween security and usability. The 8th Annual IEEE Consumer Communications and Net-working

Conference - Work in Progress (Short Papers), (2011)

-M

ockel, C.: Usability and Security in EU E-Banking Systems towards an Integrated Evaluation

Framework. IEEE/IPSJ International Symposium on Applications and the Internet, (2011)

-Roth, V., Straub, T., Richter, K.: Security and usability engineering with particular attention to

electronic mail. International Journal of Human-Computer Studies, (2005)

-Prakash, A.: Security in Practice Security-Usability Chasm. Information Systems Security Lec-

ture Notes in Computer Science Volume 4812, (2007) 1-9
