A New Approach for Detection of Host Identity in IPv6 Networks

Libor Polˇc´ak, Martin Holkoviˇc and Petr Matouˇsek

Faculty of Information Technology, Brno University of Technology, Boˇzetˇechova 2, 612 66 Brno, Czech Republic

Keywords:

Computer Network Security, Host Identity, IPv6 Monitoring, SLAAC, Neighbor Discovery.

Abstract:

For security, management and accounting, network administrators beneﬁt from knowledge of IP and MAC

address bindings. In IPv6, learning these bindings is not as straightforward as it is in IPv4. This paper presents

a new approach to track IPv6 address assignments in LANs. The method is based on a study of implementation

of IPv6 (mainly neighbor discovery) in current operating systems. The detection is passive for end devices and

does not require any software or hardware modiﬁcations. In contrast with current methods, our approach does

not poll routers in the network and works also in networks where IPv6 multicast is not broadcasted (active

Multicast Listener Discovery snooping – MLD snooping). Moreover, our approach detects that an address is

no longer used. The approach was successfully tested in a campus network.

1 INTRODUCTION

Users require reliable computer networks so that they

can perform their daily work. In order to achieve such

state, network operators have to monitor the managed

network and its weak points, detect misuse of the net-

work, backtrack security incidents, provide account-

ings for the offered services etc. The knowledge of

the identity of computers and their users in the man-

aged network is essential to achieve these tasks.

One possibility of user identity tracking is through

authentication. For example, RADIUS authenticates

a user and MAC address of his or her device con-

nected to a network. In some networks, such as cam-

pus network at our university, users have to regis-

ter their MAC address before they are allowed to ac-

cess the Internet and services offered in the network.

However, unlike network layer addresses, MAC ad-

dresses are not propagated outside of LANs. Hence,

the knowledge of bindings between network layer ad-

dresses and MAC addresses is crucial for network

management, security, and accounting.

In IPv4, a device usually leases an IPv4 address

from a DHCP server in the custody of the network

operator. Then, the device uses this unique IPv4 ad-

dress for all its communication until the lease expires.

As the DHCP server keeps logs of MAC and IPv4 ad-

dress bindings, it is straightforward for network oper-

ators to obtain the identity of their users at any given

time from DHCP and authentication logs.

The imminent exhaustion of IPv4 address space

was acknowledged a long time ago. Today, two of

the regional registrars (Huston, 2013) are already in

the state in which the IPv4 addresses are allocated ac-

cording to very strict policies. Even though the adop-

tion of the IPv6 is still in an early phase, it is maturing

(Dhamdhere et al., 2012). Hence, for security, man-

agement and accounting reasons, network administra-

tors of IPv6-enabled networks needs to keep track of

IPv6 addresses used in the managed network.

IPv6 guarantees at least 2

addresses allocated to

each LAN. There are several mechanisms that man-

ages the allocation of addresses. For example, State-

less Address Autoconﬁguration (SLAAC) (Thomson

et al., 2007) allows an end device to generate as many

IPv6 addresses as it needs as long as the addresses are

not already used by another device in the network,

e.g. for privacy concerns (Narten et al., 2007a; Groat

et al., 2010). Note that the addresses are not handled

centrally but generated by end devices. Moreover, the

network operator is not able to inﬂuence the address

generation process. In addition, there is not any node

in the network that keeps track of IPv6 addresses be-

ing used by devices connected to the network. Even

more, a host does not send any speciﬁc message when

an address is no longer used by the host.

In this paper we propose a new approach for learn-

ing the MAC and IPv6 address pairing in LANs. Our

approach is based on the study of implementation of

IPv6 in current operating systems (OSes). Therefore,

it provides a solution for user identiﬁcation problem

in IPv6 networks for network operators running a net-

work that is directly accessed by users with devices

that are not under direct control of the network op-

Polcák L., Holkovi

c M. and Matousek P..

A New Approach for Detection of Host Identity in IPv6 Networks.

DOI: 10.5220/0004608700570063

In Proceedings of the 4th International Conference on Data Communication Networking, 10th International Conference on e-Business and 4th

International Conference on Optical Communication Systems (DCNET-2013), pages 57-63

ISBN: 978-989-8565-72-3

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

erators. These networks include campus-wide net-

works, networks of companies that allow their staff

or customers to connect own devices to the network

(”bring your own device” policy), Wi-Fi and Ethernet

hot spots, and hotel networks.

The ﬁrst contribution of this paper highlights the

differences in behaviour of current OSes and their

violations of RFCs concerning IPv6 address assign-

ments. The main contribution is the new approach

for user identiﬁcation in IPv6 networks, which is

based on monitoringcontrol messages that are already

present in the network. It does not inﬂuence or modify

IPv6 in any way so it does not require any additional

changes in the network hardware or software. More-

over, the privacy of the users in the network, with re-

spect to the outside world, is not inﬂuenced by the

proposed mechanism. The approach was successfully

tested in a real network.

This paper is organized as follows. Section 2

overviews the address assignment mechanisms in

IPv6. Section 3 summarizes the related work. The

results of the study of behaviour of current OSes dur-

ing IPv6 address assignments are presented in Section

4. Section 5 outlines the proposed approach for track-

ing user identity in LANs. Our experiments are sum-

marised in Section 6. Section 7 lists open questions

in our work and sketches our plans for future work.

Section 8 concludes the paper.

2 PRELIMINARIES

This section reviews the basics of Duplicate address

detection (DAD), a part of Neighbor Discovery (ND),

and overviews common methods for IPv6 address as-

signments.

When a new IPv6 address is about to be used by

a device, the device needs to test that the address is

not already used in the network (Narten et al., 2007b;

Thomson et al., 2007). Until the new address is

proven to be unique, it is called tentative.

In order to prove that the tentative address is

unique, the device has to send Neighbor Solicitation

(NS) request to the solicited-node multicast group

(Hinden and Deering, 2006) whose address is derived

from the tentative address. In this paper, NS requests

issued during DAD are denoted as DAD-NS. If the

tentative address is already used by another device,

the other device should reply with a Neighbor Adver-

tisement (NA) to the multicast group for all nodes in

the network (ff02::1). Only if no NA is received, the

new address can be used. To avoid race conditions

in address assignments, RFC 4862 orders (Thomson

et al., 2007) that each host has to join the solicited-

node multicast group before it sends the DAD-NS.

Consequently, there is no central point in the net-

work that gathers all active addresses; the knowledge

is spread over the network and is available through the

solicited-node multicast groups.

SLAAC (Thomson et al., 2007) is a basic method

for address assignments in IPv6. In contrast to DHCP,

dominant in IPv4, SLAAC is not based on leases. In-

stead, a device itself generates its addresses. First,

the device learns the network (higher) part of IPv6

address from a Router Advertisement (RA), a mes-

sage periodically send by gateways in the network.

Then, the device generates the lower part of the IPv6

address called interface identiﬁer (IID) (Hinden and

Deering, 2006). The original method for selecting

an IID uses modiﬁed EUI-64 IID. Later, privacy ex-

tensions (Narten et al., 2007a) introduced completely

random IIDs which may change during time.

Although there is a variant of DHCP called state-

ful DHCPv6 (Droms et al., 2003), it does not provide

the same information as DHCP since DHCPv6 as-

signs IPv6 address accordingto DHCP Unique Identi-

ﬁer (DUID). DUID is generated by each host, mostly

during OS installation. As a consequence, DUID

is changed when a host is rebooted to another OS.

Therefore, the MAC and IP address pairings are not

stored in DHCPv6 logs. On the other hand, the as-

signed address has to be conﬁrmed by DAD.

Finally, it is possible to assign a static address.

Whenever a new static IPv6 address is entered on a

host, it has to be validated by DAD.

As mentioned above, ND is a part of each mech-

anism for address assignments. Hence, we choose

ND as a basis for our network monitoring approach.

However, as discussed in Section 4, ND is not imple-

mented in the same way among current OSes.

3 RELATED WORK

Several attempts have been made to study IPv6 IIDs.

(Groat et al., 2010) proposed to use ping or tracer-

oute to monitor a location of a node that uses a static

interface identiﬁer of any sort. (Dunlop et al., 2011)

list an example of Windows using a random, yet static

networks IIDs. However, both papers aimed at global

tracking of a movement of a speciﬁc user. In con-

trast, we want to monitor only the local network. In

addition, both Groat et al. and Dunlop et al. need to

know the address in advance. Our research is con-

cerned with unknown IPv6 addresses. Another differ-

ence is that we want to learn all addresses that belong

to every device connected to a network.

Similarly to our goal, (Gr´egr et al., 2011) are

DCNET2013-InternationalConferenceonDataCommunicationNetworking

Table 1: OSes tested for compliance with RFCs specifying ND.

Windows XP SP3, Vista, Vista SP3, Server 2008 R2, 7, 7 SP1, and 8

Linux various distributions including Debian, CentOS, Debian, and Ubuntu (kernels 2.4.27–3.2)

Mac OS X 10.6.2 (kernel 10.2)

Unix FreeBSD 9.0, OpenBSD 5.0, and Solaris 5.11

also interested in learning the IPv6 addresses that

were used by a host with a speciﬁc MAC address.

They presented a campus network monitoring system

which gathers data from the neighbour cache (NC)

of the routers in the network using SNMP. However,

two conﬂicting requirements needs to be balanced. In

order to have sound information about the IPv6 ad-

dresses in the network, they need to poll routers suf-

ﬁciently often. Since routers are critical devices and

the polling results in additional workload, the polling

cannot be too frequent. As a consequence, a new ad-

dress selected by a device in the network is learned

with a delay. During a security incident, an attacker

can use an address for a limited time. Consequently,

the monitoring system can miss that the IPv6 address

was used.

(Groat et al., 2011) studied the possibility of using

DHCPv6 for monitoring the identity of users in the

network. Our approach is more general as it is not

restricted to DHCPv6.

A tool called addrwatch (Kriukas, 2012) can mon-

itor ND messages in the network. However, we iden-

tiﬁed several weaknesses of the tool. Firstly, addr-

watch just reports ND messages. They are not put in

any context. Secondly, addrwatch completely ignores

multicast messages, therefore,it cannot detect address

assignments in a network with MLD snooping (multi-

cast is not broadcasted). Finally, addrwatch does not

detect that an address is no longer used.

(Asati and Wing, 2012) deal with the same prob-

lem as we do. However, their solution involves

changes in router behaviour. Our approach does not

need any change on any critical network device.

Although we have not found a reference, we ex-

pect that some administrators use port mirroring and

parse the mirrored trafﬁc with a sniffer to learn the

MAC and IP address bindings. Our approach does

not depend on processing all network trafﬁc and con-

sequently it is more energy efﬁcient. In addition, the

bandwidth of the mirroring port could be insufﬁcient

for all trafﬁc traversing the mirroring switch or even

one full-duplex port. Moreover, in case of only mir-

roring the port connected to the router in the network,

the learned MAC and IP address pairings are more or

less the same to these stored in the NC of the router

as discussed Section 6.

4 OPERATING SYSTEMS STUDY

This Section describes implementation of ND in cur-

rent OSes. We studied (Polˇc´ak and Holkoviˇc, 2013)

the exact sequences of messages that are issued dur-

ing DAD after an address is assigned or automatically

generated. The main goal was to validate that OSes

follow the sequence ordered by RFC 4862 (Thomson

et al., 2007). However, the results are not positive and

some OSes diverge.

Firstly, we selected OSes (see Table 1) that we be-

lieve are the most common in current LANs. Then,

we connected hosts running these OSes into our labo-

ratory network and captured all packets that were sent

or received by each host. Performed tests included

1) SLAAC with both enabled and disabled RFC 4941

privacy extensions addresses, 2) DHCPv6, 3) static

addresses, and 4) duplicate addresses in the network.

We have revealed following anomalies:

1. Windows Vista and later (for all IPv6 addresses)

and FreeBSD (for static and EUI-64 IPv6 ad-

dresses) ignore DAD-NS if the other host has the

same MAC address.

2. Windows Vista and later use a tentative link local

address to join multicast groups before they start

DAD for the address.

3. Solaris (for all addresses), FreeBSD (for static

addresses), and Windows Server 2008 R2, Win-

dows 7 and later (for link local addresses) di-

verge from the recommended sequence of actions

during DAD because they send DAD-NS before

they join the solicited-node multicast group de-

rived from the tentative address.

4. Windows 8, Solaris, and Mac OS X send NAs dur-

ing DAD that are not mandatory.

5. OpenBSD does not join solicited-node multicast

groups at all.

In general, if a router in the network behaves as an

MLD querier, it periodically queries multicast groups

to verify that some hosts are still part of each multicast

group. Hosts that are part of a multicast group ran-

domly generate a timeout during which they wait for

reply of another host in the group. If there is no such

acknowledgement before the timeout passes, the host

ANewApproachforDetectionofHostIdentityinIPv6Networks

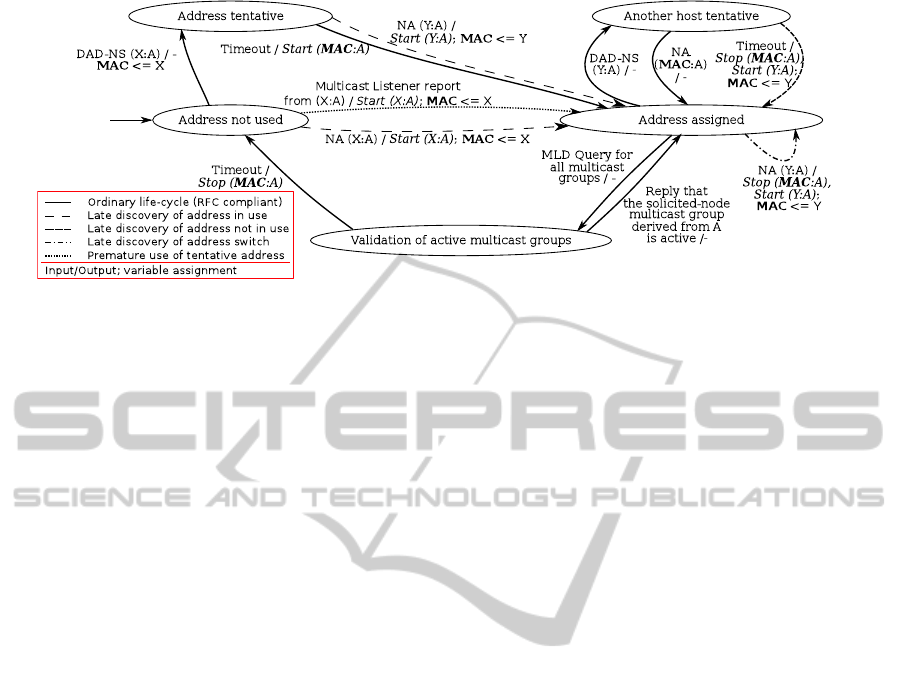

Figure 1: The life-cycle of an IPv6 address A can be monitored by the Mealy FSM extended by the variable MAC to store

the MAC address of the interface that currently uses A. Binding between MAC address X and A is denoted as (X:A).

replies that the multicast group is still active. Hence,

if no address corresponding to the queried solicited-

node multicast address is used, there is no reply in the

multicast group. However, if more than one IPv6 ad-

dress in the network coincide into one solicited-node

multicast group, only one of the hosts replies.

All selected OSes that register to multicast groups

reply to MLD queries. However, we discovered that

some OSes do not meet the maximal timeout speciﬁed

in an RA. Although the RA announced maximal time-

out of 0.1 s, some acknowledgements were received

after 0.7–0.8s.

5 APPROACH FOR ADDRESS

ASSIGNMENT DETECTION

The approach for address assignment detection was

created according to the study of the behaviourof cur-

rent operating systems presented in Section 4. The

life-cycle of an IPv6 address A can be tracked by the

extended Mealy FSM depicted in Figure 1. Network

control trafﬁc is used as the input of the FSM, the out-

put is a signalisation that the address started or ceased

to be used. The FSM is extended with a variable to

store the MAC address of the interface that uses the

tracked IPv6 address.

The FSM tracks ND messages to detect address

assignments. MLD queries and responses are used to

detect that the address is no longer used. Hence, we

recommend to enable MLD querying on a router in

the network. In addition, if MLD snooping is active

in the network (multicast trafﬁc is not broadcasted), to

capture DAD-NSes and NA replies, we recommend

to 1) join the multicast group for all nodes (ff02::1)

and all MLDv2-capable routers (ff02::16), 2) detect

all requests to join solicited-node multicast groups,

and 3) join the detected groups.

The initial state of the FSM is the Address not

used. When a host generates the address A, it issues

DAD-NS, and the FSM shifts to Address tentative.

If everything worked according to RFCs, the only

trigger for transition from Address tentative would be

the timeout as the address would not be used in the

network. However, Solaris, some versions of Win-

dows, and FreeBSD do not join the solicited-node

multicast groups before issuing the DAD-NS. As a

consequence, in networks with MLD snooping, some

address assignments may have been unnoticed earlier

and the address can already be used. Therefore, it is

possible to receive an NA from another host. In both

cases the FSM detects the MAC address that is bind

to the IPv6 address and shifts to Address assigned.

Similarly to the NA received after DAD-NS, the

FSM may detect an NA for the address A in the initial

state (e.g. non-mandatory NA during DAD). Conse-

quently, the FSM shifts directly to Address assigned.

Additionally, the FSM shifts between these two states

in case of Windows using a tentativelink local address

as the source address to join multicast groups.

In order to detect that the address was dropped

by the host, Validation of active multicast groups is

reached after an MLD query is received. In case that

the solicited-node multicast group derived from ad-

dress A is acknowledged, the address is most likely

being used as the solicited-node multicast groups

were designed so that two hosts are not likely to be

in one solicited-node multicast group. If the MLD

query expires, the address is deﬁnitely not used any

more, and the FSM returns to the initial state.

While the FSM is in Address assigned, another

host might try to use the address. When DAD-NS

is received, the FSM shifts to Another host tentative.

Ordinarily, the address is still in use and the NA fol-

lows. If the address was no longer used but it had not

been detected (e.g. because the MLD query was not

issued, yet), the NA would not be sent. In such case,

DCNET2013-InternationalConferenceonDataCommunicationNetworking

the FSM also shifts back to Address assigned, how-

ever, the detected MAC address changes. In a rare

occasion when an NA from another MAC address is

seen in Address assigned, the FSM loops in this state

and the MAC addresses are swapped. This loop is

present in the FSM only for safety reason as the study

of OS behaviour does not suggest that it is needed.

6 EXPERIMENTS

We implemented ndtrack (Holkoviˇc and Polˇc´ak,

2013), a tool which follows the approach for IPv6 ad-

dress assignments that is sketched in Section 5. This

Section describes the experiments with ndtrack. The

ﬁrst experiment was aimed at real network monitor-

ing. As most of the devices were not under our con-

trol, we could not conﬁrm that ndtrack detected all

devices. However, we checked that all our devices

were detected. The other three experiments were per-

formed in a laboratory network; they focused on the

quality of the monitoring approach.

6.1 Real Network Deployment

The ﬁrst experiment aimed at long-term monitoring

(almost a month) of SLAAC in a network with MLD

querying enabled. The network spans two buildings

and is available for all employees of the faculty (see

Figure 2). We successfully tested that ndtrack de-

tected IPv6 addresses that are being used in the net-

work and that the addresses are correctly identiﬁed as

no longer assigned after the hosts disconnect or stop

using them (see Figure 3 for the statistics).

Figure 2: The network topology of the real network moni-

toring. Some of the computers were not under our control.

100

120

0 100 200 300 400 500 600

active addresses

time [h]

MAC addresses ~ computers

IPv6 addresses

Figure 3: Statistics of the real network monitoring. IPv6

addresses were successfully detected to be used (the num-

ber of known addresses rises during working hours) and

dropped (the number of IPv6 addresses lowers at night).

During the experiment, we veriﬁed that the ad-

dresses used by our devices are correctly recognized

together with other devices that were not under our

control (see Table 2). In order to make the experi-

ment more convincing, we connected a device to the

network in a different building than the one in which

our monitoring station was located. All addresses as-

signed to the device were correctly identiﬁed and later

dropped when we disconnected the device.

Table 2: A snippet of a table created by ndtrack.

IP addr time MAC addr

fe80:*:777 14/2 11:07–14:40 1c:*:77

2001:*:777 14/2 11:07–14:40 1c:*:77

2001:*:335f 14/2 11:07–14:40 1c:*:77

2001:*:aa63 12/2 14:21–15/2 0:58 00:*:84

6.2 Network with MLD Snooping

We veriﬁed the behaviour of ndtrack in the presence

of MLD snooping in our laboratory. A monitoring

station running ndtrack and a testing computer were

connected to a switch with MLD snooping enabled as

depicted in Figure 4. In the ﬁrst set of experiments,

ndtrack did not follow the advice given in Section 5

and did not join the appropriate multicast groups. In

the second set of experiments ndtrack joined the mul-

ticast groups as recommended in Section 5. Several

OSes were tested on the testing computer during each

set of experiments.

Figure 4: Network topology for experoments with network

with active MLD snooping.

The results of the experiment are summarised in

Table 3. When ndtrack joined the solicited-node mul-

ticast groups, it successfully detected all OSes but

OpenBSD and static addresses in FreeBSD due to the

following reasons:

• OpenBSD does not join the solicited-node mul-

ticast groups derived from the tentative address.

As a consequence, ndtrack did not know that it

should join the solicited-node multicast group. As

a result, the switch with MLD snooping activated

did not propagate the DAD-NS to the monitoring

station.

• As already stated in Section 4, FreeBSD sends

DAD-NS before it joins the solicited-node mul-

ticast groups derived from the tentative address.

ANewApproachforDetectionofHostIdentityinIPv6Networks

Therefore, ndtrack joined the solicited-node mul-

ticast groups derivedfrom the tentative address af-

ter the DAD-NS was sent and consequently did

not learn about the address assignment. Windows

and Solaris that also join the solicited-mode mul-

ticast group late (see Section 4) send additional

NAs during DAD and therefore were detected by

ndtrack.

Table 3: Effectivity of our approach in networks with active

MLD snooping — without/with joining the solicited-node

multicast group (X= Detected).

OS static addr SLAAC

Windows 7 and earlier -/X -/X

Windows 8 X/X X/X

Linux -/X -/X

Mac OS X X/X X/X

FreeBSD -/- -/X

OpenBSD -/- -/-

Solaris X/X X/X

6.3 Network with Stateful DHCPv6

The next experiment tested stateful DHCPv6. We

connected computers running Windows 7, 8, 2008

R2, Ubuntu 12.10, and Solaris (one computer for each

OS) to a laboratory network depicted in Figure 5. We

veriﬁed that ndtrack detected all address assignments.

Hence, DHCPv6 leases are detected by the proposed

approach.

Figure 5: Network topology for experoments with network

with active MLD snooping.

6.4 Comparison to Other Methods

In the last experiment, we compared ndtrack to the

neighbour cache polling (NCP) and addrwatch (both

described in Section 3), in the network with topol-

ogy depicted in Figure 6. We ran ndtrack and addr-

watch on the monitoring station in three runs: ndtrack

was tested with MLD snooping enabled on the switch

whereas addrwatch was tested with MLD snooping

both enabled and disabled. Each experiment followed

this scenario:

1. Two Linux hosts were connected to the network.

2. Host A opened a connection to host B and the

hosts transferred a ﬁle in this connection.

3. Host A initiated an one-way UDP connection out-

side the network.

4. Host A opened a TCP session to the remote host.

5. Hosts A and B were disconnected.

Remote

host

Host A

Host B

Switch

Router

Monitoring

Figure 6: Network topology used to compare our approach

with older methods.

During the experiment, we monitored NC of the

router, and the outputs of the monitoring tools. The

results are summarized in Table 4.

Table 4: Comparison of our approach with older methods

(X= detected).

NCP addrwatch ndtrack

MLD snooping Y/N No Yes Yes

A, B connected - X - X

Local TCP - X - X

One-way UDP - X - X

Remote TCP X X - X

A, B disconn. - - - X

An entry for the monitored hosts appeared in the

NC of the router only after a packet destined to the

host arrived from the Internet. Data transfers inside

the LAN and the outgoing UDP session were unde-

tected. In addition, the record stayed in the NC (stale

state) after the host was disconnected. Port mirroring

and analysis of the trafﬁc traversing the router would

detect the outgoing UDP stream. However,localcom-

munication would be unnoticed.

While MLD snooping was disabled, addrwatch

detected the DAD-NSes issued by the hosts when

they connected to the network. Additionally, addr-

watch reported NS messages, issued by the hosts or

the router, during the data transfers. However, ac-

tive MLD snooping did not leak any ND message

to the monitoring computer and consequently caused

that addrwatch did not report any activity in the net-

work. Moreover, addrwatch did not report that the

hosts disconnected from the network even without

MLD snooping as no ND message was sent to the net-

work.

Both hosts were successfully identiﬁed by ndtrack

although the tool was behind MLD snooping. In ad-

dition, ndtrack was able to detect that the addresses

were no longer assigned.

DCNET2013-InternationalConferenceonDataCommunicationNetworking

7 FUTURE WORK

During future work, we want to focus on the open

questions identiﬁed during the study of the behaviour

of the OSes and the design of the FSM. Speciﬁcally,

we plan to study the loop in the Addressassigned state

of the FSM. In addition, we plan to evaluate more de-

vices, such us phones and tablets, to validate that the

proposed FSM does not miss any transition.

Furthermore, we want to focus on networks with-

out an MLD querier and compare the quality of the

monitoring with respect to its location in a network.

The proposed FSM does not detect that an address is

not used any more without an MLD querier. We plan

to implement a timeout that would shift the FSM from

Address assigned to Address not used when no NA

is seen for a suitable amount of time. However, the

suitable timeout value is a subject for future research.

One of the prerequisites is a study of NA in the net-

work. Another approach for dealing with networks

without an MLD querier is to use additional informa-

tion from the default gateway NC (Gr´egr et al., 2011).

8 CONCLUSIONS

The advent of IPv6 protocol unveils a need to redesign

mechanisms for user identiﬁcation in LANs. Whereas

in IPv4, network administrators can extract MAC and

IPv4 pairings from DHCP logs, in IPv6, the pairing

of IPv6 and MAC addresses is not available on a sin-

gle device in the network. We studied behaviour of

implementation of ND in current OSes (Polˇc´ak and

Holkoviˇc, 2013). Based on this study, we proposed

a mechanism that deals with the problem of the iden-

tiﬁcation of MAC and IPv6 address pairings in net-

works with MLD snooping both active and inactive.

The approach detects all address assignments in net-

works without MLD snooping. When MLD snooping

is active, the approach deals with all addresses and

OSes but OpenBSD and static addresses in FreeBSD.

Our approach differs to current methods in sev-

eral aspects. Firstly, it is completely passive for end

devices in the network. In addition, the approach

does not need any modiﬁcation of software or hard-

ware used in the network. Moreover, for most OSes,

the proposed approach detects that a new address was

generated immediately without polling of active de-

vices in the network. Furthermore, the described ap-

proach detects that an address is no longer used. Even

more, the approach works for all common methods

for IPv6 address distribution, namely SLAAC, state-

ful DHCPv6, and static assignments.

ACKNOWLEDGEMENTS

This work is a part of the project VG20102015022

supported by Ministry of the Interior of the Czech Re-

public. This work was also supported by the research

plan MSM0021630528 and BUT project FIT-S-11-1.

REFERENCES

Asati, R. and Wing, D. (2012). Tracking of

Static/Autoconﬁgured IPv6 addresses. Internet

Draft, version 00 (Work in progress).

Dhamdhere, A., Luckie, M., Huffaker, B., claffy, k.,

Elmokashﬁ, A., and Aben, E. (2012). Measuring the

deployment of ipv6: topology, routing and perfor-

mance. In Proc. of IMC ’12, pages 537–550, New

York, NY, USA. ACM.

Droms, R., Bound, J., Volz, B., Lemon, T., Perkins, C., and

Carney, M. (2003). Dynamic Host Conﬁguration Pro-

tocol for IPv6 (DHCPv6). RFC 3315.

Dunlop, M., Groat, S., Marchany, R., and Tront, J. (2011).

The good, the bad, the ipv6. In CNSR 2011, pages

77–84, Ottawa, Canada.

Groat, S., Dunlop, M., Marchany, R., and Tront, J. (2010).

The privacy implications of stateless ipv6 addressing.

In Proc. of CSIIRW ’10, pages 52:1–52:4, New York,

NY, USA. ACM.

Groat, S., Dunlop, M., Marchany, R., and Tront, J. (2011).

What dhcpv6 says about you. In WorldCIS 2011,

pages 146–151, London, UK.

Gr´egr, M., Matouˇsek, P., Poderma´nski, T., and

Sv´eda, M.

(2011). Practical ipv6 monitoring - challenges and

techniques. In Proc. of IM 2011, pages 660–663,

Dublin, Ireland. IEEE CS.

Hinden, R. and Deering, S. (2006). IP Version 6 Addressing

Architecture. RFC 4291.

Holkoviˇc, M. and Polˇc´ak, L. (2013). ndtrack.

http://www.ﬁt.vutbr.cz/ ipolcak/prods.php?id=308.

Huston, G. (2009–2013). IPv4 Address Report.

http://www.potaroo.net/tools/ipv4/index.html.

Kriukas, J. (2012). addrwatch: A tool similar to arpwatch

for ipv4/ipv6 and ethernet address pairing monitoring.

https://github.com/ﬂn/addrwatch.

Narten, T., Draves, R., and Krishnan, S. (2007a). Privacy

Extensions for Stateless Address Autoconﬁguration in

IPv6. RFC 4941.

Narten, T., Nordmark, E., Simpson, W., and Soliman, H.

(2007b). Neighbor Discovery for IP version 6 (IPv6).

RFC 4861.

Polˇc´ak, L. and Holkoviˇc, M. (2013). Behaviour of vari-

ous operating systems during SLAAC, DAD, and ND.

http://6lab.cz/?p=1691.

Thomson, S., Narten, T., and Jinmei, T. (2007). IPv6 State-

less Address Autoconﬁguration. RFC 4862.

ANewApproachforDetectionofHostIdentityinIPv6Networks
