Multiple Ontologies Enhanced with Performance Capabilities

to Deﬁne Interacting Domains within a Workﬂow Framework

for Analysing Large Undersea Videos

∗

Gayathri Nadarajan, Cheng-Lin Yang and Yun-Heh Chen-Burger

CISA, School of Informatics, University of Edinburgh, 10 Crichton St, Edinburgh EH8 9AB, U.K.

Keywords:

Intelligent Problem-solving, Process Knowledge and Semantic Services, Applications and Case-studies,

Domain Analysis and Modelling.

Abstract:

In this paper, we describe our efforts in using ontological engineering as a backbone technology to deﬁne

multi-disciplinary knowledge that interact with one another in a complex domain. Multiple ontologies were

developed to deﬁne these interacting domains. Combined with planning technology, they are used in a three-

layered framework that enables the deﬁnition, creation and execution of a workﬂow management system

based on dynamic user requirements. We report on how such ontologies play a central role in enabling the

workﬂow system to work consistently and systematically while communicating and collaborating with other

project partner systems. We also extend the capability elements of the ontologies with hardware and software

performance measures. These metrics are valuable factors in improving the overall system’s performance.

1 INTRODUCTION

While the creation and use of multiple ontolo-

gies that covers interacting inter-disciplinary domains

and that requires the involvements of several multi-

disciplinary experts may seem daunting to ontolog-

ical novices, it is vital, if such inter-disciplinary

knowledge needs to be formalised in order to en-

able high quality automation. In the EU-funded

Fish4Knowledge (F4K, 2013) project, we face a com-

plex problem of having to understand and work with

multiple domains. Its goal is to automatically anno-

tate and analyse (live) marine video feeds taken from

coral reefs in the open seas that is outside of south Tai-

wan. Based on dynamic user requirements, the main

tasks of the Workﬂow Management System (WMS)

is to fetch corresponding video feeds, construct ap-

propriate workﬂows that execute suitable video and

image processing modules, handle and ensure com-

putational consistency and efﬁciency, while keeping

the user informed on dynamic progress and ﬁnal out-

comes. This WMS is enabled from a generic work-

ﬂow framework that is context free. However, be-

ing in the centre of the operations means that the

∗

This research was funded by the European Commis-

sion (FP7 grant 257024) and the Taiwan National Science

Council (grant NSC100-2933-I-492-001) and undertaken in

the Fish4Knowledge project (www.ﬁsh4knowledge.eu).

WMS needs to have sufﬁcient knowledge to inter-

act with other project partner systems closely. The

WMS needs to understand and operate within multi-

ple domains: the knowledge of marine biology that

is the subject of studies, the capabilities of different

specialised video and image processing modules and

how they may work with one another, user (marine

biology experts) research interests and how they may

be translated into query tasks for the WMS, as well as

how to communicate with the user interface system

that is the front-end for the user.

In addition, the collected marine videos are now

approaching, and soon will be over, 100TBs. The

phenomena of “big data” continue to push the bound-

aries of computational efﬁciency, accuracy and con-

sistency as manual processing and even manual er-

ror handling are no longer viable options. In the

EU F4K project, a complex computational environ-

ment with heterogeneous high performance computa-

tional nodes as well as storage solutions have been de-

ployed, remotely at NCHC, Taiwan (Ecogrid, 2013).

These computational resources are shared by all F4K

project partners that are operating from their own

countries, but these resources are also shared with

other external project users that we have no control

or knowledge of. It is therefore vital for the WMS

to understand the structure, capabilities, boundaries

and volatilities of such computational environment,

419

Gayathri N., Yang C. and Chen-Burger Y..

Multiple Ontologies Enhanced with Performance Capabilities to Deﬁne Interacting Domains within a Workﬂow Framework for Analysing Large Undersea

Videos.

DOI: 10.5220/0004643304190426

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2013), pages 419-426

ISBN: 978-989-8565-81-5

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

Figure 1: The workﬂow component binds high level queries from the user interface to low level image processing components

via process planning and composition. It also schedules and monitors the execution of the video processing tasks on a high

performance computing environment and reports feedback to the user interface component.

so that the WMS can perform at its best. In this pa-

per, we introduce the ontology and associated mech-

anisms where we deﬁne and detect where problems

may occur and how they may be rectiﬁed. The fol-

lowing sessions ﬁrstly introduce our workﬂow frame-

work that enables the running of the Workﬂow Man-

agement System (Section 2). We then provide a de-

tailed account of our built ontologies and their uses in

the F4K project (Section 3). We show how the capa-

bilities of the system are extended with performance

evaluation measures and conclude the paper with ini-

tial performance analysis of the WMS (Section 4).

2 WORKFLOW FRAMEWORK

The workﬂow component of the F4K project is re-

sponsible for the composition, execution and monitor-

ing of a set of video and image processing (VIP) mod-

ules on high performancecomputing (HPC) machines

based on user requirements and descriptions of the

video data. It interprets the user requirements (from

the UserInterface component) as highlevel VIP tasks,

creates workﬂow jobs based on the procedural con-

straints of the modules (VIP components), schedules

and monitors their execution in a heterogeneous dis-

tributed environment (HPC component).

The workﬂow framework incorporates the knowl-

edge available to the domain (captured in the goal,

video description and capability ontologies) and the

compute environment (hardware resources) available.

The core functions of the workﬂow are as follows:

1. Perform on-demand workﬂow queries (high pri-

ority) fromuser interface- compose, schedule, ex-

ecute and monitor jobs. On-demand queries are

the most computationally intensive tasks that the

workﬂow will have to perform, e.g. ﬁsh detec-

tion and tracking and ﬁsh species recognition. It

is therefore crucial that latency is minimised for

these types of tasks. The execution of these tasks

will have to be monitored in order to report feed-

back to the user and also to handle exceptions.

2. Perform batch/self-managed workﬂow queries

(low priority) on unprocessed videos recorded in

the database - compose, schedule, execute and

monitor jobs. These tasks are essentially the same

type of tasks as on-demand queries but are trig-

gered internally by the workﬂow e.g. daily pro-

cessing of new videos. These tasks are of low pri-

ority and can be run in the background.

3. Perform run-time estimation for a given query

when asked by the user interface. This involves

the calculation of the time estimated for a query to

execute. Several factors will be considered, such

as the number of videos that need to be processed,

the computational intensity of the VIP modules

involved and the availability of HPC resources.

4. Update the database with the progress of execu-

tion for each on-demand workﬂow query during

short intervals of execution. Thus it can provide

the progress of a workﬂow query’s execution (as

a percentage) when asked by the user interface.

5. Stop the execution of a task when asked by user

(abort). This would stop the execution of all exe-

cuting subtasks (jobs) of the task.

KEOD2013-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

420

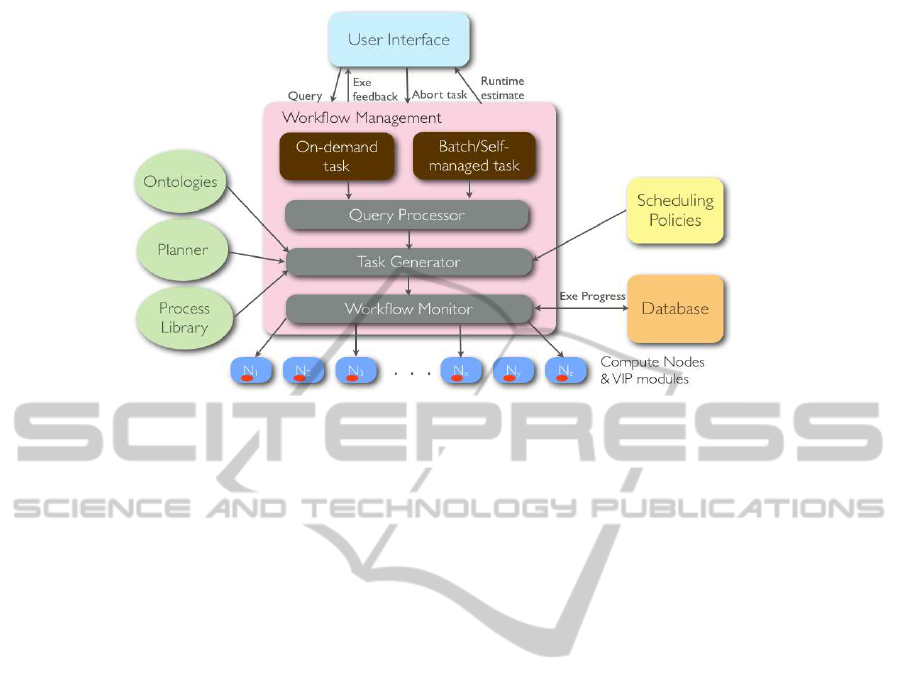

The workﬂow manager’s architecture diagram

(Figure 1) shows an overview of the components that

the workﬂow interacts with, its main functions, and its

sub-components. As can be seen there are three work-

ﬂow management sub components: 1) Query Proces-

sor; 2) Task Generator; and 3) Workﬂow Monitor.

The Query Processor deals with high levelprocess

management, such as detecting incoming queries,

processing them accordingly and selecting suitable

computing resource to process on-demand and batch

queries. Multiple queries can be invoked from the

front end which is a web-based user interface. For ex-

ample, “Compute the overall ﬁsh population in Lanyu

island cameras from 1st January 2011 to 30th June

2011”. It then deals with breaking down this high

level query into individual VIP tasks that each act on

a video clip. For each camera, 72 10-minute videos

clips are recorded each day. It loops over all the

videos between the start and end dates and over all the

cameras. For each video clip, a sequence of VIP op-

erations are required for this task to be accomplished.

The sequence of VIP operations is composed by

the Task Generator. It is the workﬂow composi-

tion engine which utilises planning and ontologies.

The workﬂow composition mechanism was devised

based on a three-layered framework implemented in

an earlier version of the workﬂow prototype (Nadara-

jan et al., 2011). Figure 2 gives a pictorial overview

of the workﬂow composition framework.

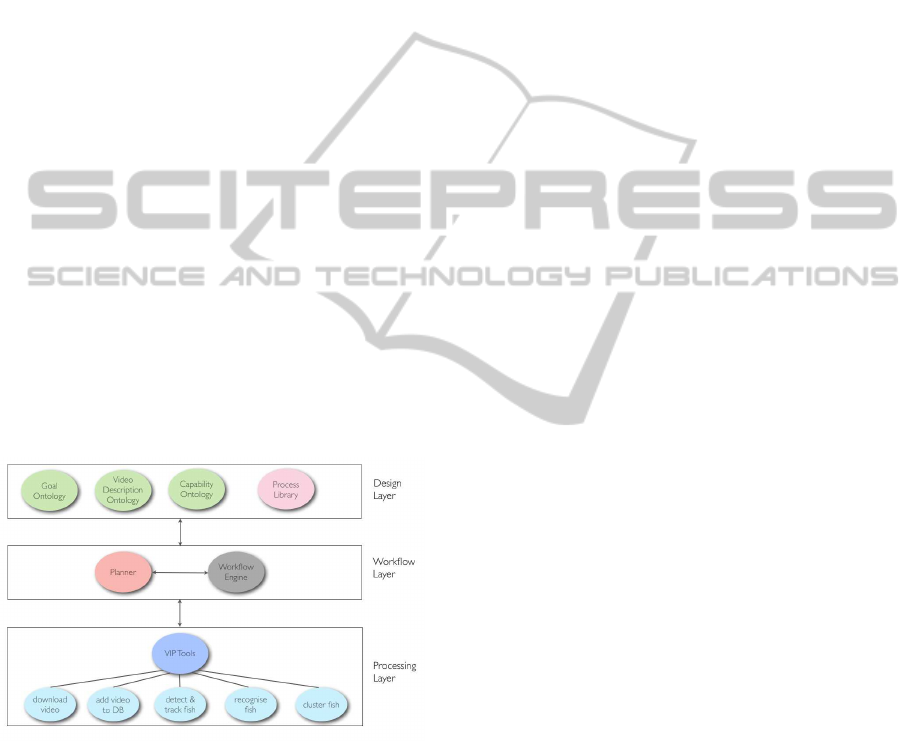

Figure 2: Overview of workﬂow composition framework

for video processing. It provides three levels of abstraction

through the design, workﬂow and processing layers. The

core technologies include ontologies and a planner.

The design layer contains components that de-

scribe the domain knowledge and available video pro-

cessing tools. These are represented using ontolo-

gies and a process library. Knowledge about image

processing tools, user-deﬁned goals and domain de-

scription is organised qualitativelyand deﬁned declar-

atively in this layer, allowing for versatility, rich rep-

resentation and semantic interpretation. The process

library developed in the design layer of the workﬂow

framework contains the code for the image process-

ing tools and methods available to the system. These

are known as the process models. A set of primitive

tasks are identiﬁed ﬁrst for this purpose. A primi-

tive task is one that is not further decomposable and

may be performed directly by one or more image pro-

cessing tools, for instance a function call to a module

within an image processing library, an arithmetic, log-

ical or assignment operation. Additionally, the pro-

cess library contains the decomposition of non primi-

tive tasks or methods.

The workﬂow layer is the main interface between

the front end and the back end of the F4K system.

It also acts as an intermediary between the design

and processing layers. The main reasoning compo-

nent is an ontology-based planner that is responsible

for transforming the high level user requests into low

level video processing solutions.

The processing layer consists of a set of VIP tools

that can perform various image processing functions.

The functions of these tools are represented in the Ca-

pability Ontology in the design layer. Once a tool

has been selected by the planner to act on a video,

the command line call to invoke the tool on a video

(known as a job) is scheduled for execution via a re-

source scheduler. The set of VIP tools available for

performing various image processing operations are

generated using OpenCV (Intel, 2006) and Matlab

(Mathworks, 2012).

Once a job is scheduled for execution, control is

passed to the Workﬂow Monitor to oversee its exe-

cution. At any point in time a job can have a status

which is one of “pending”, “running”, “suspending”,

“failed” or “done”. The status is obtained from the

resource scheduler, or triggered by the workﬂow en-

gine (via a database table ﬁeld update). Monitoring

ensures that appropriate actions are taken on jobs that

require handling. Scenarios that require handling in-

clude jobs queuing for too long, jobs running for too

long, jobs failing (with an exit code) and jobs being

suspended for too long. When execution is complete,

the results are updated into the F4K database, which

will notify the user interface.

3 Fish4Knowledge DOMAIN

ONTOLOGIES

In our intelligent workﬂow system, we have adopted

an ontological-based approach (G´omez-P´erez et al.,

2004) to guide the automatic generation of a “vir-

tual workﬂow machine” based on a set of closely re-

MultipleOntologiesEnhancedwithPerformanceCapabilitiestoDefineInteractingDomainswithinaWorkflow

FrameworkforAnalysingLargeUnderseaVideos

421

lated ontologies. This allows a separation between the

problem and application descriptions and the work-

ﬂow mechanism. As a result, the virtual workﬂow

machine may work in different problem domains if

the problem and application descriptions are changed.

Consequently, this will promote reusability and pro-

vide a conceptualisation that can be used between dif-

ferent domain experts, such as marine biologists, im-

age processing experts, user interface designers and

workﬂow engineers. These ontologies are also piv-

otal for reasoning. For instance, in the selection of

optimal VIP software modules, the Capability Ontol-

ogy is used to record known heuristics obtained from

VIP experts.

The Goal Ontology contains the high level ques-

tions posed by the user interpreted by the system as

VIP tasks, termed as goals, and the constraints to the

goals. Based on a mapping between the user require-

ments and a high level abstraction of the capabilities

of the VIP modules, we have constructed the Goal

Ontology. To date, the Goal Ontology contains 52

classes, 85 instances and 1 property. Figure 3 shows

the main concepts derived in the F4K domain. Under

these general concepts, more speciﬁc goals may be

deﬁned, for example ‘Fish Detection’, ‘Fish Track-

ing’, ‘Fish Clustering’, ‘Fish Species Classiﬁcation’

and ‘Fish Size Analysis’. The principle behind keep-

ing the top level concepts more general is to allow the

ontology to be easily extended to include other (new)

tasks as appropriate over time.

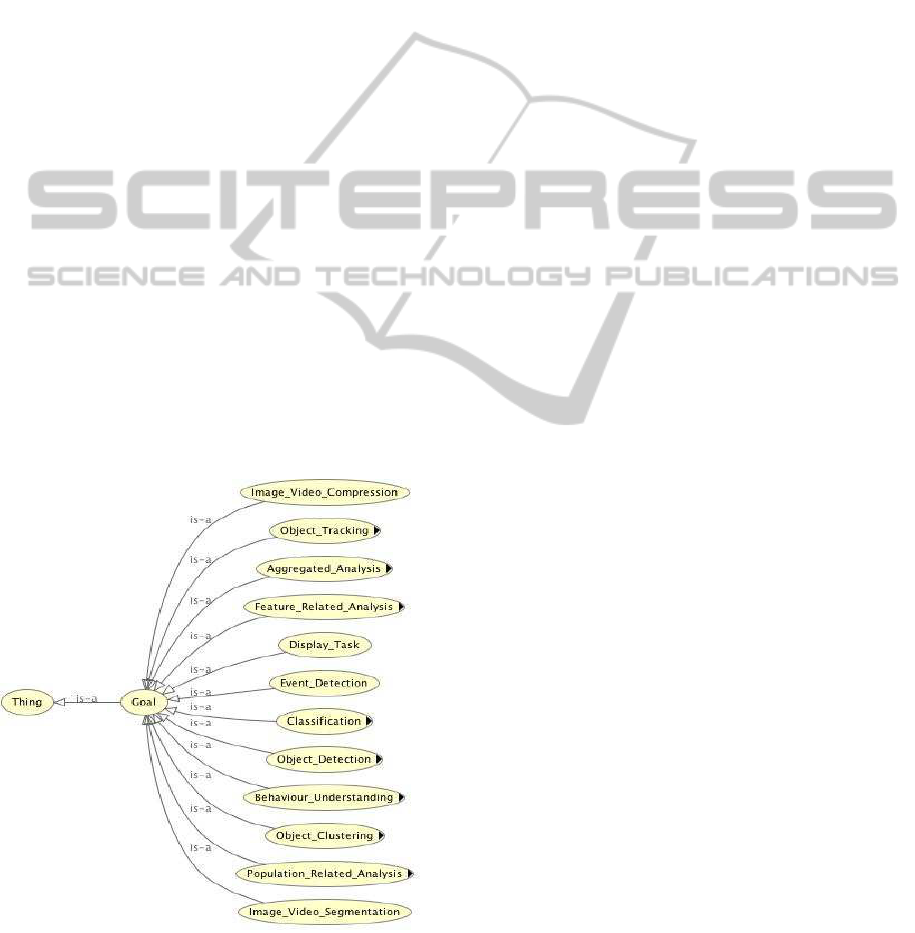

Figure 3: Top level goals in the Goal Ontology.

The Video Description Ontology describes the

concepts and relationships of the video and image

data, such as what constitutes the data, the acquisition

conditions such as lighting conditions, colour infor-

mation, texture, environmental conditions as well as

spatial relations and the range and type of their val-

ues. The main class of this ontology is the ‘Video

Description’ class. Example video descriptions are

visual elements such as video/image’s geometric and

shape features, e.g. size, position and orientation and

non-visual elements (acquisitional effects) such as

video/image’s brightness (luminosity), hue and noise

conditions. Environmental conditions, which are ac-

quisitional effects, include factors such as current ve-

locity, pollution level, water salinity, surge or wave,

water turbidity, water temperature and typhoon. The

Video Description Ontology has 24 classes, 30 in-

stances and 4 properties at present.

The Capability Ontology (Figure 4) contains the

classes of video and image processing tools, tech-

niques and performance measures of the tools with

known domain heuristics. This ontology has been

used to identify the tools that should be selected for

workﬂow composition and execution of VIP tasks

(Nadarajan et al., 2013). The main concepts of this

ontology are ‘VIP Tool’, ‘VIP Technique’ and ‘Do-

main Descriptions for VIP Tools’. Each VIP tech-

nique can be used in association with one or more

VIP tools. A VIP tool is a software component that

can perform a VIP task independently, or a func-

tion within an integrated vision library that may be

invoked with given parameters. ‘Domain Descrip-

tion for VIP Tool’ represent a combination of known

domain descriptions (video descriptions and/or con-

straints to goals) that are recommended for a subset

of the tools. This was used to indicate the suitability

of a VIP tool when a given set of domain conditions

hold at a certain point of execution. The Capability

Ontology has been used for reasoning during work-

ﬂow composition using planning. As planning takes

into account preconditions before selecting a step or

tool, it will assess the domain conditions that hold to

be used in conjunction with an appropriate VIP tool.

The Capability Ontology has been populated with 42

classes, 71 instances and 2 properties.

For ontology development and visualisation pur-

poses, OWL 1.0 (McGuinness and van Harmelen,

2004) was generated using Protege version 4.0.

Where applicable, ontological diagrams were derived

using the OntoViz plugin (Sintek, 2007). They have

supported the ﬁrst version of the workﬂow system

that has been evaluated for efﬁciency, adaptability and

user learnability in video classiﬁcation, ﬁsh detection

and counting tasks in a single-processor (Nadarajan

et al., 2011).

More recent development and preparation of the

KEOD2013-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

422

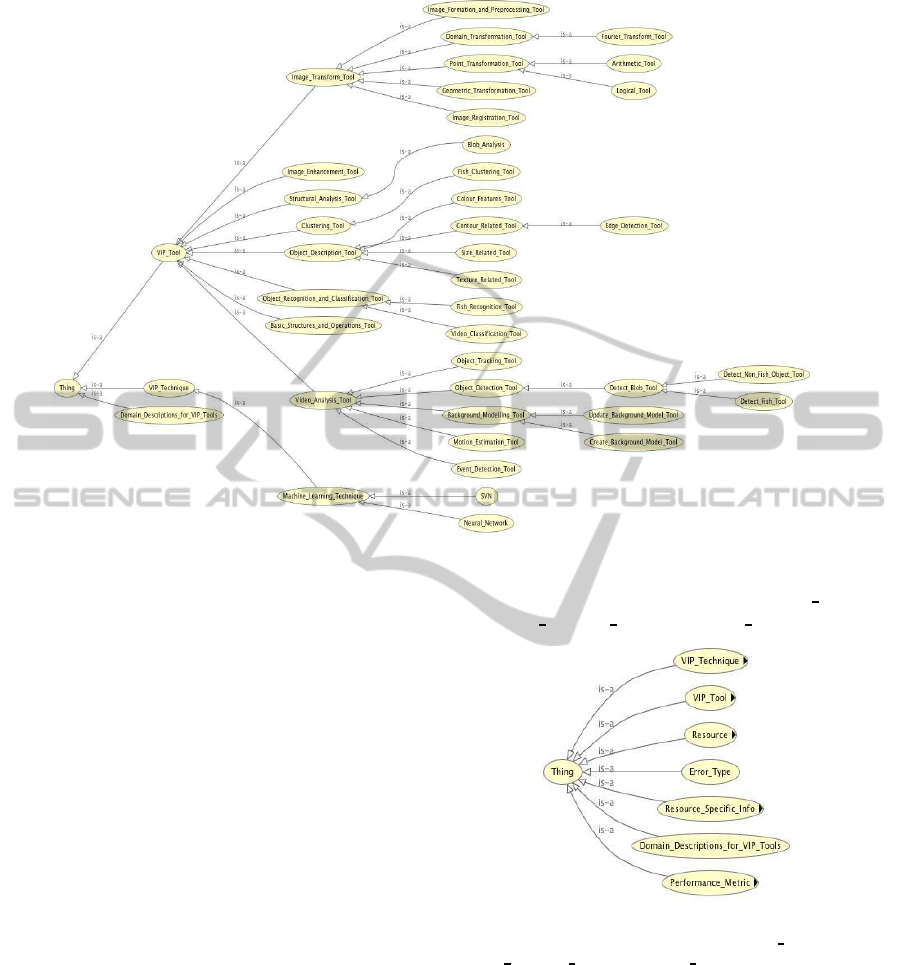

Figure 4: Capability Ontology and its main concepts.

workﬂow for F4K system’s production run, however,

has led us to carry out more investigations on the fac-

tors that inﬂuence the performance of the workﬂow

system in a heterogeneous multi-processor computing

environment. We will discuss the additional factors in

the next section.

4 EXTENSIONS TO THE

CAPABILITY ONTOLOGY

As explained in the previous section, the Capability

Ontology contains the VIP tools or software compo-

nents available in the domain and their performance

measures in the form of domain descriptions. How-

ever, more recent development and analysis have led

to the discovery that other factors such as the com-

puting resources available to execute the tools and the

performance of the software components themselves

on the available resources play a major role in deter-

mining the overall performance of the system. Fur-

thermore, resource-speciﬁc details such as the net-

work trafﬁc and resource’s utlisation and the types

of errors that can occur during scheduling and execu-

tion of the software components also affected the per-

formance of the F4K system. We have added exten-

sions to the Capability Ontology with these factors.

Figure 5 depicts this extension with the addition of

top-levelconcepts ‘Resource’, ‘Performance

Metric’,

‘Resource

Speciﬁc Info’ and ‘Error Type’.

Figure 5: Top main concepts of the Capability Ontol-

ogy now include ‘Resource’, ‘Performance

Metric’, ‘Re-

source

Speciﬁc Info’ and ‘Error Type’.

In the following two subsections, we will present

the extensions that have been implemented within

the system - Resource (Section 4.1) and Performance

Metrics (Section 4.2). Error types and resource-

speciﬁc information are still being explored.

4.1 Computing Resources

The F4K computing environment is a heterogeneous

platform made up of a group of virtual machines (VM

cluster) and a supercomputer (Windrider). The VM

MultipleOntologiesEnhancedwithPerformanceCapabilitiestoDefineInteractingDomainswithinaWorkflow

FrameworkforAnalysingLargeUnderseaVideos

423

cluster contains nine nodes with machines of different

speciﬁcations. Windrider consists of seven working

queues of different capacities at present. These are

represented in Figure 6.

On the VM cluster, the resource scheduler is able

to distribute the jobs onto the nodes based on their

availability. On Windrider, however, the workﬂow

will have to select a speciﬁc queue to submit a job to.

It has to be able to send the job to the highest capacity

queue with the least pending jobs. Hence, we plan to

make use of resource-speciﬁc information such as its

hardware speciﬁcation, the node utilisation, network

trafﬁc and queue capacity to enhance the utilisation of

resources.

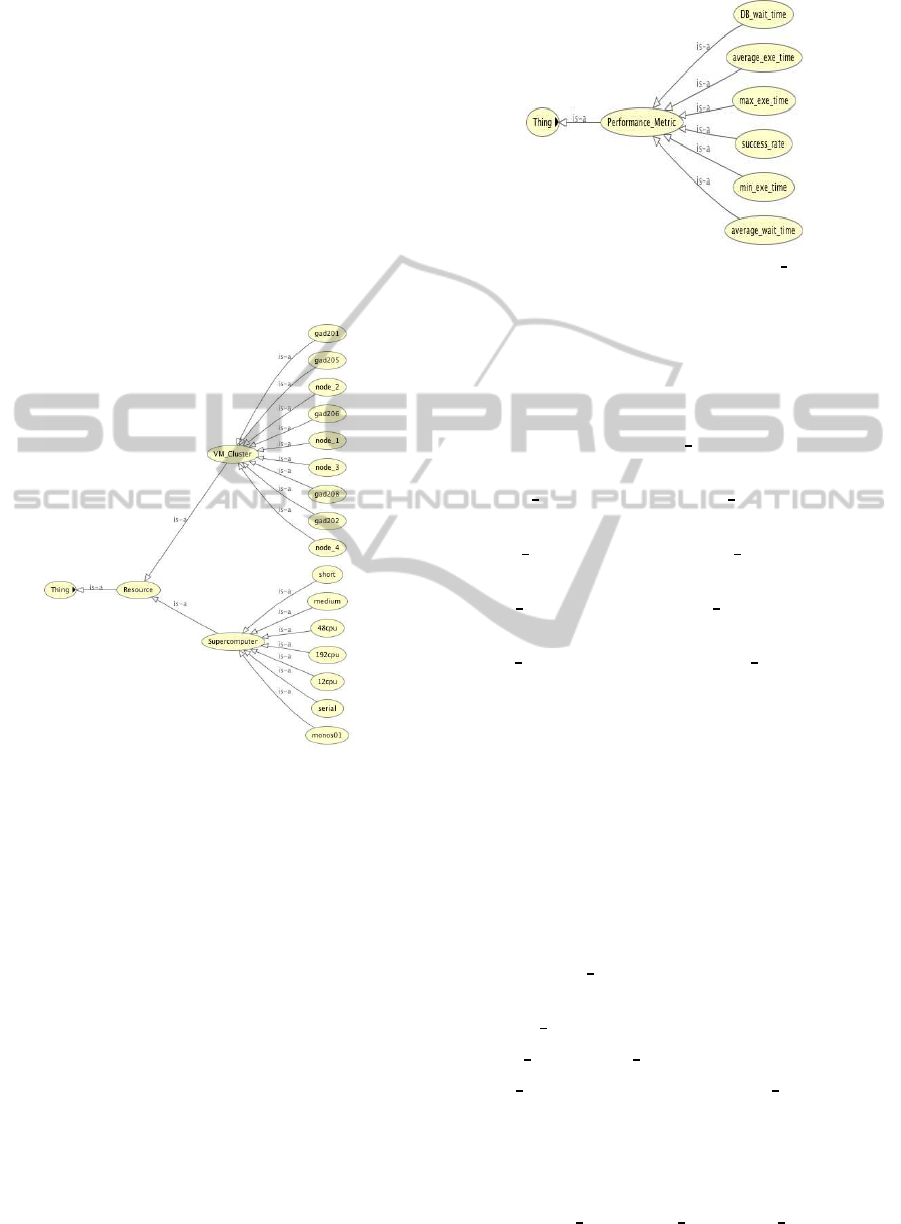

Figure 6: The ‘Resource’ class and its subclasses in the Ca-

pability Ontology.

Other than the hardware capabilities, the software

utilisation is also vital in performance analysis.

4.2 Performance Metrics

A software component that is queued, executed and

monitored on a resource can yield indicative perfor-

mance metrics. This includes its average waiting time

on a queue, its execution time on a machine, its max-

imum execution time, its minimum execution time,

its overall success rate (completed successfully) and

its average database waiting time. Figure 7 shows the

performance metrics related to a software component.

In order to analyse the overall performance of

each software component, the performance metrics

statistics are updated on a daily, weekly and monthly

basis. The statistics computed for each software com-

ponent requires the following data from the database:

Figure 7: The addition of the ‘Performance Metric’ class

and its subclasses to the Capability Ontology.

• total number of processed videos: The total num-

ber of processed videos is the foundation for com-

puting the performance metrics. Hence, it is

crucial to have the correct count. In the F4K

database, all the processed videos are recorded in

a table called processed

videos. The remaining

ﬁelds are also derived from the same table.

• insert

time: Indicates the date time when a job is

scheduled by the workﬂowsystem onto the queue.

• start

time: Indicates the date time when a job

starts executing.

• end

time: Indicates the date time when a job ﬁn-

ishes executing.

• last

update: Indicates the date time when the

database was last updated.

• status: Indicates the overall processing status of

the video. The status can be “pending”, “run-

ning”, “completed” and “abandonedByUser”.

• progress: The percentage of the task completed at

a time (0-100). This is updated regularly during

execution.

To ensure that only the successfully completed

tasks are taken into account, several constraints must

be met in order to calculate the performance metrics:

• The video status must be marked as “completed”

in processed

videos table.

• The processing progress must be 100 in pro-

cessed

videos table.

• start

time and end time cannot be null.

• end

time should be larger than start time.

Finally the performance metrics are evaluated:

1. Average execution time

The average execution time of a component, exe,

is calculated by:

exe = (end

time− start time)/total videos

It gives the overall performance of a software

KEOD2013-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

424

Table 1: The performance metrics of two main software components (IDs 54 and 80) in F4K.

Component Avg. Execution Avg. Waiting Max. Execution Min. Execution DB Waiting

ID Time (s) Time (s) Time (s) Time (s) Time (s)

54 301 271 2676 9 792

80 3243 17875 82673 2 7332

component over all the machines. This helps the

workﬂow in two ways: i) It can use this to com-

pute the runtime estimation for a task using this

component; and ii) It can select the most opti-

mal tool to process a user query in a time-efﬁcient

manner.

2. Average waiting time

The average waiting time of a component, wait, is

the time that the job waits in the queue before it

starts execution:

wait = (start

time− insert time)/total videos

This gives an indication of how efﬁciently the

resource scheduler can handle the scheduled

jobs. This metric helps with workﬂow monitor-

ing which can then take appropriate actions when

a job has been waiting for too long, such as sched-

ule it on a differentqueue, or suspend unimportant

executing jobs.

3. Maximum and minimum execution time

Sometimes, a video is processed within an

unreasonable time (e.g., less than 3 seconds or

longer than 5 hours). Such cases are outliers that

need to be detected by the system to trace the

root cause for their occurrences. The maximum

execution time, max exe and minimum execution

time, min exe are given by:

max

exe = max(end time − start time)

min

exe = min(end time− start time)

We can also derive the speciﬁc video associated

with themaximum and minimum executingtimes.

This allows for more informed error diagnosis.

4. Success rate

When a job is submitted to the resource sched-

uler, it will be assigned to a computing node based

on the scheduling policy. Although the system

conﬁguration and installed packages are identi-

cal on each node, a job can still fail due to hard-

ware and/or software errors. The workﬂow per-

formance evaluation system keeps track of the job

execution successful rate on each node per soft-

ware component. It helps identify the problem-

atic nodes to avoid more jobs from failing. The

success rate of a software component, success, is

calculated by:

success =

num

successful jobs

total processed videos

x100

5. Database waiting time

When a software component ﬁnishes processing a

video, the end

time ﬁeld in the processed videos

table is updated. After this point, results associ-

ated with the processing will be updated in the

database. Upon completion of the results’ update,

the last

update ﬁeld in the processed videos

table is also updated. The database waiting time,

wait is given by:

wait = last update− end time

We have gathered statistics for the performance

metrics related to speciﬁc software components. Ta-

ble 1 shows the aggregation for two major software

components that have been used in the production run

to run the same task (ﬁsh detection and tracking). It

can be seen that component 54 on average executes

90.72% faster, takes 98.48% less time in the queue

and is 89.2% quicker in the database than component

80. It is a more optimal choice for the workﬂow.

Table 2: Percentage of success rate of two main software

components (IDs 54 and 80) on four different computing

machines.

ComponentVM ClusterWindriderVM ClusterWindrider

ID gad201 node1 gad202 node2

54 100 0 100 0

80 0 100 0 96.55

Table 2 shows the breakdown of the success rate

of two software components in four different comput-

ing resources. It shows that component 54 was exe-

cuted on the VM cluster while component 80 was ex-

ecuted on Windrider. The success rate indicates how

well a software components executes on a particular

resource, The reason for a rate of 0% could mean that

the resource is not well equipped with the libraries re-

quired for that component. It could also mean that

a task using the particular component has not been

allocated to this resource. This can be distinguished

by observing the total number of videos used for the

computation.

We are continuing our efforts in improving the

overallsystem’s performanceby conducting more rig-

orous analysis on the components over more data and

time. Currently we are working on the error types

MultipleOntologiesEnhancedwithPerformanceCapabilitiestoDefineInteractingDomainswithinaWorkflow

FrameworkforAnalysingLargeUnderseaVideos

425

and handling, and will continue to work on obtaining

resource-speciﬁc metrics such as resource utilisation

and network trafﬁc. The Capability Ontology will be

populated with these metrics.

5 CONCLUSIONS

We have implemented a set of domain ontologies for

a multi-disciplinary project involving marine biolo-

gists and computer scientists. The ontologies have

been a backbone technology in representing interact-

ing knowledge in a complex domain. We have shown

how the ontologies, coupled with planning, play a vi-

tal part in a workﬂow management system that au-

tomatically composes, schedules and monitors video

processing tasks in a time-efﬁcient manner using a

distributed heterogeneous computing platform. The

workﬂow interacts with a set of partner systems to

ensure the seamless integration of all the processing

components in F4K. We have extended the capability

element of the ontologies with performance measures

that take into account resource and software metrics

and demonstrated the initial performance evaluation

of the workﬂow management system.

REFERENCES

Ecogrid (2013). National Center for High Perfor-

mance Computing (NCHC), Taiwan. http://ecogrid.

nchc.org.tw.

F4K (2010-2013). The Fish4Knowledge Project. http://

www.ﬁsh4knowledge.eu.

G´omez-P´erez, A., Fern´andez-L´opez, M., and Corcho, O.

(2004). Ontological Engineering. Springer.

Intel (2006). Open Source Computer Vision (OpenCV) Li-

brary. http://sourceforge.net/ projects/opencvlibrary.

Mathworks (1994-2012). MATLAB - The Language

of Technical Computing. The MathWorks Inc.

http://www.mathworks.com/products/matlab.

McGuinness, D. and van Harmelen, F. (2004). OWL Web

Ontology Language. World Wide Web Consortium

(W3C).

Nadarajan, G., Chen-Burger, Y. H., and Fisher, R. B.

(2011). SWAV: Semantics-based Workﬂows for Au-

tomatic Video Analysis. In Special Session on Intelli-

gent Workﬂow, Cloud Computing and Systems, (KES-

AMSTA’11).

Nadarajan, G., Chen-Burger, Y. H., and Fisher, R. B.

(2013). Semantics and Planning Based Workﬂow

Composition for Video Processing. Journal of Grid

Computing, Special Issue on Scientiﬁc Workﬂows. (in

press).

Sintek, M. (2007). OntoViz. http://protegewiki.stanford.

edu/wiki/OntoViz.

KEOD2013-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

426
