A Method for Reengineering and Prioritizing Goal Models
Jan Willem Harmannij and Ella Roubtsova
Faculty of Informatics, Open University of the Netherlands, PO Box 2960 NL-6401 DL Heerlen, The Netherlands
Keywords: Reverse Engineering, Goal Modelling, Prioritising of Goals.
Abstract: We present a method for reengineering a goal model from an existing software product, based on the ideas
of GORE approaches GBRAM and KAOS. We extend the methods with application of specific ranking
criteria to the goal models using Hierarchical Cumulative Voting (HCV). The reengineered goal models are
used to evaluate and compare requirements for alternative goals based on the ranking criteria, thus
providing input for determining the scope of new products or product versions. The method has been tested
in two use cases, one of which is described here.
1 INTRODUCTION
The Belgian company Ferranti Computer Systems
has developed the MECOMS™ software product, a
business support system for energy and utility
companies, providing among others, the Meter Data
Management (MDM) and a Customer Information
System (CIS). With a network of certified partners
across the globe, Ferranti offers worldwide
capabilities for customized implementations of the
software product. These implementations are based
on the standard product developed by Ferranti
(Ferranti Computer Systems, 2013).
The need to develop the new software features is
caused by the market changes and the demands of
different stakeholders, but the budget and
development capacities of the company are always
limited. The MECOMS™ product organization
often faces the questions: Which direction of the
product development should have the highest
priority and why?
Many software supplier businesses find
themselves in this situation. They need a method for
prioritising the activities of the product development
assuming business goals. There is currently no
method for reengineering goal models from existing
software products, based on documentation and
input from domain experts, and employing these
goal models for feature selection for a next product
or product version. In this paper, we propose such a
method.
We started the method development with an
observation that the goals from two dimensions
make influence one on another: the business goals
and the goals of product development. For
modelling of goals in both dimensions, Goal-
Oriented Requirements Engineering (GORE)
(Lapouchnian, 2005) can be used. The goals in the
GORE approaches are represented as trees of sub-
goals refined to requirements. However, relating of
two trees does not make the task of prioritizing the
software development activities observable. That is
why we decided to apply the GORE methods only
for presentations of the software product goals and
relate the business goals to criteria for prioritization.
These criteria become the attributes of the software
product goals. The values of criteria become the
measures of priority. The choice of the criteria and
the values of the criteria are fulfilled using the
Hierarchical Cumulative Voting method (Berander
and Jönsson, 2006) that involves participation of
stakeholders. The results of prioritizing are
presented in the software product goal model to lead
the activities within the development team.
Paper layout: In section 2, we review the basis of
goal-modelling that can be used for reengineering
the goal models. In section 3, we propose a method
for reverse engineering and prioritizing the goal
models of a growing product. Section 4 presents the
results of testing of the proposed method using two
case studies taken from the MECOMS™ software
product. Section 5 summarises our results and
observations and concludes the paper.
204
Willem Harmannij J. and Roubtsova E.
A Method for Reengineering and Prioritizing Goal Models.
DOI: 10.5220/0004775502040209
In Proceedings of the Third International Symposium on Business Modeling and Software Design (BMSD 2013), pages 204-209
ISBN: 978-989-8565-56-3
Copyright
c
 2013 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved

2 RELATED WORK
We agree with the opinion of (Regev and Wegmann,
2005) that Goal-Oriented Requirements Engineering
is an important contribution by the RE research
community and provides many benefits.
Firstly, the GBRAM method (Anton, 1997)
emphasizes the initial identification and abstraction
of goals from various information sources, using
keywords and standard questions for eliciting input
from domain experts and classifying this
information into concepts like goals, constraints,
obstacles and requirements. GBRAM structures the
goal modelling process into several phases:
exploring, identifying, organizing, refining,
elaborating and operationalization.
Secondly, by separating the definition of a goal
and requirement, GORE gives the fundament for
reasoning about the software product in hand.
Thirdly, a goal model can capture variability
through the use of alternative goal refinements,
separating stable information from volatile one, and
making quantitative and qualitative analysis of these
alternatives possible (Lapouchnian, 2005).
Goal models can be developed using a simple
AND/OR tree structure, linking a goal G with sub-
goals G1, G2, …, Gn. An AND relation requires all
sub-goals to be achieved, while an OR relation
provides alternative options. Labelling relations with
identifiers like “++” ,“+”, “-” and “--”, partial goal
satisfaction can be modelled (Giorgini et al., 2003).
There have been several GORE methods defined
over the years that provide more goal modelling
semantics; the most prominent being KAOS (van
Lamsweerde, 2001) and i* (Yu, 1999).
Very little research is available about
reengineering goal models from existing software
systems. Only (Yu et al., 2005) describe a method
for reverse engineering a goal model, but they focus
on design recovery for undocumented software,
creating goal models from legacy code using state
charts and hammock graphs.
However, most software products still have
requirements documented in some form, and
functional experts are often willing to provide
additional information. This means, that it is not
necessary to rely only on legacy code reengineering
the goal models. Existing documentation like
requirements specification documents, user manuals,
marketing brochures and product roadmaps should
be used as a starting and reference point. As the
domain experts often have a busy schedule,
completely relying on their input is a bad strategy
(John, 2006).
Prioritization of goals is not part of any of the
existing GORE modelling methods.
The prioritizing is used only at the level of
software product requirements. According to
(Berander and Andrews, 2005), the prioritizing is
often performed using a hierarchy of high- and low-
level requirements, which are evaluated using
methods like the Analytical Hierarchical Process
(AHP) or Hierarchical Cumulative Voting (HCV). In
our opinion, prioritising at the level of goals
provides more information about the motivation of
priorities and helps to explain the management
decision.
3 A METHOD FOR
REENGINEERING AND
PRIORITIZING OF GOAL
MODELS
In order to design our method of goal-model
reengineering we have combined the useful ideas of
goal-oriented approaches, and extended them with
the process for goal prioritising.
Our method has two different input sorts. At the
stage of initial goal model development, the input is
the documentation of the software product and the
approval of it by the domain experts. At the stage of
prioritising, the input comes from the votes of
experts. The method consists of seven phases, as
shown in Figure 1.
The first four phases (1-4 in Figure 1) copy the
GBRAM method (Anton, 1997), but use
documentation as the input.
During the Explore phase (1), all relevant
documentation is explored. This provides us with
unstructured information, like the terminology used
to describe functionality, core concepts, modules,
etc.
In the Identify phase (2), we try to find the
answers on the WHY-questions and create the first
draft goal models. The draft models are created
using the information obtained during the Explore
phase and input from domain experts in modelling
sessions.
Draft goal models are corrected by experts live
during these sessions, using the KAOS modelling
tool Objectiver™ (Respect-IT, 2007). One of the
reasons why we have chosen to use KAOS instead
other goal modelling methods is that we can easily
separate the parts of goal modelling from other
KAOS functionality (responsibility modelling,
object modelling, operation modelling) by omitting
A Method for Reengineering and Prioritizing Goal Models
205

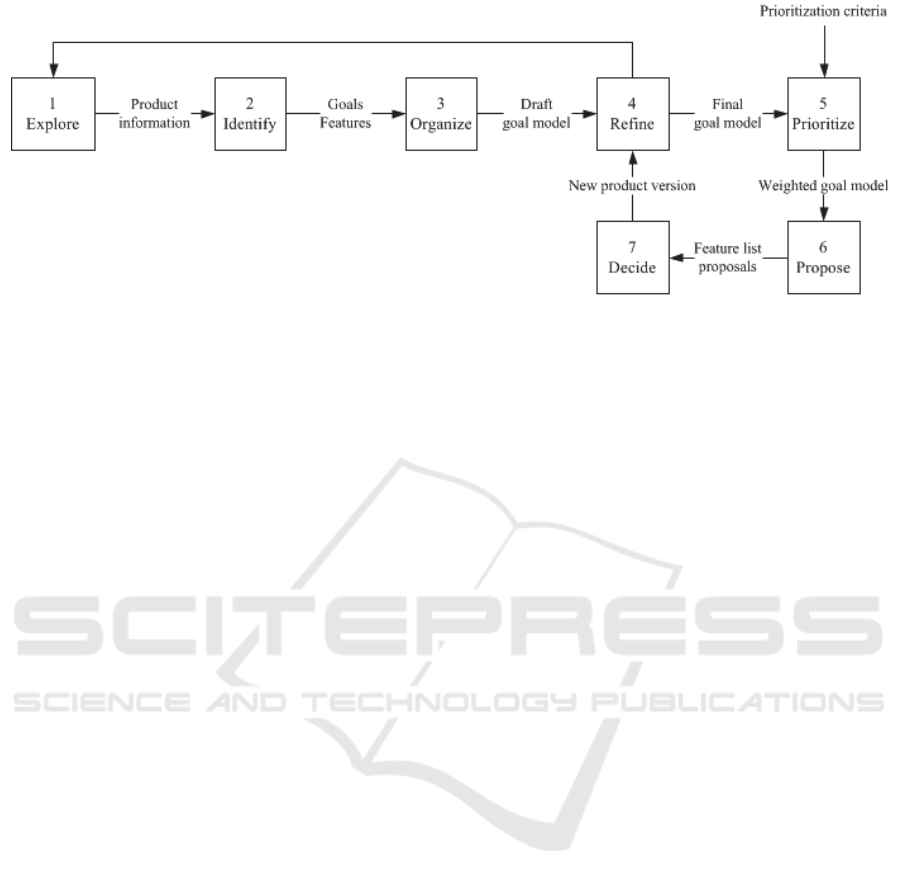

Figure 1: Method for Reengineering and Prioritizing of Goals.
relations with those parts. In other goal–oriented
methods, for example in i*, modelling agent
relationships and rationales is an essential activity
and cannot be separated from the goal model.

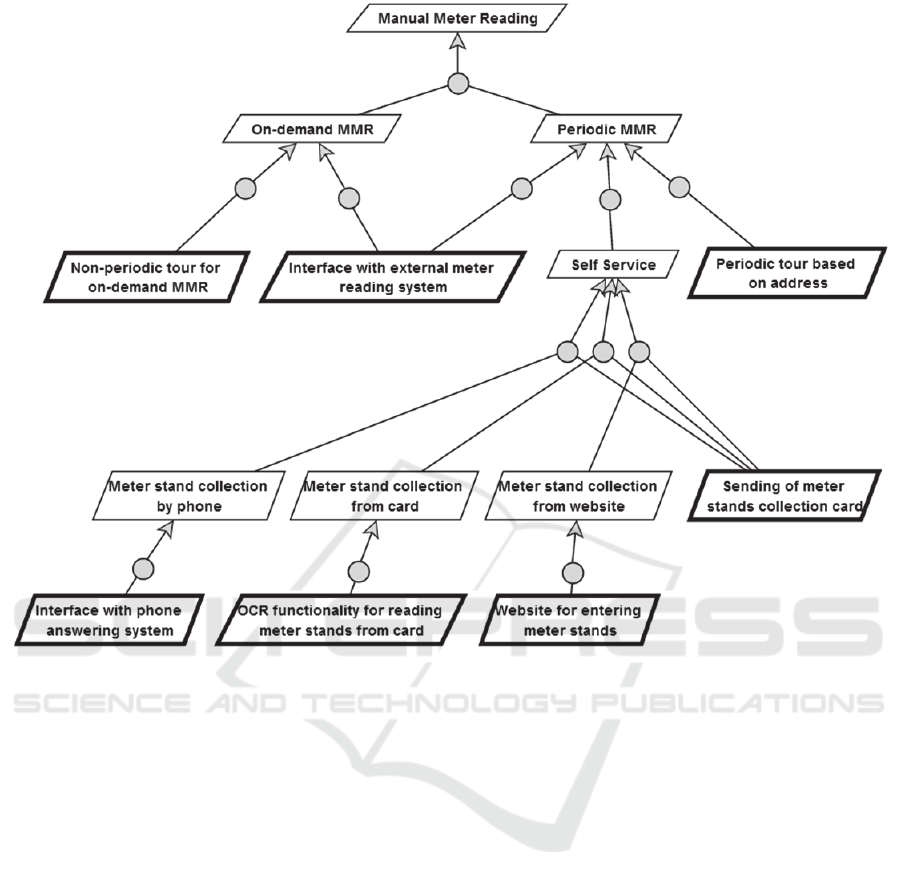

An example model is visible in Figure 2. In
KAOS, goals, obstacles and features are defined
according to the following definitions:
 A goal (a box with thin borders in Figure 2)
describes the visual part of an imaginary state of
the system which can be achieved by fulfilling
all sub-goals (or alternative sub-goals), or in case
of the lowest-level goals, when all linked
features have been completely implemented;
 An obstacle (a red box, not displayed here)
describes an undesirable, but possible system
state. Its sub-goals provide solutions to neutralize
the obstacle.
 A feature (a thick border box) is a group of
related requirements which is implemented in
software (van Gurp, 2003). A feature does not
describe a system state, but the required
functionality for reaching that state. Features are
modelled in KAOS as requirements.
The draft goal models are restructured and
reorganized during the Organize phase (3). The
models are separated into smaller, cross-referenced
graphs, checked for completeness and consistency,
and documented.
During the Refine phase (4), the organized
models are presented to the domain experts and,
with their input, finalized. The alternative goal
refinement options are added for the next prioritising
steps of our method.
The next steps of the method extend the steps of
the GBRAM method. We have added these steps
and an iterative cycle of their application in order to
support the choice or prioritizing criteria and
collecting values of those criteria.
After the Refine phase (4), the goal model of the
system with alternatives of its further development is
ready for the step of prioritising (5). Using a custom
plugin for the Objectiver™ tool, the criteria can be
added as attributes to the structures presenting goals.
First of all, the right criteria should be
determined. Possible criteria include financial value,
cost, urgency, readiness, and several others (Ruhe,
2011). It is highly improbable that these criteria are
all equally important for the software supplier.
Selecting which criteria should be used for
evaluating the product features is a management
decision. The input from the experts is used at this
stage.
When the prioritization criteria have been
determined, the feature alternatives are evaluated
according to these criteria. This evaluation is the
subject of a workshop session with stakeholders
from the software supplier company, such as sales
representatives, product managers and service
managers. These stakeholders define the score of
each alternative goal refinement according to the
chosen prioritization criteria. We use the
Hierarchical Cumulative Voting technique
(Berander and Jönsson, 2006), because of its
hierarchical nature that is easily combined with goal
models, and its suitability for rapidly evaluating a
large number of alternatives and multiple
stakeholders.
The evaluation results on each criterion are
normalized to a scale of 0 to 100 and can be noted as
custom goal attributes in the goal models.
Third International Symposium on Business Modeling and Software Design
206

Figure 2: Part of the MDM goal model, showing “Manual Meter Reading” functionality.
The goal model is now ready to be used for the
proposition of the variations that are possible for the
next product instantiation or product version. Using
the custom prioritization attributes from the goal
model and an analyzing tool like the KAOS query
language OQL, the alternative scope options can be
selected and compared on the basis of the values of
the prioritization criteria. This results in a document
with feature list proposals and their score according
to the criteria that were used for the prioritization of
the goals and features.
During the final Decision phase, one of the
proposals is selected by a Change Advisory Board.
The model can now be refined again (back to phase
4), and a new iteration can be started.
4 APPLICATION OF THE
PROPOSED METHOD
The MECOMS™ system was used in two case
studies to test our method, “Meter Data
Management” (MDM) and “Customer Information
System” (CIS).
We describe here the MDM case, for which a
partial goal model is shown in Figure 2:
1. Explore. By analyzing the documentation of the
Meter Data Management (MDM) functionality,
we found the concepts ‘Manual Meter Reading’
(MMR), ‘Periodic MMR’, ‘On-demand MMR’
and ‘Self Service’. To identify goals, the
documentation is analyzed by asking, “What
goal(s) does this statement/fragment exemplify?”
and “What goal(s) does this statement block or
obstructs?"
2. Identify. The participants named additional goals
and product features, which were modelled using
the Objectiver™ tool on a large screen. For
example, using the question “How do we provide
Self Service functionality in the product?” we
discovered the sub-goals “Meter stand collection
by phone," “Meter stand collection from card”
and “Meter stand collection from website." We
then proceeded to ask the “How?” questions for
the three sub-goals to formulate the features at
the bottom of the model.
A Method for Reengineering and Prioritizing Goal Models
207

3. Organize. The model was then restructured into
several smaller parts, and analyzed for missing
goals and obstructions. These were identified by
asking, “Are there alternative ways for achieving
this goal?” and “Could this goal somehow be
obstructed?” Also, goals that were not yet refined
into features were listed. In the MDM case, the
model was split into smaller parts for different
functional areas. This resulted in 7
interconnected partial goal models.
4. Refine. In a second session with the domain
experts, the missing concepts were recognized
and added from the documentation. For example,
we modelled a feature “Sending of meter stands
collection card” as a prerequisite for all “Self
Service” sub-goals.
5. Prioritize. Goals and features that were not yet
(completely) realized, were prioritized using the
Hierarchical Cumulative Voting method
(Berander and Jönsson 2006). The results of the
prioritization phase are presented in Table 1.
6. Propose. From the results of the prioritization
session, a selection of features was proposed for
inclusion in a future MECOMS™ release. This
proposition was supported by information about
the goals that could be achieved by
implementing these features, and the HCV scores
that were assigned by the stakeholders.
7. Decide. A decision about the scope of the next
MECOMS™ release by the Change Advisory
Board has not yet been made. This means the
case study has not been fully completed yet.
However, this last phase is only an endorsement
by the CAB of our proposal, and does not add
more information than what we already have.
The finalized MDM goal model consists of 37 goals,
4 obstacles and 29 features, modelled in 7 partial
(interconnected) goal models. Figure 2 shows a
fragment of the goal model, concerning Manual
Meter Reading (MMR) functionality. Periodic meter
readings can be read into the system by an interface
with an external meter reading system, periodic and
non-periodic tours, or through one of the several
self-service methods. The self-service goal-
refinement alternatives are the meter stand
collection by phone, mail-in card, or company
website. In order to achieve these goals, we need
respectively an automated phone-answering system,
OCR (Optical Character Recognition) software, or a
self-service website. For all three alternatives, a
prerequisite is that first a notification is sent to the
customers: this is modelled as the feature “Sending
of meter stands collection card”.
These goal refinements provide alternative
solutions for achieving the high-level “Periodic
MMR” goal.
Table 1: Score of the MDM features as a result of the
Hierarchical Cumulative Voting method.
Feature Score
Interface with the phone answering system 6,70
OCR functionality for reading meter stands
from card
4,54
Sending of meter stands collection card 20,96
Website for entering meter stands 19,66
Periodic tour based on the address 29,19
Non-periodic tour for on demand MMR 18,96
Some observations
The models created for the MECOMS™ products
were much larger than anticipated. Still they only
cover mostly high-level system goals, and all
requirements have been grouped into features in
order to keep the models to a reasonable size.
We also found that goal refinements are often a
complex combination of AND and OR relations, and
sometimes a XOR-like goal-refinement relation was
needed but was unavailable or would heavily
complicate the model. This resulted in workarounds
and, in a few cases, omissions in the models.
We found that there are no suitable concepts for
modelling maintenance goals in the current version
of the KAOS modelling tool Objectiver™ (Respect-
IT, 2007). We modelled these goals as regular
(achievement) goals.
The criteria that were used to prioritize the goals
and features in the MDM and CIS case studies were
determined by the stakeholders. What we didn’t
expect, was that they opted to use different criteria
for goals and for features. The reason for this is that
features can be evaluated on a much more detailed
level than goals. In our case, the goals were only
subjected to the criterion “Ability to sell”, while the
features were evaluated on six different criteria.
5 CONCLUSIONS
As with any production process, software
development requires support for project planning,
monitoring the current state of the business product
and the next steps of its development at the strategic
level. The goal models of a product are instruments
supporting the product assessment and planning the
steps of its evolution.
Third International Symposium on Business Modeling and Software Design
208

However, the goal models of a real product are
usually large. In order to be observable the goal
models need to have a mechanism of labelling the
goals with priorities and filtering the goals with high
priority.
In this paper, we have presented a method for
building the goal models labelled with criteria
measuring priority. Our method includes an expert
approach to selecting the labelling criteria related to
business goals and collecting the values of the
criteria attributed to each goal and associated
features.
There are different methods for selecting
labelling criteria. Therefore, one of the directions for
future research would be goal prioritization based on
conflicting criteria. Future work could also focus on
the tool support for building the goal models
labelled with priorities and filtering the goals having
the highest priority. The procedures of assessing the
values of the criteria attributed to each goal and
filtering could be used periodically and become a
valuable mechanism for management of software
product-development teams.
ACKNOWLEDGEMENTS
We would like to express our gratitude to Prof. Dr.
Rob Kusters at the Open University of the
Netherlands for his comments, suggestions and
support.
We thank Dr. Robert Darimont, CEO of Respect-
IT S.A., for providing us with a research license and
customized plugin for the Objectiver™ modelling
tool.
REFERENCES
Anton, A. 1997. Goal Identification and Refinement in the
Specification of Software-Based Information Systems.
Ph.D. thesis, Department of Computer Science,
Georgia Institute of Technology.
Berander, P., and Andrews, A., 2005. Requirements
Prioritization. In Engineering and Managing Software
Requirements, 69-94: Springer.
Berander, P. and P. Jönsson, 2006. Hierarchical
cumulative voting (HCV) – prioritization of
requirements in hierarchies. International Journal of
Software Engineering and Knowledge Engineering,
16(06): 819-849.
Ferranti Computer Systems. MECOMS™ Product
Overview. http://www.mecoms.com/product (accessed
March 13, 2013).
Giorgini, P., Mylopoulos, J., Nicchiarelli, E. and
Sebastiani, R., 2003. Reasoning with goal models.
Conceptual Modeling—ER 2002, 167-181.
John, Isabel, 2006. Capturing Product Line Information
from Legacy User Documentation. In Software
Product Lines, edited by Timo Käköla and JuanCarlos
Duenas, 127-159: Springer Berlin Heidelberg.
Lapouchnian, A., 2005. Goal-Oriented Requirements
Engineering: An Overview of the Current Research.
Regev, G. and A. Wegmann, 2005. Where Do Goals
Come From: The Underlying Principles of Goal-
Oriented Requirements Engineering. Proceedings of
the 13th IEEE International Conference on
Requirements Engineering, 253-362: IEEE Computer
Society.
Respect-IT, 2007. A Kaos Tutorial: Objectiver.
Ruhe, Günther, 2011. Product Release Planning:
Methods, Tools and Applications: Auerbach
Publications.
Gurp van, J., 2003. On the Design & Preservation of
Software Systems. PhD dissertation, Computer
Science Department, University of Groningen,
Groningen.
van Lamsweerde, A., 2001. Goal-Oriented Requirements
Engineering: A Guided Tour. In IEEE International
Conference on Requirements Engineering, 249.
Toronto, Canada.
Yu, E., 1999. Strategic Modelling for Enterprise
Integration. In Proceedings of the 14th World
Congress of the International Federation of Automatic
Control, July 5-9, 1999, 5-9. Beijijng, China.
Yu, Y., Y. Wang, J. Mylopoulos, S. Liaskos, A.
Lapouchnian, and J.C.S. do Prado Leite, 2005.
Reverse Engineering Goal Models from Legacy Code.
Requirements Engineering, 2005. Proceedings. 13th
IEEE International Conference on, 363-372: IEEE
Computer Society.
A Method for Reengineering and Prioritizing Goal Models
209
