Application of Dynamic Distributional Clauses for Multi-hypothesis

Initialization in Model-based Object Tracking

D. Nitti

, G. Chliveros

, M. Pateraki

, L. De Raedt

, E. Hourdakis

and P. Trahanias

Department of Computer Science, KU Leuven, Heverlee, BE-3001, Belgium

Institute of Computer Science, Foundation for Research and Technology Hellas, Heraklion, Crete, GR-70013, Greece

Keywords:

Object Tracking, Robot Vision, Particle Filters, Distributional Clauses.

Abstract:

In this position paper we propose the use of the Distributional Clauses Particle Filter in conjunction with a

model-based 3D object tracking method in monocular camera sequences. We describe the model based object

tracking method that is based on contour and edge features for 3D pose relative estimation. We also describe

the application of the Distributional Clauses Particle Filter that takes into account inputs from object tracking.

We argue that objects’ dynamics can be modeled via probabilistic rules, which makes possible to predict and

utilise a pose hypothesis space for fully occluded or ‘invisible’ (hidden-away) objects that may re-appear in

the camera ﬁeld of view. Important issues, such as losing track of the object in a ‘total occlusion’ scenario, are

discussed.

1 INTRODUCTION

Tracking of 3D objects from a monocular camera is

an important problem in service robotics applications

and various approaches have been suggested (Lepetit

and Fua, 2005). Early works utilised 3D CAD mod-

els (Harris, 1992; Koller et al., 1993) and reﬁnement

of the estimated object pose but they do not consider

evaluation and/or prediction of hypothesised object

poses. In fact, most tracking algorithms assume good

pose priors, which can lead to losing track of the ob-

ject in long image sequences.

In effect, the pose hypotheses space is an impor-

tant issue to explore, alongside the use of generated

model feature points which can reduce perspective-

n-point ambiguities in data association (Puppili and

Calway, 2006). In a deterministic setting, (Vacchetti

et al., 2004) employ limited number of hypotheses

and the tracking problem is solved via ‘local’ bundle

adjustment. In a probabilistic setting, large numbers

of pose hypotheses are considered within Sequential

Monte Carlo (SMC) frameworks (Azad et al., 2011).

The issue of ‘re-initialisation’ has been consid-

ered (Choi and Christensen, 2012) for establishing

and generating a higher number of hypotheses (parti-

cles), when degenerate pose estimates occur (e.g. ob-

ject either comes out of the camera frame or is oc-

cluded). However the search space may be too large

to converge to valid pose candidate within reasonable

time. Therefore, key issues in order to not losing track

of the object, given the tracking history, would be to:

• predict the object’s position and spatial relations

when the object(s) is partially or fully occluded,

for long periods of time;

• use of predicted object pose space when the object

becomes ‘invisible’;

• processing time maintains on-line performance.

In this position paper we advocate the use of Dis-

tributional Clauses Particle Filter (DCPF; Section 3)

that utilises a model-based 3D object tracking pro-

cedure (MH3DOT; Section 2). The DCPF predicts

the position of an ‘invisible’ object, whereas the state

transition model is deﬁned with a probabilistic rela-

tional language (Gutmann et al., 2011; Nitti et al.,

2013). The interaction of MH3DOT to and from

DCPF, is sketched in Section 4.

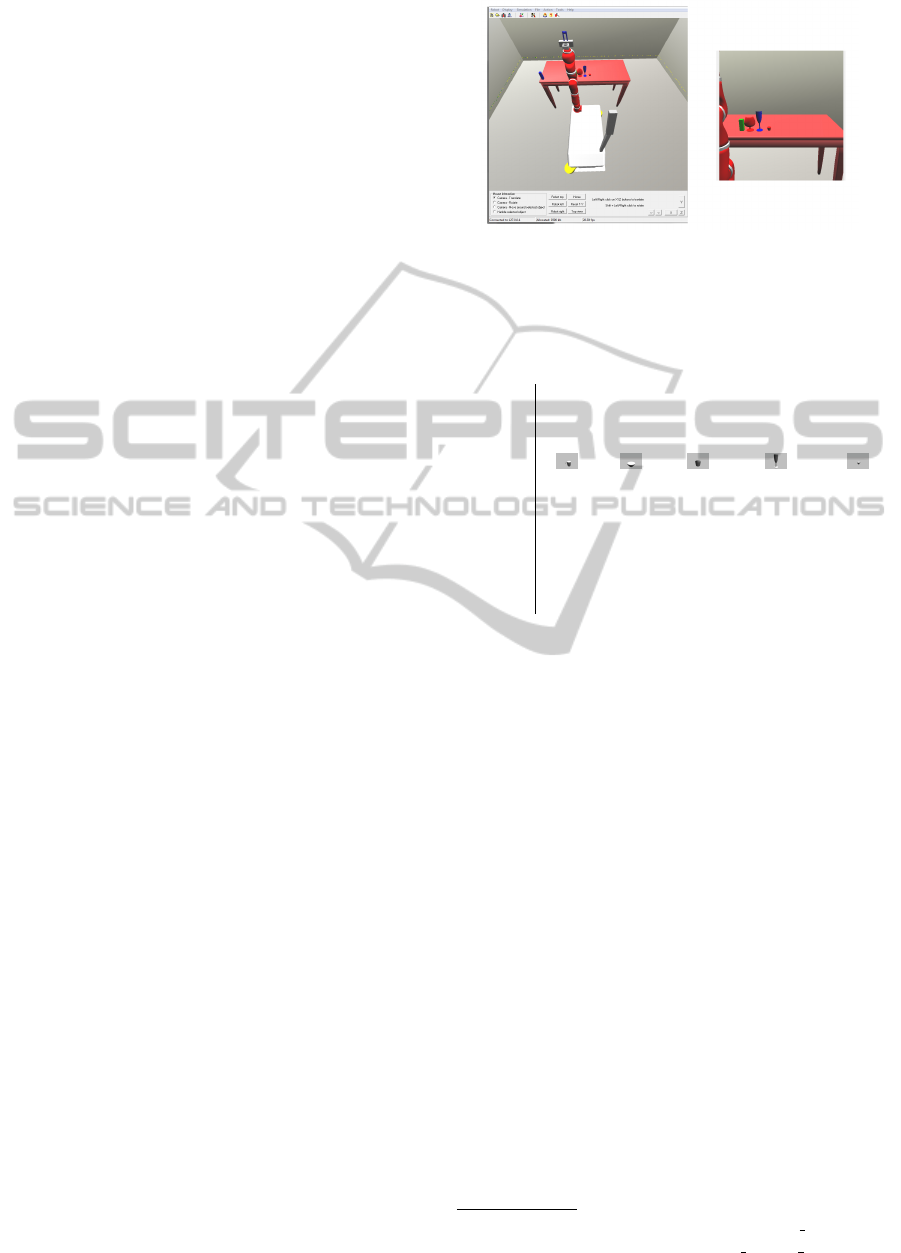

Preliminary results for the described methods, in a

simulated scenario where ground truth data are avail-

able, are presented in Section 5. Concluding remarks

and future work is provided in Section 6.

2 MULTI HYPOTHESES 3D

OBJECT TRACKING - MH3DOT

2.1 Matching and Pose Estimation

Given 3D points from an instance of some pose s from

a known model m

we extract the 3D-to-2D projected

feature model points

. The set of model points are

256

Nitti D., Chliveros G., Pateraki M., De Raedt L., Hourdakis E. and Trahanias P..

Application of Dynamic Distributional Clauses for Multi-hypothesis Initialization in Model-based Object Tracking.

DOI: 10.5220/0004654002560261

In Proceedings of the 9th International Conference on Computer Vision Theory and Applications (VISAPP-2014), pages 256-261

ISBN: 978-989-758-004-8

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

matched with image observed feature points

. This

is performed by employing a nearest neighbour search

whereas we query for each model feature points

and ﬁnd the Euclidean distance for given image ob-

served feature points

using a uniform grid search

subspace. The image observed feature points are pro-

duced from the contour and edges of the model, as per

method described in (Baltzakis and Argyros, 2009)

and further extended in (Pateraki et al., 2013).

Object pose estimation can be performed via point

correspondences C between P = {

} and M =

{

} using a fast nearest neighbour search (Muja

and Lowe, 2009) within an Iterative Closest Point

(ICP) estimation algorithm. However, in the pres-

ence of noise and artifacts resulting, for example,

from a cluttered background, the ICP process can

rapidly deteriorate. This is not the case when using

the Least Trimmed Squares estimator in ICP (TrICP;

(Chetverikov et al., 2005)), since it allows for the two

point sets to contain unequal number of points (i 6= j)

and a percentage of points is offered in a ‘trimming’

operation. The best possible alignment between data /

model sets is found by ‘sifting’ (e.g. sorting) through

nearest-neighbour combinations and ‘trimming’ (e.g.

discarding) the less signiﬁcant pairs. This is in an at-

tempt to ﬁnd the subset with lowest sum of individual

Mahalanobis distances, deﬁned as

i j

= (

−

)

+ S

)

−1

(

−

) (1)

where S

is the covariance, thus the uncertainty, on

the position of point feature

; and respectively for

, which depends on ‘outliers’ and thus the

feature space.

In practice the (robust) Least Trimmed Squares es-

timator and the ‘trimming operation’ does not elim-

inate presence of outliers. Thus, we apply a non-

linear reﬁnement after the TrICP step to ensure that

the inﬂuence of outliers is further reduced; similarly

to (Koller et al., 1993; Fitzgibbon, 2003; Chliveros

et al., 2013).

The minimisation is performed on an objective

function formulated as a sum of squares of a large

number of nonlinear real-valued factors:

= argmin

∑

i=1

||p

− f (s,m

)||

(2)

where f (·) is the function that projects the 3D

model points to the image plane, according to the

parametrised pose s, at translational terms (r

and rotational terms (α

,α

2.2 Model-based Hypotheses Space

The non-linear minimisation problem of Equation 2

can be solved via the Levenberg-Marquardt (LM) al-

gorithm. The Jacobians required by LM (Lourakis,

2010) can be formulated analytically by performing

symbolic differentiation of the objective function.

However, to maintain a good solution search space

for matching the reprojected models, we generate

hypotheses over rotations (α

+ δα

,α

+ δα

,α

δα

). The term δα can be assigned as dictated by

a number of increment steps (N) over the full rota-

tion range (0,π) of the corresponding axis. We gen-

erate said hypotheses only when the error of the LM

minimisation step (Equation 2) exceeds a predeﬁned

threshold.

3 DISTRIBUTIONAL CLAUSES

PARTICLE FILTERING - DCPF

3.1 A probabilistic Relational Language

for Tracking

From a set of objects that are of a known type and

geometry (e.g. mug, bowl, glass), the procedure de-

scribed in Section 2 can provide the pose, colour and

type of the objects that are visible, thus tracked within

the camera ﬁeld of view. However, object tracking is

hard if the object is occluded for a long period, e.g.,

when it is inside a box, hidden, or outside the sensor

range. Indeed, if the hidden object reappears in a to-

tally different position, data association will probably

fail. We deﬁned a model that solves this problem us-

ing a relational probabilistic language; i.e. Distribu-

tional Clauses (Gutmann et al., 2011) and its dynamic

extension (Nitti et al., 2013)).

This language is based on logic programming. We

now introduce the key notions. A clause is a ﬁrst-

order formula with a head and a body. The head is an

atomic formula, whereas the body is a list of atomic

formulas or their negation.

For example, the clause

inside(A,B) ← inside(A,C),inside(C,B)

states that for all A, B and C, A is inside B if A is inside

C and C is inside B (transitivity property). A,B and C

are logical variables.

A ground atomic formula is a predicate applied

to a list of terms that represents objects. For exam-

ple, inside(1,2) is a ground atomic formula, where

inside is a predicate, sometimes called relation, and

1,2 are symbols that refer to objects.

A literal is an atomic formula or a negated atomic

formula. A clause usually contains non-ground lit-

erals, that is, literals with logical variables (e.g.

inside(A,B)). A substitution θ, applied to a clause

or a formula, replaces the variables with other terms.

ApplicationofDynamicDistributionalClausesforMulti-hypothesisInitializationinModel-basedObjectTracking

257

For example, for θ = {A = 1,B = 2,C = 3} the above

clause becomes:

inside(1,2) ← inside(1,3),inside(3, 1)

and states that if inside(1,3) and inside(3, 1) are

true, then inside(1,2) is true. In Distributional

Clauses, the traditional logic programming formal-

ism is extended to deﬁne random variables. A dis-

tributional clause is of the form h ∼ D ← b

,...,b

where the b

are literals and ∼ is a binary predicate

written in inﬁx notation. The intended meaning of

a distributional clause is that each ground instance

of the clause (h ∼ D ← b

,...,b

)θ deﬁnes the ran-

dom variable hθ as being distributed according to Dθ

whenever all the b

θ hold, where θ is a substitution.

The term D, that represents the distribution, can

be non-ground, i.e. values, probabilities or distribu-

tion parameters can be related to conditions in the

body. Furthermore, a term '(d) constructed from the

reserved functor '/1 represents the value of the ran-

dom variable d. Consider the following clauses:

n ∼ poisson(6). (3)

pos(P) ∼ uniform(1, 10) ← between(1,'(n), P). (4)

Clause (3) states that the number of objects n is

governed by a Poisson distribution with mean 6;

clause (4) models the position pos(P) as a random

variable uniformly distributed from 1 to 10, for each

person P such that between(1,'(n),P) succeeds.

Thus if the outcome of n is 2, there will be 2 inde-

pendent random variables pos(1) and pos(2).

A distributional clause is a powerful template to

deﬁne conditional probabilities: the random variable

h has a distribution D given the conditions in the

body b

,...,b

(referred also as body). Furthermore,

it supports continuous random variables in contrast

with the majority of the relational languages. The

dynamic version of this language (Dynamic Distri-

butional Clauses) is used to deﬁne the prior distribu-

tion, the state transition model and the measurement

model in a particle ﬁlter framework called Distribu-

tional Clauses Particle Filter (DCPF).

Finally, particles x

(i)

are interpretations, i.e. sets

of ground facts for the predicates and the values of

random variables that hold at time t. The relational

language is useful for describing objects and their

properties as well as relations between them. Prob-

abilistic rules deﬁne how those relations affect each

other with respect to time.

3.2 Relational Model for Object

Tracking

We deﬁned a model in Dynamic Distributional

Clauses where the state consists of the positions and

the velocities of all objects, plus the relations between

them. The relations considered are left, right, near,

on, and inside plus object properties such as color,

type and size. We also modeled the following physi-

cal principles in the state transition model:

Property 1 if an object is on top of another object, it

cannot fall down;

Property 2 if there are no objects under an object,

the object will fall down until it collides with an-

other object or the ﬂoor;

Property 3 an object may fall inside the box only if

it is on the box in the previous step

Property 4 if an object is inside a box, its position

follows that of the box.

As an example consider property (3). If an object ID

is not inside another object and is on top of a box B,

then it can fall inside the box with probability 0.3 in

the next step. This can be modelled by the following

clause:

inside

t+1

(ID,B)

∼ finite([0.3 :true, 0.7 : false]) ←

not('(inside

(ID, )) = true),on

(ID,B),

type(B,box). (5)

That is to say, a particle at time t with two

objects 1 and 2, where on

(2,1),type(1,box),

type(2,cup),'(inside

(2,1)) = false hold; the

body of clause (5) is true for θ = {ID = 2,B =

1}, therefore the random variable inside

t+1

(2,1)

at time t + 1 will be sampled from the distribution

[0.3 :true,0.7 :false].

Furthermore, if A is inside B at time t, the relation

holds at t + 1 (clause omitted). If an object is inside

the box, we assume that its position is uniformly dis-

tributed inside the box:

pos

t+1

(ID)

∼ uniform('(pos

t+1

(B))

− D

/2,

'(pos

t+1

(B))

+ D

/2)) ←

'(inside

(ID,B)) = true,size(B,D

). (6)

We only showed the x dimension and omitted the ob-

ject’s velocity for ease of exposition. To model the

position and the velocity of objects in free fall we use

the rule:

pos vel

t+1

(ID)

∼ gaussian



'(pos

(ID))

+ ∆t '(vel

(ID))

− 0.5g∆t

'(vel

(ID))

− g∆t

,cov



← not('(inside

(ID, ))= true), not(on

(ID, )). (7)

It states that if the object ID is neither ‘on’ nor ‘in-

side’ any object, the object will fall with gravitational

acceleration g, where we specify only the position

and velocity for the coordinate z. For the coordinates

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

258

x and y the rule is similar but without acceleration.

The gravitational force can be compensated by a hu-

man or a robot that holds the object. Therefore, the

gravitational acceleration is considered with a certain

probability, whereas the relative clause is omitted for

brevity. The measurement model is the product of

Gaussian distributions around each object’s position

pos

(i) (thereby assuming that the measurements are

i.i.d.):

obsPos

t+1

(ID) ∼ gaussian('(pos(ID)

t+1

), cov).

We also need to model that if an object is inside a box,

it will remain inside as long as we do not observe the

object again. Furthermore, the state is extended with

the position and the velocity of an object whenever a

new object is observed (clauses omitted for brevity).

4 DCPF / MH3DOT

INTEGRATION

The proposed approaches (Sections 2, 3) need to be

effectively integrated. The way they interact can have

a signiﬁcant impact on performance. In this section

we describe the proposed approach.

The MH3DOT pose values and object class are the

observations provided to the DCPF with the described

model. When a new object is detected and tracked by

MH3DOT, the observation needs to be associated to

either an existing or new object in the state of DCPF.

This is known as the data association problem. It can

be solved by adding data association hypotheses in

the state space of the particle ﬁlter. This approach is

called ‘Joint Particle Filter’ (De Laet, 2010), though

other solutions are possible.

We assume that the object’s track produced by

MH3DOT (from appearing to disappearing from cam-

era’s ﬁeld of view) is generated by a single object.

Therefore a data association hypothesis consists of a

set of assignments, whereas an object track is linked

to an object in DCPF state. When an object is no

longer visible, the DCPF estimates its position ac-

cording to the described state transition model. For

example, if an object is inside a box it will follow the

position of the box, and if an object is on top of an-

other, it can either ‘fall down’ or remain on top of the

object.

This allows for tracking objects that may return

within the camera ﬁeld of view. For example, if an

object is inside a box, and the box is moved, the ﬁl-

ter estimates that the object position follows the box.

Hence, when the tracker detects a new object near the

box, it can be considered as the same object with high

Figure 1: The simulated environment: (left) the robot envi-

ronment setup; (right) instance of simulated camera output.

Table 1: Quantitative evaluation for the accuracy of the

MH3DOT approach. E

denotes the mean squared error

from ground truth values: E

is in cm and E

, E

is in degrees.

(a) (b) (c) (d) (e)

Model Mug Bowl Glass C. Flute E. cup

2.8 1.8 2.1 1.2 4.1

3.1 2.3 3.2 1.2 4.0

3.2 1.9 1.5 1.2 3.1

5.6 - - - 6.5

probability. Therefore, tracking the object can be suc-

cessfull even if the object is invisible for long periods

of time; even if re-appearing in a totally different than

the last known position.

5 RESULTS

To quantitatively evaluate the accuracy of the meth-

ods proposed in this paper with respect to the tracking

approach, we have used an environment in a custom

simulator

. For the MH3DOT, we have assumed ﬁve

simulation sequences using ROS’s household objects

database

. For the DCPF, we have used simulated se-

quences where the objects in question appear / disap-

pear from the simulated camera’s ﬁeld of view.

In what follows, each of the methods is tested

in fully controlled settings (simulation environment;

Figure 1) in order to extract ground truth and have a

valid visible comparison. The former relates to track-

ing accuracy (MH3DOT, Table 1) and the latter to pre-

dictive capabilities (DCPF, Figure 2).

http://www.youtube.com/watch?v=-AV0iY u2F4

http://www.ros.org/wiki/household objects database

ApplicationofDynamicDistributionalClausesforMulti-hypothesisInitializationinModel-basedObjectTracking

259

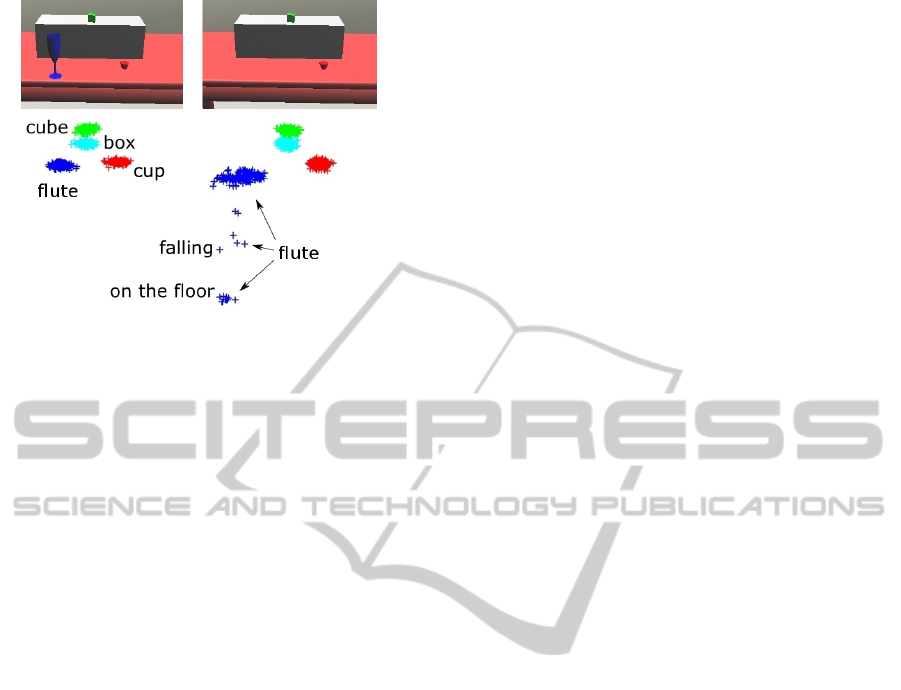

Figure 2: Resulting DCPF prediction (particles’ position

cloud) for a ‘ﬂute’ free-fall from simulated world table.

Evaluation of MH3DOT

Testing for MH3DOT consists of 5 simulated se-

quences. Each sequence consisted of 200 frames, de-

picting a single object from the database which was

located on a ﬂat surface (a table in the simulated

world; see Figure 1). The simulated camera was man-

ually stirred around the object and the relative pose of

the camera with respect to the object was recorded

and used as ground truth.

The proposed algorithm was allowed to run a lim-

ited number of minimisation iterations for each frame

and for a hard coded max number of hypotheses.

The results of MH3DOT are summarized in Table 1,

where each column contains the results of a sequence,

which involves the speciﬁc object. E

is the average

error (in cm) for the camera-to-object distance and

, E

and E

are the average errors (in degrees)

for the rotation angle around each of the x, y, and z

axes of the object. Note that for objects (b),(c) and

(d), no results can be obtained for the rotation around

the z (vertical) axis. This is due to symmetry around

corresponding axis. Also note, that we selected these

objects on purpose because objects of symmetry are

in principle more difﬁcult to track due to their similar

shape from different viewpoints.

Evaluation of DCPF

We tested the DCPF, with the described model, in the

aforementioned simulated environment (as per Fig-

ures 1, 2). The simulated ‘world’ contains four ob-

jects placed on the simulated robot world’s table. In

effect, and with reference to Figure 2, there is a ‘box’

placed on the world table. On top of the box there is a

small toy green ‘cube’, with another two ROS objects

placed on the ﬂat surface of the world table; i.e. the

‘ﬂute’ of colour blue and the ‘cup’ of colour red.

The experiment proceeds by simulated actions

that move objects and remove them from the camera

ﬁeld of view. We test to see whether the DCPF will

correctly predict positions for the database objects,

given the properties and conditions of the DCPF.

The DCPF correctly estimates the positions (and

relations) of invisible objects in several cases. Fig-

ure 2 shows the simulated camera frames and the pre-

dicted positions (particles; hypothesis space) imme-

diately below each image frame. Each predicted po-

sitions’ particle cloud (coloured dot for each parti-

cle) corresponds to the object’s colouring (e.g. the

blue ﬂute object corresponds to the blue predicted po-

sitions’ particle cloud). For example, Figure 2 left

frame green cube, if it falls inside the box (becoming

invisible) DCPF estimates that it is inside the box or

still on top of the box. If we move the box the esti-

mated object’s position follows the box.

In the illustrated example, we tested the case of an

object being dropped from the table (no longer visi-

ble). This is the case with the ‘ﬂute’ of Figure 2 (left),

that disappears after some frames in Figure 2 (right).

The model predicts that the object is ‘on’ the table,

or ‘falling’ down (less likely) or somewhere ‘on the

ﬂoor’ (more likely); see annotation of Figure 2.

6 DISCUSSION

In this position paper we have suggested a new way

for combining predictive capabilities (DCPF) within a

multiple hypotheses methodology (MH3DOT). That

is to say, sampling association variables according to

the state in the DCPF and observations in MH3DOT.

The incorporation of DCPF helps to constraining the

problem of losing track of the object, if it was to

‘disappear’ for long periods of time. The results for

DCPF indicate that it correctly predicts and infers

possible positions (particle clouds) for an object that

is no longer in the camera ﬁeld of view. The current

work, gives us increased conﬁdence on the validity of

this combined methodology.

In future works we intend to directly address the

data association problem. We further aim to testing

in both simulated and real environments; in particu-

lar, for grasping scenarios via semantic queries. That

is, via a relational language (such as distributional

clauses) it is possible to perform high-level queries;

e.g. list of red objects on the table near a glass, with

the relative probability. This will become the basis for

publishing a fully integrated approach alongside new

results.

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

260

ACKNOWLEDGEMENTS

This work was partially supported by the European

Commission under contract number FP7-248258

(First-MM project). Davide Nitti is supported by the

IWT (Agentschap voor Innovatie door Wetenschap en

Technologie) in Belgium.

REFERENCES

Azad, P., M

unch, D., Asfour, T., and Dillmann, R. (2011).

6-DoF model-based tracking of arbitrarily shaped 3D

objects. In IEEE Int. Conf. on Robotics and Automa-

tion, pages 5204–5209.

Baltzakis, H. and Argyros, A. (2009). Propagation of pixel

hypotheses for multiple objects tracking. In Advances

in Visual Computing, volume 5876 of Lecture Notes

in Computer Science, pages 140–149.

Chetverikov, D., Stepanov, D., , and Krsek, P. (2005).

Robust euclidean alignment of 3D point sets: the

trimmed iterative closest point algorithm. Image and

Vision Computing, 23:299–309.

Chliveros, G., Pateraki, M., and Trahanias, P. (2013). Ro-

bust multi-hypothesis 3D object pose tracking. In Int.

Conf. on Computer Vision Systems.

Choi, C. and Christensen, H. I. (2012). Robust 3D vi-

sual tracking using particle ﬁltering on the special Eu-

clidean group: A combined approach of keypoint and

edge features. The International Journal of Robotics

Research, 31(4):498–519.

De Laet, T. (2010). Rigorously Bayesian Multitarget Track-

ing and Localization. PhD thesis, Katholieke Univer-

siteit Leuven.

Fitzgibbon, A. (2003). Robust registration of 2D and

3D point sets. Image and Vision Computing,

21(13):1145–1153.

Gutmann, B., Thon, I., Kimmig, A., Bruynooghe, M., and

De Raedt, L. (2011). The magic of logical inference

in probabilistic programming. Theory and Practice of

Logic Programming.

Harris, C. (1992). Tracking with rigid objects. MIT press.

Koller, D., Daniilidis, K., and Nagel, H. (1993). Model-

based object tracking in monocular image sequences

of road trafﬁc scenes. International Journal of Com-

puter Vision, 10:257–281.

Lepetit, V. and Fua, P. (2005). Monocular model-based 3D

tracking of rigid objects: a survey. In Foundations and

Trends in Computer Graphics and Vision, pages 1–89.

Lourakis, M. (2010). Sparse non-linear least squares opti-

mization for geometric vision. In European Confer-

ence on Computer Vision, pages 43–56.

Muja, M. and Lowe, D. G. (2009). Fast approximate near-

est neighbors with automatic algorithm conﬁguration.

In Int. Conf. on Computer Vision Theory and Applica-

tions (VISAPP), pages 331–340.

Nitti, D., De Laet, T., and De Raedt, L. (2013). A particle

ﬁlter for hybrid relational domains. In IEEE/RSJ In-

ternational Conference on Intelligent Robots and Sys-

tems (IROS 2013).

Pateraki, M., Sigalas, M., Chliveros, G., and Trahanias, P.

(2013). Visual human-robot communication in social

settings. In IEEE Int. Conf. on Robotics and Automa-

tion.

Puppili, M. and Calway, A. (2006). Real time camera track-

ing using known 3D models and a particle ﬁlter. In

IEEE Int. Conf. on Pattern Recognition.

Vacchetti, L., Lepetit, V., and Fua, P. (2004). Stable real-

time 3D tracking using online and ofﬂine information.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 26:1385–1391.

ApplicationofDynamicDistributionalClausesforMulti-hypothesisInitializationinModel-basedObjectTracking

261
