Large-scale Image Retrieval based on the Vocabulary Tree

Bo Cheng, Li Zhuo, Pei Zhang

and Jing Zhang

Signal & Information Processing Laboratory, Beijing University of Technology, Beijing, China

Keywords: Vocabulary Tree, Large-scale Image Retrieval, Optimized SIFT, Local Fisher Discriminant Analysis.

Abstract: In this paper, vocabulary tree based large-scale image retrieval scheme is proposed that can achieve higher

accuracy and speed. The novelty of this paper can be summarized as follows. First, because traditional

Scale Invariant Feature Transform (SIFT) descriptors are excessively concentrated in some areas of

images, the extraction process of SIFT features is optimized to reduce the number. Then, combined with

optimized-SIFT, color histogram in Hue, Saturation, Value (HSV) color space is extracted to be another

image feature. Moreover, Local Fisher Discriminant Analysis (LFDA) is applied to reduce the dimension of

SIFT and color features, which will help to shorten feature-clustering time. Finally, dimension-reduced

features are used to generate vocabulary trees which will be used for large-scale image retrieval. The

experimental results on several image datasets show that, the proposed method can achieve satisfying

retrieval precision.

1 INTRODUCTION

Image retrieval has been an active research topic in

recent years due to its potentially large impact on

both image utilization and organization. Researchers

aim to seek ways that have greater promptness and

accuracy.

Content-Based Image Retrieval (CBIR) is

currently considered as the mainstream method

because of desirable processing speed and

objectivity. It detects and extracts visual features of

image (e.g. global feature and local feature)

automatically by means of image processing and

computer vision algorithm. In most of cases, a

retrieval system takes visual features of a query

image given by a user, and then the features are

compared with the features stored in a database. As

a result, the user will receive images that have

similar features with the query image.

CBIR mainly includes two key parts: feature

extraction and similarity comparison. The features

usually can be divided into two kinds: global

features and local features. The most commonly

used local features contain Scale Invariant Feature

Transform (SIFT, Lowe D. G., 2004), Principle

Component Analysis-SIFT (PCA-SIFT, Ke Y. et al.,

2004), Speeded Up Robust Features (SURF, Bay

H. et al., 2008), and Gradient Location-Orientation

Histogram (GLOH, Mikolajczyk K. et al., 2005) as

well. Relying on grey information of images, SIFT

features which are adopted to operate accurate and

speedy image retrieval from large-scale database can

be invariant to changes of image scaling, rotation,

illumination, and others. PCA-SIFT performs well in

terms of image rotation, blur and illumination

changes, while not at scaling and affine

transformations. Moreover, projection matrix of

PCA-SIFT needs a series of typical images, which is

only appropriate for the specific type. SURF runs

three times faster than SIFT concerning

computational complexity. It also works more robust

than SIFT when blurred images are processed.

Nonetheless, SURF does not operate as well as SIFT

in dealing with images affected by scaling, rotation

and illumination changes. As the extension of SIFT,

GLOH can improve robustness and discrimination

performance of the descriptors.

Establishing an effective index mechanism is

another critical aspect to fulfill fast retrieval in the

large-scale image database. Currently, there are

three kinds of methods: K-D Tree (Böhm C. et al.,

2001), LSH (Gionis A. et al., 1999), and vocabulary

tree (Nist´er D. et al., 2006). K-D tree uses the

nearest neighbour search to build the index of the

images. Its search accuracy is higher in low

dimensional space while the performance of K-D

tree drops rapidly when dimensions are increasing.

LSH can be used to reduce dimensions with multiple

299

Cheng B., Zhuo L., Zhang P. and Zhang J..

Large-scale Image Retrieval based on the Vocabulary Tree.

DOI: 10.5220/0004661802990304

In Proceedings of the 9th International Conference on Computer Vision Theory and Applications (VISAPP-2014), pages 299-304

ISBN: 978-989-758-004-8

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

hash functions which encode in a low-dimensional

space to represent the higher one. However, as code

length and number of images grow, this method can

neither improve query accuracy significantly, nor

offer fair image retrieval performance because a

large number of codes require vast storage space.

Compared with the methods mentioned above,

vocabulary tree can effectively shorten matching

time and improve retrieval performance. The method

based on feature distribution selects the appropriate

cluster centre by integrating different clustering to

generate a tree structure of feature classification.

In this paper, a large-scale image retrieval

method based on vocabulary tree is proposed.

The

novelty of this paper consists of three main aspects.

First, traditional SIFT descriptors are excessively

concentrated in some areas of images, the extraction

process is optimized to reduce the number of SIFT

features. Then, combined with optimized-SIFT,

color histogram in Hue, Saturation, Value (HSV)

color space is extracted as a global feature to

represent image content. Moreover, Local Fisher

Discriminant Analysis (LFDA, Rahulamathavan Y.

et al., 2013) is applied to reduce the dimension of

SIFT and color features, which will shorten feature-

clustering time. Finally, dimension-reduced features

are used to generate vocabulary tree which will be

used for large-scale image retrieval. By comparing

multiple sets of experimental data, it can be

concluded that the proposed method can achieve

satisfying retrieval performance.

The rest of this paper is organised as follows:

section 2 introduces the proposed large-scale image

retrieval framework based on vocabulary tree.

Section 3 presents the experimental results. Final

conclusions are drawn in section 4.

2 LARGE-SCALE IMAGE

RETRIEVAL FRAMEWORK

BASED ON VOCABULARY

TREE

The proposed large-scale image retrieval framework

based on vocabulary tree is shown in Figure 1. First,

features are respectively extracted from image

database. Then, these features whose dimension will

be reduced are used to construct two vocabulary

trees by means of hierarchical K-means clustering

scheme. By counting inverted index (Zobel J. and

Moat A., 1998) based on vocabulary tree, the

features and their indexes are stored in the image

database.

When operating a query, the features of query

image are extracted and indexed as former. The

similarity of images is measured and ranked by

comparing the index of the query image with those

stored in the database. The most similar top-k

images will be regarded as research results and

returned to the user.

As Figure 1 shows, the proposed scheme

includes four segments: feature extraction,

dimensionality reduction, the construction of the

inverted index of vocabulary tree and similarity

measurement. They will be further introduced below.

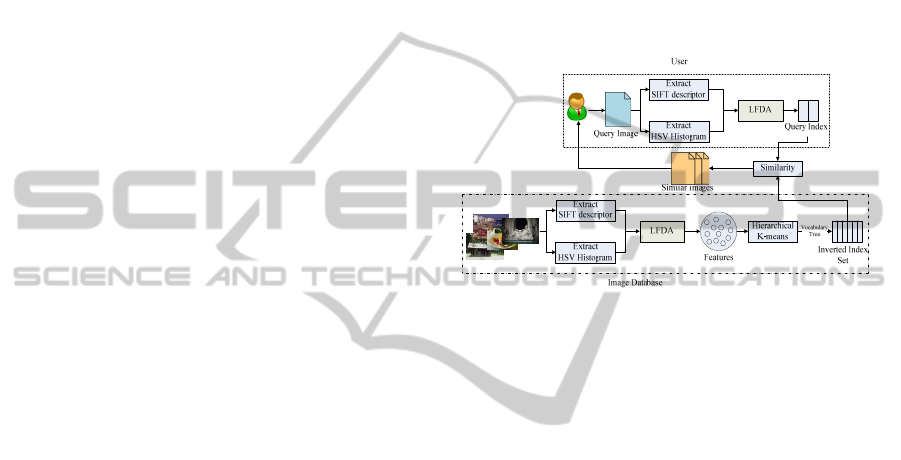

Figure 1: Large-scale image retrieval framework based on

vocabulary tree.

2.1 Feature Extraction

It is clear that feature extraction is one of the most

critical parts of the image retrieval framework. In

this paper, SIFT and color features are extracted as

image features. SIFT extraction procedure is

properly optimized to reduce excessive number of

SIFT features.

2.1.1 SIFT Features

Traditional SIFT extraction is shown in Figure 2(a),

where the crossings present the determined

coordinates of SIFT features.

It can be found that SIFT descriptors are over-

concentrated in the areas with similar characteristics.

Therefore, we propose a method to optimize SIFT

feature extraction procedure to reduce the number of

SIFT features. After optimization, the image content

can be still characterized accurately, but with fewer

SIFT descriptors.

Suppose that Sift

des

[i].x, Sift

des

[i].y respectively

represents the horizontal and vertical coordinates of

i-th SIFT, T

opt

is an optimization threshold, and R

opt

is optimization range. For any two different SIFT

descriptors Sift

des

[i] and Sift

des

[j], when the distance

of horizontal and vertical coordinates of two points

are less than the optimal threshold T

opt

, these two

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

300

(a)Traditional SIFT （b）Optimized SIFT

Figure 2: SIFT descriptors.

points can be merged into one because they exist in

the optimization range R

opt

. Otherwise, it is needless

to optimize. The optimization process can be

represented in Equation (1):

[]. [ ].

[] [ ] && []. [ ].

opt des des opt

des des des des opt

opt

RifSiftixSiftjxT

Sift i Sift j Sift i y Sift j y T

Rotherwise





















，

(1)

The optimized SIFT features are shown in Figure

2(b). Compared with those in Figure 2(a), the

number of the optimized SIFT features have been

reduced remarkably.

2.1.2 Color Features

Since SIFT features merely exploit grey information,

fault detection may happen when images share

similar outline while colors are quite different. To

overcome this shortage, we combine the color

features with SIFT to further improve the retrieval

performance.

Firstly, the color features are extracted in HSV

color space. H, S, V are divided into 8, 3, 3 bins

respectively through the non-interval quantization,

which are represented as H’, S’, V’. According to

Equation (2), each one-dimensional vector consists

of 72 bins. Color histogram formed by the vectors is

used as the color features.

I=H’Q

+S’Q

+V’ (2)

where Q

, Q

are the quantization levels of S’, V’,

and Q

＝3, Q

＝3.

2.2 Dimensionality Reduction

For a large-scale image database, original feature

data can be further simplified by projecting the data

from higher dimensional space into lower space so

that it can ensure the accuracy of retrieval and

reduce the computational complexity of the

following processing steps as well.

LFDA is an effective dimensionality reduction

method, which can reduce the dimension of the

feature vector space while ensuring the recognition

degree of features. In this paper, LFDA is used to

reduce dimensions of features.

The projection matrix W

lfda

consists of

maximizing the local inter-class scatter matrix V

inter

and minimizing the local intra-class scatter matrix

intra

. W

lfda

can be calculated as Equation (3).

int

arg max

lfda



(3)

where L

is the liner transformation matrix,

int ,

()()

er i j i j i j

VInterxxxx







(4)

int ,

()()

ra ijijij

V Intraxxxx







(5)

ij C

Inter

when i C j C

















(6)

(),

ij C

Intra

when i C j C



















(7)

()







(8)

where N is the total number of images, C denotes a

certain kind of classes, and n

is the number of the

Cth class. ρ

=||x

-x

, x

is the

k-nearest-neighbours

of x

(Zelnik-Manor L. and Perona P., 2004), and k is

tuning factor. It reveals that the experimental result

turns ideal when k is set as 7.

In general, the number of extracted features is

much more than that of the images so that the

resulting local intra-class scatter matrix V

intra

singular, which makes the eigenvector matrix

unsolvable. In order to overcome this problem, PCA

is used to reduce the dimension of the input features

so that V

intra

becomes non-singular. W

LFDA

calculated as in Equation (9) and (10):

FDA PCA lfda

WWW



(9)

int

arg max

PCA er PCA

lfda

PCA ra PCA

LW V W L



(10)

It makes the optimal effect working for both inter-

class classification and intra-class.

2.3 Construction of Image Index

based on Visual Vocabulary Tree

Vocabulary tree is an efficient data organization

structure for image retrieval. The construction

process of a vocabulary tree is shown as Figure 3.

In practice, we adopt a hierarchical K-means

Large-scaleImageRetrievalbasedontheVocabularyTree

301

clustering scheme to construct the vocabulary trees

using SIFT features and color histogram respectively.

Each feature vector is compared with the K

clustering centre of each layer in a top-down manner

to select the closest one until the nearest category is

selected. For a vocabulary tree whose height is L,

dot product operations in each layer only need K

times, so the total number of calculation is KL times.

Each leaf of the vocabulary tree is viewed as a visual

word. The number of visual words can be calculated

by Equation (11).













(11)

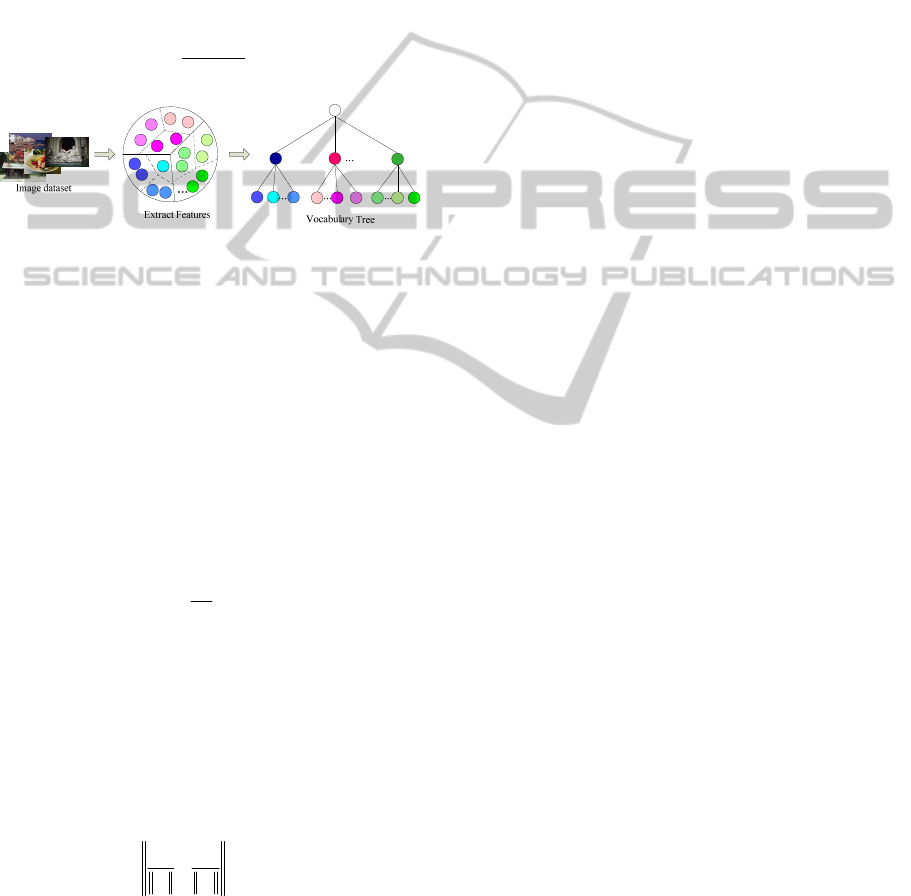

Figure 3: The process of constructing a vocabulary tree.

2.4 Similarity Measurement

The inverted index is used for large-scale image

retrieval in this paper. We measure the similarity

among images using the Term of Frequency-Inverse

Document Frequency (TF-IDF).

In the vocabulary tree, each node i is

corresponding to a visual word C

, the term

frequency of query image and database images

which pass the node i are denoted as q

and d

respectively. The IDF can be computed as in

Equation (12):

log

IDF





(12)

where N is the total number of images, N

is the

number of images which pass the node i.

In this paper, Q

= q

denotes feature vector of

query images and D

= d

denotes feature vector of

images from database. The similarity between the

query image and those from database can be

measured by means of the L

norm as in Equation

(13)：

22 2

|0 |0 |0,0

|0,0

(,) | |

|| || | |

ii ii

iD iQ iD Q

iD Q

Similar D Q Q D

QD QD

 



  

 

 



 



(13)

By calculating the sum of products of image

elements with corresponding dimension, and

selecting specific ones according to similarity

results, the proposed algorithm efficiently simplifies

the traditional distance matching method, and thus

leads to a significant improvement in retrieval speed.

In the similarity measurement, the dimension of

SIFT features and color histogram are reduced and

then used to construct two vocabulary trees

respectively. According to Equation (14), the

similarity of images is measured and ranked by

comparing the index of the query image with those

of the images stored in the database. The most

similar top-k images will be regarded as the research

results:

SIFT HSV

Similar Sim Sim









(14)

where α, β are the weights of the vocabulary trees of

SIFT features and color histogram respectively. By

selecting the appropriate weights, it can facilitate the

image retrieval performance to reach the optimal.

3 EXPERIMENTAL RESULTS

In order to demonstrate the effectiveness of the

proposed large-scale image retrieval, we performed

experiments based on an image database containing

22908 colour images that are chosen from Corel

database, image-searching site BaiDu, and photo-

sharing site Flickr. These images are grouped in

more than 50 categories, such as African people,

flowers, airplane, architecture, etc.

Figure 4 shows the interface of our proposed

large-scale image retrieval system. Initially, 128-

dimentional SIFT features and 72-dimentional HSV

color histogram features are extracted from the

images. Then, LFDA is used respectively to reduce

the dimension of the two features into 16. And the

tuning factor k is set as 7, which will eliminate the

irrelevant redundant information of the high

dimensional features. Next, two vocabulary trees

(branches K=10, height level=3) are constructed

using hierarchical K-means clustering algorithm,

which will generate 1110 visual words. The last step

is similarity measurement. During this procedure,

the weights of α, β are set as α=1.5, β=0.3.

The performance of image retrieval often adopts

precision and recall as the evaluation criteria.

Precision reflects the accuracy of a retrieval

algorithm, while recall reflects the comprehensive-

ness of the algorithm. The precision-recall curves of

the proposed method are shown in Figure 5, where

the vertical axis is precision ratio and the horizontal

axis is recall ratio.

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

302

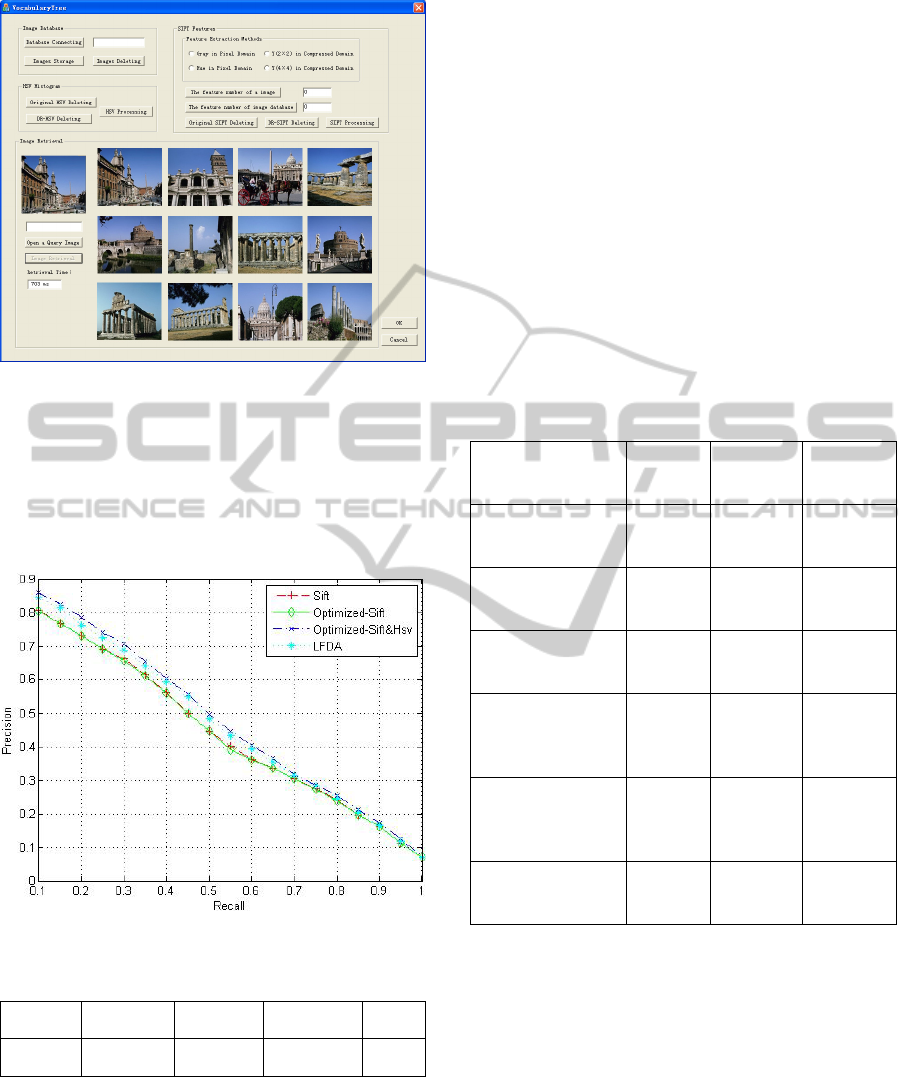

Figure 4: Large-scale image retrieval interface.

As shown in Figure 5, four curves with different

colors are shown, representing the recall-precision

ratio with traditional SIFT, Optimized SIFT,

Optimized SIFT with HSV histogram and dimension

reduced features using LFDA respectively. And

Table 1 shows their precision ratio respectively.

Figure 5: Precision-recall curves.

Table 1: The precision ratio using features.

Traditional

SIFT

Optimized

SIFT

Optimized

SIFT&HSV

LFDA

Precision

ratio

80.6% 80.5% 85.9% 84.3%

From Table 1, it reveals that the performance by

only using the optimized SIFT is an unsatisfactory

result. However, the precision ratio of optimized

SIFT is close to the traditional SIFT, which means

the optimization not only maintains the performance

of image retrieval, but also decreases the

computational complexity of feature clustering

through reducing the number of features effectively.

Combining color histogram and optimized SIFT as

joint image features, the precision ratio has

increased obviously. Furthermore, the performance

by using LFDA to reduce the dimension of feature is

slightly lower than that of the one using features

without dimensionality reduction.

Table 2 shows the comparison results of feature

number and query index construction time of pre-

and post-optimization, and similarity measurement

time during the image retrieval. It can be seen that

the proposed method significantly reduces the

number of images features and improves the speed

of query index construction.

Table 2: The comparison results of feature number and

query index construction time of pre- and post-

optimization, and similarity measurement time during the

image retrieval.

Dataset source Corel1K Corel10K Internet

Images 1,000 9,908 12,000

Feature number of

pre-optimization

628,664 512,439 4,786,023

Feature number of

post-optimization

309,915 356,764 2,253,502

query Index

construction time

of pre-

optimization

380ms 290ms 380ms

query Index

construction time

of post-

optimization

29ms 24ms 29ms

similarity

measurement time

11ms 110ms 120ms

Consequently, it can be concluded that the proposed

method in this paper contributes a stark reduction of

computational expense through decreasing the

number of SIFT features, and projecting SIFT

features and color histogram from high-dimensional

space to low-dimensional space, which still enable a

fast and accurate image retrieval for large-scale

database.

4 CONCLUSIONS

In this paper, a large-scale image retrieval based on

Large-scaleImageRetrievalbasedontheVocabularyTree

303

vocabulary tree is proposed. The method manages to

reduce the number of features by optimizing SIFT

descriptors and combines color histogram and

optimized SIFT in order to reduce the disadvantage

that traditional SIFT did not consider color

information. Moreover, LFDA is adopted to reduce

dimension of features while the image retrieval

performance is still achieved. Finally, fast, efficient

and accurate large-scale image retrieval is realized

by constructing image index based on visual

vocabulary tree.

ACKNOWLEDGEMENTS

The work in this paper is supported by the National

Natural Science Foundation of China (No.61372149,

No.61370189, No.61003289, No.61100212), the

Program for New Century Excellent Talents in

University (No.NCET-11-0892), the Specialized

Research Fund for the Doctoral Program of Higher

Education (No.20121103110017), the Importation

and Development of High-Caliber Talents Project of

Beijing Municipal Institutions

(No.CIT&TCD201304036), the Science and

Technology Development Program of Beijing

Education Committee (No.KM201410005002).

REFERENCES

Bay H., Ess A., Tuytelaars T., Van G. L., 2008. Speeded-

Up Robust Features (SURF). Computer Vision and

Image Understanding, Vol. 110(3), pp. 346-359.

Böhm C., Berchtold S., Keim D. A., 2001. Searching in

high-dimensional spaces - Index structures for

improving the performance of multimedia databases.

ACM Computing Surveys (CSUR), Vol. 33(3), pp.322-

373.

Gionis A., Piotr I., Rajeev M., 1999. Similarity Search in

High Dimensions via Hashing. In Proceedings of the

25th International Conference on Very Large Data

Bases. Morgan Kaufmann Publishers Inc. pp. 518-529.

Ke Y. and Sukthankar R., 2004. PCA-SIFT: A More

Distinctive Representation for Local Image

Descriptors. Proc. Conf. Computer Vision and Pattern

Recognition, pp. 511-517.

Lowe D. G., 2004. Distinctive image features from scale-

invariant keypoints. IJCV, Vol. 60(2), pp. 91-110.

Mikolajczyk K., Schmid C., 2005. A performance

evaluation of local descriptors. IEEE Transactions on

Pattern Analysis and Machine Intelligence, pp. 1615-

1630.

Nist´er D., Stew´enius H., 2006. Scalable recognition with

a vocabulary tree. In Proc. CVPR, Vol. 2, pp. 2161-

2168.

Rahulamathavan Y., Phan R. C. W., Chambers J. A.,

Parish D. J., 2013. Facial Expression Recognition in

the Encrypted Domain Based on Local Fisher

Discriminant Analysis, IEEE Transactions on

Affective Computing, Vol. 4(1), pp.83-92.

Zobel J. and Moat A., 1998. Inverted files versus signature

les for text indexing. ACM Transactions on Database

Systems, vol. 23, pp. 453-490.

Zelnik-Manor L. and Perona P., 2004. Self-Tuning

Spectral Clustering. Proc. 18th Ann. Conf. Advances

in Neural Information Processing Systems, Vol.17, pp.

1601-1608.

http://wang.ist.psu.edu/docs/related.shtml.

http://image.baidu.com/

http://www.flickr.com/

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

304
