A Shooting Simulator from Boats

Pablo Figueroa

, Carlos Francisco Rodriguez

, Jose Tiberio Hernandez

, Juan Camilo Blanco

Raul Oses

and Luis Ballesteros

Systems and Computing Department, Los Andes University, Cra 1 N 18A- 12, Bogota, Colombia

Mechanical Engineering Department, Los Andes University, Cra 1 N 18A- 12, Bogota, Colombia

Keywords:

Virtual Simulation, Shooting Trainer, Military Training.

Abstract:

We present a simulator for militar ﬂuvial boats, in which we concentrate in the task of shooting. Shooting

from a boat is particularly challenging, due to rapid movements, river conditions, and special considerations

that should be taken into account for a shooters security. We present a hardware platform that simulates boat

movements under different scenarios. On top of such platform, a user is able to freely move around, aim a

target, and shoot by using a handle that holds a display and replicates a large gun. Our system can also report

metrics related to a users performance. This paper presents the main hardware and software components, the

main tasks we would like to address in our simulator, the information in users reports, and some preliminary

tests of the implemented functionality.

1 INTRODUCTION

The Virtual Reality (VR) community has been car-

rying out research in shooting simulators for a long

time. The advantages that VR shooting simulators

have for training over traditional methods in real life

are unquestionable, and there are several commercial

products in this ﬁeld. One area that has not been

studied enough is shooting from rapid boats, where

a shooter has to aim at targets at both sides of a river

while another person drives. This task requires co-

ordination between people inside the boat in order

to avoid hazards and facilitate the shooter’s task. It

also requires a lot of skills from a shooter, since boat

movements could be very fast and it could be very

difﬁcult to aim at the targets. A simulator for this sit-

uation could be very useful not only for River-based

Armed Services but also for entertainment purposes

in large video arcades.

This work concentrates on a simulator for a

shooter on a fast boat. We simulate the boat’s move-

ments at high speed, some stimuli from the river, and

people at the river’s banks, both foes and friends.

Since our main purpose is to provide a simulator for

shooting, we do not include a driver. Instead, we use

pre-recorded data from a real boat in order to move

our simulator as similar as possible to a real situation.

This paper is divided as follows. First, we cite

some related work. We then describe the main com-

ponents of our simulator, such as the motion platform,

the shooter interface, the simulation software, and the

reporting system. Later we present some preliminary

results of tests with experts, and ﬁnally we present

some conclusions and future work.

2 RELATED WORK

Simulation Systems in the Military ﬁeld have been

broadly used. Here we ﬁrst mention some general

references to this topic, then we introduce some ex-

amples of related simulators, and ﬁnally we mention

some shooting simulators and how they relate to our

work.

There are several works that describe speciﬁc top-

ics in any military simulation. In (Smith, 1998) , for

example, a small taxonomy and a global architecture

for simulators are presented. (Page and Smith, 1998)

presents an introduction to military training simula-

tion with a very useful glossary that has been used in

many other works. This article enumerates the fol-

lowing problems that developers of simulators face,

which will be addressed by our work also:

• Domain architectures, or how to re-use standard

simulator architectures to accelerate the develop-

ment process and maintainability.

• Terrain, or how terrain data will be represented

Figueroa P., Rodriguez C., Hernandez J., Blanco J., Oses R. and Ballesteros L..

A Shooting Simulator from Boats.

DOI: 10.5220/0004662200880095

In Proceedings of the 9th International Conference on Computer Graphics Theory and Applications (GRAPP-2014), pages 88-95

ISBN: 978-989-758-002-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

among a wide variety of options.

• Behavior representation, or how artiﬁcially in-

teligent entities are represented within a simula-

tor.

• Natural environment, or how to replicate natural

environment data in a simulation.

Some boat simulators have been developed in re-

cent years. For example, the Motion Based Sailing

Simulator (Avizzano et al., 2010) includes fundamen-

tal interaction stimuli and environmental phenomena

such as wind and sea conditions, vessel conﬁguration,

and actions performed by drivers on real maneuvers.

This simulator takes into account a dynamic model

for water and wind that considers 6 degrees of free-

dom (DOF). (Yang, 2008) proposes a mode for eval-

uation of sailor’s skills. In such a mode, formulas

based on fuzzy logic assess a driver’s steering ma-

neuvers and measure deviations from a desired boat’s

heading, course plan, and secure operating thresholds.

(Perez et al., 2006) presents a Simulink tool for rapid

prototyping of Maritime systems. It includes models

for ships, underwater vehicles, and ﬂoating structures.

Overall, it provides models for guidance, navigation,

and control of real time ship simulations.

(Bruzzone et al., 2012) presents a simulator for

both ship pilots and port operators. An operator can

inform a pilot about location of other ships and port

congestion status. This simulator can track how a pi-

lot behaves in his entrance to a port, the time spent

in a port, docking time, and his interaction with other

ships and vessels around. This work is mainly aimed

to the simulation of large vessels in their process of

approaching to a port. (McKenna and Little, 2000)

presents a Submarine simulator where the simulation

focus on submarine engagement. This task can take

several hours in real life due to the complex process of

information gathering before any move can be taken.

This simulator replicates the data gathering process in

real life, and allows users to make decisions based on

a situation. One of its main features is its capability of

speed up the simulation time in order to concentrate

users in the crucial decision making points. (Mertens,

1993) describes an application for High Commander

Ofﬁcers. In such a simulator, Ofﬁcers are involved in

a battleﬁeld situation that force them to make deci-

sions and communicate to their superiors and subor-

dinates.

There are not many references to shooting sim-

ulators in the academic ﬁeld. Most of the refer-

ences we found are commercial systems and some

patents such as (Stephen P. Rosa, 2003; Lvovskiy,

2005; Seet et al., 2001; Takeda et al., 1999; Wang

et al., 1996). Eurosimulator (Dahlberg, 2012) is a

Web based simulator that offers a variety of weapons

such as pistols, riﬂes, and revolvers in several in-

door and outdoor scenarios. ShotPro 2000 (TRO-

JAN, 2012) allows shooting animated targets in natu-

ral scenarios and uses quadraphonic sound. Shooter-

Ready (Christensen, 2000) is a long range simulator

designed to train how environment variables affect a

bullet’s course.

CAPS (Young, 2013) is a shooting simulator for

training police ofﬁcers which are challenged under

special situations to use not only their decision mak-

ing skills but also their guns. This simulator shows

different scenarios on a projection surface, and users

have to react to such situations by sometimes ﬁring

their real weapons with rubber bullets. Noptel 2000

(Supply, 2013) is a training system for army forces

that provides two modes of operation: interior train-

ing for basic shooting and exterior training for com-

bat situations. An interesting aspect of this simulator

is the use of a small device that clearly shows tar-

gets by reﬂecting a laser light on them. Finally, a

live ﬁre,multiscreen simulator is used by the Cleve-

land and Durham Police Authority in the UK (Sys-

tems, 2013) in order to expose police ofﬁcers to a con-

trolled scenario where they can practice their shooting

skills.

Most of these simulators train their subjects in the

use of hand weapons of both short and long range by

showing speciﬁc scenarios where subjects have to de-

cide when and where to shoot at. These simulators

place shooters in a closed virtual space with limited

movements. Most subjects in these simulators are

stationary. These characteristics differ from our pro-

posal, in which we want to recreate the conditions that

shooters have in a moving boat that follows a river

course where targets could be moving.

3 DEVELOPMENT

We present in this section details of our shooting sim-

ulator for fast boats. We divide this description in four

main components, the motion platform that simulates

a boat’s movements, the shooter interface that simu-

lates a gun and measures shooter actions, the report-

ing system that gives information of a shooter’s per-

formance, and the simulation software that receives a

user’s movements, deﬁnes environment stimuli, and

produces visual and auditory feedback.

3.1 Motion Platform

The motion platform is composed by two main ele-

ments: a shooter interaction space and a robot that

AShootingSimulatorfromBoats

produces simulated boat’s movements. These ele-

ments are depicted in Figure 1

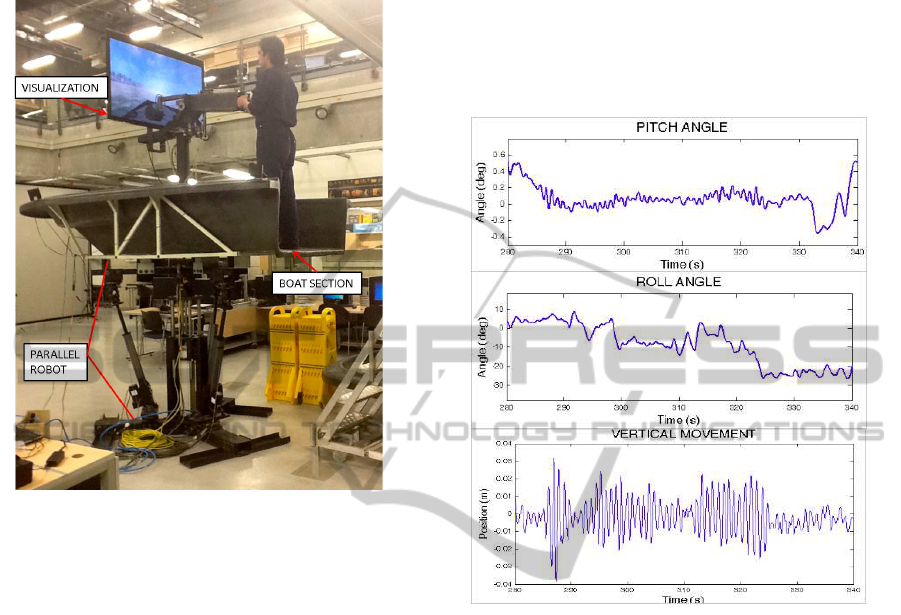

Figure 1: General Elements of Our Simulator.

We wanted feedback from our simulator to be as

real as possible. For that reason, we designed a real

replica of the gun’s handle so users can hold it in the

same way as the real one. We also allow the type

of movements that such a gun has in a real boat, so

it can be aimed to both banks of a river. Finally, a

section of a real boat is replicated in order to allow

trainees to have the same range of movements than in

a real boat. All these elements are mounted on top of

a robot that is capable of lifting all these equipment

plus a trainee. We concentrate our description here in

this robot, while the shooter interface is described in

the next section.

Typical training maneuvers in a real scenario were

measured with a 3-axis accelerometer placed in the

shooter position. Measured accelerations were sepa-

rated into two groups, depending on their frequency,

and we classify them as low frequency accelerations

and high frequency accelerations.

Low frequencyaccelerations are below 0.8 Hz and

can be simulated by tilting our boat replica. In this

way, low frequency accelerations in the longitudi-

nal axis are simulated by pitch rotations, while lat-

eral accelerations are simulated as roll rotations. Low

frequency vertical accelerations such as the ones we

measured would require a larger robot and space than

the one we have available and in this case they were

not cost effective, so we decided to leave them out of

the scope of our robot’s range of movements.

High frequency accelerations were deﬁned as

those between 0.8 and 3 Hz. These accelerations

are simulated directly as linear movements over each

axis. The measurement of yaw rotation was not con-

sidered as the boat didn’t present representative dy-

namics on this type of movements.

Figure 2: Typical Simulator Movements.

An analysis of the processed measurements led

to a low requirement of longitudinal and lateral lin-

ear movements, as they presented high frequency,low

amplitude displacements. With this result, it was de-

termined that a 3DOF robot with roll, pitch and a ver-

tical displacement could produce the required simu-

lator dynamics for training. Figure 2 shows typical

movements of our simulator in terms of angle vari-

ations during time. These movements are produced

from ﬁltering and processing the real boat signal.

Our 3DOF parallel robot is a variation of the robot

presented in (Fattah and Kasaei, 2000), in which we

add a central weight compensator. In terms of the

standard robot nomenclature that describes the type

of joints that fully constraint a robot’s dynamics (Gao

et al., 2002), we designed a 3 UPS + PU robot. The 3

UPS stands for 3 limbs, each consisting of a sequence

of three joints: Universal (U) on the bottom, followed

by a prismatic active joint (P), and a spherical joint

at the top end (S). The PU stands for the central pas-

sive weight compensator. It has a prismatic joint to

the ground (P) ﬁxed to a universal joint at the top (U).

A linear pneumatic actuator keeps a constant verti-

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

cal force at the central prismatic joint, by means of a

pneumatic circuit.

The geometry of this robot was optimized accord-

ing to the simulation requirements, in order to mini-

mize the actuator’s nominal force requirements, while

maintaining an adequate workspace and motion ca-

pabilities of the simulator. The optimization process

and results are presented in (Blanco and Rodr´ıguez,

2010a), (Blanco and Rodr´ıguez, 2012), and (Blanco

and Rodr´ıguez, 2010b).

3.2 Shooter Interface

The shooter interface consists of the physical ele-

ments that surround a shooter, the hardware and soft-

ware that monitor the gun’s orientation and trigger

readings, and the middleware that gives this informa-

tion to the simulation process.

As we showed in Figure 1, on top of our 3DOF

robot we mount a replica of a boat’s bow, with a

replica of a large, moving weapon. The weapon’s tip

is replaced by a 52 inches screen that gives a trainee

a ﬁrst person perspective of the most relevant part of

the virtual scenario in front of him. The weapon has

yaw and pitch rotations, although the screen does not

follow pitch rotations, since shooters are mostly in-

terested in the river bank in front and therefore pitch

rotations are not highly required. Figure 3 illustrates

how the weapon is connected to the simulation soft-

ware. The weapon’s instrumentation gives us the an-

gle in which we have to show the virtual scenario,

so the visualization is synchronized to user’s move-

ments. The weapon’s movement ranges are approx-

imately 180 degrees on the horizontal plane (yaw)

and 90 degrees on the vertical one (pitch), which cor-

respond to the ones that the actual weapon has. In

order to assure a fast and accurately way to capture

the weapon’s movements, two heavy duty incremental

encoders (Stegamnn, 2012) were used. Each one has

1000 pulses per revolution and an output frequency

of 100 KHz. Additionally, the weapon has three pulse

buttons; one is used to capture the ﬁre event, and the

other two capture the sequence of tasks when ammu-

nition is loaded. Since encoders are incremental and

therefore weapon’s orientation should be computed in

terms of a previous one, we deﬁned a callibration pro-

cess that a user should perform in order to deﬁne the

initial position and orientation. Both encoders and

pulse buttons are connected to a Wiring card (Barra-

gan, 2013). Such a card contains a program writen

in the Processing Programming Language (Fry and

Reas, 2013) that receives signals from attached sen-

sors —encoders and pulse buttons in our case— and

produces an optimized output stream, which is trans-

mitted to our simulator in our server.

On the server side we use VRPN (Taylor et al.,

2001) to handle the weapon’s data stream. We de-

signed a VRPN custom device and protocol in or-

der to minimize the data stream coming from Wiring,

which is then translated to the standard VRPN data

stream types, in this case quaternions. We ﬁrst used

a basic, text-based protocol between Wiring and our

server which had delays of up to 400ms. Such delays

generated uncomfortable jitter on our visualization if

our weapon was abruptly moved. We avoided such a

big delay by writing a binary based protocol with a

smaller buffer size. In this way we could create pack-

ets of 8 bytes instead of 128, and reduce our overall

delay for this channel up to 30ms. We also take ad-

vantage of VRPN’s support for multiple clients, in or-

der to provide a simple debugging channel from third

party applications. Finally, a VRPN remote client is

built inside our simulator software through a dynamic

library, in order to read the required information and

facilitate updates.

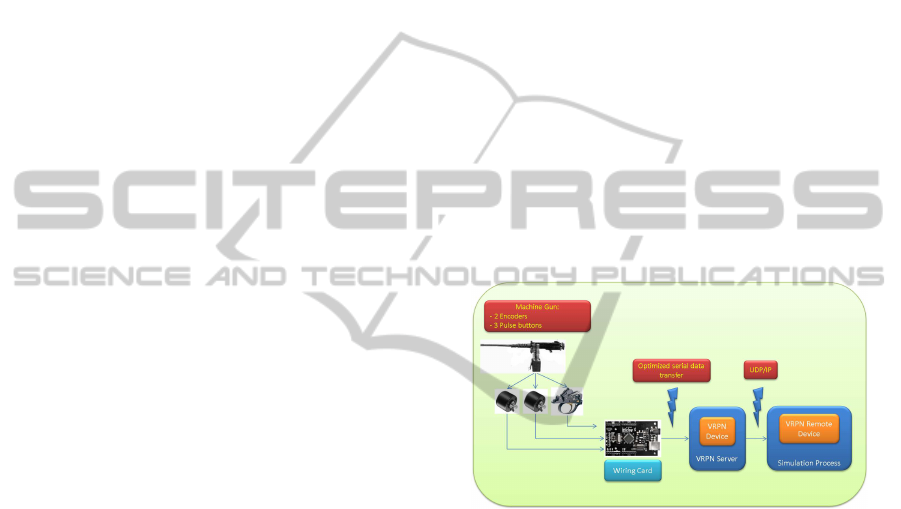

Figure 3: Weapon Connection to our Simulator.

Modiﬁcations in orientation and events from ﬁring

and reloading the weapon are recorded with a times-

tamp in a relational database. This informationis used

by the report system in order to summarize a user’s

session.

3.3 Simulation Software

Our simulation software loads the simulation sce-

nario, deﬁnes the physical platform’s movements,

reads data from the shooter interface, computes the

state changes in the simulation given by user’s input

or environmental changes, and produces visual and

auditory feedback. We use The Unity Game Engine

(Unity, 2013) as the software platform for our simula-

tor, given its ease of development, rich functionality,

and current widespread use.

A general overview of this component is showed

in Figure 4 and it has a similar structure to the one

proposed by (Smith, 1998).

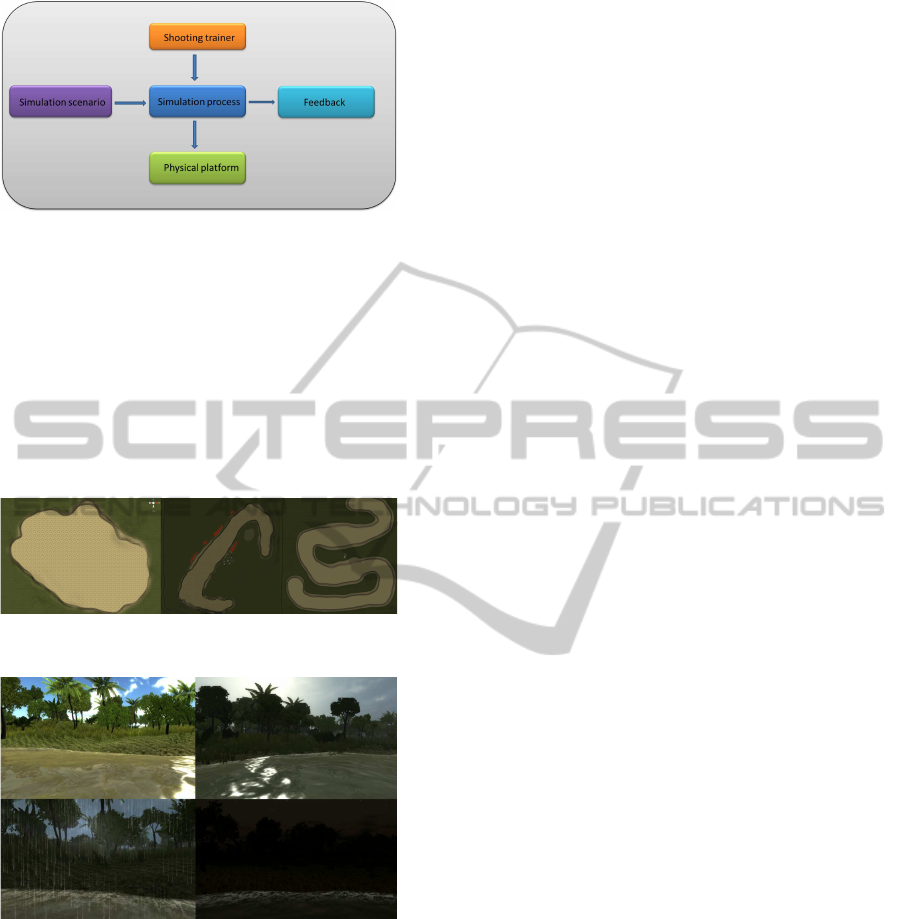

AShootingSimulatorfromBoats

Figure 4: General Components in our Simulator.

3.3.1 Simulation Scenario

We deﬁne several simulation scenarios that allow

trainees to test their skills under several conditions.

Figure 5 shows some terrains we have developed,

which offer different conditions about the location

of friends and foes. Figure 6 presents several atmo-

spheric conditions (i.e dry or rainy weather) and day-

light intensity (i.e. sunny, sunset, cloudy, or night).

Figure 5: Terrain Shapes.

Figure 6: Different Environment Types.

Another important condition in our scenarios is

the difﬁculty of the training session. We deﬁne three

levels of difﬁculty:

• Training: It contains few static enemies that do

not ﬁre back, and it is used to introduce a trainee

to a new terrain.

• Practice: It contains static enemies that ﬁre back,

and it is used to introduce a trainee to a combat

situation.

• Combat: It contains moving enemies spread all

over a terrain, and it is used to simulate a full com-

bat scenario.

The scenario information, i.e. terrain maps, boat

trajectories, and enemy locations, is created with the

Unity built-in editor. Boat trajectories are computed

by an external program that precomputes the speciﬁc

boat dynamics and outputs a text ﬁle, which is used

as input by the simulator and by the motion platform.

3.3.2 Motion Platform Software

Movements in our motion platform are predeﬁned,

since our simulator concentrates on the shooter be-

havior. A non realtime Matlab program creates a text

ﬁle that contains trajectory data for both the motion

platform and the visualization. An embedded VRPN

client receives a stream with the trajectory data and

moves the motion platform accordingly.

3.3.3 Shooting Interface Software

The shooting interface software is a VRPN server on

its own computer that receivesweapon’sbutton events

(i.e. loading and shooting) and movements (i.e. yaw

and pitch) and sends such information to any inter-

ested client.

3.3.4 Simulation Process and Feedback

There are several tasks that are performed by the sim-

ulator at each step. First, it reads the next position

from the boat’s predeﬁned trajectory and sends it to

the motion platform. Then, it reads the weapon’s

events and updates its virtual state. If the weapon’s

trigger has been ﬁred, it starts a bullet’s simulation.

At every step we compute ray - object collisions and

ﬁnd out possible targets to update.

Although there is visual feedback related to bul-

lets, specially during night, the most signiﬁcant feed-

back we generate in any scenario besides visualiza-

tion changes is sound. Wind and boat motors are part

of the constant background in this system, and it is

modelled as stereo feedback. Weapon’s ﬁring sounds

are located in the 3D space, and they are played

both when enemies shoot and when a trainee ﬁres his

weapon. This last sound is the loudest in the system,

which almost silences all other sounds. Visual feed-

back for bullets simulates tracer bullets, special bul-

lets that are used by a shooter to correct his aim. They

are simulated as smaller bullets that are more visible

and do not produce collisions.

Our simulator keeps track of dynamic objects in a

scene and records the creation and impact conditions

of every bullet. It also keeps track of the weapon’s

events. This information is gathered for an off-line

process that creates reports.

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

3.4 Reporting System

We develop a reporting system that collects the user

actions and events generated by the simulation and

subsequently compiles them into a report that shows

the shooter’s performance.

All data collected about the events of the weapon,

timing and bullets whereabouts are dumped into a re-

lational database at the end of each session. In this

way, we register the following events:

• Readings from the weapon (changesin orientation

and pressing or releasing buttons)

• Impact of a bullet over a relevant object

• The event of running out of ammo

• The start and end time of a simulation

Since the above events are too granular to de-

termine the shooter’s performance, we deﬁne tasks.

Each task is a set of events that the user has to accom-

plish at some point along the execution time-line of

the the training session. These are non-overlapping

groups of events, as show in Figure 7.

Figure 7: Data Hierarchy Between Tasks and Events.

Examples of tasks can be:

• Load the weapon

• Aim and shoot a target

• Counterattack an ambush

• Deter enemies by shooting over a speciﬁc area

A task is deﬁned by a collection of events that the

shooter has to accomplish, a collection of events that

could interfere with the normal termination, and the

metric or metrics used to measure it. A back end sys-

tem holds all these data and provides services to gen-

erate reports.

For instance, to accomplish the task of aim and

shoot a target, the shooter has to change the ﬂank of

attack and shoot the enemies in a correct timing. If

ammo runs out before hitting a target, a trainee must

perform a weapon reload and resume shooting. If the

training session ends without reloading, this task has

failed. Two metrics are used to evaluate performance

of this task: elapsed time and number of bullets used.

Both of them are measured from the moment the en-

emy appears to the moment it gets the ﬁrst hit.

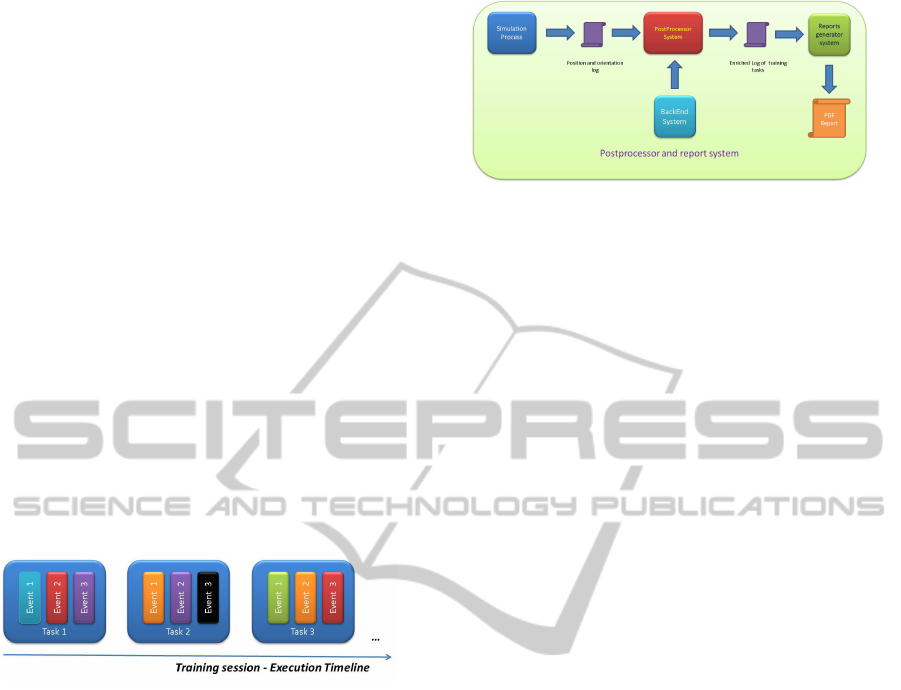

Figure 8: Postprocessing and Reporting System.

Figure 8 shows the process of generating perfor-

mance reports.

The reporting system can generate a PDF ﬁle with

performance information about a session. Some of

the metrics we report are the following: number of

bullets ﬁred to valid targets, bullets impacted areas

nearby a target, and rate of ﬁring.

4 PRELIMINARY RESULTS

We conducted a test session with expert users in order

to evaluate the current implementation of our simu-

lator. Four experts in combat operations with ages

between 28 and 34 and experience from 3 to 7 years

in several rivers of our Country were invited to our

lab. None of them had previous experience with this

type of simulators. They received a short introduction

about our simulator, its capabilities and limitations,

and some instructions for safe use. Each subject had

to go on top of the motion platform, hold the weapon

at all times, identify the location of enemies that were

shooting at the boat and ﬁre at will. They had to pay

attention to the stimuli from the motion platform, vi-

sual and auditory cues in order to identify enemies,

and they were asked to move in order to cover their

ﬂanks.

Sessions last 7 minutes, the time for our prere-

corded movements. We used the normal river terrain

with rainy conditions and we deﬁned a rough situa-

tion for river movements. At the end of a session

subjects ﬁlled a questionnaire with questions related

to the simulator and to the relationship between this

experience and a real situation.

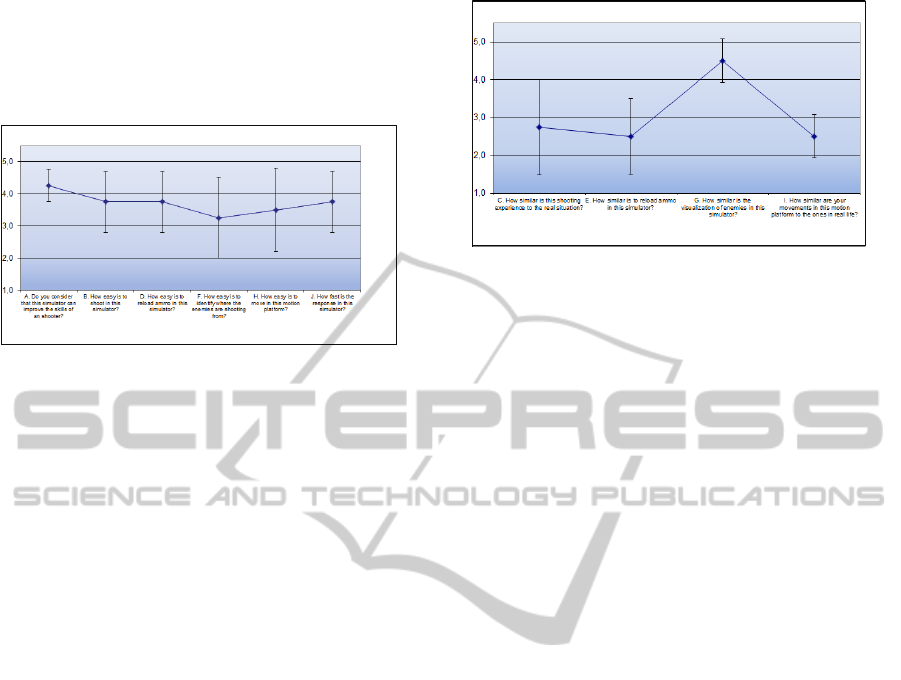

Figure 9 shows the average answers to the ques-

tions related to the simulator, in a scale of 1 (worst) to

ﬁve (best), as follows (Letters in questions correspond

to the original order in the questionnaire):

1. A. Do you consider that this simulator can im-

prove the skills of an shooter?

2. B. How easy is to shoot in this simulator?

3. D. How easy is to reload ammo in this simulator?

AShootingSimulatorfromBoats

4. F. How easy is to identify where the enemies are

shooting from?

5. H. How easy is to move in this motion platform?

6. J. How fast is the response in this simulator?

Figure 9: Questions Related to the Simulator.

In general, subjects see value on the use of a simu-

lator like this for training (A). They found the weapon

easy to use. Although simulator’s response received

a fair mark, it seems it can be improved in future ver-

sions. In the same way, enemy identiﬁcation can be

improved, as well as movements in the motion plat-

form. In this regard, it is possible to think that enemy

identiﬁcation is also difﬁcult in the real scenario, and

in some way we correlate to that fact. They also men-

tioned an exagerated movement as a problem in the

motion platform, and the lack of correlation between

boat movements and enemy ﬁre, which is part of a

real situation.

We asked subjects to answer the following ques-

tions related to the similarities between our simulator

and a real situation:

1. C. How similar is this shooting experience to the

real situation?

2. E. How similar is to reload ammo in this simula-

tor?

3. G. How similar is the visualization of enemies in

this simulator?

4. I. How similar are your movements in this motion

platform to the ones in real life?

Figure 10 shows answers for these questions. We

can see we have to improve our similarity to the real

weapon. In this sense, our mockup is not an exact

copy of the real gun, therefore experts noticed that

fact. We also have to improve on the motion platform

movements. In this regard, since our movements are

precomputed and for this test somewhat exagerated,

experts felt they didn’t correlate to the situation at

hand. However, experts believe the visualization was

good enough for this situation, which encourages us

in our selection.

Figure 10: Questions Related to the Correlation Between Our Simulator and a Real Situation.

Figure 10: Questions Related to the Correlation Between

Our Simulator and a Real Situation.

5 CONCLUSIONS AND FUTURE

WORK

We present a simulator for shooting from ﬂuvial

boats, which consists of a 3DOF motion platform, a

close to reality weapon mockup, a large screen for

visualization, and speakers for sound effects. Move-

ments for the motion platform are derived from the

analysis of measurements in a real boat. We include a

reporting system that shows a shooter’s performance

in terms of number of bullets ﬁred to valid targets,

bullets impacted areas nearby a target, and rate of ﬁr-

ing. Unity, VRPN, and a Wiring embedded system

were used as the basic infrastructure for our simula-

tor. Our simulator has been tested by users with a con-

siderable experience in ﬂuvial combat. Their general

perception is that our system is suitable for enhancing

the shooting training program of shooters.

In the future we plan to improve on some features

pointed out by experts. We also plan to include more

people in the simulation, specially a boat driver.

ACKNOWLEDGEMENTS

The authors would like to thank to the Division of Re-

search and Investigation of the Colombian Navy for

their ﬁnancial support, providing the personnel assis-

tance and advice to carry out the design, construct

and tests of the simulator. Also, we appreciate the

assistance of the professors of the the departments of

Mechanical Engineering and Systems and Computer

Engineering, and administrative personnel of Colivri

laboratory at Los Andes University in Bogot´a Colom-

bia.

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

REFERENCES

Avizzano, C., Tripicchio, P., Joale, L., and Bergamasco, M.

(2010). Design of a motion based sailing simulator. In

RO-MAN, 2010 IEEE, pages 1–7.

Barragan, H. (2013). Wiring open project,

http://wiring.org.co.

Blanco, J. and Rodr´ıguez, C. (2010a). Conﬁguration Op-

timization of a Boat Simulation Platform for a Mo-

bile User. In Proceedings of the ASME 2010 Interna-

tional Mechanical Engineering Congress and Exposi-

tion, IMECE 2010.Vancouver.

Blanco, J. and Rodr´ıguez, C. (2010b). Optimized devel-

opment of a simulation platform for ﬂuvial combat.

Master’s thesis, Mechanical Engineering, Uniandes,

Bogot´a, Colombia.

Blanco, J. and Rodr´ıguez, C. (2012). Optimal Design of a

River Boat Simulator. DETC2012-70456. In Proceed-

ings of the ASME 2012 International Design Engi-

neering Technical Conferences (IDETC) and Comput-

ers and Information in Engineering Conference (CIE),

IDETC/CIE 2012. Chicago, IL.

Bruzzone, A., Longo, F., Nicoletti, L., and Diaz, R. (2012).

Trafﬁc controllers and ships pilots training in marine

ports environments. In Proceedings of the 2012 Sym-

posium on Emerging Applications of M&S in Industry

and Academia Symposium, EAIA ’12, pages 16:1–

16:8, San Diego, CA, USA. Society for Computer

Simulation International.

Christensen, K. (2000). The long range shooting simula-

tion., http://www.shooterready.com.

Dahlberg, E. (2012). Eurosimulator,

http://www.hlberg.dk/eurosimulator/shooting

uk.html.

Fattah, A. and Kasaei, G. (2000). Kinematics and dynam-

ics of a parallel manipulator with a new architecture.

Robotica, 18(5):535–543.

Fry, B. and Reas, C. (2013). Processing,

http://processing.org.

Gao, F., Li, W., Zhao, X., Jin, Z., and Zhao, H. (2002). New

kinematic structures for 2-, 3-, 4-, and 5-dof parallel

manipulator designs. Mechanism and Machine The-

ory, 37(11):1395 – 1411.

Lvovskiy, M. (2005). Training simulator for sharp shooting.

Patent No. 6942486 USA.

McKenna, I. H. and Little, S. (2000). Military concept de-

velopment: developing tactics using low cost, acces-

sible simulations. In Proceedings of the 32nd con-

ference on Winter simulation, WSC ’00, pages 991–

1000, San Diego, CA, USA. Society for Computer

Simulation International.

Mertens, S. (1993). The corps battle simulation for military

training. In Proceedings of the 25th conference on

Winter simulation, WSC ’93, pages 1053–1056, New

York, NY, USA. ACM.

Page, E. and Smith, R. (1998). Introduction to military

training simulation: a guide for discrete event simula-

tionists. In Simulation Conference Proceedings, 1998.

Winter, volume 1, pages 53–60 vol.1.

Perez, T., Smogeli, Ø. N., Fossen, T. I., and Sørensen, A. J.

(2006). An Overview of the Marine Systems Sim-

ulator (MSS): A Simulink Toolbox for Marine Con-

trol Systems. Modeling, Identiﬁcation and Control,

27(4):259–275.

Seet, G., Lau, M., Low, E., and Cheng, P. (2001). A uni-

ﬁed pilot training and control system for underwa-

ter robotic vehicles (urv). Journal of Intelligent and

Robotic Systems, 32(3):279–290.

Smith, R. (1998). Essential techniques for military model-

ing and simulation. In Simulation Conference Pro-

ceedings, 1998. Winter, volume 1, pages 805–812

vol.1.

Stegamnn, I. (2012). Heavy duty incremental encoder,

http://www.stegmann.com/product/incremental.

Stephen P. Rosa, Motti Shechter, J. C. (2003). Firearm

laser training system and method employing an actu-

able target assembly. Patent No. 6575753 USA.

Supply, C. S. (2013). Champion shooters supply, llc,

http://championshooters.com/noptel/index.htm.

Systems, A. I. (2013). Indoor live-ﬁre

multi-screen simulator, http://www.ais-

solutions.co.uk/portfolio/cleveland-durham.php.

Takeda, H., Yamasaki, M., Moriya, T., Minakawa, T.,

Beniyama, F., and Koike, T. (1999). A video-based

virtual reality system. In Proceedings of the ACM

symposium on Virtual reality software and technology,

VRST ’99, pages 19–25, New York, NY, USA. ACM.

Taylor, II, R. M., Hudson, T. C., Seeger, A., Weber, H., Ju-

liano, J., and Helser, A. T. (2001). Vrpn: a device-

independent, network-transparent vr peripheral sys-

tem. In Proceedings of the ACM symposium on Virtual

reality software and technology, VRST ’01, pages 55–

61, New York, NY, USA. ACM.

TROJAN, A. (2012). Shotpro 2000.,

http://www.trojansim.com.

Unity (2013). Unity technologies, http://unity3d.com.

Wang, Z., Hu, Y.-M., and Xie, F. (1996). Optical ﬁber sim-

ulator for shooting and aiming practices. In Bennett,

K. D., Kim, B. Y., and Liao, Y., editors, Fiber Optic

Sensors V, volume 2895 of Society of Photo-Optical

Instrumentation Engineers (SPIE) Conference Series,

pages 475–478.

Yang, Y.-F. (2008). Evaluation of steering simulating for

china coast guard ship in narrow waterway. In ITS

Telecommunications, 2008. ITST 2008. 8th Interna-

tional Conference on, pages 95–98.

Young, D.(2013). Canadian academy of practical shooting.,

http://www.caps-inc.com/c-4-company.aspx.

AShootingSimulatorfromBoats
