Simulation of Surgical Cutting in Deformable Bodies using a Game

Engine

Martin Kibsgaard

, Kasper K. Thomsen

and Martin Kraus

School of Information and Communication Technology, Aalborg University, Aalborg, Denmark

Department of Architecture, Design, and Media Technology, Aalborg University, Aalborg, Denmark

Keywords:

Robotic Simulation, Medical Training, Virtual Reality, Physics Simulation.

Abstract:

Simulators as a training tool for surgeons are becoming more important with the increase of minimally inva-

sive surgery and a wish to limit training on animals, especially in the ﬁeld of robotic surgery. Accessibility

to surgery simulators is currently limited and the ability to cut is restricted. This paper presents a feasibility

study for implementing academic methods in a low-cost game engine. Expanding on previous work, a low-

cost surgery simulator is implemented to adress these issues. We focus on the implementation of cutting in

deformable objects in a game engine. The deformable objects are implemented using a spring mass model

combined with a volumetric tetrahedral mesh. The cutting algorithm is semi-progressive and allows for arbi-

trary cuts in the deformable objects. The prototype was evaluated by a chief surgeon with expertise in robot

surgery and experience with commercial simulators. The low-cost prototype presents a step towards robotic

surgery simulators that are able to simulate complete surgical procedures.

1 INTRODUCTION

Surgery simulators can reduce the amount of surgery

training on animals and patients (Colaco et al., 2012;

Liss et al., 2012). However, accessibility to surgery

simulators is currently limited either because they are

too expensive (Lallas et al., 2005) or because they are

only academic prototypes (Mosegaard, 2006; 2003;

Mor, 2001; Ganovelli & O’Sullivan, 2001). An imple-

mentation of a surgery simulator in a low-cost game

engine, as suggested by Grande et al., can be part of a

solution to both problems (2013).

This paper investigates the feasibility of imple-

menting a surgery simulator in a low-cost game en-

gine. Some of these game engines have functionality

that is needed to create a real-time simulator, which

helps lowering development costs by reusing exist-

ing components such as graphics and physics engines.

We assume that the use of a game engine can ease the

workload for other developers for further research or

commercial products.

To simulate complete surgical procedures, a de-

formable model is needed to simulate tissue. In ad-

dition the deformable model should support cutting,

as dissection of tissue is part of almost every surgical

procedure (Poulsen, 2013).

Only some commercial surgery simulators sup-

port cutting by removing elements from the de-

formable object and robotic surgery simulators are

limited to cutting of one-dimensional objects, e.g.

dissection of a thin vein. On the other hand, some

academic prototypes (Mosegaard, 2006; 2003; Mor,

2001; Ganovelli & O’Sullivan, 2001) support more

advanced cutting of deformable objects.

Our approach tries to reduce the gap between

commercial simulators and academic prototypes by

using a low-cost game engine and thereby reduce de-

velopment costs to make it easier to implement a com-

plete surgical simulator.

Previous work is reviewed in Section 2. The im-

plemented deformable model and cutting algorithm is

described in Section 3. In Section 4 the evaluation of

our solution is described. The paper ends with conclu-

sions in Section 5 and considerations regarding future

work in Section 6.

2 PREVIOUS WORK

This paper builds on research by Grande et al. (2013)

and represents the next step in developing low-

cost surgery simulators for robotic surgery. Grande

et al. (2013) presented a simulation of the controls of

342

Kibsgaard M., K. Thomsen K. and Kraus M..

Simulation of Surgical Cutting in Deformable Bodies using a Game Engine.

DOI: 10.5220/0004670403420347

In Proceedings of the 9th International Conference on Computer Graphics Theory and Applications (GRAPP-2014), pages 342-347

ISBN: 978-989-758-002-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

the da Vinci surgery robot using off-the-shelf hard-

ware, speciﬁcally a Razer Hydra game controller.

This paper continues the work, but focuses on the

software needed for cutting in a low-cost surgery sim-

ulator. Like Grande et al. (2013), this project is imple-

mented using the low-cost game engine Unity 4.0 and

focuses on training simulation for the da Vinci surgery

robot.

The da Vinci Skills Simulator from the same com-

pany focuses on teaching surgeons the robot controls

and not actual surgery procedures. This and other

similar training simulators are fairly expensive and

are perceived as unreasonably priced (Grande et al.,

2013). Current surgery simulators have only limited

support of cutting procedures. Two of the most ad-

vanced surgery simulators on the market are LapSim

and SEP Robot but these are mainly focused on tradi-

tional surgery (Surgical Science, 2013) (SimSurgery,

2013). These simulators simulate cutting by remov-

ing entire mesh elements. This approach is simple

and stable but can have too low resolution for preci-

sion cutting. For robotic surgery we have not been

able to ﬁnd any commercial simulators that support

cutting of more than one-dimensional objects.

To simulate deformable objects, different methods

have been presented. A common and simple method

is the spring mass model. In this model, the object

is represented as a three-dimensional mesh, with ver-

tices representing fractions of the object mass. Edges

in the mesh represent structural springs, that give the

object its deformable properties. Bending springs and

shearing springs can be introduced to increase model

stability and rigidity (Erleben et al., 2005). These

springs can be abstracted to second neighbor springs

for non-grid meshes (Erleben et al., 2005). The spring

mass model creates a system of differential equations

that need an integration method. Mosegaard (2003)

suggests to use a Verlet solver for real time purposes

as it has the best combination of speed and stability.

A different approach to simulate deformable objects

is the ﬁnite element method, which is more physically

correct and precise (Georgii & Dick, 2012). However,

it is more difﬁcult to change mesh topology in real

time with this method (Mosegaard, 2006).

Previous research on real-time cutting in de-

formable meshes can be coarsley grouped into three

categories: element removal, vertex moving and pro-

gressive remeshing (Ganovelli & O’Sullivan, 2001).

The simplest method presented is element removal.

This method removes a geometric element, like a

tetrahedron, when it comes into contact with the cut-

ting tool. This method is fast, but does not provide

realistic looking results and requires high resolution

meshes for precise cutting (Ganovelli & O’Sullivan,

2001). A mainly visual improvement is to move the

vertices from the removed element to the surface of

the cutting instrument, to make the cut the correct

size. This model looks more natural when cut, but

can cause simulation problems with the deformable

model. The last method of cutting is to remesh the

cut element, and have the newly created geometry re-

ﬂect the cut. Using this method a much higher spa-

tial resolution can be achieved in the cut. However,

the method is fairly complex and can have problems

with the increase of model complexity with larger and

numerous cuts (Mor, 2001). A framework for medi-

cal simulation (SOFA, 2011) exists, however it is not

used in this paper as development appears to have

stopped and the paper wishes to expand on (Grande

et al., 2013) by using a commercial game engine.

3 METHOD

3.1 Deformable Model

The spring mass model is chosen as the deformable

model for this project, because of its simplicity and

ﬂexibility in regard to mesh topology. It is applied to

tetrahedral meshes using second neighbor springs to

improve volume preservation and force propagation.

As most objects, especially in game engines, are

only surface representations of solid objects, a sur-

face mesh to volumetric mesh conversion is neces-

sary. For this procedure the program TetGen is inte-

grated with Unity. This program performs Delaunay

tetrahedralization to create a tetrahedral volume mesh

(Si, 2011). A user interface has been implemented for

Unity to enable developers to make this conversion

without any user interaction with TetGen (see Figure

1).

After this conversion, all necessary information is

stored in a comprehensive data structure as seen in

Figure 2. Most of this data structure speciﬁes associa-

tions between the different elements in the tetrahedral

mesh.

Our spring mass model uses Hookes law for

springs to calculate the forces on each vertex. In addi-

tion damping is added to each spring. The force from

a spring on a vertex i is then Equation 1 and 2 com-

bined (Erleben et al., 2005).

= −c



−



−~x





−~x



−~x



(1)

= −c

(~x

−~x

) · (~v

−~v

)



−~x



−~x



−~x



(2)

SimulationofSurgicalCuttinginDeformableBodiesusingaGameEngine

343

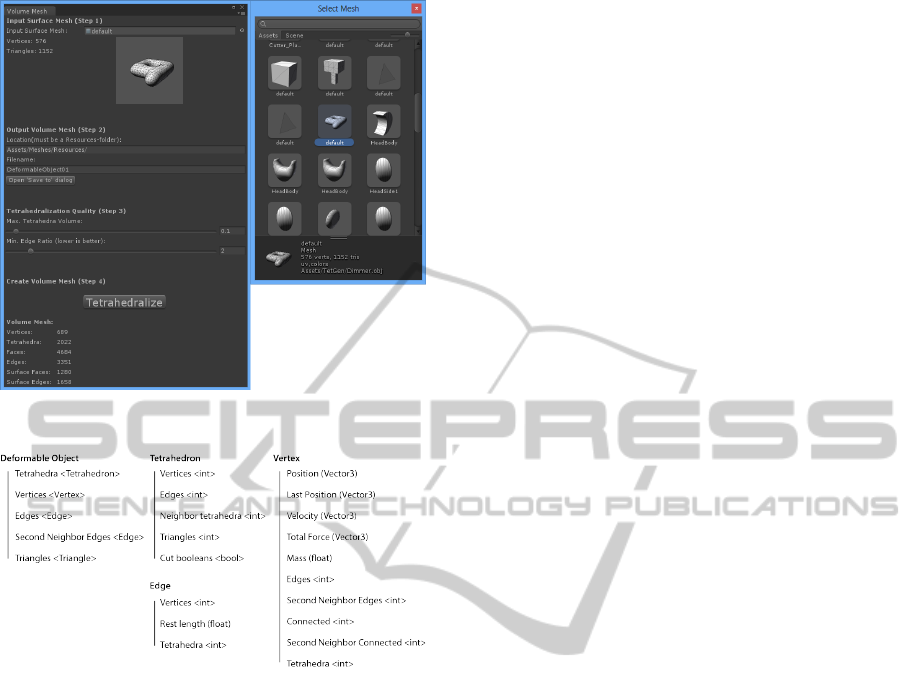

Figure 1: User Interface for converting any surface mesh in

Unity to a tetrahedral volumetric mesh.

Figure 2: Data structures for each deformable object.

<type>indicates that it is a list of type and (type) indicates

that it is an instance of type.

where i and j are the vertices at each end of a spring,

is the force on the i

vertex, c

and c

are the spring

and damper constants, l

is the spring’s rest length, ~x

is position and ~v is velocity.

For added volume preservation in the model, and

to avoid unstable geometric deformations, the concept

of second neighbor springs is implemented. These

springs are calculated the same way as the structural

springs, but have separate spring and damping con-

stants. The forces from all connected springs are used

in Equation 3 to calculate the new position for each

vertex.

i+1

= 2~x

−~x

i−1

+~a

∆t

(3)

where ~x

a vertex’s current position, ~a is acceleration

and t is time.

The Verlet solver is used as it has a good balance

between speed and stability (Mosegaard, 2003). For

each vertex a small linear drag is added to remove

energy from the model and gravity is added to make

the model fall down. To prevent the object from dis-

appearing through the ﬂoor, a collision test with the

ground plane is implemented. If a vertex is below the

ground plane it is moved to the height of the ground

plane, and its velocity is set to zero to approximate

high friction. Lower friction can be achieved by keep-

ing some or all of the velocity.

A similar approach is taken with the interaction

object. Each vertex is tested against a sphere around

the interaction object and moved outside the sphere

and the velocity is set to zero. To simulate grab-

bing of tissue each vertex is tested for being inside the

sphere of inﬂuence of the grabbing object, this sphere

is slightly larger than the collision sphere. If a ver-

tex is inside the sphere of inﬂuence when grabbing

is enabled, forces are applied to the vertex to follow

the grabbing object. This approach is chosen instead

of directly manipulating the vertex position as it al-

lows a cap on the force applied to vertices, which can

guarantee model stability in case of unnaturally fast

interactions.

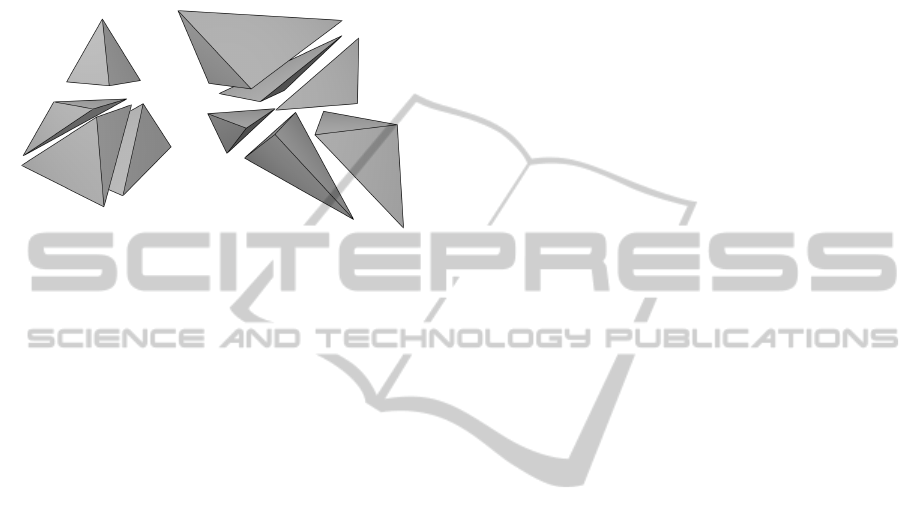

3.2 Cutting

For this paper a simpliﬁed approach based on (Mor,

2001) is presented. The method presented by

Mor (2001) has 60 unique cases of intersections. The

method in this paper seeks to reduce this to only two

cases. This model rests on one simpliﬁcation; only

tetrahedra that are cut completely through are cut in

the model. This eliminates the per element progres-

sive part of the method seen in (Mor, 2001), but it

allows for much simpliﬁcation. The only cases to be

considered in the model are a cut intersecting three or

four edges of a tetrahedron.

The algorithm for the model follows three steps:

detecting intersections, subdividing the mesh and

snapping vertices to neighboring elements.

To detect the intersection, the cutting instrument is

ﬁrst simpliﬁed to one cutting edge. A ray-triangle al-

gorithm is used to test for tetrahedra intersections be-

tween the cutting edge and triangles in the mesh. For

intersections with the edges, the cutting edge expands

a plane from its position from the previous physics

step and its current position. This plane consists of

two triangles which use the same ray-triangle algo-

rithm to detect edge intersections.The edge intersec-

tions are used to determine what type of cut is being

created. The triangle intersections are used to deter-

mine if a tetrahedron is still being cut.

The subdivision of cut elements is imple-

mented using the optimal tetrahedralization found by

Mor (2001) and is illustrated in Figure 3. These sub-

divisions represent the two cases for tetrahedron in-

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

344

tersections.

In order to maintain mesh stability, vertices shared

between subdivided elements must be detected and

snapped to the same position. We base the procedure

on the mesh topology in order to avoid snapping er-

rors in case the object deforms during the cut.

Figure 3: Tetrahedron with three edges cut (left) and with

four edges cut (right). Both cut by a horizontal motion.

The current implementation does not consider de-

generate tetrahedra that make the model unstable.

Ganovelli & O’Sullivan (2001) suggests to collapse

nearly degenerate tetrahedra based on edge-ratio. In

its current form, the model assumes equal mass for all

vertices, which leads to increased mass in cut areas.

Changing the mass to reﬂect the cut exposes the ver-

tices to larger forces in relation to mass, which in turn

lead to model instability. Additionally, the springs

created from a cut spring should have higher spring

constants than the original spring based on Youngs

modulus. However, this also induces larger forces on

affected vertices. A solution to both problems is to

run the simulation at a smaller physics timestep.

4 EVALUATION

Dr. Johan Poulsen, Chief Surgeon at Aalborg Univer-

sity Hospital, helped us evaluate our implementation

of cutting in deformable objects, by comparing it to

real surgery and the hospitals newly acquired robotic

surgery simulation. He performs his surgeries using

the da Vinci robot.

Johan Poulsen conﬁrms that the interaction model

suggested by Grande et al. (2013) mimics the input

of the surgeon’s console (controls to the robot) very

well. However, a stereoscopic display is necessary to

simulate the surgeon’s console properly.

After trying the simulation for a few minutes, Jo-

han Poulsen said that it is a good simulation of the

surgery robot, and that the ability to cut is useful.

With minor additions, it could be a great exercise.

Adding an object in which to place the cut off tis-

sue, and having a visible area of the tissue to remove,

could be such an exercise and would only require a

small amount of extra implementation. The cutting

procedure Johan Poulsen tried during the evaluation

can be seen in Figure 4.

Because Mosegaard (2006) suggests that grav-

ity is not necessary in his heart surgery simulation,

we asked Johan Poulsen about his opinion on the

lack of gravity. For general-purpose surgery simula-

tion, he believes that gravity is required. During real

surgery, gravity is used to control blood ﬂow and vis-

cera placement; e.g. placing the patient almost upside

down to move intestines away from the operating area

during surgery in the lower part of the abdomen. Dur-

ing robotic surgery, a third arm is also sometimes used

to keep the tissue in place while cutting, or to keep

other tissue away. This would be difﬁcult to simulate

realistically without gravity.

Currently, the best training scenario for robotic

surgery is operating on a pig that is still alive (wet

training). The hospital’s current simulator has re-

duced the amount of wet training by some; even with-

out cutting and without any complete surgery exer-

cises. Johan Poulsen believes that with cutting in

a deformable object and a few more technologies, a

simulation can reduce the dependency on wet train-

ing. In addition to cutting, what is required is: pro-

cedural material, suturing and bleeding. Procedural

material (texture) is needed to create visually realis-

tic cutting. The inside of an organ is different from

the outside, and it should be possible for the user to

tell unhealthy tissue from healthy tissue. Suturing and

bleeding are already implemented in current simula-

tors to some degree.

5 CONCLUSION

This paper presents a working prototype for cutting in

deformable objects. The prototype has been evaluated

by an expert user, who found it to be a good simula-

tion of robotic surgery and the ability to cut useful.

The prototype presents a step towards robotic surgery

simulators that can simulate whole procedures, and

presents the feasibility of implementing surgery sim-

ulators in game engines. Some features still need to

be implemented to make the tool commercially appli-

cable.

SimulationofSurgicalCuttinginDeformableBodiesusingaGameEngine

345

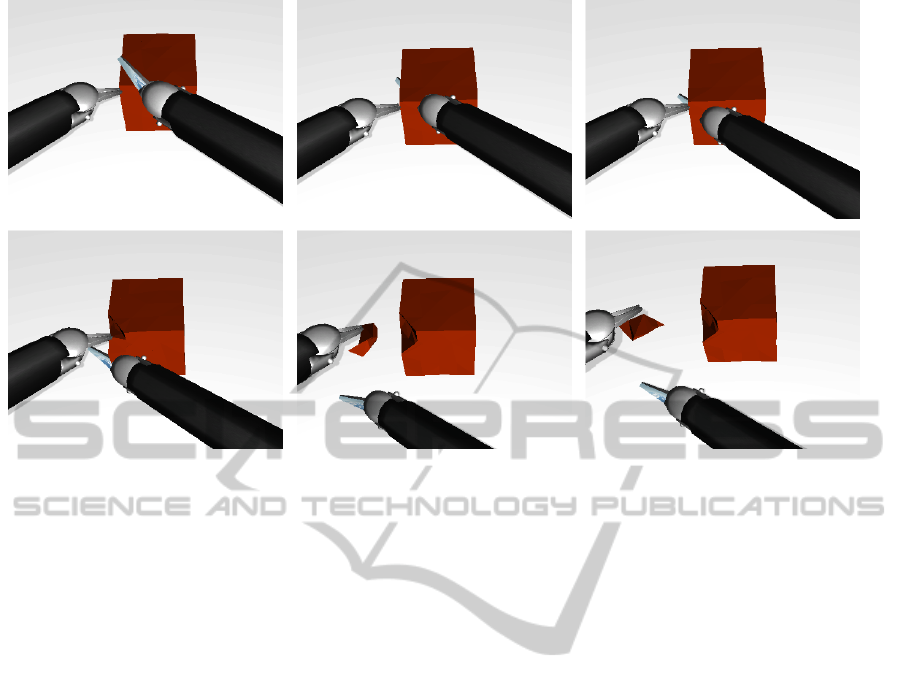

Figure 4: Image sequence of a cutting procedure, where the robot tools are used to remove a corner from a deformable box.

The model contains 74 vertices, 196 tetrahedra elements and a total of 1167 structural and next neighbour springs. It is

running at 475 frames per second with 150 physics steps per second on a i7-3770k at 3.5GHz using one of eight threads.

6 FUTURE WORK

The current deformable model is too elastic to simu-

late tissue because the simulation is only stable and

in real-time for rather small spring constants. To im-

prove performance, the deformable model was also

implemented on the graphics processing unit (GPU).

The massively parallel structure of the GPU allows

many springs to be calculated simultaneously, which

allows for a signiﬁcantly smaller timestep and thereby

larger spring constants. Currently this is not im-

plemented with cutting, as the cutting algorithm re-

quires more advanced data structures that are not eas-

ily transferrable to the GPU. However, the many ray-

triangle calculations in the cutting algorithm could

also be done in parallel on the GPU.

The expert evaluation concluded that several el-

ements are needed before the system can simulate

entire procedures. Suturing is an important part of

surgery and it should be implemented as a part of the

deformable model to have more realistic interaction

with the rest of the simulated procedure. Bleeding is

also an essential part to implement as it is an aspect

that can complicate a surgical procedure by obscur-

ing vision to important areas, as well as it being un-

healthy for the patient. Volumetric texture is needed

for the surgeon to be able to detect unhealthy tissue

and know where to cut. This texture must stay con-

sistent while the object is deformed and must still be

correct with the new topology created by cutting.

ACKNOWLEDGEMENTS

Thanks to Johan Poulsen for sharing his knowledge

and helping us evaluate our prototype. Thanks to

Knud Henriksen for his questions and comments on

the project.

REFERENCES

Colaco, M., Balica, A., Su, D., & Barone, J. (2012). Initial

experiences with ross surgical simulator in residency

training: a validity and model analysis. Journal of

Robotic Surgery, pages 1–5.

Erleben, K., Sporring, J., Henriksen, K., & Dohlmann, H.

(2005). Physics-based animation. Charles River Me-

dia Hingham.

Ganovelli, F. & O’Sullivan, C. (2001). Animating cuts with

on-the-ﬂy re-meshing. Eurographics 2001 - Short

Presentations.

Georgii, J. & Dick, C. (2012). Efﬁcient ﬁnite element meth-

ods for deformable bodies in medical applications.

Critical Reviews in Biomedical Engineering, 40(2).

Grande, K., Kibsgaard, M., & Jensen, R. S. (2013). Low-

cost simulation of robotic surgery. VRIC ’13: Pro-

ceedings of the 2013 Virtual Reality International

Conference.

Lallas, C. D., Davis, & Members Of The Society Of Uro-

logic Robotic Surgeons, J. W. (2005). Robotic surgery

training with commercially available simulation sys-

tems in 2011: a current review and practice pattern

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

346

survey from the society of urologic robotic surgeons.

Journal of Endourology, 26(3):283 – 293.

Liss, M., Abdelshehid, C., Quach, S., Lusch, A., Gra-

versen, J., Landman, J., & McDougall, E. (2012).

Validation, correlation, and comparison of the dv

trainer

and the dv surgical skills simulator

using

the mimic

software for urologic robotic surgical ed-

ucation. Journal of Endourology, 26(12):1629–1634.

Mor, A. (2001). Progressive Cutting with Minimal New El-

ement Creation of Soft Tissue Models for Interactive

Surgical Simulation. PhD thesis, Robotics Institute,

Carnegie Mellon University, Pittsburgh, PA.

Mosegaard, J. (2003). Realtime cardiac surgery simula-

tion. Master’s thesis, Department of Computer Sci-

ence, University of Aarhus, Denmark.

Mosegaard, J. (2006). Cardiac Surgery Simulation - Graph-

ics Hardware meets Congenital Heart Disease. PhD

thesis, Department of Computer Science, University

of Aarhus, Denmark.

Poulsen, J. (2013). Personal communication. Chief Surgeon

at Aalborg University Hospital.

Si, H. (2011). Tetgen: A quality tetrahedral mesh generator.

http://wias-berlin.de/software/tetgen/.

SimSurgery (2013). Sep robot: A learning tool for robotic

surgery. http://www.simsurgery.com/robot.html.

SOFA (2011). Simulation open framework architecture.

http://www.sofa-framework.org/home.

Surgical Science (2013). Lapsim: The proven training

system. http://www.surgical-science.com/lapsim-the-

proven-training-system/.

SimulationofSurgicalCuttinginDeformableBodiesusingaGameEngine

347
