RAID’ing Wireless Sensor Networks

Data Recovery for Node Failures

Ailin Zhou and Mario A. Nascimento

Department of Computing Science, University of Alberta, Edmonton, Canada

Keywords:

Fault Recovery, Wireless Sensor Networks, Useful Network Lifetime.

Abstract:

In wireless sensor networks (WSNs), sensor nodes may fail due to energy depletion or physical damage.

To avoid data loss and incomplete query results when node failure takes place, we propose a node failure

recovery scheme which can recover the data of failed nodes. Our scheme incorporates data redundancy and

distributes, in an effective and storage efﬁcient manner, redundant information among nodes in the WSN.

When a node fails, the remaining functioning sensors can use the redundant information regarding the failed

node to recover its data. An energy consumption model is also presented for calculating the communication

cost of the proposed scheme. We use simulations to compare the network lifetime with and without recovery

being involved, where the network lifetime is deﬁned as the time that a node failure is observed and its data

can not be recovered. Our experimental results show that the recovery scheme can yield a lifetime up to three

times longer than that of no-recovery scheme.

1 INTRODUCTION

A wireless sensor network (WSN) is made up of large

numbers of sensor nodes that use wireless communi-

cation protocol to communicate. The sensor nodes

can collect, process and exchange sensed data in a

large area to achieve various goals autonomously. The

collected data is typically forwarded to sink node(s)

for further data analysis.

Sensor nodes come with limited energy supply

and when it is depleted the node simply stops work-

ing. The fact that sensors are often deployed in

harsh and unattended areas renders them vulnerable

to physical damage. Usually, the sink issues queries

for gathering the sensed values from the sensor nodes.

When a node fails, the query responses from the sen-

sor nodes will be incomplete.Therefore, it is desirable

for a WSN to have some fault recovery ability so that

the network can provide accurate information to the

user in the presence of node failures.

The goal of our work is to maintain high data

availability and guarantee the completeness of query

results when sensor node failure and data loss take

place. RAID (Redundant Array of Independent

Disks) is an original storage technique that distributes

data and utilizes redundant disks for data recov-

ery (Patterson et al., 1988). Similar to the idea of

RAID, we propose to let each sensor node store some

redundant information about all its direct neighbors.

By incorporating data redundancy into the network,

our scheme can recover the sensed data of an already

failed node and therefore return the correct query re-

sults as if there were no failure in the network.

Our scheme is different from previous works in

WSN research. We do not aim at minimizing the en-

ergy consumption of data dissemination or tolerating

link failure. Instead, we focus on the data manage-

ment level, in particular a RAID-like technique, to

achieve fault tolerance at the cost of additional data

communication. To the best of our knowledge, this

is the ﬁrst attempt to achieve in-network node failure

recovery for wireless sensor networks.

The remainder of this paper is organized as fol-

lows: Section 2 reviews recent research on fault tol-

erance in WSNs. Section 3 introduces our proposed

data recovery scheme, as well as the energy consump-

tion model we adopt. The analysis of the experimen-

tal results is presented in Section 4. A brief conclu-

sion and possible future work directions are discussed

in the ﬁnal section.

2 RELATED WORK

Many researchers have focused on designing fault tol-

erant routing protocols. According to a survey (Al-

298

Zhou A. and A. Nascimento M..

RAID’ing Wireless Sensor Networks - Data Recovery for Node Failures.

DOI: 10.5220/0004672702980308

In Proceedings of the 3rd International Conference on Sensor Networks (SENSORNETS-2014), pages 298-308

ISBN: 978-989-758-001-7

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

wan and Agarwal, 2009), fault tolerant routing tech-

niques can be classiﬁed into two main categories: re-

transmission and replication. Retransmission is quite

popular since the packet loss rate in WSNs is higher

than in traditional networks. Two popular replica-

tion mechanisms are multipath routing (Karlof et al.,

2003; Ganesan et al., 2001) and erasure coding (Wang

et al., 2005). In the former approach multiple copies

of sensed data are transmitted over multiple routing

paths so that the data can successfully reach its desti-

nations, so long as one path is free from node failures

along the way. Thus, the multipath routing protocols

are more resilient to node failures at the expense of

increased overall trafﬁc. Erasure coding is another

replication approach aiming at enhancing fault tol-

erance in WSNs. The basic idea is to add K parity

fragments to the M data fragments to have a total of

M + K fragments, which are divided into sub-packets

and transmitted over multiple paths. The sink can re-

construct the original data when at least M out of the

M + K fragments have been successfully transmitted.

Most of the existing fault tolerance techniques

in WSNs simply isolate the failed or malfunctioning

nodes in the communication layer and ignore the data

of the failed node as in (Marti et al., 2000). In these

papers, fault tolerance is achieved in the sense that

the networks can still fulﬁll the sensing tasks in the

presence of failures. However, these approaches do

not deal with the recovery of the failed node. Once a

node has failed, the data stored in the failed node is

lost with these approaches.

Similar to our goal, Chessa and Maestrini (Chessa

and Maestrini, 2005) present a fault recovery mecha-

nism to cope with node failures in single hop WSNs.

They proposed to partition the memory of sensor

nodes into two parts, one for storing its own sensed

data and the other for storing redundant data used for

recovery. By keeping redundant data of other sensor

nodes this scheme is able to recover data loss after

a node failure. The redundant concept is similar to

our work. However, their mechanism can only deal

with single node failure within not realistic single hop

WSNs, whereas our work can be applied to multi-hop

WSNs and can cope with multiple node failures at the

same time.

3 PROPOSED NODE FAILURE

RECOVERY SCHEME

To investigate the performance gain and the energy

consumption overhead under a generic network topol-

ogy setting, the ﬁrst assumption we made is that the

topology of the network is ﬂat, i.e., that there are

no hierarchical structures or cluster heads that are in

charge of other nodes within their domain. All the

nodes are considered as having the same signiﬁcance

and are equipped with the same amount of storage

space, computation resources, communication capac-

ity and initial energy supply. The sink is considered as

being constantly charged by a reliable energy source.

We assume that sensor nodes are stationary after be-

ing deployed, each node operates within a ﬁxed radio

range and, while nodes themselves can fail, links be-

tween nodes are reliable. Finally, since our approach

depends on location of sensors and neighborhood re-

lationships between sensors, we assume that the sink

stores the whole network topology and each sensor

node has a list of all the neighbors that reside within

its communication range; this can be achieved using

inexpensive GPS modules at deployment time.

3.1 System Model

We consider a WSN composed of large numbers of

sensor nodes with one single sink located at the cen-

ter of the deployment ﬁeld, however, this can be eas-

ily generalized to other cases. The sensor nodes do

continuous and periodic sensing and data collection at

their locations. A sensor node can be either in an alive

or a failed state. The transition from an alive state to a

failed state is one-way and irreversible. Our premise

is that when one node fails, the remaining alive sen-

sor nodes should be able to cooperate and recover the

sensed data of the failed node by utilizing the redun-

dant information stored in the alive nodes. There-

fore, the remaining alive sensor nodes can success-

fully handle queries with regard to the failed node, as

if there were no node failure.

At the beginning of each round, the sink generates

a query message specifying the target query area. The

query message is in the format of [Center, Radius]

where Center represents the coordinates of query cen-

ter. The query message is then ﬂooded to the whole

deployment ﬁeld

. Upon receiving the query mes-

sage, each node determines whether it is within the

query area and will respond (or not) to this query.

We aim to incorporate in-network data redun-

dancy to achieve node failure recovery. The main

idea is about properly preserving the sensed data of

one node in its neighboring nodes so that in case this

node fails, the neighboring nodes still have access to

sufﬁcient information for recovering the data of the

failed node. To achieve this goal, we propose to parti-

tion the storage unit of a sensor node into two separate

There are protocols more efﬁcient than simple ﬂood-

ing, but their usage is orthogonal to our purposes in this this

paper.

RAID'ingWirelessSensorNetworks-DataRecoveryforNodeFailures

299

sections, one for storing its own periodically collected

data and the other for storing the redundant informa-

tion with regard to the sensed data of all its neighbors.

The storage unit of sensor nodes are partitioned

into D

and P

where i represents the node ID. D

the same as the storage unit of common sensors and

the data it stores is named SensedData. P

is respon-

sible for storing the redundant information of all this

node’s direct neighbors and the data it stores is called

ParityData. Each time a node samples new data, the

node not only updates its D

section but also sends a

copy of the newly sensed data to all its direct neigh-

bors so that the neighboring nodes can update their P

sections by calculating the parity of all the received

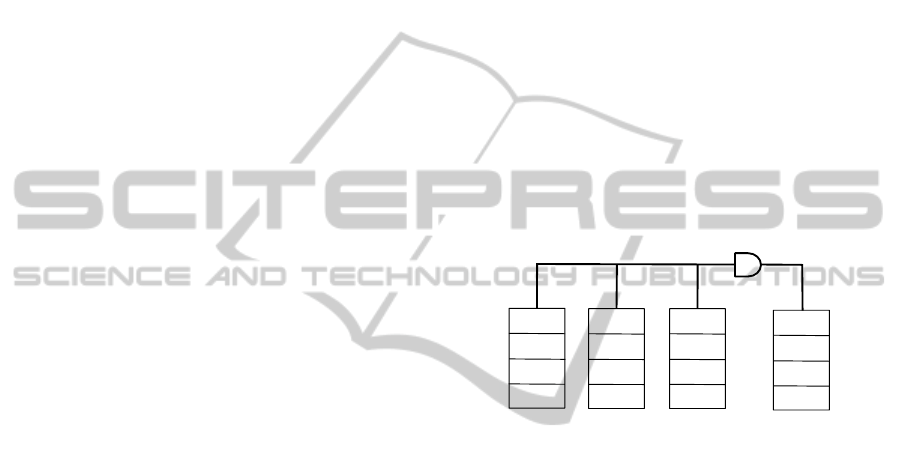

data. Analogous to the idea of RAID 4 (Patterson

et al., 1988), each sensor node in our scheme now

serves as the dedicated parity disk for the array com-

posed of all its direct neighbors. (For a brief discus-

sion on how RAID 4 works, please refer to the Ap-

pendix).

The parity in our context is the result of bitwise

XOR operation (denoted as ⊕) of all the binary in-

puts. If there is more than one boolean input, the

output of XOR is true iff an odd number of inputs

is true. Parity has the property that for the same bit,

if one single error or an odd number of errors take

place in the input, the parity result of this bit will be

incorrect. This property makes parity a popular er-

ror detection scheme. In our scheme the P

section

of a node stores the parity result of this node’s di-

rect neighbors. If we simply use D

and P

to rep-

resent the data stored in these sections, based on the

topology shown in Figure 1, we can deﬁne the follow-

ing relations for nodes with more than one neighbor:

= D

⊕ D

, P

= D

⊕ D

and P

= D

⊕ D

Using the property of XOR, should any input

value get lost, the lost input can be easily rebuilt by

conducting XOR operation on all the remaining input

values and the former XOR output value. For exam-

ple, assume that node 1 fails and we need to recon-

struct D

. We can do so by using either of the two fol-

lowing relations: D

= P

⊕D

or D

= P

⊕D

D6 P6

D5 P5

D3 P3

D1 P1

D4 P4 D2 P2

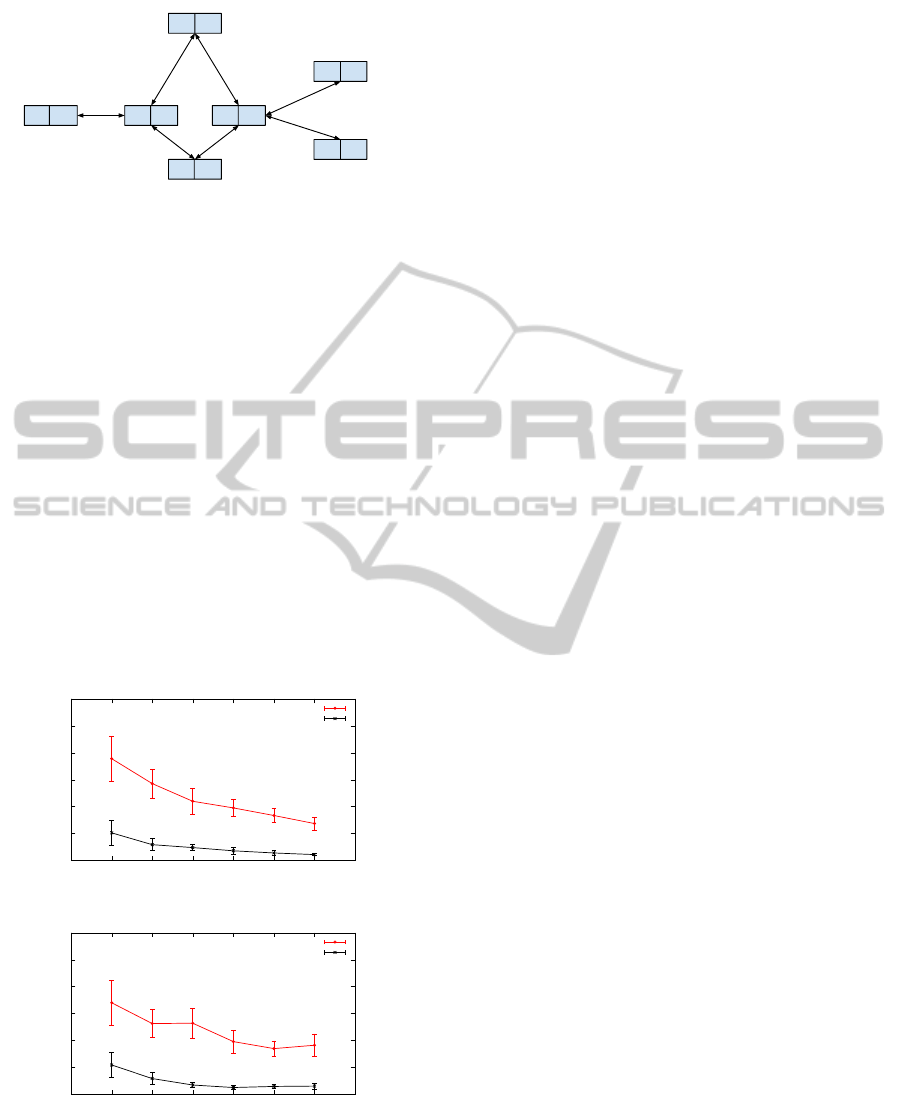

Figure 1: Storage unit partition in sensor nodes.

3.2 Recovery Initialization

Prior to proceeding with the recovery, the sink needs

to ﬁgure out when a node failure takes place. Our

experimental setup ensures that in every round, each

alive node within the query area generates a response

message and the response message is assumed to ar-

rive at the sink in the next round. Thus, we treat the

time when we observe a missing response as the time

when the corresponding node failure happens.

When the failure of a node F has been observed,

the sink initiates the recovery process immediately.

The main goal of this process is to ﬁnd the best recov-

ery candidate, denoted as R

parity

, whose ParityData

will be utilized to fulﬁll the recovery.

First we establish R

, the set of valid recovery can-

didate nodes. A node is a valid recovery candidate if

it is a neighbor of F, all of its neighbors except F

are alive and it is alive at the time the recovery is ini-

tialized. Then the list R

is traversed and the node

with smallest degree is chosen and denoted as R

parity

The recovery candidate with the minimum vertex de-

gree in R

guarantees that there is less communication

overhead incurred for requesting the data of this can-

didate’s neighbors. The direct neighbors of R

parity

excluding F, are considered as R

data

nodes. Their

SensedData, together with the ParityData of R

parity

node, will be utilized to reconstruct the data of F.

3.3 Centralized and Localized Recovery

After the sink initiates the recovery and chooses

parity

, the actual recovery process can take place ei-

ther at the sink or in R

parity

. If the process takes place

at the sink, we name it centralized recovery. If it takes

place in R

parity

, we name it localized recovery. For

centralized recovery, all the R

parity

nodes and R

data

nodes send their responses back to the sink while for

localized recovery, the sink initiates the recovery and

all the other operations are done at the best recov-

ery candidates locally. The actual recovery process

is slightly different for both recovery approaches:

• For centralized recovery, if a R

data

node is within

the query area, the sink has already received its

query responses and stored its SensedData. Oth-

erwise, the sink needs to send request messages

to R

data

nodes asking for the SensedData. After

receiving all necessary responses, the sink com-

pletes the recovery calculation (as described in

Section 3.1).

• For localized recovery, the R

parity

node will be no-

tiﬁed by the sink that it has been chosen as the best

recovery candidate. Then R

parity

sends request

SENSORNETS2014-InternationalConferenceonSensorNetworks

300

messages to all R

data

nodes and waits for their re-

sponses. The recovery calculation takes place in

the R

parity

node and then the R

parity

node can re-

spond to queries on behalf of the failed node.

In general, the centralized recovery approach is

more suitable for queries that are interested in raw

sensed data while the localized recovery approach is

a better idea for aggregate queries. When process-

ing aggregate queries, sensors summarize (aggregate)

their data in order to reduce the volume of data that

needs to be transmitted to the sink. If a centralized re-

covery approach is adopted, whenever a recovery pro-

cess is initiated, R

parity

node and R

data

nodes need to

transmit their raw data back to the sink. This is against

the concept of aggregate query which aims at reduc-

ing the transmission of raw data. The localized re-

covery approach solves the problem by having all the

data

nodes send their data to R

parity

. Then the whole

recovery process is completed in the R

parity

node so

that no raw data transmission to the sink is required.

3.4 Modeling Energy Consumption

Energy constraint is one of the most fundamental

challenges in WSN research. Researchers have come

up with many energy models, e.g., (Du et al., 2010;

Shnayder et al., 2004), that are used to evaluate net-

work lifetime or compare different algorithms or pro-

tocols in network design and analysis. In general,

energy cost has three components: sensing, process-

ing and communication. The energy cost for sensing

and processing are often considered as constant val-

ues, hence we focus on the cost for data communica-

tion only. In (Rappaport, 1996) the author presents a

model for calculating the transmitting and receiving

energy cost for a single bit as E

= α

+α

×d

and

= α

, respectively, where α

and α

indicate

the energy cost required by transmitter electronics and

receiver electronics respectively, α

represents the en-

ergy radiated via the power ampliﬁer, d is the distance

from the source node to the destination node, and n is

the path loss exponent. Table 1 lists the notations used

in the model.

Since we assume that the sink has unlimited power

supply, our energy consumption model does not take

the energy cost of the sink into consideration. In the

proposed scheme, the energy cost of sensor nodes in

every simulation round falls into the following com-

ponents: (1) receiving query messages and transmit-

ting query responses, denoted as E

que

, (2) sending and

receiving sensed value updates to/from neighbors, de-

noted as E

upd

or (3) receiving recovery request mes-

sages and transmitting the corresponding responses,

denoted as E

rec

Since we assume that the sensor nodes always

transmit messages using a ﬁxed transmission power,

node

can be calculated using the communication

range W = 60 as the distance: E

node

= α

+ α

= 86 nJ. The deployment ﬁeld is in the size

of 500 m × 500 m. In our simulations we use the

following values as provided in (Heinzelman, 2000):

= α

= 50 nJ/bit, n = 2, α

= 10 pJ/bit/m

If N nodes are uniformly distributed on a deploy-

ment ﬁeld with dimension X × Y , the average num-

ber of neighbors, N

, can be estimated as: N

NπW

− 1.

To estimate the energy cost of a multi-hop rout-

ing path, one needs to know how many hops on av-

erage, denoted as N

hop

, are needed to send the data

from the source node to the sink. N

hop

can be esti-

mated as the quotient of the distance between source

node and the sink, D

sink

, divided by the average length

of the orthogonal projection of the direct communi-

cation paths onto the direction of D

sink

, denoted as

pro j

. Thus, we have N

hop

sink

pro j

. An example of

the orthogonal projection is shown in Figure 2. In this

example, node 1 can send its data to the sink via node

2 and node 3. The path from node 1 to node 2, D

, is

projected onto the direction of D

sink

Sink

sink

D12

proj

D12

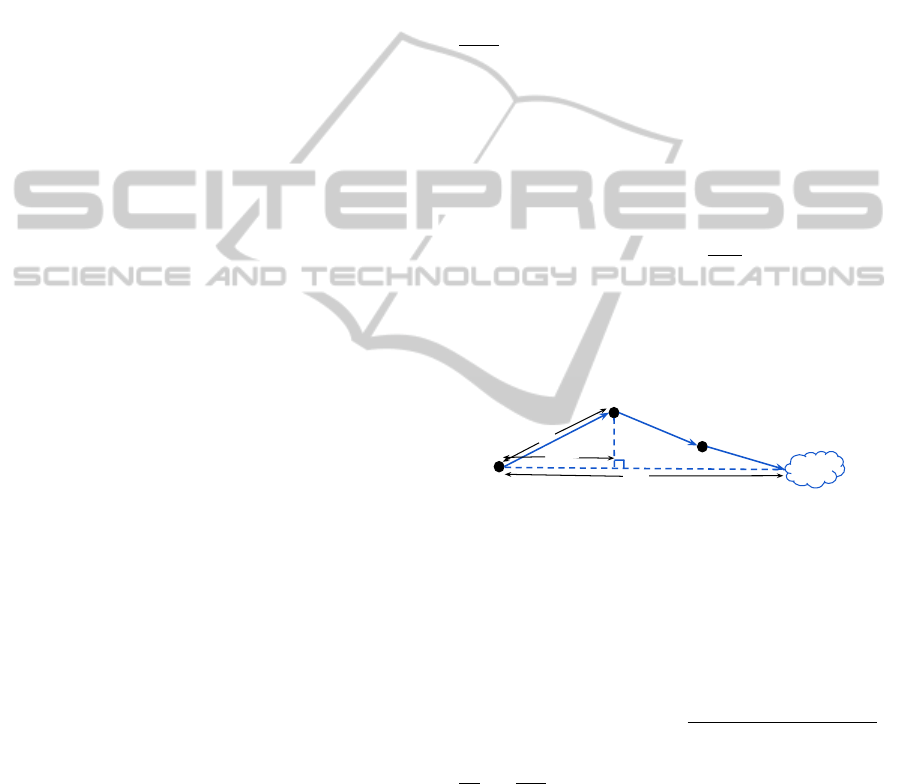

Figure 2: Projection of a direct communication path on the

direction towards the sink.

For large size WSNs, the distance from R

data

nodes and R

parity

nodes within the query area to the

sink can be approximated as the distance between

the center of the query area to the sink. Given the

coordinates of query area center (Q

, Q

) and the

coordinates of sink (S

, S

), this approximate dis-

tance is deﬁned as D

sink

− Q

)

+ (S

− Q

)

In (Coman et al., 2005), D

pro j

is given as D

pro j

cos

. Thus, E

sink

can be calculated as the to-

tal energy cost of N

hop

hops of direct communication:

sink

= N

hop

× (E

node

+ E

) −E

. The (−E

) par-

cel is due to the fact that the source node does not

need to receive any message.

Denoting the round number as T , the size of the

response messages to the recovery request in the T

round is: L

resp2

= L

resp1

× T

In each round the sink generates a query message

and ﬂoods the message to all the sensors within the

deployment ﬁeld. Thus, all the nodes (N) need to

RAID'ingWirelessSensorNetworks-DataRecoveryforNodeFailures

301

Table 1: Notations used in the energy consumption model.

Nota. Description Value

X Dimension of the deployment area on X axis 500 m

Y Dimension of the deployment area on Y axis 500 m

N Total number of the deployed nodes (c.f., Table 2)

Q The queried are (percentage) of the deployment ﬁeld (c.f., Table 2)

Number of nodes within the query area N/Q

Average number of neighbors per node

NπW

− 1

hop

Average number of hops from sensors to sink

sink

pro j

data

Number of R

data

nodes in a recovery process related to R

parity

out

Number of R

data

nodes outside the query area related to R

parity

W Communication range 60 m

node

Energy used to transmit a bit to a sensor 86 nJ

sink

Energy used to transmit a bit to the sink N

hop

× (E

node

+ E

) − E

Energy used to receive a bit 50 nJ

que

Size of the query message 256 bits

resp1

Size of the response message to the query 64 bits

resp2

Size of the response message to the recovery request L

resp1

× T

upd

Size of the sensed value update message 64 bits

req

Size of the recovery request message 64 bits

pay the price of receiving the query message and only

nodes within the query area (N

) will respond to the

sink. Therefore, we have: E

que

= N × E

× L

que

× E

sink

× L

resp1

For E

upd

, in each round every node sends the up-

date message containing the sensed value collected

in this round to all its immediate neighbors, result-

ing in a transmission cost of E

node

× L

upd

. At the

same time, one node receives N

update messages

which have been sent from its neighbors in the pre-

vious round, thus: E

upd

= N × E

node

× L

upd

+ N ×

× E

× L

upd

If we denote E

data

as the total cost at R

data

nodes

and denote E

parity

as the total cost at R

parity

node,

the total energy cost for recovering a failed node is:

rec

= E

data

+ E

parity

As discussed in Section 3.3, there are two dif-

ferent recovery approaches. For the centralized ap-

proach, the R

parity

node and R

data

nodes that reside

outside of the query area receive the request mes-

sages from the sink and send the responses back to

the sink. Thus, for this approach we have: E

data

out

×(E

×L

req

sink

×L

resp2

) and E

parity

= E

req

+ E

sink

× L

resp2

. For the localized approach, all

data

nodes receive from and respond to the cho-

sen R

parity

, yielding: E

data

= N

data

× (E

× L

req

node

× L

resp2

). The R

parity

node receives the no-

tiﬁcation from the sink, broadcasts the recovery re-

quest message to R

data

nodes, receives all the re-

sponses from the R

data

nodes, thus E

parity

= E

req

+ E

node

× L

req

+ N

data

× E

× L

resp2

3.5 Network Lifetime

Network lifetime has long been considered as one of

the most important parameters for evaluating WSN

and WSN algorithms. Many research efforts have

been spent on maximizing network lifetime, e.g.,

(Liang and Liu, 2007; Zhang and Shen, 2009). As the

design of WSN depends heavily on the speciﬁc appli-

cation requirements, the deﬁnition and metrics for es-

timating network lifetime is also application speciﬁc.

Coverage and connectivity have both been used

for evaluating WSNs (Dietrich and Dressler, 2009).

However, we aim to propose a fault recovery scheme

which can reconstruct the data of a failed node with

100% conﬁdence. Neither coverage nor connectivity

can measure the level of redundancy and fault toler-

ance in our scheme. Thus, they are not suitable met-

rics for the network lifetime deﬁnition.

By taking the speciﬁc goal of our scheme into ac-

count, we have the following deﬁnition: The network

lifetime is deﬁned as the time interval from the point

that a WSN starts operation up to the point that a node

failure is observed and can not be recovered.

This deﬁnition captures the fact that our proposed

scheme can overcome node failures for a period of

time and the sensors can respond to queries continu-

ously, as if there were no node failures in the network.

Therefore failures (and the underlying recovery pro-

cess) are transparent to the end users.

SENSORNETS2014-InternationalConferenceonSensorNetworks

302

Table 2: Notations used in the experiments.

Notation Description Values

L The number of rounds until the ﬁrst (result of simulation)

node failure cannot be recovered

The probability that at least one node 1 − (1 − p)

fails within the query area in each round

The probability that a recovery candidate (1 − p)

is considered as valid

p The probability that one sensor fails [0.05%, 0.5%], default: 0.1%

in any single round

W Communication range of sensors [40, 80] m, default: 60 m

N Total number of deployed nodes [200, 800], default: 400

Q The percentage of the deployment ﬁeld [5%, 30%], default: 10%

that is covered by the query

4 EXPERIMENTAL RESULTS

In our experiments, we use the network simulator

Sinalgo

. Sinalgo differs from other network simu-

lators such as OMNeT++ and NS-3 in the sense that

it is designed to facilitate the veriﬁcation and proto-

typing process of network algorithms instead of sim-

ulating details of network protocol stack or commu-

nication channel. Since Sinalgo adopts the concept

of “rounds” to achieve clock synchronization within

the network, we use the number of rounds to measure

network lifetime (as deﬁned above).

We are interested in to what extent the proposed

scheme can extend the network lifetime under dif-

ferent scenarios and network settings. Our scheme

inevitably requires more message transmissions for

both the recovery process and the synchronization of

sensed values between sensor nodes and their neigh-

bors, which impose additional communication over-

head. Thus we conduct experiments and use the en-

ergy cost model as deﬁned in Section 3.4 to investi-

gate the energy cost for each round. Due to the lack

of space we show only results regarding our central-

ized recovery approach, which is a worst case sce-

nario in terms of energy overhead; recall that in the

localized approach the exchange of messages is more

constrained to the vicinity of the failed node.

We use a uniform distribution model and a grid

distribution model for the initial placement of sensors

in our experiments. The uniform model randomly

scatters the nodes in the simulation area while the grid

model places the nodes on the intersection points of a

grid which covers the entire deployment area.

In the following each point in the graphs is the

average of 20 different simulation runs using distinct

http://disco.ethz.ch/projects/sinalgo/index.html

seeds. Since the network lifetime is a random vari-

able, a 95% conﬁdence interval is included to give an

estimate of the true network lifetime. The notation

used in this section is listed in Table 2.

4.1 Node Failure Probability

Since the motivation of proposing a fault recovery

scheme is to cope with node failure, we want to inves-

tigate how the scheme performs under different node

failure probability ratios. The node failure probabil-

ity, p, indicates the probability that one sensor node

fails in one single round. We consider whether one

sensor node fails as a Bernoulli trial with the probabil-

ity p to observe node failure. The probability distribu-

tion of node failure among different nodes is i.i.d. We

vary the node failure probability in each round from

0.05% to 0.5% with 0.05% as the increment. The to-

tal number of deployed nodes N, the communication

range W and the query size percentage Q are set to be

their corresponding default values.

The network lifetime of uniform distribution and

grid distribution is shown in Figures 3(a) and (b).

As the node failure probability increases, the network

lifetime of both schemes drops as one would expect.

For no-recovery scheme, the probability that at

least one node failure takes place within the query

area during one single round, P

, is given by: P

1 − (1 − p)

. For this experiment, N

is ﬁxed

since neither the query size nor the network density

changes. When we increase p in the range of (0, 1),

the resulting P

increases monotonically. The num-

ber of rounds until the ﬁrst node failure occurs, L, is

a geometrically distributed random variable, with ex-

pected value given by: E[L] =

. Therefore, when

increases, E[L] decreases, which indicates that the

ﬁrst node failure is expected to happen earlier. Thus,

RAID'ingWirelessSensorNetworks-DataRecoveryforNodeFailures

303

100

200

300

400

500

0 0.1 0.2 0.3 0.4 0.5

Network lifetime (rounds)

Node failure probability in each round (%)

uniform_recovery

uniform_no_recovery

(a) Uniform Sistribution

100

200

300

400

500

0 0.1 0.2 0.3 0.4 0.5

Network lifetime (rounds)

Node failure probability in each round (%)

grid_recovery

grid_no_recovery

(b) Grid Sistribution.

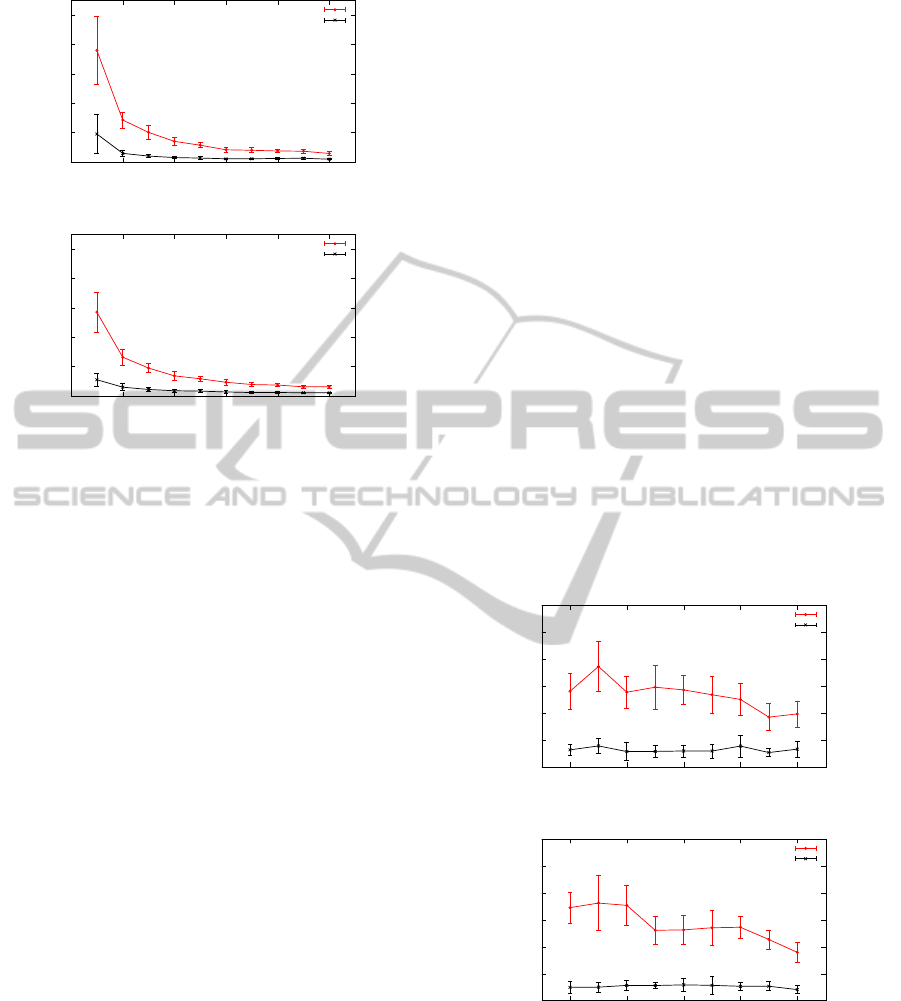

Figure 3: Network lifetime vs. p.

we observe a shorter network lifetime for no-recovery

scheme when the node failure probability increases.

For the recovery scheme, the network lifetime de-

pends on when a failed node can no longer be recov-

ered. The recovery algorithm as deﬁned in Section 3.2

builds a recovery candidate set R and a valid candi-

date set R

. p has no effect on the composition of

R. For a speciﬁc recovery candidate C

in R, there

are two requirements that C

must meet in order to

join R

: ﬁrst, C

is alive and second, all the direct

neighbors of C

, except the one we aim to recover,

are alive. Thus, the probability that C

is considered

as valid is: P

= (1 − p)

. When p increases, P

decreases monotonically, which means that each re-

covery candidate has less chance of being considered

a valid candidate. As a consequence, R

has a higher

chance to be an empty set. Therefore, the network

lifetime of the recovery scheme is also expected to

decrease as the node failure probability increases.

4.2 Communication Range

Controlling W directly affects the number of neigh-

bors a node can communicate with. Since our pro-

posed recovery scheme depends on the neighborhood

relations, it is worthwhile investigating how the net-

work lifetime gain will be inﬂuenced by W. The ﬁrst

problem is how to set a reasonable range of W to con-

duct the experiment. A network composed of 400

nodes with a W, which is below 40 meters, has a rel-

atively high chance of not being connected, while a

network with a W larger than 80 meters yields a large

average number of neighbors (more than 30). Thus, in

this experiment, we vary W from 40 meters to 80 me-

ters and all other investigated parameters are set using

their default values.

As shown in the formula for N

, for a randomly

and uniformly distributed WSN, N

is proportional

to W

given that N and the dimension of deployment

ﬁeld are ﬁxed. For grid distribution though, the aver-

age number of neighbors does not grow linearly with

because sometimes increasing W does not neces-

sarily create more edges between nodes.

Now both the size of R and the size of R

can be

affected by W . The increase of W brings more re-

covery candidates as N

increases. For a recovery

candidate C

in R, the probability that C

is consid-

ered as valid is P

. As N

increases, P

decreases

monotonically, which indicates that it is more difﬁcult

for C

to be considered as a valid candidate. Thus, a

larger W brings more recovery candidates, which has

a positive effect on the recovery process. However,

each recovery candidate has a lower probability to be

valid, which has a negative impact. The total effect

of a larger recovery candidate set R and a lower P

for each recovery candidate depends on which factor

plays a dominant role.

100

150

200

250

300

40 50 60 70 80

Network lifetime (rounds)

Communication range of sensors (m)

uniform_recovery

uniform_no_recovery

(a) Uniform Distribution

100

150

200

250

300

40 50 60 70 80

Network lifetime (rounds)

Communication range of sensors (m)

grid_recovery

grid_no_recovery

(b) Grid Distribution.

Figure 4: Network lifetime vs. W .

The network lifetime for uniform and grid distri-

bution is shown in Figures 4(a) and (b), respectively.

From Figure 4(a) we can see that when W varies from

40 to 45 meters, the network lifetime of the recovery

scheme increases by approximately 33%. This per-

formance improvement indicates that at this stage, in-

SENSORNETS2014-InternationalConferenceonSensorNetworks

304

creasing N

has an overall positive impact on pro-

longing the network lifetime since the positive ef-

fect of a larger R outperforms the negative effect of

a lower P

. After this the network lifetime remains

quite smooth from 50 to 70 meters. In this period, the

increase of N

does not signiﬁcantly affect the net-

work lifetime since the two factors offset each other.

When W goes beyond 70 meters, a 26% performance

drop takes place, indicating that the negative effect of

a decreasing P

is dominant.

The analysis of the experiment results leads us to

believe that there exists a certain threshold for N

below which increasing W can have better lifetime

performance and above which increasing W may even

result in an opposite effect. Thus the average number

of neighbors should be carefully chosen.

For grid distribution, the network lifetime of the

recovery scheme has a similar trend as shown in uni-

form distribution. Note that W = 40 and W = 45

has the same connectivity since their N

is identi-

cal. The same case applies to W = 55, W = 60, and

W = 65. Since the node distribution is ﬁxed, the same

connectivity implies the same network lifetime per-

formance. When W is in the range between 40 and

50 meters, the network lifetime achieves the highest

values. After that the network lifetime decreases by

nearly 50 rounds when W increases from 50 to 55

meters. The corresponding N

increases but as pre-

viously discussed, the considerable increase in N

brings more recovery candidates that are less likely

to be considered as valid, resulting in the lifetime

decrease. The same performance degradation is ob-

served from W = 70 to W = 80, which comes with a

non-negligible increase of N

The network lifetime of no-recovery scheme does

not change signiﬁcantly as W increases. As discussed

in Section 4.1, P

= 1 − (1 − p)

. In this experi-

ment, both p and N

are considered as ﬁxed. Thus, in-

creasing W will not affect the lifetime of no-recovery

scheme.

4.3 Node Density

In this experiment, p, W and Q are set to be their de-

fault values. We vary the total number of deployed

nodes, N, from 200 to 800, with the increment be-

ing 100. The results for uniform distribution and grid

distribution are shown in Figures 5(a) and (b), respec-

tively.

As we can see that as N increases, the network

lifetime of both no-recovery scheme and the recovery

scheme decreases. For no-recovery scheme, this trend

is anticipated. For uniform distribution in a given de-

ployment ﬁeld, the number of nodes that reside within

100

150

200

250

300

350

100 200 300 400 500 600 700 800 900

Network lifetime (rounds)

Total number of nodes

uniform_recovery

uniform_no_recovery

(a) Uniform Distribution

100

150

200

250

300

350

100 200 300 400 500 600 700 800 900

Network lifetime (rounds)

Total number of nodes

grid_recovery

grid_no_recovery

(b) Grid Distribution.

Figure 5: Network lifetime vs. N.

the query area, N

, is proportional to the total number

of nodes and the percentage of the deployment ﬁeld

covered by the query: N

= N × Q. For grid distribu-

tion, the previously indicated relations holds true ap-

proximately. As shown in the equation for P

, when

increases, P

increases monotonically, which re-

sults in a lower expected value of E[L]. Thus, the ﬁrst

node failure is expected to happen earlier when the

network becomes denser.

For the recovery scheme, the average number of

neighbors N

increases as the network gets denser.

For uniform distribution, N

increases linearly with

N and for grid distribution it increases monotonically

with N.

Similar to the discussion in Section 4.2 , a larger

can not guarantee a longer lifetime for the recov-

ery scheme since each recovery candidate has a less

likelihood to be valid. According to the equation for

, a larger N

yields a smaller P

. However, the drop

of P

is not the only reason why the recovery candi-

dates are less likely to be considered as valid. Note

of different recovery candidates can not be consid-

ered as independent. As the network becomes denser,

there is a greater chance that two or more recovery

candidates share some neighboring nodes in common.

Once a common node fails, all the associated recovery

candidates are considered as invalid and therefore can

not be used to initiate the recovery process. Consider

the example in Figure 6.

Assume we are trying to recovery node 1. Node

1 has two recovery candidates: node 3 and node 4,

which share the same neighboring node 7. Should

RAID'ingWirelessSensorNetworks-DataRecoveryforNodeFailures

305

D6 P6

D5 P5

D3 P3

D1 P1

D4 P4 D2 P2

D7 P7

Figure 6: An example of common node shared by recovery

candidates.

node 7 have failed, neither node 3 nor node 4 could be

considered as a valid candidate for the recovery. The

denser the network is, the more likely that this sce-

nario can be observed. Thus, apart from the decrease

of P

, recovery candidates are less likely to meet the

requirements of valid candidates as the network den-

sity increases.

4.4 Query Size

Since our deﬁnition of network lifetime is associated

with observed node failures within a given query area,

one may question whether the size of the query area

matters to the outcome. In this experiment, we vary

the percentage of the deployment ﬁeld that is covered

by the query from 5% to 30%. The other parameters

are set to their default values.

100

150

200

250

300

0 5 10 15 20 25 30 35

Network lifetime (rounds)

Percentage of the deployment field covered by the query (%)

uniform_recovery

uniform_no_recovery

(a) Uniform Distribution

100

150

200

250

300

0 5 10 15 20 25 30 35

Network lifetime (rounds)

Percentage of the deployment field covered by the query (%)

grid_recovery

grid_no_recovery

(b) Grid Distribution.

Figure 7: Network lifetime vs. Q.

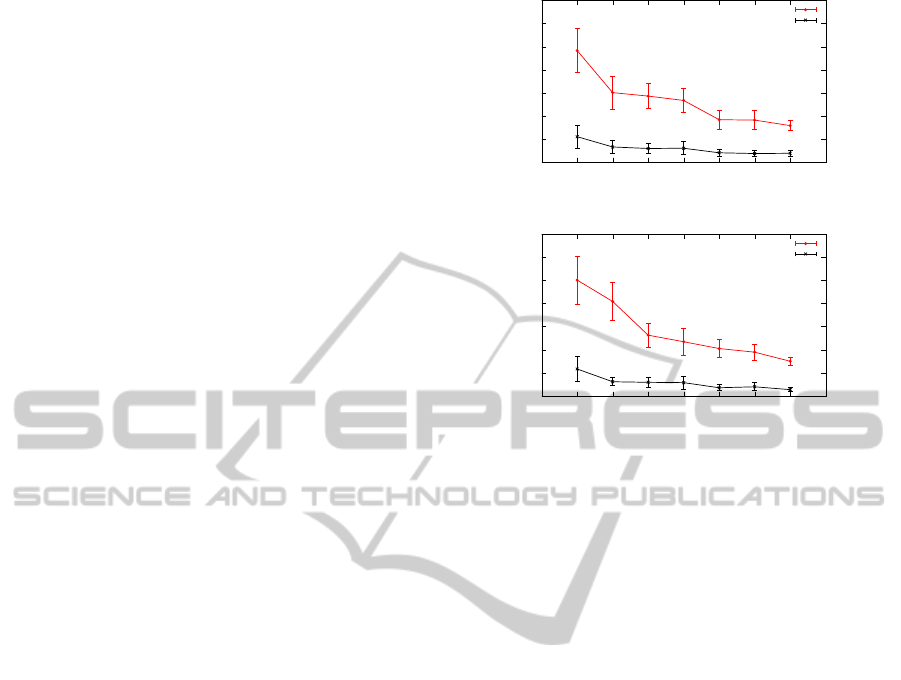

From Figure 7, we can see that the network

lifetime of both recovery scheme and no-recovery

scheme decreases as Q increases and the other pa-

rameters are kept constant. Clearly N

increases as

we enlarge Q. Therefore, the network lifetime of no-

recovery scheme is expected to decrease since the ﬁrst

node failure is expected to come earlier, as per P

and

E[L]. For the recovery scheme, given this parameter

setting where N

and p are ﬁxed, the total number

of recovery candidates and P

for each recovery can-

didate will not be affected by the query size. Thus,

the probability that each node failure is recoverable

stays the same no matter how the query size varies.

However, as N

increases, the probability that all the

nodes are recoverable decreases. Thus, the ﬁrst non-

recoverable node failure is expected to happen earlier

and a shorter network lifetime is observed for the re-

covery scheme when Q increases.

4.5 Communication Overhead

Our scheme clearly imposes an overhead in term of

energy cost, due to the need to update a node’s neigh-

bor proactively, so that the node recovery can take

place. In the experiments above, in order to iso-

late side-effects due to energy constraints and conse-

quently better evaluate the pros and cons of our pro-

posal in terms of data recoverability, we assumed that

there was enough initial energy available that no node

run out of energy during a simulation. We now drop

this constraint.

In order to investigate our proposal’s energy over-

head we compared the total energy cost of E

upd

and

que

. E

rec

was ignored since the other two compo-

nents are typically one to two orders of magnitude

greater than E

rec

and p, W , N, Q were all set to be

default values. We summed up the accumulative en-

ergy cost of E

upd

and E

que

till the network lifetime of

the proposed scheme ends. We observed that the total

upd

was approximately 4 times as expensive as the

total E

que

on average. A legitimate question at this

point is the following: given this energy cost over-

head, does a WSN using our proposed scheme actu-

ally function for a longer time so that it is worthwhile,

compared to the no-recovery scheme? The answer is

afﬁrmative.

Recall that we deﬁne end of WSN’s lifetime as

the point in time where it can no longer recover node

from a failed node. That is, even though all non-failed

nodes may still have energy the WSN is effectively

not as useful as queries will report incorrect answers.

In the following we will show that, given the same

amount of initial energy supply to all nodes, in most

cases a WSN without our recovery scheme will cease

to be useful earlier than any node depletes its energy

source when using our recovery scheme. In other

SENSORNETS2014-InternationalConferenceonSensorNetworks

306

words, the energy overhead is worth in the sense that

it prolongs the useful lifetime of the WSN.

Let us now investigate how different initial en-

ergy supply levels affect the performance of the re-

covery scheme and no-recovery scheme. The param-

eters, p, W , N, and Q were all set to be their default

values. We set the range of initial energy supply per

node to be [5mJ, 50mJ]. This setting is pessimistic in

the sense that batteries would typically have a much

larger charge

making the energy overhead of our ap-

proach be even less noticeable when compared to the

inherent probability of failure. The cause of a node

failure is two-fold: either due to energy depletion or

due to the node failure probability p. The network

lifetime achieved for uniform distribution and grid

distribution is presented in Figures 8(a) and (b), re-

spectively.

100

150

200

250

0 10 20 30 40 50

Network lifetime (rounds)

Initial energy supply per node (mJ)

uniform_recovery

uniform_no_recovery

(a) Uniform Distribution

100

150

200

250

0 10 20 30 40 50

Network lifetime (rounds)

Initial energy supply per node (mJ)

grid_recovery

grid_no_recovery

(b) Grid Distribution.

Figure 8: Network lifetime vs initial energy budgets.

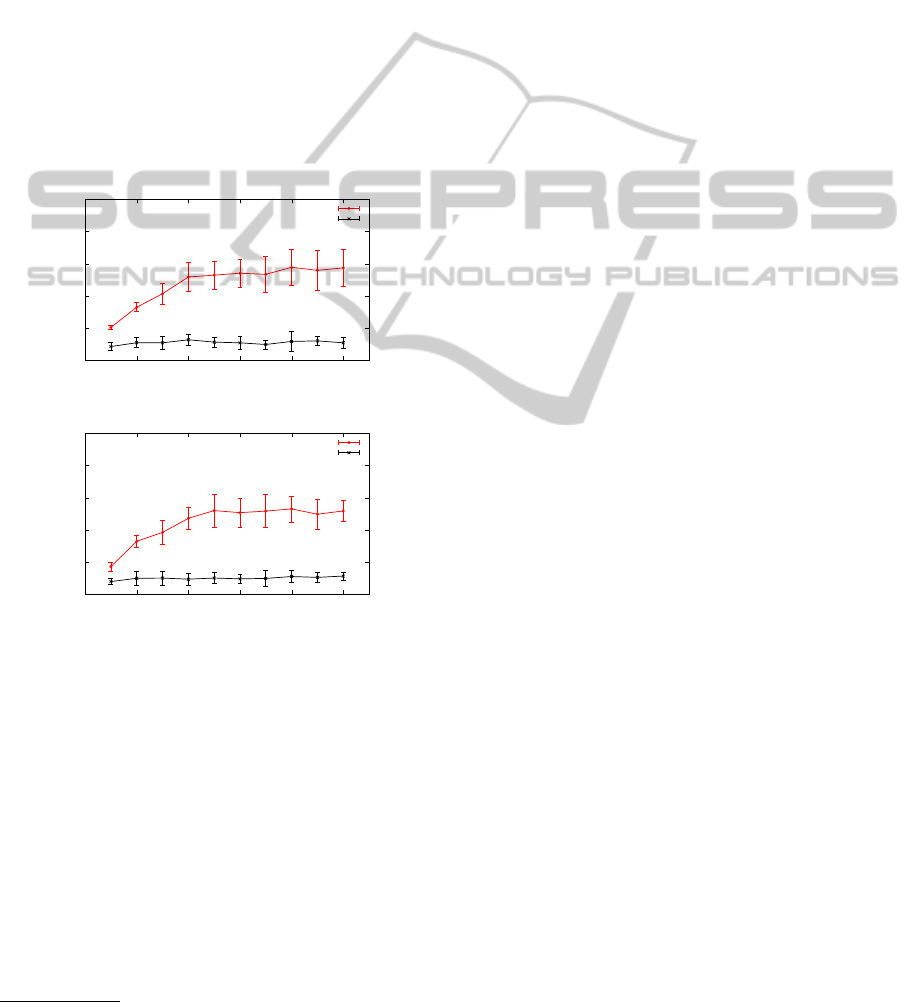

For both distributions, different levels of initial

energy supply do not affect the network lifetime for

our no-recovery scheme. The moment that the ﬁrst

node failure takes place, which is considered as the

termination of network lifetime for the no-recovery

scheme, the sensors have yet not suffered from energy

depletion in the vast majority of cases, even when

the initial energy supply per node is as low as 5mJ.

Thus, the node failure resulting from energy depletion

can barely affect the network lifetime for no-recovery

scheme. The trend of network lifetime is therefore the

same as if there were no energy constraint.

http://www.allaboutbatteries.com/Energy-tables.html

For the recovery scheme, when the initial energy

supply varies in the range of [5mJ, 20mJ], decreas-

ing the initial energy supply can shorten the network

lifetime. In this range, sensors typically run out of

energy before the ﬁrst node failure caused by p takes

place, resulting in an early termination of the “useful”

network lifetime. However, when sensors are initially

charged with as little as 20mJ, the energy can usually

last longer than the ﬁrst non-recoverable node failure

caused by p. Thus, varying the initial energy supply

in the range above 20mJ, which is a quite reasonable

assumption, will have very limited impact on the net-

work lifetime.

5 CONCLUSIONS

We proposed a fault recovery scheme to recover the

data after node failures take place in WSNs. Our

scheme is suitable for WSN applications where the

system designer is willing to pay for some commu-

nication overhead in exchange for higher data avail-

ability. Inspired by the RAID 4 technique for redun-

dancy of hard disks, we designed the recovery scheme

in a generic way so that it can be integrated with other

WSN protocols/algorithms.

We conducted a series of experiments to show

the network lifetime gain of the proposed recovery

scheme under different parameters: node failure prob-

ability, communication range, node density and query

size. Even in the worst case scenario, the network

lifetime of the proposed scheme can still achieve at

least three times as long as the lifetime of no-recovery

scheme. In addition, we have shown that the commu-

nication overhead imposed by our approach pays off

in the sense that a WSN using our proposed scheme

will last longer (in terms of usefulness) than a “plain”

WSN.

While out work focuses on recovering data due

to node failures, it assumes that all the message

transmissions are reliable. In fact, messages can

be dropped due to the interference caused by either

environmental noise or message collisions at sensor

nodes. Thus, a mechanism to improve the transmis-

sion reliability that can be seamlessly integrated into

our framework would be an interesting venue for fur-

ther work. Erasure coding (Wang et al., 2005) may be

an option to achieve such goal.

ACKNOWLEDGEMENTS

Research partially supported by NSERC Canada.

RAID'ingWirelessSensorNetworks-DataRecoveryforNodeFailures

307

REFERENCES

Alwan, H. and Agarwal, A. (2009). A survey on fault tol-

erant routing techniques in wireless sensor networks.

Proc. of the 3rd Intl. Conf. on Sensor Technologies and

Applications, pages 366–371.

Chessa, S. and Maestrini, P. (2005). Fault recovery mecha-

nism in single-hop sensor networks. Computer Com-

munications, 28(17):1877–1886.

Coman, A., Sander, J., and Nascimento, M. A. (2005). An

analysis of spatio-temporal query processing in sen-

sor networks. In Proc. of the 21st Intl. Conf. on Data

Engineering (Workshops), pages 1190–1195.

Dietrich, I. and Dressler, F. (2009). On the lifetime of wire-

less sensor networks. ACM Transactions on Sensor

Networks, 5(1):1–39.

Du, W., Mieyeville, F., and Navarro, D. (2010). Modeling

energy consumption of wireless sensor networks by

SystemC. In Proc. of the 5th Intl. Conf. on Systems

and Networks Communications, pages 94–98.

Ganesan, D. et al. (2001). Highly-resilient, energy-efﬁcient

multipath routing in wireless sensor networks. ACM

SIGMOBILE Mobile Computing and Communica-

tions Review, 5(4):11–25.

Heinzelman, W. R. (2000). Application-speciﬁc protocol

architectures for wireless networks. PhD thesis, Mas-

sachusetts Institute of Technology.

Karlof, C., Li, Y., and Polastre, J. (2003). ARRIVE: Al-

gorithm for Robust Routing in Volatile Environments.

Technical report, University of California, Berkeley.

Liang, W. and Liu, Y. (2007). Online data gathering

for maximizing network lifetime in sensor networks.

IEEE Transactions on Mobile Computing, 6(1):2–11.

Marti, S. et al. (2000). Mitigating routing misbehavior

in mobile ad hoc networks. In Proc. of the 6th an-

nual Intl. Conf. on Mobile computing and networking,

pages 255–265.

Patterson, D. A., Gibson, G., and Katz, R. H. (1988). A case

for redundant arrays of inexpensive disks (RAID). In

Proc. of the 1988 ACM SIGMOD Intl. Conf. on Man-

agement of data, pages 109–116.

Rappaport, T. S. (1996). Wireless communications - princi-

ples and practice. Prentice Hall.

Shnayder, V. et al. (2004). Simulating the power consump-

tion of large-scale sensor network applications. In

Proc. of the 2nd Intl. Conf. on Embedded networked

sensor systems, pages 188–200.

Wang, Y. et al. (2005). Erasure-coding based routing for

opportunistic networks. In Proc. of the 2005 ACM

SIGCOMM workshop on Delay-tolerant networking,

pages 229–236.

Zhang, H. and Shen, H. (2009). Balancing energy consump-

tion to maximize network lifetime in data-gathering

sensor networks. IEEE Transactions on Parallel and

Distributed Systems, 20(10):1526–1539.

APPENDIX

(Patterson et al., 1988) proposed the so-called RAID

technique to solve the bottleneck issue of I/O perfor-

mance in order to catch up with the increasing speed

of CPUs and memories. Nowadays, RAID is typi-

cally referred to as a storage virtualization technol-

ogy that can replicate and distribute data among an

array of disk drives while being accessed by the oper-

ating systems as one single logical drive. Depending

on different reliability and performance requirements,

RAID can be categorized into several “levels” which

specify how the data is accessed and how the redun-

dancy is maintained. In our work, we choose the level

RAID 4 to incorporate data redundancy and achieve

fault recovery since it strikes a balance between space

efﬁciency and data redundancy. This level can toler-

ate at most one physical disk failure. Figure 9 shows

the diagram of a sample RAID 4 array.

parity calculation

Data disk A

Data disk B

Data disk C

Parity disk

Figure 9: RAID 4 with three data disks and one parity disk.

RAID 4 is often referred to as a dedicated par-

ity scheme since it utilizes a single disk for storing

the parity information only. In this ﬁgure, each row

within the disk represents a data block. The data

block of the parity disk stores the parity results for

all the data blocks on the data disks that are in the

same row. Denote the parity calculation as ⊕, for

data block i, within this array we have the follow-

ing relations: P

= A

⊕ B

⊕ C

. Whenever a write

is performed on any of the data disks, the parity cal-

culation component recalculates and updates the cor-

responding blocks on the parity disk. Should any of

the data disk fails, the remaining data disks, together

with the parity disk, can be utilized to reconstruct the

data of the failed disk. For instance, if data disk A

fails, we can recover its data according by computing

= P

⊕ B

⊕C

SENSORNETS2014-InternationalConferenceonSensorNetworks

308
