Client-side Mobile Visual Search

Andreas Hartl, Dieter Schmalstieg and Gerhard Reitmayr

Institute for Computer Graphics and Vision, Graz University of Technology, Inffeldgasse 16, Graz, Austria

Keywords:

Visual Search, Mobile Phone, Descriptors, Vocabulary Tree, Geometric Veriﬁcation, Augmented Reality.

Abstract:

Visual search systems present a simple way to obtain information about our surroundings, our location or

an object of interest. Typically, mobile applications of visual search remotely connect to large-scale systems

capable of dealing with millions of images. Querying such systems may induce considerable delays, which

can severeley harm usability or even lead to complete rejection by the user. In this paper, we investigate an

interim solution and system design using a local visual search system for embedded devices. We optimized a

traditional visual search system to decrease runtime and also storage space in order to scale to thousands of

training images on current off-the-shelf smartphones. We demonstrate practical applicability in a prototype for

mobile visual search on the same target platform. Compared with the unmodiﬁed version of the pipeline we

achieve up to a two-fold speed-up in runtime, save 85% of storage space and provide substantially increased

recognition performance. In addition, we integrate the pipeline with a popular Augmented Reality SDK on

Android devices and use it as a pre-selector for tracking datasets. This allows to instantly use a large number

of tracking targets without requiring user intervention or costly server-side recognition.

1 INTRODUCTION

Visual search is a way of obtaining information about

objects in the proximity of the user by taking an im-

age of the object and using the image to index into

a database of known objects. With advancements in

processing power, screen size and connectivity, mo-

bile devices such as smartphones or tablets have be-

come an interesting platform for this kind of service.

It is important to note that in this case, mobile vi-

sual search may replace standard input methods up

to a certain degree. This means, that information re-

trieval may take place considerably faster than in a

traditional keyboard or touchscreen-driven setup. To-

day, mobile visual search is available through services

like Google Goggles

or kooaba

, dealing with large

numbers of categories or classes such as products, lo-

gos, printed text, but also places and faces. While

the former is available as an application on major mo-

bile platforms, the latter can be queried through a web

API, processing a given image.

Currently server-side visual search operation ex-

hibits considerable delays. This may be due to in-

complete coverage of suitable mobile networks (3G

onwards) but also due to delays in the recognition en-

http://www.google.com/mobile/goggles

http://www.kooaba.com

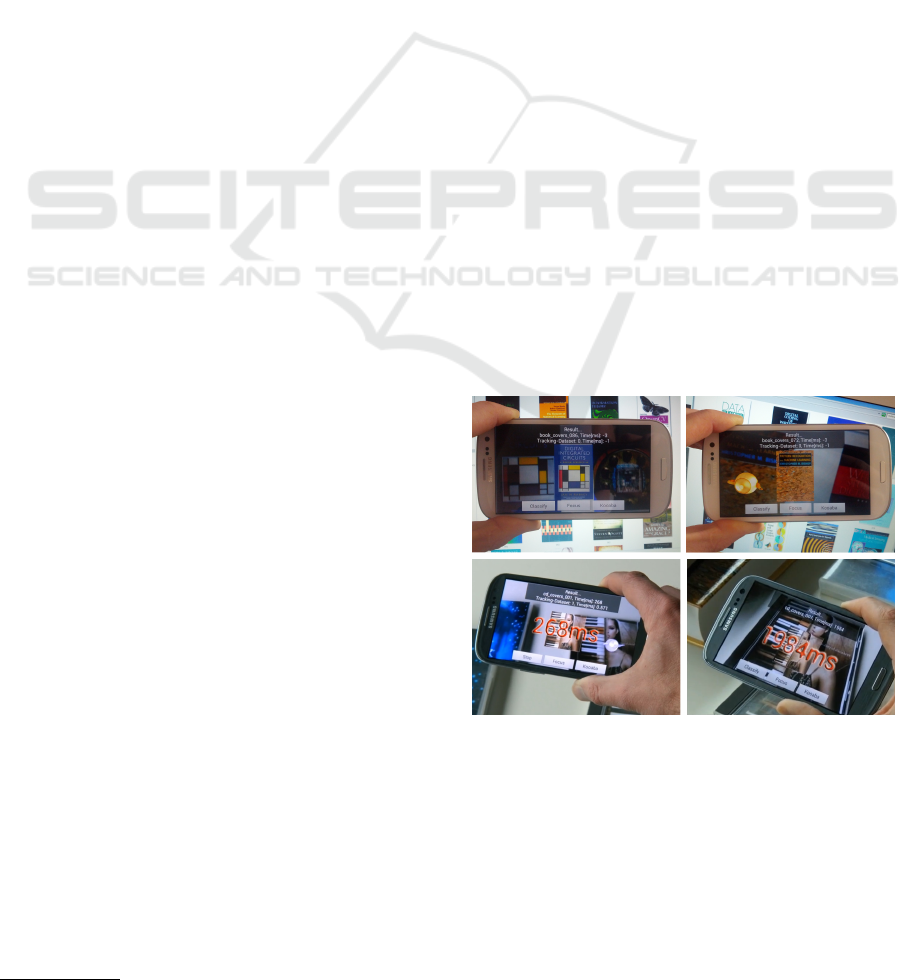

Figure 1: Mobile prototype: top-left: client-side visual

search, top-right: tracking and augmenting an image tar-

get recognized by client-side visual search, bottom-left: fast

switching of tracking datasets with the local pipeline (268

ms); bottom-right: slow recognition using the server-side

approach (1984 ms).

gine, which are independent of the connection quality.

Such delays can severely harm usability or even lead

to complete rejection of the application by the user.

We seek to mitigate this situation by performing

visual search directly on the mobile device. Conse-

quently, the time required for getting an initial result

can be considerably reduced. In this work we present

125

Hartl A., Schmalstieg D. and Reitmayr G..

Client-side Mobile Visual Search.

DOI: 10.5220/0004672901250132

In Proceedings of the 9th International Conference on Computer Vision Theory and Applications (VISAPP-2014), pages 125-132

ISBN: 978-989-758-009-3

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

a visual search pipeline for embedded devices and ex-

tensively evaluate it w.r.t. recognition rate and run-

time. We also provide a realistic comparison with

kooaba, indicating the beneﬁts of the proposed so-

lution. Finally we use this pipeline to overcome the

limit of a state-of-the-art solution for mobile Aug-

mented Reality on the number of tracking targets,

extending its scale signiﬁcantly without introducing

huge delays caused by server-side recognition.

2 RELATED WORK

Objects captured with mobile phone cameras may dif-

fer largely in appearance when compared with im-

ages obtained in a controlled environment. Conse-

quently, local image features are a reasonable choice

for representation, abstracting from custom acquisi-

tion conditions. Local image features typically re-

quire initial keypoint localization and can be divided

into two broad groups. While the ﬁrst group can

be represented as a feature-vector (e.g., SIFT (Lowe,

2004), SURF (Bay et al., 2008)), the second group

is computed from pixel differences and stored as a

binary string. VLAD (J

egou et al., 2010) is a low-

dimensional descriptor designed for large-scale re-

trieval employing product quantization for compres-

sion. However, this requires pre-computing SIFT

descriptors, which is slow on current mobile de-

vices. Binary feature descriptors like BRIEF (Calon-

der et al., 2010), ORB (Rublee et al., 2011), BRISK

(Leutenegger et al., 2011) and FREAK (Alahi et al.,

2012) can be more efﬁciently computed and matched.

Although they take up only a fraction of the space of

traditional approaches, they are in general not as ac-

curate. A recent approach called BinBoost (Trzcinski

et al., 2013) ﬁnds a low-dimensional but highly dis-

criminative binary descriptor using supervised learn-

ing. The resulting descriptors feature accuracy com-

parable to ﬂoating point descriptors, however, the

generation process is of computational complexity

similar to SIFT.

Recognition with local features can be realized

by feature matching and subsequent robust (e.g.,

RANSAC (Fischler and Bolles, 1981)) veriﬁcation of

the spatial layout by a suitable model. For a larger

number of images, an approximation of nearest neigh-

bor computation or quantization of features is re-

quired (Marius Muja and Lowe, 2009). The latter is

realized in the popular bag of words model (BOW),

where features are quantized using a vocabulary of

visuals words obtained by clustering all feature de-

scriptors (Sivic and Zisserman, 2003). Images are

then classiﬁed using a suitable scoring scheme (e.g.,

TF-IDF). However, the vocabulary can become very

large, making both storage and retrieval infeasible.

By hierarchically clustering the available features, the

BOW model is applicable to problems of larger scale

(Nister and Stewenius, 2006).

Performance can be further enhanced by taking

into account the context of local features (Wang et al.,

2011). Although this gives better recognition perfor-

mance, the overhead in memory consumption is pro-

hibitive in a mobile context. Initial results obtained by

the vocabulary tree may be improved using tree-based

re-ranking as an additional step before performing ge-

ometric veriﬁcation (Tsai et al., 2010). With a larger

number of classes, the dominant factor is the size of

the inverted index in the vocabulary tree, which can

be compressed (Chen et al., 2010).

It must be noted that binary descriptors generally

violate the assumption that points can be represented

by cluster centers (Trzcinski et al., 2012). This causes

lower performance compared with ﬂoating point de-

scriptors in typical scenarios. This can be overcome

by randomizing at the cost of additional overhead.

The aim of previous work in mobile visual search

was mainly to reduce the amount of data that needs

to be transferred to a server performing the actual

search operation (Girod et al., 2011) (Ji et al., 2011).

This applies to the standard pipeline using the vocab-

ulary tree, but also to alternative approaches, which

convert the feature-vector to a binary representation

(Zhou et al., 2012) or perform hashing (He et al.,

2012). Compressing keypoint locations (Tsai et al.,

2009) or using special descriptors further help to re-

duce transmission time (CHOG (Chandrasekhar et al.,

2012)). Still, the initial latency caused by current mo-

bile networks may degrade usability, which is critical

in a mobile context.

Current services for visual search have large de-

lays with only little dependence on image resolution

(see Section 4.3). Consequently, it seems interest-

ing to investigate visual search from a client-side per-

spective. We choose the traditional vocabulary tree

pipeline for reasons of efﬁciency, extensibility and

popularity. However, we neither transfer the image

nor descriptors to a server and perform all processing

locally on the mobile device.

Prior art closest to the proposed approach is given

by (Henze et al., 2009). They use heavily opti-

mized local features that are known to sacriﬁce scale-

invariance. The authors only provide a user study on

the performance of the system that deals with a rather

small number of images. In contrast, in our work we

modify selected parts of the pipeline to account for

special requirements of mobile setups such as lim-

ited processing power and storage capabilities, but

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

126

also to allow better scaling to a larger number of im-

ages. We provide an extensive evaluation of standard

datasets with current-off-the-shelf hardware. Thus we

describe a system that is half-way between an online

visual search solution and a real-time system. Per-

forming the search locally on the device allows for

instant responses, while we are able to limit the mem-

ory consumption on current off-the-shelf smartphones

for image databases of reasonable size.

3 MOBILE APPROACH

The major goal of performing mobile visual search on

the client is to reduce the large round-trip time of cur-

rent server-side solutions. Runtime is a very critical

factor for mobile applications, and failure to deliver in

this area may lead to immediate rejection by the user.

Due to constraints in processing power and memory,

it is not possible to duplicate a conventional server-

side solution onto a mobile device. This also means

that the scale of a mobile solution will be consider-

ably smaller than a server-side system, as all informa-

tion needs to be stored on the device itself. The size

of applications packages is also critical, as they are

typically downloaded by the device over 3G or Wi-Fi

networks. Consequently, we need to keep both run-

time and storage requirements at a reasonable level so

that the problem remains computationally feasible on

current mobile devices. With these considerations in

mind, we ﬁrst implemented a suitable pipeline for vi-

sual search and ported it to mobile devices. We then

added various modiﬁcations so that the pipeline can

be used in a realistic scenario employing a large num-

ber of image classes or categories, still working in in-

stant time entirely on the mobile device.

3.1 Overview

Our pipeline largely follows the standard concept for

visual search. We perform keypoint detection and

feature extraction on an input image resized to a de-

sired maximum dimension and hand over this data to

a vocabulary tree structure for initial classiﬁcation.

For reasons of efﬁciency, we perform ﬂat scoring at

the leafs. In this step, we pipe each feature descrip-

tor down the tree, accumulate normalized visit counts

stored during training for each class and weight them

by the corresponding entropy. The ﬁnal result is re-

ported as the index which corresponds to the maxi-

mum of the accumulation vector.

We improve our results in a subsequent veriﬁca-

tion step with a suitable number of candidates (see

Figure 2). We serialize both tree data and key-

Figure 2: Overview of a local visual search pipeline: image

descriptors are extracted and initially classiﬁed using a vo-

cabulary tree built from suitable training data; this result is

subsequently reﬁned during geometric veriﬁcation.

point/feature descriptor data created during training.

While the ﬁrst is kept in main memory for reasons of

speed, the latter is read on demand from ﬂash memory

during geometric veriﬁcation. Since we mainly target

planar objects in this work, we employ robust homog-

raphy estimation using RANSAC to re-rank the list

obtained from the vocabulary tree (Hartley and Zis-

serman, 2003).

3.2 Modiﬁcations for Mobile

Application

We made various enhancements to the standard ap-

proach for visual search to improve both runtime and

memory requirements. Descriptor computation is a

critical task in this type of application, as it tends

to have a comparatively large runtime. We modiﬁed

the current implementation of OPEN-SURF (Evans,

2009) by speeding up integral image computation, but

also by employing modiﬁcations in the ﬁnal step of

descriptor computation. More speciﬁcally, we use

a grid-size of 3x3 for 36 dimensions in the feature

vector. This yields considerable savings in runtime

during descriptor computation and geometric veriﬁca-

tion, but also in terms of storage. Memory consump-

tion is critical, as it inﬂuences both installation time

and startup time. We reduce requirements in main

memory (tree structure) but also in ﬂash memory

(keypoints/descriptors) by using half-precision ﬂoat

values throughout the pipeline. In particular, this af-

fects keypoint data and vocabulary tree data (see Fig-

ure 3). In addition, we compress descriptor data by

Figure 3: Pipeline for compressing local features: keypoint

locations are compressed into half precision values and de-

scriptors are linearly quantized with optional PCA.

Client-sideMobileVisualSearch

127

linear quantization into a single byte per dimension.

Optionally, we perform PCA (Pearson, 1901) to re-

duce the number of initial dimensions before linear

quantization. We also employ compression of in-

verted index data by recursive integer coding (Mof-

fat and Anh, 2005), targeting speciﬁcally the burden

on main memory caused by a large number of image

classes. It must be noted that we decompress all data

on-the-ﬂy during program execution, working solely

on the mobile CPU. We will evaluate this client-side

pipeline w.r.t. runtime and memory consumption in

detail in the next section.

4 EVALUATION

We ﬁrst evaluate the local pipeline w.r.t. recognition

performance, runtime and memory requirements di-

rectly on a Samsung Galaxy S3 mobile phone. This

is a an off-the-shelf smartphone with an ARM-Cortex

A9 CPU (up to 1.4 GHz) and 1 GB of main mem-

ory running Android. Information about the perfor-

mance on this device allows to estimate behavior on

most smartphones or tablets currently in use. We then

evaluate recognition performance using the commer-

cial recognition service kooaba. This allows to clearly

show the behavior of our pipeline compared to a state-

of-the-art solution for image retrieval.

4.1 Metrics and Datasets

In general, we report recognition rate (relative amount

of candidates classiﬁed correctly), runtime (descrip-

tor computation, vocabulary tree, geometric veriﬁca-

tion) and the size of serialized data for the vocabulary

tree and keypoints/descriptors. If not noted otherwise,

runtime is given in milliseconds (ms) and memory us-

age is reported in megabytes (MB). Based on informal

experiences with acceptable recognition latency, we

set the upper runtime limit of a local pipeline at ap-

proximately 500 ms on current off-the-shelf devices.

We use several datasets in our evaluation (see Ta-

ble 1). The posters dataset was created mainly to be

able to evaluate behavior with various image trans-

formations and serves for initial testing. The Mis-

souri (Wang et al., 2011) and in particular the Stan-

ford (Chandrasekhar et al., 2011) dataset represent

typical objects and operating conditions encountered

in mobile visual search. Especially the latter is inter-

esting in our context, as it contains more than 1000

classes. Finally, the UK-Bench

dataset is included

here to be able to evaluate the behavior of the pipeline

www.vis.uky.edu/ stewe/ukbench

Table 1: Most datasets used in our evaluation represent typ-

ical operating conditions for mobile visual search; the uk-

bench dataset allows evaluations of larger scale.

Name Categories Images Light Clutter Distortion

Posters 11 11 x x

Missouri Mobile 5 400 x x x

Stanford MVS 8 1193 x x x

UK-Bench 2550 10200 x x

Table 2: Local pipeline: performance and runtime of var-

ious local features on the posters dataset; R...resolution,

D...type of feature, P...recognition performance, F...feature

computation, T...vocabulary tree, V...geometric veriﬁcation.

R D P F T V Sum

train/test [ms] [ms] [ms] [ms]

320/320 SIFT 0.8170 1269 21 180 1470

320/320 SURF 0.8568 604 9 58 671

320/320 OSURF 0.7829 208 8 59 275

320/320 OSURF36 0.7784 126 4 43 173

320/480 OSURF36 0.8409 208 6 34 248

with a larger number of image classes. This dataset is

not very representative for mobile visual search, how-

ever, as it also contains different views of non-planar

objects, sometimes captured on very textured back-

ground. Since there is no test set given, it requires

computation of a different metric for evaluation (uky-

score).

Although the scale of these experiments is rela-

tively small compared to server-side systems from lit-

erature, it seems to be a common practice to create

larger datasets by insertion of an arbitrary amount

of distractor images. In contrast to our evaluation

methodology, a comparison is much more difﬁcult in

these cases. The posters dataset is available from the

authors upon request.

4.2 Evaluation of the Local Pipeline

We ﬁrst evaluate the system to determine suitable pa-

rameters for feature descriptors and geometric veriﬁ-

cation. Then, we determine the inﬂuence of compres-

sion on recognition rate, runtime and memory con-

sumption. In a ﬁnal step, we evaluate our pipeline

with a considerably larger number of classes. This

allows to come up with a clear statement on perfor-

mance and practical usability on current mobile hard-

ware.

4.2.1 Descriptors and Geometric Veriﬁcation

We evaluated the inﬂuence of the number of can-

didates used in geometric verifcation on recognition

rate and runtime for the posters dataset (see Figure

5). We evaluate various feature descriptors for use

in our pipeline with the posters dataset (compression

switched off). In order to facilitate the comparison of

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

128

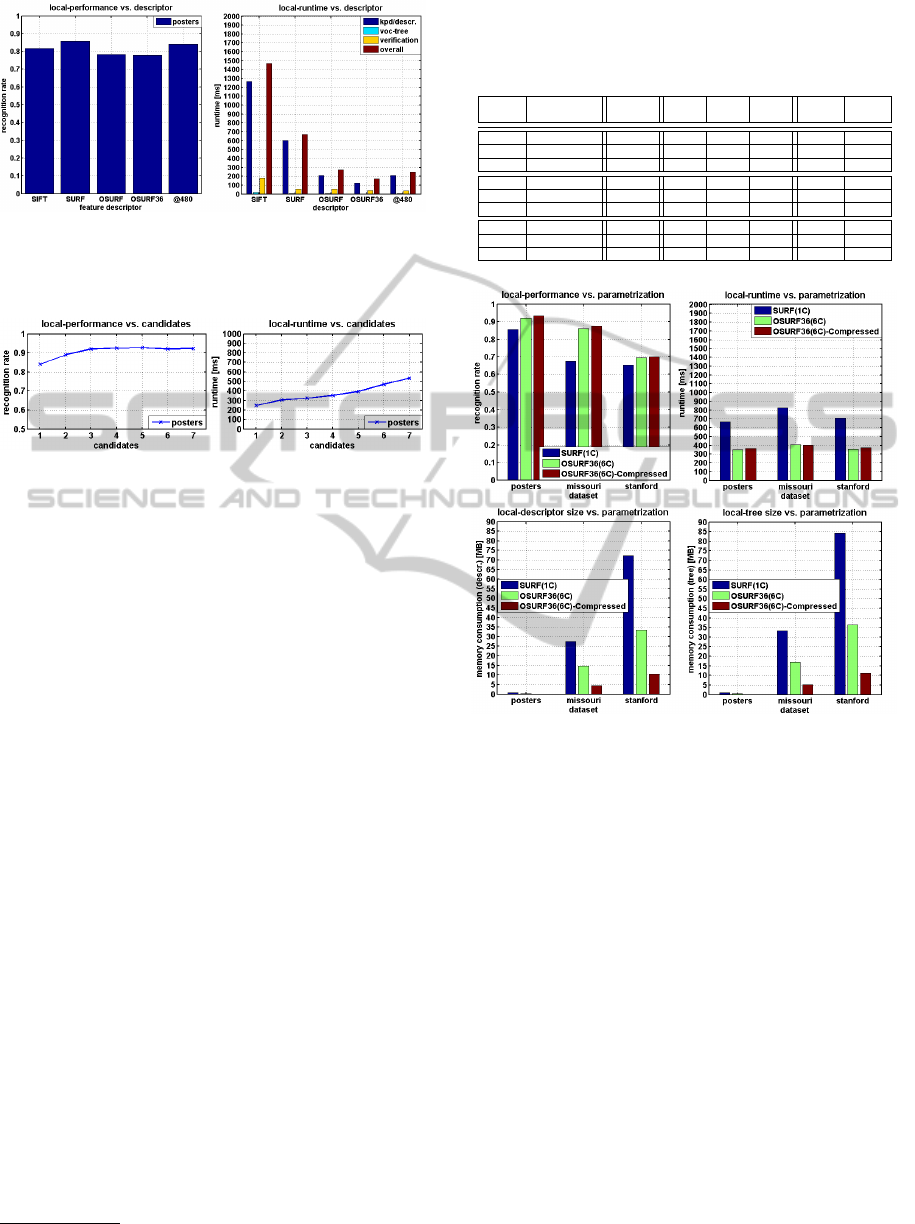

Figure 4: Local pipeline: performance and runtime of vari-

ous feature descriptors on the posters dataset; our modiﬁed

SURF descriptor provides reasonable performance but takes

up less runtime compared to the unmodiﬁed variants.

Figure 5: Local pipeline: effect of geometric veriﬁcation

on the posters dataset; performance saturates around three

candidates

results, we also evaluate SIFT and SURF

. We use a

maximum extension for the input image of 320 pix-

els and limit the maximum number of keypoints to

256. Geometric veriﬁcation is enabled, but conﬁgured

to just use one candidate. From Table 2 and Figure

4, it is evident that we obtain reasonable recognition

performance with the evaluated feature types. How-

ever, runtime of certain setups such as SIFT or SURF

is prohibitive for current mobile devices considering

our runtime budget of approx. 500 ms. Our modi-

ﬁed OPEN-SURF descriptor with just 36 dimensions

takes only a fraction of runtime compared to SURF.

However, recognition rate is around 10% lower. As

runtime is comparatively low, we can also process im-

ages of higher-resolution (e.g., 480 pixels). In this

case, we can roughly match the recognition rate of

SURF. Still, runtime is less than 50% compared to

SURF. In particular, runtime for geometric veriﬁca-

tion is shorter, which is also due to the reduced size

of the descriptor. So, it is possible to use more can-

didates for a given runtime budget. We see that run-

time scales approx. linearly in the number of can-

didates. Similarly, recognition rate improves with

an increasing number of candidates. Although per-

formance seems to saturate starting with three can-

didates for the posters dataset, we choose to use six

candidates for our modiﬁed OPEN-SURF descriptor,

as runtime is still around 500 ms. Based on our run-

time budget, we can only compare the performance

http://opencv.org

Table 3: Local pipeline: effect of compressing key-

points and descriptors; N...name of dataset, D...type of fea-

ture, F...feature computation, P...recognition performance,

T...tree, V...geometric veriﬁcation.

N D P F T V T F

[ms] [ms] [ms] [MB] [MB]

Post. SURF 0.8568 604 9 58 0.98 0.79

Post. OSURF36 0.9204 212 6 135 0.49 0.41

Post. OSURF36C 0.9329 211 16 136 0.15 0.12

Miss. SURF 0.6751 742 15 68 33.2 27.5

Miss. OSURF36 0.8623 248 9 180 16.9 14.6

Miss. OSURF36C 0.8759 225 26 151 5.14 4.61

Stanf. SURF 0.6550 640 14 58 84.1 72.2

Stanf. OSURF36 0.6940 216 9 134 36.4 33.5

Stanf. OSURF36C 0.7000 216 26 134 11.1 10.5

Figure 6: Local pipeline: detailed evaluation of compres-

sion on various datasets; compared with standard SURF, up

to 85% of storage space can be saved at negligible runtime

overhead and slightly increased performance

of our modiﬁed descriptor to SURF using a single

candidate for veriﬁcation. In Table 3 and Figure 6,

we present the results of this setup with the Missouri

and Stanford datasets. Compared with the baseline,

our modiﬁed OPEN-SURF descriptor offers 5%-20%

better performance in this setup, but takes up only half

of the runtime of SURF. Still, memory requirements

for tree and descriptors are comparatively high, espe-

cially for the Stanford dataset.

4.2.2 Compression

In order to tackle increasing memory requirements,

we compress both descriptors and the tree structure.

The effect of these measures can be seen in Table 3

and Figure 6. Our compression efforts signiﬁcantly

reduce memory requirements, while the effect on run-

time is negligible. By employing the proposed mod-

Client-sideMobileVisualSearch

129

iﬁcations, up to 85% of storage space can be saved

over standard SURF. Interestingly, there is a small in-

crease in recognition performance when compression

is enabled. This may be due to a reduction in noise

caused by our quantization scheme.

4.2.3 Scalability

In this experiment, we determine large-scale perfor-

mance on the UK-Bench dataset. We perform this

test on a Samsung Galaxy S3 smartphone and en-

able compression of keypoints and descriptors, but

also the inverted index stored in the vocabulary tree.

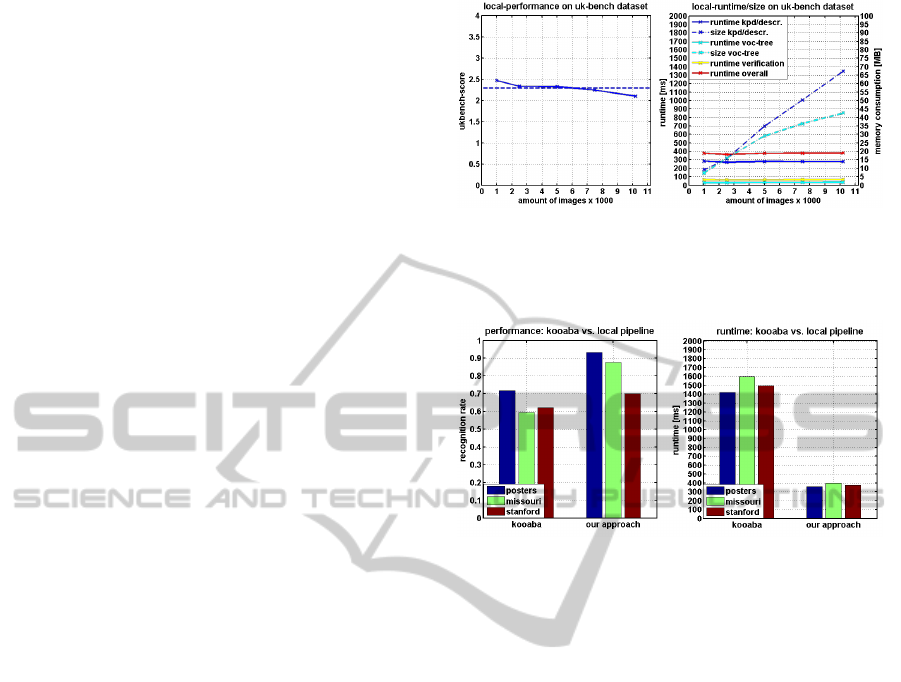

From Figure 7, it is evident that our pipeline scales

well concerning recognition rate, runtime and main

memory consumption. It is possible to manage more

than 10000 classes with the current pipeline, using

less than 110 MB of total storage space. Only a frac-

tion (approx. 50 MB) of data needs to be loaded into

main memory. On the one hand, the overall scores

obtained in this experiment are lower than those re-

ported in literature, as our parametrization is targeted

towards practical applicability on mobile devices. On

the other hand, it does not seem reasonable for this

kind of application to train a class for each view of an

object. As current mobile devices feature 1-2 GB of

main memory and at least 16 GB of ﬂash storage, this

purely client-side approach is estimated to be able to

handle an amount of images that is around 1-2 mag-

nitudes higher.

4.3 Comparison with Kooaba

For this experiment, we uploaded relevant reference

images into a single group and deactivated all images

not relevant to the current experiment or dataset. We

then performed queries over a Wi-Fi internet connec-

tion. This can be considered a very optimistic setup

compared to current mobile phone networks.

According to initial tests, the query resolution has

little inﬂuence on runtime and recognition rate. We

scale down query images to a maximum extension of

320 pixels, which is rather common for mobile appli-

cations. From Figure 8, we see that the posters dataset

performs best (approx. 0.7) on kooaba. With the

Missouri and Stanford datasets, performance drops by

around 10%. Compared to our client-side approach,

overall performance per dataset is signiﬁcantly lower

(5-25%).

However, the client-side approach has lower per-

formance for the print category of the Stanford dataset

(see Figure 9). As text in general features many key-

points, this drop is likely to be caused by the imposed

keypoint limit of our approach. It must be noted that

the performance for the landmark category is low for

Figure 7: Local pipeline: testing scalability with the UK-

Bench dataset on a Samsung Galaxy S3 mobile phone; our

pipeline scales well concerning recognition rate, runtime

and main memory consumption

Figure 8: Comparison of server-side mobile visual search

(kooaba) and client-side mobile visual search; our client-

side solution offers signiﬁcantly better recogniton and run-

time performance

both approaches. This may be caused by the fact that

the publicly available training set consists of several

images of the same object, each having a separate

class. This is not a common application scenario for

visual search, however.

For this experiment, runtime of kooaba is around

1500 ms, where the Missouri dataset has a higher run-

time than the other two (see Figure 8). For our setup

the bottleneck currently seems to lie in the recognition

engine itself, rather than connection speed.

All in all, the client-side solution offers signiﬁ-

cantly better recognition performance on the evalu-

ated datasets compared with a state-of-the-art server-

side solution. However, the latter performs better in

the print category. A local pipeline giving a result

in approximately 500 ms, can therefore compete in

recognition performance with a server-side solution

which takes three times the runtime.

5 MOBILE PROTOTYPE

APPLICATION

We built a mobile prototype for Android smartphones

and tablets demonstrating client-side mobile visual

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

130

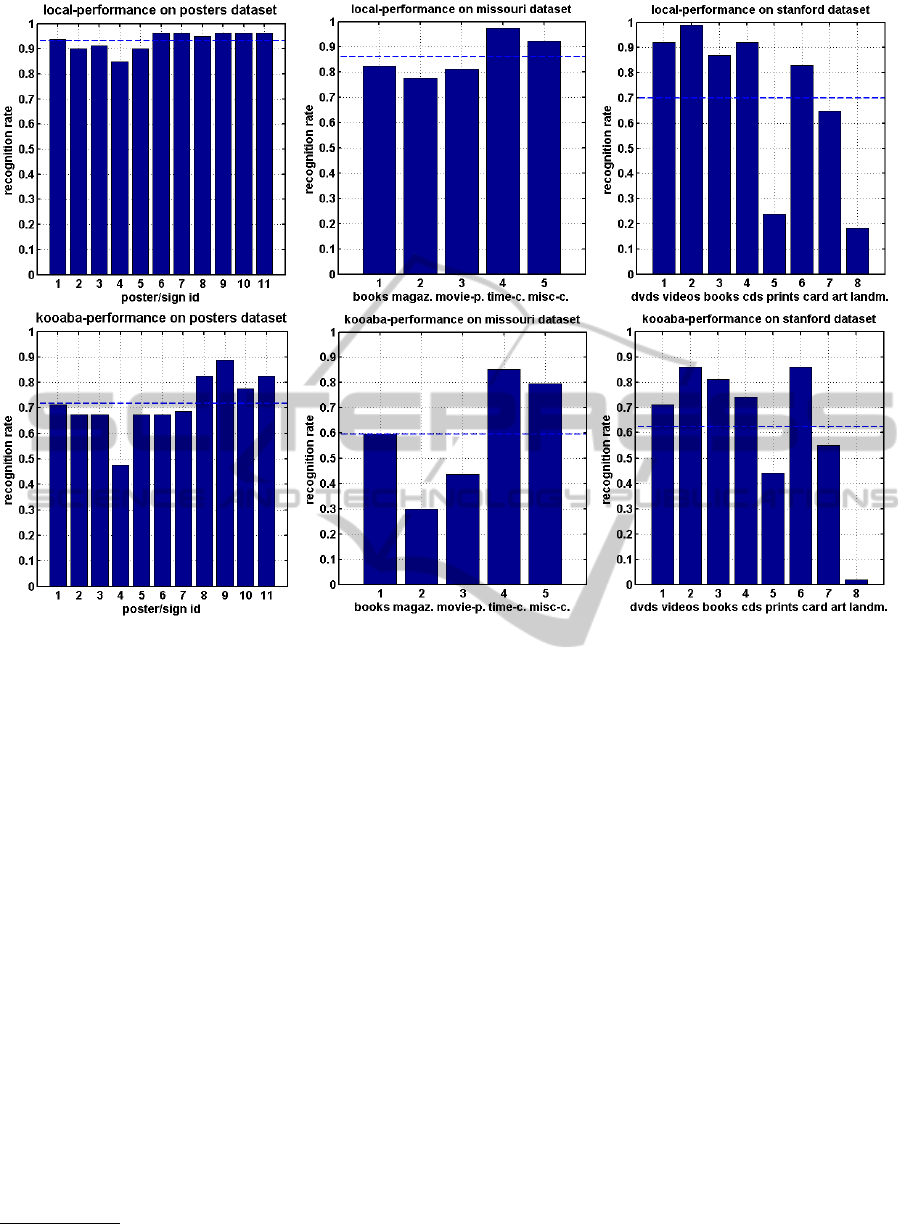

Figure 9: Detailed evaluation for the local pipeline and kooaba; top row: local pipeline, bottom row: kooaba; our client-side

approach delivers signiﬁcantly improved recognition performance for all datasets and categories except print (keypoint limit)

search but also server-side visual search using kooaba

(see Figure 1). Similar to popular search engines, we

give a list of candidates in the form of preview im-

ages, which may be activated to trigger a web-based

search in order to get additional information.

We also use our client-side module for visual

search to extend the amount of realistically usable

tracking targets within the Vuforia SDK

for mobile

Augmented Reality. In this case, we can instantly

select a matching tracking dataset without requiring

user intervention or costly server-side recognition.

We successfully tested this setup with several hundred

image targets. Due to limitations in the SDK, we can-

not provide a detailed evaluation, however.

6 CONCLUSIONS

We optimized a traditional visual search system to

decrease runtime and also storage space in order to

scale to thousands of training images on current off-

the-shelf smartphones. Compared with a standard

https://www.vuforia.com

pipeline, we achieve up to a two-fold speed-up in run-

time, save 85% of storage space and provide substan-

tially increased recognition performance. We com-

pared performance and runtime with the commer-

cial service kooaba and deliver considerably better

recognition performance at a fraction of runtime. We

demonstrated practical applicability in a prototype for

mobile visual search on mobile devices running An-

droid. In addition, we integrated the pipeline with a

popular AR SDK and used it as a preselector for track-

ing datasets. Consequently it is possible to instantly

use a large number of tracking targets without requir-

ing user intervention or costly server-side recognition

Improvements could be made on various levels.

We treat those as future work and will list them

brieﬂy: Descriptor computation should be accelerated

further, possibly by using the GPU for part of the pro-

cessing. This would certainly lead to an even more re-

sponsive system, but might also improve recognition

rate by relaxing the current limitation on the num-

ber of keypoints/feature descriptors. As their size

again poses a problem for huge numbers of classes,

they should be further compressed (e.g., variable-rate

quantization).

Client-sideMobileVisualSearch

131

For current server-based visual search systems it

seams reasonable to run a combination of server-side

and client-side recognition. Then, the client could be

conﬁgured to instantly recognize just a small subset

of currently popular classes. This would provide both

large-scale capability and instant recognition.

ACKNOWLEDGEMENTS

This work is supported by Bundesdruckerei GmbH.

REFERENCES

Alahi, A., Ortiz, R., and Vandergheynst, P. (2012). Freak:

Fast retina keypoint. In CVPR, pages 510–517.

Bay, H., Ess, A., Tuytelaars, T., and Gool, L. V. (2008).

Speeded-up robust features (surf). Computer Vision

and Image Understanding, 110(3):346–359.

Calonder, M., Lepetit, V., Strecha, C., and Fua, P. (2010).

Brief: binary robust independent elementary features.

In ECCV, pages 778–792.

Chandrasekhar, V.and Takacs, G., Chen, D. M., Tsai, S.,

Reznik, Y.and Grzeszczuk, R., and Girod, B. (2012).

Compressed histogram of gradients: A low-bitrate de-

scriptor. International Journal of Computer Vision,

96(3):384–399.

Chandrasekhar, V. R., Chen, D. M., Tsai, S. S., Cheung,

N.-M., Chen, H., Takacs, G., Reznik, Y., Vedantham,

R., Grzeszczuk, R., Bach, J., and Girod, B. (2011).

The stanford mobile visual search data set. In MMSys,

pages 117–122.

Chen, D. M., Tsai, S. S., Chandrasekhar, V., Takacs, G.,

Vedantham, R., Grzeszczuk, R., and Girod, B. (2010).

Inverted index compression for scalable image match-

ing. In IEEE DCC, page 525.

Evans, C. (2009). Notes on the opensurf library. Technical

Report CSTR-09-001, University of Bristol.

Fischler, M. A. and Bolles, R. C. (1981). Random sample

consensus: a paradigm for model ﬁtting with appli-

cations to image analysis and automated cartography.

Commun. ACM, 24(6):381–395.

Girod, B., Chandrasekhar, V., Chen, D. M., Cheung, N.-M.,

Grzeszczuk, R., Reznik, Y. A., Takacs, G., Tsai, S. S.,

and Vedantham, R. (2011). Mobile visual search.

IEEE Signal Processing Magazine, 28(4):61–76.

Hartley, R. and Zisserman, A. (2003). Multiple View Geom-

etry in Computer Vision. Cambridge University Press,

New York, NY, USA, 2nd edition.

He, J., Feng, J., Liu, X., Cheng, T., Lin, T.-H., Chung, H.,

and Chang, S.-F. (2012). Mobile product search with

bag of hash bits and boundary reranking. In CVPR,

pages 3005–3012.

Henze, N., Schinke, T., and Boll, S. (2009). What is that?

object recognition from natural features on a mobile

phone. In Workshop on Mobile Interaction with The

Real World.

egou, H., Douze, M., Schmid, C., and P

erez, P. (2010).

Aggregating local descriptors into a compact image

representation. In CVPR, pages 3304–3311.

Ji, R., Duan, L.-Y., Chen, J., Yao, H., Rui, Y., Chang, S.-

F., and Gao, W. (2011). Towards low bit rate mobile

visual search with multiple-channel coding. In ACM

MM, pages 573–582.

Leutenegger, S., Chli, M., and Siegwart, R. (2011). Brisk:

Binary robust invariant scalable keypoints. In ICCV,

pages 2548–2555.

Lowe, D. G. (2004). Distinctive image features from scale-

invariant keypoints. International Journal of Com-

puter Vision, 60(2):91–110.

Marius Muja, M. and Lowe, D. G. (2009). Fast approximate

nearest neighbors with automatic algorithm conﬁgura-

tion. In VISAPP, pages 331–340.

Moffat, A. and Anh, V. N. (2005). Binary codes for non-

uniform sources. In IEEE DCC, pages 133–142.

Nister, D. and Stewenius, H. (2006). Scalable recognition

with a vocabulary tree. In CVPR, pages 2161–2168.

Pearson, K. (1901). On lines and planes of closest ﬁt to

systems of points in space. Philosophical Magazine,

2:559–572.

Rublee, E., Rabaud, V., Konolige, K., and Bradski, G.

(2011). Orb: an efﬁcient alternative to sift or surf.

In ICCV, pages 2564–2571.

Sivic, J. and Zisserman, A. (2003). Video google: a text

retrieval approach to object matching in videos. In

ICCV, pages 1470–1477.

Trzcinski, T., Christoudias, M., Fua, P., and Lepetit, V.

(2013). Boosting binary keypoint descriptors. In

CVPR, pages 2874–2881.

Trzcinski, T., Lepetit, V., and Fua, P. (2012). Thick

boundaries in binary space and their inﬂuence on

nearest-neighbor search. Pattern Recognition Letters,

33(16):2173–2180.

Tsai, S., Chen, D. M., Takacs, G., Chandrasekhar, V.,

Vedantham, R., Grzeszczuk, R., and Girod, B. (2010).

Fast geometric re-ranking for image-based retrieval.

In ICIP, pages 1029–1032.

Tsai, S. S., Chen, D., Takacs, G., Chandrasekhar, V., Singh,

J. P., and Girod, B. (2009). Location coding for mobile

image retrieval. In MMCC, pages 8:1–8:7.

Wang, X., Yang, M., Cour, T., Zhu, S., Yu, K., and Han,

T. (2011). Contextual weighting for vocabulary tree

based image retrieval. In ICCV, pages 209–216.

Zhou, W., Lu, Y., Li, H., and Tian, Q. (2012). Scalar quan-

tization for large scale image search. In ACM MM,

pages 169–178.

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

132
