R&D of the Japanese Input Method using Life Log on an

Eye-controlled Communication Device for Users with Disabilities

Kazuaki Shoji

, Hiromi Watanabe

and Shinji Kotani

Department of Education Interdisciplinary Graduate School of Medicine and Engineering, University of Yamanashi,

Takeda 4-3-11 Kofu, Yamanashi, Japan

Department of Research Interdisciplinary Graduate School of Medicine and Engineering, University of Yamanashi,

Takeda 4-3-11 Kofu, Yamanashi, Japan

Keywords: Japanese Input Method, Disability, Eye-control, Input Efficiency.

Abstract: We aim to enable the smooth communication of persons physically unable to speak. In our past study, we

proposed three Japanese input methods using a portable eye- controlled communication device for users

with conditions such as cerebral palsy or amyotrophic lateral sclerosis (ALS). However, these methods

require nearly 30 seconds to cycle through one Japanese character. In this paper, we suggest a method to

estimate the input word using the clues of nearby characters and accumulated experience. In addition, to

raise the precision of the prediction, we use the connection between words based on a thesaurus. We have

realized precise word conversion via a few input letters, as proved by the result of the simulation

experiment.

1 INTRODUCTION

The number of handicapped people in Japan in 2006

was 3,570,000 (Ministry of Health, 2008). Among

these, the number of physically handicapped people

is 1,810,000 people. It is difficult for those with

heavy cerebral palsy or later stages of ALS, to

communicate by speaking, writing or gesturing.

Japan aims to create a society in which the

physically disabled can take part in the economy and

culture. It is not enough to simply improve the

quality of life (QOL) for the physically disabled.

Communication is also very important, but currently

there is no effective method.

The final aim of this research is to achieve a

symbiotic society of the disabled and non-disabled.

Real-time communication system for disabled is

necessary to achieve the society. Thus we aim to

achieve via R&D the communication system.

This system needs to be customizable based on

the nature of the disability and its severity. Moreover,

cost and size of the system need to be considered, in

order to make the system accessible to the greatest

number of people. In addition, it is necessary to

promote the system once it is created.

We use an eye-controlled communication device

in a real-life system. The eye-controlled

communication method is an interface, which can be

used both with heavy cerebral palsy and with

advanced ALS. Our final goals are developing and

evaluating an eye-controlled communication device

for a Japanese input method. We aim to use

quantitative evaluation, qualitative evaluation by

questionnaire and physiological evaluation with near-

infrared spectroscopy (NIRS).

In the first stage, we established three Japanese

input methods and evaluate these methods with NIRS

(Kotani et al., 2010). In the second stage, we will

improve the system based on feedback from users. In

the third stage, we will develop the new system using

cellular phones and their digital cameras. There has

already been a great deal of research of eye-

controlled communication devices (Hori and Saitoh,

2006; Yamamoto, Nagamatsu and Watanabe, 2009),

with some products on the market. There has even

been research on the Japanese touch screen input

method (Noda et al., 2008). However, an effective

Japanese input system using eye-controlled

communication has not been developed.

In our previous studies, we have succeeded in

developing three Japanese input methods that are not

burdensome to users. These methods encountered we

had a problem that the users with heavy cerebral

require to take approximately 30 seconds to enter one

207

Shoji K., Watanabe H. and Kotani S..

R&D of the Japanese Input Method using Life Log on an Eye-controlled Communication Device for Users with Disabilities.

DOI: 10.5220/0004681202070213

In Proceedings of the International Conference on Physiological Computing Systems (PhyCS-2014), pages 207-213

ISBN: 978-989-758-006-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

Japanese character.

This paper proposes a predictive conversion

system (PCS) for high efficiency character input. The

system uses various information accumulated for the

user, neighboring information, and information

regarding time and place. The new system will

enable smooth communication of the physically

disabled, which will contribute enormously to the

rest of the society. It is also expected that the study

will help improve existing input system for the able-

bodied.

This study was approved by the institutional

ethics committee of University of Yamanashi.

2 JAPANESE INPUT SYSTEM

2.1 Eye-controlled Communication

Device

My Tobii P10 is a portable eye-controlled

communication device which is made by Tobii

Technology Inc. Everything, including a 15” screen,

eye control device and computer, is integrated into

one unit. We use this unit in the first stage of our

research.

My Tobii P10 has sold more than 2,000 units. It

received excellent reviews as a user-friendly, eye-

controlled communication device. Unfortunately, the

device does not have a Japanese capability.

We proposed three Japanese input methods: (1)

“Roman letters” on-screen keyboard, (2) “Japanese

kana” input, and (3) “modified beeper” input. The

“modified beeper” omits numbers. Figure 1 shows

the “Roman letters” on-screen keyboard image,

Figure 2 shows the “Japanese kana” input image and

Figure 3 shows “modified beeper” input image.

2.2 NIRS

Pocket NIRS Duo is a portable near infrared

spectroscopic device which is made by Hamamatsu

Photonics. The spectroscopic method (Villringer et

al., 1993) is a non-invasive imaging of brain

function. The technique is safe and has lower

constraints for subjects compared to other brain

imaging techniques. In addition, only a simple and

easy-to-use system is needed for the measurements.

The positions of the probes are Fp1 and Fp2,

EEG (Electroencephalogram) measurements

according to the 10-20 international electrode

placement system (Okamoto et al.,2004; Moosmann

et al., 2003, Roche-Labarbe et al., 2008).

2.3 Evaluation

We evaluated three Japanese input methods,

including quantitative, qualitative evaluation and

physiological evaluation with NIRS system.

We observed and evaluated four able-bodied

Japanese speakers using the system, six times every

two weeks for three months. The results of

proficiency evaluation showed the Roman-letter

input method was most effective (Kotani et al.,

2011). It had the highest rate of input characters for

all the subjects. One subject was able to double the

input rate over time. These results show the

effectiveness of the system for subjects with light

cerebral palsy or ALS.

We list the disabled subjects in Table 1 below.

Table 1: Detailed information of the 2 disabled subjects.

Subjects Age Sex Conditions

HS01 teenage Female

Heavy

cerebral palsy

HS02 twenties Female

Heavy

cerebral palsy

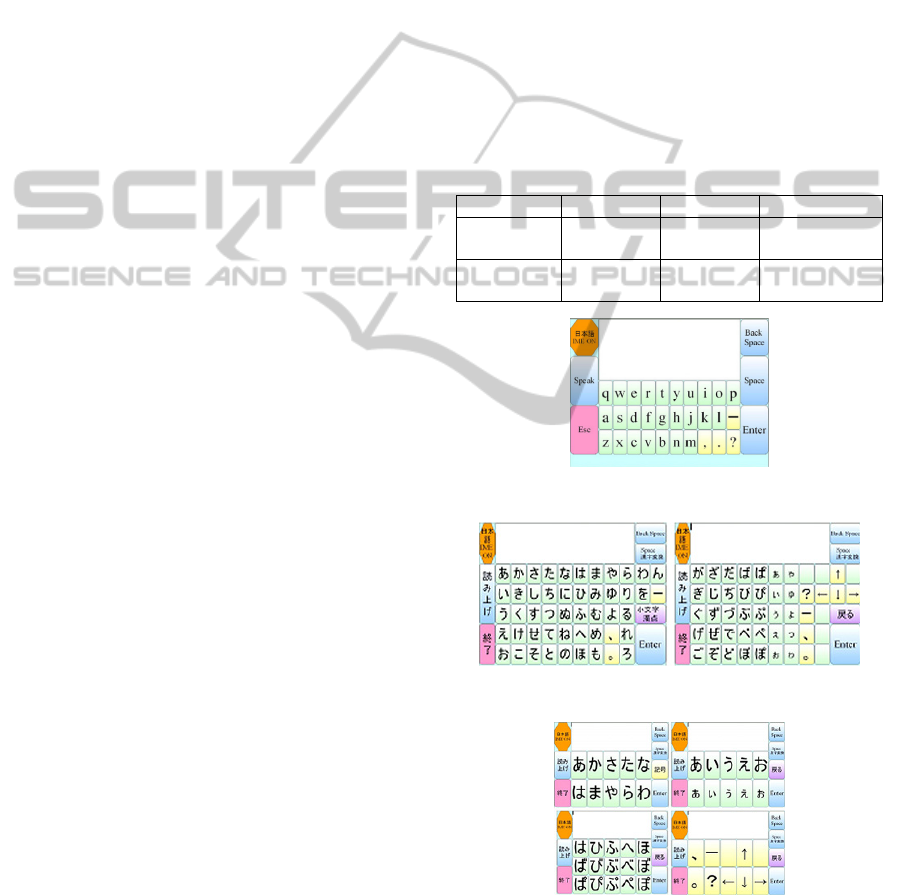

Figure 1: “Roman letters” on-screen keyboard image.

Figure 2: “Japanese kana” input image.

Figure 3:“Modified beeper” input image.

The frequency of the experiment was every month

for HS02 and every two weeks for HS01. HS01

could input a symbol after 4 months. She could input

PhyCS2014-InternationalConferenceonPhysiologicalComputingSystems

208

her name after 5 months. HS02 could input her name

and family name after two months. She could input

her favorite lyrics in four months, and after that she

could control Windows Media player with her

glance in six months.

HS01 and HS02 used the modified beeper. The

users with heavy cerebral palsy could not use the

Roman-letter input method, because they could not

fix their glance to a small area. For this reason,

character input efficiency decreased.

The users with heavy cerebral palsy require

approximately 30 seconds to enter one Japanese

character. To solve this problem, we studied an

efficient predictive conversion system.

3 PREDICTIVE CONVERSION

METHOD

This system is proposed for the Japanese input

system, but to facilitate explanation in English, we

will use English words.

3.1 Summary

The main features of the predictive system are as

follows:

i. Raise the priority of the word that had been input

in the past.

ii. A user picks a dictionary.

iii. The system also uses the context.

Because past input decision data did not exist for the

users in this study, an appropriate dictionary did not

exist. To make a word database, we fused static

attributes from the life log, the basic attributes by

time and place, and dynamic attributes by the

situation and target estimation. The word database

improves prediction conversion precision. We show

each item in Table 2.

Table 2: Detailed information of the attributes.

Attribute Item Contents

Static

attributes

Knowledge

Experiment

Memorize person

Memorize proper

nouns

Basic

attributes

Time information For choose greeting

Place information For choose topic

Dynamic

attributes

Situation Sound recognition

Target estimation Object recognition

Below we give examples of situations which would

all result in the letter “g.”

“Good morning”: from basic attributes, 8:00

A.M.

“Good night”: from basic attributes, 22:00 P.M.

“George”: from static and dynamic attributes, the

person being addressed is George.

“Garden”: from the basic attribute of being in a

garden.

“Glad”: from dynamic attributes, when

somebody says “Congratulations.”

“Grape”: from the dynamic attribute of having a

grape in front.

The system can thus estimate a right word.

In the communication of a disabled person, it is

very difficult to perform a word estimate in an

accident. However, word estimates are possible.

3.2 System Configuration

We show each configuration item in Figure 4.

Static attribute information is formed by visual

information provided by a camera and sound

collected by a digital voice recorder. The system

creates a life log from proper nouns, showing more

frequent use than the accumulated image and sound.

The word database is currently created by manual

operation. For higher efficiency dictionary

generation, we can use the method that

automatically analyzes a proper noun (Coates-

Stephens, 1993).

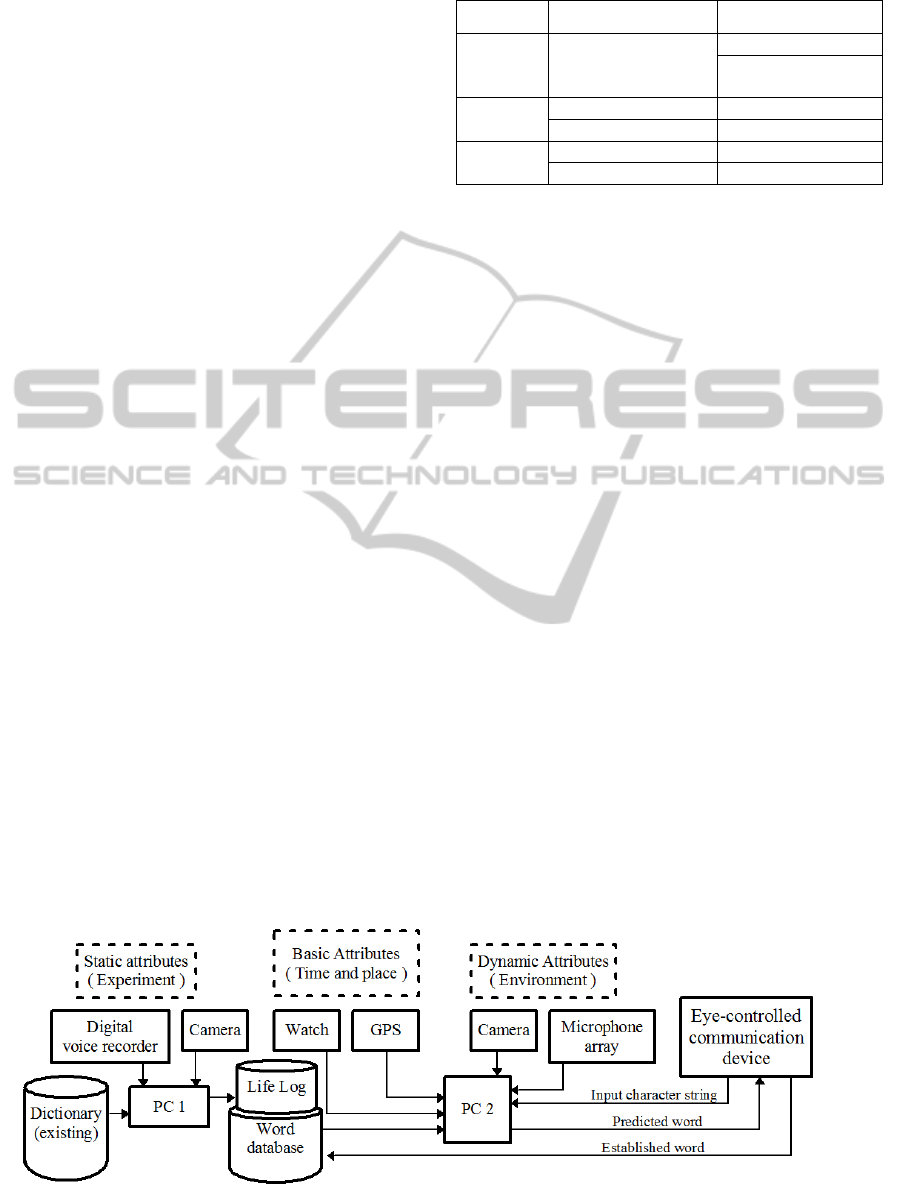

Figure 4: General view of the system.

R&DoftheJapaneseInputMethodusingLifeLogonanEye-controlledCommunicationDeviceforUserswithDisabilities

209

To get basic attribute information, the system

acquires the time from a clock with a date and time

and acquires the position from GPS. A word

estimate corresponding to time and place is useful

for the input of the basic words, such as greetings.

The system acquires neighboring image

information and sound information and uses it as a

dynamic attribute. The system uses general object

recognition (Zhang, Zelinsky and Samaras, 2007) to

identify images. Because physically disabled

persons often discuss objects in the vicinity, the

system can guess words based on the object. The

system identifies the person by using facial and body

recognition (Lanitis, Taylor and Cootes, 1996). The

system compares these results with the static

attributes. The system acquires sound via a

microphone array to grasp the topic that a person in

the vicinity is talking about. The acquired sound

then undergoes source localization via the HARK or

MUSIC methods (Nakadai et al., 2010). This

enables sound recognition that is robust against

multiple sources of noise. Furthermore, words can

be guessed from the recorded sound using

Julius/Julian (Lee et al., 2001).

4 WORD DATABASE

4.1 Features

We use the connection between words based on a

thesaurus (Chen et al., 2003) used by a search

system. We defined the connection as a word tree.

The system has a plural word tree built-in. Each

word tree has a condition that activates it. When a

word tree has been activated, the input system gives

priority to words in the word tree and predicts them.

For example, there is a word tree, which has "apple

pie" and "baked apple" under "apple," and "apple"

under "fruit." The word tree is activated when one of

the conditions shown below is satisfied.

The system is currently located in a

greengrocer’s.

A user inputs the word "food" or "eat" by eye-

controlled communication device.

The system recognized the word "food" or "eat"

from sound information.

These are the conditions that are met when a

topic is likely to be "food" and "fruit." When either

condition was met, or the user inputs "a," "apple"

takes high priority and is chosen as the first

candidate word.

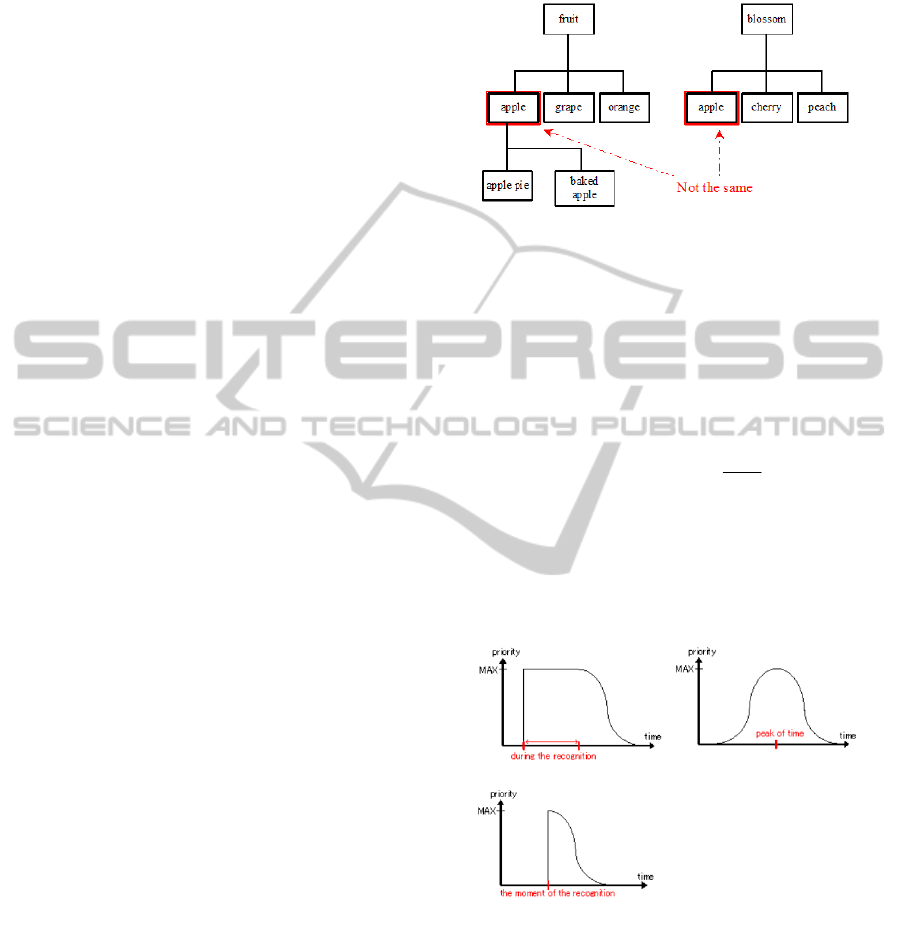

We show the advantages of this word tree in

Figure 5. the system can treat "apple" as food as

separate from "apple" as a blossom. Therefore, the

system can prevent "baked apple" being given

priority when the topic is blossoms.

Figure 5: Feature of word tree.

4.2 Active and Inactivate

At any given time, each word tree has a priority,

which changes with time. The priority changes with

Expression 1, modeled on a Gaussian. In the

expression below, MAX indicates maximum priority,

t is elapsed time, and σ is the rate of decrease:















exp



MAXpriority

(1)

The predicted change depends on time information,

as well as object and sound recognition. When the

word tree is activated by time information, priority

reaches a maximum. We show the rough shape of

the priority in Figure 6.

Figure 6: The shape of change in word tree.

When a tree is activated by object recognition and

sound recognition, the moment of activation is the

peak of the priority, subsequently decreasing with

time. We show the rough shape of the priority in

such case in Figures 6 (a)-(c).

The words are then displayed as predictive input

candidates, starting with trees with the highest

priority. When multiple trees are activated, if there

(a) by object recognition (b) by time information

PhyCS2014-InternationalConferenceonPhysiologicalComputingSystems

210

are synonyms among them, the priority of the words

with synonyms increases the priority of their trees.

4.3 Implementation Approach

We write the word trees in the XML format that is

currently the best in expressing hierarchical

structure. We show the example describing the fruit

tree of Figure 5 in Figure 7. Words are denoted by

<word> in the hierarchical structure.

Figure 7: Example of an XML description of word tree.

The activated condition is described in the <trigger>

element. The condition, the maximum of priority

and the rate of decline of priority are described in

attributes. To take an example of object recognition,

“snd” is the attribute type. In addition, the

recognized contents are described under “eat,” and

the maximum value of the priority is described in

max, and a rate of decline is set in reduce.

The system reads this XML when it boots up. A

word tree is activated when the activation conditions

in the XML matches the information provided by

each module.

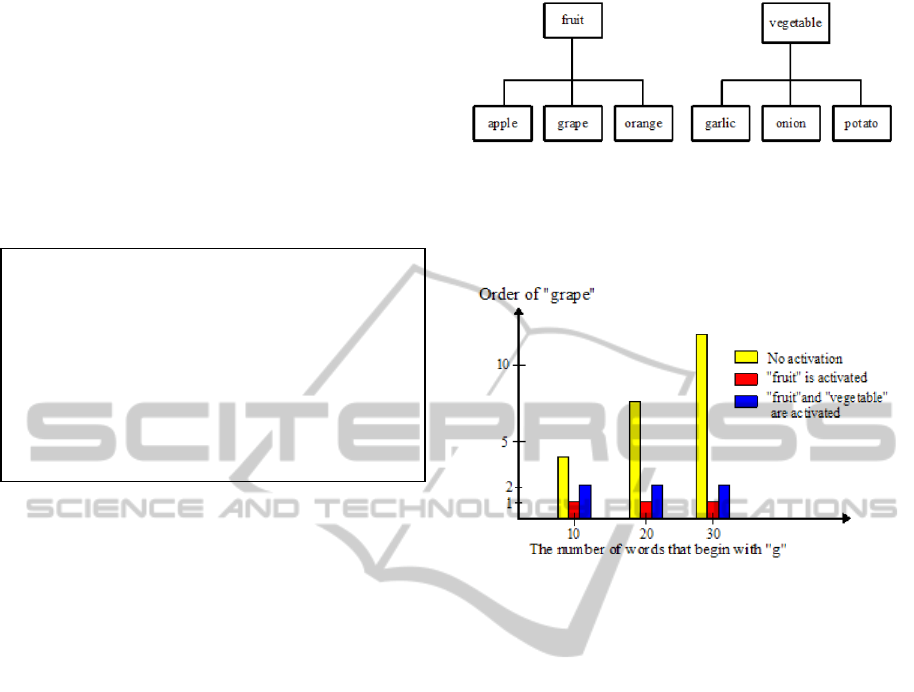

4.4 Theoretical Evaluation

Below we give an example: consider the two word

trees in Figure 8. There are three cases: (1) when

neither word tree is active, (2) when only the “fruit”

is active, (3) when both trees are active. In each

case, we compared the priority of the word “grape.”

We registered 10, 20 or 30 other words that begin

with “g” in the dictionary. For words whose trees’

priority remains constant, predictions are given in

alphabetical order.

The results are presented in Figure 9. We show

the number of words that begin with “g” in the

dictionary on the horizontal axis, and the order in

which “grape” appears on the vertical axis. When

neither word tree is activated, there is a correlation

between the order of “grape” and the number of

registered words. However, when the “fruit” word

Figure 8: Two related word tree.

tree is activated, “grape” comes first. When both

word trees are activated, because "garlic" is first

alphabetically, “grape” comes second.

Figure 9: The result of theoretical evaluation.

5 EXPERIMENT

This experiment was carried out to test the

efficiency of using word trees. We show the results

of a simulation, because the accumulation of life log

data is insufficient for these purposes.

5.1 Experimental Method

This experiment assumed the input of "good

morning" by predictive conversion with using word

trees. "Good morning" is included in the word tree

whose priority becomes maximum at 8:00 A.M.

During an experiment, time information is changed

at random from 6:00 A.M. to 10:00 A.M. The

priority of “good morning” has the shape of a

Gaussian, changing from 0.6 to 1.0 at random.

A number of words to begin in "g" shall be

activated. We assume that the priority of these words

changes from 0.0 to 1.0 at random. We examined the

relationship between the order of "good morning"

and the number of activated words. We tried each

pattern 500 times.

<trigger type=”snd” ,obj =”eat”,

max=”1.0”, reduce=”0.5”>

</word>

</word>

</word tree>

R&DoftheJapaneseInputMethodusingLifeLogonanEye-controlledCommunicationDeviceforUserswithDisabilities

211

5.2 Experimental Result

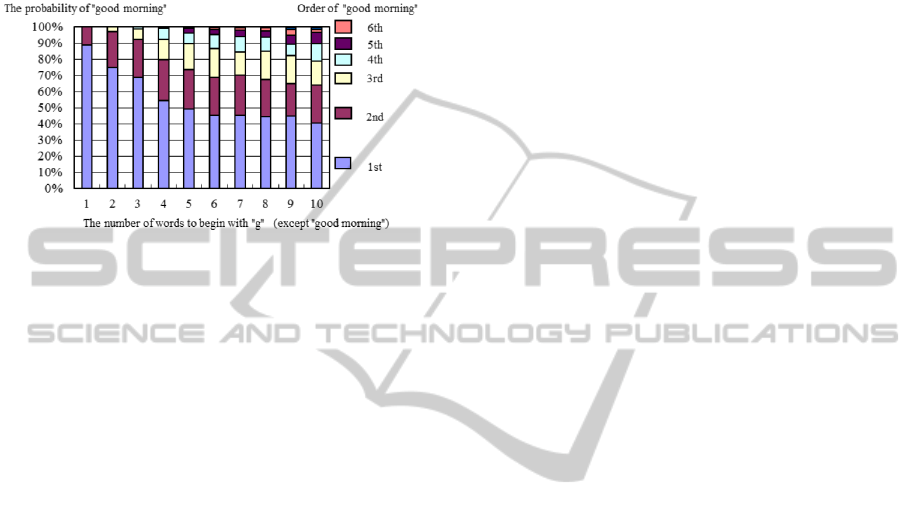

The results of the simulation are presented in Figure

10. The horizontal axis indicates the number of

words these are on the activated word tree. The

vertical axis shows the order of "good morning" and

its probability.

Figure 10: The result of experiment.

Figure 10 tells us that the probability that "good

morning" comes first even if ten other words

beginning with "g" are activated exceeds 40%.

In the situation of real-life use, we are likely to

input "good afternoon," "good evening," and "good

night" the day before we input "good morning."

Therefore, the priority of "good morning" lowers by

the conventional predictive method that uses recent

input information in the past. When we use the

prediction using the word tree, the probability that

the order of "good morning" comes after the fourth

place, even if there are ten other activated words

beginning with "g," is around 20%. From this

viewpoint we can say that input efficiency improves

in comparison with the conventional predictive

method.

When its priority is in the fourth place, "good

morning" is more likely to be predicted if we input

"go." When we use conventional predictive method,

"good afternoon" "good evening" and "good night"

are more likely to be given priority, even if we input

"good." This example makes it clear that the amount

of input necessary for the correct word decision can

decrease with the new system.

In this experiment, we set the priority of the

other words beginning with "g" at random. It will be

necessary to consider an effective priority change

using the life log and dynamic attributes in the future.

6 CONCLUSIONS

In this paper, we have suggested a novel method to

improve input efficiency that has plagued eye-

controlled input systems. We demonstrate a new

predictive conversion method, which utilizes both

the life log of the user and his/her environment. This

method enables educated guesses in a variety of

situations using static, basic and dynamic attributes.

We use data from various sensors, such as a camera

and a microphone array, to implement this new

system.

We furthermore propose the use of word trees to

make predictions more effective. The word tree is a

way of thinking based on the thesaurus, and it can be

described by XML. It is generally believed that the

cost of the construction of all of the relevant word

trees may be enormous. Through the use of

automatic tree-building of a thesaurus (Kageura,

Aizawa and Tsuji, 2000; Chen et al., 1995), this

problem is solved.

Our simulation showed that we have indeed

obtained efficient prediction using word trees.

Multiple word trees were activated; even if in a

complicated situation, we made more efficient

predictions than the conventional method.

For now, only the dynamic attribute acquisition

using sound has been implemented. We aim to

suggest a method of general object recognition using

images in the future. For this implementation, we are

studying a method using depth information to be

provided by a personal detection Kinect sensor for

the Xbox360. We also create a life log by general

object recognition and sound recognition. We plan

to evaluate the resulting system using the additional

sources of information for making predictions.

REFERENCES

Chen, H., Schatz, B, R., Yim, T. and Fye, D., 1995,

Automatic thesaurus generation for an electronic

community system, Journal of the American Society

for Information Science (JASIS), 46(3), pp.175-193.

Chen, Z., Liu, S., Wenyin, L., Pu, G. and Ma, W,Y., 2003,

Building a Web Thesaurus from Web Link Structure,

Proc. of the ACM SIGIR, pp.48-55.

Coates-Stephens, S., 1993, The analysis and acquisition of

proper names for the understanding of free text, In

Computers and the Humanities, Vol.26, pp.441-456.

Hori, J. and Saitoh, Y., 2006, Development of a

Communication Support Device Controlled by Eye

Movements and Voluntary Eye Blink, IEICE TRANS.

INF.&SYST., vol.E89-D, no.6, pp.1790-1797.

Kageura,K., Tsuji, K. and Aizawa, A., 2000, Automatic

thesaurus generation through multiple filtering, Proc.

of the 18th International Conference on

Computational Linguistics, pp.397-403.

Kotani, S. Ohgi, K., Watanabe, H., Komasaki, T. and

Yamamoto, Y., 2010, R&D of the Japanese Input

PhyCS2014-InternationalConferenceonPhysiologicalComputingSystems

212

Method using an eye-controlled communication

device for users with disabilities and evaluation with

NIRS, Proc. 2010 IEEE International Confrence on

Systems, Man, and cybernetics (SMC), Isutanbul,

pp.2545-2550.

Kotani, S., Tanzawa, T., Watanabe, H., Ohgi, K.,

Komasaki, T. And Kenmotsu, T., 2011, Proficiency

evaluation of three Japanese input methods using an

eye-Controlled communication device for users with

disabilities, Proc. 2011 IEEE International

Conference on Systems, Man, and cybernetics

(SMC2011), Alaska, pp.3230-3235.

Lanitis, A., Taylor, C, J. and Cootes, T, F., 1996, An

automatic face identification system using flexible

appearance models, Image and Vision Computing,

vol.13, no.5, pp.393-401.

Lee, A., Kawahara, T. and Shikano, K., 2001, Julius -- an

open source real-time large vocabulary recognition

engine, Proc. EUROSPEECH, pp.1691-1694.

Ministry of Health, Labour and Welfare., 2008. Statics

data. in Japanese.

Moosmann, M,. Ritter, P,. Krastel, I,. Brink, A., Thees, S.,

Blankenburg, F., Taskin, B., Obrig, H. and Villringer,

A., 2003, Correlates of alpha rhythm in functional

magnetic resonance imaging and near infrared

spectroscopy, NeuroImage, 20, pp.145-158.

Nakadai, K., Takahashi, T., Okuno, H, G., Nakajima, H.,

Hasegawa, Y. and Tsujino, H., 2010, Design and

Implementation of Robot Audition System "HARK",

Advanced Robotics, vol.24, no.5-6, pp.739-761.

Noda, T., Shirai, H., Kuroiwa, J., Odaka, T. and Ogura, H.,

2008, The Japanese Input Method Base on the

Example for a personal Digital Assistant, Memories of

the Graduate School of Engineering, University of

Fukui, 56, pp.69-76.

Okamoto, M., Dan, H., Sakamoto, K., Takeo, K., Shimizu,

K., Kohno, S., Oda, I., Isobe, S., Suzuki, T., Kohyama,

K. and Dan, I., 2004, Three-dimensional probabilistic

anatomical cranio-cerebral correlation via the

international 10-20 system oriented for transcranial

functional brain mapping, NeuroImage, 21, pp.99-111.

Roche-Labarbe, N., Zaaimi, B., Berquin, P., Nehlig, A.,

Grebe, R. and Wallois F.,2008, NIRS-measured oxy-

and deoxyhemoglobin changes associated with EEG

spike-and wave discharges in children, Spilepsia,

49(11), pp.1871-1880.

Villringer, A., Planck, J., Hock, C., Schleinkofer, L. and

Dirnagl, U., 1993, Nera infrared spectroscopy (NIRS):

A new tool to study hemodynamic changes during

activation of brain function in human adults,

Neuroscience Letters, vol.154, Issues 1-2, pp.101-104.

Yamamoto, M., Nagamatsu, T. And Watanabe, T., 2009,

Development of an Eye-Tracking Pen Display based

on the Stereo Bright Pupil Technique, Technical

report of IEICE. HCS, 109(27), pp.147-150.

Zhang, W., Zelinsky,G. and Samaras, D., 2007, Real-Time

Accurate Object Detection Using Multiple

Resolutions, Proc. IEEE Intenational Conference

Computer Vision, pp. 1-8, 2007.

R&DoftheJapaneseInputMethodusingLifeLogonanEye-controlledCommunicationDeviceforUserswithDisabilities

213
