A Practical and Robust Method to Compute the Boundary of

Three-dimensional Axis-aligned Boxes

Daniel L

opez Monterde, Jon

as Mart

ınez, Marc Vigo and N

uria Pla

Departament de Llenguatges i Sistemes Inform

atics, Universitat Polit

ecnica de Catalunya, Ediﬁci ETSEIB, Diagonal 647,

8a Planta E, 08028 Barcelona, Spain

Keywords:

Boundary representation, Union of boxes, Orthogonal polyhedra.

Abstract:

The union of axis-aligned boxes results in a constrained structure that is advantageous for solving certain

geometrical problems. A widely used scheme for solid modelling systems is the boundary representation (B-

rep). We present a method to obtain the B-rep of a union of axis-aligned boxes. Our method computes all

boundary vertices, and additional information for each vertex that allows us to apply already existing methods

to extract the B-rep. It is based on dividing the three-dimensional problem into two-dimensional boundary

computations and combining their results. The method can deal with all geometrical degeneracies that may

arise. Experimental results prove that our approach outperforms existing general methods, both in efﬁciency

and robustness.

1 INTRODUCTION

Many of the current solid modelling systems are

based on Boundary Representations (B-rep) and Con-

structive Solid Geometry (CSG). Computing the B-

rep of the resulting solid of CSG, after performing

boolean operations, is a fundamental operation in

these systems. The problem of robust and accurate

computation of the boundary is considered one of

the difﬁcult problems in solid modelling (Hoffmann,

1996). Most of the effort in the subject is focused

on boolean operations between polyhedral or alge-

braic objects (Requicha and Voelcker, 1985; Thibault

and Naylor, 1987). The restricted case of three-

dimensional axis-aligned boxes has received less in-

terest, even though its bounded structure can lead

to robust and simple algorithms. Furthermore, the

union of axis-aligned boxes is an orthogonal poly-

hedron. Their constrained structure has enabled ad-

vances on complex or unsolved problems for arbitrary

shapes (Bournez et al., 1999; Vigo et al., 2012).

Orthogonal polyhedra have been directly stud-

ied for mesh reconstruction from scanner data (Biedl

et al., 2009) and urban modelling (Sugihara and

Hayashi, 2008). They have also been used to bound or

approximate more complex shapes, with applications

in spatial databases (Esperanc¸a and Samet, 1997), and

motion planning (Albers et al., 1999). In particular, an

efﬁcient algorithm that obtains the union of boxes is

required to compute the skeleton of orthogonal poly-

hedra (Martinez et al., 2013)

The problem of computing the two-dimensional

boundary of the union of a set of axis-aligned rectan-

gles, among other properties, sparked interest in the

1980s (Jr. and Preparata, 1980; Wood, 1984; G

uting,

1984). Several methods were proposed, and the prob-

lem has been optimally solved since then. Its exten-

sion to three dimensions, however, has received little

attention in the literature.

Our aim is to ﬁll that gap, by presenting an algo-

rithm that computes the boundary of the union of a

set of axis-aligned three-dimensional boxes. The out-

put of the presented method is a B-rep of the union of

the boxes. For this purpose, we apply the results pre-

sented by Vigo et al. (Vigo et al., 2012). Their algo-

rithm obtains the B-rep from the list of vertices in an

orthogonal polyhedron’s boundary and additional in-

formation concerning the local topology of each ver-

tex. Our computes this information in order to apply

Vigo et al.’s algorithm and obtain a B-rep.

Our approach consists in dividing the overall com-

putation into a series of 2D boundary computations,

and then combining their results to obtain the 3D

boundary. The obtained results demonstrate that the

robustness of the 2D computation, which is much eas-

ier to obtain, directly implies the robustness in the

three-dimensional case. Our method makes use of an

axis-aligned plane, which is swept through the set of

López Monterde D., Martínez J., Vigo M. and Pla N..

A Practical and Robust Method to Compute the Boundary of Three-dimensional Axis-aligned Boxes.

DOI: 10.5220/0004682800340042

In Proceedings of the 9th International Conference on Computer Graphics Theory and Applications (GRAPP-2014), pages 34-42

ISBN: 978-989-758-002-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

boxes. The plane is positioned between all pairs of

consecutive faces, its intersection with the boxes in-

ducing a set of rectangles. The 2D boundary of the

set of rectangles is computed using already existing

methods. Then, the ﬁnal 3D boundary is obtained by

comparing consecutive 2D boundaries.

One of the most challenging aspects of geometri-

cal algorithms is to achieve robustness, given the vari-

ety of possible inputs (Hoffmann, 1989). Even when

the domain is restricted to axis-aligned polyhedra, de-

generate cases can still pose a problem. A geometrical

degeneracy can be caused by the existance of copla-

nar faces, colinear edges, or coincident vertices. Non-

trihedral vertices can also be considered degeneracies,

and they can be originated from the previously men-

tioned degeneracy kinds.

Our method is robust to all cases, and it generates

the expected output for any given input. It is able to

handle ﬂoating point numbers, and, most importantly,

generates no underﬂow conditions, by applying only

comparison and assignation operators on them.

Besides its robustness, our algorithm has other

noteworthy positive properties. Additionally, it re-

quires no complex data structures to be implemented.

Due to separating 3D from 2D concerns, the method

is highly parallelizable.

2 RELATED WORK

The properties of union hyper-rectangles have been

the focus of theoretical study. It is known that the

union of n axis-aligned boxes in dimension d has a

worst-case combinatorial complexity of θ





. If the

boxes are hypercubes, the union has combinatorial

complexity of O



dd/2e



. If the hypercubes have con-

stant size the complexity reduces to O



bd/2c



(Bois-

sonnat et al., 1998). Kaplan et al. presented an

algorithm to compute the union of d-dimensional

hypercubes of constant size in O



bd/2c

polylog n



time (Kaplan et al., 2007).

In the literature, most of the effort is devoted to

compute the volume of the union, which is known as

Klee’s measure problem (Klee, 1977), rather than ex-

plicitly constructing the union. Interestingly, when

d > 2 the volume can be computed more efﬁciently

than the union. For example, the algorithm of Over-

mars and Yap runs in O



d/2

logn



time (Overmars

and Yap, 1991). It remains an open question whether

faster algorithms are possible, or if it is possible to

prove tighter lower bounds. In particular, it remains

open whether the algorithm’s running time must de-

pend on d (Chan, 2010). Unfortunately, as the worst-

case complexity of the union of axis aligned boxes is





, theoretical efforts have been focused on the

efﬁcient computation of their volume.

Two different main strategies were proposed to

compute the union of two-dimensional axis-aligned

rectangles: sweep line (Jr. and Preparata, 1980) and

divide and conquer (G

uting, 1984) algorithms. Both

algorithm types run in O (n log n + k) time, where k is

the number of vertices of the union.

Concerning the three-dimensional case, there ex-

ist several classical methods to compute the boundary

of CSG (Requicha and Voelcker, 1985). Most of them

classify the set of CSG primitives with some kind of

spatial decomposition scheme (Thibault and Naylor,

1987). Hachenberger et al. have studied and opti-

mized boolean operations on Nef Polyhedra, and that

handle all cases, including all degeneracies (Hachen-

berger and Kettner, 2005). Baumann et al. compute

the union of three dimensional axis-aligned boxes,

represented by a set of enclosing rectangles, by an

octree-based incremental algorithm (Baumann et al.,

2008). Campen et al. presented a robust method

that computes boolean operations using an adaptive

octree with nested binary space partitions (Campen

and Kobbelt, 2010). Schifko et al. presented a robust

sweeping plane algorithm to compute boolean oper-

ations on meshes, based on R-trees (Schifko et al.,

2010).

3 PREVIOUS DEFINITIONS

In this section we introduce some basic deﬁnitions

used throghout the paper.

A polygon is a bounded subset of R

enclosed by a

ﬁnite set of line segments, called edges. The edges

meet only at their endpoints, called vertices. A

polygon face is a single connected component of

a polygon.

An orthogonal polygon is a polygon enclosed by

axis-aligned edges. An edge is called vertical if

it is parallel to the ordinate and horizontal if it is

parallel to the abscissa.

An orthogonal manifold polygon is an orthogonal

polygon such that every vertex is shared by a ver-

tical and a horizontal edge.

An orthogonal pseudomanifold polygon is a general-

ization of an orthogonal manifold polygon, which

allows non-manifold vertices. A non-manifold

vertex is a vertex polygon with four incident

edges.

A polyhedron is a bounded subset of R

enclosed

by a ﬁnite set of non-intersecting planar polygons,

called faces.

APracticalandRobustMethodtoComputetheBoundaryofThree-dimensionalAxis-alignedBoxes

(a) (b) (c) (d) (e)

(j)(i)(h)(g)(f)

(1,0,1,0,1,0) (2,0,1,1,1,1) (1,1,1,1,1,1) (1,0,1,0,1,0) (0,1,0,1,1,0)

(2,1,1,2,2,1) (2,0,0,2,2,0) (2,0,1,1,2,0) (1,1,1,1,1,1) (2,2,2,2,2,2)

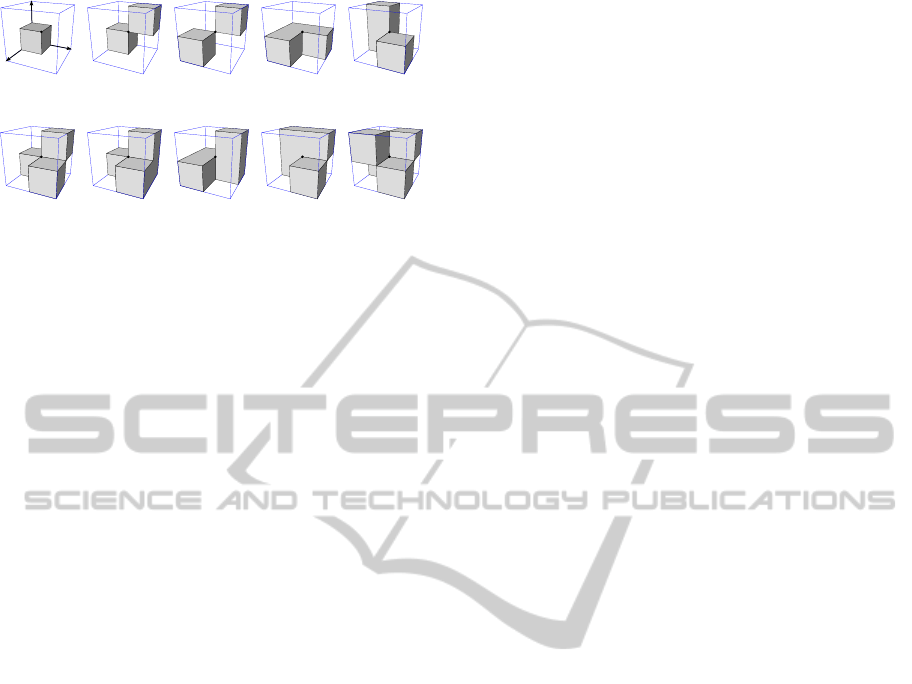

Figure 1: Possible vertex conﬁgurations of an orthogonal

pseudomanifold polyhedron. The six numbers below each

conﬁguration correspond to the face degrees that must be

generated for them (+x,−x,+y,−y,+z,−z).

A trihedral vertex is a vertex of a polyhedron that

has exactly three incident faces.

An orthogonal polyhedron is a polyhedron enclosed

by axis-aligned faces.

An orthogonal manifold polyhedron is an orthogo-

nal polyhedron such that every edge of a face is

shared by exactly one other face.

An orthogonal pseudomanifold polyhedron is a gen-

eralization of an orthogonal manifold polyhedron,

which allows non-manifold edges or vertices. A

non-manifold edge is an edge adjacent to four

faces and a non-manifold vertex is a non-trihedral

vertex.

A boundary representation model (B-rep) repre-

sents a shape by a collection of its boundary ele-

ments and their topological relationships. Bound-

ary representation models are composed of two

parts: geometry (surfaces, curves and points) and

topology. The main topological items are faces,

edges and vertices. A face is a bounded portion of

a surface; an edge is a bounded piece of a curve

and a vertex lies at a point. The topological in-

formation deﬁnes the relationship among the geo-

metric elements.

4 VERTEX CONFIGURATIONS

In this section, we deﬁne the additional information

that needs to be computed for every boundary ver-

tex. This information encodes the local topology of

the vertex (see Figure 1) and it is required to prevent

ambiguity in the reconstruction. It is the input needed,

in addition to the vertex coordinates, for the B-rep

extraction by Vigo et al. (Vigo et al., 2012). There

are ten basic local conﬁgurations for a vertex. All

the other possible conﬁgurations can be derived from

these by considering only rotation and complement

operations (Aguilera, 1998).

Each possible conﬁguration requires speciﬁc in-

formation to be computed (see Figure 1). This cor-

responds to the number of different faces converging

at the vertex that are oriented in each of the six or-

thogonal directions (+x, −x, +y,−y,+z,−z). For this

reason, we refer to this information as vertex face de-

grees. There is one special case, (h), in which ex-

actly four different faces intersect at the vertex. This

conﬁguration requires an exception to be made to the

general rule. In this case, for the B-rep reconstruction

to work, the two non-coplanar faces intersecting at the

vertex have to be counted twice.

Our approach for computing the vertex face de-

grees is based on the following observations:

• Trihedral vertices, such as the one in (a), have a

total face degree of three, one for each axis.

• The rest of the vertex conﬁgurations can be ob-

tained by considering them as a combination of a

number of trihedral vertices.

Cases (d) and (e), as well as (a), can be obtained

with a single trihedral vertex. Cases (b, c, g,h,i) can

be obtained by combining the face degrees of two ver-

tices. Case ( f ) needs the combination of three ver-

tices, and case ( j) needs to combine four trihedral

vertices (see Figure 1).

These observations allow us to design our method

so that it obtains only trihedral vertices. For the con-

ﬁgurations where more than one vertex is needed to

form the vertex face degrees, the method obtains each

trihedral vertex independently. It is easily seen that it

is possible to decompose all conﬁgurations into spe-

ciﬁc trihedral vertices, the degrees of which can be

combined into the required ones. After all trihedral

vertices are computed, those sharing the same coordi-

nates are merged into a single vertex. That vertex has

as its face degrees the sum of the face degrees of all

the vertices that shared its coordinates.

5 TWO-DIMENSIONAL

BOUNDARY EXTRACTION

Input Set of axis-aligned rectangles

Output Set of vertices that form the boundary of the

union of the input rectangles, and the x and y di-

rections of each vertex

Each 2D boundary is computed by the time-optimal

method described by G

uting (G

uting, 1984). The

method takes a set of axis aligned rectangles as its

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

(a)

(b)

stripe

x-interval

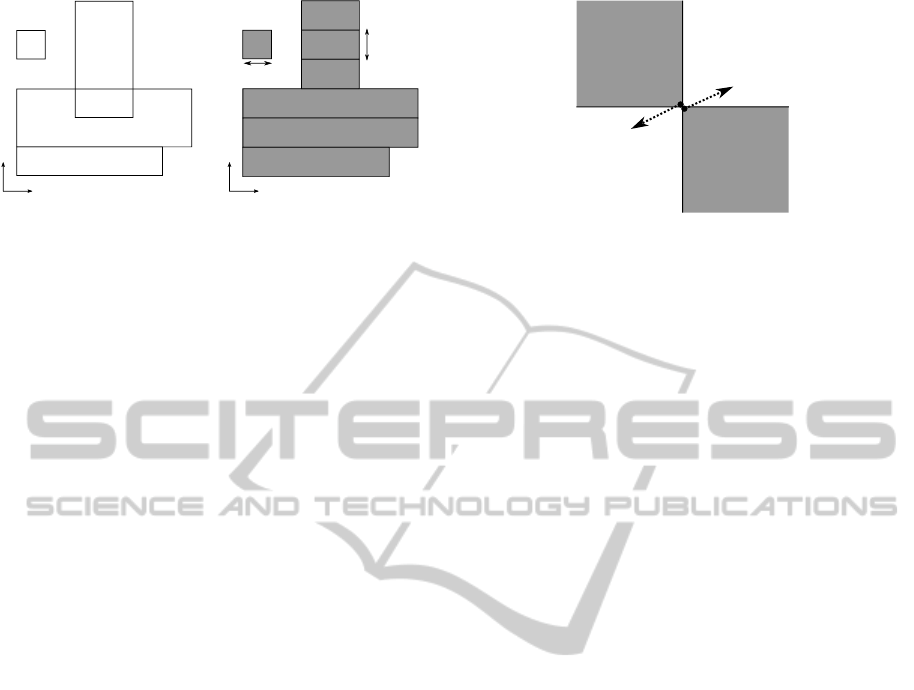

Figure 2: (a) Original set of rectangles. (b) Representation

obtained after the ﬁrst step.

input, and obtains the list of all edges in the bound-

ary of their union. However, it does not distinguish

the edges that deﬁne external boundaries from those

which deﬁne polygon holes. The method is divided

in two steps. In the ﬁrst step, it computes a repre-

sentation of the union. In the second, it uses the ob-

tained representation to compute the boundary edges.

Because we require additional information for every

vertex, we extend the second step of the algorithm.

The ﬁrst step uses a divide and conquer approach.

Each rectangle is represented by its two vertical

edges: a technique G

uting calls separational repre-

sentation. The representation obtained (shown in Fig-

ure 2(b)) is a set of horizontal stripes spanning the

polygon that constitutes the union. Each stripe con-

tains a binary tree with the x-intervals where it is vis-

ible.

In the second step, the obtained representation is

used to compute the boundary. Each horizontal edge

in the input set of rectangles is considered. It is

matched to one of its adjacent stripes, which is the

stripe above it if the edge is top and the stripe below it

if it is bottom. The tree of x-intervals associated with

the stripe is queried with the x-interval corresponding

to the edge. The leaves in the tree that are within the

edge’s interval represent boundaries of the polygon,

and are therefore vertices of the boundary.

At this point, all horizontal edges have been com-

puted, so we have all the vertices in the boundary.

5.1 Vertex Face Degree Computation

We have to adapt the algorithm so that it generates

the information needed for the B-rep extraction. Hav-

ing already shown how the vertices of the boundary

are obtained, we consider the problem of generating

the face degrees for each of them. During the second

step of the 2D computation, we obtain the vertex face

degrees in the x and y axes.

The x face degrees indicate whether the orienta-

tion of face that generated the vertex in this 2D bound-

(1,0,0,1)

(0,1,1,0)

Figure 3: A non-manifold vertex in two dimensions, and its

decomposition in two vertices. The numbers indicate the

face degrees for each vertex, in (+x,−x,+y,−y) format.

ary was right (+x) or left (−x). To compute them, we

need to know what side of the x-interval the vertex

was obtained from. If it was left end, the −x degree

of the vertex is 1, and the +x degree is 0. And vicev-

ersa, +x = 1 and −x = 0, if it was the right end.

Analogously, the y degrees indicate whether the

face that generated the vertex was facing top (+y) or

bottom (−y). They can be computed in a straightfor-

ward way. In this case, we need to know if the edge

they were obtained from was a top or a bottom edge.

For the top edges, we have 1 in the +y degree and 0

in the −y; and viceversa for bottom edges.

Trying to apply the above principles to non-

manifold vertices leads us to ambiguity. This is due

to the fact that non-manifold vertices in two dimen-

sions are intersected by four segments (see Figure 3).

These vertices appear when two different rectangles

have opposite vertices in the same space coordinates.

Our method for dealing with non-manifold vertices

consists of considering them a combination of two in-

dependent vertices. This leaves us with two vertices

in the same coordinates, pointing at opposed direc-

tions (see Figure 3). Each of them generates a tri-

hedral vertex when extended to the third dimension,

fulﬁlling the observations in Section 4. As we already

mentioned, the resulting face degrees for that vertex

are obtained from the sum of the trihedral vertices

sharing the same coordinates.

6 THREE-DIMENSIONAL

BOUNDARY EXTRACTION

Input Set of axis-aligned boxes

Output Set of vertices that constitute the boundary

of the union of the input boxes, and the x, y and z

degree of each vertex

The algorithm follows a two step structure. In the ﬁrst

step, the set of boxes is divided into distinct 2D slices,

APracticalandRobustMethodtoComputetheBoundaryofThree-dimensionalAxis-alignedBoxes

⊕ ⊕ ⊕ ⊕ ⊕ ⊕

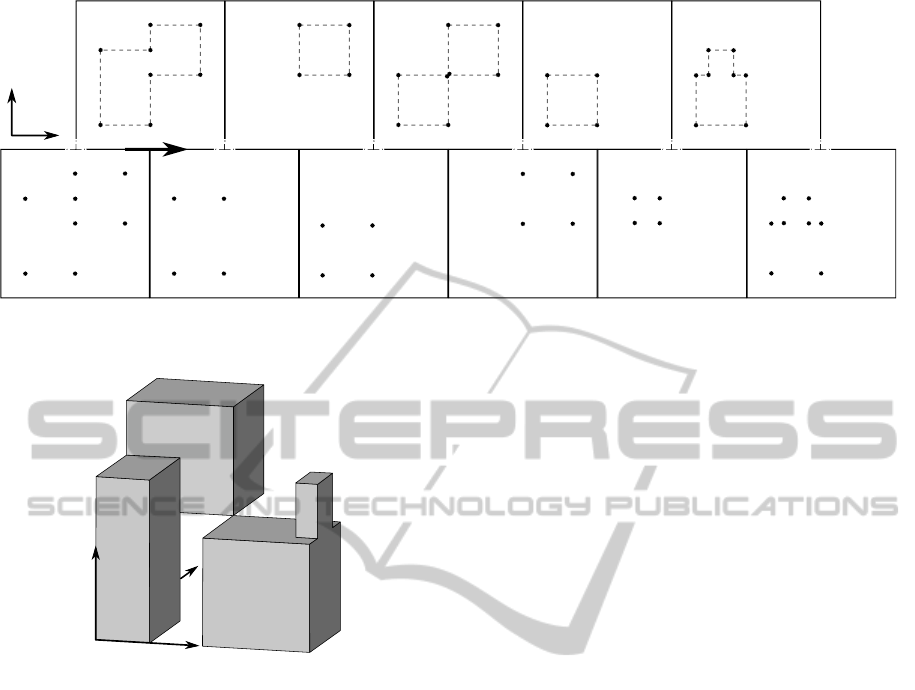

Figure 5: The top part of the ﬁgure shows the slices generated from the boxes in Figure 4. The bottom part shows the result

of the vertex-wise xor merge. Each of the squares in the bottom corresponds to the xor of the two squares above it.

Figure 4: Visualization of the union of a set of four boxes.

and the 2D boundary of each slice is computed by the

method deﬁned in Section 5. In the second step, the

obtained 2D boundaries are sequentially compared to

obtain the orthogonal polyhedron that constitutes the

3D boundary.

For the ﬁrst step, we consider a plane perpendicu-

lar to the z axis that advances through the boxes. The

intersection of the plane with the boxes induces a 2D

slice, formed by a set of rectangles. We have to decide

in what positions of the plane the 2D slices are com-

puted. The key idea is that a vertex is in the 3D bound-

ary if it changes between consecutive slices, that is, if

the vertex appears in one slice but not in the other.

Thus, we consider slices right after each unique z co-

ordinate in the set of boxes. In this manner, the ver-

tices that appear in the boundaries of the slices repre-

sent the topology of the 3D boundary at every point

in which it changes. As a consequence, local changes

between two consecutive slices can be used to obtain

the vertices of the 3D boundary. A perspective visu-

alization of a set of boxes (Figure 4) and the slices

obtained from it (top part of Figure 5) are shown as

an example.

Analogously to the 2D algorithm, separational

representation is used for the boxes. They are rep-

resented by their two z-faces, which we refer to as

front if they are oriented towards +z, and back if they

are oriented towards −z. The faces are sorted by z,

with back faces going before front ones with the same

z, and the z-plane is swept over them. We represent

the induced slice as a list of rectangles. To mantain it,

when a back face intersects the plane, it is added to the

list, and when a front face intersects it, the back face

belonging to the same box is removed. After each

face is added, we check if the next face in the list has

a different z. In that case, the 2D boundary of the cur-

rent state of the slice is computed. Since it is possible

for a vertex to be generated from the intersection of

two faces on the same z, one of which is back and the

other is front, we also generate the boundary of the

slice if the last processed face is back and the next

face to process is front. The ﬁrst step ends when all

the faces are processed.

In the second step, the 3D boundary is constructed

by a merge algorithm. The vertex-wise xor between

each pair of consecutive slices is computed (see Fig-

ure 5). All vertices that appear in one slice, but not in

both, are in the 3D boundary. When one such vertex

is found, its z-coordinate is set as the previous slice’s

The xor merge is done by advancing in parallel in

the two slices. It is necessary to deﬁne a strict weak

ordering between vertices. The vertices in each slice

must be sorted by this ordering. Then, starting by the

ﬁrst vertex on each slice, they are compared. If they

are equal, they’re not part of the xor, so one element

is advanced in both lists. If they are different, we ad-

vance an element on the list that had the smaller ele-

ment, and that element is added as a vertex. This way

we can compute which vertices are in one slice but

not the other in linear time respect to the number of

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

vertices.

It is worth noting that the algorithm does not re-

quire complex data structures. Only basic sequence

containers, such as arrays, are required.

The presented algorithm also has the advantage of

being independent of the 2D algorithm chosen, pro-

vided the 2D algorithm generates the necessary out-

put. This output consists only of the vertices and their

face degrees in x and y, which should be computable

straightforwardly.

6.1 Vertex Face Degree Computation

During the xor merge, we compute the z face degrees

of each vertex. We need the output to be exactly like

the one we deﬁned in section 4, so we have to take

a close look at each of the possible conﬁgurations.

To differentiate them, it is necessary to know where

a vertex is, regarding the adjacent boundary.

A 3D vertex can be found in two manners: by

comparison with the 2D boundary in front of it or

by comparison with the boundary behind. Indepen-

dently of that classiﬁcation, it can also be, regarding

the adjacent boundary, inside it or outside it. It is pos-

sible that a vertex is exactly in the boundary, and in

this case it is classiﬁed as either inside or outside and

treated accordingly.

If a vertex is outside the adjacent boundary, only

the boundary in which the vertex was found has to

be considered. Thus, outside front vertices look at

+z, and outside back vertices at −z. Vertices that are

inside follow the same reasoning: Only the adjacent

boundary is considered for the face degree, so inside

front vertices look at −z and inside back vertices at

+z.

To determine the classiﬁcation for vertices that are

in an edge of the adjacent boundary, we need to look

at the already computed x and y face degrees. We

have to consider that an edge has only one signiﬁcant

direction, which is x for vertical edges, and y for hor-

izontal ones. If an edge shares its direction with the

corresponding direction of the vertex, it means they

split the space in the same way. Thus, a vertex that

coincides with an edge is classiﬁed to be inside if and

only if they face the same direction.

6.2 Algorithm

A pseudocode overview of the algorithm is shown

(see Algorithm 1). We explain some of the notation

used.

The faces have a z coordinate, and the direction

they face is indicated. For a given face f , these are

noted as f .z and f . f ront, respectively.

We consider each vertex to be deﬁned by its coor-

dinates and face degrees in the applicable dimensions.

For a given vertex v, these are noted as v.x, v.y, v.z and

v. f ace degrees.

We use ⊕ to denote the vertex-wise merge xor we

deﬁned in Section 6. It should be noted that it com-

putes the z face degree for all resulting vertices.

For brevity, we denote the next element e in a con-

tainer as next(e).

Algorithm 1: 3D boundary.

INPUT: Set of axis-aligned boxes B

Set of active z-faces F ←

for all box b in B do

F ← F ∪ f ront f ace(b)

F ← F ∪ back f ace(b)

end for

sort(F) {faces are sorted in z, then front}

Vector of 2D Boundary V 2DB ←

Current slice S ←

for all face f in F do

if f is back then

S ← S ∪ f

else

S ← S \ face matching f

end if

if f .z 6= next( f ).z ∨ ( f . f ront ⊕ next( f ). f ront)

then

V 2DB ← V 2DB ∪ 2D Boundary(S)

end if

end for

Set of boundary vertices V ←

for i ← 1..size(V 2DB) − 1 do

V ← V ∪V2DB[i] ⊕V 2DB[i + 1]

end for

for i ← 1..size(V ) − 1 do

if V [i].x = V [i + 1].x ∧ V [i].y = V [i + 1].y ∧

V [i].z = V [i + 1].z then

V [i]. f ace degrees ← V [i]. f ace degrees +

V [i + 1]. f ace degrees

V ← V \V[i]

end if

end for

OUTPUT: Set of vertices V

7 RESULTS

The presented method has been implemented in C++.

It should be noted that for the two-dimensional

boundary computation, G

uting’s method is not used.

A simpler method was implemented for the 2D

boundary computation, with a theoretical time com-

plexity of O(n

), instead of O(nlogn + k). This

APracticalandRobustMethodtoComputetheBoundaryofThree-dimensionalAxis-alignedBoxes

0 1000 2000 3000 4000 5000 6000

Time (s)

Boxes

d = 0.02 n

d = 0.05 n

d = 0.1 n

d = 0.3 n

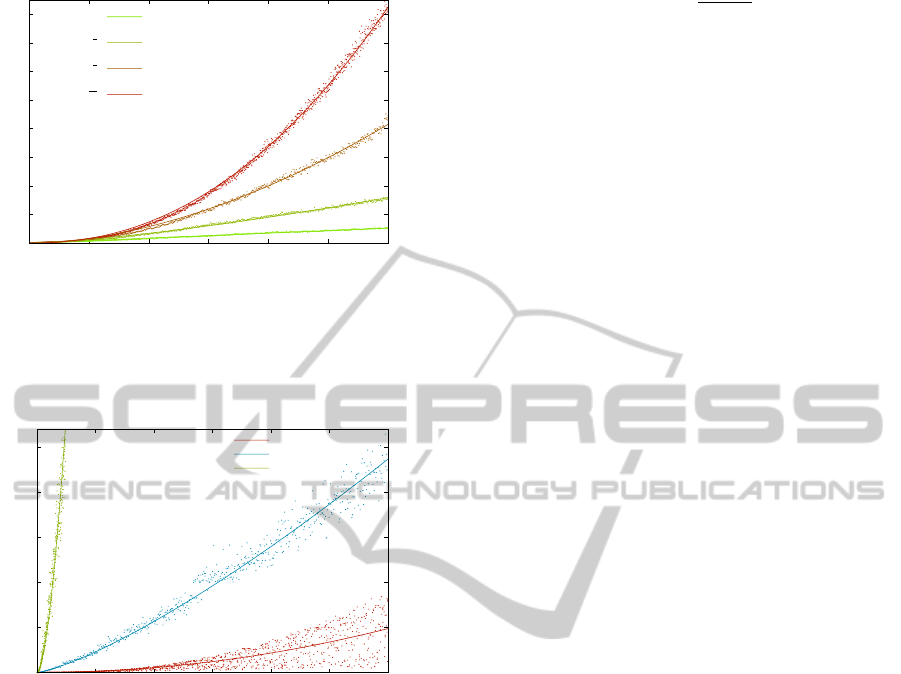

Figure 6: Running times of the presented method to com-

pute the B-rep of several boxes with varying densities. Ev-

ery point depicts the runtime for a single dataset. Every line

corresponds to the curve ﬁtted to average runtime of each

density, with respect to the number of boxes.

100

150

200

250

0 1000 2000 3000 4000 5000 6000

Time (s)

Boxes

Our method

CARVE

CGAL

Figure 7: Running times of CARVE to compute the B-rep

of several sets of boxes. The plot follows the same scheme

of Figure 6.

means that the presented experimental results have

room for improvement in the efﬁciency area. The

source code consists of about 800 lines of code, half

of them correspond to the two-dimensional bound-

ary computation, and the remaining ones to the three-

dimensional part. The B-rep extraction is performed

using its publically available Python implementa-

tion (Vigo, 2011).

All the presented results were performed on PC

i7-3770 clocked at 3.9GHz core and 16 GB of RAM

memory.

Figure 6 shows the results for over 30000 ran-

dom cases with varying density of boxes. The den-

sity measures the average number of rectangles pro-

cessed in each slice. The minimum amount, 1 rectan-

gle per slice, corresponds to the value 0. The maxi-

mum amount, n rectangles in each slice, corresponds

to 1. The value increases linearly between both ex-

tremes. The formula used is

nr/2−n

−n

, where n is the

number of boxes and r the total of boxes processed in

all slices.

We compared our approach with CGAL and

CARVE. We used CGAL’s implementation of

Nef Polyhedra with an arbitrary precision kernel

(Gmpz) (CGAL, 2013). CARVE is a robust octree-

based constructive solid geometry library (Sargeant,

2013).

Figure 7 shows a comparison of the running time

of our method with the other methods, all with ran-

dom densities. The computation times of our method

include the B-rep computation from the boundary ver-

tices. We observed that the running time of our algo-

rithm is highly correlated with the box density, that

is, the average number of rectangles contained in each

slice. Thus, it can be seen experimentally that our al-

gorithm is not output-sensitive. It should be noted that

none of the randomly generated cases had a density

over 0.35. This implies that inputs approaching the

worst case, with densities close to 1, are extremely

rare and do not occur naturally. On average, the run-

time performance of the presented approach is of the

order O(n

7/5

), where n is the number of boxes, which

coincides with the one obtained by CARVE. CGAL’s

experimental running time can be ﬁtted to O(n

9/5

Unfortunately, CARVE was unable to terminate

the execution for some degenerate inputs, constitut-

ing 13% of the total of datasets. Even for the datasets

where it terminated, the generated output was in some

instances incorrect. Due to the difﬁculty of automati-

cally checking the correctness of the CARVE output,

we can not estimate the amount those represent. The

mentioned errors were detected via manual veriﬁca-

tion of the output.

8 CONCLUSION AND FUTURE

WORK

A method was presented to compute the boundary of

the union of a set of axis-aligned boxes. It divides

the computation of the 3D boundary into a series of

2D boundary computations, and then combines their

results.

As shown in Section 7, the presented method ex-

hibits lower experimental running time than previous

existing general methods, such as CARVE and CGAL

(Figure 7). More importantly, it deals with all degen-

erate cases, generating the correct B-rep in 100% of

the cases. It signiﬁcantly outperforms CARVE in this

regard too, since CARVE failed to terminate in 13%

of cases, and obtained incorrect results in others.

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

(a) (b)

(e) (f)

Figure 8: (a,c,e) Set of boxes obtained from voxel models

of a horse, an elephant and a human pelvis. Darker shades

indicate higher density of boxes. (b, d, f) Visualization of

the B-rep obtained with our method each respective input.

The method is independent from the 2D imple-

mentation, thus any method for computing the 2D

boundary can be used. Interestingly, due to its struc-

ture, it allows for parallelization, since in the ﬁrst step,

each call to the 2D boundary method is independent

from all others. Furthermore, each xor merge in the

second step is also independent, so there is also po-

tential for parallelization in that area.

With the presented method, each 2D boundary is

computed independently, when in practice many of

the rectangles are shared by adjacent boundaries. This

implies that our method potentially performs dupli-

cated computations. The challenge remains to design

a dynamic data structure for the boundary of the union

of rectangles. Such a data structure would need to

keep a representation of the 2D boundary, and pro-

vide efﬁcient operations to insert and delete rectan-

gles from it. With it, the duplicated computations

that result from treating each 2D slice independently

would not be necessary, which would reduce the run-

ning time. However, it would lose the independence

from the 2D boundary computation, so it would not

be easily parallelizable.

The described method only considers the union

operation on the set of boxes. However, it would

be interesting to consider other boolean operations in

which the method could be applied, most notably the

intersection. It is possible that our method can be

straightforwardly extended to deal with these opera-

tions, but careful analysis would be required.

The implementation is available at http://

lafarga.cpl.upc.edu/projectes/boxunion3d

under the GPL license. By doing that, we aim to

make it possible for other researchers to use it, as

well as contribute to it or modify it.

ACKNOWLEDGEMENTS

This work has been partially supported by the project

TIN2008-02903 and TIN2011-24220 of the Spanish

government and by the IBEC (Bioengineering Insti-

tute of Catalonia).

REFERENCES

Aguilera, A. (1998). Orthogonal Polyhedra: Study and

Application. PhD thesis, Universitat Polit

ecnica de

Catalunya.

Albers, S., Kursawe, K., and Schuierer, S. (1999). Explor-

ing unknown environments with obstacles. In Pro-

ceedings of the tenth annual ACM-SIAM symposium

on Discrete algorithms, pages 842–843.

Baumann, T., Jans, M., Sch

omer, E., Schweikert, C., and

Wolpert, N. (2008). Dynamic free-space detection for

packing algorithms. In EuroCG’08, pages 43–46.

Biedl, T., Durocher, S., and Snoeyink, J. (2009). Recon-

structing polygons from scanner data. Lecture Notes

in Computer Science, 5878:862–871.

Boissonnat, J.-D., Sharir, M., Tagansky, B., and Yvinec, M.

(1998). Voronoi diagrams in higher dimensions under

certain polyhedral distance functions. Discrete and

Computational Geometry, 19(4):485–519.

Bournez, O., Maler, O., and Pnueli, A. (1999). Orthogonal

polyhedra: Representation and computation. Lecture

Notes in Computer Science, 1569:46–60.

Campen, M. and Kobbelt, L. (2010). Exact and robust

(self-) intersections for polygonal meshes. Computer

Graphics Forum, 29:397–406.

CGAL (2013). CGAL, Computational Geometry Algo-

rithms Library. http://www.cgal.org.

Chan, T. M. (2010). A (slightly) faster algorithm for

Klee’s measure problem. Computational Geometry,

43(3):243–250.

Esperanc¸a, C. and Samet, H. (1997). Orthogonal polygons

as bounding structures in ﬁlter-reﬁne query process-

ing strategies. Lecture Notes in Computer Science,

1262:197–220.

APracticalandRobustMethodtoComputetheBoundaryofThree-dimensionalAxis-alignedBoxes

uting, R. H. (1984). An optimal contour algorithm for iso-

oriented rectangles. Journal of Algorithms, 5(3):303–

326.

Hachenberger, P. and Kettner, L. (2005). Boolean opera-

tions on 3d selective nef complexes: optimized im-

plementation and experiments. In Proceedings of the

2005 ACM symposium on Solid and physical model-

ing, pages 163–174.

Hoffmann, C. (1989). The problems of accuracy and robust-

ness in geometric computation. Computer, 22(3):31–

39.

Hoffmann, C. (1996). How solid is solid modeling? In

Applied Computational Geometry Towards Geometric

Engineering, volume 1148 of Lecture Notes in Com-

puter Science, pages 1–8. Springer Berlin Heidelberg.

Jr., W. L. and Preparata, F. P. (1980). Finding the contour

of a union of iso-oriented rectangies. Journal of Algo-

rithms, 1(3):235 – 246.

Kaplan, H., Rubin, N., Sharir, M., and Verbin, E. (2007).

Counting colors in boxes. In Proceedings of the eigh-

teenth annual ACM-SIAM symposium on Discrete al-

gorithms, pages 785–794.

Klee, V. (1977). Can the measure of ∪

] be computed

in less than O(nlogn) steps? The American Mathe-

matical Monthly, 84(4):284–285.

Martinez, J., Pla-Garcia, N., and Vigo, M. (2013). Skele-

tal representations of orthogonal shapes. Graphical

Models, 75:189–207.

Overmars, M. H. and Yap, C.-K. (1991). New upper bounds

in Klee’s measure problem. SIAM Journal on Comput-

ing, 20:1034—-1045.

Requicha, A. A. G. and Voelcker, H. (1985). Boolean op-

erations in solid modeling: Boundary evaluation and

merging algorithms. Proceedings of the IEEE, 73:30–

44.

Sargeant, T. (2013). Carve. https://code.google.com/

p/carve/.

Schifko, M., J

uttler, B., and Kornberger, B. (2010). In-

dustrial application of exact boolean operations for

meshes. In Proceedings of the 26th Spring Confer-

ence on Computer Graphics, pages 165–172.

Sugihara, K. and Hayashi, Y. (2008). Automatic generation

of 3D building models with multiple roofs. Tsinghua

Science & Technology, 13:368 – 374.

Thibault, W. C. and Naylor, B. F. (1987). Set operations

on polyhedra using binary space partitioning trees. In

Proceedings of the 14th annual conference on Com-

puter graphics and interactive techniques.

Vigo, M. (2011). Orto-brep. http://devel.cpl.upc.

edu/orto-brep/.

Vigo, M., Pla, N., Ayala, D., and Martinez, J. (2012). Ef-

ﬁcient algorithms for boundary extraction of 2D and

3D orthogonal pseudomanifolds. Graphical Models,

74(3):61 – 74.

Wood, D. (1984). The contour problem for rectilinear poly-

gons. Information Processing Letters, 19(5):229–236.

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications
