Refresh Rate Modulation for Perceptually Optimized Computer

Graphics

Jeffrey Smith, Thomas Booth and Reynold Bailey

Department of Computer Science, Rochester Institute of Technology, Rochester, New York, U.S.A.

Keywords:

Ray-tracing, Eye-tracking, Real-time

Abstract:

The application of human visual perception models to remove imperceptible components in a graphics system,

has been proven effective in achieving signiﬁcant computational speedup. Previous implementations of such

techniques have focused on spatial level of detail reduction, which typically results in noticeable degradation of

image quality. We introduce Refresh Rate Modulation (RRM), a novel perceptual optimization technique that

produces better performance enhancement while more effectively preserving image quality and resolving static

scene elements in full detail. In order to demonstrate the effectiveness of this technique, we have developed

a graphics framework that interfaces with eye tracking hardware to take advantage of user ﬁxation data in

real-time. Central to the framework is a high-performance GPGPU ray-tracing engine. RRM reduces the

frequency with which pixels outside of the foveal region are updated by the ray-tracer. A persistent pixel

buffer is maintained such that peripheral data from previous frames provides context for the foveal image in

the current frame. Applying the RRM technique to the ray-tracing engine results in a speedup of 3.2 (260 fps

vs. 82 fps at 1080p) for the classic Whitted scene without secondary rays and a speedup of 6.3 (119 fps vs. 19

fps at 1080p) with them. We also observe a speedup of 2.8 (138 fps vs. 49 fps at 1080p) for a high-polygon

scene that depicts the Stanford Bunny. A user study indicates that RRM achieves these results with minimal

impact to perceived image quality. We also investigate the performance beneﬁts of increasing physics engine

error tolerance for bounding volume hierarchy based collision detection when the scene elements involved are

in the user’s periphery. For a scene with a static high-polygon model and 50 moving spheres, a speedup of 1.8

was observed for physics calculations.

1 INTRODUCTION

Recent advances in consumer level parallel process-

ing hardware have led to the feasibility of generat-

ing realistic computer graphics images at interactive

rates. However, even with high-end hardware, com-

putationally demanding rendering solutions such as

ray-tracing must be heavily optimized to run in real-

time.

A number of acceleration techniques have been

proven effective in reducing rendering time for ray-

tracing applications. These include the use of spatial

data structures such as k-d trees (Wald and Havran,

2006) or bounding volume hierarchies (Goldsmith

and Salmon, 1987). Despite these advances, com-

putational resources are still dedicated to generating

ﬁne detail outside of the viewer’s high acuity foveal

region. These resources are wasted as the presence

of such details does not impact the perceived quality

of the scene due to reduced acuity in the peripheral

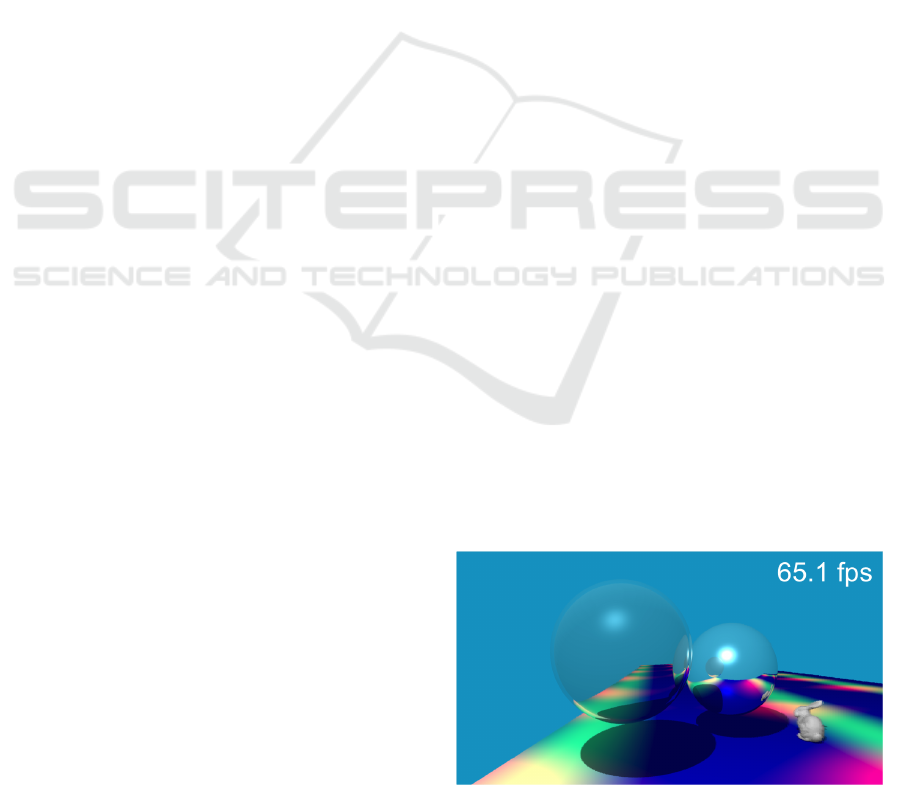

Figure 1: Ray-traced image generated using our percep-

tual optimization framework. The scene depicts a full ray-

tracing solution, including reﬂected and refracted rays along

with a high-polygon model. Our Refresh Rate Modula-

tion technique results in 65.1 fps. For comparison, a full-

resolution rendering of this scene has a frame rate of 17.6

fps.

region of the ﬁeld of view. Raj et al. (Raj and Rosen-

holtz, 2010) noted however, that peripheral vision is

not simply a blurred version of foveal vision, hence

200

Smith J., Booth T. and Bailey R..

Refresh Rate Modulation for Perceptually Optimized Computer Graphics.

DOI: 10.5220/0004691102000208

In Proceedings of the 9th International Conference on Computer Graphics Theory and Applications (GRAPP-2014), pages 200-208

ISBN: 978-989-758-002-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

the traditional perceptual optimization approach of re-

ducing spatial detail in the peripheral regions still re-

sults in a noticeable reduction in image quality.

In this paper, we introduce Refresh Rate Modu-

lation (RRM), a novel perceptual optimization tech-

nique that produces better performance enhancement

than spatial degradation techniques while more effec-

tively preserving perceived image quality (see Fig-

ure 1). Similar to variable resolution approaches,

RRM partitions the display area into two subregions

that correspond to the foveal and peripheral portions

of the user’s ﬁeld of view. However, instead of

varying sampling frequency, RRM adjusts the rate at

which pixels are updated by the ray-tracer. The foveal

region is updated once per frame, and therefore shows

the scene in full detail at all times. Pixels in the pe-

ripheral region are refreshed once every N frames,

where N can be adjusted to strike a balance between

performance and perceived output quality.

The result is a subtle fragmentation effect outside

of the foveal region that does not decrease the per-

ceived quality of the overall image, but signiﬁcantly

increases performance. If the scene remains still for

N or more frames, all peripheral pixels are refreshed

and a full-detail image of the entire viewing area is

rendered.

Within our framework, physics calculations may

also be optimized through the use of real-time per-

ceptual data. While the center of the ﬁeld of view

is able to detect errors in physical phenomena with

high accuracy, the periphery is less well-equipped to

do so (O’Sullivan et al., 1999). This means that colli-

sion error tolerances can be signiﬁcantly increased in

regions outside of the fovea without reducing the per-

ceived quality of motion (so long as penetrative errors

are avoided). Many physics engines utilize accelera-

tion structures for polygonal meshes that result in a

series of successive calculations for collision detec-

tion between two objects. If the collision algorithm

is modiﬁed to return a collision several layers earlier,

computation for collisions with the mesh terminate

early and a computational speedup occurs.

The remainder of this paper is organized as fol-

lows: background and related work are presented in

Section 2. The design of our perceptually optimized

rendering framework is described in Section 3. Per-

formance results and a user study to gauge the percep-

tibility of our novel Refresh Rate Modulation tech-

nique are presented in Section 4. In section 5, the

paper concludes with a summary of the contributions

and potential avenues of future research.

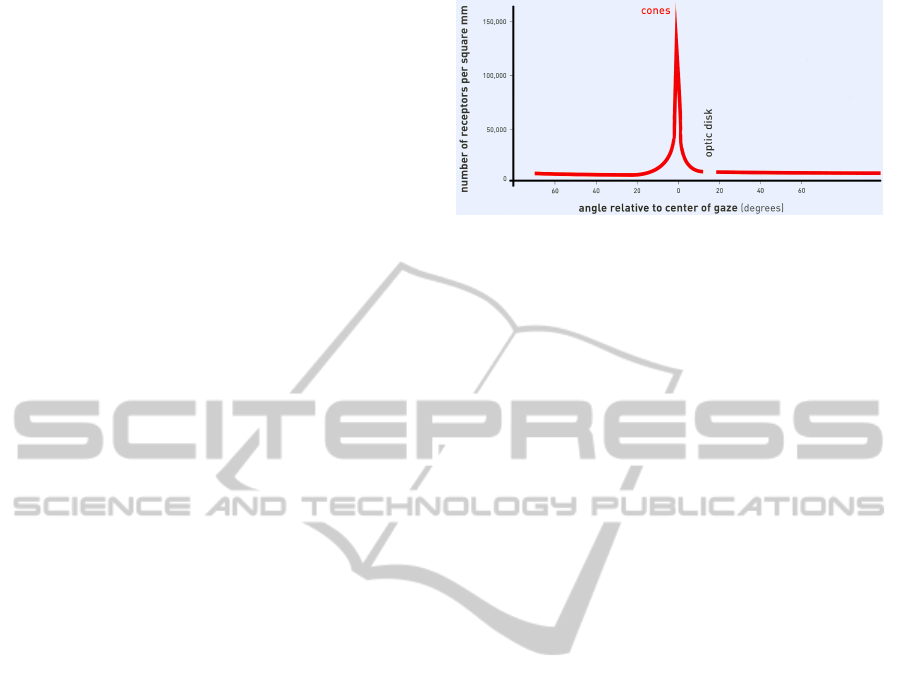

Figure 2: Distribution of cones in the retina. Adapted

from (Livingstone, 2002). Cones are densely packed in

the center of gaze (fovea) and the density of cones falls off

rapidly as angle from the center of gaze increases. The dis-

tribution of cones directly affects visual acuity. Visual acu-

ity is highest in the center of gaze and falls off rapidly as

angle from the center of gaze increases.

2 BACKGROUND AND RELATED

WORK

The human retina contains a large number of inter-

connected receptor cells that intercept incoming pho-

tons and output electrical signals to the visual cor-

tex. Cone cells provide color vision at high illumi-

nation levels, and are responsible for detail-oriented

visual tasks. The distribution of cone cells across the

retina is nonuniform (see Figure 2). This results in

two distinct regions within the ﬁeld of view: the cen-

tral, high acuity fovea, and the outer, low acuity pe-

riphery. The visual system reorients the eye an aver-

age of three times per second via saccadic movement

and integrates the information gathered at each ﬁxa-

tion point to produce a high-detail perceived image of

the environment.

Computer graphics models that take advantage of

this property of the human visual system for compu-

tational speedup or data compression have been pro-

posed and implemented with positive results. Geisler

and Perry’s (Geisler and Perry, 1999) foveal pyramid

approach partitions an existing image into distinct re-

gions based on distance from the current region of

interest. The resolution in each of the regions is re-

duced with a series of low-pass ﬁlters, resulting in a

multi-resolution image that has full detail in the re-

gion of interest and decreases in resolution moving

away from this region. This algorithm achieves a 3x

reduction in the amount of data required to represent

an image. Levoy and Whitaker (Levoy and Whitaker,

1990) implemented a spatially adaptive ray-tracing

system that incorporates real-time ﬁxation data from

an eye tracker to produce a multi-resolution rendered

image. Their 3D mip-map based algorithm results

in a nonuniform sampling distribution across the im-

RefreshRateModulationforPerceptuallyOptimizedComputerGraphics

201

age plane, with considerably higher ray density in the

foveal region. After a ﬁve minute preprocessing step,

they observed a 4.6x speedup when rendering a 256 x

256 x 109 voxel magnetic resonance scan.

Certain features of a scene, such as edges, abrupt

changes in color, and sudden movement tend to at-

tract involuntary user attention. Low-level saliency

models determine which regions of a scene exhibit

these features, and can be used as an alternative to

eye tracking when locating regions of interest. Cater

et al. (Cater et al., 2003) applied a saliency model that

includes knowledge of a viewer’s visual task in or-

der to render a scene with high resolution in regions

of interest and lower resolution elsewhere. Spatial

level of detail variation can also be realized through

adaptive subdivision of three dimensional polygon

meshes. Reddy (Reddy, 2001) developed a system

that renders terrain geometry in high detail at the ﬁxa-

tion point and a simpliﬁed mesh outside of the foveal

region. This is accomplished by recursively subdi-

viding the mesh, with regions outside of the fovea

terminating earlier than those within. For a terrain

model with 1.1 million triangles, the perceptual op-

timization achieved a 2.7x improvement in rendering

time. While no eye tracking hardware was used for

this model (ﬁxation was bound to the center of the im-

age), Reddy emphasizes the need for such technology

to produce an accurate perceptually based system. A

more general-purpose method for adaptive subdivi-

sion was proposed and implemented by Murphy and

Duchowski (Murphy and Duchowski, 2001). It con-

verts a full-polygon mesh to a variable level of detail

mesh through spatial degradation according to visual

angle. An eye tracker is used to determine which por-

tion of the mesh to render in full detail while the re-

mainder is rendered using the degraded mesh. For a

268,686 polygon Igea mesh, applying this technique

allowed for near-interactive frame rates (20 - 30 fps),

while frame rate for the full resolution model was too

low to measure.

While many perceptual optimization techniques

have shown positive results, existing methods are not

well-suited for application in a subtle, perceptually

optimized real-time computer graphics architecture.

Multi-resolution display models tend to produce no-

ticeable image degradation; according to Levoy and

Whitaker (Levoy and Whitaker, 1990), “users are

generally aware of the variable-resolution structure of

the image”. In addition, the nonuniform pixel dis-

tribution produced by the multi-resolution approach

tends to exhibit poor coherency with regards to the

Single Instruction, Multiple Data (SIMD) paradigm

employed by modern GPUs. Considering the current

trend towards massively parallel computing architec-

tures, this is a major drawback. Adaptive subdivision

comes with a similar drawback; transitioning between

the full-detail mesh and the spatially degraded mesh

produces motion that is very perceptible to the user’s

peripheral vision. Task-level saliency models offer

excellent computational speedup and low noticeabil-

ity. However, they are not applicable to the general

case, where the user task may be complex and re-

gions of interest are not guaranteed to be consistent

or easily identiﬁable. Furthermore, automatic predic-

tion of attention regions has been shown to be unre-

liable (Marmitt, 2002). Our perceptually optimized

rendering framework leverages the difference in acu-

ity between the foveal and peripheral regions of the

ﬁeld of view to provide computational speedup while

more effectively preserving perceived image quality

compared to spatial degradation techniques.

3 SYSTEM DESIGN

3.1 Ray-Tracing Framework

Ray-tracing is a well-established method for render-

ing three-dimensional scenes (Whitted, 1980). The

algorithm models the approximate path of light in re-

verse, ﬂowing from the camera to objects in the scene.

When a light ray intersects an object, the associated

pixel is ﬁlled with the color of the object at that point.

For reﬂective and refractive objects, additional rays

are spawned recursively at the point of intersection.

The ray-tracing algorithm is computationally in-

tensive, which has historically prevented it from be-

ing used for real-time applications. Approximately

75% of the time required to render simple scenes is

allocated to computing ray-object intersections, with

this number increasing for scenes with a large num-

ber of objects. A performance speedup can be real-

ized by reducing the number of intersection tests per

ray or the overall number of rays computed. Our sys-

tem is built on a basic ray-tracing framework, and is

designed to reduce the number of rays that need to

be computed by taking advantage of the differences

in visual acuity between the foveal and peripheral vi-

sion. It also includes a number of traditional opti-

mizations that reduce the number of intersections per

ray as well as the time required to compute each in-

tersection.

The bounding volume hierarchy (BVH) is one

effective method of organizing scene object data to

reduce ray-object intersection calculations per ray.

Each polygon in a mesh is encapsulated within a

bounding volume; we use a sphere, which has a rel-

atively low intersection cost. This set of volumes is

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

202

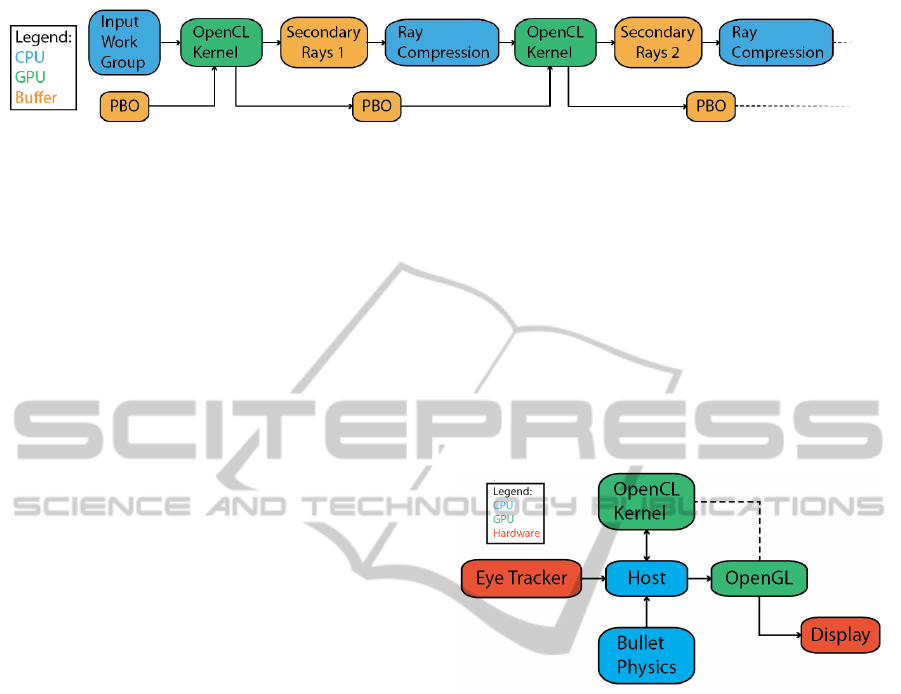

Figure 3: Secondary ray processing. Instead of using recursion or a secondary ray stack, multiple passes are made with the

same OpenCL kernel.

paired up and encapsulated within larger volumes un-

til only one volume remains. This volume now con-

tains a hierarchy that represents all geometry in the

mesh. Ray intersections on the entire mesh are per-

formed using the hierarchy. If a ray intersects the

top level bounding sphere, its children are recursively

checked for intersection. The BVH scheme elimi-

nates all but one sphere intersection test for the ma-

jority of rays that do not actually intersect the mesh.

In order to send the bounding volume hierarchy to

an OpenCL kernel, it must be ﬂattened into a one-

dimensional array. The ﬂattening algorithm described

by Thrane (Thrane et al., 2005) serves as a basis for

our method. The bounding volume hierarchy is tra-

versed depth-ﬁrst, and a traversal index is assigned to

each node to indicate traversal order. Each node is

also given an escape index, which indicates where to

go next if its child nodes are to be ignored. Leaf nodes

require a third index that corresponds to the mesh tri-

angle that they encapsulate. Once these values are as-

signed, all bounding volumes can be placed in a linear

array in the order of their traversal indices. The ﬂat-

tened BVH and triangle data are written to a ﬁle and

loaded directly on subsequent executions to acceler-

ate program startup.

General purpose GPU acceleration has emerged as

a compelling means of reducing intersection compu-

tation time for high performance ray-tracing systems.

Our framework places all ray-tracing logic, including

ray calculation, intersection tests, texturing and shad-

ing, in a single OpenCL kernel for execution on the

GPU. An array of work unit structures holds input

and output data for the kernel. Each work unit corre-

sponds to a group of 4 onscreen pixels (a pixel block),

and contains screen coordinate position and ray data

along with other information. The kernel accepts in-

put work units with either precomputed ray data or

raw screen coordinates.

Secondary ray processing is accomplished with

several consecutive kernel calls (see Figure 3). This

allows OpenCL to reconﬁgure work distribution for

each reﬂection or refraction step in order to maintain

GPU saturation. This contrasts with the more tra-

ditional stack-based approach, where processing el-

ements that do not generate secondary rays sit idle

until those with secondary rays ﬁnish computation.

Secondary ray output for most scenes is very sparse,

so the CPU-side host program compresses the out-

put array before initiating the next kernel pass. Sec-

ondary work units represent only 1 onscreen pixel,

since pixel blocks may overlap reﬂective/refractive

and non-reﬂective/refractive surfaces.

3.2 Perceptual Optimization

Figure 4: Runtime data ﬂow. Our framework is composed

of several subsystems that work in tandem to produce per-

ceptually optimized computer graphics.

Figure 4 shows an overview of our perceptually

optimized framework. The host serves as a central

hub and handles initialization and interprocess com-

munication. It also maintains object and camera po-

sitional data, and manages the Refresh Rate Modula-

tion cycle. The OpenCL kernel contains the full ren-

dering algorithm, which writes to a persistent pixel

buffer that is shared between OpenCL and OpenGL

in GPU memory. OpenGL is responsible for writing

this buffer to the display each frame and initiating the

rendering process for the next frame. Eye tracking

hardware provides real-time ﬁxation data in the form

of X and Y screen coordinates, which is passed from

the host to the OpenGL kernel to update foveal po-

sition. If physics functionality is enabled, the open-

source Bullet Physics engine drives positional data for

all scene objects.

The eye-tracker used in this project is a Senso-

Motoric Instruments iView X Remote Eye-Tracking

Device operating at 250 Hz with gaze position accu-

racy < 0.5

◦

. While the data it provides is quite ac-

RefreshRateModulationforPerceptuallyOptimizedComputerGraphics

203

curate, like all eye-trackers it does exhibit some de-

gree of noise. Using raw ﬁxation data detracts from

the user experience, because peripheral vision is ex-

tremely sensitive to motion (McKee and Nakayama,

1984). To rectify this issue, an auxiliary smoothing

ﬁlter has been placed between the eye tracker and the

host. Figure 5 shows a photograph of our setup.

Figure 5: Photograph of our setup. User ﬁxation is moni-

tored and used as input to our perceptual framework. The

eye-tracking hardware is ﬁxed to the bottom of the screen.

3.2.1 Refresh Rate Modulation

The primary contribution of this work is the Refresh

Rate Modulation technique for perceptually adaptive

level of detail adjustment. The display is split into

two segments: the foveal region and the peripheral

region. The foveal region is a small inset pixel group

that corresponds to the high acuity region of the hu-

man visual system, and is updated once every frame.

The work group that represents the foveal region is

dense, and features one work unit for each pixel group

in the region. The peripheral region takes up the re-

mainder of the image, and lies within the lower-detail

portion of the user’s ﬁeld of view. This region is up-

dated only once every N frames, which results in a

substantial computational speedup. The work group

that represents this region is sparse, and features one

work unit for every N pixel blocks in the region. Each

work unit in both regions computes for four consecu-

tive pixels to maximize SIMD coherency and improve

performance. Figure 6 shows how the display area is

separated into foveal and peripheral regions for a user

ﬁxating in the center of the screen. Note that a circu-

lar foveal region, while more perceptually accurate,

would eliminate much of this coherency and signiﬁ-

cantly reduce speedup.

Figure 7 illustrates the Refresh Rate Modulation

technique. A single work unit is processed at each

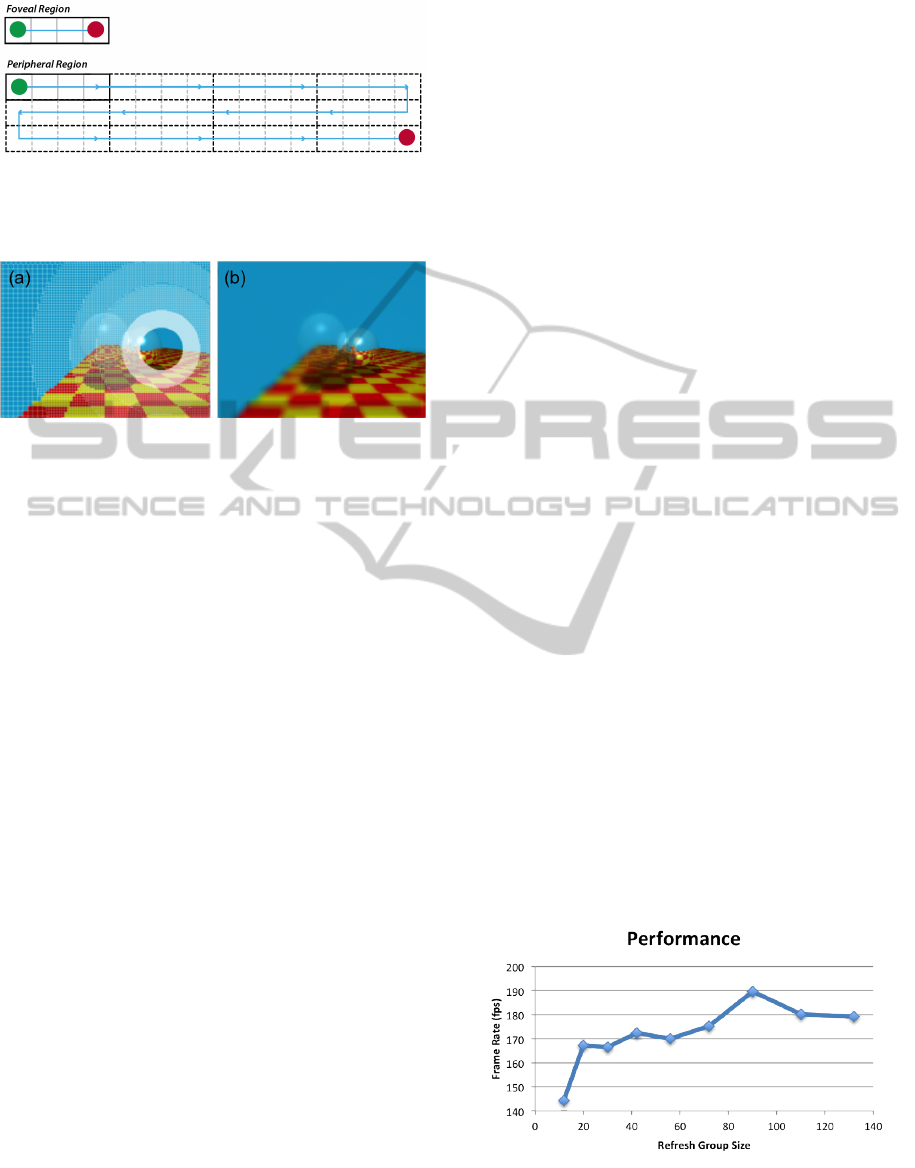

Figure 6: The display area is segmented into a dense inner

region (fovea) and a sparse outer region (periphery). White

pixels represent work units computed during a single frame.

frame, while the rest of the work units within the cy-

cle group maintain data from previous frames. When

the red marker is reached, a full cycle is complete and

rendering for the next frame begins again at the green

marker. Work units in the foveal region undergo a

full cycle each frame, so they are updated in real-

time. Units in the peripheral region undergo a full

cycle only once every N frames.

Applying the Refresh Rate Modulation technique

leads to an effect in which the portion of the display

that is viewed by the fovea is rendered in crisp detail,

while the rest of the display is subtly fragmented. This

fragmentation only occurs when the camera or scene

elements are in motion; if scene movement ceases, the

display naturally resolves a full-detail image after N

frames with no additional overhead. This results in a

full-resolution rendering after less than half a second

for applications with a real-time frame rate.

The RRM technique avoids the post-processing

step that is required by traditional spatial degradation

techniques to reduce visible pixelation, and thereby

avoids a great deal of processing overhead. Refresh

order within the cycle groups can be adjusted on the

ﬂy to adjust fragmentation style for scene content and

movement (e.g. horizontal, serpentine, scattered), and

work group size may be decreased to reduce fragmen-

tation in high-motion scenes or increased to maximize

performance. Movement of the foveal region is ac-

complished within the GPU kernel by simply adding

the current ﬁxation position to each work unit posi-

tion. This allows the entire input work group GPU

memory buffer to remain unchanged throughout exe-

cution, and avoids costly CPU to GPU memory oper-

ations.

A persistent OpenGL pixel buffer object is main-

tained and shared between OpenGL and OpenCL for

efﬁcient memory management. Pixel buffer objects

allow pixel data to be stored in high-performance

graphics memory on the GPU, and enable fast data

transfer to and from the graphics card through direct

memory access (DMA) without CPU involvement.

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

204

Figure 7: Refresh rate modulation. Work units within the

foveal region are updated every frame for real-time render-

ing, while those in the peripheral region are updated only

once every N frames for signiﬁcant computational speedup.

Figure 8: Spatial degradation results in less optimal perfor-

mance and requires a costly blurring effect that is still no-

ticeable to peripheral vision. (a) Whitted scene with grid to

reveal multi-resolution layout (b) Whitted scene with blur.

Since the buffer is not ﬂashed at the beginning of each

frame, peripheral data from previous frames can be

leveraged to provide meaningful context for the real-

time contents of the foveal region.

A more conventional multi-resolution ray-tracing

framework was developed near the beginning of this

project, and motivated development of the RRM tech-

nique. Analyzing performance differences between

execution on the CPU and GPU yielded valuable in-

sight regarding GPU characteristics as well as bot-

tlenecks in the algorithm itself. Figure 8 shows a

sample image from this original framework with a

grid feature enabled to highlight the various resolu-

tion levels. While results for this implementation

were quite promising on the CPU and on an older

commodity GPU, performance was less than impres-

sive on a newer high-performance GPU. There were

two primary reasons for this: complex CPU-side

work group management between frames, and irregu-

lar work groups that are not well-suited to SIMD. In

addition, this technique leads to pixilation even when

there is no movement in the scene, which in turn re-

quires a post-processing blur effect to remove visible

seams. While post-processing effects can be achieved

easily with the OpenGL Shading Language (GLSL),

frequent switching between OpenCL and GLSL con-

texts on the GPU is costly and results in massive per-

formance drop. These observations led to a focus

on minimizing work group management, simplifying

the work group layout and achieving acceptable per-

ceived image quality without post-processing.

3.3 Perceptually Optimized Collision

Detection

In order to demonstrate the ﬂexibility of our

framework, we have integrated a perceptual col-

lision detection subsystem that renders realisti-

cally moving geometry using our ray-tracing en-

gine and the open-source Bullet Physics Library.

O’Sullivan (O’Sullivan et al., 1999) showed that in-

terruptible collision detection can signiﬁcantly reduce

the time required for physics calculations while main-

taining plausible scene motion. Our system takes ad-

vantage of the bounding volume hierarchy based col-

lision detection system that Bullet Physics provides

for static polygonal meshes. A performance improve-

ment is gained by using only the top level of the BVH

for collisions, which is subtle enough to be impercep-

tible to the periphery.

4 RESULTS

The quality of a perceptual optimization technique

must be assessed in two ways: computational

speedup, and perceptual subtlety. The RRM approach

requires a specialized metric for computational per-

formance, since the onscreen position of the dense

foveal region can have an effect on frame rate for

scenes with nonuniform complexity. To account for

this, we render one frame for each possible foveal po-

sition and average the results to produce a representa-

tive overall frame rate. The perceptual subtlety of the

effect was measured during a small user study. Test

subjects were instructed to look at the full resolution

scene. RRM was then enabled, and subjects rated how

noticeable the effect was on a scale from 1 to 10 (1 is

not noticeable, 10 is very noticeable).

Figure 9: Performance of RRM for different refresh group

sizes. Increasing group size reduces the number of pixels

that must be updated each frame and improves performance.

RefreshRateModulationforPerceptuallyOptimizedComputerGraphics

205

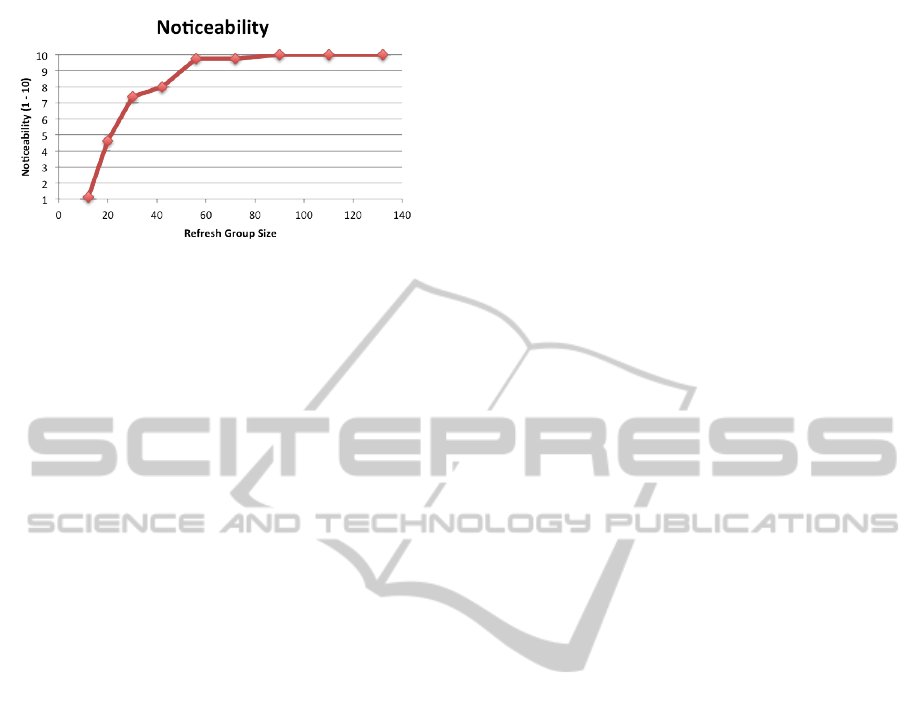

Figure 10: Results of user study. Increasing group size

causes RRM to degrade perceived image quality.

Figure 11 shows the computational speedup that

RRM achieves for the classic Whitted scene with and

without secondary ray effects, as well as a high poly-

gon scene that features a 5000 polygon model of the

Stanford Bunny. The Whitted scene with secondary

rays offers the best speedup since computation for a

large portion of both primary and secondary rays is

avoided, while the other scenes remove only primary

rays. Our framework handles high polygon scenes

very well with RRM enabled, achieving a frame rate

that is considerably higher than real-time. All tests

were performed on a system with a 3.6GHz Intel Core

i7 processor and a Radeon HD 7970 GPU.

The perceptual study also produced favorable re-

sults, with an average noticeability rating of 1.13 for a

group with 5 participants (4 males, 1 female, ages 18-

27). This indicates that RRM achieves excellent com-

putational speedup with almost no impact to the per-

ceived quality of rendered images. The high-polygon

scene with an irregular ﬂoor texture was used for the

study to maximize geometric and color variety. Af-

ter subjects rated the scene for the default 3x4 refresh

group dimensions, group size (or N, see Figure 7)

was increased to gauge the impact of different periph-

eral refresh rates on the noticeability and performance

of RRM. As illustrated by Figure 9, increasing N

from the default of 12 to a maximum of 132 increases

frame rate by up to 50 fps. This performance increase

has an associated perceptual cost; the participants in-

dicated that the effect is noticeable (greater than 5 on

the noticeability scale) to the periphery for values of

N larger than 20 (see Figure 10). Figure 12 shows

the high polygon scene with N = 132 to illustrate the

perceptual impact of large values of N.

The perceptually optimized collision detection

system decreases the physics calculation time for the

scene shown in Figure 13 from 2.01ms to 1.15ms for

a speedup of 1.8. Physics calculation times were mea-

sured over a span of 1000 frames and averaged to en-

sure that they are indeed representative of the opti-

mization.

5 CONCLUSION

Through the implementation and testing of our per-

ceptually optimized computer graphics framework,

we have demonstrated the viability of the novel Re-

fresh Rate Modulation (RRM) optimization tech-

nique. Our RRM technique partitions the viewing

area into two subregions based on a model of human

visual perception, and reduces the refresh rate in the

outer region for up to a 6x speedup in our tests. A

user study indicates that RRM achieves this compu-

tational speedup with almost no effect on perceived

image quality. We have also shown that the frame-

work is extensible to other perceptually optimization

techniques by incorporating an interruptible collision

detection algorithm that drives positional data for the

ray-tracing engine.

Some work remains to more fully realize the po-

tential of our current system. The collision detection

system should be more fully integrated with the ray-

tracing engine such that the optimization is engaged

via ﬁxation instead of being manually toggled as it

is now. The brute force bounding volume hierarchy

construction algorithm should also be made more ef-

ﬁcient to allow for the representation of higher poly-

gon models in a reasonable amount of time. Our per-

formance results suggest that a model with signiﬁ-

cantly more than 5000 polygons could be rendered

in real-time with RRM enabled. In addition, a re-

duction routine on the GPU could be used to remove

empty secondary rays in place of the CPU method

that is currently in place. While reduction is not well-

suited to stream processors, it would avoid a number

of expensive GPU-to-CPU memory operations. Fi-

nally, refresh order and group size could be adjusted

in real-time to perceptually compensate for dynamic

scene content. This might be accomplished through

the use of visual energy functions, as described by

Avidan and Shamir (Avidan and Shamir, 2007).

Our framework can be extended to include a va-

riety of perceptual optimizations. Adaptive subdi-

vision, the simpliﬁcation of polygonal meshes out-

side of the foveal region, is a prime candidate for

our framework as it has been proven effective in pro-

viding computational speedup. Supersampling within

the foveal region to improve perceived image quality

while only modestly increasing computational load is

another possibility. We envision that our framework

will be used as a testbed for future perceptual graphics

techniques.

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

206

Full$

Resolution$

Refresh$

Rate$

Modulation$

Speedup$

Whitted$Scene$(no$secondary$rays)$

82!fps!

260!fps!

3.2!

Whitted$Scene$(with$secondary$rays)$

19!fps!

119!fps!

6.3!

High$Polygon$Scene$

49!fps!

138!fps!

2.8!

(a)

(b)

(c)

(d)

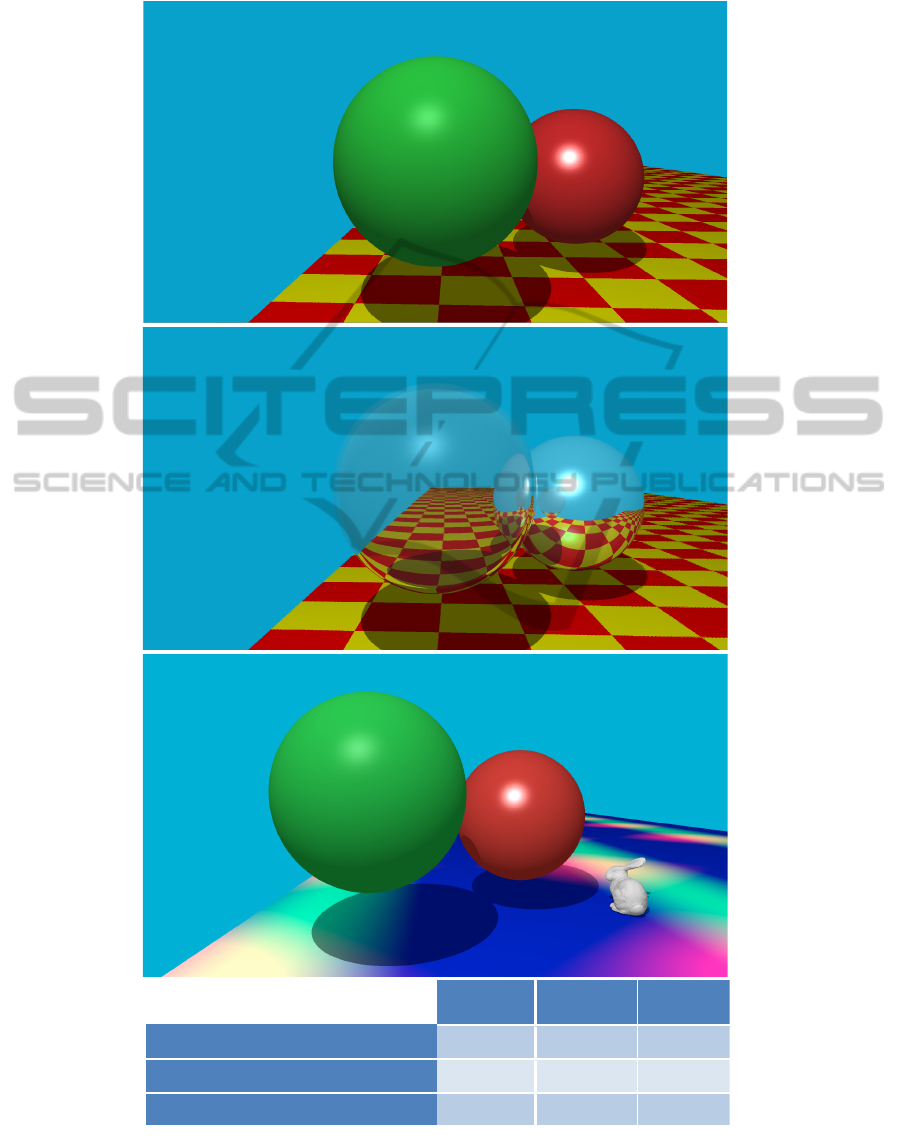

Figure 11: Performance results for selected scenes rendered at 1080p resolution. (a) Whitted scene without secondary rays.

(b) Whitted scene with secondary rays. (c) Scene containing a 5000 polygon model of the Stanford Bunny. (d) Performance

results for each scene at full resolution and with RRM enabled. A refresh group size of 12 is used for RRM.

RefreshRateModulationforPerceptuallyOptimizedComputerGraphics

207

Figure 12: Perceptual impact of increasing the refresh

group size to N = 132. The fragmentation effect is very

noticeable even to peripheral vision.

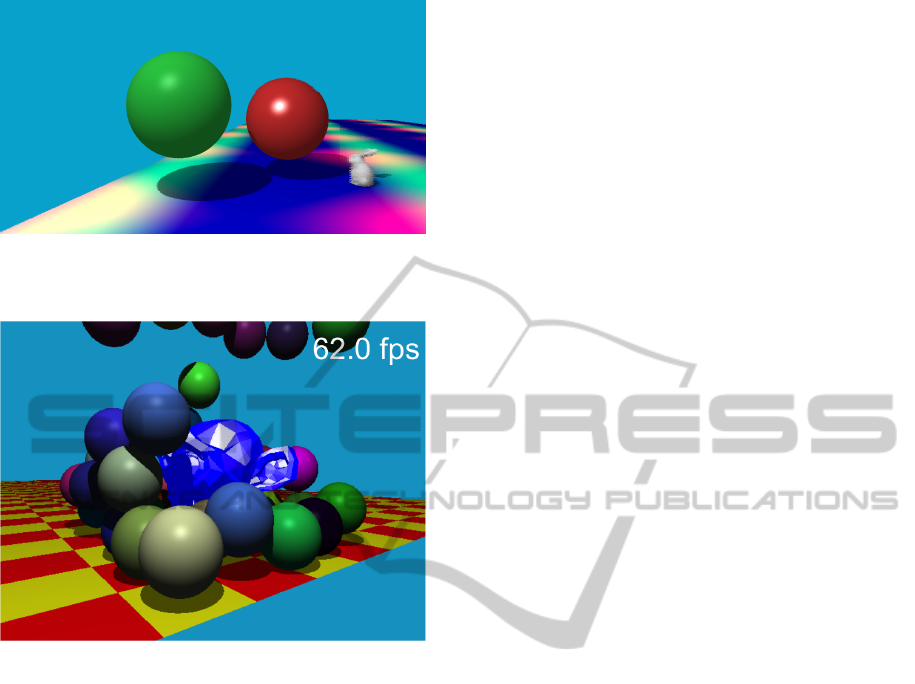

Figure 13: High polygon mesh with 50 moving spheres.

Applying perceptual optimization to the physics model re-

sults in a physics calculation speedup of 1.8.

ACKNOWLEDGEMENTS

This material is based on work supported be the Na-

tional Science Foundation under Award No. IIS-

0952631. Any opinions, ﬁndings, and conclusions

or recommendations expressed in this material are

those of the author(s) and do not necessarily reﬂect

the views of the National Science Foundation.

REFERENCES

Avidan, S. and Shamir, A. (2007). Seam carving for

content-aware image resizing. In ACM SIGGRAPH

2007 papers, SIGGRAPH ’07, New York, NY, USA.

ACM.

Cater, K., Chalmers, A., and Ward, G. (2003). Detail to at-

tention: exploiting visual tasks for selective rendering.

In Proceedings of the 14th Eurographics workshop on

Rendering, EGRW ’03, pages 270–280, Aire-la-Ville,

Switzerland. Eurographics Association.

Geisler, W. S. and Perry, J. S. (1999). Variable-

resolution displays for visual communication and sim-

ulation. SID Symposium Digest of Technical Papers,

30(1):420–423.

Goldsmith, J. and Salmon, J. (1987). Automatic creation

of object hierarchies for ray tracing. IEEE Comput.

Graph. Appl., 7(5):14–20.

Levoy, M. and Whitaker, R. (1990). Gaze-directed volume

rendering. SIGGRAPH Comput. Graph., 24(2):217–

223.

Livingstone, M. (2002). Vision and Art: The Biology of

Seeing. Harry N. Abrams, Inc.

Marmitt, G. (2002). Modeling Visual Attention in VR: Mea-

suring the Accuracy of Predicted Scanpaths. Clemson

University.

McKee, S. and Nakayama, K. (1984). The detection of mo-

tion in the peripheral visual ﬁeld. Vision Research,

24(1):25–32.

Murphy, H. and Duchowski, A. T. (2001). Gaze-contingent

level of detail rendering. In Proceedings of Euro-

graphics 2001, Manchester, UK.

O’Sullivan, C., Radach, R., and Collins, S. (1999). A model

of collision perception for real-time animation. In

Proc. 1999 Conference on Computer Animation and

Simulation - Eurographics Workshop (EGCAS, pages

67–76. Springer.

Raj, A. and Rosenholtz, R. (2010). What your design looks

like to peripheral vision. In Proceedings of the 7th

Symposium on Applied Perception in Graphics and Vi-

sualization, APGV ’10, pages 89–92, New York, NY,

USA. ACM.

Reddy, M. (2001). Perceptually optimized 3D graphics.

IEEE Comput. Graph. Appl., 21(5):68–75.

Thrane, N., Simonsen, L. O., and Ørbæk, P. (2005). A com-

parison of acceleration structures for gpu assisted ray

tracing. Technical report.

Wald, I. and Havran, V. (2006). On building fast kd-trees for

ray tracing, and on doing that in O(N log N). In Pro-

ceedings of the 2006 IEEE Symposium on Interactive

Ray Tracing, pages 61–70.

Whitted, T. (1980). An improved illumination model for

shaded display. Commun. ACM, 23(6):343–349.

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

208
