Real-Time 3D Visualization of Accurate Specular Reﬂections in Curved

Mirrors

A GPU Implementation

Andr

e Lages Miguel, Ana Catarina Nogueira and Nuno Gonc¸alves

Institute for Systems and Robotics, University of Coimbra, Coimbra, Portugal

Keywords:

Three-Dimensional Graphics and Realism, Real-Time Rendering, Textures, Non-planar Reﬂections.

Abstract:

This paper presents a vertex-based solution for rendering real-time accurate reﬂections in quadric mirrors in

dynamic scenes using CUDA and OpenGL. Our method, based on forward projection, exploits the global

information of the vertices and textures as they are computed from its original positions, to their reﬂections

points in the mirror, and ﬁnally, to the eye. This solution does not suffer from parallax or visibility issues,

neither does it needs to deal with ray intersection. As viewers navigate through the scene, the reﬂection points

are instantly recalculated, depending on the position of the camera. Thus, given a 3D scene, this method

gathers all vertex, light, and texture information and computes them at every instance, ﬁnding the reﬂection

points and rendering the reﬂections on the mirror surface. We also demonstrate the accuracy and performance

of our method by rendering two sample scenes.

1 INTRODUCTION

Rendering non-planar reﬂections at real-time speed

has been a real challenge since the render-to-texture

technology and other recent advances became avail-

able in computer graphics. Although faking reﬂec-

tions in environment maps have been widely used as

a solution to render reﬂections in real-time (Blinn and

Newell, 1976), (Greene, 1986), (Haeberli and Segal,

1993), (Voorhies and Foran, 1994), the human eye

perceives what is wrong in a 3D scene. If a reﬂection

is fake, the user will easily notice. Recent games of-

fer fast and dynamic graphics that are close to photo-

realistic, however, the computational cost of drawing

a physically possible reﬂection in a non-planar mirror,

even using GPU parallelism, is still very high.

Although techniques have been used to render per-

fect reﬂections using raytraced systems ((D. Roger,

2007),(Parker et al., 2010)) or using cubemapped or-

thogonal views to a sphere ((Roger and Holzschuch,

2006), (Estalella et al., 2006), (Estalella et al., 2005))

such methods do not apply to our projection model.

Despite the growth of ray tracing capability and per-

formance through time, ray tracing is not suitable for

forward projection using non-central catadioptric sys-

tems, moreover, the rendering of efﬁcient complex

dynamic scenes via ray tracing in real-time is still a

difﬁcult task.

For this paper, we rendered a 3D scene where

the accurate reﬂection point for each vertex, at ev-

ery instance, is projected in a curved mirror. Our

rendering workﬂow is vertex-based and the reﬂection

is generated by connecting fans of textured triangles

that correspond to vertices in virtual objects in the

scene. Virtual objects are clones of the original ob-

jects, but ﬁnely tessellated (the closer to the reﬂec-

tor, the higher the tessellation is). These objects are

only rendered during the reﬂection and their vertices

are only used to ﬁnd the reﬂection points. The idea

of our method when handling with dynamic scenes,

is that after the pre-processing stage, it only needs to

account for camera position and animated vertices to

render a complete reﬂection. We address the problem

of estimating the reﬂection point that belongs to the

surface of the mirror where light is projected from a

3D point in the direction of the camera (forward pro-

jection), which is similar to the ray casting system.

We thus present a novel approach to the compu-

tation and rendering singular-bounced reﬂections in

quadric mirrors which is unique in ﬁnding accurate

reﬂection points at a good speed. Additionally, to

prove the usefulness of our approach, we built an in-

teractive development kit for toys and particles, so

that in 3D scenes containing a reﬂector, objects can

be added and animated. The reﬂectors that are ad-

dressed by our method are quadric shaped (spheres,

136

Lages Miguel A., Nogueira A. and Gonçalves N..

Real-Time 3D Visualization of Accurate Specular Reﬂections in Curved Mirrors - A GPU Implementation.

DOI: 10.5220/0004691901360143

In Proceedings of the 9th International Conference on Computer Graphics Theory and Applications (GRAPP-2014), pages 136-143

ISBN: 978-989-758-002-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

ellipsoids, paraboloids and hyperboloids). We intro-

duce a method that computes only the most relevant

vertices at each frame to maintain visual accuracy and

save computational costs.

Our main contributions are: the speed of our al-

gorithm rendering a full scene with accurate reﬂec-

tions in curved mirror (the parallelism, possible due

to vertex independence, allows the GPU to perform

searches for many vertices at the same time); the time-

saving operations made to the algorithm to main-

tain the reﬂection accuracy with reduced computa-

tional power - the CPVV - which is an approach that

only computes the most important vertices and dis-

card the other ones to preserve reﬂection accuracy,

and a Painter’s Algorithm approach regarding vertex

occlusion.

2 RELATED WORK

Blinn and Newell introduced Environment and

Sphere Mapping techniques to fake specular reﬂec-

tions. These methods (Blinn and Newell, 1976) can

speed up a curved reﬂection, however, the reﬂection

is inaccurate and may suffer from parallax issues. For

faking reﬂections, an alternative is the Image-Based

Lighting proposed in (Bjorke, 2004), which consists

in adding shader calculations, for placing objects in-

side a reﬂection environment of a speciﬁc size and lo-

cation. This technique provides higher quality, how-

ever, it does not solves parallax issues at low distance

from the reﬂector.

Accelerated ray tracing methods have been im-

plemented on the GPU to compute specular reﬂec-

tions with good performance, though it only suits

non-dynamic scenes (Purcell, 2004). (Ofek and Rap-

poport, 1998) also proposed an interesting solution

for rendering interactive reﬂections on curved objects.

For every vertex in the scene, an explosion map ac-

celerates the search for a triangle used to perform

the reﬂection. This solution is efﬁcient, but has mi-

nor artifacts. In (Szirmay-Kalos et al., 2005) a ray

tracing based method that achieves real-time speed is

proposed for curved mirrors, yet, when dealing with

poorly tessellated objects lacks of accuracy in the re-

ﬂection. ((Estalella et al., 2005), (Estalella et al.,

2006), (Roger and Holzschuch, 2006)) proposed an

interesting cube-mapped based method for very ac-

curate reﬂections intended for pinhole cameras. The

vertices in the scene are computed to pre-processed

cube maps around the mirror, but again, it fails to be

accurate when the objects in the scene are poorly tes-

sellated. Other techniques have shown the use of tex-

ture maps to build and draw reﬂections, with the aid

of OpenGL (McReynolds et al., 2000). More accu-

rate methods have already dropped the use of envi-

ronment mapping and stepped into ray traced meth-

ods. The most important, but not suitable for forward

projection, is Optix (Parker et al., 2010), a ray tracing

engine for highly parallel architectures.

Ray tracing is an inherently parallel technique but,

despite this fact, the shared memory management is

difﬁcult, mainly if an efﬁcient GPU implementation

is aimed, since it is primarily designed for stream-

ing polygon rasterization (Purcell, 2004). As men-

tioned by (Wald et al., 2003), (Woop et al., 2005),

(Carr et al., 2006), since most ray tracing algorithms

use pre-processed acceleration data structures (for

static models), ray tracing is not suitable for dynamic

scenes.

Dynamic environments can be treated combin-

ing pre-computation and warping (Meyer and Loscos,

2003), and they can also be used to compute recur-

sive specular reﬂections (Hoy et al., 2002). The above

methods do not provide satisfactory results when the

viewer is close to the reﬂector too.

On another hand, the GPU availability to carry ex-

tra workload closes an huge set of shading and light

limitations, increasing the dynamism and realism in

modern games. Accurate specular reﬂections are be-

coming a widely common effect in fully dynamic

scenes. Thus, as mentioned above, the use of envi-

ronment mapping methods is decreasing over time,

meaning that if a dynamic scene has to be as real as

possible in real-time, is easier to use a multipass tech-

nique rather than pre-compute data.

Most of the techniques to trace the light path rely

on pixel and rays computations, and depend on global

geometry approaches to handle the reﬂection. The

computational cost for rendering a reﬂection grows as

complex illumination and dynamic effects are added,

so as with ray intersection and glossy highlights. The

use of geometry/vertex and pixel shader have been

widely used to render reﬂections. Usually, the vertex

program estimates a triangle for the projection region

and the fragment shader renders the projection region

out of the bounding triangle. Such method is easy to

compute and provides good results, however, is difﬁ-

cult to implement using our projection model.

Nonlinear Beam Streaming on the GPU has been

proposed and used as a reliable competitor with ray-

tracing (Liu et al., 2011). This approach is based

on polygon rasterization and produces fast and ac-

curate results at rendering nonlinear global illumina-

tion effects such as curved mirror reﬂection, refrac-

tion, caustics, and shadows. This method proves to

be more suitable than raytracing when handling with

dynamic scenes.

Real-Time3DVisualizationofAccurateSpecularReflectionsinCurvedMirrors-AGPUImplementation

137

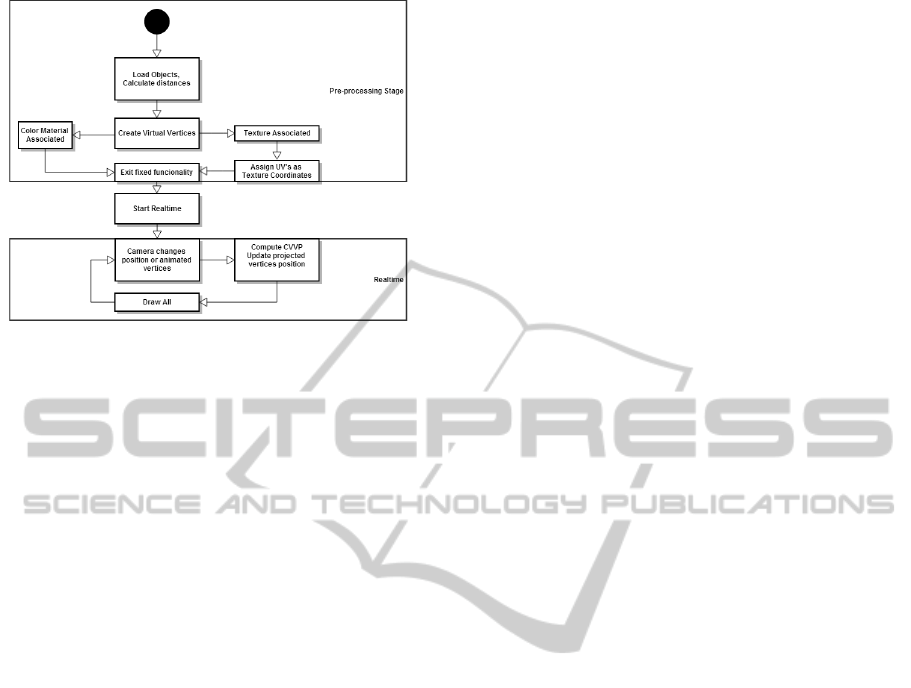

Figure 1: Diagram of our algorithm, from the pre-

processing stage to the realtime calculations stage.

3 ALGORITHM OVERVIEW

In the diagram of ﬁgure 1 we summarize our algo-

rithm pipeline.

Initially, all static meshes are loaded and the po-

sition of each vertex is stored for immediate dis-

tance calculations. Virtual objects are created for ev-

ery loaded mesh and the tessellation level given to a

virtual object depends on the distance to the mirror.

Since every virtual mesh is divided in simple geome-

tries, one virtual object may have different tessellation

levels, the created virtual objects will be invisible, but

the virtual vertex information will be used to compute

high order reﬂections. In this pre-realtime stage, tex-

ture information must be assigned to the vertices of

the mirror, so that when realtime begins, the minimal

amount of information is needed to compute and ren-

der a full reﬂecting sphere. If an object has a texture

associated to it, the same texture ID is linked to the

reﬂection vertices that represent that mesh. A simi-

lar process is used to link color and light information

to the reﬂection points if the matching virtual vertices

have no texture. To enhance performance, all of the

vertex data that compose the reﬂector is stored in high

performance graphics memory. To reduce the number

of function calls, no pixel data is needed.

Thereafter, after all static data is processed, the re-

altime calculations begin - the environment is quickly

drawn and the mirror is ready to reﬂect the objects.

Upon camera movement, the new position values for

the camera are sent to the projection functions that

will estimate the new reﬂection points, at that time

several vertices are computed simultaneously, using

the GPU for arithmetic operations and the CPU for

the remaining actions to estimate the new values for

the reﬂection vertices. Not all existing virtual vertices

are computed at each frame as, as we explain later,

our method can choose to compute only the most im-

portant vertices to safeguard visual accuracy.

For each virtual mesh vertex we then compute a

reﬂection point, based on the actual camera position.

Under this representation, each mesh vertex can be

considered an independent thread that allows for other

vertices to be projected at the same time.

3.1 Pre-Realtime

In this algorithm, we ﬁrst render the lightmaps of the

geometry with proper illumination, these lightmaps

will be used as textures in the reﬂector - this is done

in an ofﬂine step. Access to texture memory is op-

timized in a CUDA kernel, so it does not delay the

program execution and avoids the traditional graph-

ics pipeline ﬁxed-function limitations. The vertices

positions are then copied onto the GPU during the

initialization step. The 3D scenes presented in this

paper has dynamic lighting and shadowing applied.

Also, the static objects are textured with precomputed

lightmaps, which suffer from some direct illumina-

tion from the dynamic lighting. At this point, no

projections to the reﬂector were already calculated,

running at approximately 644 fps with a low-polygon

scenario. Although dynamic lighting is applied to the

objects, the light contribution in the reﬂector may suf-

fer variations if the objects are extremely exposed to

a light source. Before the context is created, the data

that describes the scene is extracted and labeled so

that, at the time of the reﬂection points calculations,

each vertex of the reﬂector is already associated with

a position in a texture and with nearby vertices.

Our algorithm handles low-polygon and well tes-

sellated objects. In the case of low-polygon meshes,

a virtual object for this mesh will be created - as ex-

plained before, the virtual object associated to a mesh

will divide it into ﬁnely tessellated simple geometries

with n vertices and afterward these virtual vertices po-

sitions are stored in VBOs. For every vertex stored,

a set of values is associated to it: a 2D coordinate is

stored in shared memory in a buffer with all necessary

Texture Coordinates useful for reﬂecting textures and

an id of the mesh and division associated to the vertex,

and consequently, to a texture.

In this paper we implemented a novel method that

only computes a few necessary points at each frame.

In order to reduce the computation workload, at ev-

ery frame, only the borders of a virtual object will be

projected onto the mirror. The virtual vertices with

less then four neighbors are labeled as CPVV (Con-

stantly Projected Virtual Vertices). While the CPVV

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

138

points are computed and projected at each frame, the

remaining vertices are drawn as a triangle fan with N-

2 triangles, being N = VertexCount - CPVVCount. By

applying this process, only the most imperative ver-

tices that guarantee the visual accuracy of the reﬂec-

tion are computed at each frame, however at a close

range from the reﬂector, artifacts can be seen, such as

discontinuities in parts of the reﬂection. To improve

performance, this function has a tunable value that

deﬁnes if the non CPVV points are to be projected

less often, or more often for better quality. The stage

of choosing the adequate points to be CPVV happens

right after the virtual objects creation, thus providing

enough data to begin the realtime application, where

the algorithm now only needs to account for camera

and animated vertices positions. This smart allocation

of computational resources produces gains in perfor-

mance when rendering in real-time. In order to guar-

antee fast access to vertex data, all animated objects

have their vertex positions updated in the same mem-

ory space as the CVPP, since these points will be con-

stantly projected, even upon camera movement.

3.2 Projection Model

The Forward Projection Model used in our render-

ings is based on the Quadric Intersection Method

presented by Goncalves (Goncalves, 2010) and

Goncalves and Nogueira (Goncalves and Nogueira,

2009). The three main inputs are:

• 1) a quadric surface reﬂector, deﬁned by the fol-

lowing quadratic equation:

+ y

+ Az

+ Bz −C = 0 (1)

where the coefﬁcients A, B and C are arbitrary

scalars. This parameterization of the quadric

mirrors comprises rotationally symmetric mirrors

such as spherical, parabolic, hyperbolic and ellip-

tic. The quadric mirror can also be expressed by

a quadric matrix Q, in homogeneous coordinates,

such that the point x =



x y z 1



belongs

to quadric Q if and only if respects the equation

Qx = 0.

• 2) the camera center of projection (COP), which

is considered to be placed at the point COP =





• 3) and the 3D point to be projected (object point),

that is deﬁned as P =



X Y Z 1



As illustrated in ﬁgure 2 the incident ray intersects

the reﬂector surface at the reﬂection point R, where

the light ray is projected to the camera along the re-

ﬂected direction.

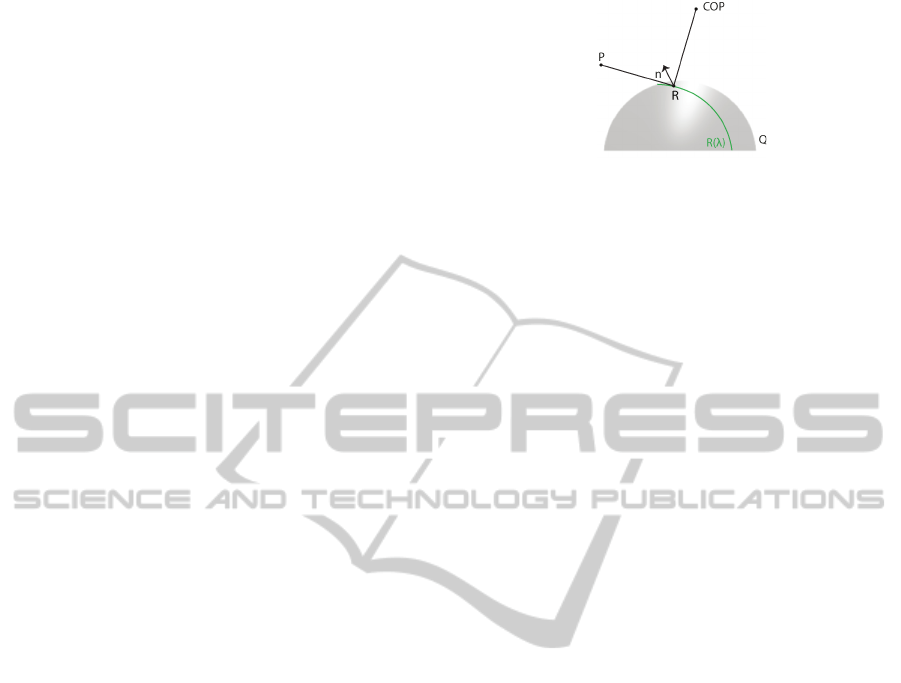

Figure 2: Reﬂection through a quadric reﬂector where the

reﬂection point is searched in a parameterized quartic curve

R(λ).

As stated by the Quadric Intersection Method

((Goncalves, 2010) and (Goncalves and Nogueira,

2009)) an additional constraint on the reﬂection point

is imposed, allowing a much faster way to search for

the reﬂection point. This constraint imposes that the

reﬂection point belongs not only to the reﬂector sur-

face but also belongs to an analytical quadric, whose

expression depends exclusively on the geometry of

the projection (center of projection and 3D point to

be projected). Since the searched reﬂection point

belongs to these two quadrics, it shall be searched

in their intersection, which has only one dimension.

This characteristic turns the method much faster than

other reﬂection methods like Law of Reﬂection or

Fermat Principle.

As proved in (Goncalves, 2010), the parametric

curve given by the intersection algorithm is a function

of only one parameter, say λ. Although nonlinear, the

curve can be searched for the point where the total

distance traveled by the light is minimum, stated by

the Fermat Principle.

Therefore, the reﬂection point R belongs to the

quadric reﬂector Q and also to the analytical quadric

S, whose expression is given by (Goncalves, 2010):

S = M

∗

∞

Q + Q

∗

∞

M (2)

where the matrix Q

∗

∞

is the absolute dual quadric and

M is a skew-symmetric matrix that depends on the

center of projection of the camera and the 3D point to

be projected. M is expressed by:

M =







0 c

− Z −c

+Y c

Z − c

−c

+ Z 0 c

− X −c

Z + c

−Y −c

+ X 0 c

Y − c

−c

Z + c

Y c

Z − c

X −c

Y + c

X 0







(3)

For the general case, the parameterization ob-

tained involves the solution of a polynomial up to the

8th degree.

Another method for the computation of the reﬂec-

tion point through curved mirrors, and also using for-

ward projection, was proposed by Agrawal, Taguchi

and Ramalingam (Agrawal et al., 2011). Although

Real-Time3DVisualizationofAccurateSpecularReflectionsinCurvedMirrors-AGPUImplementation

139

both methods are presented as a problem of solving an

8th degree polynomial, our preliminary experiments

showed that the Quadric Intersection Method has bet-

ter performance than the former one. Both methods

can, however, be used in our algorithm to render ac-

curate reﬂections in quadric mirrors.

4 DETAILS OF THE

ALGORITHM

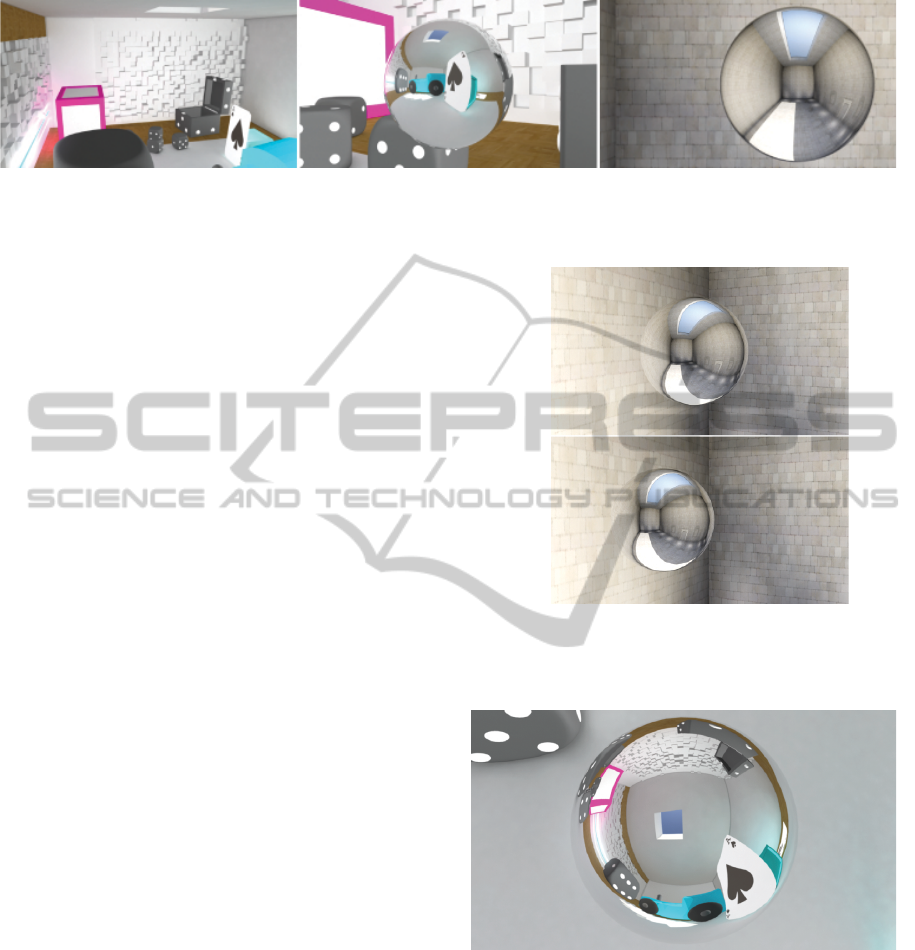

We here present the details of our algorithm by ren-

dering two different game environment scenarios run-

ning at an average speed of 143 fps. The ﬁrst testing

environment is a room ﬁlled with toys with different

shapes and the other scene is a well lit corridor.

The Quadric Intersection Method ((Goncalves,

2010) and (Goncalves and Nogueira, 2009)) that ﬁnds

the reﬂection points is now implemented on the GPU,

using OpenGL interopability with CUDA on an Intel

Core i7 3.4GHz with a GeForce GTX680 card.

In this section we start detailing our approach.

Our approach is based on approximating the reﬂec-

tor by a polygonal mesh stripped with triangles. Be-

fore dealing directly with the reﬂection, our algorithm

scans the scene for every object, creating virtual ver-

tices and labeling the most important ones for perma-

nent reﬂection, as explained in section 3.

4.1 Parallel Computation

During run time, the virtual vertices to be computed

do not rely on other vertices. This independence al-

lows the program to GPU parallelism. Because the

point projections are drawn with triangles, after at

least three vertices are projected, the algorithm only

needs one point to draw a new triangle. The new ver-

tex is indexed to the other two previously vertices that

already share a triangle with another vertex. Using

this method we ensure that all vertex positions are up-

dated fast enough when rendering a new frame.

The program calls parallel kernels (simple func-

tions that make arithmetic operations) - so that the

kernel executes in parallel across a set of other par-

allel threads. A streaming of virtual vertices is thus

a thread block - a set of concurrent threads that can

cooperate among themselves through barrier synchro-

nization and shared access to a memory space private

to the block. In this context, a virtual object in the

scene is programmed as a grid, i.e. a set of thread

blocks (vertices) that may be executed independently

and thus may execute in parallel. Since the algo-

rithm to ﬁnd the reﬂection points is actually a bunch

of arithmetic operations, the kernel is called to per-

form the majority of the operations. Particularly, each

thread checks if the corresponding vertex satisﬁes the

given properties to be later projected, and if so, it sets

the value representing the property for all immediate

successors of the vertex.

As for the algorithm performance, it is limited

by memory bandwidth since, for each vertex update,

only few instructions are executed. The quadric inter-

section method used to ﬁnd the reﬂection points is a

straightforward set of hierarchical operations depen-

dent on each other. Calling the CUDA kernel ensures

that all arithmetic operations as computed in parallel

for several vertices.

Upon the static data is processed, the context is

created and the real-time calculations begin while the

scene is rendered. At each frame, the position of the

camera is updated and accountable for calculations,

and the static objects are drawn. If the CPVV is en-

abled, the rendering will speed up and the most no-

ticeable and animated vertices will be drawn to main-

tain visual accuracy.

For convenience, the render of the reﬂection is the

last one to be drawn. The rendering stage begins with

no updated information about the reﬂected vertices

coordinates, which happens while the objects are be-

ing rendered. This is not considered to be a two-pass

rendering, but as a single render pass that suffers from

an extremely small standby, while switching to ﬁxed

functionality to execute the last operations to ﬁnd the

reﬂection points.

4.2 Vertex Independence

The projection method used in this paper is based

on a geometric cost function minimization, there-

fore, the projection of a point is accurate and inde-

pendent of the remainder scene, only using the sur-

rounded information for the tessellation step. The

output of our application is a mirror surface that re-

ﬂects a whole scene, built with vertices connected by

a fan of textured triangles, after the ﬁrst frame the re-

ﬂection points positions are updated and translated.

At the end of the ﬁrst instance, every virtual vertex in

the scene has a reﬂection point associated to it, that

is a vertex position with a constant 2D texture coor-

dinate or a rgb color in the case of no texture asso-

ciation. After that, during the execution time of the

visualization, each virtual vertex is always connected

to the same reﬂection point.

All projected vertices are stored in VBO’s. The

algorithm used to create virtual objects divides an ob-

ject in simple polygons, if possible. Simple meshes

like planes and cubes are easier to deal with - as an

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

140

example, if a low-polygon cube mesh with eight ver-

tices is loaded to the scene, the algorithm will divide

it in six planes and assign virtual vertices to each one

depending on their position relatively to the reﬂector.

In a relatively far distance from the mirror, a plane

would be divided in a 4x4 grid with 25 vertices and

32 triangles. If the same plane is closer to the reﬂec-

tor, it will have a larger vertex and triangle count.

4.3 Rendering

The rendering process counts on polygon rasteri-

zation and texture/color fetch, leaving the GPU in

charge of drawing everything, where the GPU proves

to be well suited for streaming polygon rasterization,

instead of pixel/ray computations. Our algorithm

deals easily with the streaming of particle systems.

Each particle is accountable as a vertex in 3D space.

The reﬂection of particles is drawn as a 3D texturized

polygon, exactly like the drawing in the 3D space,

keeping the algorithm simple and able of rendering

dynamic effects.

As explained earlier, to avoid a double rendering

pass and improve the performance, the calculation of

the reﬂection points is done at the same time of the

scenario rendering. Thus, when the camera position

changes, vertices are computed and the only element

that is updated is the position of the reﬂection points

on the mirror, as the assignment of texture coordinates

remains the same. Finally, the reﬂection points are

stripped on reﬂector with small textured triangles.

As mentioned in the introduction, the examples in

this paper combine OpenGL and CUDA. The use of

such tools facilitate the minimization of communica-

tions across the PCIe bus and speeds up the rendering

time, enabling primitive restart, drawing primitives

such as triangle fans or strips that only use textures.

4.4 Occlusions

An approach based on the Painter’s algorithm handles

all visibility issues in our application. The visual ap-

pearance of the mirror upon rendering shows an im-

perceptible layer of small triangles connected by ver-

tices, however, not all of these vertices are connected.

The projected triangles from closer objects, being

highly tessellated, ﬁll the respective space in the re-

ﬂector, thus occupying a larger diameter and covering

hidden spaces of other objects. When the distance be-

tween reﬂections of different objects is very small, the

projected points are all computed regarding the same

value for the mirror geometry (namely the radius),

however, by using this Painter’s algorithm based ap-

proach, the reﬂection of closer objects to the reﬂec-

tor will have their reﬂection point positions multiplied

by a very small value. When handling with a ﬁnely

tessellated scenario containing very complex meshes,

small artifacts are visible with camera proximity to

the mirror. For convenience, the objects nearest to the

reﬂector are drawn last, overlapping the reﬂection of

distant objects.

4.5 Limitations

As for the limitations of our approach, we identiﬁed

some issues to be addressed. Our rendering method

suffers from a speed loss at a point of the workﬂow,

when the scene is overly tessellated (over 12000 ver-

tices or 5000 CPVVs). When adding a new object to

the scene, its rendered reﬂection will, at least, last 24

frames to appear on the reﬂector surface. This hap-

pens due to the fact that a virtual object has to be cre-

ated for the new added one. So the algorithm has to

fetch his textures and vertex positions in order to input

this object in the real-time calculations and rendering.

However, if the object is animated, the rendered re-

ﬂection will not have a noticeable latency.

Another limitation is the computation of unneces-

sary points, due to occlusion issues. Occluded ver-

tices to the reﬂector are computed as well, despite of

being invisible and the self occluded part of the reﬂec-

tor is computed and projected as wel, even with the

CPVV method enabled. This problem will be solved

in the near future with a different approach to invisi-

ble vertices.

Finally, another limitation that will be addressed

in the future, is the non-reﬂection of animated dy-

namic shadows. This means that, if a new animated

object is added to the scene, the shadow will not be

considered as reﬂection, only the object will be pro-

jected. In a near future we will deal with this lim-

itation with the creation of virtual shadows for each

new object. Still, the rendering process is reasonably

faster with no dynamic lighting applied.

Figure 3: The left image shows a close-up view from the

surface of the mirror reﬂecting a streaming of particles. Due

to the particles proximity to the mirror, the reﬂected parti-

cles do not belong to the surface of the mirror. On the other

hand, the image on the right shows that, from a distant cam-

era position, yet, still a close view, the particles reﬂection

have no visible artifacts.

Real-Time3DVisualizationofAccurateSpecularReflectionsinCurvedMirrors-AGPUImplementation

141

Figure 4: The image on the left shows one of the created environment (a room with toys) and, at the center, its reﬂection on the

surface of the mirror, projecting 7400 CPVVs, running at 61 fps. The image on the right represents an ancient environment,

running at 200 fps for 7500 vertices.

In future work, we intend to rebuild the render-

ing pipeline with multipass in order to test possible

performance and quality gains. By rendering a singu-

lar pass, the CUDA/OpenGL interopability uses asyn-

chronous mapping of a buffer within a stream of vir-

tual vertices, allowing the rendering to be extremely

fast, giving no need for another render pass.

5 RESULTS

We present the results of our approach for two differ-

ent scenes: one representing a room ﬁlled with toys,

the other representing an ancient environment (Figure

4). The frame rates (indicated at each image legend)

may arise if the CPVV mode is enabled. The images

below show renders computed using our method after

ﬁnding the reﬂection points for every virtual vertex

in the scene. When the CPVV is enabled, only 25%

of the virtual vertices are computed at every frame,

where the remaining ones wait for considerable cam-

era movements to be computed again. This technique

thus highly accelerates the renderings. For reference

purposes, we simulated the same ancient environment

with ray tracing with no real-time speed.

The results of our method show that, when han-

dling with complex scenes with dynamic effects, the

reﬂection up to 15000 points will guarantee real-time

frame rates and a higher image quality. The tessel-

lation level assigned to the virtual objects is scal-

able and easily adaptable to other scenes. Figure 6

shows our algorithm reﬂecting several objects at 49

fps. Also, the CPVV is enabled and is responsible

for only computing important vertices. Upon signif-

icant camera movement, the remaining vertices will

also be computed - at this time, the frame rate will de-

crease to near real-time speed until the projection of

these points is completed and at that time the frame

rate will increase again.

When comparing our method to the ray traced ref-

erence (Figure 5), the visual aspects look very similar,

although, the raytraced image took 12 seconds to ren-

Figure 5: The upper image is a raytraced reference obtained

with a rendering engine. The bottom one was rendered with

our algorithm and runs at 203 fps, projecting 1200 vertices.

Figure 6: Room ﬁlled with toys rendered using our projec-

tion model, projecting 10000 vertices at 49 fps.

der while the image rendered with our method was

running at 203 fps. However, small artifacts can be

seen using our method by zooming the image, such as

some straight lines that should be a curve of the reﬂec-

tor. These artifacts may be visible when the scene is

not well tessellated (only 1200 vertices on this case).

Nevertheless, the overall quality of the image is sufﬁ-

ciently good and extremely fast.

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

142

6 CONCLUSIONS AND FUTURE

WORK

Our approach is simple and nearly perfectly accurate

for real reﬂections. It organizes and simpliﬁes the

data to be projected and its computation, in a way

which makes excellent use of GPU parallelism. The

reﬂection on the mirror surface is ﬂickering-free and

highly tessellated, the pre-computation phase is also

fast and almost only depending on texture fetching.

The experiments show that our method provides

very similar results to ray tracing and GLSL ap-

proaches, with real-time performance and real reﬂec-

tion accuracy. Furthermore, the algorithm speeds up

rendering, taking advantage of GPU parallelism, al-

lowing users to tune the accuracy of the reﬂections.

As an outcome, our approach is favorably fast and

produces ﬁne results.

In terms of limitations, our algorithm requires a

reasonable amount of preprocessing before rendering

a scene on the reﬂector. Also, we do not deal with

occlusions as it is usually done, using any kind of

buffer. When computing the reﬂection, the farther

objects to the reﬂector are computed and drawn ﬁrst.

We strongly believe that these limitations can be over-

come in the near future. Despite the results were not

as fast as cube-mapped techniques, the accuracy in

our method is always proper with objects at any range.

Future directions include to further optimize the

computation of the forward projection model solu-

tion. In the ﬁeld of graphics we intend to test these

methods and compare them in the rendering of im-

ages with specular objects represented by arbitrary

surfaces that could be approximated by quadrics. We

also intend to implement our method entirely on the

pixel shader to test performance gains.

REFERENCES

Agrawal, A., Taguchi, Y., and Ramalingam, S. (2011). Be-

yond alhazen’s problem: Analytical projection model

for non-central catadioptric cameras with quadric mir-

rors. In IEEE CVPR.

Bjorke, K. (2004). Image-based lighting. In NVidia, editor,

GPU Gems, pages 307–322.

Blinn, J. F. and Newell, M. E. (1976). Texture and reﬂec-

tion in computer generated images. Commun. ACM,

19(10):542–547.

Carr, N., Hoberock, J., Craneh, K., and Hart, J. (2006). Fast

gpu ray tracing of dynamic meshes using geometry

image. In Proceedings of Graphics Interface 2006.

D. Roger, U. Assarsson, N. H. (2007). Whitted ray-tracing

for dynamic scenes using a rayspace hierarchy on the

gpu. Eurographics Symposium on Rendering.

Estalella, P., Martin, I., Drettakis, G., and Tost, D. (2006).

A gpu-driven algorithm for accurate interactive spec-

ular reﬂections on curved objects. In Eurographics

Symposium on Rendering, pages 313–318.

Estalella, P., Martin, I., Drettakis, G., Tost, D., Devilliers,

O., and Cazals, F. (2005). Accurate interactive specu-

lar reﬂections on curved objects. In Vision, Modeling,

and Visualization - VMV.

Goncalves, N. (2010). On the reﬂection point where light

reﬂects to a known destination in quadric surfaces.

Optics Letters, 35(2):100–102.

Goncalves, N. and Nogueira, A. C. (2009). Projection

through quadric mirrors made faster. In ICCVW: 9th

Workshop on Omnidirectional Vision, Camera Net-

works and Non-Classical Cameras, Kyoto, Japan.

Greene, N. (1986). Environment mapping and other ap-

plications of world projections. In IEEE Computer

Graphics and Applications, volume 6.

Haeberli, P. and Segal, M. (1993). Texture mapping as

a fundamental drawing primitive. In Fourth Euro-

Graphics Workshop on Rendering, pages 259–266.

Hoy, K., Niels, N., Christensen, J., and Informatics (2002).

Real-time recursive specular reﬂections on planar and

curved surfaces using graphics hardware. Journal of

WSCG, 10(3):91–98.

Liu, B., Wei, L.-Y., Yang, X., Ma, C., Xu, Y.-Q., Guo, B.,

and Wu, E. (2011). Non-linear beam tracing on a gpu.

Comput. Graph. Forum, pages 2156–2169.

McReynolds, T., Blythe, D., Grantham, B., and Nelson, S.

(2000). Advanced graphics programming techniques

using OpenGL. SIGGRAPH 2000 Course 32.

Meyer, A. and Loscos, C. (2003). Real-time reﬂection on

moving vehicles in urban environments. In VRST’03:

Proceedings of the ACM symposium on virtual reality

software and technology, pages 32–40.

Ofek, E. and Rappoport, A. (1998). Interactive reﬂections

on curved objects. In SIGGRAPH’98, pages 333–342.

Parker, S. G., Bigler, J., Dietrich, A., Friedrich, H., Hobe-

rock, J., Luebke, D., McAllister, D., McGuire, M.,

Morley, K., Robison, A., and Stich, M. (2010). Optix:

A general purpose ray tracing engine. ACM Transac-

tions on Graphics.

Purcell, T. J. (2004). Ray Tracing on a Stream Processor.

PhD thesis, Department of Computer Science, Stan-

ford University, Stanford, CA.

Roger, D. and Holzschuch, N. (2006). Accurate specular

reﬂections in real-time. Computer Graphics Forum,

25(3):293–302.

Szirmay-Kalos, L., Aszodi, B., Lazanyi, I., and Premecz,

M. (2005). Approximate ray-tracing on the gpu with

distance impostors. In Computer Graphics Forum

(Proceedings of Eurographics 2005), volume 24.

Voorhies, D. and Foran, J. (1994). Reﬂection vector shading

hardware. In SIGGRAPH’94.

Wald, I., Benthin, C., and Slusallek, P. (2003). Distributed

interactive ray tracing of dynamic scenes. In IEEE

Symposium on Parallel and Large-Data Visualization

and Graphics, pages 11–20.

Woop, S., Schmittler, J., and Slusallek, P. (2005). A pro-

grammable ray processing unit for realtime ray trac-

ing. In ACM Transactions on Graphics.

Real-Time3DVisualizationofAccurateSpecularReflectionsinCurvedMirrors-AGPUImplementation

143
