Coupling Camera-tracked Humans with a Simulated Virtual Crowd

Jorge Ivan Rivalcoba Rivas

, Oriam De Gyves

, Isaac Rudom

ın

and Nuria Pelechano

Department of Computer Science, Tecnol

ogico de Monterrey, M

exico, M

exico

Computer Sciences, Barcelona Supercomputing Center, Barcelona, Spain

Llenguatges i Sistemes Inform

atics, Universitat Polit

ecnica de Catalunya, Barcelona, Spain

Keywords:

Crowd simulation, Computer vision, Semantic Local Binary Patterns (S-LBP), Computer graphics, Motion

control.

Abstract:

Our objective with this paper is to show how we can couple a group of real people and a simulated crowd

of virtual humans. We attach group behaviors to the simulated humans to get a plausible reaction to real

people. We use a two stage system: in the ﬁrst stage, a group of people are segmented from a live video,

then a human detector algorithm extracts the positions of the people in the video, which are ﬁnally used

to feed the second stage, the simulation system. The positions obtained by this process allow the second

module to render the real humans as avatars in the scene, while the behavior of additional virtual humans

is determined by using a simulation based on a social forces model. Developing the method required three

speciﬁc contributions: a GPU implementation of the codebook algorithm that includes an auxiliary codebook

to improve the background subtraction against illumination changes; the use of semantic local binary patterns

as a human descriptor; the parallelization of a social forces model, in which we solve a case of agents merging

with each other. The experimental results show how a large virtual crowd reacts to over a dozen humans in a

real environment.

1 INTRODUCTION

Real-time crowd simulation is a research area that is

growing rapidly and has become one of the main re-

search directions in computer games, movies and vir-

tual reality (Wang et al., 2012). Applications include

urban planning, security and entertainment, among

others (De Gyves et al., 2013). It has been studied

extensively but only in a few cases the computer gen-

erated crowds react to real humans. Most research is

focused on the behavior of virtual humans, that may

be data driven, rule based or socially inspired. The

end result is almost every time a crowd interacting

only with its virtual environment. In the human com-

puter interaction literature there is some research on

the interaction between virtual humans and a speciﬁc

kind of real humans: end-users, but most are limited

to one or two users and a small number of virtual hu-

mans.

A simulation system which includes some real hu-

mans (pedestrians, for example) in crowds of agents,

that react to the real humans would have several po-

tential applications in special-effects for ﬁlms and

video games. One goal of this research is to visual-

ize an authoring tool that would use a camera look-

ing down on a group of actors to reduce the time of

animation production in the context of crowd gener-

ation. One could also conceive games where several

real players lead teams of virtual team-mates. Other

applications would allow researchers to evaluate their

behavior algorithms by directly comparing them with

real human behaviors.

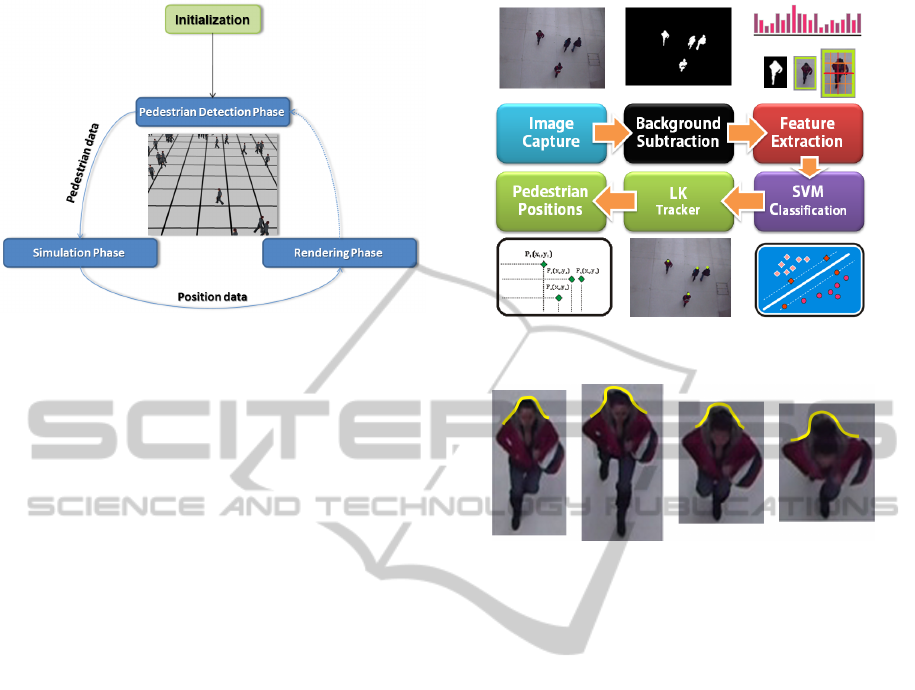

The aim of the present work is to perform the cou-

pling between a group of real people and a simulated

crowd of virtual humans. To achieve this, we pro-

pose a two-stage interactive system. In the ﬁrst stage,

named the vision system, pedestrians are segmented

and tracked from a live video. The positions of the

captured pedestrians are used in the second module,

the simulation system. The simulation system is then

responsible for the reaction of the virtual crowd to the

tracked real humans.

2 RELATED WORK

A crucial part of making the system presented in this

article suitable for interaction is the time consumed

312

Rivalcoba Rivas J., De Gyves O., Rudomín I. and Pelechano N..

Coupling Camera-tracked Humans with a Simulated Virtual Crowd.

DOI: 10.5220/0004694403120321

In Proceedings of the 9th International Conference on Computer Graphics Theory and Applications (GRAPP-2014), pages 312-321

ISBN: 978-989-758-002-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

by the recognition, simulation and rendering tasks. To

get a deeper understanding of the system, this section

describes the challenges and the state of the art related

to computer vision and crowd simulation.

2.1 Human Detection

As mentioned above, human detection is the ﬁrst step

of the system. This is a challenging problem due to

several factors, which are listed below:

• Illumination variance.

• Non uniform colors.

• Different scales of object of interest.

• Cluttered backgrounds.

• Noise due to the small movements in the video

sequence.

There has been a large amount of research using

vision for human detection. Viola et al. described

a machine learning approach for visual object recog-

nition and also introduced the “integral images”, a

popular technique to accelerate the calculus of many

descriptors (Viola and Jones, 2001), this algorithm

was used to detect faces in static images by combin-

ing complex classiﬁers in a cascade, which allowed

background regions of the image to be quickly dis-

carded while spending more computational time on

regions with a high probability of being the interest

objects. The same authors adapted the technique to

detect pedestrians in a video sequence by taking ad-

vantage of the motion appearance of a walking person

and using AdaBoost for the training process and con-

structing of the classiﬁer (Viola et al., 2003). Dalal

et al. performed a complete study of Histogram of

Oriented Gradients (HOG) applied to the representa-

tion of humans (Dalal and Triggs, 2005), this method

offers good results for pedestrian detection by evalu-

ating local histograms of image gradient orientations

over a dense normalized overlapping grid, avoiding

the common problem of illumination variance. Tuzel

et al. detected pedestrians by representing an image

region as covariance matrices of spatial locations, in-

tensities and derivatives, to name a few (Tuzel et al.,

2007). This work follows the trend of using logic

boost classiﬁers: the authors reported that their results

were better than the work by Dalal when using the IN-

RIA database.

In most cases the detection systems include a pre-

processing phase, which consists of the background

removal of the scene. This is the case of the work pre-

sented by Banerjee et al., which combined an adaptive

background modeling with HOG features (Banerjee

and Sengupta, 2008). They proposed adapts itself to

long lasting changes in the background over time by

learning only the stationary parts of the scene and ig-

noring the moving foreground. The moving regions

are then considered as a Region of Interest (ROI) and

the HOG is applied to classify whether such region is

a human or not. Another approach was presented by

Bhuvaneswari et al. called edgelet features, which are

short segments belonging to a line or a curve (Bhu-

vaneswari and Rauf, 2009). The detection was per-

formed with a module that was composed of several

classiﬁers arranged in cascade; the authors reported a

detection rate up to 70%. The aforementioned works

dealt with side perspective scenes, which is desirable

for surveillance applications, however they are not

recommended when dealing with crowd analysis, due

to the occlusion presented when the crowd size in-

creases, causing the accuracy of the recognition sys-

tems to decrease.

Lengvenis et al. presented the passenger counter

system created and installed in the Kaunas public city

transport (Lengvenis et al., 2013); unlike other work

based on edge features, this paper uses the vertical and

horizontal projection of the scene using a top-view

perspective, also known as bird’s eye view. The re-

sults reported an accuracy of 86% for a single passen-

ger getting on or off the bus, however it could not de-

tect people passing each other or getting on a bus to-

gether and presented problems with lighting changes.

Ozturk et al. proposed a system to determine the head

and body orientation of humans in top-view scenes

(Ozturk et al., 2009), but it has the same problems that

the work by Lengvenis. Their system used a shape

context based approach to detect basic body orienta-

tion and proposed an optical ﬂow based on Scaled In-

variant Feature Transform (SIFT) features, however

the occlusions were left for future work, making this

algorithm unsuitable for crowded scenes.

We decided to use a bird’s eye perspective in or-

der to minimize the occlusion presented in crowded

scenes. Another important issue to deal with is hav-

ing a good background segmentation process to focus

the computational effort in the classiﬁcation tasks, as

well as to determine a good representation model to

recognize humans from aerial footage, taking into ac-

count the deformation present when a human moves

away from the camera.

2.2 Simulation

There is extensive research that focuses on model-

ing accurate behaviors for virtual agents. Researchers

have studied crowd simulations in both microscopic

and macroscopic levels; macroscopic simulations are

concerned about the realistic movement of the crowd

CouplingCamera-trackedHumanswithaSimulatedVirtualCrowd

313

as a mass while microscopic simulations focus on

the realistic movement of the individuals. One of

the ﬁrst research works focused on autonomous vir-

tual agents and their behaviors are the steering behav-

iors by (Reynolds, 1987). According to Reynolds’ re-

search, a bird is aware of three aspects during ﬂock-

ing, itself, two or three nearest neighbors, and the rest

of the ﬂock.

Helbing et al. presented the social forces model,

where each agent tries to move at a desired velocity

while applying friction and repulsion forces against

obstacles and other agents (Helbing and Moln

ar,

1995). According to the authors, social forces are

well suited for pedestrians in normal, or known, sit-

uations. Helbing extended his research and studied

the behavior of pedestrians in normal and evacuation

situations (Helbing et al., 2002). A nervousness pa-

rameter causes pedestrians to move faster, while push-

ing other individuals, and exhibit a herding behav-

ior during evacuations. The social forces model has

been extended to support groups of related pedestri-

ans (Moussa

ıd et al., 2010).

Treuille et al. presented the Continuum Crowds

model, which uniﬁes the path planning and colli-

sion evasion stages by using velocity and potential

ﬁelds (Treuille et al., 2006). This model can simu-

late thousands of virtual agents in interactive appli-

cations, however, pedestrians do not have individual

goals. Millan et al. used attraction and repulsion

forces codiﬁed in textures to steer the agents through

the environment (Millan et al., 2006). In this approach

every individual agent has its own set of goals depend-

ing on which agents were nearby, but in some cases

the forces may cancel each other, leaving the agents

stuck in the environment.

Fiorini and Shiller introduced the term Velocity

Obstacles (VO), a set of velocities that will lead into

collision between agents (Fiorini and Shiller, 1998).

Agents must choose velocities that are not elements

of the VO set to move in collision-free routes. The

GAMMA group extended this idea into the Recip-

rocal Velocity Obstacles (RVO) (Van den Berg and

Manocha, 2008). The RVO assumes that every agent

in the simulation is steered using the same rules,

which eliminates the oscillations in the paths of the

VOs. Bleiweiss parallelized the RVO algorithm and

implemented it on CUDA, obtaining a 4.8x speedup

over the original implementation (Bleiweiss, 2009).

Van den Berg et al. further extended RVO into Re-

ciprocal n-body Collision Avoidance (Van den Berg

et al., 2011). The algorithm reduced the problem to

solving a low-dimensional linear program. By using

this algorithm, the authors were able to simulate thou-

sands of pedestrians in real-time.

A vision-based collision avoidance approach was

presented by Ond˘rej et al. (Ond

rej et al., 2010). The

authors use a synthetic vision approach to detect ob-

stacles in the ﬁeld of view of every agent and time-to-

interaction values to steer the agents.

In our work we have modeled the behavior of

virtual pedestrians using the algorithm presented by

(Moussa

ıd et al., 2010); this model incorporates a

group force that makes it possible to simulate group

formation. In his paper the size of the groups is de-

termined statistically according to observations from

video sequences.

2.3 Virtual Environments and

Interaction

Tsai-Yen et al. presented a computer simulation

crowded by virtual users and virtual humans (Li et al.,

2002). Each group of virtual humans is led by an in-

telligent group leader and a world manager can inter-

actively assign a goal conﬁguration to a group leader

through a graphical user interface at the virtual envi-

ronment server. Thalmann et al. presented an interac-

tive navigation system in which a user is able to con-

trol an avatar in the crowd through a natural interface,

but the interaction remains between a single user and

the virtual characters (Wang et al., 2012). Pelechano

proposed an experiment to closely study the behavior

of people interacting with a virtual crowd (Pelechano

and Stocker, 2008). A virtual scenario is created to

simulate a cocktail party. The main goal of the exper-

iment was to examine whether participants interacting

with a virtual crowd would react to the virtual crowd

as they would do in a similar real situation.

2.4 Computer Vision and Graphics for

Crowd Simulation

There is some research that has merged computer vi-

sion with computer graphics in the context of crowd

simulation is data driven models. In this case the mo-

tion of real people is used to model virtual crowds,

for example Musse (Musse et al., 2007) simulated

the movement of virtual humans based on trajectories

captured from ﬁlmed video sequences, these trajecto-

ries are grouped into similar classes using an unsu-

pervised clustering algorithm, Lee (Lee et al., 2007)

used aerial footage in closed environments for a simi-

lar purpose. Lerner (Lerner, 2007) created a model for

collision avoidance by learning from real-world ex-

amples generated from tracked video segments of real

pedestrian crowds. Sun and Qin (Sun and Qin, 2011)

presented a model for solving collisions between hu-

mans, making use of motion capture data that allow a

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

314

Figure 1: System overview. The human’s data captured

by the detection phase is used in the simulation phase. The

simulated crowd is able to react to the real humans.

more natural and realistic motion of pedestrians com-

pared with RVO model. Recently Ren (Ren et al.,

2013) performed an integration of virtual pedestrians

into a video of a scene consisting of real pedestrians.

In that paper, to avoid segmentation issues due to oc-

clusion, groups of pedestrians are taken as a unit in-

stead of segmenting individuals.

3 SYSTEM ARCHITECTURE

The system we describe in this article is designed to

be interactive even when using consumer grade hard-

ware, while also being capable of capturing humans

from video footage and simulating thousands of vir-

tual agents. A diagram showing the application ﬂow

can be seen in Figure 1.

3.1 Vision System

The use of markers to analyze a crowd has been used

successfully by (Wang and Sun, 2008): he employs

colored hats to aid the detection system to extract in-

formation regarding to pedestrian dynamics. The sys-

tem proposed in the present paper aims to perform a

reliable non intrusive detection and tracking, thus the

use of markers is not an option. In the same way, the

computer vision algorithms must process the image

in real time to be able to provide the positions of real

pedestrians as an input to the simulation stage.

The system that performs the human detection

consists of 5 stages (Figure 2). The ﬁrst stage is the

background subtraction which is responsible splitting

the scene into background and foreground regions.

Foreground regions are labeled as Regions of interest

(ROI), and this labeling allows the system to concen-

Figure 2: The vision stages that produce the set of positions

that will be sent to the simulation system.

Figure 3: Head-shoulder part of a human that exhibits their

omega-like shape.

trate the computational efforts in the human detection

tasks. Once the set of ROI have been obtained, in

the second stage ROIs are passed one by one to the

feature extraction module which generates a vector of

features that models the object detected. Each one

of these vectors is then sent to a support vector ma-

chine (SVM) that performs the classiﬁcation into hu-

man or not human. We decided to detect the head

and shoulders section of the body due to the fact that

the human head remains constant over all the scene

(Mukherjee and Das, 2013), unlike other parts of the

body. The head and shoulders section exhibit an Ω

like shape (see Figure 3). This property makes the

head and shoulders the most stable parts of the body

to be detected and tracked.

In the rest of this section we explain each stage in

more detail .

3.1.1 Stage 1: Background Subtraction

To perform background subtraction we propose a

modiﬁed version of the codebook algorithm presented

by (Kim et al., 2005). The codebook algorithm adopts

a clustering and quantization technique to construct

a background model from a long observation of se-

quences of pixel intensities. Each pixel owns its code-

book, that is made of codewords produced on the

training stage; these codewords are constructed based

CouplingCamera-trackedHumanswithaSimulatedVirtualCrowd

315

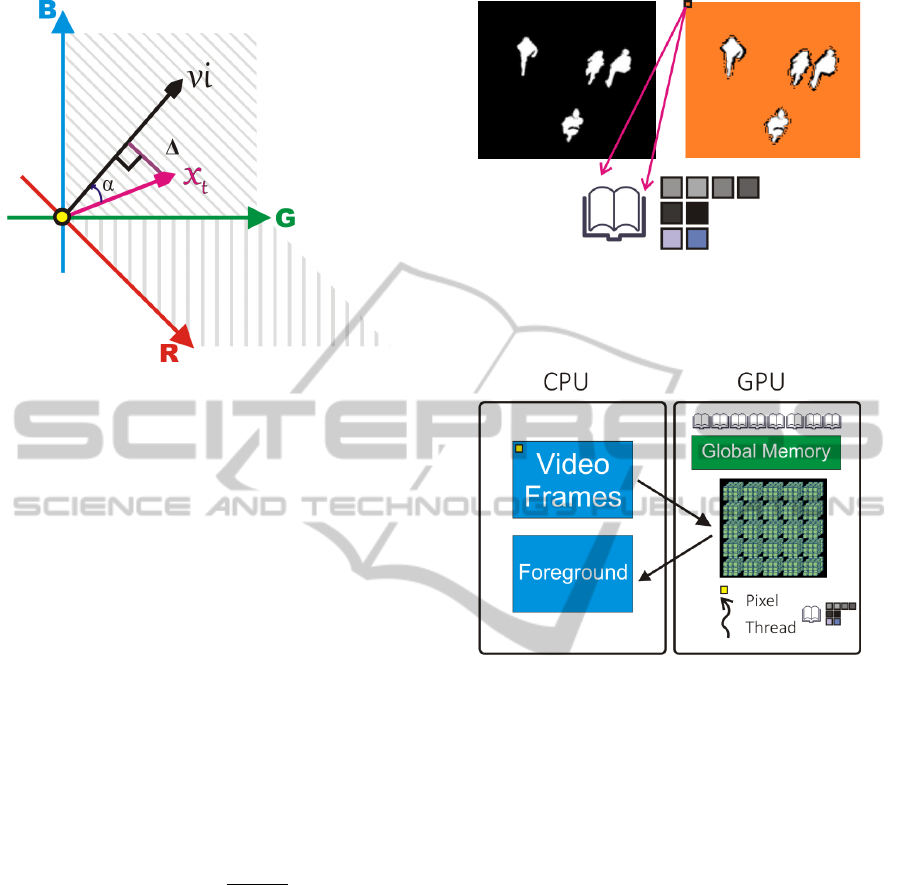

Figure 4: This ﬁgure shows the model used to calculate the

color distortion ∆ between two pixels x

and v

on two parameters:

• Brightness

• Color distortion

The brightness of a given pixel x at a certain time t,

expressed as~x

could be deﬁned for this purpose as the

norm of the vector in the RGB color space described

by (1).

= R

+ G

+ B

(1)

The color distortion between two pixels,~x

and~v

is the measure of the opposite side of the angle formed

by the two color vectors, as seen in Figure 4. This

property is described by the equation (2) and (3):

colordist(~x

,~v

) = ∆ =

−

cos

α (2)

cos

α =

,~v

(3)

Each pixel owns its codebook, and each codebook

is made of codewords. A codeword could be seen as a

box that stores information about the pixel intensities;

every codeword is generated through the observation

of each pixel during a period of time, called training

stage. The training may take one or two minutes, dur-

ing which a new codeword is collected. If there is

no codeword, already in the codebook, that meets the

similarity measures described above, the codeword is

stored in the codebook. Otherwise, the training algo-

rithm counts every codeword match. At the end of the

training process, codewords with few occurrences are

discarded from the codebook.

To make the algorithm more robust against illumi-

nation changes, the modiﬁcation we propose consists

Figure 5: To maintain the background model and make it ro-

bust against intensity changes, a second code book is used

and maintained by those regions with no movement. This

image shows, in orange, all the regions that feed the auxil-

iary codebook, represented by the icon below the images.

Figure 6: Once the image is captured, it is sent to the GPU

to be processed and then returned to the CPU.

of maintaining an auxiliary codebook that generates

codewords only for regions with no movement. Once

a certain time has elapsed, this codebook is cleaned

of spurious data, and then is added to the main code-

book. This allows the background model to be up-

dated regularly, see Figure 5.

To perform this task within an acceptable frame

rate, we implemented a parallel version of the code-

book algorithm, using the graphics hardware. Each

thread works over one pixel, as seen in Figure 6. Once

a frame is captured, the image is processed on the

GPU using the previous description.

3.1.2 Stage 2 & 3: ROI Detection and Feature

Extraction

Once the background has been removed, the next step

is to extract the blobs from the foreground regions.

These blobs are rectangular regions that contain the

humans, and are converted from RGB color space to

gray scale.

To model a human we use a variant of local binary

patterns (LBP) presented by (Ojala, 2002). The LBP

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

316

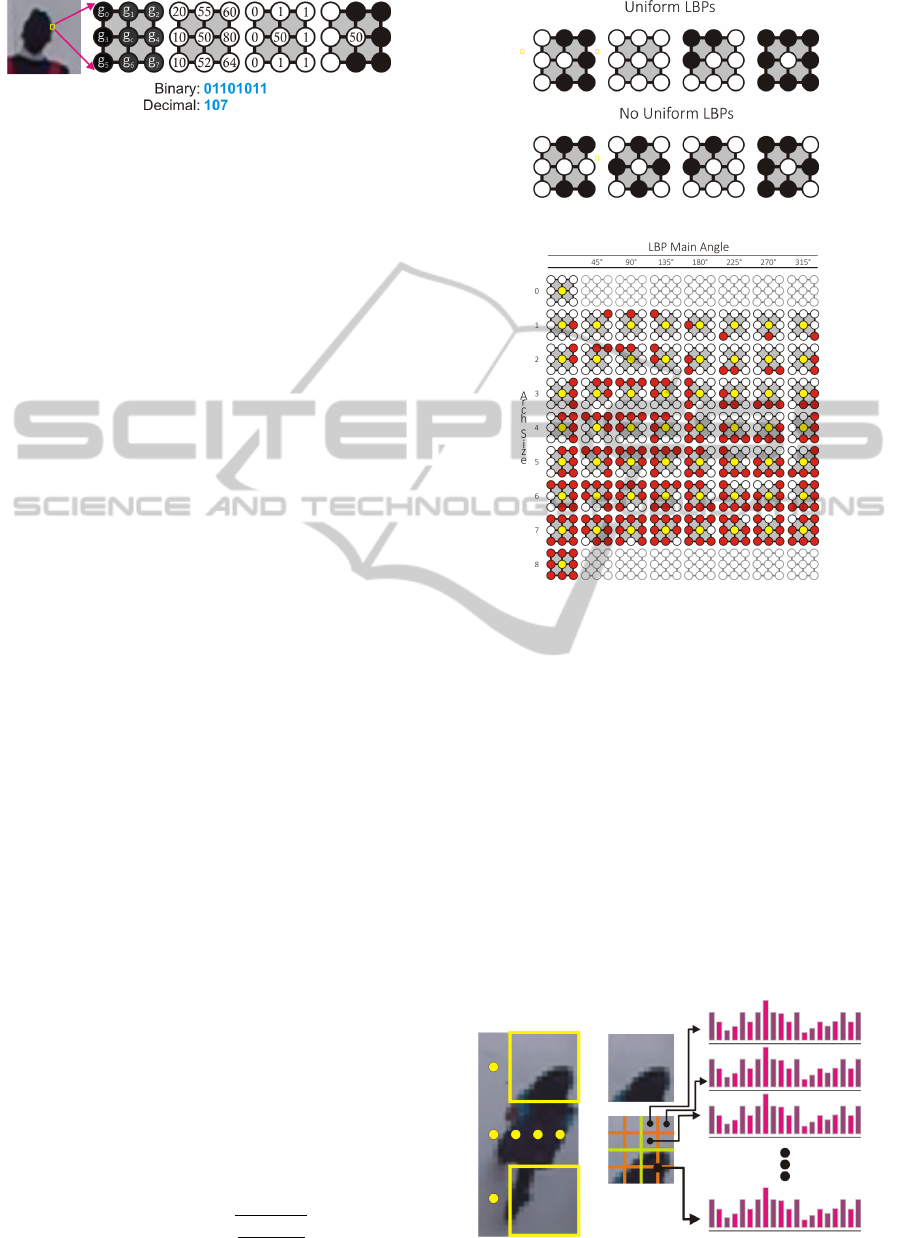

Figure 7: An illustration of the basic LBP operator.

operator assigns a label to every pixel of an image

by thresholding the 3x3 neighborhood of each pixel

with its own value and considering the result as a bi-

nary number. E.g., given a pixel (x

), the LBP of

that pixel is calculated using equation 4, where P cor-

responds to the number of sampling points, R is the

radius of the neighborhood to be sampled, g

repre-

sents each sampling point and g

represents the pixel

); the histogram of the numbers obtained along

all the image is used as the descriptor. Figure 7 shows

an illustration of the basic LBP.

LBP

P,R

) =

P−1

∑

p=0

s(g

− g

(4)

s(x) =

(

1, x ≥ 0

0, otherwise

(5)

Although LBPs have many advantages over other

gradient-based features, the basic LBP is not robust

enough to be used as human descriptor: however its

strengths can be exploited using a variant called se-

mantic LBP (S-LBP) proposed by (Huang, 2008). S-

LBPs are made of uniform LBPs. An LBP is called

uniform if only at most two bitwise transitions be-

tween 0 and 1 are presented, in other words several

continuous “1” bits form an arc on the sampling cir-

cle; these arcs can be represented with its principle

direction and arc length (see Figure 9); by using this

strategy, the dimension of the feature vector is re-

duced. In our work we use a detection kernel of 32x32

pixels size which produces a 1160D vector; all the

S-LBPs are used to compute an histogram, each his-

togram represents the feature vector of each region.

To speed up the computation of S-LBPs, we propose

the use of a look up table to classify the type of S-LBP.

As it has been demonstrated by (Tuzel et al.,

2007) the ensemble of variable-size sub-windows can

greatly promote detection efﬁciency. For this rea-

son, we adopted a multi resolution approach similar

to (Ahonen, 2006). We divided each detection kernel

into local regions, then the S-LBPs descriptors are ex-

tracted for each region independently. The vector “v”

obtained for each sub-window is normalized using the

following equation:

L1 − sqrt : f =

+ e

(6)

Figure 8: Uniform and non uniform LBPs.

Figure 9: This ﬁgure shows the only 58 possible S-LBPs of

a pixel.

The descriptors are then concatenated to form a

global descriptor vector, see Figure 10. As previously

mentioned, a 1160D vector is generated using a de-

tection kernel of 32x32 pixels, these vectors feed an

SVM classiﬁer that decide if the image of the kernel

belongs to a person or not.

3.1.3 Stage 4: SVM Classiﬁcation

We use the OpenCV SVM library to train and clas-

sify the head and shoulders part of the human body,

using the same dataset employed by (Li et al., 2009).

This dataset uses top view shots of humans’ heads and

Figure 10: This ﬁgure shows the subdivision made to the

detection kernel to compute the histogram.

CouplingCamera-trackedHumanswithaSimulatedVirtualCrowd

317

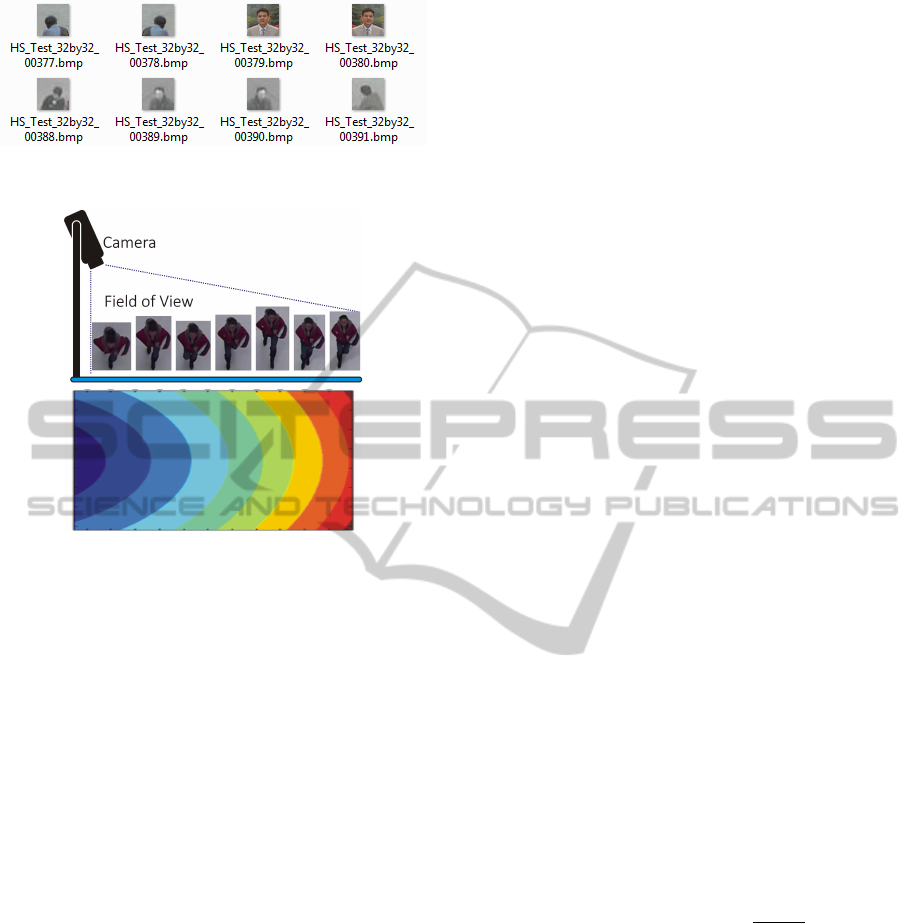

Figure 11: These are the type of images used to train the

head and shoulder detector.

Figure 12: Segmentation of the scene in function of the dis-

tance between the camera and the human.

shoulders, as seen in Figure 11.

One important observation is that the pedestrians

exhibit a deformation due to the camera perspective,

making difﬁcult to tune up the classiﬁer (Rivalcoba

and Rudomin, 2013). To overcome this issue, and im-

prove the detection results, we divide the camera view

on different segments in function by the distance be-

tween the camera and the human. Figure 12 shows the

depth map and the deformation suffered by a group of

humans as they move along the scene.

3.1.4 Stage 5: Lucas Kanade Tracker

Once a human head is detected, a point is associ-

ated with it. Each detected point is tracked over ev-

ery frame using the pyramidal version of the Lucas

Kanade tracker implemented on the OpenCV library.

All the points detected are then stored into a texture

to be used in the simulation stage; this step is detailed

in the next section.

3.2 Simulation System

OpenGL 4.3 introduced Compute Shaders to its API,

which enable its shading language to perform gen-

eral computing in the graphics hardware. Compute

Shaders provide an alternative approach to CUDA

from Nvidia and OpenCL from the Khronos Group

for General-Purpose Computing on Graphics Process-

ing Units (GPGPU). Unlike CUDA and OpenCL,

Compute Shaders are similar to other shader stages

in the graphics pipeline and are able to read from

textures, images and buffers and write to images

and buffers without mapping to other data structures

or switching between graphics and compute con-

texts. We have implemented several applications with

graphics interoperability, including the technique pre-

sented in this Section, in both CUDA and Compute

Shaders and the features of the latter allowed signiﬁ-

cantly faster development while maintaining a similar

performance.

For our simulation system, we use Compute

Shaders in order to simulate the agents and use a

method based on social forces to steer the agents

around the environment. All the logic related to agent

control is performed in the graphics hardware, which

allows us to perform large scale simulations with

thousands of agents in real-time.

For the interoperability between rendering and

simulation, we store all the data required for the simu-

lation in texture memory. Data captured by the vision

system (Section 3.1) is stored in the same textures that

the simulated agents use.

To steer the simulated agents we developed a par-

allel implementation of the work by Moussaid et al.

(Moussa

ıd et al., 2010). Three data textures are re-

quired for the simulation: position, velocity and target

textures. Each texture element (texel) i holds the data

of the agent or pedestrian i. To update the positions

of the simulated agents, we use equations (7), (8) and

(9).

(7)

inew

=~v

· ∆t (8)

inew

= ~p

+~v

inew

· ∆t +

· ∆t

(9)

Where

represents the acceleration of the agent i

in the current frame, and it is affected by its internal

motivations

, its neighbors

, the nearest obstacles

and its group dynamic

. The new velocity ~v

inew

is obtained by adding the acceleration to the previous

velocity ~v

of the agent. Finally, the position of the

agent is updated with both its acceleration and its ve-

locity. In equations 8 and 9, ∆t represents the time

between two consecutive frames.

In his original research, Helbing describes a body

force and a sliding force between agents for counter-

acting body compression and impeding relative tan-

gential motion, respectively (Helbing et al., 2000).

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

318

These forces are part of the force between agents,

Through experimentation, we found that the tangen-

tial velocity difference, ∆~v

= (~v

−~v

) · t

i j

, used in

the sliding force is ∆~v

= 0 if the agents are facing

each other in opposite directions with the same veloc-

ity. This leads to the agents getting stuck in tests like

the bidirectional movement, as can be seen in Figure

13.

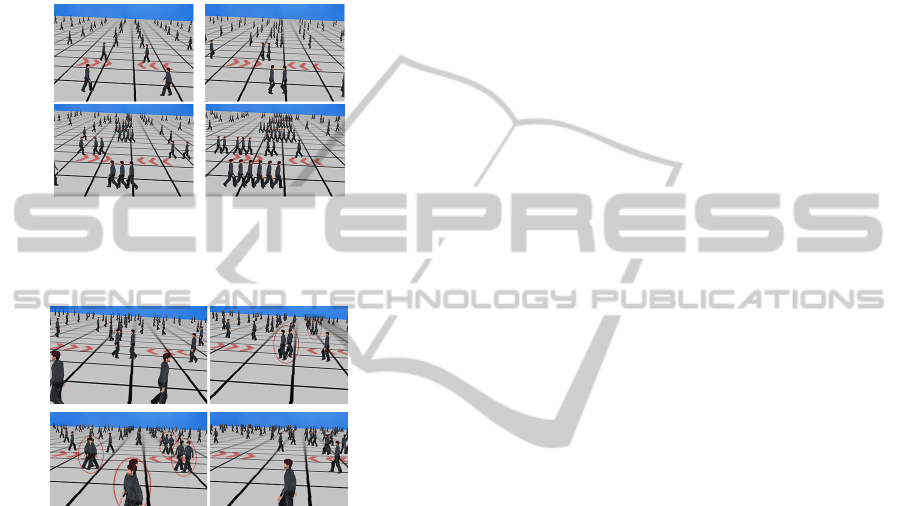

Figure 13: The original tangential velocity difference may

be zero when agents face each other with the same velocity,

leaving the agents stuck in a line.

Figure 14: Bidirectional test performed with the modiﬁed

tangential velocity difference.

In case ∆~v

=~v

−~v

≤ ε then we assign ∆~v

= υ,

where υ represents a vector constant that satisﬁes

kυk 6= 0. The magnitude of υ is proportional to the

sliding force, and a greater sliding force makes the

agents evade each other faster. A bidirectional test

performed using this modiﬁcation to the tangential

velocity difference can be seen in Figure 14.

We detect neighbors based on their positions using

a spatial hash-like algorithm. This is an image based

technique that samples an area in an environment tex-

ture where each agent marks its position. The algo-

rithm searches for the nearest neighbors using this

environment texture; since both the simulated agents

and the tracked humans store their positions in this

texture, the simulated agents are aware of the tracked

humans, just as if they were other agents. By being

aware of the position of the real humans, the agents

are able to evade them.

4 RESULTS

We have implemented the techniques previously de-

scribed using C++ for the CPU code, and OpenGL

for the simulation and visualization, on a Windows 7

x64 operating system with an Intel i7-2630QM quad

core processor at 2.00 GHz, 8GB of memory and an

NVIDIA GT 540M graphics card. The GT 540M is a

Fermi-family graphics card and is OpenGL 4.3 capa-

ble; it is considered a low to mid-range GPU. For the

rendering and simulation systems we have only used

OpenGL, speciﬁcally a 4.3 core proﬁle context.

Results show that this system can perform a real-

time coupling between a group of tracked humans

and a computer simulated group of virtual charac-

ters; real pedestrians are rendered as red avatars while

simulated pedestrian are rendered in gray color (Fig-

ure 15), in this case, we have tuned the group social

forces to produce formations of up to 3 people, see

Figure 16. The use of an auxiliary codebook for back-

ground modeling made the system capable to cor-

rectly segment the scene in the presence of illumina-

tion changes. The combination of semantic LBPs and

the subdivision of the scene into segments allow han-

dling the deformations suffered by the humans as they

move away from the camera.

The usage of special cameras was not necessary,

any standard web camera fully meets the minimum

technical speciﬁcations to make the system reliable.

The dimension of the processed images were 640 by

480 pixels. The top view perspective -also called

bird’s eye view- was used to capture as many pedes-

trians as possible, minimizing the probability of oc-

currence of occlusions. In our experiments, we were

able to capture over a dozen pedestrians while keep-

ing interactive frame rates.

We achieved a frame rate above 60 frames per sec-

ond, enough to be considered a real-time system. Us-

ing the system, we were able to simulate thousands

of autonomous agents. The use of the social forces

model on the simulation side, produces a plausible ef-

fect of integration between the two worlds.

5 CONCLUSIONS AND FUTURE

WORK

The computer interaction powered by camera tech-

nology is becoming more popular over the years.

In our case, there are several challenges to over-

come, such as background subtraction against illumi-

nation changes, human detection, tracking groups in

crowded scenes, and ﬁtting behaviors on virtual char-

acters, to name a few.

CouplingCamera-trackedHumanswithaSimulatedVirtualCrowd

319

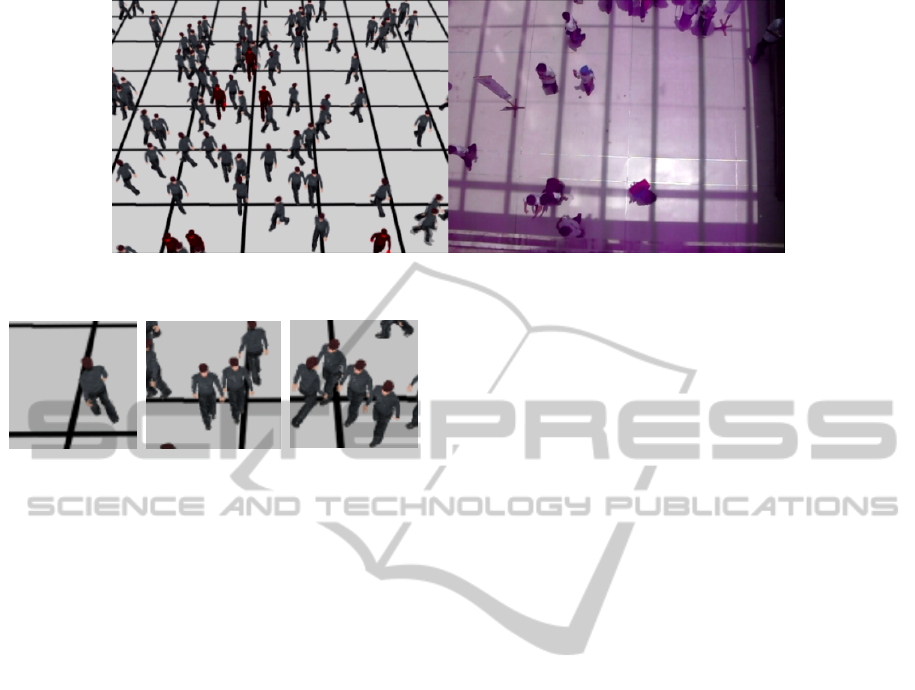

Figure 15: Left: Several tracked real humans (red) are coupled with a large virtual crowd (gray). Right: The captured image.

Figure 16: This image shows the formations produced us-

ing group social forces, the group formations are up to 3

people.

Taking into account the above, we have presented

a system that allows a large virtual crowd to react to

rea l humans by tracking them on video using only

consumer grade hardware. This system is capable

of detecting and tracking over a dozen humans in a

scene, and simulating thousands of virtual agents. It

allows coupling between the tracked humans and the

simulated agents while maintaining real-time frame

rates.

The system presented in this paper could lead to

a system that could test new behavior algorithms for

virtual agents, whether they are data driven or rule

based, because it allows a direct visual comparison

with real humans. It may also allow more accurate

urban planning and security simulations since some

part of the population in the crowd is constituted of

real people. In the entertainment industry, this system

provides a contribution to the workspace of applica-

tions that seek the coupling of the real world and a

virtual world.

We are working in making both systems, vision

and simulation, totally asynchronous from each other.

When the vision data is not ready to be processed by

the simulation system, the captured pedestrians can

be simulated using the same behaviors of the agents.

Allowing the systems to work independently has two

main advantages, the ﬁrst one is that each system can

be executed in a different platform -this would allow

the vision system to be implemented in an embedded

device such as a security camera while the simulation

system is running in a remote computer. The second

advantage of this setup is the ability to detect errors

in the behaviors used in the simulation mode when

the vision system updates the data of the tracked hu-

mans. Having a direct visual feedback between errors

in simulated and real data means a better benchmark

for a new simulation behavior.

REFERENCES

Ahonen, T. (2006). Face description with local binary pat-

terns: Application to face recognition. Pattern Analy-

sis and Machine Intelligence, 28(12):2037–41.

Banerjee, P. and Sengupta, S. (2008). Human motion de-

tection and tracking for video surveillance. Proceed-

ings of the national Conference of tracking and video

surveillance activity analysis, pages 88–92.

Bhuvaneswari, K. and Rauf, H. A. (2009). Edgelet based

human detection and tracking by combined segmenta-

tion and soft decision. Control, Automation, Commu-

nication and Energy Conservation, (June):4–9.

Bleiweiss, A. (2009). Multi agent navigation on GPU.

White paper, GDC.

Dalal, N. and Triggs, B. (2005). Histograms of Oriented

Gradients for Human Detection. 2005 IEEE Computer

Society Conference on Computer Vision and Pattern

Recognition (CVPR’05), 1:886–893.

De Gyves, O., Toledo, L., and Rudom

ın, I. (2013). Com-

portamientos en simulaci

on de multitudes : revisi

del estado del arte. Research in Computer Sci-

ence., 62(Special Issue: Avances en Inteligencia

Artiﬁcial.):319–334.

Fiorini, P. and Shiller, Z. (1998). Motion Planning

in Dynamic Environments Using Velocity Obsta-

cles. The International Journal of Robotics Research,

17(7):760–772.

Helbing, D., Farkas, I., and Vicsek, T. (2000). Simu-

lating dynamical features of escape panic. Nature,

407(6803):487–90.

Helbing, D., Farkas, I. J., Moln

ar, P., and Vicsek, T. (2002).

Simulation of Pedestrian Crowds in Normal and Evac-

uation Situations. Pedestrian and evacuation dynam-

ics, 21.

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

320

Helbing, D. and Moln

ar, P. (1995). Social force model for

pedestrian dynamics. Physical Review E, 51(5):4282–

4286.

Huang, T. (2008). Discriminative local binary patterns for

human detection in personal album. In 2008 IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 1–8. IEEE.

Kim, K., Chalidabhongse, T. H., Harwood, D., and Davis,

L. (2005). Real-time foreground–background seg-

mentation using codebook model. Real-Time Imaging,

11(3):172–185.

Lee, K., Choi, M., Hong, Q., and Lee, J. (2007). Group be-

havior from video: a data-driven approach to crowd

simulation. In Proceedings of the 2007 ACM . . . ,

pages 109–118, San Diego, California.

Lengvenis, P., Simutis, R., Vaitkus, V., and Maskeliunas, R.

(2013). Application Of Computer Vision Systems For

Passenger Counting In Public Transport. Electronics

and Electrical Engineering, 19(3):69–72.

Lerner, A. (2007). Crowds by example. Computer Graphics

Forum, 26(3):655–664.

Li, M., Zhang, Z., Huang, K., and Tan, T. (2009). Rapid

and robust human detection and tracking based on

omega-shape features. In 2009 16th IEEE Interna-

tional Conference on Image Processing (ICIP), pages

2545–2548. IEEE.

Li, T.-Y., wen Lin, J., Liu, Y.-L., and ming Hsu, C. (2002).

Interactively Directing Virtual Crowds in a Virtual En-

vironment. Conf Artif Real Telexistence, 10.

Millan, E., Hernandez, B., and Rudomin, I. (2006). Large

Crowds of Autonomous Animated Characters Using

Fragment Shaders and Level of Detail. In Wolf-

gang Engel, editor, ShaderX5: Advanced Rendering

Techniques, chapter Beyond Pix, pages 501—-510.

Charles River Media.

Moussa

ıd, M., Perozo, N., Garnier, S., Helbing, D., and

Theraulaz, G. (2010). The walking behaviour of

pedestrian social groups and its impact on crowd dy-

namics. PloS one, 5(4):e10047.

Mukherjee, S. and Das, K. (2013). Omega Model

for Human Detection and Counting for applica-

tion in Smart Surveillance System. arXiv preprint

arXiv:1303.0633, 4(2):167–172.

Musse, S. R., Jung, C. R., Jacques, J. C. S., and Braun, A.

(2007). Using computer vision to simulate the motion

of virtual agents. Computer Animation and Virtual

Worlds, 18(2):83–93.

Ojala, T. (2002). Multiresolution gray-scale and rotation

invariant texture classiﬁcation with local binary pat-

terns. Pattern Analysis and Machine Intelligence,

24(7):971–987.

Ond

rej, J., Pettr

e, J., Olivier, A.-H., and Donikian, S.

(2010). A synthetic-vision based steering approach

for crowd simulation. ACM Transactions on Graph-

ics, 29(4):1.

Ozturk, O., Yamasaki, T., and Aizawa, K. (2009). Track-

ing of humans and estimation of body/head orienta-

tion from top-view single camera for visual focus of

attention analysis. Computer Vision Workshops (ICCV

Workshops), pages 1020–1027.

Pelechano, N. and Stocker, C. (2008). Being a part of

the crowd: towards validating VR crowds using pres-

ence. Proceedings of the 7th international joint con-

ference on Autonomous agents and multiagent sys-

tems, (Aamas):12–16.

Ren, Z., Gai, W., Zhong, F., Pettr

e, J., and Peng, Q. (2013).

Inserting virtual pedestrians into pedestrian groups

video with behavior consistency. The Visual Com-

puter.

Reynolds, C. W. (1987). Flocks, herds and schools: A dis-

tributed behavioral model. ACM SIGGRAPH Com-

puter Graphics, 21(4):25–34.

Rivalcoba, I. J. and Rudomin, I. (2013). Segmentaci

on de

peatones a partir de vistas a

ereas. In Research in Com-

puting Science, volume 62, pages 129–230.

Sun, L. and Qin, W. (2011). A Data-Driven Approach for

Simulating Pedestrian Collision Avoidance in Cross-

roads. 2011 Workshop on Digital Media and Digital

Content Management, pages 83–85.

Treuille, A., Cooper, S., and Popovi

c, Z. (2006). Continuum

crowds. ACM Transactions on Graphics, 25(3):1160.

Tuzel, O., Porikli, F., and Meer, P. (2007). Human De-

tection via Classiﬁcation on Riemannian Manifolds.

2007 IEEE Conference on Computer Vision and Pat-

tern Recognition, pages 1–8.

Van den Berg, J., Guy, S. J., Lin, M., and Manocha,

D. (2011). Reciprocal n-body collision avoidance.

Robotics Research, 70:3–19.

Van den Berg, J. and Manocha, D. (2008). Reciprocal Ve-

locity Obstacles for real-time multi-agent navigation.

In 2008 IEEE International Conference on Robotics

and Automation, pages 1928–1935. IEEE.

Viola, P. and Jones, M. (2001). Rapid object detection us-

ing a boosted cascade of simple features. Proceed-

ings of the 2001 IEEE Computer Society Conference

on Computer Vision and Pattern Recognition. CVPR

2001, 1:I–511–I–518.

Viola, P., Jones, M., and Snow, D. (2003). Detecting pedes-

trians using patterns of motion and appearance. Inter-

national Conference on Computer Vision, 63(2):153–

161.

Wang, X. and Sun, S. (2008). Data-Driven Macroscopic

Crowd Animation Synthesis Method using Velocity

Fields. 2008 International Symposium on Computa-

tional Intelligence and Design, pages 157–160.

Wang, Y., Dubey, R., Magnenat-Thalmann, N., and Thal-

mann, D. (2012). An immersive multi-agent system

for interactive applications. The Visual Computer,

29(5):323–332.

CouplingCamera-trackedHumanswithaSimulatedVirtualCrowd

321
