A Bare-Hand Gesture Interaction System for Virtual Environments

Benjam

ın Hern

andez

and Alejandro Flores

Computer Sciences Department, Barcelona Supercomputing Center, Barcelona, Spain

R&D Department, Espora Estudio, Mexico City, Mexico

Keywords:

Hand Gesture Recognition, Real Time, Hand Based Interaction, Virtual Environments, Depth Sensor.

Abstract:

Hand-based gestures provide direct mappings of user actions to 3D UI tasks; they are becoming a more

attractive interaction alternative than keyboards, mice, controllers, among others. In this paper, we present

a fast algorithm for hand gesture recognition for interaction in virtual environments. The method applies

mathematical morphology operators (binarization and dilation) to acquire a clean segmented hand image from

a depth data stream on which a curvature-metric and K-means algorithm is applied to detect the ﬁngertips,

then using ﬁngertip and palm positions together with anthropomorphic metrics and a rule based system we

perform gesture recognition. In addition, the intermittence gesture spotting problem is reduced using a digital

integrator. Finally, a set of virtual environments were designed to demonstrate the performance, reliability and

feasibility of our method.

1 INTRODUCTION

As Sturman and Zeltzer stated, our primary physical

connection to the world is through our hands (Stur-

man and Zeltzer, 1994). Hand gestures enhance or

even substitute oral communication between people.

Using our hands as an input device provides a more

direct mapping of our actions to interaction tasks;

therefore, we can apply all our intellect to those tasks.

In this sense, commodity depth cameras have enabled

simpler ways of interaction known as natural user in-

terface (NUI). This interface is primarily based on

tracking and recognition of body motions and ges-

tures; however, hand based interaction remains an

open problem.

Hand based interaction has three main challenges:

hand detection, hand tracking and gesture recogni-

tion. Hand detection and tracking, intimately related,

consists in capturing the hand features (i.e. the palm,

ﬁngers and/or ﬁngertips) and position over time while

hand gesture recognition generates semantical infor-

mation from tracking. Seminal works based on the

use of glove technology (DeFanti and Sandin, 1977;

Zimmerman et al., 1987) offered a solution to the

hand tracking problem. However, wearing a glove

may be intrusive, in particular when users need to ma-

nipulate tools.

Vision based techniques using video cameras are

an unobtrusive alternative to glove technology; they

focus mainly on hand detection and tracking using so-

phisticated algorithms to overcome the limited optical

features of these devices. Commodity depth cameras

provide distance range information that can be used

to design computationally inexpensive algorithms.

Lightweight and robust algorithms for hand based

interaction are crucial for virtual environments. Com-

puter generated environments make intensive use of

complex algorithms for collision detection, lighting,

particle systems simulation, visualization, among oth-

ers. Rendering should maintain a steady refresh rate

of 33 ms while interaction response should take 0.1s

for the user to feel that the system is reacting instan-

taneously.

Contribution. Enabling computers to understand

the user’s actions is the main problem that hand de-

tection, tracking and gesture recognition address. In

addition, virtual environments require efﬁcient ap-

proaches to this problem. Our contribution is a low-

latency and robust algorithm for bare-hand gesture

recognition and real time interaction in virtual envi-

ronments. The proposed algorithm makes use of a

depth camera (Microsoft Kinect) to generate semantic

information about the user hand gestures through ﬁve

stages: binarization, dilation, ﬁngertip detection, ges-

ture recognition and ﬁltering. We will show that our

algorithm performs faster (7.62 ms per frame) and it

is robust enough (86 % avg. gesture recognition rate)

when compared with current approaches using depth

464

Hernández B. and Flores A..

A Bare-Hand Gesture Interaction System for Virtual Environments.

DOI: 10.5220/0004695204640471

In Proceedings of the 9th International Conference on Computer Graphics Theory and Applications (GRAPP-2014), pages 464-471

ISBN: 978-989-758-002-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

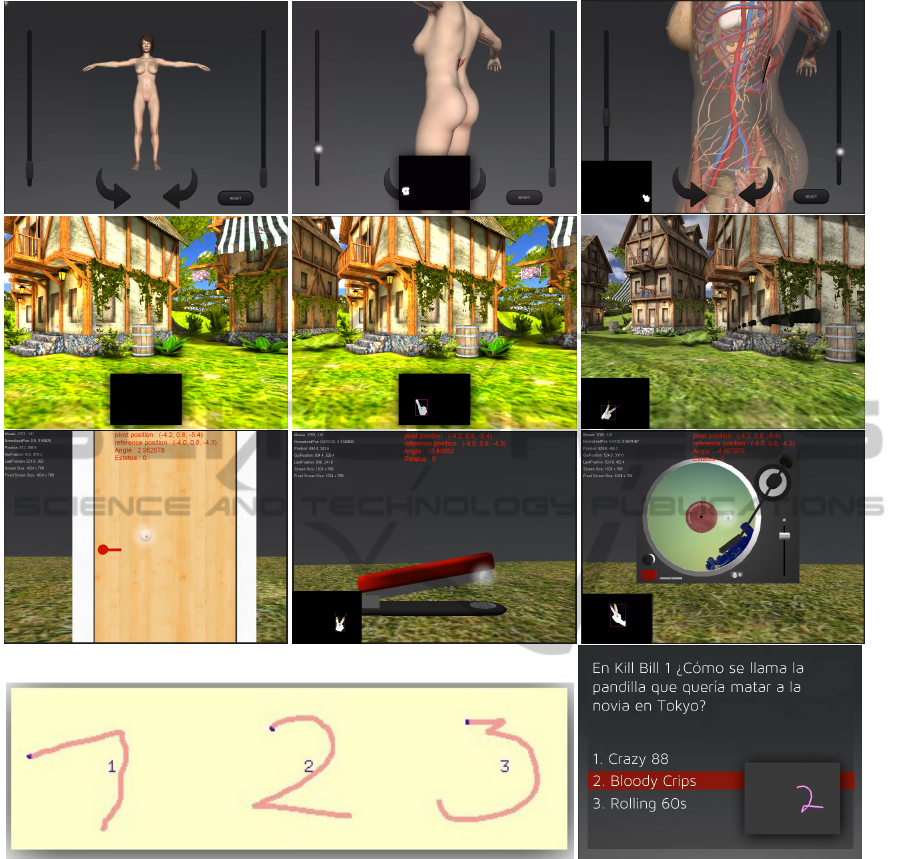

cameras. In addition, a set of virtual environments

were designed as a testbed for our approach.

2 RELATED WORK

Different hand tracking and gesture recognition sur-

veys (Sturman and Zeltzer, 1994; Garg et al., 2009;

Zabulis et al., 2009) have classiﬁed hand tracking and

recognition technologies based on particular features.

(Sturman and Zeltzer, 1994) classiﬁed hand track-

ing technology in two main groups: position tracking

(categorized in marker systems, silhouette analysis,

optical, magnetic and acoustic tracking systems) and

glove based input. (Garg et al., 2009) made emphasis

on “data-glove” and vision based approaches while

(Zabulis et al., 2009) presented an exhaustive review

of vision based techniques using ordinary video cam-

eras.

Seminal works on hand detection and tracking

based on depth information made use of two cameras

to recover a 27 degrees of freedom (DOF) of the hand

(Rehg and Kanade, 1993) or used multiple cameras

effectively in the context of 3D scene creation (Ut-

sumi, 1997). A recent work (Wang et al., 2011) pro-

posed a bimanual hand tracking system that provides

a 6-DOF control for 3D assembly. Multiple camera

systems require stereo matching, which imposes per-

formance constraints. However by the introduction of

depth cameras this process is simpliﬁed. In addition,

it conveys two advantages: ﬁrst, 3D data acquisition

is in large part insensitive to illumination changes as

long as the environment does not contain light com-

ponents that interferes with the 3D sensor’s active il-

lumination (e.g. the infrared sunlight’s component);

second, segmentation is done with ease using the cap-

tured distance range information.

The ZCam, a time-of-ﬂight camera designed by

3DV Systems (Iddan and Yahav, 2001) and one of the

ﬁrst depth-image capture device, was used in (Liu and

Fujimura, 2004) for hand gesture recognition. They

deﬁned a gesture space based on hand shape, loca-

tion and motion information. Hand shape analysis

was done using a dataset of hand patterns images; to

match a hand shape they used the chamfer distance

between the input image and this dataset. They also

performed hand trajectory analysis using the mini-

mum square error between the user’s performed tra-

jectory and templates in a curve dataset. An usabil-

ity problem with this technique arises when new ges-

tures are needed, a special recording session is re-

quired to capture their corresponding pattern images;

in this sense we opted for a speciﬁcation of simple

rules, based on the detected ﬁngers’ direction, ﬁnger-

tips and palm positions. Another potential problem

can arise when dataset increases its size since more

matching tests between the input gestures and stored

hand patterns images need to be performed resulting

in performance degradation, an important feature that

must be preserved in real-time virtual environment in-

teraction.

On the other hand, methods that use Kinect such

as (Iason Oikonomidis and Argyros, 2011; Oikono-

midis et al., 2011; Raheja et al., 2011; Frati and Prat-

tichizzo, 2011) are mainly focused on hand tracking.

In (Iason Oikonomidis and Argyros, 2011; Oikono-

midis et al., 2011) a 26-DOF hand tracking sys-

tem was described using particle swarm optimization

(PSO) to minimize the discrepancy between the ap-

pearance and 3D structure of hypothesized instances

of a hand model and actual hand observations. De-

spite the fact that these approaches are implemented

in a last generation GPU, they can unlikely be used

for real-time interaction in virtual environments since

performance is about 66ms (Iason Oikonomidis and

Argyros, 2011) and 50ms (Oikonomidis et al., 2011).

In (Raheja et al., 2011) a method for palm and ﬁn-

ger tracking was presented that extensively uses an

already existent OpenNI module based on Bayesian

Object Localization. In (Frati and Prattichizzo, 2011)

was proposed the use of a haptic device, a Kinect sen-

sor and a heuristic hand tracker to simulate force feed-

back: according to the authors haptic devices worn by

the user does not affect tracking; however, wearing a

device to make tracking more robust can be avoided.

(Liang et al., 2012) proposed a method for ﬁngertip

and palm tracking emphasising cases where correct

ﬁngers’ position detection can be problematic such as

side-by-side ﬁngers, bending ﬁngers or nearby ﬁnger-

tips. They implemented a restricted geodesic shortest

path metric and a particle ﬁlter to track the ﬁngertips

correctly while palm tracking was performed with a

Kalman ﬁlter.

Kinect has also been used for hand gesture recog-

nition. For example, in (Ren et al., 2011) is presented

a method for correct ﬁnger detection in cases where

ﬁngers are too close to each other. Ren et al. used a

modiﬁed version of the Earth Mover’s Distance (Rub-

ner et al., 2000), called Finger-Earth Mover’s Dis-

tance, to penalize unmatched ﬁngers in order to im-

prove gesture detection. In (Suau et al., 2011) a set-

up which uses Kinect and SR4000 time-of-ﬂight cam-

era is presented. In this work, the position of the

user’s head is estimated with a depth-based template

matching and an adaptive search zone. Then, hands

are detected in a bounding box attached to a head’s

estimated position so that the user may move freely

in the scene. This method can perform basic gesture

ABare-HandGestureInteractionSystemforVirtualEnvironments

465

recognition based on the overall shape of the hands.

More complex gestures based on ﬁngers are not feasi-

ble since they down sample the captured depth image

to achieve real-time performance.

Hand gesture interaction in virtual environments

requires constant evaluation of the motion and ges-

tures performed by the user, graphics and other multi

modal elements must be synchronized. Simulating

and visualizing large environments efﬁciently also re-

quire a signiﬁcant use of assets that should be mini-

mized. Our method is designed to meet these require-

ments; we will show that its balance between perfor-

mance and accuracy makes it suitable for real-time

interaction. In addition, our method does not require

extra training sessions or additional training datasets,

maintaining memory requirements low.

3 METHOD

The input to our method is a video stream contain-

ing depth information of the user interacting with our

system. We begin by detecting the user’s raised hand

by using mathematical morphology operations (Sec.

3.1). Once the hand has been segmented, and all re-

maining depth information has been discarded, we de-

tect the visible ﬁngertips based on curvature measures

and k-mean clustering (Sec. 3.2). Gesture detection

uses ﬁngertip information, and other anthropomor-

phic metrics to recognize different gestures. Once

a given gesture has been recognized, the algorithm

records the general trajectory of such gesture to get

additional semantic information (Sec. 3.3). Finally,

we apply a digital integrator (Sec. 3.4) to reduce the

intermittent gesture spotting problem occurring due

to the dynamically variation in shape and for a single

gesture.

3.1 Binarization and Dilation

Common camera systems usually perform hand de-

tection based on color, shape, pixel appearance or tex-

ture segmentation (Zabulis et al., 2009). Problems in

color segmentation are produced by background ob-

jects and changing lighting conditions. Pixel appear-

ance or texture segmentation make use of sophisti-

cated machine learning techniques requiring a con-

siderable amount of training data, learning time and

computational power. In contrast, the use of a 3D

sensor simpliﬁes hand detection to an image segmen-

tation problem based on depth. We solve this problem

by applying mathematical morphology operators such

as binarization and dilation on the captured depth im-

age, in addition, these operations are implemented in

Figure 1: Binarization and dilation. Left: captured depth

image. Right: binarized image.

GPU resulting in a low latency hand detection stage.

Binarization consists in deﬁning a threshold value

and comparing every depth image’s pixel with this

threshold. If a given pixel value is below such thresh-

old, the pixel is set to a minimal value; otherwise it is

set to a maximum value. Binarization was performed

on a 640 × 480 depth data stream, with minimal, max-

imum and threshold values initialized to 0, 255 and 18

pixels respectively. Figure 1 shows a captured depth

image (left) and the resulting image after applying the

binarization operator (right).

After binarization recurrent artifacts appeared in

hand contour due the limited Kinect resolution (ﬁg.

2b), which are a signiﬁcant noise source in subsequent

stages. These artifacts are reduced by dilation opera-

tion: let I be a binary image and K a structuring ele-

ment or kernel. The dilation of I and K is deﬁned in

equation 1.

K =

[

k∈K

(1)

This operation can be understood as the locus of

the points covered by K when the center of K moves

inside I, in other words, it is similar to the “convolu-

tion” of K in I but it changes or not the current pixel’s

value according to its neighbor pixels’ value (ﬁg. 2a);

dilation can also be applied several times to improve

results. Figure 2c shows the ﬁnal hand detection’s re-

sult after binarization and dilation operations.

(a) Dilation operation example.

(b) (c)

Figure 2: (b) High level curvature artifacts after binarization

stage. (c) Resultant image after dilation stage.

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

466

3.2 Fingertip Detection

Fingertip detection is performed in two steps: ﬁrst, we

generate a reduced list of candidate points gathered

from the ﬁnger zones; second, ﬁngertip detection is

performed by applying k-means clustering on this list.

The list of candidate points, or candidate ﬁngertips,

is calculated by searching high curvature zones given

the curvature measure (Argyros and Lourakis, 2006)

shown in equation 2a.

C(P

) =

j−k

j+k



j−k



j+k



(2a)

α = arccos(C(P

)) (2b)

Where P

j−k

, P

and P

j+k

are a set of successive

points on the hand contour and C(P

) is the curvature

measure of P

We reduce the list of candidate points to guarantee

k-means clustering computes only meaningful points.

After calculating a curvature measure, C(P

), equa-

tion 2b is evaluated. If α is less than 60 degrees, C(P

)

is added to the list, otherwise is discarded. After the

list is completed (ﬁg. 3a), k-means clustering is per-

formed to obtain the correct ﬁngertip (ﬁg. 3b).

(a) (b)

Figure 3: (a) Equations 2a and 2b are used to obtain a re-

duced list of points at the ﬁnger zones. (b) Calculating K-

means clustering results in correct ﬁngertip detection.

Finally, ﬁnger labeling is performed by calculat-

ing the distance from the palm’s center (obtained from

the hand’s bounding box) to each ﬁngertip. Based on

anthropomorphic metrics (Greiner, 1991), in particu-

lar on the relation of these distances, we identify each

ﬁngertip, i.e. the middle ﬁnger will usually be the

longest ﬁnger, the remaining longest one is the index

and so on (ﬁg. 4).

3.3 Gesture Detection

Our system recognizes hand gestures and hand’s tra-

jectory gestures. Hand gestures are detected using

a state based system; a state, denoting a gesture, is

reached when speciﬁc interval values are tracked. Let

Figure 4: Fingertip labeling (color coded) in different situ-

ations.

S be a reached state, a

a pair of values denoting

minimum and maximum hand’s area in pixels, n

the

number of ﬁngertips found and d

the directions from

the palm to each ﬁngertip, then a state is deﬁned by

S =< a

Figure 5 shows a set of hand gestures we deﬁned

for test purposes. Hand closed gesture is deﬁned

by S =< [7240,7281],0,0 >, hand open gesture by

S =< maxArea,5, any >, pointing is detected when

S =< any,1,upwards > and V-sign gesture is deﬁned

by S =< any,2,upwards >.

Each state is evaluated as follows: ﬁrst, the al-

gorithm veriﬁes if ﬁngertips were detected, if not, it

assumes the hand is closed then hand closed gesture

detection starts based on its deﬁned state. Second,

if any ﬁngertip has been detected, the algorithm be-

gins the evaluation depending on the number of ﬁn-

gertips found, e.g. the V-sign gesture detection begins

when two ﬁngertips are found then if these two ﬁn-

gertips were previously labeled as index and middle

(sec. 3.2) and both are pointing upwards the V-Sign

has been detected.

Figure 5: Test set of hand gestures.

To detect the hand’s trajectory gestures, we pre-

fer simplicity and performance over sophistication.

Some approaches (Liu and Fujimura, 2004; Plamon-

don and Srihari, 2000) make extensive use of machine

learning techniques such as Hidden Markov Models,

neural networks or featured based statistical classi-

ﬁers to obtain semantical information related to a per-

formed motion. These techniques usually requires

training sessions and data that can be avoided using a

simpler approach proposed by Wobbrock et al. based

on a modiﬁed version of adjustment by least squares,

called $1 Recognizer (Wobbrock et al., 2007).

ABare-HandGestureInteractionSystemforVirtualEnvironments

467

3.4 Filtering

A typical problem in gesture recognition systems is

intermittent gesture spotting, which is the result of

the dynamic variation in shape and duration of a same

gesture. We face this issue as a digital signal pro-

cessing problem by generating and ﬁltering a binary

signal over time. The signal is generated as follows:

when a gesture is detected the signal’s value is set to

one otherwise is set to zero (ﬁgure 6a). Intermittent

gesture spotting expresses itself as high frequency

variations in the signal. These variations are reduced

using a digital integrator or a low-pass digital ﬁlter. A

digital integrator can be implemented using different

approaches such as ﬁnite-impulse-response (FIR) or

inﬁnite-impulse-response (IIR). In our case, we use a

FIR integrator because feedback is not present, thus

errors are discarded in subsequent iterations making

them stable. Equation 3 models the FIR integrator

implemented in our system.

(a) Original signal.

(b) Filtered signal.

Figure 6: “Peace” gesture spotting signal.

[n] = b

x[n] + b

x[n − 1] + ... + b

x[n − N] (3)

Where x[n] is the input signal, x

[n] is the ﬁltered sig-

nal, b

are the ﬁlter coefﬁcients or tap weights and N is

the ﬁlter order. Figure 6b, shows the results of apply-

ing this ﬁlter to the “Peace” gesture spotting signal in

a sequence of 127 samples. Notice the signal starts to

decay slowly which reduces considerably the gesture

spotting intermittence. As a result a more robust and

stable gesture recognition method is obtained. Fur-

ther results with N set to 24, 42 and 100 are shown in

table 1 and explained in section 4.

4 EXPERIMENTAL RESULTS

Our recognizer was partially implemented in CUDA

(Sec. 3.1) and C++ (Sec. 3.2, 3.3, 3.4) using OpenNI

to capture Kinect’s depth data stream and Open Sound

Control protocol to send gesture detection state mes-

sages from the gesture detection program to the vir-

tual environment applications, designed in Unity En-

gine. The virtual environment applications where de-

signed to test common 3D UI tasks such as naviga-

tion, selection and manipulation (ﬁg. 7).

1. Virtual woman dissection. The objective of this

application was to test the manipulation of a 3D

model through a 2D GUI. Navigation and selec-

tion of sliders are performed with the open hand

gesture and closed hand gesture respectively. Ma-

nipulation (rotation, scaling and translation) is

performed according to the selected slider by ver-

tically moving the closed hand gesture. An addi-

tional GUI control changes the rendering mode to

visualize different body systems (ﬁg. 7 row 1).

2. Medieval Town. In this application, the user can

navigate in a 3D environment. The user has to

perform the close hand gesture to move the cam-

era forwards. In addition, the user can see the

surroundings using the pointing gesture once and

moving left or right the pointing ﬁnger. The user

can also throw knives by performing the V-Sign

gesture (ﬁg. 7 row 2).

3. Metaphors. In this environment, the user can in-

teract with objects through similar gestures used

in real life. First, the user has to open a door by

moving his hand with the open gesture over the

handle, after opening the door, the camera moves

in front of a staple, the user touches the staple

with his hand closed to staple. Finally, the camera

moves in front of a turntable, the user has to open

his hand over for scratching (ﬁg. 7 row 3).

4. Trivia game. This application was designed to

test hand trajectory gestures. The users have to

answer a trivia by tracing in the air the numbers

1, 2 and 3 (ﬁg. 7 row 4 left) to answer a question

(ﬁg. 7 row 4 right).

We designed two experiments to verify the per-

formance, reliability and feasibility of our solution.

Performance refers how fast is our algorithm, relia-

bility to the level of success in gesture detection, and

feasibility to how well hand gestures adapt to 3D UI

tasks.

The ﬁrst experiment consisted in measuring the

performance and reliability of our recognizer. CUDA

and C++ offer methods (cudaEventCreate(), cu-

daEventRecord(), cudaEventSynchronize() and cu-

daEventElapsedTime() were used in CUDA and

clock() was used in C++) to measure the execution

time of each stage of our algorithm. In a desktop com-

puter with a i7-2600K CPU @ 3.40 GHz, GeForce

GTX 550 TI GPU and 8 GB RAM, binarization and

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

468

Table 2: Comparison of our Algorithm and other Kinect based methods. Most of the technique use a similar hardware

conﬁguration as ours.

Method Tracking Gesture

Recog.

Performance

(ms)

Accuracy Application

(Iason Oikonomidis

and Argyros, 2011)

Yes No 66.6 74% the estimated pose

deviated 4cm or less

Not tested

(Oikonomidis et al.,

2011)

Yes No 50 60 (using one camera) 3.02

(using 8 cameras) Lower is

better

Grasping real objects

(Frati and Prattichizzo,

2011)

Yes No 350 to 30 after

70 iterations

Not reported Haptic feedback grasping

of a virtual cube.

(Raheja et al., 2011) Yes No Not reported near 100 % (ﬁngers) near

90 % (palm)

Not tested.

(Liang et al., 2012) Yes No Not reported Different values for each

ﬁnger e.g. 2.51 / 1.34

thumb (Lower is better)

Grasping of a virtual

sphere

(Ren et al., 2011) No Yes 500 / 4000 90.6 % / 93.9% (Higher is

better)

2D UI for Arithmetics;

Rock-paper-scissors game.

(Suau et al., 2011) Yes Yes 14.7 * 2D Navigation

Our approach Yes Yes 7.62 Table1 Interaction in VR.

Table 1: Reliability results.

Gesture # of frames # Positive

detection

Accuracy (%)

N = 24 avg = 80.74 %

Pointing 267 155 58.05

V-Sign 655 609 92.98

Open 235 201 85.53

Closed 500 432 86.40

N = 42 avg = 88.07 %

Pointing 407 374 91.89

V-Sign 219 179 81.74

Open 262 227 86.64

Closed 538 495 92.01

N = 100 avg = 89.86 %

Pointing 613 492 80.26

V-Sign 530 475 89.62

Open 594 539 90.74

Closed 587 580 98.81

dilation took 3.8 ms per frame, ﬁngertip detection,

gesture recognition and ﬁltering 3.87 ms per frame

and Kinect’s capture took 22 ms. Regarding reliabil-

ity, we designed a test session that consisted in per-

forming all the gestures shown ﬁgure 5. Each ges-

ture was held for a given number of frames while

hand movement was allowed. Table 1 shows a set

of results given different ﬁlter orders of 24, 42 and

100. The second and third column shows the num-

ber of frames the gesture was held, and the num-

ber of frames it was positive detected respectively;

the fourth column shows detection accuracy given by

(#detected/# f rames) × 100. Notice that for a higher

order ﬁlter, detection accuracy is better, as expected.

The second experiment was designed to test the

feasibility of our solution by performing navigation,

selection and manipulation tasks as described previ-

ously. In this test we perform empirical observa-

tions to verify how well the user interacts with the

system. We suggest reviewers watch the companion

video which includes a recorded session of this test.

As can be seen from the recording, the speed and ac-

curacy of our solution allows real-time interaction in

the virtual environments and the user was able to com-

plete successfully each of the proposed tasks.

5 CONCLUSIONS AND FUTURE

WORK

On this article, we have described a fast and con-

ceptually simple bare-hand gesture recognition al-

gorithm for real-time interaction in virtual environ-

ments. The morphology operations implemented in

the GPU and the performed optimizations in ﬁngertip

detection stage, consisting in reducing the list of cur-

vature points using equation 2b, result in a low latency

hand features detection and tracking stages. The com-

bination of a curvature measure, k-means clustering

and the $1 Recognizer with a simple digital integra-

tor give a fast and robust enough recognition system.

According to Jakob Nielsen, 0.1s is about the limit for

having the user feel that the system is reacting instan-

taneously

; our algorithm response time is lower than

such limit.

Table 2 summarizes a comparison of our algo-

rithm and other Kinect based methods using simi-

lar hardware conﬁgurations. Our algorithm’s perfor-

mance is better than current implementations. In ad-

http://www.nngroup.com/articles/response-times-3-

important-limits/

ABare-HandGestureInteractionSystemforVirtualEnvironments

469

Figure 7: First row: Virtual woman dissection. Second row: Medieval town. Third row: Real life tasks, scratching. Fourth

row: Trivia game.

dition, it meets virtual environment requirements, re-

sulting in the seamless rendering of virtual environ-

ments.

The technique that is closer in performance than

ours, on a similar hardware conﬁguration, is (Suau

et al., 2011). However, they downsampled the depth

stream data to a resolution of 160x120, which allowed

them to recognize only closed and open hand ges-

tures. They also reported a performance of 111 ms

for a resolution of 640x480. In (Iason Oikonomidis

and Argyros, 2011; Oikonomidis et al., 2011) a ro-

bust method for ﬁnger tracking is presented, but it

does not support gesture recognition. Accurate track-

ing is achieved using eight cameras turning their so-

lution impractical and expensive. The (Raheja et al.,

2011) method is only focused in hand and ﬁnger de-

tection and tracking and does not offer speciﬁc details

regarding performance, testing or applications. Liang

et al. (Liang et al., 2012) work is also focused in

tracking and their experimental results suggest that its

performance is enough for basic virtual environments

applications.

On the other hand, the accuracy of our algorithm

(86 %) allowed the test subject to successfully com-

plete the tasks as the recorded session demonstrate.

The integration of our recognizer into the virtual en-

vironments, demonstrated the ﬂexibility of our ap-

proach in different interaction situations.

GRAPP2014-InternationalConferenceonComputerGraphicsTheoryandApplications

470

However, despite the fact that using 3D sensing

thoroughly simpliﬁes hand detection and tracking,

these devices present occlusion problems when ﬁn-

gertips are perpendicular to the sensor. Careful de-

signing of gestures may avoid or reduce this problem.

Range distance limits become also a problem when

hands are too far from the sensor, i.e. depth informa-

tion is lost.

Future development and testing is described next:

First, Two hands interaction support. The planned

approach is to divide the camera feed into two areas,

one for each hand, then perform recognition on these

areas. Second, the current implementation uses only

the GPU for hand detection and segmentation, per-

formance may improve if all stages are executed on

the GPU. Also the implementation of a basic script-

ing tool to deﬁne new gestures will help in order to

avoid the modiﬁcation of the system internals. Fi-

nally, The described gestures in section 3.3 were de-

ﬁned for test purposes only, without having usability

in mind. However, more gestures have to be speci-

ﬁed, and formal evaluation needs to be performed in

a group of users in order to know what kind of ges-

tures are usable and suitable for interaction in virtual

environments.

REFERENCES

Argyros, A. A. and Lourakis, M. I. A. (2006). Vision-based

interpretation of hand gestures for remote control of

a computer mouse. In Proceedings of the 2006 inter-

national conference on Computer Vision in Human-

Computer Interaction. Springer-Verlag.

DeFanti, T. and Sandin, D. (1977). Final report to the na-

tional endowment of the arts. In US NEA r60-34-163.

Frati, V. and Prattichizzo, D. (2011). Using kinect for hand

tracking and rendering in wearable haptics. In World

Haptics Conference (WHC), 2011 IEEE. IEEE Com-

puter Society Press.

Garg, P., Aggarwal, N., and Sofat, S. (2009). Vision

based hand gesture recognition. In 2009 Fifth Interna-

tional Conference on Intelligent Information Hiding

and Multimedia Signal Processing. IEEE Computer

Society Press.

Greiner, T. (1991). Hand Anthropometry of U.S. Army Per-

sonnel. Technical report (U.S. Army Natic Labora-

tories. Development Engineering Center). U.S. Army

Natick Research, Development & Engineering Center.

Iason Oikonomidis, N. K. and Argyros, A. (2011). Efﬁcient

model-based 3d tracking of hand articulations using

kinect. In Proceedings of the British Machine Vision

Conference. BMVA Press.

Iddan, G. J. and Yahav, G. (2001). G.: 3d imaging in the

studio (and elsewhere). In: SPIE.

Liang, H., Yuan, J., and Thalmann, D. (2012). 3d ﬁngertip

and palm tracking in depth image sequences. In Pro-

ceedings of the 20th ACM international conference on

Multimedia. ACM.

Liu, X. and Fujimura, K. (2004). Hand gesture recognition

using depth data. In Proceedings of the Sixth IEEE in-

ternational conference on Automatic face and gesture

recognition. IEEE Computer Society Press.

Oikonomidis, I., Kyriazis, N., and Argyros, A. A. (2011).

Full dof tracking of a hand interacting with an object

by modeling occlusions and physical constraints. In

Proceedings of the 2011 International Conference on

Computer Vision. IEEE Computer Society Press.

Plamondon, R. and Srihari, S. N. (2000). On-line and off-

line handwriting recognition: A comprehensive sur-

vey. In IEEE Transactions on Pattern Analysis and

Machine Intelligence. IEEE Computer Society Press.

Raheja, J., Chaudhary, A., and Singal, K. (2011). Track-

ing of ﬁngertips and centers of palm using kinect. In

Computational Intelligence, Modelling and Simula-

tion (CIMSiM), 2011 Third International Conference

on.

Rehg, J. M. and Kanade, T. (1993). Digiteyes: Vision-based

human hand tracking. Technical report, School of

Computer Science, Carnegie Mellon University, 1993.

Ren, Z., Yuan, J., and Zhang, Z. (2011). Robust hand

gesture recognition based on ﬁnger-earth mover’s dis-

tance with a commodity depth camera. In Proceedings

of the 19th ACM international conference on Multime-

dia. ACM.

Rubner, Y., Tomasi, C., and Guibas, L. J. (2000). The earth

movers distance as a metric for image retrieval. In

International Journal of Computer Vision. Srpinger.

Sturman, D. J. and Zeltzer, D. (1994). A survey of glove-

based input. In IEEE Comput. Graph. Appl. IEEE

Computer Society Press.

Suau, X., Casas, J. R., and Ruiz-Hidalgo, J. (2011). Real-

time head and hand tracking. In Multimedia and

Expo (ICME), 2011 IEEE International Conference

on. IEEE Computer Society Press.

Utsumi, A. (1997). Direct manipulation scene creation in

3d: estimating hand postures from multiple-camera

images. In Proceedings of ACM SIGGRAPH 97.

ACM.

Wang, R., Paris, S., and Popovi

c, J. (2011). 6d hands: mark-

erless hand-tracking for computer aided design. In

Proceedings of the 24th annual ACM symposium on

User interface software and technology. ACM.

Wobbrock, J. O., Wilson, A. D., and Li, Y. (2007). Gestures

without libraries, toolkits or training: a $1 recognizer

for user interface prototypes. In Proceedings of the

20th annual ACM symposium on User interface soft-

ware and technology. ACM.

Zabulis, X., Baltzakis, H., and Argyros, A. A. (2009).

Vision-based hand gesture recognition for human

computer interaction. In The Universal Access Hand-

book. Lawrence Erlbaum Associates, Inc. (LEA), Se-

ries on ”Human Factors and Ergonomics”.

Zimmerman, T. G., Lanier, J., Blanchard, C., Bryson, S.,

and Harvill, Y. (1987). A hand gesture interface de-

vice. In Proceedings of the SIGCHI/GI. ACM.

ABare-HandGestureInteractionSystemforVirtualEnvironments

471
